Module 4: Office Construction - Practice project for Primavera P6 including: - WBS - Activity Codes

1. DEMO PROJECT

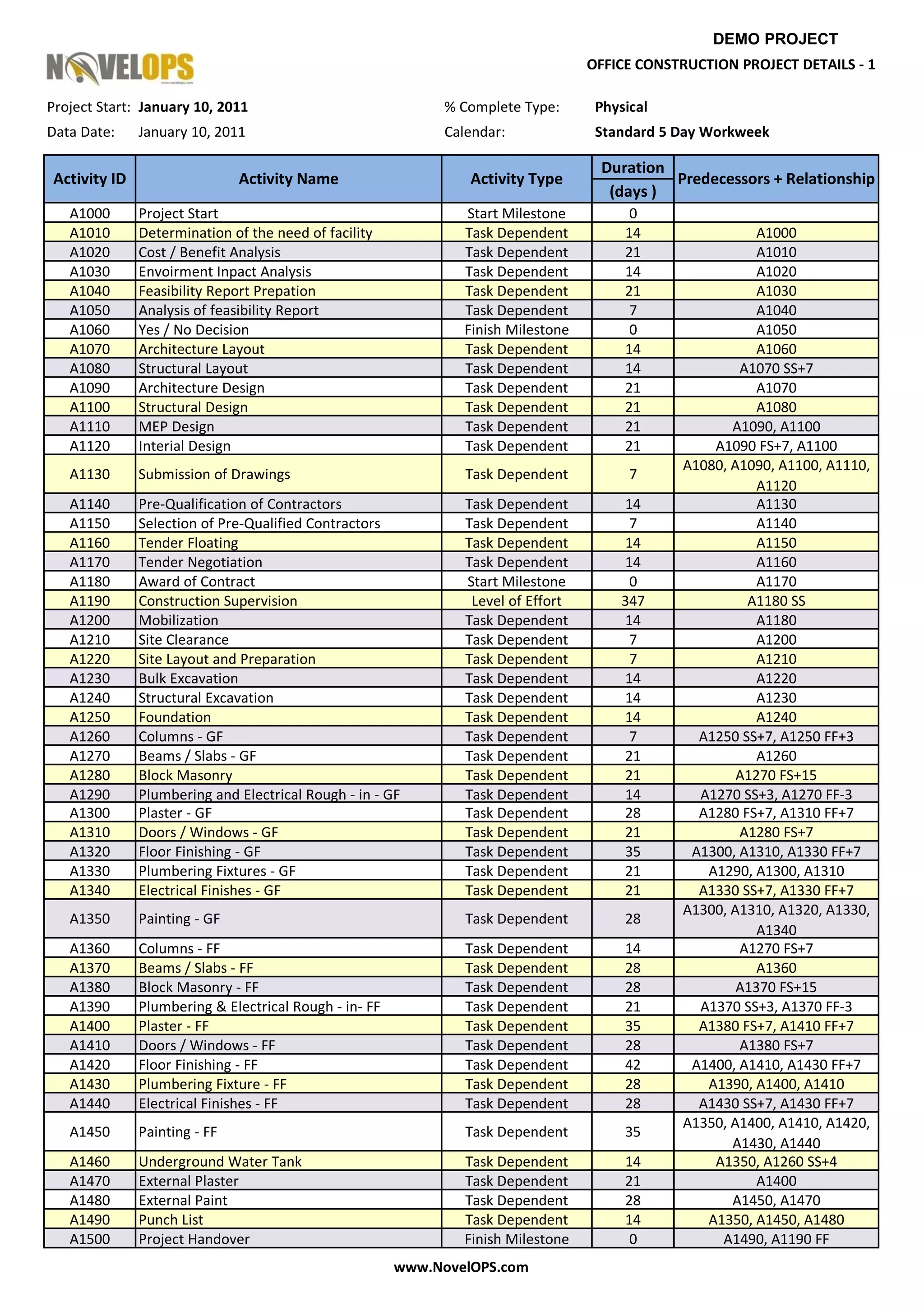

OFFICE CONSTRUCTION PROJECT DETAILS ‐ 1
Project Start: January 10, 2011 % Complete Type: Physical
Data Date: January 10, 2011 Calendar: Standard 5 Day Workweek
Duration
Activity ID Activity Name Activity Type Predecessors + Relationship
(days )
A1000 Project Start Start Milestone 0
A1010 Determination of the need of facility Task Dependent 14 A1000
A1020 Cost / Benefit Analysis Task Dependent 21 A1010
A1030 Envoirment Inpact Analysis Task Dependent 14 A1020
A1040 Feasibility Report Prepation Task Dependent 21 A1030
A1050 Analysis of feasibility Report Task Dependent 7 A1040
A1060 Yes / No Decision Finish Milestone 0 A1050
A1070 Architecture Layout Task Dependent 14 A1060
A1080 Structural Layout Task Dependent 14 A1070 SS+7
A1090 Architecture Design Task Dependent 21 A1070
A1100 Structural Design Task Dependent 21 A1080
A1110 MEP Design Task Dependent 21 A1090, A1100
A1120 Interial Design Task Dependent 21 A1090 FS+7, A1100
A1080, A1090, A1100, A1110,
A1130 Submission of Drawings Task Dependent 7
A1120
A1140 Pre‐Qualification of Contractors Task Dependent 14 A1130
A1150 Selection of Pre‐Qualified Contractors Task Dependent 7 A1140
A1160 Tender Floating Task Dependent 14 A1150
A1170 Tender Negotiation Task Dependent 14 A1160
A1180 Award of Contract Start Milestone 0 A1170
A1190 Construction Supervision Level of Effort 347 A1180 SS
A1200 Mobilization Task Dependent 14 A1180
A1210 Site Clearance Task Dependent 7 A1200
A1220 Site Layout and Preparation Task Dependent 7 A1210
A1230 Bulk Excavation Task Dependent 14 A1220
A1240 Structural Excavation Task Dependent 14 A1230
A1250 Foundation Task Dependent 14 A1240
A1260 Columns ‐ GF Task Dependent 7 A1250 SS+7, A1250 FF+3
A1270 Beams / Slabs ‐ GF Task Dependent 21 A1260
A1280 Block Masonry Task Dependent 21 A1270 FS+15
A1290 Plumbering and Electrical Rough ‐ in ‐ GF Task Dependent 14 A1270 SS+3, A1270 FF‐3
A1300 Plaster ‐ GF Task Dependent 28 A1280 FS+7, A1310 FF+7
A1310 Doors / Windows ‐ GF Task Dependent 21 A1280 FS+7
A1320 Floor Finishing ‐ GF Task Dependent 35 A1300, A1310, A1330 FF+7
A1330 Plumbering Fixtures ‐ GF Task Dependent 21 A1290, A1300, A1310
A1340 Electrical Finishes ‐ GF Task Dependent 21 A1330 SS+7, A1330 FF+7
A1300, A1310, A1320, A1330,
A1350 Painting ‐ GF Task Dependent 28
A1340
A1360 Columns ‐ FF Task Dependent 14 A1270 FS+7
A1370 Beams / Slabs ‐ FF Task Dependent 28 A1360
A1380 Block Masonry ‐ FF Task Dependent 28 A1370 FS+15
A1390 Plumbering & Electrical Rough ‐ in‐ FF Task Dependent 21 A1370 SS+3, A1370 FF‐3
A1400 Plaster ‐ FF Task Dependent 35 A1380 FS+7, A1410 FF+7
A1410 Doors / Windows ‐ FF Task Dependent 28 A1380 FS+7
A1420 Floor Finishing ‐ FF Task Dependent 42 A1400, A1410, A1430 FF+7
A1430 Plumbering Fixture ‐ FF Task Dependent 28 A1390, A1400, A1410
A1440 Electrical Finishes ‐ FF Task Dependent 28 A1430 SS+7, A1430 FF+7
A1350, A1400, A1410, A1420,
A1450 Painting ‐ FF Task Dependent 35
A1430, A1440
A1460 Underground Water Tank Task Dependent 14 A1350, A1260 SS+4
A1470 External Plaster Task Dependent 21 A1400
A1480 External Paint Task Dependent 28 A1450, A1470
A1490 Punch List Task Dependent 14 A1350, A1450, A1480
A1500 Project Handover Finish Milestone 0 A1490, A1190 FF
www.NovelOPS.com

2. DEMO PROJECT

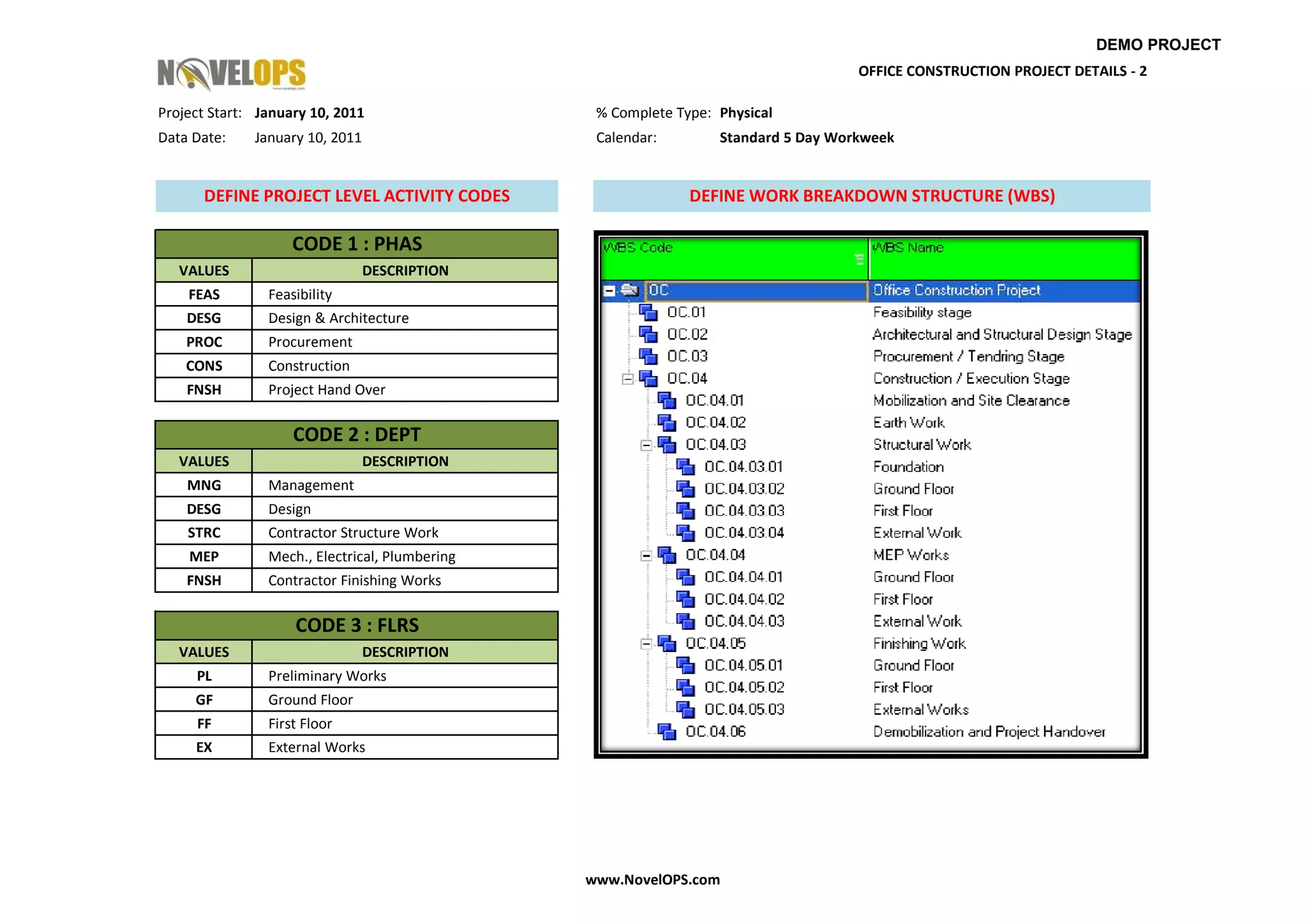

OFFICE CONSTRUCTION PROJECT DETAILS ‐ 2
Project Start: January 10, 2011 % Complete Type: Physical
Data Date: January 10, 2011 Calendar: Standard 5 Day Workweek
DEFINE PROJECT LEVEL ACTIVITY CODES DEFINE WORK BREAKDOWN STRUCTURE (WBS)
CODE 1 : PHAS
VALUES DESCRIPTION
FEAS Feasibility
DESG Design & Architecture
PROC Procurement
CONS Construction
FNSH Project Hand Over
CODE 2 : DEPT
VALUES DESCRIPTION
MNG Management
DESG Design
STRC Contractor Structure Work
MEP Mech., Electrical, Plumbering
FNSH Contractor Finishing Works
CODE 3 : FLRS
VALUES DESCRIPTION
PL Preliminary Works
GF Ground Floor
FF First Floor
EX External Works
www.NovelOPS.com

3. DEMO PROJECT

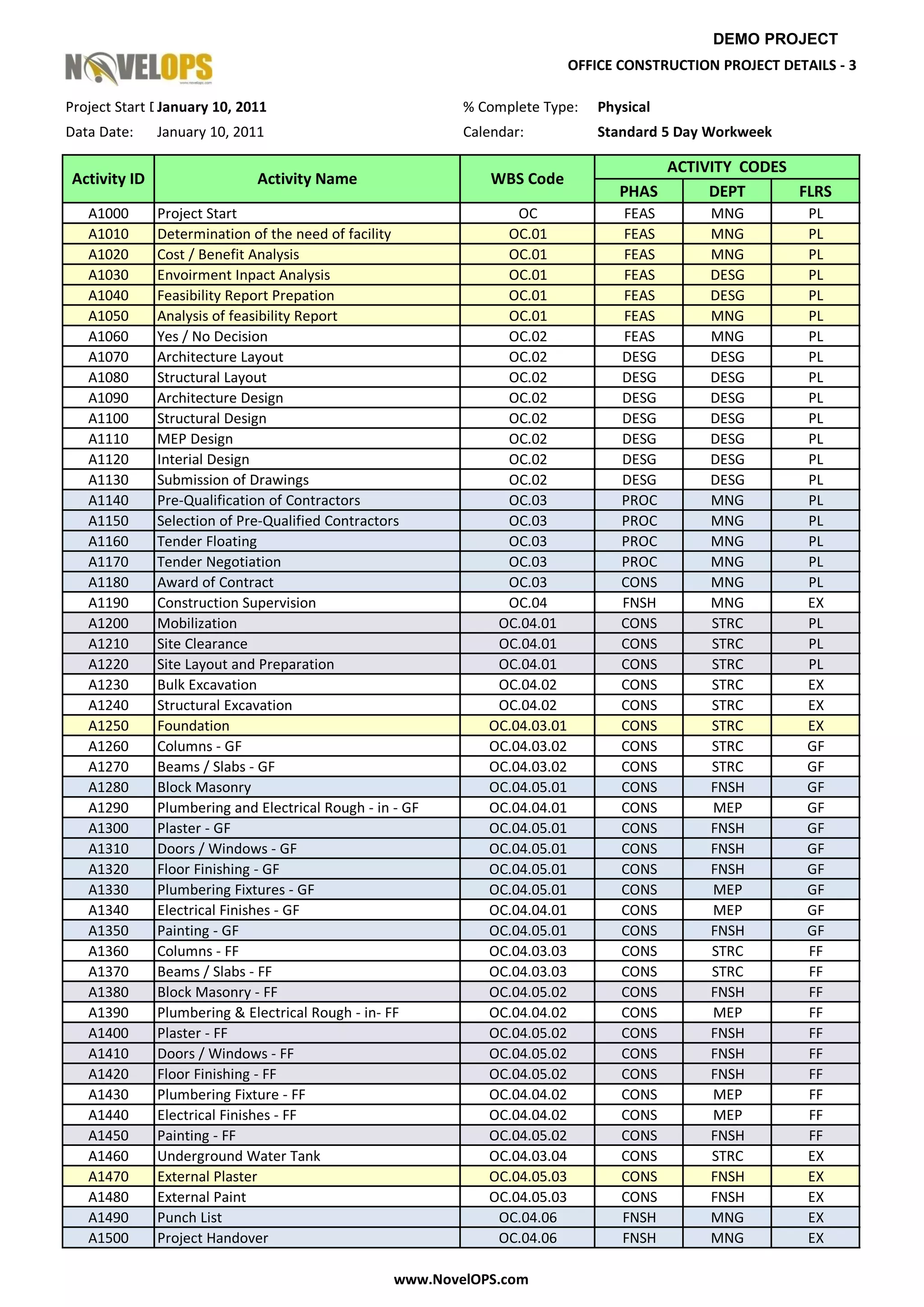

OFFICE CONSTRUCTION PROJECT DETAILS ‐ 3
