Join IIBA® Melbourne as they host an online event specifically on how to develop business capability maps.
About this event
Ever wondered how to develop business capability maps? or perhaps you need a refresher?
Join Mohammad Mirkarimi Senior Business Architect at Capsifi and David Grindlay Principal Business Architect at Capsifi as they guide us through this session.
Captivated by art, science and business - Mohammad is trying to bring these three together. Moh is a drummer, a physics and biology enthusiast, and a business architect and analyst. He has studied Engineering, Business Management and Finance in academia. Also, equipped with IIBA, TOGAF and The Business Architecture Guild bodies of knowledge. Moh has worked as team member, leader and visionary in Management Consulting, Banking, Wealth, Insurance, Government, Telecom and Education industries.
With over 15 years of experience implementing software, David started his career as a business analyst in South Africa primarily in the financial services – insurance industry. In 2014 he moved over to Australia where he really started to observe the notorious gap between business strategies and project roadmaps as well as the downstream implications. More recently in his career, he gained broader exposure to other industries (Retail, Financial Services, Government and Hospitality) helping to structurally decompose business strategies, define the business landscape and help project teams (Business and Technical) realise and align on their common purpose. Today, David considers himself a Business Architect, doing whatever it takes to help companies realise their vision.
This session will contain two parts:
The first part is about learning the basics. There will also be time to review some theoretical stuff – but we promise it won’t be boring! We’ll review The Business Architecture Guild’s view by taking an Object-oriented approach to developing a business capability map
In the second part, we’ll pick a business (a simple one for this exercise, e.g. local cafe) and apply what we’ve studied to develop a business capability map for the chosen business.
At the end of the session, there will be time to share our learnings!
RE Capital's Visionary Leadership under Newman Leech
Object Oriented Business Capability Map - IIBA 2022 - Draft.pptx
1. IIBA Australia
Melbourne Branch Online Event
May 2022
Mohammad Mirkarimi
David Grindlay
Develop an
Object–oriented
Capability Map
A Hands-on Workshop!
2. 01
Introduction
02 03 04 05 06
Agenda
What is
Business
Capability?
Why is it
important?
Why Business
Analysis
Practitioners
use them?
Use case!
How Object-
oriented (OO)
works
Develop one
together!
Share lessons
& findings
5 min 10 min 5 min 20 min 60 min 20 min
Scope > Study > Practice > Refine
We’ll have ‘questions time’ at the end
of each stage
3. 1. Introduction
Purpose
• Introduce presenters
• Introduce Business Architecture
Value
• Understand the background of presenters,
hence the context of presentation
• Understand Business Architecture domains
and how it fits into the broader landscape of
organisation
4. David Grindlay
Education & Career
• Bachelor of Commerce
(Hons) - Information
Systems
• Business Analyst
• Business Architect
Exprnc. & Indst.
• Core System
Replacements, Large
Scale Transformations,
Product Design,
Business Blueprint
Design
• Manufacturing,
Insurance (Life,
General, Medical) full
value chain, Retail
Interests
• Family, Outdoors
(Running, Hiking,
Mountain Biking,
Walking the Dog),
Scouting
Principal Business Architect @

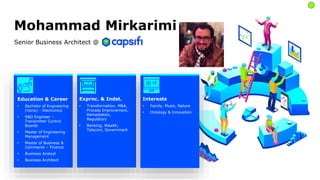

5. Mohammad Mirkarimi
Education & Career
• Bachelor of Engineering
(Hons) – Electronics
• R&D Engineer –
Transmitter Control
Boards
• Master of Engineering
Management
• Master of Business &
Commerce – Finance
• Business Analyst
• Business Architect
Exprnc. & Indst.
• Transformation, M&A,
Process Improvement,
Remediation,
Regulatory
• Banking, Wealth,
Telecom, Government
Interests
• Family, Music, Nature
• Ontology & Innovation
Senior Business Architect @

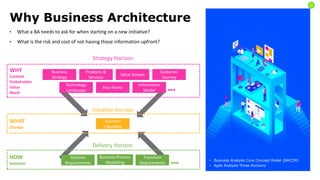

6. Customer
Journey
Business
Strategy
Value Stream
Information
Model
Products &
Services
Business
Capability
Solution
Requirements
Business Process
Modelling
Transition
Requirements
Technology
Landscape
Pain Points
WHY
Context
Stakeholder
Value
Need
HOW
Solution
WHAT
Change
Strategy Horizon
Initiative Horizon
Delivery Horizon
Why Business Architecture
• What a BA needs to ask for when starting on a new initiative?
• What is the risk and cost of not having those information upfront?
• Business Analysis Core Concept Model (BACCM)
• Agile Analysis Three Horizons
7. 2. What is Business Capability
Purpose
• Introduce the concept of business
capabilities
• Discuss the importance of business
capabilities
Value
• Common understanding and language for
the purpose of this presentation
• Understand why we’re deep diving,
spending 2 hours into business capabilities
8. Business Capability
There are different narrations; though mostly agreed on:
• Ability & ‘What’
• Have a Purpose
• Use Resources
• Deliver Something
Reference: https://digitalroadmap.management/

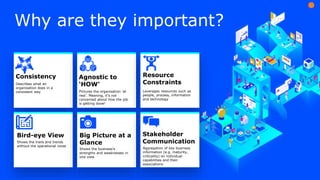

10. Why are they important?
Describes what an
organisation does in a
consistent way
Consistency
Pictures the organisation ‘at
rest’. Meaning, it’s not
concerned about how the job
is getting done!
Agnostic to
‘HOW’
Leverages resources such as
people, process, information
and technology
Resource
Constraints
Shows the trails and trends
without the operational noise
Bird-eye View
Shows the business’s
strengths and weaknesses in
one view
Big Picture at a
Glance
Aggregation of key business
information (e.g. maturity,
criticality) on individual
capabilities and their
associations
Stakeholder
Communication
11. What makes a good
capability map
Mutually Exclusive & Collectively Exhaustive (MECE)
Capability 1 Capability 2 Capability 3
Exhaustive
Capability 1 Capability 2
Not Exhaustive
Capability
A
Capability
B
Not Exclusive
Capability
A
Capability
B
Exclusive
12. How to approach developing
a capability map
How much is
enough?
MECE
Use
Iterate
Refine
Who is involved?
People
Experts with domain
knowledge
Users of the end
results: Analysts,
Architects, Designers
Consumers of the
end results:
Strategists, Sponsors,
Project Teams
What is the scope?
Breadth & Depth
The whole ocean
One-inch deep
T-shape (Mariana trench!)
13. 3. Biz Analysis Practitioner Use Case
Purpose
• Introduce potential use cases for Business
Analysts
Value
• Understand how the capability map can be
leveraged when the focus is functional or on
a project or product
14. Business Capability Anchor Model
Define the Scope of a particular
tactic/initiative
Understand the Strategic Intent
driving a particular project
Provides a framework to separate
concerns
Provides an anchor point that relates
both to Business and Technical
stakeholders
Supports Requirement Prioritisation
by enabling traceability back to
strategic intent
Provides a bird's eye view to identify
gaps or unchartered territory
Identifies impacted business units
leveraging the same business
capabilities
Business Capability Model
In Scope – Direct Impacted
In Scope – Peripheral Impact
Out of Scope
Epic 1 Epic 2
Technology
Epic 1 Epic 2
Process
Epic 1
People
Strategy
Goal
Objective Tactic
Business
Requirements
Requires Capabilities
Business
Capability
Epics
(Buckets of
Scope)
User Stories
(Scoped Items)
Uplifted By
Defined By
Stakeholder
Requirements
What
features
are
required
from
the
target
solution
to
support
the
business.
Implemented by
Functional
Non-
Functional
Solution
Requirements
Story 3-1 Story 3-2 Story 3-3
Epic 2
Training
Courses
Data
Migration
Comms
Message
Tech Spec
• Requirements Classification Schema
15. 4. How Object-oriented works!
Purpose
• Introduce the concept of Object-oriented
Business Capability
Value
• A logical approach to ‘breaking the back’ of
defining an organisations business
capabilities
18. The Evolution Path
Industry Information
Reference Model
Business Process
Catalogue
Business Glossary
Object Oriented
Business Capabilities
Industry Process
Catalogue Reference
Model
Industry Business
Capability Reference
Model
Evolving Company
Business Capability
Model
Provides
Guidance for
Provides
Guidance for
Used to
construct
Used to
construct
Used to
construct
Used to
construct
Used to
accelerate
Used to
accelerate
Provides
Guidance for
Reference
Models
Company
Specific
Business
Capabilities
Business
Capabilities
Our Desired Position

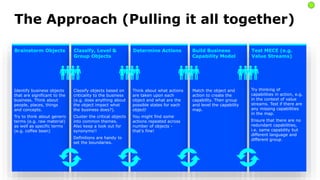

19. The Approach (Pulling it all together)
Brainstorm Objects
Identify business objects
that are significant to the
business. Think about
people, places, things
and concepts.
Try to think about generic
terms (e.g. raw material)
as well as specific terms
(e.g. coffee bean)
Classify, Level &
Group Objects
Classify objects based on
criticality to the business
(e.g. does anything about
the object impact what
the business does?).
Cluster the critical objects
into common themes.
Also keep a look out for
synonyms!!
Definitions are handy to
set the boundaries.
Determine Actions
Think about what actions
are taken upon each
object and what are the
possible states for each
object!
You might find some
actions repeated across
number of objects -
that's fine!
Build Business
Capability Model
Match the object and
action to create the
capability. Then group
and level the capability
map.
Test MECE (e.g.
Value Streams)
Try thinking of
capabilities in action, e.g.
in the context of value
streams. Test if there are
any missing capabilities
in the map.
Ensure that there are no
redundant capabilities,
i.e. same capability but
different language and
different group.

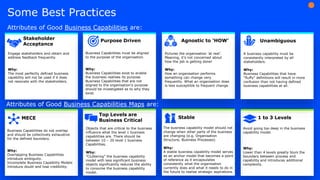

22. Some Best Practices
Business Capabilities do not overlap
and should be collectively exhaustive
for the defined boundary.
Why:
Overlapping Business Capabilities
introduce ambiguity.
Incomplete Business Capability Models
introduce doubt and lose credibility.
MECE
Objects that are critical to the business
influence what the level 1 business
capabilities are. There should be
between 10 – 20 level 1 business
Capabilities.
Why:
”Cluttering” the business capability
model with less significant business
objects significantly reduces the ability
to consume the business capability
model.
Top Levels are
Business Critical
Avoid going too deep in the business
capability model.
Why:
Lower than 4 levels greatly blurs the
boundary between process and
capability and introduces additional
complexity.
1 to 3 Levels
The business capability model should not
change when other parts of the business
are changing (e.g. Organisation
Structure, Business Processes)
Why:
A stable business capability model serves
as an anchor model that becomes a point
of reference as it encapsulates
consistently what the organisation
currently does and what it needs to do in
the future to realise strategic aspirations.
Stable
Pictures the organisation ‘at rest’.
Meaning, it’s not concerned about
how the job is getting done!
Why:
How an organisation performs
something can change very
frequently. What an organisation does
is less susceptible to frequent change.
Agnostic to ‘HOW’
Engage stakeholders and obtain and
address feedback frequently.
Why:
The most perfectly defined business
capability will not be used if it does
not resonate with the stakeholders.
Stakeholder
Acceptance
Business Capabilities must be aligned
to the purpose of the organisation.
Why:
Business Capabilities exist to enable
the business realises its purpose.
Business Capabilities that are not
aligned to the organisation’s purpose
should be investigated as to why they
exist.
Purpose Driven
Attributes of Good Business Capabilities are:
Attributes of Good Business Capabilities Maps are:
A business capability must be
consistently interpreted by all
stakeholders.
Why:
Business Capabilities that have
“fluffy” definitions will result in more
confusion than not having defined
business capabilities at all.
Unambiguous
23. 5. Develop One Together
Purpose
• Develop an object-oriented capability map
from the scratch for an imaginary business
Value
• Gain hand-on experience to face the
challenges and find solutions for them
24. Hands-on Workshop
Organise Imagine Remember
60 Minutes
Divide into groups of
5 people
Choose a person as
‘presenter’
• Present capability map
• What did you learn?
• What challenges did you face?
• What to improve?
Imagine a Café
business (local and
non-franchised)
Remember “How to
approach developing
a capability map”
25. Let’s Start!
Brainstorm
Objects
Identify business objects
that are significant to the
business. Think about
people, places, things
and concepts.
Try to think about generic
terms (e.g. raw material)
as well as specific terms
(e.g. coffee bean)
10 minutes
1
Classify, Level
& Group
Objects
Classify objects based on
criticality to the business
(e.g. does anything about
the object impact what
the business does?).
Cluster the critical objects
into common themes.
Also keep a look out for
synonyms!!
Definitions are handy to
set the boundaries.
Determine
Actions
Think about what actions
are taken upon each
object and what are the
possible states for each
object!
You might find some
actions repeated across
number of objects -
that's fine!
Build Business
Capability
Model
Match the object and
action to create the
capability. Then group
and level the capability
map.
Test MECE (e.g.
Value Streams)
Try thinking of
capabilities in action, e.g.
in the context of value
streams. Test if there are
any missing capabilities
in the map.
Ensure that there are no
redundant capabilities,
i.e. same capability but
different language and
different group.
10 minutes
2
10 minutes
3
20 minutes
4
10 minutes
5
27. Open Mic!
Each group’s presenter in 2 minutes:
Present capability map
What did you learn?
What challenges did you face?
What would you do differently to
improve it next time you try this?

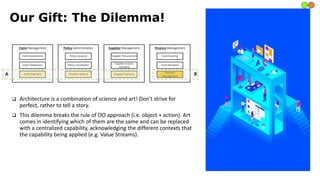

28. Our Gift: The Dilemma!
Architecture is a combination of science and art! Don’t strive for
perfect, rather to tell a story.
This dilemma breaks the rule of OO approach (i.e. object + action). Art
comes in identifying which of them are the same and can be replaced
with a centralized capability, acknowledging the different contexts that
the capability being applied (e.g. Value Streams).
31. Thank you for your time.
Mohammad Mirkarimi
+61 401 393 121
mmirkarimi@caosifi.com
www.linkedin.com/in/mmirkarimi
David Grindlay
+61 404 998 338
dgrindlay@Capsifi.com
www.linkedin.com/in/davidgrindlay
CAPSIFI.COM
Simply
Smarter
Business
Editor's Notes
Stage 1~3 are to set the context and define the purpose

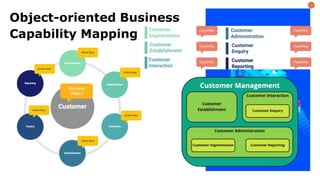

Then, in stage 4 to study the subject matter, i.e. Object-oriented Capability
Then, in stage 5 we get our hands dirty and practice!
Finally, refine for next time by sharing
Click 1
As a Business Analyst, we often find ourselves in the delivery horizon expected to elicit, analyse and document solution requirements without being fully aware of what the organization is wanting to achieve. So, we could be one of the best Business Analysts for the job, but if we focus on the wrong changes, the project is not going to deliver the right results.
Click 2
At varying levels of detail depending on the organization, there would be some definition of Why change is required and what course of action is required to achieve that changed state. As a Business Analyst, we should be aware that these artefacts should exist and that they will help us elicit, analyse and document better requirements from our stakeholders. If you don’t have some of this information, you are then able to articulate what are the risks or issues of not having the information.
Click 3
The business capability can act as the bridge between the strategic landscape (Why and course of action) and Solution design (How the business is going to be able to operate in the future to achieve that desired state).
In summary, if you join a project and the project is about a system replacement, but you don’t know what value streams, products, or priority pain points you are trying to address, it is likely that you are going to
1) have a difficult time managing stakeholder expectations and
2) not achieve the desired outcomes the business thought they were going to get.
The key concept here is:
1) Business Capabilities describe what an organization does (i.e. think “elevator pitch for an organization” to deliver some form of value (it has a purpose). Describe to someone external to the organization what the organization does
2) What is required to enable those capabilities
While the concept of business capability is generally standard in the market, the emphasis on enablers varies between organisations. However, at the heart of it, the key enablers are People, Process Information & Technology.
Other enablers which could be considered underlying enablers (which could also in some cases be informed through context) are: Investment, Insights, Integration, Leadership, Governance, Location

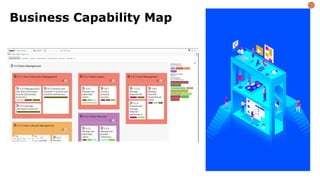

Here is an example of a subset of a business capability map.
The business capability map by itself is meaningless. What brings it to life is when it is contextualised and when it provides context. For example this business capability map tells us a number of stories in the single view:
1) How the capability of Claim Management is made possible by more granular capabilities
2) What is the Maturity of the Technology that enables these business capabilities
3) Processes Operationalise these business capabilities
4) What applications or application functions are used by the processes to operationalise the business capabilities.
Now that is a powerful picture to have when engaging with key stakeholders.
Business Capability
Provides a consistent way of describing what an organization does >> Ensures people interpret it in a consistent way
Analyses the organisation ‘at rest’, meaning it’s not concerned about “how” the job is getting done. Hence, great candidate for designing and planning (analogy: gardening business has ‘Hedge Trimming’ regardless of the technology and skills, e.g. drones and piloting them)
Introduce the recognition that in order for an org to achieve something it needs to leverage its resources, such as people, process, information and technology
Business Capability Map:
Bird-eye view
Communication with all level of stakeholders
Summary/aggregation of key business information (e.g. maturity, criticality, etc.) on individual capabilities and their relationships (PPIT)
Examples:
- Not Exclusive: Customer Refund & Credit Management – Customer Insights Management & Data Analytics
- Not Exhaustive:
Key points:
If you think of the business capabilities representing the puzzle pieces all piecing together to build a complete picture (of the organization) then you don’t want to be missing any pieces and you don’t really want to have duplicate pieces as well.
Missing pieces means you will not get the end state you desire
Duplicate pieces means you will probably get the end state, but it’s going to take longer and cost more to get there.
So, starting from top down, you want to try and avoid having missing or overlapping capabilities within the organsation as far as possible.
Key Points:
Click 1
Understand the scope – don’t try and boil the ocean. Know your boundary to work within.
Click 2
Know your stakeholders (contributors and consumers) – recognize that you shouldn’t be developing a business capability in isolation – it will be a waste of time.
Click 3
Review frequently and test that it is Mutually Exclusive and Collectively Exhaustive (for the selected boundary).
It is iterative –
you won’t get it 100% right first time
Choose your battles – it will will never satisfy everyone’s ideas
It must make sense by itself – if it needs a lot of explanation, then it probably needs more work and possibly some coaching of intended consumers as well.
The business capability is not a silver bullet and won’t solve all your problems, but it will help you structure your thinking, think big picture first before getting bogged down in the detail.
Key Points:
As business analysts we often are challenged with decomposing business requirements and maintaining traceability to strategic intent.
Business Capabilities enable us to support this traceability from Business requirements down to Solution requirements
(click 1)
Business Requirements are articulated as desired states of the business in the form of Goals and Objectives. These goals and objectives are realized through strategies and tactics.
(click 2)
Each Tactic relies on business capabilities, some of which are not at the desired level of maturity – this starts to inform the scope of the project as we begin to know which capabilities are potentially going to need to be uplifted.
Stakeholder requirements define what the needs are of stakeholders in order to execute the tactic and in turn help the organization achieve it’s objectives and goals. These needs essentially define the desired state of business capabilities.
(click 3)
By aligning to a business capability model, we are able to get a birds eye view of all the parts of the organization that are impacted. This approach minimizes the risk of missing big ticket items when scoping a project.
(Click 4)
Business Capabilities are operationalized by People, Processes, Information and Technology. If more than one business unit use the same business capability, we are able to construct an accurate impact assessment of which business areas will be impacted by the change.
(Click 5)
One of the benefits of the business capability model is that it introduces a common language that is both understandable by business stakeholders and technical teams.
(Click 6)
Often, without some sort of structure, requirements can become quite intertwined and complex thereby introducing ambiguity. Aligning business requirements to business capabilities enables us to separate concerns ensuring requirements stay within their boundaries which helps keep them simpler and more precise.
(Click 7)
By being able to trace solution requirements all the way up to the business requirements, we are then put in a better position to negotiate and prioritise requirements as we’ll be able to assess what stakeholder and solutions requirements will in fact help move the organization closer to it’s desired state.
So, now that we have explored what business capabilities are, why they are important, and how they can help us as business analysts, the question remains “what do we do if our company doesn’t have one”? Or they have one but nobody uses it?
Well, lets answer the first question as that is the easy one!
If the organisation doesn’t have one, well, lets create one (or at least a part of one that is relevant for the part of the business we are concerned with)
If the organisation has one, but nobody is using it then it really is about trying to understand why they are not using it.
Were business stakeholders involved?
Does it represent what the business does?
Does it resonate with the various stakeholders?
Is it MECE?
The good news is that we can use the Object Oriented Approach to help tackle both situations.
Object can decompose to more granular objects
Key Points:
There is no quick way!
Be resourceful: Leverage what’s available in the organization or out on the web
Click 1
Our desired state is to have a business capability model that accurately represents what the business business does and should be unique to that business. However, not all organisations have these and need to develop one from scratch.
Click 2 & click 3
A number of industries do have Business Capability Reference Models. These can be used to bootstrap the creation of your Evolving Company Business Capability Model (with caution – i.e. don’t copy them as they won’t mean anything to the business)
Click 4 & click 5
IF you do have a catalogue of business concepts/business dictionary for your organization, then you could start developing a business capability model using the object oriented business capability model approach which we will cover in the next section.
Click 6
You could leverage an industry reference model to help you test that your Object Oriented Business Capability Model is Mutually Exclusive and Collectively Exhaustive.
Click 7
If you don’t have a Business Dictionary, you can look at leveraging an industry business concept register/glossary (with caution)
Click 8
If you don’t have a Business Glossary and there is no industry reference model to leverage, you could leverage a business process catalogue to help identify the nouns that are prevalent in you organization that will make up the Business Concept Register that will then be the basis for the Object Oriented Business Capabilities.
Click 9
If you don’t have a business process catalogue, then you could consider leveraging an industry process catalogue reference model (with caution).
Conclusion: There are 3 key ways to create a business capability model
From scratch – not following any method with plenty of trial and error
Leveraging an Industry Reference Model – but recognizing that they are generic and are only intended to provide some guidance and not be used face value
Leveraging existing information (business dictionary, business process catalogue, or even organization structure) that exists within the company to create a unique foundation of a business capability model for the business.
Return the ownership of Business Information Model to the business Develop Business Vocabulary and Data Dictionary
Key Point:
Following on from Slide 18 – this is an approach that we have worked through to develop a business capability model from scratch for an industry we don’t know much about without using any reference models.
However, if this was for a customer, then we would have looked at leveraging other information at least as a sense check to make sure we have coverage.
Primary VS Secondary object
- Is it something imposed to the business by environment or invoked by stakeholders? Like regulation or complaint
- Is it essential and critical for the business to function?
Key Points:
Understand the scope – don’t try and boil the ocean. Know your boundary to work within.
Know your stakeholders (contributors and consumers) – recognize that you shouldn’t be developing a business capability in isolation – it will be a waste of time.
Review frequently and test that it is Mutually Exclusive and Collectively Exhaustive (for the selected boundary).
It is iterative –
you won’t get it 100% right first time
Choose your battles – it will will never satisfy everyone’s ideas
It must make sense by itself – if it needs a lot of explanation, then it probably needs more work and possibly some coaching of intended consumers as well.
The business capability is not a silver bullet and won’t solve all your problems, but it will help you structure your thinking, think big picture first before getting bogged down in the detail.
Key Point:
Following on from Slide 18 – this is an approach that we have worked through to develop a business capability model from scratch for an industry we don’t know much about without using any reference models.
However, if this was for a customer, then we would have looked at leveraging other information at least as a sense check to make sure we have coverage.
