Object Indentification Using 3D SketchUp Models in Environment Scans
- 1. Object Identification Using 3D SketchUp Models in Environment Scans Flavia Grosan, Alexandru Tandrau Prof. Dr. Andreas Nüchter Thursday, May 12, 2011

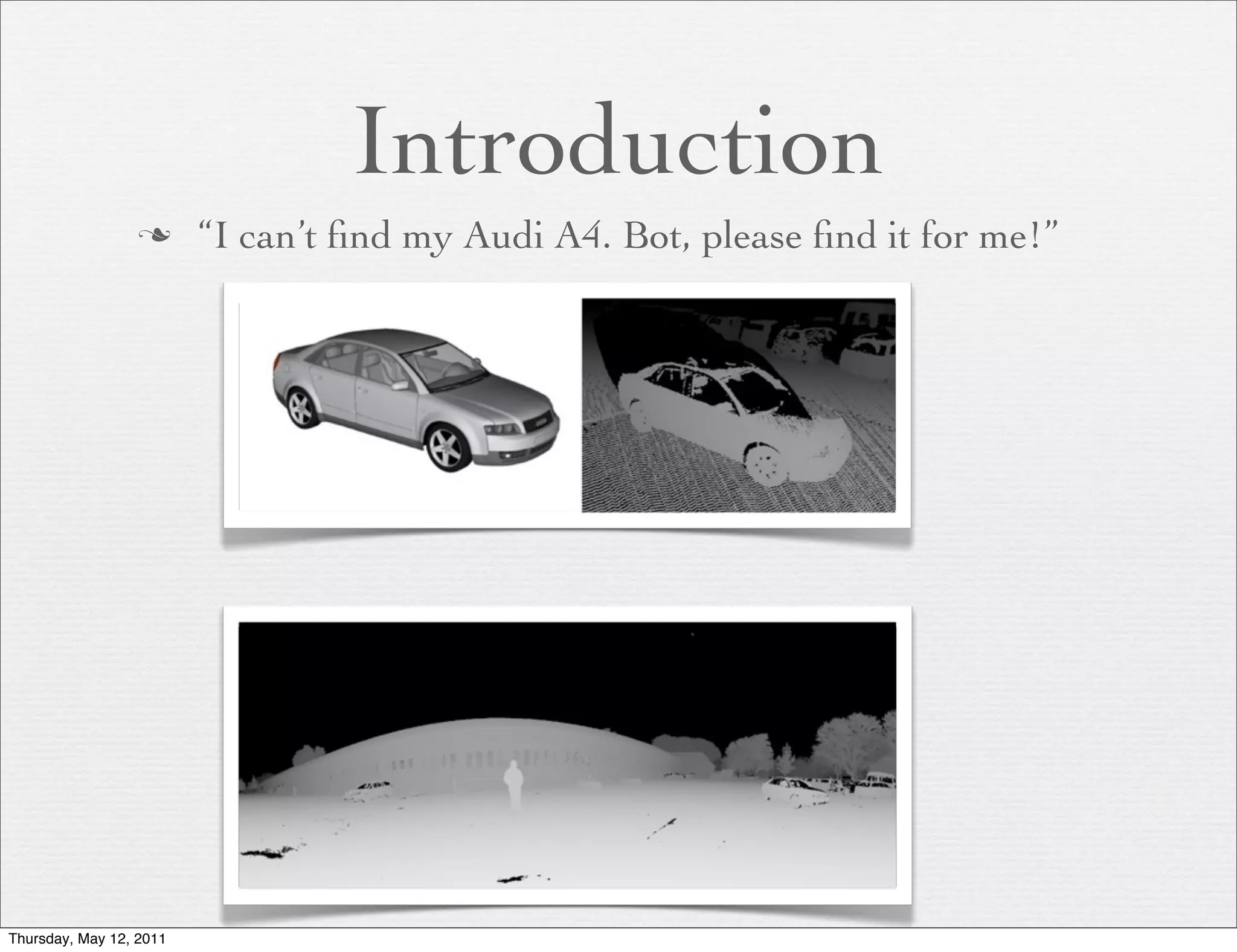

- 2. Introduction n “I can’t find my Audi A4. Bot, please find it for me!” Thursday, May 12, 2011
- 3. Introduction n SLAM n Laser range scanners n ICP n Semantics Thursday, May 12, 2011
- 4. State of the Art n Horn - closed form solution for ICP n translation, rotation, scale n Nüchter - semantic mapping n determine coarse features: walls, floors n trained classifier to identify more delicate objects Thursday, May 12, 2011
- 5. State of the Art n Object Localization n Li-Jia - 2D object localization n Meger - Semantic Robot Challenge n Kestler - probabilistic representation n manual labeling needed n maintains internal neural net trained data n Lai and Fox - Google Warehouse to train classifiers n Albrecht - CAD models and ontologies Thursday, May 12, 2011
- 6. Scientific Contribution n Combine laser scanning with object detection and localization n Simple scan matching instead of classifiers and probabilistic approaches n Evaluates Google 3D Warehouse - a new, large 3D model database Thursday, May 12, 2011
- 7. From Model to Point Cloud n Google 3D Warehouse - collection of user made SketchUp models n A model is composed of: n Faces n ComponentInstances n Groups Thursday, May 12, 2011
- 8. From Model to Point Cloud n Additional sampling procedure needed n Add random points inside each triangular face proportionally to its area n Center the point cloud around its centroid and bound the coordinates in [-α, α] Thursday, May 12, 2011
- 9. Model - Scan Matching Is the model present in the scan? If so, where? Thursday, May 12, 2011
- 10. Model - Scan Matching n Ground Removal n Stiene et al. n Compute gradient between closest points in the same vertical sweep plane n A point is classified as ground if -θ ≤ αi,j ≤ θ Thursday, May 12, 2011
- 11. Model - Scan Matching Object segmentation by region growing with starting point Thursday, May 12, 2011
- 12. Model - Scan Matching Object segmentation by region growing with starting point Thursday, May 12, 2011
- 13. Model - Scan Matching n The centroid of the segmented object is the new system origin. The object coordinates are bounded in [-α, α] (center and scale step) n Modified ICP (SICP) to match model and scan n Scale n Favor rotations on the y-axis (wheels on the ground) n Points are linked in both directions (scan to model, model to scan) n Recover transformation matrix to original scan Thursday, May 12, 2011
- 14. Model - Scan Matching SICP animation Thursday, May 12, 2011
- 15. Model - Scan Matching SICP animation Thursday, May 12, 2011
- 16. Model - Scan Matching n S - the scan points, M - the model points n c(p) ∈ M - the model point which is closest to p ∈ S the error function penalizes points in the scan which have no correspondence in the model Thursday, May 12, 2011
- 17. Experiments and Results n acquired scans using a Riegl VZ-400 3D laser scanner in the Jacobs University parking lot n segmented 5 different cars based on starting points n automatically downloaded relevant Google SketchUp models and pre-processed them (resampling, scale & center) n SICP with 4 starting rotations around the vertical axis Thursday, May 12, 2011
- 18. Mercedes C350 n 8920 points in scan n 89 models available in Google Warehouse Thursday, May 12, 2011
- 19. Mercedes C350 - best models Thursday, May 12, 2011
- 20. Mercedes C350 - worst models Thursday, May 12, 2011
- 21. Audi A4 n 18801 points in scan n 80 models available in Google Warehouse Thursday, May 12, 2011
- 22. Audi A4 - best models Thursday, May 12, 2011
- 23. Audi A4 - worst models Thursday, May 12, 2011
- 24. Audi A4 in entire scan Thursday, May 12, 2011
- 25. Mercedes C350 vs different brand models Thursday, May 12, 2011
- 26. Conclusions n Segmented objects above 10,000 points behaved well in SICP n controlled in practice by taking more scans Perfect Match % n Number of Google Warehouse models 0 10 20 30 40 n Volkswagen Golf - 200+ models Audi A4 n Citroen C5 - 11 models VW Golf Mercedes C350 n ~ 80 models needed to get good matches Thursday, May 12, 2011
- 27. Conclusions n Identified Volkswagen Golf - an older variant Best matches distribution VW Golf n SICP ranks higher Google models resembling the old Golf version Newer Golf 37% Older Golf 63% n SICP identifies similar shapes n Mercedes C350 vs. other car brands Thursday, May 12, 2011
- 28. Conclusions n SICP solves the goal finding problem n Automatic scan segmentation n Correct identification of Audi A4 n Next 2 matches - also cars, different brands Thursday, May 12, 2011
- 29. Future Work n Refine model search in Google Warehouse n Improve the error function n Tackle indoor scenarios n SICP - extendable to full-scene understanding n Create an online platform for SICP n Integrate SICP as a plugin for RoboEarth Thursday, May 12, 2011
