1. OOP Design, Style,
Characteristics
LECTURE NO 4
COMSATS

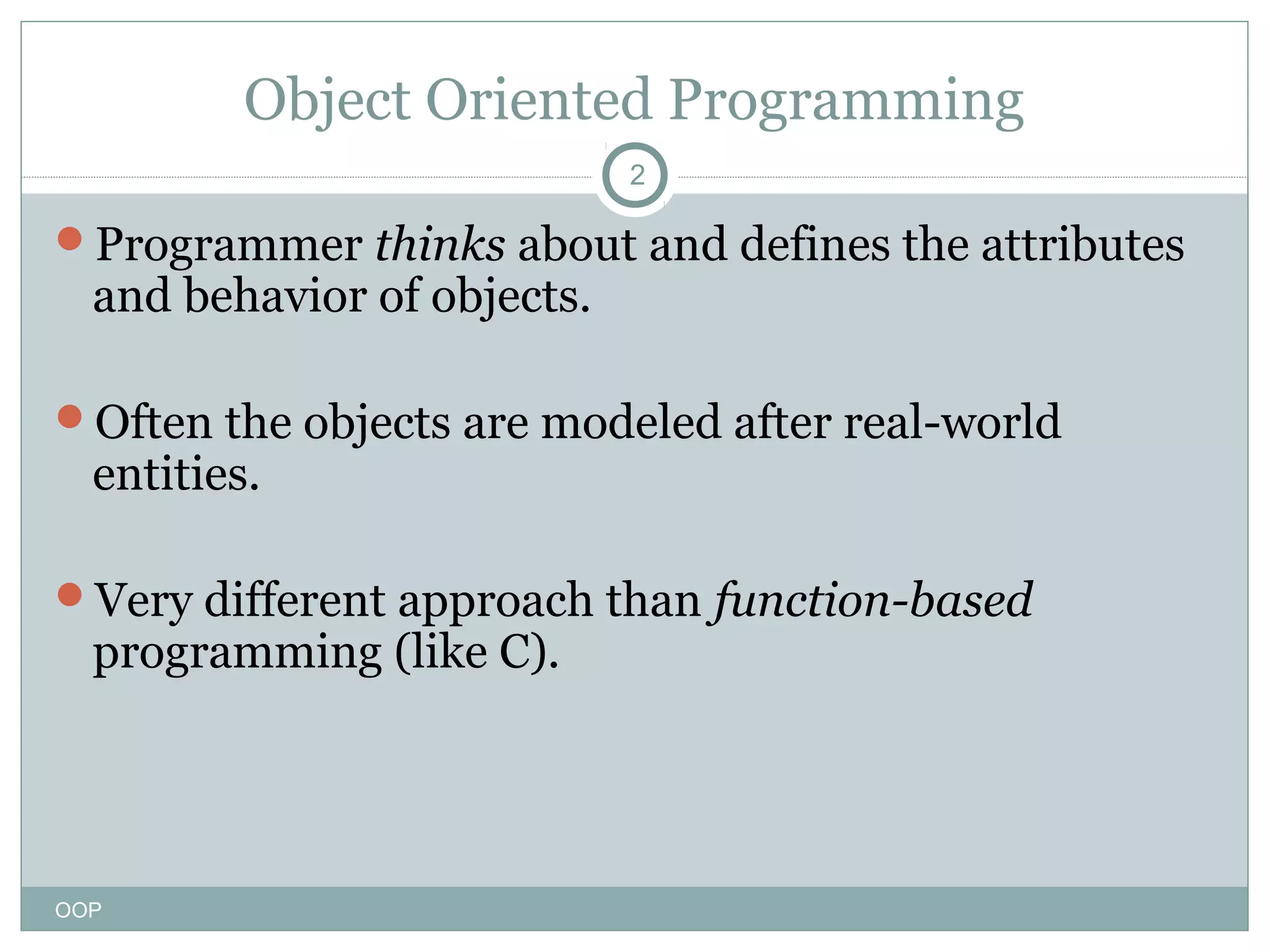

2. Object Oriented Programming
2
Programmer thinks about and defines the attributes
and behavior of objects.
Often the objects are modeled after real-world
entities.
Very different approach than function-based
programming (like C).
OOP

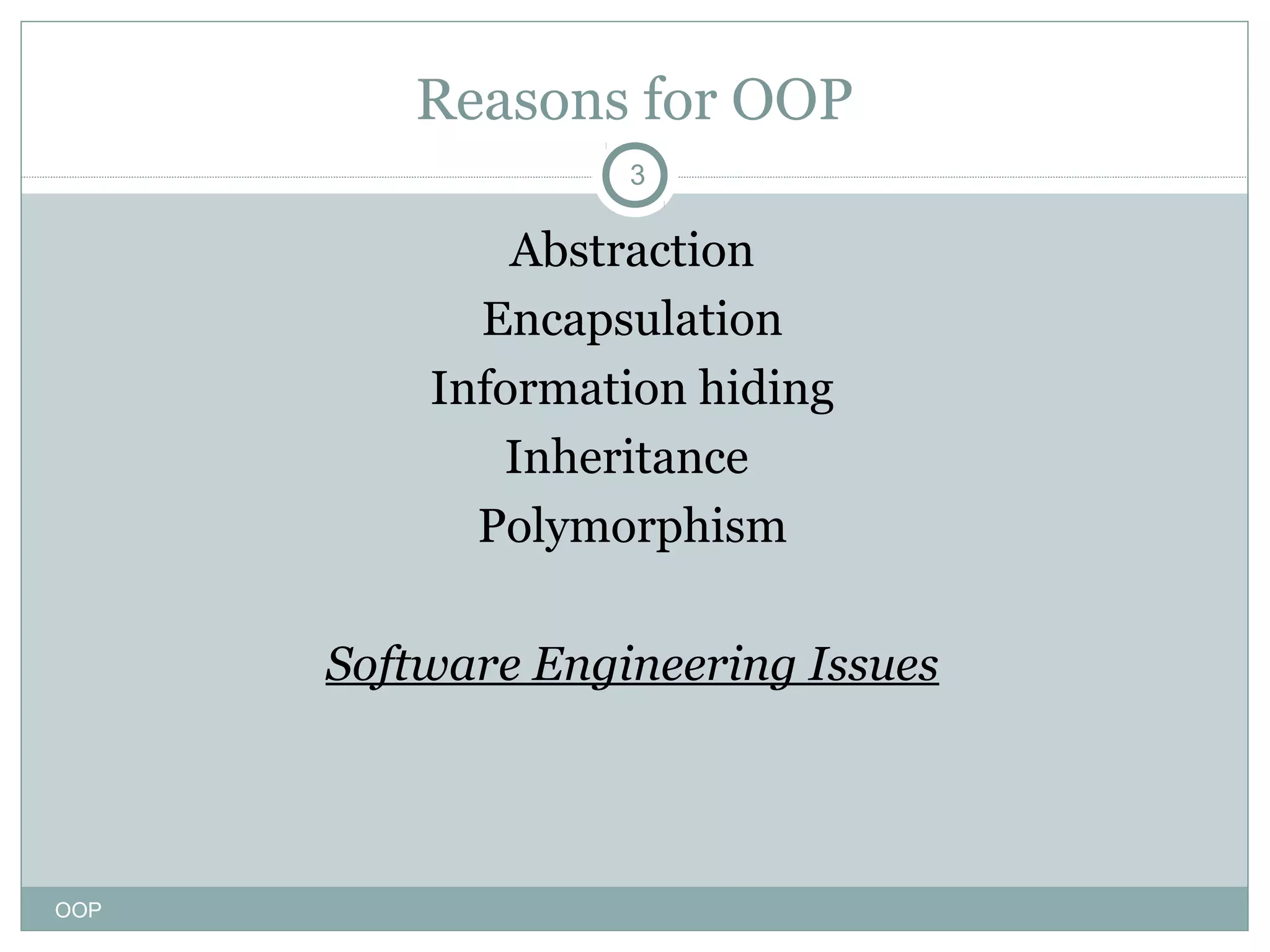

3. Reasons for OOP
3
Abstraction
Encapsulation
Information hiding
Inheritance
Polymorphism
Software Engineering Issues
OOP

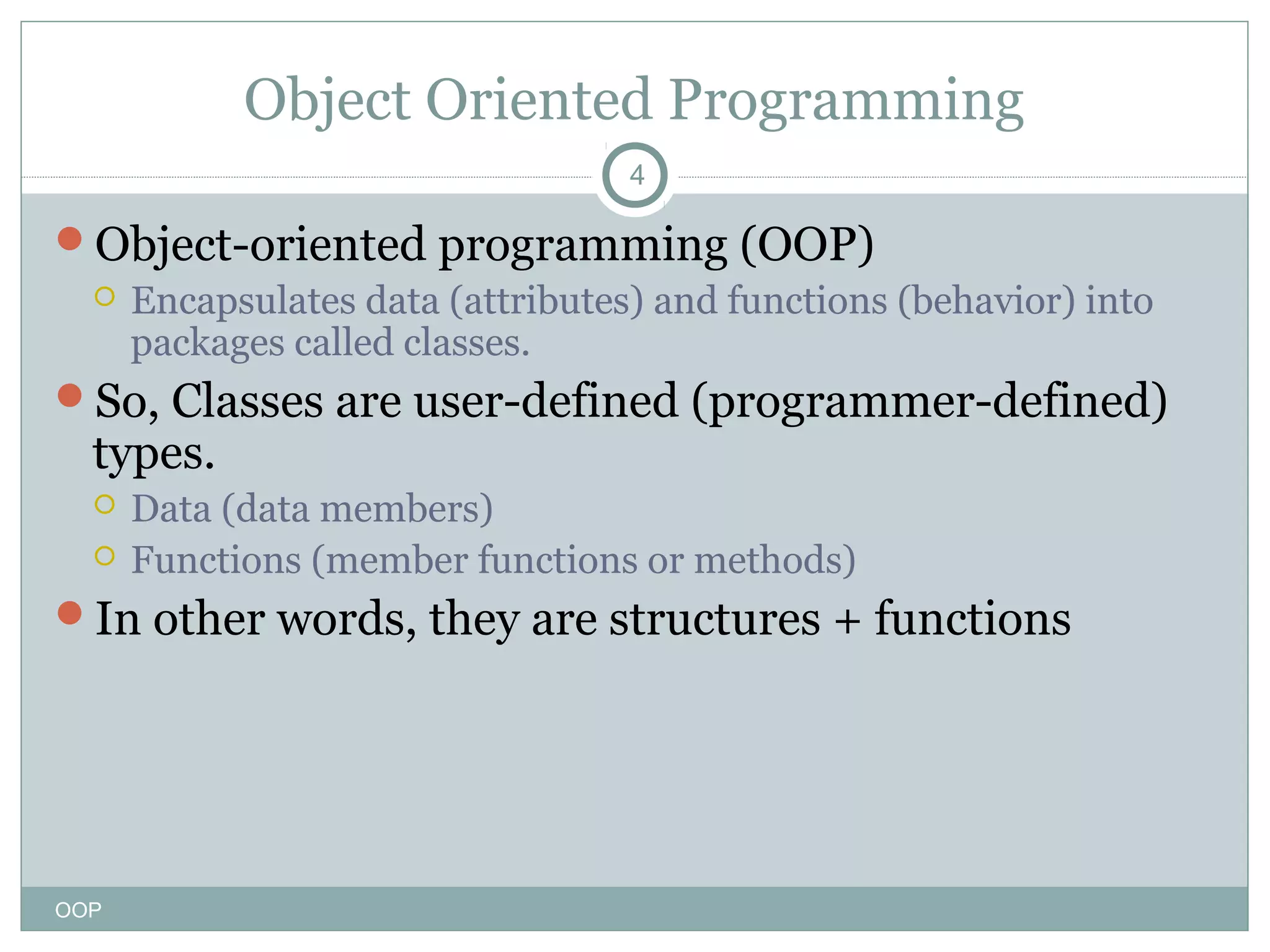

4. Object Oriented Programming
4
Object-oriented programming (OOP)
 Encapsulates data (attributes) and functions (behavior) into
packages called classes.
So, Classes are user-defined (programmer-defined)
types.


Data (data members)
Functions (member functions or methods)
In other words, they are structures + functions
OOP

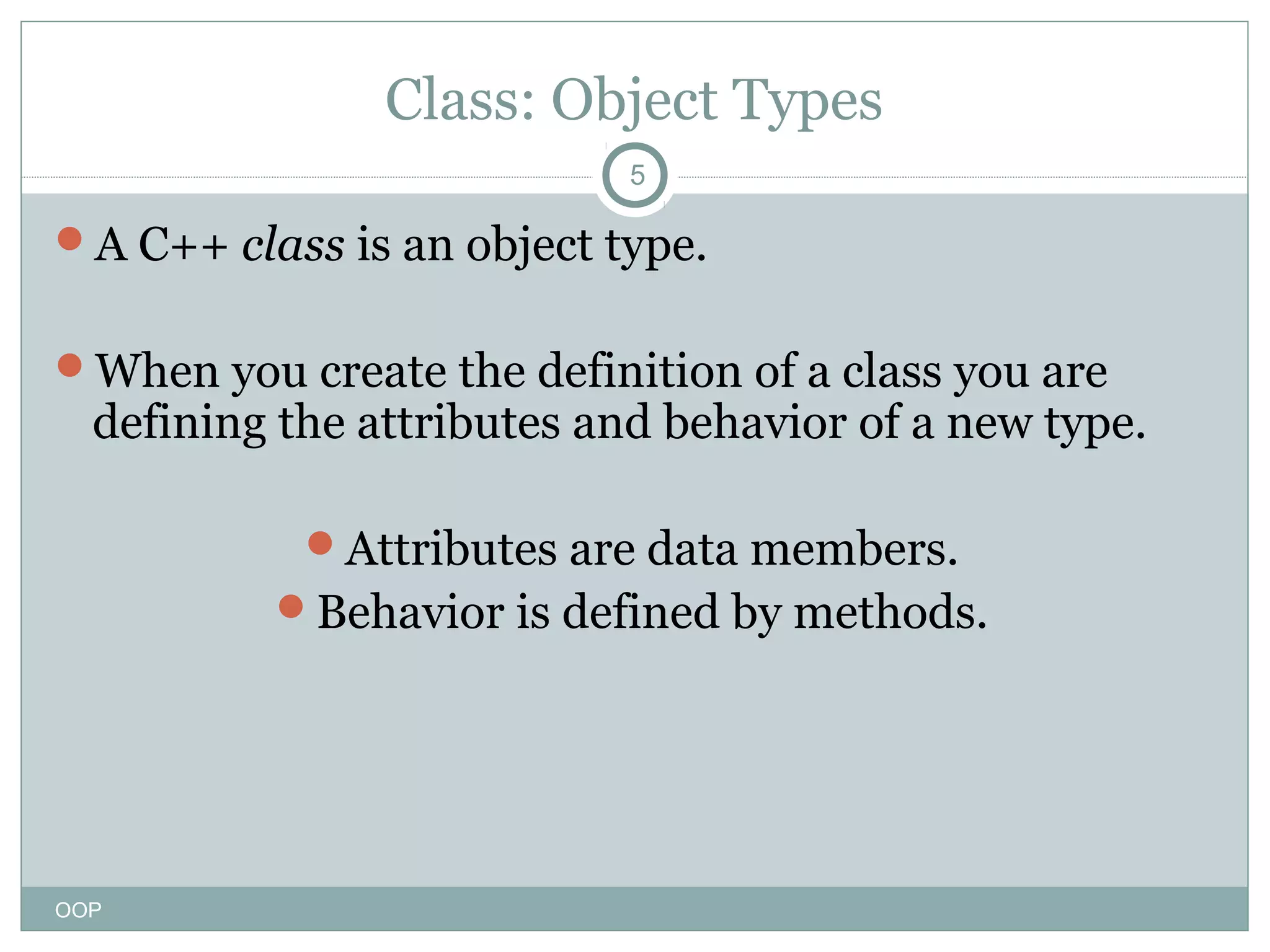

5. Class: Object Types
5
A C++ class is an object type.
When you create the definition of a class you are
defining the attributes and behavior of a new type.
Attributes are data members.
Behavior is defined by methods.
OOP

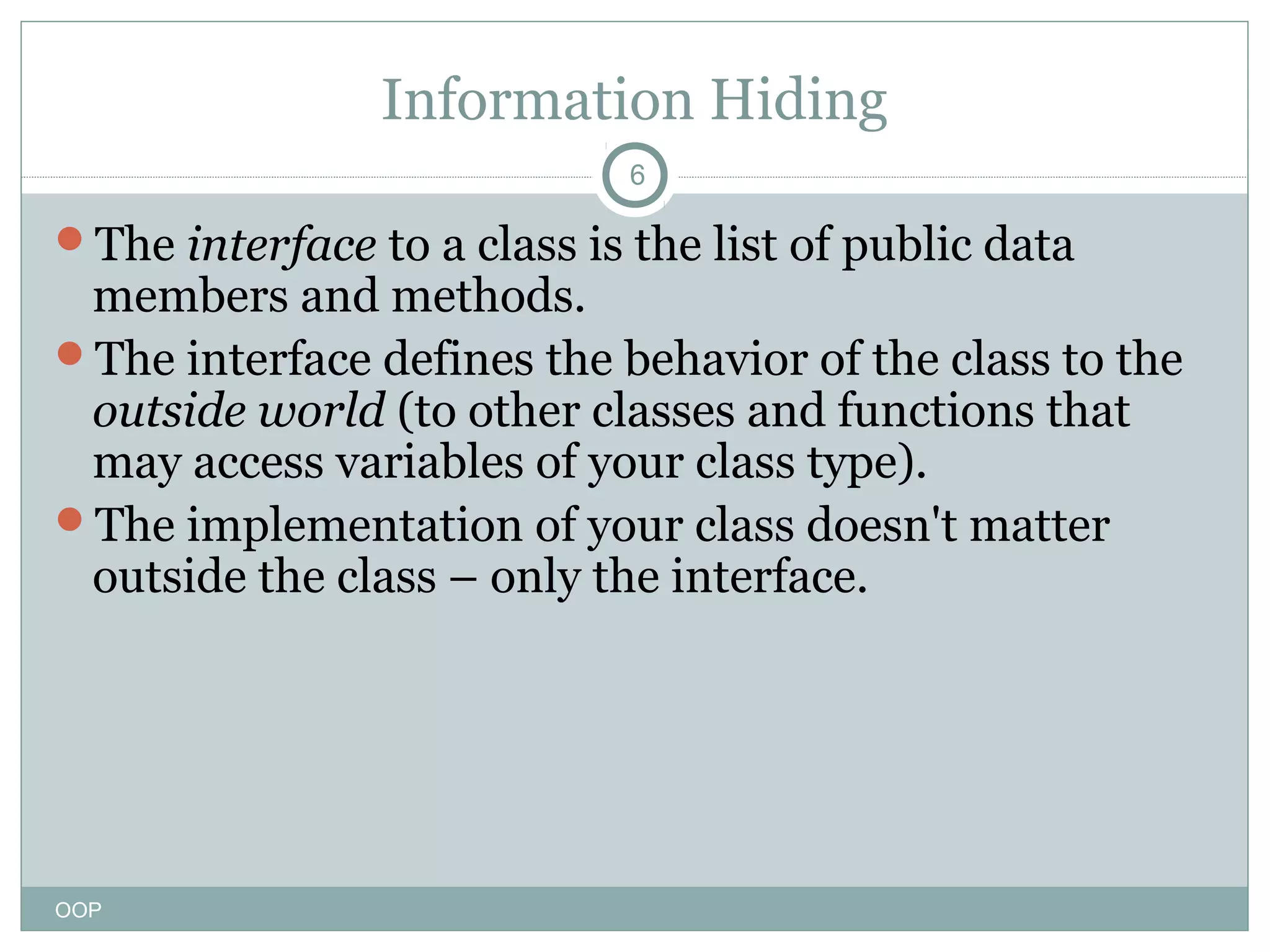

6. Information Hiding
6
The interface to a class is the list of public data
members and methods.
The interface defines the behavior of the class to the
outside world (to other classes and functions that
may access variables of your class type).
The implementation of your class doesn't matter
outside the class – only the interface.
OOP

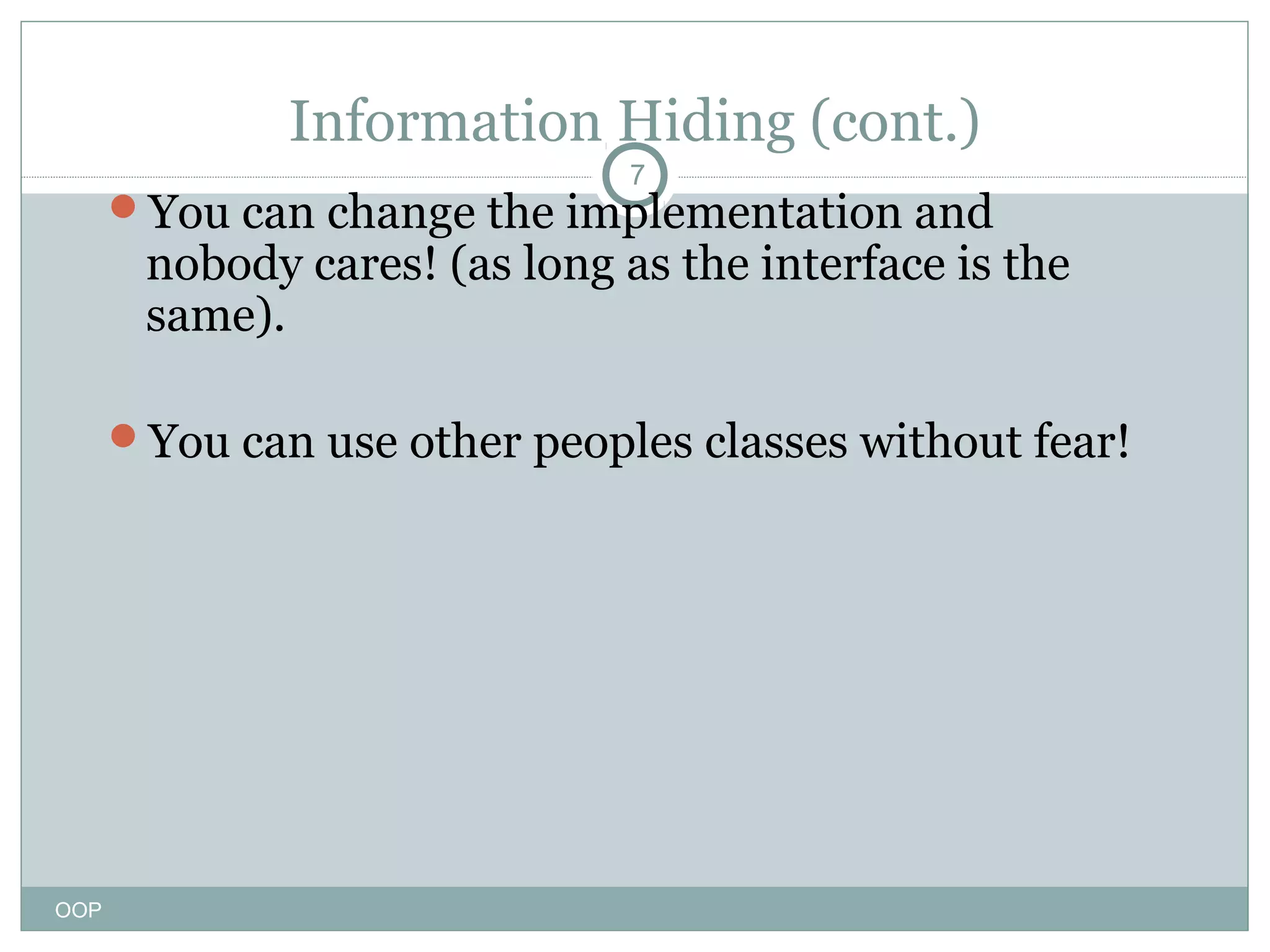

7. Information Hiding (cont.)
7
You can change the implementation and
nobody cares! (as long as the interface is the
same).
You can use other peoples classes without fear!
OOP

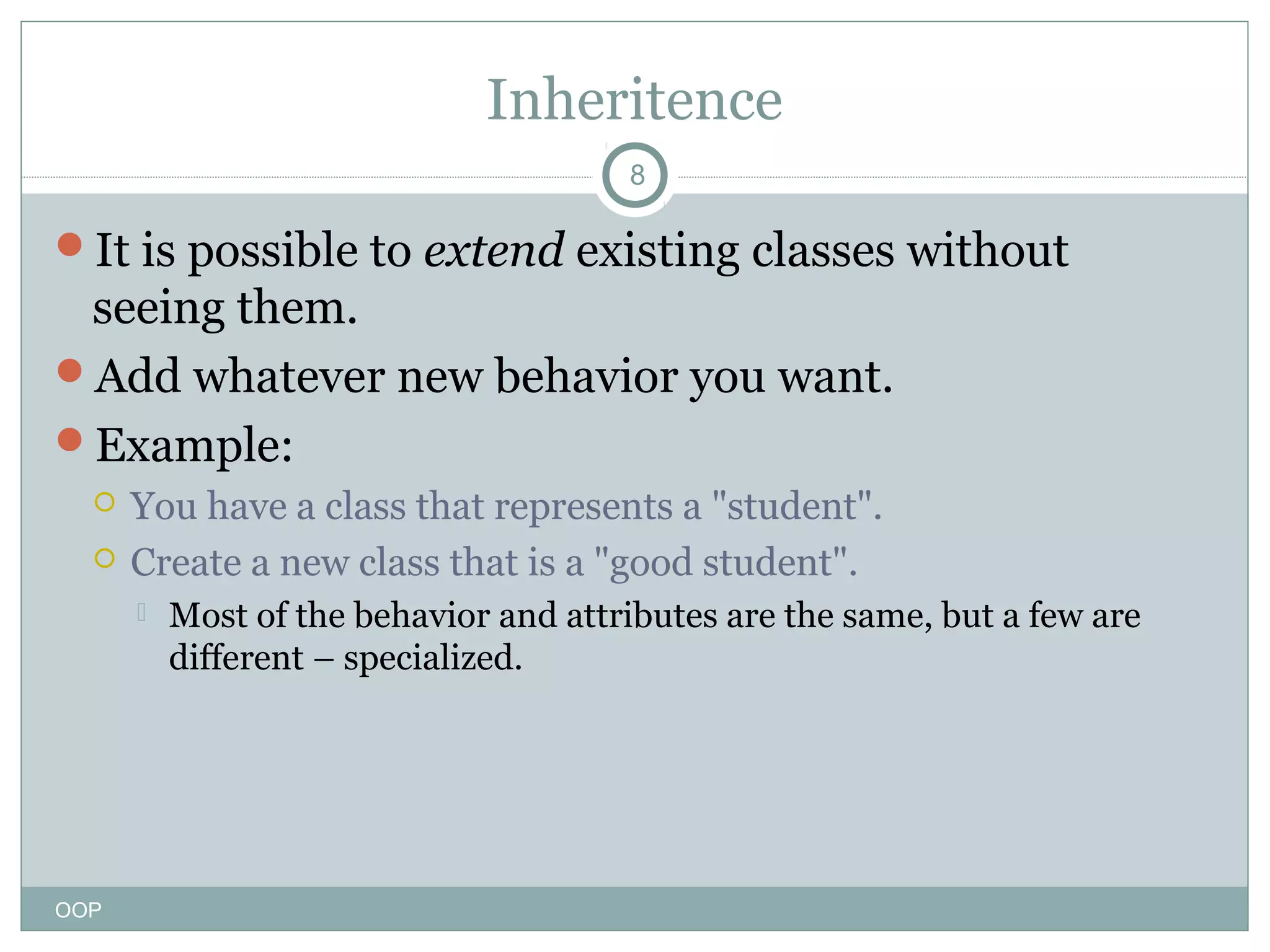

8. Inheritence
8
It is possible to extend existing classes without
seeing them.
Add whatever new behavior you want.
Example:


You have a class that represents a "student".
Create a new class that is a "good student".

OOP
Most of the behavior and attributes are the same, but a few are
different – specialized.

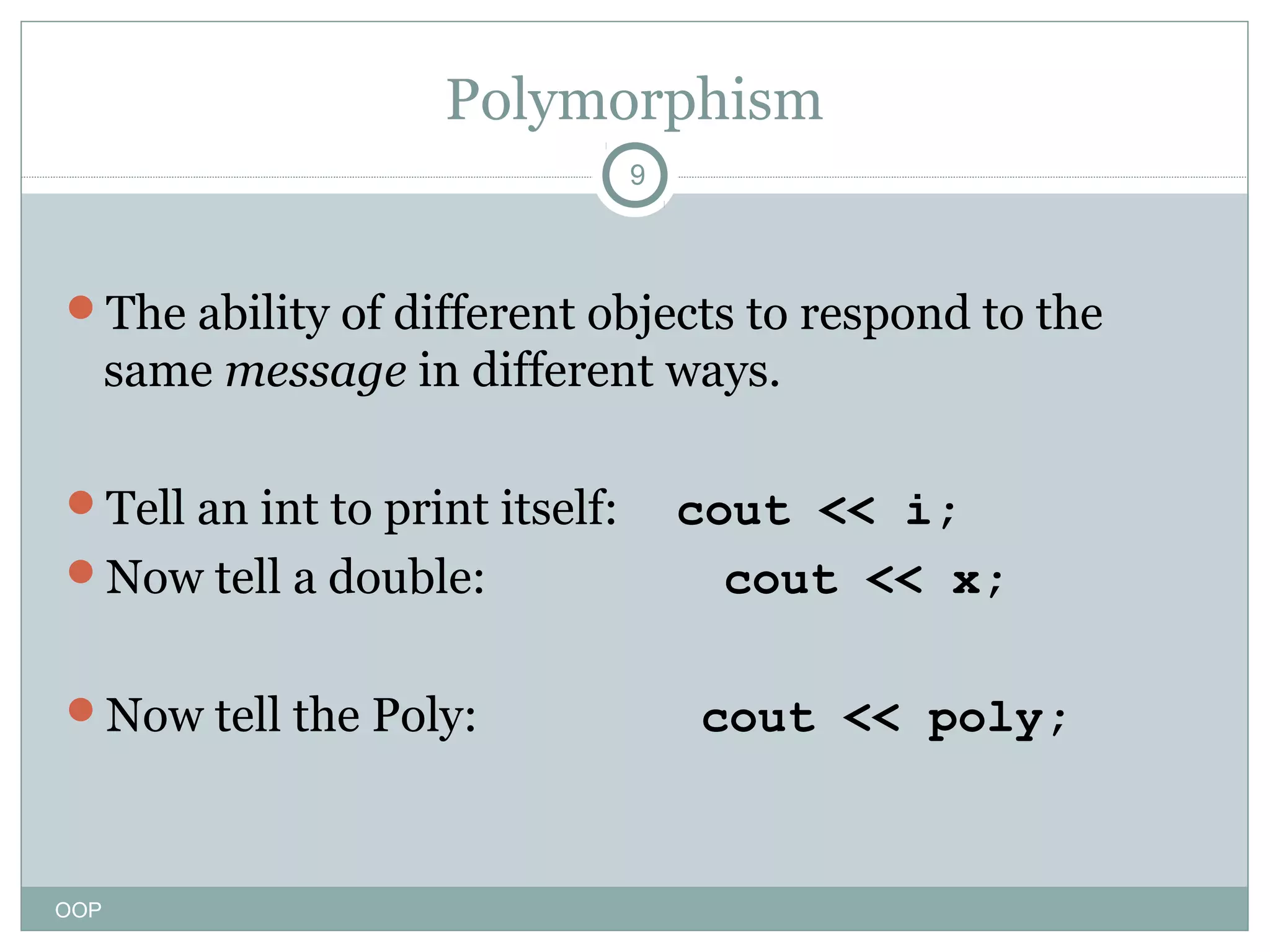

9. Polymorphism
9
The ability of different objects to respond to the
same message in different ways.
Tell an int to print itself:
Now tell a double:
Now tell the Poly:
OOP
cout << i;
cout << x;
cout << poly;

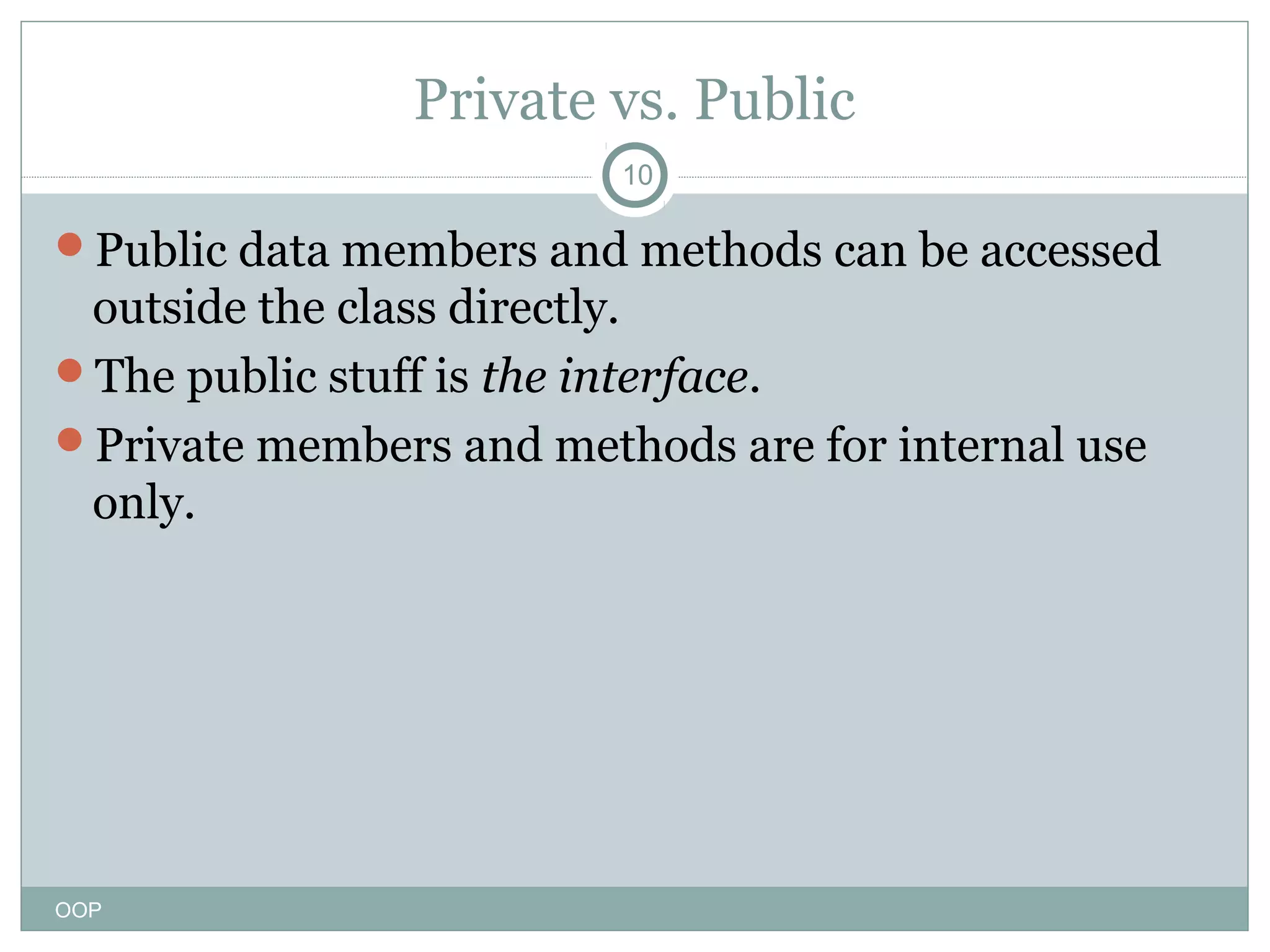

10. Private vs. Public
10
Public data members and methods can be accessed
outside the class directly.
The public stuff is the interface.
Private members and methods are for internal use
only.
OOP

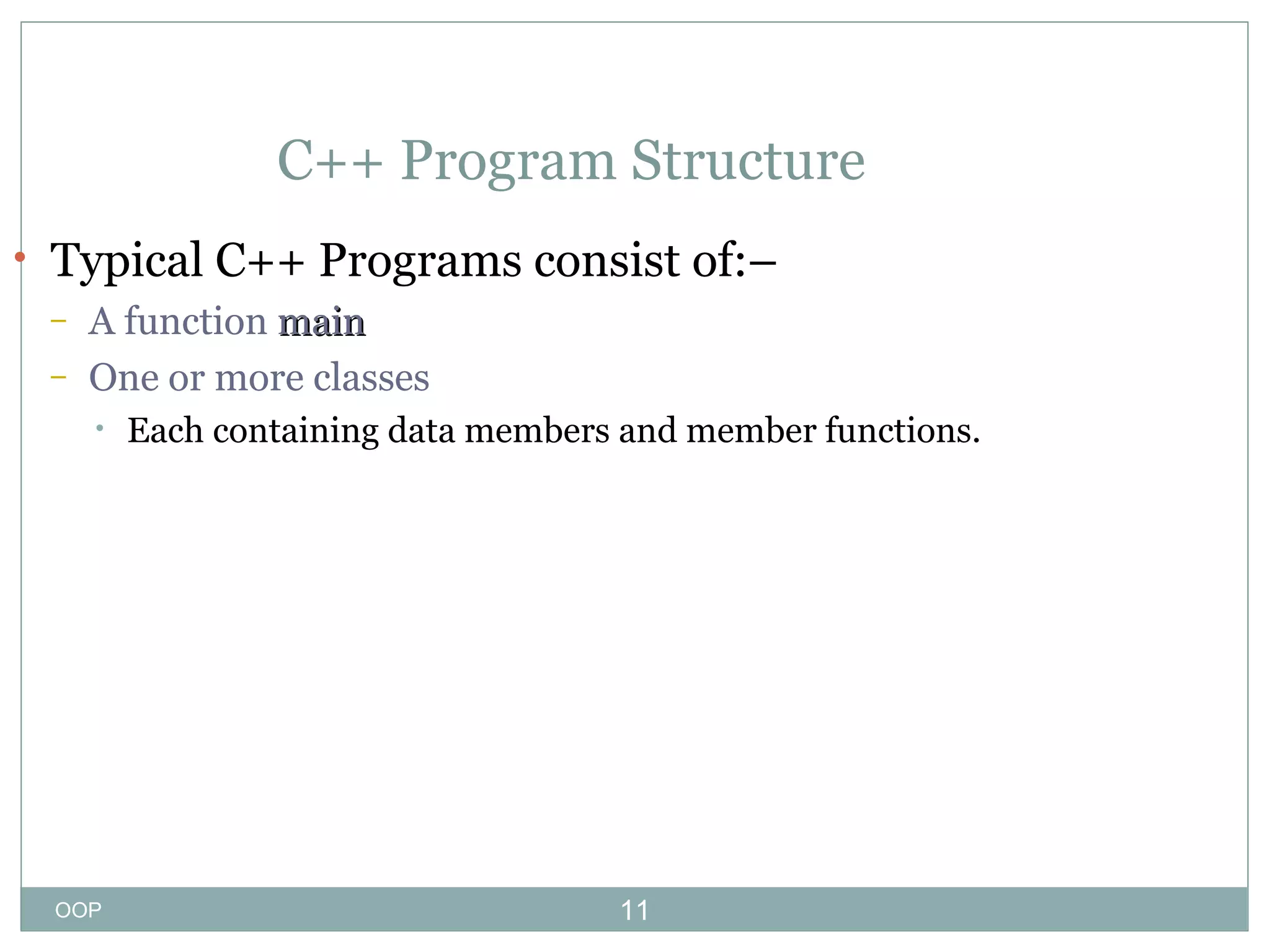

11. C++ Program Structure
• Typical C++ Programs consist of:–
– A function main
– One or more classes
•
OOP
Each containing data members and member functions.
11

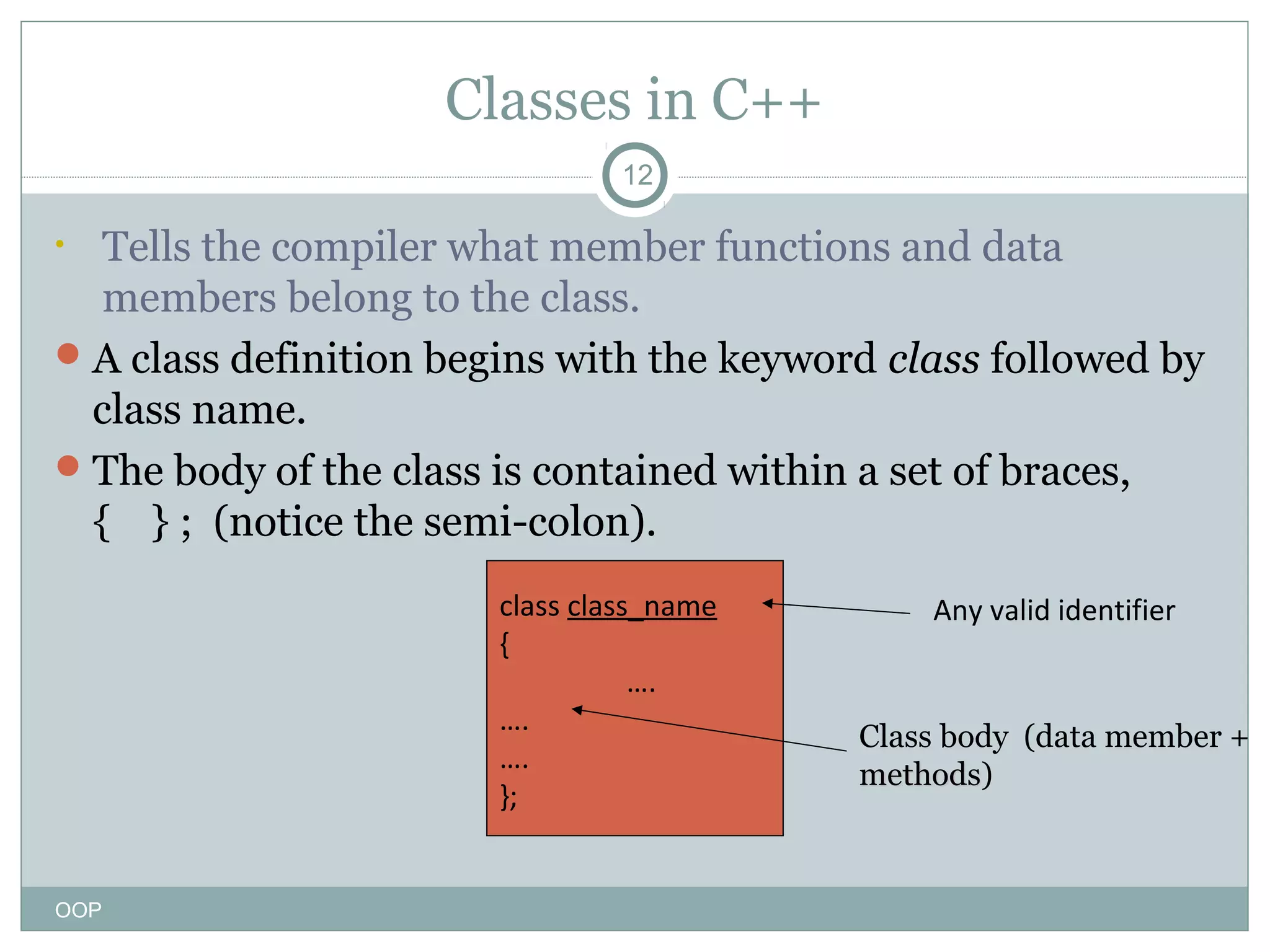

12. Classes in C++
12
Tells the compiler what member functions and data
members belong to the class.
 A class definition begins with the keyword class followed by
class name.
 The body of the class is contained within a set of braces,
{ } ; (notice the semi-colon).
•
class class_name
{
….
….
….
};
OOP
Any valid identifier
Class body (data member +
methods)
methods

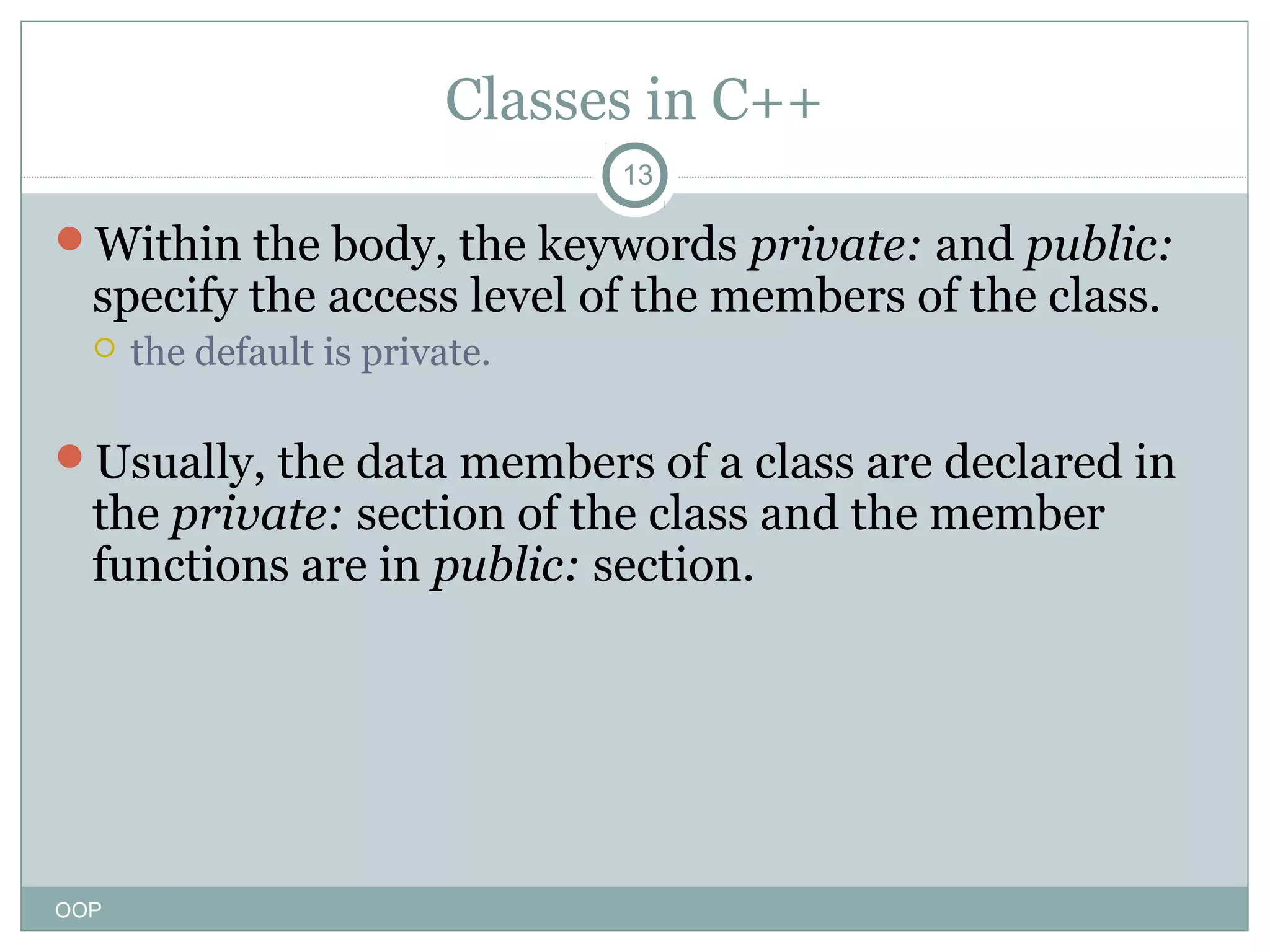

13. Classes in C++
13
Within the body, the keywords private: and public:
specify the access level of the members of the class.

the default is private.
Usually, the data members of a class are declared in
the private: section of the class and the member
functions are in public: section.
OOP

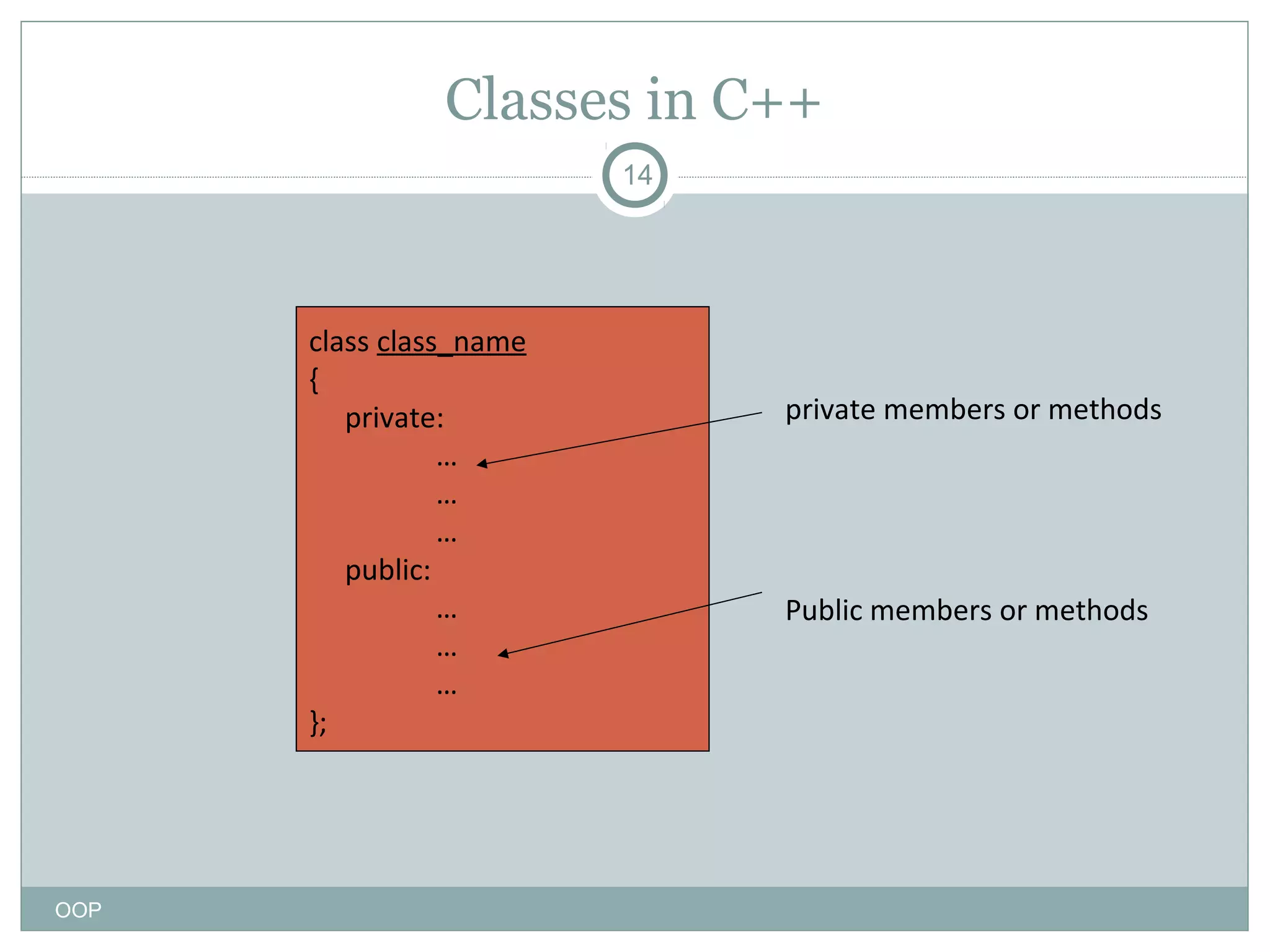

14. Classes in C++
14
class class_name
{
private:
…
…
…
public:
…
…
…
};
OOP
private members or methods
Public members or methods

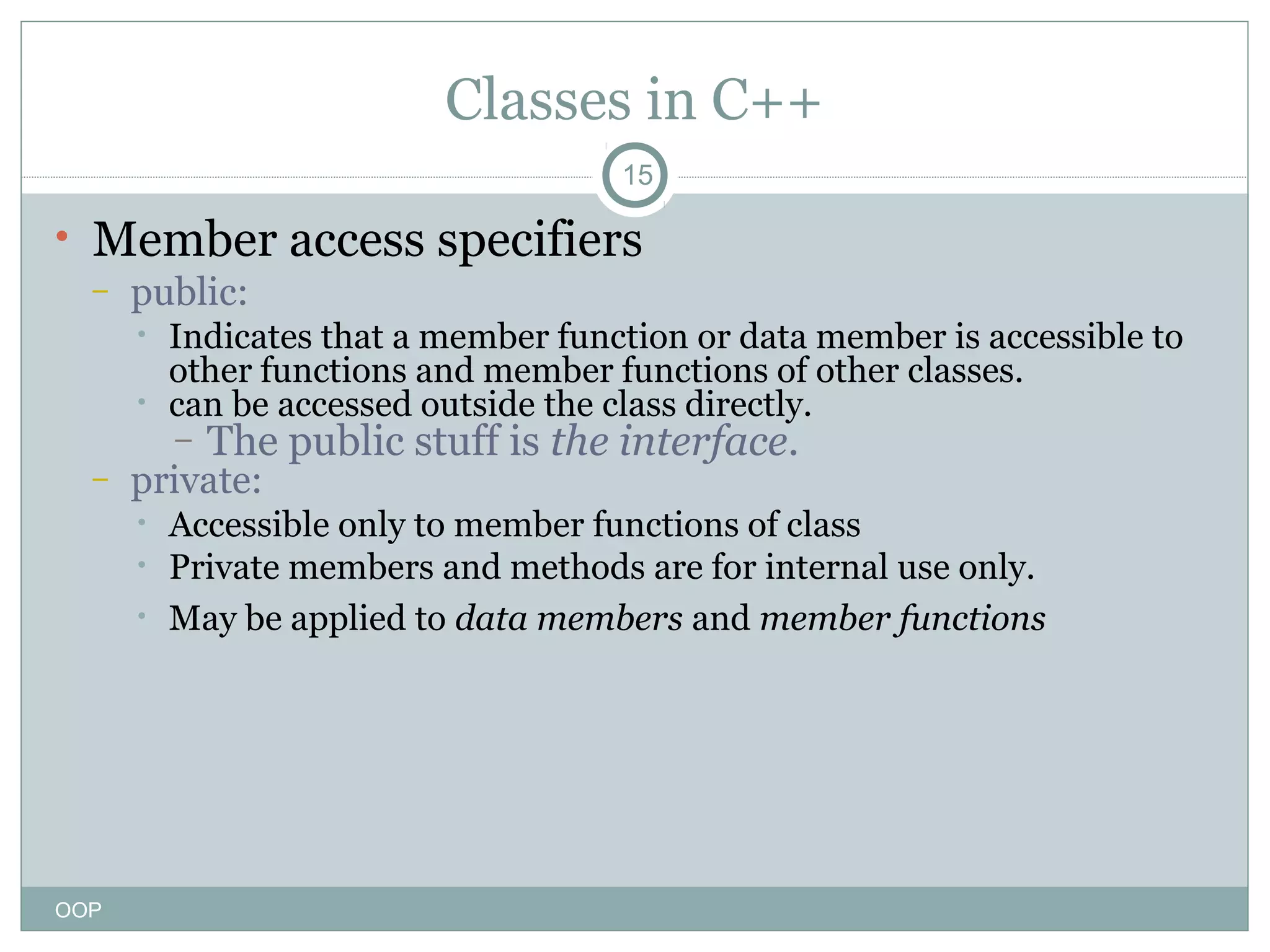

15. Classes in C++
15
• Member access specifiers
–
public:
•
•
Indicates that a member function or data member is accessible to
other functions and member functions of other classes.
can be accessed outside the class directly.
–
–
private:
•
•
•
OOP
The public stuff is the interface.
Accessible only to member functions of class
Private members and methods are for internal use only.
May be applied to data members and member functions

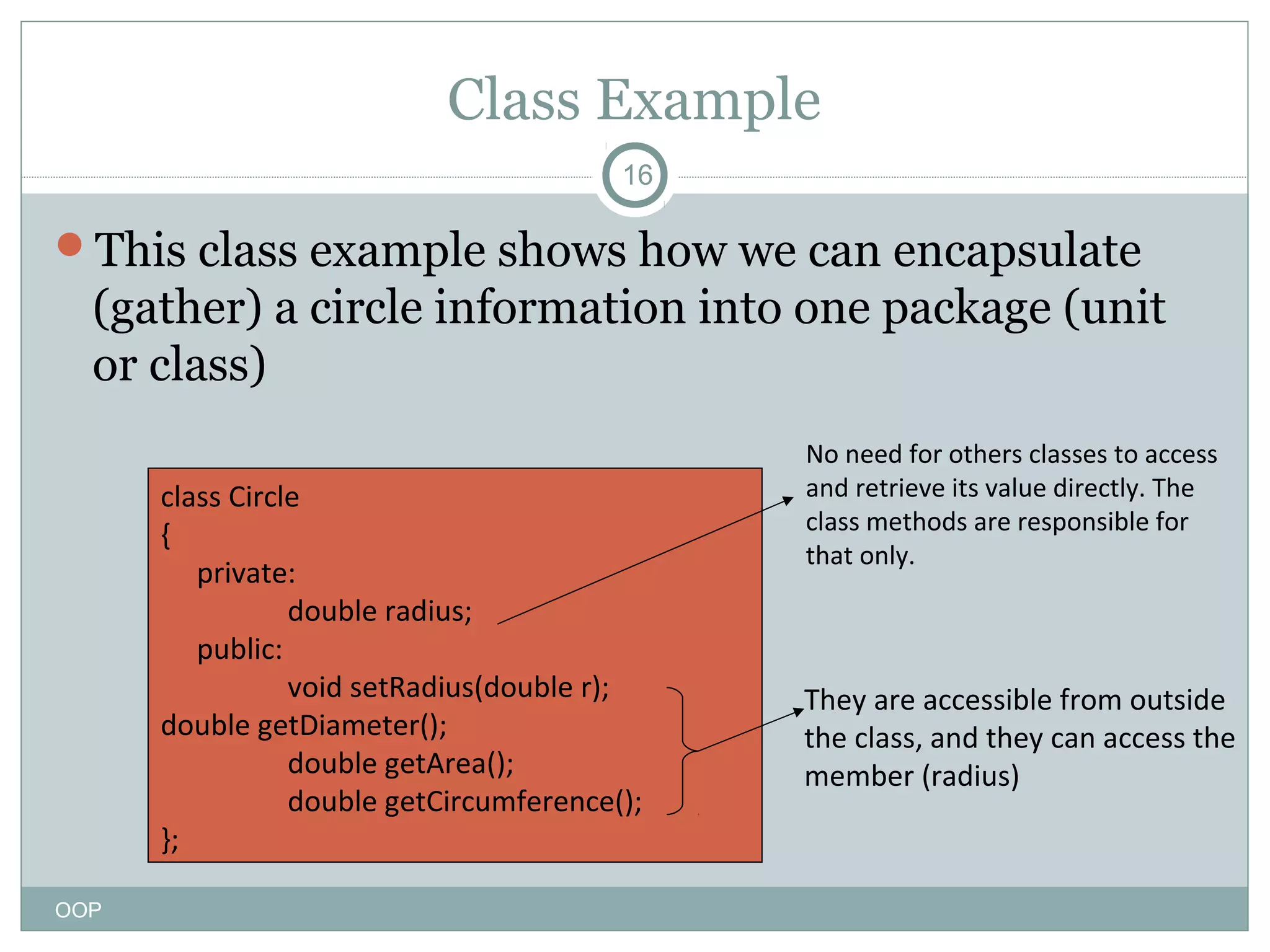

16. Class Example
16
This class example shows how we can encapsulate
(gather) a circle information into one package (unit
or class)
class Circle
{
private:
double radius;
public:
void setRadius(double r);
double getDiameter();
double getArea();
double getCircumference();
};
OOP
No need for others classes to access
and retrieve its value directly. The
class methods are responsible for
that only.
They are accessible from outside
the class, and they can access the
member (radius)

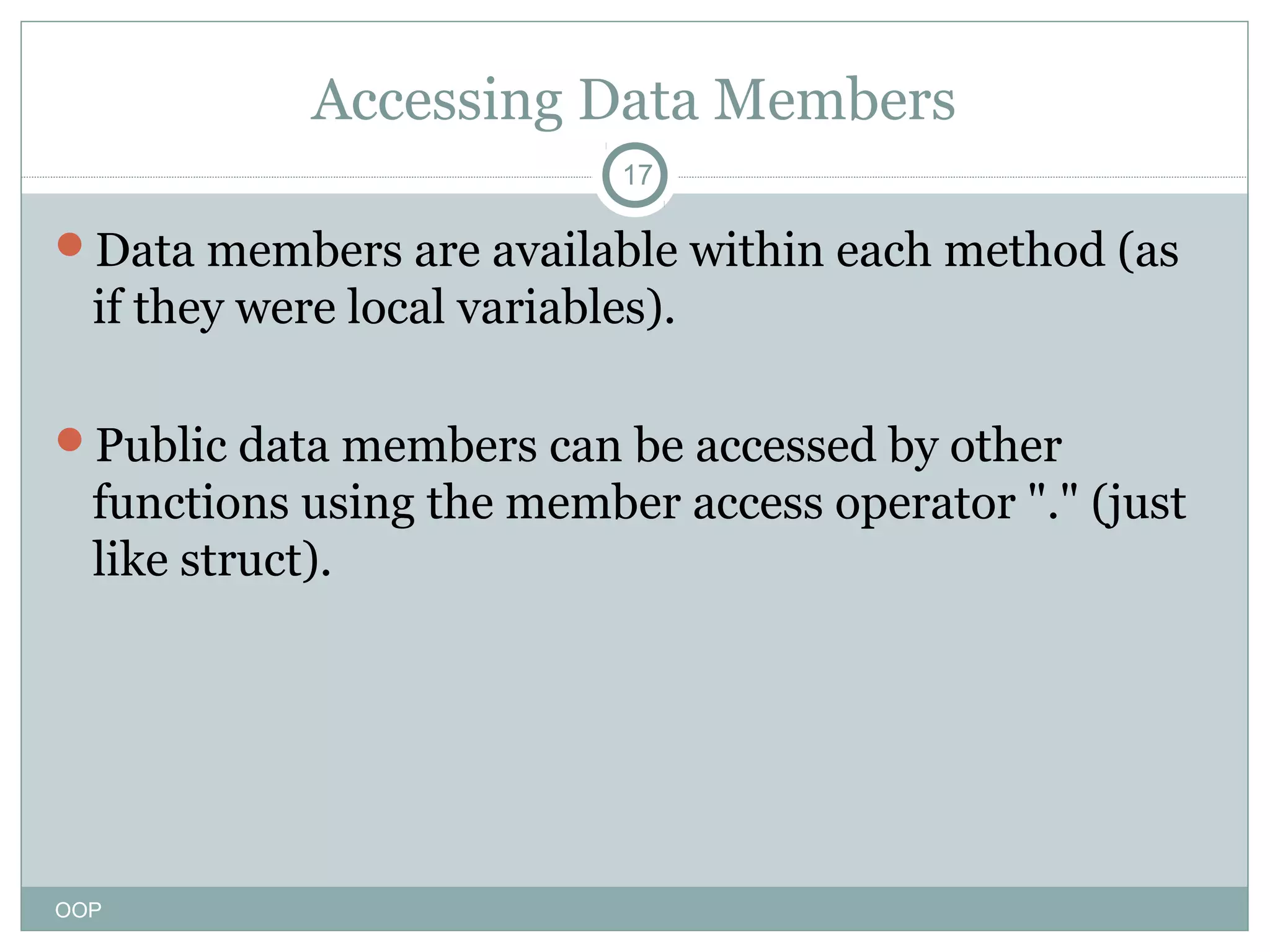

17. Accessing Data Members
17
Data members are available within each method (as
if they were local variables).
Public data members can be accessed by other
functions using the member access operator "." (just
like struct).
OOP

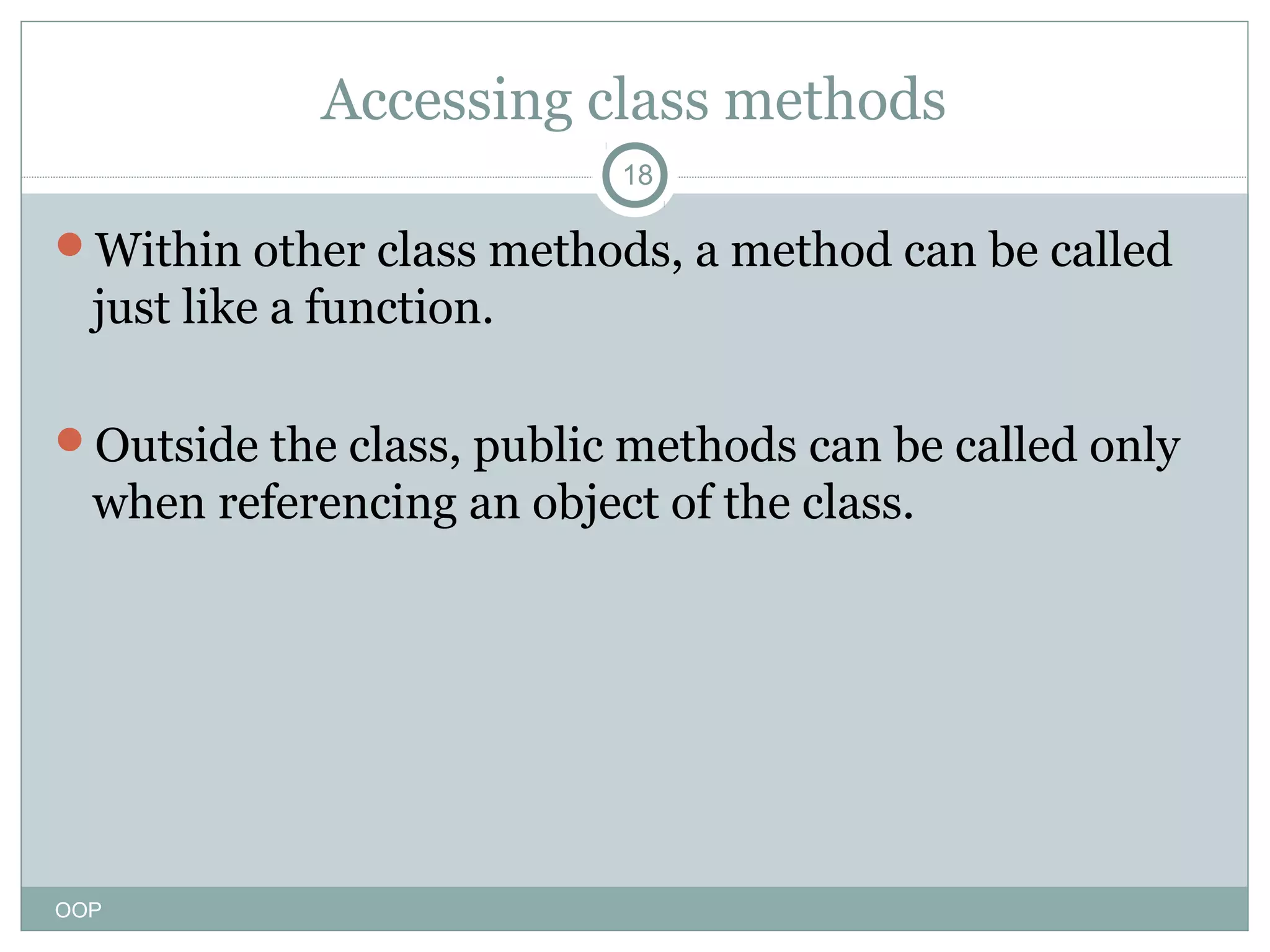

18. Accessing class methods
18
Within other class methods, a method can be called
just like a function.
Outside the class, public methods can be called only
when referencing an object of the class.
OOP

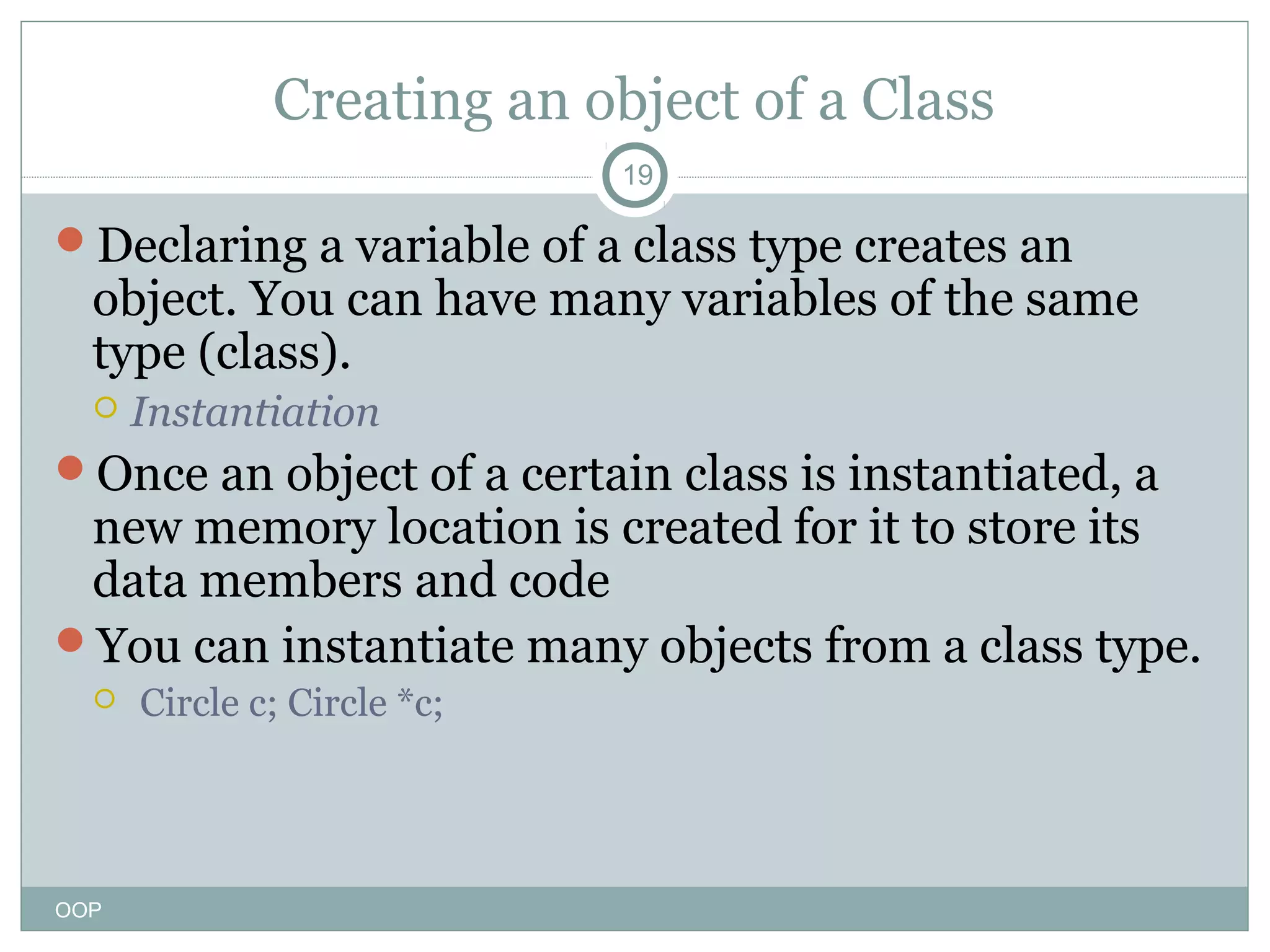

19. Creating an object of a Class
19
Declaring a variable of a class type creates an
object. You can have many variables of the same
type (class).

Instantiation
Once an object of a certain class is instantiated, a
new memory location is created for it to store its
data members and code
You can instantiate many objects from a class type.

OOP
Circle c; Circle *c;

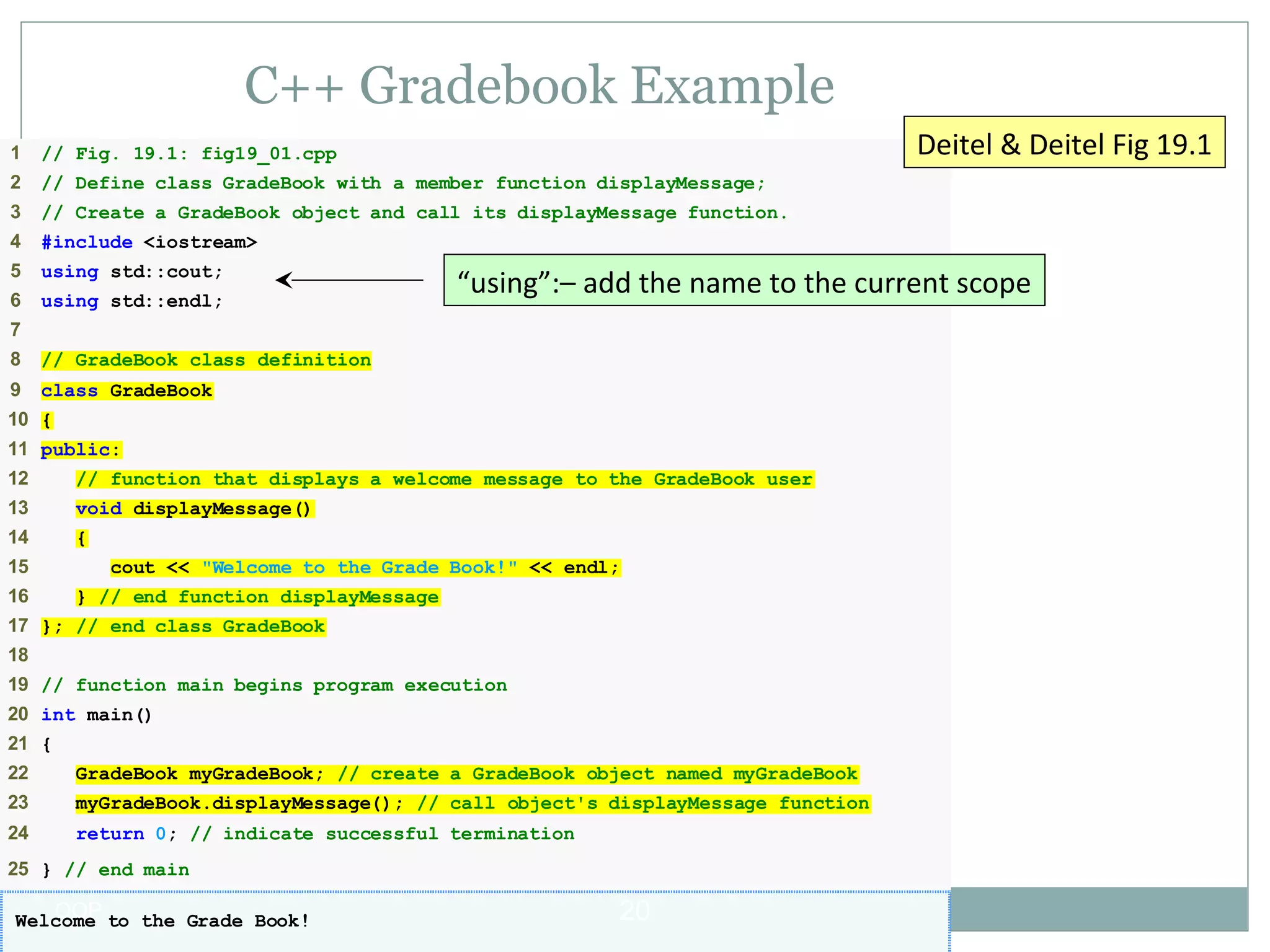

20. C++ Gradebook Example
Deitel & Deitel Fig 19.1
1
// Fig. 19.1: fig19_01.cpp
2
// Define class GradeBook with a member function displayMessage;
3
// Create a GradeBook object and call its displayMessage function.
4
#include <iostream>
5
using std::cout;
6
using std::endl;
“using”:– add the name to the current scope
7
8
// GradeBook class definition
9
class GradeBook
10 {
11 public:
12
// function that displays a welcome message to the GradeBook user
13
void displayMessage()
14
{
15
16
cout << "Welcome to the Grade Book!" << endl;
} // end function displayMessage
17 }; // end class GradeBook
18
19 // function main begins program execution
20 int main()
21 {
22
GradeBook myGradeBook; // create a GradeBook object named myGradeBook
23
myGradeBook.displayMessage(); // call object's displayMessage function
24
return 0; // indicate successful termination
25 } // end main
OOP
Welcome to the Grade Book!
20

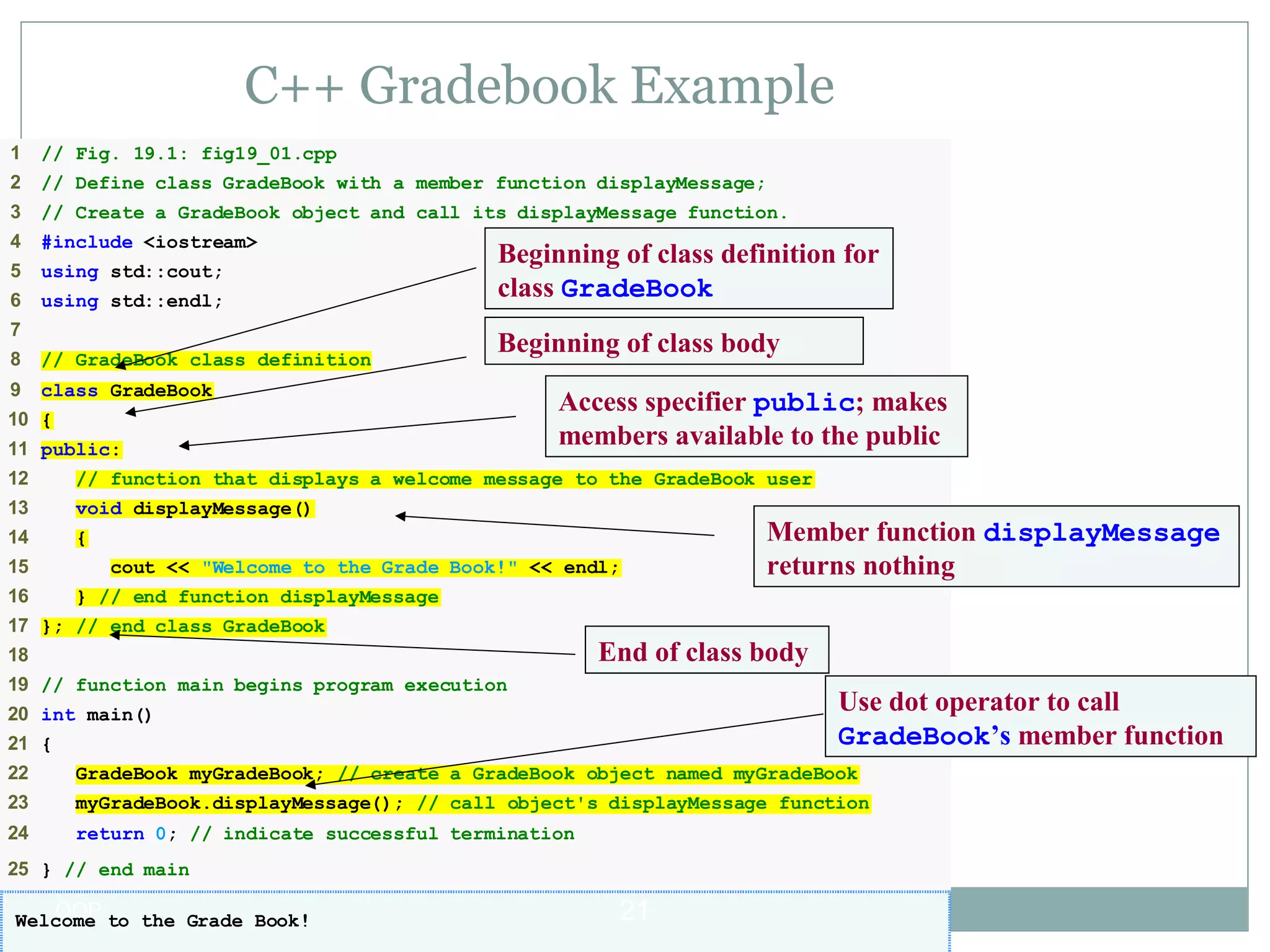

21. C++ Gradebook Example
1
// Fig. 19.1: fig19_01.cpp
2
// Define class GradeBook with a member function displayMessage;
3
// Create a GradeBook object and call its displayMessage function.
4
#include <iostream>
5
using std::cout;
6
using std::endl;
7
8
// GradeBook class definition
9
Beginning of class definition for
class GradeBook
Beginning of class body
class GradeBook
10 {
11 public:
Access specifier public; makes
members available to the public
12
// function that displays a welcome message to the GradeBook user
13
void displayMessage()
14
{
15
16
cout << "Welcome to the Grade Book!" << endl;
Member function displayMessage
returns nothing
} // end function displayMessage
17 }; // end class GradeBook
18
End of class body
19 // function main begins program execution
Use dot operator to call
GradeBook’s member function
20 int main()
21 {
22
GradeBook myGradeBook; // create a GradeBook object named myGradeBook
23
myGradeBook.displayMessage(); // call object's displayMessage function
24
return 0; // indicate successful termination
25 } // end main
OOP
Welcome to the Grade Book!
21

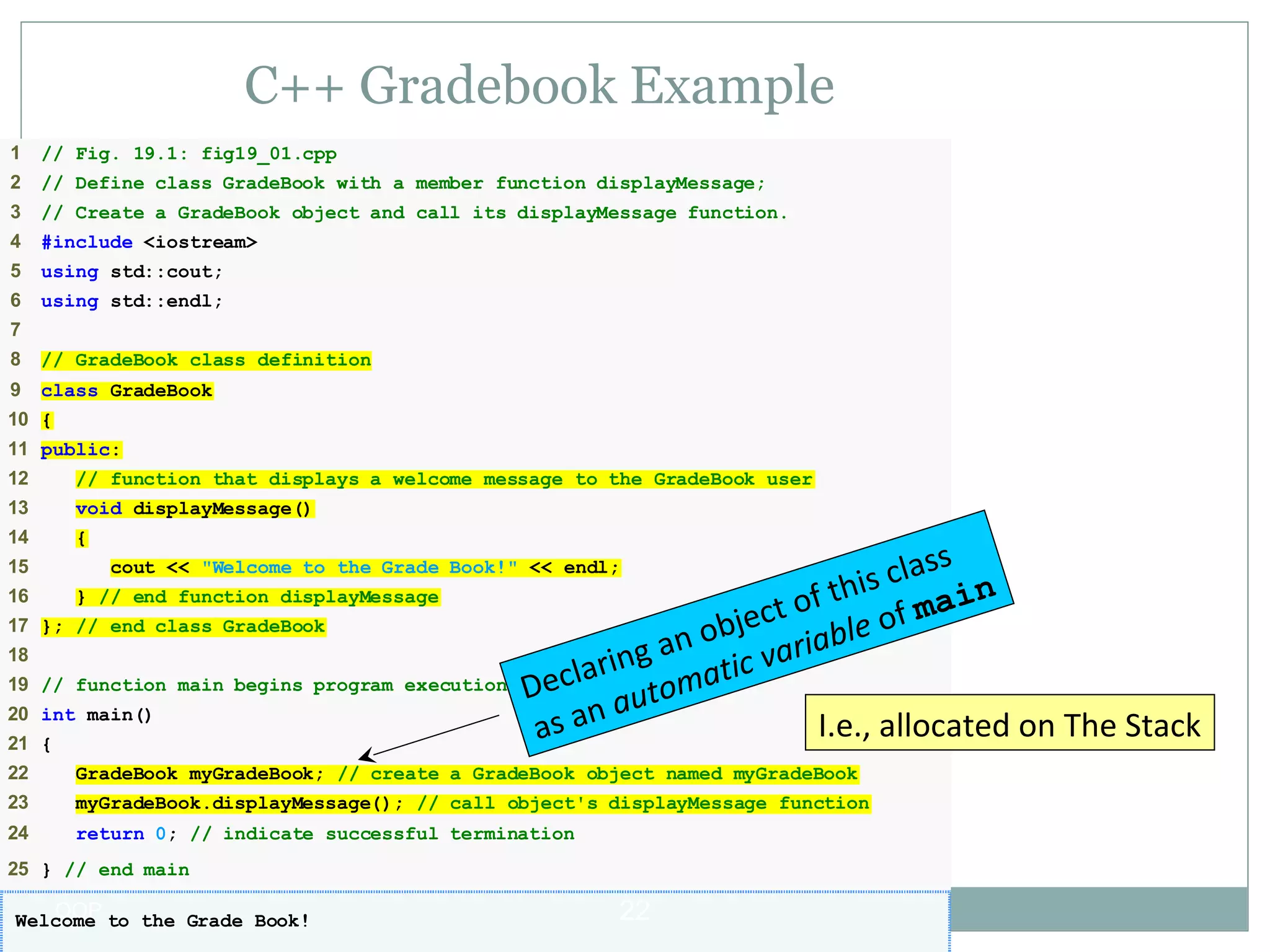

22. C++ Gradebook Example
1
// Fig. 19.1: fig19_01.cpp
2
// Define class GradeBook with a member function displayMessage;
3
// Create a GradeBook object and call its displayMessage function.
4
#include <iostream>
5
using std::cout;
6
using std::endl;
7
8
// GradeBook class definition
9
class GradeBook
10 {
11 public:
12
// function that displays a welcome message to the GradeBook user
13
void displayMessage()
14
{
15
16
ss
s cla in
hi
t of t of ma
c
obje riable
an
ring atic va
a
Decl autom
I.e., allocated on The Stack
as an
cout << "Welcome to the Grade Book!" << endl;
} // end function displayMessage
17 }; // end class GradeBook
18
19 // function main begins program execution
20 int main()
21 {
22
GradeBook myGradeBook; // create a GradeBook object named myGradeBook
23
myGradeBook.displayMessage(); // call object's displayMessage function
24
return 0; // indicate successful termination
25 } // end main
OOP
Welcome to the Grade Book!
22

23. Member Functions with Parameters
1
// Fig. 19.3: fig19_03.cpp
2
3
// Define class GradeBook with a member function that takes a parameter;
// Create a GradeBook object and call its displayMessage function.
4
#include <iostream>
5
6
using std::cout;
using std::cin;
7
using std::endl;
8
9
#include <string> // program uses C++ standard string class
Include string class
definition
10 using std::string;
11 using std::getline;
12
Member function
parameter
13 // GradeBook class definition
14 class GradeBook
15 {
16 public:
17
// function that displays a welcome message to the GradeBook user
18
19
void displayMessage( string courseName )
{
20
21
22
cout << "Welcome to the grade book forn" << courseName << "!"
<< endl;
} // end function displayMessage
Use the function
parameter as a
variable
23 }; // end class GradeBook
24
25 // function main begins program execution
26 int main()
27 {
28
string nameOfCourse; // string of characters to store the course name
29
GradeBook myGradeBook; // create a GradeBook object named myGradeBook
30
OOP
23

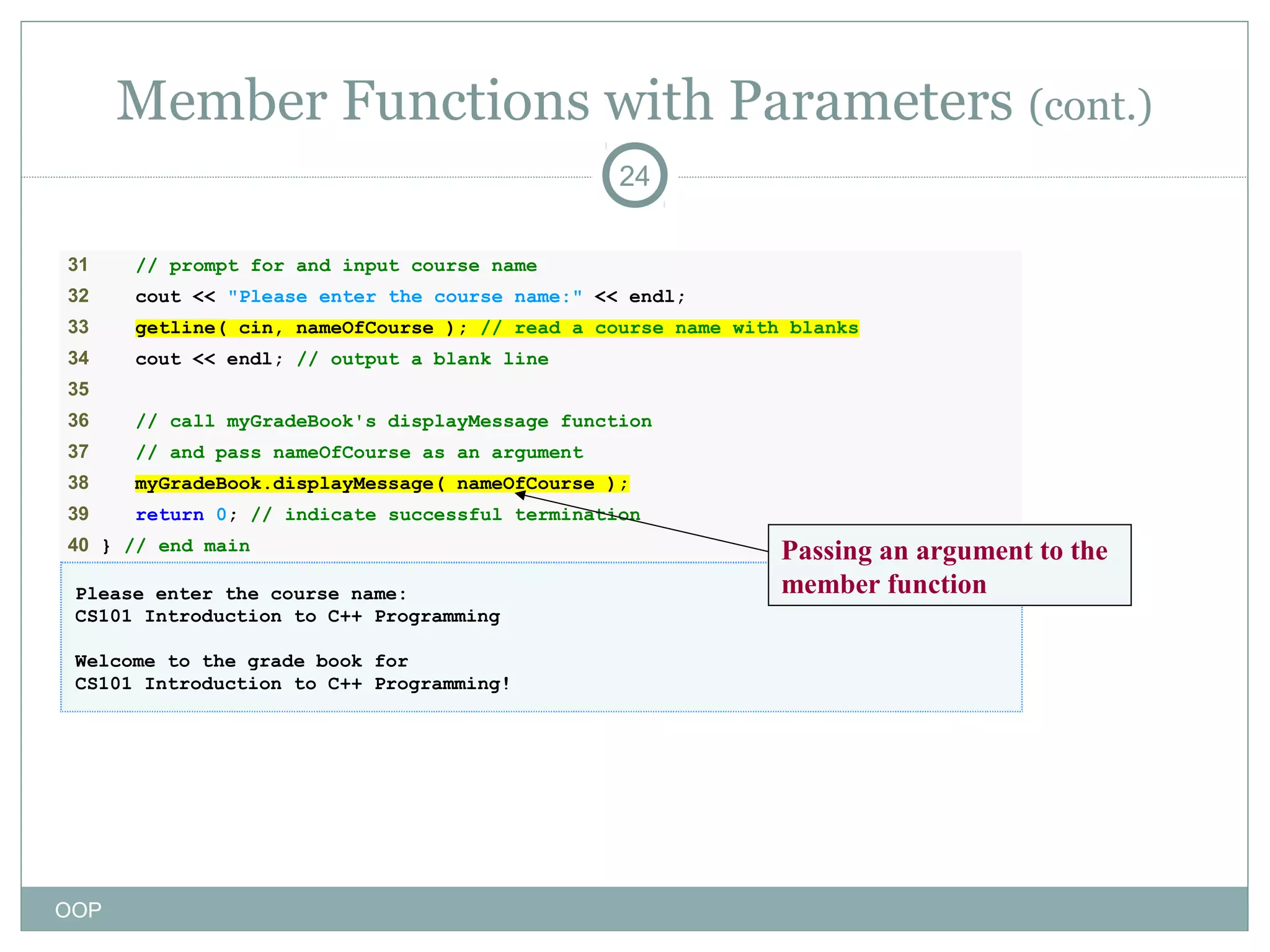

24. Member Functions with Parameters (cont.)
24
31
// prompt for and input course name
32
cout << "Please enter the course name:" << endl;
33
getline( cin, nameOfCourse ); // read a course name with blanks
34
cout << endl; // output a blank line
35
36
// call myGradeBook's displayMessage function
37
// and pass nameOfCourse as an argument
38
myGradeBook.displayMessage( nameOfCourse );
39
return 0; // indicate successful termination
40 } // end main
Please enter the course name:
CS101 Introduction to C++ Programming
Welcome to the grade book for
CS101 Introduction to C++ Programming!
OOP
Passing an argument to the
member function

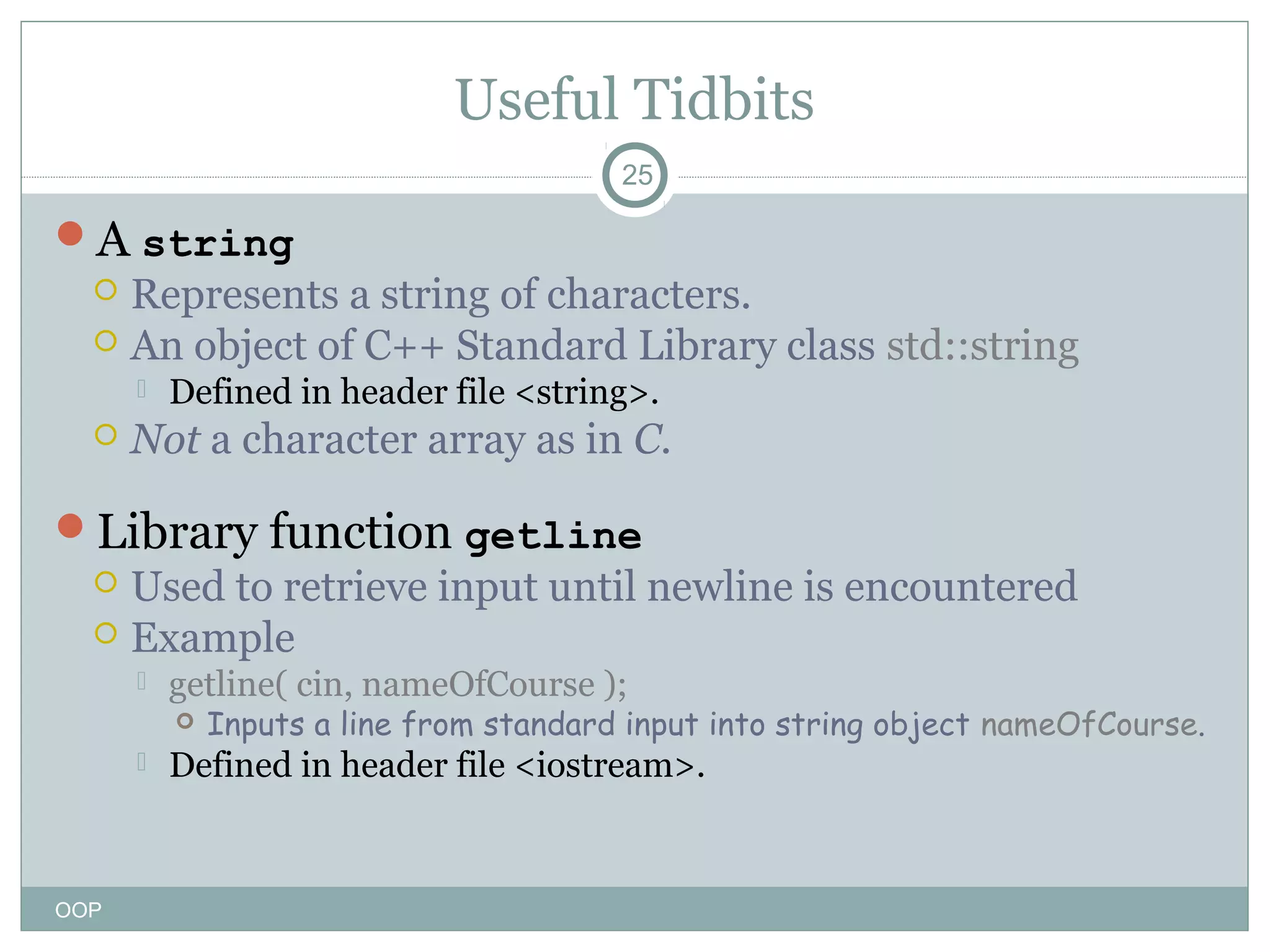

25. Useful Tidbits
25
A string
 Represents a string of characters.
 An object of C++ Standard Library class std::string


Defined in header file <string>.
Not a character array as in C.
Library function getline
 Used to retrieve input until newline is encountered
 Example

getline( cin, nameOfCourse );


OOP
Inputs a line from standard input into string object nameOfCourse.
Defined in header file <iostream>.

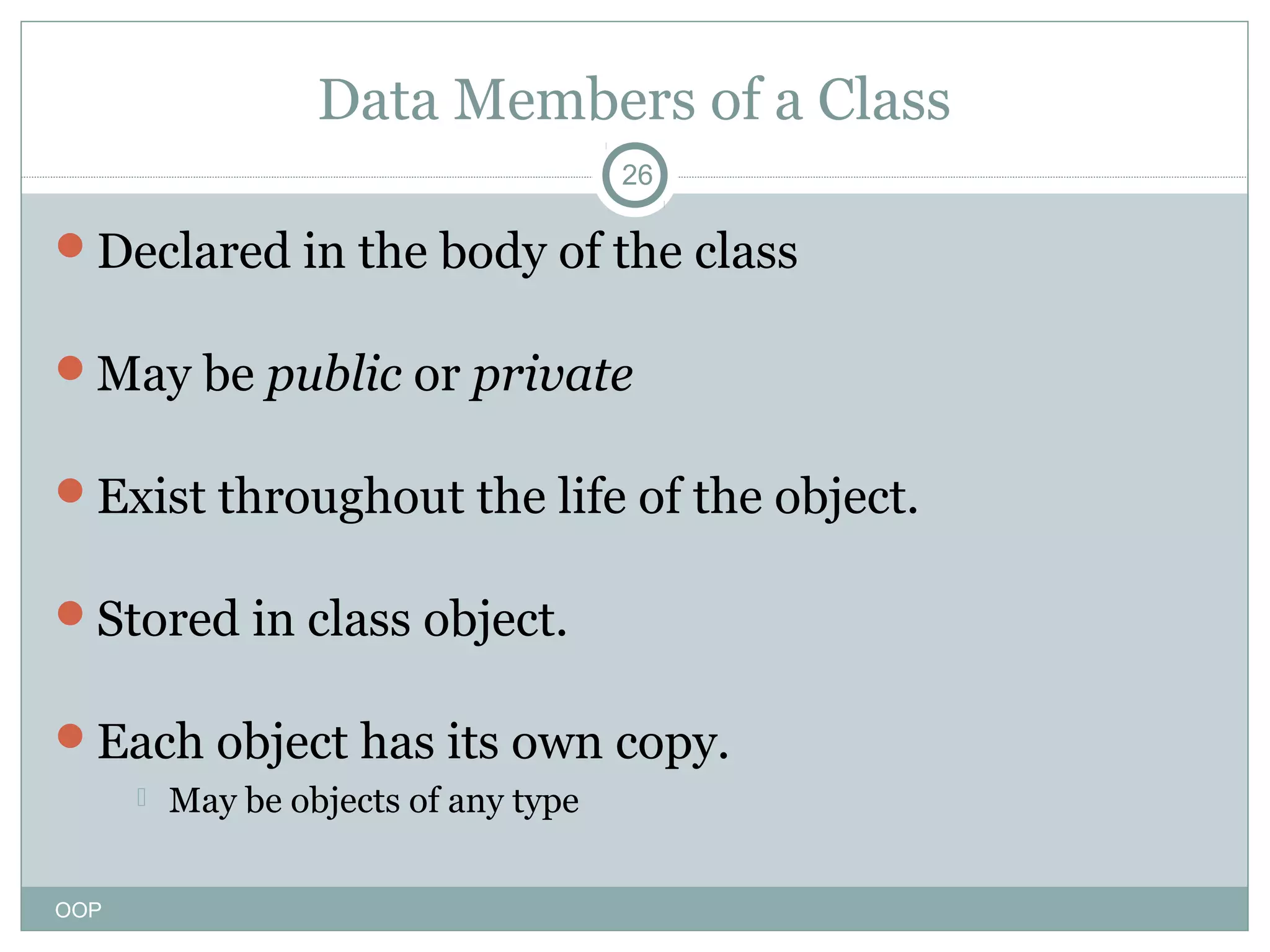

26. Data Members of a Class
26
Declared in the body of the class
May be public or private
Exist throughout the life of the object.
Stored in class object.
Each object has its own copy.

OOP
May be objects of any type

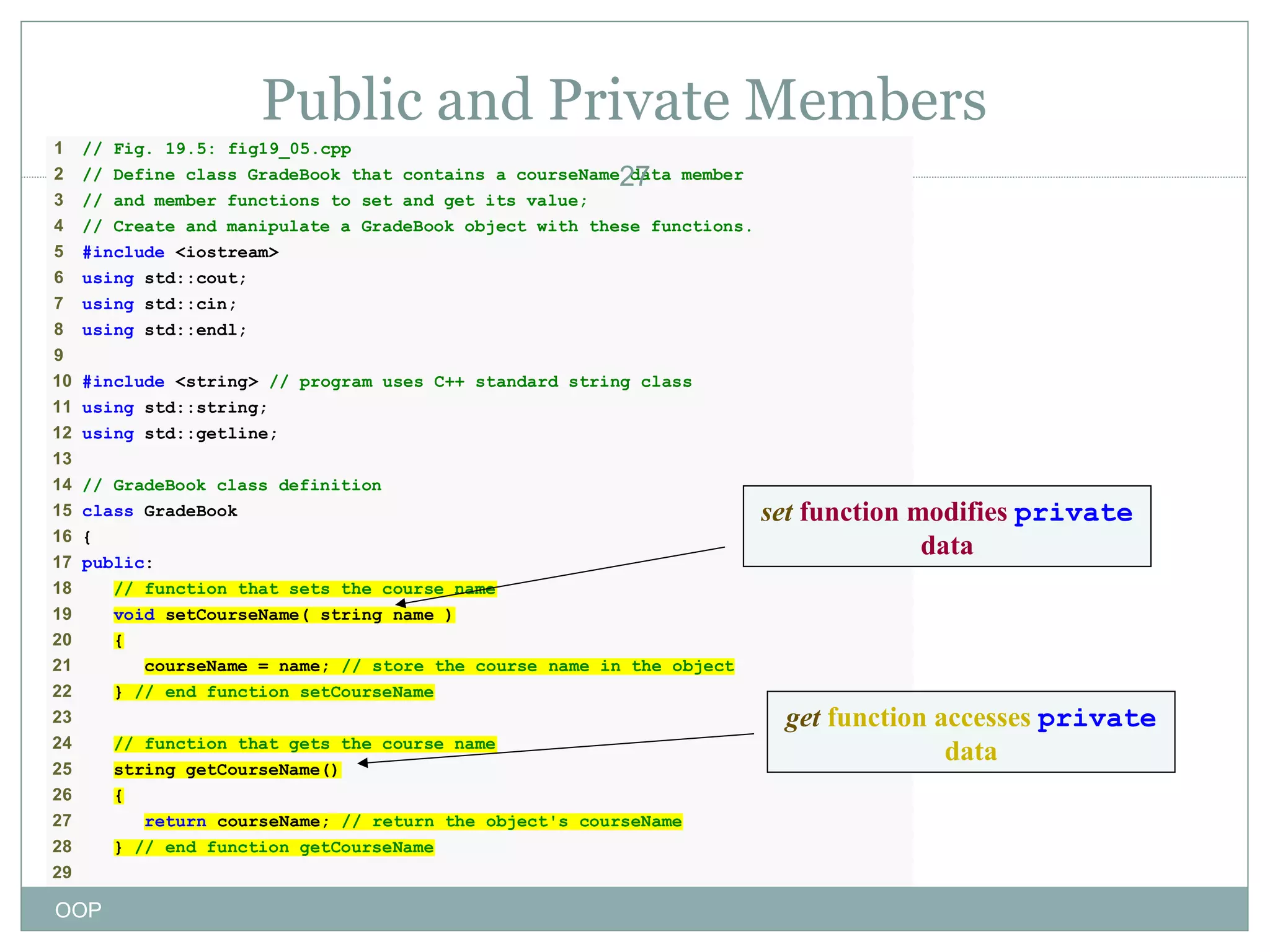

27. Public and Private Members
1
2
// Fig. 19.5: fig19_05.cpp
// Define class GradeBook that contains a courseName data member
3
4
5
// and member functions to set and get its value;
// Create and manipulate a GradeBook object with these functions.
#include <iostream>
6
7
8
9
10
11
12
13
using std::cout;
using std::cin;
using std::endl;
27
#include <string> // program uses C++ standard string class
using std::string;
using std::getline;
14 // GradeBook class definition
15 class GradeBook
16 {
17 public:
18
// function that sets the course name
19
void setCourseName( string name )
20
{
21
courseName = name; // store the course name in the object
22
} // end function setCourseName
23
24
// function that gets the course name
25
string getCourseName()
26
{
27
return courseName; // return the object's courseName
28
} // end function getCourseName
29
OOP
set function modifies private
data
get function accesses private
data

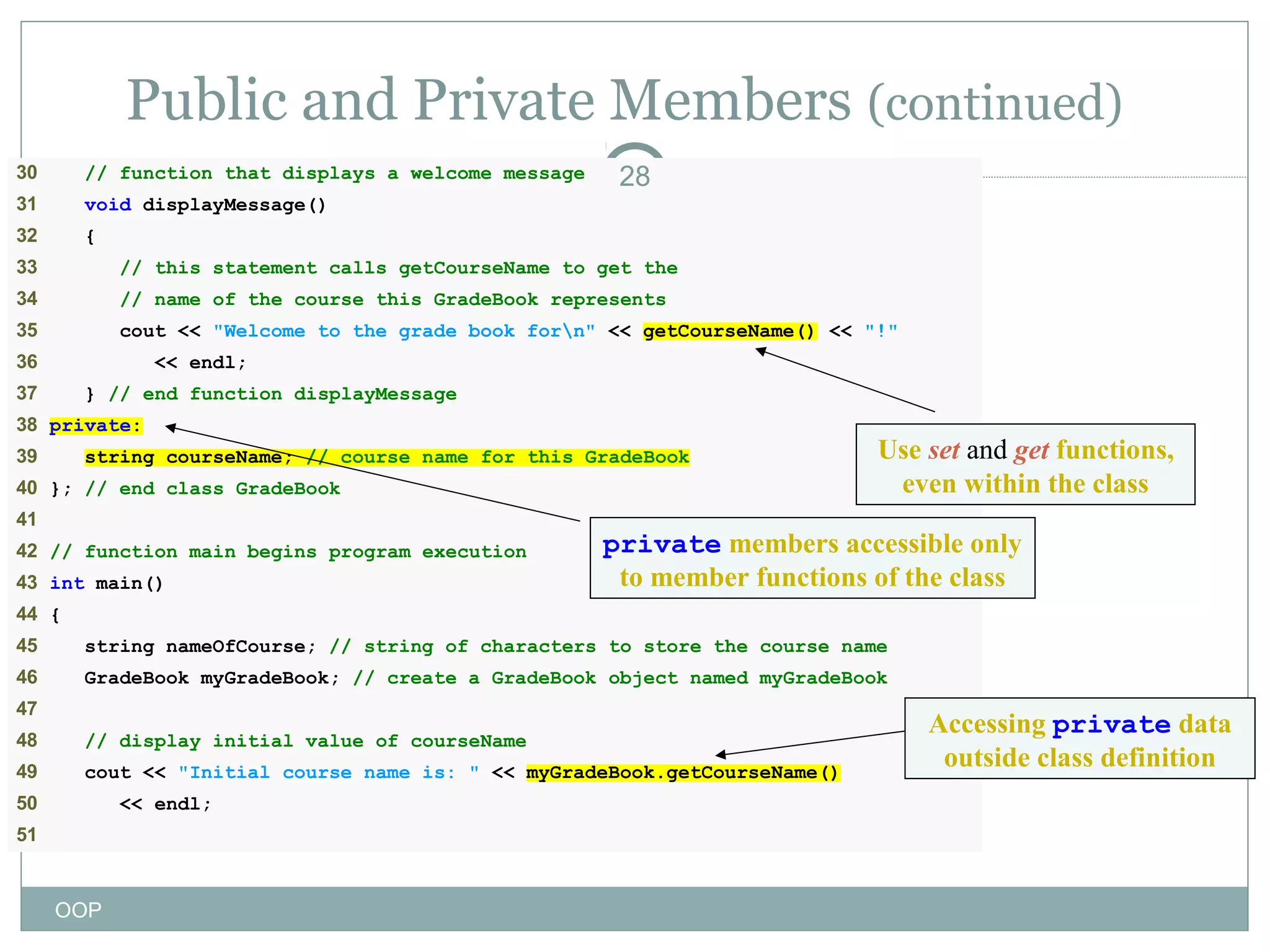

28. Public and Private Members (continued)
30
// function that displays a welcome message
31
32
28
void displayMessage()
{
33
// this statement calls getCourseName to get the
34
// name of the course this GradeBook represents
35
cout << "Welcome to the grade book forn" << getCourseName() << "!"
36
<< endl;
37
} // end function displayMessage
38 private:
39
string courseName; // course name for this GradeBook
40 }; // end class GradeBook
41
42 // function main begins program execution
43 int main()
Use set and get functions,
even within the class
private members accessible only
to member functions of the class
44 {
45
string nameOfCourse; // string of characters to store the course name
46
GradeBook myGradeBook; // create a GradeBook object named myGradeBook
47
48
// display initial value of courseName
49
cout << "Initial course name is: " << myGradeBook.getCourseName()
50
<< endl;
51
OOP
Accessing private data
outside class definition

29. Public and Private Members (continued)
29
52
// prompt for, input and set course name
53
cout << "nPlease enter the course name:" << endl;
54
getline( cin, nameOfCourse ); // read a course name with blanks
55
myGradeBook.setCourseName( nameOfCourse ); // set the course name
56
57
cout << endl; // outputs a blank line
58
myGradeBook.displayMessage(); // display message with new course name
59
return 0; // indicate successful termination
60 } // end main
Initial course name is:
Please enter the course name:
CS101 Introduction to C++ Programming
Welcome to the grade book for
CS101 Introduction to C++ Programming!
OOP
Modifying private data outside class
definition
default setting from constructor
is an empty string!!

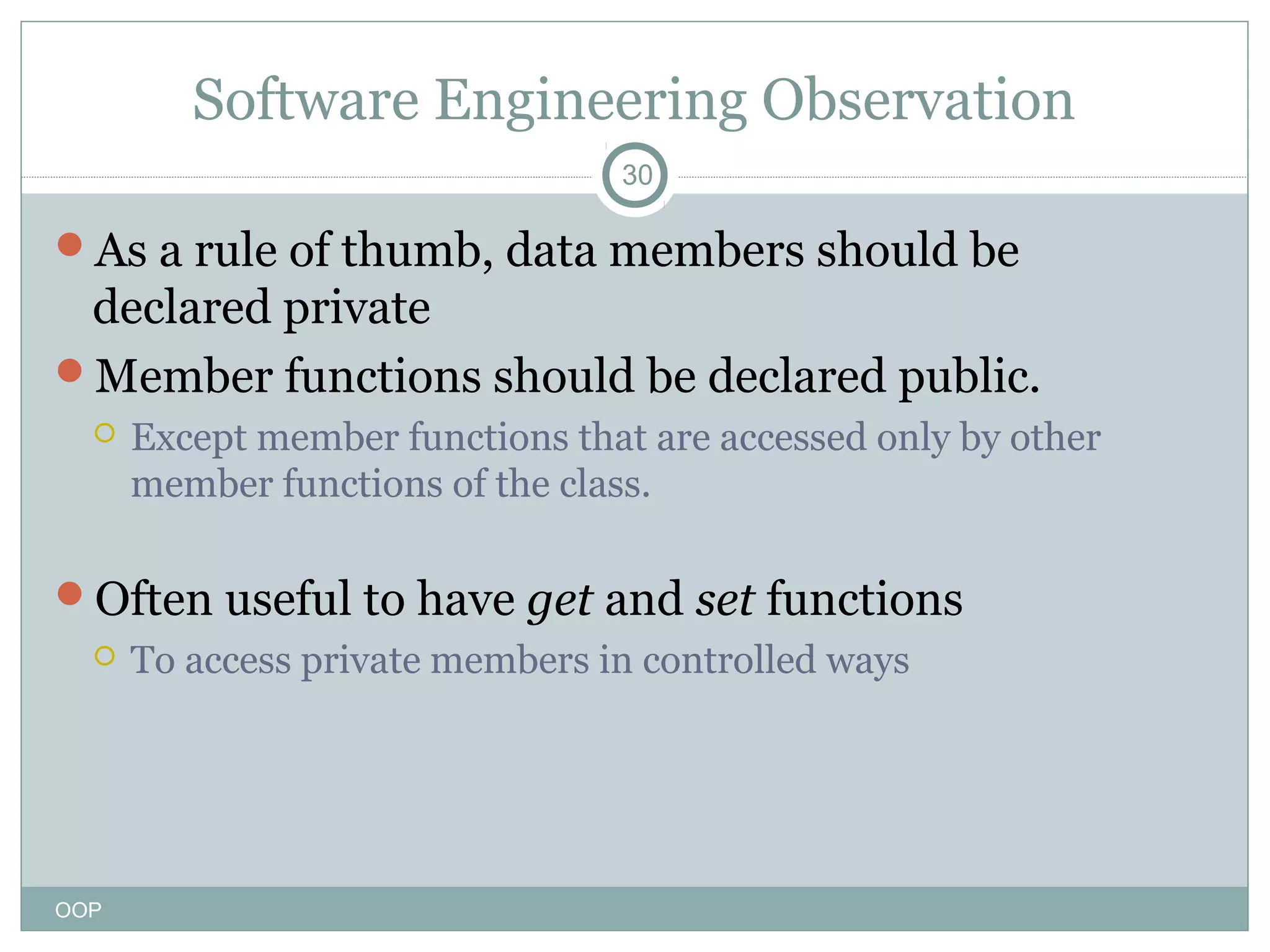

30. Software Engineering Observation
30
As a rule of thumb, data members should be
declared private
Member functions should be declared public.

Except member functions that are accessed only by other
member functions of the class.
Often useful to have get and set functions

OOP
To access private members in controlled ways

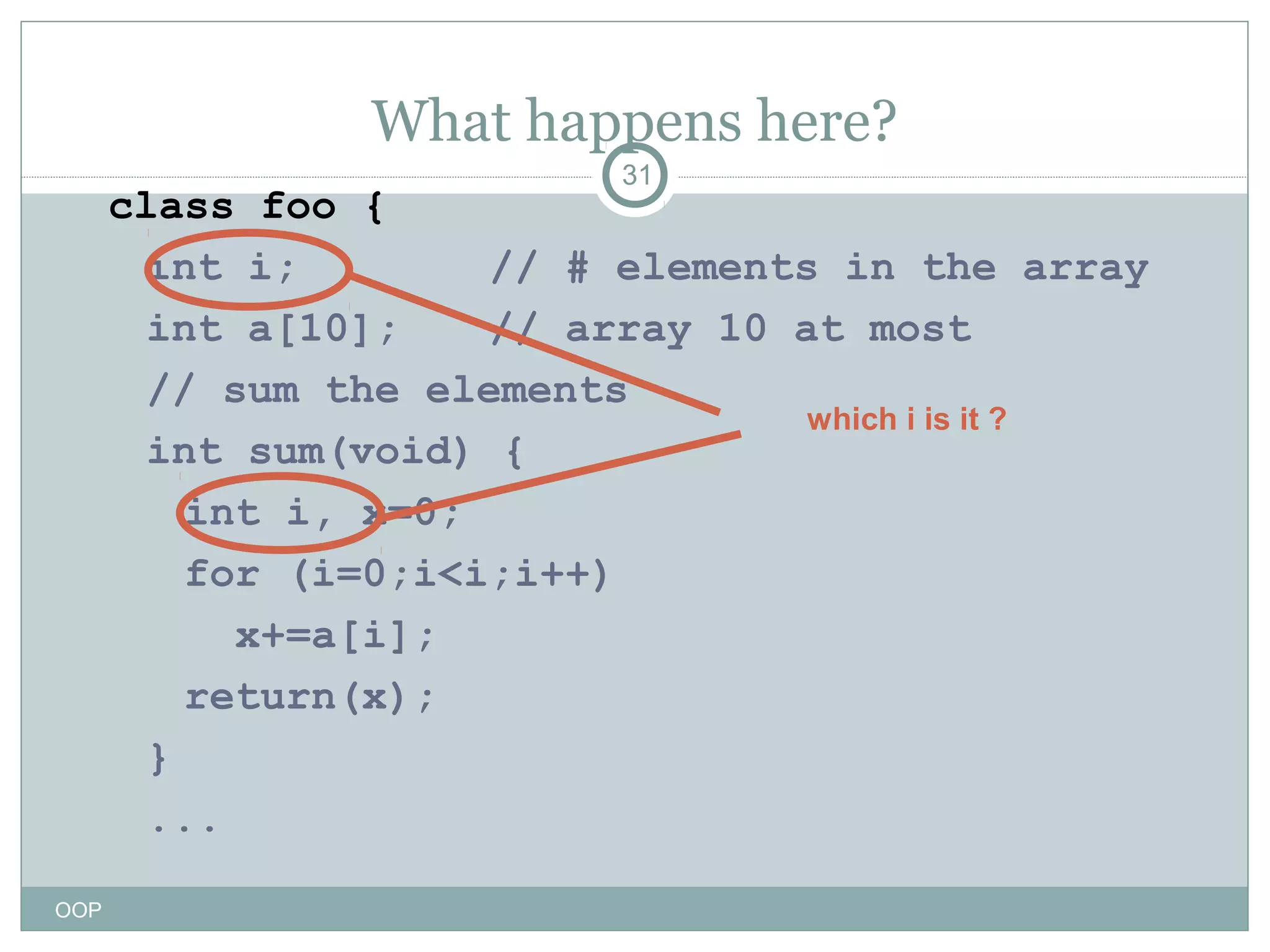

31. What happens here?
31
class foo {
int i;
// # elements in the array
int a[10];
// array 10 at most
// sum the elements
which i is it ?
int sum(void) {
int i, x=0;
for (i=0;i<i;i++)
x+=a[i];
return(x);
}
...
OOP

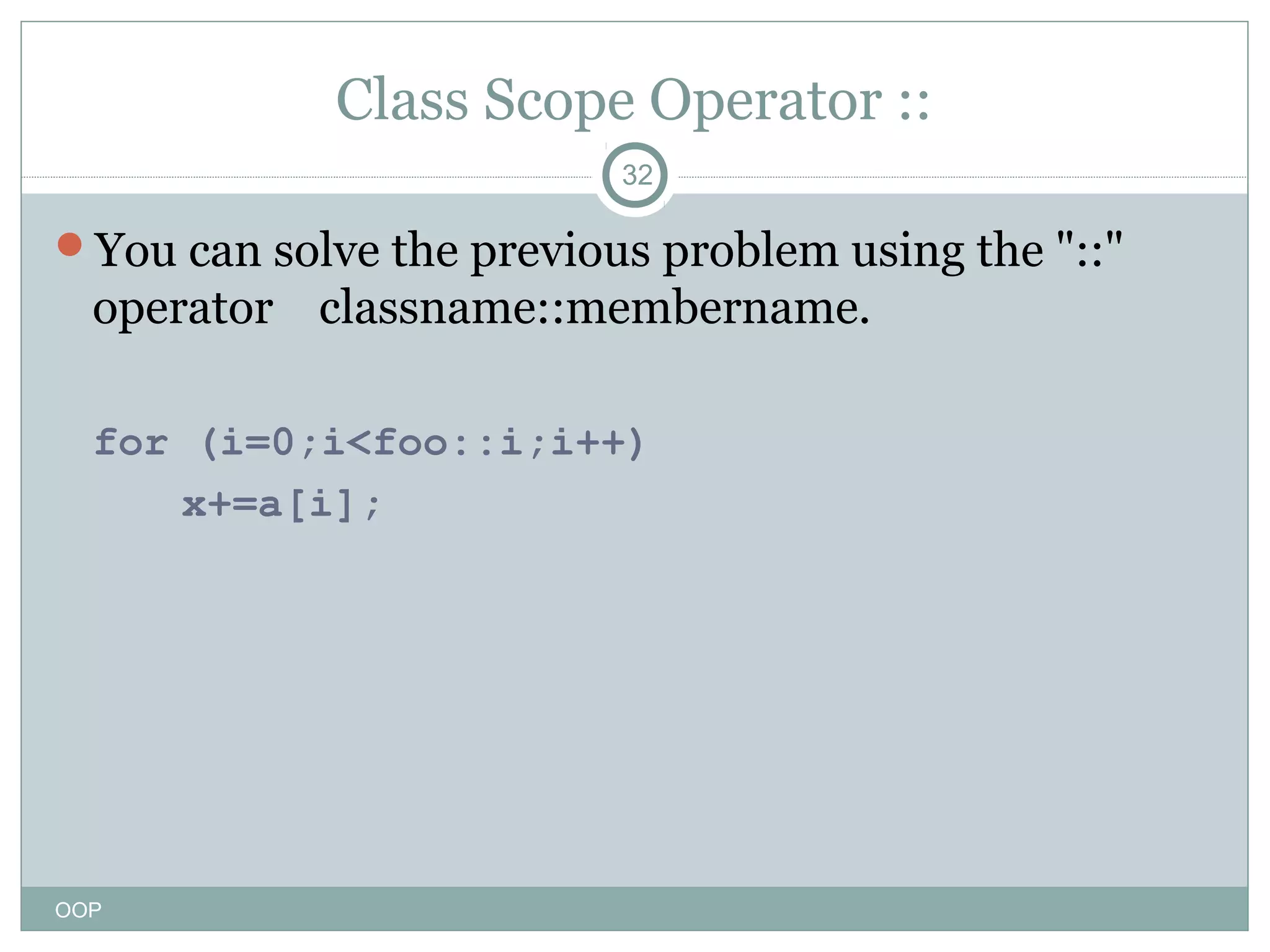

32. Class Scope Operator ::
32
You can solve the previous problem using the "::"
operator classname::membername.
for (i=0;i<foo::i;i++)
x+=a[i];
OOP

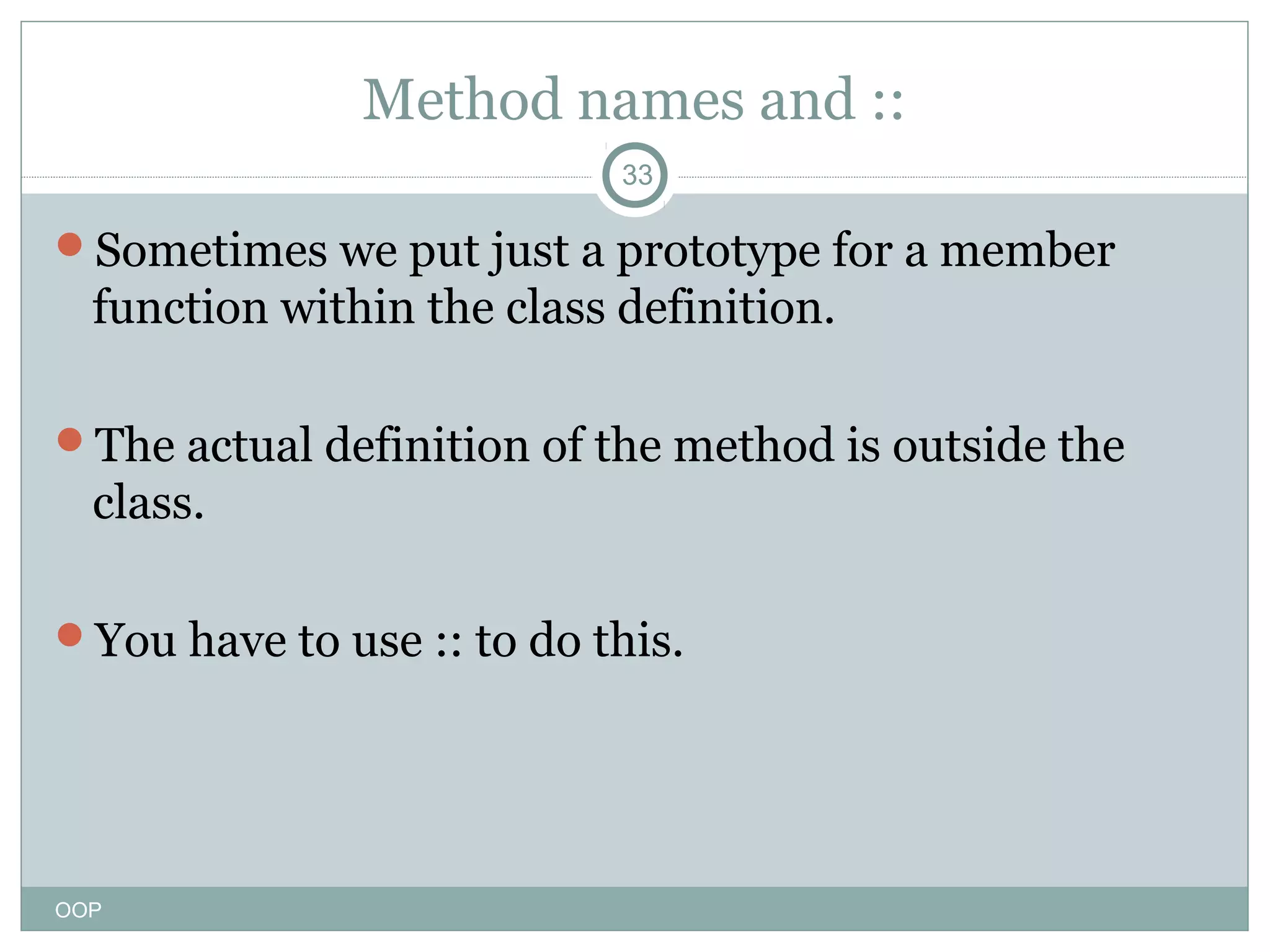

33. Method names and ::
33
Sometimes we put just a prototype for a member
function within the class definition.
The actual definition of the method is outside the
class.
You have to use :: to do this.
OOP

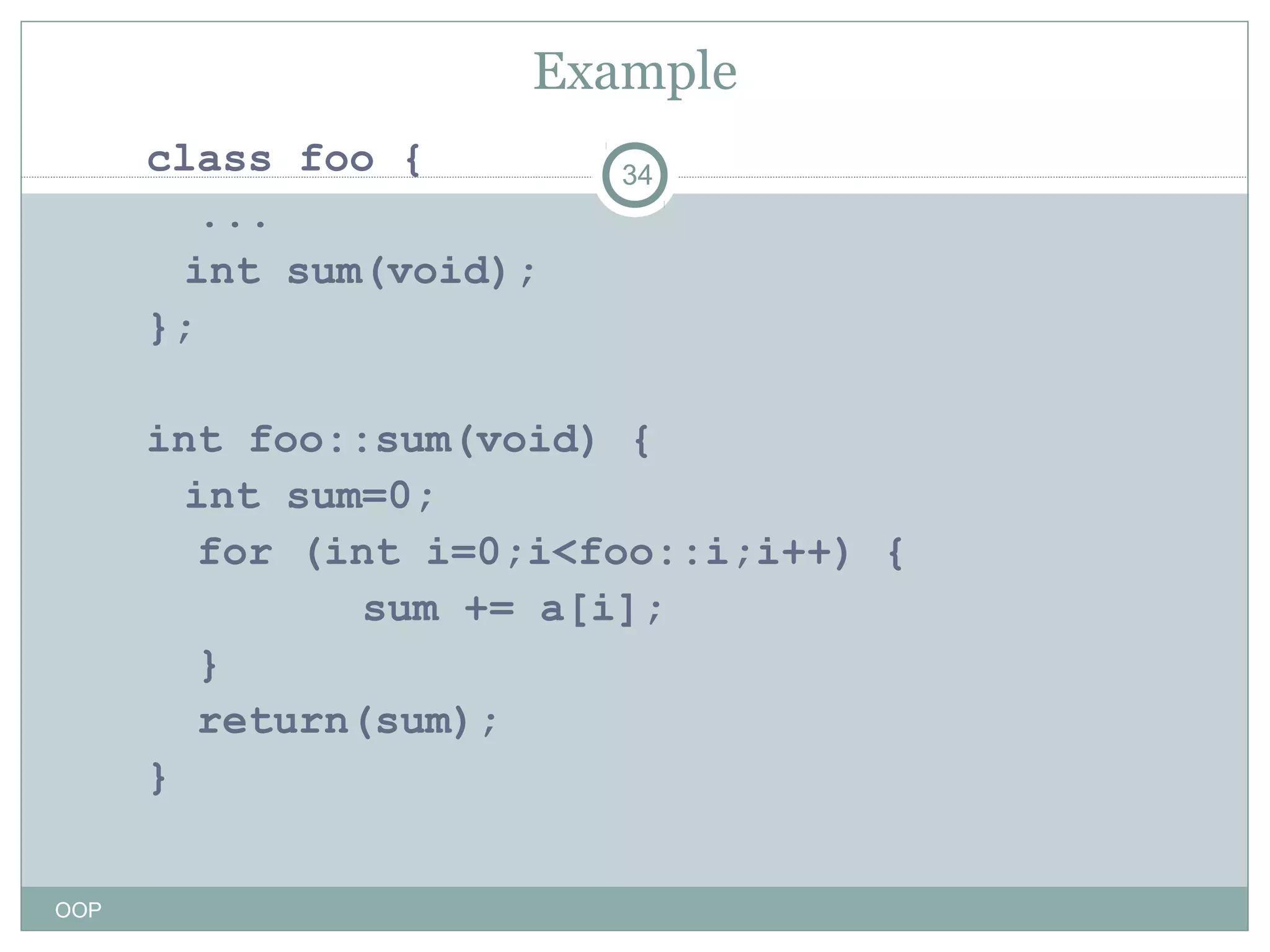

34. Example
class foo {
...
int sum(void);
};
34
int foo::sum(void) {
int sum=0;
for (int i=0;i<foo::i;i++) {
sum += a[i];
}
return(sum);
}
OOP

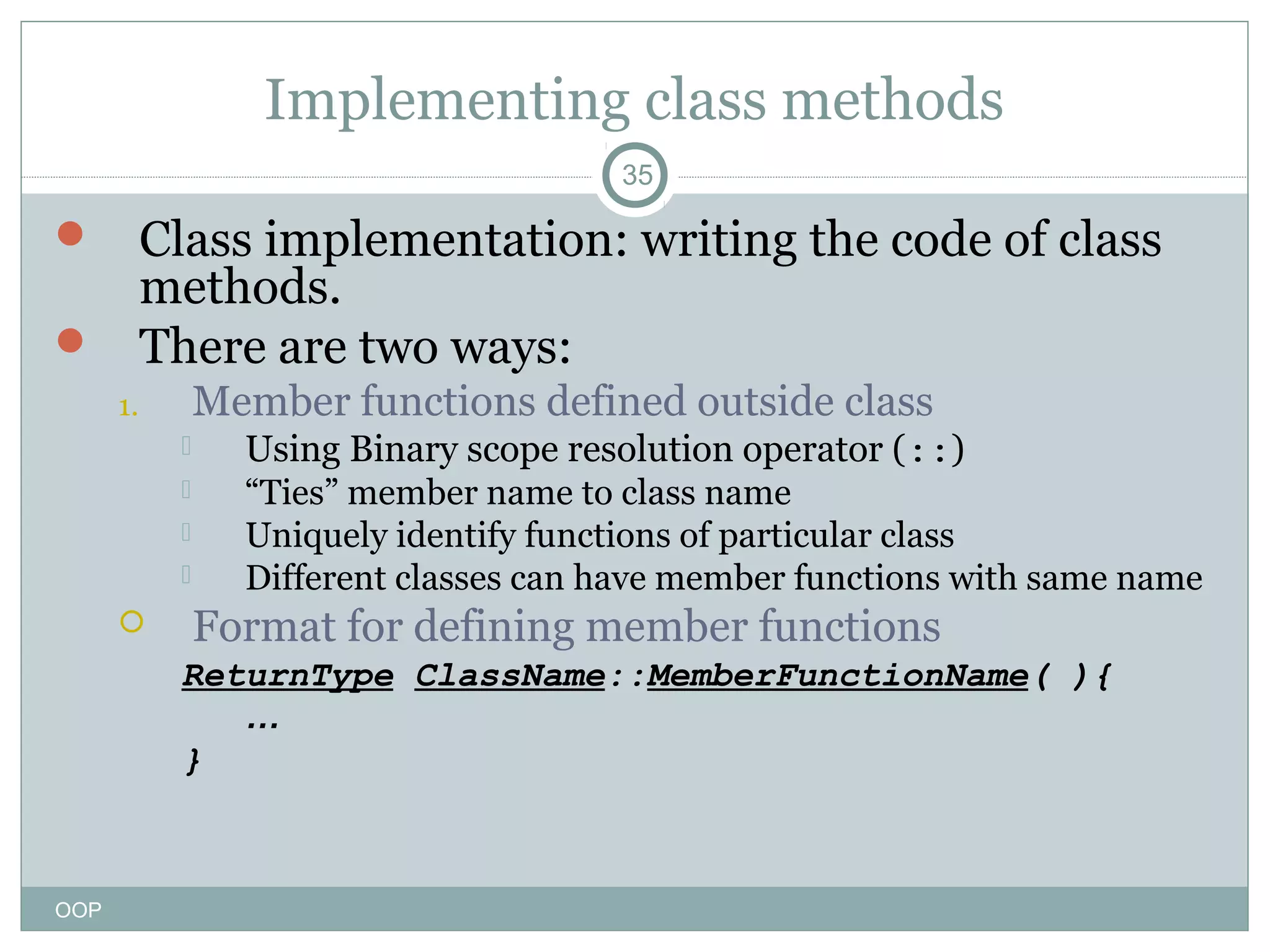

35. Implementing class methods
35
Class implementation: writing the code of class
methods.
 There are two ways:

Member functions defined outside class
1.





Using Binary scope resolution operator (::)
“Ties” member name to class name
Uniquely identify functions of particular class
Different classes can have member functions with same name
Format for defining member functions
ReturnType ClassName::MemberFunctionName( ){
…
}
OOP

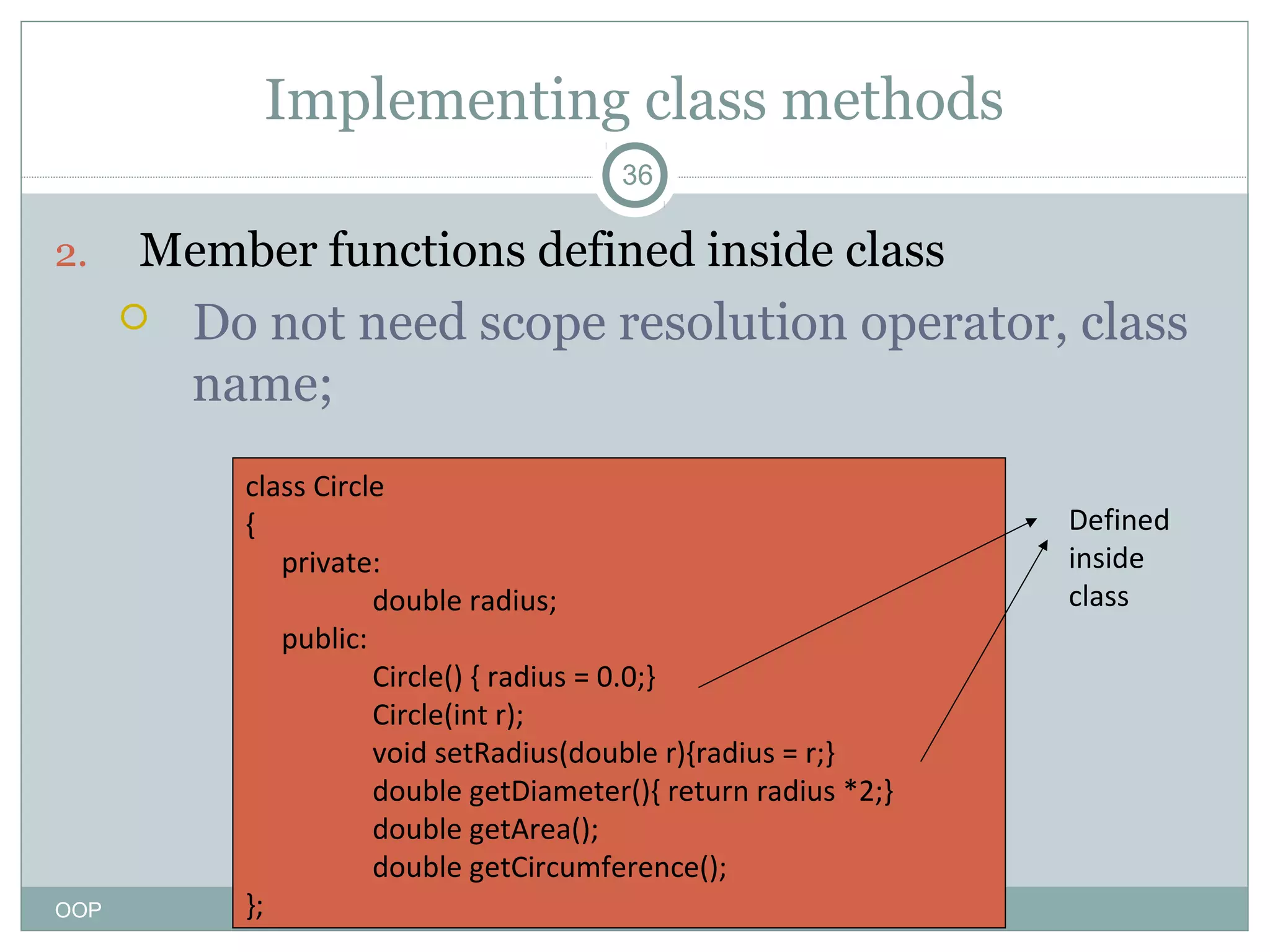

36. Implementing class methods
36
2.
Member functions defined inside class

OOP
Do not need scope resolution operator, class
name;
class Circle
{
private:
double radius;
public:
Circle() { radius = 0.0;}
Circle(int r);
void setRadius(double r){radius = r;}
double getDiameter(){ return radius *2;}
double getArea();
double getCircumference();
};
Defined
inside
class

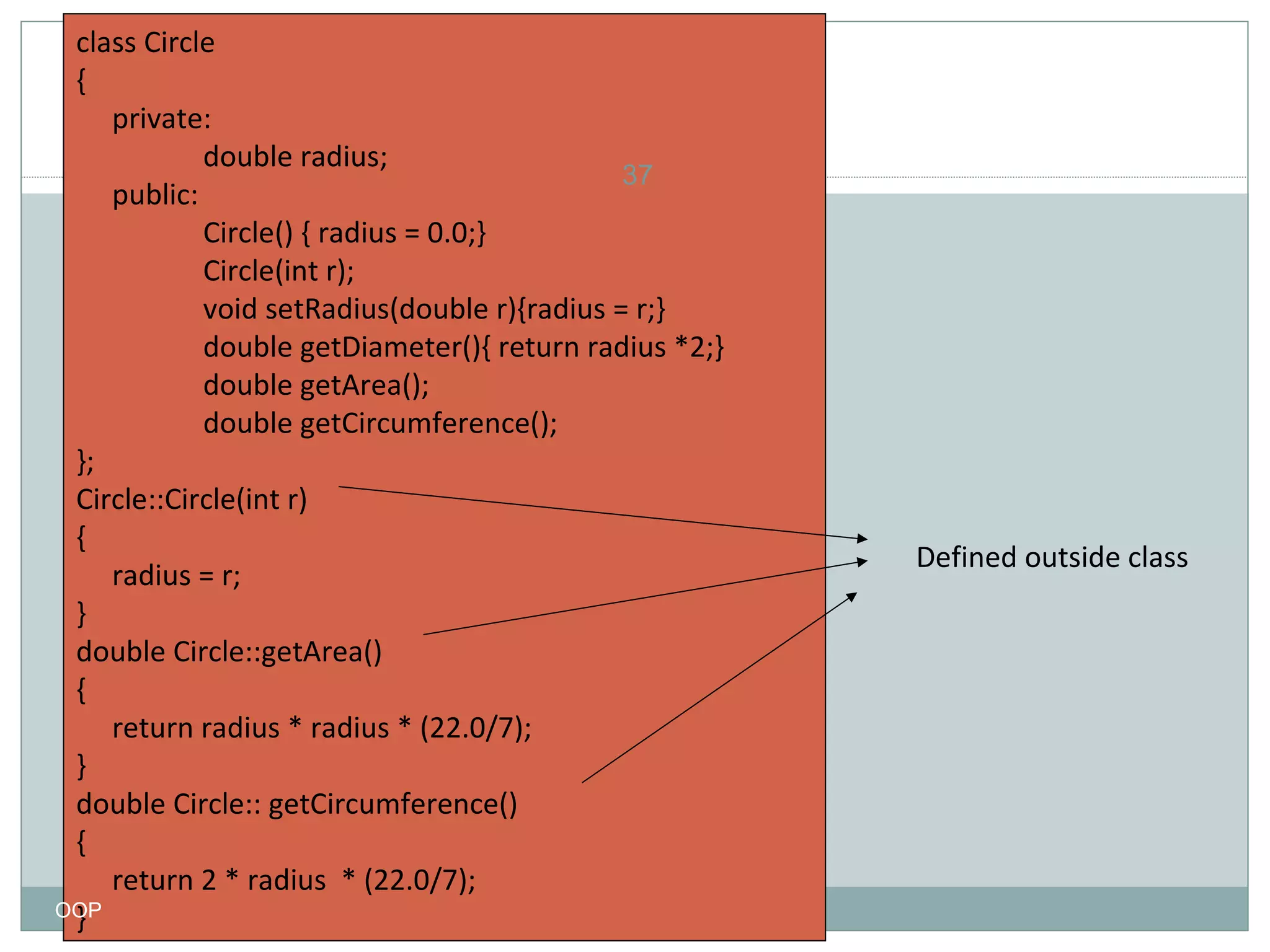

37. class Circle
{
private:
double radius;
37
public:
Circle() { radius = 0.0;}
Circle(int r);
void setRadius(double r){radius = r;}
double getDiameter(){ return radius *2;}
double getArea();
double getCircumference();
};
Circle::Circle(int r)
{
radius = r;
}
double Circle::getArea()
{
return radius * radius * (22.0/7);
}
double Circle:: getCircumference()
{
return 2 * radius * (22.0/7);
OOP
}
Defined outside class

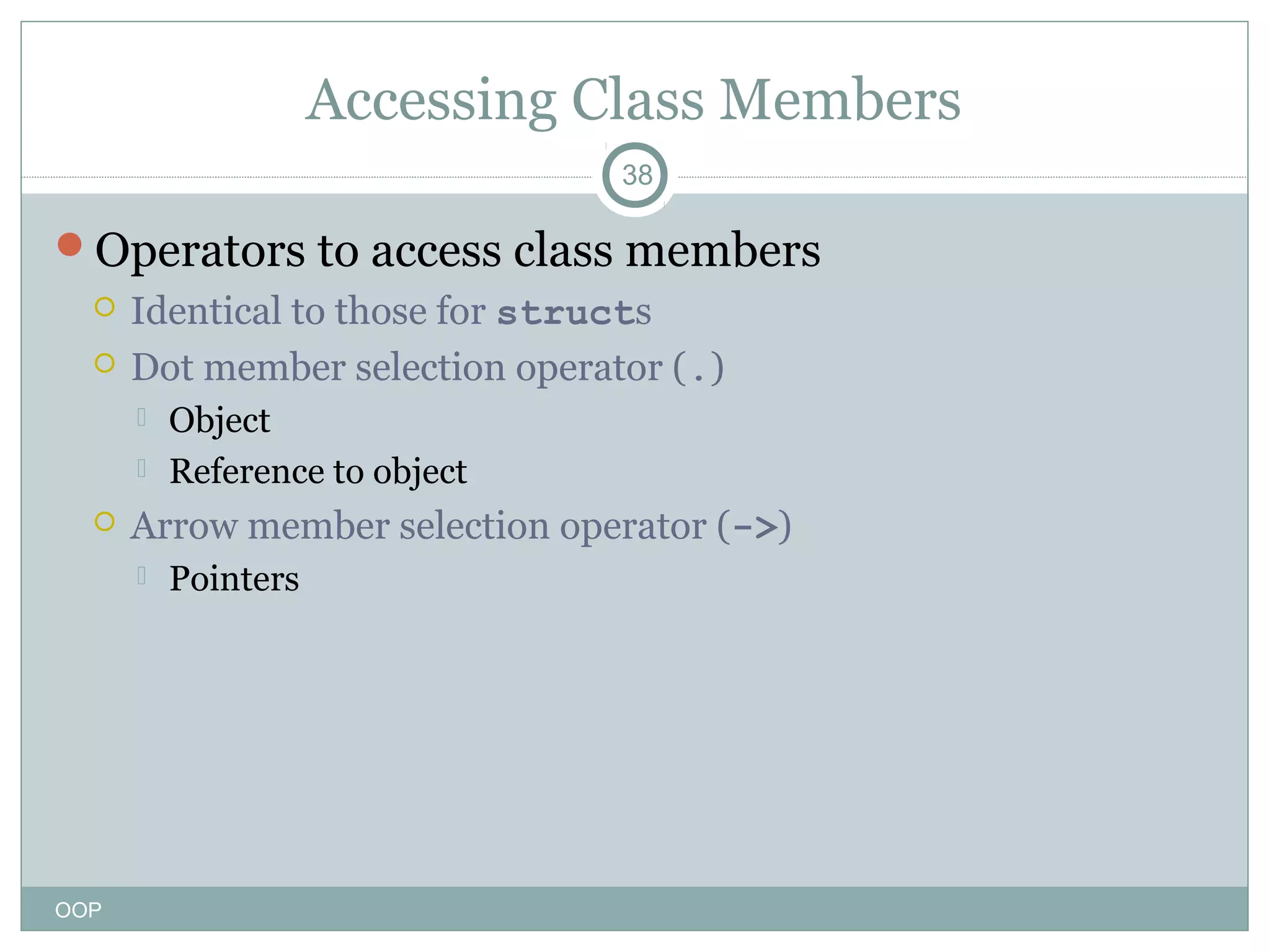

38. Accessing Class Members
38
Operators to access class members


Identical to those for structs
Dot member selection operator (.)



Arrow member selection operator (->)

OOP
Object
Reference to object
Pointers

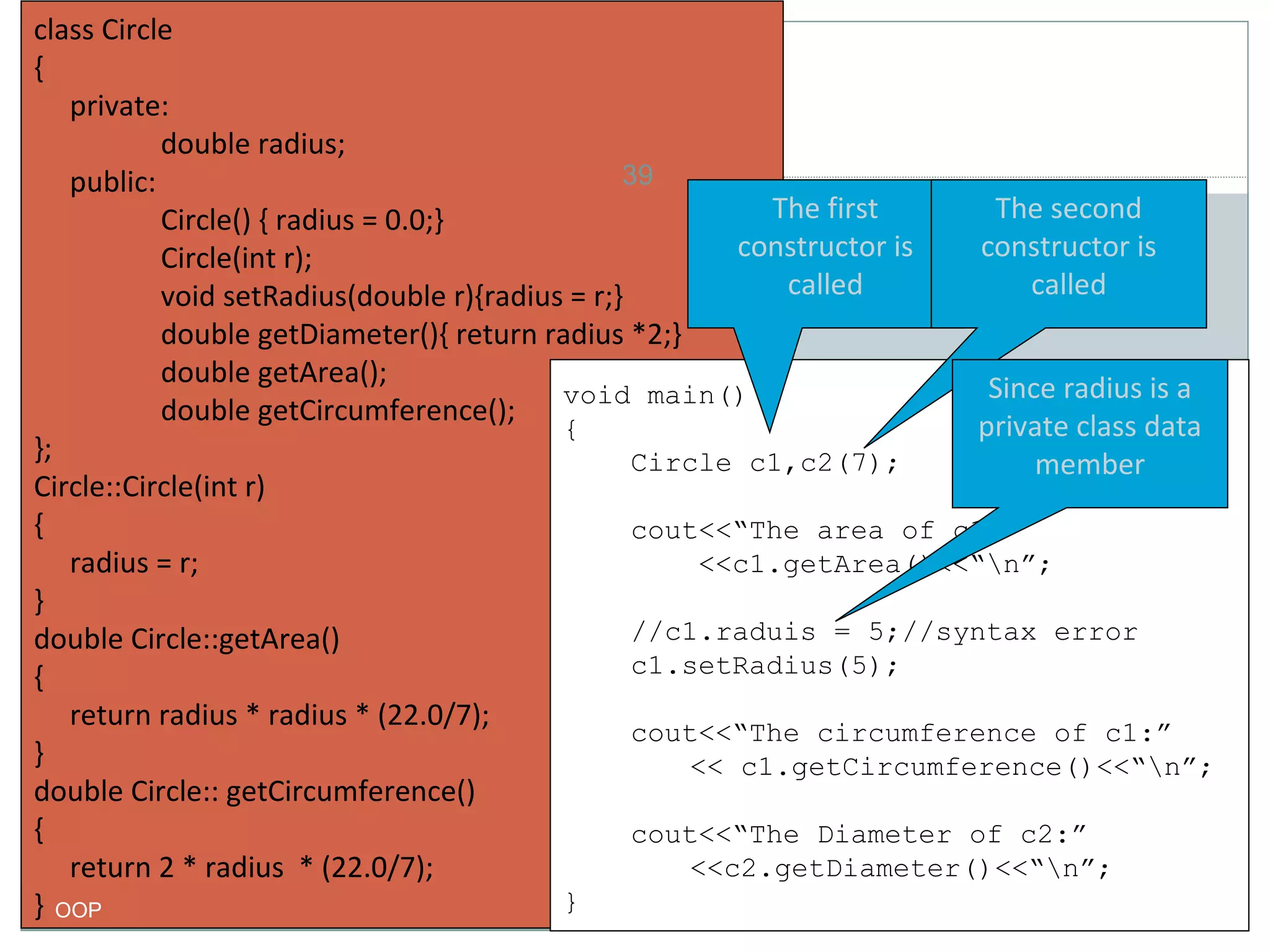

39. class Circle
{
private:
double radius;
39
public:
The first
The second
Circle() { radius = 0.0;}
constructor is
constructor is
Circle(int r);
called
called
void setRadius(double r){radius = r;}
double getDiameter(){ return radius *2;}
double getArea();
Since radius is a
void main()
double getCircumference();
private class data
{
};
Circle c1,c2(7);
member
Circle::Circle(int r)
{
cout<<“The area of c1:”
<<c1.getArea()<<“n”;
radius = r;
}
//c1.raduis = 5;//syntax error
double Circle::getArea()
c1.setRadius(5);
{
return radius * radius * (22.0/7);
cout<<“The circumference of c1:”
}
<< c1.getCircumference()<<“n”;
double Circle:: getCircumference()
{
cout<<“The Diameter of c2:”
<<c2.getDiameter()<<“n”;
return 2 * radius * (22.0/7);
}
} OOP

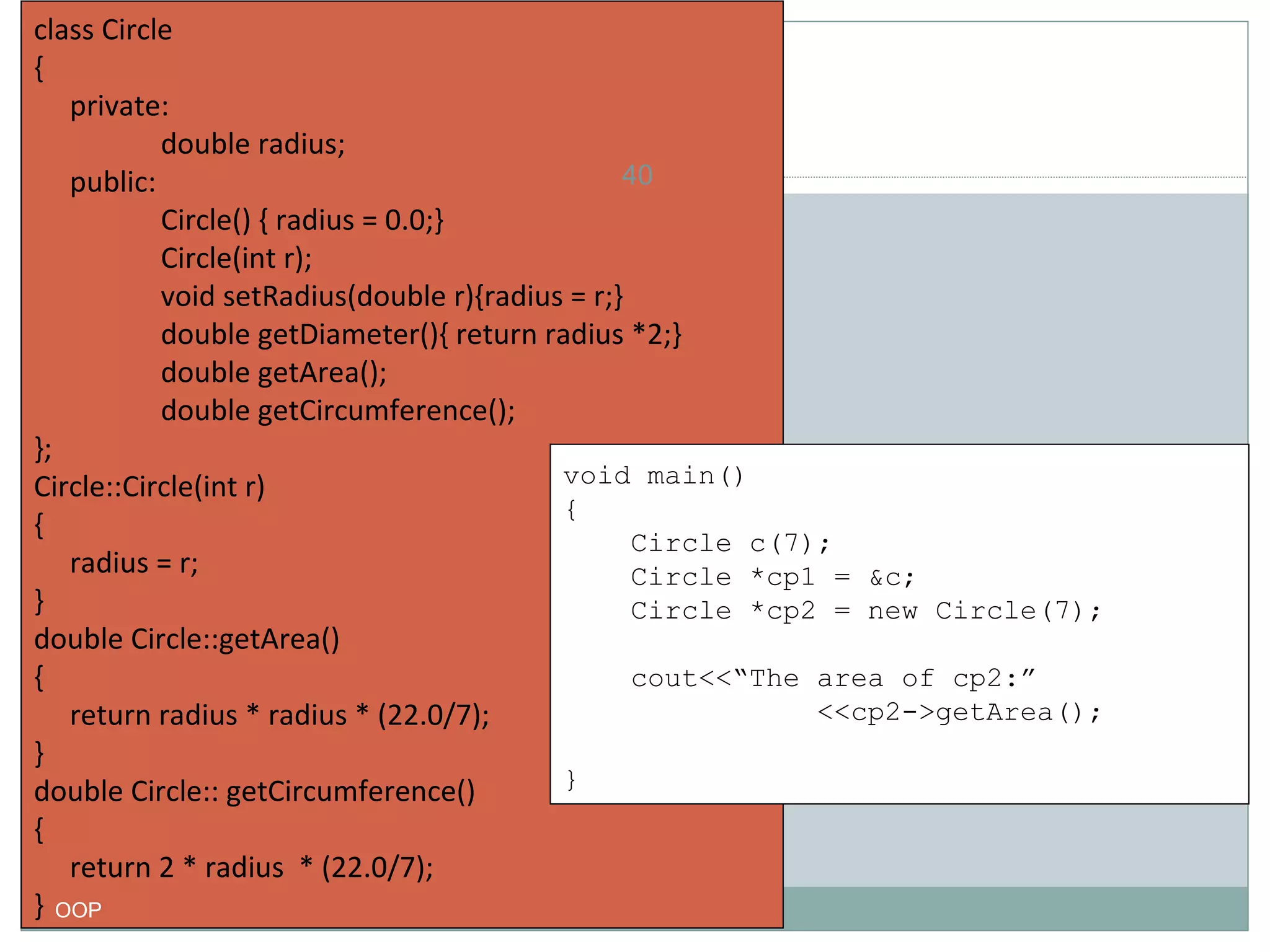

40. class Circle
{
private:
double radius;
40
public:
Circle() { radius = 0.0;}
Circle(int r);
void setRadius(double r){radius = r;}
double getDiameter(){ return radius *2;}
double getArea();
double getCircumference();
};
void main()
Circle::Circle(int r)
{
{
Circle c(7);
radius = r;
Circle *cp1 = &c;
}
Circle *cp2 = new Circle(7);
double Circle::getArea()
cout<<“The area of cp2:”
{
<<cp2->getArea();
return radius * radius * (22.0/7);
}
}
double Circle:: getCircumference()
{
return 2 * radius * (22.0/7);
} OOP
