During the 1970s and 1980s, manufacturers began using electronic engine controls to meet EPA emission standards. The OBD-II standard introduced in the mid-1990s provides nearly complete engine control and all cars built since 1996 have OBD-II systems. The ELM327 is a microcontroller that translates the OBD interface in most modern cars and allows diagnostic tools and computer programs to connect via USB, Bluetooth, or Wi-Fi to access sensor and engine data.

2. • During the '70s and early 1980's manufacturers started
using electronic means to control engine functions and
diagnose engine problems. This was primarily to meet EPA
emission standards.
• OBD-II, a new standard introduced in the mid-'90s,
provides almost complete engine control.

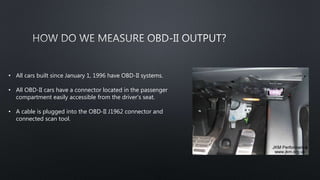

3. • All cars built since January 1, 1996 have OBD-II systems.
• All OBD-II cars have a connector located in the passenger
compartment easily accessible from the driver's seat.
• A cable is plugged into the OBD-II J1962 connector and
connected scan tool.

4. •
•
•

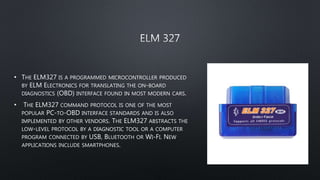

5. • THE ELM327 IS A PROGRAMMED MICROCONTROLLER PRODUCED
BY ELM ELECTRONICS FOR TRANSLATING THE ON-BOARD
DIAGNOSTICS (OBD) INTERFACE FOUND IN MOST MODERN CARS.
• THE ELM327 COMMAND PROTOCOL IS ONE OF THE MOST
POPULAR PC-TO-OBD INTERFACE STANDARDS AND IS ALSO
IMPLEMENTED BY OTHER VENDORS. THE ELM327 ABSTRACTS THE
LOW-LEVEL PROTOCOL BY A DIAGNOSTIC TOOL OR A COMPUTER
PROGRAM CONNECTED BY USB, BLUETOOTH OR WI-FI. NEW
APPLICATIONS INCLUDE SMARTPHONES.

9. •
•

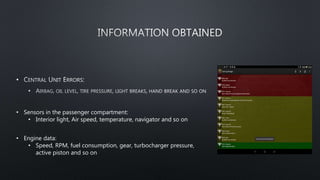

• Sensors in the passenger compartment:
• Interior light, Air speed, temperature, navigator and so on
• Engine data:
• Speed, RPM, fuel consumption, gear, turbocharger pressure,
active piston and so on

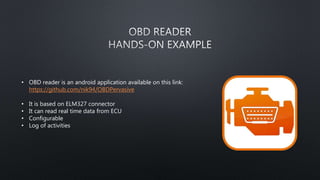

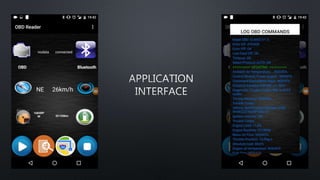

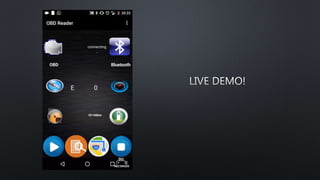

10. • OBD reader is an android application available on this link:
https://github.com/nik94/OBDPervasive
• It is based on ELM327 connector
• It can read real time data from ECU
• Configurable
• Log of activities
