Debugging asynchronous scenarios
by Christophe Nasarre
Kevin Gosse
NYAN conference

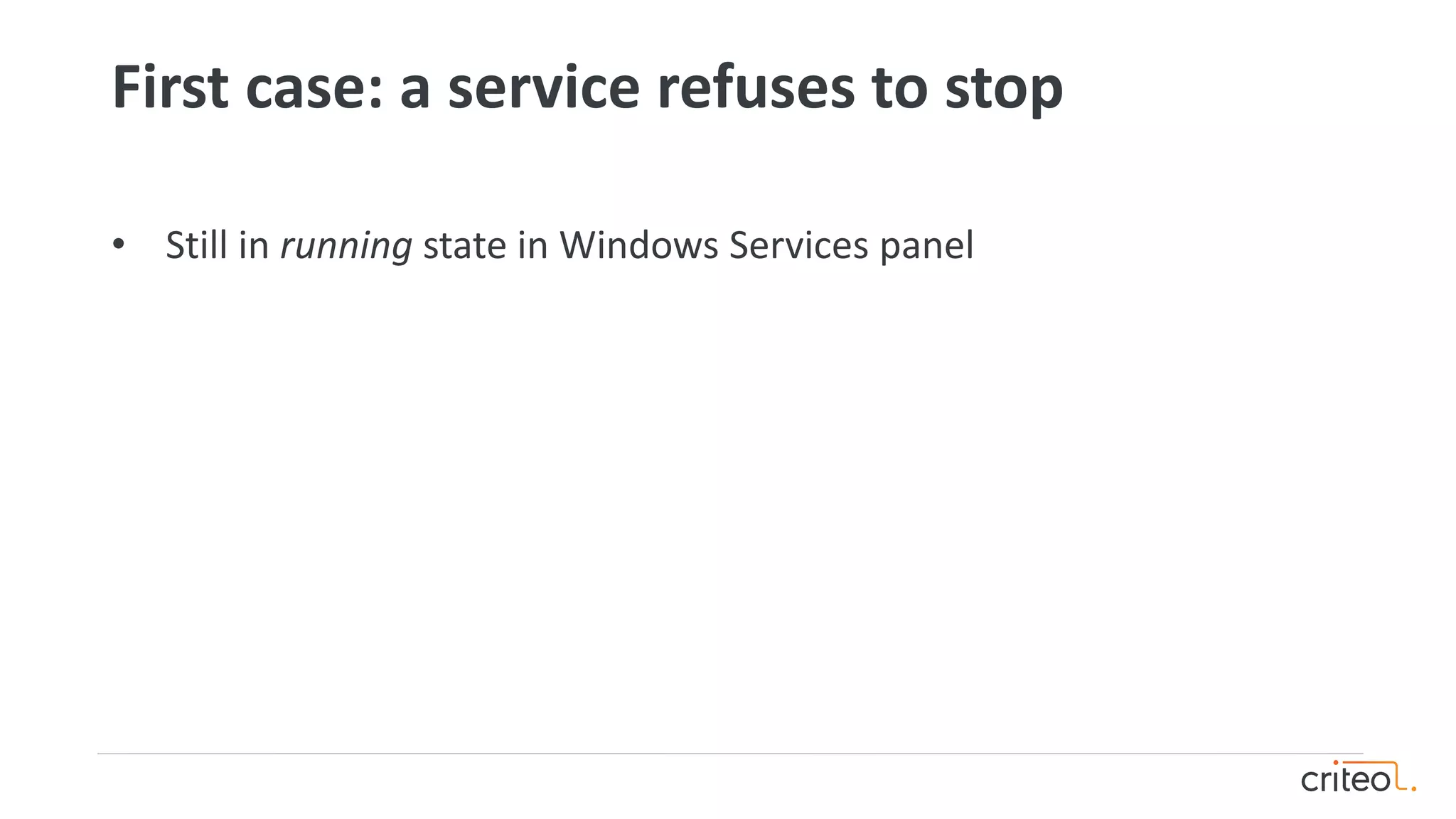

2. First case: a service refuses to stop
• Still in running state in Windows Services panel

3. In production → take a memory snaphot
procdump -ma <pid>

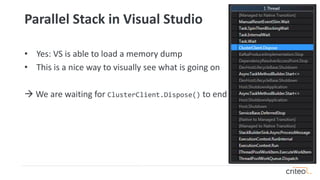

4. Parallel Stack in Visual Studio
• Yes: VS is able to load a memory dump
• This is a nice way to visually see what is going on
→ We are waiting for ClusterClient.Dispose() to end

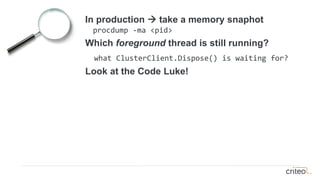

5. In production → take a memory snaphot
procdump -ma <pid>
Which foreground thread is still running?
what ClusterClient.Dispose() is waiting for?
Look at the Code Luke!

6. ActionBlock internals
Task ProcessMessage(TInput message)
{
...
}

7. In production → take a memory snaphot
procdump -ma <pid>
Which foreground thread is still running?
what ClusterClient.Dispose() is waiting for?
Look at the Code Luke!
Look for _agent state

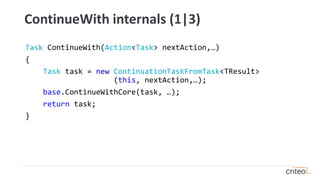

8. Task ContinueWith(Action<Task> nextAction,…)
{
Task task = new ContinuationTaskFromTask<TResult>
(this, nextAction,…);
base.ContinueWithCore(task, …);
return task;
}
ContinueWith internals (1|3)

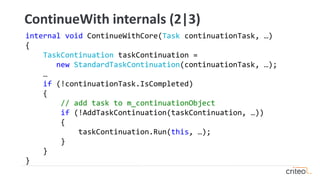

9. internal void ContinueWithCore(Task continuationTask, …)
{
TaskContinuation taskContinuation =
new StandardTaskContinuation(continuationTask, …);
…
if (!continuationTask.IsCompleted)
{
// add task to m_continuationObject
if (!AddTaskContinuation(taskContinuation, …))
{
taskContinuation.Run(this, …);
}
}
}
ContinueWith internals (2|3)

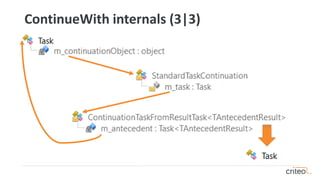

10. ContinueWith internals (3|3)

11. async Task<long> AAA(CancellationToken token)
{
Stopwatch tick = new Stopwatch();
tick.Start();
await BBB(token);
tick.Stop();
return tick.ElapsedMillisecond;
}
async/await Internals (1|2)

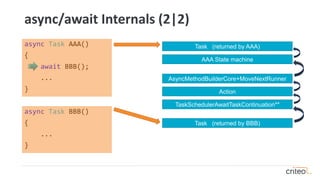

12. async/await Internals (2|2)
async Task AAA()
{
await BBB();
...
}
async Task BBB()
{
...
}
AsyncMethodBuilderCore+MoveNextRunner
Action
TaskSchedulerAwaitTaskContinuation**
Task (returned by BBB)
AAA State machine
Task (returned by AAA)

13. In production → take a memory snaphot
procdump -ma <pid>
Which foreground thread is still running?
what ClusterClient.Dispose() is waiting for?
Look at the Code Luke!
Look for _agent state
→ Exception broke the responses ActionBlock

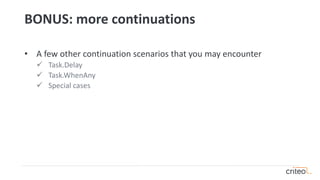

14. BONUS: more continuations
• A few other continuation scenarios that you may encounter
✓ Task.Delay
✓ Task.WhenAny
✓ Special cases

15. Why a List<object> as continuation?
Task DoStuffAsync()
{
var task = SendAsync();
task.ContinueWith(t => LogStuff(t));
return task;
}
// user code
await DoStuffAsync();
DoSomethingSynchronously()
Task
m_continuationObject
nullStandardTaskContinuation
List<object>
StandardTaskContinuation
*TaskContinuation

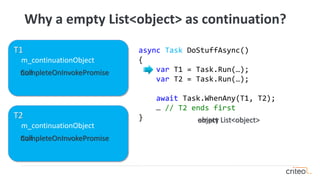

16. Why a empty List<object> as continuation?
async Task DoStuffAsync()
{
var T1 = Task.Run(…);
var T2 = Task.Run(…);
await Task.WhenAny(T1, T2);
… // T2 ends first
}
T1
m_continuationObject
null
T2
m_continuationObject
null
CompleteOnInvokePromise
CompleteOnInvokePromise
empty List<object>object

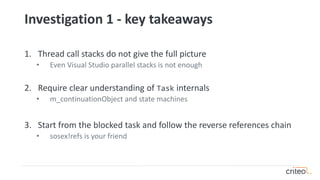

17. Investigation 1 - key takeaways
1. Thread call stacks do not give the full picture
• Even Visual Studio parallel stacks is not enough
2. Require clear understanding of Task internals
• m_continuationObject and state machines
3. Start from the blocked task and follow the reverse references chain
• sosex!refs is your friend

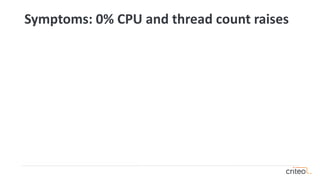

18. Symptoms: 0% CPU and thread count raises

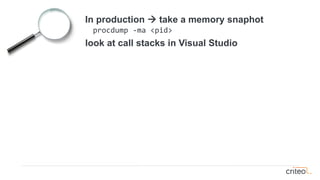

19. In production → take a memory snaphot
procdump -ma <pid>
look at call stacks in Visual Studio

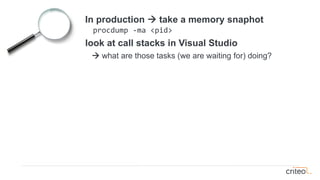

20. In production → take a memory snaphot
procdump -ma <pid>
look at call stacks in Visual Studio
→ what are those tasks (we are waiting for) doing?

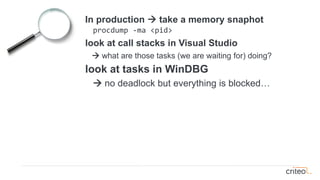

21. In production → take a memory snaphot
procdump -ma <pid>
look at call stacks in Visual Studio
→ what are those tasks (we are waiting for) doing?
look at tasks in WinDBG
→ no deadlock but everything is blocked…

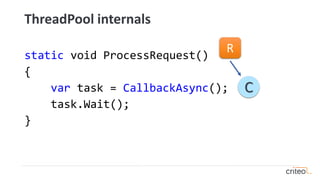

22. ThreadPool internals
static void ProcessRequest()
{
var task = CallbackAsync();
task.Wait();
}
R
C

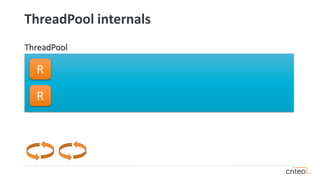

23. ThreadPool internals
ThreadPool
R
R

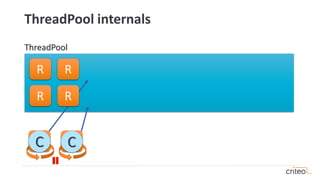

24. ThreadPool internals
ThreadPool
R R
R
R
R
R
C C

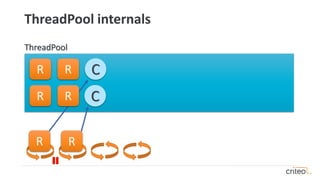

25. ThreadPool internals
ThreadPool
R R
R
R
C
C
R
R

26. ThreadPool internals
ThreadPool
R R
R
R
C
C
R R
R
R
R
R
C C
R
R
R
R

27. DEMO
Simple ThreadPool starvation code

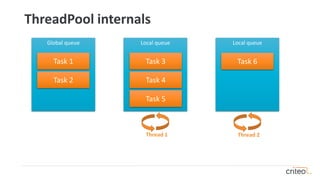

28. Thread 1 Thread 2
ThreadPool internals
Global queue Local queue Local queue
Task 1
Task 2
Task 5
Task 4
Task 6Task 3

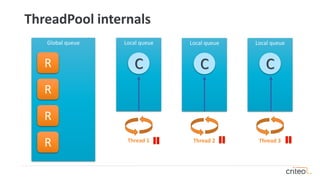

29. ThreadPool internals
Global queue Local queue
C
Thread 1
Local queue
C
Thread 2
Local queue
C
Thread 3
R
R
R
R

30. In production → take a memory snaphot
procdump -ma <pid>
look at call stacks in Visual Studio
→ what are those tasks (we are waiting for) doing?
look at tasks in WinDBG
→ no deadlock but everything is blocked…
→ ThreadPool is starved

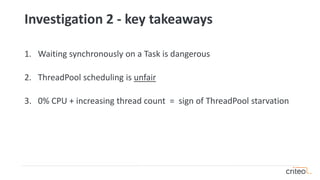

31. Investigation 2 - key takeaways
1. Waiting synchronously on a Task is dangerous
2. ThreadPool scheduling is unfair
3. 0% CPU + increasing thread count = sign of ThreadPool starvation

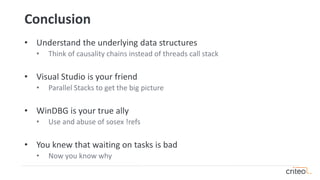

32. Conclusion
• Understand the underlying data structures
• Think of causality chains instead of threads call stack
• Visual Studio is your friend
• Parallel Stacks to get the big picture
• WinDBG is your true ally
• Use and abuse of sosex !refs
• You knew that waiting on tasks is bad
• Now you know why

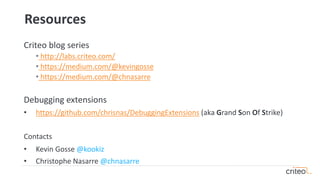

33. Resources
Criteo blog series
• http://labs.criteo.com/
• https://medium.com/@kevingosse
• https://medium.com/@chnasarre
Debugging extensions
• https://github.com/chrisnas/DebuggingExtensions (aka Grand Son Of Strike)
Contacts
• Kevin Gosse @kookiz
• Christophe Nasarre @chnasarre
