Structured Concurrency And
Project Loom
Srinivasan Raghavan
Principal Software Engineer
Veracode

Safe Harbor Statement
The following is for information purposes only and not an endorsement from the company I work for

❖ Little's law
❖ Constrains and beneﬁts of request pre thread model
❖ Asynchronous models beneﬁts and pit falls
❖ Need for Structured Concurrency

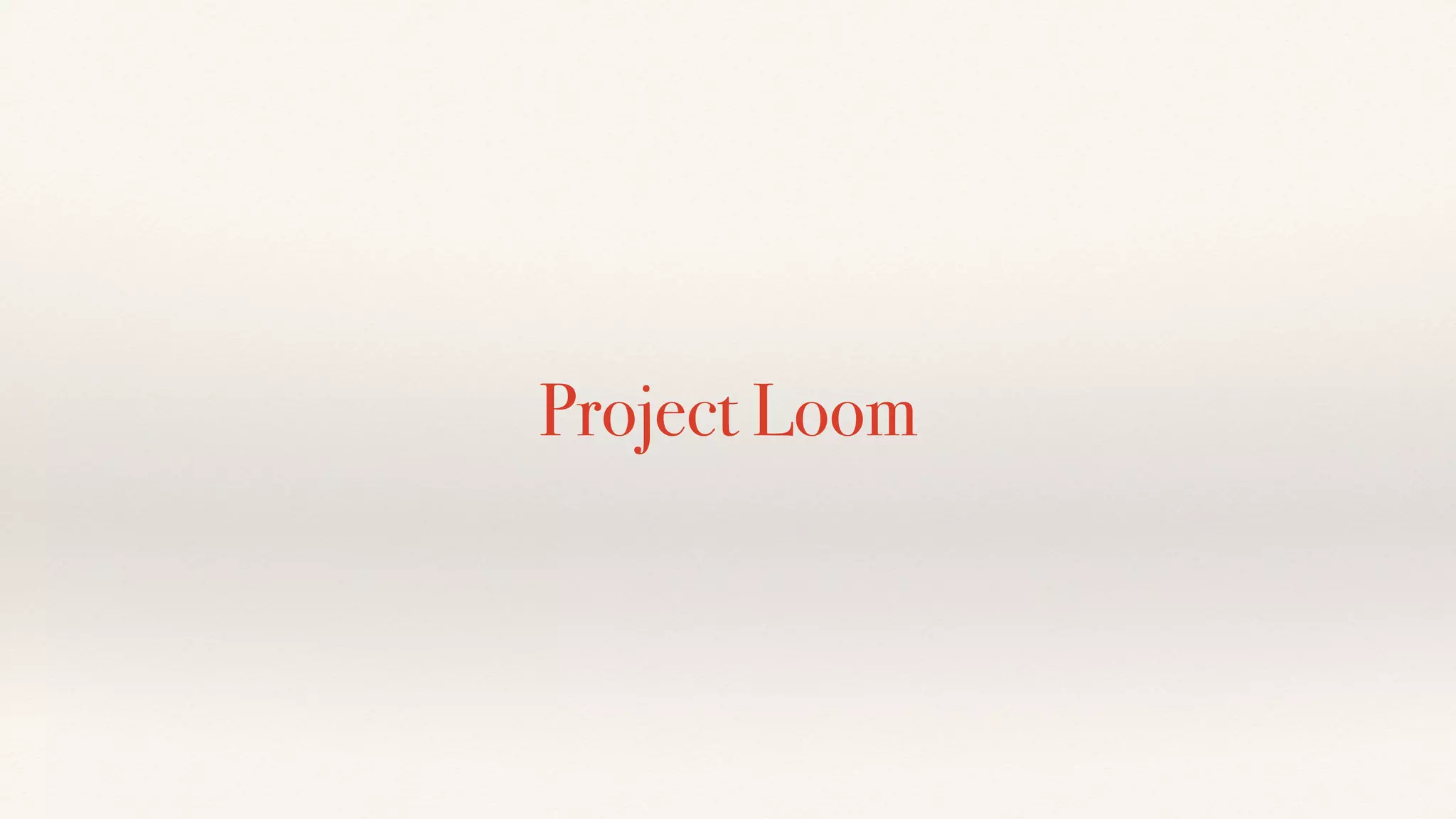

❖ Project Loom
❖ Q and A
Program Agenda

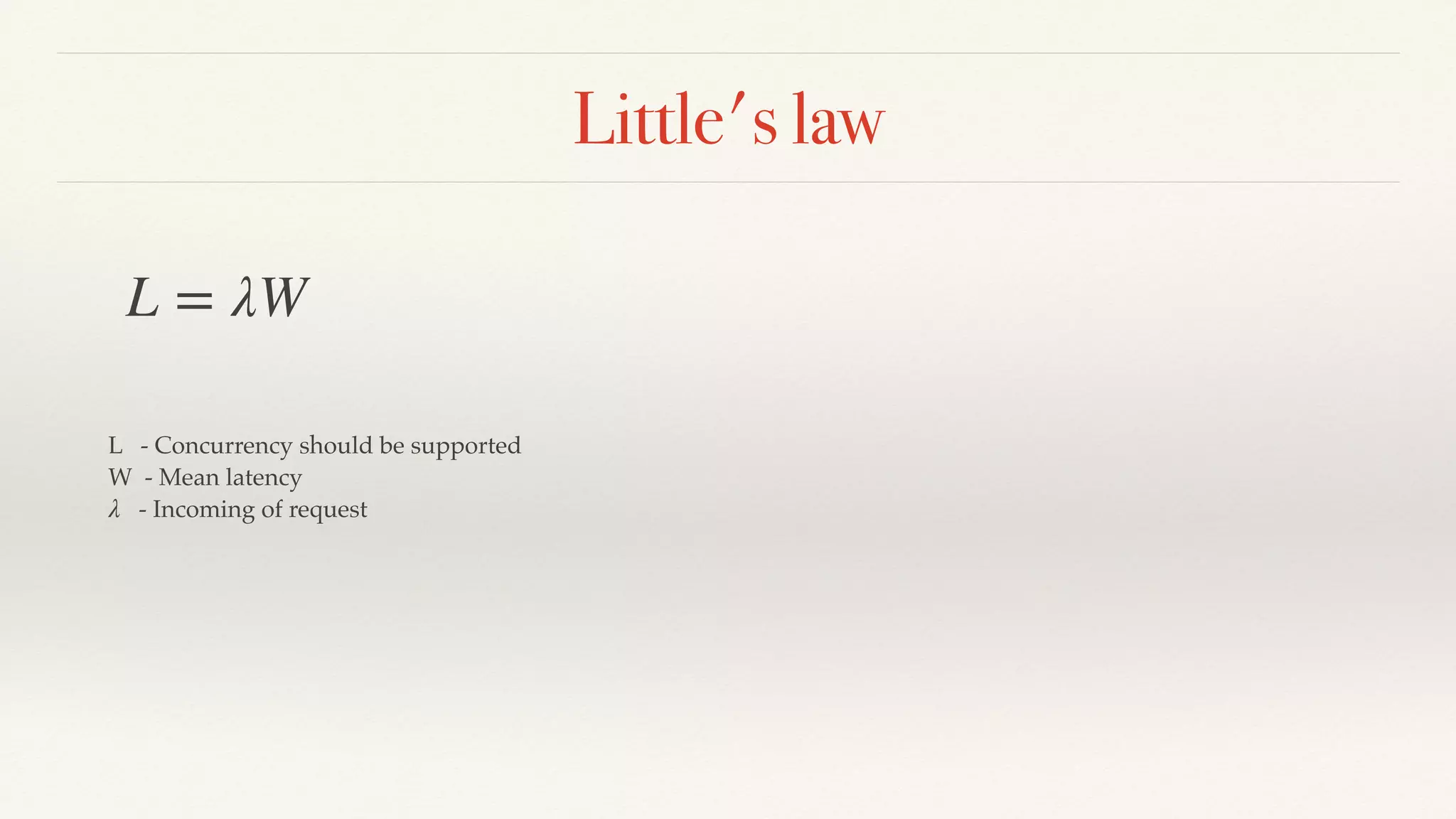

Little's law
L = λW
L - Concurrency should be supported
W - Mean latency
- Incoming of requestλ

Little's law
❖ There are various factors affecting the capacity of the servers L
❖ TCP sessions the os can make and handling of IO
❖ The number of threads T which the VM, OS can handle
❖ How much of each thread T is blocking which impacts W
❖ If L >>> T and W is high the we have un-responsiveness
❖ Then we should up extra resources to scale more

Request Per Thread
❖ The usual programming model is Request per thread model.
❖ Where incoming request are sent to thread and there serial step by step execution of the code
with in the thread
❖ Very easy to reason this code as its synchronous code and imperative
❖ But this uses the hardware badly
❖ There is no parallel use of cpu for computation related problem
❖ And lets the code depends on some external IO then its blocked util the entire operation is
ﬁnished
❖ And the this leads to bad performance

Asynchronous non blocking model
❖ Asynchronous frameworks came where one defines the list of tasks in a form
steps and the steps can execute at different point of time and threads
❖ The steps are given in domain specific way and so framework specific
❖ Good for the hardware
❖ Hard to maintain code and hard to reason code and profile it
❖ Throws out all effective abstraction of imperative programming built over
decades

Moving away from Request per Thread model

Imperative and Blocking
double placeDeposit(ﬁnal double value) {
var result = compute("SGD->USD", value);
result = compute("addInterest", result);
result = compute("subtractCharges", result);
return result;
}
double compute(String op, double x) {
switch (op) {
case "SGD->USD":
return getSgdUsd() * x;
case "addInterest":
return getFederalFundsRate() * x + x;
case "subtractCharges":
return x - getChargeCalculator(x);
default:
}
throw new UnsupportedOperationException();
}

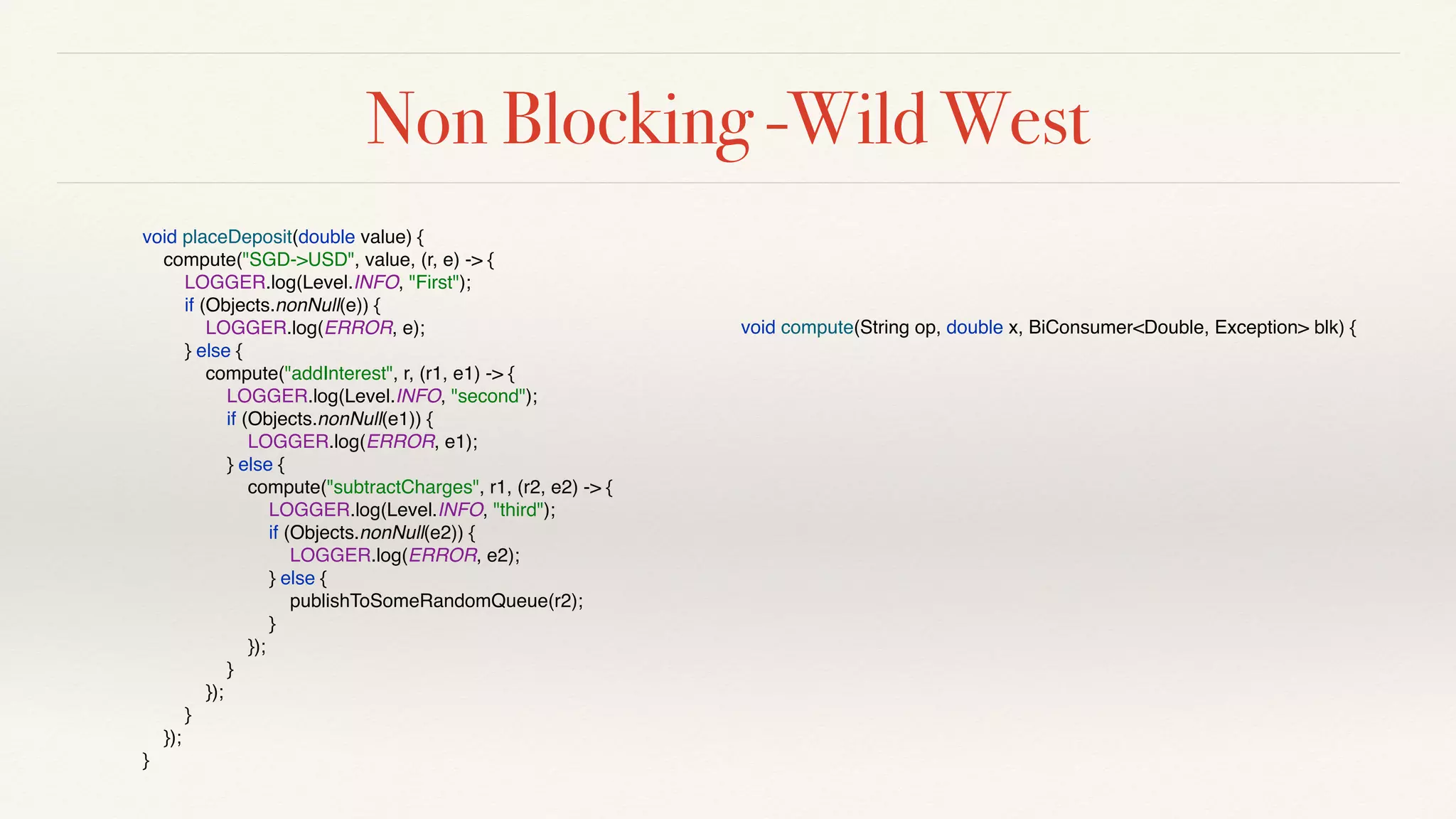

Non Blocking -Wild West
void placeDeposit(double value) {
compute("SGD->USD", value, (r, e) -> {
LOGGER.log(Level.INFO, "First");
if (Objects.nonNull(e)) {
LOGGER.log(ERROR, e);
} else {
compute("addInterest", r, (r1, e1) -> {
LOGGER.log(Level.INFO, "second");
if (Objects.nonNull(e1)) {
LOGGER.log(ERROR, e1);
} else {
compute("subtractCharges", r1, (r2, e2) -> {
LOGGER.log(Level.INFO, "third");
if (Objects.nonNull(e2)) {
LOGGER.log(ERROR, e2);
} else {
publishToSomeRandomQueue(r2);
}
});
}
});
}
});
}
void compute(String op, double x, BiConsumer<Double, Exception> blk) {

Monads
❖ A pure function is a subroutine which takes an input (argument )and returns
a value or throws an exception
❖ Monads gives pure function super power. Then have like three parts
❖ Monadic value : wraps a value with a context that talks to composer
❖ Monadic function : returns a monadic value
❖ Composer: Composes a monadic value with the monadic function

Monads in JDK
public <R> Stream<R> ﬂatMap(Function<? super T, ? extends Stream<? extends R>> mapper)
public Optional ﬂatMap(Function<? super T, ? extends Optional<? extends U>> mapper)
public CompletableFuture thenCompose( Function<? super T, ? extends CompletionStage> fn)

Non Blocking -Tamed
/**
* @implNote Hope this would scale things up.
*/
public void placeDeposit(ﬁnal double value) {
compute("SGD->USD", value)
.thenCompose(r -> compute("addInterest", r))
.thenCompose(r -> compute("subtractCharges", r))
.whenComplete((r, e) -> {
if (Objects.nonNull(e)) Non
LOGGER.log(Level.ERROR, e);
} else {
publishToRandomPlace(r);
}
});
}
CompletableFuture<Double> compute(String op, double x) {
switch (op) {
case "SGD->USD":
return supplyAsync(() -> getSgdUsd() * x);
case "addInterest":
return supplyAsync(() -> getFederalFundsRate() * x +
return supplyAsync(() -> x - getChargeCalculator(x));
}
}

Non Blocking -Simplified
/**
* @implNote Hope this would scale things up.
*/
public void placeDeposit(ﬁnal double value) {
CompletableFuture.supplyAsync(() -> compute("SGD->USD", value))
.thenApplyAsync((r) -> compute("addInterest", r))
.thenApplyAsync((r) -> compute("subtractCharges", r))
} else {
publishToRandomPlace(r);
}
});
}
double compute(String op, double x) {
switch (op) {
case "SGD->USD":
return getSgdUsd() * x;
case "addInterest":
return getFederalFundsRate() * x + x;
return x - getChargeCalculator(x);
}
}

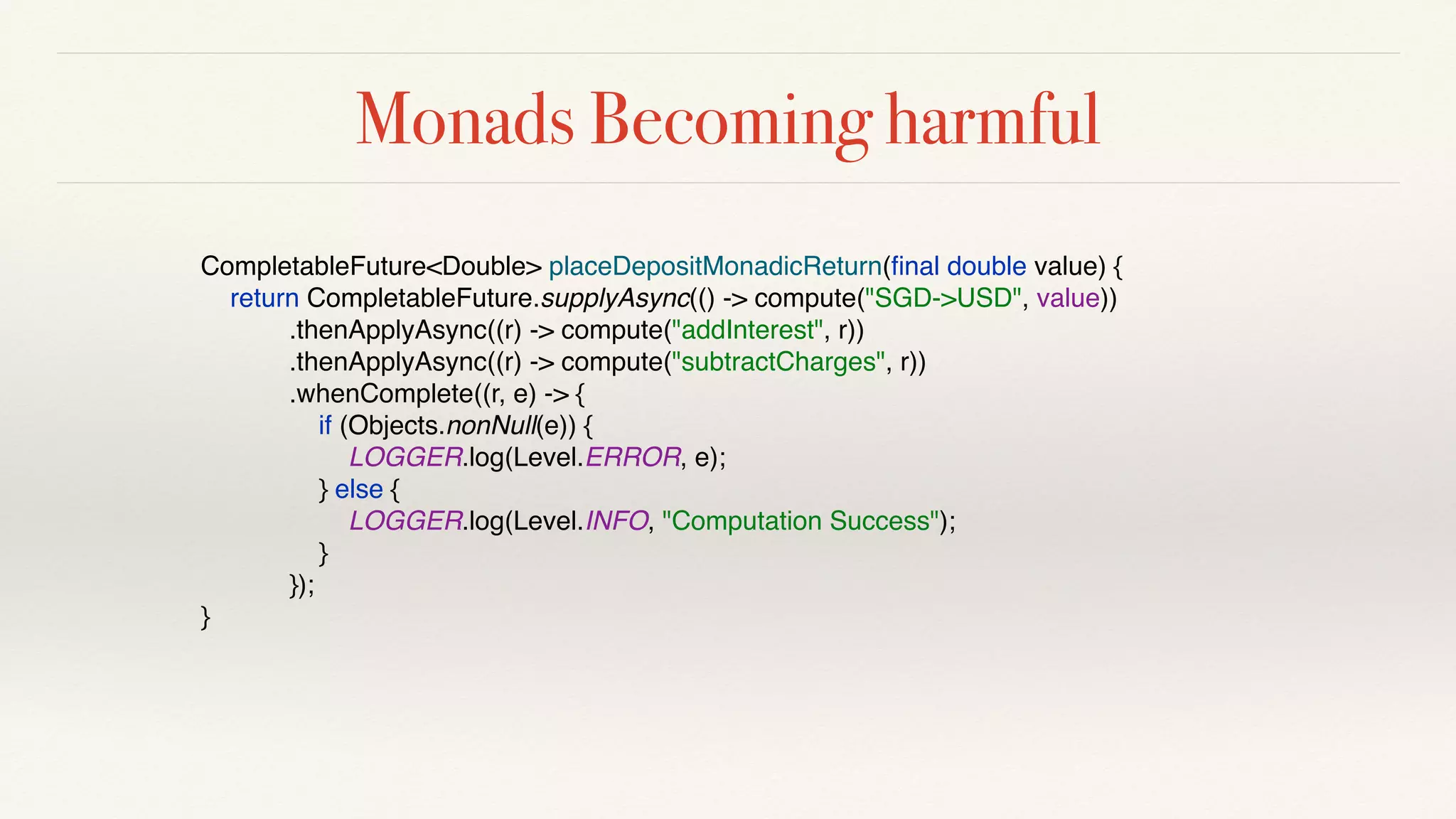

Monads Becoming harmful
CompletableFuture<Double> placeDepositMonadicReturn(ﬁnal double value) {
return CompletableFuture.supplyAsync(() -> compute("SGD->USD", value))
.thenApplyAsync((r) -> compute("addInterest", r))
.thenApplyAsync((r) -> compute("subtractCharges", r))
} else {
LOGGER.log(Level.INFO, "Computation Success");
}
});
}

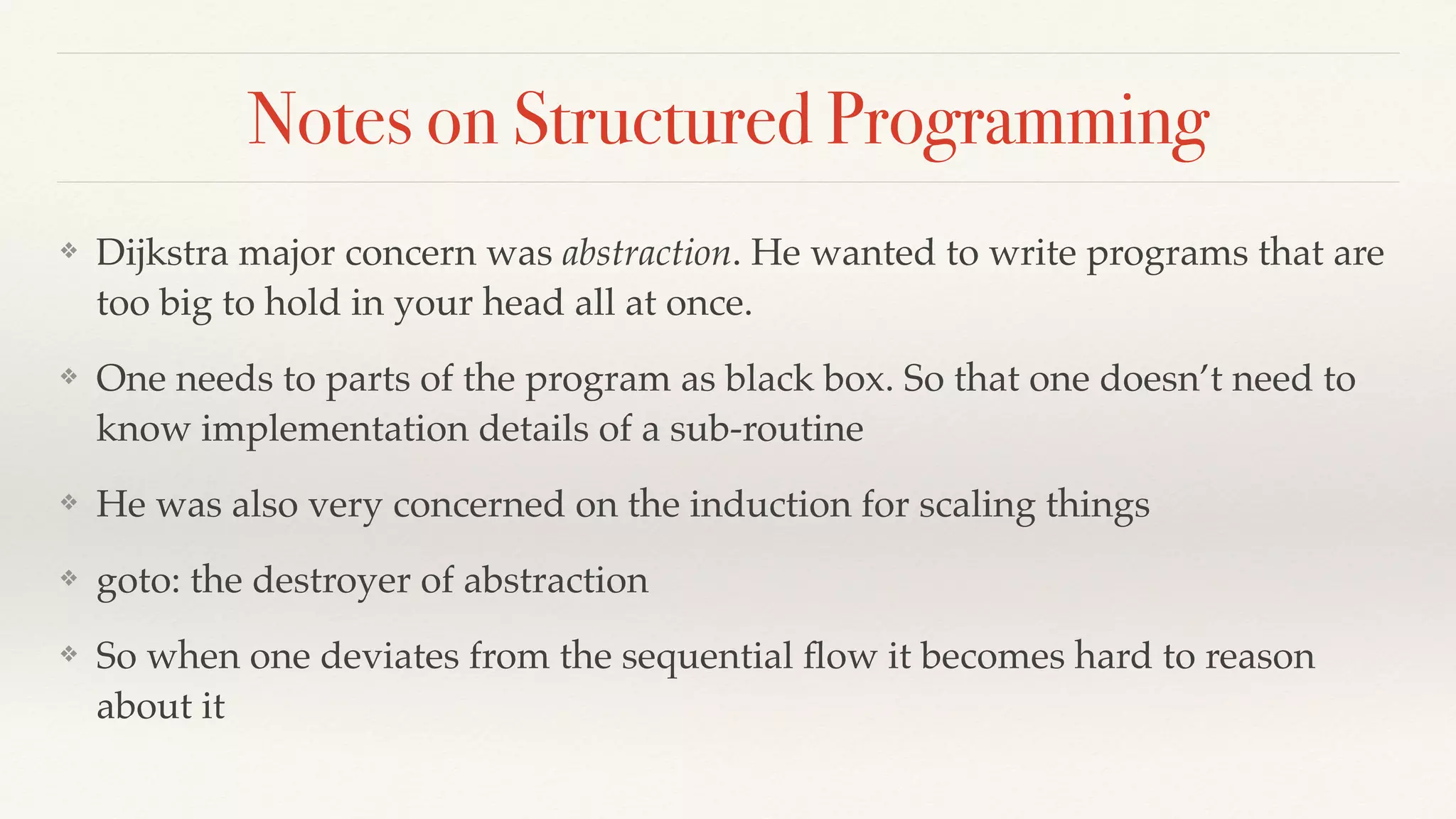

Notes on Structured Programming
❖ Dijkstra major concern was abstraction. He wanted to write programs that are
too big to hold in your head all at once.
❖ One needs to parts of the program as black box. So that one doesn’t need to
know implementation details of a sub-routine
❖ He was also very concerned on the induction for scaling things
❖ goto: the destroyer of abstraction
❖ So when one deviates from the sequential ﬂow it becomes hard to reason
about it

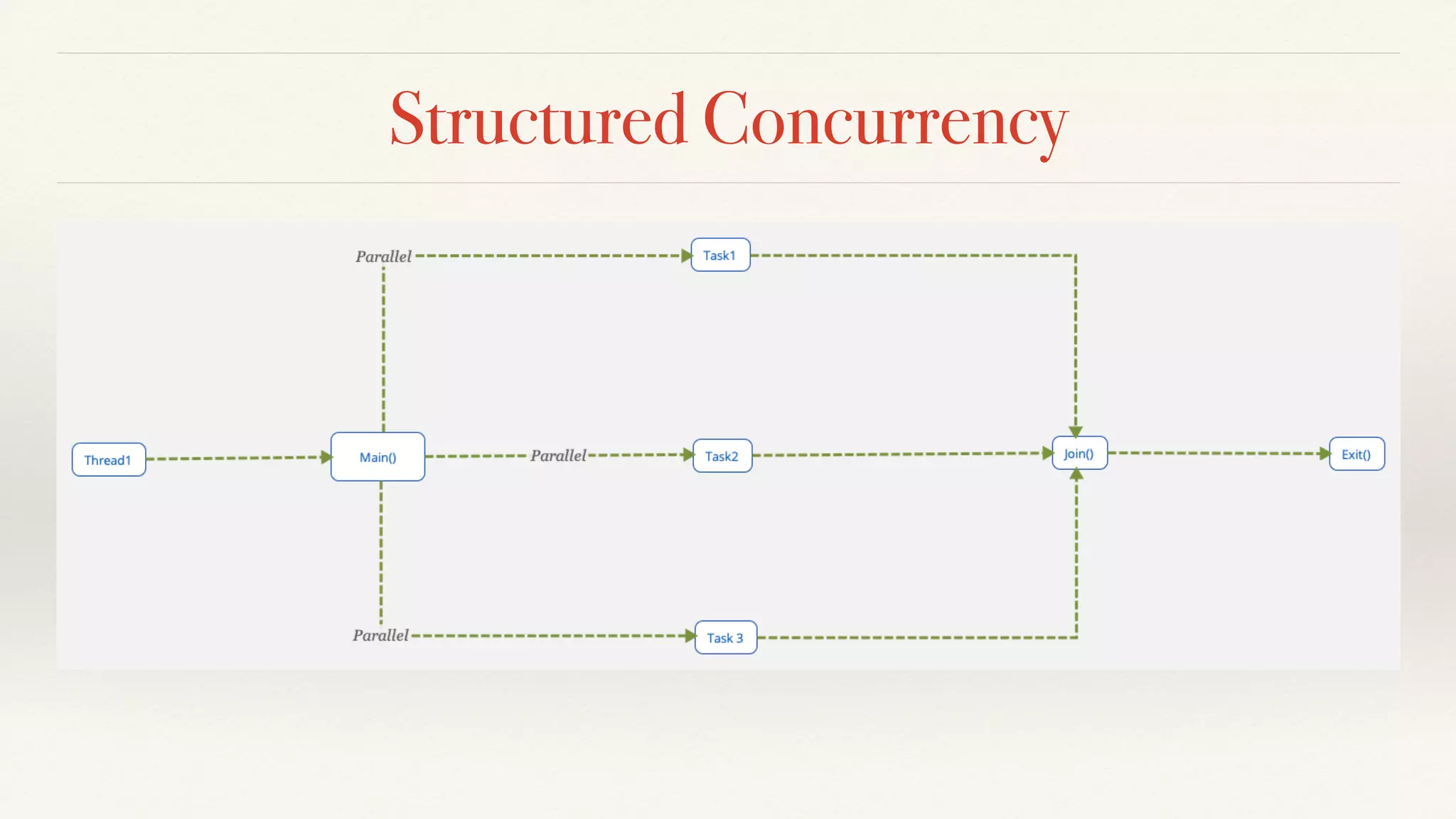

Notes on Structured Concurrency
❖ Structured Concurrency tries to remove “go” statements from languages by
mandating join() and cancellation() for a block executing concurrent code.
❖ This ensures certainty in sub-routine output.
❖ This can open automatic resource cleanups
❖ Makes testing easy
❖ Get back the goodness of imperative abstractions which we are used and has
worked quite well for so many years

J.l.Thread
❖ 25 year old idea
❖ Threads are always mapped to os threads
❖ OS thread are more generic and designed for the variety different tasks
❖ Os thread memory can grow but not shrink
❖ In general the Thread can take KB to MB of memory
❖ Bounded executers help manage these more efﬁciently

Virtual Threads
❖ Virtual Threads which handled completely in VM and are lightweight
❖ They are scheduled and multiplexed on a carrier thread
❖ Virtual Threads can be suspended and resumed
❖ So we can create millions of Virtual Threads and be safe that memory doesn’t
run out

Continuation
public static void main(String[] args) {
final var scope = new ContinuationScope("Test");
final var continuation = new java.lang.Continuation(scope, () -> {
System.out.println("Before");
java.lang.Continuation.yield(scope);
System.out.println("After");
});
continuation.run();
System.out.println(continuation.isDone());
continuation.run();
System.out.println(continuation.isDone());
}
Before
false
After
true
Process finished with exit code 0

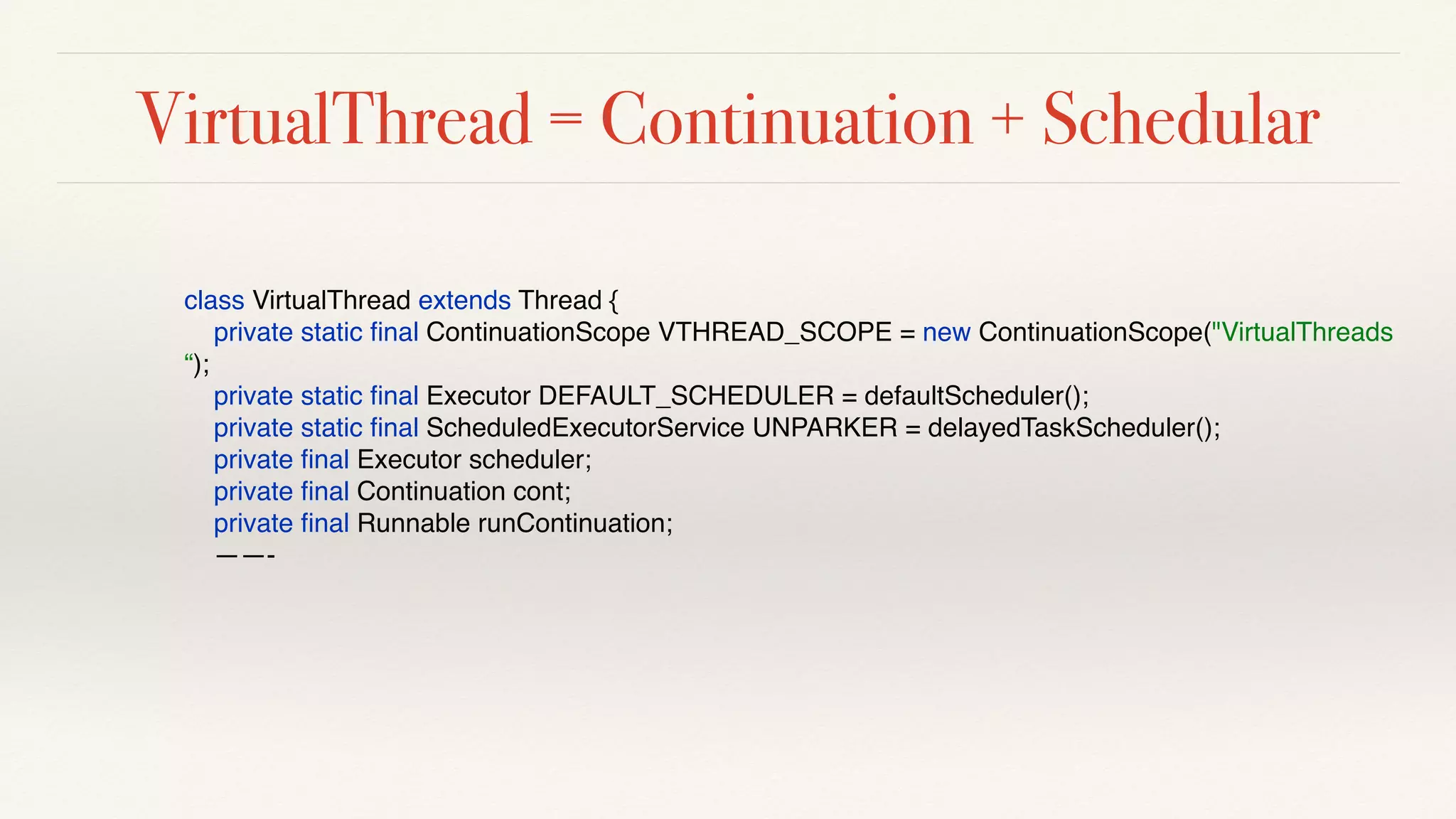

VirtualThread = Continuation + Schedular
class VirtualThread extends Thread {
private static final ContinuationScope VTHREAD_SCOPE = new ContinuationScope("VirtualThreads
“);
private static final Executor DEFAULT_SCHEDULER = defaultScheduler();
private static final ScheduledExecutorService UNPARKER = delayedTaskScheduler();
private final Executor scheduler;
private final Continuation cont;
private final Runnable runContinuation;
——-

VirtualThread = Continuation + Scheduler
public static void park(Object blocker) {
Thread t = Thread.currentThread();
setBlocker(t, blocker);
if (t.isVirtual()) {
VirtualThreads.park();
} else {
U.park(false, 0L);
}
setBlocker(t, (Object)null);
}
public static void unpark(Thread thread) {
if (thread != null) {
if (thread.isVirtual()) {
VirtualThreads.unpark(thread);
} else {
U.unpark(thread);
}
}
}

Structured concurrency with Java
public static void structuredConcurrency() {
var deadline = Instant.now().plusSeconds(10);
ﬁnal var exec = Executors.newVirtualThreadExecutor()
.withDeadline(deadline);
System.out.println("Start Structure");
try (exec) {
exec.submit(() -> System.out.println("Start Task1"));
exec.submit(() -> System.out.println("Start Task2"));
}
System.out.println("End Structure");
}
Start Structure
Start Task2
Start Task1
End Structure
Process ﬁnished with exit code 0

placeDeposit() with Structured Concurrency
public static Double placeDeposit(ﬁnal double value) {
ﬁnal var exec = Executors.newVirtualThreadExecutor().withDeadline(deadline);
try (exec) {
return compute("SGD->USD", value, exec)
.thenCompose(r -> compute("addInterest", r, exec))
.thenCompose(r -> compute("subtractCharges", r, exec)).join();
} catch (CompletionException ex) {
throw new RuntimeException(ex.getCause());
}
}

Exploiting parallelism
public int sumAccumulatorPattern() {
var sum = 0;
for (int i = 0; i < 100; i++) {
sum = sum + i;
}
return sum;
}
public int sumInParallel() {
return IntStream.range(0, 100)
.parallel().sum();
}

public static void downloadParallel() {
final var urls = List.of("https://www.google.com", "https://edition.cnn.com");
final var factory = Thread.builder().virtual().factory();
final var exec = Executors.newUnboundedExecutor(factory).withDeadline(deadline);
final var httpClient = HttpClient.newBuilder()
.connectTimeout(Duration.ofSeconds(5))
.executor(exec)
.build();
try (exec) {
final var tasks = new ArrayList<CompletableFuture<String>>();
for (final var url : urls) {
final var request = HttpRequest.newBuilder()
.GET()
.uri(URI.create(url))
.build();
LOGGER.log(DEBUG, "Downloading the content for the url " + url);
tasks.add(httpClient.sendAsync(request, BodyHandlers.ofString())
.thenApply(r -> handleResponse(r, url)));
}
tasks.stream().map(CompletableFuture::join).forEach(System.out::println);
} catch (CompletionException ex) {
throw new RuntimeException(ex.getCause());
}
}

Limitations of Virtual Thread
❖ Currently doesn’t work well with synchronized block. Can’t yield while
holding a lock
❖ Object.wait() inside the synchronized block the carrier thread
❖ Continuation doesn’t work with native frames
❖ Java.util.concurrent retuning is needed

References
❖ https://wiki.openjdk.java.net/display/loom/Structured+Concurrency
❖ https://vorpus.org/blog/notes-on-structured-concurrency-or-go-statement-
considered-harmful/
❖ https://www.cs.utexas.edu/~EWD/ewd02xx/EWD249.PDF
❖ https://scholar.google.com/scholar?
cluster=15335993203437612903&hl=en&as_sdt=0,5
❖ https://wiki.openjdk.java.net/display/loom/Main
❖ http://cr.openjdk.java.net/~rpressler/loom/loom/sol1_part1.html
