The document discusses the potential of network virtualization to address challenges posed by the growth in dynamic virtualized workloads. It notes traditional networks are configuration-driven, complex and inflexible, limiting optimization. Network virtualization provides a programmable, automated approach through software-defined networking, delivering instant, policy-based connectivity across datacenters seamlessly without network constraints. This represents a fundamental shift from static configuration to dynamic service automation through abstraction of the network.

1. The True Potential of Network Virtualization
Nuage Networks
Scott Sneddon
scott@nuagenetworks.net
@ssneddon Copyright 2013 Alcatel-Lucent. All rights reserved.
CONFIDENTIAL - SOLELY FOR AUTHORIZED PERSONS HAVING A NEED TO KNOW
PROPRIETARY – USE PURSUANT TO COMPANY INSTRUCTION

2. Explosion
 More endpoints
 Dynamic connections

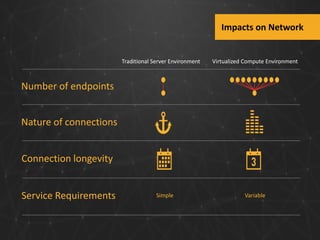

3. Impacts on Network
Traditional Server Environment
Virtualized Compute Environment
Number of endpoints
Nature of connections
Connection longevity
Service Requirements
Simple
Variable

4. Cumbersome
 Highly static
 Configuration-driven
 NOT responsive to
application needs
 Prone to failure

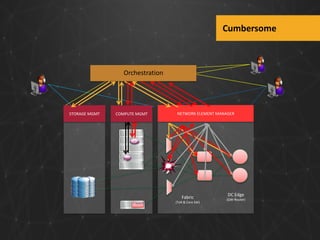

5. Cumbersome
Orchestration
STORAGE MGMT
COMPUTE MGMT
NETWORK ELEMENT MANAGER
App
Ap
p
Fabric
V-Switch
(ToR & Core SW)
DC Edge
(GW-Router)

6. Restricted
 Islands of connectivity
 Limiting flexibility

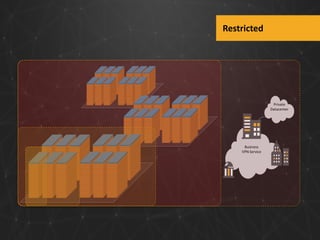

7. Restricted
Private
Datacenter
Business
VPN Service

8. Inefficient
 Underutilized assets
 NOT multi-tenant

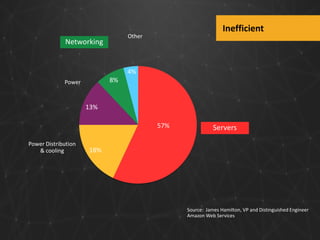

9. Inefficient
Other
Networking
4%
8%
Power
13%
57%
Power Distribution
& cooling
Servers
18%
Source: James Hamilton, VP and Distinguished Engineer
Amazon Web Services

10. The True Potential of Network Virtualization
Programmable, Automated, Seamless

11. A Fundamental Shift
Lost in Translation
ABSTRACTION
A shift in
How applications interact with the network
IT-Friendly Definition

12. A Fundamental Shift
Configuration-driven
AUTOMATION
A shift in
How network services are instantiated
Auto-instantiation

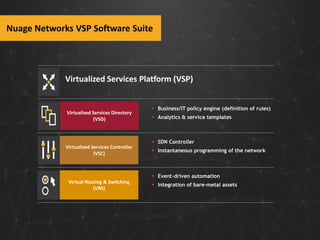

13. Nuage Networks VSP Software Suite
Virtualized Services Platform (VSP)
Virtualized Services Directory
(VSD)
Virtualized Services Controller
(VSC)
 Business/IT policy engine (definition of rules)
 Analytics & service templates
 SDN Controller
 Instantaneous programming of the network
 Event-driven automation
Virtual Routing & Switching
(VRS)
 Integration of bare-metal assets

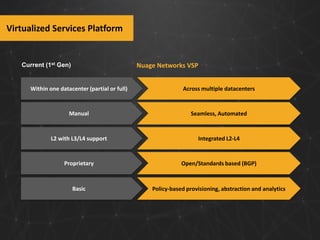

14. Virtualized Services Platform
Current (1st Gen)
Nuage Networks VSP
Within one datacenter (partial or full)
Across multiple datacenters
Manual
Seamless, Automated
L2 with L3/L4 support
Integrated L2-L4
Proprietary
Open/Standards based (BGP)
Basic
Policy-based provisioning, abstraction and analytics

15. Programmability

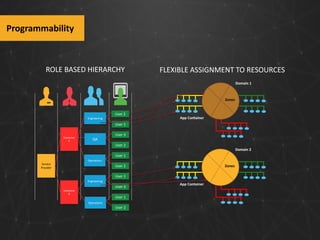

16. Programmability
ROLE BASED HIERARCHY
FLEXIBLE ASSIGNMENT TO RESOURCES
Domain 1
Zones
User 2
Engineering
App Container
User 1
Enterprise
A
User 3
QA
User 2
Domain 2
User 1
Operations
Service
Provider
User 2
Zones
User 1
Engineering
User 3
Enterprise
B
User 1
Operations
User 2
App Container

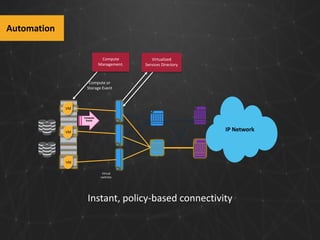

17. Automation

18. Automation
Compute
Management.
Virtualized
Services Directory
Compute or
Storage Event
VM
Compute
Event
IP Network
VM
VM
Virtual
switches
Instant, policy-based connectivity

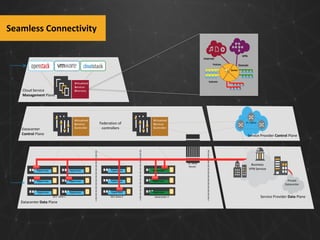

19. Seamless Connectivity

20. Seamless Connectivity
VPN
Internet
Policies
Domain
Zones
Cloud Service
Management Plane
Virtualized
Services
Controller
Datacenter
Control Plane
Subnets
Virtualized
Services
Directory
Federation of
controllers
Virtualized
Services
Controller
IP / MPLS
Service Provider Control Plane
DC WAN
Router
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Business
VPN Service
Hypervisor
Hypervisor
Hypervisor
DC1 Zone 1
Datacenter Data Plane
DC1 Zone 2
Datacenter 2`
Private
Datacenter
Service Provider Data Plane

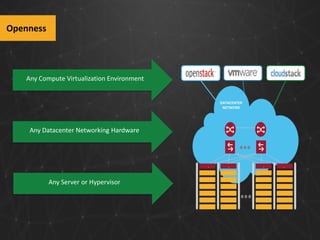

21. Openness
Any Compute Virtualization Environment
DATACENTER
NETWORK
Any Datacenter Networking Hardware
.
Any Server or Hypervisor
.
.
.

22. Eliminating Datacenter Network Constraints
SLOW
INSTANTANEOUS
RESTRICTED
BOUNDARYLESS

23. …but delivering a technology is only part of the solution
We need to drive a cultural change…

24. Let’s start with changing the organization

25. And shift our operational methods
Trouble Tickets, Manual
Processes
When all you have is a hammer…

26. Provide a complete toolkit…
Continuous network service delivery
DevOps for NetOps
Application driven
automation

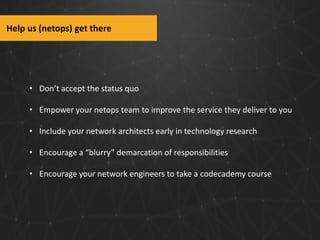

27. Help us (netops) get there
• Don’t accept the status quo
• Empower your netops team to improve the service they deliver to you
• Include your network architects early in technology research
• Encourage a “blurry” demarcation of responsibilities
• Encourage your network engineers to take a codecademy course

28. Network Virtualization
Programmable, Automated, Seamless
Getting out of the developer’s way

29. Network Virtualization NOW
@nuagenetworks
@ssneddon
29
