![34

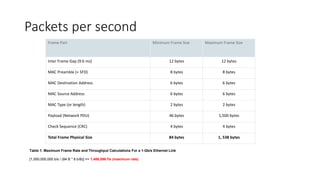

Packets per second
software.intel.com/networking
Frame Part Minimum Frame Size Maximum Frame Size
Inter Frame Gap (9.6 ms) 12 bytes 12 bytes
MAC Preamble (+ SFD) 8 bytes 8 bytes
MAC Destination Address 6 bytes 6 bytes
MAC Source Address 6 bytes 6 bytes
MAC Type (or length) 2 bytes 2 bytes
Payload (Network PDU) 46 bytes 1,500 bytes
Check Sequence (CRC) 4 bytes 4 bytes
Total Frame Physical Size 84 bytes 1, 538 bytes
Table 1. Maximum Frame Rate and Throughput Calculations For a 1-Gb/s Ethernet Link
[1,000,000,000 b/s / (84 B * 8 b/B)] == 1,488,096 f/s (maximum rate)](https://image.slidesharecdn.com/netsft2017dayinlifeofnfv-170713131635/85/Netsft2017-day-in_life_of_nfv-34-320.jpg)

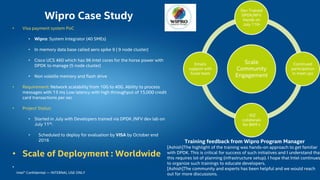

![Intel® Confidential — INTERNAL USE ONLY
• Visa payment system PoC
• Wipro: System Integrator (40 SMEs)
• In memory data base called aero spike 9 ( 9 node cluster)
• Cisco UCS 460 which has 96 Intel cores for the horse power with
DPDK to manage (5 node cluster)
• Non volatile memory and flash drive
• Requirement: Network scalability from 10G to 40G. Ability to process
messages with 13 ms Low latency with high throughput of 15,000 credit
card transactions per sec
• Project Status:
• Started in July with Developers trained via DPDK /NFV dev lab on
July 11th.
• Scheduled to deploy for evaluation by VISA by October end
2016
• Scale of Deployment : Worldwide
•
Wipro Case Study
Scale
Community
Engagement
Dev Trained
DPDK/NFV
Hands on
July 11th
Continued
participation
in meet ups
: IDZ
collaterals
for BKM s
Emails
support with
Scale team
Training feedback from Wipro Program Manager
[Ashish]The highlight of the training was hands-on approach to get familiar
with DPDK. This is critical for success of such initiatives and I understand that
this requires lot of planning (infrastructure setup). I hope that Intel continues
to organize such trainings to educate developers.
[Ashish]The community and experts has been helpful and we would reach
out for more discussions.](https://image.slidesharecdn.com/netsft2017dayinlifeofnfv-170713131635/85/Netsft2017-day-in_life_of_nfv-51-320.jpg)
Uploaded byIntel
Netsft2017 day in_life_of_nfv
The document discusses the implementation of fast packet processing in virtualized environments using DPDK and NFV, highlighting the demand for low latency, scalability, and performance in modern data centers. It outlines the architecture required for network function virtualization and emphasizes Intel's role in fostering an open ecosystem for network innovation. Key concepts include the importance of virtualization for enabling network agility and the technical considerations for optimizing performance in high-density environments.
More Related Content
Similar to Netsft2017 day in_life_of_nfv
Netsft2017 day in_life_of_nfv
- 1. FastPacketprocessinginVNFusingDPDKandfd.io Sujata Tibrewala, 07/06/2017 NetworkingCommunity Development Manager Intel Developer Zone @sujatatibre sujata.tibrewala@intel.com
- 2. LegalNoticesandDisclaimersIntel technologies’ featuresand benefits depend on system configuration and may require enabled hardware, software or service activation. Learn more at intel.com, or from the OEM or retailer. No computer system can be absolutely secure. Tests document performance of components on a particular test, in specific systems. Differences in hardware, software, or configuration will affect actual performance. Consult other sources of information to evaluate performance as you consider your purchase. For more complete information about performance and benchmark results, visit http://www.intel.com/performance. Intel, the Intel logo and others are trademarks of Intel Corporation in the U.S. and/or other countries. *Other names and brands may be claimed as the property of others. © 2016 Intel Corporation.

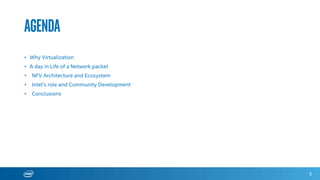

- 3. AGENDA • Why Virtualization •A day in Life of a Network packet • NFV Architecture and Ecosystem • Intel’s role and Community Development • Conclusions 3
- 4.
- 5. 5 AT&T Traffic Explosion* https://www.youtube.com/watch?v=86mFVgttYBI

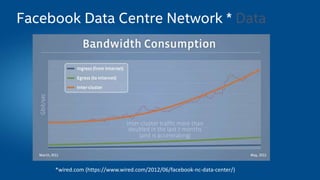

- 6. Facebook Data CentreNetwork * Data *wired.com (https://www.wired.com/2012/06/facebook-nc-data-center/)

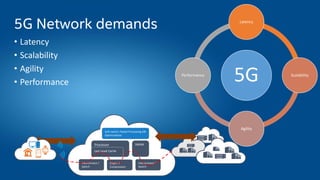

- 7. 5G Network demands •Latency • Scalability • Agility • Performance 5G Latency Scalability Agility Performance Interconnect / Switch Processor Crypto / Compression DRAM Last Level Cache Soft switch, Packet Processing SW Optimizations Interconnect / Switch

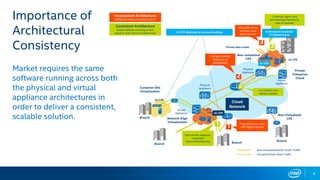

- 8. Importance of Architectural Consistency Market requiresthe same software running across both the physical and virtual appliance architectures in order to deliver a consistent, scalable solution. 8 Private data center Private Enterprise Cloud Physical Appliance Non-virtualized CPE Physical Appliance Virtual Appliance Virtual Appliance vE-CPE deployed at various locations Customer Site Virtualization Network Edge Virtualization Non-Virtualized CPEBranch Branch Branch Branch vE-CPE vE-CPE vE-CPE Non-Virtualized North-South Traffic Virtualized East-West Traffic Fragmented services with higher latency Complex (costly) deployment/ connectivity More difficult to provision and scale services Inconsistent Architecture (“different software architectures”) 1 2 3 Cloud Network Common mgmt. and provisioning framework, easy to operate Fast service response, consistent feature/functionality Consistent Architecture (same software running across physical and virtual architectures) 3 1 Low latency and highly scalable 2 vE-CPE NFVI- PoP Centralized Corporate IT Infrastructure

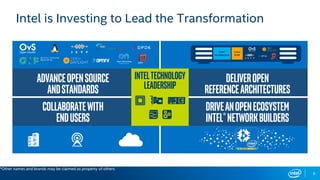

- 9. Intel is Investingto Lead the Transformation 9 DRIVEANOPENECOSYSTEM INTEL®NETWORKBUILDERS COLLABORATEWITH ENDUSERS DELIVEROPEN REFERENCEARCHITECTURES Intel® Architecture Linux KVM ADVANCEOPENSOURCE ANDSTANDARDS INTELTECHNOLOGY LEADERSHIP *Other names and brands may be claimed as property of others
- 10. Is virtualization theanswer ?

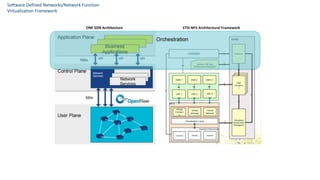

- 11. Software Defined Networks/NetworkFunction Virtualization Framework

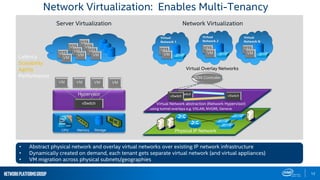

- 12. NetworkPlatformsGroup Network Virtualization: EnablesMulti-Tenancy Hypervisor NIC VM VM VM vSwitch VM MemoryCPU Storage Server Virtualization Network Virtualization Virtual Network abstraction (Network Hypervisor) using tunnel overlays e.g. VXLAN, NVGRE, Geneve Physical IP Network Virtual Overlay Networks vSwitchvSwitch vSwitch SDN Controller VM VM Virtual Network 1 VM VM Virtual Network 2 VM VM Virtual Network N VM VM VM VM VM VM VMVM VM • Abstract physical network and overlay virtual networks over existing IP network infrastructure • Dynamically created on demand, each tenant gets separate virtual network (and virtual appliances) • VM migration across physical subnets/geographies 12 Latency Scalability Agility Performance

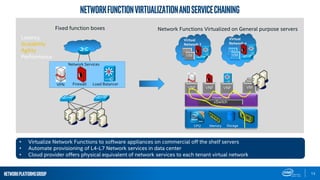

- 13. NetworkPlatformsGroup Firewall Load BalancerVPN NetworkServices Fixed function boxes Network Functions Virtualized on General purpose servers MemoryCPU Storage VNF Hypervisor VNFVNF VM VM VM vSwitch VM VM Virtual Network 1 VM VM Virtual Network n NetworkFunctionVirtualizationandServiceChaining • Virtualize Network Functions to software appliances on commercial off the shelf servers • Automate provisioning of L4-L7 Network services in data center • Cloud provider offers physical equivalent of network services to each tenant virtual network 13 Latency Scalability Agility Performance

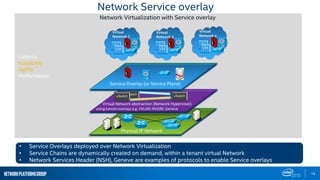

- 14. NetworkPlatformsGroup Network Service overlay NetworkVirtualization with Service overlay Virtual Network abstraction (Network Hypervisor) using tunnel overlays e.g. VXLAN, NVGRE, Geneve Physical IP Network Virtual Overlay Networks vSwitchvSwitch vSwitch SDN Controller • Service Overlays deployed over Network Virtualization • Service Chains are dynamically created on demand, within a tenant virtual Network • Network Services Header (NSH), Geneve are examples of protocols to enable Service overlays VM VM Virtual Network n Service Overlay (or Service Plane) 14 VM VM Virtual Network 1 VM VM Virtual Network 2 Latency Scalability Agility Performance
- 15.

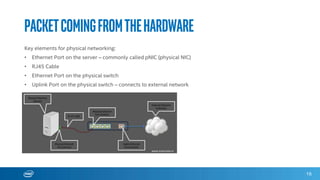

- 16. PacketComingfromthehardware 16 Key elements forphysical networking: • Ethernet Port on the server – commonly called pNIC (physical NIC) • RJ45 Cable • Ethernet Port on the physical switch • Uplink Port on the physical switch – connects to external network

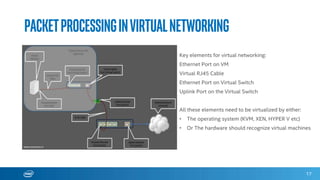

- 17. PacketProcessinginVirtualnetworking 17 Key elements forvirtual networking: Ethernet Port on VM Virtual RJ45 Cable Ethernet Port on Virtual Switch Uplink Port on the Virtual Switch All these elements need to be virtualized by either: • The operating system (KVM, XEN, HYPER V etc) • Or The hardware should recognize virtual machines
- 18. Telcocloud-EndToendAgility distributed,local,automated 18 Automated Infrastructure Infrastructure Managementand Orchestration Optimized Workload Placement Security Policy and Lifecycle Automation RESTful interfaces Telco Cloud Automated Service Level Agreement Unified Management Plan Services Management & Orchestration VNF – MEC* VNF – VRAN* VNF – IOT*VNF – EPC* Infrastructure Orchestration Software Services Delivery Modernize and Virtualize System Architecture 4:1 Workload Consolidation Intel® VT + NFV Optimized Platforms Resource Pool Storage Network Compute Infrastructure Attributes Power Performance Security Thermals Utilization Location VNF – Virtual Network Function, EPC- Evolved Packet Core, MEC-Mobile Edge Computing, IoT-Internet of Things

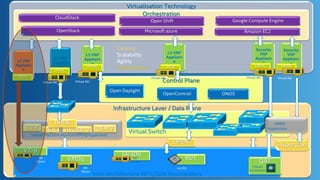

- 19. Virtualisation Technology Orchestration Infrastructure Layer/ Data Plane Intel Architecture NFV/SDN Accelerators VT-d SR-IOV Virtual Machine Monitor(VMM)/Hypervisor OpenStack L2 VNF Applianc e L2 VNF Applianc e L3 VNF Applianc e Control Plane OpenContrail Open Daylight ONOS DPDK DPDK DPDK VMDq NIC Silicon NIC Silicon QAT Chipset Acceleration Hyperscan KVM XEN HYPER-V QEMU Virtual NIC Virtual NIC Microsoft azure RDT IA CPU NIC Silicon Virtual Switch Amazon EC2 L3 VNF Applianc e DPDK Virtual NIC Security VNF Applianc e DPDK Virtual NIC DPDK V Fd.io Legopus Open vSwitch POF OpenSwitch BESS DPDK Virtual Switch CloudStack Open Shift Google Compute Engine Security VNF Applianc e DPDK Virtual NIC VMM/ Hypervisor Latency Scalability Agility Performance

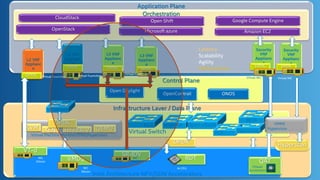

- 20. Application Plane Orchestration Infrastructure Layer/ Data Plane Intel Architecture NFV/SDN Accelerators VT-d SR-IOV Virtual Machine Monitor(VMM)/Hypervisor OpenStack L2 VNF Applianc e L2 VNF Applianc e L3 VNF Applianc e Control Plane OpenContrail Open Daylight ONOS DPDKDPDK DPDK VMDq NIC Silicon NIC Silicon QAT Chipset Acceleration Hyperscan KVM XEN HYPER-V QEMU Virtual Fuunction Microsoft azure RDT IA CPU NIC Silicon Virtual Switch Amazon EC2 L3 VNF Applianc e DPDK Security VNF Applianc e DPDK Virtual NIC DPDK V Fd.io Legopus Open vSwitch POF OpenSwitch BESS DPDK Virtual Switch CloudStack Open Shift Google Compute Engine Security VNF Applianc e DPDK Virtual NIC VMM/ Hypervisor Virtual Fuunction Virtual Fuunction Latency Scalability Agility Performance

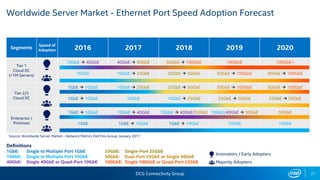

- 21. DCG Connectivity Group21 Worldwide Server Market - Ethernet Port Speed Adoption Forecast Segments Speed of Adoption 2016 2017 2018 2019 2020 Tier 1 Cloud DC (>1M Servers) 10GbE 40GbE 10GbE 40GbE 50GbE 10GbE 25GbE 50GbE 100GbE 25GbE 50GbE 100GbE 50GbE 100GbE 100GbE+ 50GbE 100GbE Tier 2/3 Cloud DC 1GbE 10GbE 1GbE 10GbE 10GbE 25GbE 10GbE 25GbE 50GbE 10GbE 25GbE 50GbE 100GbE 25GbE 50GbE 50GbE 100GbE 25GbE 50GbE Enterprise / Premises 1GbE 10GbE 1GbE 10GbE 40GbE 1GbE 10GbE 10GbE 40GbE/50GbE 1GbE 10GbE 10GbE/40GbE 50GbE 10GbE 50GbE 10GbE Source: Worldwide Server Market – Network Metrics Dell’Oro Group January 2017 Definitions 1GbE: Single to Multiple Port 1GbE 10GbE: Single to Multiple Port 10GbE 40GbE: Single 40GbE or Quad-Port 10GbE 25GbE: Single-Port 25GbE 50GbE: Dual-Port 25GbE or Single 50GbE 100GbE: Single 100GbE or Quad-Port 25GbE Innovators / Early Adopters Majority Adopters

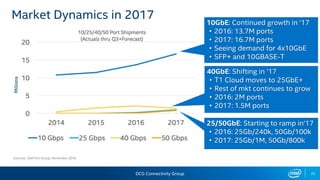

- 22. DCG Connectivity Group22 Market Dynamics in 2017 10GbE: Continued growth in ‘17 • 2016: 13.7M ports • 2017: 16.7M ports • Seeing demand for 4x10GbE • SFP+ and 10GBASE-T 25/50GbE: Starting to ramp in‘17 • 2016: 25Gb/240k, 50Gb/100k • 2017: 25Gb/1M, 50Gb/800k 40GbE: Shifting in ‘17 • T1 Cloud moves to 25GbE+ • Rest of mkt continues to grow • 2016: 2M ports • 2017: 1.5M ports Sources: Dell’Oro Group, November 2016

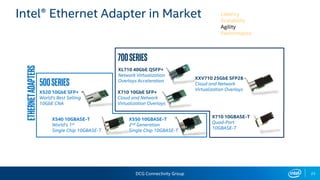

- 23. DCG Connectivity Group XL71040GbE QSFP+ Network Virtualization Overlays Acceleration X520 10GbE SFP+ World’s Best Selling 10GbE CNA X540 10GBASE-T World’s 1st Single Chip 10GBASE-T XXV710 25GbE SFP28 Cloud and Network Virtualization Overlays X550 10GBASE-T 2nd Generation Single Chip 10GBASE-T X710 10GBASE-T Quad-Port 10GBASE-T X710 10GbE SFP+ Cloud and Network Virtualization Overlays EthernetAdapters Intel® Ethernet Adapter in Market 700Series 23 500Series Latency Scalability Agility Performance

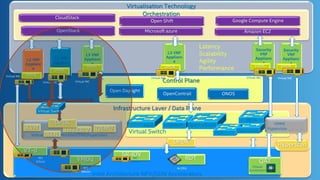

- 24. Virtualisation Technology Orchestration Infrastructure Layer/ Data Plane Intel Architecture NFV/SDN Accelerators VT-d SR-IOV Virtual Machine Monitor(VMM)/Hypervisor OpenStack L2 VNF Applianc e L2 VNF Applianc e L3 VNF Applianc e Control Plane OpenContrail Open Daylight ONOS DPDK DPDK DPDKVirtual NIC VMDq NIC Silicon NIC Silicon QAT Chipset Acceleration Hyperscan KVM XEN HYPER-V QEMU Virtual NIC Virtual NIC Microsoft azure RDT IA CPU NIC Silicon Virtual Switch Amazon EC2 L3 VNF Applianc e DPDK Virtual NIC Security VNF Applianc e DPDK Virtual NIC DPDK V Fd.io Legopus Open vSwitch POF OpenSwitch BESS DPDK Virtual Switch CloudStack Open Shift Google Compute Engine Security VNF Applianc e DPDK Virtual NIC VMM/ Hypervisor Latency Scalability Agility Performance

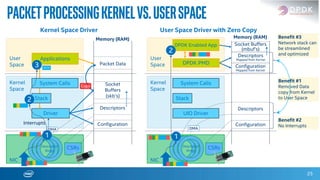

- 25. Kernel Space Driver 25 PacketProcessingKernelvs.UserSpace User Space NIC Applications Stack System Calls CSRs Interrupts Memory (RAM) PacketData Copy Socket Buffers (mbuf’s) Configuration Descriptors Kernel Space Driver Configuration Descriptors DMA Benefit #1 Removed Data copy from Kernel to User Space Benefit #2 No Interrupts Descriptors Mapped from Kernel Configuration Mapped from Kernel Descriptor Rings Memory (RAM) User Space Driver with Zero Copy Kernel Space User Space NIC DPDK PMD Stack UIO Driver System Calls CSRs DPDK Enabled App DMA Descriptor Rings Socket Buffers (skb’s) 1 2 3 1 2 Benefit #3 Network stack can be streamlined and optimized DATA

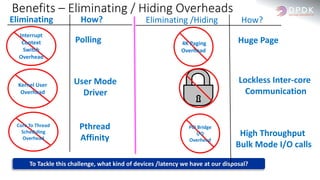

- 26. Benefits – Eliminating/ Hiding Overheads Interrupt Context Switch Overhead Kernel User Overhead Core To Thread Scheduling Overhead Eliminating How? Polling User Mode Driver Pthread Affinity 4K Paging Overhead PCI Bridge I/O Overhead Eliminating /Hiding How? Huge Page Lockless Inter-core Communication High Throughput Bulk Mode I/O calls To Tackle this challenge, what kind of devices /latency we have at our disposal?

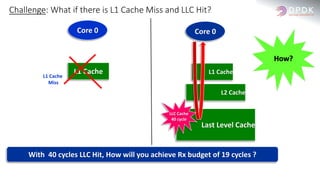

- 27. Last Level Cache L2Cache Challenge: What if there is L1 Cache Miss and LLC Hit? L1 Cache Core 0 L1 Cache Core 0 LLC Cache 40 cycle With 40 cycles LLC Hit, How will you achieve Rx budget of 19 cycles ? L1 Cache Miss How?

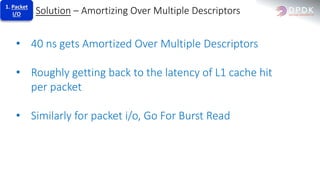

- 28. • 40 nsgets Amortized Over Multiple Descriptors • Roughly getting back to the latency of L1 cache hit per packet • Similarly for packet i/o, Go For Burst Read 1. Packet I/O Solution – Amortizing Over Multiple Descriptors
- 29. Last Level Cache L2Cache Examine Bunch Of Descriptors At A Time L1 Cache Core 0 LLC Cache 40 cycle With 8 Descriptors, 40 ns gets amortized over 8 Descriptors Read 8 Packet Descriptors at a time Packet Descriptor 5 Packet Descriptor 0 1. Packet I/O Packet Descriptor 1 Packet Descriptor 2 Packet Descriptor 3 Packet Descriptor 4 Packet Descriptor 6 Packet Descriptor 7
- 30. 30 Packet processing software.intel.com/networking Packet sanity-> CRC calculation VLAN tag present ? -> TPID Ingress/Egress VLAN Filtering -> MAC + Port+ VLAN membership SRC learning -> MAC + PORT DEST MAC Learning -> MAC + port QOS -> PCP
- 31.

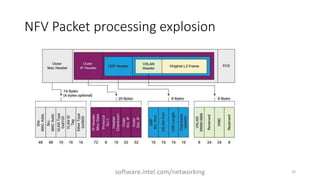

- 32. NFV Packet processingexplosion software.intel.com/networking 32

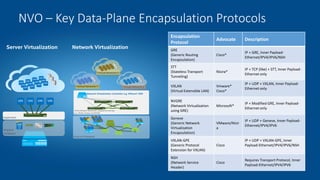

- 33. NVO – KeyData-Plane Encapsulation Protocols Encapsulation Protocol Advocate Description GRE (Generic Routing Encapsulation) Cisco* IP + GRE, Inner Payload- Ethernet/IPV4/IPV6/NSH STT (Stateless Transport Tunneling) Nicira* IP + TCP (like) + STT, Inner Payload- Ethernet only VXLAN (Virtual Extensible LAN) Vmware* Cisco* IP + UDP + VXLAN, Inner Payload- Ethernet only NVGRE (Network Virtualization using GRE) Microsoft* IP + Modified GRE, Inner Payload- Ethernet only Geneve (Generic Network Virtualization Encapsulation) VMware/Nicir a IP + UDP + Geneve, Inner Payload- Ethernet/IPV4/IPV6 VXLAN-GPE (Generic Protocol Extension for VXLAN) Cisco IP + UDP + VXLAN-GPE, Inner Payload-Ethernet/IPV4/IPV6/NSH NSH (Network Service Header) Cisco Requires Transport Protocol, Inner Payload-Ethernet/IPV4/IPV6 Hypervisor Virtual Switch Physical Hardware Physical IP Network Virtual Network Abstraction using tunnel overlays e.g. VXLAN, Geneve and NVGRE Open Virtual Switch Open Virtual Switch Open Virtual Switch Open Virtual Switch Network Virtualization Controller e.g. VMware* NSX Virtual Network 2 Virtual Network 3Virtual Network 1 Server Virtualization Network Virtualization
- 34. 34 Packets per second software.intel.com/networking FramePart Minimum Frame Size Maximum Frame Size Inter Frame Gap (9.6 ms) 12 bytes 12 bytes MAC Preamble (+ SFD) 8 bytes 8 bytes MAC Destination Address 6 bytes 6 bytes MAC Source Address 6 bytes 6 bytes MAC Type (or length) 2 bytes 2 bytes Payload (Network PDU) 46 bytes 1,500 bytes Check Sequence (CRC) 4 bytes 4 bytes Total Frame Physical Size 84 bytes 1, 538 bytes Table 1. Maximum Frame Rate and Throughput Calculations For a 1-Gb/s Ethernet Link [1,000,000,000 b/s / (84 B * 8 b/B)] == 1,488,096 f/s (maximum rate)

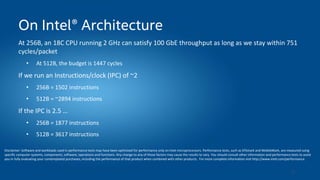

- 35. 35 On Intel® Architecture At256B, an 18C CPU running 2 GHz can satisfy 100 GbE throughput as long as we stay within 751 cycles/packet • At 512B, the budget is 1447 cycles If we run an Instructions/clock (IPC) of ~2 • 256B = 1502 instructions • 512B = ~2894 instructions If the IPC is 2.5 … • 256B = 1877 instructions • 512B = 3617 instructions Disclaimer: Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more complete information visit http://www.intel.com/performance.

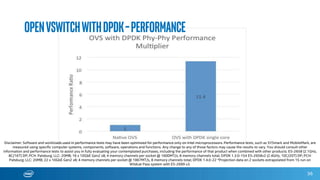

- 36. 36 OpenvSwitchWithDPDK–Performance Disclaimer: Software andworkloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. E5-2658 (2.1GHz, 8C/16T) DP; PCH: Patsburg; LLC: 20MB; 16 x 10GbE Gen2 x8; 4 memory channels per socket @ 1600MT/s, 8 memory channels total; DPDK 1.3.0-154 E5-2658v2 (2.4GHz, 10C/20T) DP; PCH: Patsburg; LLC: 20MB; 22 x 10GbE Gen2 x8; 4 memory channels per socket @ 1867MT/s, 8 memory channels total; DPDK 1.4.0-22 *Projection data on 2 sockets extrapolated from 1S run on Wildcat Pass system with E5-2699 v3.

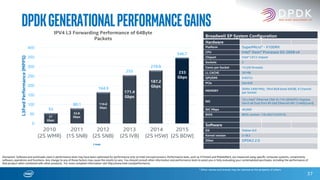

- 37. 37 DPDKGenerationalPerformanceGains Disclaimer: Software andworkloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more complete information visit http://www.intel.com/performance. IPV4 L3 Forwarding Performance of 64Byte Packets * Other names and brands may be claimed as the property of others. Broadwell EP System Configuration Hardware Platform SuperMicro® - X10DRX CPU Intel® Xeon® Processor E5-2658 v4 Chipset Intel® C612 chipset Sockets 2 Cores per Socket 14 (28 threads) LL CACHE 30 MB QPI/DMI 9.6GT/s PCIe Gen3x8 MEMORY DDR4 2400 MHz, 1Rx4 8GB (total 64GB), 4 Channel per Socket NIC 10 x Intel® Ethernet CNA XL710-QDA2PCI-Express Gen3 x8 Dual Port 40 GbE Ethernet NIC (1x40G/card) NIC Mbps 40,000 BIOS BIOS version: 1.0c (02/12/2015) Software OS Debian 8.0 Kernel version 3.18.2 Other DPDK2.2.0 55 80.1 164.9 255 279.9 346.7 0 50 100 150 200 250 300 350 400 2010 (2S WMR) 2011 (1S SNB) 2012(2S SNB) 2013 (2S IVB) 2014 (2S HSW) 2015 (2S BDW) L3FwdPerformance(MPPS) Year 37 Gbps 53.8 Gbps 110.8 Gbps 171.4 Gbps 187.2 Gbps 233 Gbps 2010 (2S WMR) 2011 (1S SNB) 2013 (2S IVB) 2012 (2S SNB) 2015 (2S BDW) 2014 (2S HSW)

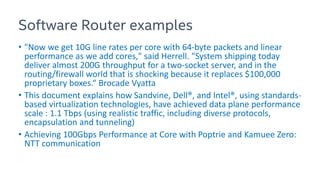

- 38. Software Router examples •"Now we get 10G line rates per core with 64-byte packets and linear performance as we add cores," said Herrell. "System shipping today deliver almost 200G throughput for a two-socket server, and in the routing/firewall world that is shocking because it replaces $100,000 proprietary boxes.“ Brocade Vyatta • This document explains how Sandvine, Dell®, and Intel®, using standards- based virtualization technologies, have achieved data plane performance scale : 1.1 Tbps (using realistic traffic, including diverse protocols, encapsulation and tunneling) • Achieving 100Gbps Performance at Core with Poptrie and Kamuee Zero: NTT communication

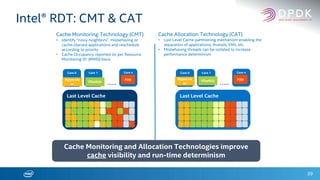

- 39. 39 Cache Monitoring Technology(CMT) • Identify “noisy neighbors”, misbehaving or cache-starved applications and reschedule according to priority • Cache Occupancy reported on per Resource Monitoring ID (RMID) basis Last Level Cache Core 0 Core 1 Core n …..Hypervis or VSwitch Last Level Cache Core 0 Core 1 Core n ….. Cache Allocation Technology (CAT) • Last Level Cache partitioning mechanism enabling the separation of applications, threads, VMs, etc. • Misbehaving threads can be isolated to increase performance determinism Cache Monitoring and Allocation Technologies improve cache visibility and run-time determinism Intel® RDT: CMT & CAT App VSwitch Hypervis or App

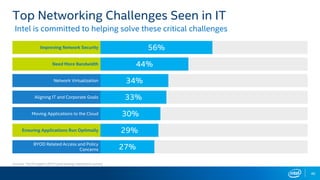

- 40. Top Networking ChallengesSeen in IT Source: TechTarget's 2015 purchasing intentions survey 40 56%Improving Network Security 44%Need More Bandwidth 34%Network Virtualization 33%Aligning IT and Corporate Goals 30%Moving Applications to the Cloud 29%Ensuring Applications Run Optimally 27%BYOD Related Access and Policy Concerns Intel is committed to helping solve these critical challenges

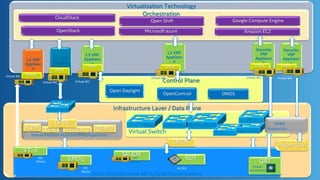

- 41. Virtualisation Technology Orchestration Infrastructure Layer/ Data Plane Intel Architecture NFV/SDN Accelerators VT-d SR-IOV Virtual Machine Monitor(VMM)/Hypervisor OpenStack L2 VNF Applianc e L2 VNF Applianc e L3 VNF Applianc e Control Plane OpenContrail Open Daylight ONOS DPDK DPDK DPDKVirtual NIC VMDq NIC Silicon NIC Silicon QAT Chipset Acceleration Hyperscan KVM XEN HYPER-V QEMU Virtual NIC Virtual NIC Microsoft azure RDT IA CPU NIC Silicon Virtual Switch Amazon EC2 L3 VNF Applianc e DPDK Virtual NIC Security VNF Applianc e DPDK Virtual NIC DPDK V Fd.io Legopus Open vSwitch POF OpenSwitch BESS DPDK Virtual Switch CloudStack Open Shift Google Compute Engine Security VNF Applianc e DPDK Virtual NIC VMM/ Hypervisor

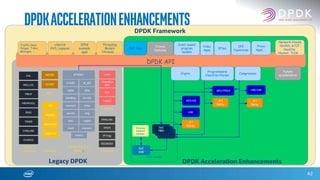

- 42. 42 DPDKAccelerationEnhancements DPDK API Traffic Gens Pktgen,T-Rex, Moongen, … vSwitch OVS, Lagopus, … DPDK example apps AES-NI Future features Event based program models Threading Models lthreads, … Video Apps EAL MALLOC MBUF MEMPOOL RING TIMER Core Libraries KNI POWER IVSHMEM Platform LPM Classifica tion ACL Classify e1000 ixgbe bonding af_pkt i40e fm10k Packet Access (PMD) ETHDEV xenvirt enic ring METER SCHED QoS cxgbe vmxnet3 virtio PIPELINE mlx4 memnic others HASH Utilities IP Frag CMDLINE JOBSTAT KVARGS REORDER TABLE Legacy DPDK Future accelerators Crypto Programmable Classifier/Parser HW 3rd Party GPU/FPGA 3rd Party SoC PMD External mempool manager SoC HW SOC model VNF Apps DPDK Acceleration Enhancements DPDK Framework Network Stacks libUNS, mTCP, SeaStar, libuinet, TLDK, … Compression 3rd Party HW/SW IPSec DPI Hyperscan Proxy Apps, …

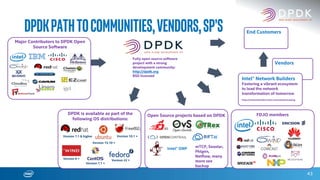

- 43. 43 DPDKpathtocommunities,vendors,SP’s Major Contributors toDPDK Open Source Software Fully open source software project with a strong development community: http://dpdk.org BSD licensed DPDK is available as part of the following OS distributions: Version 6 + Version 7.1 + Version 7.1 & higher Version 15.10 + Version 10.1 + Version 22 + Open Source projects based on DPDK mTCP, Seastar, Pktgen, Netflow, many more see backup Intel® ONP End Customers Vendors Intel® Network Builders Fostering a vibrant ecosystem to lead the network transformation of tomorrow https://networkbuilders.intel.com/solutionscatalog FD.IO members

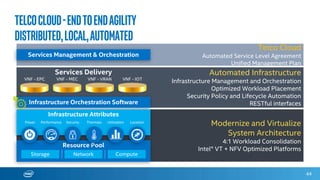

- 44. Telcocloud-EndToendAgility distributed,local,automated 44 Automated Infrastructure Infrastructure Managementand Orchestration Optimized Workload Placement Security Policy and Lifecycle Automation RESTful interfaces Telco Cloud Automated Service Level Agreement Unified Management Plan Services Management & Orchestration VNF - MEC VNF - VRAN VNF - IOTVNF - EPC Infrastructure Orchestration Software Services Delivery Modernize and Virtualize System Architecture 4:1 Workload Consolidation Intel® VT + NFV Optimized Platforms Resource Pool Storage Network Compute Infrastructure Attributes Power Performance Security Thermals Utilization Location
- 45.
- 46.
- 47. Intel® Confidential —INTERNAL USE ONLY Scale Program/ Community development collaboration 47 • Logos are at approx. position on Enablement Framework Joint Path- finding/ Discovery Optimizations PoC/ Trials/ Deployments TOTAL: 117 Influenced partners optimizing their solutions on Intel CPU & other ingredients this year TOTAL: 72 Development/selection of End-End NFV solution use cases with multiple partners TOTAL: 33 Deployed: 22 Meet ups act as bringing in new partners and let them discover SDN/NFV ingredients on IA Hands on Training/ IDZ collatorals and IEMs help support optimization Continued help usingHands on Training/ IDZ collatorals and IEMs help support individual deployments
- 48. Intel® Confidential —INTERNAL USE ONLY Model 2017 to help fast track ISV solutions Continue to Win developer mindshare to increase adoption of IA in the NFV/SDN space by deepening engagements via • Live training, • Active innovators • Dev Mesh projectsDPDK Quick Assist Open Stack VTune SDN/NFV Forum Open vSwitch RDT Fd.io SR-IOV VMDq VT-D Intel Innovator Dev Mesh Live training ISV support IDZ 1300 + members 2000 + Developers trained worldwide From 146 companies 8 active innovators 12 Dev Mesh Projects 8000+ organic users every month
- 49. Intel® Confidential —INTERNAL USE ONLY YourRoleINTheCommunity 49
- 50. Intel® Confidential —INTERNAL USE ONLY 50
- 51. Intel® Confidential —INTERNAL USE ONLY • Visa payment system PoC • Wipro: System Integrator (40 SMEs) • In memory data base called aero spike 9 ( 9 node cluster) • Cisco UCS 460 which has 96 Intel cores for the horse power with DPDK to manage (5 node cluster) • Non volatile memory and flash drive • Requirement: Network scalability from 10G to 40G. Ability to process messages with 13 ms Low latency with high throughput of 15,000 credit card transactions per sec • Project Status: • Started in July with Developers trained via DPDK /NFV dev lab on July 11th. • Scheduled to deploy for evaluation by VISA by October end 2016 • Scale of Deployment : Worldwide • Wipro Case Study Scale Community Engagement Dev Trained DPDK/NFV Hands on July 11th Continued participation in meet ups : IDZ collaterals for BKM s Emails support with Scale team Training feedback from Wipro Program Manager [Ashish]The highlight of the training was hands-on approach to get familiar with DPDK. This is critical for success of such initiatives and I understand that this requires lot of planning (infrastructure setup). I hope that Intel continues to organize such trainings to educate developers. [Ashish]The community and experts has been helpful and we would reach out for more discussions.

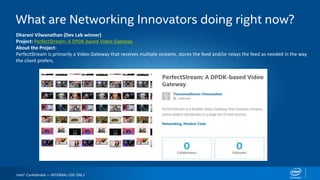

- 52. Intel® Confidential —INTERNAL USE ONLY What are Networking Innovators doing right now? Dharani Vilwanathan (Dev Lab winner) Project: PerfectStream: A DPDK-based Video Gateway About the Project: PerfectStream is primarily a Video Gateway that receives multiple streams, stores the feed and/or relays the feed as needed in the way the client prefers.
- 53. Intel® Confidential —INTERNAL USE ONLY What are Networking Innovators doing right now? Shivaram Mysore Project: Deploying SDN Wired/Wireless Network About the project: Faucet enables replacement of legacy L2/L3 Network switch with SDN functionality. Here OVS + DPDK based on Intel x86 white box is used as the data plane (switch) with Faucet Controller managing the same.

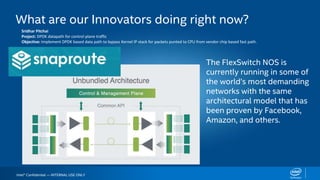

- 54. Intel® Confidential —INTERNAL USE ONLY What are our Innovators doing right now? Sridhar Pitchai Project: DPDK datapath for control plane traffic Objective: Implement DPDK based data path to bypass Kernel IP stack for packets punted to CPU from vendor chip based fast path. The FlexSwitch NOS is currently running in some of the world’s most demanding networks with the same architectural model that has been proven by Facebook, Amazon, and others.
- 55. Intel® Confidential —INTERNAL USE ONLY Conclusions Network Function Virtualization and Software Defines networking promises and is transforming the industry by moving network functions from fixed function ASICs to commodity hardware • The answer to scalable and performant virtualization is to use software for agility and hardware offloads for defined work loads • Intel is working with the eco system to define best solutions both in software and hardware to enable the eco system • DPDK is an example of successful open source project that helps the Industry implement Packet processing on x86 based platforms • We are here to help you in your work and would like to help you 55
- 56. Intel® Confidential —INTERNAL USE ONLY Thankyou 56 sujata.tibrewala@intel.com @sujatatibre

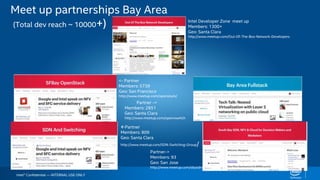

- 57. Intel® Confidential —INTERNAL USE ONLY Meet up partnerships Bay Area (Total dev reach ~ 10000+) Partner-> Members: 93 Geo: San Jose http://www.meetup.com/sbysdnnfvcloud/ Partner Members: 809 Geo: Santa Clara http://www.meetup.com/SDN-Switching-Group/ Intel Developer Zone meet up Members: 1300+ Geo: Santa Clara http://www.meetup.com/Out-Of-The-Box-Network-Developers <- Partner Members: 5739 Geo: San Francisco http://www.meetup.com/openstack/ Partner -> Members: 2851 Geo: Santa Clara http://www.meetup.com/openvswitch

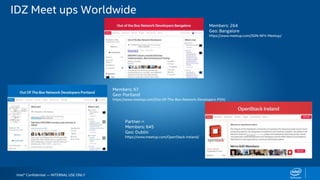

- 58. Intel® Confidential —INTERNAL USE ONLY IDZ Meet ups Worldwide Partner-> Members: 645 Geo: Dublin https://www.meetup.com/OpenStack-Ireland/ Members: 264 Geo: Bangalore https://www.meetup.com/SDN-NFV-Meetup/ Members: 67 Geo: Portland https://www.meetup.com/Out-Of-The-Box-Network-Developers-PDX/

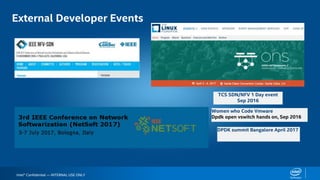

- 59. Intel® Confidential —INTERNAL USE ONLY External Developer Events Meet Ups TCS SDN/NFV 1 Day event Sep 2016 Women who Code Vmware Dpdk open vswitch hands on, Sep 2016 DPDK summit Bangalore April 2017
