The document discusses why NoSQL databases are useful for big data in the cloud. It explains that big data brings challenges of scalability, high availability, and handling diverse data types. NoSQL databases help address these challenges by allowing for horizontal scaling, high availability through replication, and flexibility in data schemas. The document then discusses MongoDB as an example NoSQL database, covering its document structure, replication and scaling features, and map-reduce functionality for parallel querying of large datasets.

1. NoSQL in der Cloud – Why?
Andreas Hartmann
19.11.2012

2. Quelle: http://res.sys-con.com/story/mar12/2188748/CloudBigData_0_0.jpg
19.11.2012 2 NoSQL in der Cloud – Why?

3. Why Cloud???
19.11.2012 3 NoSQL in der Cloud – Why?

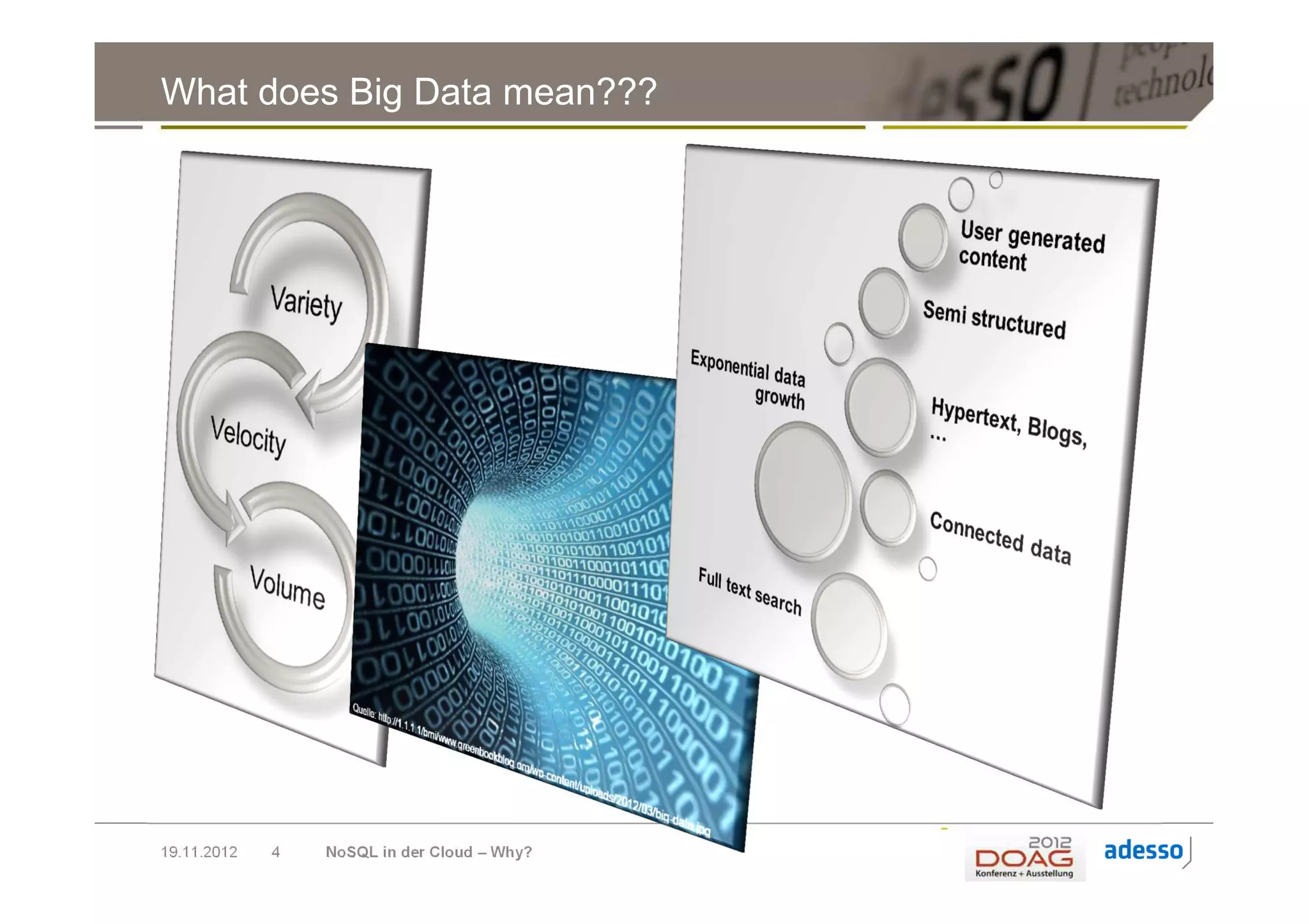

4. What does Big Data mean???
19.11.2012 4 NoSQL in der Cloud – Why?

5. Why NoSQL???
BigData Connectivity P2P Knowledge
Concurrencey Diversity Cloud
19.11.2012 5 NoSQL in der Cloud – Why?

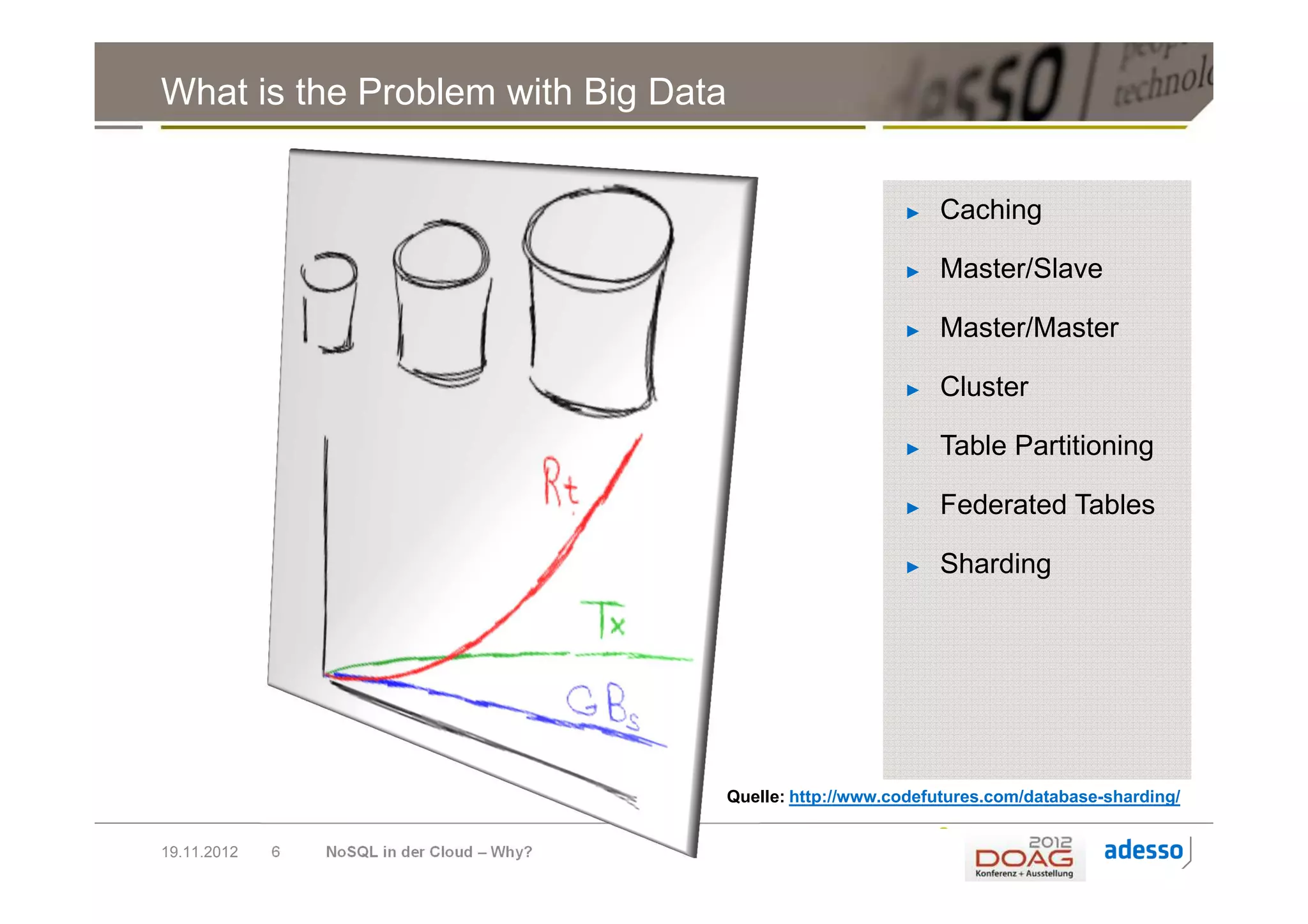

6. What is the Problem with Big Data
► Caching
► Master/Slave
► Master/Master
► Cluster
► Table Partitioning
► Federated Tables
► Sharding
Quelle: http://www.codefutures.com/database-sharding/
19.11.2012 6 NoSQL in der Cloud – Why?

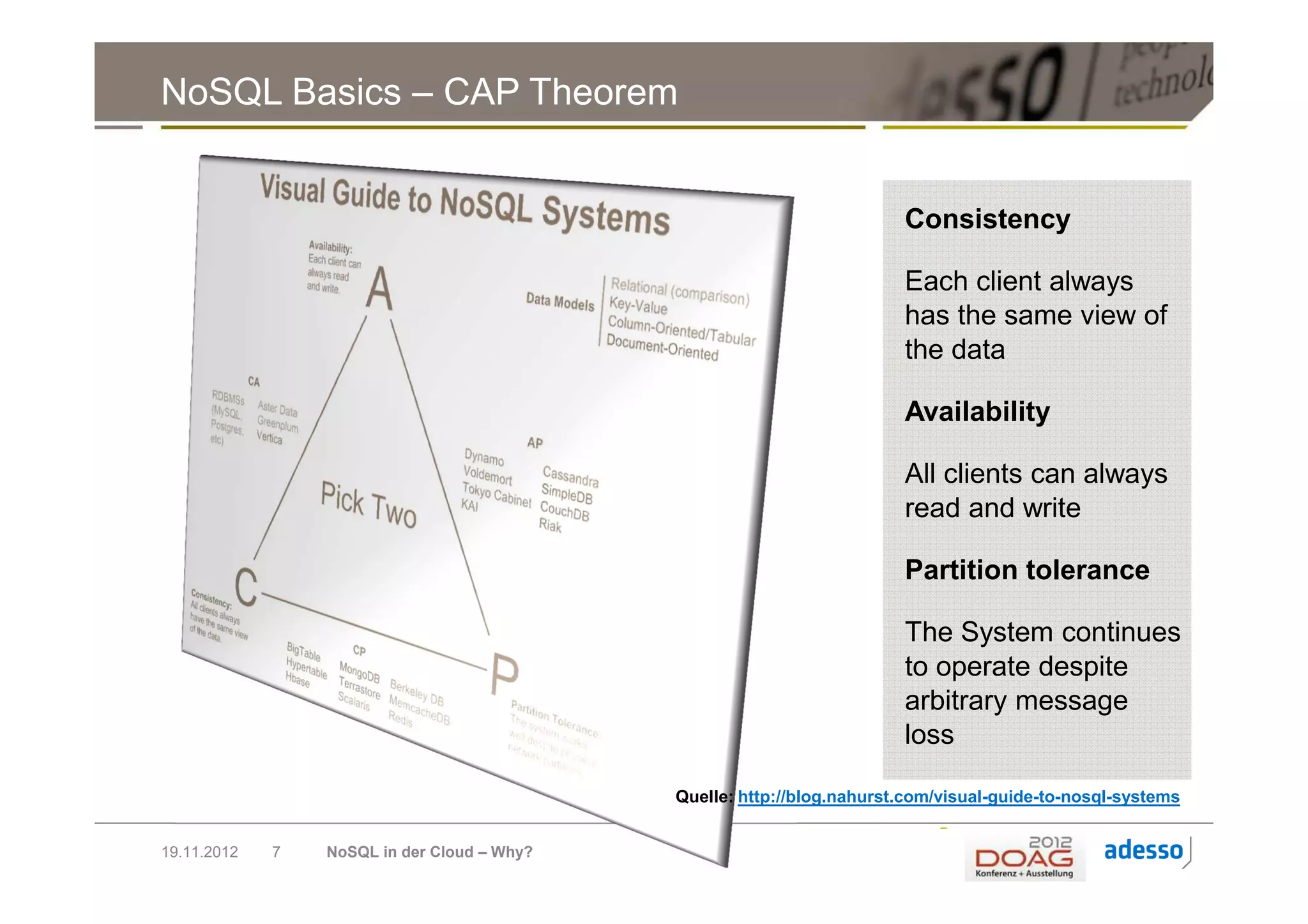

7. NoSQL Basics – CAP Theorem
Consistency
Each client always
has the same view of
the data
Availability
All clients can always
read and write
Partition tolerance
The System continues
to operate despite
arbitrary message
loss
Quelle: http://blog.nahurst.com/visual-guide-to-nosql-systems
19.11.2012 7 NoSQL in der Cloud – Why?

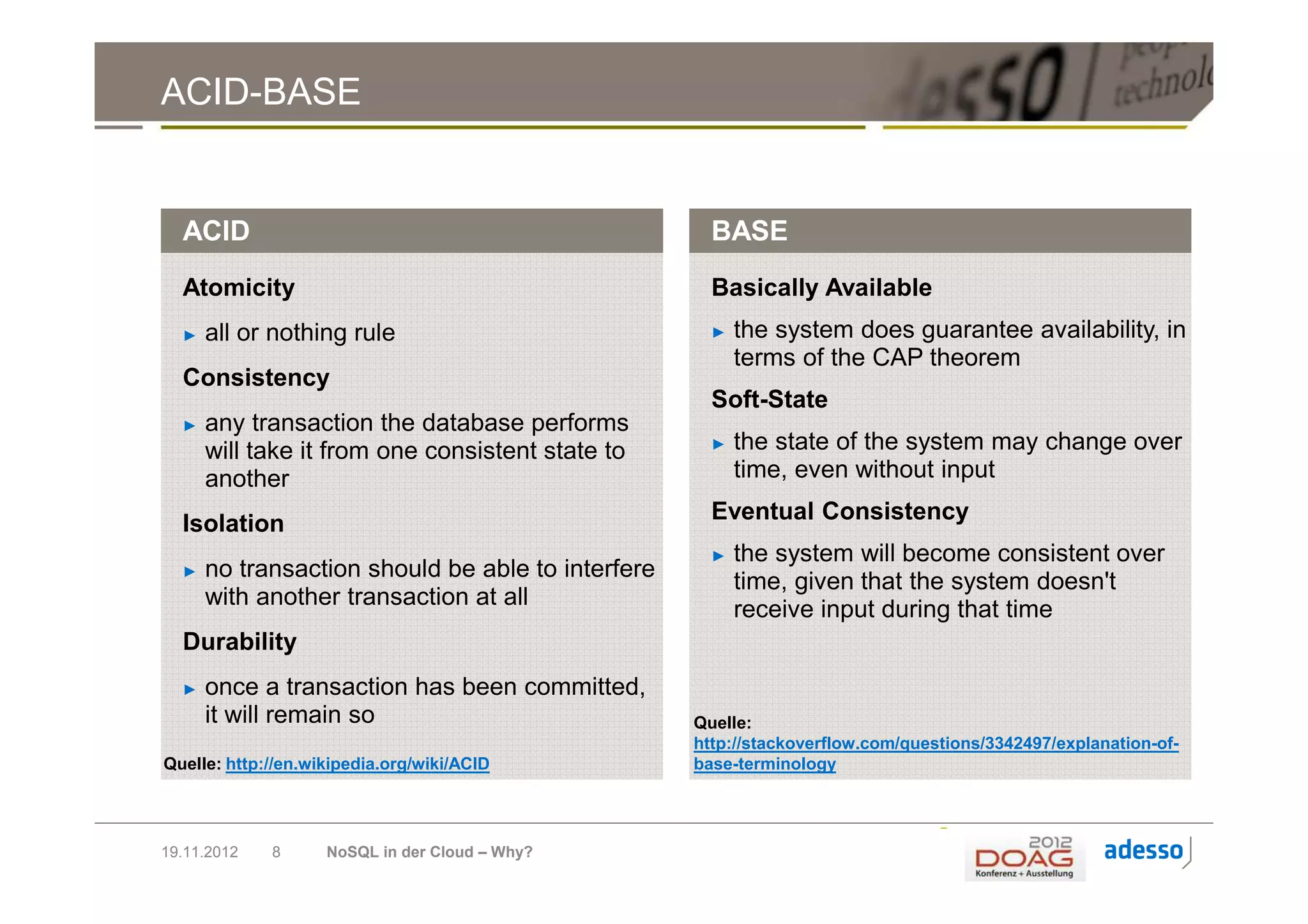

8. ACID-BASE
ACID BASE
Atomicity Basically Available
► all or nothing rule ► the system does guarantee availability, in
terms of the CAP theorem
Consistency
Soft-State
► any transaction the database performs
will take it from one consistent state to ► the state of the system may change over
another time, even without input
Isolation Eventual Consistency
► the system will become consistent over
► no transaction should be able to interfere
time, given that the system doesn't
with another transaction at all
receive input during that time
Durability
► once a transaction has been committed,
it will remain so Quelle:
http://stackoverflow.com/questions/3342497/explanation-of-
Quelle: http://en.wikipedia.org/wiki/ACID base-terminology
19.11.2012 8 NoSQL in der Cloud – Why?

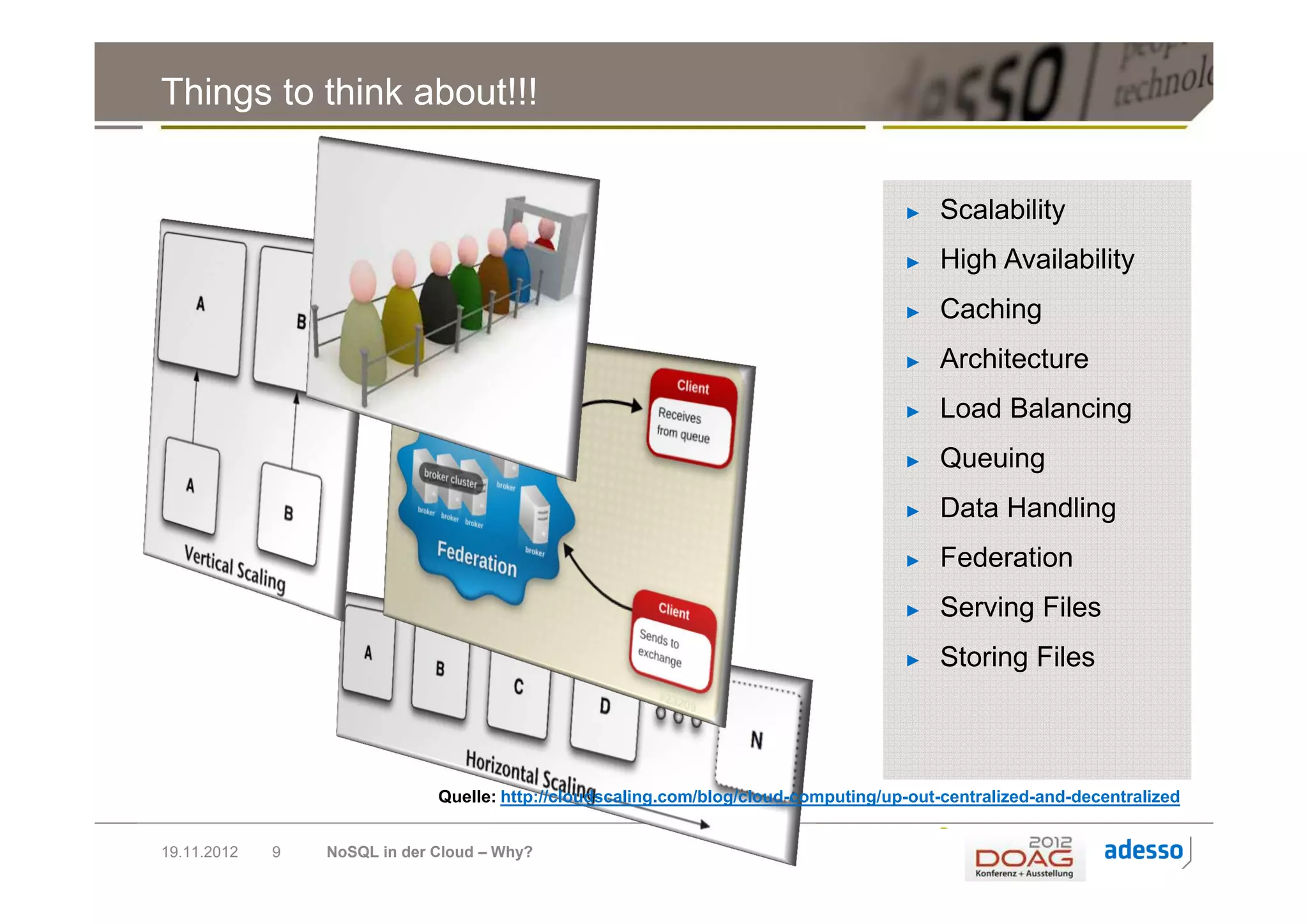

9. Things to think about!!!
► Scalability
► High Availability
► Caching
► Architecture
► Load Balancing
► Queuing
► Data Handling
► Federation
► Serving Files
► Storing Files
Quelle: http://cloudscaling.com/blog/cloud-computing/up-out-centralized-and-decentralized
19.11.2012 9 NoSQL in der Cloud – Why?

10. Open Your Mind;-)
Quelle: http://images.tribe.net/tribe/upload/photo/deb/074/deb074db-81fc-4b8a-bfbd-b18b922885cb
19.11.2012 10 NoSQL in der Cloud – Why?

11. NoSQL Tagcloud
19.11.2012 11 NoSQL in der Cloud – Why?

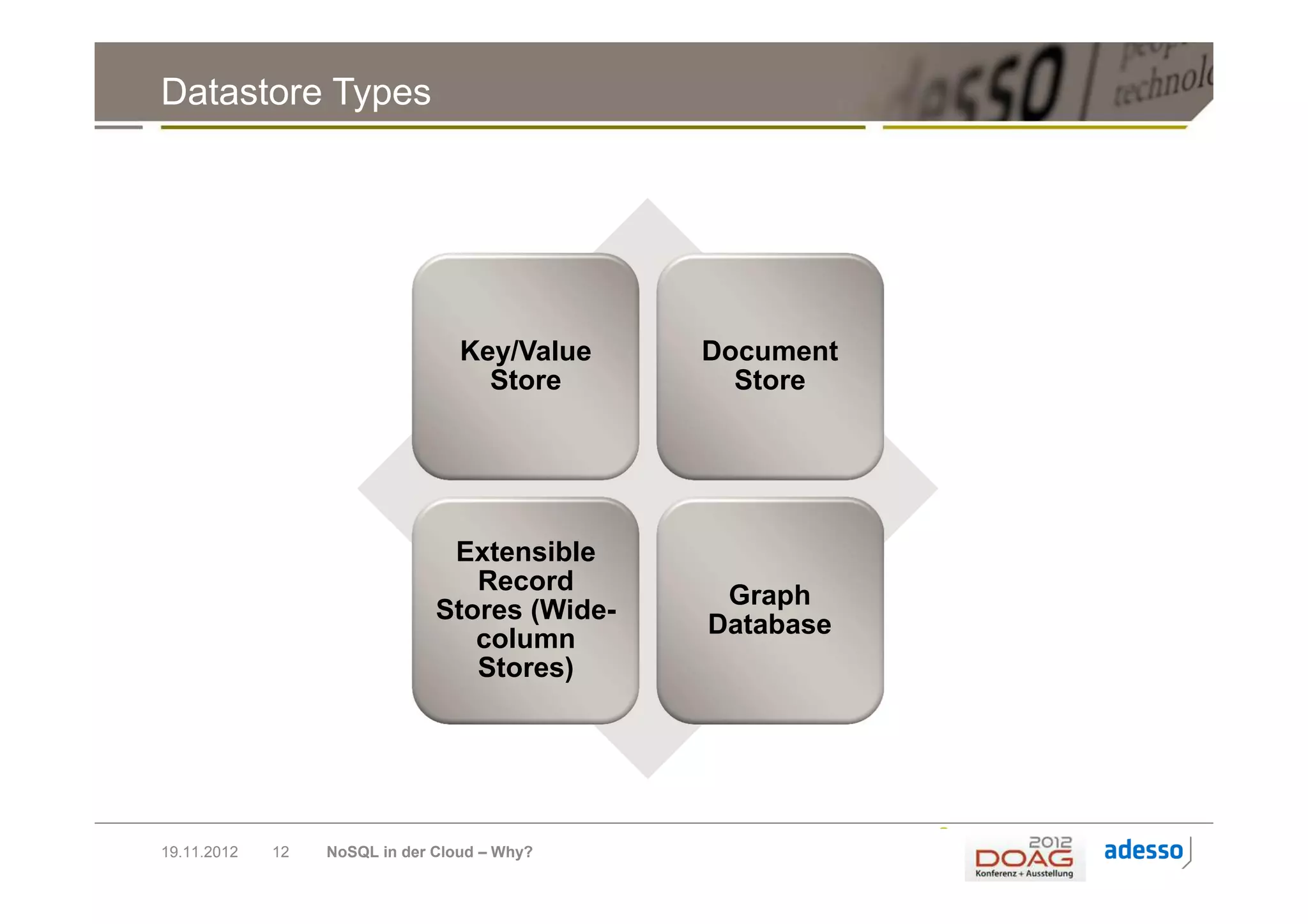

12. Datastore Types
Key/Value Document
Store Store
Extensible
Record
Graph
Stores (Wide-
Database
column
Stores)
19.11.2012 12 NoSQL in der Cloud – Why?

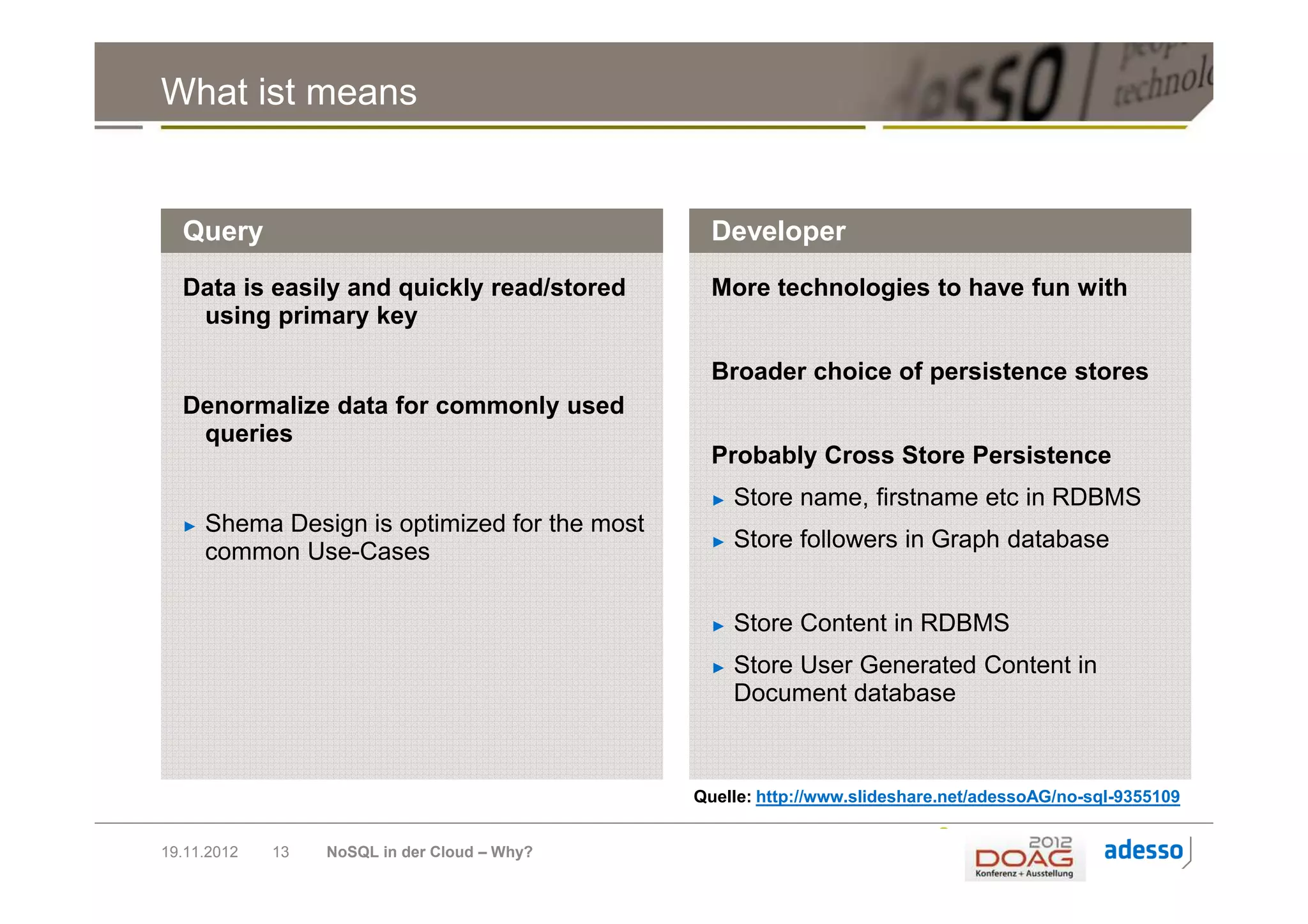

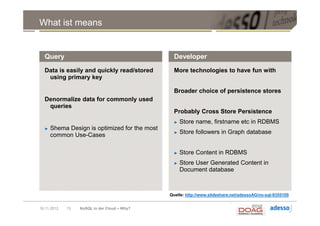

13. What ist means
Query Developer
Data is easily and quickly read/stored More technologies to have fun with
using primary key
Broader choice of persistence stores
Denormalize data for commonly used
queries
Probably Cross Store Persistence
► Store name, firstname etc in RDBMS
► Shema Design is optimized for the most
common Use-Cases ► Store followers in Graph database
► Store Content in RDBMS
► Store User Generated Content in
Document database
Quelle: http://www.slideshare.net/adessoAG/no-sql-9355109
19.11.2012 13 NoSQL in der Cloud – Why?

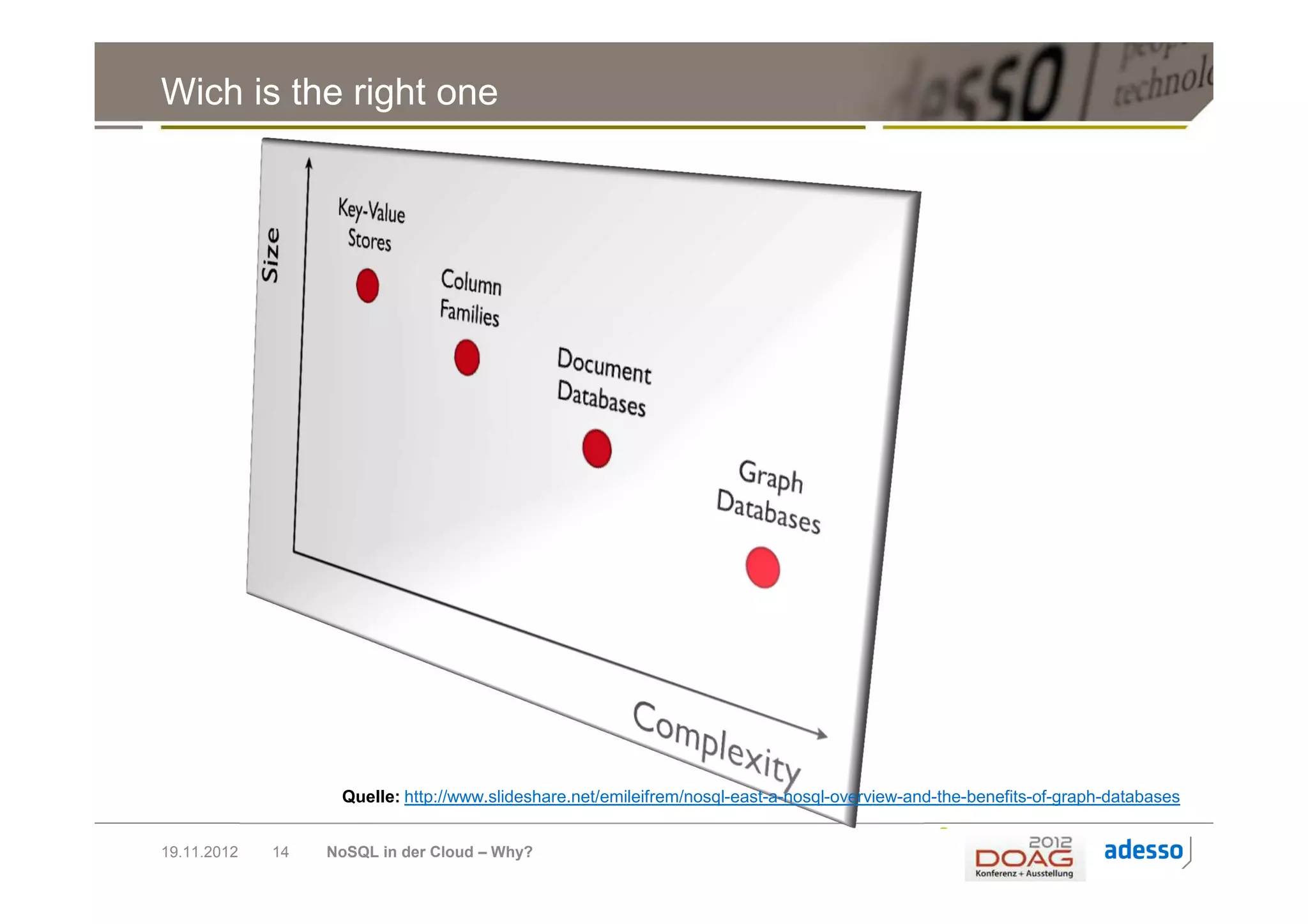

14. Wich is the right one
Quelle: http://www.slideshare.net/emileifrem/nosql-east-a-nosql-overview-and-the-benefits-of-graph-databases
19.11.2012 14 NoSQL in der Cloud – Why?

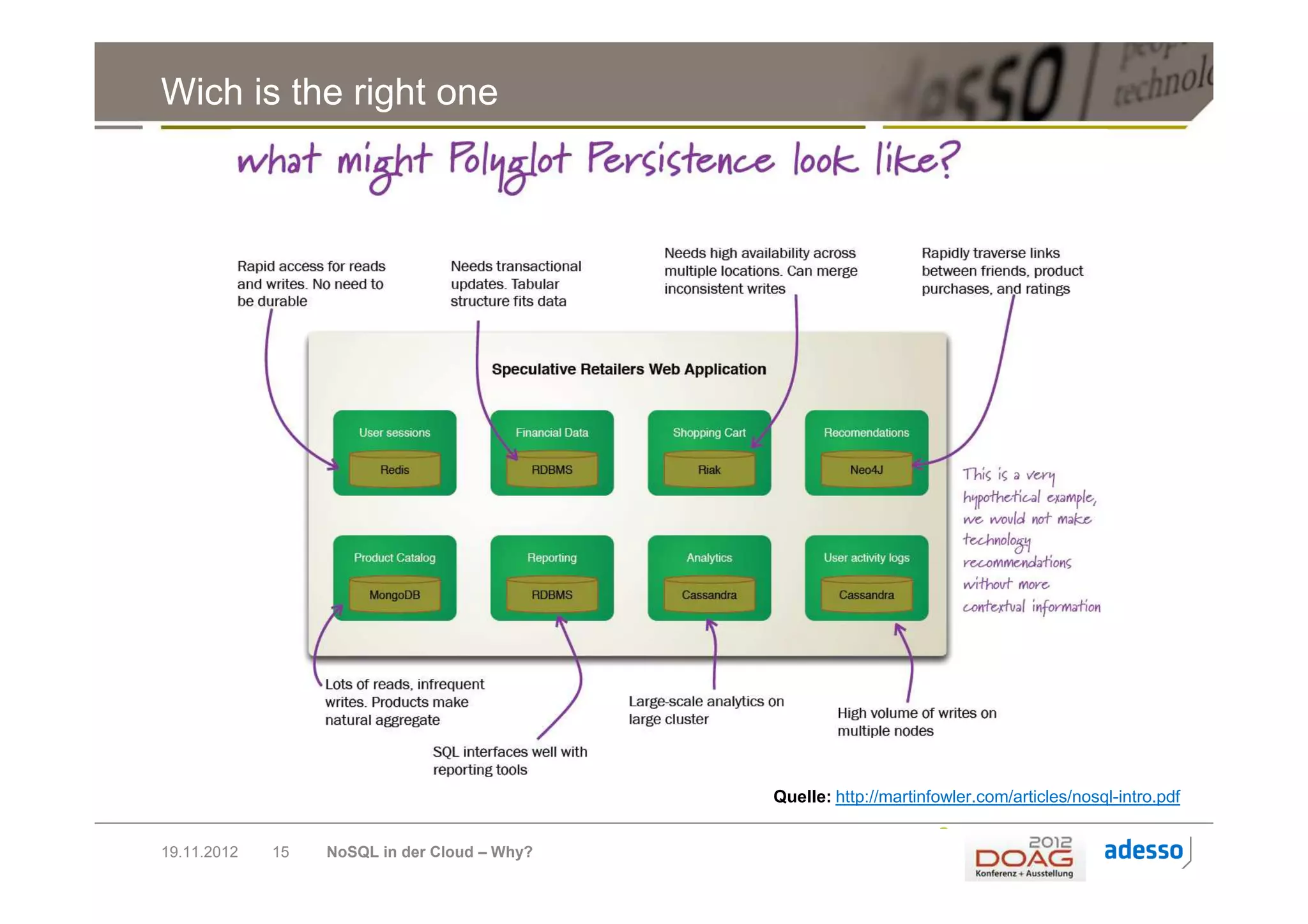

15. Wich is the right one
Quelle: http://martinfowler.com/articles/nosql-intro.pdf
19.11.2012 15 NoSQL in der Cloud – Why?

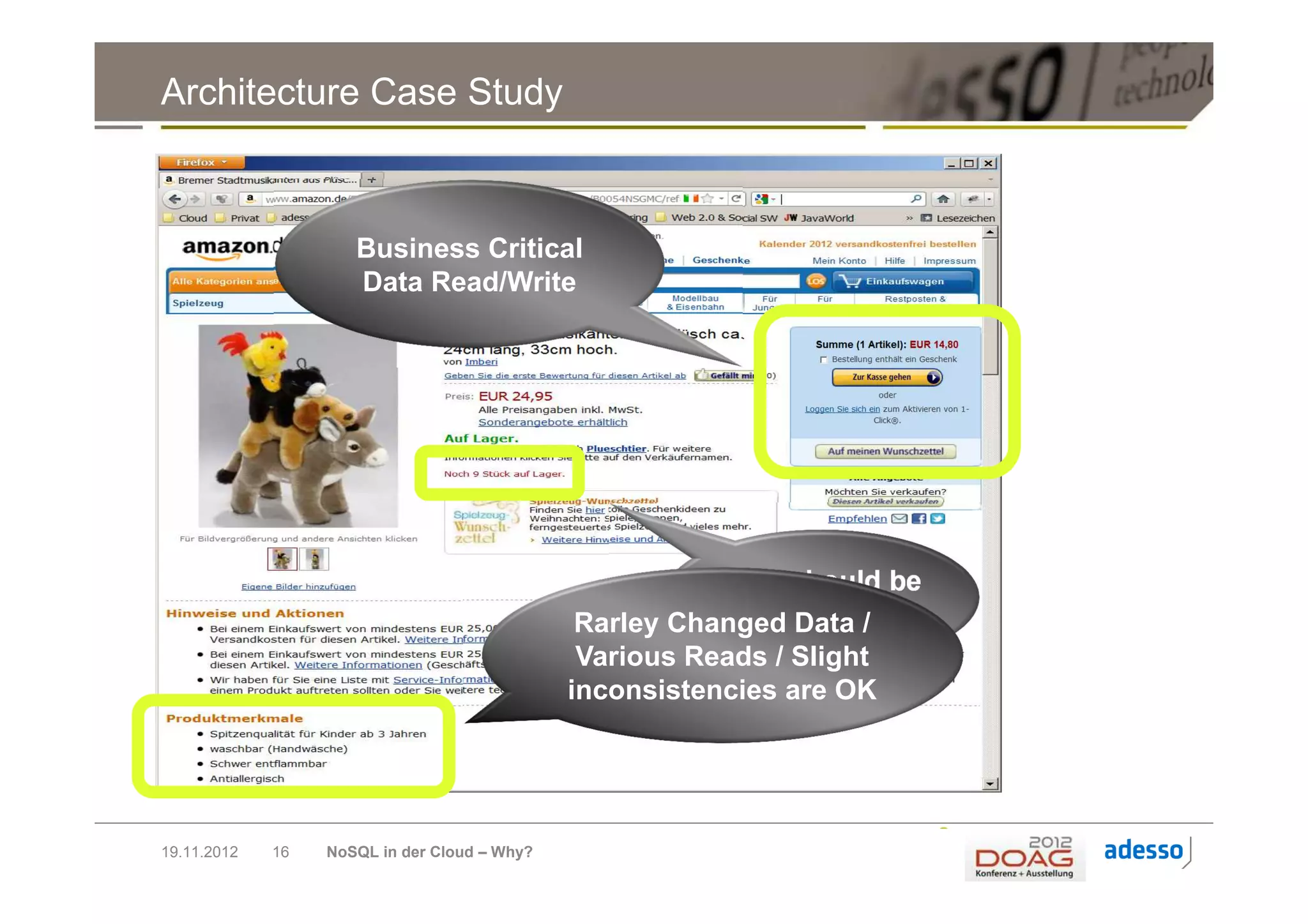

16. Architecture Case Study
Business Critical
Data Read/Write
Data should be
consistent
Rarley Changed Data /
Various Reads / Slight
inconsistencies are OK
19.11.2012 16 NoSQL in der Cloud – Why?

17. mongoDB as an Example
Document-
JSON like
oriented &
documents
schemaless
Open Source
written in C++ with a AGPL-
Licence v.3.0
19.11.2012 17 NoSQL in der Cloud – Why?

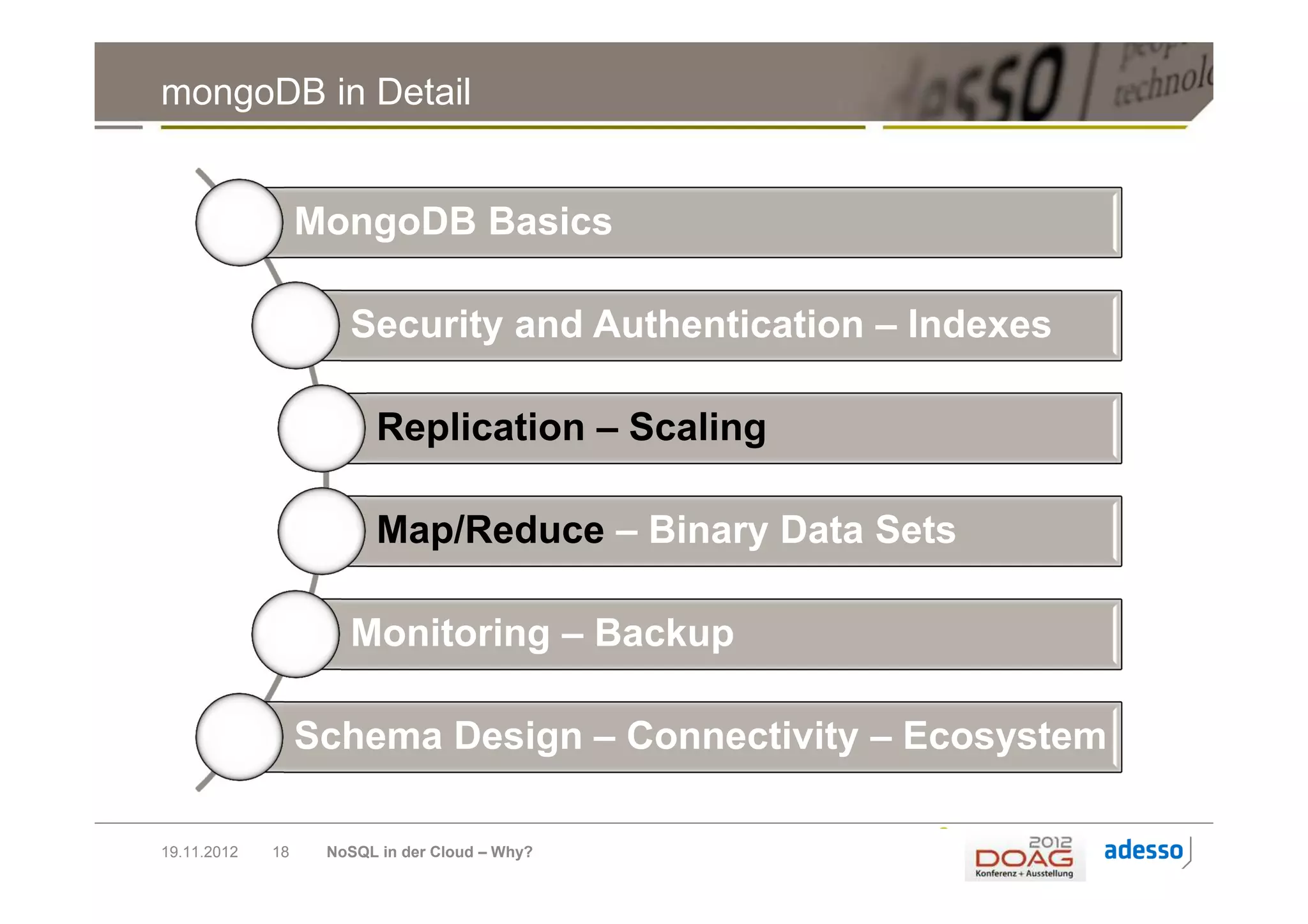

18. mongoDB in Detail
MongoDB Basics
Security and Authentication – Indexes
Replication – Scaling
Map/Reduce – Binary Data Sets
Monitoring – Backup
Schema Design – Connectivity – Ecosystem
19.11.2012 18 NoSQL in der Cloud – Why?

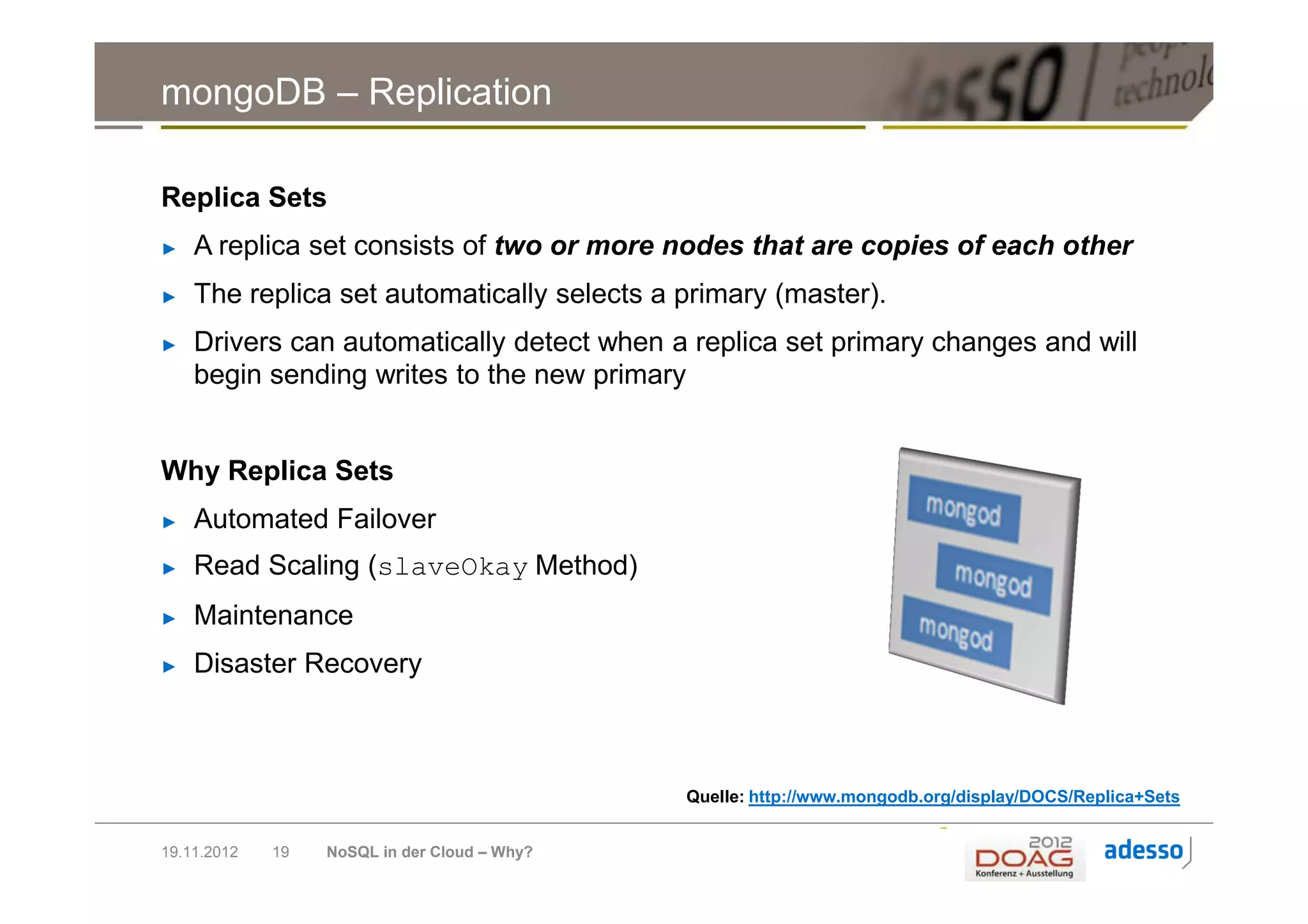

19. mongoDB – Replication
Replica Sets
► A replica set consists of two or more nodes that are copies of each other
► The replica set automatically selects a primary (master).
► Drivers can automatically detect when a replica set primary changes and will
begin sending writes to the new primary
Why Replica Sets
► Automated Failover
► Read Scaling (slaveOkay Method)
► Maintenance
► Disaster Recovery
Quelle: http://www.mongodb.org/display/DOCS/Replica+Sets
19.11.2012 19 NoSQL in der Cloud – Why?

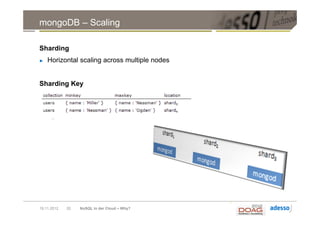

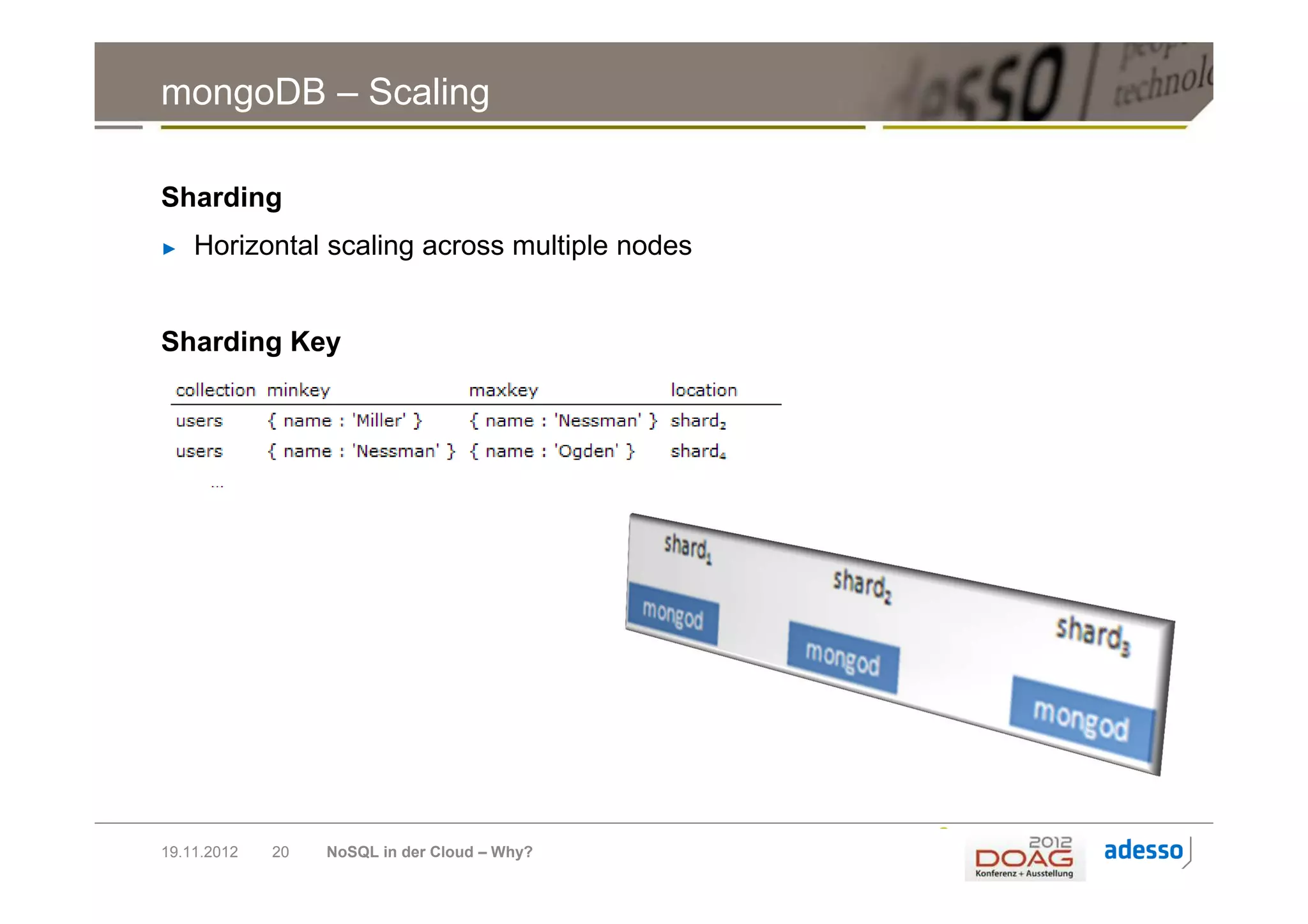

20. mongoDB – Scaling
Sharding
► Horizontal scaling across multiple nodes
Sharding Key
19.11.2012 20 NoSQL in der Cloud – Why?

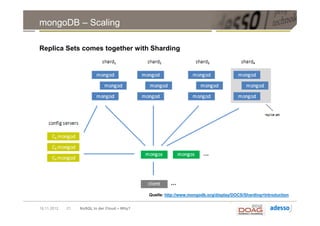

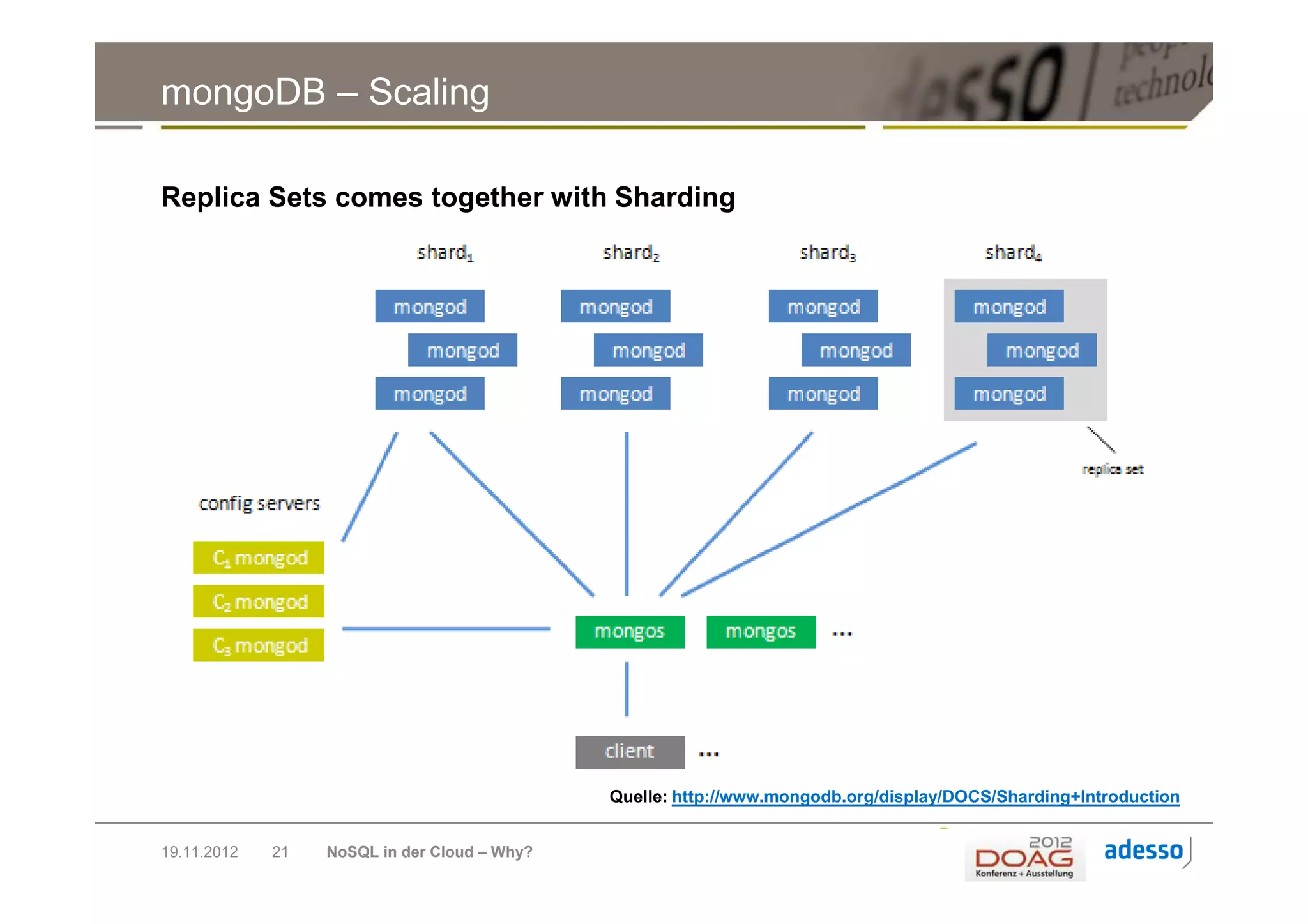

21. mongoDB – Scaling
Replica Sets comes together with Sharding
Quelle: http://www.mongodb.org/display/DOCS/Sharding+Introduction
19.11.2012 21 NoSQL in der Cloud – Why?

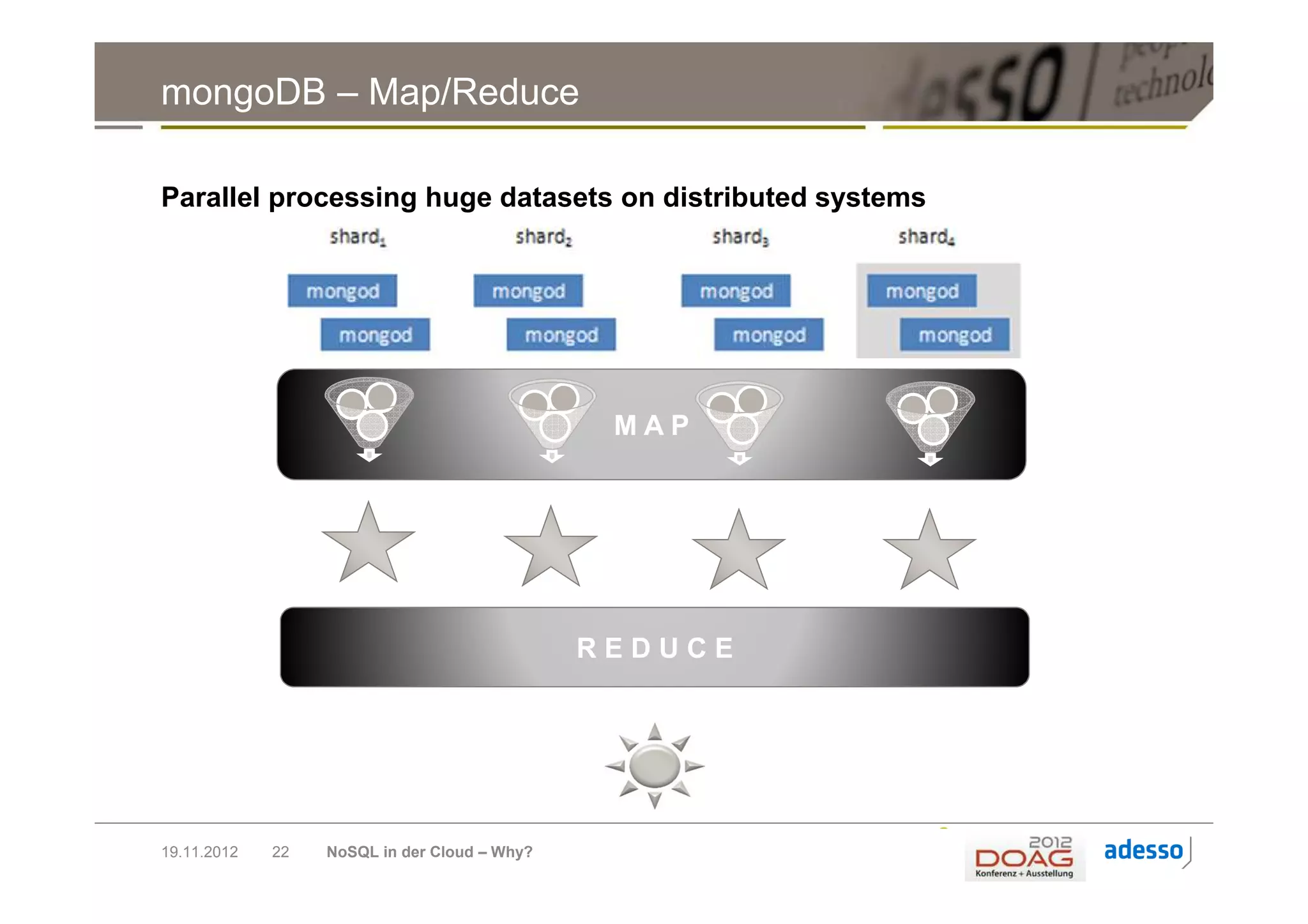

22. mongoDB – Map/Reduce
Parallel processing huge datasets on distributed systems
Data Data Data Data
MAP
REDUCE
19.11.2012 22 NoSQL in der Cloud – Why?

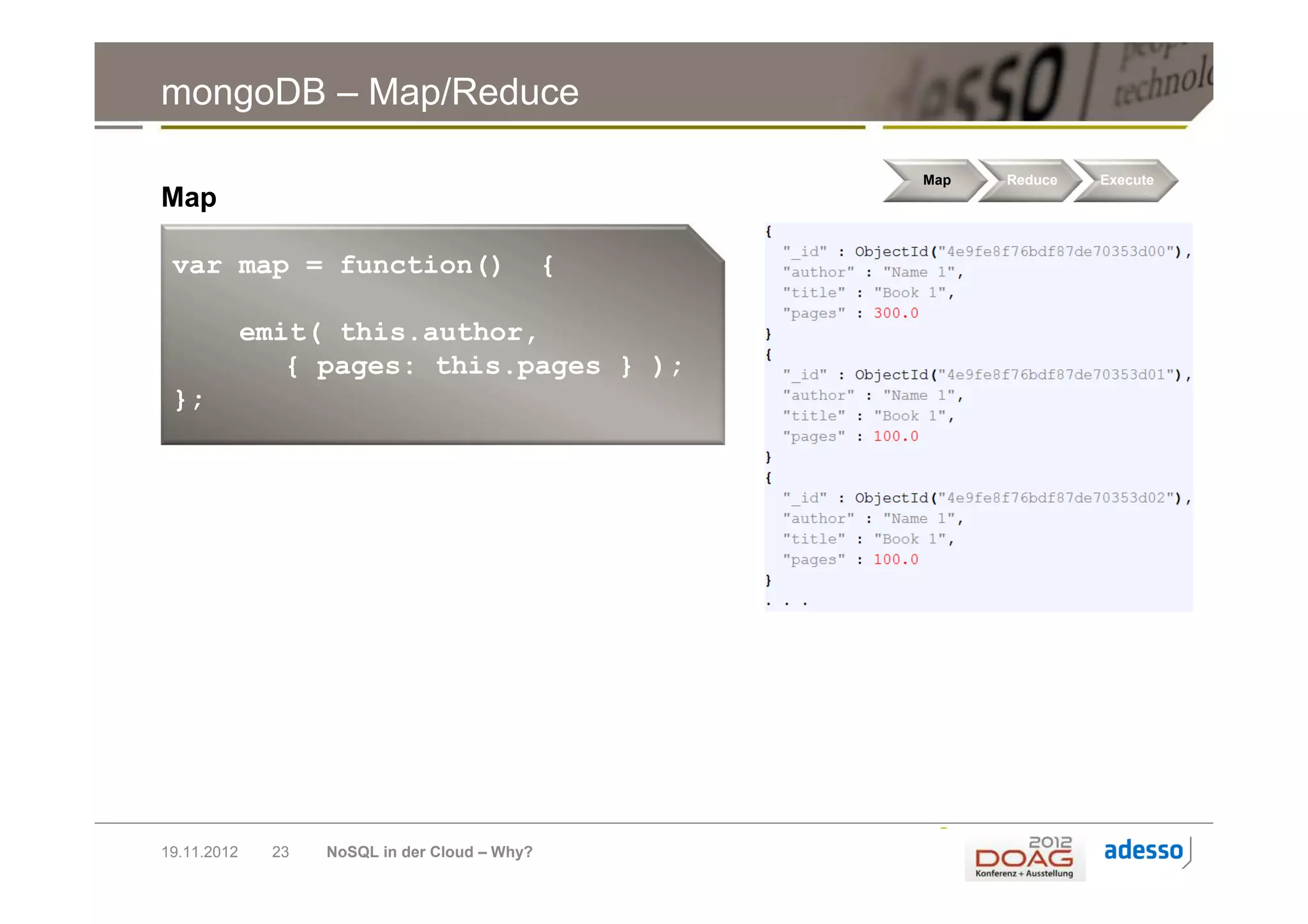

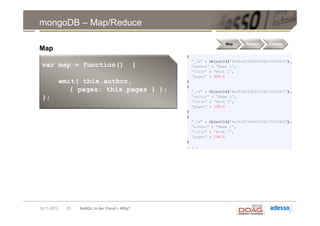

23. mongoDB – Map/Reduce
Map Reduce Execute
Map
► XXX
var map = function() {
emit( this.author,
{ pages: this.pages } );
};
19.11.2012 23 NoSQL in der Cloud – Why?

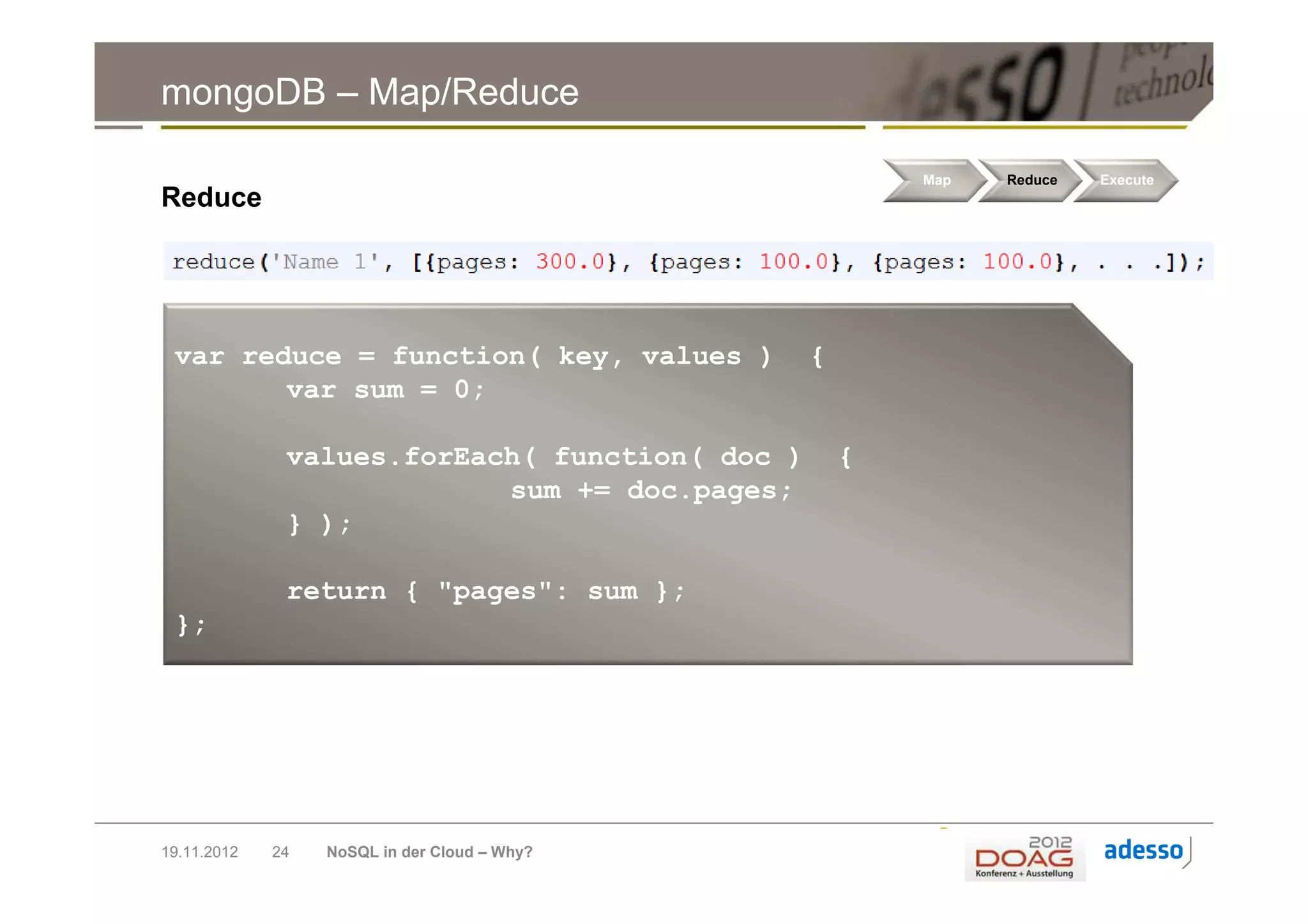

24. mongoDB – Map/Reduce
Map Reduce Execute
Reduce
var reduce = function( key, values ) {
var sum = 0;
values.forEach( function( doc ) {
sum += doc.pages;
} );
return { "pages": sum };
};
19.11.2012 24 NoSQL in der Cloud – Why?

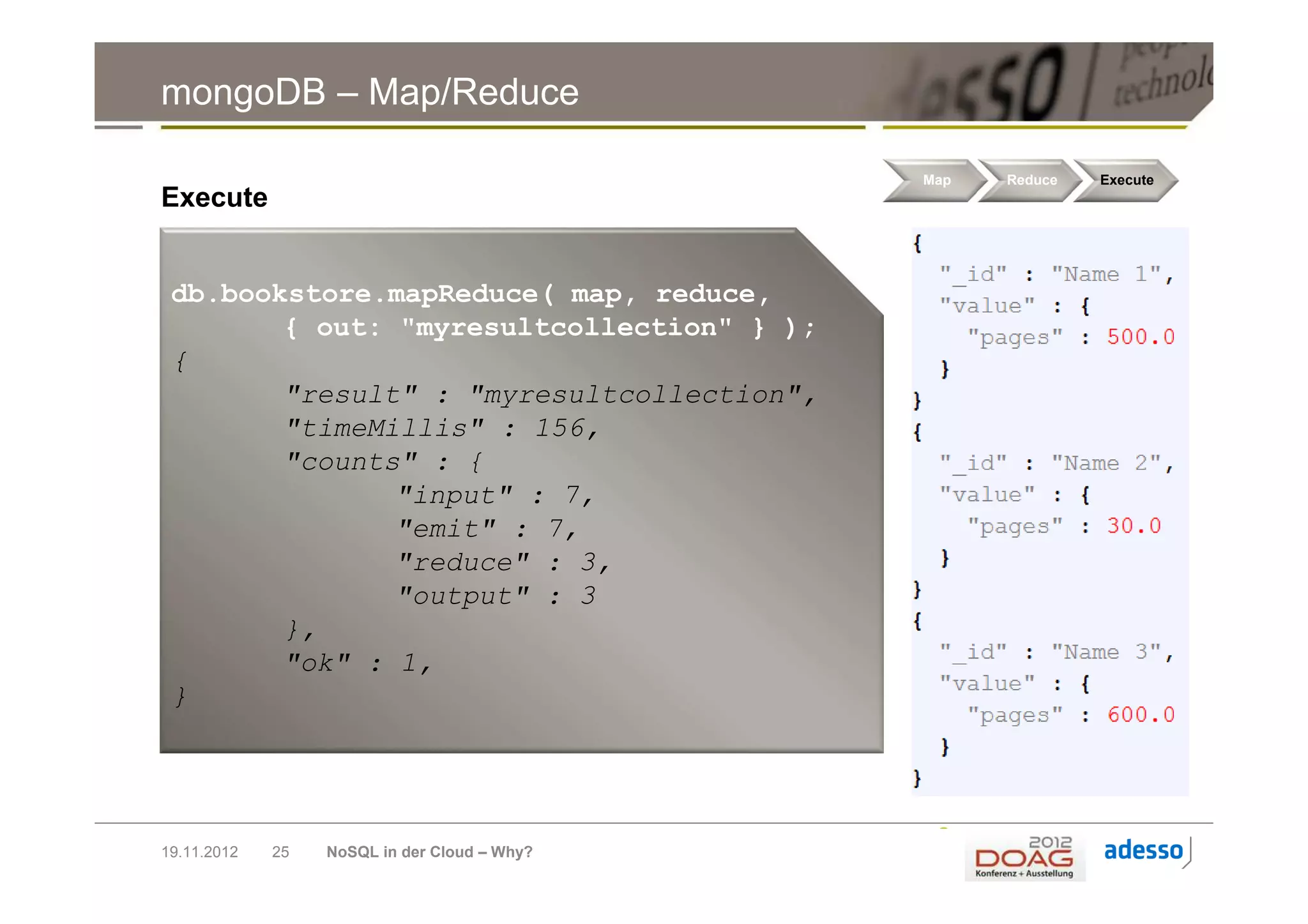

25. mongoDB – Map/Reduce
Map Reduce Execute
Execute
db.bookstore.mapReduce( map, reduce,
{ out: "myresultcollection" } );
{
"result" : "myresultcollection",
"timeMillis" : 156,
"counts" : {
"input" : 7,
"emit" : 7,
"reduce" : 3,
"output" : 3
},
"ok" : 1,
}
19.11.2012 25 NoSQL in der Cloud – Why?

26. Quelle: http://res.sys-con.com/story/mar12/2188748/CloudBigData_0_0.jpg
Quelle: http://www.techweekeurope.co.uk/wp-content/uploads/2011/03/Big-Data.jpg
19.11.2012 26 NoSQL in der Cloud – Why?

27. Thank you for your attention!
info@adesso.de
www.adesso.de
