FIRST STEPS WITH NFC IN ANDROID
PUBBLICATO DA FRANCESCO AZZOLA IN ANDROD, NDEF, NFC, TAG - ON MARCH 8, 2015 - NO COMMENTS
This post describes how to use NFC in Android. The NFC technology stands
for Near Field Communication and you can find the specification at NFC
Forum. In this first post, we will analyse some basic aspects of NFC and we
will describe how we can implement an app in Android that handles NFC
tags.
If you want to experiment NFC, there are several web site where you can
buy NFC with a few euro.
NFC can be used in different situation: we can use it to turn on our Wifi when we are at home or launch task
actions and so on.
We will focus our attention on NDEF data that is a special type of NFC tag.
There are some basic steps we have to follow before using the NFC.
NFC FilterNFC Filter
When we use NFC tag,, the first thing we want is our app is notified when
we get near a NFC tag. To this purpose we use a intent filter. Android SDK
provides three different filter that we can use with different level of priority:
ACTION_NDEF_DISCOVERED
ACTION_TECH_DISCOVERED
ACTION_TAG_DISCOVERED
We focus our attention on ACTION_NDEF_DISCOVERED, that has the highest level of priority. As said, our
goal is being notified when the smart phone is near a NFC tag and, if we have only this app installed and
capable to handle this NFC tag, we want that the app starts immediately. To do it, we register the filter in the
Manifest.xml:
At line 6 we register our app so that it can be notified with ACTION_NDEF_DISCOVERED. We can use
different types of filter, in this example (at line 8) we used mime type. In other word when a NFC tag NDEF is
discovered and it has a mime type text/plain then our app will be started. We can filter using several mime
types not only text/pain. We can, moreover, use other type of filters like android:scheme to filter using the
protocol or using a string pattern.
NFC Foreground DispatchNFC Foreground Dispatch
28 2LikeLike
1
2
3
4
5
6
7
8
9
10
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.survivingwithandroid.nfc" >
....
<intent-filter>
<action android:name="android.nfc.action.NDEF_DISCOVERED" />
<category android:name="android.intent.category.DEFAULT" />
<data android:mimeType="text/plain"/>
</intent-filter>
<manifest>
?
SURVIVING W/ ANDROID
ANDROID DEVELOPMENT BLOG TUTORIALS ABOUT ANDROID DEV TOPICS
Search here....! " # + %

2. Filtering with intents works if our app is not in foreground. If our app is running in foreground, it won't be
notified, if move our smart phone near a NFC tag. In this case we have to use a different technique called
NFC Foreground dispatch. The first step is defining in our code the intent filter (as we did in the
manifest.xml):
Now we have to register our filter, and we do it in onResume method, in this way:
We should, also, remember to disable foreground dispatch as soon as the app gets in background and the
best place to do it is in onPause method.
where nfcAdpt is the NFC Adapter.
Handle NFC Using NFCAdapterHandle NFC Using NFCAdapter
Once we created our filters, we have to interact with the NFC component in our smart phone. For this
purpose, we use NfcAdapter, provided by Android SDK. Using this class, we can check, for example, if the
NFC is supported by our smart phone or if the NFC is turned on or off:
NFC Data: PayloadNFC Data: Payload
Once we know how to handle NFC tag, we want to read the tag content. There are several type of content
defined in NFC specs:
NFC Forum well-known type
Media-type
Absolute URI
NFC Forum external type
Each type has it is own payload. Generally speaking, a NFC NDEF data is composed by a Message. A message
can contain one or more records. Each record is made by an header and a payload (the real information).
By now, if we want to read the data inside a NFC NDEF tag we can use:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@Override
protected void onCreate(Bundle savedInstanceState) {
...
Intent nfcIntent = new Intent(this, getClass());
nfcIntent.addFlags(Intent.FLAG_ACTIVITY_SINGLE_TOP);
nfcPendingIntent =
PendingIntent.getActivity(this, 0, nfcIntent, 0);
IntentFilter tagIntentFilter =
new IntentFilter(NfcAdapter.ACTION_NDEF_DISCOVERED);
try {
tagIntentFilter.addDataType("text/plain");
intentFiltersArray = new IntentFilter[]{tagIntentFilter};
}
catch (Throwable t) {
t.printStackTrace();
}
}
1
2
3
4
5
6
7
8
9
protected void onResume() {
super.onResume();
nfcAdpt.enableForegroundDispatch(
this,
nfcPendingIntent,
intentFiltersArray,
null);
handleIntent(getIntent());
}
1
2
3
4
5
@Override
protected void onPause() {
super.onPause();
nfcAdpt.disableForegroundDispatch(this);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Override
protected void onCreate(Bundle savedInstanceState) {
...
nfcAdpt = NfcAdapter.getDefaultAdapter(this);
// Check if the smartphone has NFC
if (nfcAdpt == null) {
Toast.makeText(this, "NFC not supported", Toast.LENGTH_LONG).show();
finish();
}
// Check if NFC is enabled
if (!nfcAdpt.isEnabled()) {
Toast.makeText(this, "Enable NFC before using the app", Toast.LENGTH_LONG).show();
}
}
?
?
?
?

3. Android Text to Speech
(TTS)
NFC Android: Read
NDEF Tag
Android Text to Speech
(TTS)
NFC Android: Read
NDEF Tag
RELATED POSTS :
RELATED POSTS :
In the next post, we will describe how to read different NDEF types and how to extract information from the
tag.
If you want to know how to read look at NFC - Read NDEF Tag.
ETICHETTE: ANDROD, NDEF, NFC, TAG
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
@Override
public void onNewIntent(Intent intent) {
Log.d("Nfc", "New intent");
getTag(intent);
}
private void getTag(Intent i) {
if (i == null)
return ;
String type = i.getType();
String action = i.getAction();
List<ndefdata> dataList = new ArrayList<ndefdata>();
if (NfcAdapter.ACTION_NDEF_DISCOVERED.equals(action)) {
Log.d("Nfc", "Action NDEF Found");
Parcelable[] parcs = i.getParcelableArrayExtra(NfcAdapter.EXTRA_NDEF_MESSAGES);
for (Parcelable p : parcs) {
recNumberTxt.setText(String.valueOf(numRec));
NdefRecord[] records = msg.getRecords();
for (NdefRecord record: records) {
short tnf = record.getTnf();
// Here we handle the payload
}
}
}
}
</ndefdata></ndefdata>
227 66Google + 1 26DZone 106Reddit 1
?

4. If you like my work and want to help me to
keep this blog free, please support me clicking
on the banner.
Help me to share this blog and give +1 clicking
below
407
FOLLOW MEFOLLOW ME
ARCHIVIO BLOGARCHIVIO BLOG
▼▼ 20152015 (3)
▼▼ MarchMarch (2)
NFC Android: Read NDEF TagNFC Android: Read NDEF Tag
First steps with NFC in AndroidFirst steps with NFC in Android
►► FebruaryFebruary (1)
►► 20142014 (26)
►► 20132013 (32)
►► 20122012 (19)
SUPPORT THIS BLOGSUPPORT THIS BLOG
Newer Post Older PostHome
++ &&

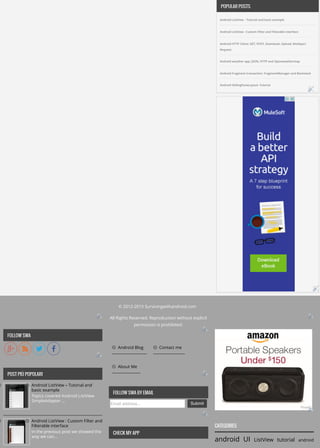

5. POPULAR POSTSPOPULAR POSTS
