New Catalog

LED
LIGHTING
2015—2016
LED
LIGHTING

Brighter Lights, Brighter Life IIIII
4
8
customer
service
staffs
passionate
sales
COMPANY
PROFILE
LONG SUN optoelectronics technology Co., Ltd
is a high-tech enterprise and focuses on design,
manufacture, sales and services of high-power
LED lighting products.
We do improvement or launch new products
every 15 days. And for our products, we have 16
kinds of reliability demonstration test, such as
high-voltage insulation test, earth continuity test,
normal temperature aging test, high temperature
experiment, salt spray test, vibration test, drop
test, hot and cold impact test, high temperature
and high humidity test etc. Also before production,
we have 10 copies of guidance documents,
like operation instructions, operation process
chart, incoming quality control standard, process
inspection standard, outgoing quality control
standard, QC operation standard etc. In LONG
SUN, it only takes 2 minutes to produce a high
power LED but 72 hours for aging: 36 hours for
continuous aging and 36 hours for impact aging.
So the defective rate is less than 0.3%.
In LONG SUN, we have highly qualified sales
team comprised of 8 passionate talents. And
our clients are from all over the world, 22.85%
in America, 19.64% in Australia, 35.72% in
European and 21.79% in other countries. For
now, we have over 350 clients.
Any questions and complains will be replied
within 48 hours for LONG SUN have excellent
after-sales service system, which made up of
4 customer service staffs and 5 professional
engineers. They will offer technical support to all
of you.
“Brighter lights, Brighter life.” LONG SUN wishes
you a splendid future.
Quality, reliability and service are of the highest priorities at LONG SUN. This philosophy is
ingrained form technology development to customer support.
Technology
We own or co-own with foundries
most of the technologies used in
our products. All our products are
manufactured using our proprietary
t e c h n o l o g y. T h i s i n t i m a t e
knowledge of the technologies
enables us to monitor quality more
closely.
Design
We incorporate “Design for Testing”
circuits in our products. We are
able to do a more thorough pattern
tests and accelerated life testing
on every part shipped without
adding substantially to testing cost.
Testing
We develop all testing programs
ourselves to ensure the products
are tested thoroughly. We do
not skimp on testing to cut cost.
Instead we tested more parameters
to make sure our products meet
the highest standard. In LONG
SUN every LED light material is
tested for endurance and every
part is cycled to weed out infant
mortality. They all go through high
temperature and room temperature
data retention loss screening to
approach the target of zero field
failures.
Quality Control
We have strict in house quality
controls and inspection procedures
to ensure the products shipped
meet our highest standard. We
regularly sample our finished
products and run rigorous CP tests
and life tests as an audit of our
production line. Anything failures
will result in a review of the testing
and production procedures.
OUR
QUALITY
350+
YOU
kinds
reliability
test
16

IV Brighter Lights, Brighter Life V

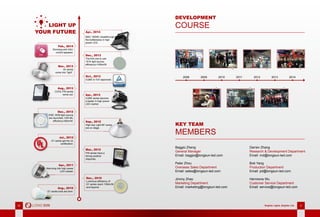

Baggio Zheng
General Manager
Email: baggio@longsun-led.com
Peter Zhou
Overseas Sales Department
Email: sales@longsun-led.com
Jimmy Zhao
Marketing Department
Email: marketing@longsun-led.com
Darren Zhang
Research & Development Department
Email: rnd@longsun-led.com
Bob Yang
Production Department
Email: pd@longsun-led.com
Hermione Wu
Customer Service Department
Email: service@longsun-led.com
KEY TEAM
MEMBERS
DEVELOPMENT
COURSE
Apr., 2014
LIGHT UP
YOUR FUTURE
Feb., 2014
Nov., 2013
Aug., 2013
Dec., 2013
Oct., 2013
Apr., 2013
Sep., 2012
Mar., 2012
Dec., 2010
Dec., 2012
Jul., 2012
Apr., 2011
Aug., 2010
G1 series bulb are born.
Marching into high power
LED market.
High bay Light BF series
are on stage.
EMC 3030 light source
are launched, CIR>80,
efficiency>80lm/W.
COOL FIN series
come out.
Air series
come into “light”.
MAC 1000W, breakthrough
the bottlenecks in high
power LED.
Luminous efficiency of
G1 series reach 100lm/W
and beyond.
G1 series get the UL
certification.
FIN series have a
strong positive
response.
CUBE series become
a leader in high power
LED market.
CUBE is TUV approved.
The first one to use
1515 light source,
efficiency>100lm/W.

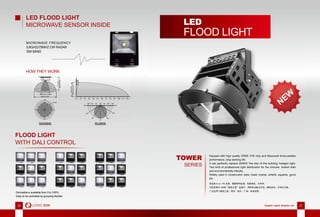

Dimming with DALI
control appears.
MAC 1000W, breakthroughMAC 1000W, breakthrough
MAC 1000W, breakthrough
CUBE series become
a leader in high power
High bay Light BF seriesHigh bay Light BF series
come into “light”.
EMC 3030 light source
are launched, CIR>80,
Marching into high powerMarching into high power
G1 series bulb are bornG1 series bulb are born
G1 series reach 100lm/WG1 series reach 100lm/W
2008 2009 2010 2011 2012 2013 2014

VI Brighter Lights, Brighter Life 1VI Brighter Lights, Brighter Life 1

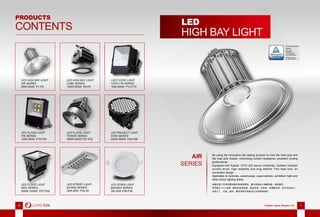

LED
HIGH BAY LIGHTHIGH BAY LIGHT
创新压铸工艺将热管和散热体紧密铆合，最大限度减小接触热阻，极致散热。
采用晶元 1515 光源，隔离式恒流电源，稳定性高，长寿命，轻薄散热体，空气对流设计。
适用工厂、仓库、超市、展览馆等不同室内大功率照明场所。
By using the innovative die-casting process to rivet the heat pipe and
the heat sink closely, minimizing contact resistance, excellent cooling
performance.
Equipped with Epistar 1515 LED source initiatively, isolated constant
current driver, high reliability and long lifetime. Thin heat sink, air
convection design.
Applicable to factories, warehouses, supermarkets, exhibition halls and
other indoor lighting areas.
AIR
SERIES
PRODUCTS
CONTENTS
LED HIGH BAY LIGHT
AIR SERIES
60W-300W P1-P5
LED FLOOD LIGHT
COOL FIN SERIES
10W-200W P12-P15
LED HIGH BAY LIGHT
CUBE SERIES
100W-500W P6-P9
LED FLOOD LIGHT
FIN SERIES
10W-200W P16-P20
LED PROJECT LIGHT
STAR SERIES
200W-500W P24-P26

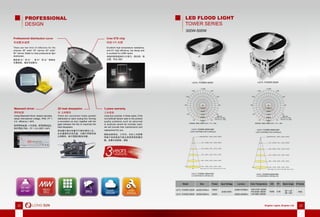

LED FLOOD LIGHT
TOWER SERIES
300W-500W P21-P23

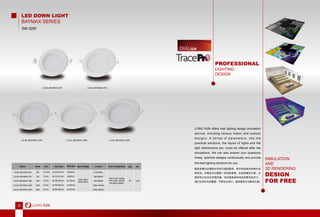

LED DOWN LIGHT
BAYMAX SERIES
3W-32W P36-P38

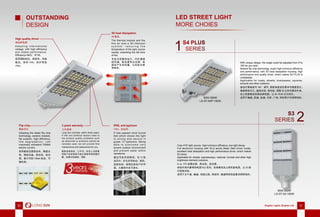

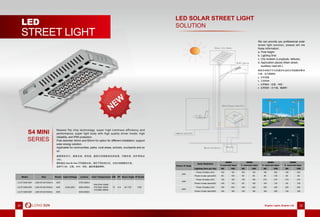

LED STREET LIGHT
S4 MINI SERIES
30W-50W P34-35
LED FLOOD LIGHT
MAC SERIES
500W-1000W P27-P28
LED HIGH BAY LIGHT
AIR SERIES
LED HIGH BAY LIGHT
LED FLOOD LIGHT
LED FLOOD LIGHT
LED STREET LIGHT
S4 MINI SERIES
LED DOWN LIGHT
BAYMAX SERIES
3W-32W P36-P38
LED FLOOD LIGHT
TOWER SERIES
LED FLOOD LIGHT

2 Brighter Lights, Brighter Life 32 Brighter Lights, Brighter Life 3

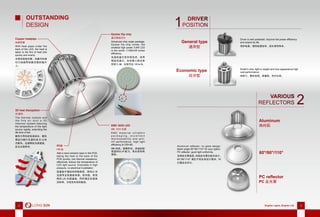

OUTSTANDING
DESIGN
3D heat dissipation
3D 散热
The thermal module and
t h e f i n s a i r d u c t a 3 D
intercool system,reducing
the temperature of the light
source rapidly, extending the
life time of led.
散热与导热的完美结合，散热
模组与鳍片风道形成 3D 立体
式散热，迅速降低光源温度，
延长光源寿命。
EMC 3030 LED
EMC 3030 光源
E M C m a t e r i a l u l t r a t h i n
p a c k a g i n g , e x c e l l e n t
thermostability and anti-
UV performance, high light
efficiency & CRI>80.
EMC 材质，超薄封装，卓越的耐
高温和抗 UV 能力，高光效和高
显指。
延长光源寿命。
Copper heatpipe
纯铜热管
With heat pipes under the
back of the LED, the heat is
taken to the fins of heat sink
quickly and evenly.
光源背面有热管，热量可快速
均匀地被带到散热器的鳍片
上。
PCB
PCB 板
Add a nano-ceramic layer in the PCB,
taking the heat to the back of the
PCB quickly, low thermal resistance,
effectively reduce the temperature of
LED light source. Endurable in high
pressure, no electrical invalidation
铝基板中增加纳米陶瓷层，将热以 3D
迅速导至铝基板背部，低热阻，有效
降低 LED 光源温度。同时满足安规高
压标准，无电性失效的疑虑。
Epistar flip chip
晶元倒装芯片
Advanced chip scale package,
Epistar flip chip inside, the
smallest high power 3.6W LED
in the world, >130lm/W lumen
efficiency.
先进的晶元免封装技术，采用
倒装式晶片，全球最小高功率
封装 3.6W，光效可达 130lm/W。
1
2
通用型
Aluminum
高纯铝
PC reflector
PC 反光罩
Driver is well protected. Improve the power efficiency
and extend its life.
保护电源，提高电源效率，延长使用寿命。
Small in size, light in weight and nice appearance,high
cost performance.
体积小，整体美观，质量轻，性价比高。
Aluminum reflector: no glare design,
beam angle 60°/90°/110° for your option.
PC reflector: good light uniformity.
多种反光罩选择，纯铝反光罩无眩光设计，
60°/90°/110° 满足不同光学设计需求，PC
灯罩发光均匀。
VARIOUS
REFLECTORS
DRIVER
POSITION
General type
Aluminum
60°/90°/110°
经济型
Economic type

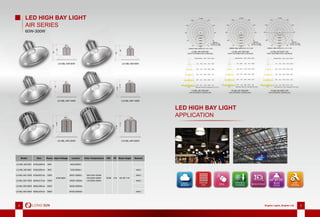

LED HIGH BAY LIGHT
AIR SERIES
60W-300W
AIR SERIES
60W-300W
Model Size Power Input Voltage Lumens Color Temperature CRI PF Beam Angle Remark
LS-HBL-AIR-60W Φ182x259mm 60W
AC90-265V
5400-6000lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
70/80 >0.9 60°/90°/110°
LS-HBL-AIR-80W Φ182x259mm 80W 7200-8000lm
LS-HBL-AIR-80WLS-HBL-AIR-60W
LS-HBL-AIR-100W LS-HBL-AIR-150W
LS-HBL-AIR-300WLS-HBL-AIR-200W
LS-HBL-AIR-60W
Lumens
LS-HBL-AIR-200W
LED HIGH BAY LIGHT
APPLICATION
LS-HBL-AIR-100W-90D
LIGHT DISTRIBUTION CURVE(cd)
LS-HBL-AIR-100W-90D
LUX DISTANCE CURVE(LUX)
LS-HBL-AIR-150W-60D
LS-HBL-AIR-150W-60D
LS-HBL-AIR-200W-110D
LS-HBL-AIR-200W-110D

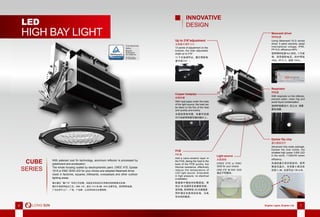

LED
HIGH BAY LIGHT
With patened cool fin technology, aluminum reflector is processed by
polishment and anodization.
The whole housing coated by electrophoretic paint, CREE XTE, Epistar
1515 or EMC 3030 LED for your choice and adopted Meanwell driver.
Used in factories, squares, billboards, overpasses and other outdoor
lighting areas.
鳍片通过“酷 FIN”专利工艺处理，纯铝反光杯经过化学抛光和阳极氧化处理。
整灯外表采用电泳工艺，CREE XTE，晶元 1515 和 EMC 3030 光源可选，采用明纬电源。
广泛应用于工厂、广场、广告牌、立交桥和其它全景照明。
CUBE
SERIES
Up to 216°adjustment
支架最大调节 216°
13 points of adjustment on the
bracket, the total adjustable
angle up to 216°.
13 个支架调节点，整灯照射角
度可调 216°。
Respirator
呼吸器
With respirator on the reflector,
prevent water, clean fog and
avoid liquid condensation.
独特呼吸器设计，防止水、清雾、
避免凝露。
Copper heatpipe
纯铜热管
With heat pipes under the back
of the light source, the heat can
be taken to the fins of the heat
sink quickly and evenly.
光源背面有热管，热量可快速
均匀地被带到散热器的鳍片上。
Light source
光源选择
CREE XTE or EMC
3030 for your choice.
CREE XTE 和 EMC 3030
满足不同需求。
INNOVATIVE
DESIGN
Meanwell driver
明纬电源
Using Meanwell HLG series
driver, 5 years warranty, adopt
international voltage, IP65,
PF>0.9, efficiency>94%.
使用明纬电源 HLG 系列，5 年质
保，采用国际电压，防护等级
IP65，PF>0.9，效率 >94％。
Epistar flip chip
晶元倒装芯片
Advanced chip scale package,
Epistar flip chip inside, the
smallest high power 3.6W LED
in the world, >130lm/W lumen
efficiency.
先进的晶元免封装技术，采用
倒装式晶片，全球最小高功率
封装 3.6W，光效可达 130lm/W。
PCB
PCB 板
Add a nano-ceramic layer in
the PCB, taking the heat to the
back of the PCB quickly, low
thermal resistance, effectively
reduce the temperature of
LED light source. Endurable
in high pressure, no electrical
invalidation
铝基板中增加纳米陶瓷层，将
热以 3D 迅速导至铝基板背部，
低热阻，有效降低LED光源温度。
同时满足安规高压标准，无电
性失效的疑虑。

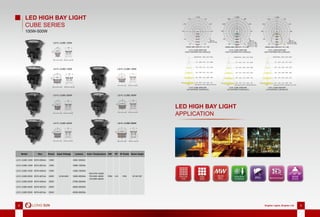

LED HIGH BAY LIGHT
CUBE SERIES
100W-500W
Model Size Power Input Voltage Lumens Color Temperature CRI PF IP Grade Beam Angle
LS-FL-CUBE-100W
LS-FL-CUBE-120W
LS-FL-CUBE-200W LS-FL-CUBE-300W
LS-FL-CUBE-400W
LS-FL-CUBE-150W
LS-FL-CUBE-500WLS-FL-CUBE-500W
LS-FL-CUBE-100W Φ374×459mm 100W
AC90-265V
9000-10000lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
70/80 >0.9 IP65 25°/60°/90°
LS-FL-CUBE-120W Φ374×467mm 120W 10800-12000lm
LED HIGH BAY LIGHT
APPLICATION
LS-FL-CUBE-200W-25D
LS-FL-CUBE-200W-25D
LS-FL-CUBE-200W-60D
LS-FL-CUBE-200W-60D
LS-FL-CUBE-200W-90D
LS-FL-CUBE-200W-90D

LED
LOW BAY LIGHT
Equipped with EMC 3030,ultrathin encapsulation, super high light
efﬁciency and high CRI.
High quality driver, having excellent cooling housing and high stability,
lifetime up to 50000 hours, over 80% energy saved.
Used in middle and lower canopy workshop, exhibition hall, supermarket,
parking lot etc.
EMC 3030 光源，超薄封装，高光效，高显指。
高品质电源搭载灯罩一体化散热外壳，散热佳，性能稳定；整灯使用寿命长达 5000 小时，省
电 80% 以上。
适用于中低天棚车间、展览馆、大型超市、地下停车场等。
BABE
SERIES
Model Size Power Input Voltage Lumens Color Temperature CRI PF Beam Angle
LS-LB-BABE-30W Φ347×171mm 30W
AC90-265V
2400-2700lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
70/80 >0.9 60°/90°/110°LS-LB-BABE-60W Φ505×221mm 60W 4800-5400lm
LS-LB-BABE-100W Φ543×226mm 100W 8000-9000lm
LS-LB-BABE-30W-110D
LS-LB-BABE-30W-110D
LS-LB-BABE-60W-90D
LS-LB-BABE-60W-90D
LS-LB-BABE-100W-60D
LS-LB-BABE-100W-60D
LED LOW BAY LIGHT
BABE SERIES
30W-100W
LS-LB-BABE-30W LS-LB-BABE-60W LS-LB-BABE-100W
Distance(m) E(lx) Dh(m) Dv(m) Eav(lx)
8.48 25.02 24.40 3.10
2.0 211.96 5.00 4.88 77.47
52.99 10.01 9.76 19.37
23.55 15.01 14.64 8.61
13.25 20.02 19.52 4.84
gle: H102.7 V101.3 Field Angle: H141.2 V134.9
Dh
Dv
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
C0/180,111.7deg
UNIT:cdUNIT:cdUNIT:cd
C90/270,111.0deg
AVERAGE BEAM ANGLE(50%):111.4 DEG
12001200
15001500
10.0 20.71 27.78 27.51 7.52
2.0 517.85 5.56 5.50 188.11
4.0 129.46 11.11 11.00 47.03
6.0 57.54 16.67 16.51 20.90
8.0 32.37 22.22 22.01 11.76
Beam Angle: H108.5 V108.0 Field Angle: H140.4 V120.2
Dh
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
C0/180,82.9deg
C90/270,85.5deg
00
10.0 62.56 15.08 15.46 17.69
2.0 1563.97 3.02 3.09 442.22
4.0 390.99 6.03 6.18 110.55
6.0 173.77 9.05 9.28 49.14
8.0 97.75 12.06 12.37 27.64
Dh
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
C0/180,53.2deg
C90/270,54.2deg

By using the most powerful and efficient flood light heatsink, the full set
LED light can work up to 50000 hours, over 80% energy saved.
Equipped with EMC 3030 LED source initiatively, over 100W adopting
Meanwell driver. The heatpipe can quickly reduce the temperature of
the led light source and so extent its lifetime.
Used in parks, squares, billboards, overpasses and other outdoor
lighting areas.
LED
FLOOD LIGHT
高效投光灯散热器，整灯工作寿命长达 50000 小时，省电 80％以上。
首创 EMC 3030 光源，100W 以上采用明纬电源，热管迅速降低光源温度，延长光源使用寿命。
广泛应用于公园，广场，广告牌，立交桥等其它户外大功率照明。
COOL FIN
SERIES
COOL
PERFORMANCE
EMC 3030
EMC 3030 光源
Excellent thermostability, anti-
UV, high light efficiency and
CRI.
优良的耐高温和抗紫外线能力，
高光效和显色指数。
3-Dimension heat dissipation
3D 立体散热
There are convection holes parallel
distributed on each cooling fins,
forming a convection air duct,
together with the gaps between
the fins to maximize the heat
dissipation.
每块鳍片都分布着平行相对镂空小
孔，左右通透的对流风道，与鳍片
间隙形成立体散热，最大程度的散
发热量。
Cool Fin
酷“FIN”
1060 aluminum heatsink with
“cool fin” technology optimized
airflow duct inside the housing.
1060 纯铝鳍片经过酷“FIN”专
利工艺处理，优化风道。
Electrophoretic paint
灯体电泳工艺
The entire housing coated by
electrophoretic paint, after 200
hours salt spray testing, having
excellent corrosion resistance, can
be used in severe environment.
整灯外壳经电泳工艺处理，通过
200 小时盐雾试验测定，有出色的
防腐蚀、防锈功能，适合恶劣的户
外环境。
Respirator
呼吸器
Balance the different air pressure between the
atmosphere and the shell inside. Its waterproof,
defogging and avoiding the drop condensation
functions perfectly reduce the salt corrosion and
extend the products’ lifespan.
平衡灯具内外气压差，防水的同时又清除雾气，避
免凝露，极大地降低了盐腐蚀，从而延长产品寿命。
Meanwell driver
明纬电源
Using Meanwell HLG series
driver, 5 years warranty, adopt
international voltage, IP65,
PF>0.9, efficiency>94%.
使用明纬电源 HLG 系列，5 年质
保，采用国际电压，防护等级
IP65，PF>0.9，效率 >94％。

LED FLOOD LIGHT
COOL FIN SERIES
10W-200W
LS-FL-CFIN-50WLS-FL-CFIN-20WLS-FL-CFIN-10W LS-FL-CFIN-30W
Model Size Power Input Voltage Lumens Color Temperature CRI PF IP Grade Remark
LS-FL-CFIN-10W L158×W132×H53mm 10W
AC90-265V
800-900lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
>80 >0.9 IP65
LS-FL-CFIN-20W L203×W176×H64mm 20W 1600-1800lm
LS-FL-CFIN-70W L281xW220xH112mm 70W 5600-6300lm
LS-FL-CFIN-100WLS-FL-CFIN-70W LS-FL-CFIN-150W LS-FL-CFIN-200W
LED FLOOD LIGHT
APPLICATION
LS-FL-CFIN-10W
LS-FL-CFIN-10W
LS-FL-CFIN-100W
LS-FL-CFIN-100W
LS-FL-CFIN-200W
LS-FL-CFIN-200W

LED
FLOOD LIGHT
Excellent heatsinks made from 6063 aluminum alloy, creatively adopt
heat pipe to give much higher thermal conductivity.
Bridgelux or Epistar chips for your choice and Meanwell brand driver is
used for the lights over 100W.
Used in parks, squares, billboards, overpasses and other outdoor
lighting areas.
6063 铝合金散热，创造性吸收纯铜热管所传递的热量。
采用普瑞或台湾晶元的芯片，满足不同的需求，100W 以上使用明纬电源。
广泛应用于公园，广场，广告牌，立交桥等其它户外大功率照明。
FIN
SERIES
Excellent heatsinks made from 6063 aluminum alloy, creatively adopt
heat pipe to give much higher thermal conductivity.
OUTSTANDING
DESIGN
ASA plastic
ASA 塑胶件
High weatherability permanent
color stability widely used in
car bumper.
高耐候性，颜色高稳定性，广
泛应用于车的保险杆。
Light source
光源选择
Using Bridgelux or Epistar
chips, high light efficiency, low
light degradation, CRI>80.
采用普瑞或台湾晶元的芯片，
高光效，低光衰，显色指数大
于 80。
Excellent cooling program
卓越的冷却方案
With heat pipes under the back
of the LED, the heat is taken to
the fins of heat sink quickly and
evenly.
光源背面有热管，热量可以迅速
被带到散热器的鳍片上。
Snap-fit
卡扣
Professional designed clips,
strong and tight, not easy to be
disassembled by unprofessional
people.
专业设计，紧密切合，不易被非
专业人士拆解。
Isolated driver
隔离式电源
Specially designed driver, using Japanese
Rubycon capacitor, provide high power factor
and high power efficiency. Meanwell brand
driver is used for the lights over 100W.
采用日本红宝石电容，具有高 PFC、高效率的优
点。100W 以上使用明纬电源。
Waterproof
防水性能
Excellent waterproof by using
high quality silicon loop which
contacts the structures tightly.
运用高质的硅胶圈，紧密接合，
具有极佳的防水性能。
ASA plastic
ASA 塑胶件

18 Brighter Lights, Brighter Life 19Brighter Lights, Brighter Life 1918
LS-FL-FIN-10W LS-FL-FIN-20W LS-FL-FIN-30W LS-FL-FIN-50W
Model Size Power Input Voltage Lumens Color Temperature CRI PF IP Grade Remark
LS-FL-FIN-10W L179×W133×H57mm 10W
AC90-265V
750-850lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
>70 >0.9 IP65
LS-FL-FIN-20W L201×W166×H77mm 20W 1500-1700lm
LS-FL-FIN-70W LS-FL-FIN-100W LS-FL-FIN-150W LS-FL-FIN-200W
LED FLOOD LIGHT
FIN SERIES
10W-200W
LS-FL-FIN-10W LS-FL-FIN-30WLS-FL-FIN-20W
LS-FL-FIN-200W
LS-FL-FIN-200W
LS-FL-FIN-200W
LS-FL-FIN-10W LS-FL-FIN-100W
LS-FL-FIN-10W LS-FL-FIN-100W
LIGHT DISTRIBUTION CURVE(cd) LIGHT DISTRIBUTION CURVE(cd)
LUX DISTANCE CURVE(LUX) LUX DISTANCE CURVE(LUX)
RGB FLOOD LIGHT
10W / 30W / 50W / 100W
Effective control
distance 10m
Effective control
The lamp can be controlled in any direction

FLOOD LIGHT
WITH DALI CONTROL
Dimmable is available from 0 to 100%.
Easy to be controlled by grouping ﬂexible.
MICROWAVE FREQUENCY
5.8GHZ±75MHZ CW RADAR
ISM BAND
HOW THEY WORK
LED FLOOD LIGHT
MICROWAVE SENSOR INSIDE
TOWER
SERIES
Equiped with high quality CREE XTE chip and Meanwell driver,relialbe
performance, long working life.
It can perfectly replace 2000W 'the star of the building' halogen light.
Two kind of professional light distribution for the choices. Instant start
and environmentally friendly.
Widely used in construction sites, tower cranes, wharfs, squares, gyms
etc.
高品质 Cree XTE 光源，搭载明纬电源，性能稳定，长寿命。
可完美替代 2000W“建筑之星”金卤灯，两种专业配光可选，瞬间启动，环保无污染。
广泛应用于建筑工地、塔吊、码头、广场、体育馆等。
TOWER
Equiped with high quality CREE XTE chip and Meanwell driver,relialbe
performance, long working life.
LED
FLOOD LIGHT

PROFESSIONAL
DESIGN
LED FLOOD LIGHT
TOWER SERIES
300W-500W
LS-FL-TOWER-300W LS-FL-TOWER-500W
LS-FL-TOWER-300W-60D
LS-FL-TOWER-300W-60D LS-FL-TOWER-500W-60D
LS-FL-TOWER-500W-60D
There are two kind of reflectors for the
choices: 90° wide* 30° narrow, 90° wide*
60° narrow. Better to meet professional light
distribution.
Professional distribution curve
专业配光选择
Excellent high temperature resistance,
anti-UV, high efficiency, low decay and
is available for LM80 report.
Cree XTE chip
科锐 XTE 光源
卓越的耐高温和抗 UV 能力，高光效，低
光衰，符合 LM80
distributed on each cooling fins, forming
a convection air duct, together with the
gaps between the fins to maximize the
heat dissipation.
3D heat dissipation
3D 立体散热
每块鳍片都分布着平行相对镂空小孔，
左右通透的对流风道，与鳍片间隙形成
立体散热，最大程度的散发热量。
Using Meanwell driver, 5years warranty,
adopt international voltage, IP65, PF >
0.9, efficency > 94%
Meanwell driver
明纬电源
使用明纬电源，5 年质保，采用国际电压，
防护等级 IP65，PF > 0.9, 效率 > 94%
Long Sun promise: in three years, if the
non-artificial factors lead to the product
quality problems such as abnormal
or products cannot be normally used,
we will provide free maintenance and
replacement for you
3 years warranty
三年质保
朗胜品质保证，三年内，在非人为因素
导致产品异常或不能正常使用等质量问
题，免费为您维修、调换
拥有宽 90°窄 30°、宽 90°窄 60°两种反
光罩选择，满足专业配光。
LS-FL-TOWER-300W
AC90-305V
300W 24000-27000lm
40000-45000lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K500W
70/80
LS-FL-TOWER-500W
Model Size Power Input Voltage Lumens Color Temperature CRI PF Beam Angle IP Grede
90°×30°
90°×60°
IP65
508×476mm
508×506mm
There are two kind of reflectors for the
choices: 90° wide* 30° narrow, 90° wide*
60° narrow. Better to meet professional light
Professional distribution curve
Excellent high temperature resistance,
anti-UV, high efficiency, low decay and
is available for LM80 report.
Cree XTE chip
科锐 XTE 光源
卓越的耐高温和抗 UV 能力，高光效，低
光衰，符合 LM80拥有宽 90°窄 30°、宽 90°窄 60°两种反
光罩选择，满足专业配光。
300W-500W
LS-FL-TOWER-300WLS-FL-TOWER-300W LS-FL-TOWER-500WLS-FL-TOWER-500W
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C0/180,96.4deg
UNIT:cd
C90/270,61.9deg
0
5000
10000
15000
20000
25000
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C0/180,95.7deg
UNIT:cd
C90/270,62.5deg
0
7000
14000
21000
28000
35000
25.0 28.92 24.13 54.44 11.85
5.0 722.88 4.83 10.89 296.14
10.0 180.72 9.65 21.78 74.04
15.0 80.32 14.48 32.67 32.90
20.0 45.18 19.31 43.55 18.51
Dh
Dv
25.0 47.03 25.55 53.97 18.14
5.0 1175.87 5.11 10.79 453.43
10.0 293.97 10.22 21.59 113.36
15.0 130.65 15.33 32.38 50.38
20.0 73.49 20.44 43.18 28.34
Dh
Dv
0.95

LED
PROJECT LIGHT
STAR
SERIES
Equipped with high quality Cree chip and Meanwell driver, reliable
performance, long lifespan.
Narrow angle of light distribution, the smallest angle is only 5°. The entire
housing coated by electrophoretic paint, suitable for the severe outdoor
environment.
Applicable for narrow angle projection, such as bridge, city lighting,
stage and so on
高品质 Cree 光源，搭载明纬电源，性能稳定，长寿命。
窄角度配光，最小角度仅为 5°，灯体电泳工艺，适合户外恶劣环境使用。
适用于桥梁、城市亮化、舞台等窄角度投射。
PROFESSIONAL
DESIGN
5°/10°/20°/30°, applicable for narrow angle
projection, such as bridge, city lighting,
stage and so on
Narrow Angle of light distribution
窄角度配光
Cree XTE or Cree XML for your option,
low light degradation, conforming to
LM80
Light source
光源选择
Cree XTE 和 Cree XML 不同光源选择，
低光衰，符合 LM80
distributed on each cooling fins, forming
a convection air duct, together with the
gaps between the fins to maximize the
heat dissipation.
3D heat dissipation
3D 立体散热
每块鳍片都分布着平行相对镂空小孔，
左右通透的对流风道，与鳍片间隙形成
立体散热，最大程度的散发热量。
Using Meanwell driver, 5years warranty,
adopt international voltage, IP65, PF >
0.9, efficency > 94%
Meanwell driver
明纬电源
使用明纬电源，5 年质保，采用国际电压，
防护等级 IP65，PF > 0.9, 效率 > 94%
Long Sun promise: within three years,
if the non-artificial factors lead to
the product quality problems such
as abnormal or products cannot be
normally used, we will provide free
maintenance and replacement for you
3 years warranty
三年质保
5°/10°/20°/30° 适用于桥梁、城市亮化、舞
台等窄角度投射。

10.0 8196.19 2.66 1.56 528.24
2.0 204904.77 0.53 0.31 13205.93
4.0 51226.19 1.06 0.63 3301.48
6.0 22767.20 1.59 0.94 1467.33
8.0 12806.55 2.12 1.25 825.37
Dh
Dv
Distance(m)E (lx) Dh(m)D v(m) Eav(lx)
50.0 164.26 9.60 5.76 7.44
10.0 4106.60 1.92 1.15 185.98
20.0 1026.65 3.84 2.30 46.49
30.0 456.29 5.76 3.45 20.66
40.0 256.66 7.68 4.61 11.62
Beam Angle: H11.0V 6.6F ield Angle: H21.2V 15.4
Dh
Dv
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C0/180,6.6deg
UNIT:cd
C30/210,6.5deg
UNIT:cd
C60/240,8.2deg
UNIT:cd
C90/270,10.8deg
0
90000
180000
270000
360000
450000
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C90/270,15.3deg
UNIT:cd
C0/180,7.1deg
0
110000
220000
330000
440000
550000
LED PROJECT LIGHT
STAR SERIES
200W-500W
LS-FL-STAR-200W LS-FL-STAR-500W
LS-FL-STAR-200W-10D
LS-FL-STAR-200W-10D
LS-FL-STAR-500W-5D
LS-FL-STAR-500W-5D
LS-FL-STAR-200W
AC90-265V
200W 15000-17000lm
37000-43000lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K500W
70/80
LS-FL-STAR-500W
Model Size Power Input Voltage Lumens Color Temperature CRI PF Beam Angle IP Grade
5°/10°/20°/30°＞ IP65
484x361mm
484x397mm
LS-FL-STAR-500W
LED
FLOOD LIGHT
MAC
SERIES
突破 LED 大功率瓶颈，首发 1000W 投光灯，搭载完美散热外壳，专业配光设计。
朗胜独家使用 1515 晶元倒装芯片，超高光效，搭配台湾明纬电源，稳定性强，让 MAC 系列无
可挑剔。
适用于体育馆、广场、公园、码头等远距离投光照明的场所。
Breakthrough the bottlenecks in high power LED, LONG SUN is the first
to produce the 1000W LED flood light. Having excellent cooling housing,
scientific and rational light distribution design.
LONG SUN exclusively use Epistar flip chip, super high light efficiency.
Equipped with Meanwell diver, high stability, made the MAC impeccable.
Used in gyms, squares, parks, wharfs and other outdoor lightings.
MAC
1000W

LED FLOOD LIGHT
MAC SERIES
500W-1000W
LS-FL-MAC-500W L443xW439xH456mm 500W
AC90-265V
45000-50000lm WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
70 >0.9 IP65 25°/60°/90°
LS-FL-MAC-1000W L534xW439xH573mm 1000W 90000-100000lm
LS-FL-MAC-500W-60D
LS-FL-MAC-1000W-60D
LS-FL-MAC-500W-60D
LS-FL-MAC-1000W-60D
LS-FL-MAC-500W LS-FL-MAC-1000W
LED
STREET LIGHT
LED
STREET LIGHT
LED
STREET LIGHT
LED
STREET LIGHT
采用最新倒装芯片，高光效，低光衰；3D 散热外壳搭载高品质电源，性能稳定，高效率。
通过专业风洞测试，在 12 级台风中，亦牢固无损，能适合各种恶劣环境。
适用于高速公路、主干道、辅道等道路照明，以及公园、学校、广场等户外照明。
Adopting the brand-new flip chip with high luminous efficiency and low
degradation; 3D heat dissipation housing equipped with high quality
driver, stable performance and high efficiency.
Being able to adapt different severe environments. It has passed wind
tunnel test which shows the light is strong and secure in grade 12
typhoons.
Be used for road lighting, such as highway, main road, side road etc; Be
used for outdoor lighting, such as park, school, square etc.
S4
SERIES

OUTSTANDING
DESIGN
Flip chip
倒装芯片
Adopting the latest flip chip
technology, ceramic bracket,
flip eutectic, high efficiency,
l o w d e g r a d a t i o n , c a n
maximally withstand 700MA
electric current.
采用最前沿倒装技术，陶瓷支
架，倒装共晶，高光效，低光
衰，最大可耐 700mA 电流，可
靠性高。
High quality driver
高品质电源
A d o p t i n g i n t e r n a t i o n a l
voltage, with high efficiency
and stable performance.
Efficiency>94%, IP 65.
采用国际电压，高效率，性能
稳定，效率 >94%，防护等级
IP65。
IP65, anti-typhoon
IP65，抗台风
It has passed wind tunnel
test which shows the light
is strong and secure in
grade 12 typhoons. Being
a b l e t o o v e r c o m e v e r y
severe outdoor environment
and prevent water within
rainstorms.
通过专业风洞测试，在 12 级
台风中，亦无任何松动、变形，
坚挺如初，能抵抗恶劣户外环
境，大暴雨中亦不渗水。
3D heat dissipation
3D 散热
The thermal module and the
fins air dust a 3D intercool
s y s t e m , r e d u c i n g t h e
temperature of the light source
rapidly, extending the life time
of led.
专业对流散热设计，内外通透
的风道，能迅速导出光源、电
源所产生的热量，从而延长使
用寿命。
Long Sun promise: within three years,
if the non-artificial factors lead to
the product quality problems such
as abnormal or products cannot be
normally used, we will provide free
maintenance and replacement for you
3 years warranty
三年质保
稳定，效率 >94%，防护等级
1
2
With unique design, the angle could be adjusted from 0°to
180°as you wish.
Newest flip chip technology, super high luminous efficiency
and performance, with 3D heat dissipation housing, high
performance and quality driver, which makes S4 PLUS is
unbeatable.
Applicable for roads, streets, overpasses, squares,
schools and other outdoors.
独创灯臂角度可 180°调节，照射角度按您需求可随意变化。
最新倒装芯片，超高光效，高性能，搭载 3D 立体式散热外壳，
加上性能稳定的高品质电源，让 S4 PLUS 无与伦比。
适用于辅道、匝道、街道、天桥、广场、学校等户外照明场所。
Cree XTE light source, high luminous efficiency, low light decay.
Full aluminum housing with HLG series Mean Well driver inside,
excellent heat dissipation and high performance driver, which makes
S3 shine.
Applicable for streets, expressways, viaducts, tunnels and other high
brightness demand outdoors.
Cree XTE 品牌光源，高光效，低光衰。
纯铝外壳内置明纬电源 HLG 系列，完美散热加上高性能电源，让 S3 路
灯绽放光彩。
适用于主干道、辅道、高速公路、高架桥、隧道等高亮度要求照明场所。
S3
SERIES
S4 PLUS
SERIES
2SERIES
LED STREET LIGHT
MORE CHOIES
50W-350W
LS-ST-S4P-150W
50W-350W
LS-ST-S3-150W

LED STREET LIGHT
S4 SERIES
50W-350W
LS-ST-S4-50W L410×W304×H128mm 50W
AC90-265V
4200-4700lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
70 >0.9 IP65 85° 155°
LS-ST-S4-100W L502×W304×H128mm 100W 8500-9500lm
LS-ST-S4-150W L594×W304×H128mm 150W 12700-14200lm
LS-ST-S4-200W L686×W304×H128mm 200W 17000-19000lm
LS-ST-S4-250W L778×W304×H128mm 250W 21200-23700lm
LS-ST-S4-300W L870×W304×H128mm 300W 25500-28500lm
LS-ST-S4-350W L962×W304×H128mm 350W 29800-33200lm
LS-ST-S4-50W
LS-ST-S4-100W
LS-ST-S4-150W
LS-ST-S4-200W
LS-ST-S4-250W
LS-ST-S4-300W
LS-ST-S4-350W
*
10.0 19.60 74.50 19.61 7.85
2.0 489.91 14.90 3.92 196.16
4.0 122.48 29.80 7.84 49.04
6.0 54.43 44.70 11.77 21.80
8.0 30.62 59.60 15.69 12.26
Dh
Dv
10.0 30.10 73.40 20.21 12.45
2.0 752.46 14.68 4.04 311.30
4.0 188.11 29.36 8.08 77.83
6.0 83.61 44.04 12.12 34.59
8.0 47.03 58.72 16.17 19.46
Dh
Dv
10.0 46.63 76.57 20.01 18.24
2.0 1165.72 15.31 4.00 456.00
4.0 291.43 30.63 8.00 114.00
6.0 129.52 45.94 12.01 50.67
8.0 72.86 61.25 16.01 28.50
Dh
Dv
LED STREET LIGHT
APPLICATION
LS-ST-S4-100W
LS-ST-S4-100W
LS-ST-S4-150W
LS-ST-S4-150W
LS-ST-S4-250W
LS-ST-S4-250W
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C0/180,150.8deg
UNIT:cd
C90/270,92.1deg
0
1500
3000
4500
6000
7500
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C0/180,142.9deg
UNIT:cd
C90/270,69.6deg
0
600
1200
1800
2400
3000
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C0/180,144.6deg
UNIT:cd
C90/270,72.6deg
0
400
800
1200
1600
2000

LED
STREET LIGHT
S4 MINI
SERIES
最新倒装芯片，超高光效，高性能，超轻灯体搭载高品质电源，可靠性高，防护等级达
IP65。
拥有直径 60mm 和 40mm 不同规格支架，满足不同安装方式，支持太阳能解决方案。
适用于小区、公园、乡村、学校、庭院等道路照明。
Newest flip chip technology, super high luminous efficiency and
performance, super light body with high quality driver inside, high
reliability, and IP65 protection.
Pole diameter 40mm and 60mm for option for different installation, support
solar energy solution.
Applicable for communities, parks, rural areas, schools, courtyards and so
on.
Model Size Power Input Voltage Lumens Color Temperature CRI PF Beam Angle IP Grade
LS-ST-S4M-30W L300×W120×H93mm 30W
AC90-265V
2700-3000lm
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
70 >0.9 85° 155° IP65LS-ST-S4M-40W L300×W120×H93mm 40W 3600-4000lm
LS-ST-S4M-50W L300×W120×H93mm 50W 4500-5000lm
*
Power of lamp
Solar Radiation
4KWH
3 overcast days
5KWH
3 overcast days
4KWH
5 overcast days
5KWH
5 overcast days
Lighting time per day 8H 10H 8H 10H 8H 10H 8H 10H
30W
Power of battery (AH) 100 120 100 120 160 200 160 200
Power of solar pannel(W) 80 100 65 80 80 100 65 80
40W
60W
LED SOLAR STREET LIGHT
SOLUTION
朗胜所有路灯可为您提供专业的太阳能整体解决
方案。您只需提供：
a. 灯杆高度
b. 工作时间
c. 应用城市（经度、纬度）
d. 应用场所（主干道、辅道等）
We can provide you professional solar
street light solution, please tell me
these information:
a. Pole height
b. Lighting time
c. City location (Longitude, latitude)
d. Application places (Main street,
auxiliary road etc.)

BAYMAX
SERIES
Adopt high efficiency, high CRI SMD 2835 LED. Isolated and non-
isolated drivers for your choice to meet different needs.
Initiative IC solution for the choice, together with LED light source and
driver. No stroboflash phenomenon and with high cost performance.
Mainly used for hotel, meeting room, supermarket, house, hospital and
some lighing area for high CRI needs.
采用高光效、高显指 SMD 2835 光源，隔离式和非隔离式电源可选，满足不同需求。
首创 IC 方案可选，集光源电源为一体，无频闪现象，高性价比。
广泛应用于酒店、会议室、工厂、超市、住宅、医院等需要高显指照明区域。
DOWN LIGHT
BAYMAX
SERIES
Adopt high efficiency, high CRI SMD 2835 LED. Isolated and non-
isolated drivers for your choice to meet different needs.
Initiative IC solution for the choice, together with LED light source and
driver. No stroboflash phenomenon and with high cost performance.
INNOVATIVE
DESIGN
Set light power integration,PF 0.99, 13%
harmonics, flicker-free, cost-effective.
Initiate IC solution
首创 IC 方案可选
CRI>84,excellent color reproduction
ability,high Luminous Efficiency,low
Lumens depreciation,narrow-line
spectrum
SMD 2835 chip
SMD 2835 光源
显色指数高达 84，色彩还原能力优异，
高光效，低光衰，光谱窄。
Using 99% pure aluminum radiator, light
weight, easy to install, no light-leaking
design.
Embedded downlights
嵌入式筒灯
采用 99% 纯铝散热器，质量轻，易安装，
无漏光设计。
Isolated and non-isolated driver for
option, high PFC, high efficiency, perfect
protection function to short circuit,
overload, overvoltage and overheating,
high reliability
Driver source
电源可选
隔离式和非隔离式电源可选，高 PFC，高
效率，完善的短路过载、过压、过热保
护功能，可靠性高。
Long Sun promise: in three years, if the
non-artificial factors lead to the product
quality problems such as abnormal
or products cannot be normally used,
we will provide free maintenance and
replacement for you
3 years warranty
三年质保
集光源电源为一体，实测功率因数 0.99，谐
波 13%，无频闪现象，高性价比。
显色指数高达 84，色彩还原能力优异，
高光效，低光衰，光谱窄。
high reliability
隔离式和非隔离式电源可选，高 PFC，高
效率，完善的短路过载、过压、过热保
护功能，可靠性高。

3838
LED DOWN LIGHT
BAYMAX SERIES
3W-32W
LS-DL-BAYMAX-12W
LS-DL-BAYMAX-3W
LS-DL-BAYMAX-18W
LS-DL-BAYMAX-7W
LS-DL-BAYMAX-32W
LS-DL-BAYMAX-3W 210-240lm
2.5 inch3W
8 inch32W
4 inch12W
AC90-265V
50Hz /60Hz
WW:2700~3200K
PW:4000~4500K
CW:5800~6500K
3 inch7W
6 inch18W
80
Model Power Inch Item Size Hole Size Input Voltage Color TemperatureLumens CRI PF
102×51mm
112×57mm
235×84mm
80mm
90mm
120mm
165mm
210mm
146×65mm
190×80mm
0.95
LS-DL-BAYMAX-12W
LS-DL-BAYMAX-3W
LS-DL-BAYMAX-18W
LS-DL-BAYMAX-7W
LS-DL-BAYMAX-32W
LONG SUN offers free lighting design simulation
service, including various indoor and outdoor
designs. A series of parameters, like the
practical solutions, the layout of lights and the
light distributions etc, could be offered after the
simulations. We can also answer your questions
timely, optimize designs continuously and provide
the best lighting solutions for you.
PROFESSIONAL
LIGHTING
DESIGN
SIMULATION
AND
3D RENDERING
DESIGN
FOR FREE
朗胜免费为您提供光学设计模拟服务，其中包括室内和室外各
种项目，仿真后可以提供一系列的参数，如实际解决方案，灯
具排布以及光分布情况等。当您提供具体项目的要求和尺寸，
我们会及时为您解答，不断优化设计，提供最优灯光解决方案。

SHENZHEN LONG SUN OPTOELECTRONICS TECHNOLOGY CO., LTD
深圳市朗胜光科技有限公司
Add:Block A, Weihao High-tech Industrial Park, No.1026 Songbai Road ,
Xili Street, Nanshan District, Shenzhen China
深圳市南山区西丽街道松白路 1026 号伟豪科技园 A 栋
Tel:+86-755-86027779,86369100
Fax:+86-755-86027755
Email: sales@longsun-led.com
Website: www.longsun-led.com
www.longsun-led.com
Surprise ? Scan it!
“码”上有奖

New Catalog

More Related Content

What's hot

Viewers also liked

Similar to New Catalog

New Catalog
