Shenzhen Weshine Lighting Technology Co., Ltd., founded in 2009, specializes in high-quality LED lighting products, including stadium lights and high bay lights, with a focus on sophisticated design and affordability. The company has achieved rapid growth, exporting products to over 70 countries and securing 56 national patents, while maintaining high production standards and customer satisfaction. Weshine is committed to innovation and aims to become the leading brand in the lighting industry by providing advanced energy-saving solutions.

1. 02
Shenzhen Weshine Lighting Technology Co.,Ltd
02

2. CONTENT
HISTORY HONOR TEAM PRODUCT CUSTOMER
01
02
03
04
05

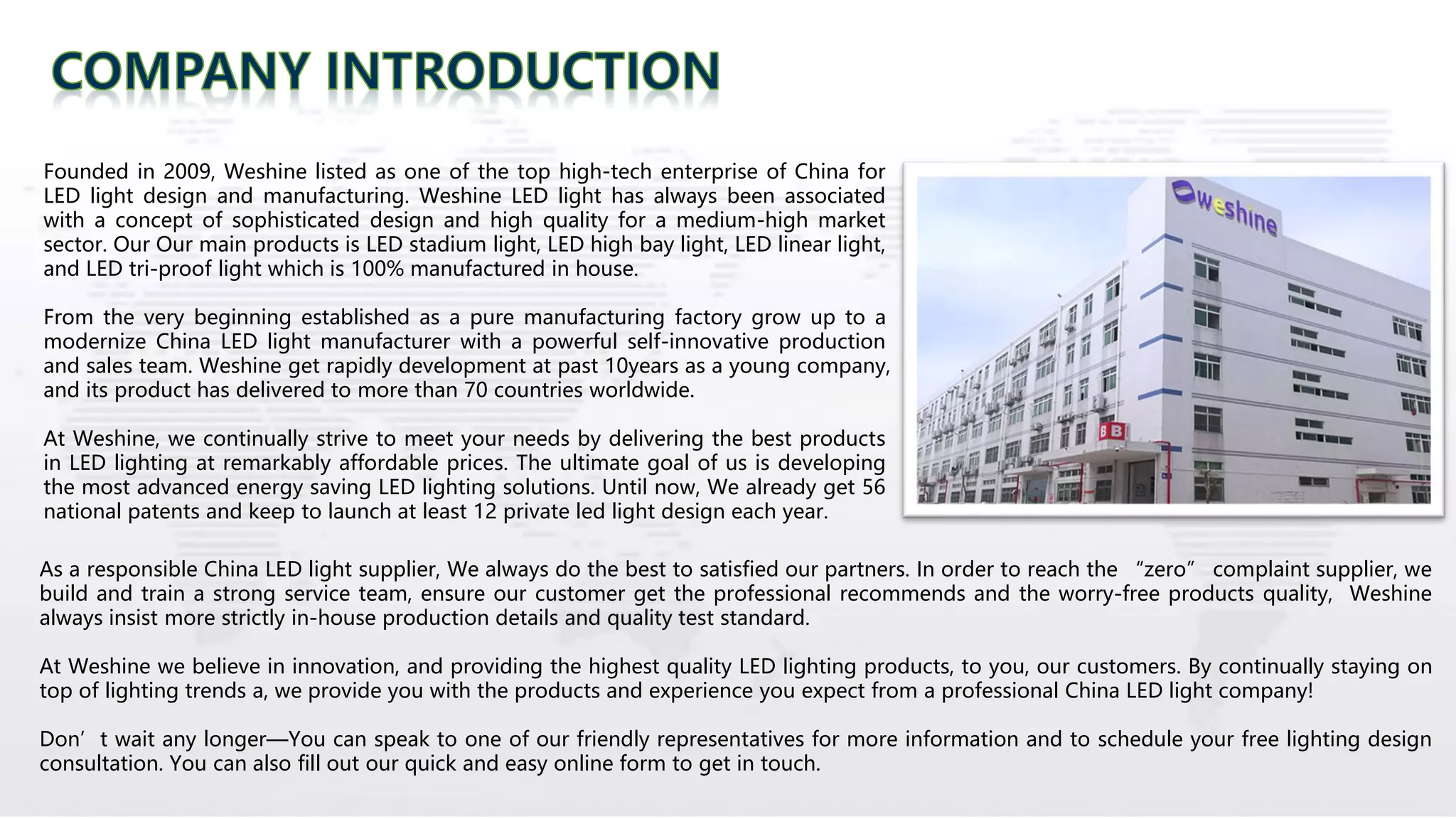

3. Founded in 2009, Weshine listed as one of the top high-tech enterprise of China for
LED light design and manufacturing. Weshine LED light has always been associated
with a concept of sophisticated design and high quality for a medium-high market
sector. Our Our main products is LED stadium light, LED high bay light, LED linear light,
and LED tri-proof light which is 100% manufactured in house.
From the very beginning established as a pure manufacturing factory grow up to a
modernize China LED light manufacturer with a powerful self-innovative production
and sales team. Weshine get rapidly development at past 10years as a young company,
and its product has delivered to more than 70 countries worldwide.
At Weshine, we continually strive to meet your needs by delivering the best products
in LED lighting at remarkably affordable prices. The ultimate goal of us is developing
the most advanced energy saving LED lighting solutions. Until now, We already get 56
national patents and keep to launch at least 12 private led light design each year.
As a responsible China LED light supplier, We always do the best to satisfied our partners. In order to reach the “zero” complaint supplier, we
build and train a strong service team, ensure our customer get the professional recommends and the worry-free products quality, Weshine
always insist more strictly in-house production details and quality test standard.
At Weshine we believe in innovation, and providing the highest quality LED lighting products, to you, our customers. By continually staying on
top of lighting trends a, we provide you with the products and experience you expect from a professional China LED light company!
Don’t wait any longer—You can speak to one of our friendly representatives for more information and to schedule your free lighting design
consultation. You can also fill out our quick and easy online form to get in touch.

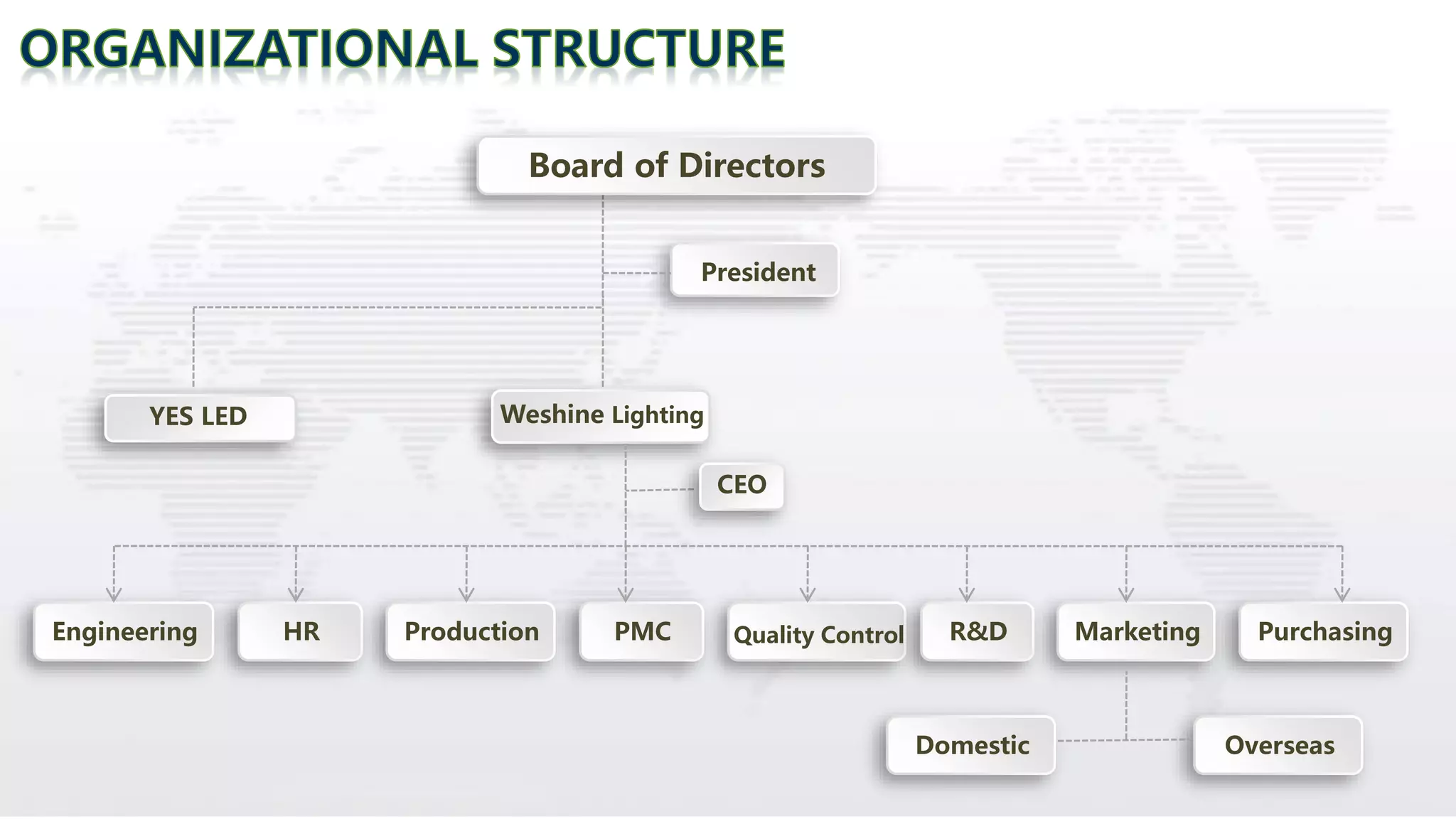

4. Board of Directors
President
Engineering
YES LED Weshine Lighting
CEO
HR Production PMC Quality Control
Overseas
R&D Marketing Purchasing
Domestic

5. 1
2
3
4
ODM/OEM/Wholesale/Retail
Honest/Effective/Focus/Innovation
To be the NO.1 brand of lighting
Everyone deserves a good light
Position
Policy
Goal
Mission

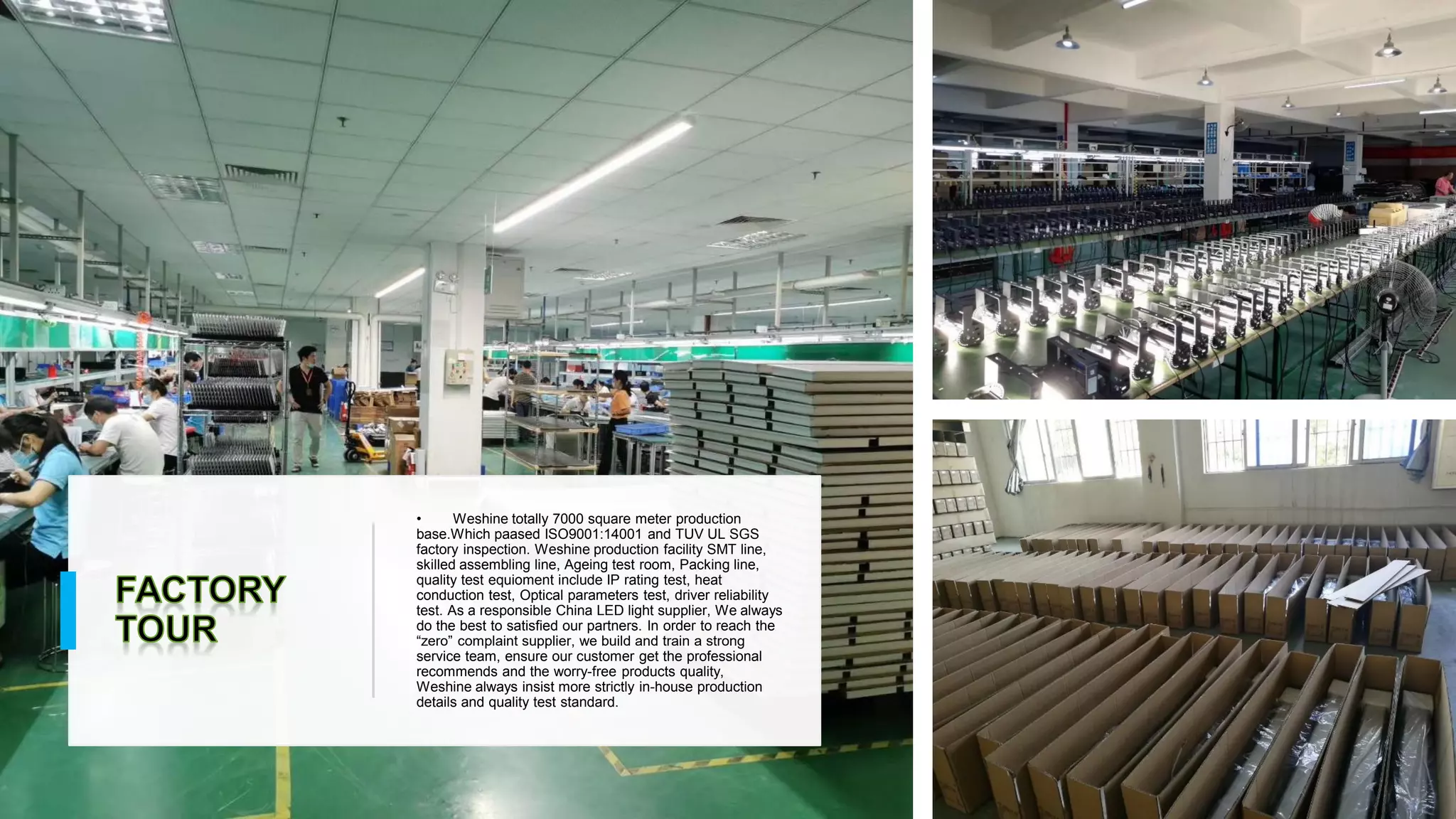

6. • Weshine totally 7000 square meter production
base.Which paased ISO9001:14001 and TUV UL SGS
factory inspection. Weshine production facility SMT line,

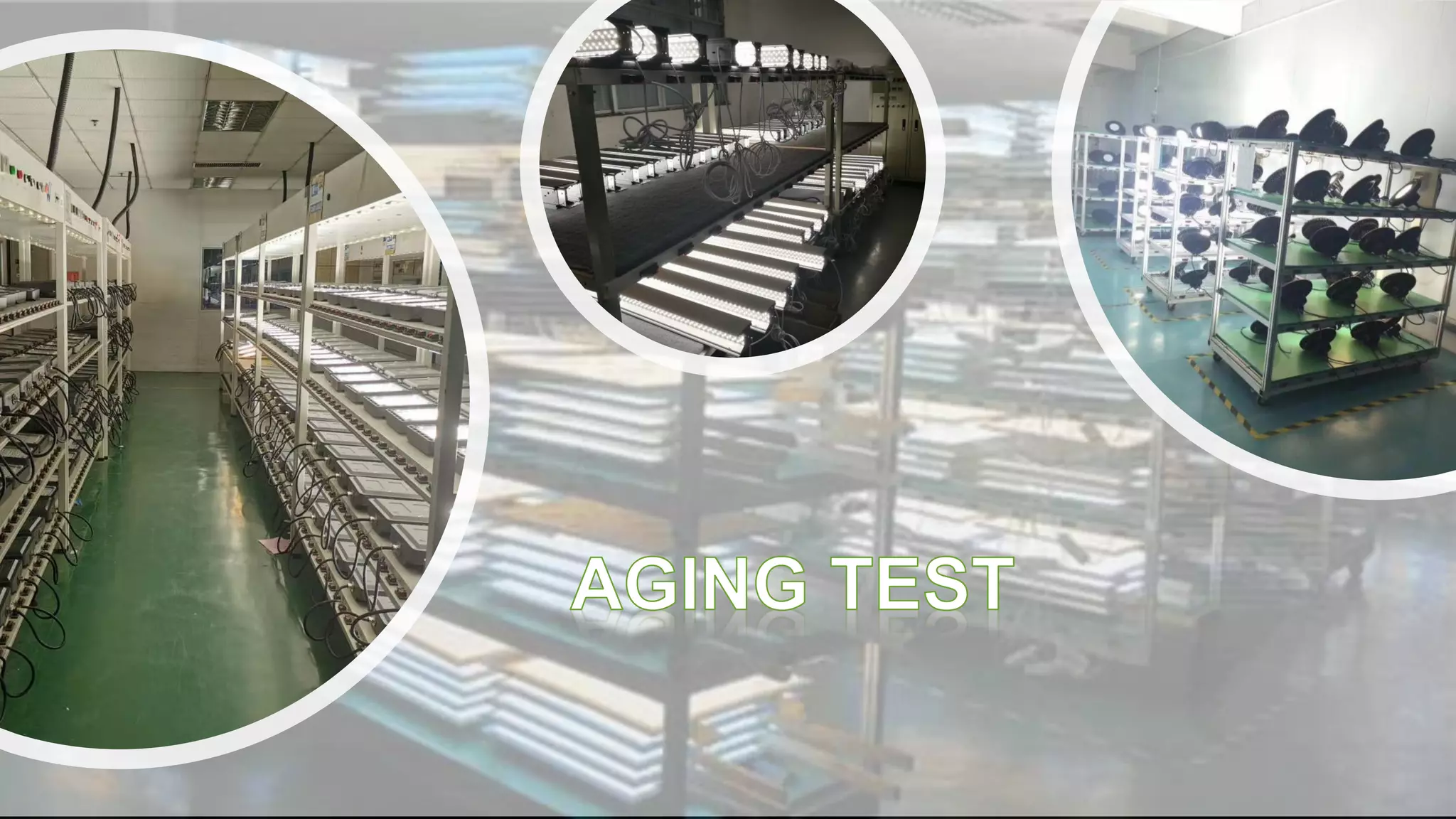

skilled assembling line, Ageing test room, Packing line,
quality test equioment include IP rating test, heat
conduction test, Optical parameters test, driver reliability
test. As a responsible China LED light supplier, We always
do the best to satisfied our partners. In order to reach the
“zero” complaint supplier, we build and train a strong
service team, ensure our customer get the professional
recommends and the worry-free products quality,
Weshine always insist more strictly in-house production
details and quality test standard.

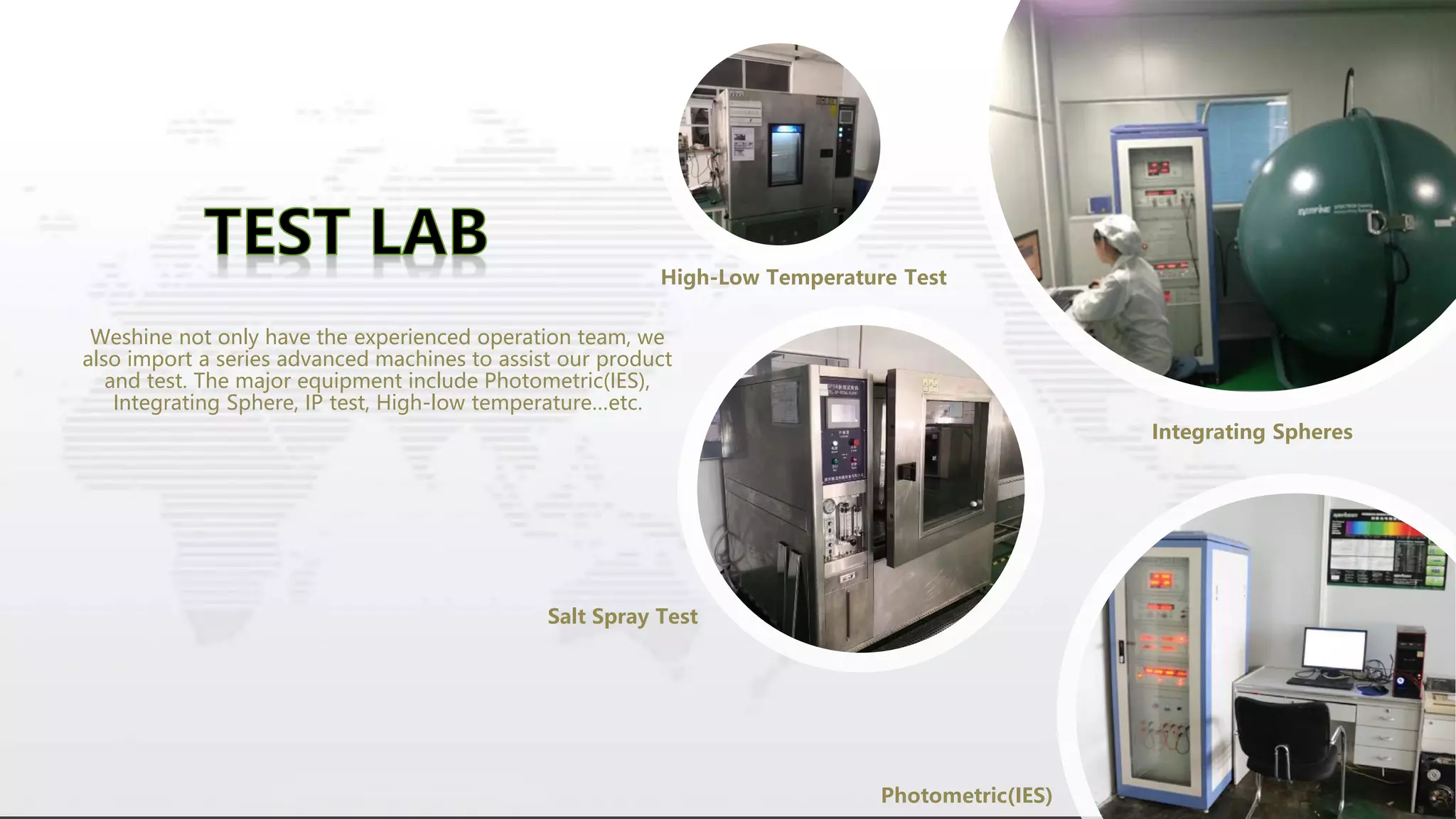

7. Weshine not only have the experienced operation team, we
also import a series advanced machines to assist our product
and test. The major equipment include Photometric(IES),
Integrating Sphere, IP test, High-low temperature…etc.
Integrating Spheres
Photometric(IES)
High-Low Temperature Test
Salt Spray Test

13. 02
COMPANY HONOR

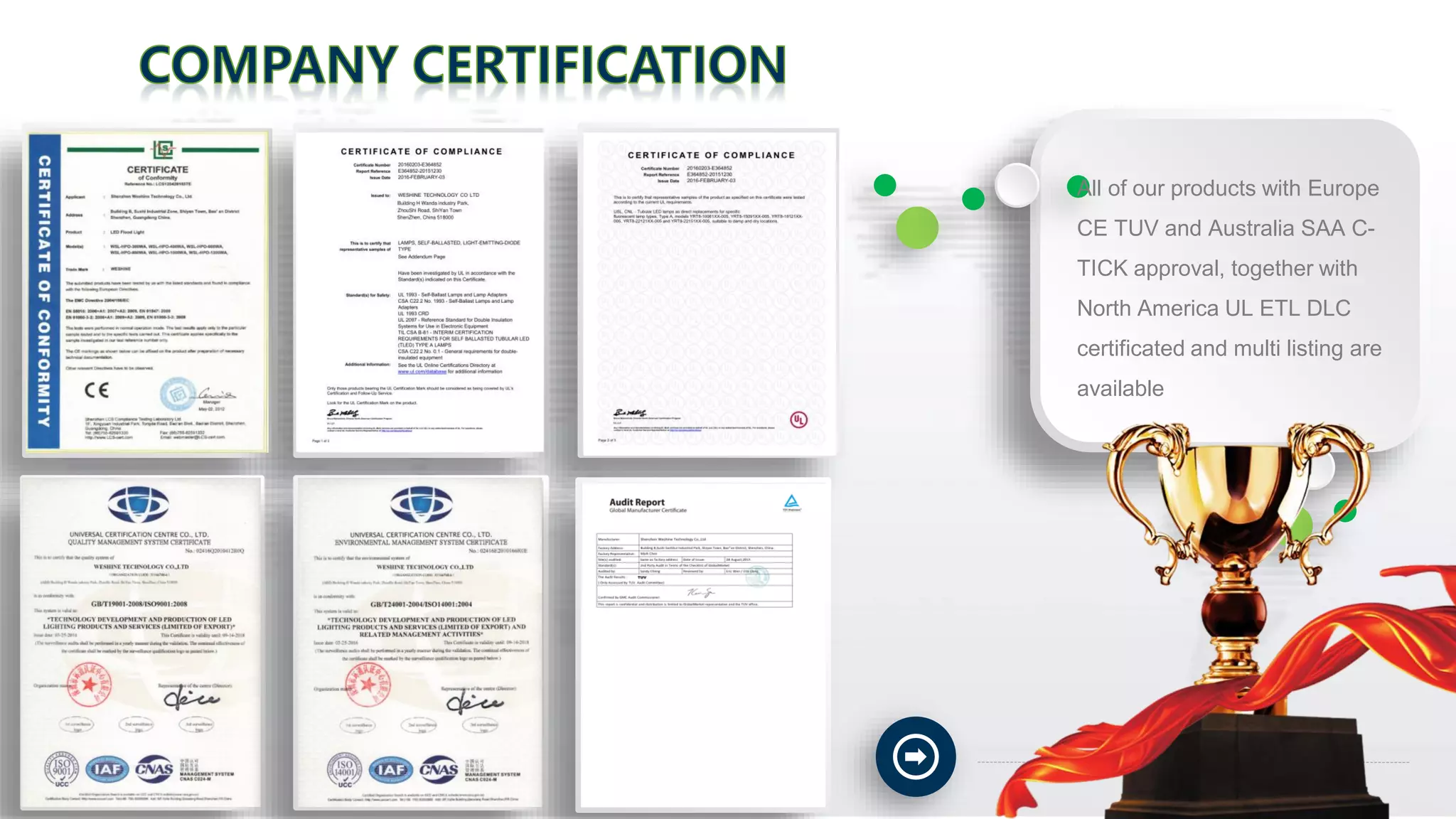

14. All of our products with Europe
CE TUV and Australia SAA C-
TICK approval, together with
North America UL ETL DLC
certificated and multi listing are
available

15. 03
ENTERPRISE PRODUCTS

16. 1 High Quality
3 Best Price
2 Top Service
4 Professional Team

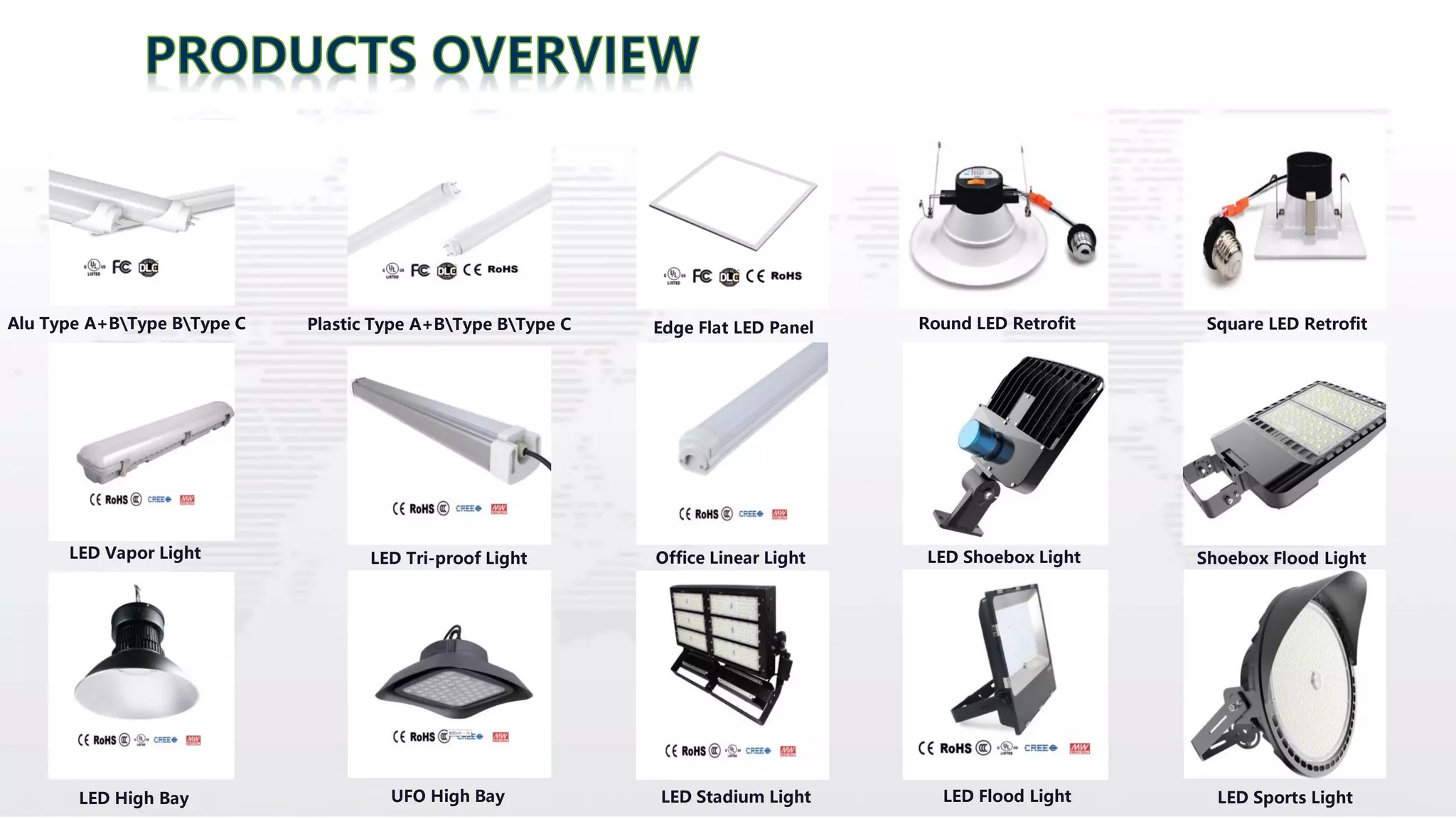

17. Alu Type A+BType BType C
LED Vapor Light
Edge Flat LED PanelPlastic Type A+BType BType C Round LED Retrofit Square LED Retrofit
LED High Bay
LED Tri-proof Light Office Linear Light LED Shoebox Light Shoebox Flood Light
UFO High Bay LED Stadium Light LED Flood Light LED Sports Light

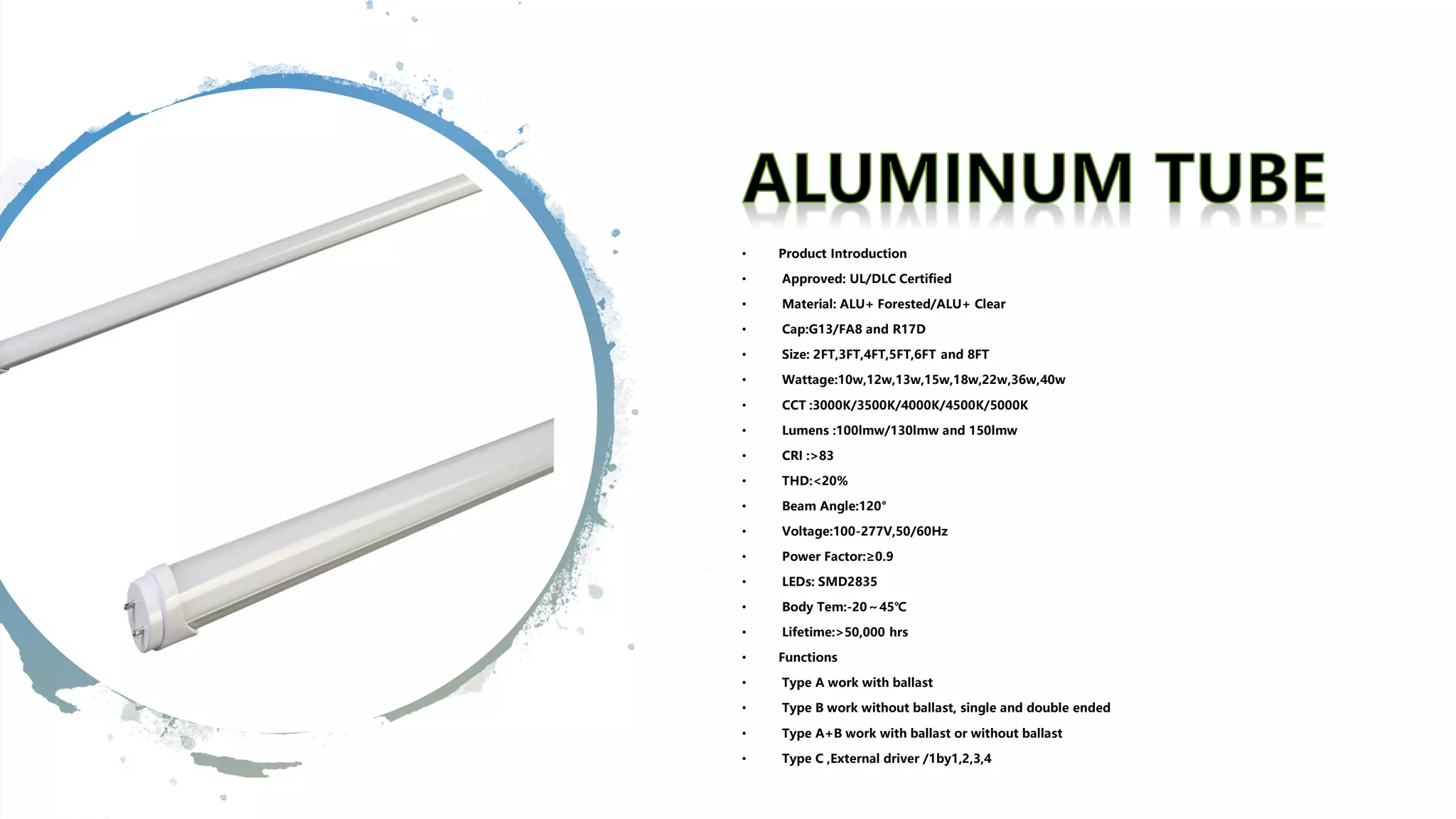

18. • Product Introduction
• Approved: UL/DLC Certified
• Material: ALU+ Forested/ALU+ Clear
• Cap:G13/FA8 and R17D
• Size: 2FT,3FT,4FT,5FT,6FT and 8FT
• Wattage:10w,12w,13w,15w,18w,22w,36w,40w
• CCT :3000K/3500K/4000K/4500K/5000K
• Lumens :100lmw/130lmw and 150lmw
• CRI :>83
• THD:<20%
• Beam Angle:120°
• Voltage:100-277V,50/60Hz
• Power Factor:≥0.9
• LEDs: SMD2835
• Body Tem:-20～45℃
• Lifetime:>50,000 hrs
• Functions
• Type A work with ballast
• Type B work without ballast, single and double ended
• Type A+B work with ballast or without ballast
• Type C ,External driver /1by1,2,3,4

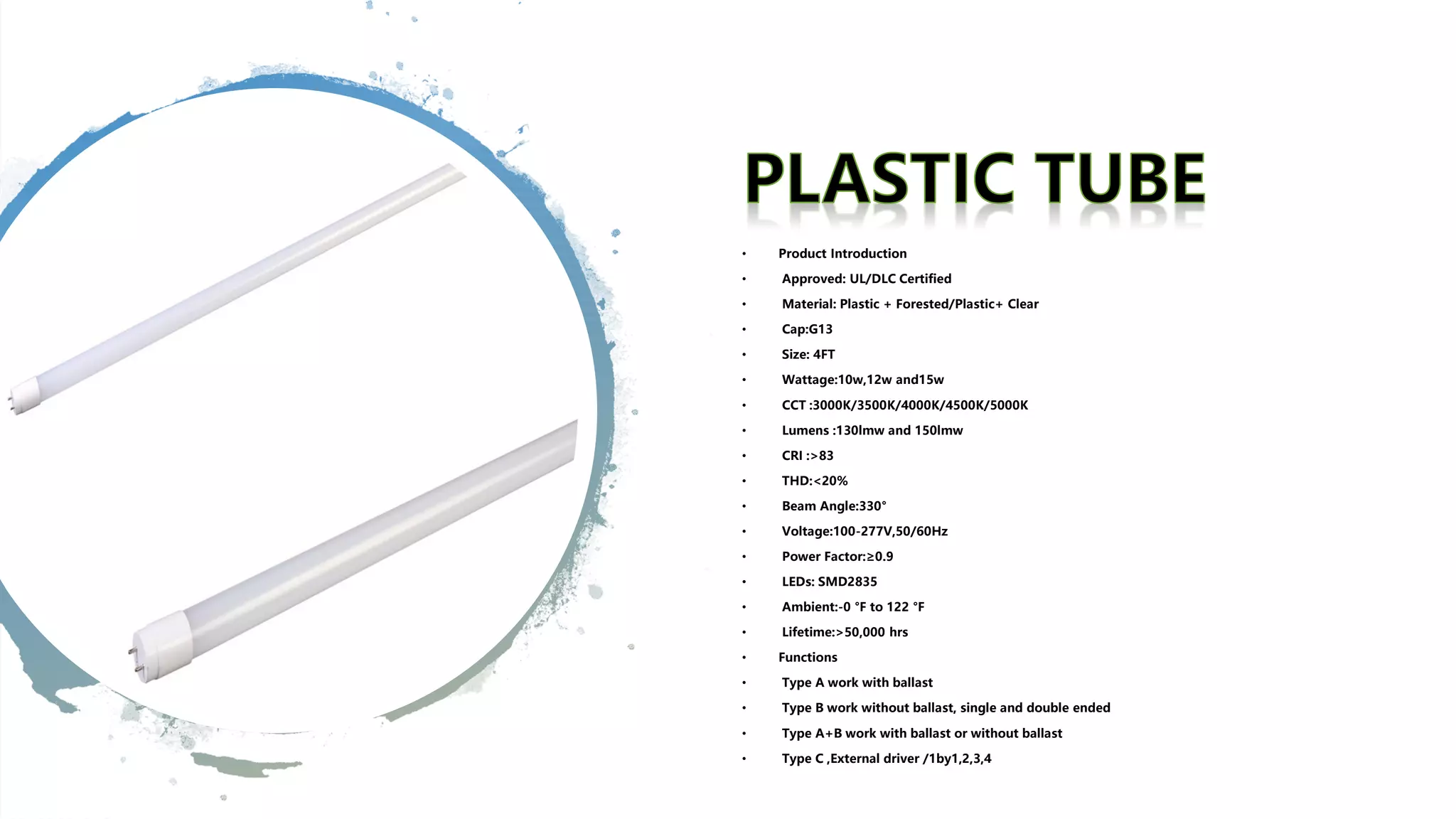

19. • Product Introduction
• Approved: UL/DLC Certified
• Material: Plastic + Forested/Plastic+ Clear
• Cap:G13
• Size: 4FT
• Wattage:10w,12w and15w
• CCT :3000K/3500K/4000K/4500K/5000K
• Lumens :130lmw and 150lmw
• CRI :>83
• THD:<20%
• Beam Angle:330°
• Voltage:100-277V,50/60Hz
• Power Factor:≥0.9
• LEDs: SMD2835
• Ambient:-0 °F to 122 °F
• Lifetime:>50,000 hrs
• Functions
• Type A work with ballast
• Type B work without ballast, single and double ended
• Type A+B work with ballast or without ballast
• Type C ,External driver /1by1,2,3,4

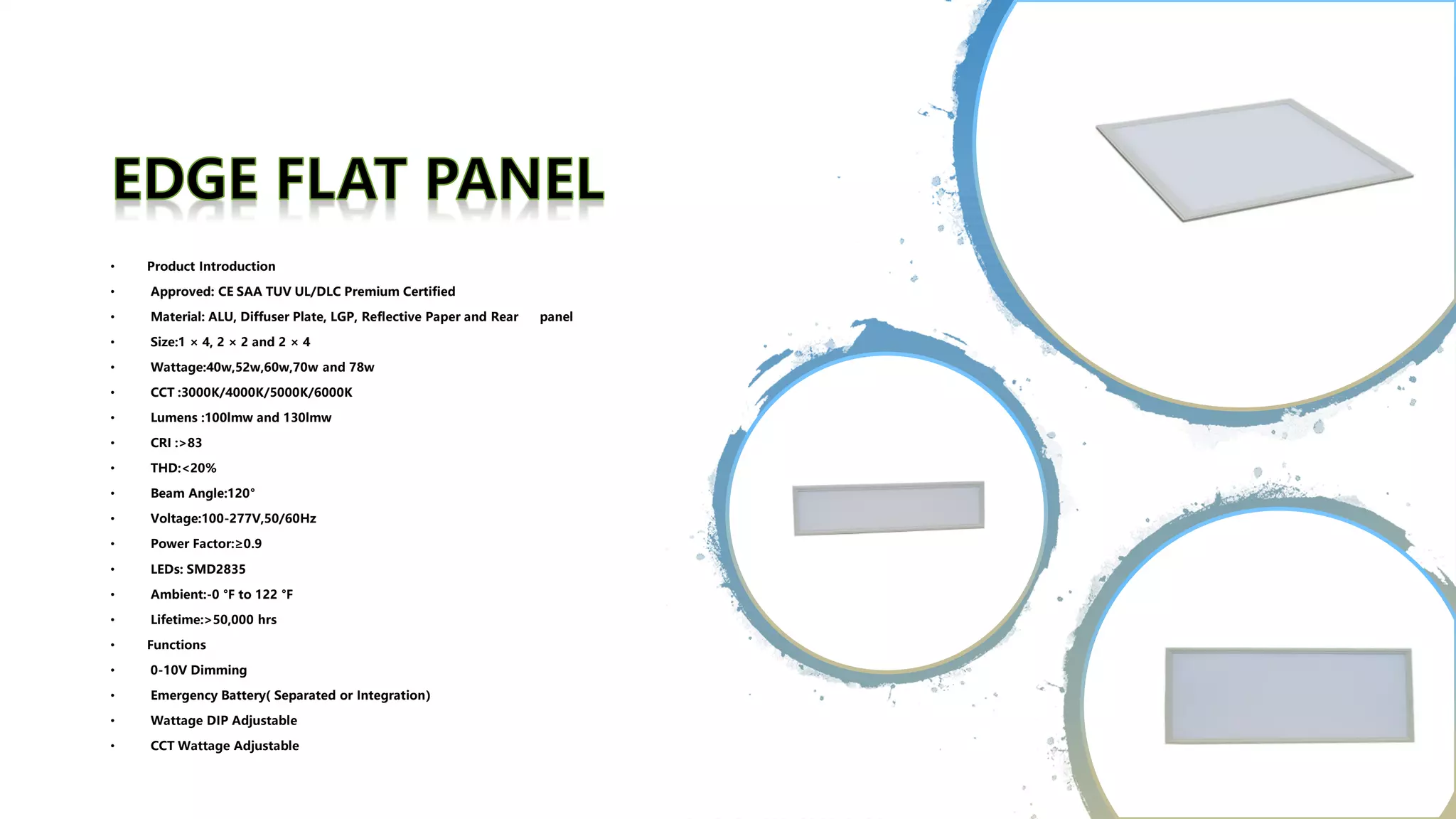

20. • Product Introduction
• Approved: CE SAA TUV UL/DLC Premium Certified
• Material: ALU, Diffuser Plate, LGP, Reflective Paper and Rear panel
• Size:1 × 4, 2 × 2 and 2 × 4
• Wattage:40w,52w,60w,70w and 78w
• CCT :3000K/4000K/5000K/6000K
• Lumens :100lmw and 130lmw
• CRI :>83
• THD:<20%
• Beam Angle:120°
• Voltage:100-277V,50/60Hz
• Power Factor:≥0.9
• LEDs: SMD2835
• Ambient:-0 °F to 122 °F
• Lifetime:>50,000 hrs
• Functions
• 0-10V Dimming
• Emergency Battery( Separated or Integration）
• Wattage DIP Adjustable
• CCT Wattage Adjustable

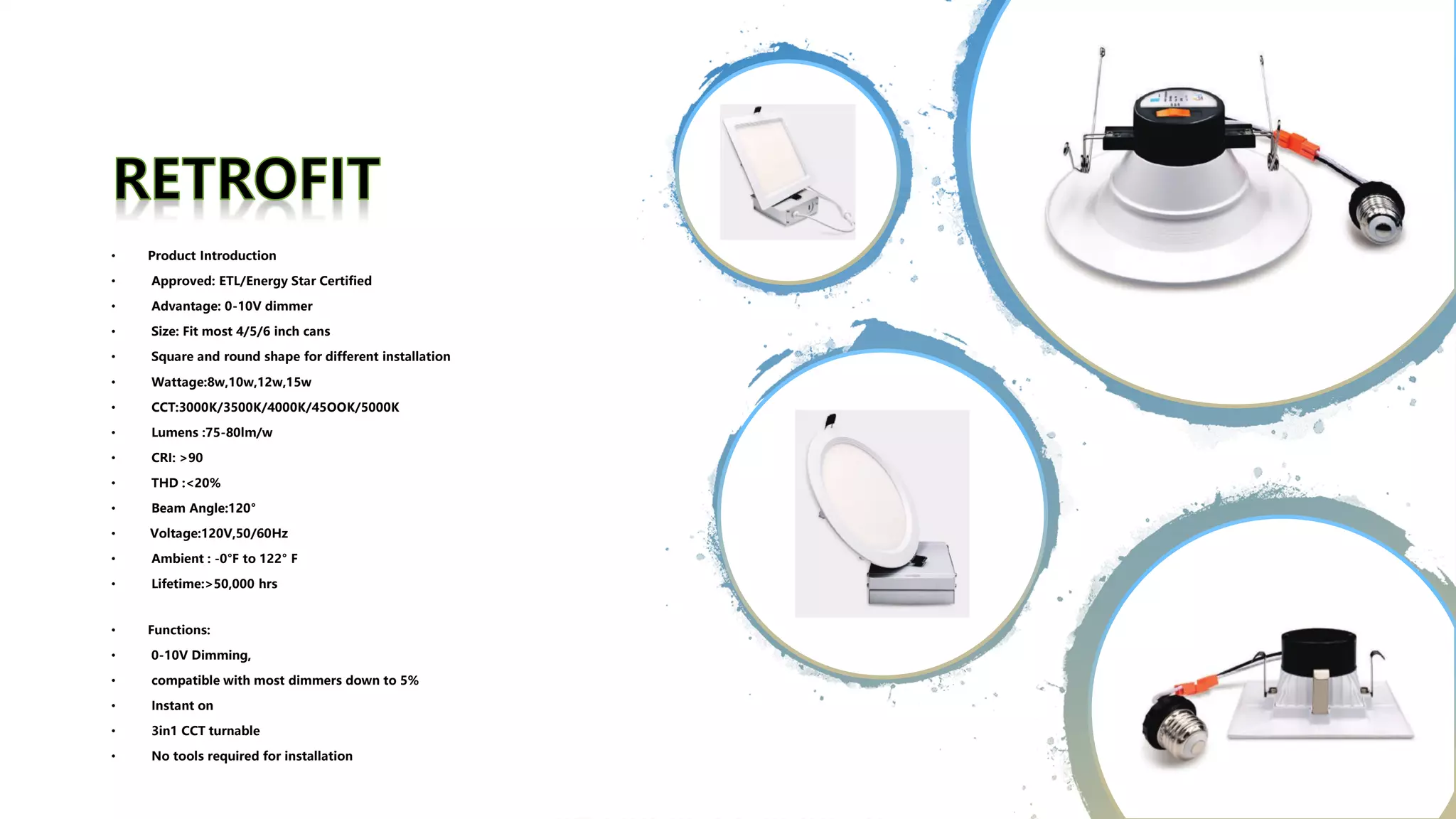

21. • Product Introduction
• Approved: ETL/Energy Star Certified
• Advantage: 0-10V dimmer
• Size: Fit most 4/5/6 inch cans
• Square and round shape for different installation
• Wattage:8w,10w,12w,15w
• CCT:3000K/3500K/4000K/45OOK/5000K
• Lumens :75-80lm/w
• CRI: >90
• THD :<20%
• Beam Angle:120°
• Voltage:120V,50/60Hz
• Ambient : -0°F to 122° F
• Lifetime:>50,000 hrs
• Functions:
• 0-10V Dimming,
• compatible with most dimmers down to 5%
• Instant on
• 3in1 CCT turnable
• No tools required for installation

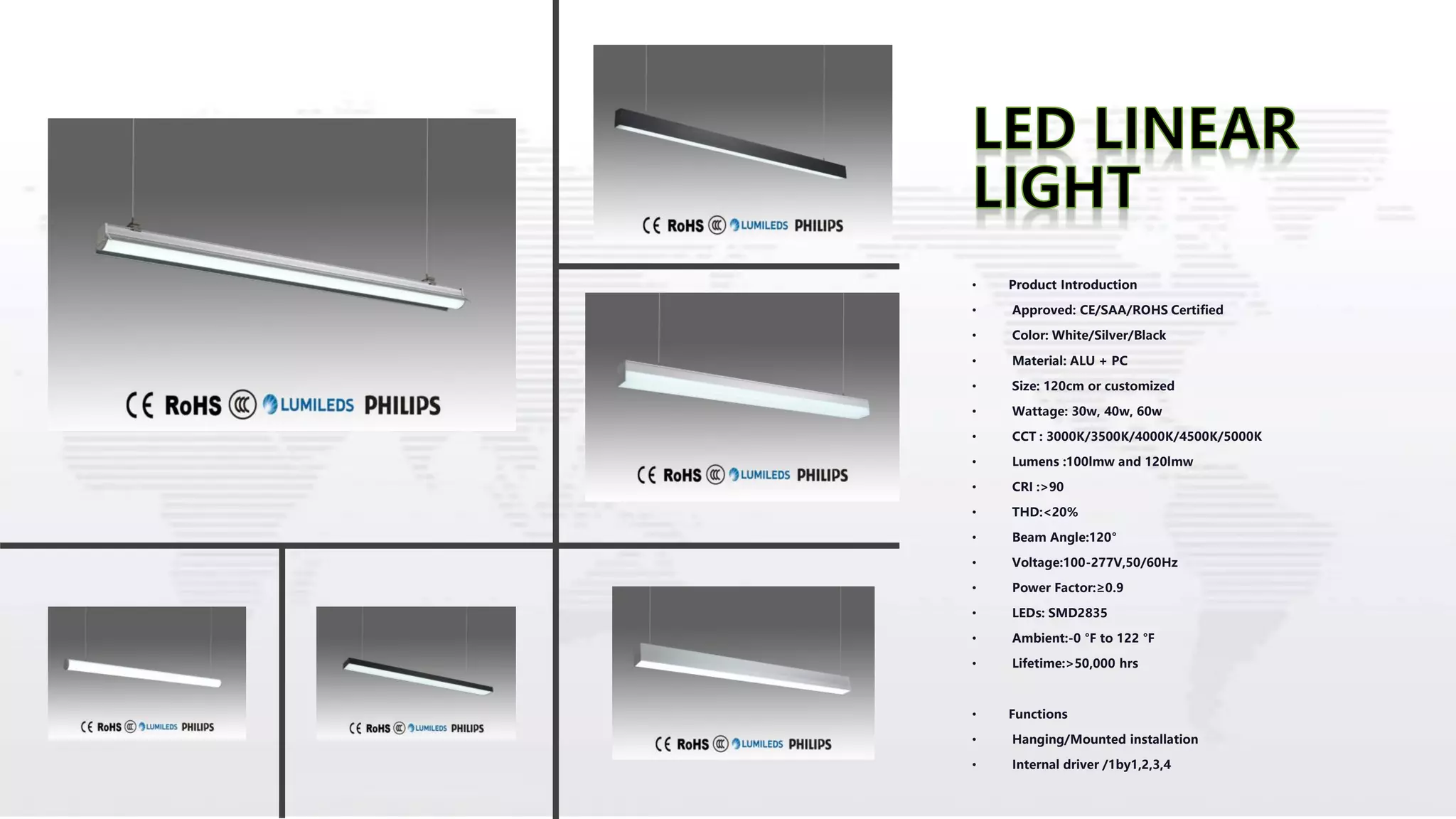

22. • Product Introduction
• Approved: CE/SAA/ROHS Certified
• Color: White/Silver/Black
• Material: ALU + PC
• Size: 120cm or customized
• Wattage: 30w, 40w, 60w
• CCT : 3000K/3500K/4000K/4500K/5000K
• Lumens :100lmw and 120lmw
• CRI :>90
• THD:<20%
• Beam Angle:120°
• Voltage:100-277V,50/60Hz
• Power Factor:≥0.9
• LEDs: SMD2835
• Ambient:-0 °F to 122 °F
• Lifetime:>50,000 hrs
• Functions
• Hanging/Mounted installation
• Internal driver /1by1,2,3,4

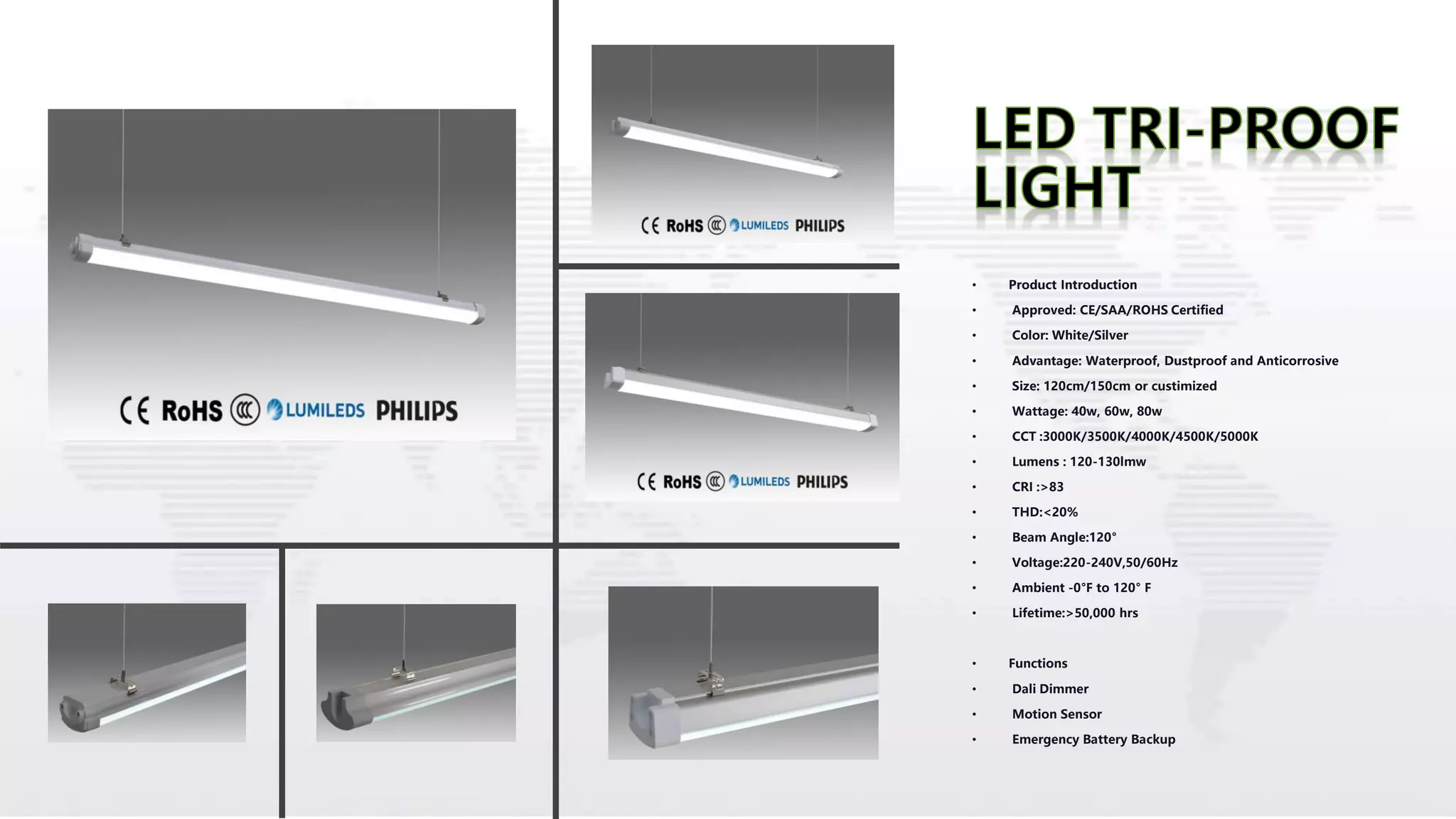

23. • Product Introduction
• Approved: CE/SAA/ROHS Certified
• Color: White/Silver
• Advantage: Waterproof, Dustproof and Anticorrosive
• Size: 120cm/150cm or custimized
• Wattage: 40w, 60w, 80w
• CCT :3000K/3500K/4000K/4500K/5000K
• Lumens : 120-130lmw
• CRI :>83
• THD:<20%
• Beam Angle:120°
• Voltage:220-240V,50/60Hz
• Ambient -0°F to 120° F
• Lifetime:>50,000 hrs
• Functions
• Dali Dimmer
• Motion Sensor
• Emergency Battery Backup

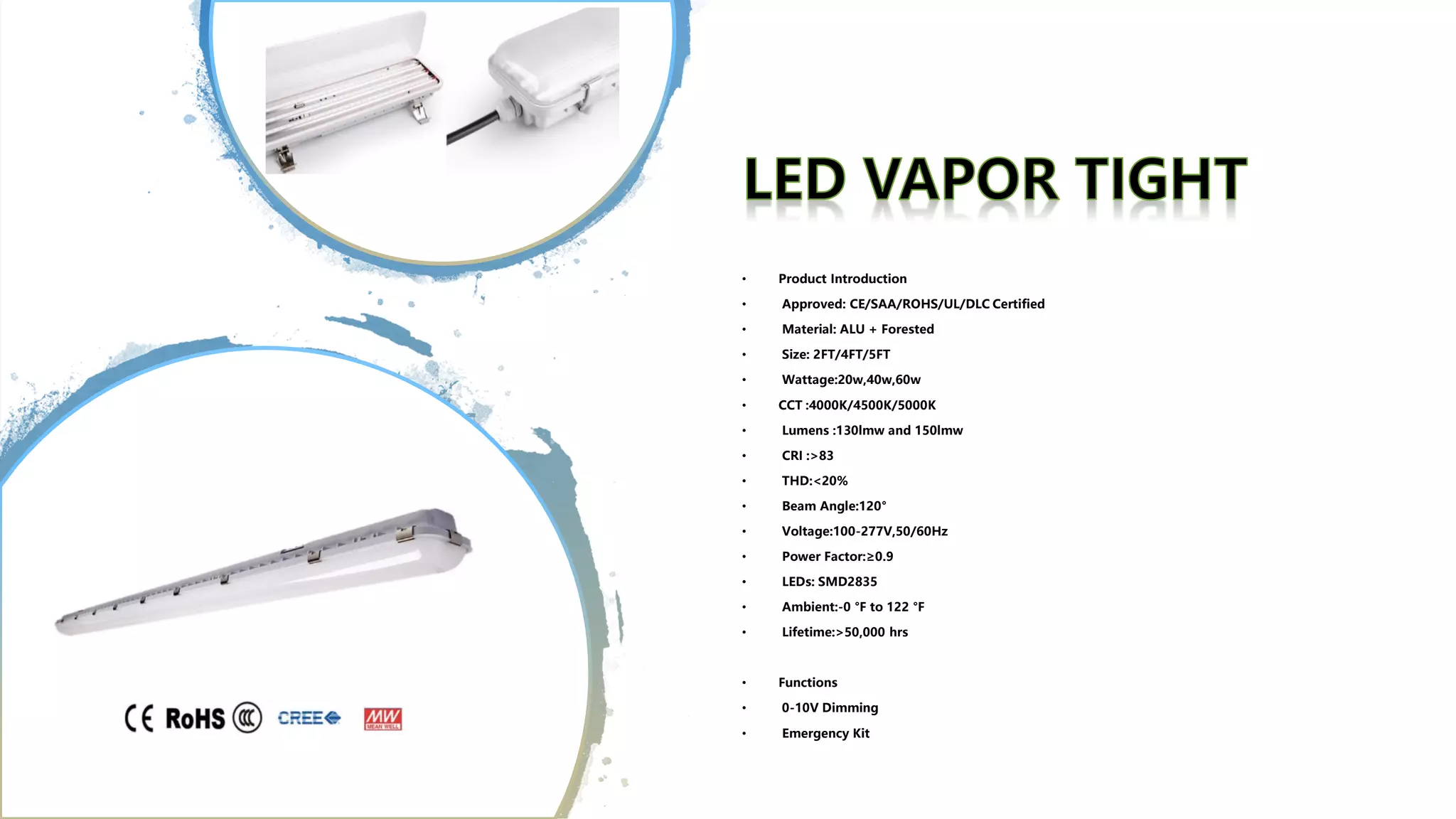

24. • Product Introduction
• Approved: CE/SAA/ROHS/UL/DLC Certified
• Material: ALU + Forested
• Size: 2FT/4FT/5FT
• Wattage:20w,40w,60w
• CCT :4000K/4500K/5000K
• Lumens :130lmw and 150lmw
• CRI :>83
• THD:<20%
• Beam Angle:120°
• Voltage:100-277V,50/60Hz
• Power Factor:≥0.9
• LEDs: SMD2835
• Ambient:-0 °F to 122 °F
• Lifetime:>50,000 hrs
• Functions
• 0-10V Dimming
• Emergency Kit

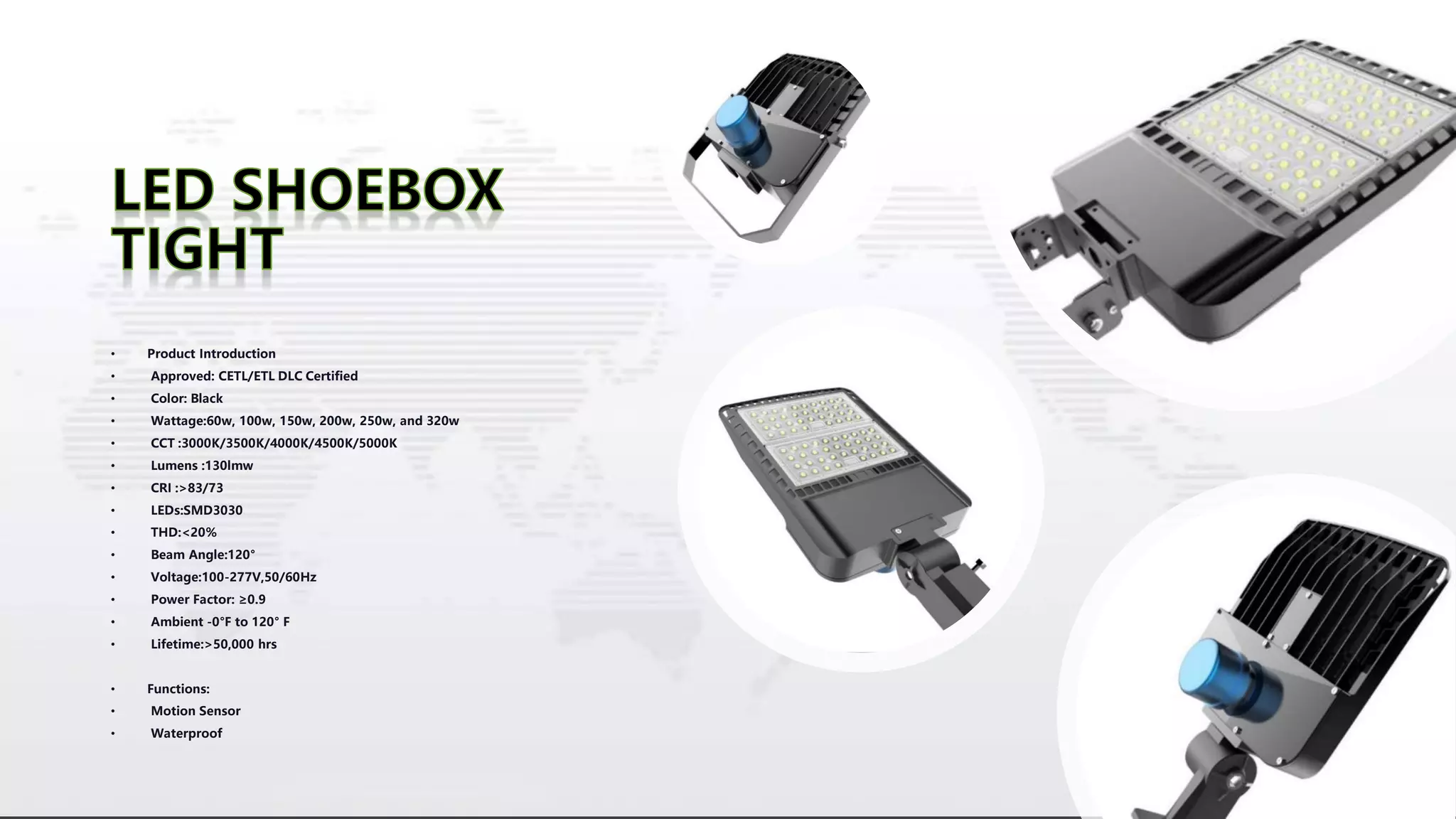

25. • Product Introduction
• Approved: CETL/ETL DLC Certified
• Color: Black
• Wattage:60w, 100w, 150w, 200w, 250w, and 320w
• CCT :3000K/3500K/4000K/4500K/5000K
• Lumens :130lmw
• CRI :>83/73
• LEDs:SMD3030
• THD:<20%
• Beam Angle:120°
• Voltage:100-277V,50/60Hz
• Power Factor: ≥0.9
• Ambient -0°F to 120° F
• Lifetime:>50,000 hrs
• Functions:
• Motion Sensor
• Waterproof

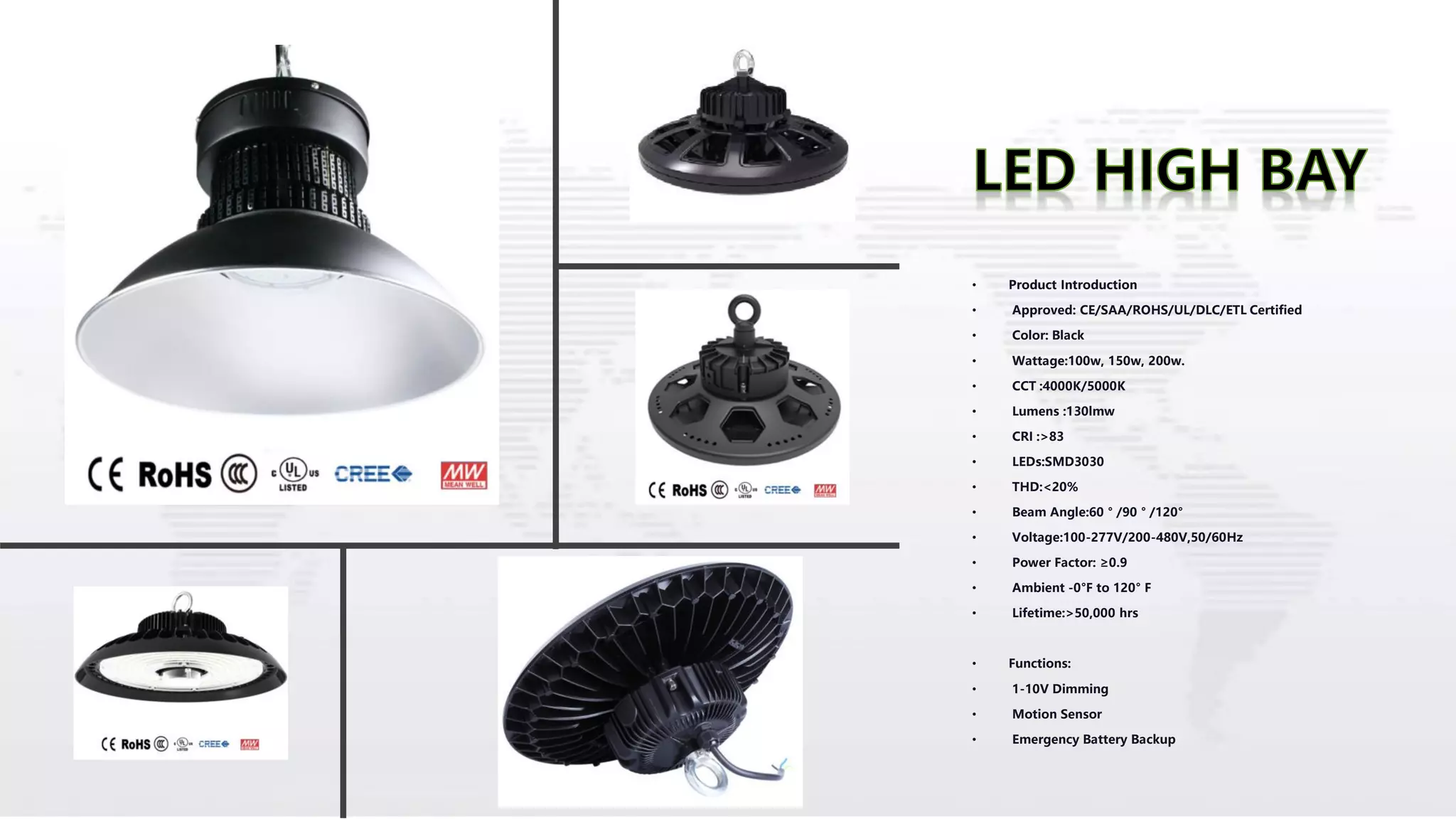

26. • Product Introduction
• Approved: CE/SAA/ROHS/UL/DLC/ETL Certified
• Color: Black
• Wattage:100w, 150w, 200w.
• CCT :4000K/5000K
• Lumens :130lmw
• CRI :>83
• LEDs:SMD3030
• THD:<20%
• Beam Angle:60 ° /90 ° /120°
• Voltage:100-277V/200-480V,50/60Hz
• Power Factor: ≥0.9
• Ambient -0°F to 120° F
• Lifetime:>50,000 hrs
• Functions:
• 1-10V Dimming
• Motion Sensor
• Emergency Battery Backup

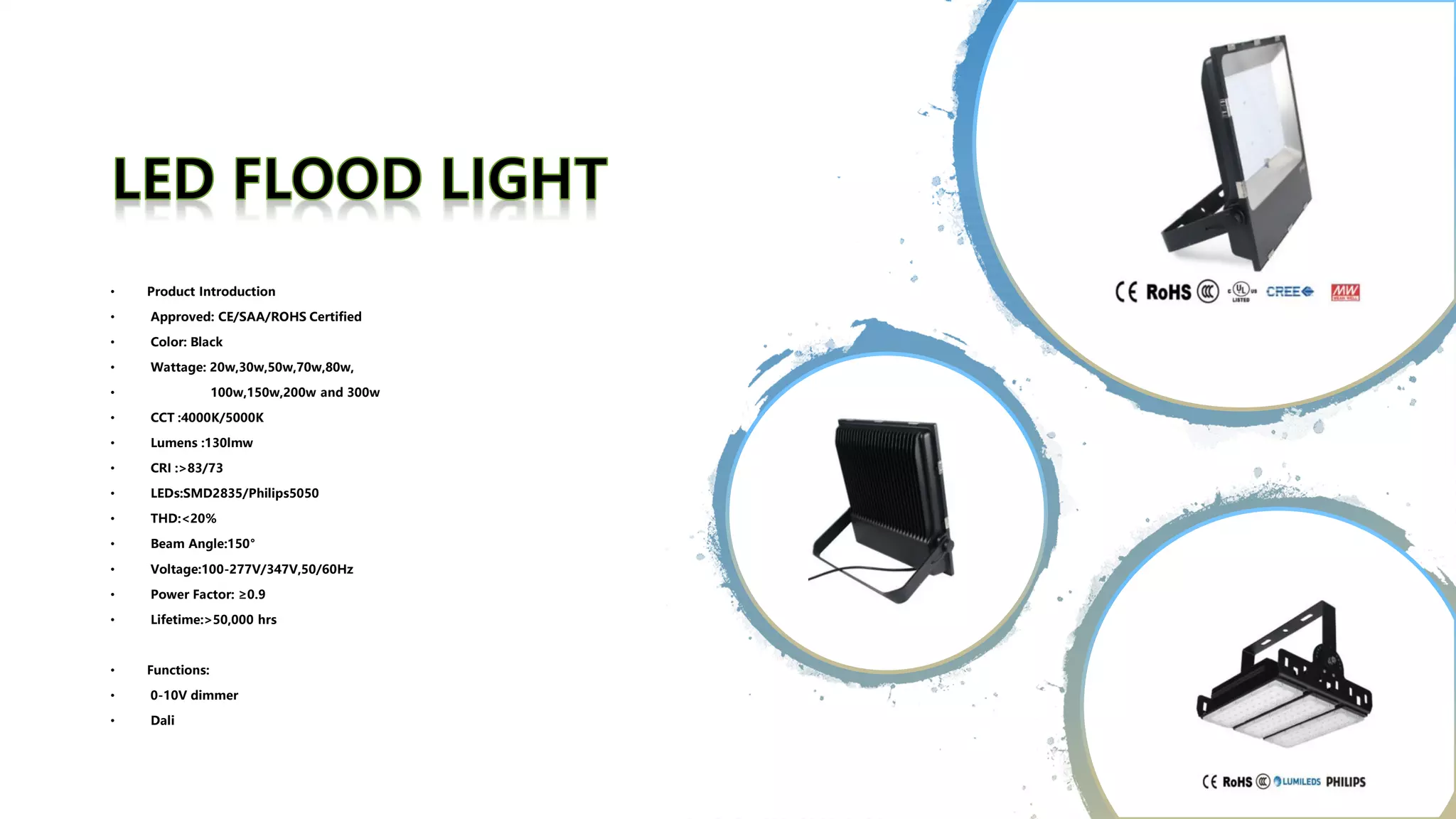

27. • Product Introduction
• Approved: CE/SAA/ROHS Certified
• Color: Black
• Wattage: 20w,30w,50w,70w,80w,
• 100w,150w,200w and 300w
• CCT :4000K/5000K
• Lumens :130lmw
• CRI :>83/73
• LEDs:SMD2835/Philips5050
• THD:<20%
• Beam Angle:150°
• Voltage:100-277V/347V,50/60Hz
• Power Factor: ≥0.9
• Lifetime:>50,000 hrs
• Functions:
• 0-10V dimmer
• Dali

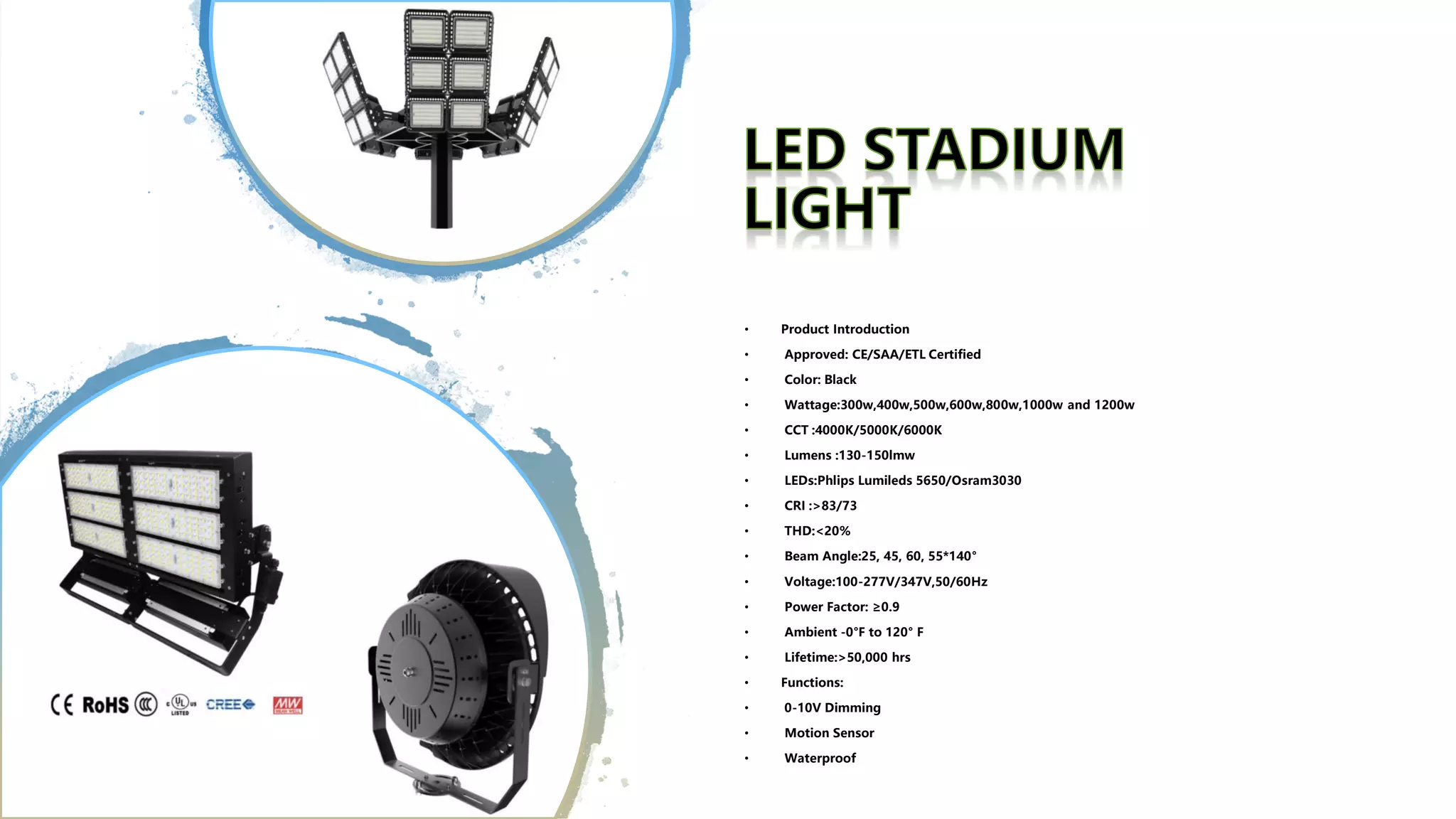

28. • Product Introduction
• Approved: CE/SAA/ETL Certified
• Color: Black
• Wattage:300w,400w,500w,600w,800w,1000w and 1200w
• CCT :4000K/5000K/6000K
• Lumens :130-150lmw
• LEDs:Phlips Lumileds 5650/Osram3030
• CRI :>83/73
• THD:<20%
• Beam Angle:25, 45, 60, 55*140°
• Voltage:100-277V/347V,50/60Hz
• Power Factor: ≥0.9
• Ambient -0°F to 120° F
• Lifetime:>50,000 hrs
• Functions:
• 0-10V Dimming
• Motion Sensor
• Waterproof

29. For
Your
Thank
You
Time
www.exteriorledlight.com
Shenzhen Weshine Lighting Technology Co.,Ltd
