IVision Lighting(IVisionTech) LED Product Catalogue 2019

Shenzhen Ivision A.M. Technology Limited, established in 2013, specializes in the R&D and manufacturing of LED lighting solutions for commercial and industrial applications, providing high-quality products and responsive technical support. The catalogue details various LED products including street lights, flood lights, high bay lights, and triproof lights, highlighting their specifications, features, and suitable applications. Ivision aims to deliver innovative lighting solutions while ensuring maximum customer satisfaction through dedicated service.

Technology◦
Download to read offline
2019 LED Lighting Catalogue
page2 WHO WE ARE?

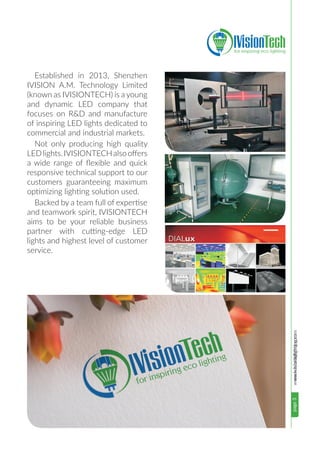

www.ivisionlighting.compage3www.ivisionlighting.com Established in 2013, Shenzhen IVISION A.M. Technology Limited (known as IVISIONTECH) is a young and dynamic LED company that focuses on R&D and manufacture of inspiring LED lights dedicated to commercial and industrial markets. Not only producing high quality LEDlights.IVISIONTECHalsooffers a wide range of flexible and quick responsive technical support to our customers guaranteeing maximum optimizing lighting solution used. Backed by a team full of expertise and teamwork spirit, IVISIONTECH aims to be your reliable business partner with cutting-edge LED lights and highest level of customer service.

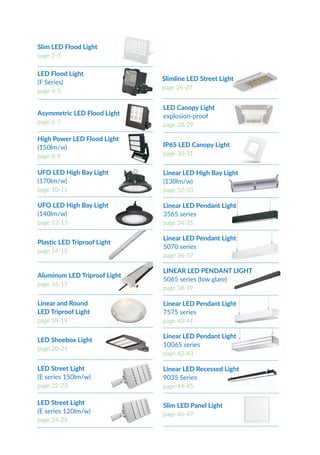

LED Street Light (E series 120lm/w) page 24-25 Slimline LED Street Light page 26-27 LED Canopy Light explosion-proof page 28-29 Linear LED Pendant Light 3565 series page 34-35 Linear LED Pendant Light 5070 series page 36-37 IP65 LED Canopy Light page 30-31 LINEAR LED PENDANT LIGHT 5065 series (low glare) page 38-39 Linear LED Pendant Light 7575 series page 40-41 Linear LED Pendant Light 10065 series page 42-43 Linear LED Recessed Light 9035 Series page 44-45 Slim LED Panel Light page 46-47 Asymmetric LED Flood Light page 6-7 High Power LED Flood Light (150lm/w) page 8-9 Slim LED Flood Light page 2-3 LED Flood Light (F Series) page 4-5 UFO LED High Bay Light (170lm/w) page 10-11 UFO LED High Bay Light (140lm/w) page 12-13 Linear LED High Bay Light (130lm/w) page 32-33 Plastic LED Triproof Light page 14-15 Aluminum LED Triproof Light page 16-17 Linear and Round LED Triproof Light page 18-19 LED Shoebox Light page 20-21 LED Street Light (E series 150lm/w) page 22-23
Slimeline LED Battern Light page 52-53 Slim Round LED Panel Light page 48-49 Slim Square LED Panel Light page 50-51 Integrated T8 LED Tube page 54-55 T8 LED Tube page 56-57 COB Downlight page 58-69 Surface Mount Round COB Downlight page 70-71 Surface Mount Square COB Downlight page 72-73 COB Track Light page 74- 85 LED Up and Down Wall Light page 86-87 CONTENTS: LED Lighting Catalogue www.ivisionlighting.com Round LED Wall Light page 88-89 RGB LED Wallwasher page 90-91 RGBW LED Wallwasher page 92-93 High Voltage LED Strip Light page 95 RGB LED Strip Light page 96 LED Emergency Light & LED Sign page 98- 101 RGBW LED Strip Light page 97 LED Track Light Accessories pagage 102- 103 LED Strip Light page 94

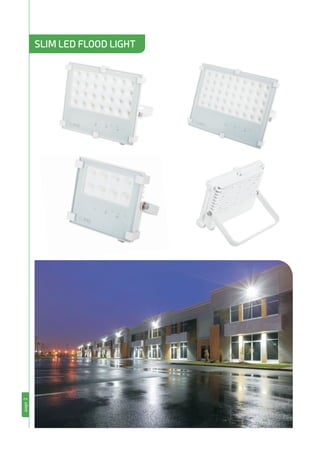

page2 SLIM LED FLOOD LIGHT

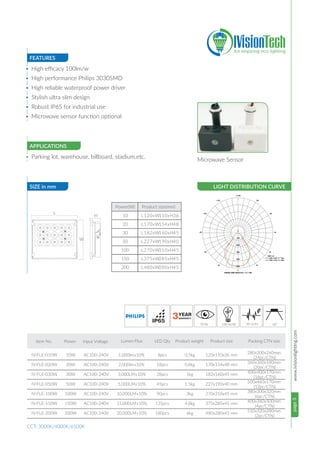

page3www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • High efficacy 100lm/w • High performance Philips 3030SMD • High reliable waterproof power driver • Stylish ultra slim design • Robust IP65 for industrial use • Microwave sensor function optional • Parking lot, warehouse, billboard, stadium,etc. CCT: 3000K/4000K/6500K Microwave Sensor

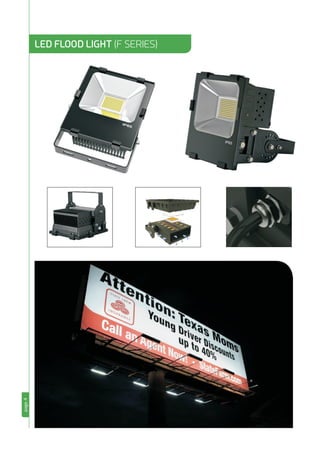

page4 LED FLOOD LIGHT (F SERIES)

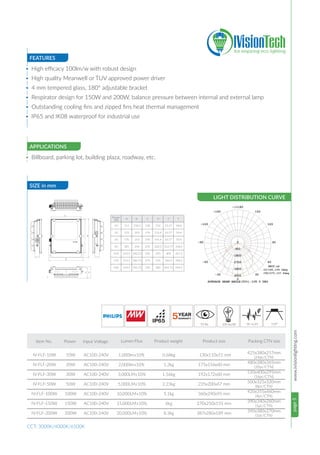

page5www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • High efficacy 100lm/w with robust design • High quality Meanwell or TUV approved power driver • 4 mm tempered glass, 180° adjustable bracket • Respirator design for 150W and 200W, balance pressure between internal and external lamp • Outstanding cooling fins and zipped fins heat thermal management • IP65 and IK08 waterproof for industrial use • Billboard, parking lot, building plaza, roadway, etc. CCT: 3000K/4000K/6500K 70 Ra 100 lm/W PF>0.95                  110° Power (W) C D 10 111 158.5 130 132 53.17 48.8 20 155 203 174 176.4 63.77 59.4 30 170 219 190 191.4 63.77 59.4 50 281 234 234 220.3 112.77 108.4 100 143.9 182.23 250 270 309 267.5 150 151.9 186.73 274 315 364.5 398.2 180 169.9 196.73 320 380 464.75 344.2 ABAB EF EF

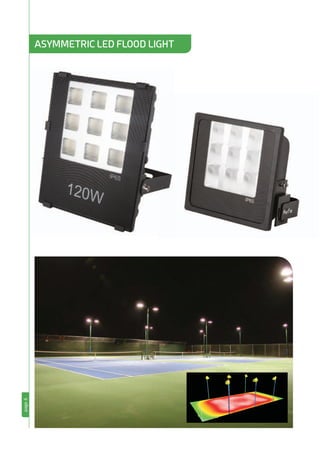

page6 ASYMMETRIC LED FLOOD LIGHT

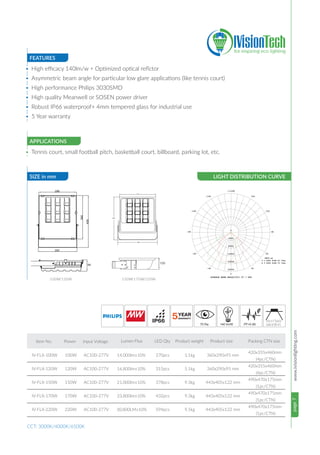

page7www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • High efficacy 140lm/w + Optimized optical reflctor • Asymmetric beam angle for particular low glare applications (like tennis court) • High performance Philips 3030SMD • High quality Meanwell or SOSEN power driver • Robust IP66 waterproof+ 4mm tempered glass for industrial use • 5 Year warranty • Tennis court, small football pitch, basketball court, billboard, parking lot, etc. 100W/120W 120 150W/170W/220W 70 Ra 140 lm/W PF>0.95 00 FB:15 x60/ 00 SW:45x 45 CCT: 3000K/4000K/6500K

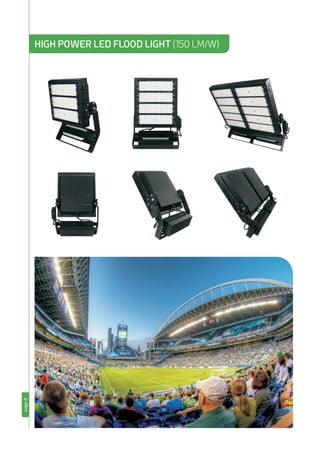

page8 HIGH POWER LED FLOOD LIGHT (150 LM/W)

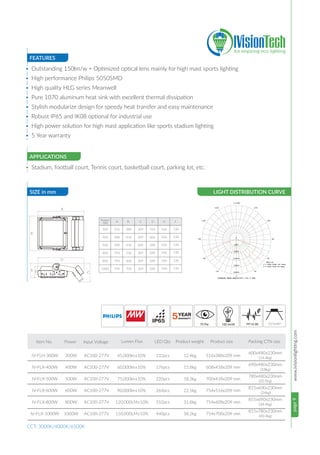

page9www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • Outstanding 150lm/w + Optimized optical lens mainly for high mast sports lighting • High performance Philips 5050SMD • High quality HLG series Meanwell • Pure 1070 aluminum heat sink with excellent thermal dissipation • Stylish modularize design for speedy heat transfer and easy maintenance • Robust IP65 and IK08 optional for industrial use • High power solution for high mast application like sports stadium lighting • 5 Year warranty • Stadium, football court, Tennis court, basketball court, parking lot, etc. 70 Ra 150 lm/W PF>0.95 55°x140° CCT: 3000K/4000K/6500K A B C D E F Power (W) 300 516 388 209 514 166 130 400 608 418 209 606 500 700 418 209 298 600 754 516 800 754 608 1000 754 700 166 130 166 130 166 130 166 130 166 130 209 298 209 298 209 298 C DABAB EF EF

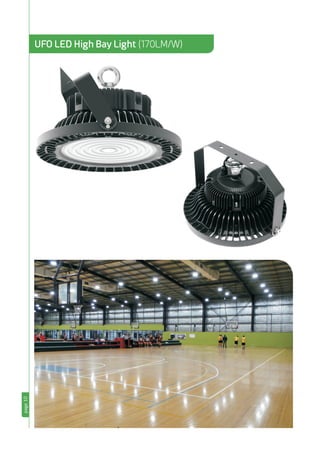

page10 UFO LED High Bay Light (170LM/W)

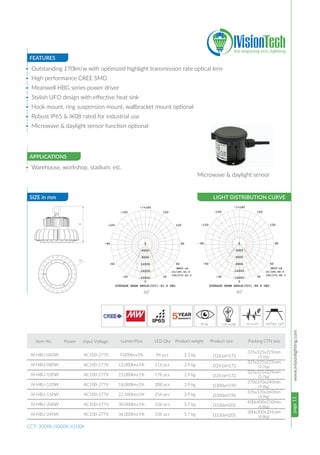

page11www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • Outstanding 170lm/w with optimized highlight transmission rate optical lens • High performance CREE SMD • Meanwell HBG series power driver • Stylish UFO design with effective heat sink • Hook mount, ring suspension mount, wallbracket mount optional • Robust IP65 & IK08 rated for industrial use • Microwave & daylight sensor function optional • Warehouse, workshop, stadium, etc. CCT: 3000K/4000K/6500K 0 60 0 90 Microwave & daylight sensor 70 Ra 150 lm/W PF>0.95 00 0                   60 /90/ 120

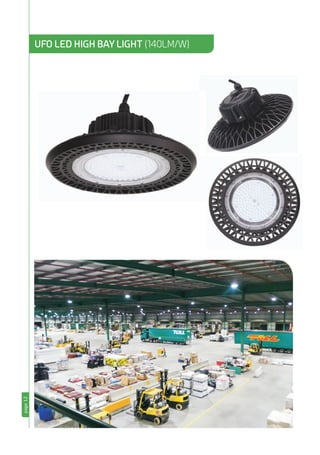

page12 UFO LED HIGH BAY LIGHT (140LM/W)

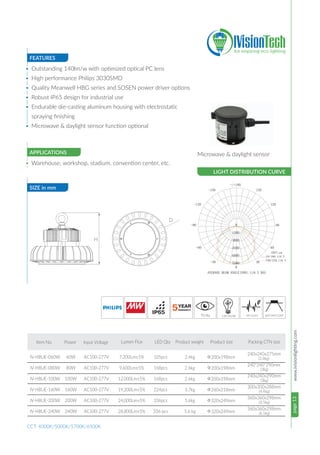

page13www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • Outstanding 140lm/w with optimized optical PC lens • High performance Philips 3030SMD • Quality Meanwell HBG series and SOSEN power driver options • Robust IP65 design for industrial use • Endurable die-casting aluminum housing with electrostatic spraying finishing • Microwave & daylight sensor function optional • Warehouse, workshop, stadium, convention center, etc. CCT: 4000K/5000K/5700K/6500K Microwave & daylight sensor PF>0.95                  70 Ra 140 lm/W 600/900/1200

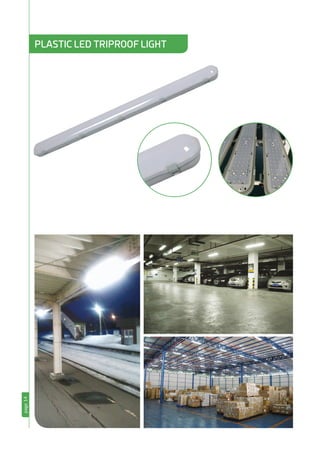

page14 PLASTIC LED TRIPROOF LIGHT

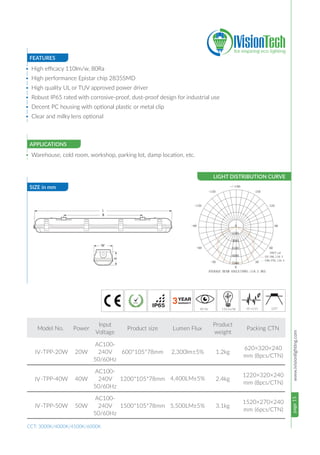

page15www.ivisionlighting.com FEATURES APPLICATIONS • High efficacy 110lm/w, 80Ra • High performance Epistar chip 2835SMD • High quality UL or TUV approved power driver • Robust IP65 rated with corrosive-proof, dust-proof design for industrial use • Decent PC housing with optional plastic or metal clip • Clear and milky lens optional • Warehouse, cold room, workshop, parking lot, damp location, etc. CCT: 3000K/4000K/4500K/6000K SIZE in mm LIGHT DISTRIBUTION CURVE 80 Ra 110 lm/W PF>0.95 120° IV IV IV

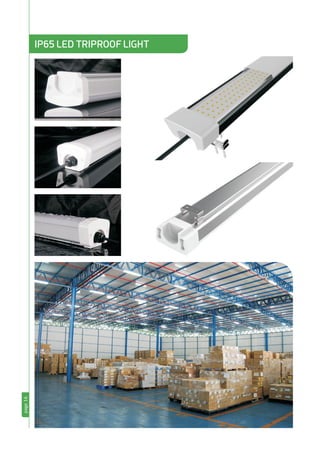

page16 IP65 LED TRIPROOF LIGHT

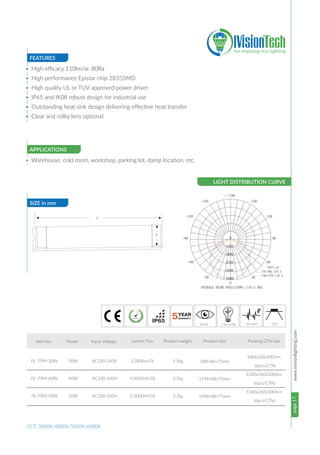

page17www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • High efficacy 110lm/w, 80Ra • High performance Epistar chip 2835SMD • High quality UL or TUV approved power driver • IP65 and IK08 robust design for industrial use • Outstanding heat sink design delivering effective heat transfer • Clear and milky lens optional • Warehouse, cold room, workshop, parking lot, damp location, etc. CCT: 3000K/4000K/5000K/6000K A B 80 Ra 110 lm/W PF>0.95 120° Item No. Power Input Voltage Lumen Flux Product weight Product size Packing CTN size 30W 40W 50W -TPM-30W -TPM-50W -TPM-40W AC100-240V AC100-240V AC100-240V 3,300lm±5% 4,400LM±5% 5,500LM±5% 1.5kg 2.5kg 3.2kg 680x260x300mm (6pcs/CTN) 1280x260x300mm (6pcs/CTN) 1580x260x300mm (6pcs/CTN)

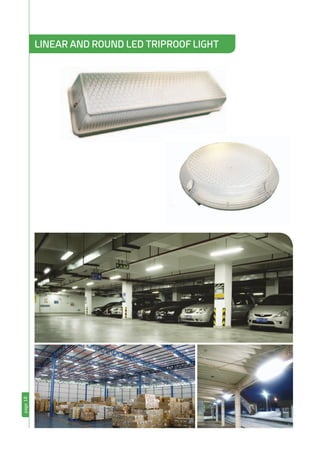

page18 LINEAR AND ROUND LED TRIPROOF LIGHT

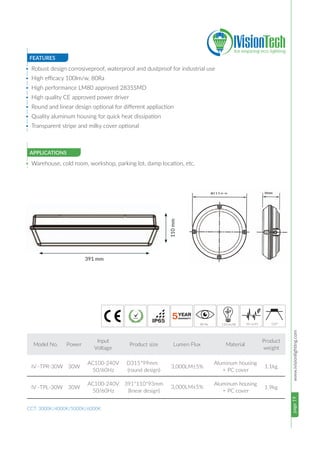

page19www.ivisionlighting.com 391 mm 110mm CCT: 3000K/4000K/5000K/6000K 80 Ra 110 lm/W PF>0.95 120° FEATURES APPLICATIONS • Robust design corrosiveproof, waterproof and dustproof for industrial use • High efficacy 100lm/w, 80Ra • High performance LM80 approved 2835SMD • High quality CE approved power driver • Round and linear design optional for different appliaction • Quality aluminum housing for quick heat dissipation • Transparent stripe and milky cover optional • Warehouse, cold room, workshop, parking lot, damp location, etc.

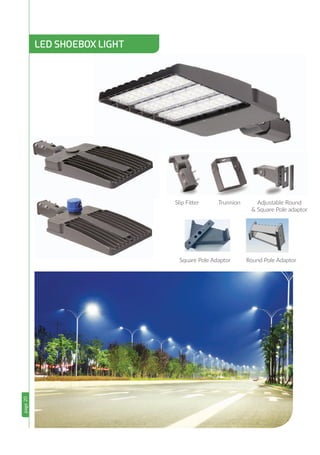

page20 Adjustable Round & Square Pole adaptor TrunnionSlip Fitter Square Pole Adaptor Round Pole Adaptor LED SHOEBOX LIGHT

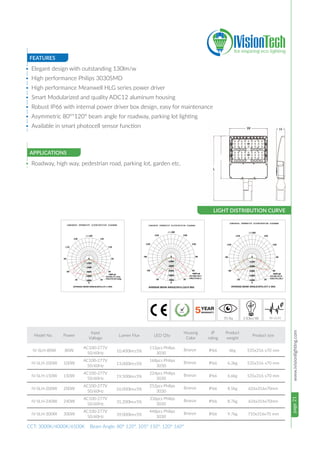

page21www.ivisionlighting.com CCT: 3000K/4000K/6500K Beam Angle: 80° 120°, 105° 150°, 120° 160° HW L FEATURES APPLICATIONS • Elegant design with outstanding 130lm/w • High performance Philips 3030SMD • High performance Meanwell HLG series power driver • Smart Modularized and quality ADC12 aluminum housing • Robust IP66 with internal power driver box design, easy for maintenance • Asymmetric 80°*120° beam angle for roadway, parking lot lighting • Available in smart photocell sensor function • Roadway, high way, pedestrian road, parking lot, garden etc. LIGHT DISTRIBUTION CURVE PF>0.9570 Ra 130lm/W

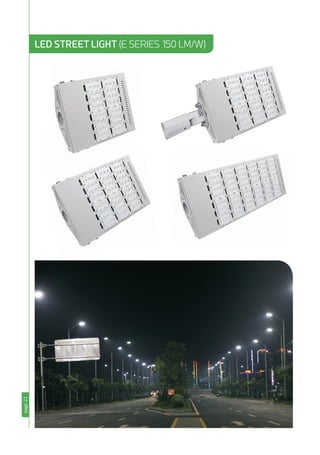

page22 LED STREET LIGHT (E SERIES 150 LM/W)

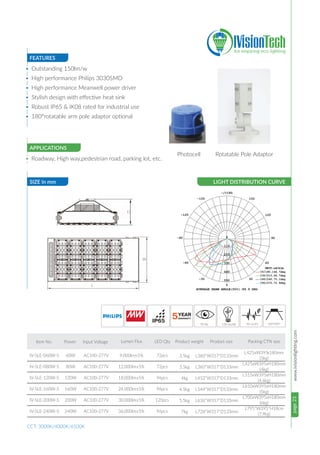

page23www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • Outstanding 150lm/w • High performance Philips 3030SMD • High performance Meanwell power driver • Stylish design with effective heat sink • Robust IP65 & IK08 rated for industrial use • 180°rotatable arm pole adaptor optional • Roadway, High way,pedestrian road, parking lot, etc. CCT: 3000K/4000K/6500K L W D 70 Ra 150 lm/W PF>0.95 Rotatable Pole Adaptor 100°x90° Photocell

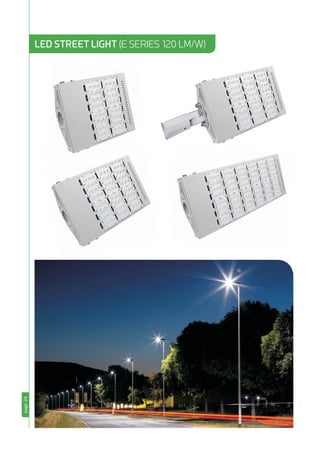

page24 LED STREET LIGHT (E SERIES 120 LM/W)

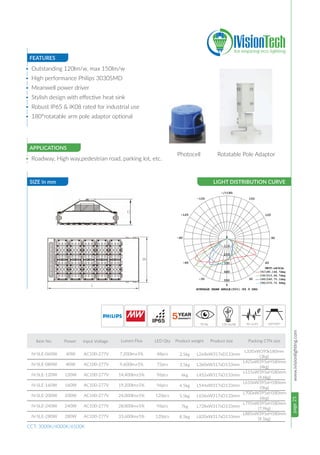

page25www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS • Outstanding 120lm/w, max 150lm/w • High performance Philips 3030SMD • Meanwell power driver • Stylish design with effective heat sink • Robust IP65 & IK08 rated for industrial use • 180°rotatable arm pole adaptor optional • Roadway, High way,pedestrian road, parking lot, etc. CCT: 3000K/4000K/6500K L W D 70 Ra 150 lm/W PF>0.95 Rotatable Pole AdaptorPhotocell 100°x90°

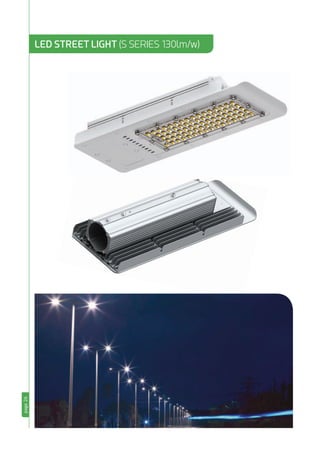

page26 LED STREET LIGHT (S SERIES 130lm/w)

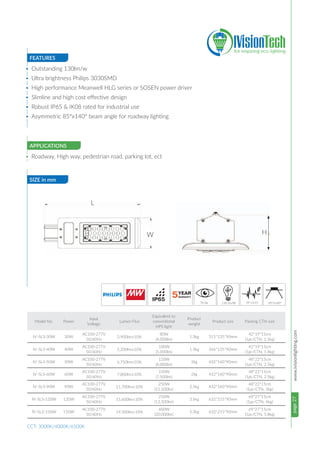

page27www.ivisionlighting.com FEATURES SIZE in mm APPLICATIONS • Outstanding 130lm/w • Ultra brightness Philips 3030SMD • High performance Meanwell HLG series or SOSEN power driver • Slimline and high cost effective design • Robust IP65 & IK08 rated for industrial use • Asymmetric 85°x140° beam angle for roadway lighting • Roadway, High way, pedestrian road, parking lot, ect CCT: 3000K/4000K/6500K 70 Ra 130 lm/W PF>0.95 85°x140° W L H

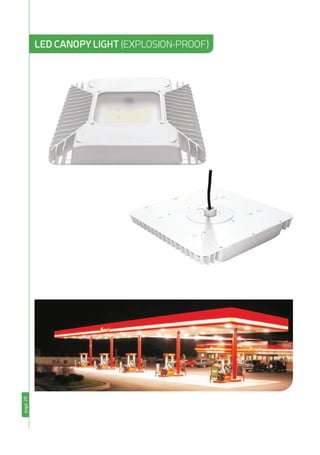

page28 LED CANOPY LIGHT (EXPLOSION-PROOF)

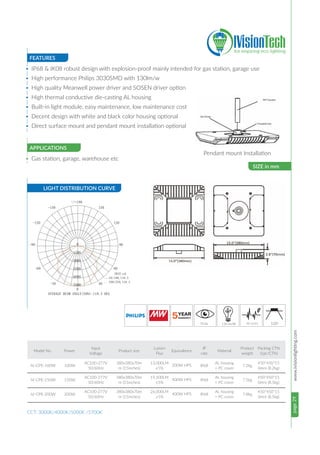

page29www.ivisionlighting.com FEATURES APPLICATIONS • IP68 & IK08 robust design with explosion-proof mainly intended for gas station, garage use • High performance Philips 3030SMD with 130lm/w • High quality Meanwell power driver and SOSEN driver option • High thermal conductive die-casting AL housing • Built-in light module, easy maintenance, low maintenance cost • Decent design with white and black color housing optional • Direct surface mount and pendant mount installation optional • Gas station, garage, warehouse etc CCT: 3000K/4000K/5000K /5700K SIZE in mm LIGHT DISTRIBUTION CURVE 70 Ra 130 lm/W PF>0.95 Pendant mount Installation

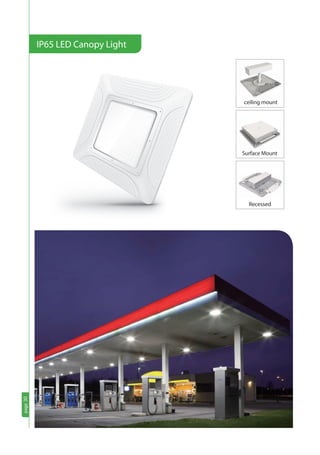

page30 IP65 LED Canopy Light page30 Surface Mount Recessed ceiling mount

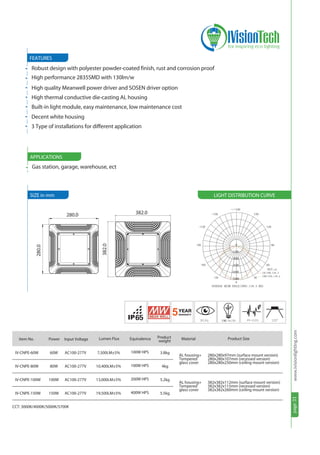

page31www.ivisionlighting.com 5 page31www.ivisionlighting.com FEATURES SIZE in mm APPLICATIONS • • • • • • 60W 80W 100W 150W AC100-277V AC100-277V AC100-277V AC100-277V 100W HPS 100W HPS 200W HPS 400W HPS CCT: 3000K/4000K/5000K/5700K Gas station, garage, warehouse, ect 382.0280.0 280.0 382.0 Item No. Power Input Voltage Lumen Flux Equivalence Product weight Material 65 Product Size Robust design with polyester powder-coated finish, rust and corrosion proof High performance 2835SMD with 130lm/w High quality Meanwell power driver and SOSEN driver option High thermal conductive die-casting AL housing Built-in light module, easy maintenance, low maintenance cost • • Decent white housing 3 Type of installations for different application IV-CNPE-60W IV-CNPE-80W IV-CNPE-100W IV-CNPE-150W 7,500LM±5% 10,400LM±5% 13,000LM±5% 19,500LM±5% 280x280x97mm (surface mount version) 280x280x107mm (recessed version) 280x280x250mm (ceiling mount version) 382x382x112mm (surface mount version) 382x382x115mm (recessed version) 382x382x260mm (ceiling mount version) 3.8kg 4kg 5.2kg 5.5kg AL housing+ Tempered glass cover AL housing+ Tempered glass cover LIGHT DISTRIBUTION CURVE 7 130

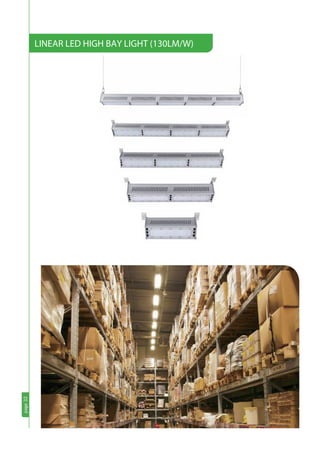

page32page30 LINEAR LED HIGH BAY LIGHT (130LM/W) page32

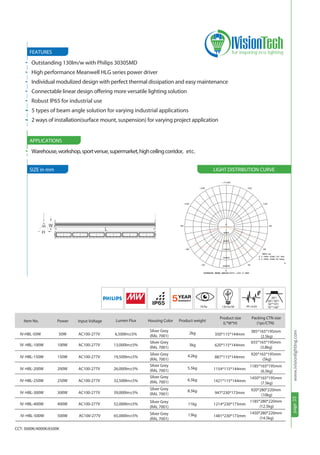

page33www.ivisionlighting.compage33www.ivisionlighting.com FEATURES SIZE in mm LIGHT DISTRIBUTION CURVE APPLICATIONS High performance Meanwell HLG series power driver Outstanding 130lm/w with Philips 3030SMD Individual modulized design with perfect thermal dissipation and easy maintenance Connectable linear design offering more versatile lighting solution Robust IP65 for industrial use 5 types of beam angle solution for varying industrial applications 2 ways of installation(surface mount, suspension) for varying project application • Warehouse,workshop,sportvenue,supermarket,highceilingcorridor, etc. L W H 70 Ra 130 lm/W PF>0.95 30°/ 60°/ 90°/ 30°*70°/ 70°*140° 50W 100W 150W 200W 250W 300W 400W AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V Silver Grey (RAL 7001) Silver Grey (RAL 7001) Silver Grey (RAL 7001) Silver Grey (RAL 7001) Silver Grey (RAL 7001) Silver Grey (RAL 7001) Silver Grey (RAL 7001) Silver Grey (RAL 7001) CCT: 3000K/4000K/6500K Item No. Power Input Voltage Lumen Flux Housing Color Product weight Product size (L*W*H) Packing CTN size (1pc/CTN) IV-HBL-50W IV-HBL-100W IV-HBL-150W IV-HBL-200W IV-HBL-250W IV-HBL-300W IV-HBL-400W 2kg 3kg 4.2kg 5.5kg 6.5kg 8.5kg 11kg 13kg 350*115*144mm 620*115*144mm 887*115*144mm 1154*115*144mm 1421*115*144mm 947*230*173mm 1214*230*173mm 6,500lm±5% 13,000lm±5% 19,500lm±5% 26,000lm±5% 32,500lm±5% 39,000lm±5% 52,000lm±5% 385*165*195mm (2.5kg) 655*165*195mm (3.8kg) 920*165*195mm (5kg) 1185*165*195mm (6.5kg) 1450*165*195mm (7.5kg) 920*280*220mm (10kg) 1185*280*220mm (12.5kg) 500W AC100-277VIV-HBL-500W 1481*230*173mm65,000lm±5% 1450*280*220mm (14.5kg) • • • • • • •

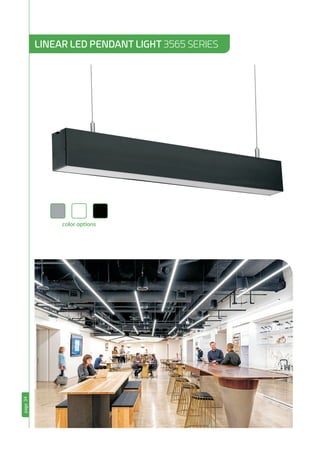

page34 color options LINEAR LED PENDANT LIGHT 3565 SERIES
page35www.ivisionlighting.com FEATURES SIZE in mm APPLICATIONS • Elegant linear lighting design • High efficacy over 100lm/w, 80Ra • High performance Epistar chip 2835SMD • High reliable UL approved flicker free power driver • Silver, white and black finishing optional • Suspension installation only • Dimming option: 0-10V • 3 year warranty • Office, meeting room, supermarket, retail store, hotel, school, etc. CCT: 3000K/4000K/6000K 80 Ra 100 lm/W PF>0.95 0 120 20 600 mm 1200 mm 1800 mm 2400 mm 0-10V dimmer

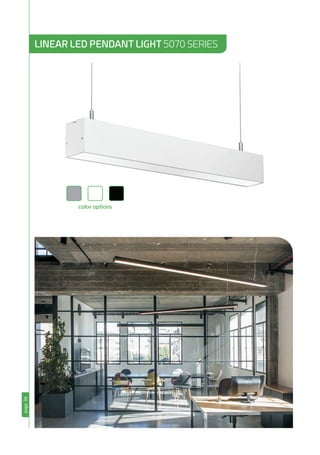

page36 LINEAR LED PENDANT LIGHT 5070 SERIES color options

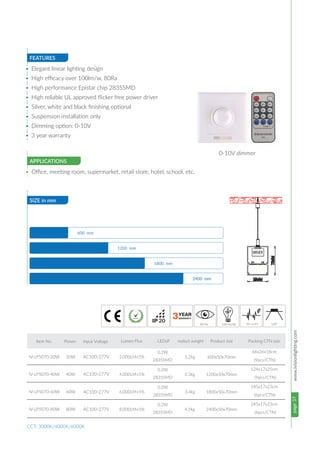

page37www.ivisionlighting.com FEATURES SIZE in mm APPLICATIONS • Elegant linear lighting design • High efficacy over 100lm/w, 80Ra • High performance Epistar chip 2835SMD • High reliable UL approved flicker free power driver • Silver, white and black finishing optional • Suspension installation only • Dimming option: 0-10V • 3 year warranty • Office, meeting room, supermarket, retail store, hotel, school, etc. CCT: 3000K/4000K/6000K 600 mm 1200 mm 1800 mm 2400 mm 80 Ra 100 lm/W PF>0.95 0 120 20 0-10V dimmer AC100-277V AC100-277V AC100-277V AC100-277V Item No. Power Input Voltage Lumen Flux LEDsP roduct weight Product size Packing CTN size 20W 40W 60W 80W 66x26x18cm (9pcs/CTN) 124x17x25cm (9pcs/CTN) 185x17x23cm (6pcs/CTN) 245x17x23cm (6pcs/CTN) IV-LP5070-20W IV-LP5070-40W IV-LP5070-60W IV-LP5070-80W 1.2kg 2.3kg 3.4kg 4.5kg 2,000LM±5% 4,000LM±5% 6,000LM±5% 8,000LM±5% 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 600x50x70mm 1200x50x70mm 1800x50x70mm 2400x50x70mm

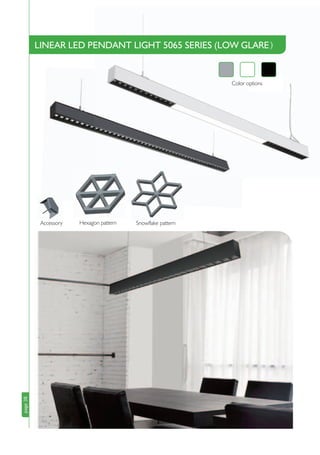

page38 LINEAR LED PENDANT LIGHT 5065 SERIES (LOW GLARE） page38 Accessory Hexagon pattern Snowflake pattern Color options

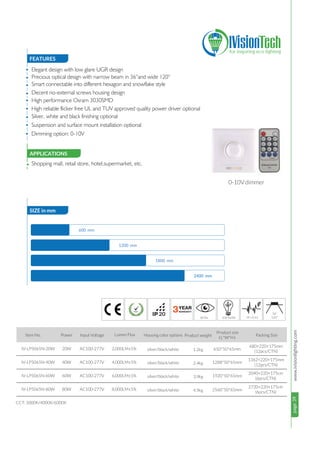

page39www.ivisionlighting.com Item No. Power Input Voltage Lumen Flux 20W 40W 60W 80W AC100-277V AC100-277V AC100-277V AC100-277V IV-LP5065N-20W IV-LP5065N-40W IV-LP5065N-60W IV-LP5065N-80W 2,000LM±5% 4,000LM±5% 6,000LM±5% 8,000LM±5% page39IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • Shopping mall, retail store, hotel,supermarket, etc. Housing color options CCT: 3000K/4000K/6000K 680×220×175mm (12pcs/CTN) 1362×220×175mm (12pcs/CTN) 2040×220×175cm (6pcs/CTN) silver/black/white silver/black/white silver/black/white 2720×220×175cm (6pcs/CTN)silver/black/white Product weight 1.2kg 2.4kg 3.9kg 4.9kg Product size （L*W*H） 650*50*65mm 1288*50*65mm 1920*50*65mm 2560*50*65mm Elegant design with low glare UGR design Precious optical design with narrow beam in 36°and wide 120° Smart connectable into different hexagon and snowflake style Decent no-external screws housing design High performance Osram 3030SMD • High reliable flicker free UL and TUV approved quality power driver optional • • Silver, white and black finishing optional Suspension and surface mount installation optional • Dimming option: 0-10V Packing Size 600 mm 1200 mm 1800 mm 2400 mm 80 Ra 100 lm/W PF>0.95 0 0 120 3620 0-10V dimmer

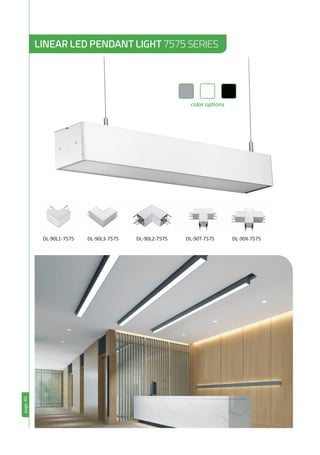

page40 LINEAR LED PENDANT LIGHT 7575 SERIES color options DL-90L1-7575 DL-90L3-7575 DL-90L2-7575 DL-90T-7575 DL-90X-7575

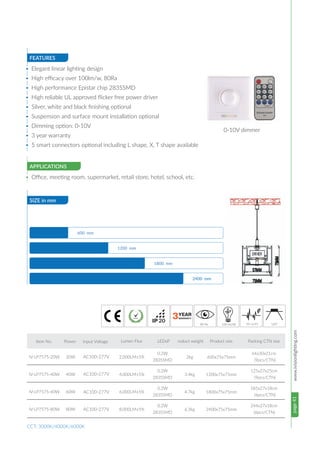

page41www.ivisionlighting.com FEATURES SIZE in mm APPLICATIONS • Elegant linear lighting design • High efficacy over 100lm/w, 80Ra • High performance Epistar chip 2835SMD • High reliable UL approved flicker free power driver • Silver, white and black finishing optional • Suspension and surface mount installation optional • Dimming option: 0-10V • 3 year warranty • 5 smart connectors optional including L shape, X, T shape available • Office, meeting room, supermarket, retail store, hotel, school, etc. CCT: 3000K/4000K/6000K 600 mm 1200 mm 1800 mm 2400 mm 80 Ra 100 lm/W PF>0.95 0 120 20 0-10V dimmer AC100-277V AC100-277V AC100-277V AC100-277V Item No. Power Input Voltage Lumen Flux LEDsP roduct weight Product size Packing CTN size 20W 40W 60W 80W 64x30x21cm (9pcs/CTN) 125x27x25cm (9pcs/CTN) 185x27x18cm (6pcs/CTN) 244x27x18cm (6pcs/CTN) IV-LP7575-20W IV-LP7575-40W IV-LP7575-60W IV-LP7575-80W 2kg 3.4kg 4.7kg 6.3kg 2,000LM±5% 4,000LM±5% 6,000LM±5% 8,000LM±5% 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 600x75x75mm 1200x75x75mm 1800x75x75mm 2400x75x75mm

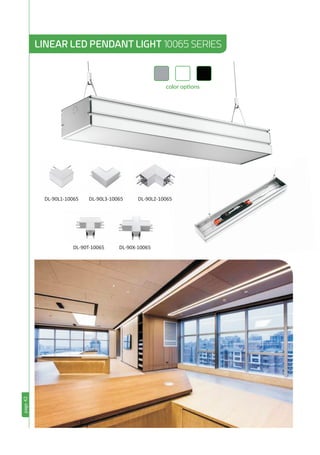

page42 LINEAR LED PENDANT LIGHT 10065 SERIES color options DL-90L1-10065 DL-90L3-10065 DL-90L2-10065 DL-90T-10065 DL-90X-10065

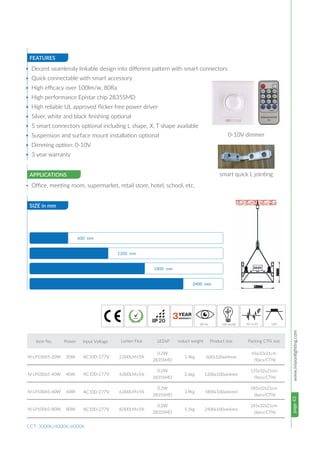

page43www.ivisionlighting.com • Decent seamlessly linkable design into different pattern with smart connectors • Quick connectable with smart accessory • High efficacy over 100lm/w, 80Ra • High performance Epistar chip 2835SMD • High reliable UL approved flicker free power driver • Silver, white and black finishing optional • 5 smart connectors optional including L shape, X, T shape available • Suspension and surface mount installation optional • Dimming option: 0-10V • 3 year warranty FEATURES SIZE in mm APPLICATIONS • Office, meeting room, supermarket, retail store, hotel, school, etc. CCT: 3000K/4000K/6000K 600 mm 1200 mm 1800 mm 2400 mm 80 Ra 100 lm/W PF>0.95 0 120 20 0-10V dimmer smart quick L jointing AC100-277V AC100-277V AC100-277V AC100-277V Item No. Power Input Voltage Lumen Flux LEDsP roduct weight Product size Packing CTN size 20W 40W 60W 80W 65x32x21cm (9pcs/CTN) 125x32x21cm (9pcs/CTN) 185x32x21cm (6pcs/CTN) 245x32x21cm (6pcs/CTN) IV-LP10065-20W IV-LP10065-40W IV-LP10065-60W IV-LP10065-80W 1.4kg 2.6kg 3.9kg 5.1kg 2,000LM±5% 4,000LM±5% 6,000LM±5% 8,000LM±5% 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 600x100x64mm 1200x100x64mm 1800x100x64mm 2400x100x64mm

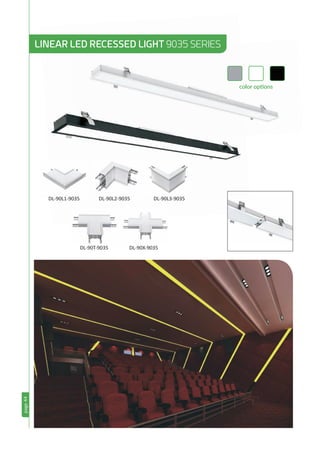

page44 LINEAR LED RECESSED LIGHT 9035 SERIES color options DL-90L1-9035 DL-90L2-9035 DL-90L3-9035 DL-90T-9035 DL-90X-9035

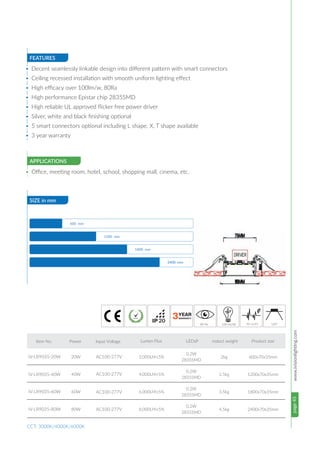

page45www.ivisionlighting.com FEATURES SIZE in mm APPLICATIONS • Decent seamlessly linkable design into different pattern with smart connectors • Ceiling recessed installation with smooth uniform lighting effect • High efficacy over 100lm/w, 80Ra • High performance Epistar chip 2835SMD • High reliable UL approved flicker free power driver • Silver, white and black finishing optional • 5 smart connectors optional including L shape, X, T shape available • 3 year warranty • Office, meeting room, hotel, school, shopping mall, cinema, etc. CCT: 3000K/4000K/6000K 600 mm 1200 mm 1800 mm 2400 mm 80 Ra 100 lm/W PF>0.95 0 120 20 Item No. Power Input Voltage Lumen Flux LEDsP roduct weight Product size 20W 40W 60W 80W 2kg 2.5kg 3.5kg 4.5kg 2,000LM±5% 4,000LM±5% 6,000LM±5% 8,000LM±5% 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 0.2W 2835SMD 600x70x35mm 1200x70x35mm 1800x70x35mm 2400x70x35mm IV-LR9035-20W IV-LR9035-40W IV-LR9035-60W IV-LR9035-80W AC100-277V AC100-277V AC100-277V AC100-277V

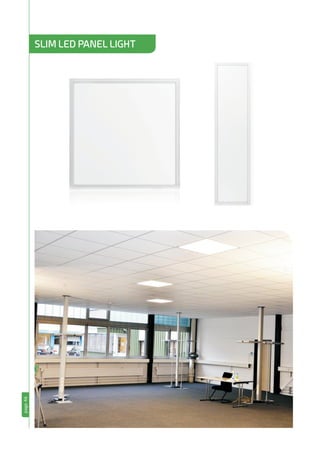

page46 SLIM LED PANEL LIGHT

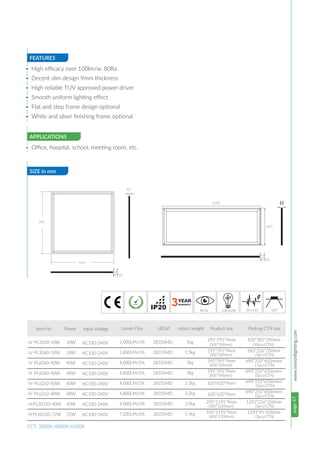

page47www.ivisionlighting.com FEATURES SIZE in mm APPLICATIONS • High efficacy over 100lm/w, 80Ra • Decent slim design 9mm thickness • High reliable TUV approved power driver • Smooth uniform lighting effect • Flat and step frame design optional • White and silver finishing frame optional • Office, hospital, school, meeting room, etc. CCT: 3000K/4000K/6500K 9 10 595 10 595 9 10 1195 295 Item No. Power Input Voltage Lumen Flux LEDsP roduct weight Product size Packing CTN size 10W 18W 40W 48W 40W 48W 40W 72W 420*385*390mm 683*226*350mm 690*210*650mmm 690*210*650mmm 690*210*650mmm 690*210*650mmm 1293*226*350mm 1293*95*650mm -PL3030-10W -PL3060-18W -PL6060-40W -PL6060-48W -PL6262-40W -PL6262-48W -PL30120-40W -PL60120-72W 1kg 1.5kg 3kg 3kg 3.2kg 3.2kg 3.5kg 5.5kg 1,000LM±5% 1,800LM±5% 4,000LM±5% 4,800LM±5% 4,000LM±5% 4,800LM±5% 4,000LM±5% 7,200LM±5% 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 295*295*9mm 295*595*9mm 595*595*9mm 595*595*9mm 620*620*9mm 620*620*9mm 295*1195*9mm 595*1195*9mm (10pcs/CTN) (5pcs/CTN) ( 5pcs/CTN) (5pcs/CTN) (5pcs/CTN) (5pcs/CTN) (5pcs/CTN) (2pcs/CTN) (300*300mm) (300*600mm) (600*600mm) (600*600mm) (300*1200mm) (600*1200mm) AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V

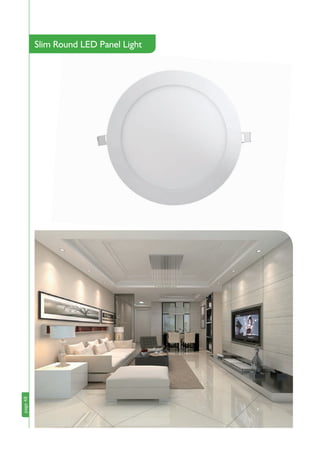

page48 Slim Round LED Panel Light page48

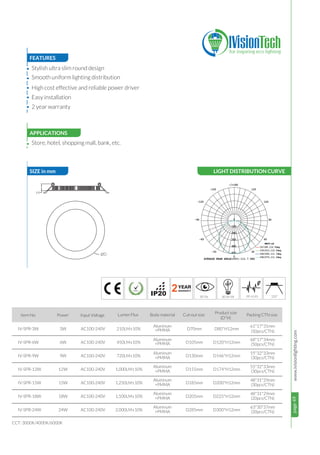

page49www.ivisionlighting.com 2 page49IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • 3W 6W 9W 12W 15W 18W 24W AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA CCT: 3000K/4000K/6000K Store, hotel, shopping mall, bank, etc. H øD Item No. Power Input Voltage Lumen Flux Body material Cut-out size Product size (D*H) Packing CTN size Stylish ultra slim round design Smooth uniform lighting distribution High cost effective and reliable power driver Easy installation 2 year warranty IV-SPR-3W IV-SPR-6W IV-SPR-9W IV-SPR-12W IV-SPR-15W IV-SPR-18W IV-SPR-24W 210LM±10% 450LM±10% 720LM±10% 1,000LM±10% 1,250LM±10% 1,500LM±10% 2,000LM±10% 61*17*31mm (50pcs/CTN) 68*17*34mm (50pcs/CTN) 55*32*33mm (30pcs/CTN) 55*32*33mm (30pcs/CTN) 48*31*29mm (30pcs/CTN) 48*31*29mm (20pcs/CTN) 63*30*37mm (20pcs/CTN) D70mm D105mm D130mm D155mm D185mm D205mm D285mm D80*H12mm D120*H12mm D146*H12mm D174*H12mm D200*H12mm D225*H12mm D300*H12mm LIGHT DISTRIBUTION CURVE 0 30 60 90 120 150 -/+180 -150 -120 -90 -60 -30 UNIT:cd C0/180,112.0deg UNIT:cd C30/210,112.0deg UNIT:cd C60/240,111.7deg UNIT:cd C90/270,111.3deg AVERAGE BEAM ANGLE(50%):111.7 DEG 0 120 240 360 480 600

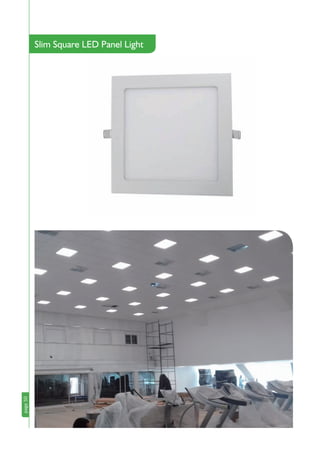

page50 Slim Square LED Panel Light page50

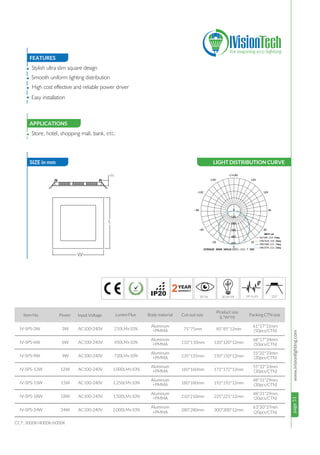

page51www.ivisionlighting.com 2 H page51IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • Store, hotel, shopping mall, bank, etc. Easy installation 3W 6W 9W 12W 15W 18W 24W AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA Aluminum +PMMA CCT: 3000K/4000K/6000K Item No. Power Input Voltage Lumen Flux Body material Cut-out size Product size (L*W*H) Packing CTN size Stylish ultra slim square design Smooth uniform lighting distribution High cost effective and reliable power driver IV-SPS-3W IV-SPS-6W IV-SPS-9W IV-SPS-12W IV-SPS-15W IV-SPS-18W IV-SPS-24W 75*75mm 110*110mm 135*135mm 160*160mm 180*180mm 210*210mm 280*280mm 85*85*12mm 120*120*12mm 150*150*12mm 172*172*12mm 192*192*12mm 225*225*12mm 300*300*12mm 210LM±10% 450LM±10% 720LM±10% 1,000LM±10% 1,250LM±10% 1,500LM±10% 2,000LM±10% 61*17*31mm (50pcs/CTN) 68*17*34mm (50pcs/CTN) 55*32*33mm (30pcs/CTN) 55*32*33mm (30pcs/CTN) 48*31*29mm (30pcs/CTN) 48*31*29mm (20pcs/CTN) 63*30*37mm (20pcs/CTN) L W LIGHT DISTRIBUTION CURVE 0 30 60 90 120 150 -/+180 -150 -120 -90 -60 -30 UNIT:cd C0/180,112.0deg UNIT:cd C30/210,112.0deg UNIT:cd C60/240,111.7deg UNIT:cd C90/270,111.3deg AVERAGE BEAM ANGLE(50%):111.7 DEG 0 120 240 360 480 600

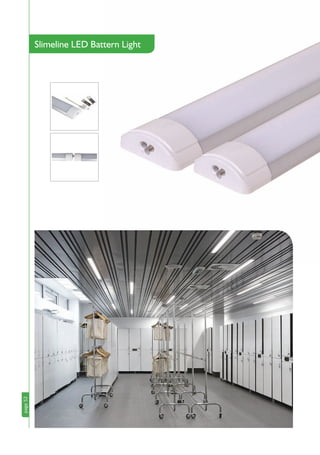

page52 Slimeline LED Battern Light page52

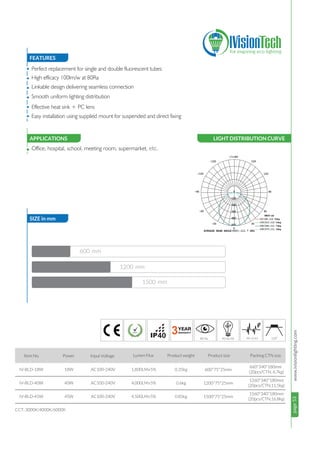

page53www.ivisionlighting.compage53IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • Office, hospital, school, meeting room, supermarket, etc. Item No. Power Input Voltage Lumen Flux Product weight Product size Packing CTN size 18W 40W 45W AC100-240V AC100-240V AC100-240V 660*340*180mm (20pcs/CTN, 6.7kg) 1260*340*180mm (20pcs/CTN,11.5kg) 1560*340*180mm (20pcs/CTN,16.8kg) CCT: 3000K/4000K/6000K IV-BLD-18W IV-BLD-40W IV-BLD-45W 1,800LM±5% 4,000LM±5% 4,500LM±5% 600*75*25mm 1200*75*25mm 1500*75*25mm 0.35kg 0.6kg 0.85kg Perfect replacement for single and double fluorescent tubes High efficacy 100lm/w at 80Ra Linkable design delivering seamless connection Smooth uniform lighting distribution Effective heat sink + PC lens Easy installation using supplied mount for suspended and direct fixing 600 mm 1200 mm 1500 mm LIGHT DISTRIBUTION CURVE 0 30 60 90 120 150 -/+180 -150 -120 -90 -60 -30 UNIT:cd C0/180,112.0deg UNIT:cd C30/210,112.0deg UNIT:cd C60/240,111.7deg UNIT:cd C90/270,111.3deg AVERAGE BEAM ANGLE(50%):111.7 DEG 0 120 240 360 480 600 40

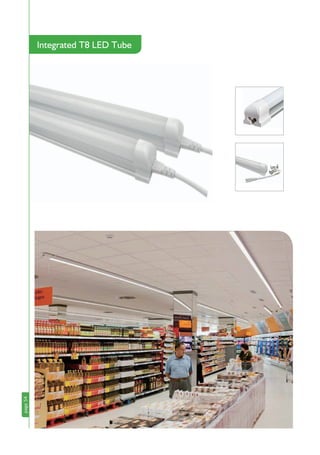

page54 Integrated T8 LED Tube page54

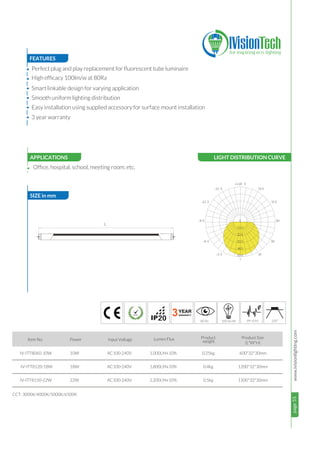

page55www.ivisionlighting.com 3 page55IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • 10W 18W 22W AC100-240V AC100-240V AC100-240V CCT: 3000K/4000K/5000K/6500K Office, hospital, school, meeting room, etc. Item No. Power Input Voltage Lumen Flux Product weight 20 Product Size (L*W*H) Perfect plug and play replacement for fluorescent tube luminaire High efficacy 100lm/w at 80Ra Smart linkable design for varying application Smooth uniform lighting distribution Easy installation using supplied accessory for surface mount installation • 3 year warranty IV-ITT8060-10W IV-ITT8120-18W IV-ITT8150-22W 1,000LM±10% 1,800LM±10% 2,200LM±10% 0.25kg 600*32*30mm 1200*32*30mm 1500*32*30mm 0.4kg 0.5kg LIGHT DISTRIBUTION CURVE 8 100 L 0 30 60 90 12 0 15 0 -/+18 0 -15 0 -12 0 -9 0 -6 0 -3 0 0 11 0 22 0 33 0 44 0 55 0

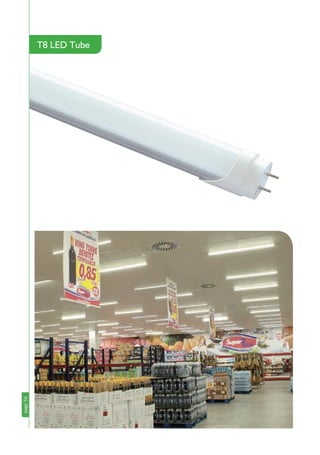

page56 T8 LED Tube page56

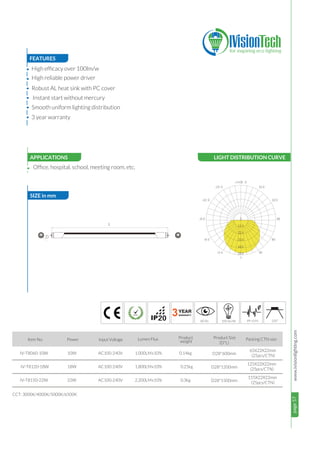

page57www.ivisionlighting.com 3 page57IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • 10W 18W 22W AC100-240V AC100-240V AC100-240V CCT: 3000K/4000K/5000K/6500K Office, hospital, school, meeting room, etc. Item No. Power Input Voltage Lumen Flux Product weight 20 Product Size (D*L) High efficacy over 100lm/w High reliable power driver Robust AL heat sink with PC cover Instant start without mercury Smooth uniform lighting distribution • 3 year warranty IV-T8060-10W IV-T8120-18W IV-T8150-22W 1,000LM±10% 1,800LM±10% 2,200LM±10% 0.14kg D28*600mm D28*1200mm D28*1500mm Packing CTN size 65X22X22mm (25pcs/CTN) 125X22X22mm (25pcs/CTN) 155X22X22mm (25pcs/CTN) 0.25kg 0.3kg LIGHT DISTRIBUTION CURVE 8 100 L D 0 30 60 90 12 0 15 0 -/+18 0 -15 0 -12 0 -9 0 -6 0 -3 0 0 11 0 22 0 33 0 44 0 55 0

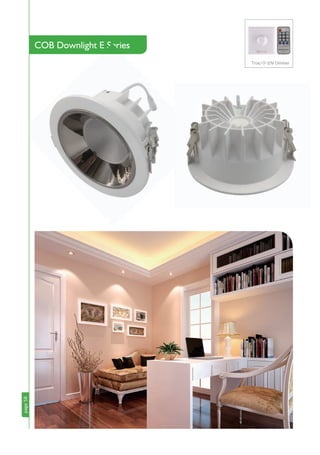

page58 COB Downlight E Series page58 COB Downlight E Series Triac/ 0-10V Dimmer

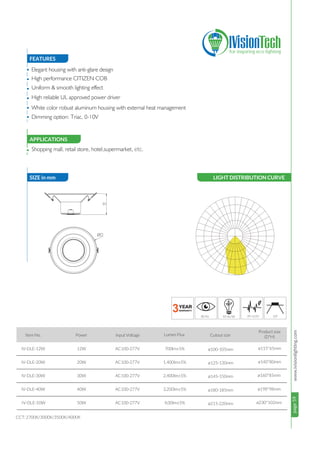

page59www.ivisionlighting.com Item No. Power Input Voltage Lumen Flux 12W 20W 30W 40W AC100-277V AC100-277V AC100-277V AC100-277V IV-DLE-12W IV-DLE-20W IV-DLE-30W IV-DLE-40W 700lm±5% 1,400lm±5% 2,400lm±5% 3,200lm±5% 50W AC100-277VIV-DLE-50W 4,00lm±5% page59IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • Shopping mall, retail store, hotel,supermarket, etc. Cutout size 50° CCT: 2700K/3000K/3500K/4000K ø115*65mm ø140*80mm ø160*85mm ø100-105mm ø125-130mm ø145-150mm ø198*98mm ø230*102mm ø180-185mm ø215-220mm Elegant housing with anti-glare design High performance CITIZEN COB Uniform & smooth lighting effect High reliable UL approved power driver White color robust aluminum housing with external heat management Dimming option: Triac, 0-10V H øD LIGHT DISTRIBUTION CURVE Product size (D*H)

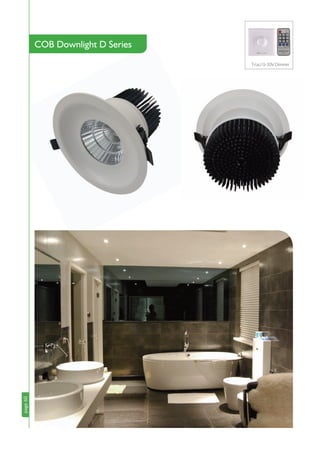

page60 COB Downlight D Series page60 Triac/ 0-10V Dimmer

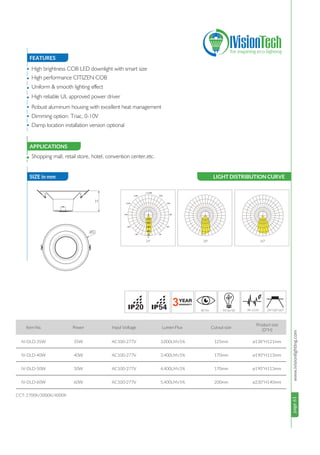

page61www.ivisionlighting.compage61IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • • Shopping mall, retail store, hotel, convention center,etc. Item No. Power Input Voltage Lumen Flux Cutout size Product size (D*H) 24°/38°/60° 35W 40W 50W 60W AC100-277V AC100-277V AC100-277V AC100-277V CCT: 2700K/3000K/4000K IV-DLD-35W IV-DLD-40W IV-DLD-50W IV-DLD-60W 3,000LM±5% 3,400LM±5% 4,400LM±5% 5,400LM±5% ø138*H121mm ø190*H113mm ø190*H113mm ø230*H140mm 125mm 170mm 170mm 200mm High brightness COB LED downlight with smart size High performance CITIZEN COB Uniform & smooth lighting effect High reliable UL approved power driver Robust aluminum housing with excellent heat management Dimming option: Triac, 0-10V Damp location installation version optional 5420 H øD LIGHT DISTRIBUTION CURVE 24° 38° 60°

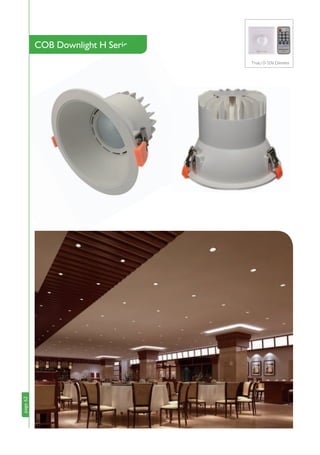

page62 COB Downlight H Series page62 COB Downlight H Series Triac/ 0-10V Dimmer

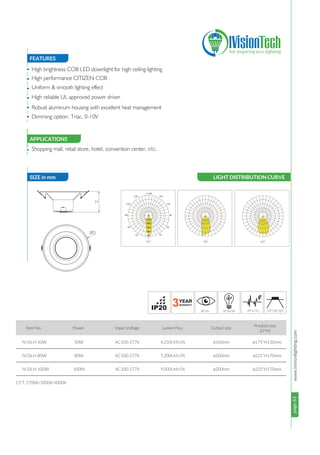

page63www.ivisionlighting.compage63IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • Shopping mall, retail store, hotel, convention center, etc. Item No. Power Input Voltage Lumen Flux Cutout size 24°/38°/60° 50W 80W 100W AC100-277V AC100-277V AC100-277V CCT: 2700K/3000K/4000K IV-DLH-50W IV-DLH-80W IV-DLH-100W 4,250LM±5% 7,200LM±5% 9,000LM±5% ø175*H130mm ø225*H170mm ø225*H170mm ø160mm ø200mm ø200mm High brightness COB LED downlight for high ceiling lighting High performance CITIZEN COB Uniform & smooth lighting effect High reliable UL approved power driver Robust aluminum housing with excellent heat management Dimming option: Triac, 0-10V H øD LIGHT DISTRIBUTION CURVE 24° 38° 60° Product size (D*H)

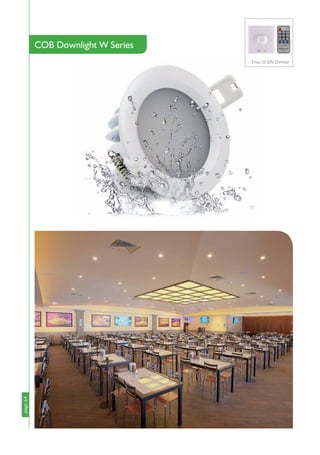

page64 COB Downlight W Series page64 Triac/ 0-10V Dimmer

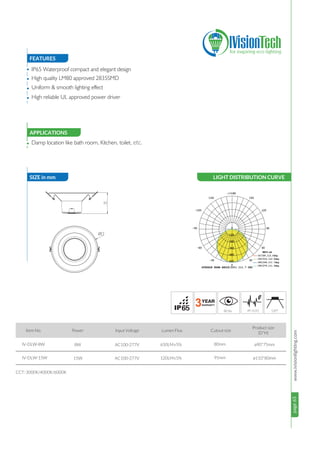

page65www.ivisionlighting.com Item No. Power Input Voltage Lumen Flux Cutout size 8W 15W AC100-277V AC100-277V CCT: 3000K/4000K/6000K IV-DLW-8W IV-DLW-15W 650LM±5% 120LM±5% ø90*75mm ø110*80mm 80mm 95mm 65 page65IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • Damp location like bath room, Kitchen, toilet, etc. 120° IP65 Waterproof compact and elegant design High quality LM80 approved 2835SMD Uniform & smooth lighting effect High reliable UL approved power driver H øD LIGHT DISTRIBUTION CURVE 0 30 60 90 120 150 -/+180 -150 -120 -90 -60 -30 UNIT:cd C0/180,112.0deg UNIT:cd C30/210,112.0deg UNIT:cd C60/240,111.7deg UNIT:cd C90/270,111.3deg AVERAGE BEAM ANGLE(50%):111.7 DEG 0 120 240 360 480 600 Product size (D*H)

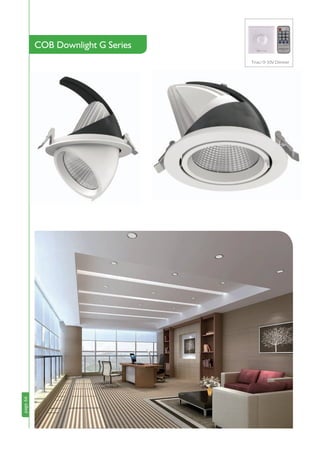

page66 COB Downlight G Series page66 Triac/ 0-10V Dimmer

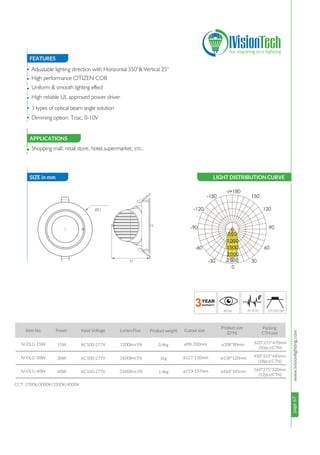

page67www.ivisionlighting.com Item No. Power Input Voltage Lumen Flux Cutout size 15W 30W AC100-277V AC100-277V CCT: 2700K/3000K/3500K/4000K IV-DLG-15W IV-DLG-30W 1200lm±5% 2600lm±5% ø108*80mm ø138*120mm ø98-100mm ø127-130mm 40W AC100-277VIV-DLG-40W 3,600lm±5% Product weight 0.4kg 1kg 1.4kg ø164*145mmø153-157mm page67IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • Shopping mall, retail store, hotel,supermarket, etc. 15°/24°/38° Adjustable lighting direction with Horizontal 350°& Vertical 25° High performance CITIZEN COB Uniform & smooth lighting effect High reliable UL approved power driver 3 types of optical beam angle solution Dimming option: Triac, 0-10V H øD LIGHT DISTRIBUTION CURVE Product size (D*H) 620*255*470mm (50pcs/CTN) 490*325*440mm (18pcs/CTN) 560*375*320mm (12pcs/CTN) Packing CTN size 500 1000 1500 2000 2500

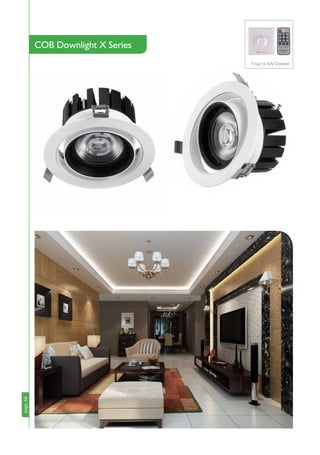

page68 COB Downlight X Series page68 Triac/ 0-10V Dimmer

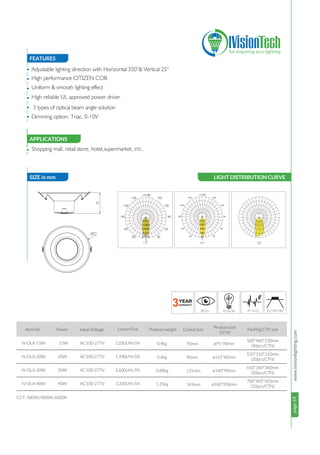

page69www.ivisionlighting.com Item No. Power Input Voltage Lumen Flux Product weight Product size (D*H) Packing CTN size 15W 20W 30W 40W AC100-277V AC100-277V AC100-277V AC100-277V 500*480*230mm (40pcs/CTN) 550*310*310mm (20pcs/CTN) 650*360*360mm (20pcs/CTN) 700*405*405mm (20pcs/CTN) IV-DLX-15W IV-DLX-20W IV-DLX-30W IV-DLX-40W 1,050LM±5% 1,700LM±5% 2,600LM±5% 3,300LM±5% 0.6kg 0.4kg 0.88kg 1.25kg page69IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • Shopping mall, retail store, hotel,supermarket, etc. Cutout size 15°/24°/38° CCT: 3000K/4000K/6000K ø95*90mm ø115*82mm ø140*90mm 70mm 90mm 125mm ø160*958mm145mm Adjustable lighting direction with Horizontal 350°& Vertical 25° High performance CITIZEN COB Uniform & smooth lighting effect High reliable UL approved power driver 3 types of optical beam angle solution Dimming option: Triac, 0-10V H øD LIGHT DISTRIBUTION CURVE 24° 38°15° 500 1000 1500 2000 2500

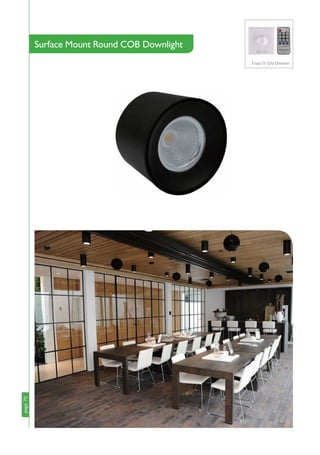

page70 Surface Mount Round COB Downlight page70 Triac/ 0-10V Dimmer

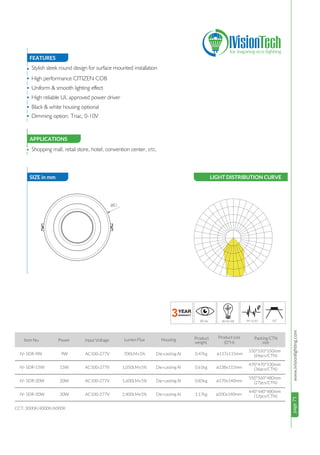

page71www.ivisionlighting.compage71IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • 9W 15W 20W 30W 700LM±5% 1,050LM±5% 1,600LM±5% 2,400LM±5% 550*550*550mm (64pcs/CTN) 470*470*530mm (36pcs/CTN) 550*560*480mm (27pcs/CTN) 440*440*480mm (12pcs/CTN) Shopping mall, retail store, hotel, convention center, etc. CCT: 3000K/4000K/6000K Item No. Power Input Voltage Lumen Flux Product weight IV- SDR-9W IV- SDR-15W IV- SDR-20W IV- SDR-30W AC100-277V AC100-277V AC100-277V AC100-277V Die-casting Al Die-casting Al Die-casting Al Die-casting Al Packing CTN size Housing Stylish sleek round design for surface mounted installation High performance CITIZEN COB Uniform & smooth lighting effect High reliable UL approved power driver Black & white housing optional SIZE in mm APPLICATIONS Dimming option: Triac, 0-10V 0.47kg 0.61kg 0.85kg 1.17kg ø117x115mm ø138x115mm ø170x140mm ø200x140mm LIGHT DISTRIBUTION CURVE Product size (D*H) øD

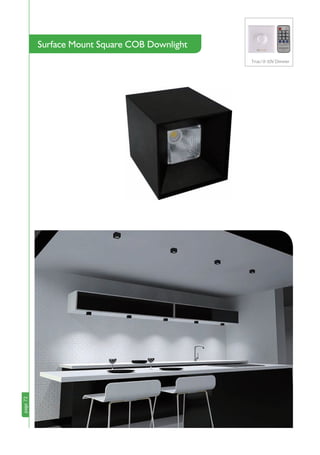

page72page72 Surface Mount Square COB Downlight Triac/ 0-10V Dimmer

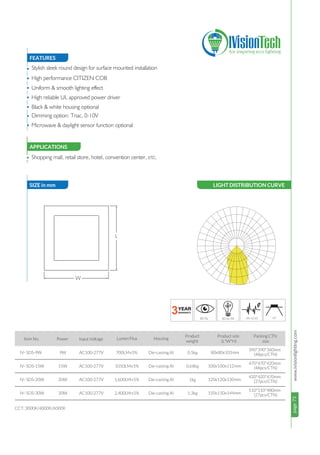

page73www.ivisionlighting.compage73IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • • SIZE in mm APPLICATIONS Shopping mall, retail store, hotel, convention center, etc. Stylish sleek round design for surface mounted installation High performance CITIZEN COB Uniform & smooth lighting effect High reliable UL approved power driver Black & white housing optional Dimming option: Triac, 0-10V Microwave & daylight sensor function optional 50° 9W 15W 20W 30W 700LM±5% 1050LM±5% 1,600LM±5% 2,400LM±5% CCT: 3000K/4000K/6000K Item No. Power Input Voltage Lumen Flux Product weight Product size (L*W*H) IV- SDS-9W IV- SDS-15W IV- SDS-20W IV- SDS-30W AC100-277V AC100-277V AC100-277V AC100-277V Die-casting Al Die-casting Al Die-casting Al Die-casting Al Packing CTN size Housing 0.5kg 0.68kg 1kg 1.3kg 80x80x103mm 100x100x112mm 120x120x130mm 150x150x144mm 390*390*360mm (48pcs/CTN) 470*470*420mm (48pcs/CTN) 420*420*470mm (27pcs/CTN) 510*510*480mm (27pcs/CTN) LIGHT DISTRIBUTION CURVE L W

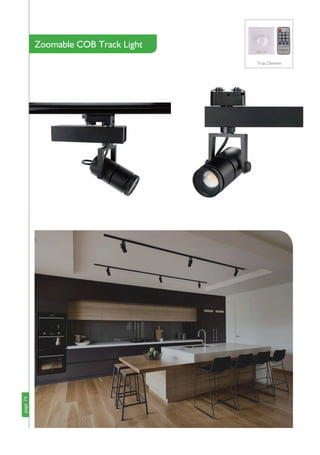

page74 Zoomable COB Track Light page74 Triac Dimmer

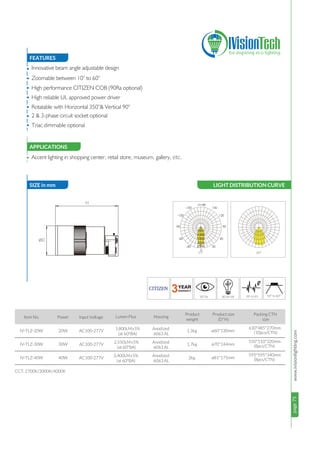

page75www.ivisionlighting.com10° to 60° page75IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • • • SIZE in mm APPLICATIONS 20W 30W 40W 1,800LM±5% (at 60°BA) 2,550LM±5% (at 60°BA) 3,400LM±5% (at 60°BA) Accent lighting in shopping center, retail store, museum, gallery, etc. CCT: 2700K/3000K/4000K Item No. Power Input Voltage Lumen Flux Product weight Product size (D*H) IV-TLZ-20W IV-TLZ-30W IV-TLZ-40W AC100-277V AC100-277V AC100-277V Anodized 6063 AL Anodized 6063 AL Anodized 6063 AL Packing CTN size Housing Innovative beam angle adjustable design Zoomable between 10° to 60° High performance CITIZEN COB (90Ra optional) High reliable UL approved power driver Rotatable with Horizontal 350°& Vertical 90° 2 & 3-phase circuit socket optional Triac dimmable optional 1.3kg 1.7kg 2kg ø60*130mm ø70*144mm ø81*175mm 630*485*270mm (10pcs/CTN) 550*510*320mm (8pcs/CTN) 595*595*340mm (8pcs/CTN) H øD LIGHT DISTRIBUTION CURVE 15° 500 1000 1500 2000 2500 60°

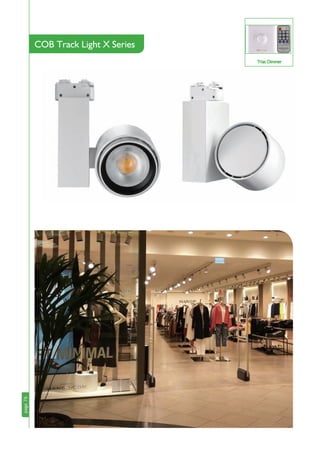

page76 COB Track Light X Series page76

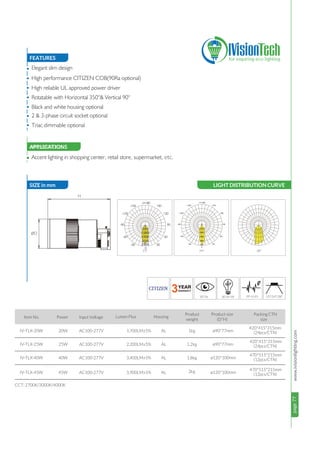

page77www.ivisionlighting.compage77IVisionLighting FEATURES APPLICATIONS • • • • • • • • APPLICATIONS 20W 25W 40W 1,700LM±5% 2,200LM±5% 3,400LM±5% Accent lighting in shopping center, retail store, supermarket, etc. CCT: 2700K/3000K/4000K Item No. Power Input Voltage Lumen Flux Product weight IV-TLX-20W IV-TLX-25W IV-TLX-40W AC100-277V AC100-277V AC100-277V Packing CTN size Housing Elegant slim design High performance CITIZEN COB(90Ra optional) High reliable UL approved power driver Rotatable with Horizontal 350°& Vertical 90° Black and white housing optional 2 & 3-phase circuit socket optional Triac dimmable optional 1kg 1.2kg 1.8kg 2kg ø90*77mm ø90*77mm ø120*100mm 420*415*315mm (24pcs/CTN) 420*415*315mm (24pcs/CTN) 470*515*215mm (12pcs/CTN) 45W 3,900LM±5%IV-TLX-45W AC100-277V AL AL AL AL ø120*100mm 470*515*215mm (12pcs/CTN) 13°/24°/38° SIZE in mmSIZE in mm H øD LIGHT DISTRIBUTION CURVE 24° 38°15° 500 1000 1500 2000 2500 Product size (D*H)

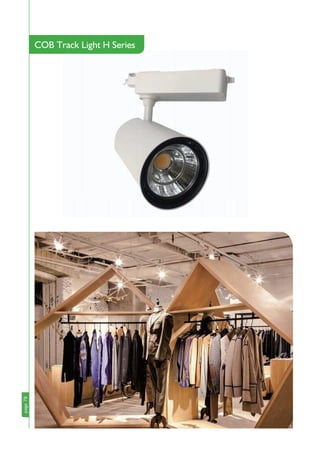

page78 COB Track Light H Series page78

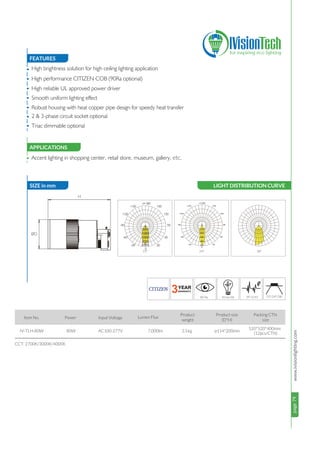

page79www.ivisionlighting.com13°/24°/38° page79IVisionLighting FEATURES APPLICATIONS • • • • • • • • APPLICATIONS 80W 7,000lm Accent lighting in shopping center, retail store, museum, gallery, etc. CCT: 2700K/3000K/4000K Item No. Power Input Voltage Lumen Flux Product weight IV-TLH-80W AC100-277V Packing CTN size High brightness solution for high ceiling lighting application High performance CITIZEN COB (90Ra optional) High reliable UL approved power driver Smooth uniform lighting effect Robust housing with heat copper pipe design for speedy heat transfer 2 & 3-phase circuit socket optional Triac dimmable optional 2.5kg ø114*200mm 520*520*400mm (12pcs/CTN) SIZE in mmSIZE in mm H øD LIGHT DISTRIBUTION CURVE 24° 38°15° 500 1000 1500 2000 2500 Product size (D*H)

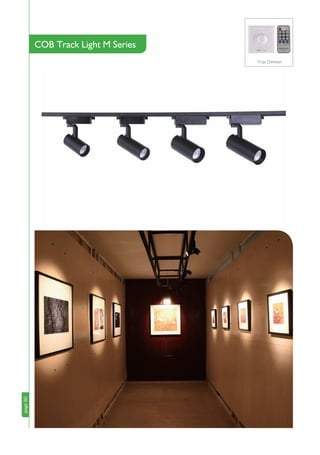

page80 COB Track Light M Series page80 Triac Dimmer

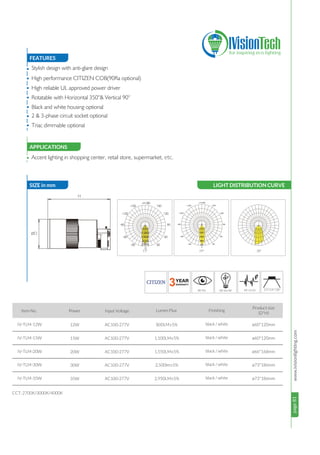

page81www.ivisionlighting.compage81IVisionLighting FEATURES APPLICATIONS • • • • • • • • APPLICATIONS Accent lighting in shopping center, retail store, supermarket, etc. Stylish design with anti-glare design High performance CITIZEN COB(90Ra optional) High reliable UL approved power driver Rotatable with Horizontal 350°& Vertical 90° Black and white housing optional 2 & 3-phase circuit socket optional Triac dimmable optional 13°/24°/38° 12W 15W 20W 800LM±5% 1,100LM±5% 1,550LM±5% CCT: 2700K/3000K/4000K Item No. Power Input Voltage Lumen Flux IV-TLM-12W IV-TLM-15W IV-TLM-20W AC100-277V AC100-277V AC100-277V black / white black / white black / white Finishing ø60*120mm ø60*120mm ø66*168mm 30W 35W 2,500lm±5% 2,950LM±5% IV-TLM-30W IV-TLM-35W AC100-277V AC100-277V black / white black / white ø73*186mm ø73*186mm SIZE in mmSIZE in mm H øD LIGHT DISTRIBUTION CURVE 24° 38°15° 500 1000 1500 2000 2500 Product size (D*H)

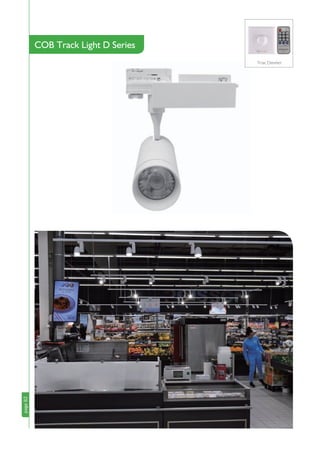

page82 COB Track Light D Series page82 Triac Dimmer

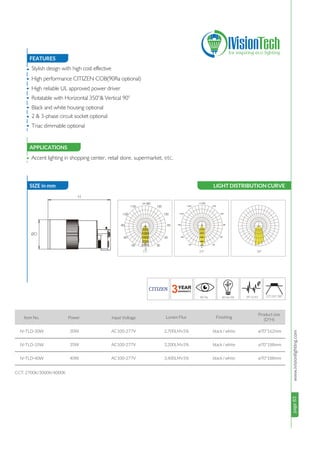

page83www.ivisionlighting.com13°/24°/38° page83IVisionLighting FEATURES APPLICATIONS • • • • • • • • APPLICATIONS 30W 35W 40W 2,700LM±5% 3,200LM±5% 3,400LM±5% Accent lighting in shopping center, retail store, supermarket, etc. CCT: 2700K/3000K/4000K Item No. Power Input Voltage Lumen Flux IV-TLD-30W IV-TLD-35W IV-TLD-40W AC100-277V AC100-277V AC100-277V Finishing Stylish design with high cost effective High performance CITIZEN COB(90Ra optional) High reliable UL approved power driver Rotatable with Horizontal 350°& Vertical 90° Black and white housing optional 2 & 3-phase circuit socket optional Triac dimmable optional ø70*162mm ø70*188mm ø70*188mm black / white black / white black / white SIZE in mmSIZE in mm H øD LIGHT DISTRIBUTION CURVE 24° 38°15° 500 1000 1500 2000 2500 Product size (D*H)
page84 COB Track Light E Series page84 COB Track Light E Series Triac Dimmer

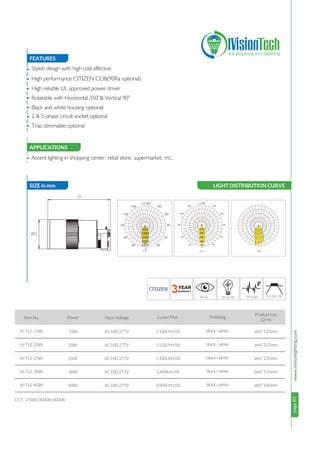

page85www.ivisionlighting.com13°/24°/38° page85IVisionLighting FEATURES APPLICATIONS • • • • • • • • APPLICATIONS 15W 20W 25W 1,100LM±5% 1,550LM±5% 1,900LM±5% Accent lighting in shopping center, retail store, supermarket, etc. CCT: 2700K/3000K/4000K Item No. Power Input Voltage Lumen Flux IV-TLE-15W IV-TLE-20W IV-TLE-25W AC100-277V AC100-277V AC100-277V black / white black / white black / white Finishing Stylish design with high cost effective High performance CITIZEN COB(90Ra optional) High reliable UL approved power driver Rotatable with Horizontal 350°& Vertical 90° Black and white housing optional 2 & 3-phase circuit socket optional Triac dimmable optional ø66*125mm ø66*125mm ø66*125mm 30W 40W 2,400lm±5% 3,500LM±5% IV-TLE-30W IV-TLE-40W AC100-277V AC100-277V black / white black / white ø66*155mm ø85*140mm SIZE in mmSIZE in mm H øD LIGHT DISTRIBUTION CURVE 24° 38°15° 500 1000 1500 2000 2500 Product size (D*H)

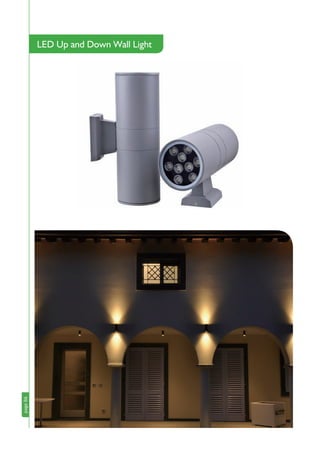

page86 LED Up and Down Wall Light page86

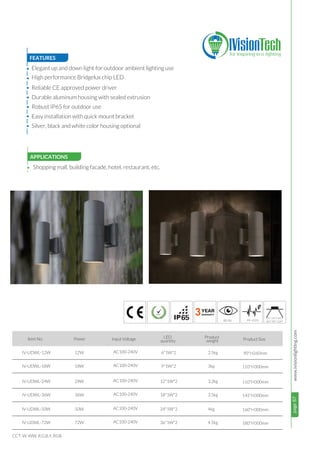

page87www.ivisionlighting.com 3 page87IVisionLighting FEATURES APPLICATIONS • • • • • • • 12W AC100-240V CCT: W, WW, R,G,B,Y, RGB Shopping mall, building facade, hotel, restaurant, etc. Item No. Power Input Voltage Product weight 65 Product Size Elegant up and down light for outdoor ambient lighting use High performance Bridgelux chip LED Reliable CE approved power driver Durable aluminum housing with sealed extrusion Robust IP65 for outdoor use Easy installation with quick mount bracket Silver, black and white color housing optional• IV-UDWL-12W 2.5kg 90*H260mm LED quantity 18W AC100-240VIV-UDWL-18W 3kg 110*H300mm 24W AC100-240VIV-UDWL-24W 3.2kg 110*H300mm 36W AC100-240VIV-UDWL-36W 3.5kg 145*H300mm 50W AC100-240VIV-UDWL-50W 4kg 160*H300mm 72W AC100-240VIV-UDWL-72W 6*1W*2 9*1W*2 12*1W*2 18*1W*2 24*1W*2 36*1W*2 4.5kg 180*H300mm 8 15° /25°/ 45°/ 60°/ 90° /120°

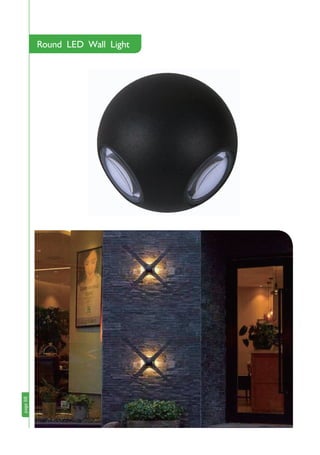

page88 Round LED Wall Light page88

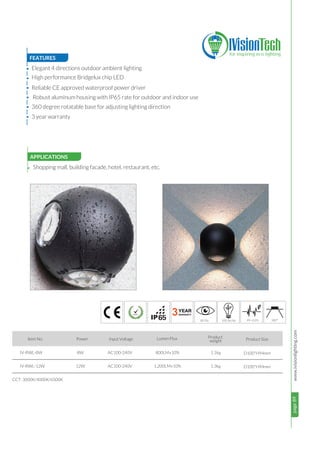

page89www.ivisionlighting.com 3 page89IVisionLighting FEATURES APPLICATIONS • • • • • • 8W 12W AC100-240V AC100-240V CCT: 3000K/4000K/6500K Shopping mall, building facade, hotel, restaurant, etc. Item No. Power Input Voltage Lumen Flux Product weight 65 Product Size Elegant 4 directions outdoor ambient lighting High performance Bridgelux chip LED Reliable CE approved waterproof power driver Robust aluminum housing with IP65 rate for outdoor and indoor use 360 degree rotatable base for adjusting lighting direction • 3 year warranty IV-RWL-8W IV-RWL-12W 800LM±10% 1,200LM±10% 1.1kg D100*H94mm D100*H94mm1.3kg 8 100 360°

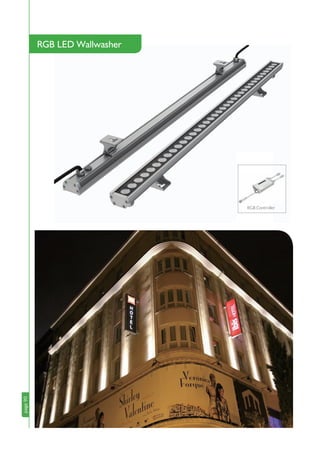

page90 RGB LED Wallwasher page90 RGB Controller

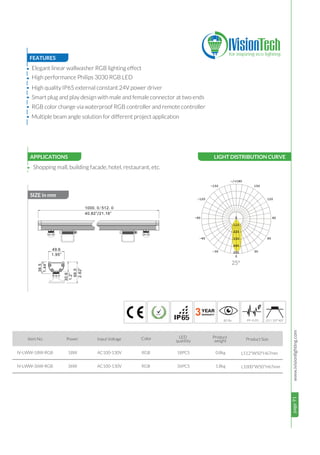

page91www.ivisionlighting.com 3 page91IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • 18W 36W AC100-130V AC100-130V Shopping mall, building facade, hotel, restaurant, etc. Item No. Power Input Voltage Color Product weight 65 Product Size Elegant linear wallwasher RGB lighting effect High performance Philips 3030 RGB LED High quality IP65 external constant 24V power driver Smart plug and play design with male and female connector at two ends RGB color change via waterproof RGB controller and remote controller • Multiple beam angle solution for different project application IV-LWW-18W-RGB IV-LWW-36W-RGB RGB RGB 0.8kg L512*W50*H67mm L1000*W50*H67mm1.8kg LED quantity 18PCS 36PCS LIGHT DISTRIBUTION CURVE 8 25°/ 10°*40° 1000.0/512.0 40.82″/21.16″ 49.6 36.5 30.6 66.5 1.95″ 1.44″ 1.2″ 2.62″ 25°

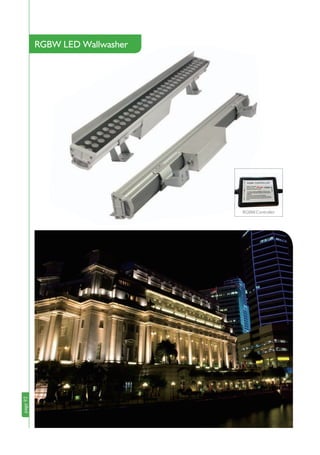

page92 RGBW Controller RGBW LED Wallwasher page92

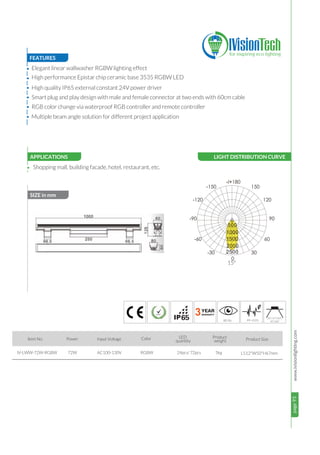

page93www.ivisionlighting.com 3 page93IVisionLighting FEATURES SIZE in mm APPLICATIONS • • • • • • 72W AC100-130V Shopping mall, building facade, hotel, restaurant, etc. Item No. Power Input Voltage Color Product weight 65 Product Size Elegant linear wallwasher RGBW lighting effect High performance Epistar chip ceramic base 3535 RGBW LED High quality IP65 external constant 24V power driver Smart plug and play design with male and female connector at two ends with 60cm cable RGB color change via waterproof RGB controller and remote controller • Multiple beam angle solution for different project application IV-LWW-72W-RGBW RGBW 5kg L512*W50*H67mm LED quantity 24pcs/ 72pcs LIGHT DISTRIBUTION CURVE 8 10°/15°/30°/ 45°/60° 15° 500 1000 1500 2000 2500

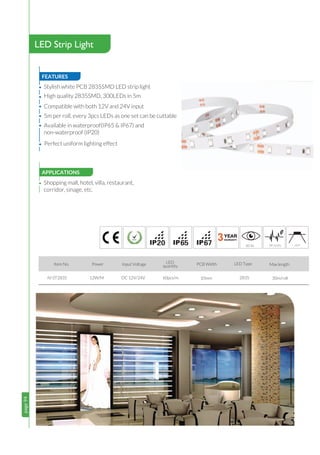

page94page94 LED Strip Light FEATURES APPLICATIONS • • • • • • 12W/MIV-ST2835 DC 12V/24V Shopping mall, hotel, villa, restaurant, corridor, sinage, etc. Item No. Power Input Voltage LED Type: Max length Stylish white PCB 2835SMD LED strip light High quality 2835SMD, 300LEDs in 5m Compatible with both 12V and 24V input 5m per roll, every 3pcs LEDs as one set can be cuttable Available in waterproof(IP65 & IP67) and non-waterproof (IP20) • Perfect uniform lighting effect 2835 PCB Width 10mm 30m/roll LED quantity 60pcs/m 120° 3 8676520

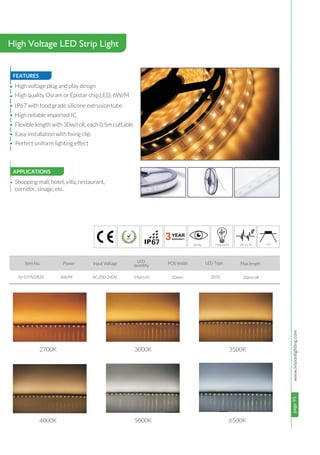

page95www.ivisionlighting.compage95IVisionLighting 720LM/M 3 High Voltage LED Strip Light FEATURES APPLICATIONS • • • • • • 6W/MIV-STHV2835 AC200-240V Shopping mall, hotel, villa, restaurant, corridor, sinage, etc. Item No. Power Input Voltage LED Type: 67 Max length High voltage plug and play design High quality Osram or Epistar chip LED, 6W/M IP67 with food grade silicone extrusion tube High reliable imported IC Flexible length with 30w/roll, each 0.5m cuttable • Easy installation with fixing clip • Perfect uniform lighting effect 2700K 3000K 3500K 4000K 5000K 6500K 2835 PCB Width 10mm 30m/roll LED quantity 54pcs/m 8 120°

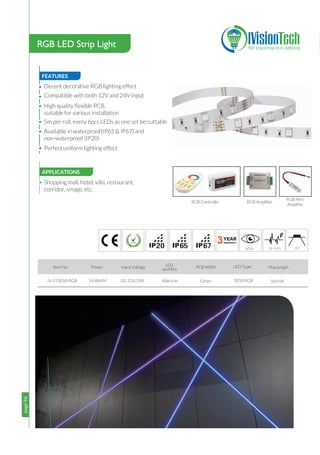

page96 • page96 FEATURES • • • • • Decent decorative RGB lighting effect Compatible with both 12V and 24V input High quality flexible PCB, suitable for various installation 5m per roll, every 6pcs LEDs as one set be cuttable Available in waterproof(IP65 & IP67) and non-waterproof (IP20) • Perfect uniform lighting effect 3 14.4W/M DC 12V/24V Item No. Power Input Voltage LED Type: 676520 Max length IV-ST5050-RGB 5050 RGB PCB Width 12mm 5m/roll LED quantity 60pcs/m 8 120° RGB LED Strip Light APPLICATIONS Shopping mall, hotel, villa, restaurant, corridor, sinage, etc. RGB Controller RGB Amplifier RGB Mini Amplifier
