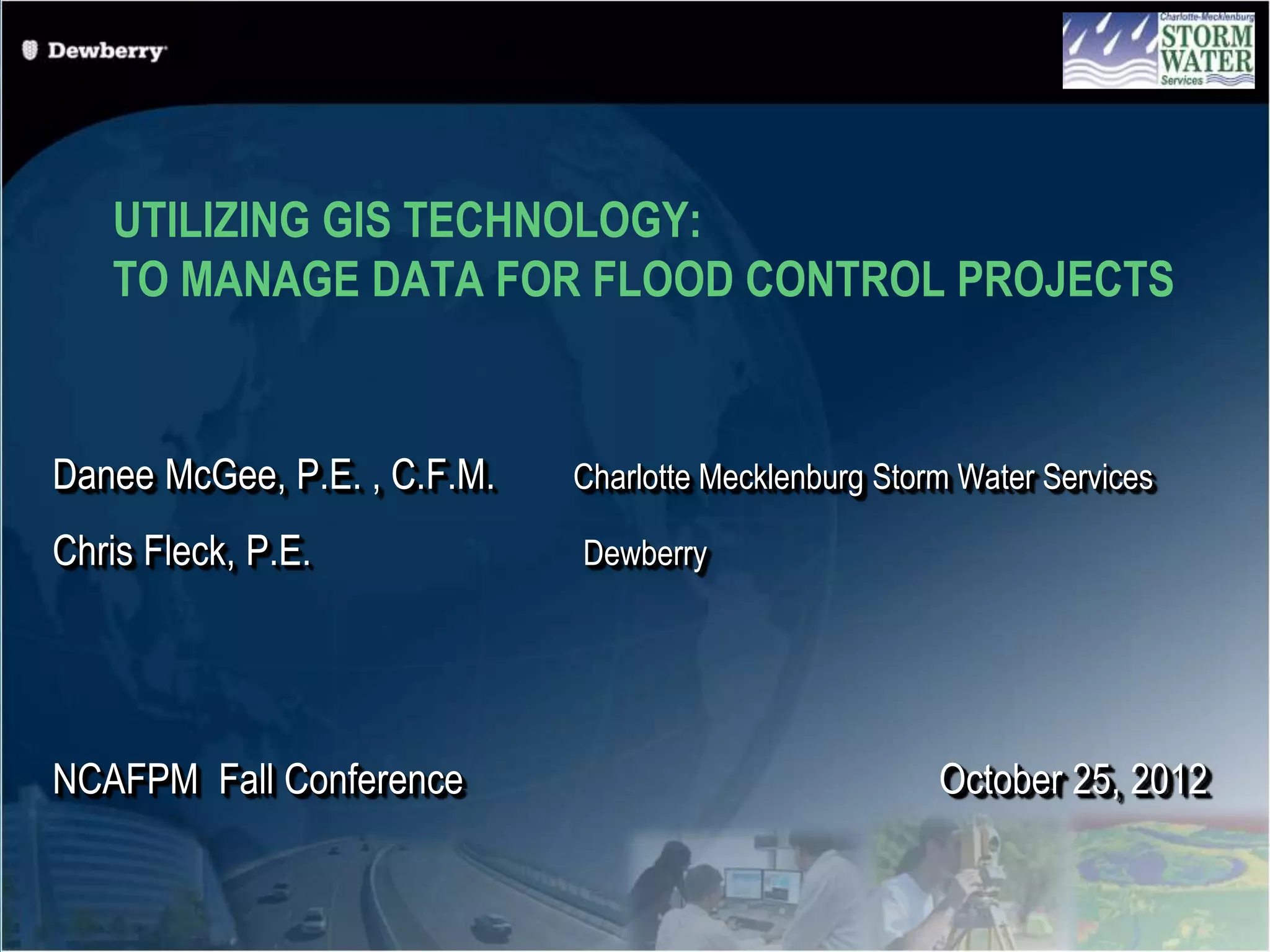

1. UTILIZING GIS TECHNOLOGY:
TO MANAGE DATA FOR FLOOD CONTROL PROJECTS
Danee McGee, P.E. , C.F.M. Charlotte Mecklenburg Storm Water Services
Chris Fleck, P.E. Dewberry
NCAFPM Fall Conference October 25, 2012

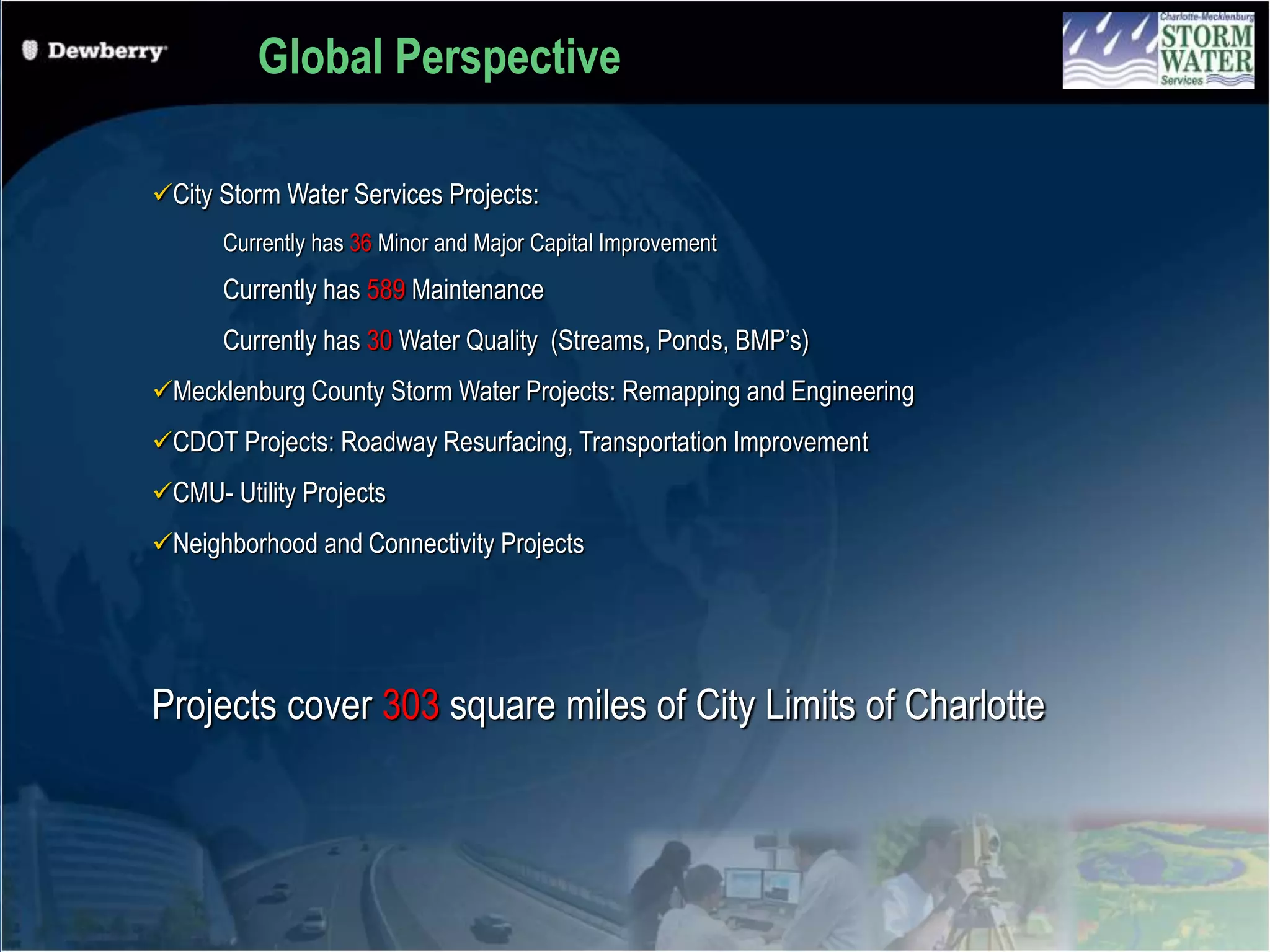

2. Global Perspective
City Storm Water Services Projects:
Currently has 36 Minor and Major Capital Improvement
Currently has 589 Maintenance
Currently has 30 Water Quality (Streams, Ponds, BMP’s)
Mecklenburg County Storm Water Projects: Remapping and Engineering
CDOT Projects: Roadway Resurfacing, Transportation Improvement
CMU- Utility Projects
Neighborhood and Connectivity Projects
Projects cover 303 square miles of City Limits of Charlotte
3. Global Perspective
CECAP : Location and Contact Information for All City Projects
City Storm Water GIS : Request Data, System Inventory
County GIS: Flood Frequency Data, Floodplain Limits, Engineering Projects
Consultant GIS: Planning, Design Construction and Monitoring Data
CECAP
City Storm
Water GIS
County GIS
Consultant
GIS
Information Everywhere:
5. Historical Data Management
City Storm Water Projects
Filing Cabinets
Library
Individual Desks
Individual Computers
Department Servers
6. Data Source Examples
Citizen Requests for Service:
Structure Flooding and System
Failure
Maintenance Files
Project Files
7. Intent of this Process
Stream Line Relationships To:
Compile Data
Enhance the Existing Process
CECAP
CITY STORM
WATER GIS
COUNTY GIS
CONSULTANT
GIS
8. New Data Management for Projects
All Project Survey, Planning, Design and Decision Making Data is Stored
for Many Projects and Massive Amounts of Data Including:
Citizen Reported Data
Storm Event Data, Known System Deficiencies & Failures
Previous Maintenance Projects or Repairs
Survey Data
Engineering Analysis and Results
Data is Managed for:
Ease of Access for Engineers, Designers, Reviewers, Managers
Supplement to Hard Copies
Provide Quick Response to Residents and other Stakeholders
Provide Digital Location for Future Reference.
Design
Planning
Survey
9. PROJECT DRIVEN REQUIREMENT
Step 1: Identify the Issue
Massive Amount of Data
Multiple Phases and Long Project Duration
Many Users of Data
Step 2: Simple Solution to Manage Data
Change Effort , but do Not ADD Effort
Take Advantage of Geo-Referenced Data
Make Available for Multiple Users
Make Accessible and Formatted for Multiple Phases of Project (ie: Planning,
Design, Construction…..Beyond)
Step 3: Deliver the Data
No Complex, Customized and or Costly Interface or Tools
Accessible as Single .MXD file with Data Stored on External Hard Drive from any
Workstation. (Could be Copied to Network)
Keep it Simple…..We Needed it Anyway
RESULT: Simple Supplement to Hard Copy Deliverable to
Manage Large Amounts of Diverse Data in a Customizable ,
Visual Manner to Ease Access for Many Users Throughout
Multiple Phases of Project and for Entire Project Duration
12. RESIDENTIAL CASE STUDY #1:
SUNNYVALE~CHANDWORTH CIP
Large Residential Stormwater Retrofit Project:
670 Developed Acres (Aerial Photography, Digital Terrain Model (DTM), Triangulated Irregular Network (TIN))
1230 Parcels: Topographic Data, Planimetrics
2200 Pages of Property Documentation: Deeds, Plats, Easements, As-Built Records, Right of Ways
1935 Buildings/Structures
250 Detailed Building Surveys
80,000+ LF (15 Miles) of Residential Neighborhood Streets
24,500 +LF (4.6 Miles) of Open Channels with Detailed Cross Sections and Hydraulic Restrictions
62,100 +LF (11.8 Miles) of Closed Conduit Storm Drainage System
764 Drainage Structures (CB, DCB, JB, MH)
7 Large Culverts (Up To 84”x132”)
95,100 LF (18 Miles of Sanitary Sewer)
103,300 LF (19 Miles ) of Water Main
360,000 LF (68 Miles) of Other Utilities (Electric, Gas, Cable,
Phone, Fiber Optic etc)
20,000 Trees in Detailed Survey Corridors
5300+ Site Photos
CCTV for Video Investigation of All Closed Channel
Misc & Random Citizen Contact
Complex Scope with Over 100 Points of Analysis
Multiple Phase Analysis (Existing/Future/Planning/Design)
Multiple Storm Events & Criteria
Vicinity Map
Center City,
Charlotte, NC
PROJECT
AREA
Contact: Jacklyn Bray
Project Manager
13. RESIDENTIAL CASE STUDY #1:
SUNNYVALE~CHANDWORTH CIP Contact: Jacklyn Bray
Project Manager
14. URBAN CASE STUDY #2: HILL STREET CIP
Vicinity Map
Center City,
Charlotte, NC
Contact: Danee McGee, PE CFM
Project Manager
PROJECT
AREA
Highly Urbanized Stormwater Retrofit Project:
Highly Developed Area of North West Quadrant of City of Charlotte with Portions of the Storm Drainage System
Documented as Abandoned Mines from the 1850’s
Current and Existing Development Constructed Over or Close to a Complex Network of Large Deep Box Culverts up
to 20ft Deep.
Watershed of 225 Acres and Planned Improvement Area of 80 Acres(Aerial Photography, Digital Terrain Model ,
Triangulated Irregular Network)
90 Parcels: Topographic Data, Planimetrics, Cross Sections
700 Pages of Property Documentation: Deeds, Plats, Easements, As-Built Records, Right of Ways
50 Multi-Story Multi Use Buildings and Structures
13,000+ LF (2.5 Miles) of Residential Neighborhood Streets
14,000 +LF (2.7 Miles) of Storm Drainage System
110 Drainage Structures (CB, DCB, JB, MH)
4 Large Culverts (Up To 70”x78”)
60,000 LF of Utilities Including:
(Sewer, Water, Electric, Gas, Cable, Phone, Fiber Optic etc)
1500+ Site Photos and Many Pipe Videos
15. URBAN CASE STUDY #2: HILL STREET CIP
Contact: Danee McGee, PE CFM
Project Manager
16. SUMMARY & CONCLUSIONS
Centralized Data Location for Large Amounts of Diverse Data
Visual Format that Organized and Simplified the Data Access and Data Management
All Data is Georeferenced
Supplement to Hard Copies (Retention, Transport)
Customizable After Submittal/Reporting as a Living Entity for Future and Additional Use
Flexible, Simple and Common User Format
Increases Responsiveness by Multiple Users for Multiple Stakeholders
Consultant City Project Manager / Client
City Project Manager City Program Management
City Project Manager Residents/Owners
Increases Consultant/Engineer Design Efficiency and Consistency
By-Product of Existing Processes…..We had to do it
No Additional Cost or Effort
Easily Expandable into More Customized, Robust GIS Tools or Interface
