Oracle plans to invest in MySQL to improve performance and scalability, simplify management, and provide better integration with Oracle products. Key focuses for MySQL include the web, embedded systems, telecom, and the LAMP stack. MySQL 5.5 offers major performance improvements such as the InnoDB storage engine becoming default and multiple buffer pools and rollback segments for increased scalability.

1. MySQL Product Update <Insert Picture Here>

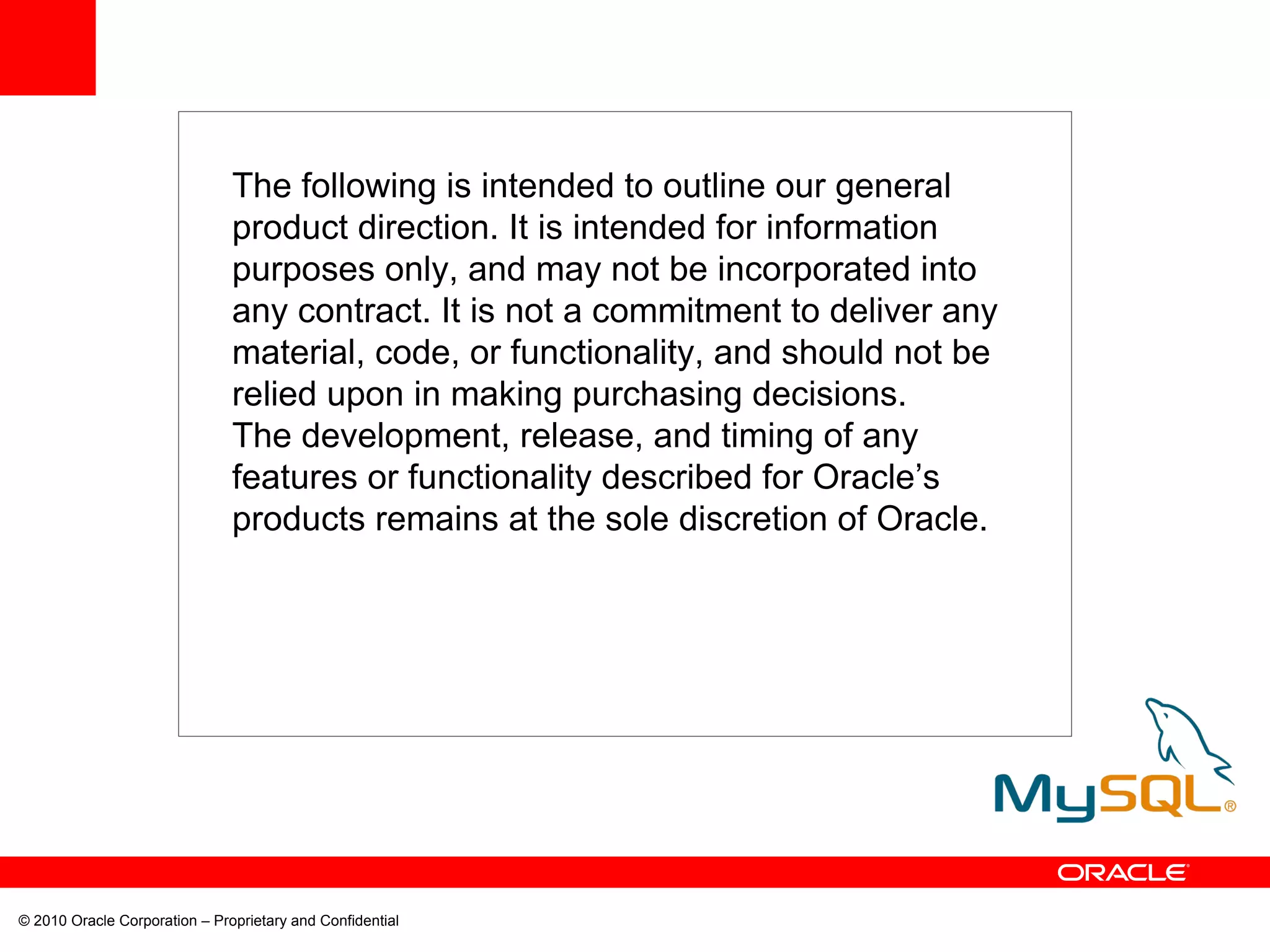

2. The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle.

3. © 2010 Oracle Corporation – Proprietary and Confidential Oracle’s Investment in Open Source Supported popular open source projects for many years Part of Oracle’s Complete, Open, Integrated strategy Speed up time-to-innovation Expand the developer community

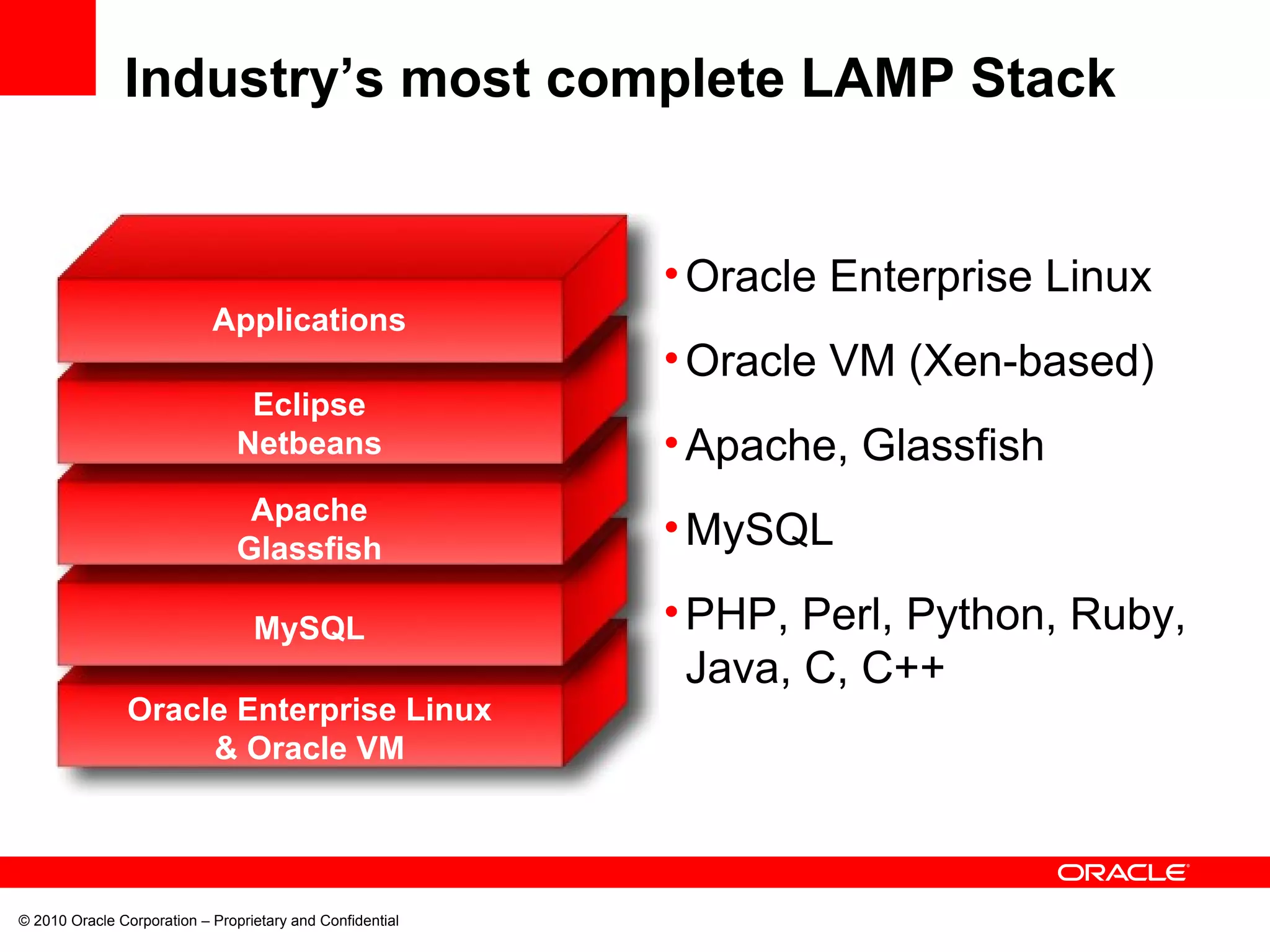

4. © 2010 Oracle Corporation – Proprietary and Confidential Industry’s most complete LAMP Stack Oracle Enterprise Linux Oracle VM (Xen-based) Apache, Glassfish MySQL PHP, Perl, Python, Ruby, Java, C, C++ Oracle Enterprise Linux & Oracle VM MySQL Apache Glassfish Applications Eclipse Netbeans

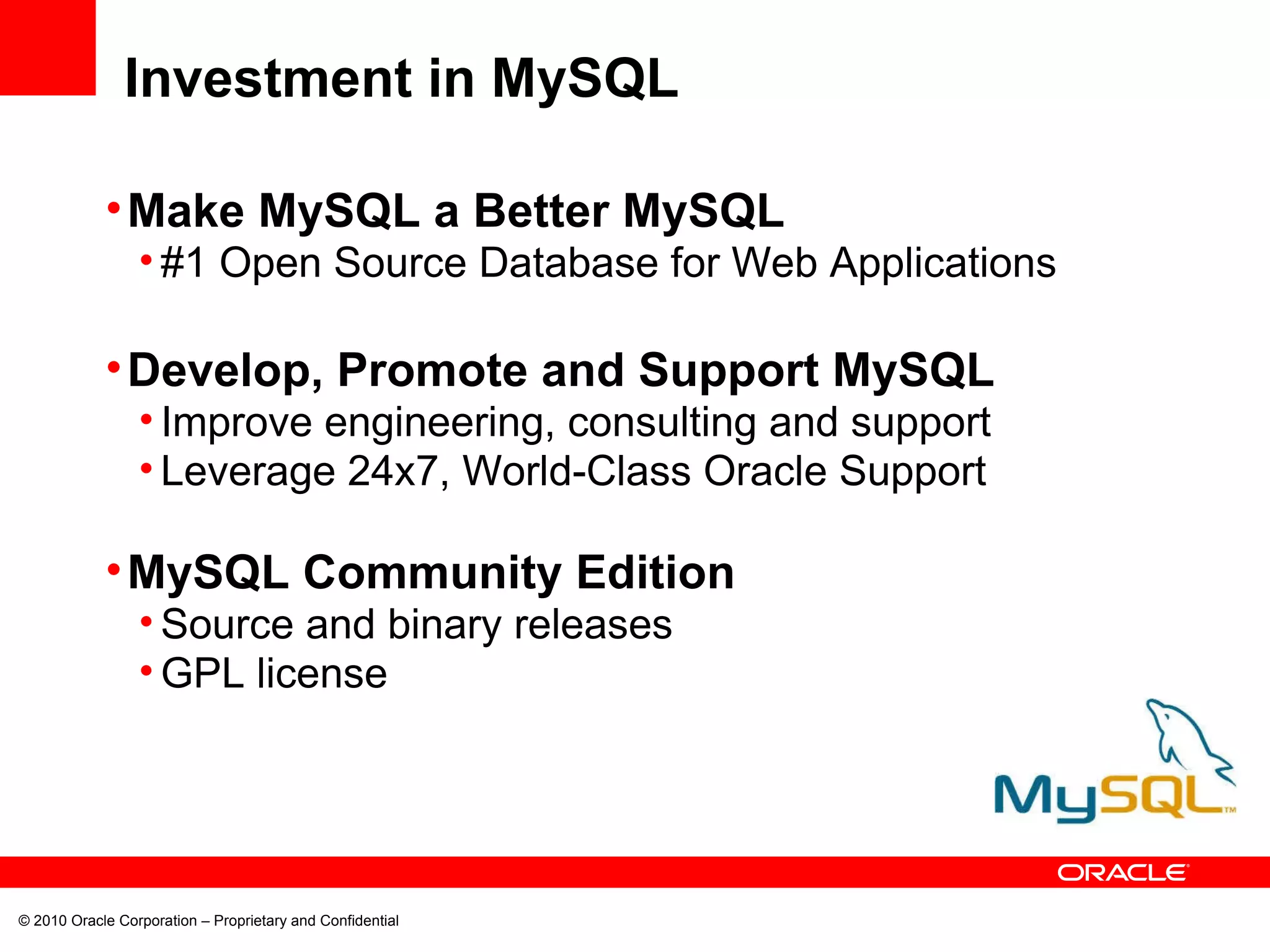

5. © 2010 Oracle Corporation – Proprietary and Confidential Investment in MySQL Make MySQL a Better MySQL #1 Open Source Database for Web Applications Develop, Promote and Support MySQL Improve engineering, consulting and support Leverage 24x7, World-Class Oracle Support MySQL Community Edition Source and binary releases GPL license

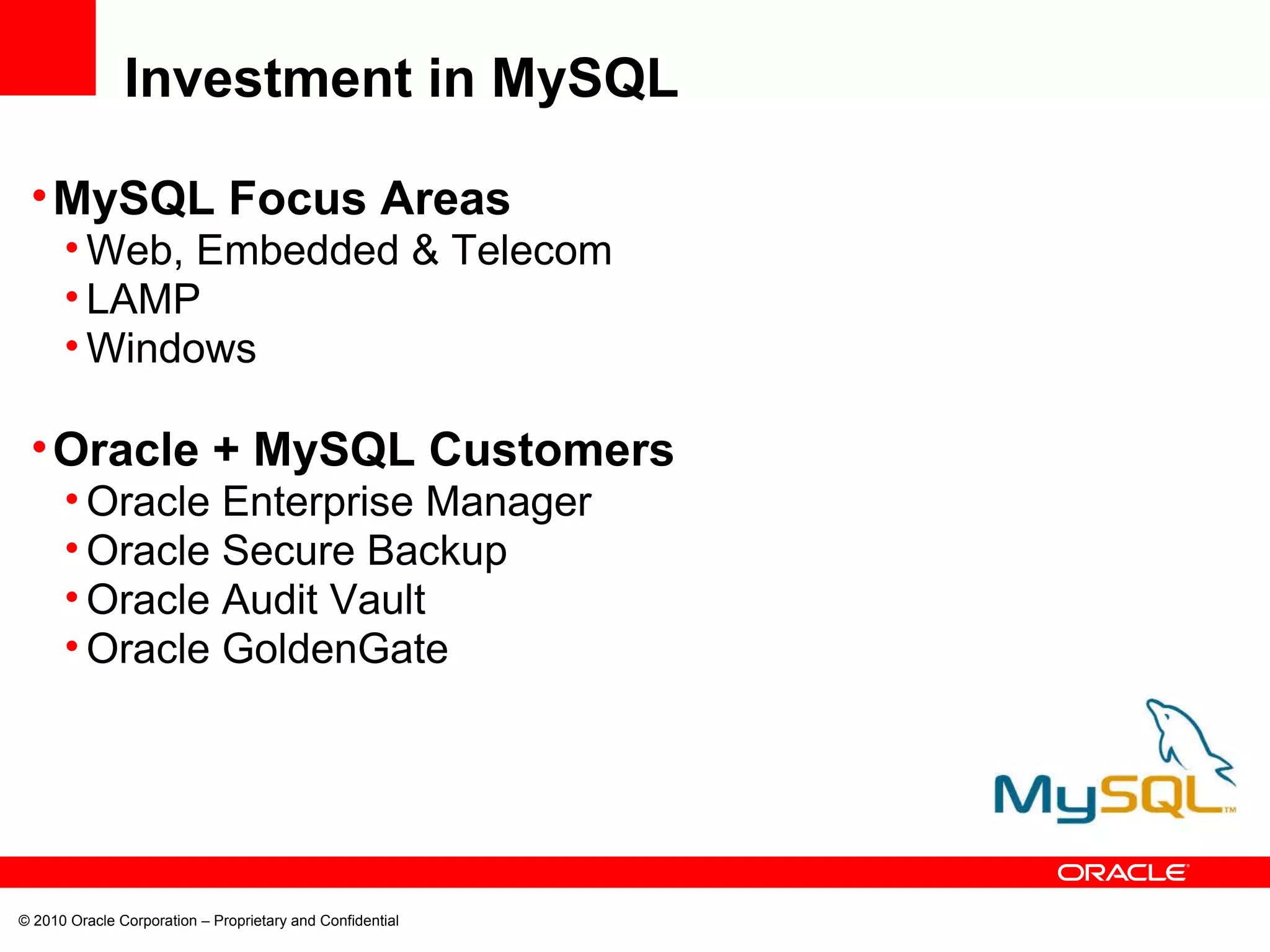

6. © 2010 Oracle Corporation – Proprietary and Confidential Investment in MySQL MySQL Focus Areas Web, Embedded & Telecom LAMP Windows Oracle + MySQL Customers Oracle Enterprise Manager Oracle Secure Backup Oracle Audit Vault Oracle GoldenGate

7. © 2010 Oracle Corporation – Proprietary and Confidential Investment in MySQL MySQL Focus Areas Web, Embedded & Telecom LAMP Windows Oracle + MySQL Customers Oracle Enterprise Manager Oracle Secure Backup Oracle Audit Vault Oracle GoldenGate “ According to IDC, the DB Market was $19bn in 2008, Oracle had 44% of the market share, with a 13% revenue growth”

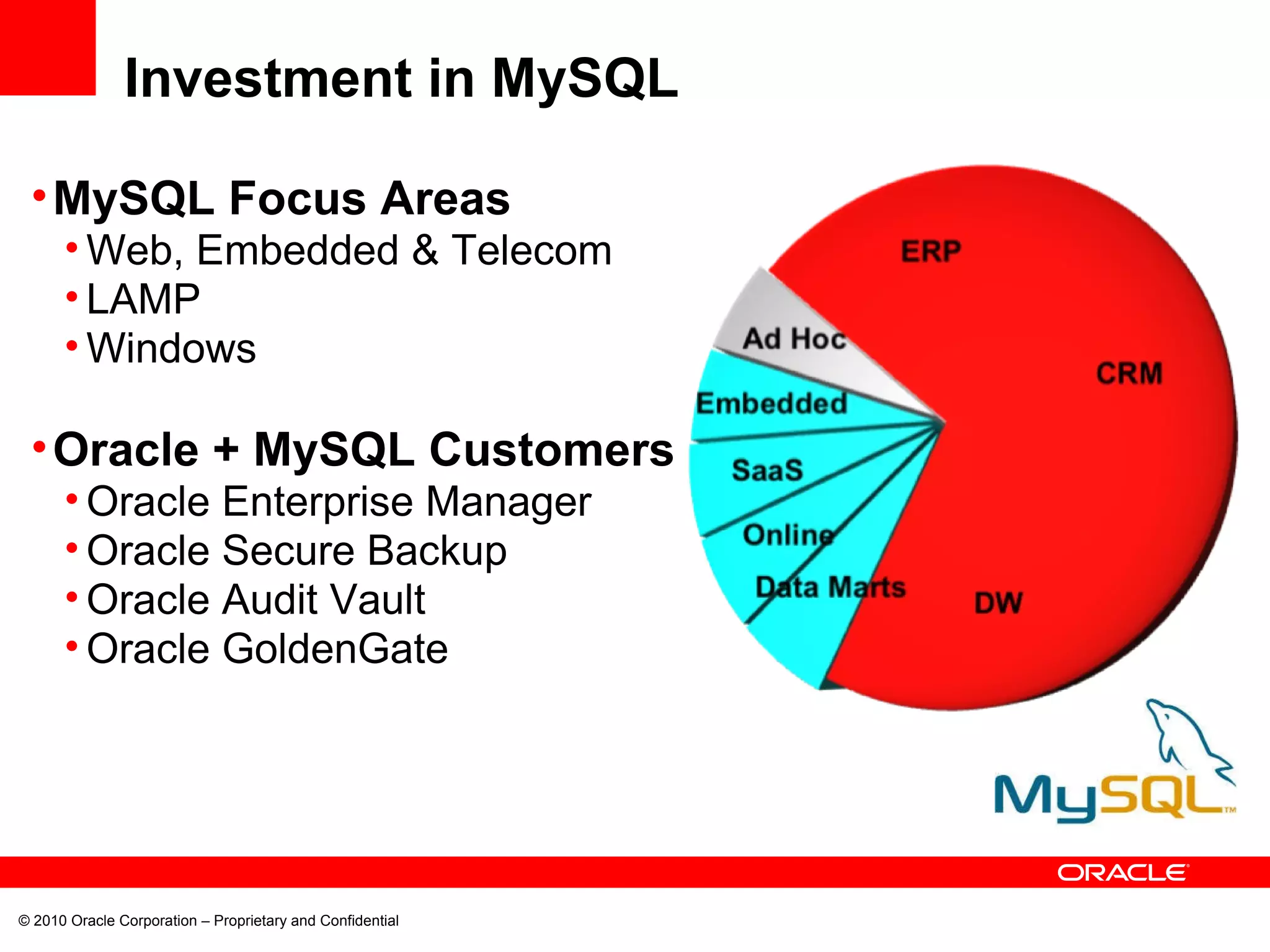

8. © 2010 Oracle Corporation – Proprietary and Confidential Investment in MySQL MySQL Focus Areas Web, Embedded & Telecom LAMP Windows Oracle + MySQL Customers Oracle Enterprise Manager Oracle Secure Backup Oracle Audit Vault Oracle GoldenGate

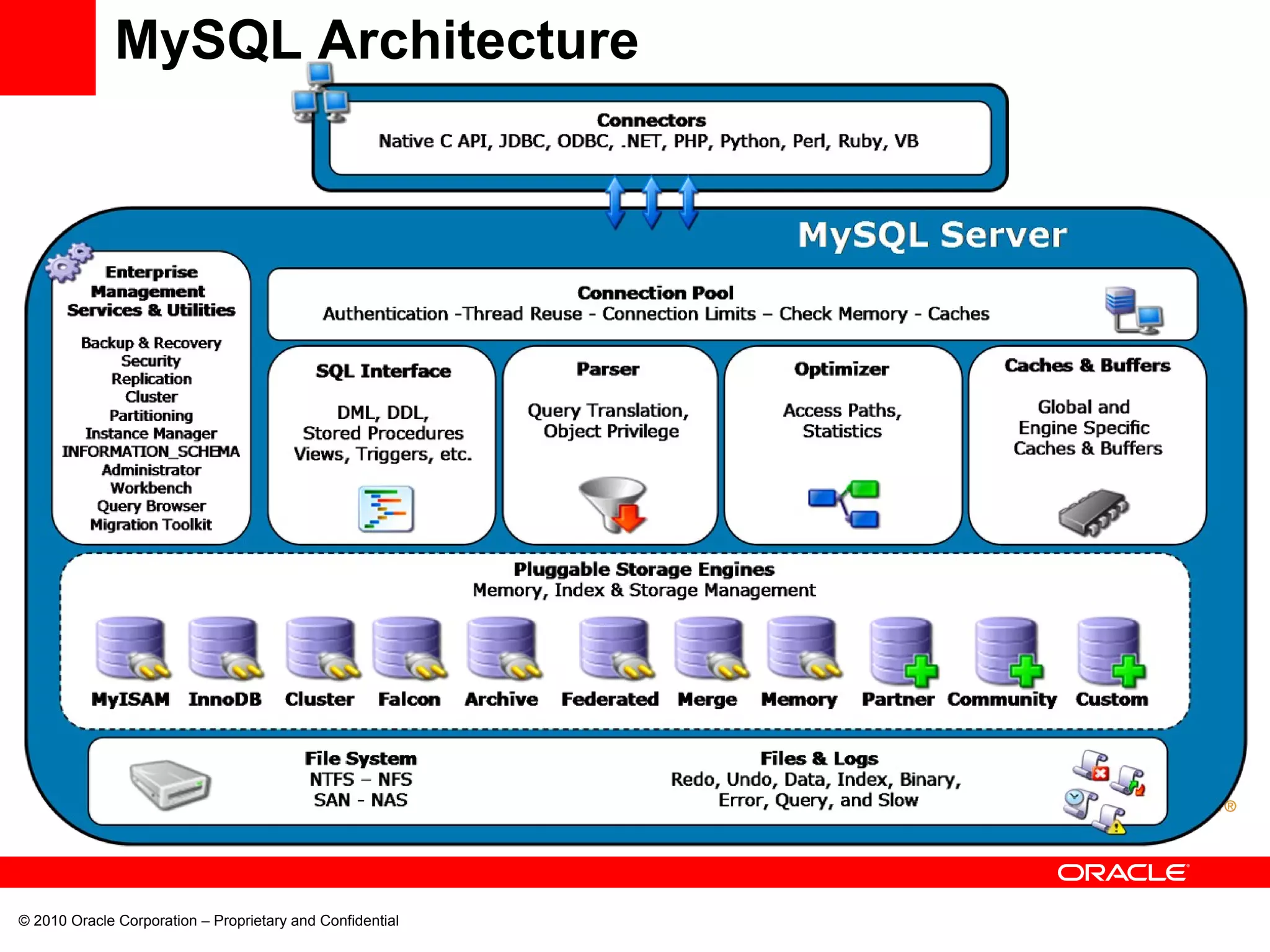

9. MySQL Architecture

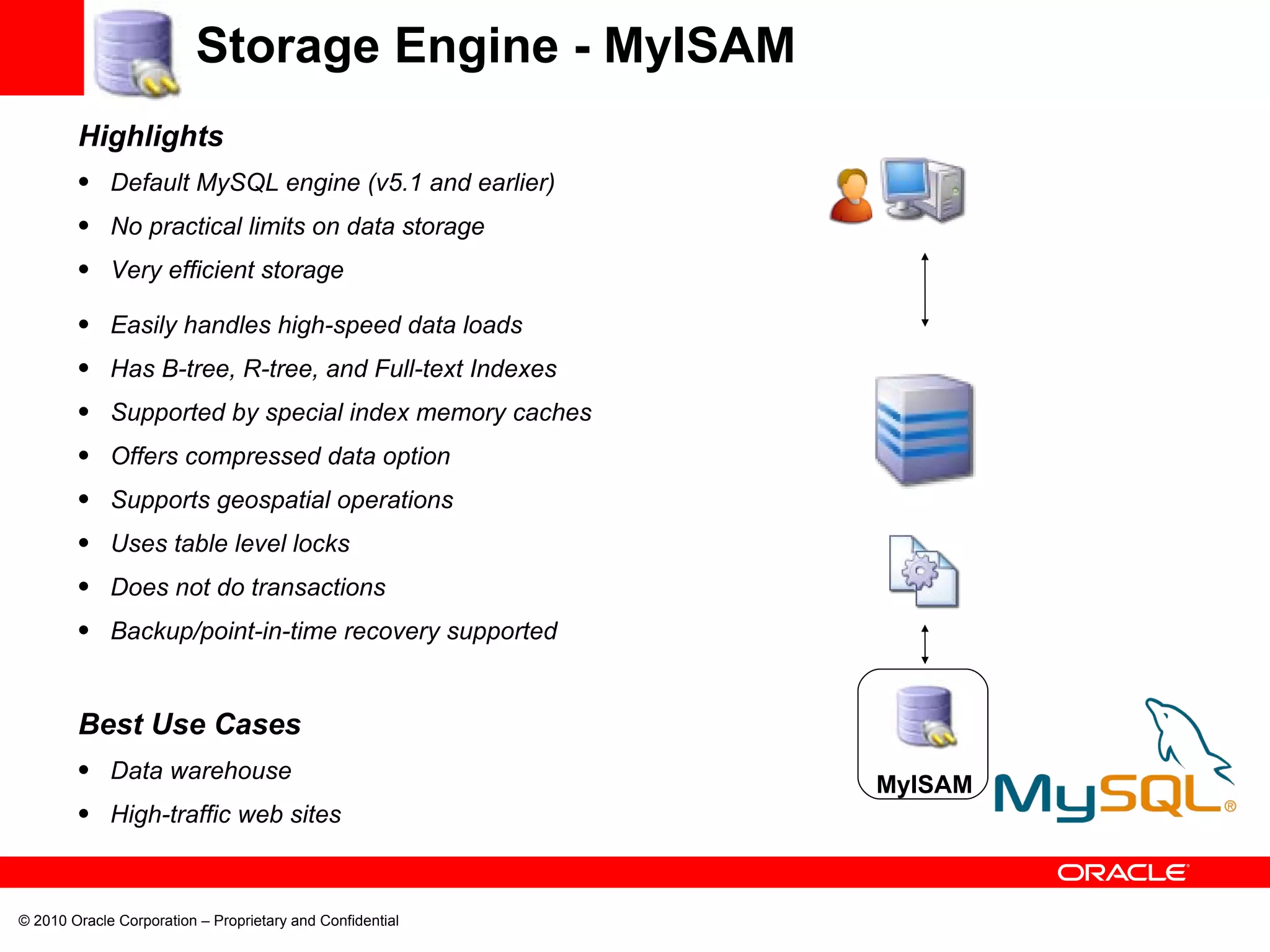

10. Storage Engine - MyISAM Highlights Default MySQL engine (v5.1 and earlier) No practical limits on data storage Very efficient storage Easily handles high-speed data loads Has B-tree, R-tree, and Full-text Indexes Supported by special index memory caches Offers compressed data option Supports geospatial operations Uses table level locks Does not do transactions Backup/point-in-time recovery supported Best Use Cases Data warehouse High-traffic web sites MyISAM

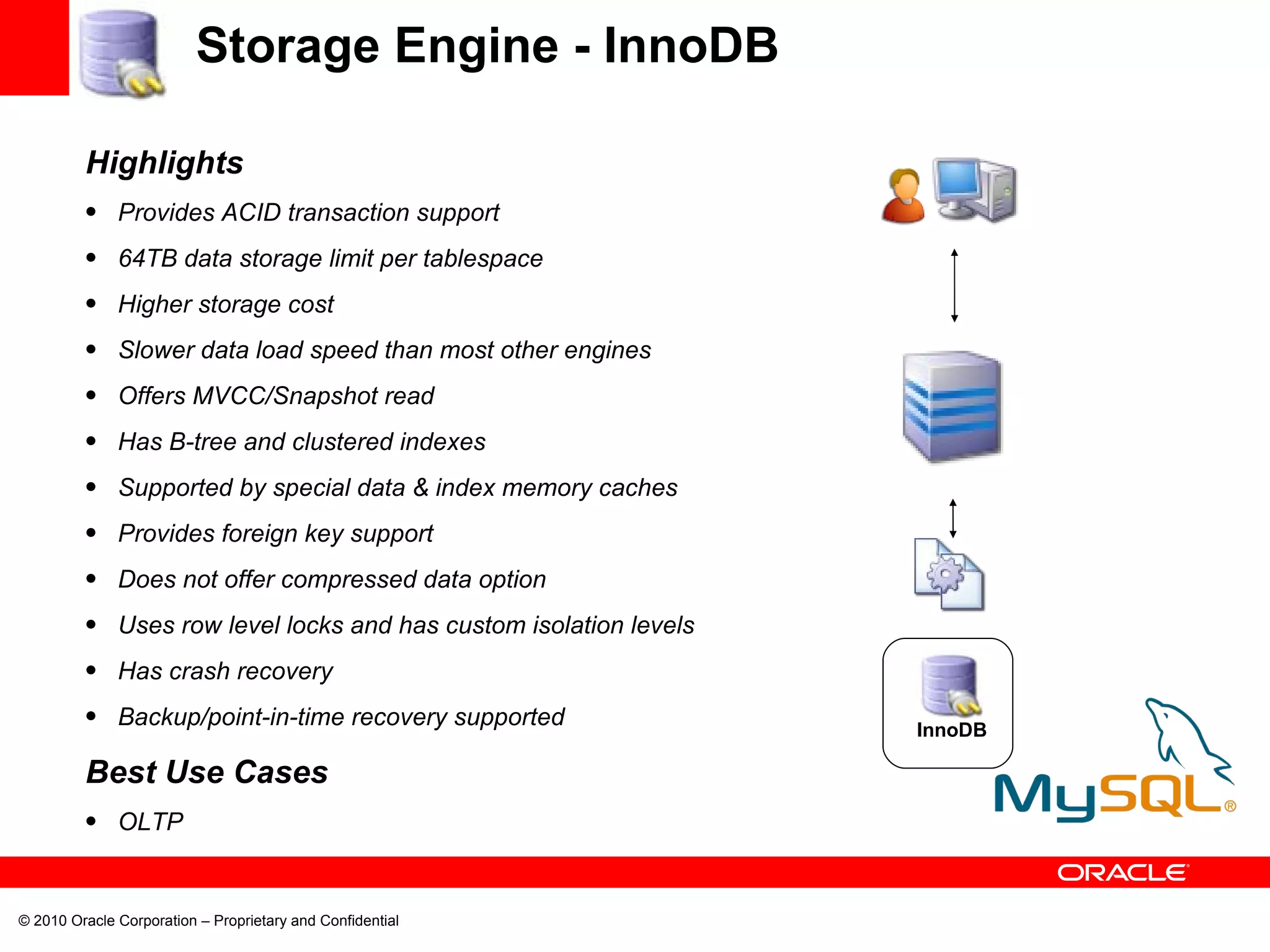

11. Storage Engine - InnoDB Highlights Provides ACID transaction support 64TB data storage limit per tablespace Higher storage cost Slower data load speed than most other engines Offers MVCC/Snapshot read Has B-tree and clustered indexes Supported by special data & index memory caches Provides foreign key support Does not offer compressed data option Uses row level locks and has custom isolation levels Has crash recovery Backup/point-in-time recovery supported Best Use Cases OLTP InnoDB

12. © 2010 Oracle Corporation – Proprietary and Confidential Product Announcements

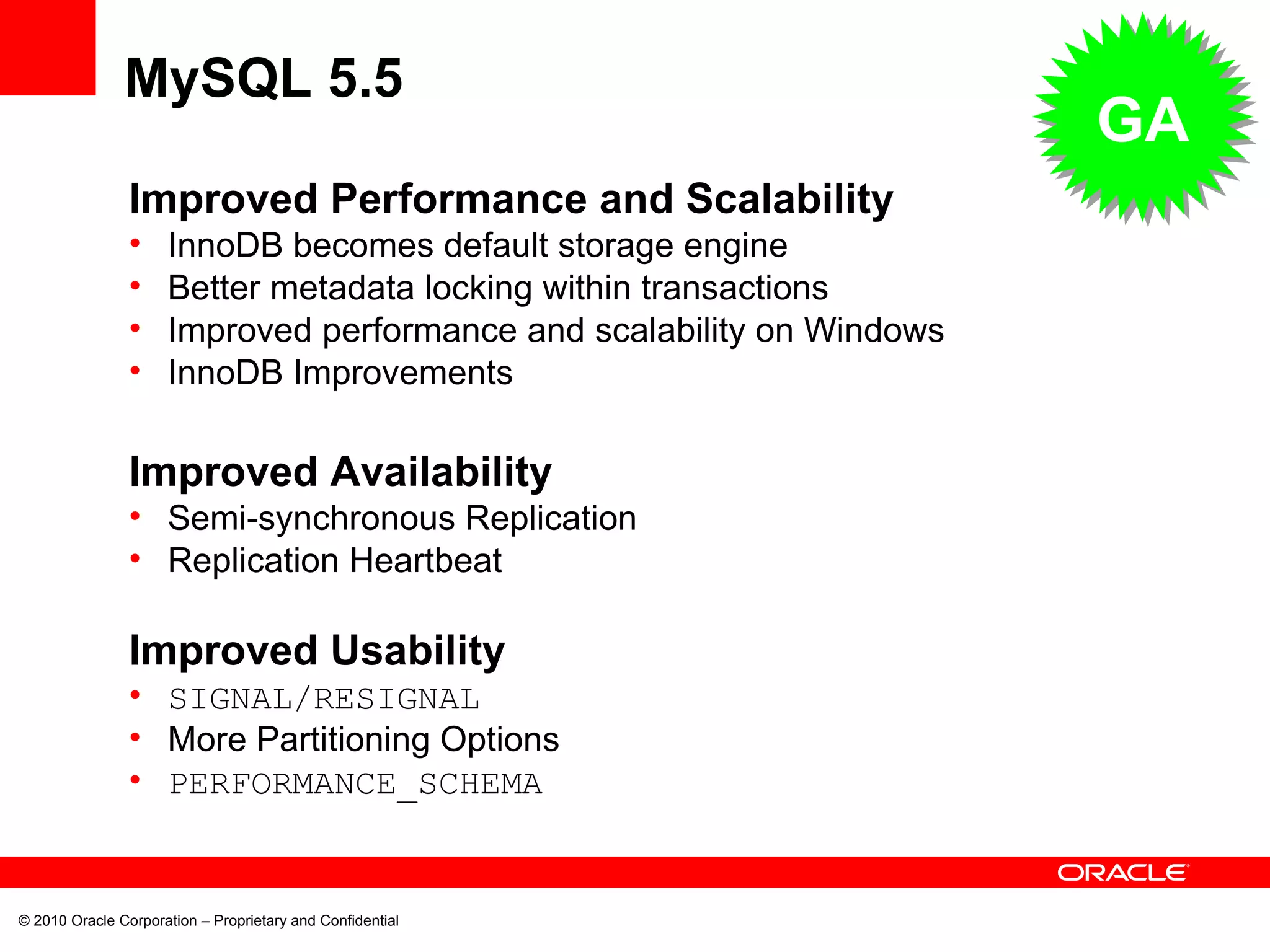

13. © 2010 Oracle Corporation – Proprietary and Confidential Improved Performance and Scalability InnoDB becomes default storage engine Better metadata locking within transactions Improved performance and scalability on Windows InnoDB Improvements Improved Availability Semi-synchronous Replication Replication Heartbeat Improved Usability SIGNAL/RESIGNAL More Partitioning Options PERFORMANCE_SCHEMA MySQL 5.5 GA

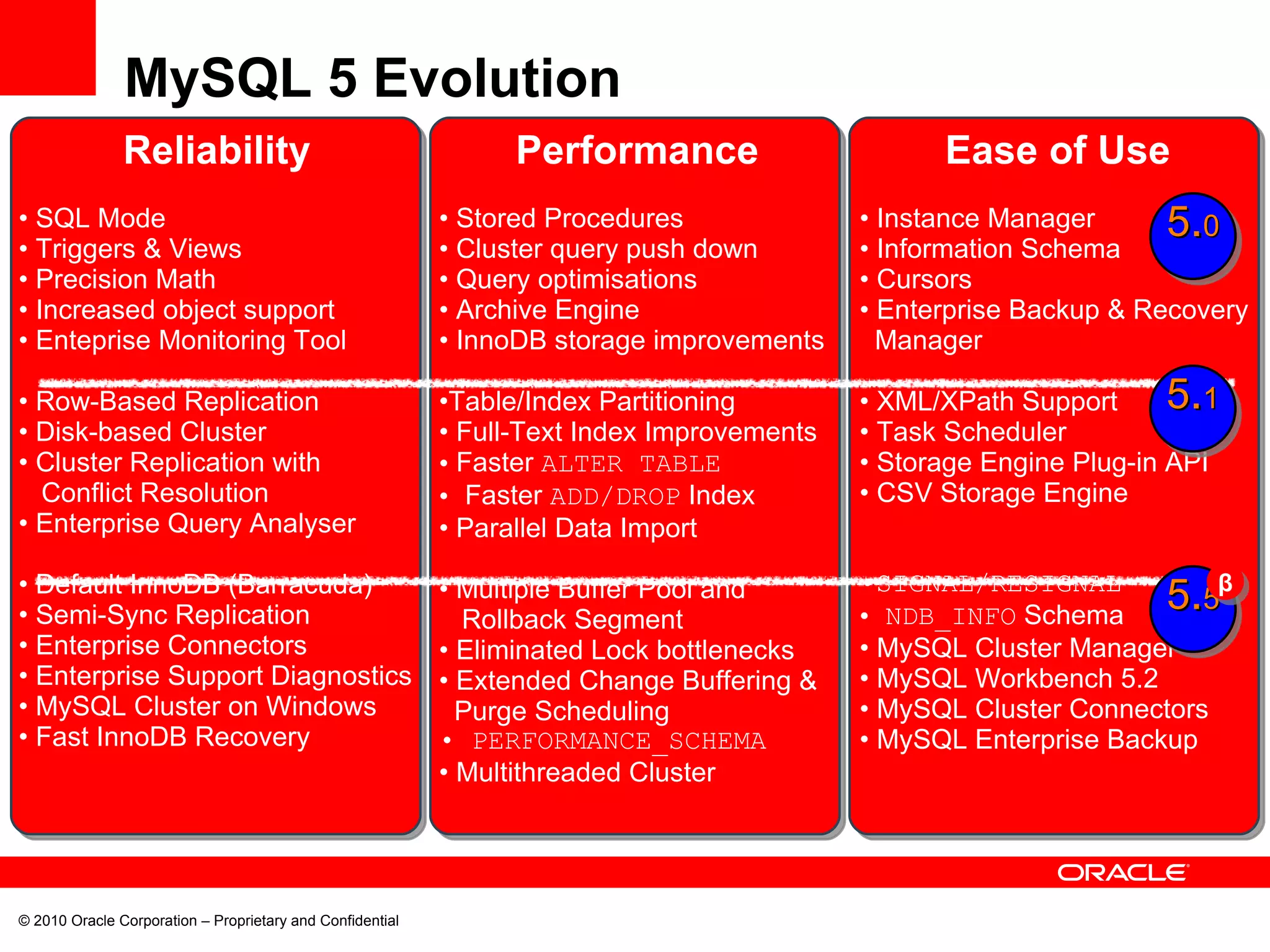

14. © 2010 Oracle Corporation – Proprietary and Confidential MySQL 5 Evolution Reliability SQL Mode Triggers & Views Precision Math Increased object support Enteprise Monitoring Tool Row-Based Replication Disk-based Cluster Cluster Replication with Conflict Resolution Enterprise Query Analyser Default InnoDB (Barracuda) Semi-Sync Replication Enterprise Connectors Enterprise Support Diagnostics MySQL Cluster on Windows Fast InnoDB Recovery Ease of Use Instance Manager Information Schema Cursors Enterprise Backup & Recovery Manager XML/XPath Support Task Scheduler Storage Engine Plug-in API CSV Storage Engine SIGNAL/RESIGNAL NDB_INFO Schema MySQL Cluster Manager MySQL Workbench 5.2 MySQL Cluster Connectors MySQL Enterprise Backup Performance Stored Procedures Cluster query push down Query optimisations Archive Engine InnoDB storage improvements Table/Index Partitioning Full-Text Index Improvements Faster ALTER TABLE Faster ADD/DROP Index Parallel Data Import Multiple Buffer Pool and Rollback Segment Eliminated Lock bottlenecks Extended Change Buffering & Purge Scheduling PERFORMANCE_SCHEMA Multithreaded Cluster 5 . 0 5 . 1 5 . 5 β

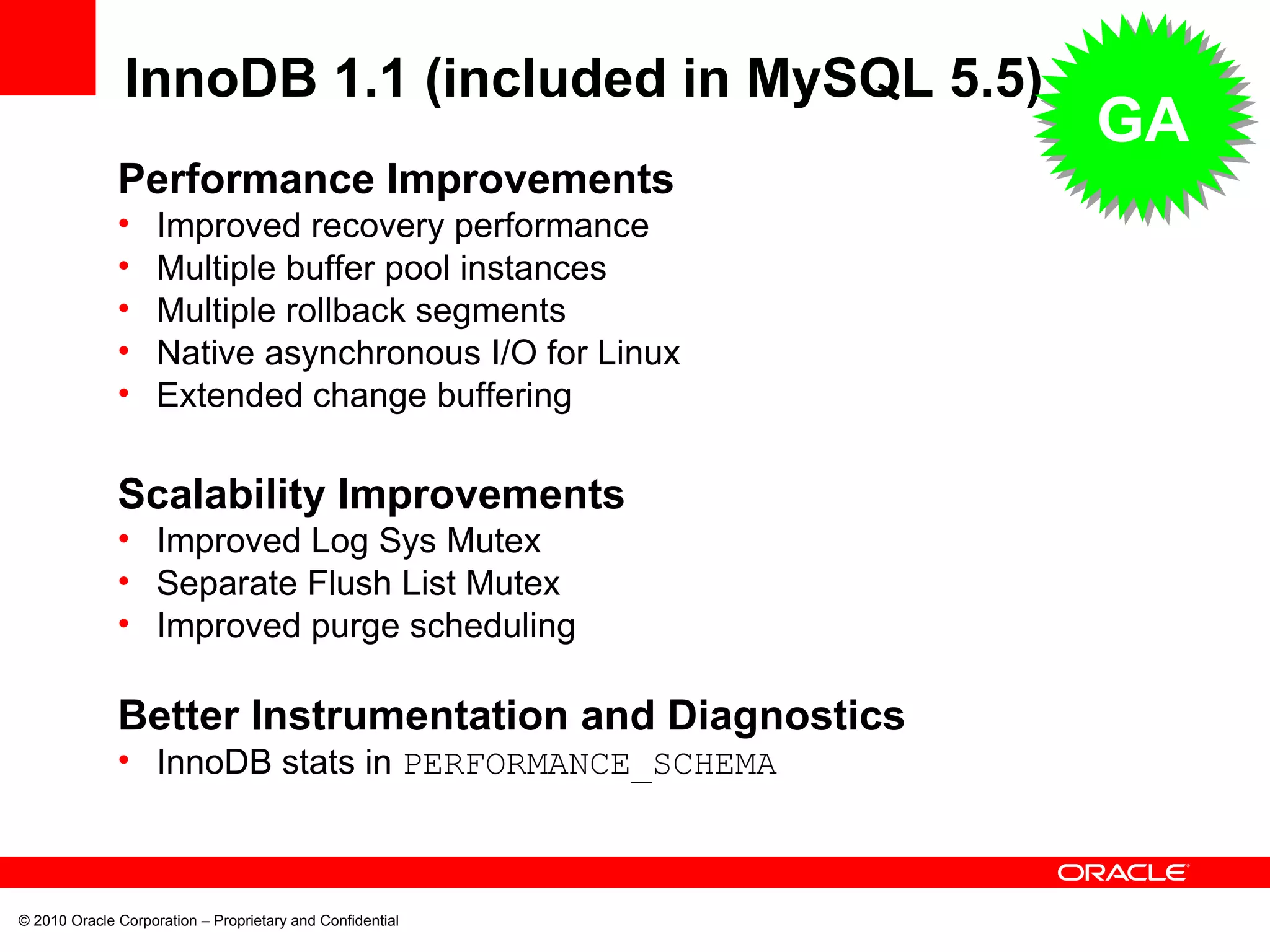

15. © 2010 Oracle Corporation – Proprietary and Confidential Performance Improvements Improved recovery performance Multiple buffer pool instances Multiple rollback segments Native asynchronous I/O for Linux Extended change buffering Scalability Improvements Improved Log Sys Mutex Separate Flush List Mutex Improved purge scheduling Better Instrumentation and Diagnostics InnoDB stats in PERFORMANCE_SCHEMA InnoDB 1.1 (included in MySQL 5.5) GA

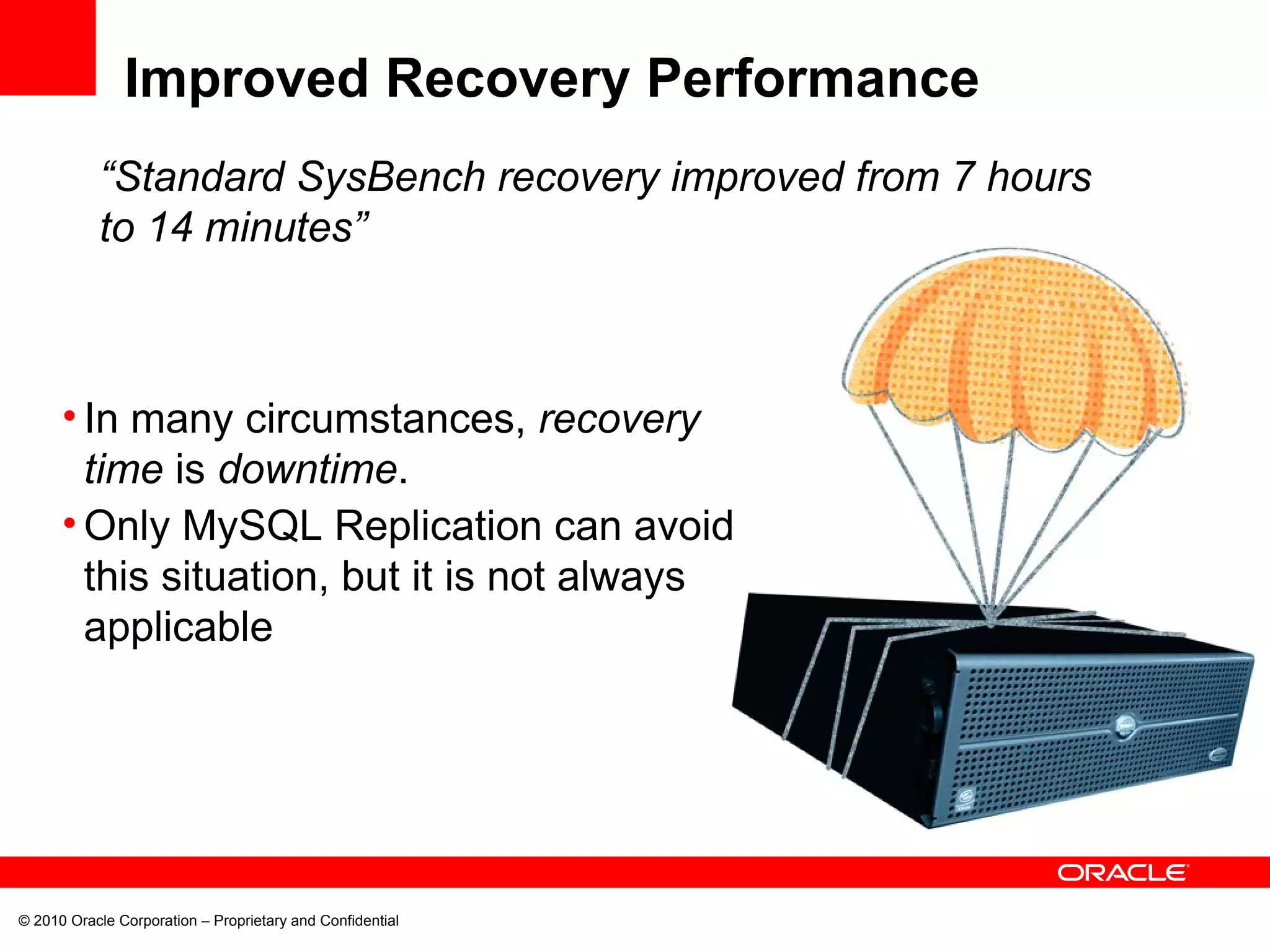

16. © 2010 Oracle Corporation – Proprietary and Confidential Improved Recovery Performance “ Standard SysBench recovery improved from 7 hours to 14 minutes” In many circumstances, recovery time is downtime . Only MySQL Replication can avoid this situation, but it is not always applicable

17. © 2010 Oracle Corporation – Proprietary and Confidential Multiple Buffer Pool 5.1 : 1 Buffer Pool 5.5 : up to 64 Buffer Pools The Car Park Analogy In 5.1 , the Car Park had 1 entrance and 1 exit In 5.5 , the Car Park has 64 entrances and 64 exits The number of spaces available is the same, but cars can get in and out quicker

18. © 2010 Oracle Corporation – Proprietary and Confidential Multiple Rollback Segments 5.1 : 1 Rollback Segment can handle up to 1023 concurrent “write” transactions 5.5 : 128 Rollback Segments can handle up to 128k concurrent “write” transactions The Highway Analogy In 5.1 , the highway had 1 lane In 5.5 , the highway has 128 lanes Each lane can still handle up to 1023 cars per hour and cars run at the same speed, but 128 lanes can handle 128k cars per hour in total

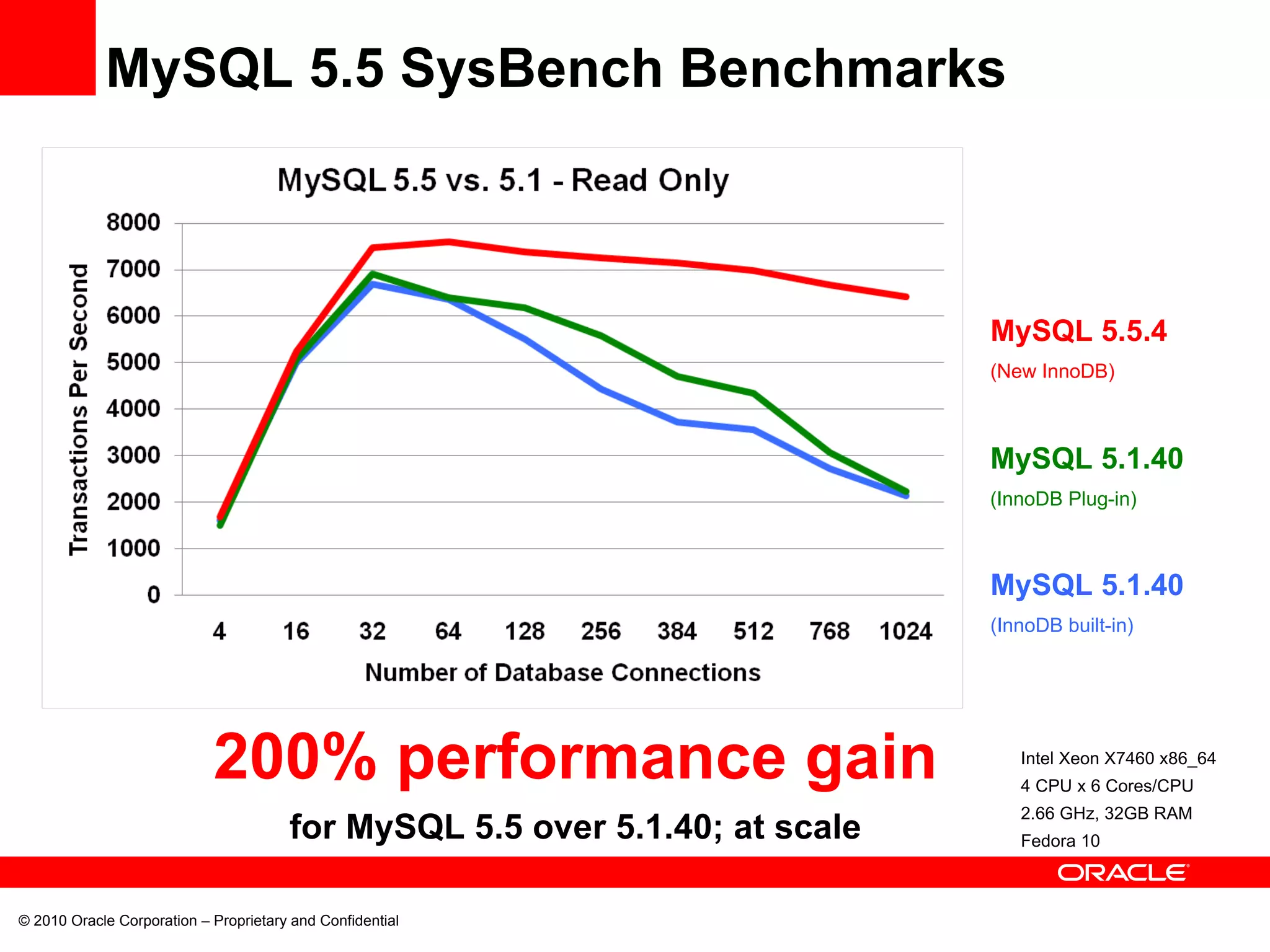

19. © 2010 Oracle Corporation – Proprietary and Confidential MySQL 5.5 SysBench Benchmarks Intel Xeon X7460 x86_64 4 CPU x 6 Cores/CPU 2.66 GHz, 32GB RAM Fedora 10 MySQL 5.1.40 (InnoDB built-in) MySQL 5.1.40 (InnoDB Plug-in) MySQL 5.5.4 (New InnoDB) 200% performance gain for MySQL 5.5 over 5.1.40; at scale

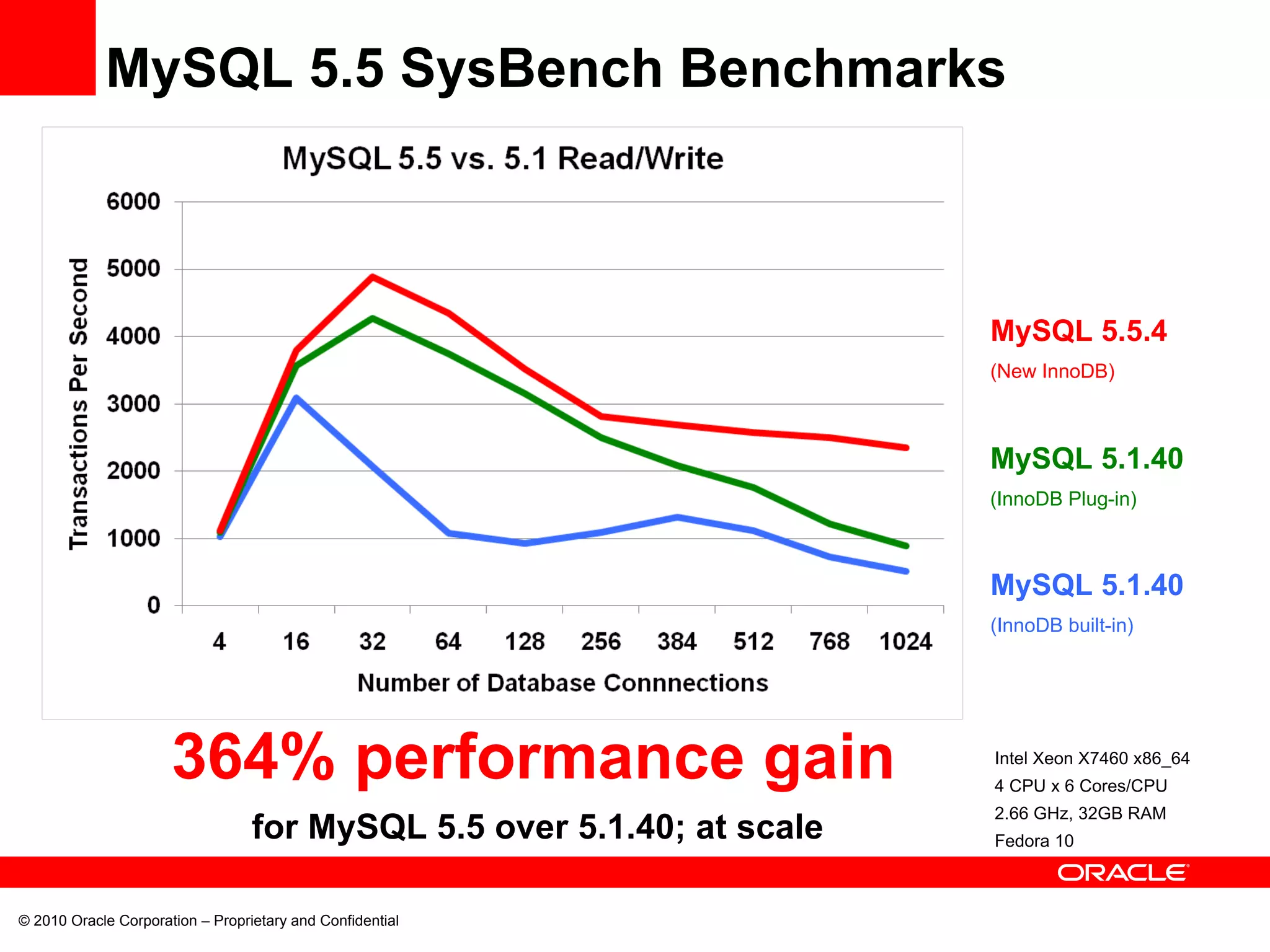

20. © 2010 Oracle Corporation – Proprietary and Confidential MySQL 5.5 SysBench Benchmarks MySQL 5.1.40 (InnoDB built-in) MySQL 5.1.40 (InnoDB Plug-in) MySQL 5.5.4 (New InnoDB) Intel Xeon X7460 x86_64 4 CPU x 6 Cores/CPU 2.66 GHz, 32GB RAM Fedora 10 364% performance gain for MySQL 5.5 over 5.1.40; at scale

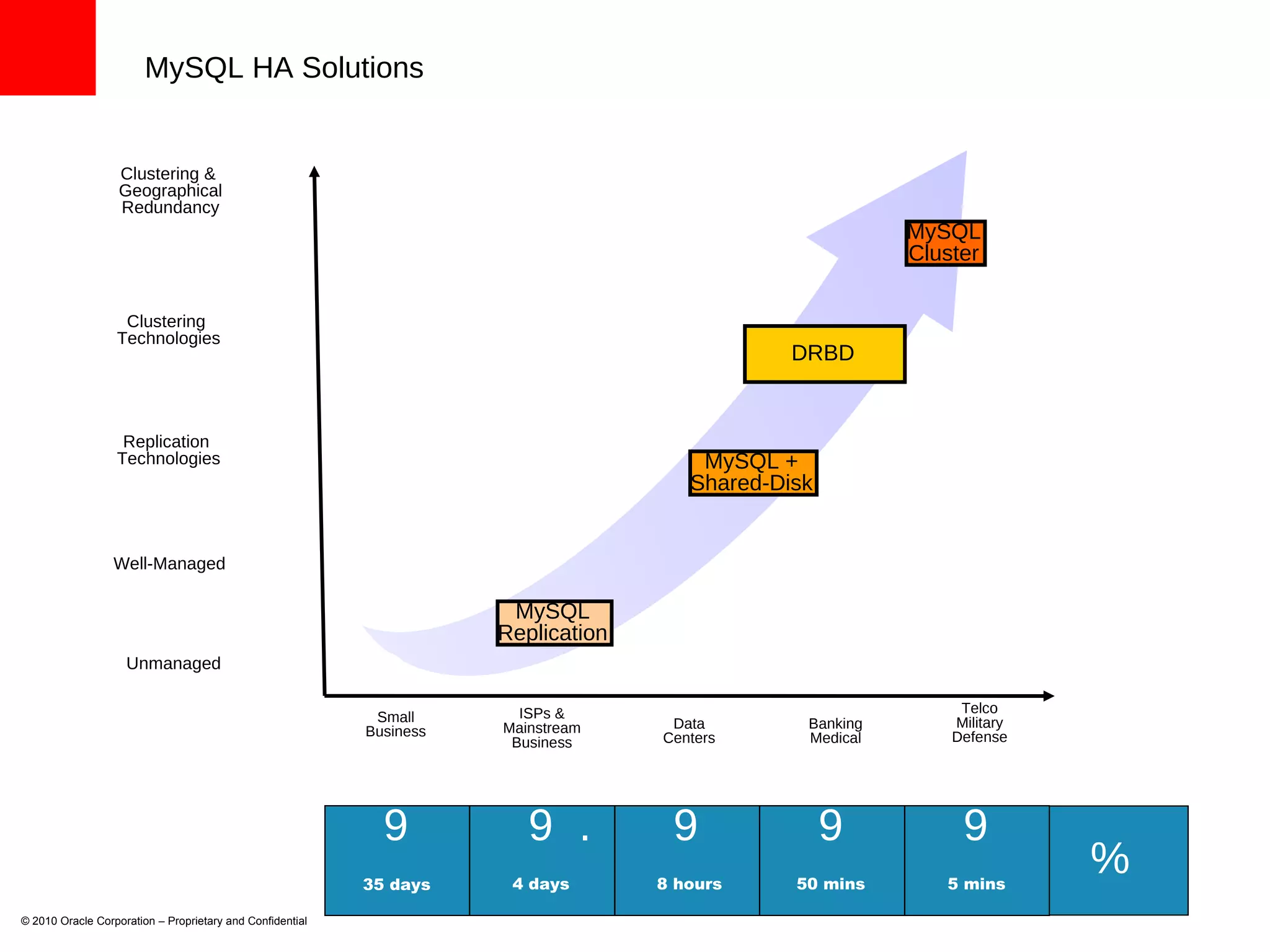

21. © 2010 Oracle Corporation – Proprietary and Confidential 35 days 4 days 50 mins 5 mins 8 hours Unmanaged Replication Technologies Clustering Technologies Clustering & Geographical Redundancy Well-Managed Small Business ISPs & Mainstream Business Data Centers Banking Medical Telco Military Defense . MySQL Cluster MySQL + Shared-Disk MySQL Replication MySQL HA Solutions % 9 9 9 9 9 DRBD

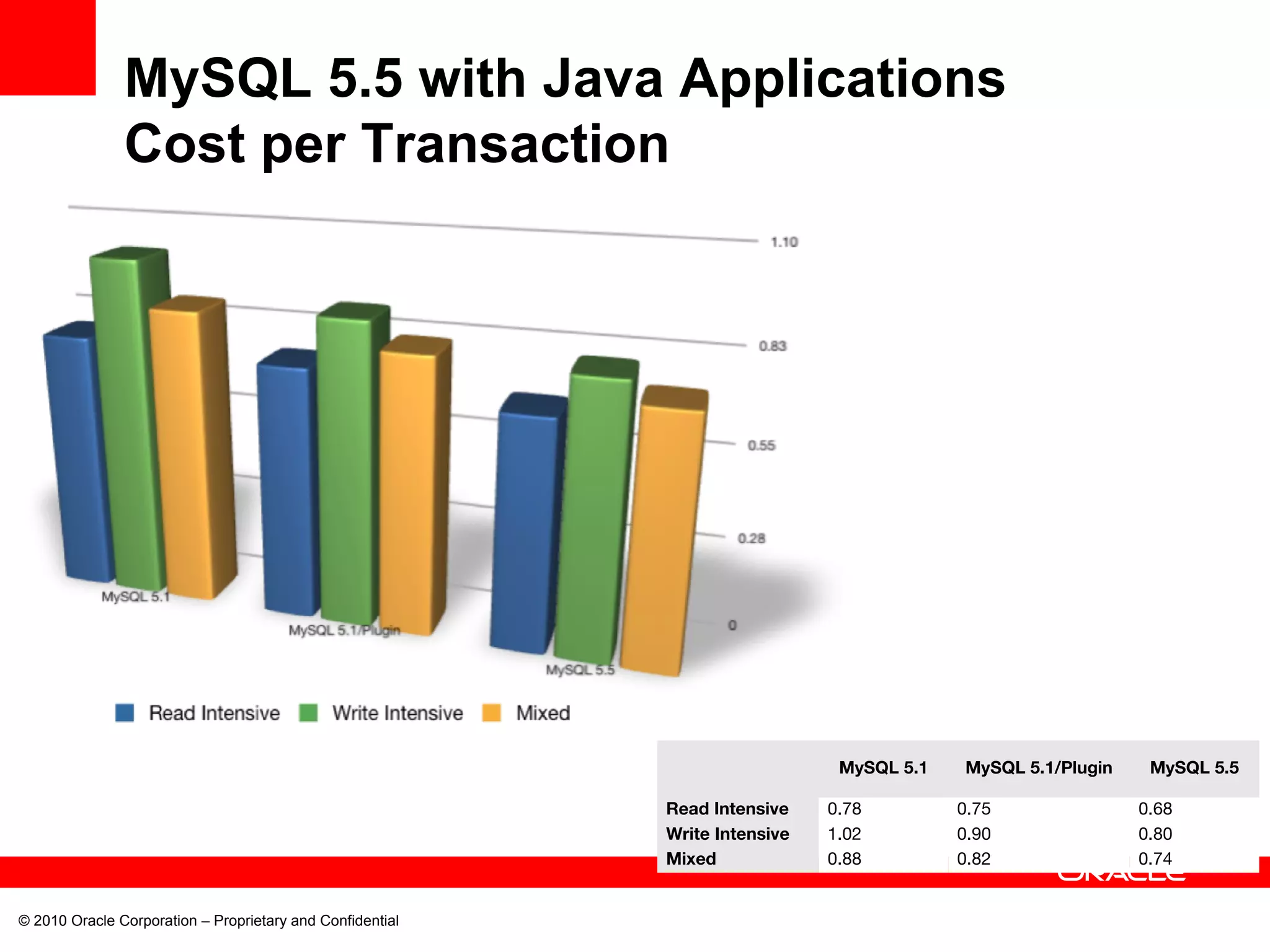

22. © 2010 Oracle Corporation – Proprietary and Confidential MySQL 5.5 with Java Applications Cost per Transaction MySQL 5.1 MySQL 5.1/Plugin MySQL 5.5 Read Intensive 0.78 0.75 0.68 Write Intensive 1.02 0.90 0.80 Mixed 0.88 0.82 0.74

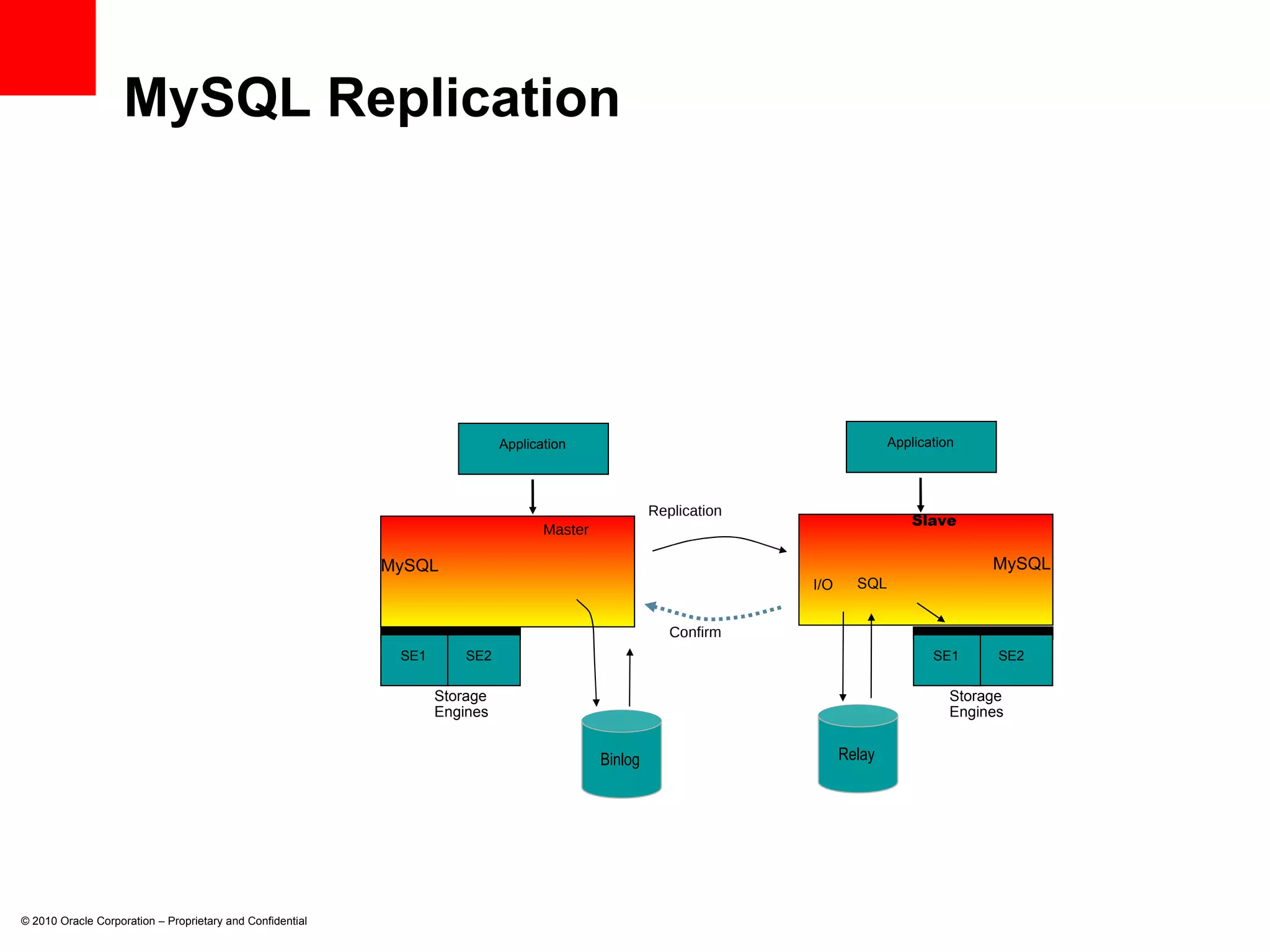

23. MySQL Replication © 2010 Oracle Corporation – Proprietary and Confidential Storage Engines Master Replication Slave SQL I/O Confirm Storage Engines MySQL MySQL SE2 SE1 Binlog Application Application SE2 SE1 Relay

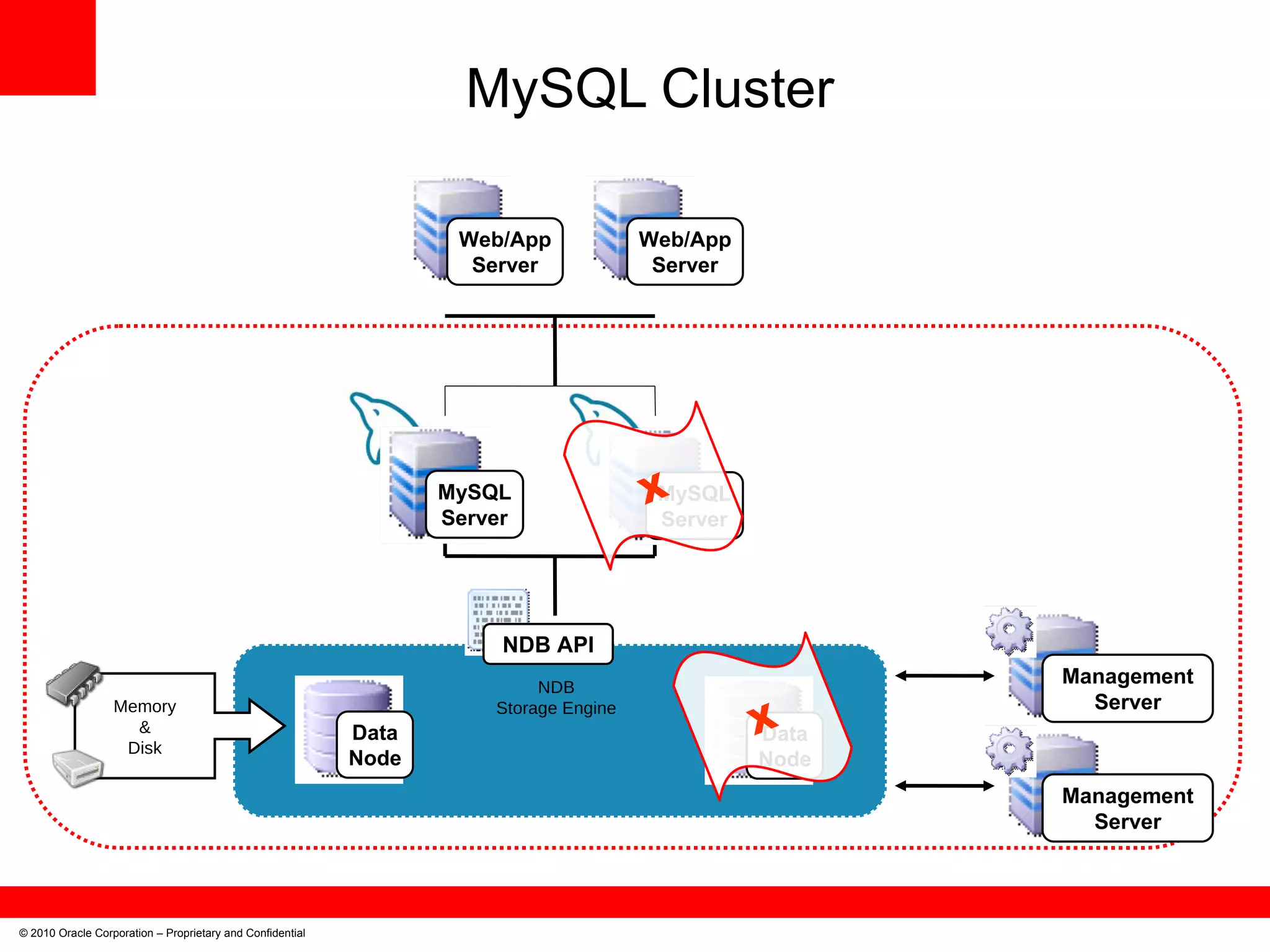

24. MySQL Cluster © 2010 Oracle Corporation – Proprietary and Confidential NDB Storage Engine Memory & Disk X X

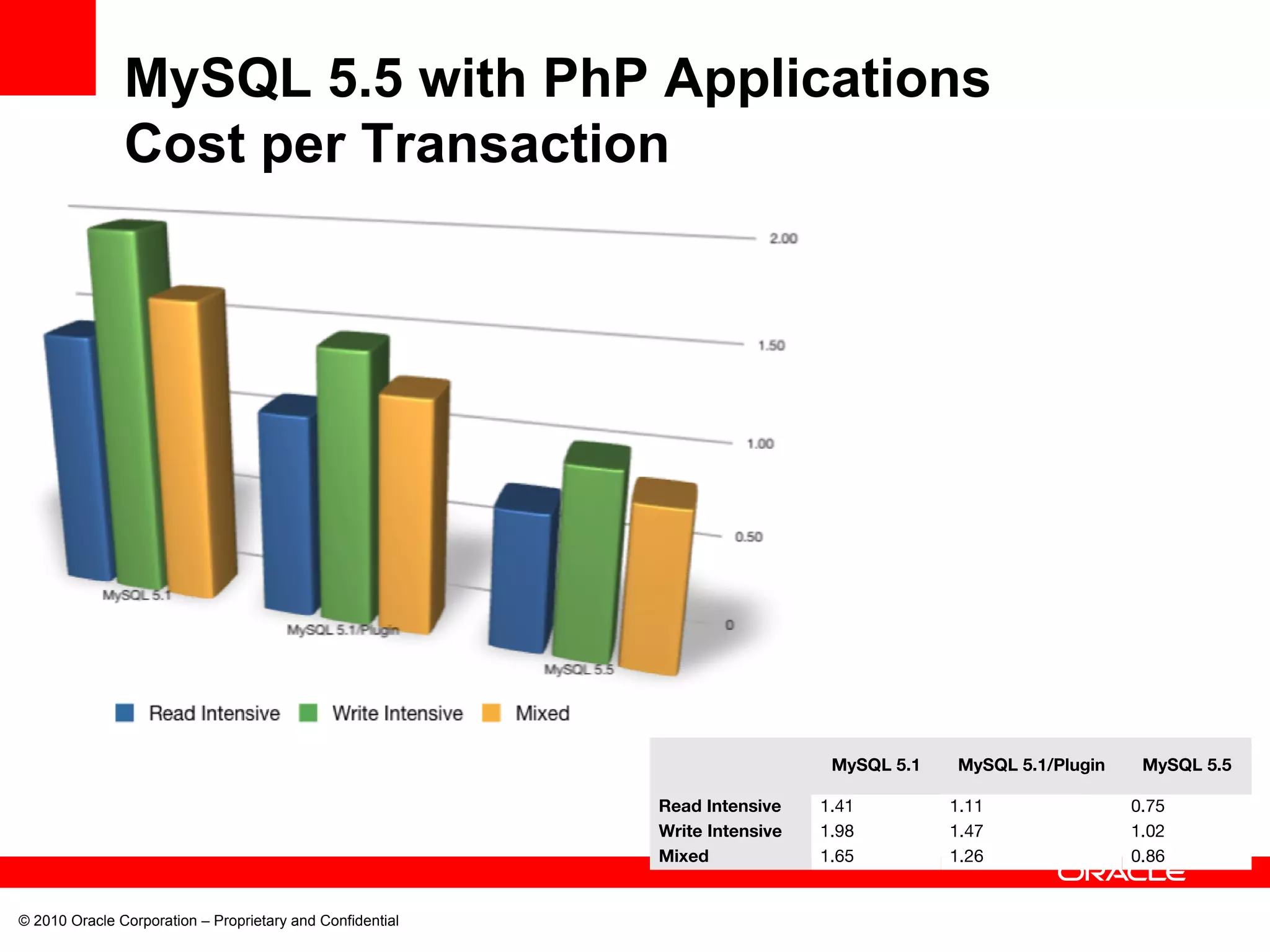

25. © 2010 Oracle Corporation – Proprietary and Confidential MySQL 5.5 with PhP Applications Cost per Transaction MySQL 5.1 MySQL 5.1/Plugin MySQL 5.5 Read Intensive 1.41 1.11 0.75 Write Intensive 1.98 1.47 1.02 Mixed 1.65 1.26 0.86

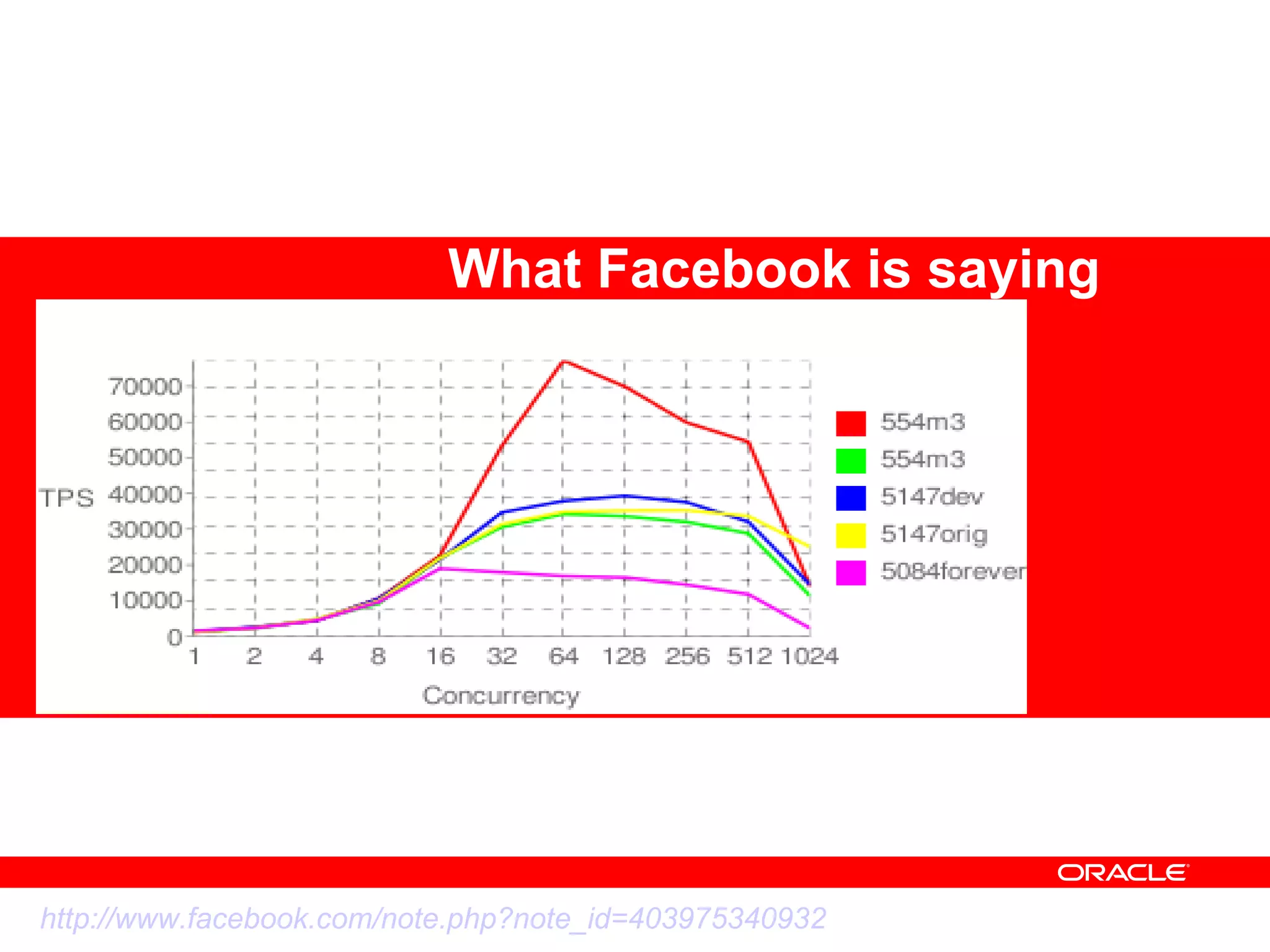

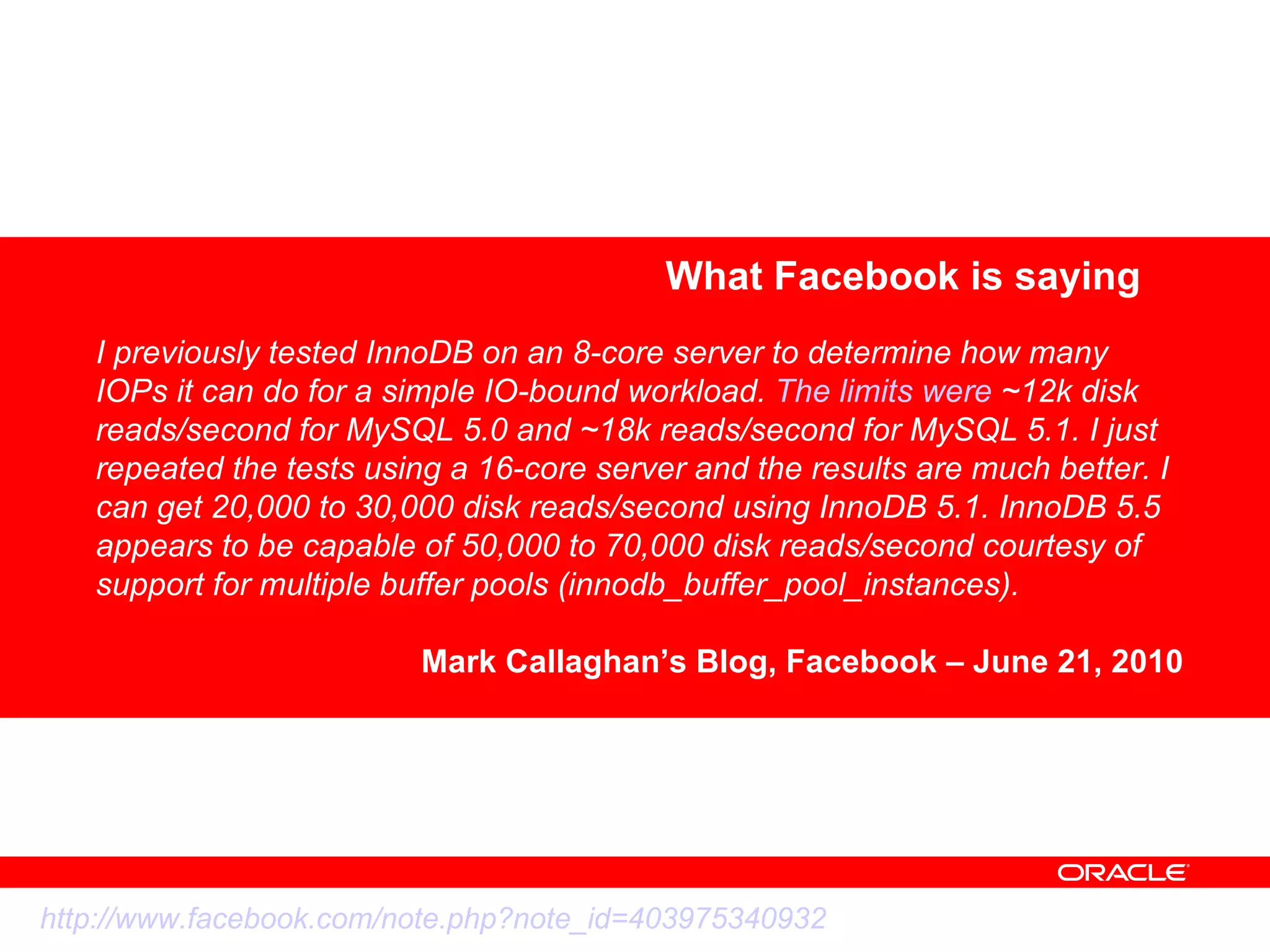

26. What Facebook is saying I previously tested InnoDB on an 8-core server to determine how many IOPs it can do for a simple IO-bound workload. The limits were ~12k disk reads/second for MySQL 5.0 and ~18k reads/second for MySQL 5.1. I just repeated the tests using a 16-core server and the results are much better. I can get 20,000 to 30,000 disk reads/second using InnoDB 5.1. InnoDB 5.5 appears to be capable of 50,000 to 70,000 disk reads/second courtesy of support for multiple buffer pools (innodb_buffer_pool_instances). Mark Callaghan’s Blog, Facebook – June 21, 2010 http://www.facebook.com/note.php?note_id=403975340932

27. What Facebook is saying http://www.facebook.com/note.php?note_id=403975340932

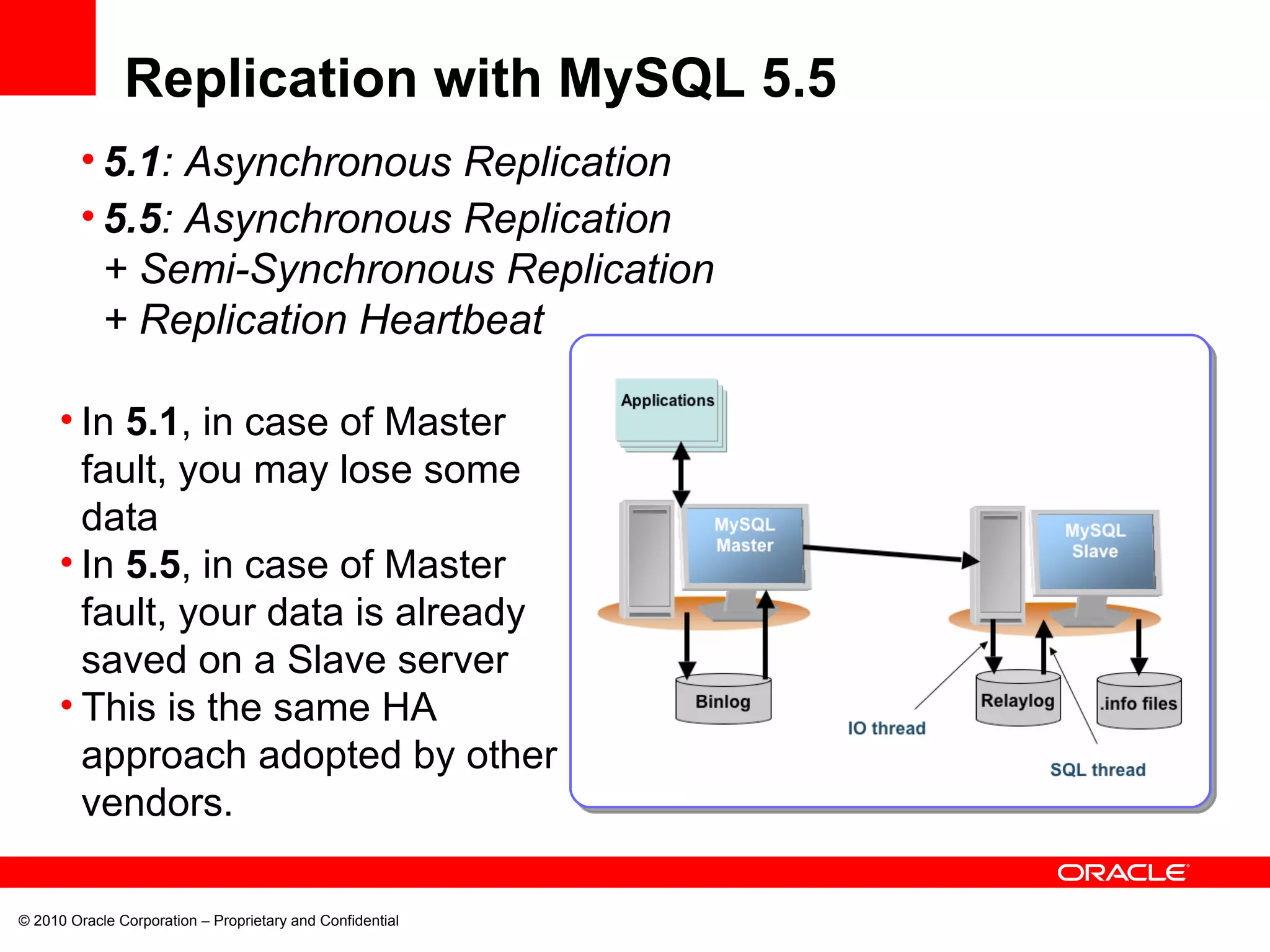

28. © 2010 Oracle Corporation – Proprietary and Confidential Replication with MySQL 5.5 5.1 : Asynchronous Replication 5.5 : Asynchronous Replication + Semi-Synchronous Replication + Replication Heartbeat In 5.1 , in case of Master fault, you may lose some data In 5.5 , in case of Master fault, your data is already saved on a Slave server This is the same HA approach adopted by other vendors.

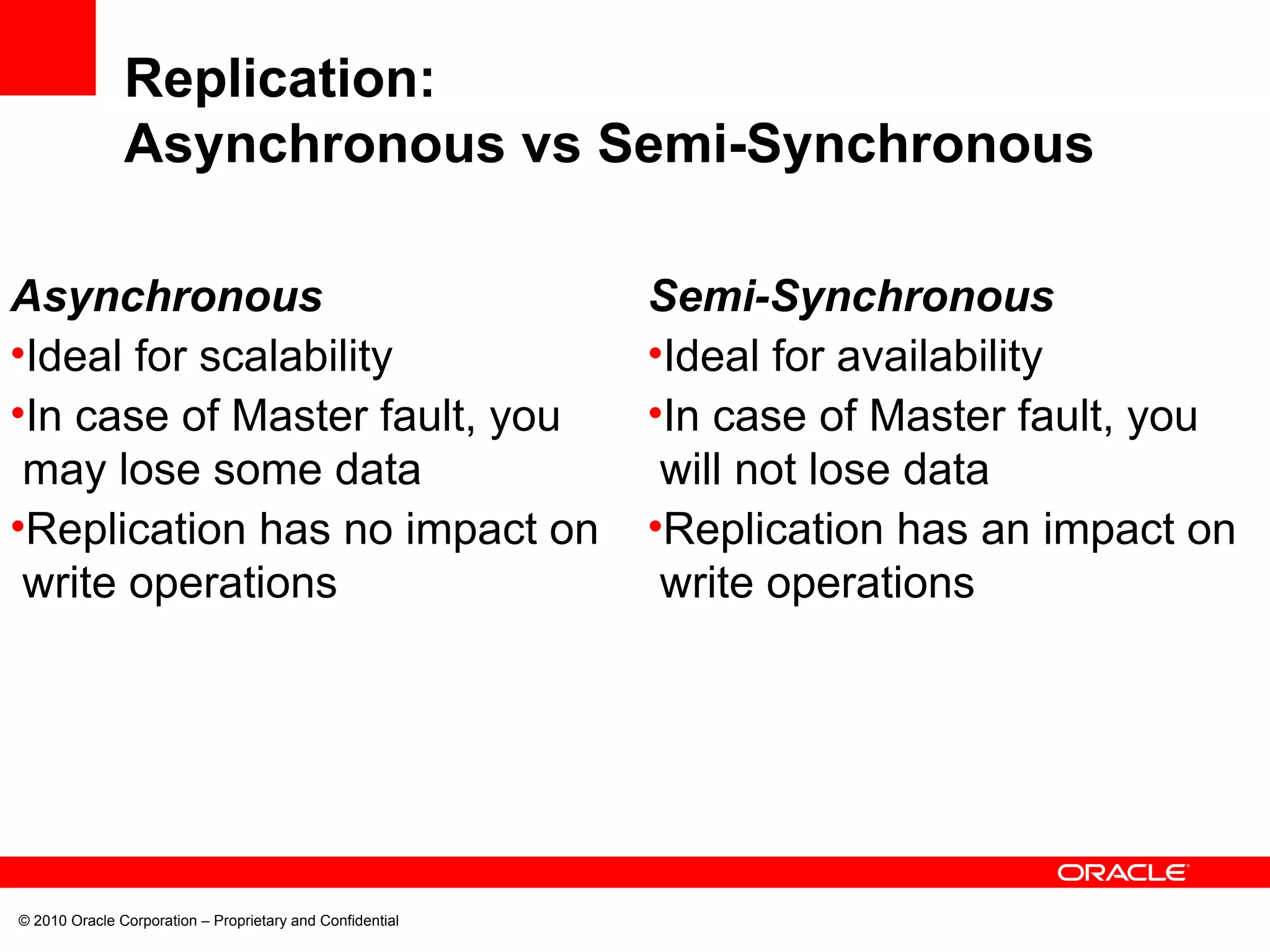

29. © 2010 Oracle Corporation – Proprietary and Confidential Replication: Asynchronous vs Semi-Synchronous Asynchronous Ideal for scalability In case of Master fault, you may lose some data Replication has no impact on write operations Semi-Synchronous Ideal for availability In case of Master fault, you will not lose data Replication has an impact on write operations

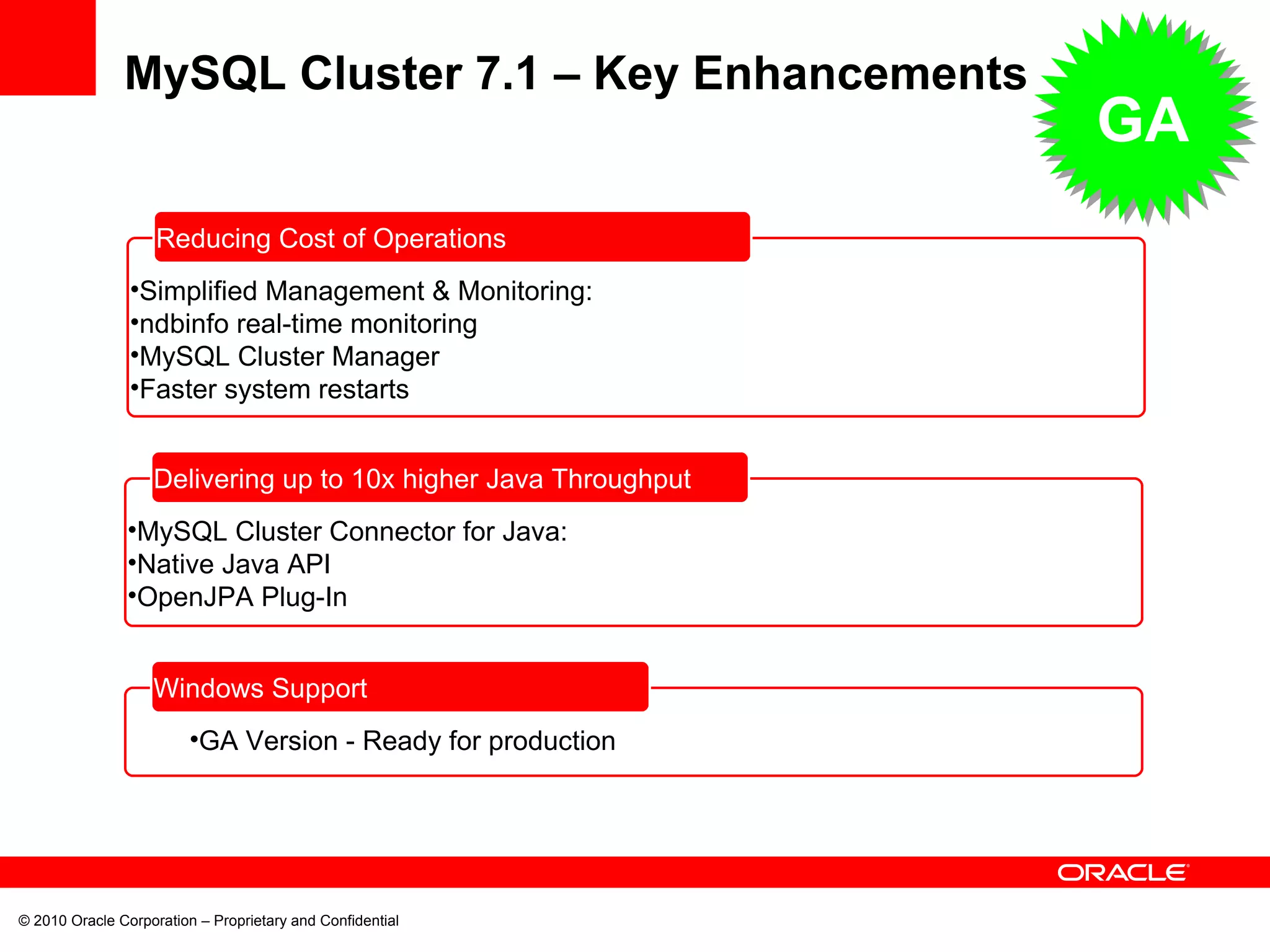

30. © 2010 Oracle Corporation – Proprietary and Confidential MySQL Cluster 7.1 – Key Enhancements Simplified Management & Monitoring: ndbinfo real-time monitoring MySQL Cluster Manager Faster system restarts Reducing Cost of Operations MySQL Cluster Connector for Java: Native Java API OpenJPA Plug-In Delivering up to 10x higher Java Throughput GA Version - Ready for production Windows Support GA

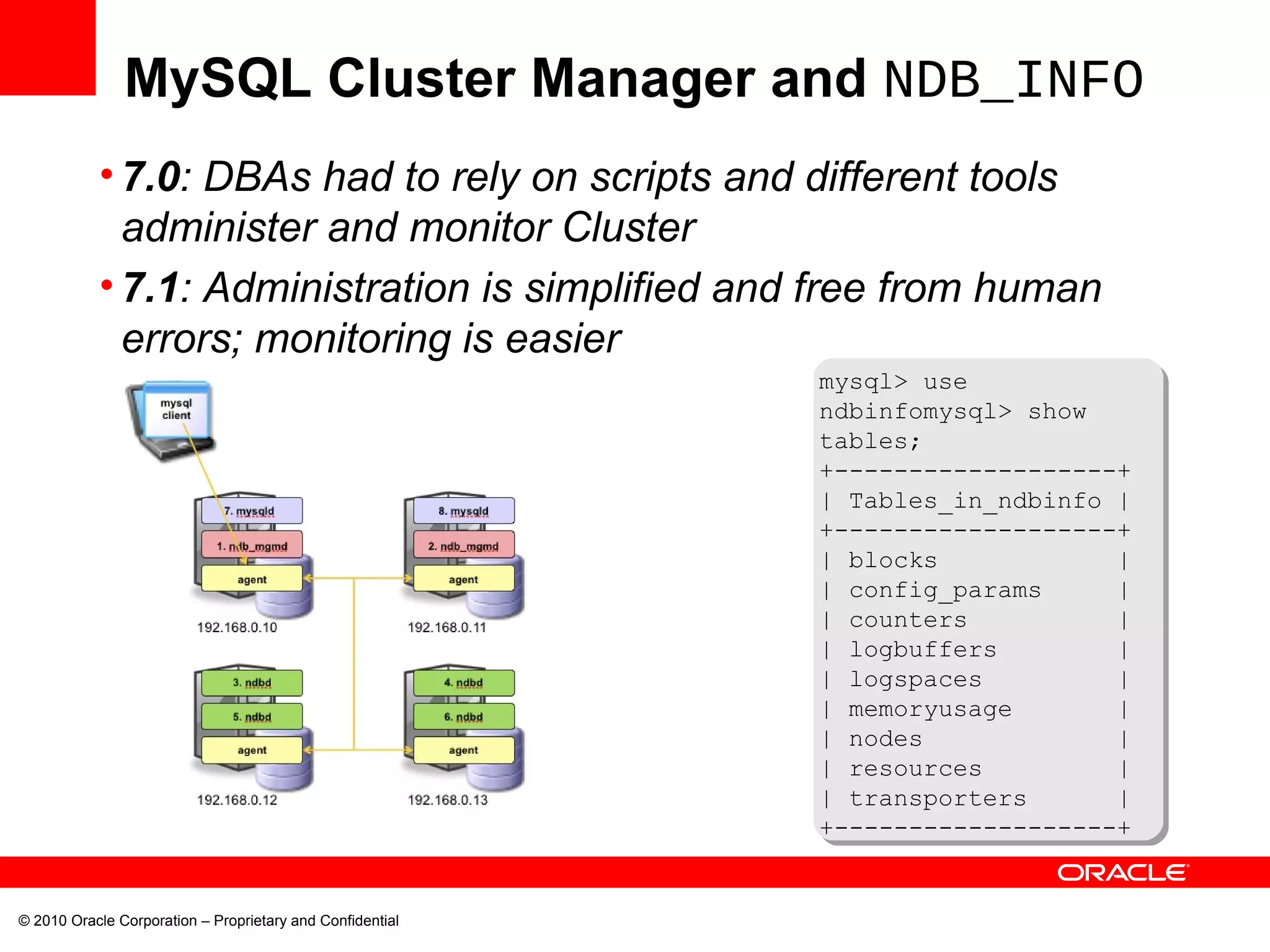

31. © 2010 Oracle Corporation – Proprietary and Confidential MySQL Cluster Manager and NDB_INFO 7.0 : DBAs had to rely on scripts and different tools administer and monitor Cluster 7.1 : Administration is simplified and free from human errors; monitoring is easier mysql> use ndbinfomysql> show tables;+-------------------+ | Tables_in_ndbinfo | +-------------------+ | blocks | | config_params | | counters | | logbuffers | | logspaces | | memoryusage | | nodes | | resources | | transporters | +-------------------+

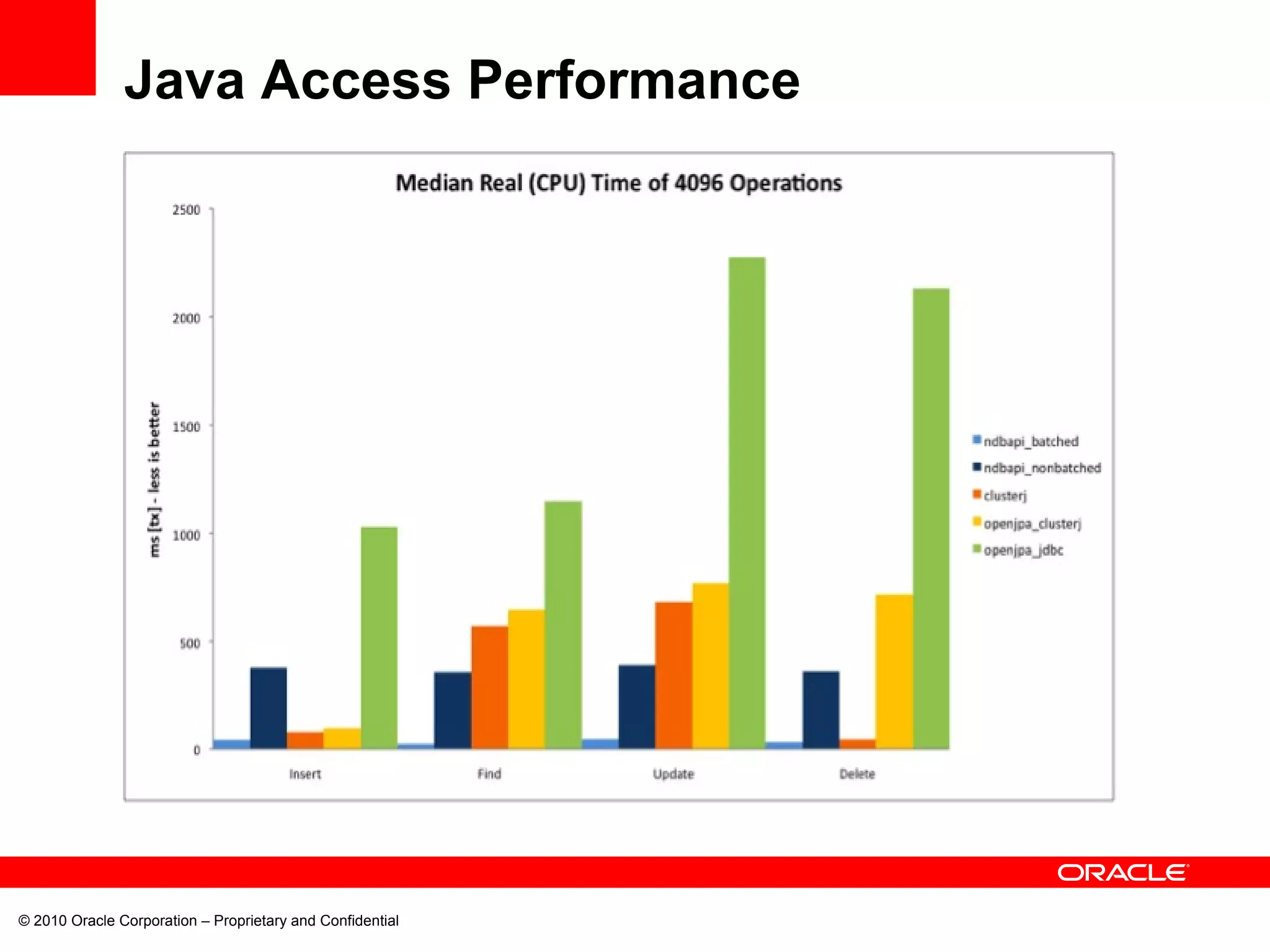

32. © 2010 Oracle Corporation – Proprietary and Confidential Java Access Performance

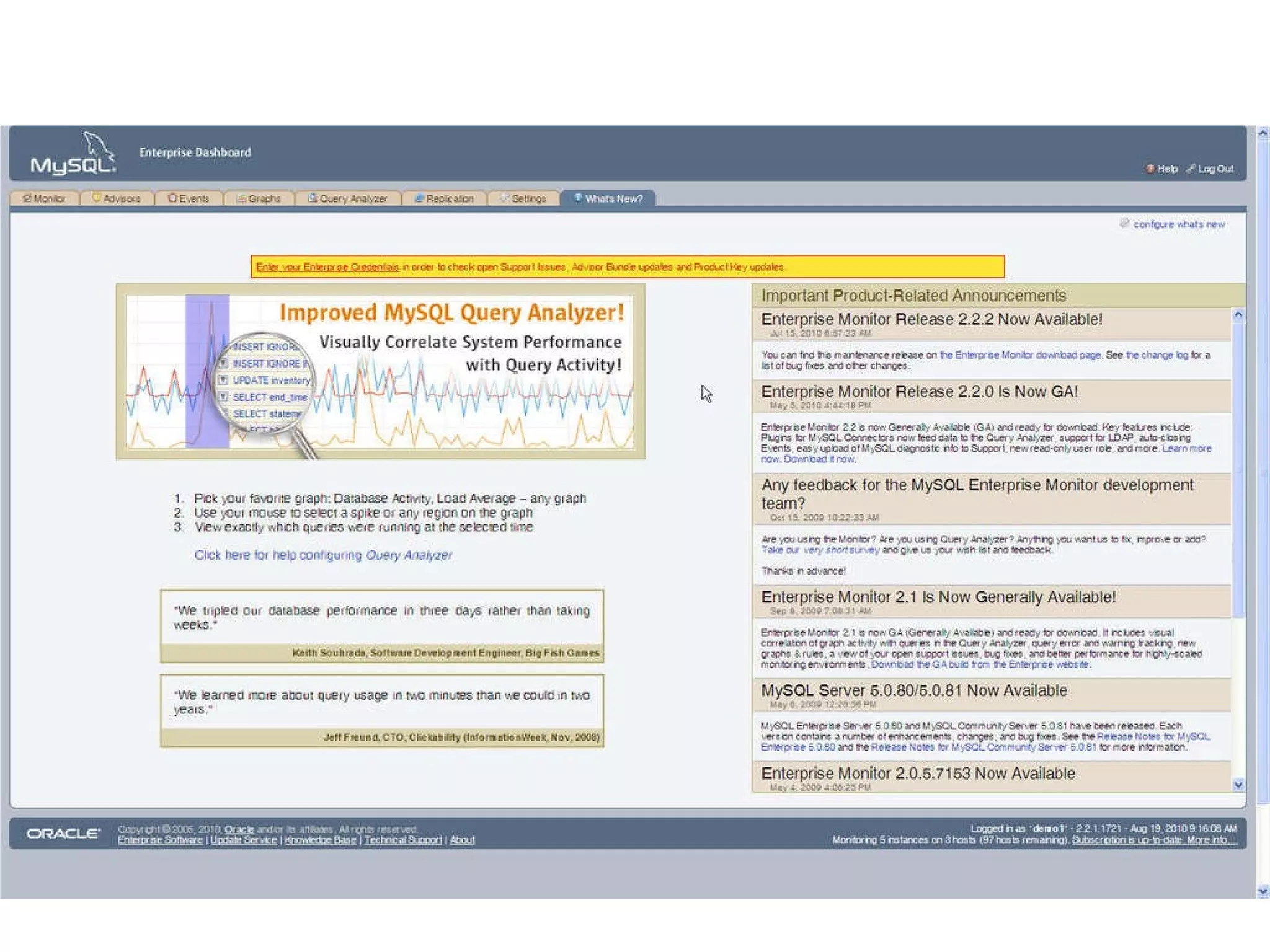

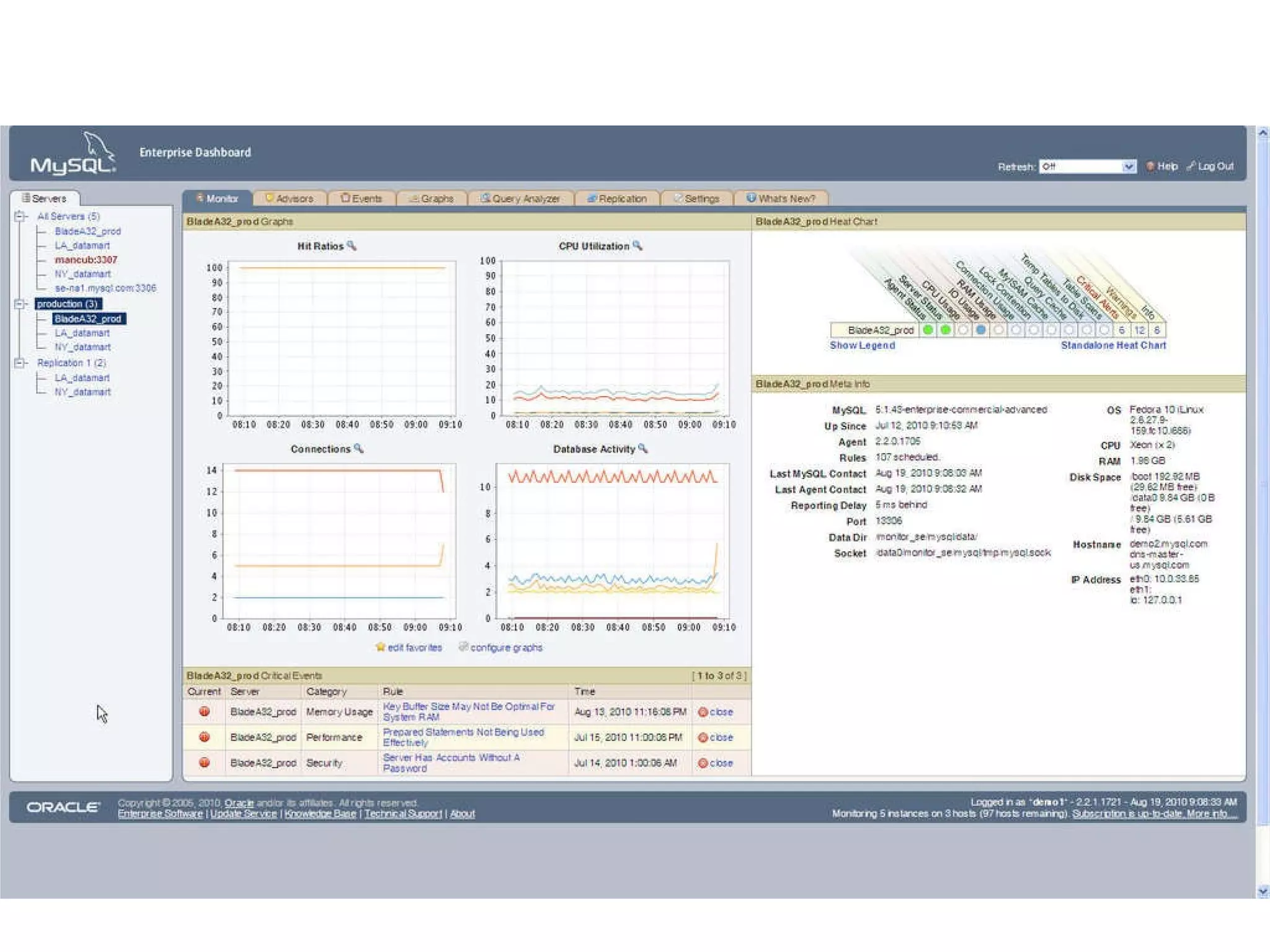

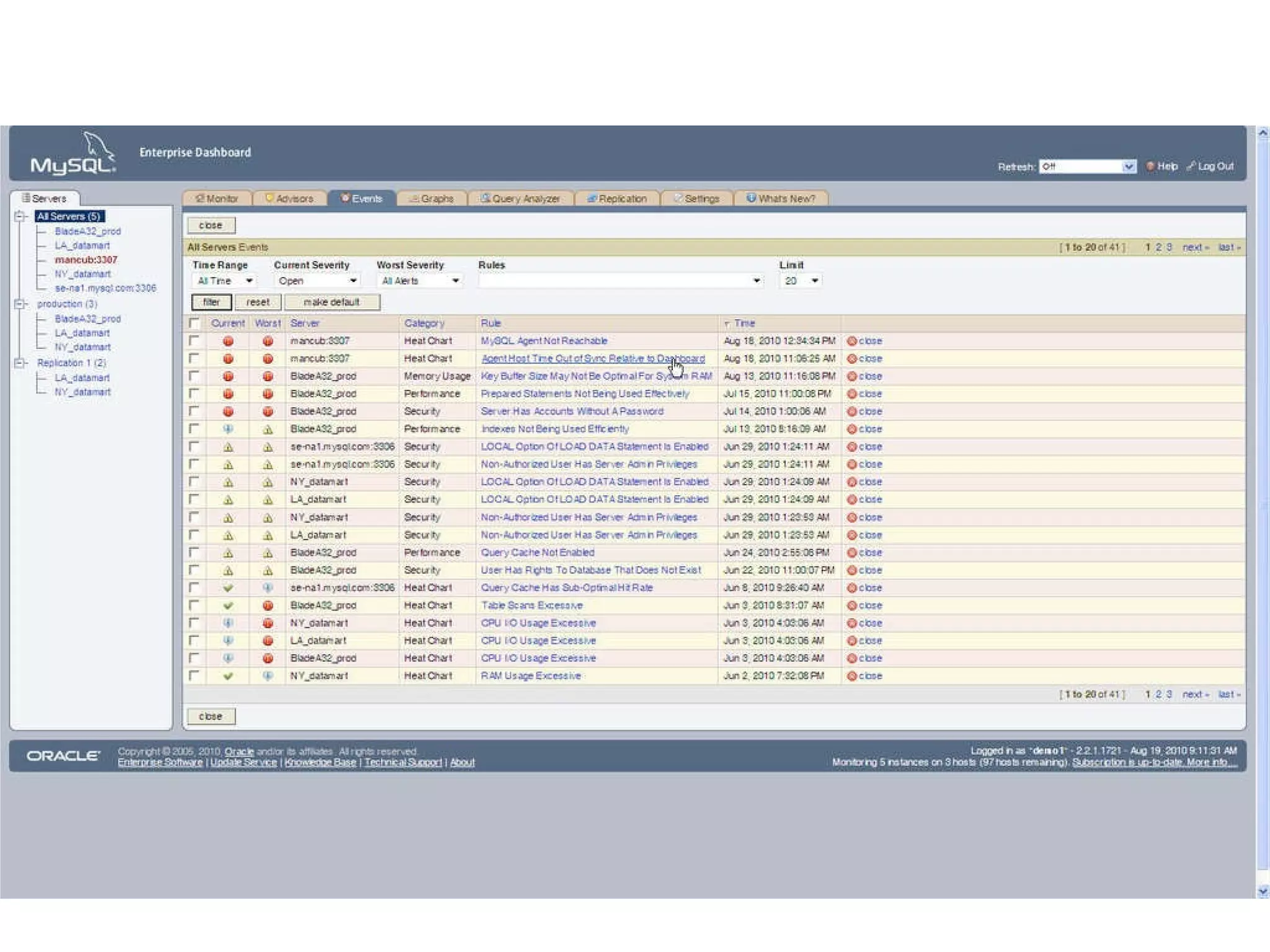

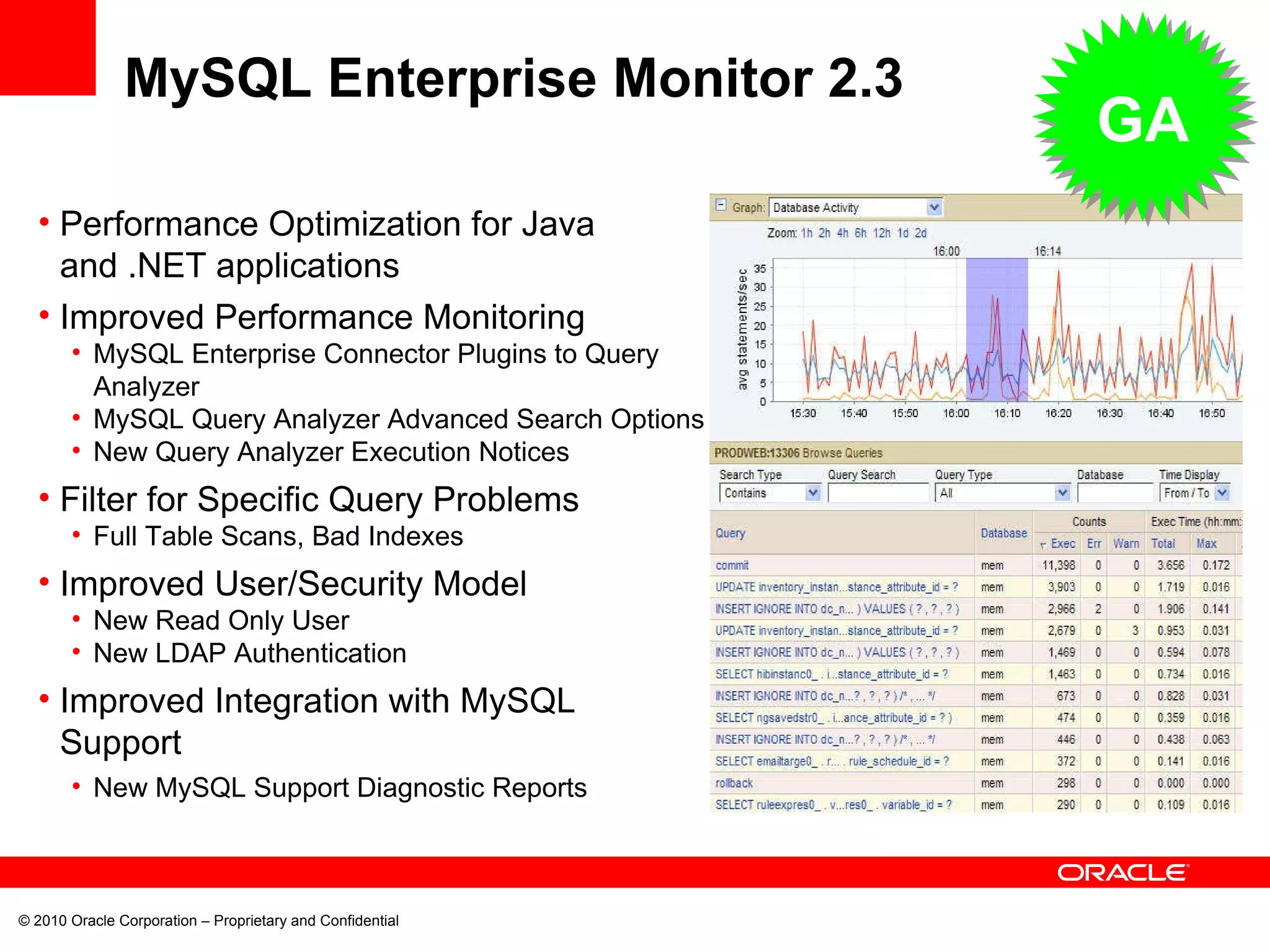

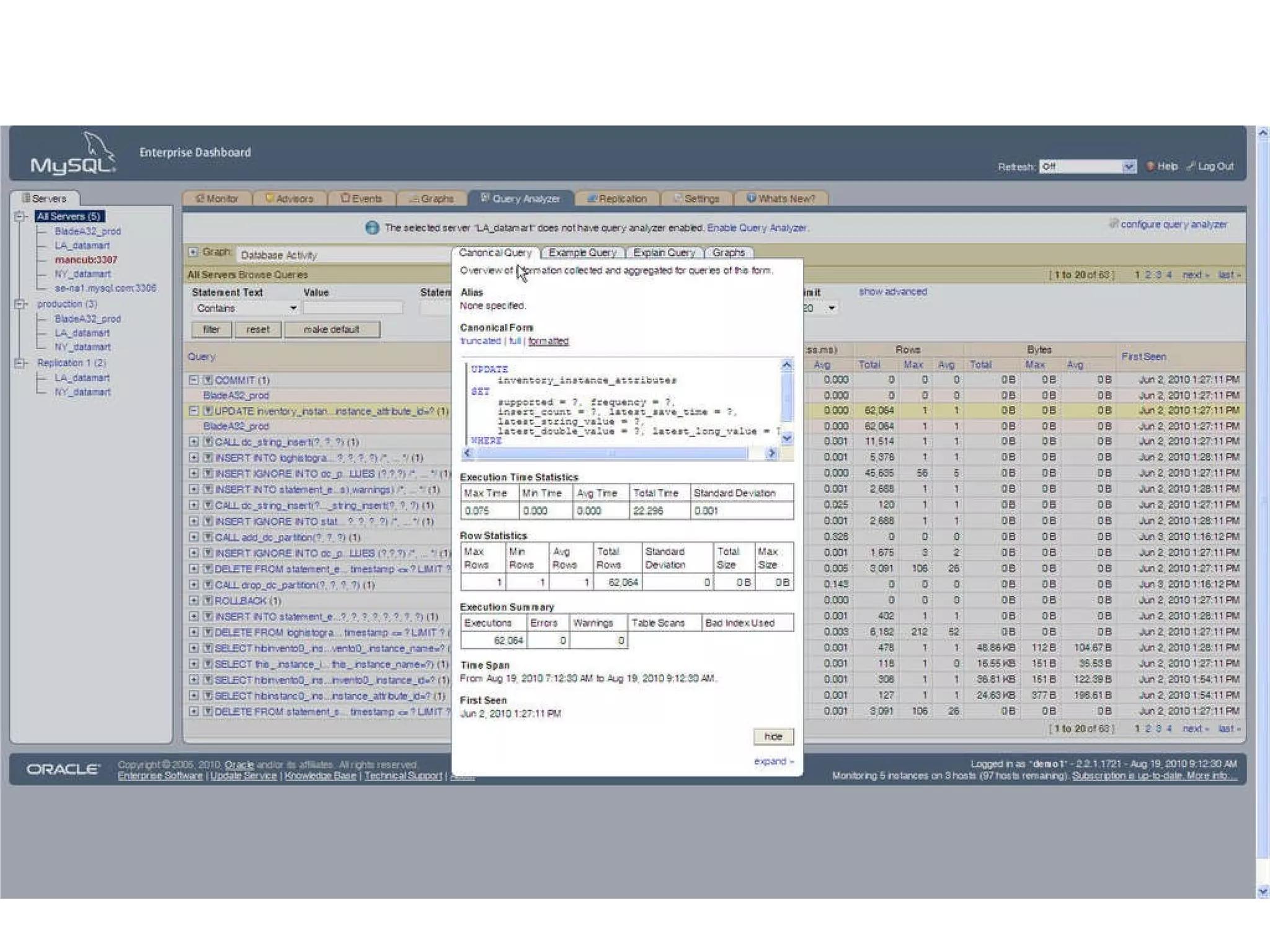

33. © 2010 Oracle Corporation – Proprietary and Confidential MySQL Enterprise Monitor 2.3 Performance Optimization for Java and .NET applications Improved Performance Monitoring MySQL Enterprise Connector Plugins to Query Analyzer MySQL Query Analyzer Advanced Search Options New Query Analyzer Execution Notices Filter for Specific Query Problems Full Table Scans, Bad Indexes Improved User/Security Model New Read Only User New LDAP Authentication Improved Integration with MySQL Support New MySQL Support Diagnostic Reports GA

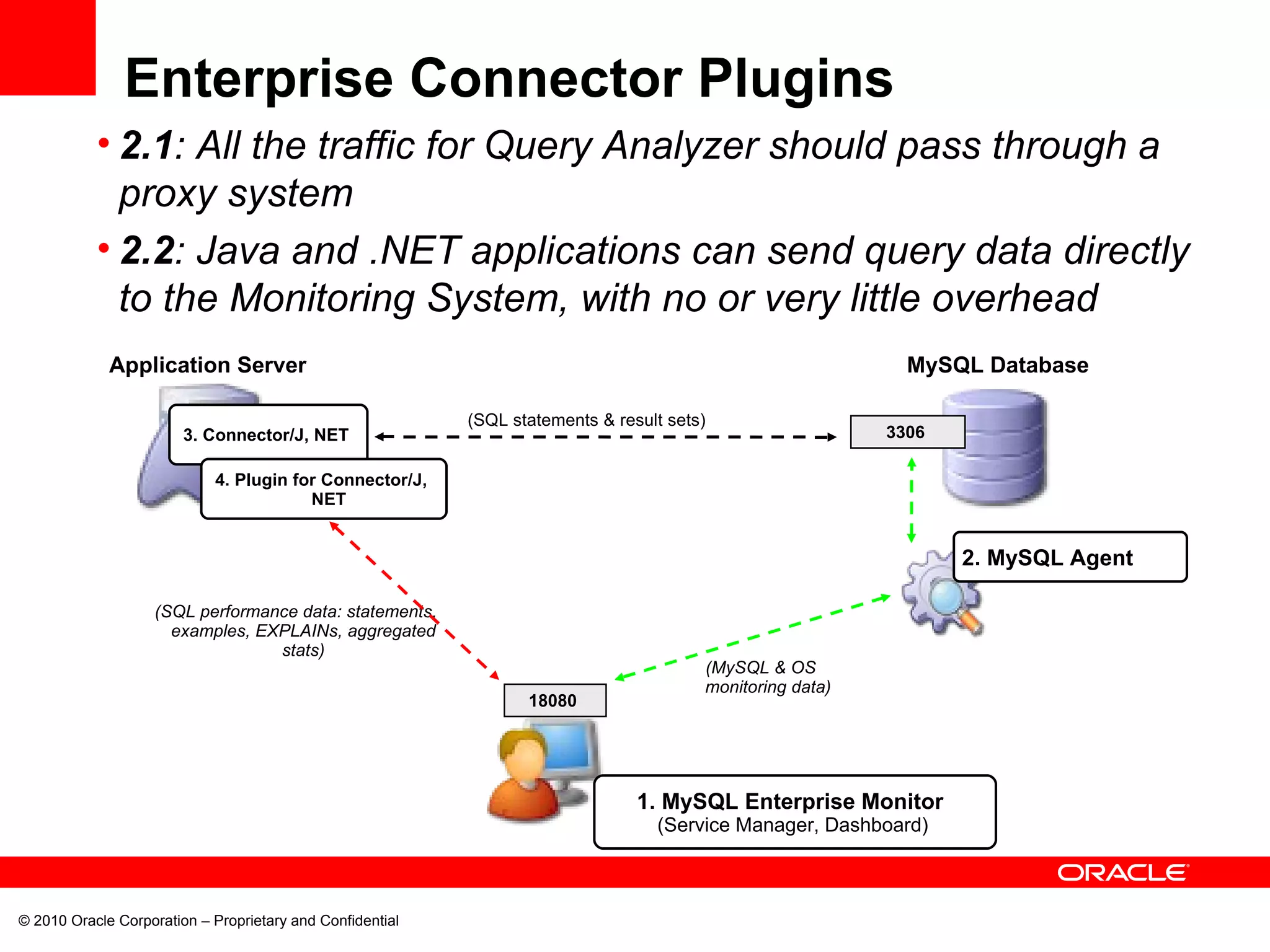

39. © 2010 Oracle Corporation – Proprietary and Confidential Enterprise Connector Plugins 2.1 : All the traffic for Query Analyzer should pass through a proxy system 2.2 : Java and .NET applications can send query data directly to the Monitoring System, with no or very little overhead MySQL Database (SQL statements & result sets)‏ (MySQL & OS monitoring data)‏ 3. Connector/J, NET 4. Plugin for Connector/J, NET (SQL performance data: statements, examples, EXPLAINs, aggregated stats)‏ 3306 18080 2. MySQL Agent 1. MySQL Enterprise Monitor (Service Manager, Dashboard)‏ Application Server

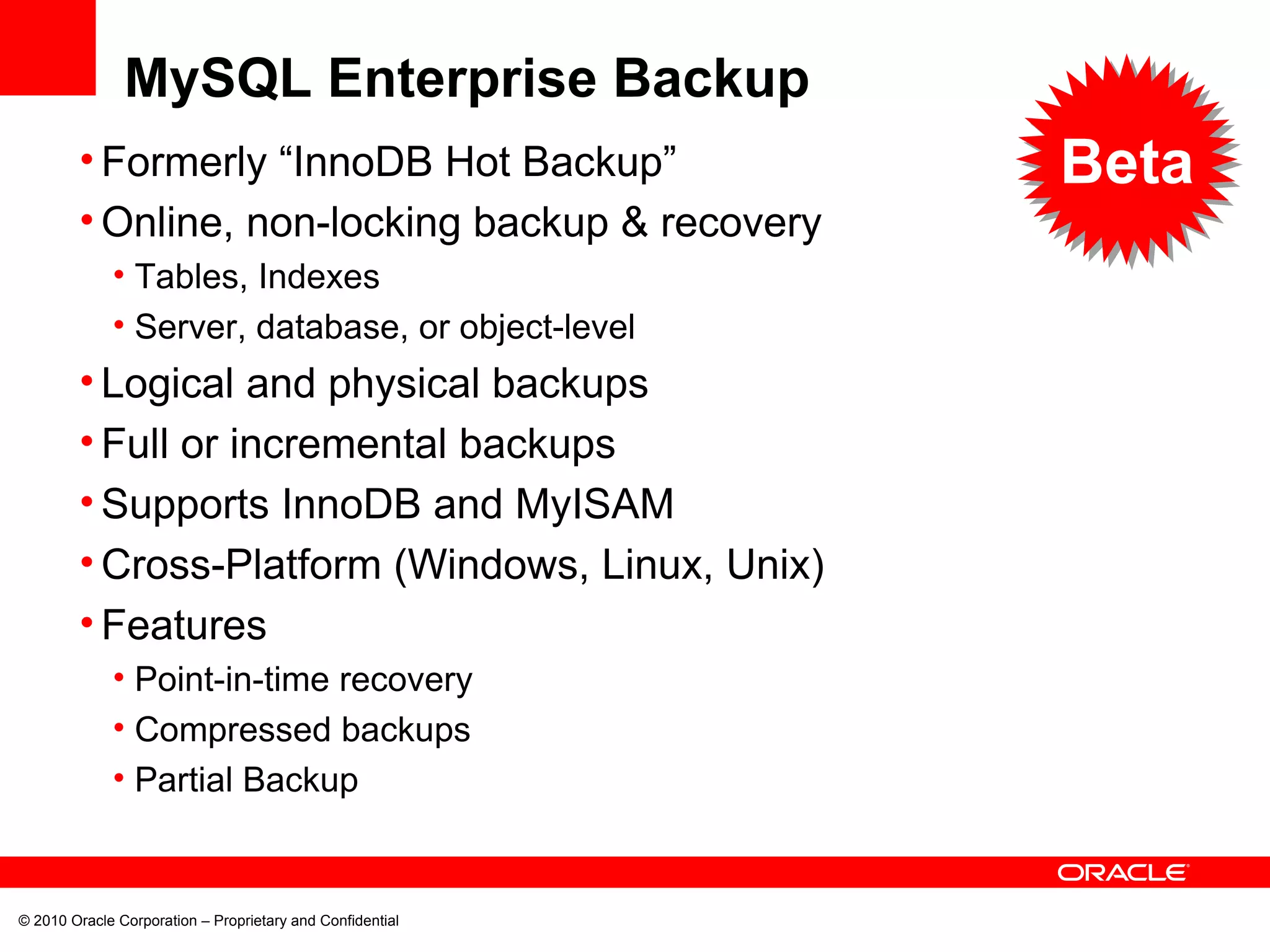

40. © 2010 Oracle Corporation – Proprietary and Confidential MySQL Enterprise Backup Formerly “InnoDB Hot Backup” Online, non-locking backup & recovery Tables, Indexes Server, database, or object-level Logical and physical backups Full or incremental backups Supports InnoDB and MyISAM Cross-Platform (Windows, Linux, Unix) Features Point-in-time recovery Compressed backups Partial Backup Beta

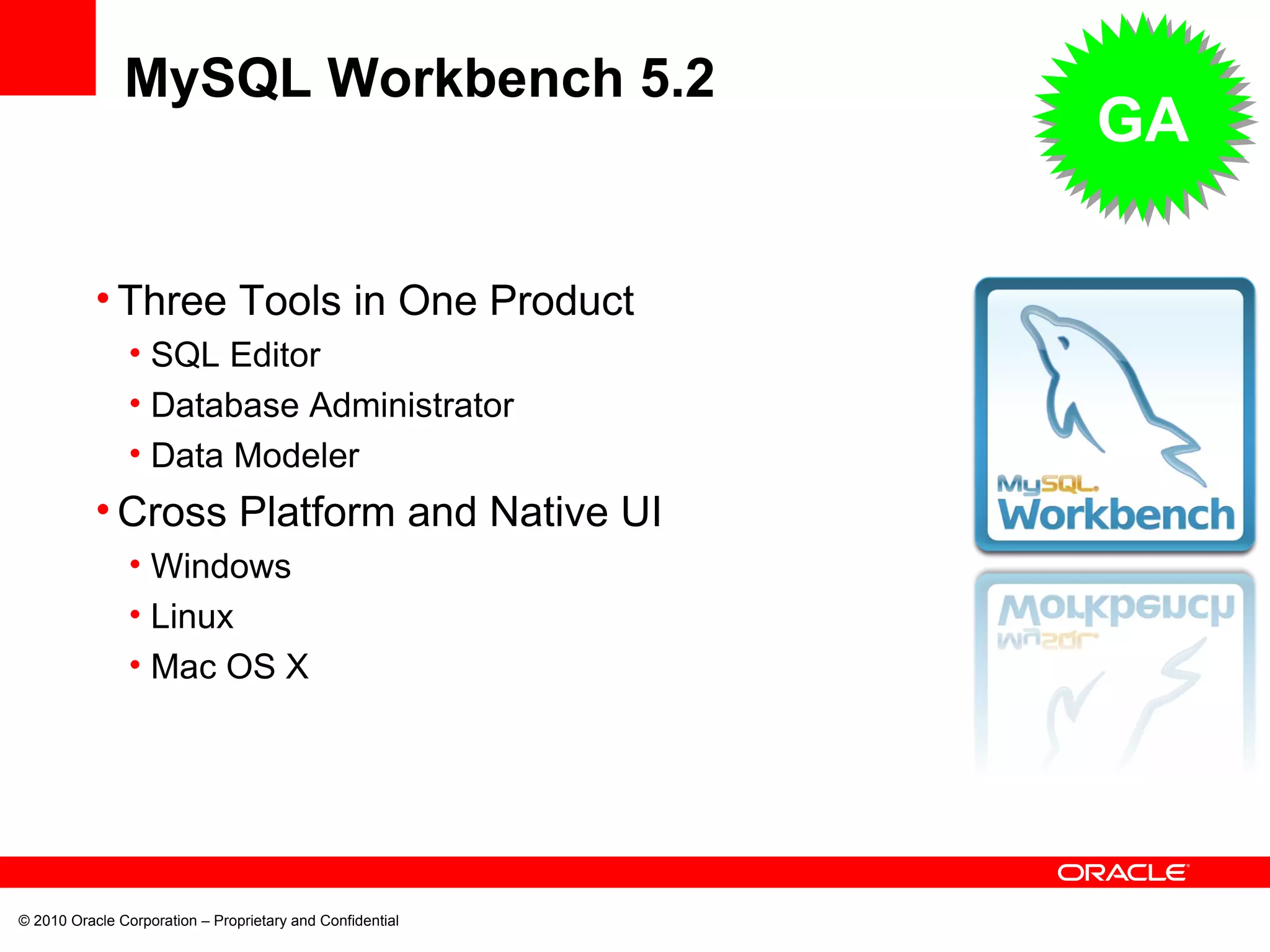

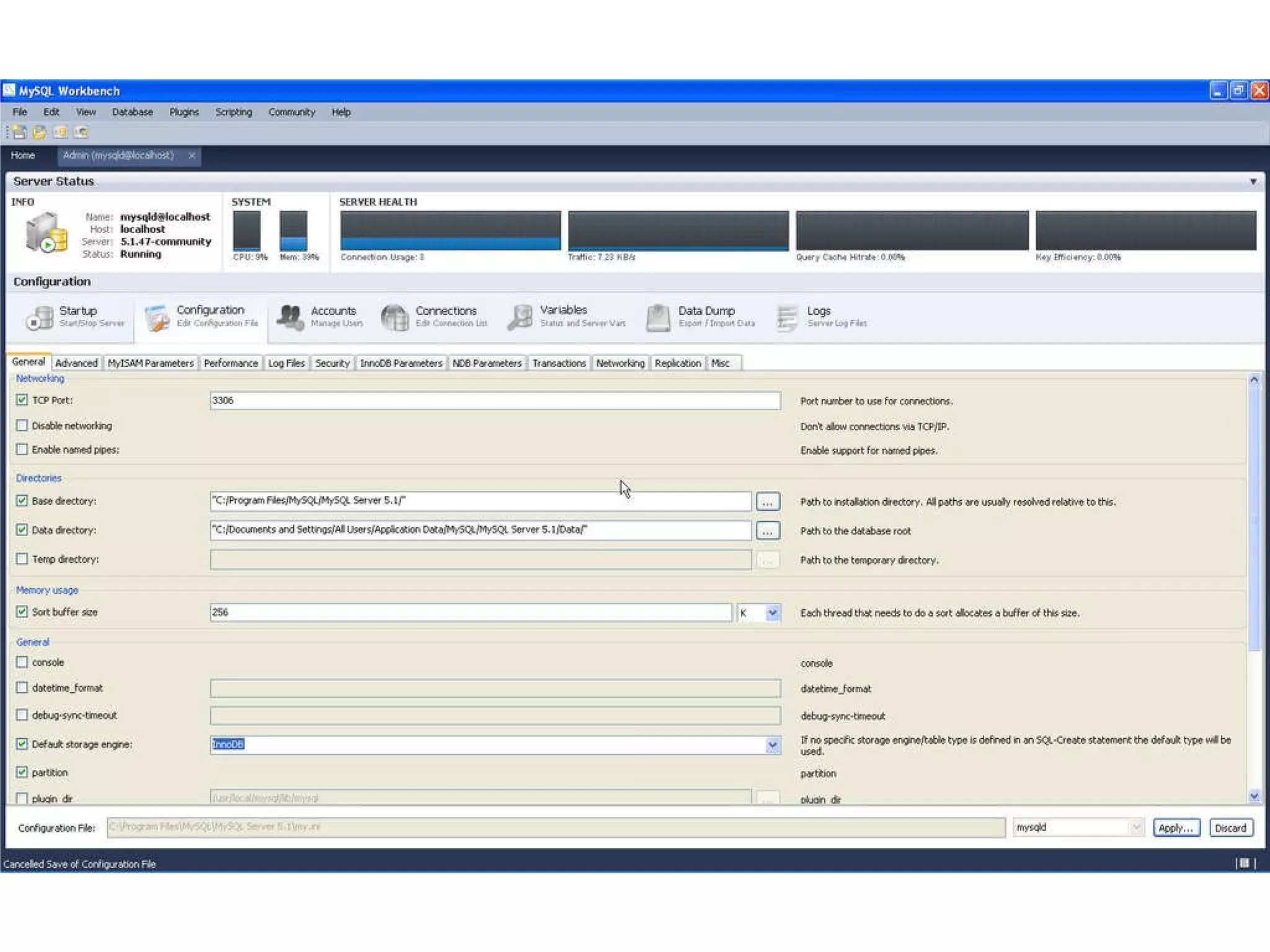

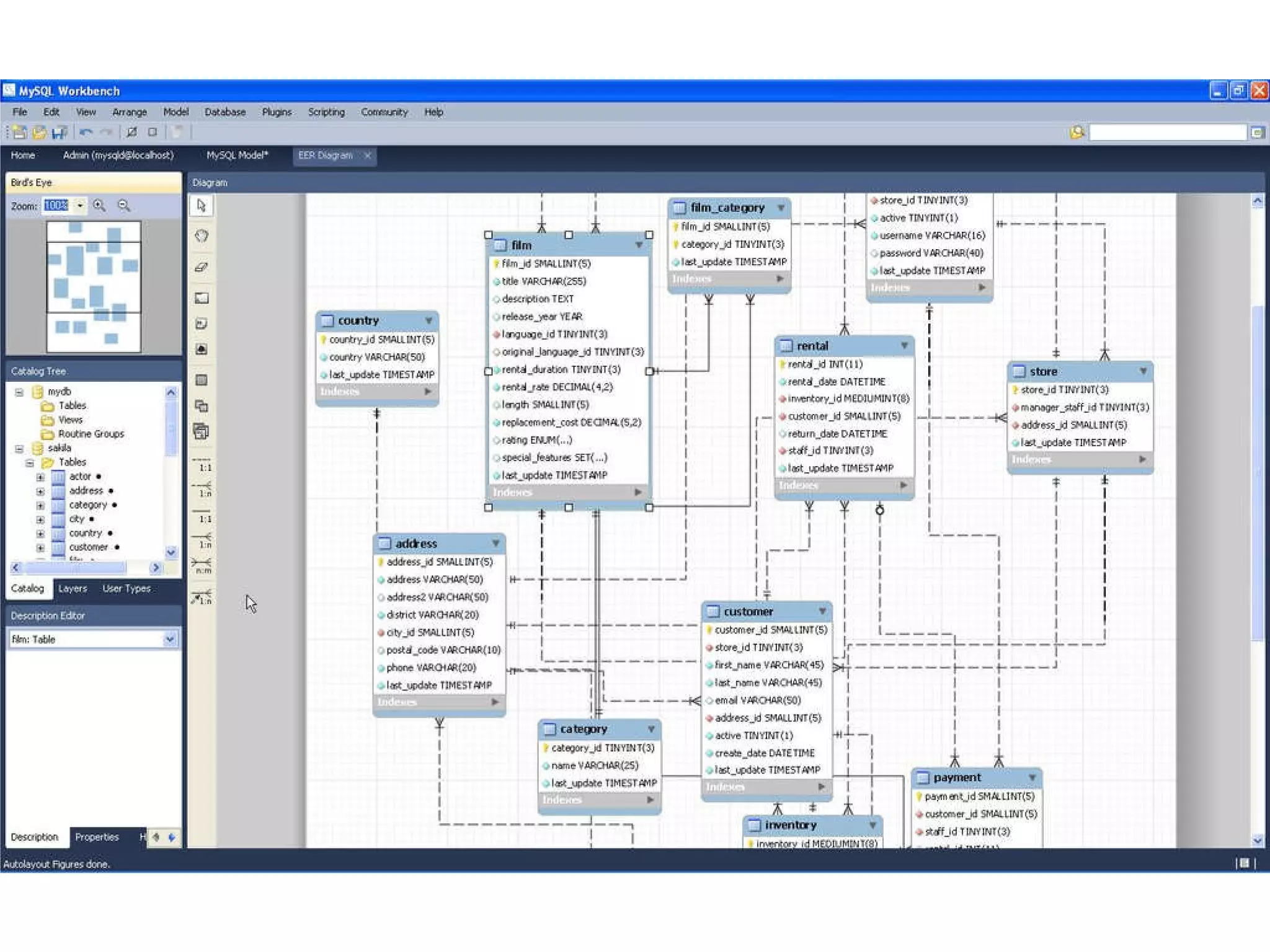

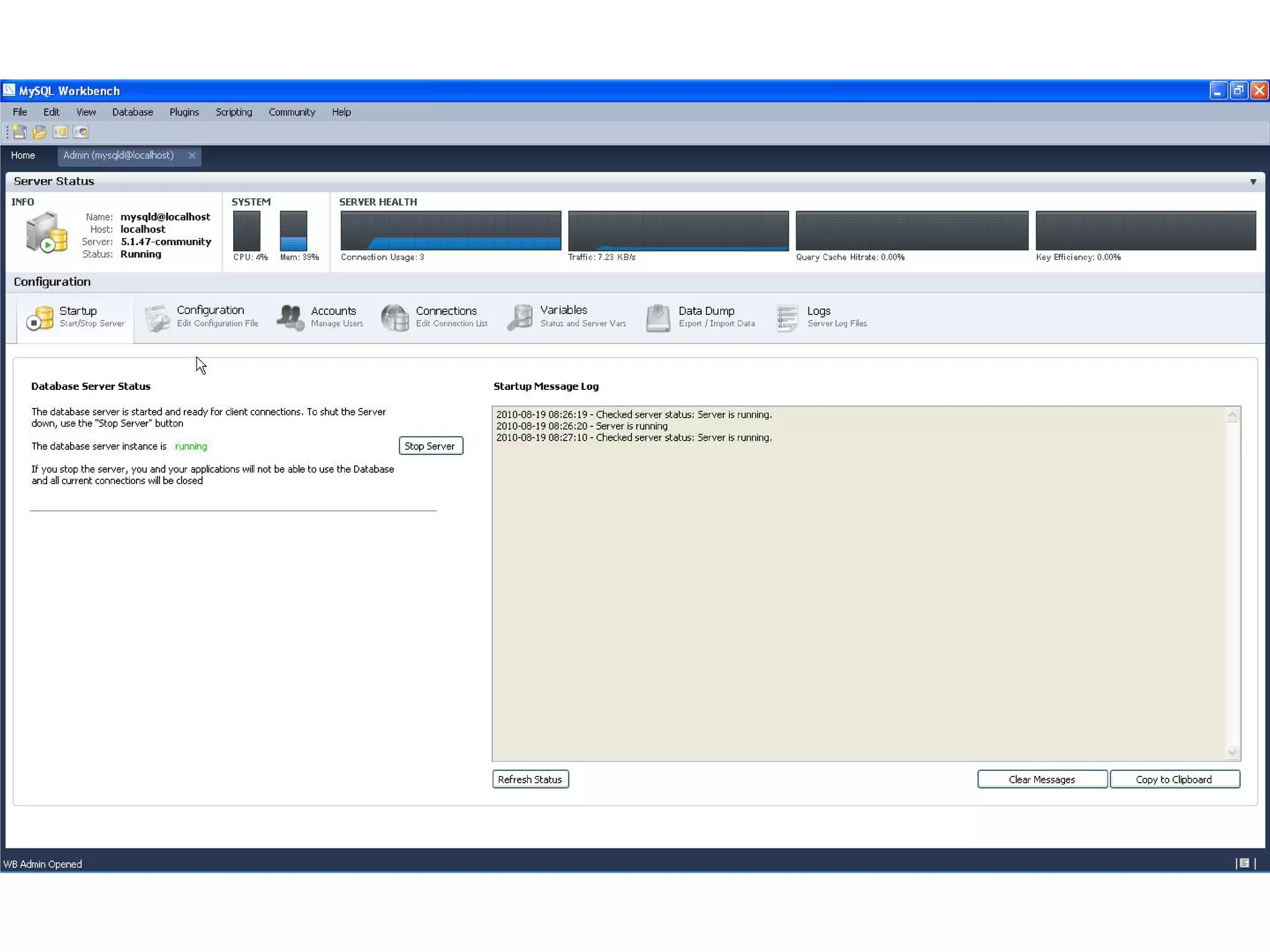

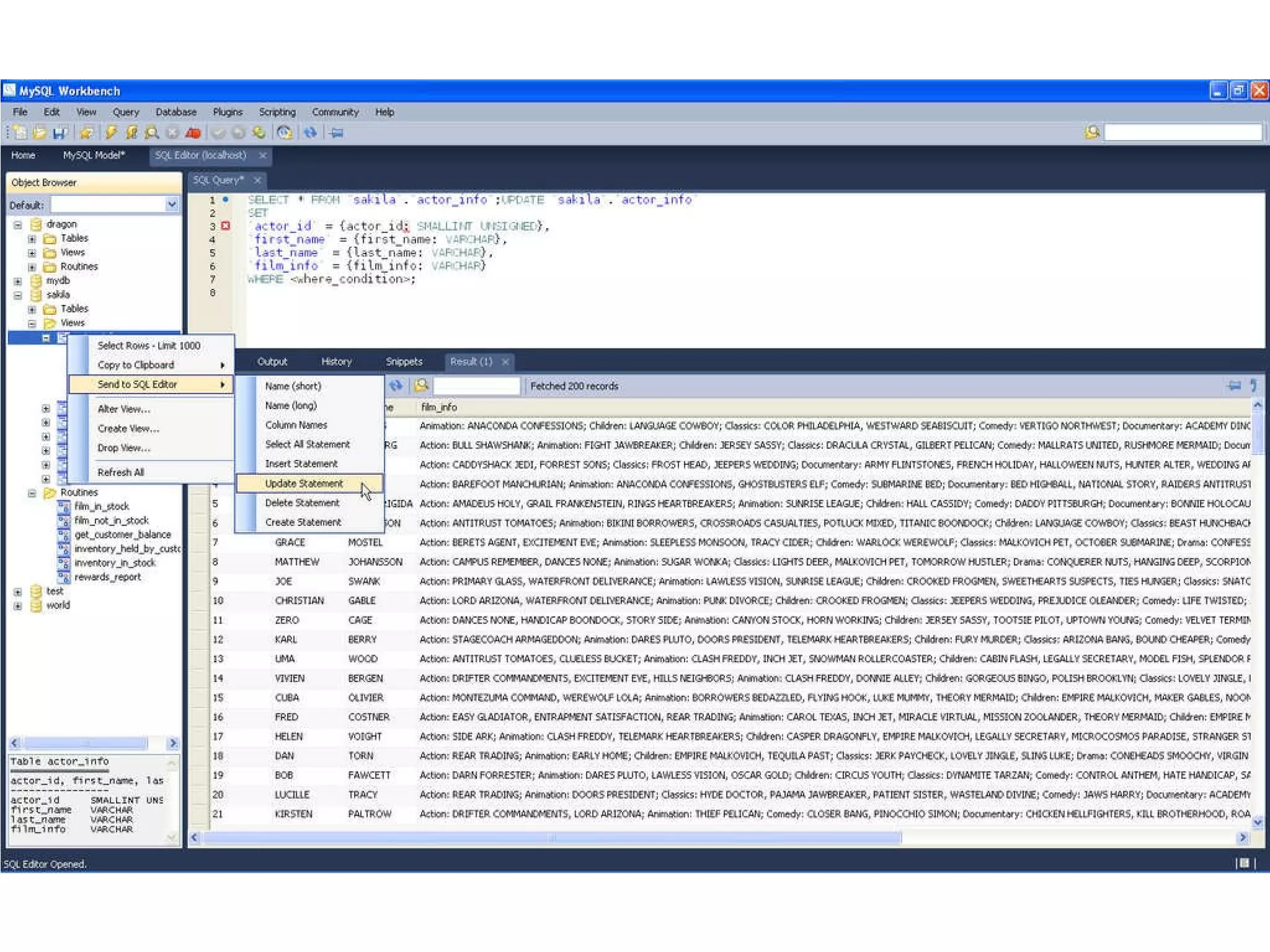

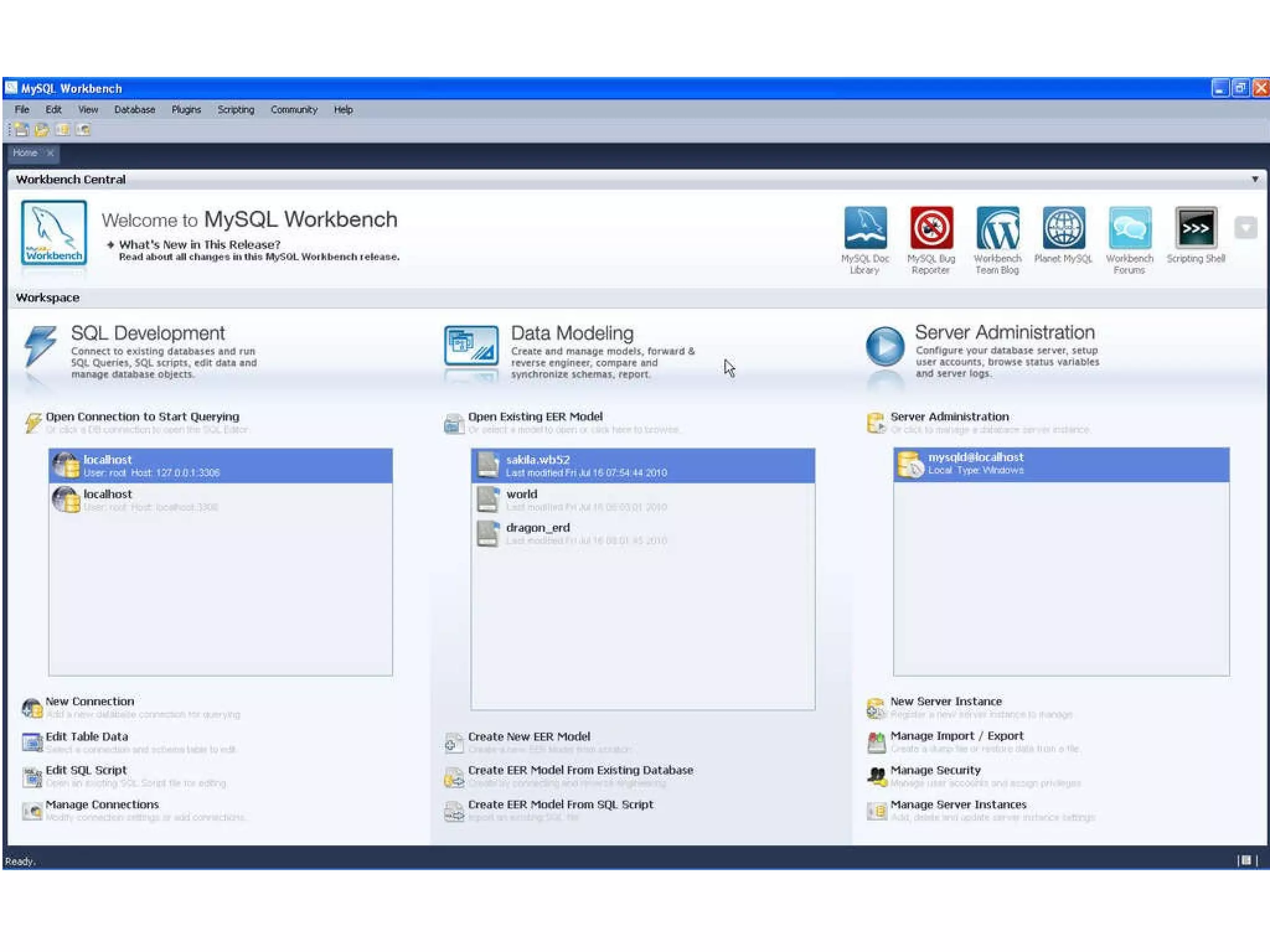

41. © 2010 Oracle Corporation – Proprietary and Confidential MySQL Workbench 5.2 Three Tools in One Product SQL Editor Database Administrator Data Modeler Cross Platform and Native UI Windows Linux Mac OS X GA

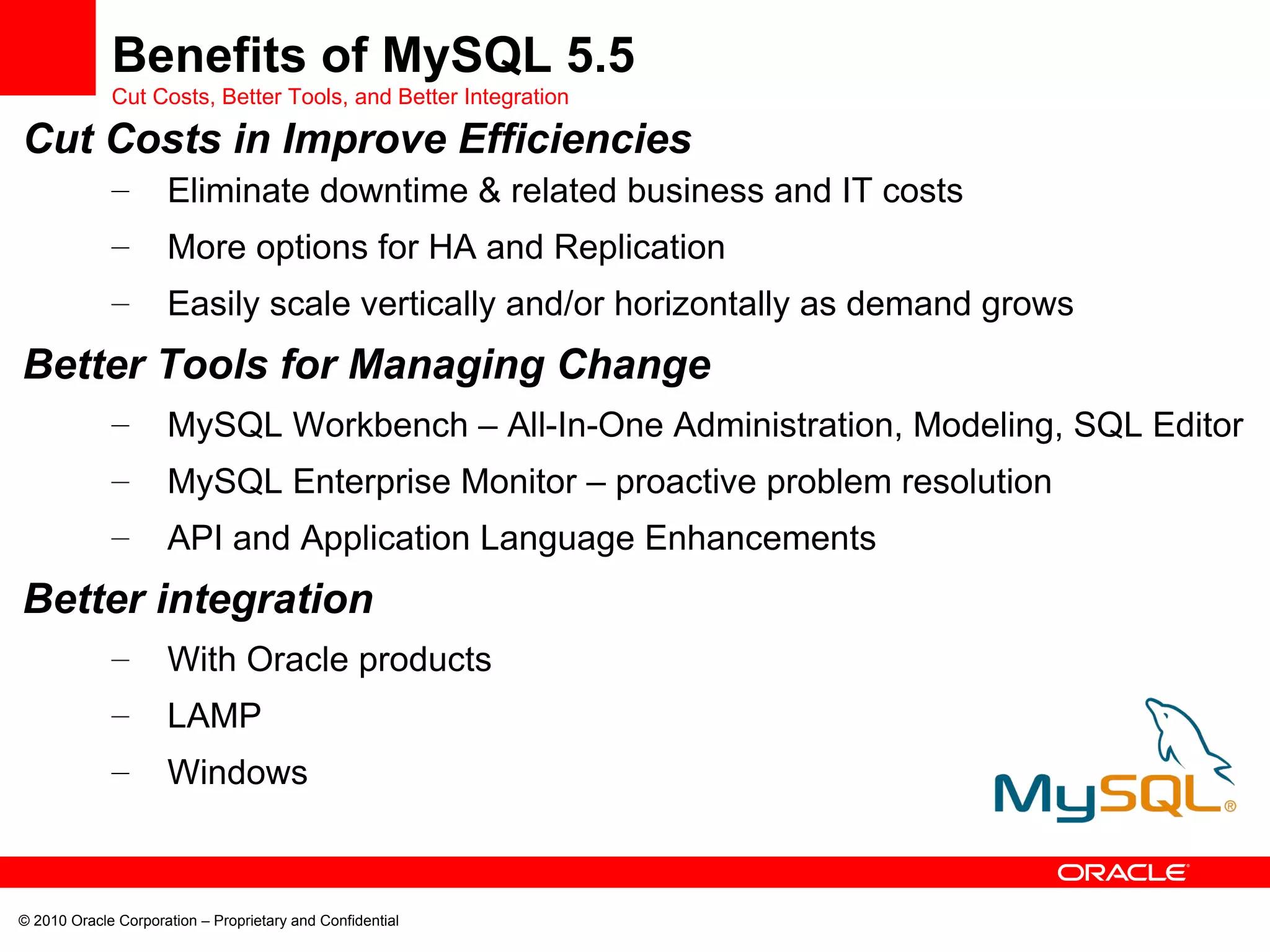

48. Cut Costs in Improve Efficiencies Eliminate downtime & related business and IT costs More options for HA and Replication Easily scale vertically and/or horizontally as demand grows Better Tools for Managing Change MySQL Workbench – All-In-One Administration, Modeling, SQL Editor MySQL Enterprise Monitor – proactive problem resolution API and Application Language Enhancements Better integration With Oracle products LAMP Windows Benefits of MySQL 5.5 Cut Costs, Better Tools, and Better Integration

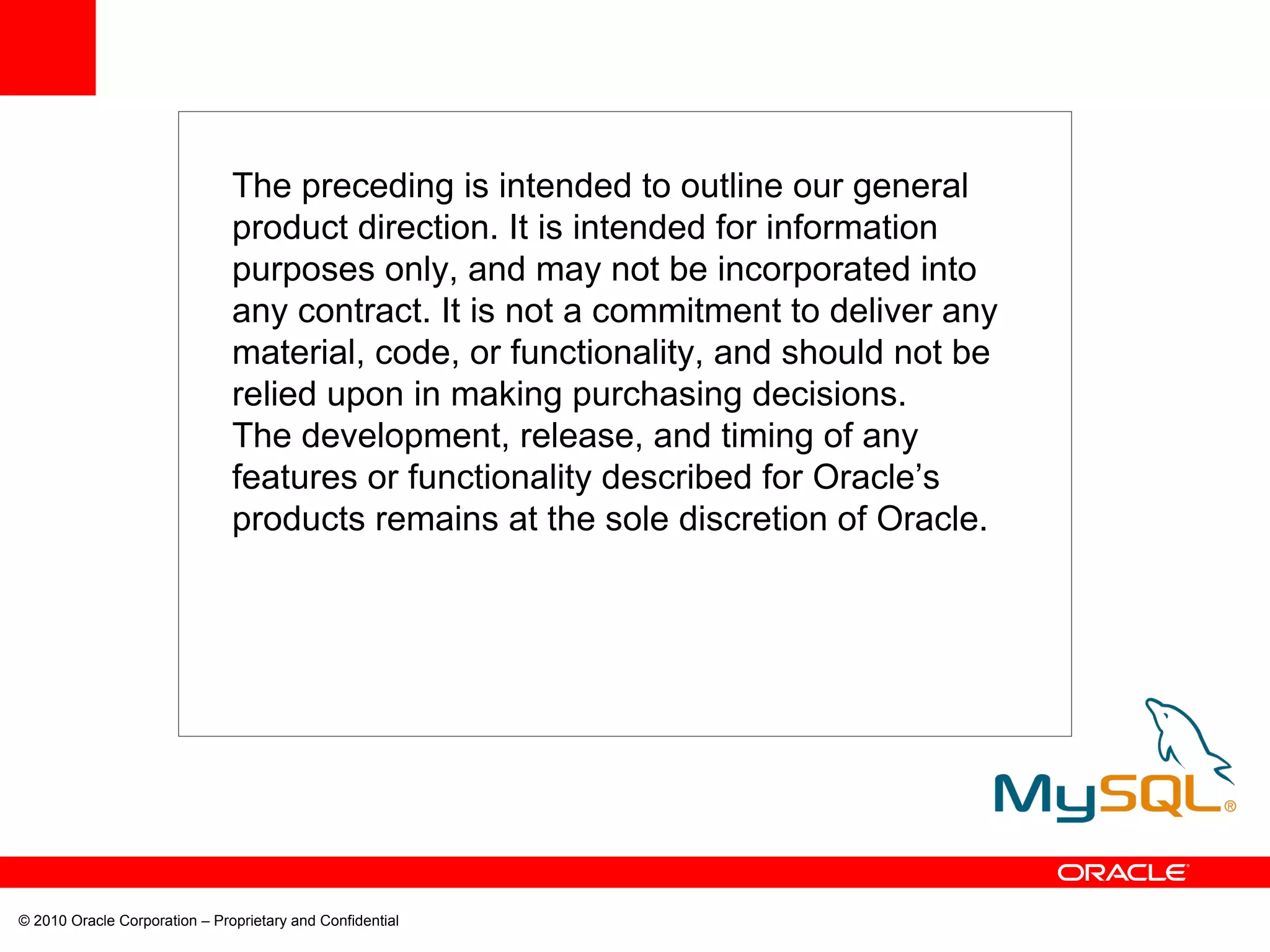

49. The preceding is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle.

50. © 2010 Oracle Corporation – Proprietary and Confidential
