A nova versão do MySQL traz muitas melhorias, principalmente nos recursos de alta-disponibilidade. Nesta palestra abordamos: - opções para implementar alta disponibilidade no MySQL 5.7; - topologias e arquiteturas de referência; - boas práticas de gerenciamento.

1. Alta Disponibilidade
no MySQL 5.7
Airton Lastori
airton.lastori@oracle.com
Abril-2016

2. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

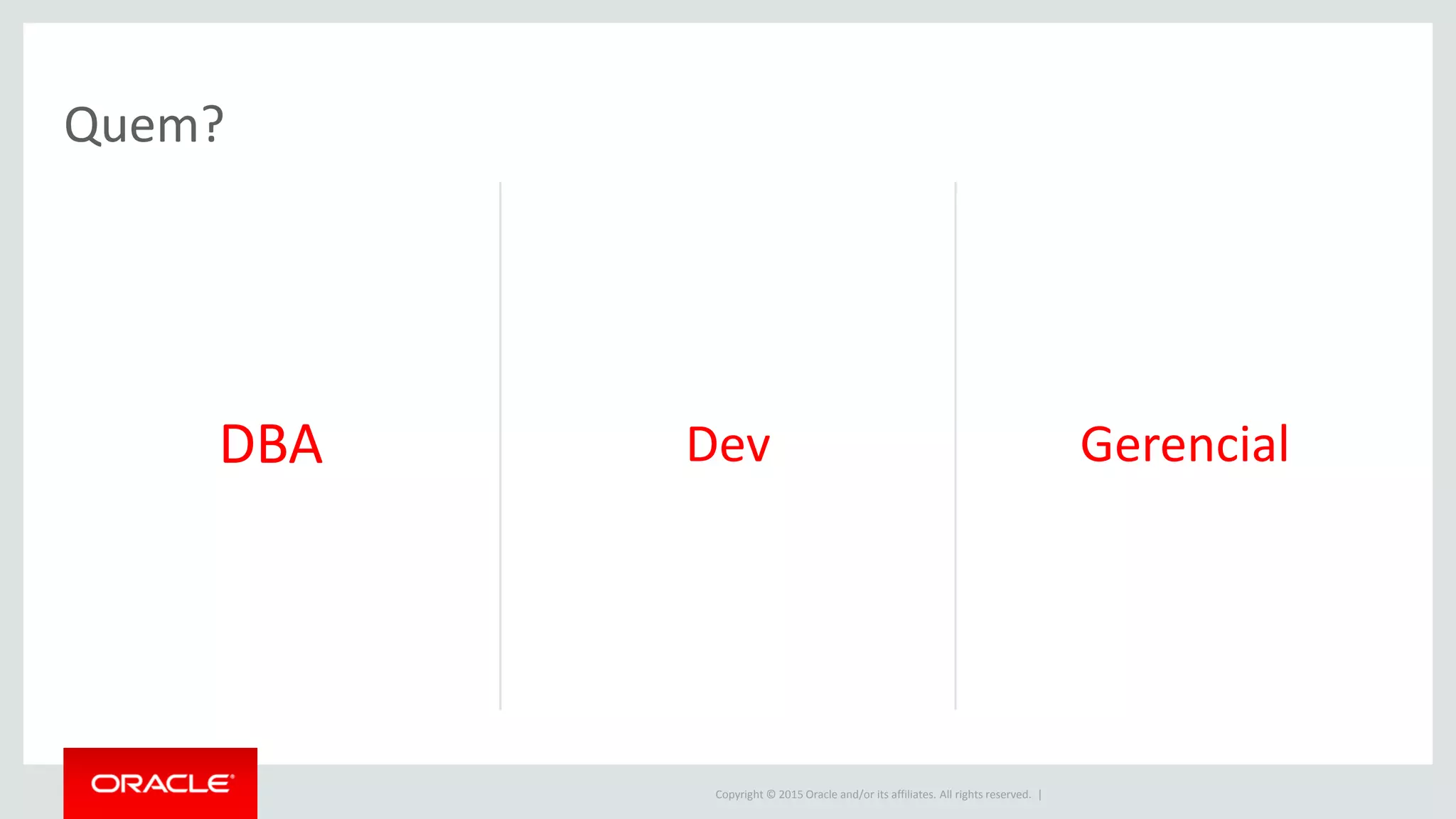

DBA Dev Gerencial
Quem?

3. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
Não usa MySQL
Usa MySQL sem
HA
Usa MySQL com
HA
Quem?

4. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

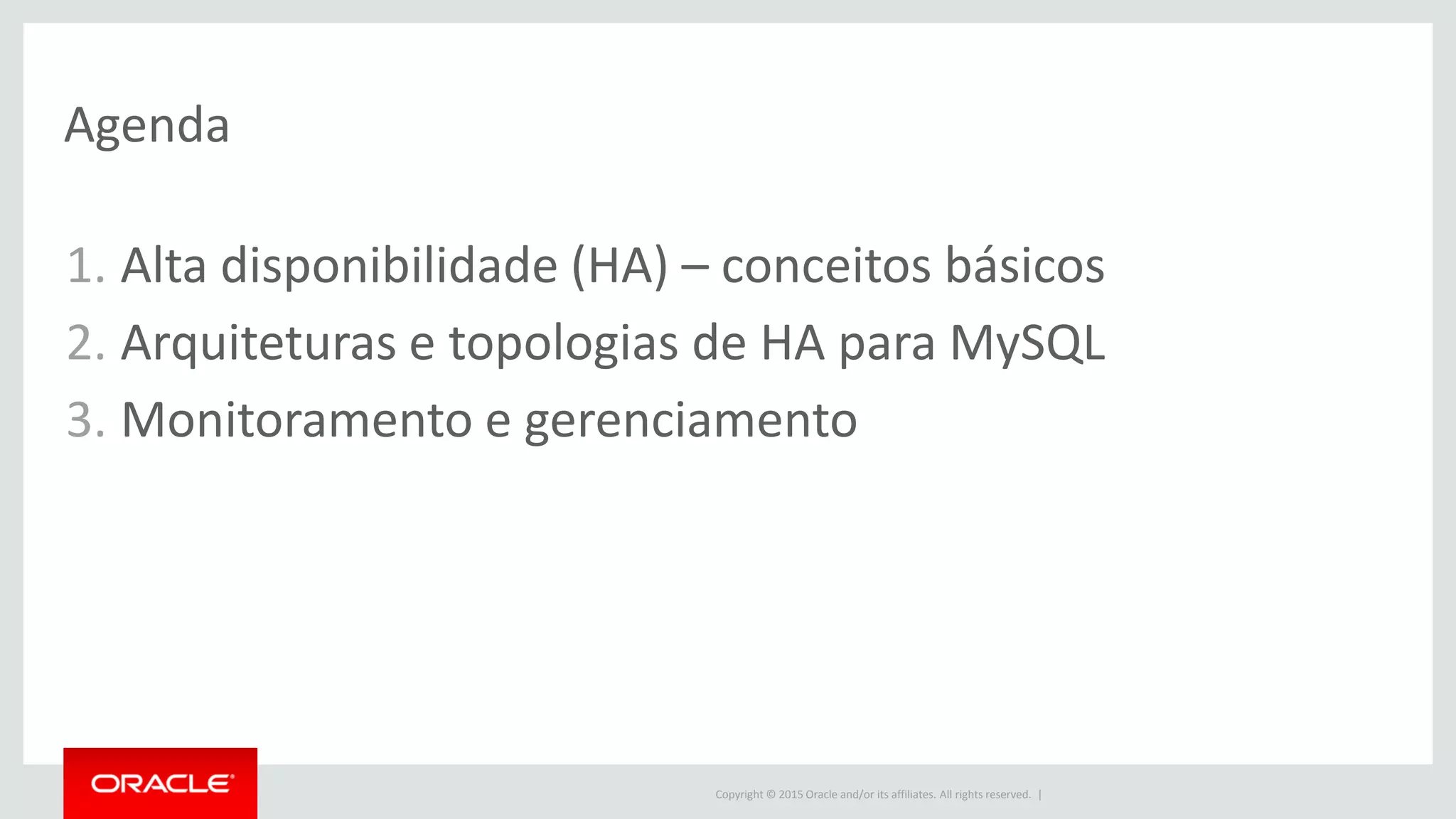

Agenda
1. Alta disponibilidade (HA) – conceitos básicos
2. Arquiteturas e topologias de HA para MySQL
3. Monitoramento e gerenciamento

5. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

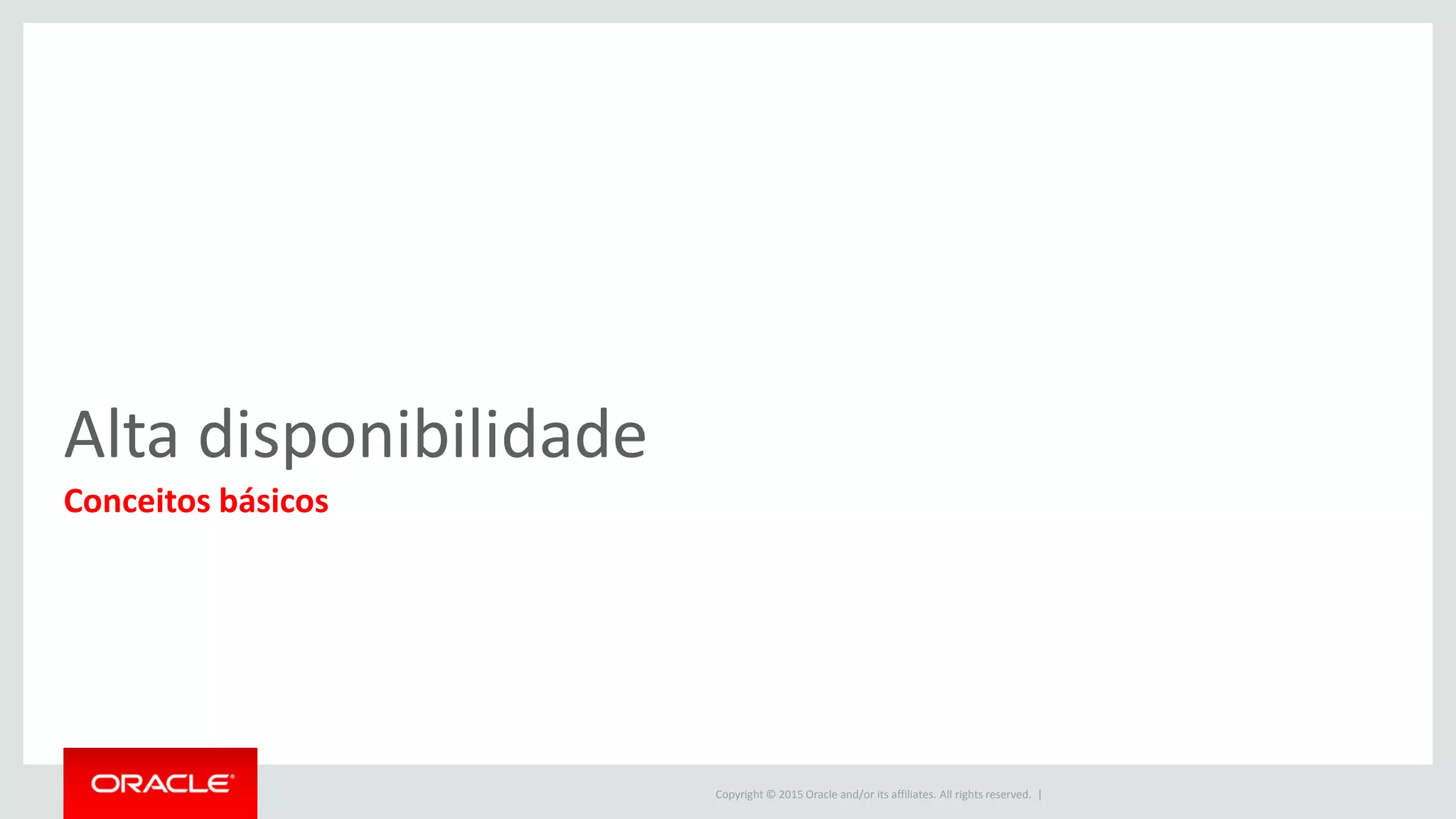

Alta disponibilidade
Conceitos básicos

6. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 6
O chefe

7. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 7
O Desenvolvedor

8. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 8
O DBA

9. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
“Precisamos garantir que a nossa
aplicação não pare nunca!
Nosso cliente não pode esperar.
Perderemos dinheiro e nossa marca
ficará prejudicada.”
Oracle Confidential – Internal/Restricted/Highly Restricted 9

10. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
“Vamos comprar um NoBreak para o
Servidor e está tudo certo!”
Oracle Confidential – Internal/Restricted/Highly Restricted 10

11. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
...
Oracle Confidential – Internal/Restricted/Highly Restricted 11

12. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
“Quanto % do tempo o sistema deve
ficar no ar?”
Oracle Confidential – Internal/Restricted/Highly Restricted 12

13. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
“100%, é claro!”
Oracle Confidential – Internal/Restricted/Highly Restricted 13

14. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
“Desculpe desapontá-lo, mas disponibilidade
infinita não existe.
Pense em serviços como abastecimento de
água ou energia elétrica...
Há necessidade de ter redundância e
contingência dos equipamentos e
processos+ferramentas para a operação”
Oracle Confidential – Internal/Restricted/Highly Restricted 14

15. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

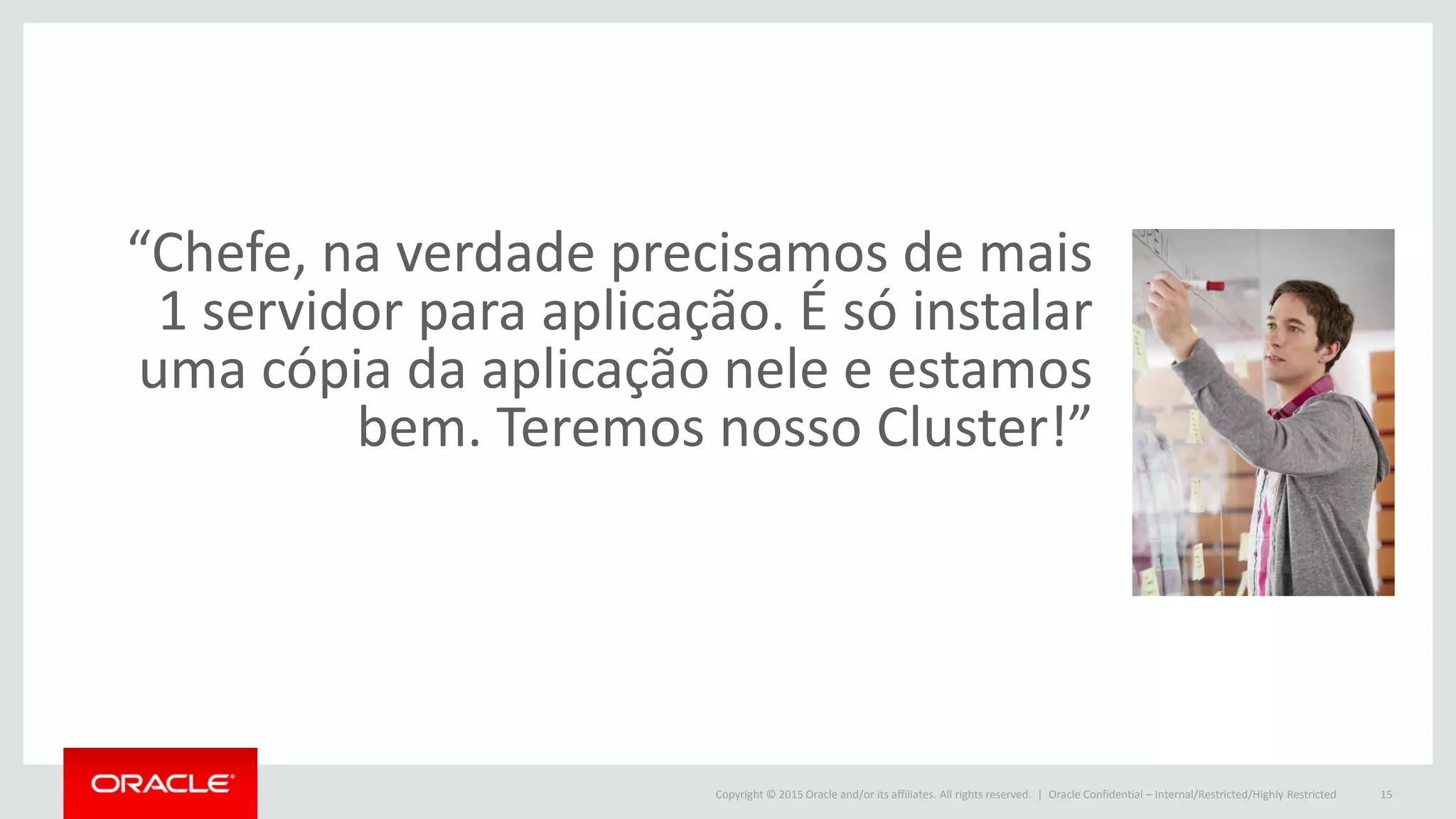

“Chefe, na verdade precisamos de mais
1 servidor para aplicação. É só instalar
uma cópia da aplicação nele e estamos
bem. Teremos nosso Cluster!”
Oracle Confidential – Internal/Restricted/Highly Restricted 15

16. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
“Na camada de banco não é tão simples
assim...”
Oracle Confidential – Internal/Restricted/Highly Restricted 16

17. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 17
Xiii... Lá vem esse
cara complicar...

18. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

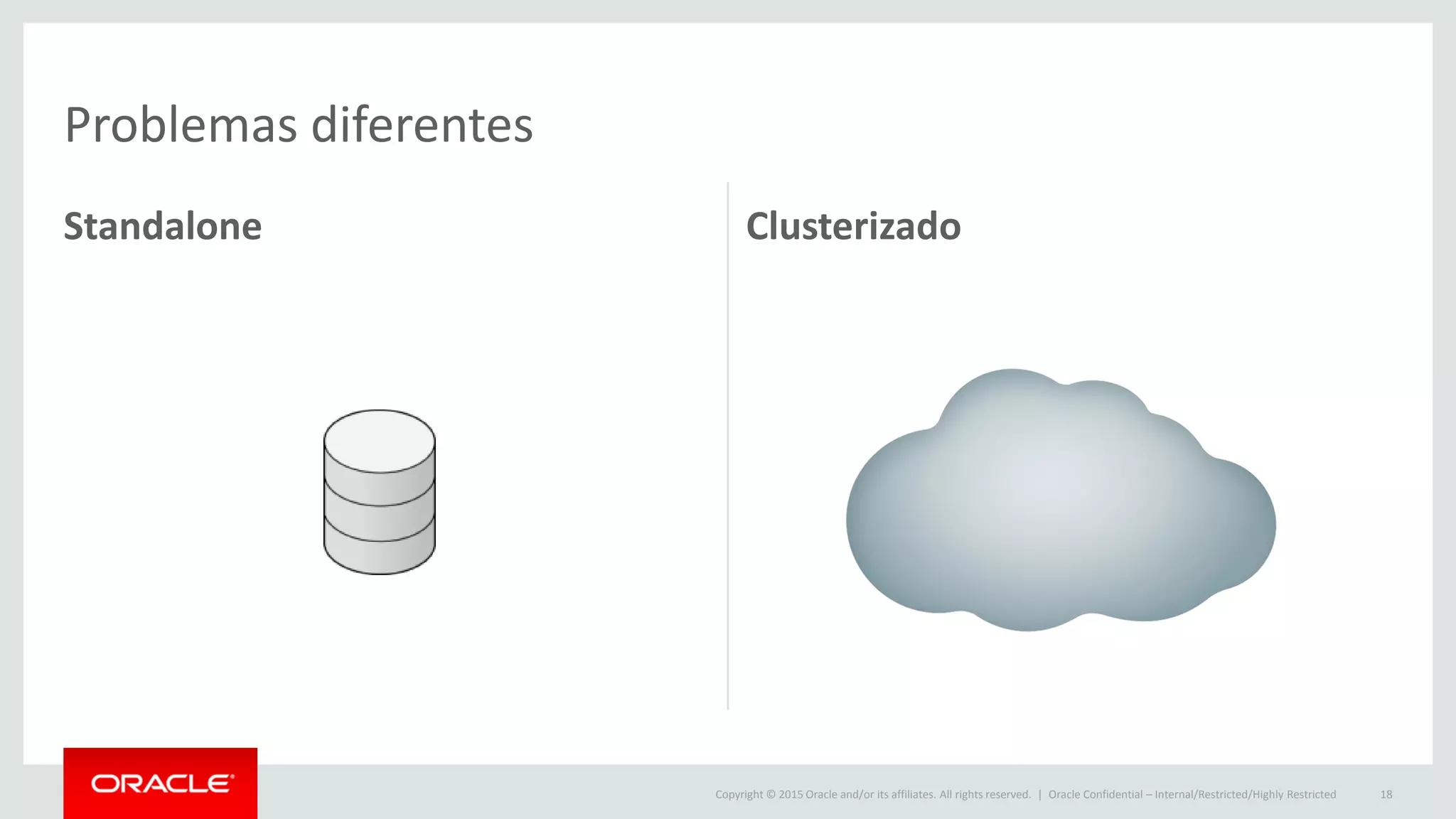

Standalone Clusterizado
Oracle Confidential – Internal/Restricted/Highly Restricted 18
Problemas diferentes

19. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

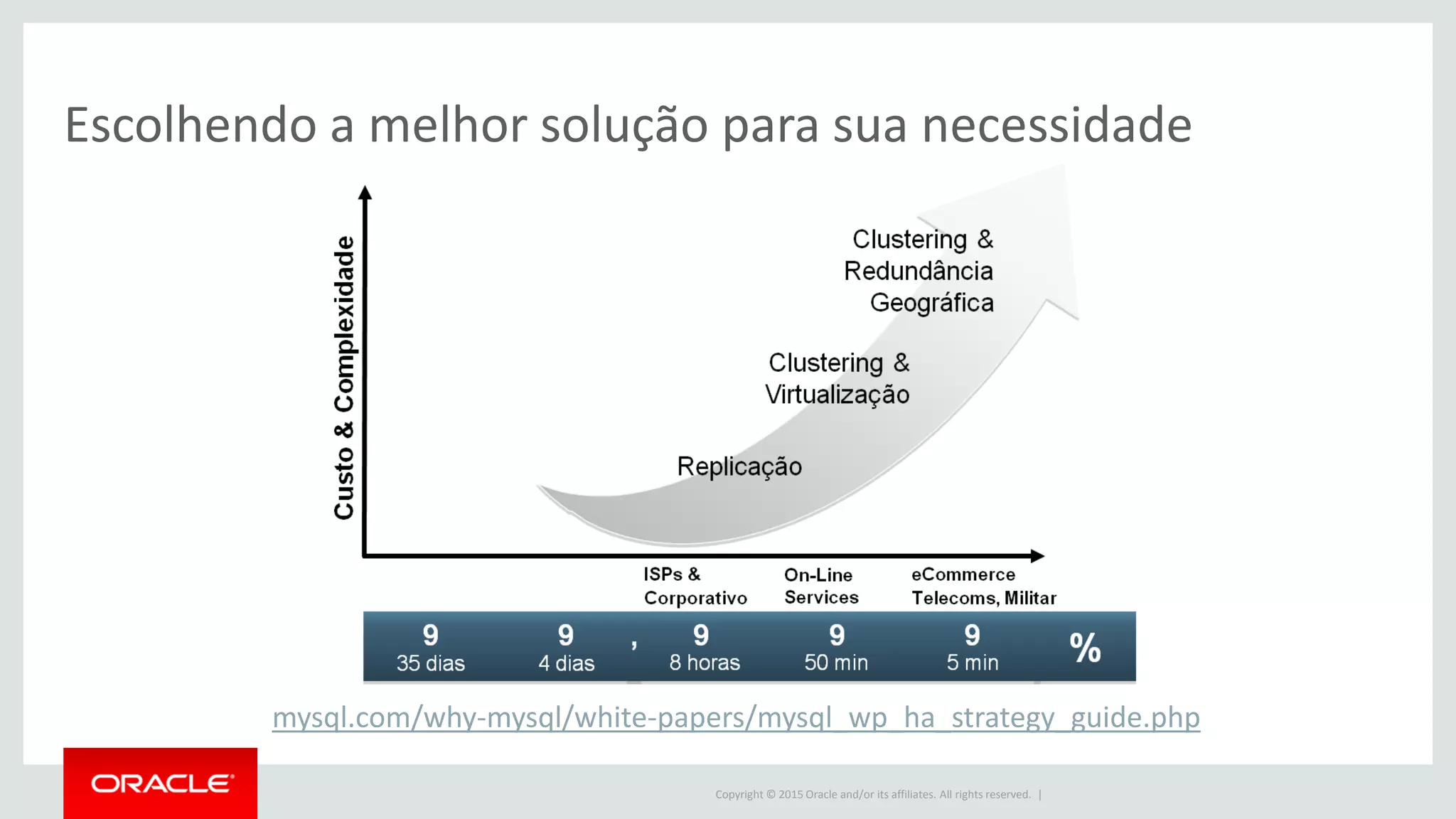

mysql.com/why-mysql/white-papers/mysql_wp_ha_strategy_guide.php
Escolhendo a melhor solução para sua necessidade

20. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
Etapas típicas de um projeto de HA
1. Definir qual o tempo máximo de indisponibilidade e perdas aceitáveis
2. Revisar todos intens da infra-estrutura atual que terão contingência
(mapear SPoF)
3. Definir a melhor arquitetura e topologia de HA para este contexto
4. Implantar a redundância dos componentes
5. Implantar monitoramento (instrumentação)
6. Implantar procedimentos operacionais para contingência
Oracle Confidential – Internal/Restricted/Highly Restricted 20

21. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

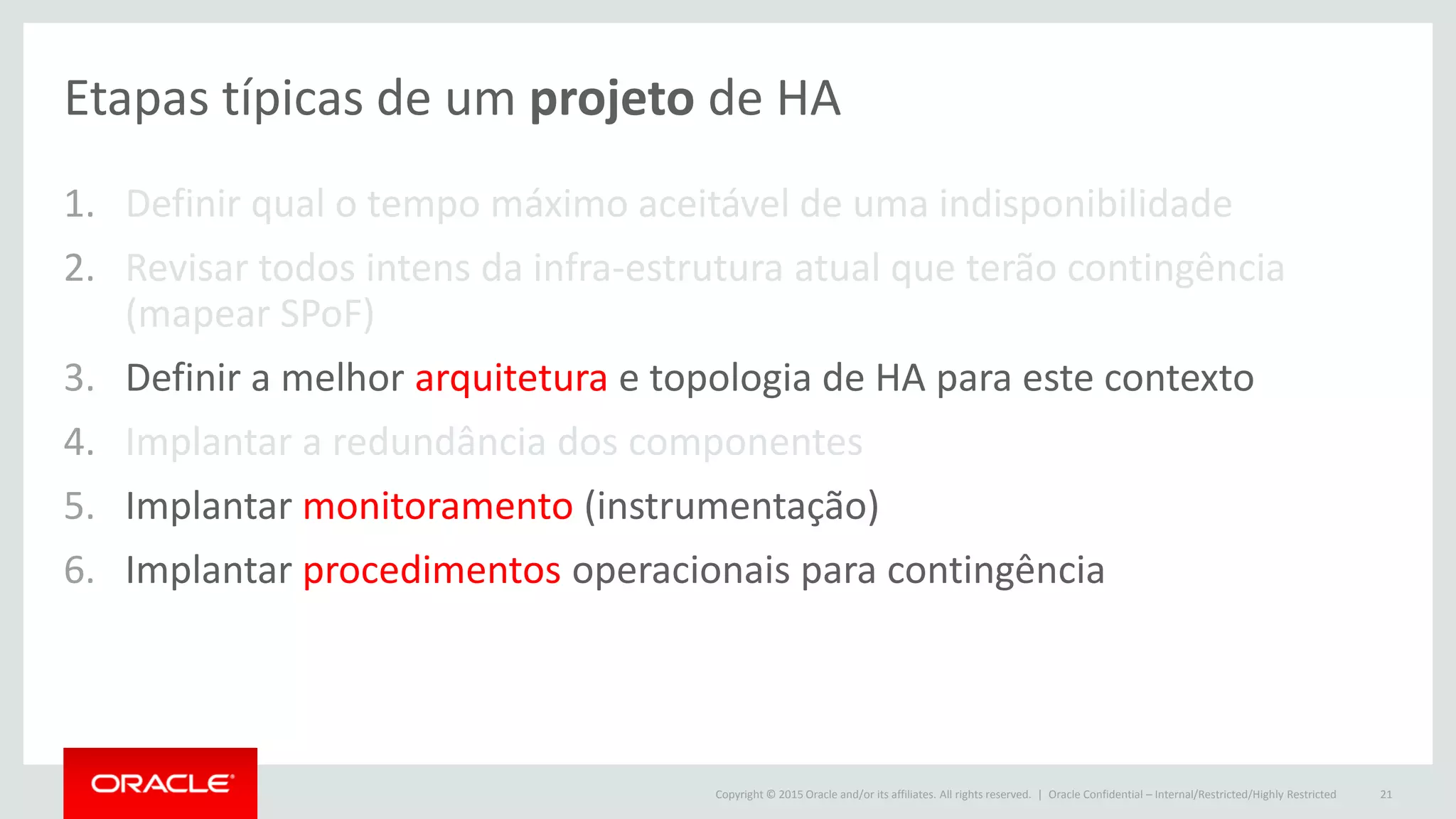

Etapas típicas de um projeto de HA
1. Definir qual o tempo máximo aceitável de uma indisponibilidade
2. Revisar todos intens da infra-estrutura atual que terão contingência
(mapear SPoF)
3. Definir a melhor arquitetura e topologia de HA para este contexto
4. Implantar a redundância dos componentes
5. Implantar monitoramento (instrumentação)
6. Implantar procedimentos operacionais para contingência
Oracle Confidential – Internal/Restricted/Highly Restricted 21

22. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

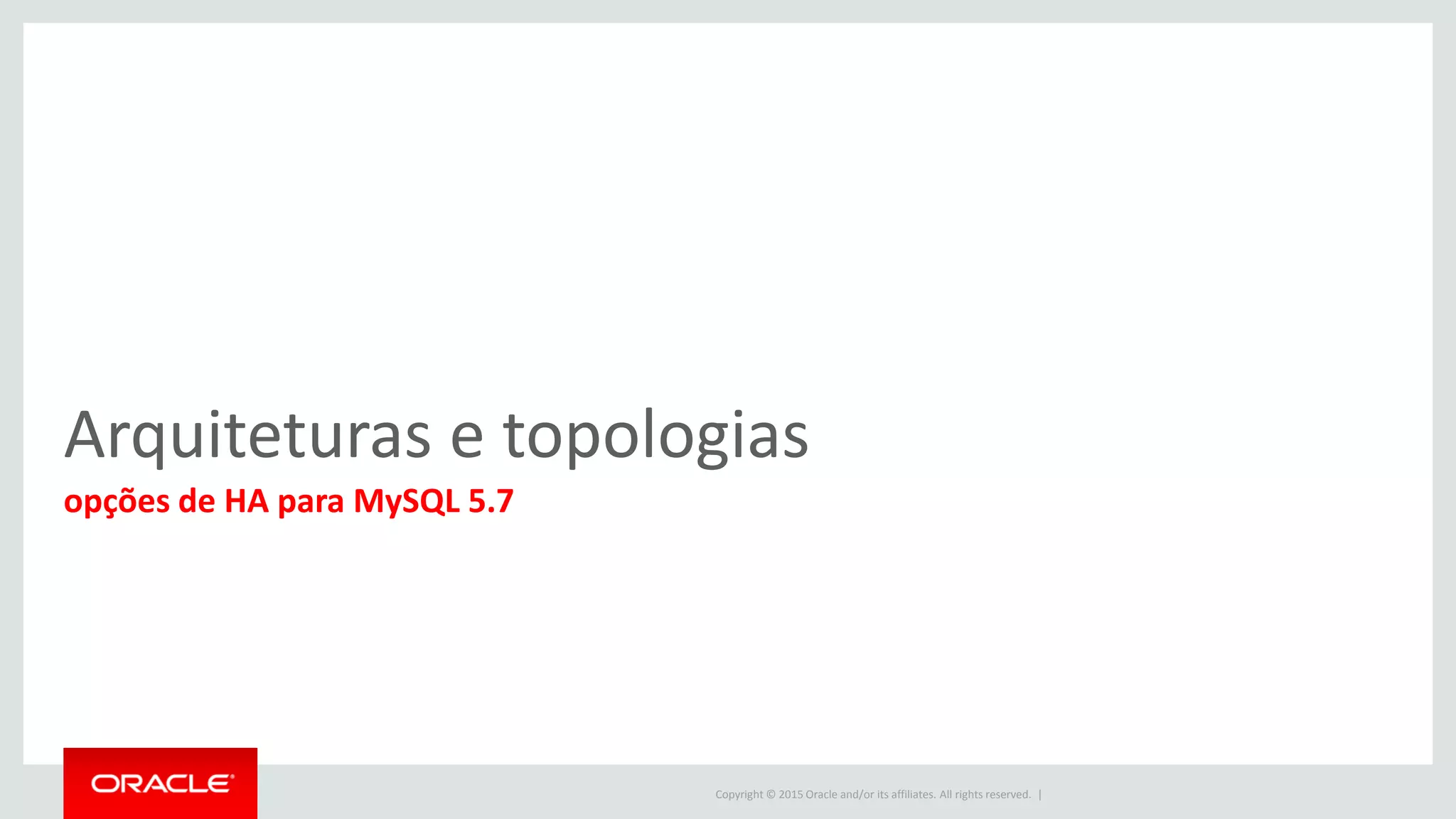

Arquiteturas e topologias
opções de HA para MySQL 5.7

23. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
Não é tão simples assim…
Camadas de alta disponibilidade
Access to Data
Data Redundancy
App Servers
Routing
16/04/2016 Copyright 2015, Oracle and/or its affiliates. All rights reserved 24

24. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |16/04/2016 Copyright 2015, Oracle and/or its affiliates. All rights reserved 25
Camadas de alta disponibilidade
Access to Data
Data Redundancy
App Servers
Routing

25. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |16/04/2016 Copyright 2015, Oracle and/or its affiliates. All rights reserved 26

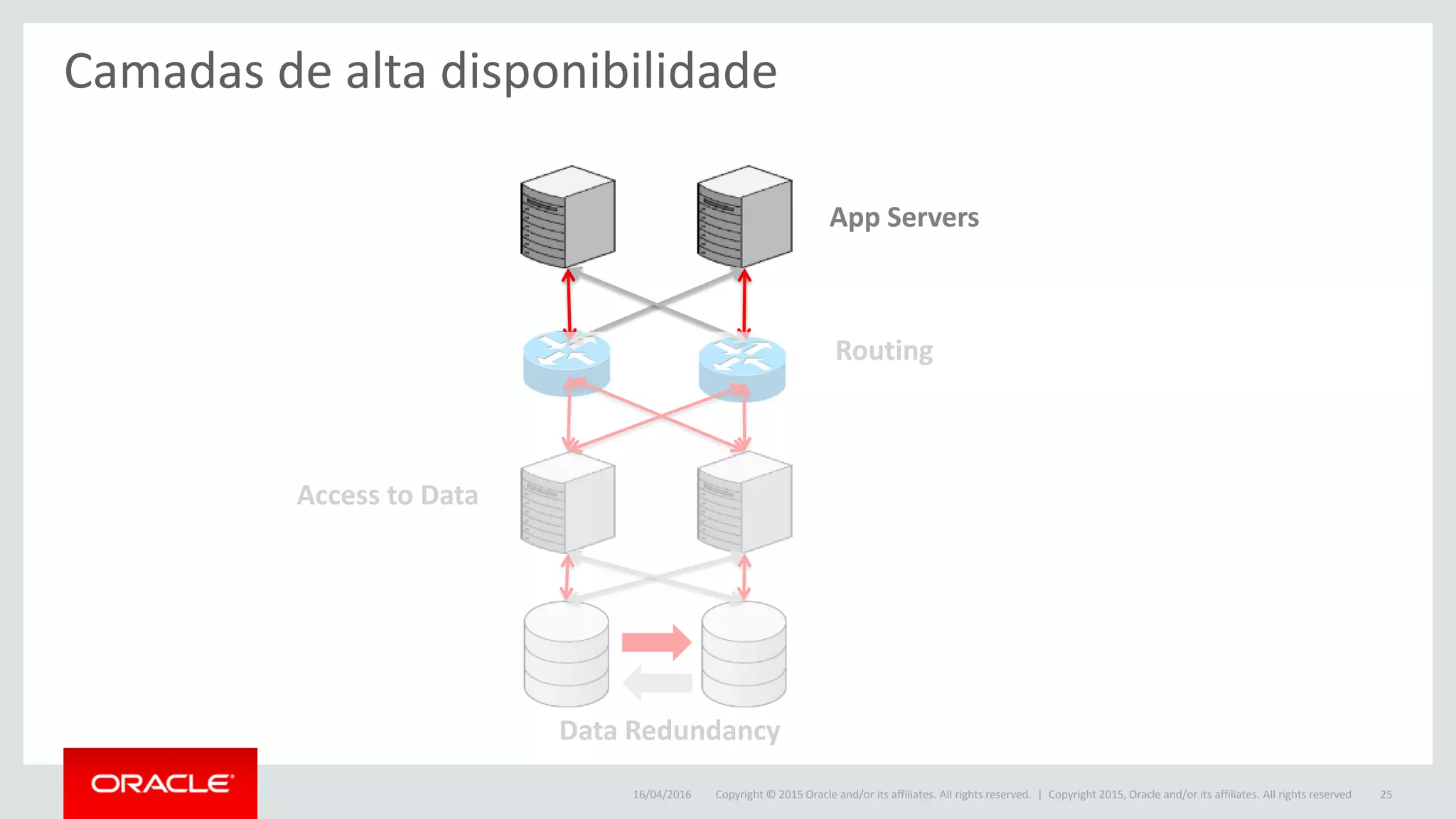

Camadas de alta disponibilidade
Access to Data
Data Redundancy
App Servers
Routing

26. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |16/04/2016 Copyright 2015, Oracle and/or its affiliates. All rights reserved 27

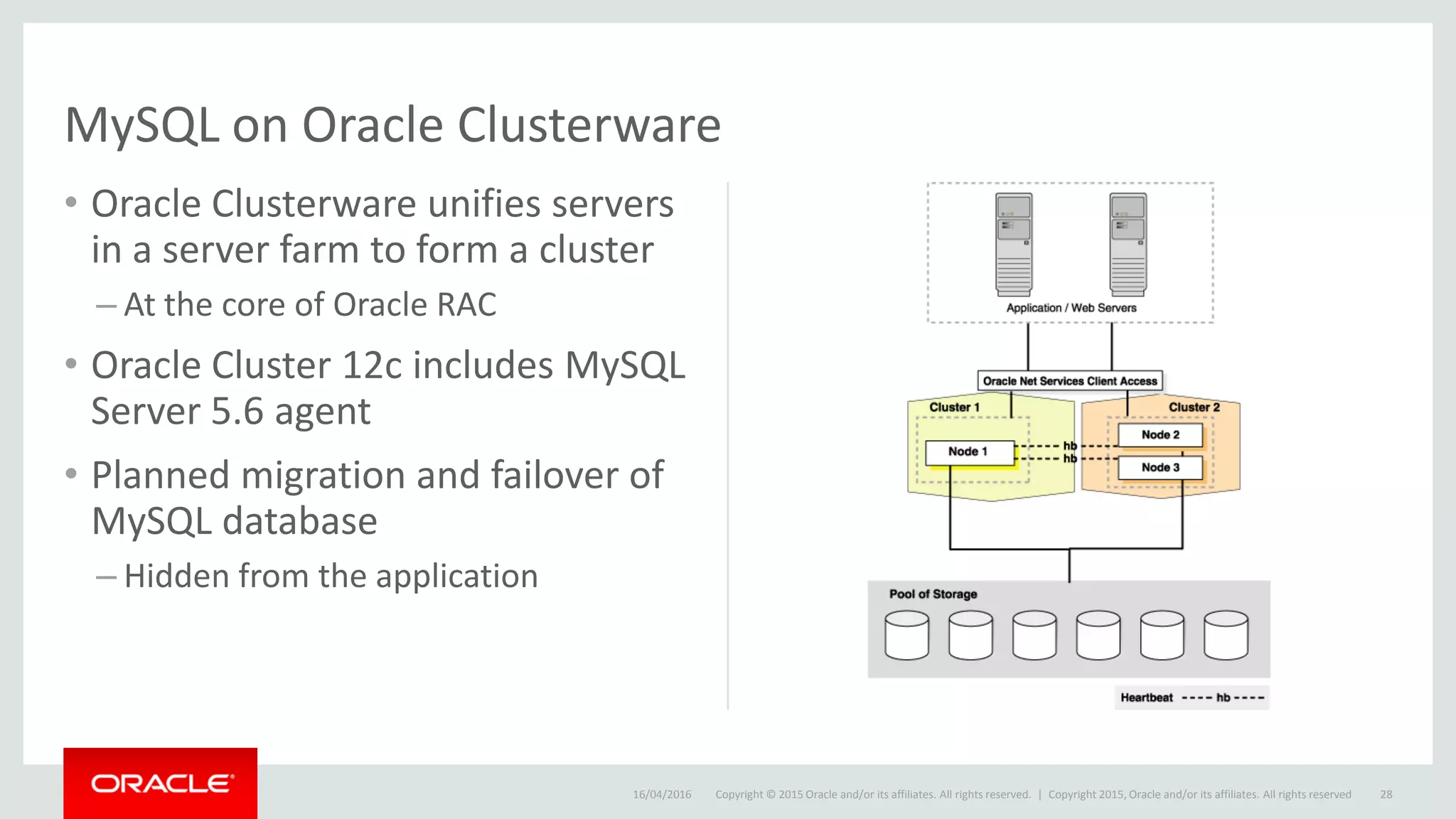

27. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
• Oracle Clusterware unifies servers
in a server farm to form a cluster
– At the core of Oracle RAC
• Oracle Cluster 12c includes MySQL
Server 5.6 agent
• Planned migration and failover of
MySQL database
– Hidden from the application
16/04/2016
MySQL on Oracle Clusterware
28Copyright 2015, Oracle and/or its affiliates. All rights reserved

28. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

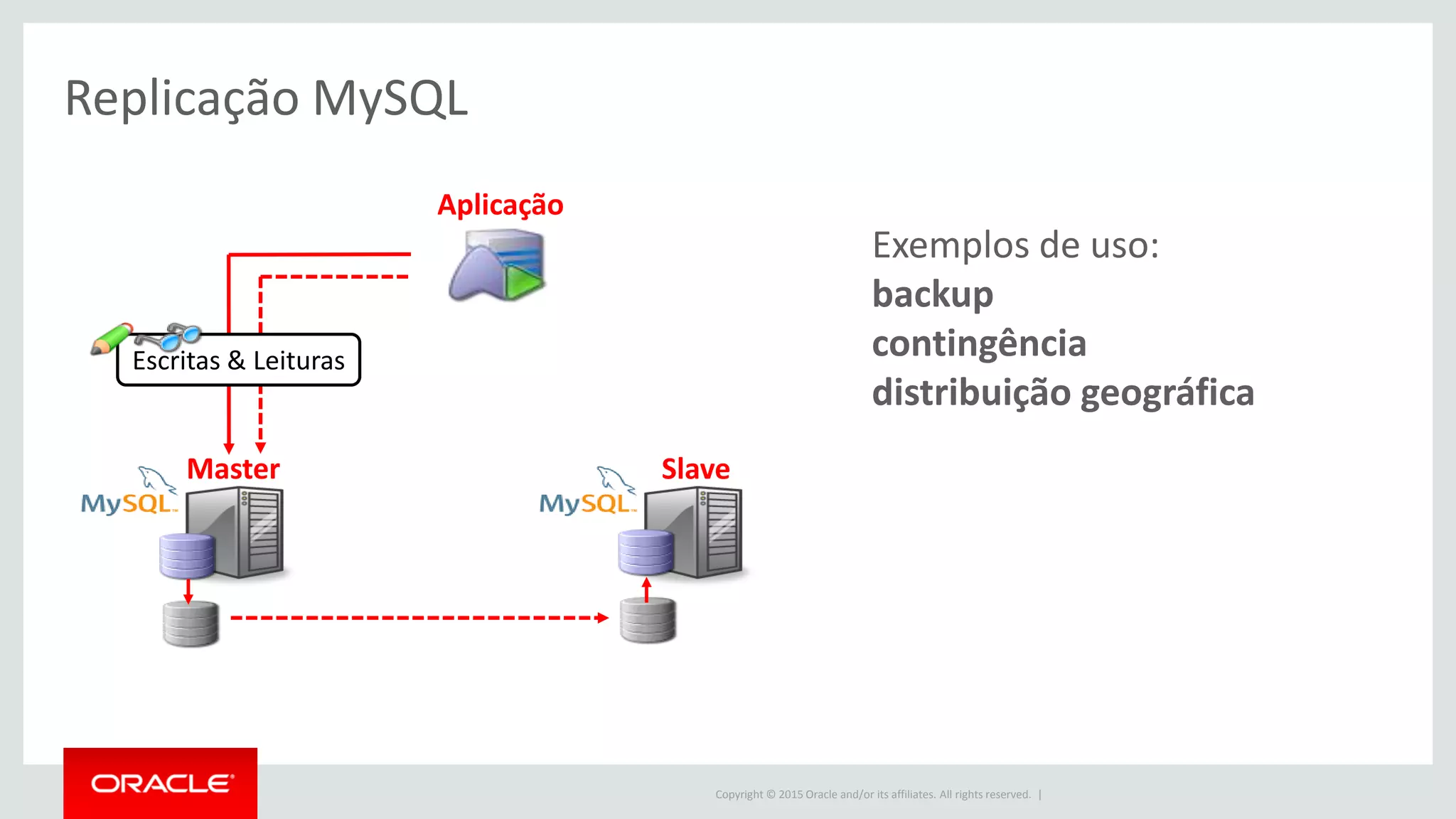

Aplicação
Replicação MySQL
Master Slave
Escritas & Leituras
Exemplos de uso:
backup
contingência
distribuição geográfica

29. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

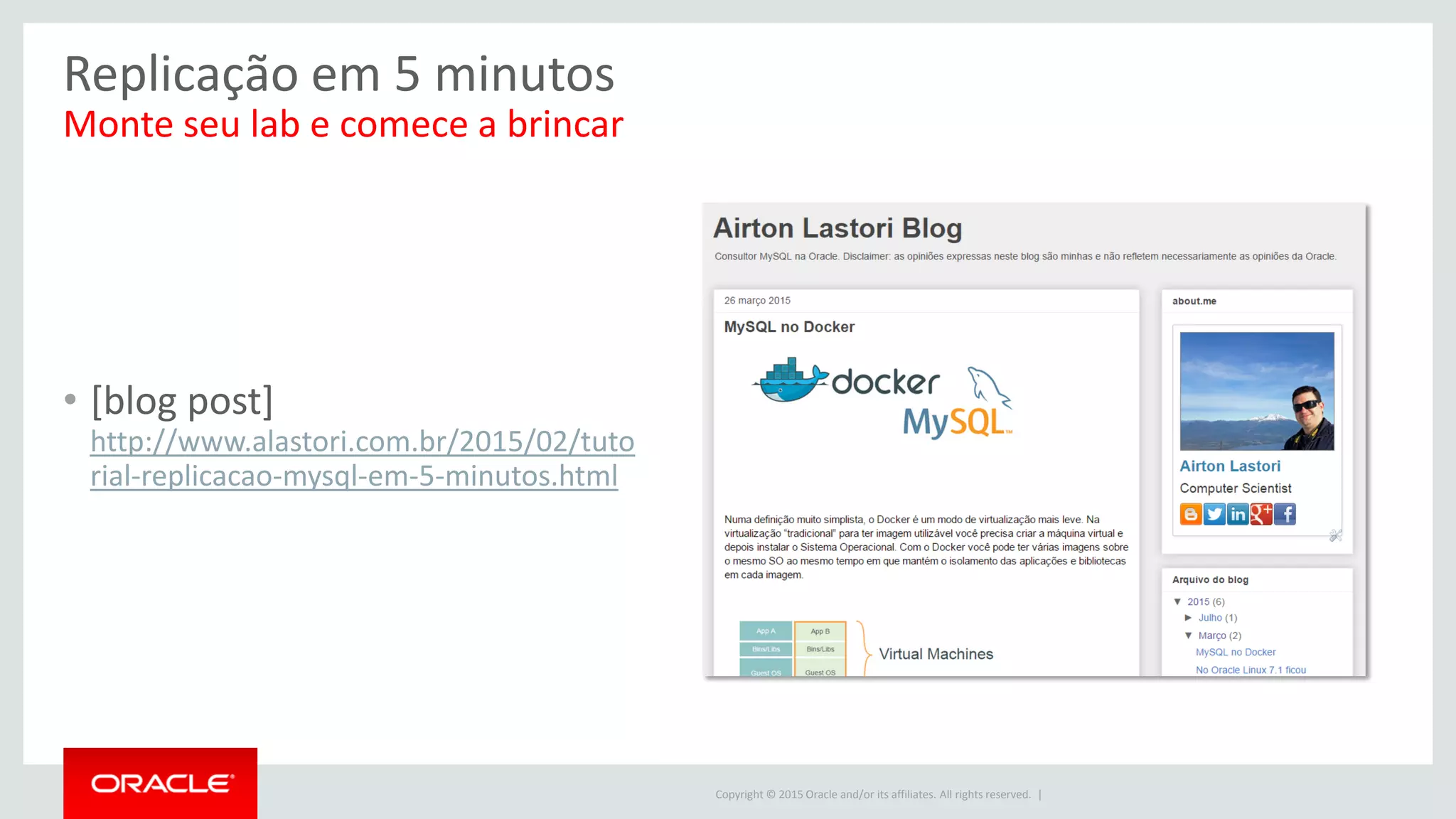

Replicação em 5 minutos
Monte seu lab e comece a brincar
• [blog post]
http://www.alastori.com.br/2015/02/tuto
rial-replicacao-mysql-em-5-minutos.html

30. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

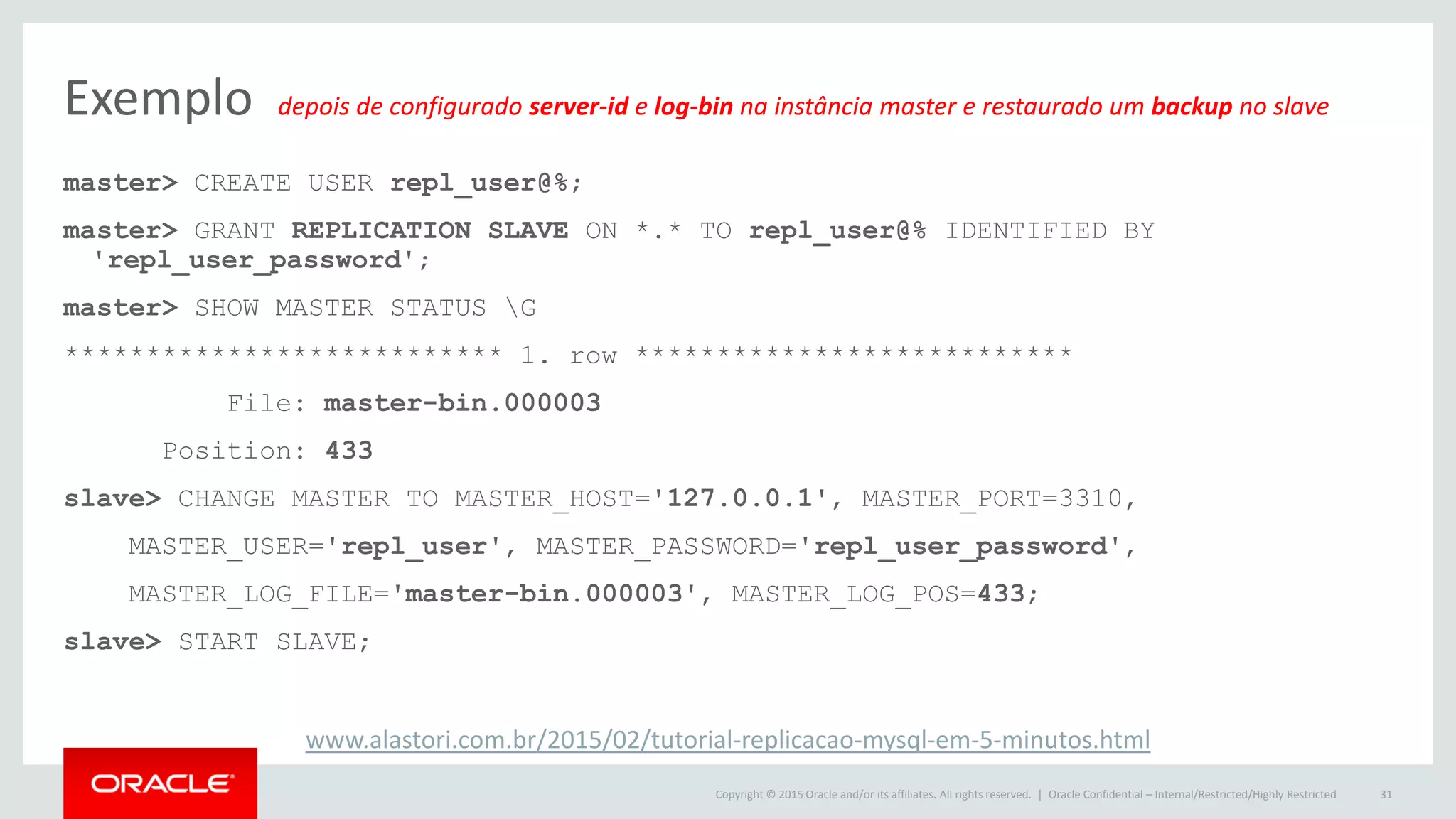

Exemplo depois de configurado server-id e log-bin na instância master e restaurado um backup no slave
master> CREATE USER repl_user@%;
master> GRANT REPLICATION SLAVE ON *.* TO repl_user@% IDENTIFIED BY
'repl_user_password';
master> SHOW MASTER STATUS G
*************************** 1. row ***************************
File: master-bin.000003
Position: 433
slave> CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=3310,
MASTER_USER='repl_user', MASTER_PASSWORD='repl_user_password',
MASTER_LOG_FILE='master-bin.000003', MASTER_LOG_POS=433;
slave> START SLAVE;
Oracle Confidential – Internal/Restricted/Highly Restricted 31
www.alastori.com.br/2015/02/tutorial-replicacao-mysql-em-5-minutos.html

31. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

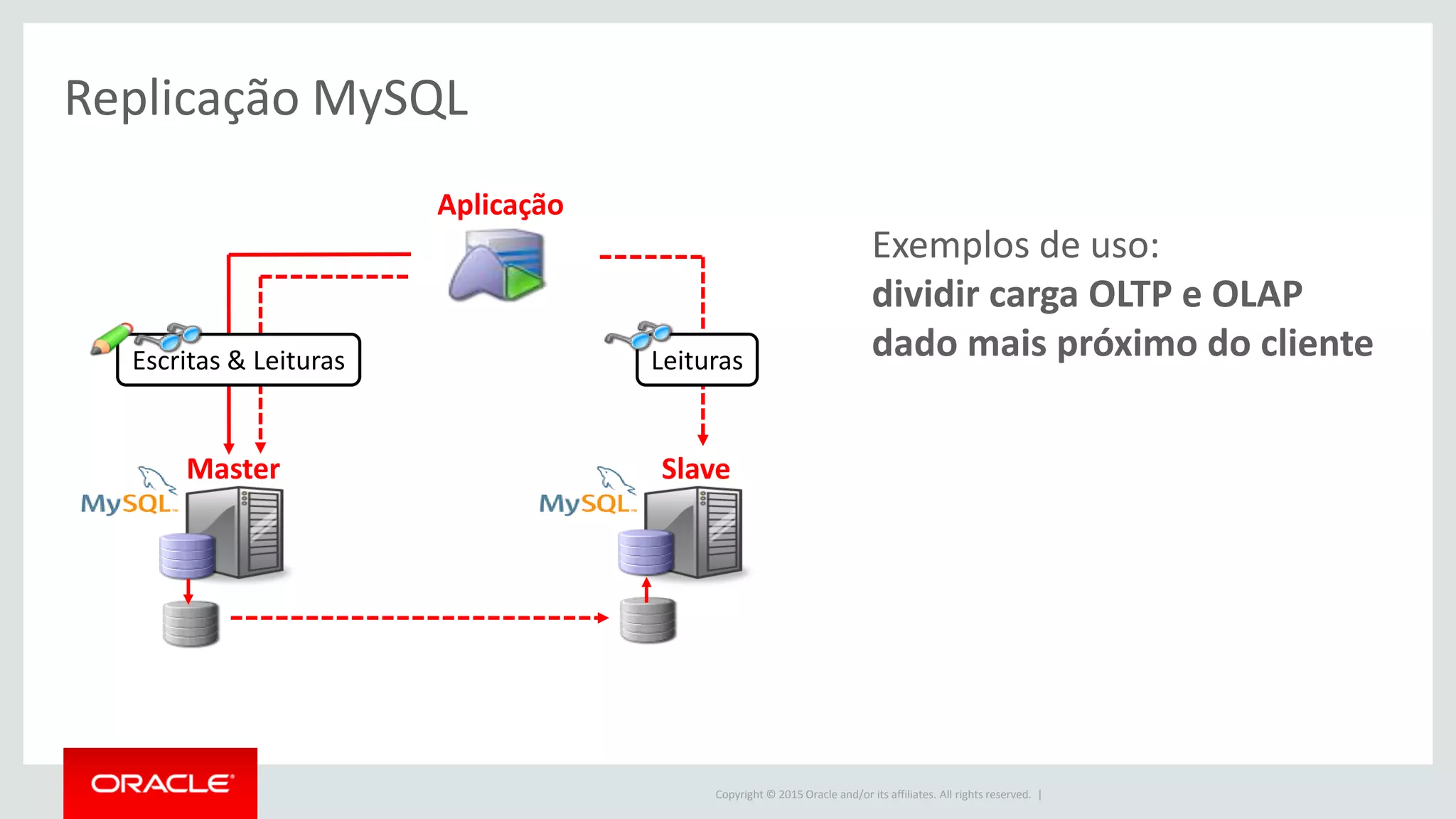

Aplicação
Replicação MySQL
Master Slave
Escritas & Leituras Leituras
Exemplos de uso:
dividir carga OLTP e OLAP
dado mais próximo do cliente

32. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

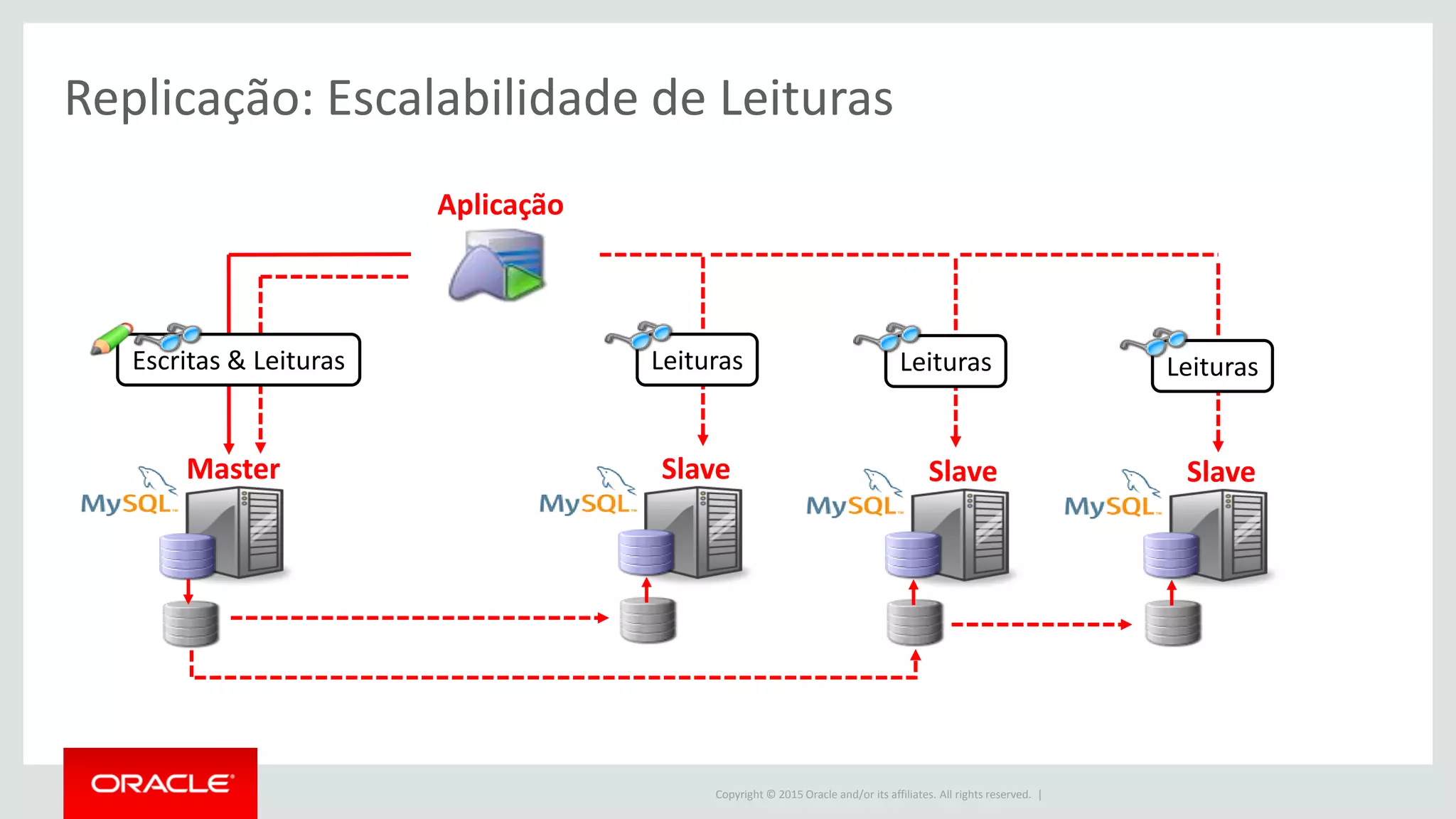

Aplicação
Replicação: Escalabilidade de Leituras
Master Slave
Escritas & Leituras Leituras
Slave Slave
Leituras Leituras

33. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
Grandes usuários MySQL usam a replicação
34
Web, Cloud, Distribuído e Embarcado…

34. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

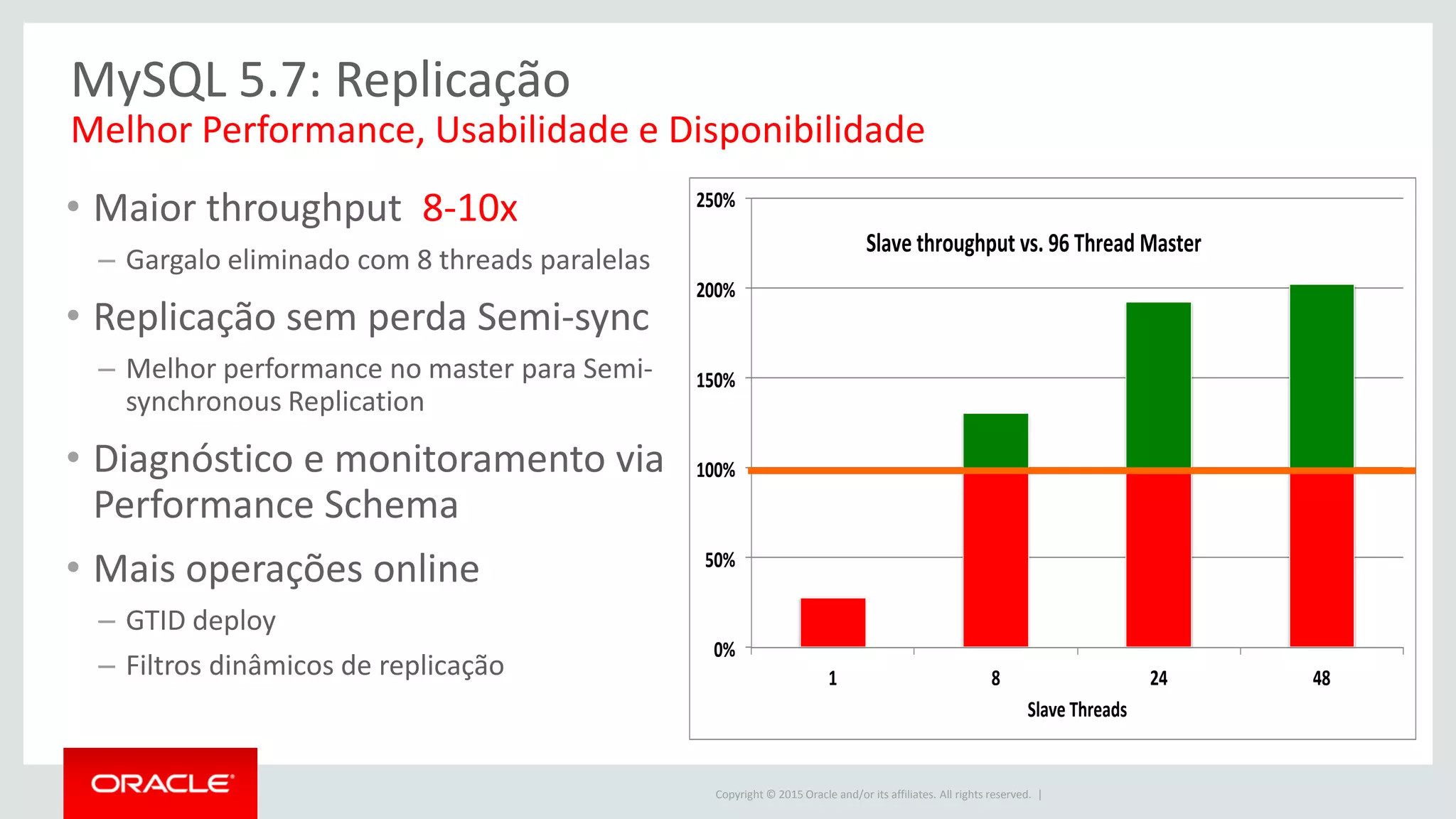

MySQL 5.7: Replicação
• Maior throughput 8-10x
– Gargalo eliminado com 8 threads paralelas
• Replicação sem perda Semi-sync
– Melhor performance no master para Semi-
synchronous Replication
• Diagnóstico e monitoramento via
Performance Schema
• Mais operações online
– GTID deploy
– Filtros dinâmicos de replicação
Melhor Performance, Usabilidade e Disponibilidade
0%
50%
100%
150%
200%
250%
1 8 24 48
Slave Threads
Slave throughput vs. 96 Thread Master

35. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

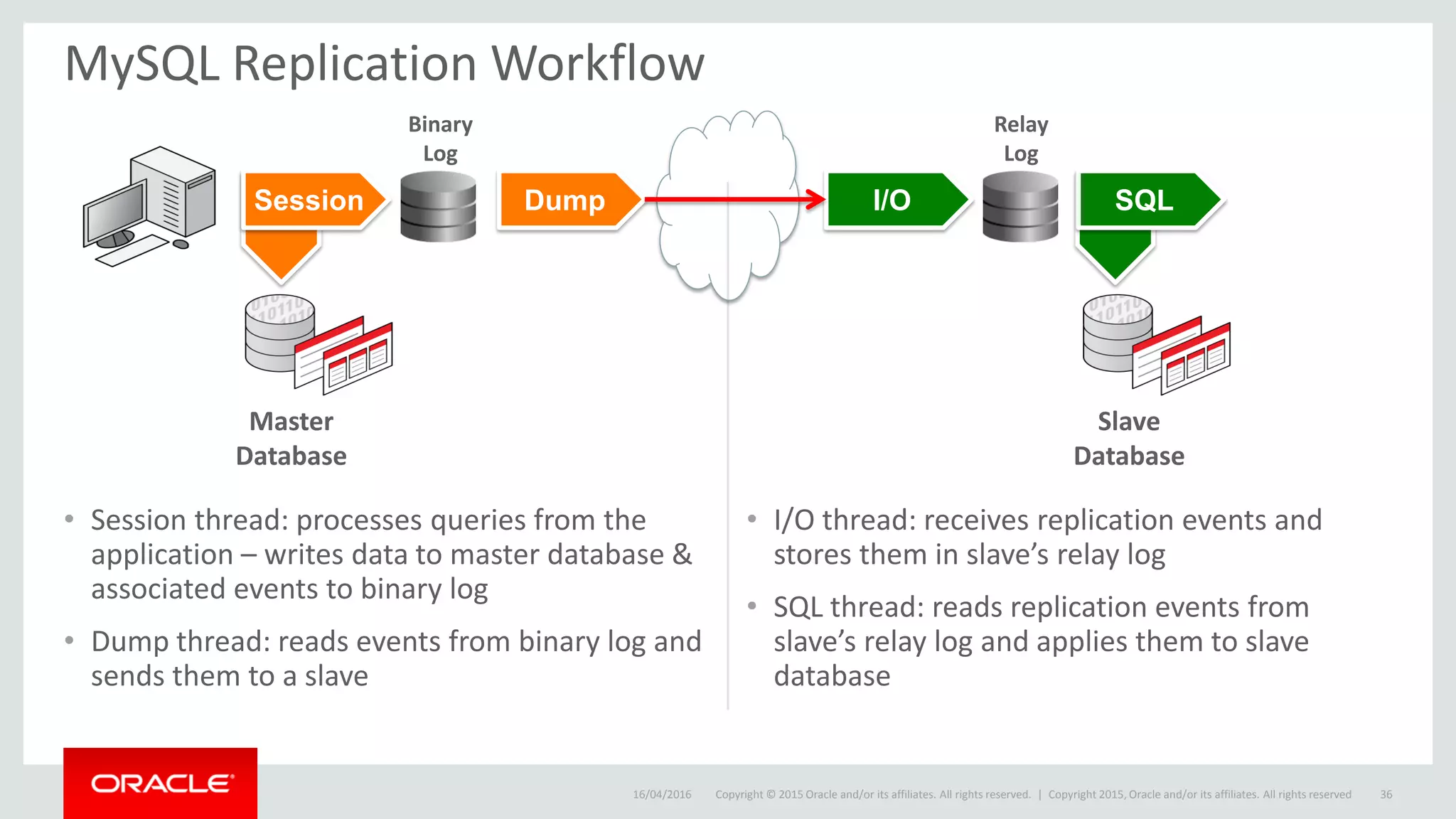

Slave
Database
• Session thread: processes queries from the
application – writes data to master database &
associated events to binary log
• Dump thread: reads events from binary log and
sends them to a slave
• I/O thread: receives replication events and
stores them in slave’s relay log
• SQL thread: reads replication events from
slave’s relay log and applies them to slave
database
MySQL Replication Workflow
Session
Binary
Log
Master
Database
Dump I/O
Relay
Log
SQL
16/04/2016 36Copyright 2015, Oracle and/or its affiliates. All rights reserved

36. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

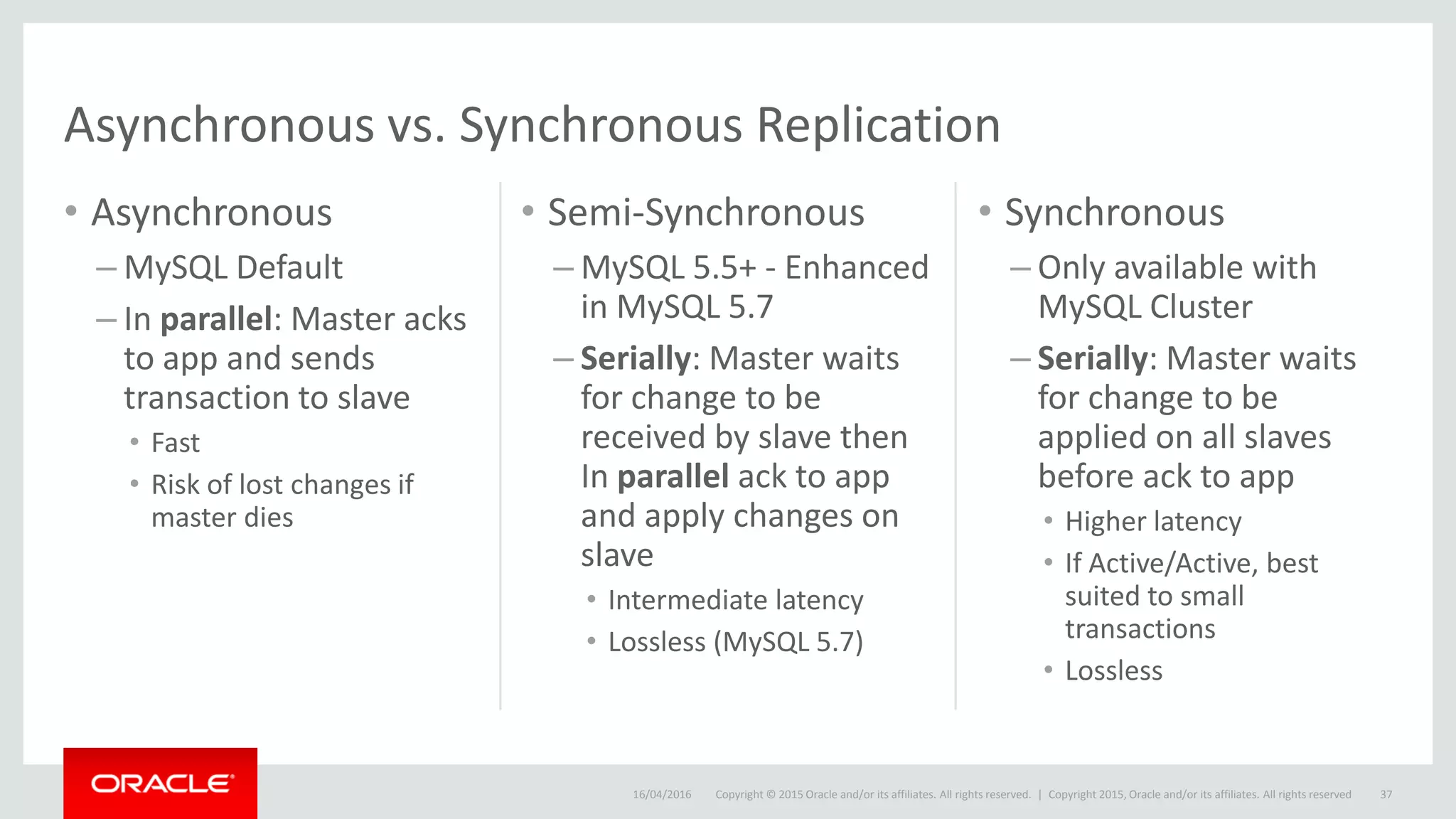

• Asynchronous
– MySQL Default
– In parallel: Master acks
to app and sends
transaction to slave
• Fast
• Risk of lost changes if
master dies
• Semi-Synchronous
– MySQL 5.5+ - Enhanced
in MySQL 5.7
– Serially: Master waits
for change to be
received by slave then
In parallel ack to app
and apply changes on
slave
• Intermediate latency
• Lossless (MySQL 5.7)
• Synchronous
– Only available with
MySQL Cluster
– Serially: Master waits
for change to be
applied on all slaves
before ack to app
• Higher latency
• If Active/Active, best
suited to small
transactions
• Lossless
Asynchronous vs. Synchronous Replication
16/04/2016 Copyright 2015, Oracle and/or its affiliates. All rights reserved 37

37. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 38

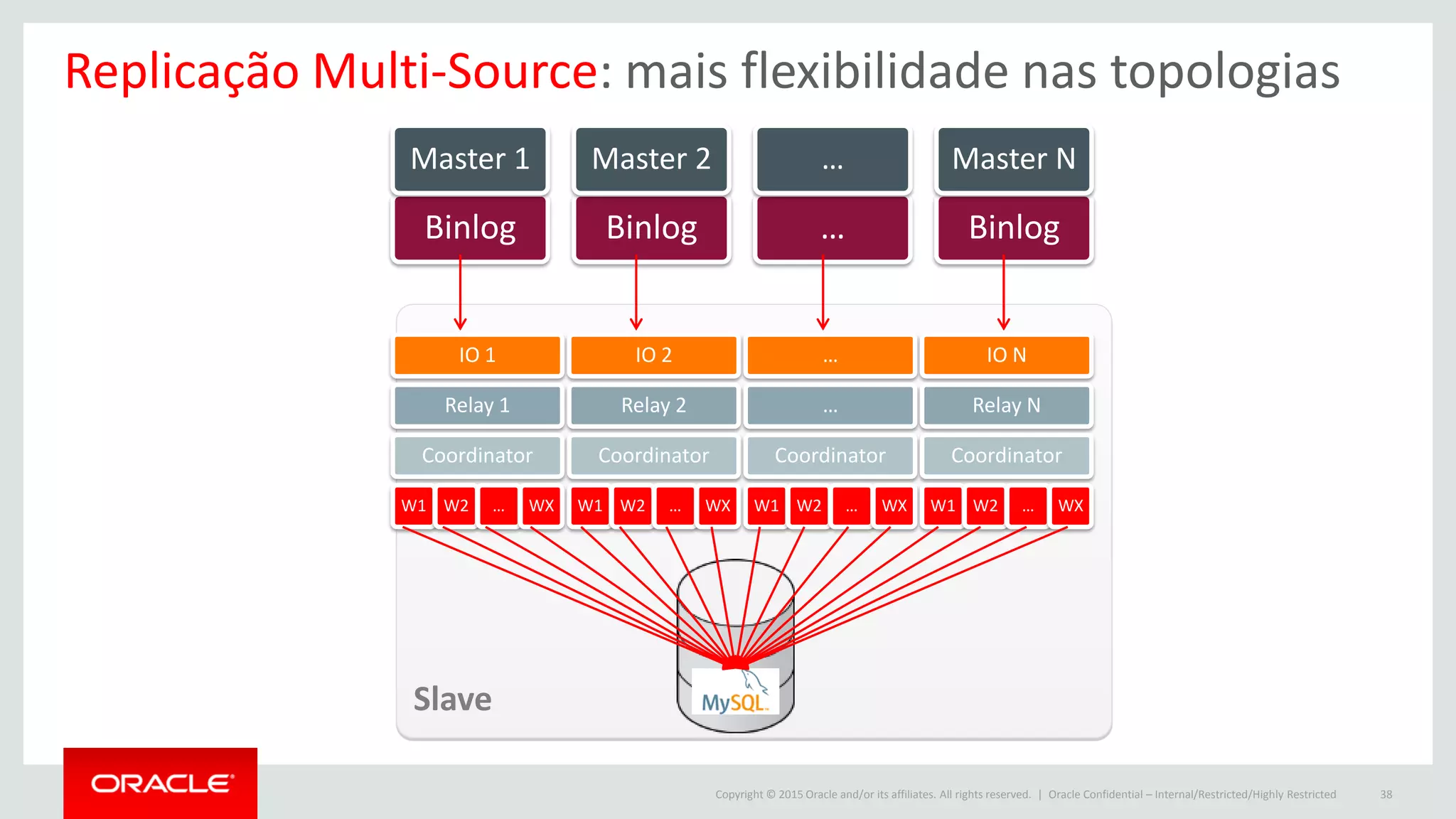

Replicação Multi-Source: mais flexibilidade nas topologias
Binlog
Master 1
Binlog
Master 2
…
…
Binlog
Master N
IO 1
Relay 1
Coordinator
W1 W2 … WX
IO 2
Relay 2
Coordinator
W1 W2 … WX
…
…
Coordinator
W1 W2 … WX
IO N
Relay N
Coordinator
W1 W2 … WX
Slave

38. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 39

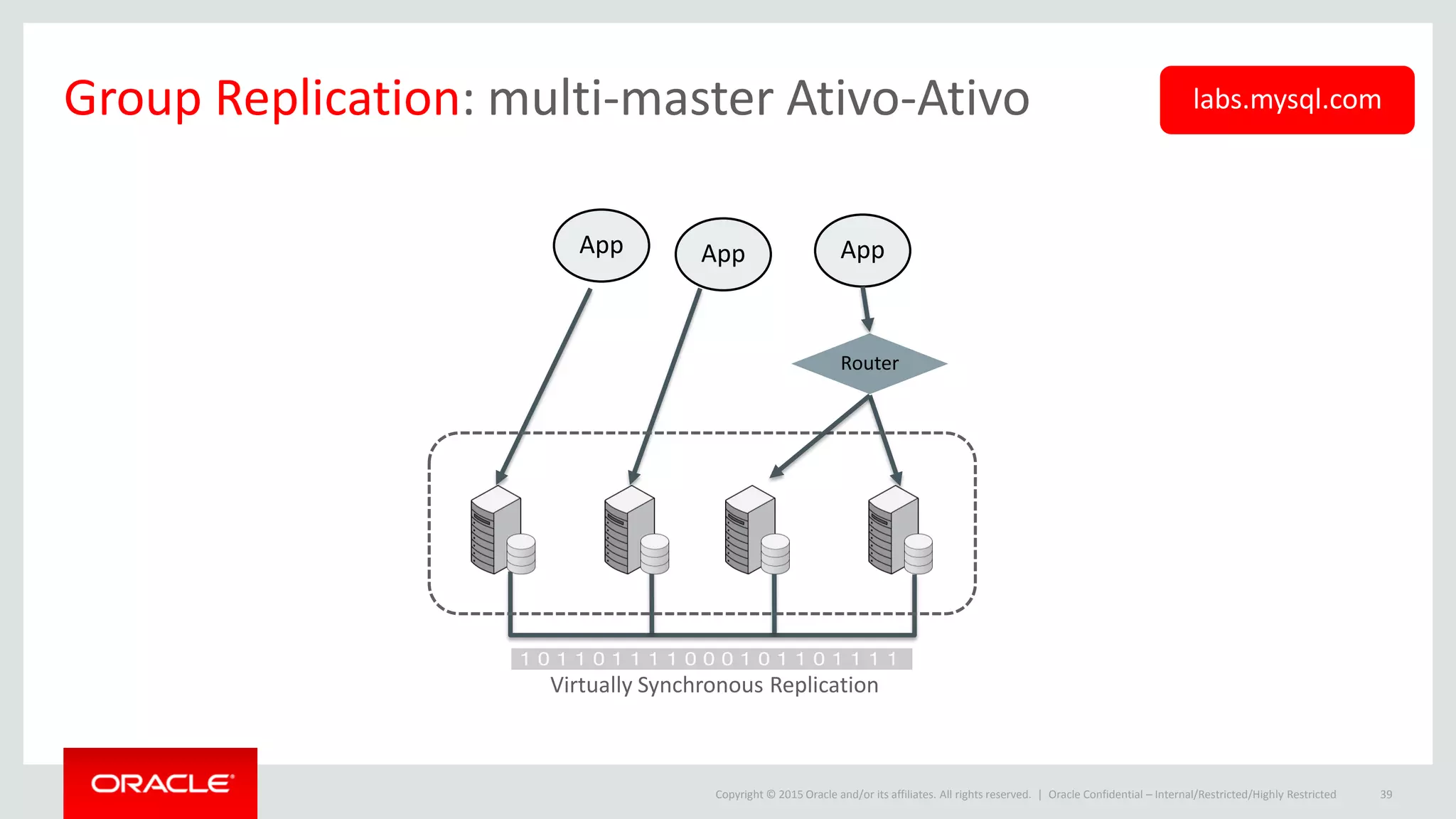

Group Replication: multi-master Ativo-Ativo
Router
App
Virtually Synchronous Replication
App App
labs.mysql.com

39. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |16/04/2016 Copyright 2015, Oracle and/or its affiliates. All rights reserved 40
Camadas de alta disponibilidade
Access to Data
Data Redundancy
App Servers
Routing

40. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 41

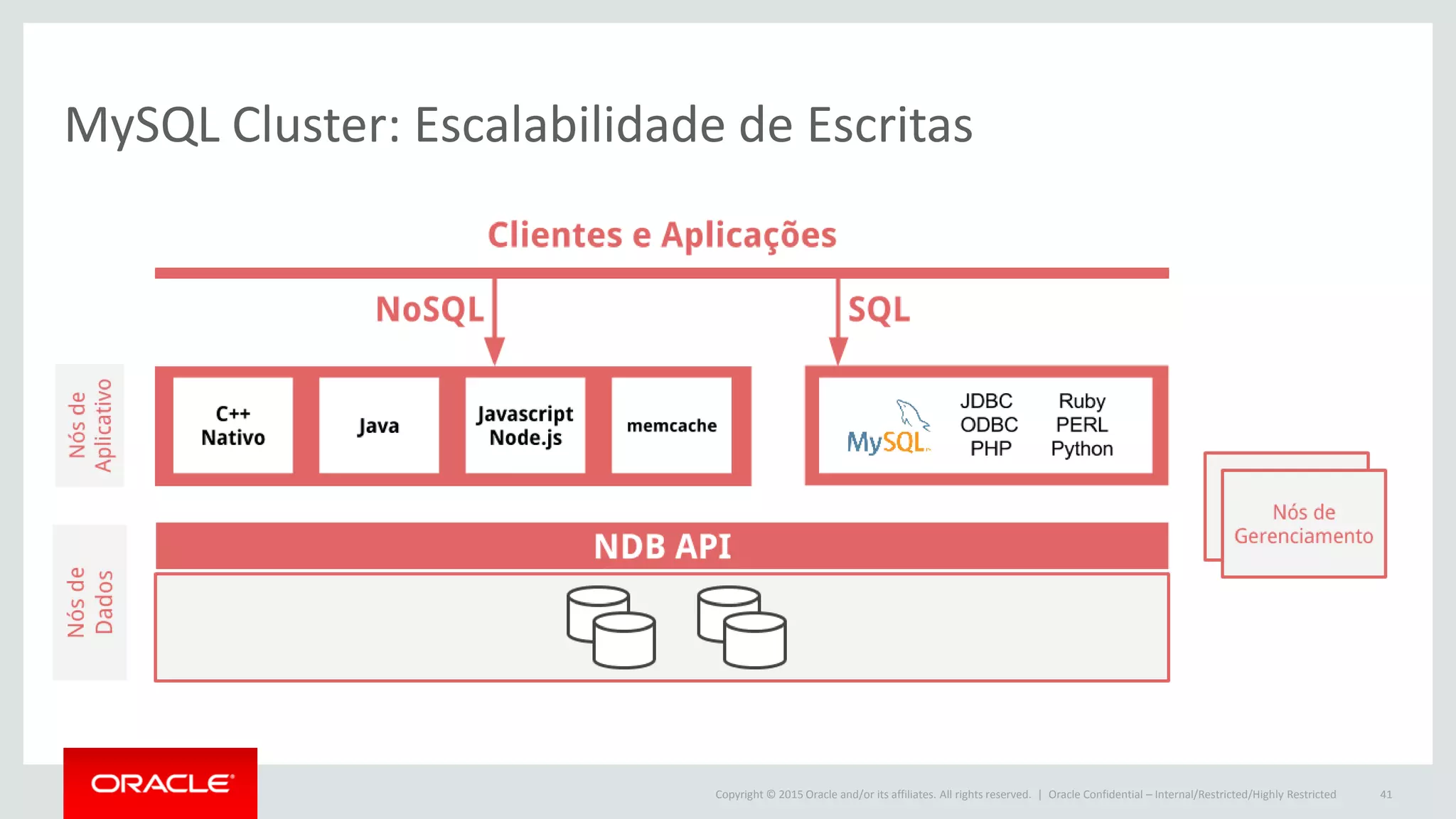

MySQL Cluster: Escalabilidade de Escritas

41. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |16/04/2016 Copyright 2015, Oracle and/or its affiliates. All rights reserved 42

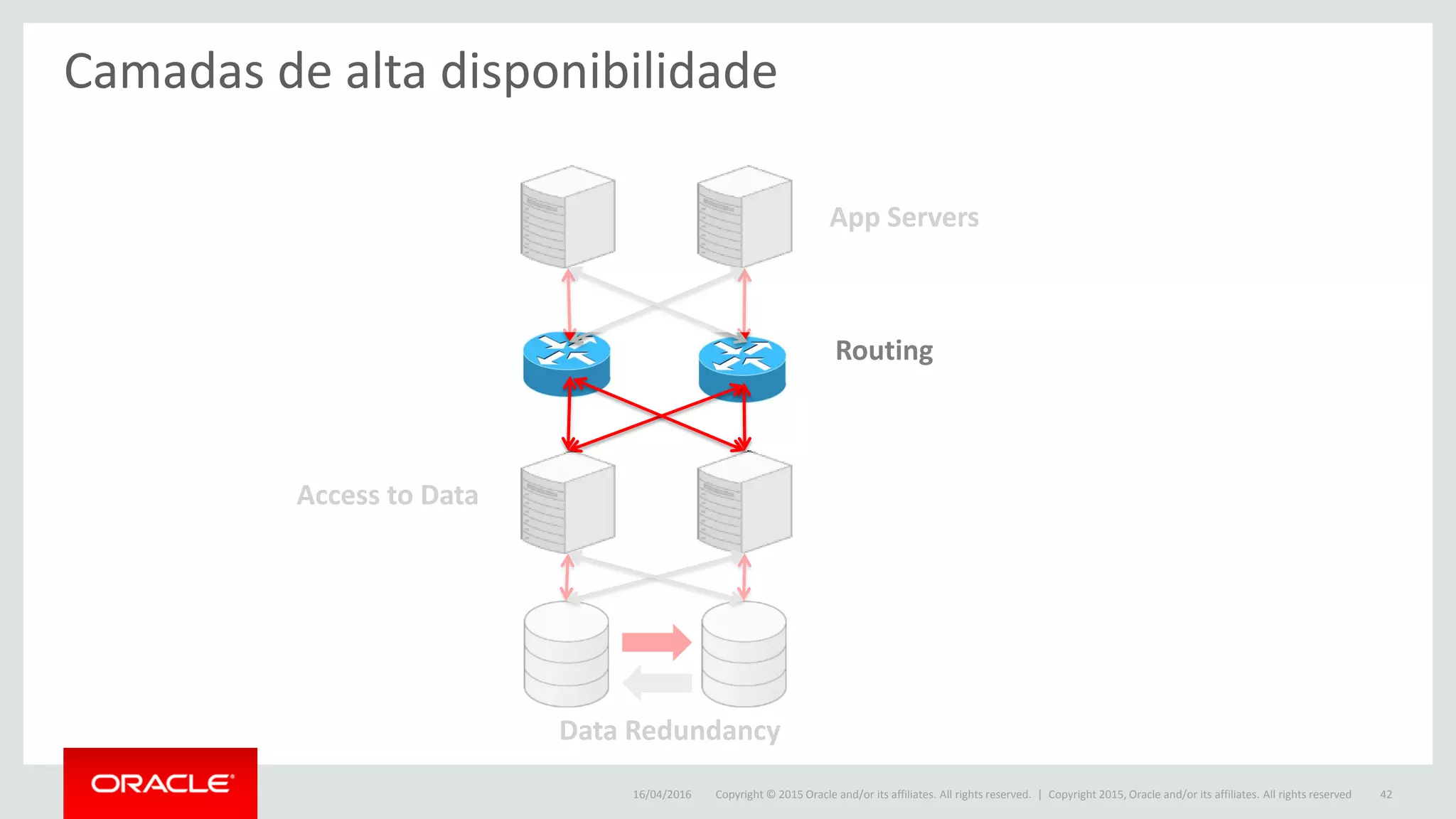

Camadas de alta disponibilidade
Access to Data
Data Redundancy
App Servers
Routing

42. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

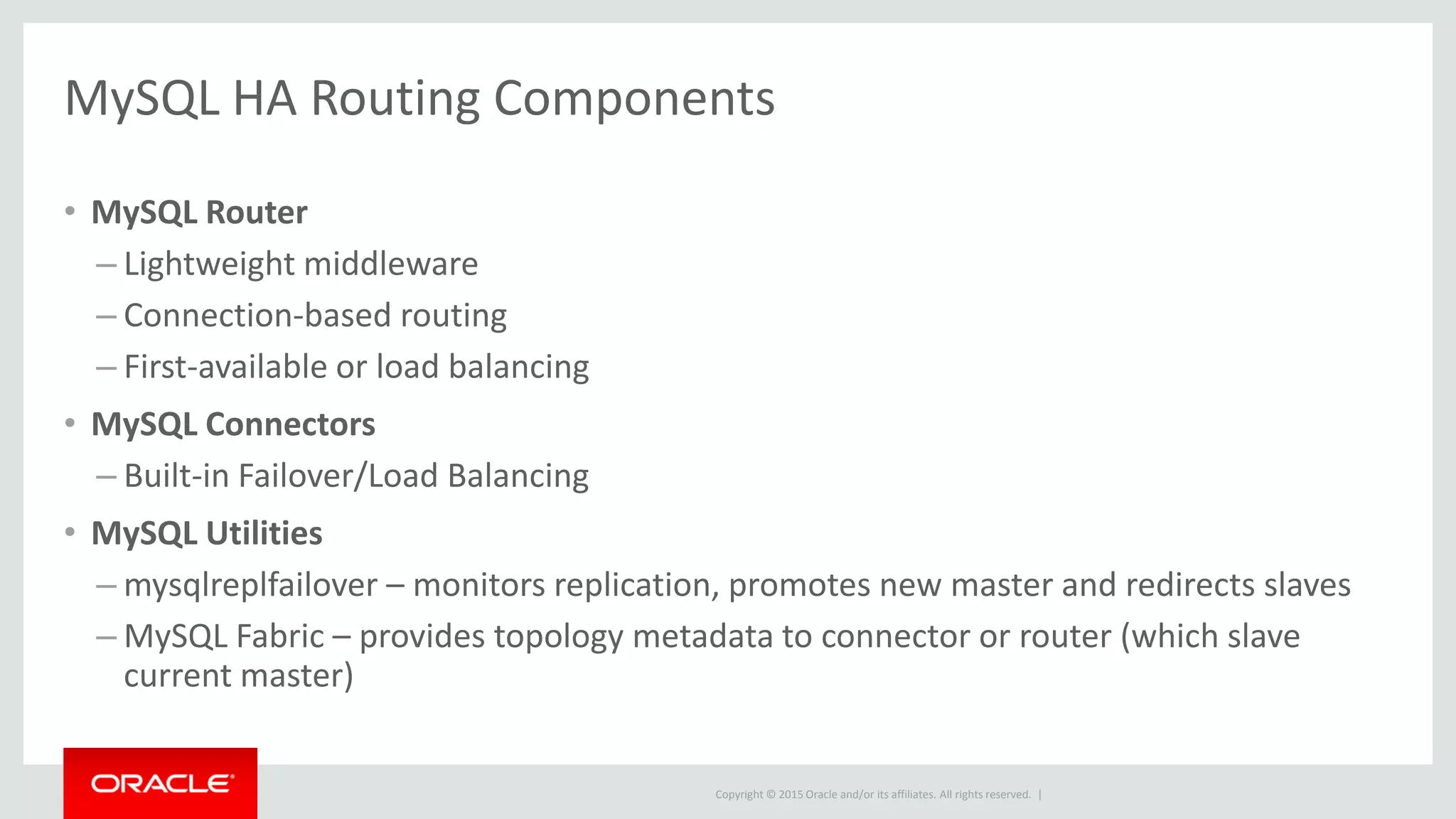

MySQL HA Routing Components
• MySQL Router
– Lightweight middleware
– Connection-based routing
– First-available or load balancing
• MySQL Connectors
– Built-in Failover/Load Balancing
• MySQL Utilities

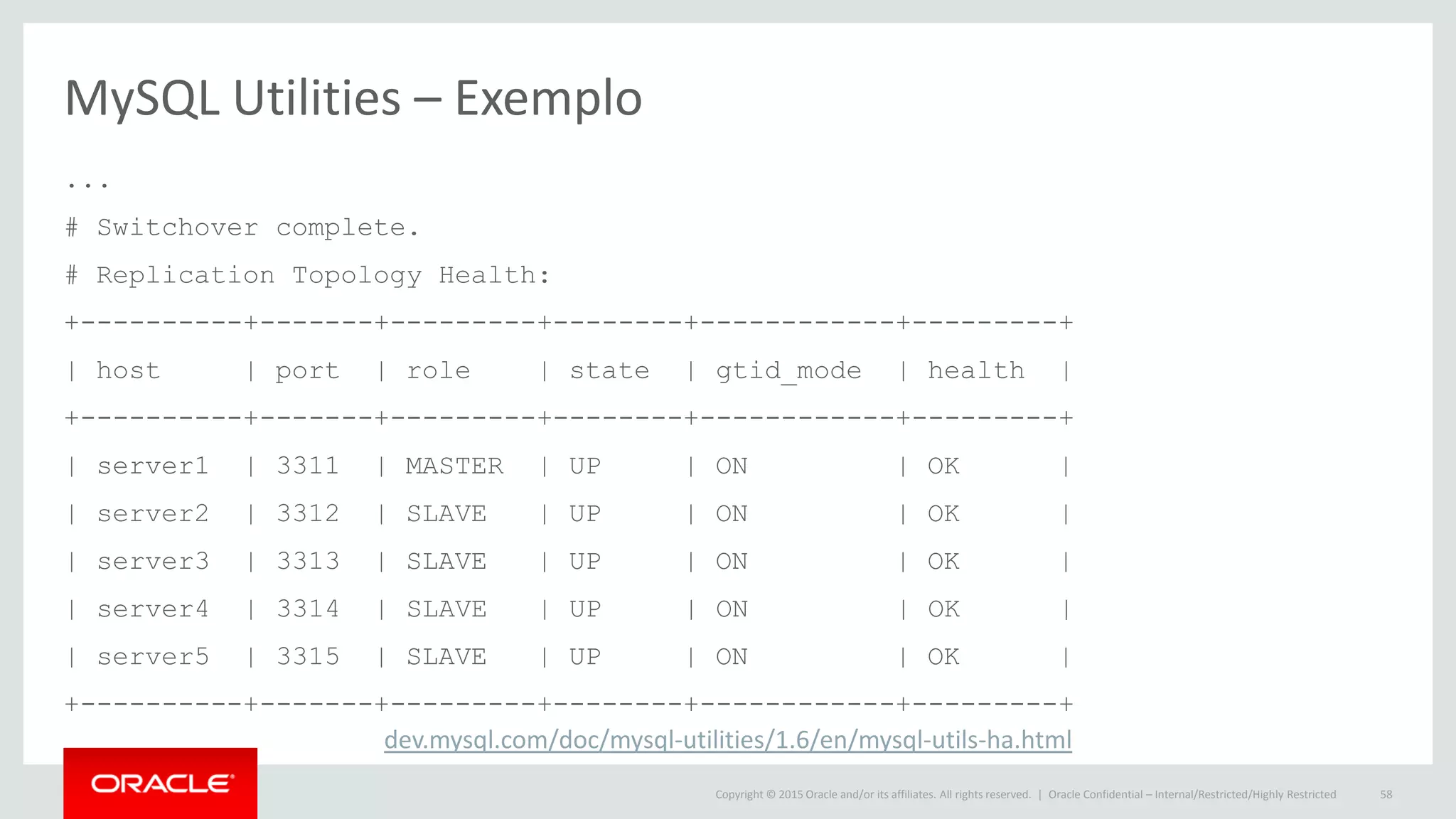

– mysqlreplfailover – monitors replication, promotes new master and redirects slaves
– MySQL Fabric – provides topology metadata to connector or router (which slave
current master)

43. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

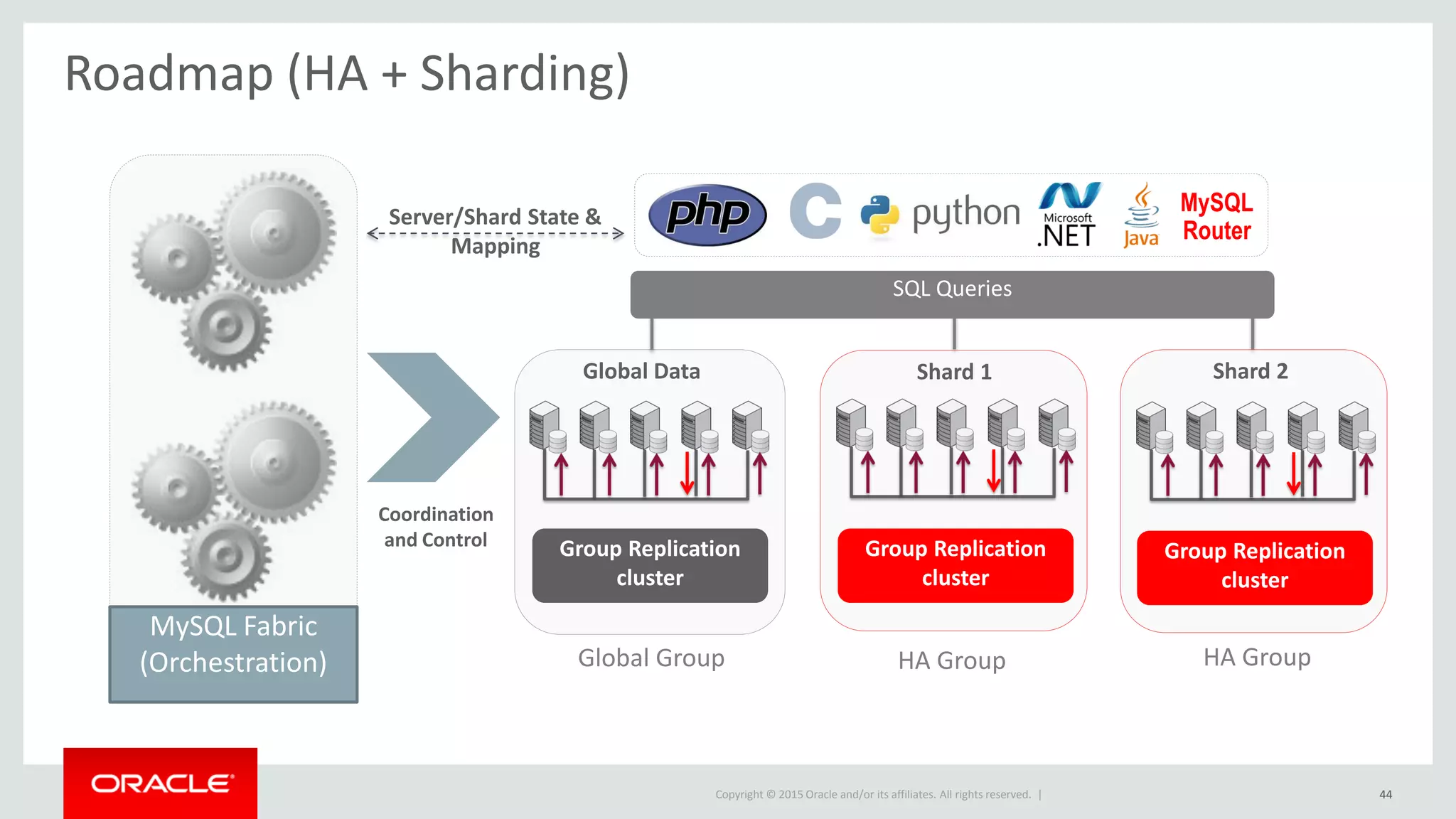

Roadmap (HA + Sharding)
Global Data Shard 1 Shard 2
MySQL Fabric
(Orchestration)
SQL Queries
Server/Shard State &
Mapping
Global Group HA Group
Coordination
and Control
HA Group
Group Replication
cluster
44
Group Replication
cluster
Group Replication
cluster
MySQL
Router

44. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

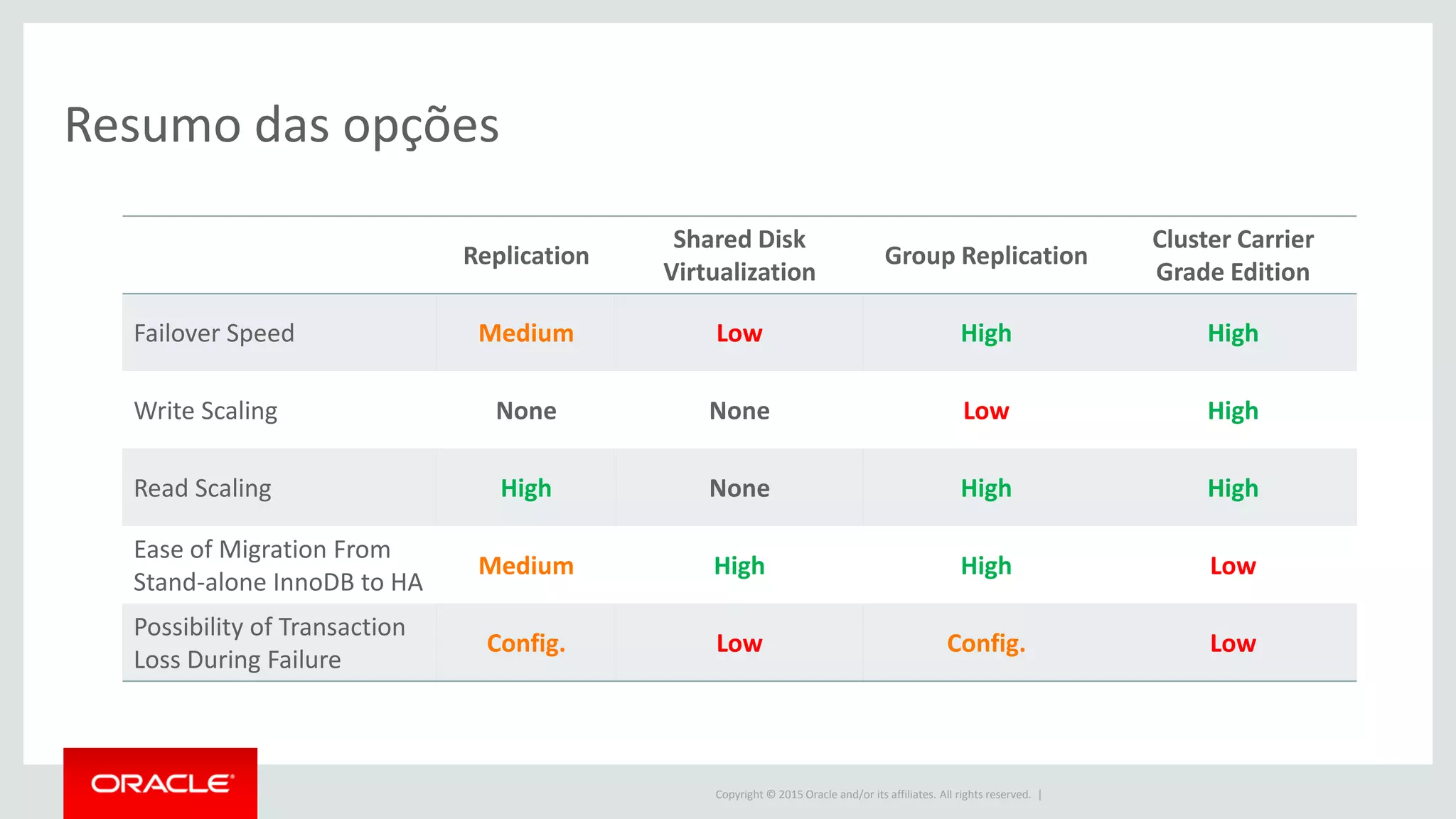

Resumo das opções
Replication
Shared Disk
Virtualization
Group Replication
Cluster Carrier
Grade Edition
Failover Speed Medium Low High High
Write Scaling None None Low High
Read Scaling High None High High
Ease of Migration From
Stand-alone InnoDB to HA
Medium High High Low
Possibility of Transaction
Loss During Failure
Config. Low Config. Low

45. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

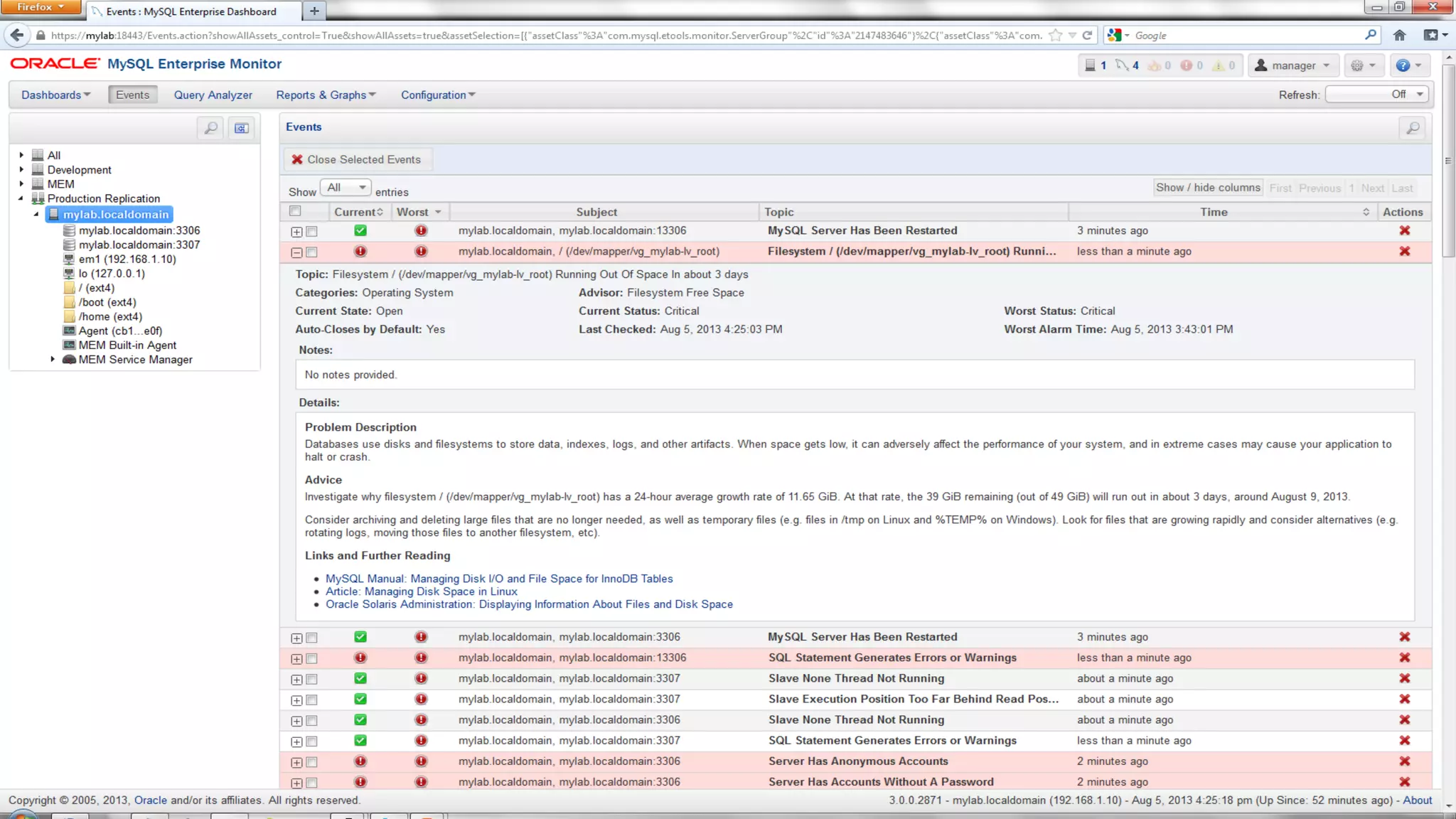

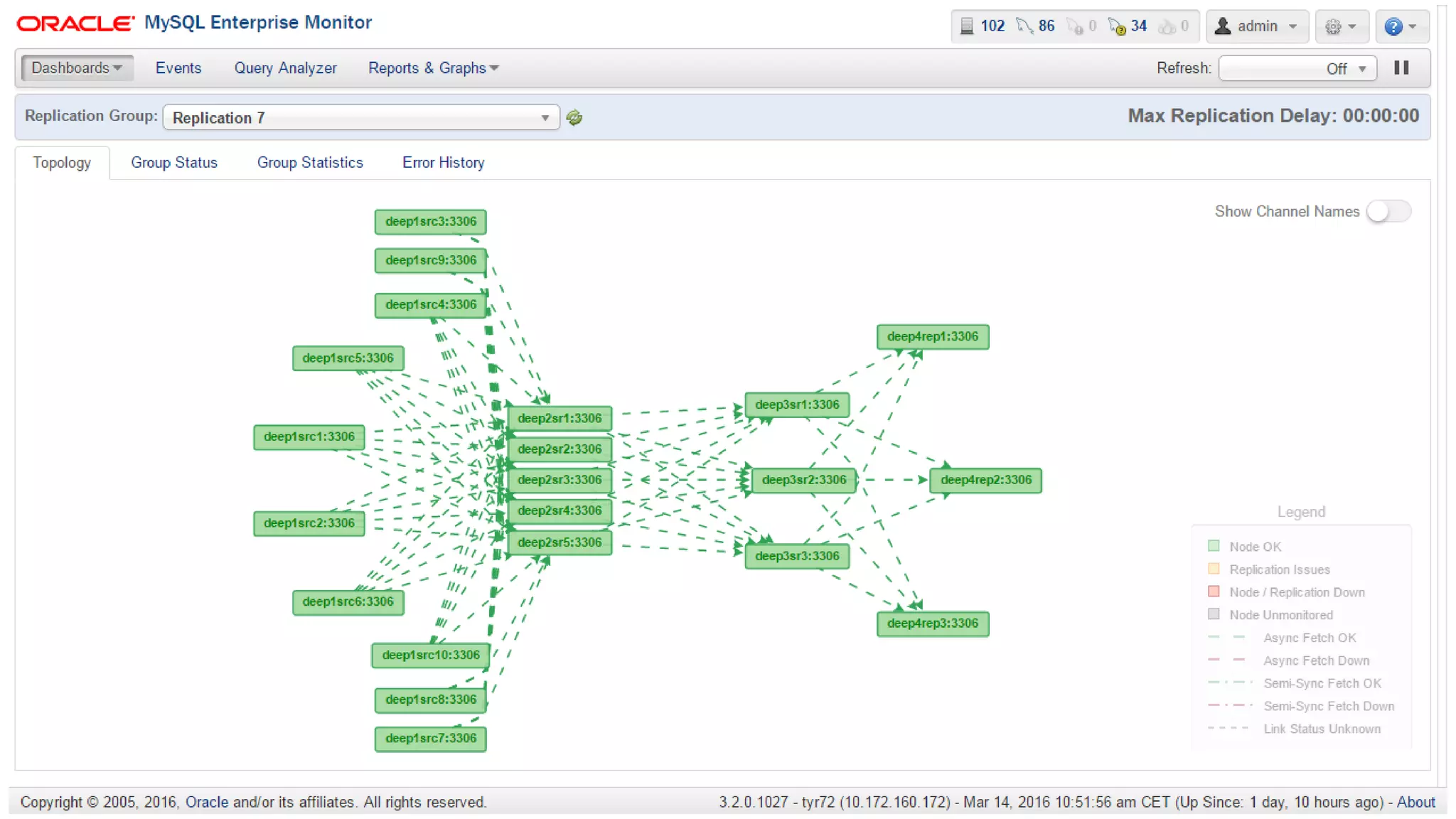

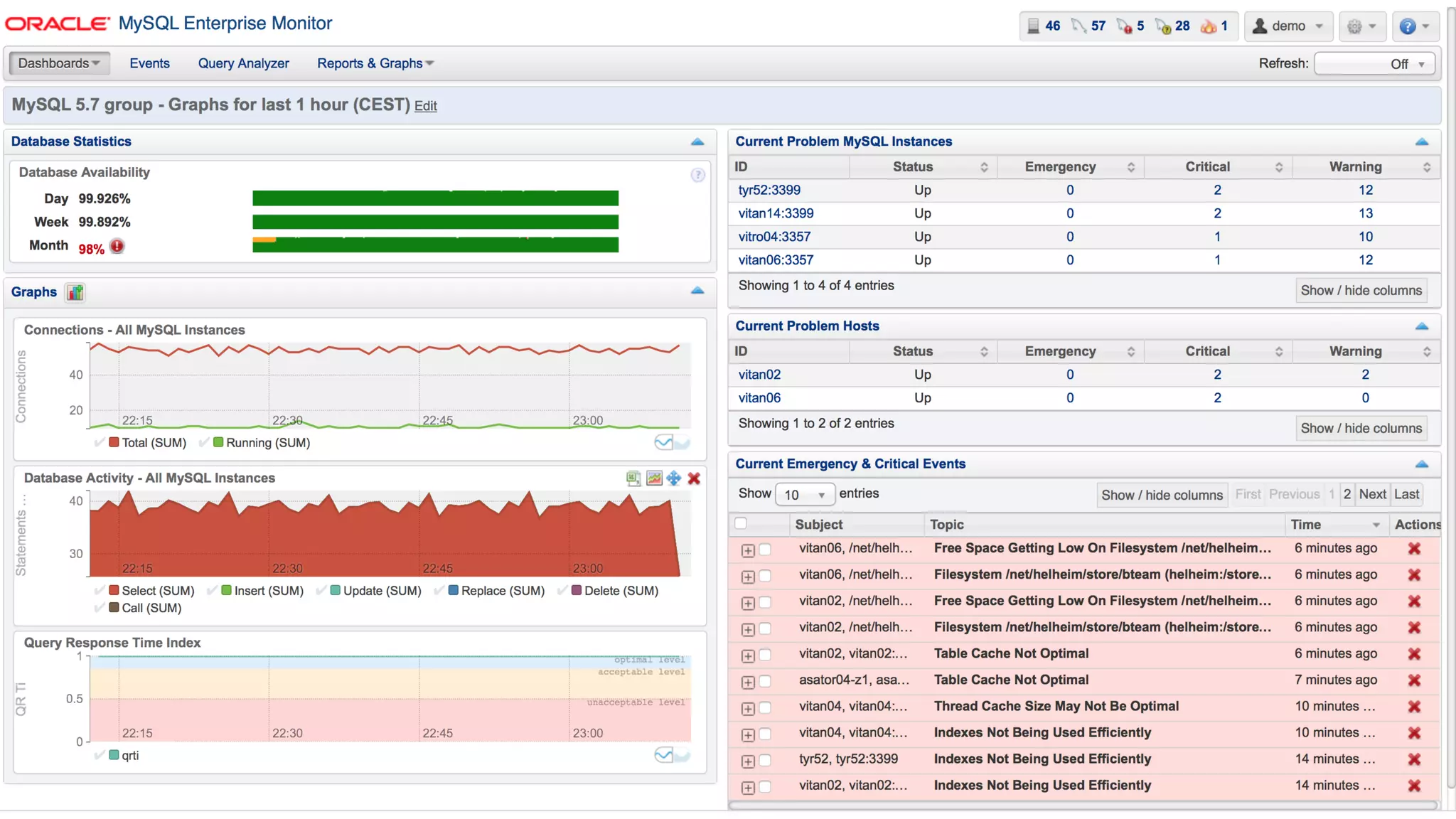

Monitoramento e Gerenciamento
ambientes de HA bem administrados

46. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 47

47. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 48

48. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 49

49. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 50

50. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 51

51. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

52. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

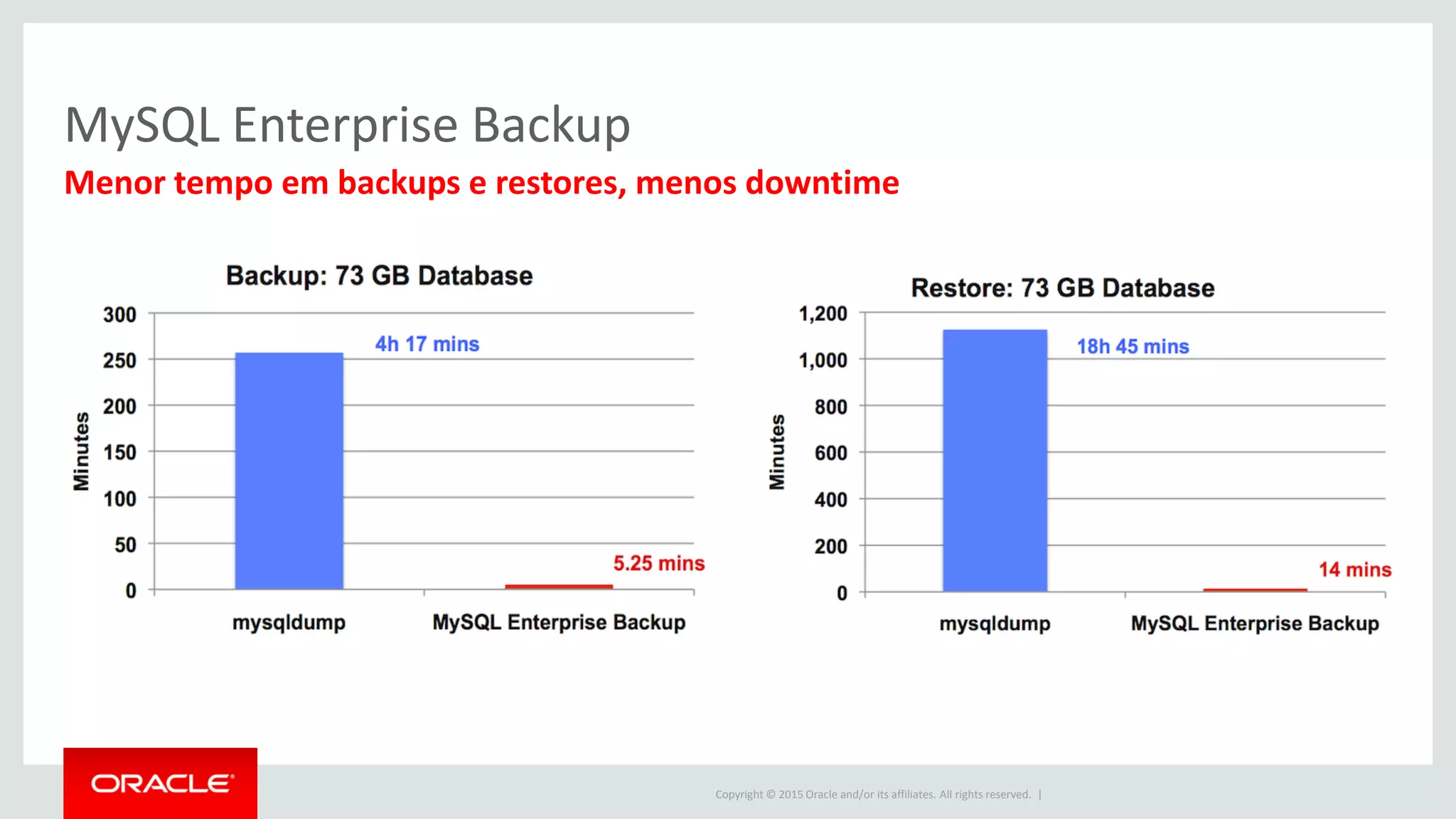

Menor tempo em backups e restores, menos downtime
MySQL Enterprise Backup

53. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
MySQL Utilities
• Binary Log Operations
• Database Operations
• General Operations
• Server Operations
• Specialized Operations
• High Availability Operations
– How Can I Use Replication?
– How Do I Add New Servers to My
Topology and Change Master Role
– Setup Automatic Failover
– Restore the Previous Master After
Failover
– How Can I Find All of the Slaves Attached
to My Master Server?
– How To Check If Data Is Correctly
Replicated?
– How To Fix Errant Transactions on the
Replication Topology?
Oracle Confidential – Internal/Restricted/Highly Restricted 54
dev.mysql.com/doc/mysql-utilities/1.6/en/mysql-utils-ha.html

54. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
MySQL Utilities
• Binary Log Operations
• Database Operations
• General Operations
• Server Operations
• Specialized Operations
• High Availability Operations
– How Can I Use Replication?
– How Do I Add New Servers to My
Topology and Change Master Role
– Setup Automatic Failover
– Restore the Previous Master After
Failover
– How Can I Find All of the Slaves Attached
to My Master Server?
– How To Check If Data Is Correctly
Replicated?
– How To Fix Errant Transactions on the
Replication Topology?
Oracle Confidential – Internal/Restricted/Highly Restricted 55
dev.mysql.com/doc/mysql-utilities/1.6/en/mysql-utils-ha.html

55. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
MySQL Utilities – Exemplo
shell> mysqlrpladmin --master=root@server2:3312
--slaves=root@server2:3313,root@server4:3314,root@server5:3315
--rpl-user=rpl:rpl --new-master=root@server1:3311 --demote-master
switchover
# Checking privileges.
# Performing switchover from master at server2:3312 to slave at server1:3311.
# Checking candidate slave prerequisites.
# Checking slaves configuration to master.
# Waiting for slaves to catch up to old master.
# Stopping slaves.
# Performing STOP on all slaves.
...
Oracle Confidential – Internal/Restricted/Highly Restricted 56
dev.mysql.com/doc/mysql-utilities/1.6/en/mysql-utils-ha.html

56. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
MySQL Utilities – Exemplo
shell> mysqlreplicate --master=root@server2:3312 --
slave=root@server1:3311 -rpl-user=rpl:rpl
# master on localhost: ... connected.
# slave on localhost: ... connected.
# Checking for binary logging on master...
# Setting up replication...
# ...done.
Oracle Confidential – Internal/Restricted/Highly Restricted 57
dev.mysql.com/doc/mysql-utilities/1.6/en/mysql-utils-ha.html

57. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
MySQL Utilities – Exemplo
...
# Switchover complete.
# Replication Topology Health:
+----------+-------+---------+--------+------------+---------+
| host | port | role | state | gtid_mode | health |
+----------+-------+---------+--------+------------+---------+
| server1 | 3311 | MASTER | UP | ON | OK |
| server2 | 3312 | SLAVE | UP | ON | OK |
| server3 | 3313 | SLAVE | UP | ON | OK |
| server4 | 3314 | SLAVE | UP | ON | OK |
| server5 | 3315 | SLAVE | UP | ON | OK |
+----------+-------+---------+--------+------------+---------+
Oracle Confidential – Internal/Restricted/Highly Restricted 58
dev.mysql.com/doc/mysql-utilities/1.6/en/mysql-utils-ha.html

58. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

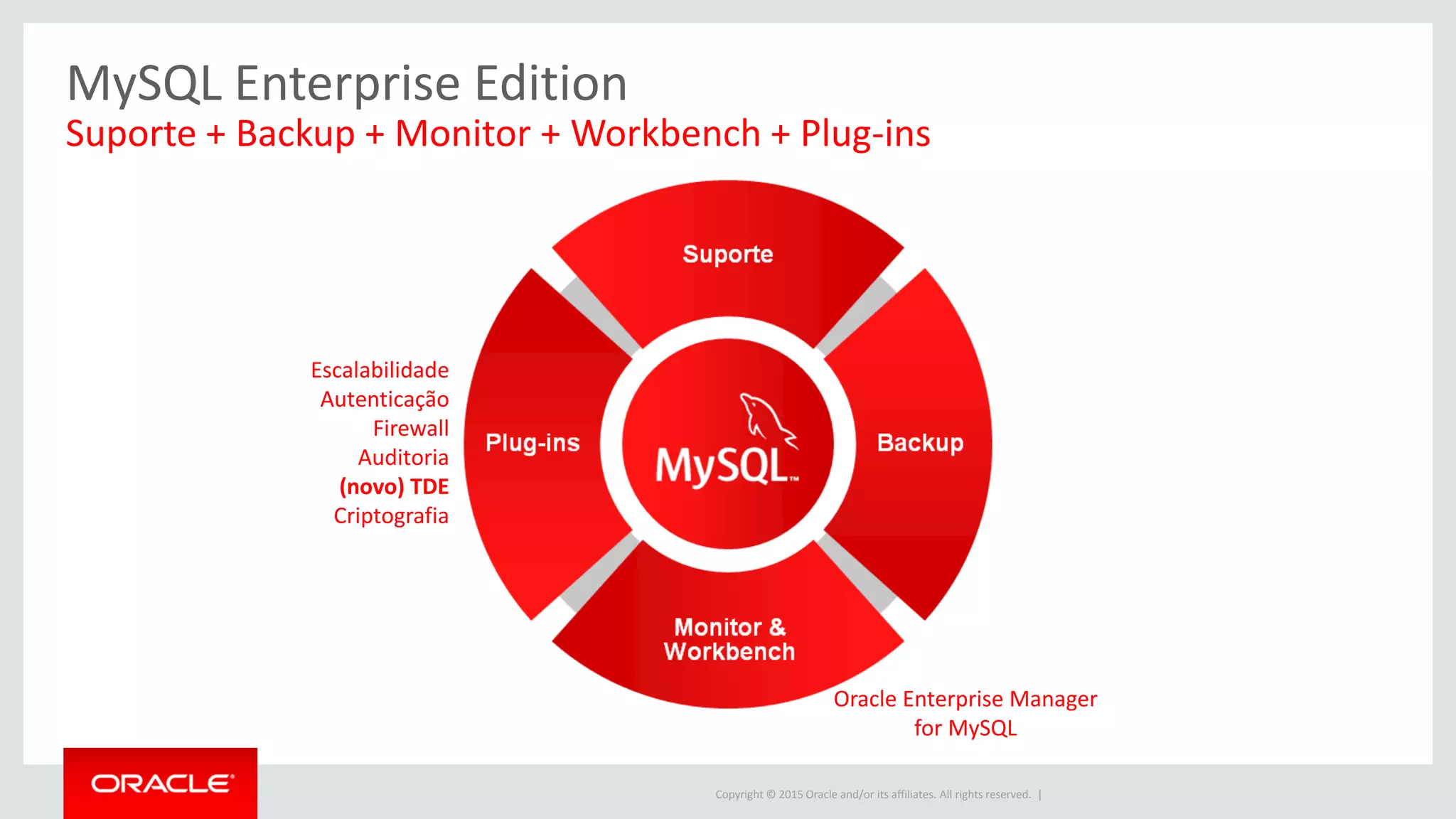

MySQL Enterprise Edition
Suporte + Backup + Monitor + Workbench + Plug-ins
Escalabilidade
Autenticação
Firewall
Auditoria
(novo) TDE
Criptografia
Oracle Enterprise Manager
for MySQL

59. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 60
Como alguns DBAs vêem o MySQL

60. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 61
...como ele realmente é...

61. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal/Restricted/Highly Restricted 62
...MySQL Enterprise Edition

62. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |

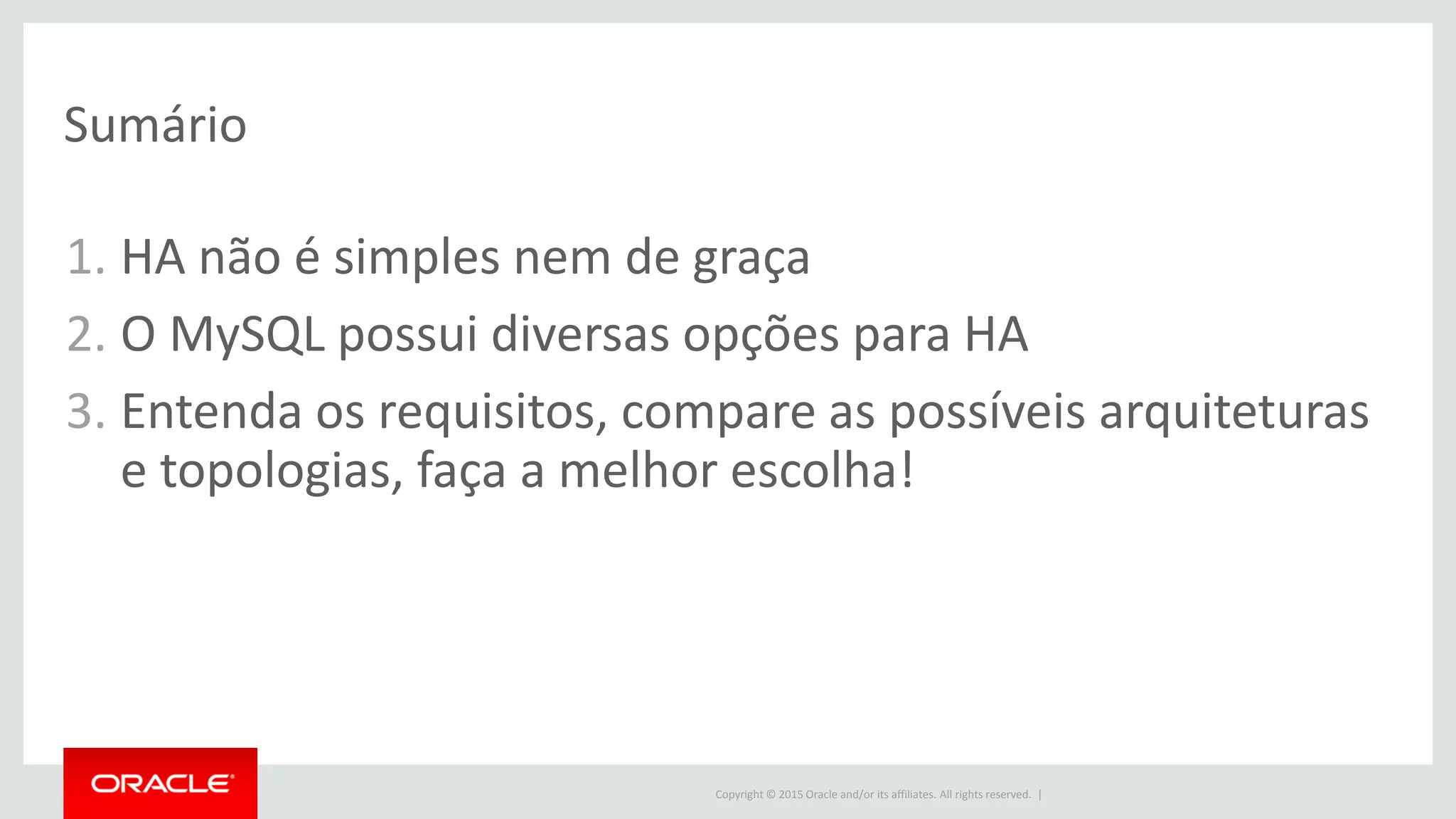

Sumário
1. HA não é simples nem de graça
2. O MySQL possui diversas opções para HA
3. Entenda os requisitos, compare as possíveis arquiteturas
e topologias, faça a melhor escolha!

63. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
@MySQLBR meetup.com/MySQL-BRfacebook.com/MySQLBR
pt.planet.mysql.com

64. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
Obrigado!
Copyright © 2014, Oracle and/or its affiliates. All rights reserved.

65. Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
Perguntas?
Alta Disponibilidade no MySQL 5.7
Contato:
airton.lastori@oracle.com
twitter.com/mysqlbr
facebook.com/mysqlbr
