State of the Dolphin
Ricky Setyawan
Principal Sales Consultant, MySQL

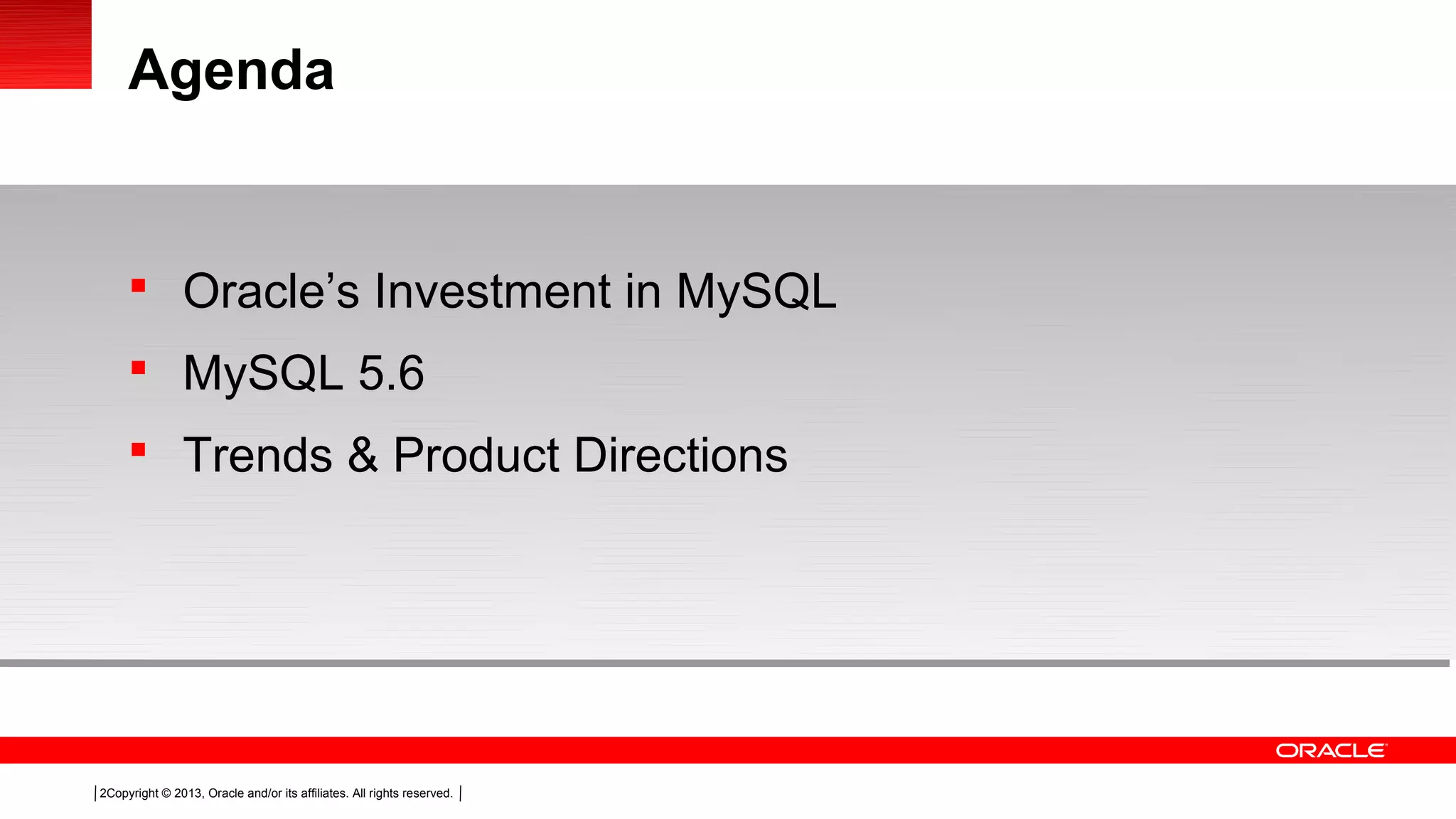

Agenda
 Oracle’s Investment in MySQL
 MySQL 5.6
 Trends & Product Directions

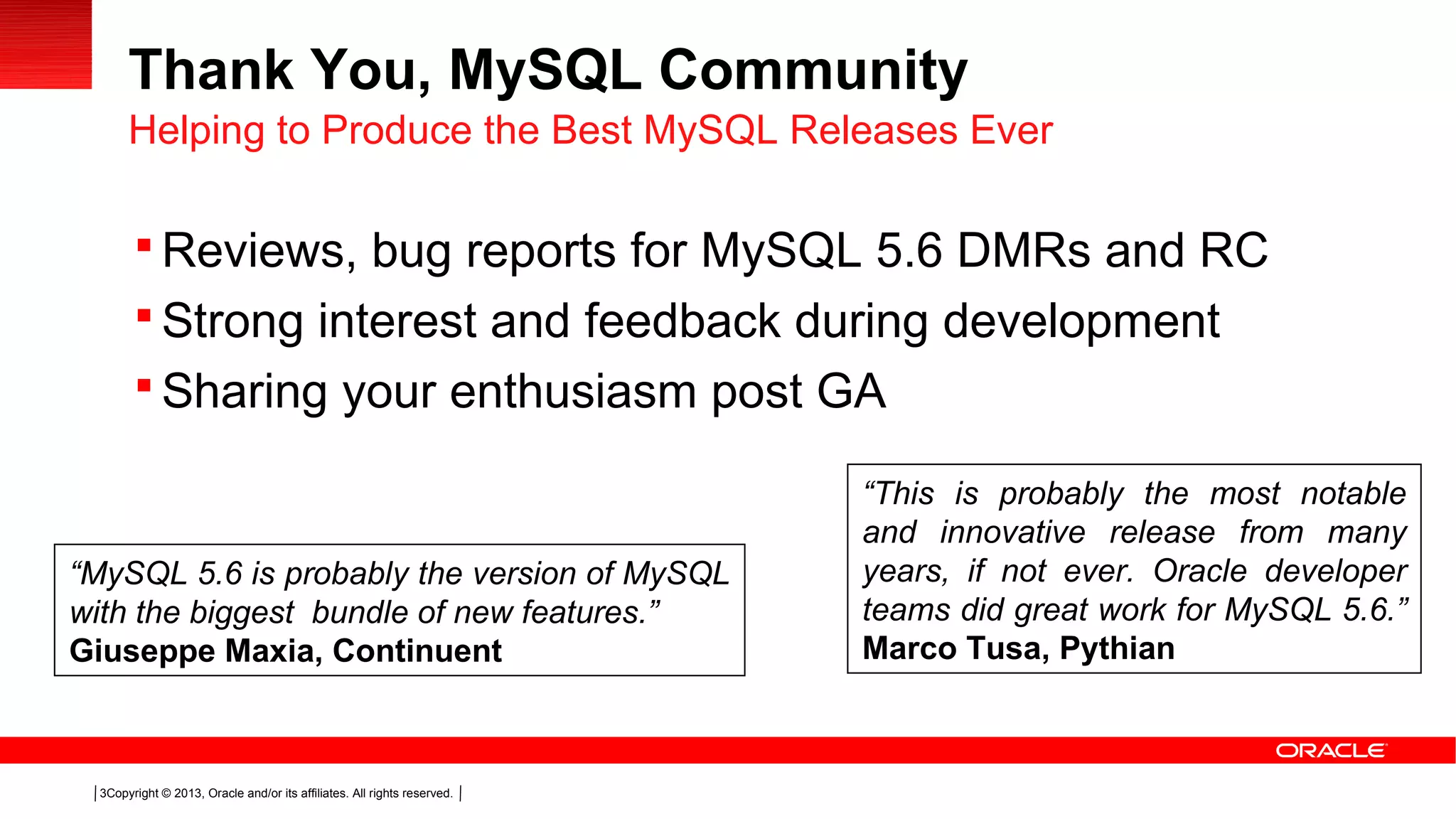

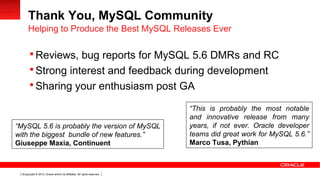

Thank You, MySQL Community
 Reviews, bug reports for MySQL 5.6 DMRs and RC
 Strong interest and feedback during development
 Sharing your enthusiasm post GA
Helping to Produce the Best MySQL Releases Ever
“MySQL 5.6 is probably the version of MySQL
with the biggest bundle of new features.”
Giuseppe Maxia, Continuent
“This is probably the most notable
and innovative release from many
years, if not ever. Oracle developer
teams did great work for MySQL 5.6.”
Marco Tusa, Pythian

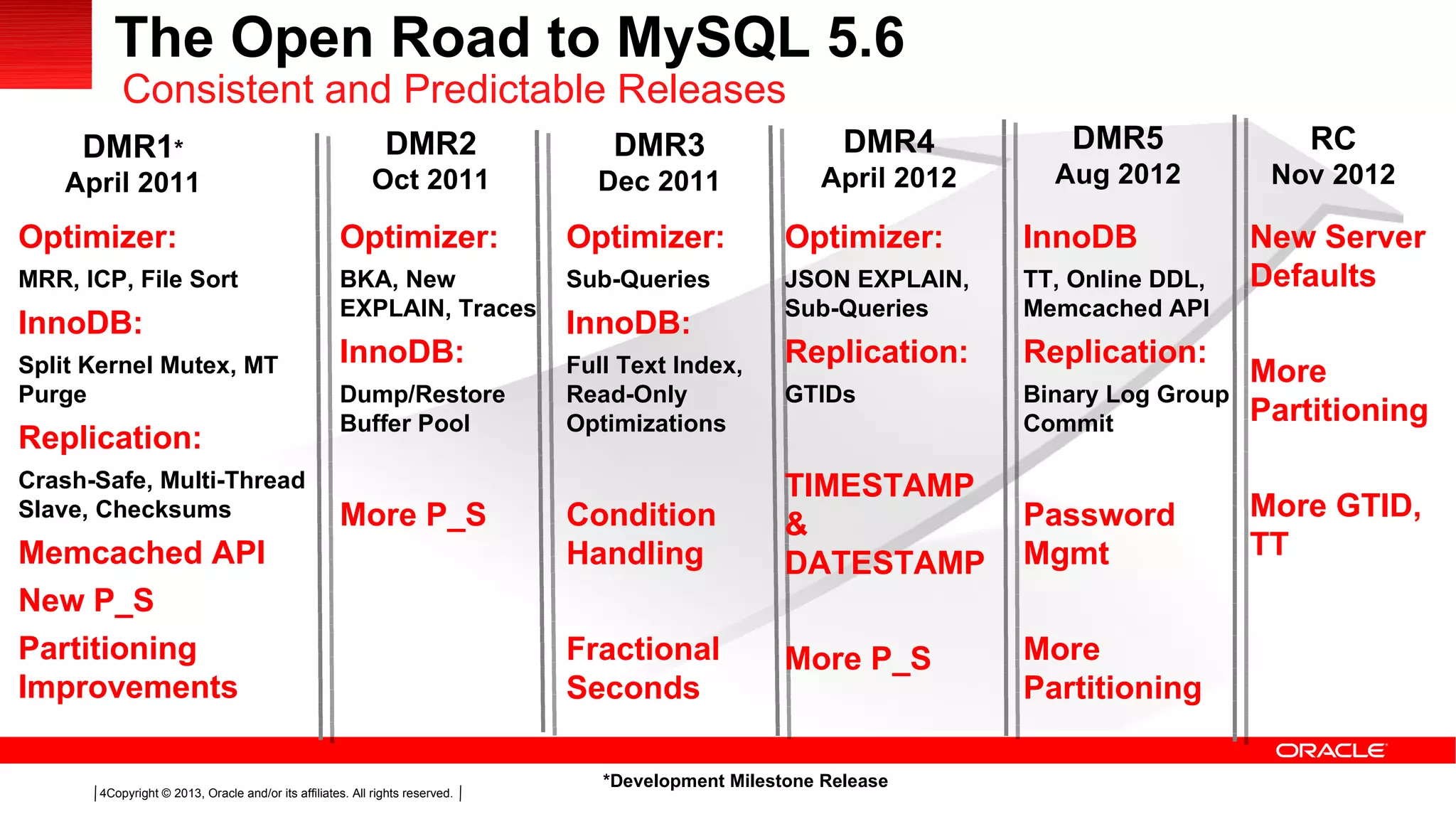

The Open Road to MySQL 5.6
Optimizer:
MRR, ICP, File Sort
InnoDB:
Split Kernel Mutex, MT
Purge
Replication:
Crash-Safe, Multi-Thread
Slave, Checksums
Memcached API
New P_S
Partitioning
Improvements
*Development Milestone Release
RC
Nov 2012
DMR1*
April 2011
DMR2
Oct 2011
Optimizer:
BKA, New
EXPLAIN, Traces
InnoDB:
Dump/Restore
Buffer Pool
More P_S
DMR3
Dec 2011
Optimizer:
Sub-Queries
InnoDB:
Full Text Index,
Read-Only
Optimizations
Condition
Handling
Fractional
Seconds
DMR4
April 2012
Optimizer:
JSON EXPLAIN,
Sub-Queries
Replication:
GTIDs
TIMESTAMP
&
DATESTAMP
More P_S
DMR5
Aug 2012
InnoDB
TT, Online DDL,
Memcached API
Replication:
Binary Log Group
Commit
Password
Mgmt
More
Partitioning
New Server
Defaults
More
Partitioning
More GTID,
TT
Consistent and Predictable Releases

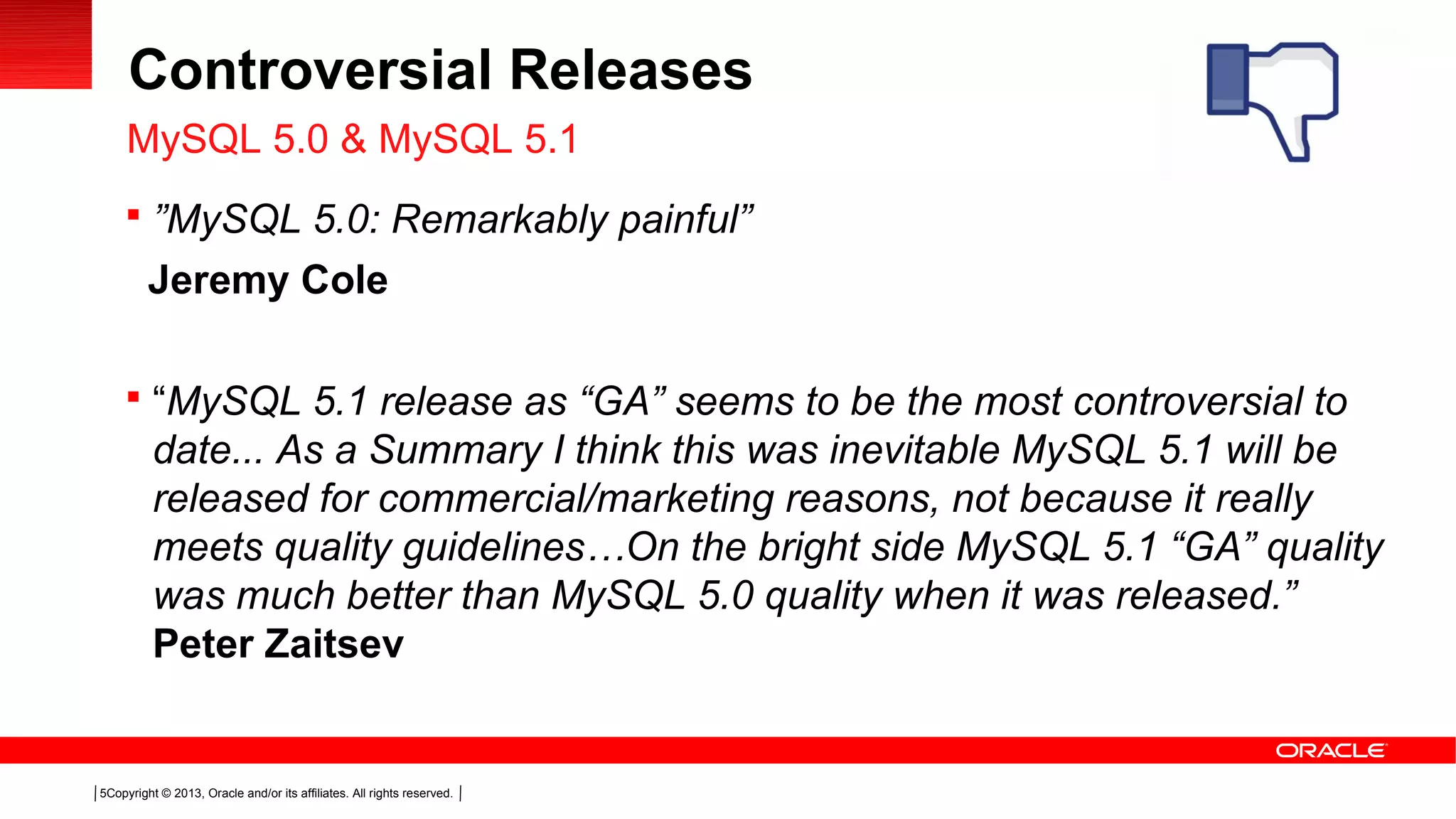

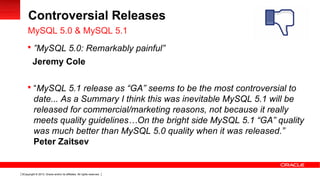

Controversial Releases
 ”MySQL 5.0: Remarkably painful”
Jeremy Cole
 “MySQL 5.1 release as “GA” seems to be the most controversial to
date... As a Summary I think this was inevitable MySQL 5.1 will be
released for commercial/marketing reasons, not because it really
meets quality guidelines…On the bright side MySQL 5.1 “GA” quality
was much better than MySQL 5.0 quality when it was released.”
Peter Zaitsev
MySQL 5.0 & MySQL 5.1

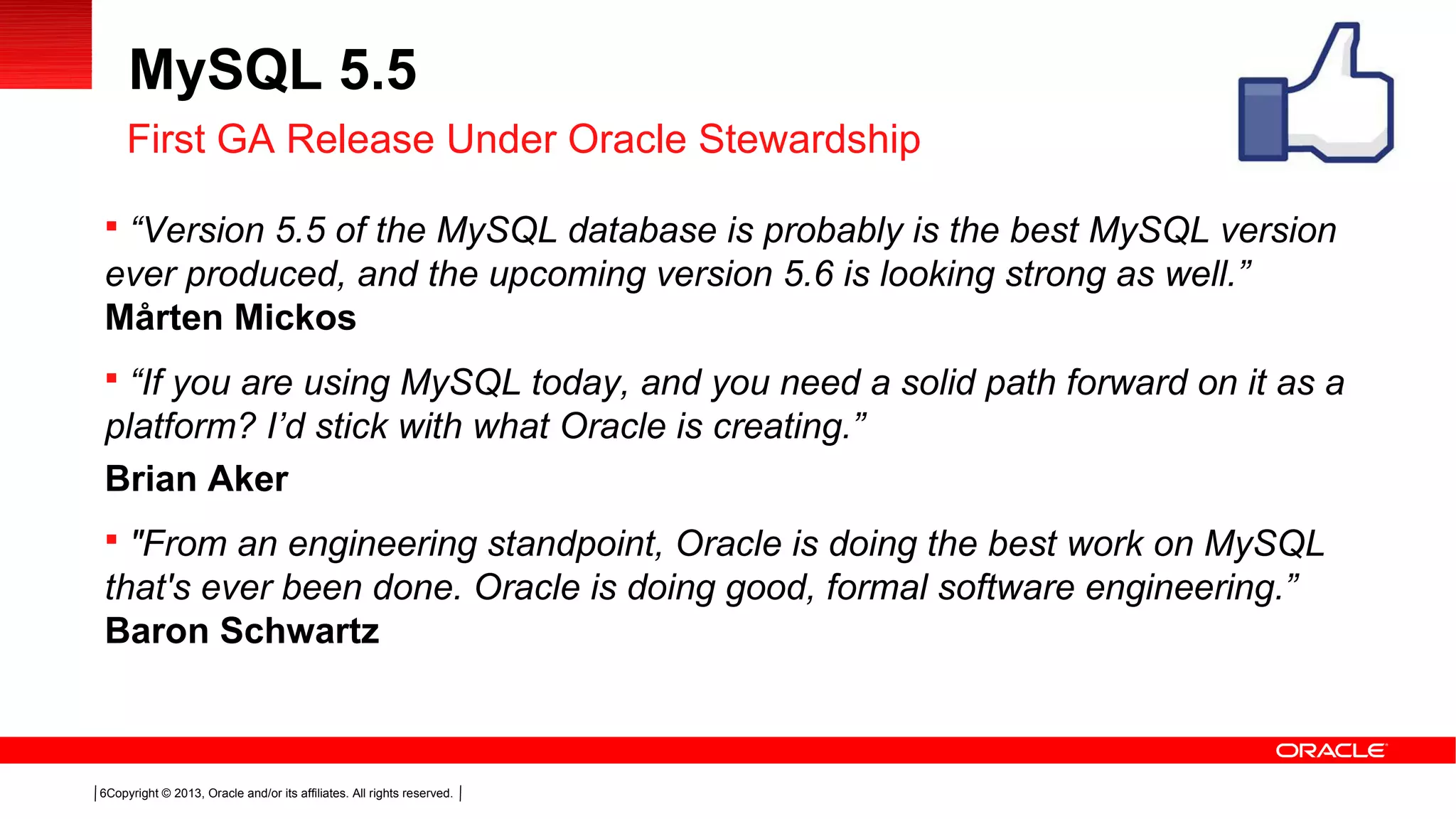

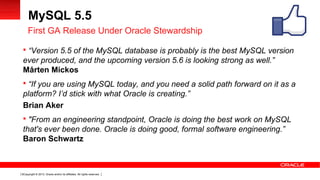

MySQL 5.5
 “Version 5.5 of the MySQL database is probably is the best MySQL version
ever produced, and the upcoming version 5.6 is looking strong as well.”
Mårten Mickos
 “If you are using MySQL today, and you need a solid path forward on it as a
platform? I’d stick with what Oracle is creating.”
Brian Aker
 "From an engineering standpoint, Oracle is doing the best work on MySQL
that's ever been done. Oracle is doing good, formal software engineering.”
Baron Schwartz
First GA Release Under Oracle Stewardship

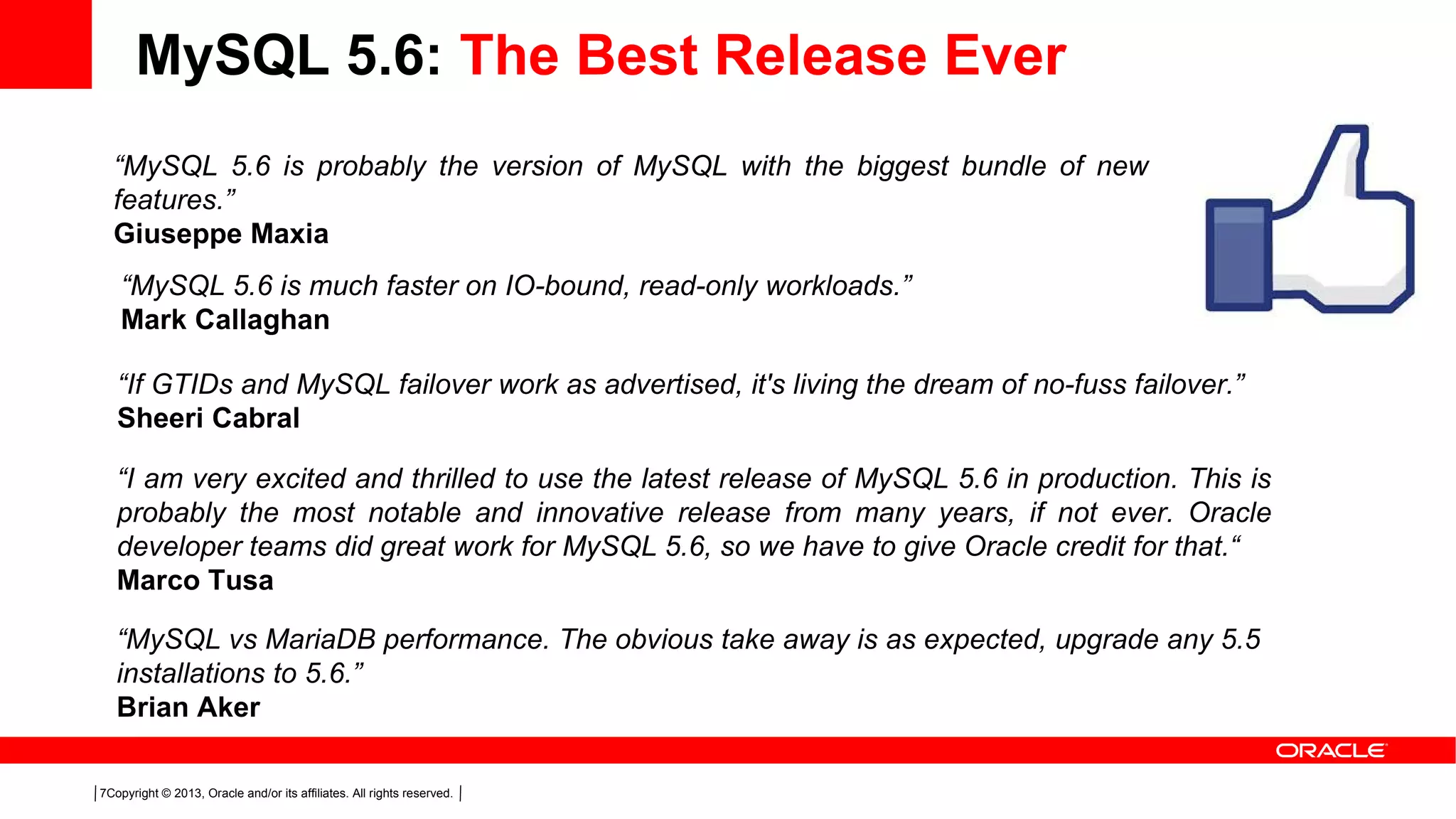

MySQL 5.6: The Best Release Ever
“MySQL 5.6 is probably the version of MySQL with the biggest bundle of new
features.”
Giuseppe Maxia
“I am very excited and thrilled to use the latest release of MySQL 5.6 in production. This is
probably the most notable and innovative release from many years, if not ever. Oracle
developer teams did great work for MySQL 5.6, so we have to give Oracle credit for that.“
Marco Tusa
“MySQL 5.6 is much faster on IO-bound, read-only workloads.”
Mark Callaghan
“If GTIDs and MySQL failover work as advertised, it's living the dream of no-fuss failover.”
Sheeri Cabral
“MySQL vs MariaDB performance. The obvious take away is as expected, upgrade any 5.5
installations to 5.6.”
Brian Aker

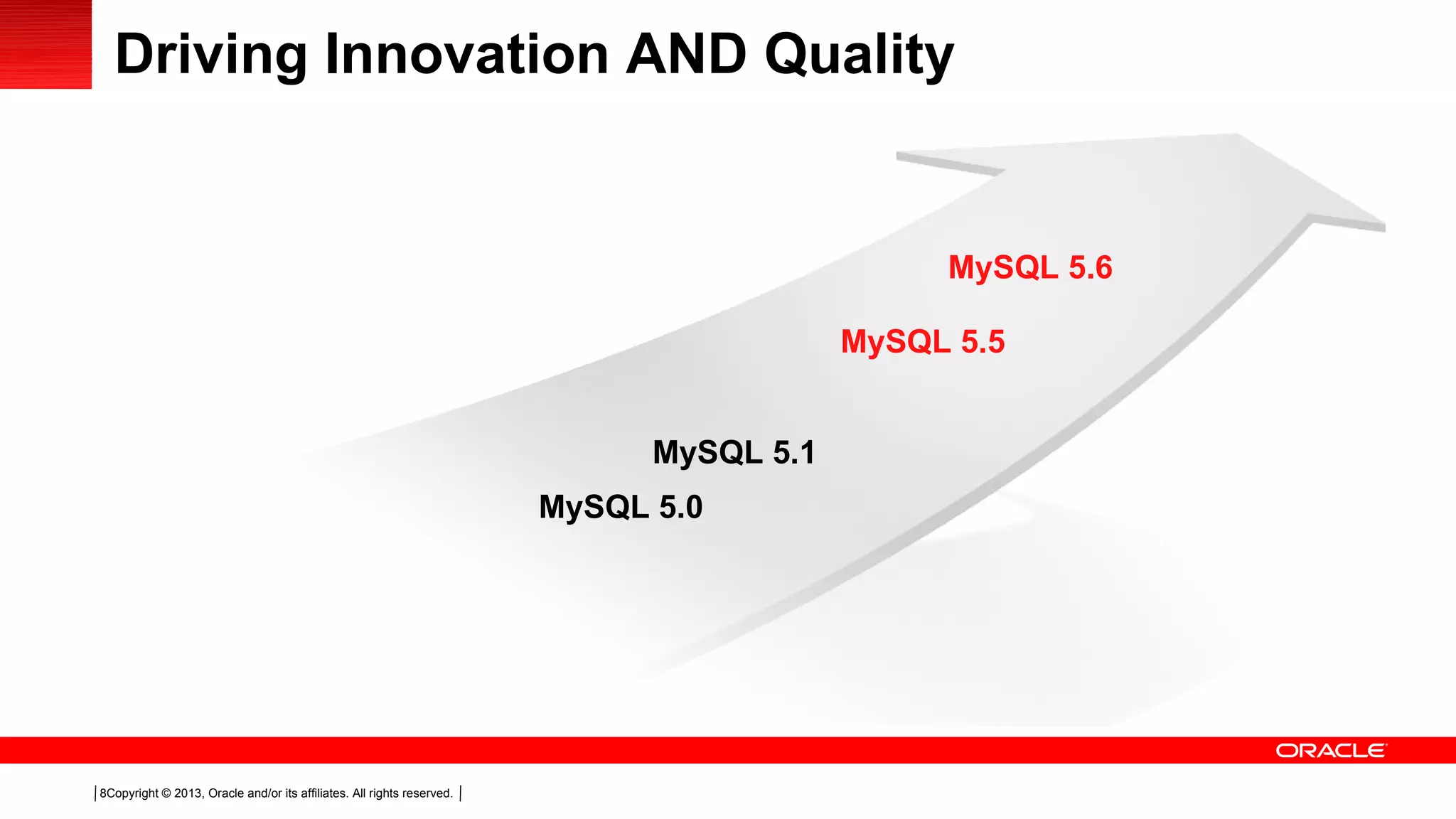

Driving Innovation AND Quality
MySQL 5.6
MySQL 5.5
MySQL 5.1
MySQL 5.0

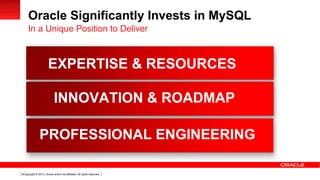

Oracle Significantly Invests in MySQL
In a Unique Position to Deliver
EXPERTISE & RESOURCES
PROFESSIONAL ENGINEERING
INNOVATION & ROADMAP

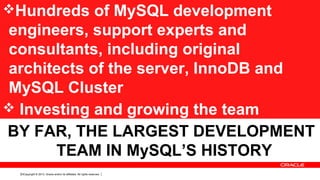

Hundreds of MySQL development
engineers, support experts and
consultants, including original
architects of the server, InnoDB and
MySQL Cluster
 Investing and growing the team
BY FAR, THE LARGEST DEVELOPMENT
TEAM IN MySQL’S HISTORY

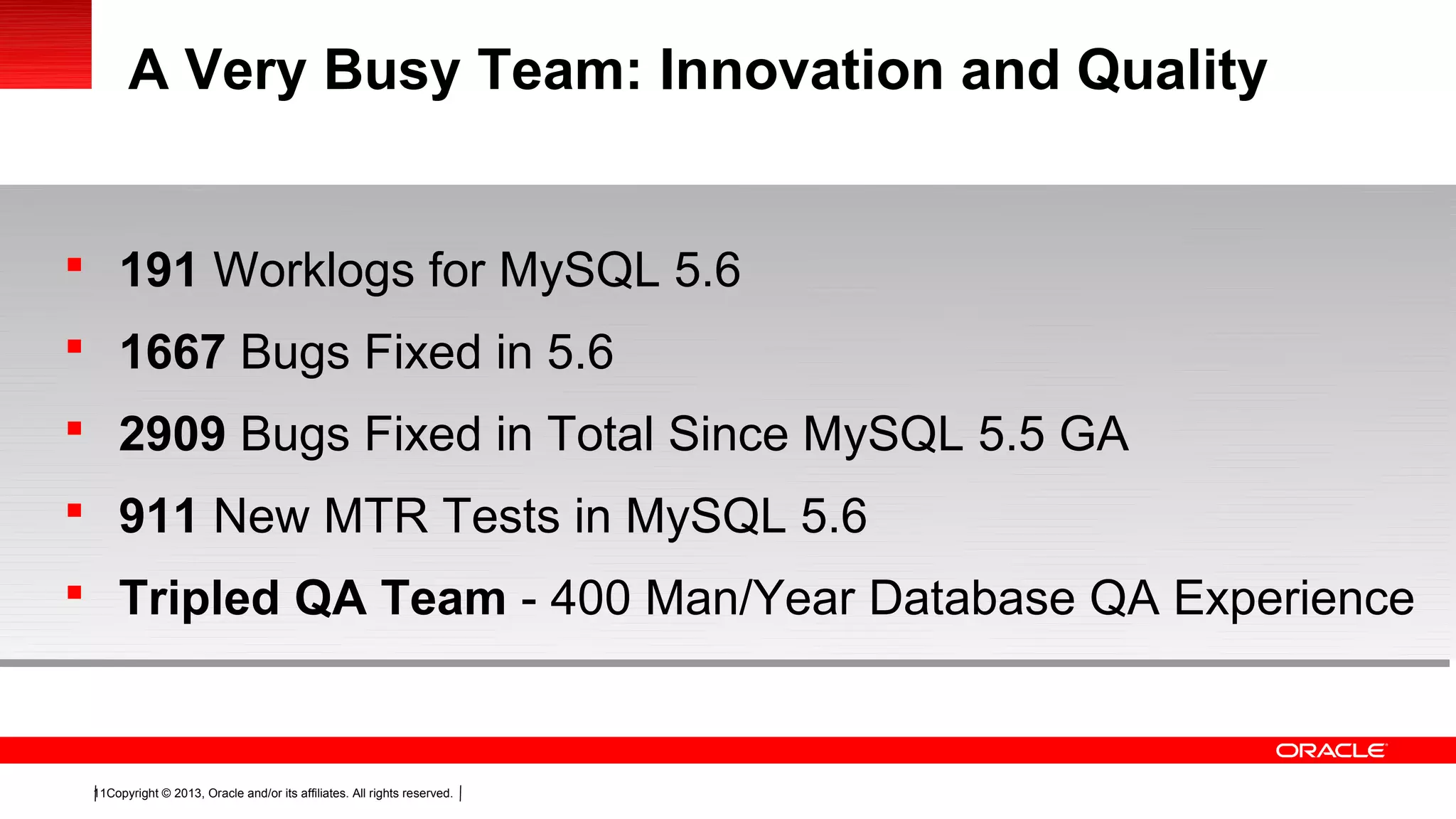

A Very Busy Team: Innovation and Quality
 191 Worklogs for MySQL 5.6
 1667 Bugs Fixed in 5.6
 2909 Bugs Fixed in Total Since MySQL 5.5 GA
 911 New MTR Tests in MySQL 5.6
 Tripled QA Team - 400 Man/Year Database QA Experience

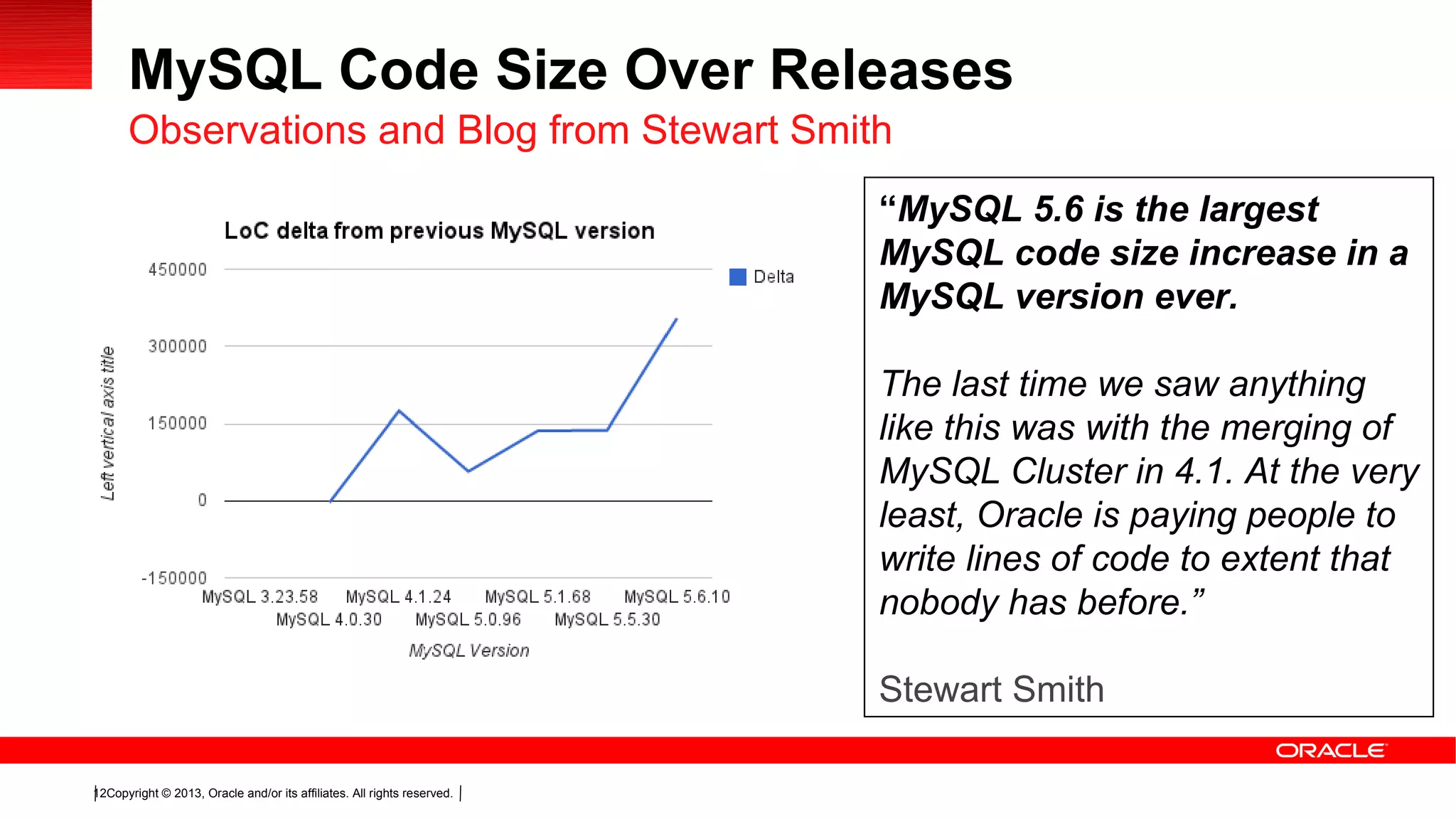

MySQL Code Size Over Releases
Observations and Blog from Stewart Smith
“MySQL 5.6 is the largest
MySQL code size increase in a
MySQL version ever.
The last time we saw anything
like this was with the merging of
MySQL Cluster in 4.1. At the very
least, Oracle is paying people to
write lines of code to extent that
nobody has before.”
Stewart Smith

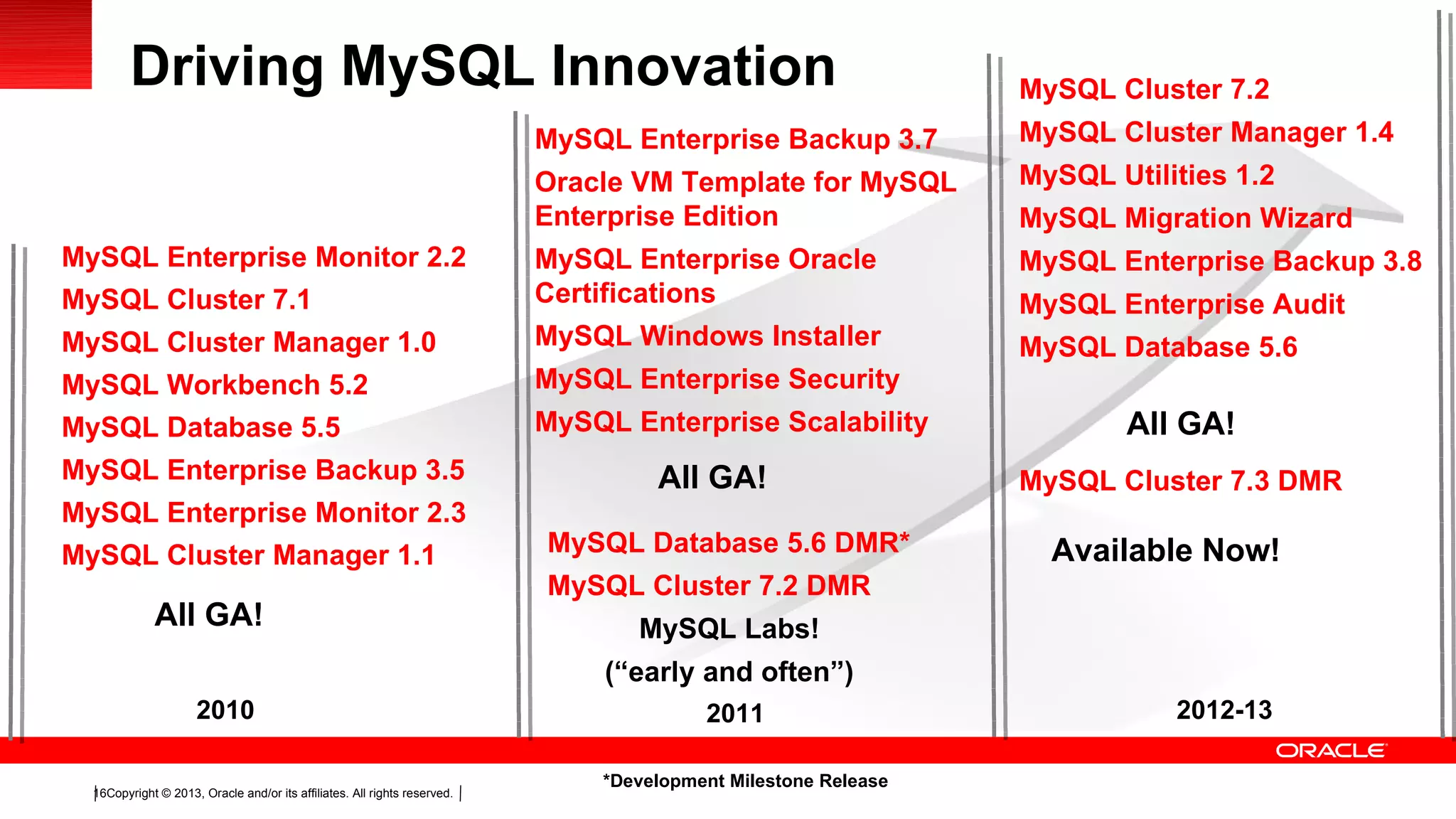

COMPONENTS
50 Product Categories

Web, Mobile, Embedded
On Premise & in the Cloud

MySQL Enterprise Monitor 2.2
MySQL Cluster 7.1
MySQL Cluster Manager 1.0
MySQL Workbench 5.2
MySQL Database 5.5
MySQL Enterprise Backup 3.5
MySQL Enterprise Monitor 2.3
Driving MySQL Innovation
All GA!
Oracle VM Template for MySQL
Enterprise Edition
MySQL Enterprise Oracle
Certifications
MySQL Windows Installer
MySQL Enterprise Security
MySQL Enterprise Scalability
MySQL Database 5.6 DMR*
MySQL Cluster 7.2 DMR
MySQL Labs!
(“early and often”)
All GA!
MySQL Cluster 7.2
MySQL Utilities 1.2
MySQL Migration Wizard
MySQL Enterprise Audit
MySQL Database 5.6
MySQL Cluster 7.3 DMR
*Development Milestone Release
2010 2011 2012-13
All GA!
Available Now!

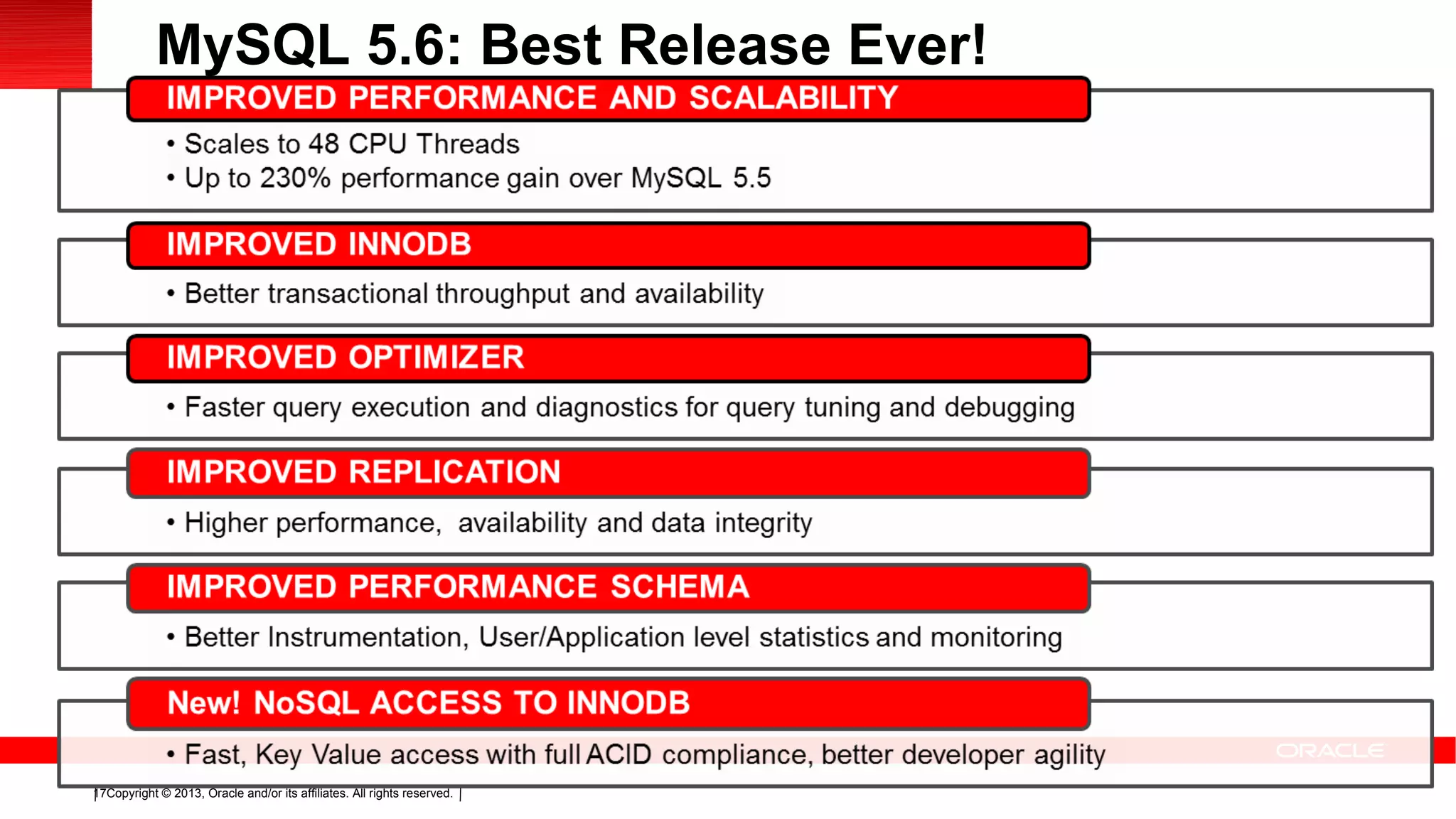

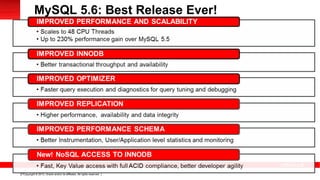

MySQL 5.6: Best Release Ever!

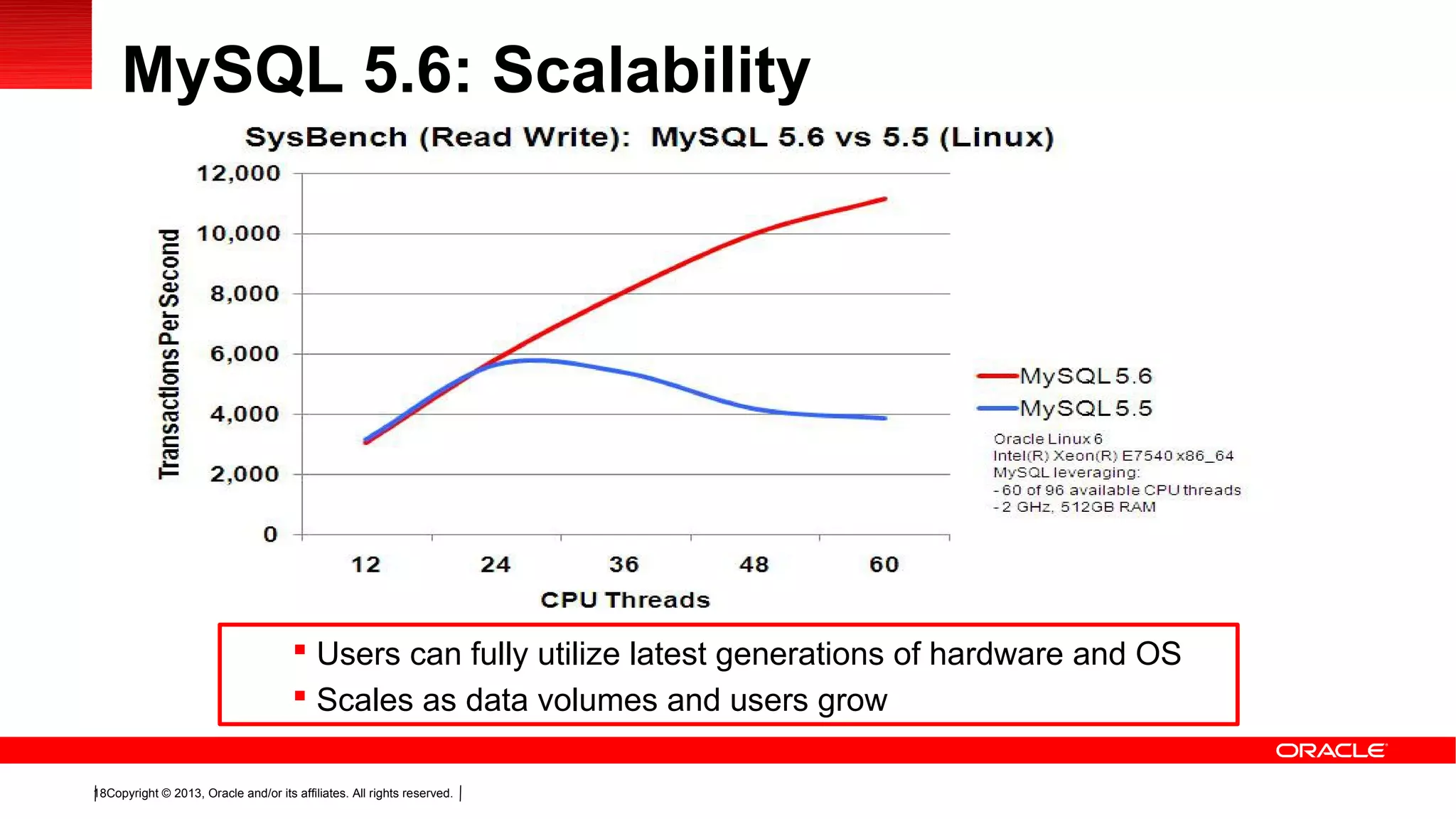

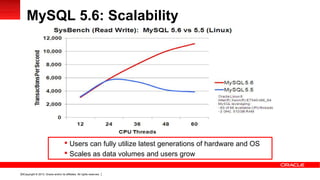

MySQL 5.6: Scalability
 Users can fully utilize latest generations of hardware and OS
 Scales as data volumes and users grow

MySQL 5.5
MySQL 5.6

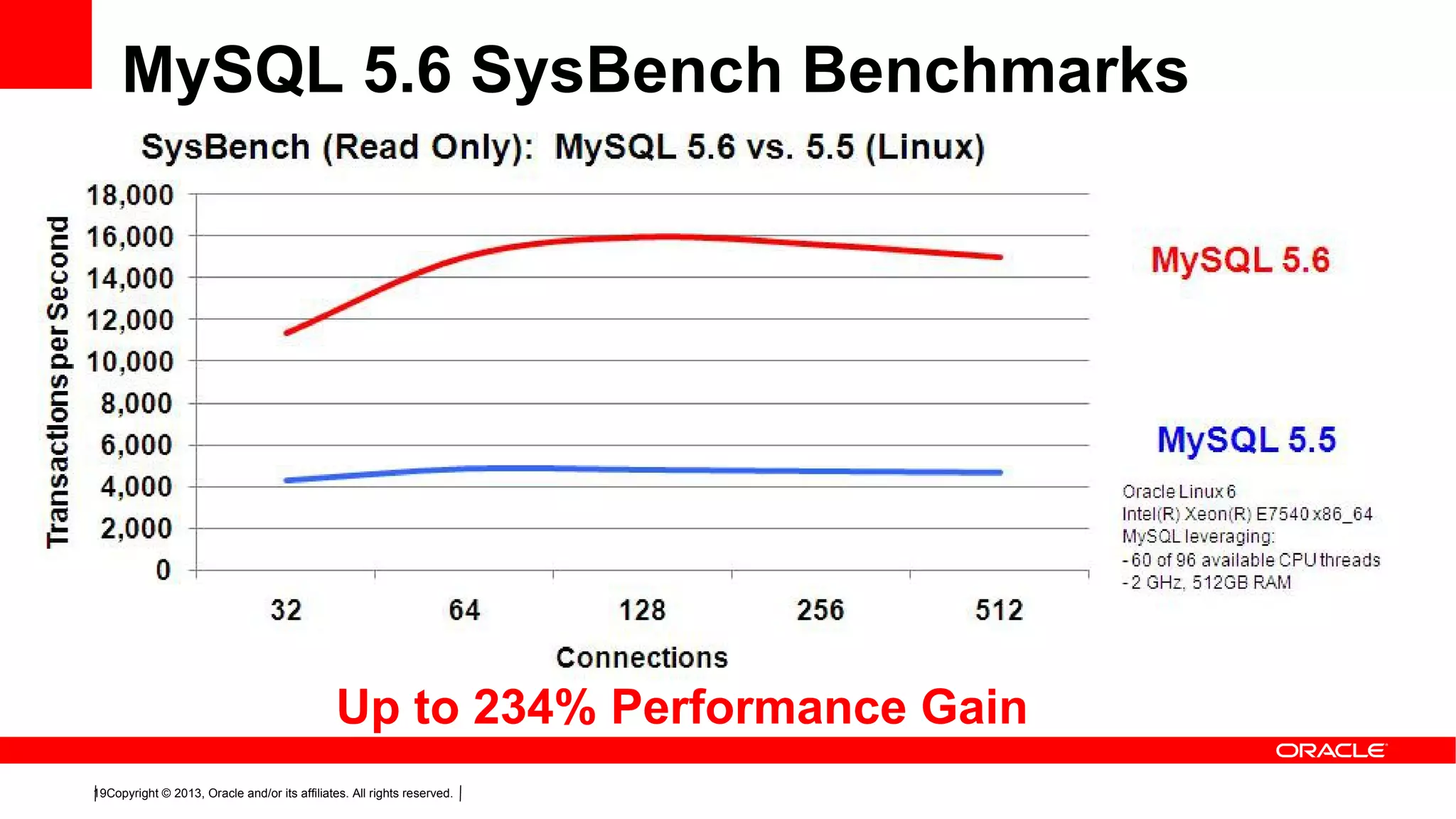

MySQL 5.6 SysBench Benchmarks
Up to 234% Performance Gain

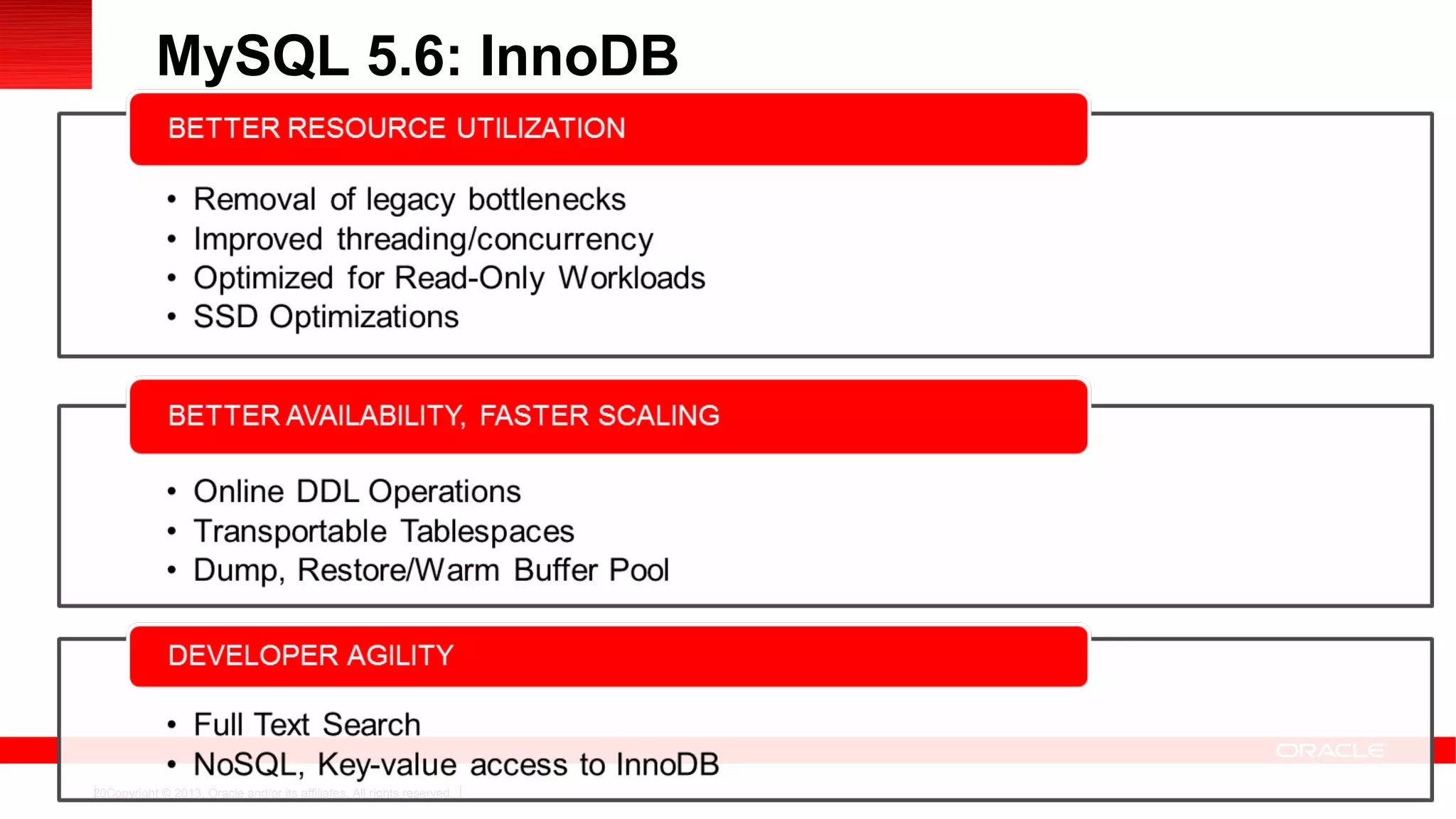

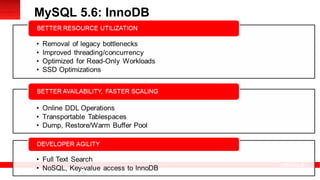

MySQL 5.6: InnoDB


Several internal improvements (e.g. Split kernel mutex, efficient Buffer
Pool Flushing, more...)

Optimized for Read Only workloads

Persistent Optimizer Statistics
-
Increased plan stability, accurate statistics
-
Better user control, automatic/manual

SSD Optimizations
-
4, 8k page sizes
-
.ibd files outside of MySQL data dir
-
separate tablespaces for undo log

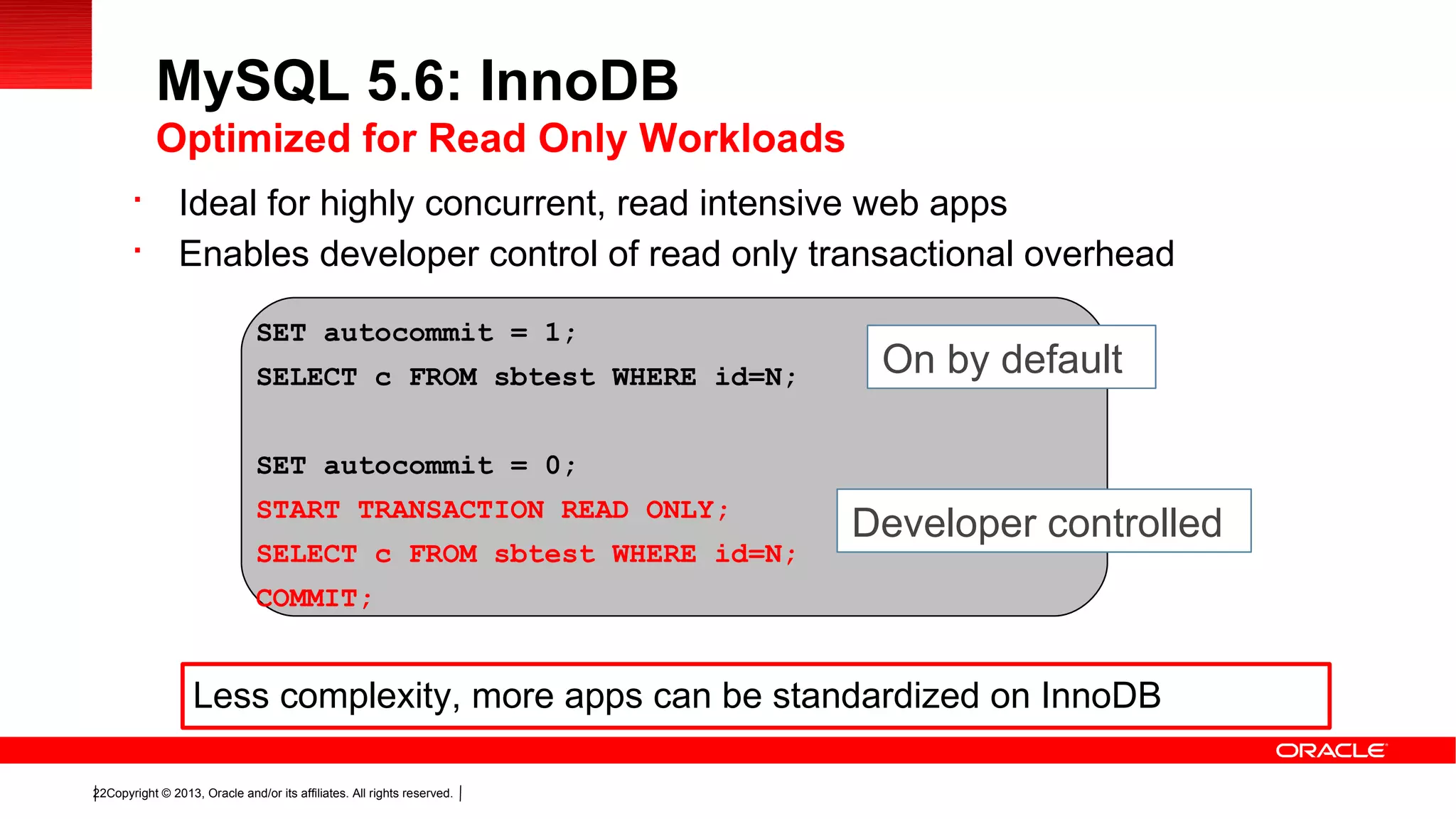

MySQL 5.6: InnoDB
Better Performance, Scalability


Ideal for highly concurrent, read intensive web apps

Enables developer control of read only transactional overhead

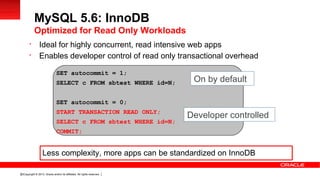

MySQL 5.6: InnoDB
Optimized for Read Only Workloads
SET autocommit = 1;
SELECT c FROM sbtest WHERE id=N;
SET autocommit = 0;
START TRANSACTION READ ONLY;
SELECT c FROM sbtest WHERE id=N;
COMMIT;
On by default
Developer controlled
Less complexity, more apps can be standardized on InnoDB



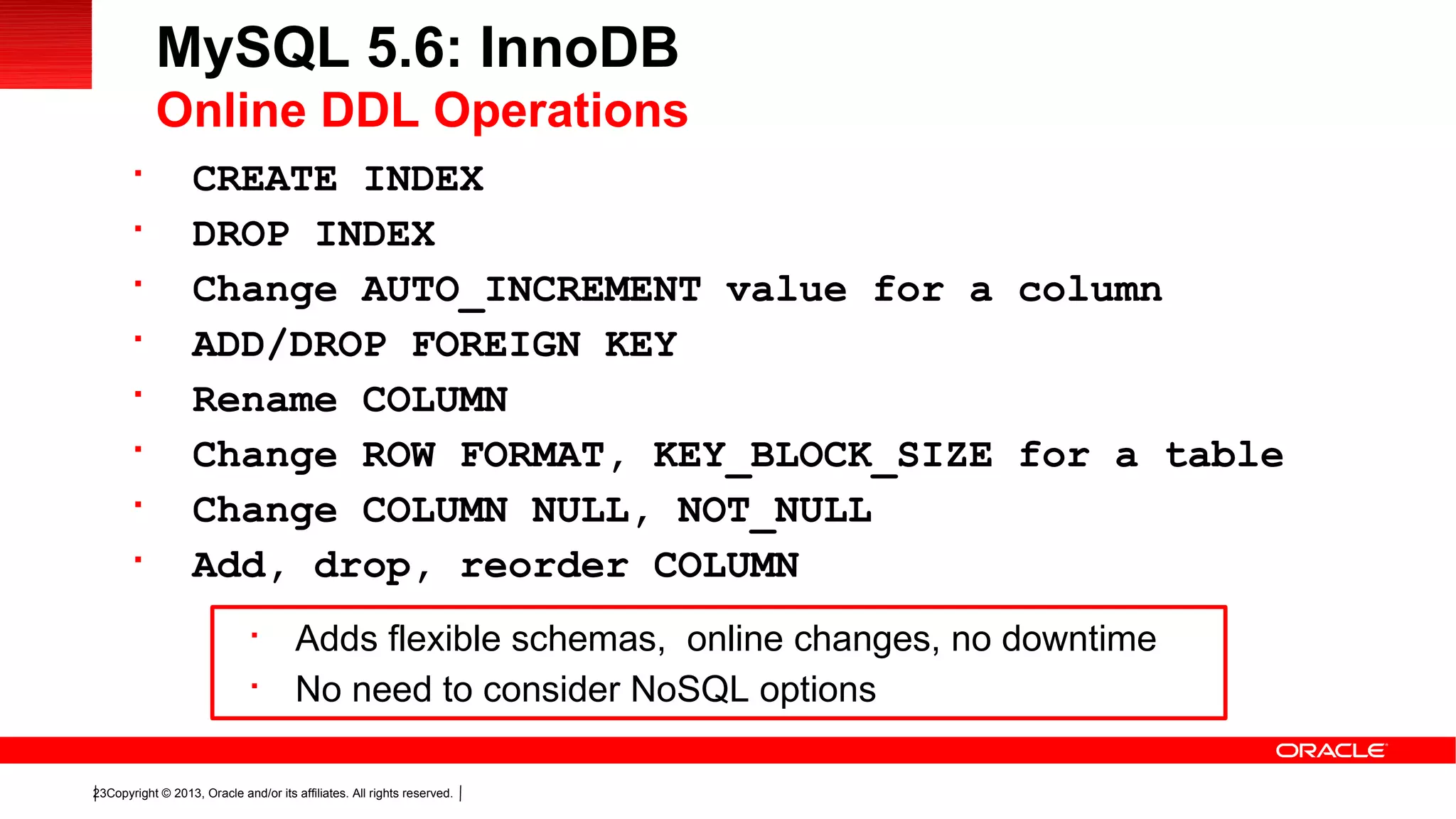

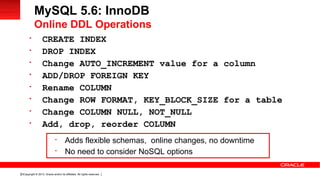

CREATE INDEX

DROP INDEX

Change AUTO_INCREMENT value for a column

ADD/DROP FOREIGN KEY

Rename COLUMN

Change ROW FORMAT, KEY_BLOCK_SIZE for a table

Change COLUMN NULL, NOT_NULL

Add, drop, reorder COLUMN
MySQL 5.6: InnoDB
Online DDL Operations

Adds flexible schemas, online changes, no downtime

No need to consider NoSQL options



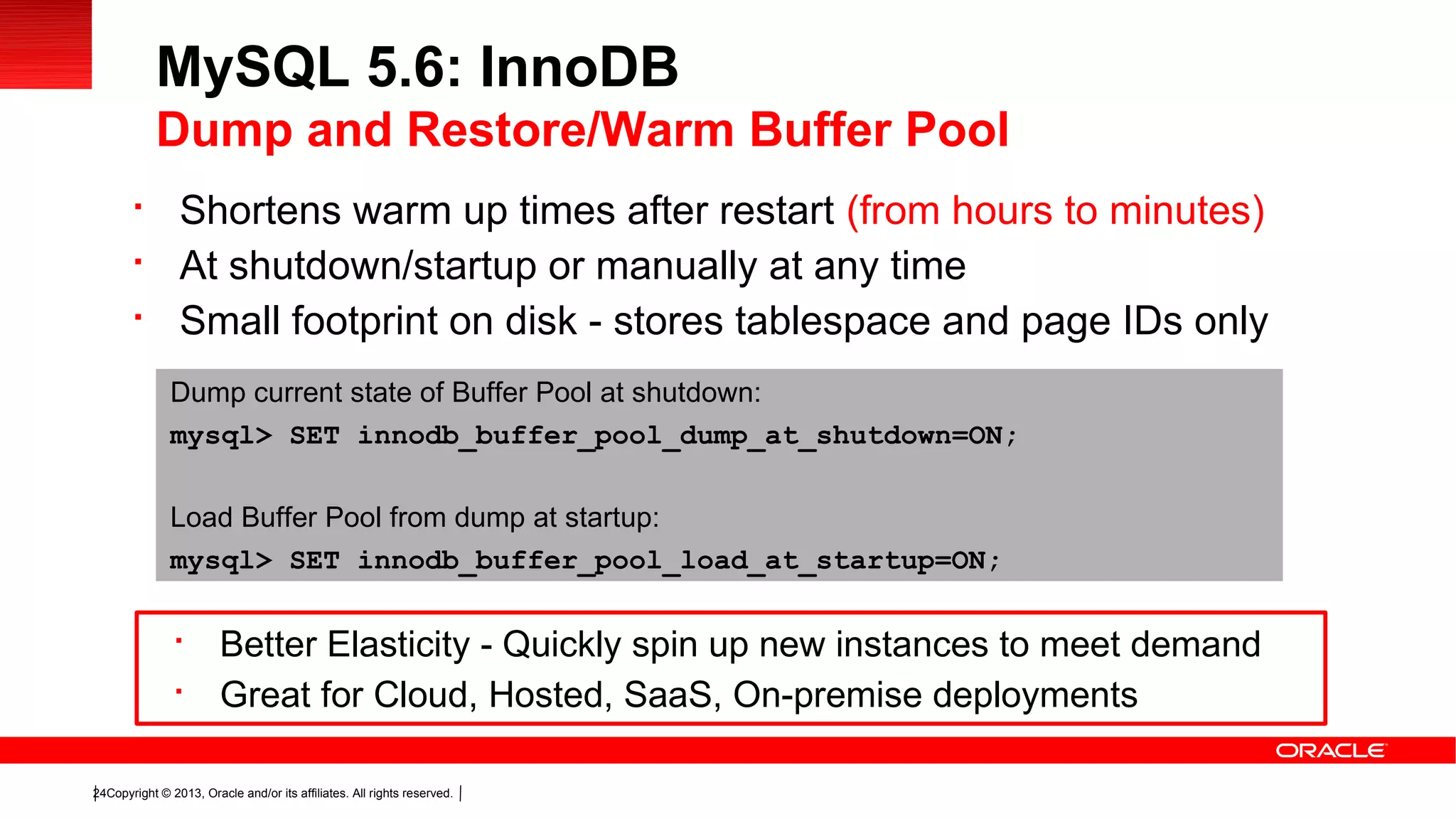

Shortens warm up times after restart (from hours to minutes)

At shutdown/startup or manually at any time

Small footprint on disk - stores tablespace and page IDs only
MySQL 5.6: InnoDB
Dump and Restore/Warm Buffer Pool
Dump current state of Buffer Pool at shutdown:
mysql> SET innodb_buffer_pool_dump_at_shutdown=ON;
Load Buffer Pool from dump at startup:
mysql> SET innodb_buffer_pool_load_at_startup=ON;

Better Elasticity - Quickly spin up new instances to meet demand

Great for Cloud, Hosted, SaaS, On-premise deployments



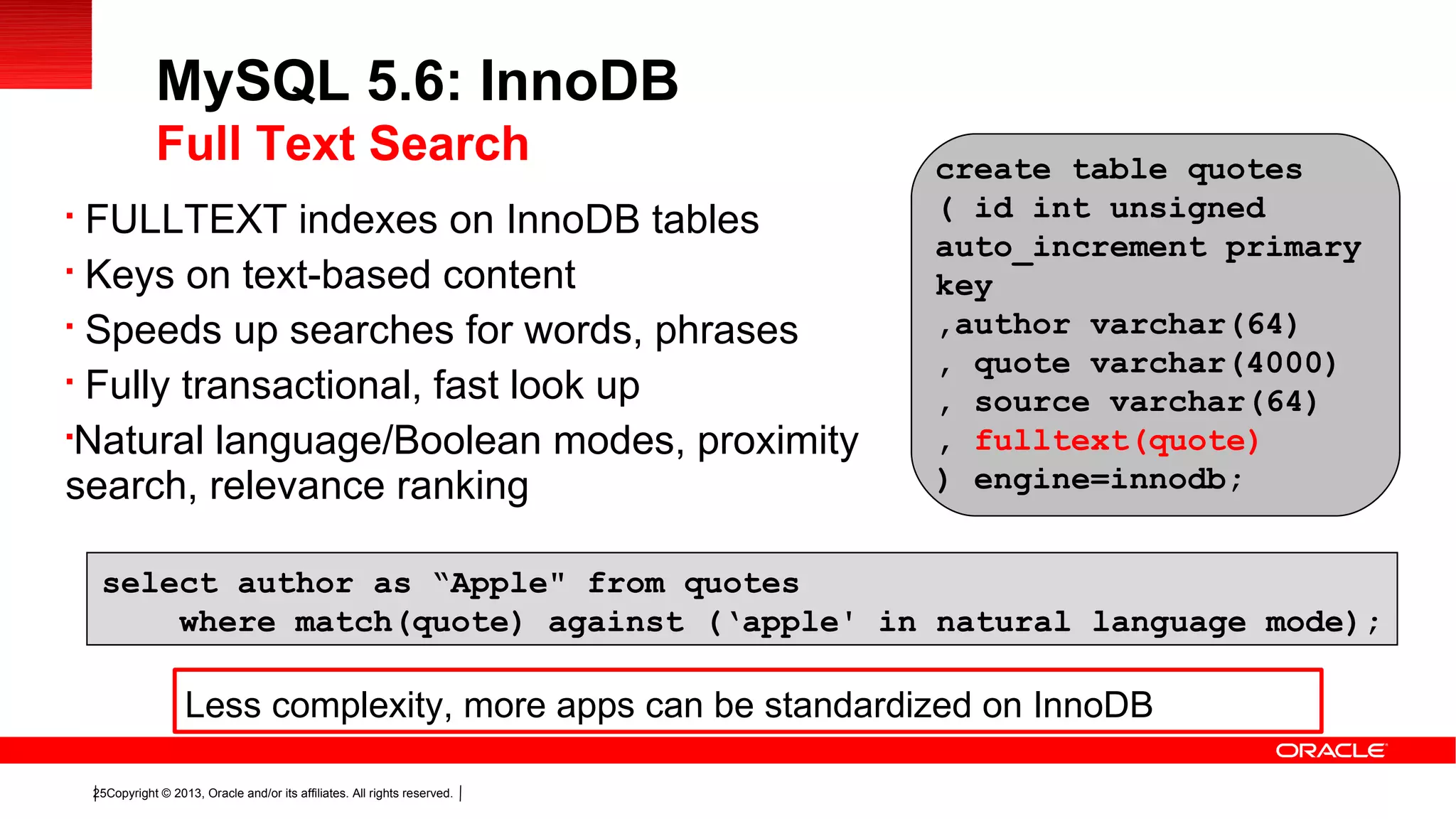

FULLTEXT indexes on InnoDB tables

Keys on text-based content

Speeds up searches for words, phrases

Fully transactional, fast look up

Natural language/Boolean modes, proximity
search, relevance ranking
MySQL 5.6: InnoDB
Full Text Search create table quotes
( id int unsigned
auto_increment primary
key
,author varchar(64)
, quote varchar(4000)
, source varchar(64)
, fulltext(quote)
) engine=innodb;
select author as “Apple" from quotes
where match(quote) against (‘apple' in natural language mode);
Less complexity, more apps can be standardized on InnoDB



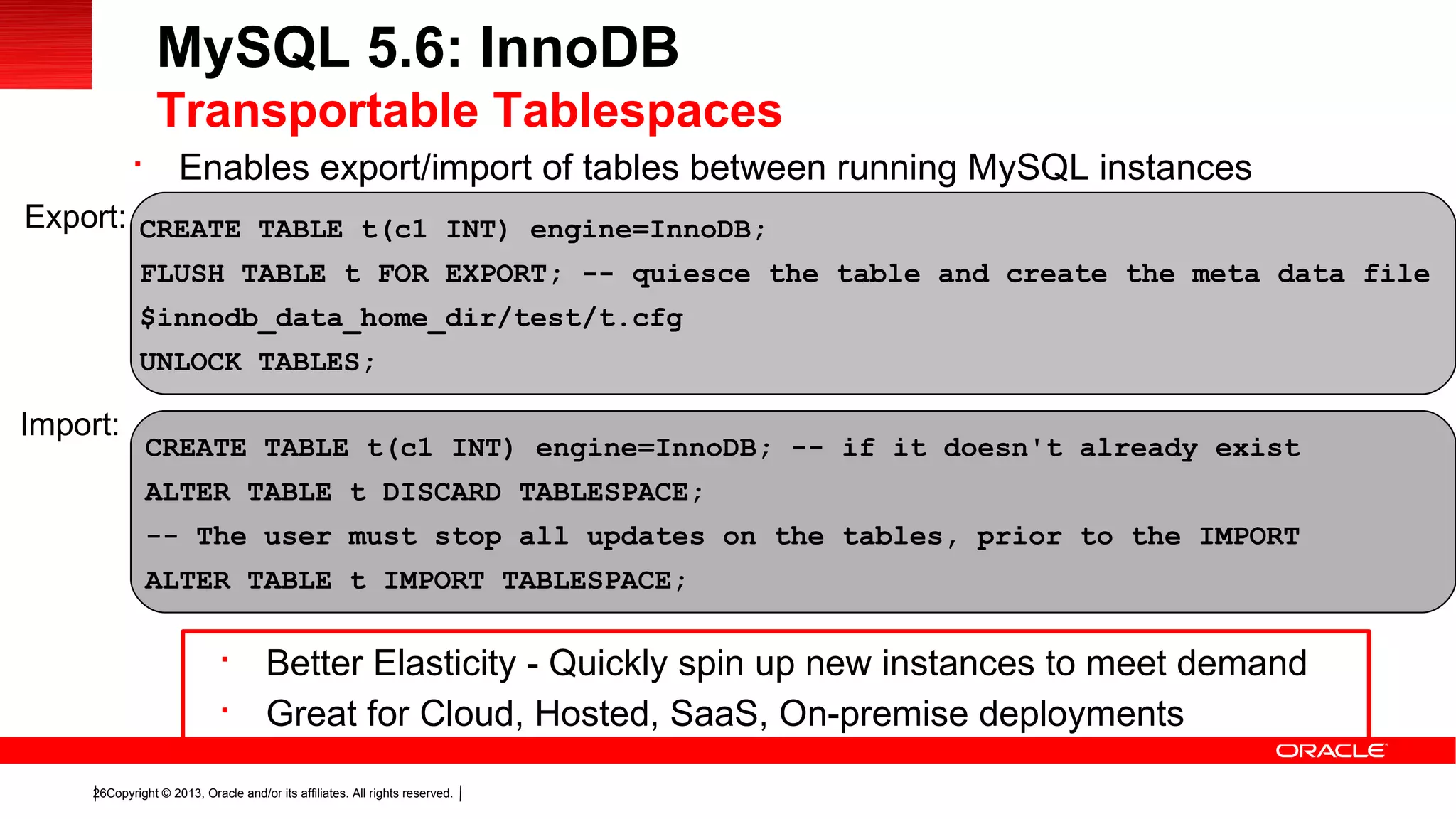

Enables export/import of tables between running MySQL instances
MySQL 5.6: InnoDB
Transportable Tablespaces
CREATE TABLE t(c1 INT) engine=InnoDB;
FLUSH TABLE t FOR EXPORT; -- quiesce the table and create the meta data file
$innodb_data_home_dir/test/t.cfg
UNLOCK TABLES;
Export:
Import:
CREATE TABLE t(c1 INT) engine=InnoDB; -- if it doesn't already exist
ALTER TABLE t DISCARD TABLESPACE;
-- The user must stop all updates on the tables, prior to the IMPORT
ALTER TABLE t IMPORT TABLESPACE;

Better Elasticity - Quickly spin up new instances to meet demand

Great for Cloud, Hosted, SaaS, On-premise deployments

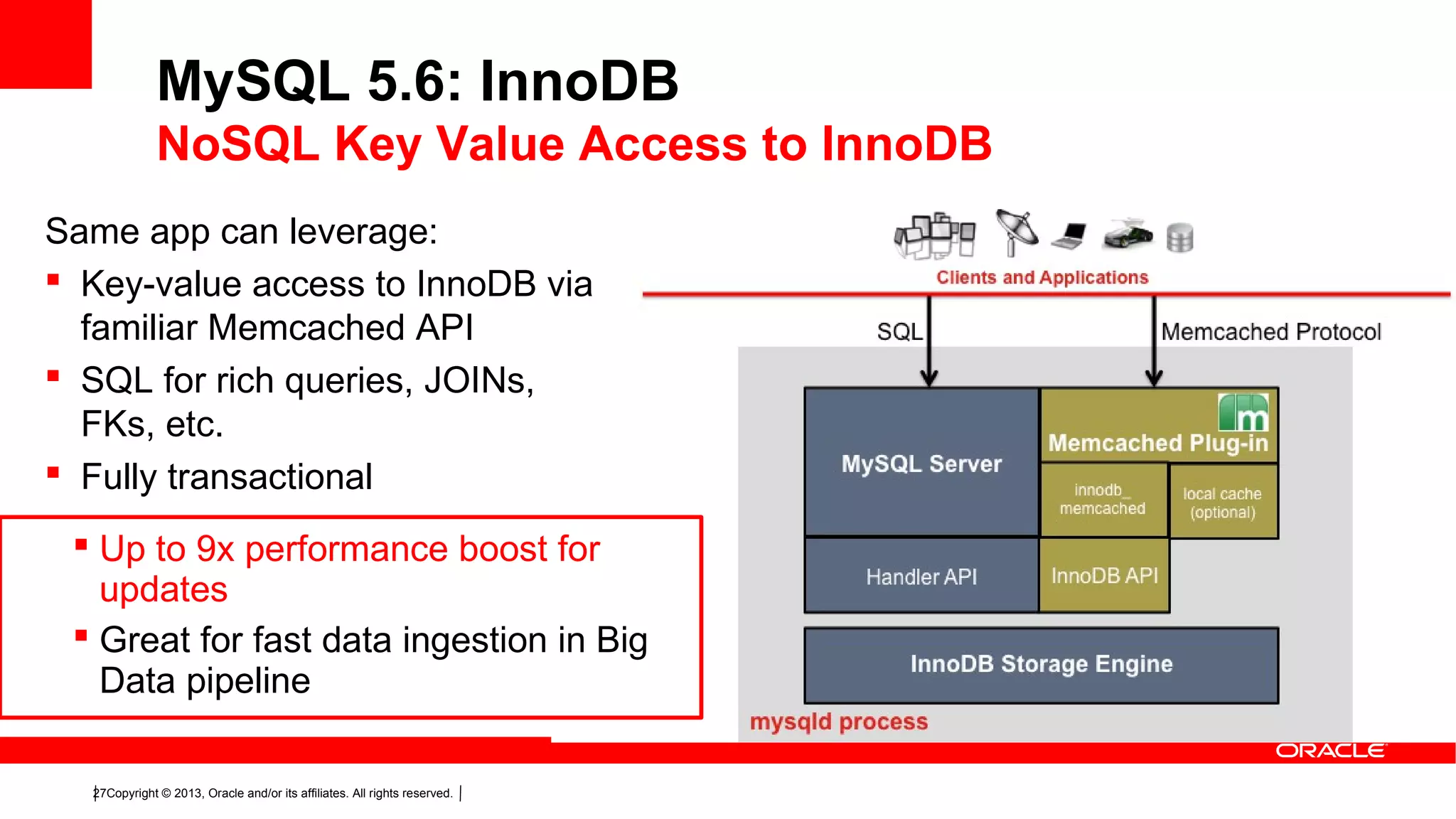

Same app can leverage:
 Key-value access to InnoDB via
familiar Memcached API
 SQL for rich queries, JOINs,
FKs, etc.
 Fully transactional
MySQL 5.6: InnoDB
NoSQL Key Value Access to InnoDB
 Up to 9x performance boost for
updates
 Great for fast data ingestion in Big
Data pipeline

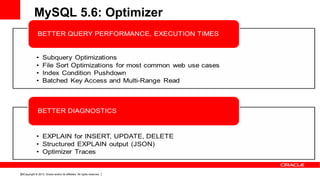

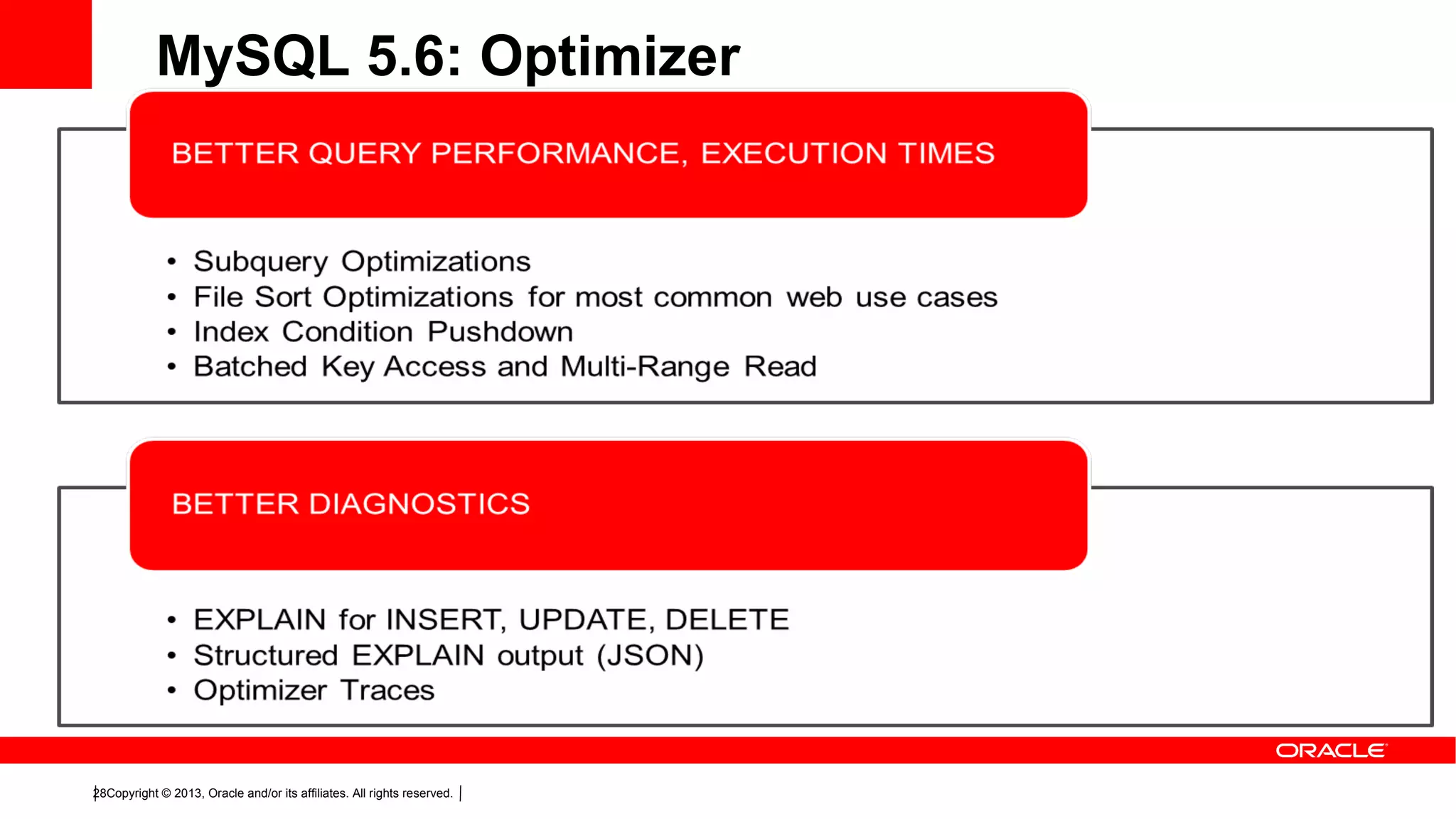

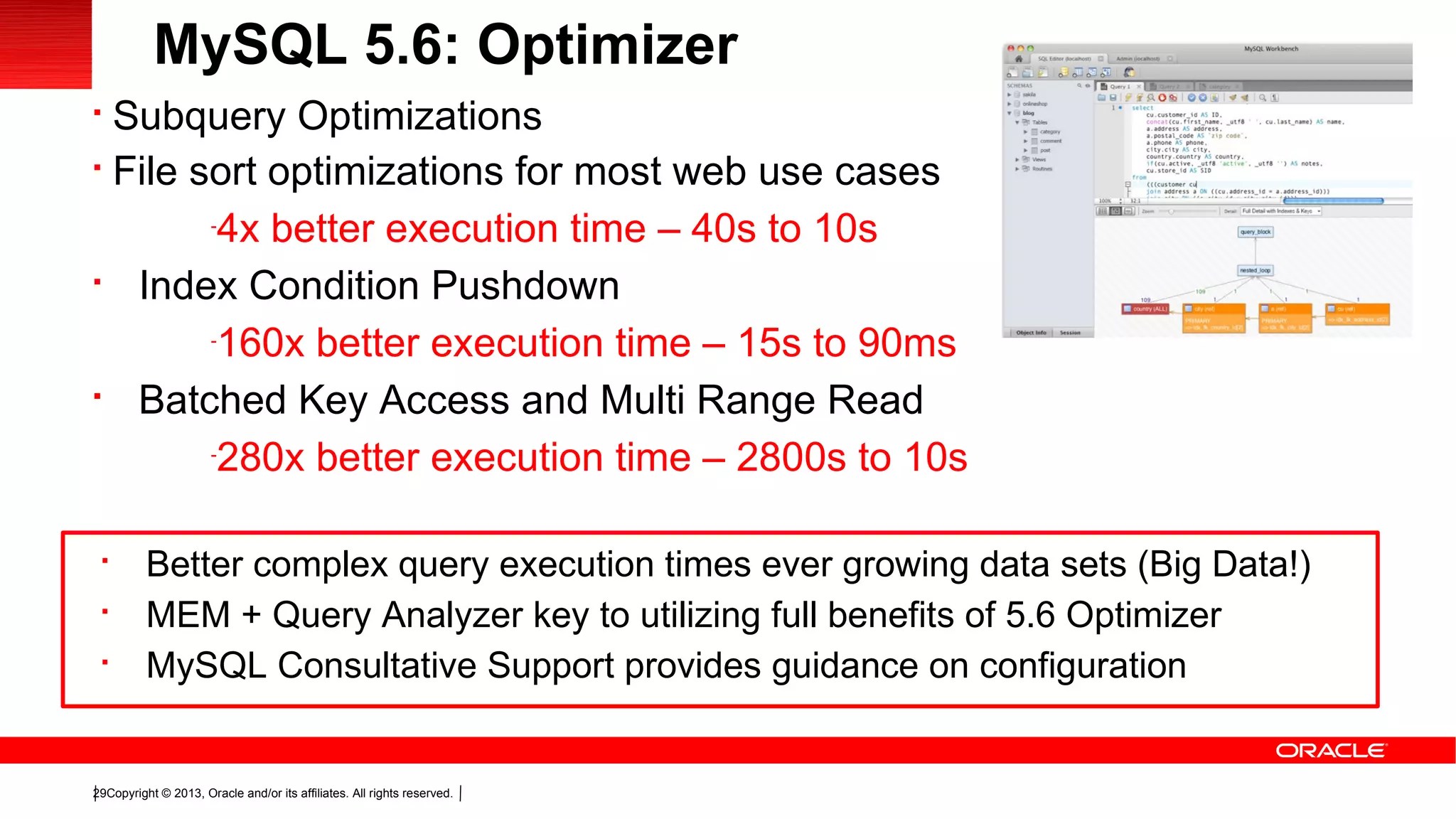

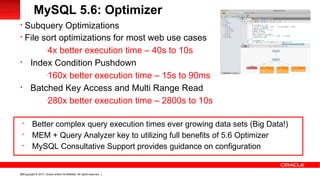

MySQL 5.6: Optimizer


Subquery Optimizations

File sort optimizations for most web use cases
-
4x better execution time – 40s to 10s

Index Condition Pushdown
-
160x better execution time – 15s to 90ms

Batched Key Access and Multi Range Read
-
280x better execution time – 2800s to 10s

Better complex query execution times ever growing data sets (Big Data!)

MEM + Query Analyzer key to utilizing full benefits of 5.6 Optimizer

MySQL Consultative Support provides guidance on configuration



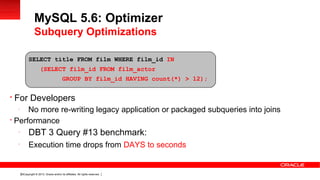

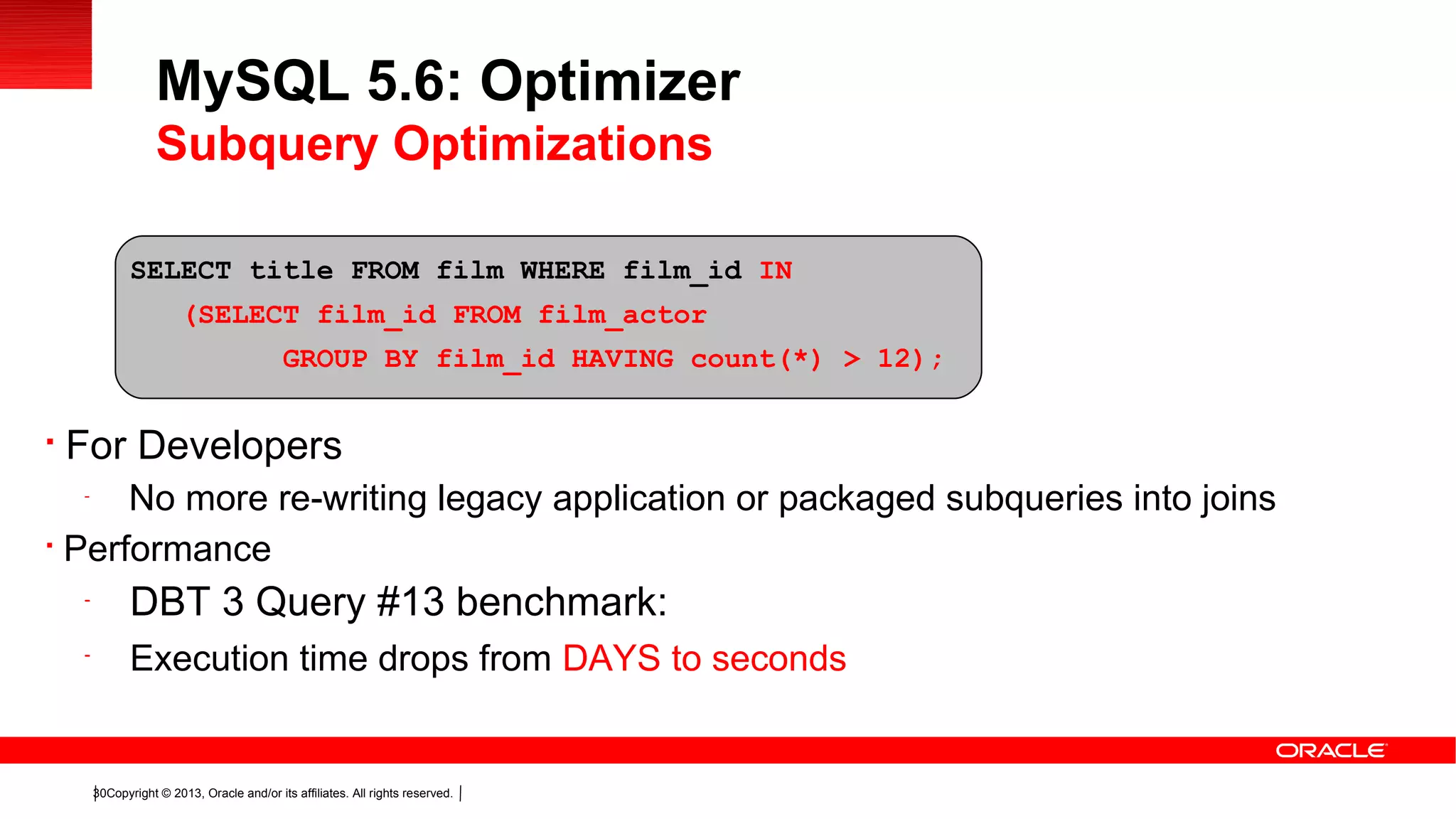

For Developers
-
No more re-writing legacy application or packaged subqueries into joins

Performance
-
DBT 3 Query #13 benchmark:
-
Execution time drops from DAYS to seconds
Subquery Optimizations
SELECT title FROM film WHERE film_id IN
(SELECT film_id FROM film_actor
GROUP BY film_id HAVING count(*) > 12);

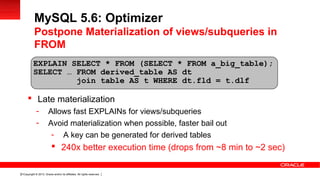

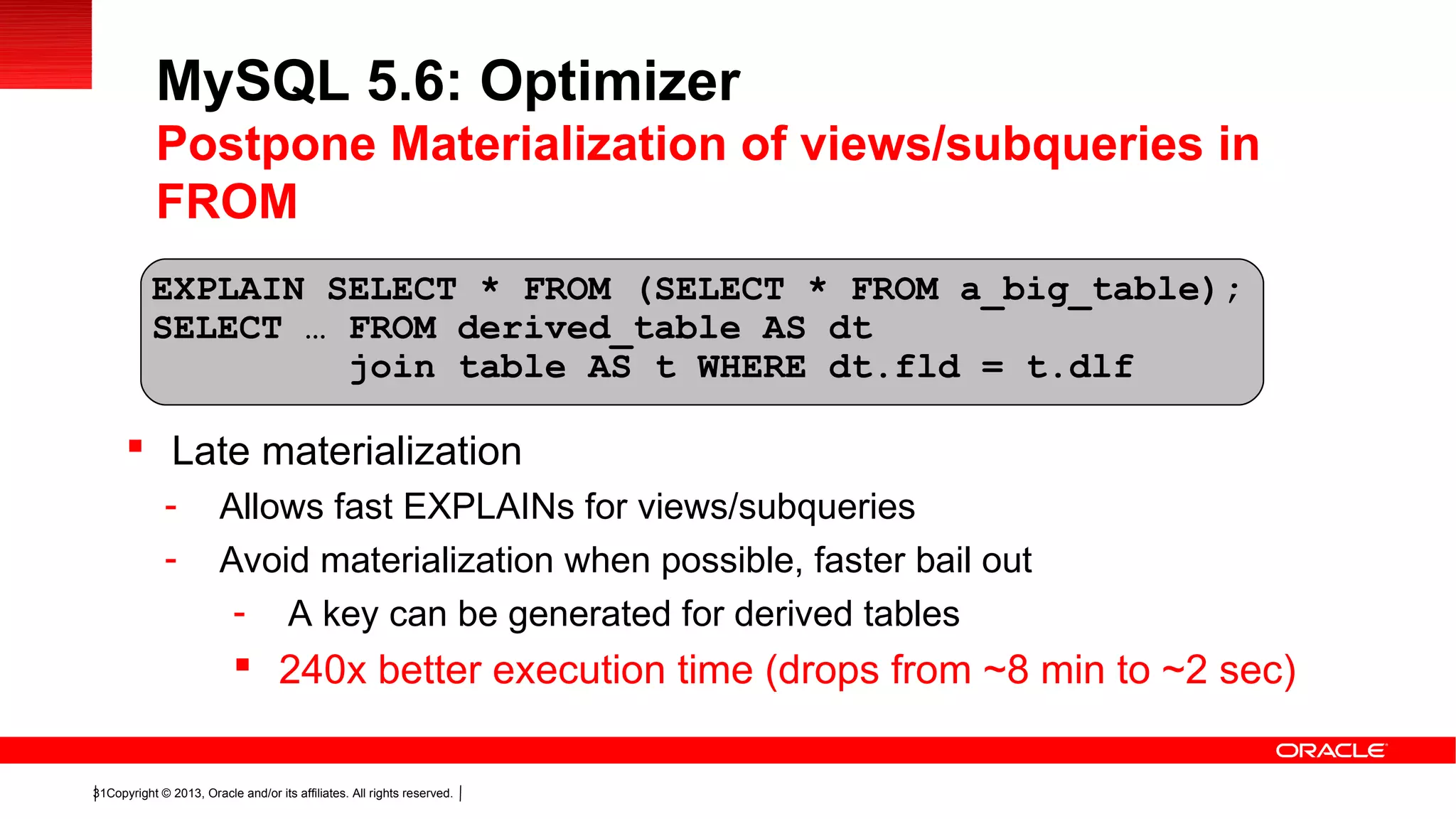

 Late materialization
- Allows fast EXPLAINs for views/subqueries
- Avoid materialization when possible, faster bail out
- A key can be generated for derived tables
 240x better execution time (drops from ~8 min to ~2 sec)
EXPLAIN SELECT * FROM (SELECT * FROM a_big_table);
SELECT … FROM derived_table AS dt
join table AS t WHERE dt.fld = t.dlf
Postpone Materialization of views/subqueries in
FROM

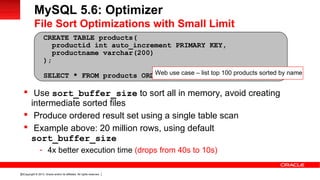

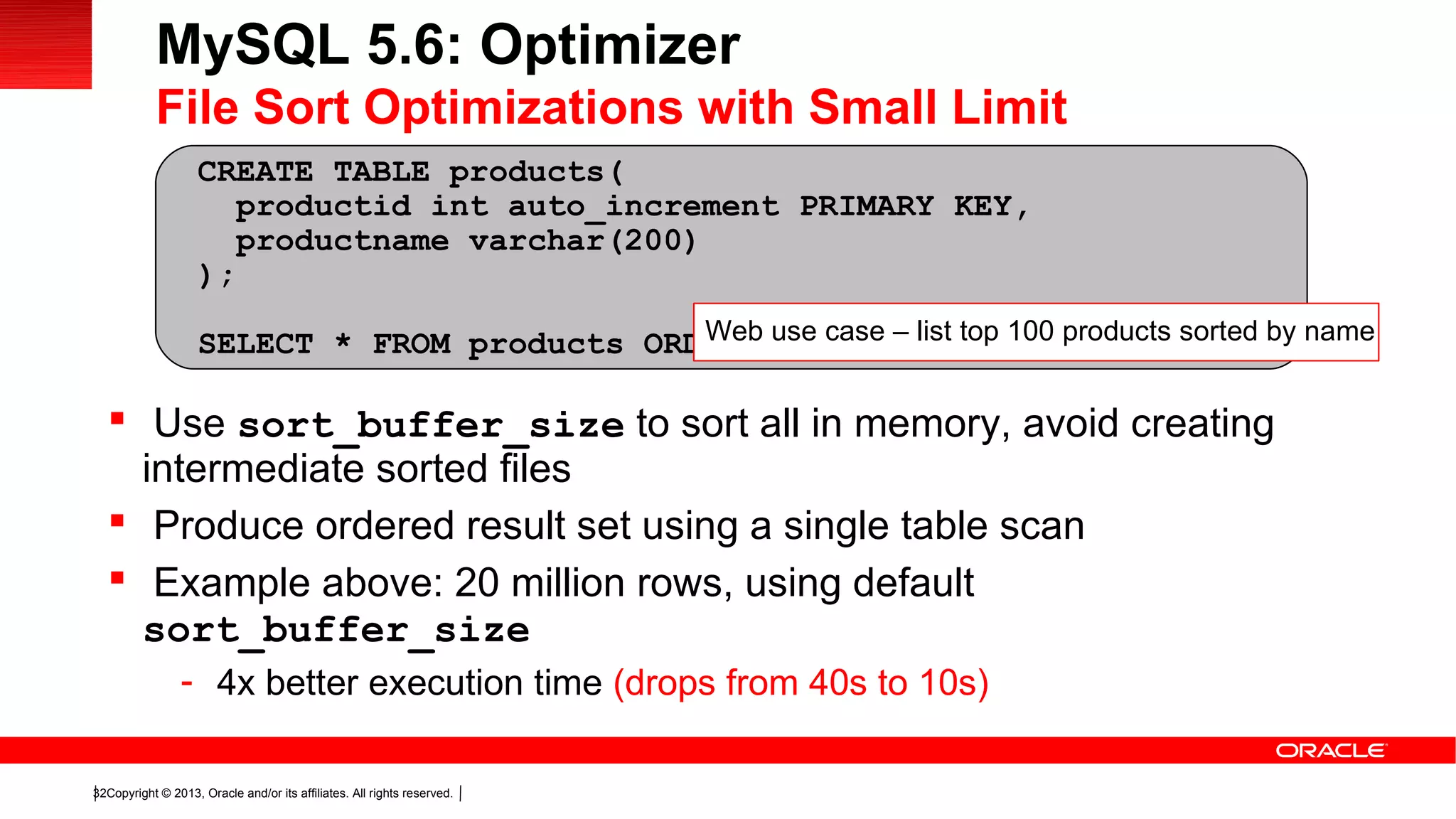

 Use sort_buffer_size to sort all in memory, avoid creating
intermediate sorted files
 Produce ordered result set using a single table scan
 Example above: 20 million rows, using default
sort_buffer_size
- 4x better execution time (drops from 40s to 10s)
CREATE TABLE products(
productid int auto_increment PRIMARY KEY,
productname varchar(200)
);
SELECT * FROM products ORDER BY productname LIMIT 100;
File Sort Optimizations with Small Limit
Web use case – list top 100 products sorted by name

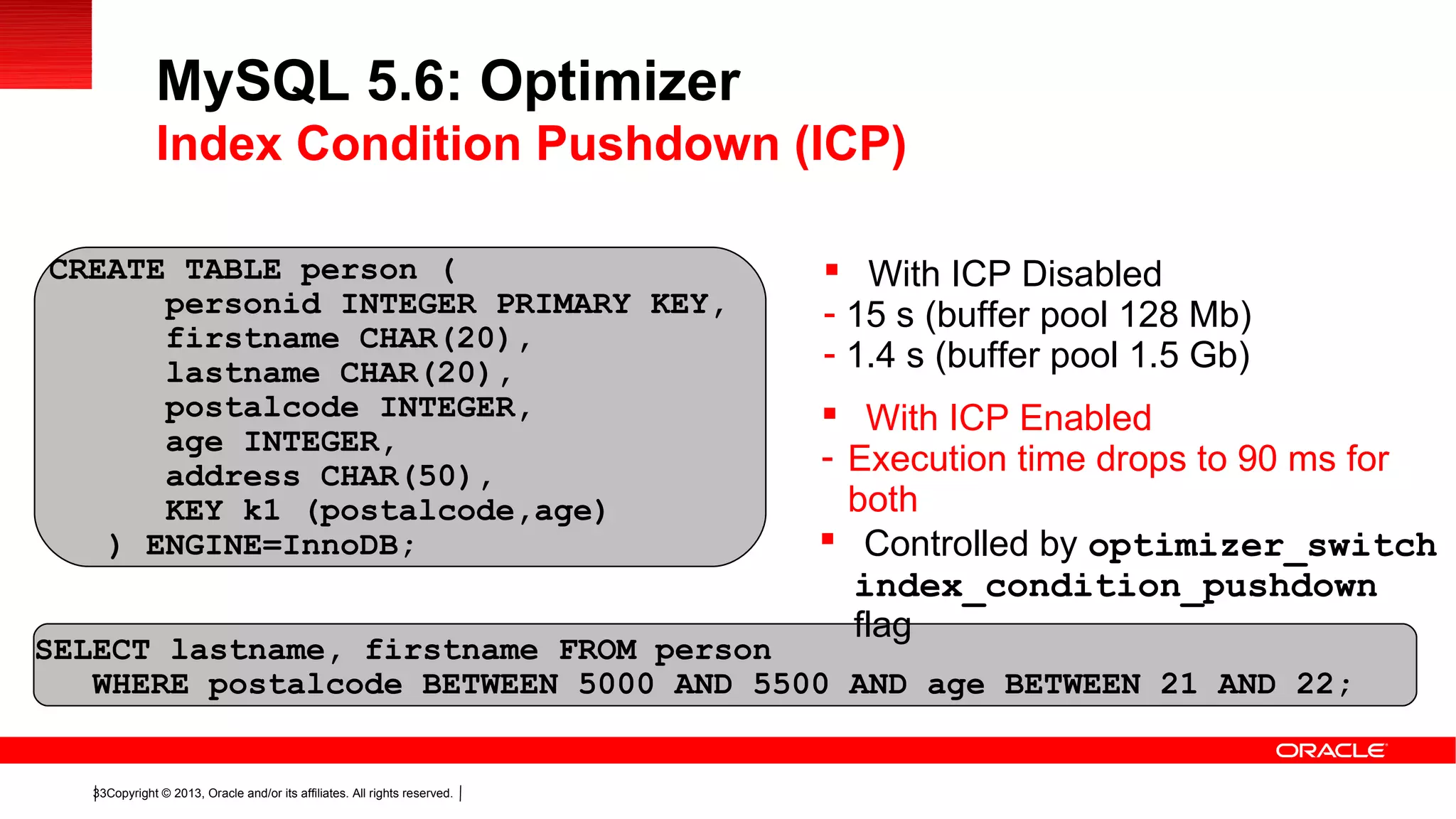

testper
CREATE TABLE person (
personid INTEGER PRIMARY KEY,
firstname CHAR(20),
lastname CHAR(20),
postalcode INTEGER,
age INTEGER,
address CHAR(50),
KEY k1 (postalcode,age)
) ENGINE=InnoDB;
SELECT lastname, firstname FROM person
WHERE postalcode BETWEEN 5000 AND 5500 AND age BETWEEN 21 AND 22;
 With ICP Disabled
- 15 s (buffer pool 128 Mb)
- 1.4 s (buffer pool 1.5 Gb)
 With ICP Enabled
- Execution time drops to 90 ms for
both
Index Condition Pushdown (ICP)
 Controlled by optimizer_switch
index_condition_pushdown
flag

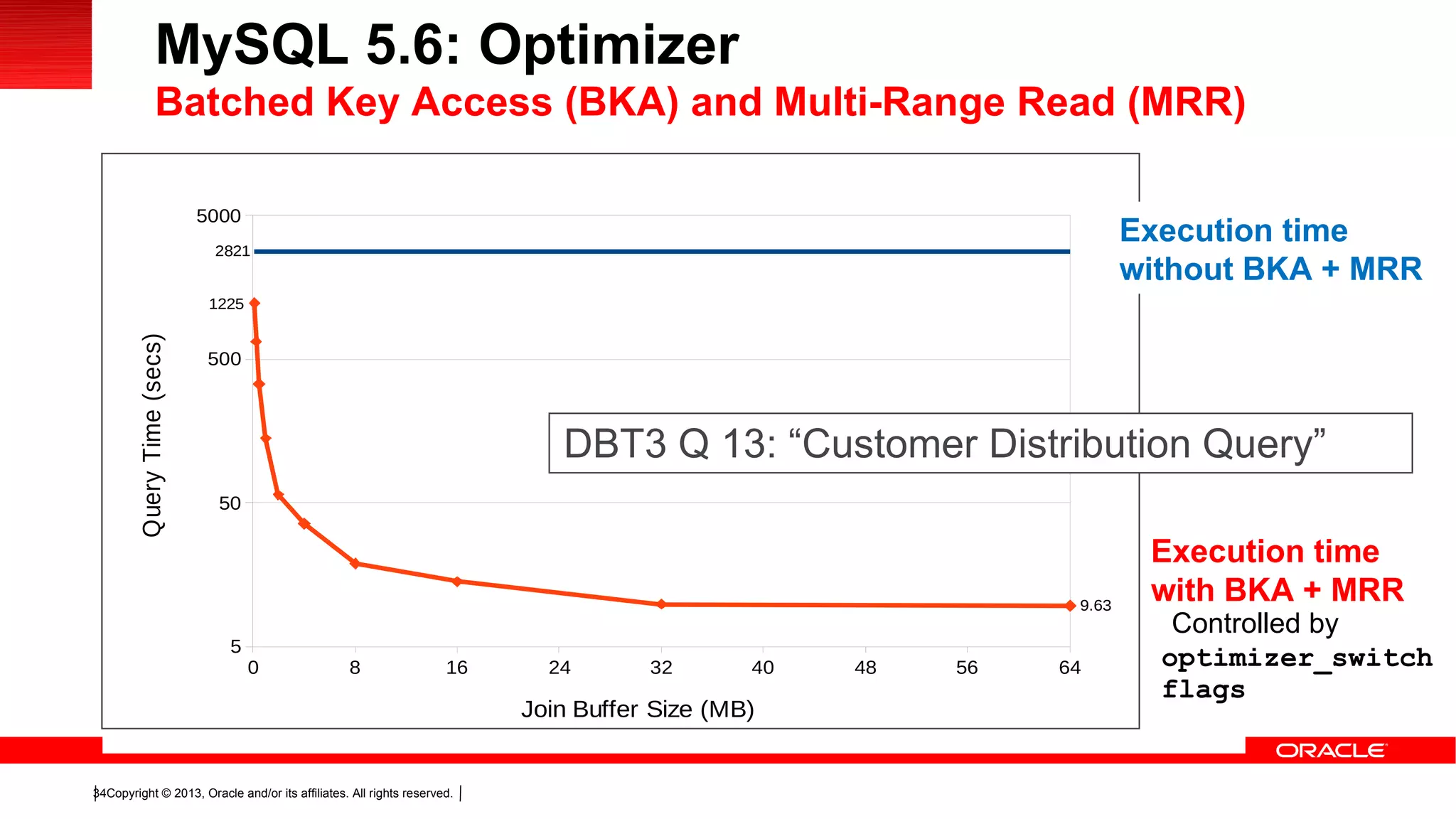

0 8 16 24 32 40 48 56 64
5
50
500
5000
1225
9.63
2821
No BKA
BKA
Join Buffer Size (MB)
QueryTime(secs)
Execution time
without BKA + MRR
Execution time
with BKA + MRR
DBT3 Q 13: “Customer Distribution Query”
Batched Key Access (BKA) and Multi-Range Read (MRR)
Controlled by
optimizer_switch
flags



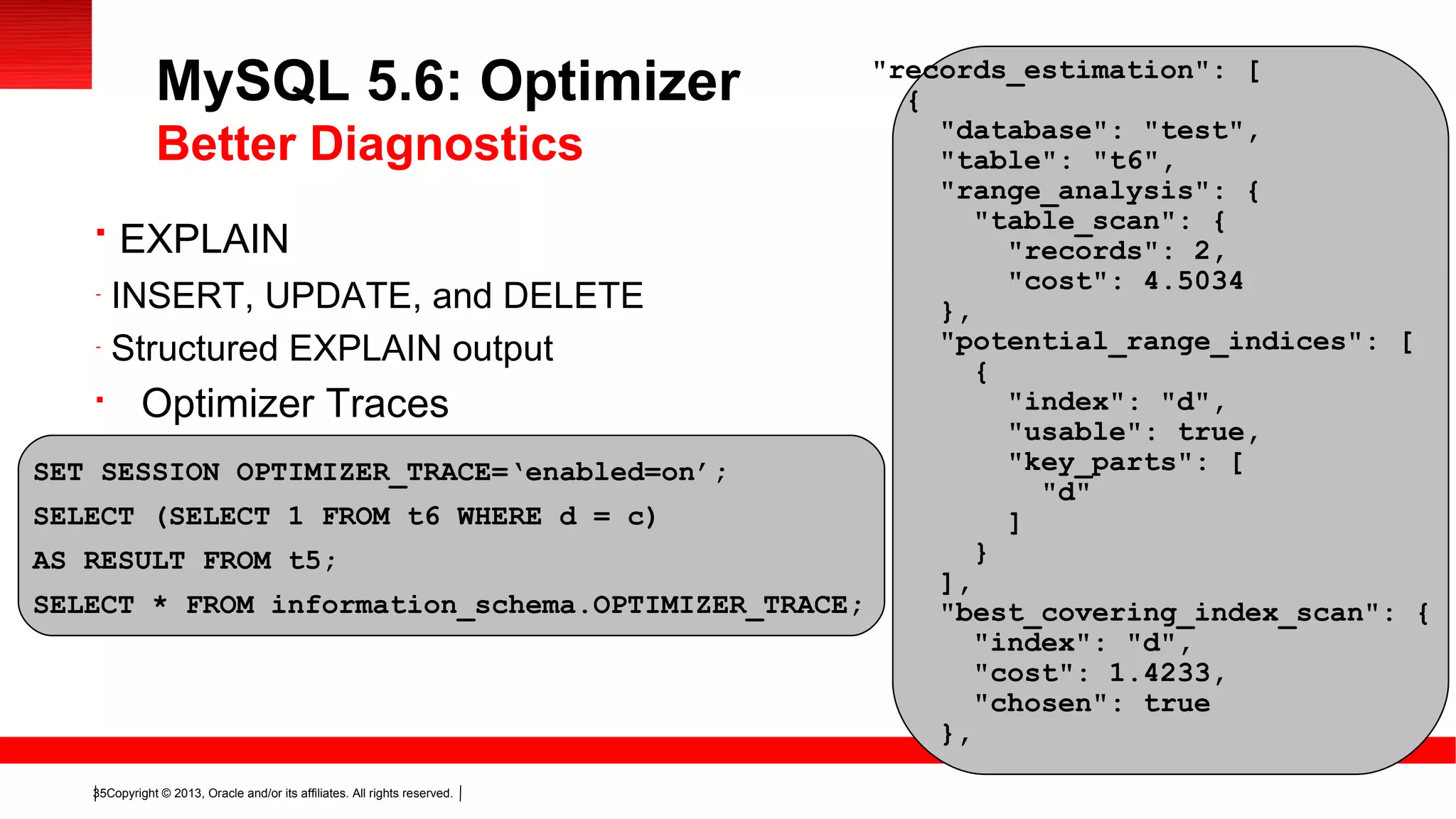

EXPLAIN
-
INSERT, UPDATE, and DELETE
-
Structured EXPLAIN output

Optimizer Traces
Better Diagnostics
SET SESSION OPTIMIZER_TRACE=‘enabled=on’;
SELECT (SELECT 1 FROM t6 WHERE d = c)
AS RESULT FROM t5;
SELECT * FROM information_schema.OPTIMIZER_TRACE;
"records_estimation": [
{
"database": "test",
"table": "t6",
"range_analysis": {
"table_scan": {
"records": 2,
"cost": 4.5034
},
"potential_range_indices": [
{
"index": "d",
"usable": true,
"key_parts": [
"d"
]
}
],
"best_covering_index_scan": {
"index": "d",
"cost": 1.4233,
"chosen": true
},

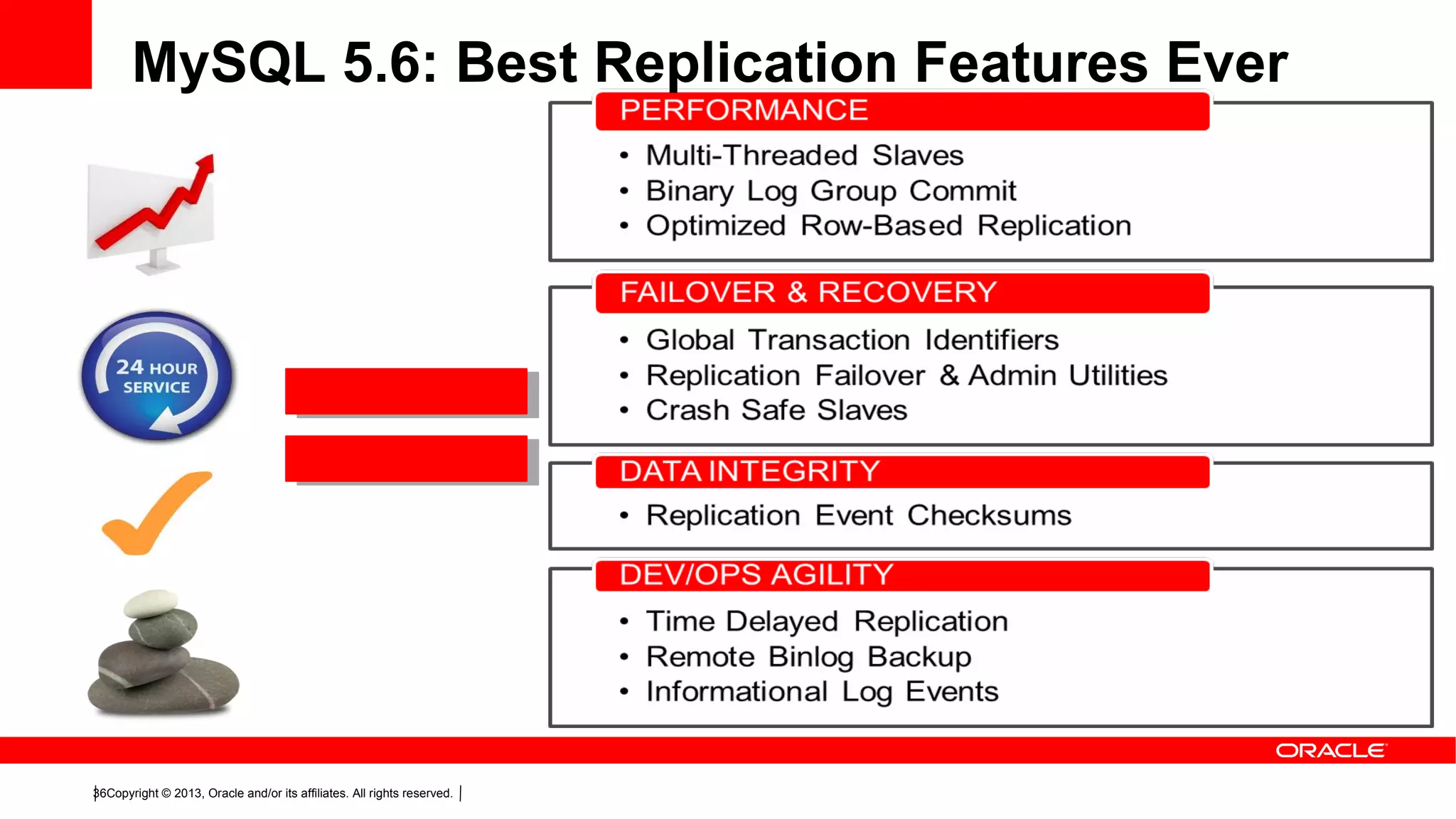

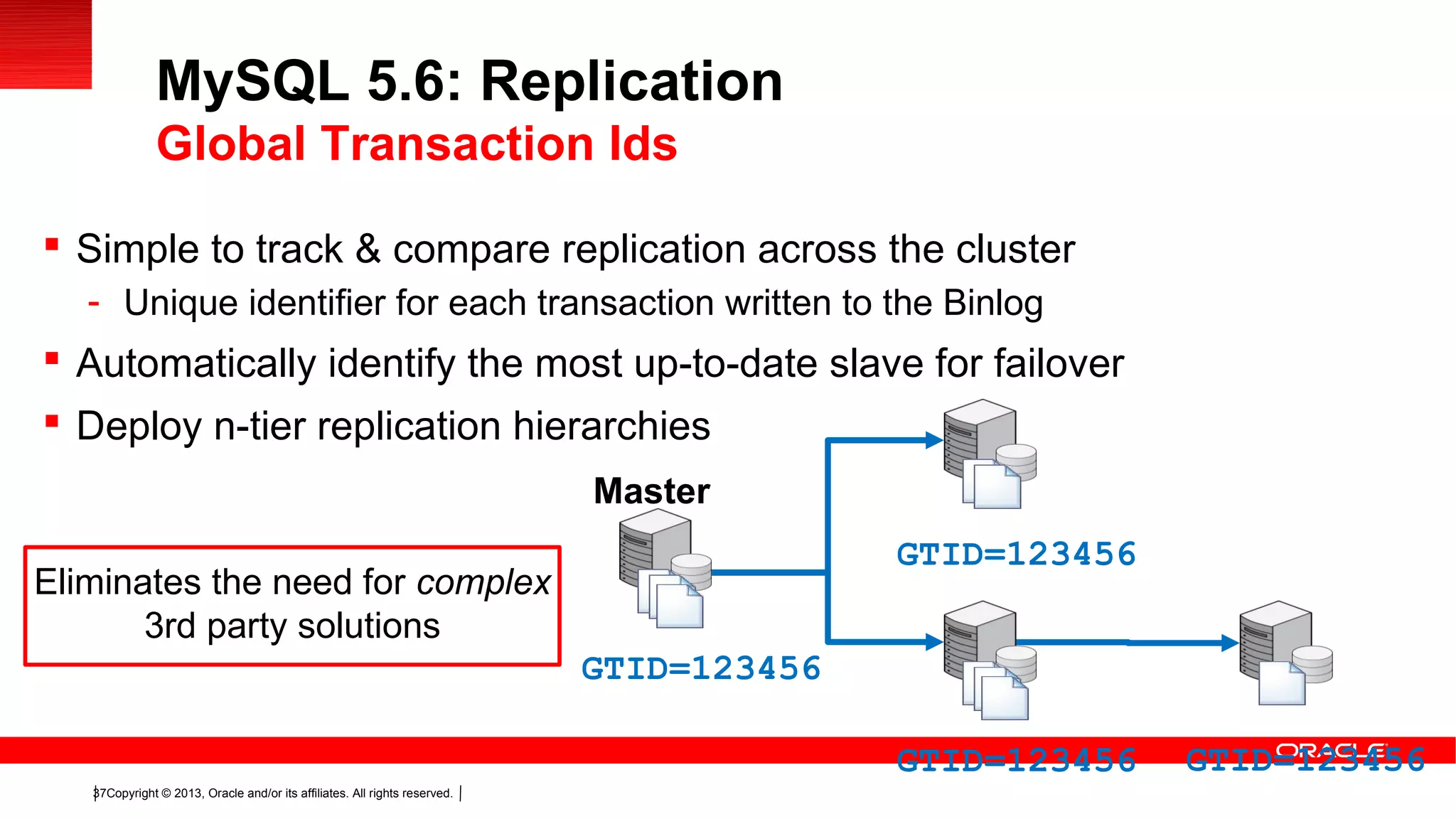

MySQL 5.6: Best Replication Features Ever

 Simple to track & compare replication across the cluster
- Unique identifier for each transaction written to the Binlog
 Automatically identify the most up-to-date slave for failover
 Deploy n-tier replication hierarchies
Master
GTID=123456
GTID=123456
GTID=123456 GTID=123456

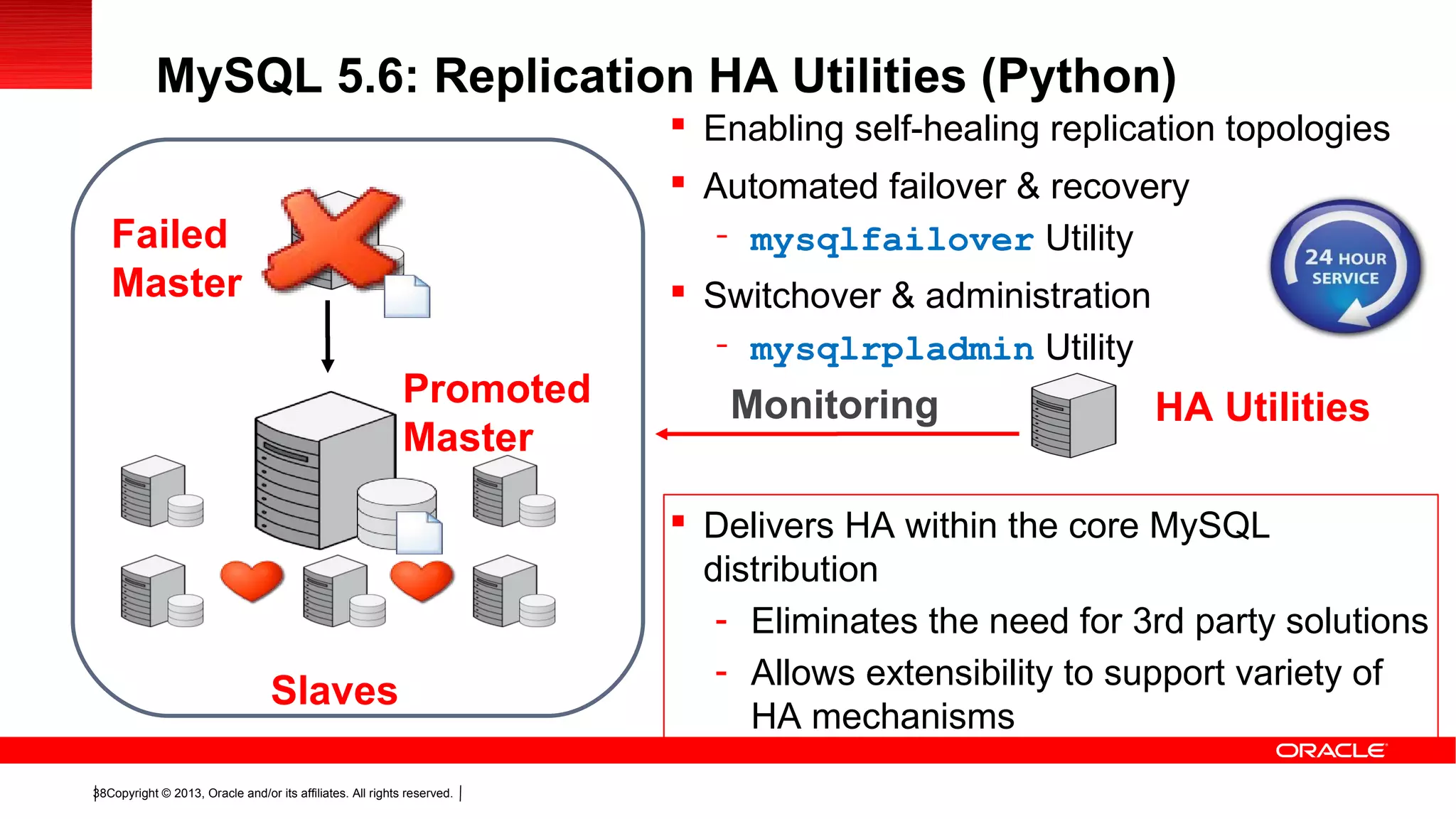

MySQL 5.6: Replication
Global Transaction Ids
Eliminates the need for complex
3rd party solutions

 Enabling self-healing replication topologies
 Automated failover & recovery
- mysqlfailover Utility
 Switchover & administration
- mysqlrpladmin Utility
 Delivers HA within the core MySQL
distribution
- Eliminates the need for 3rd party solutions
- Allows extensibility to support variety of
HA mechanisms
HA UtilitiesMonitoring
Failed
Master
Slaves
Promoted
Master
MySQL 5.6: Replication HA Utilities (Python)

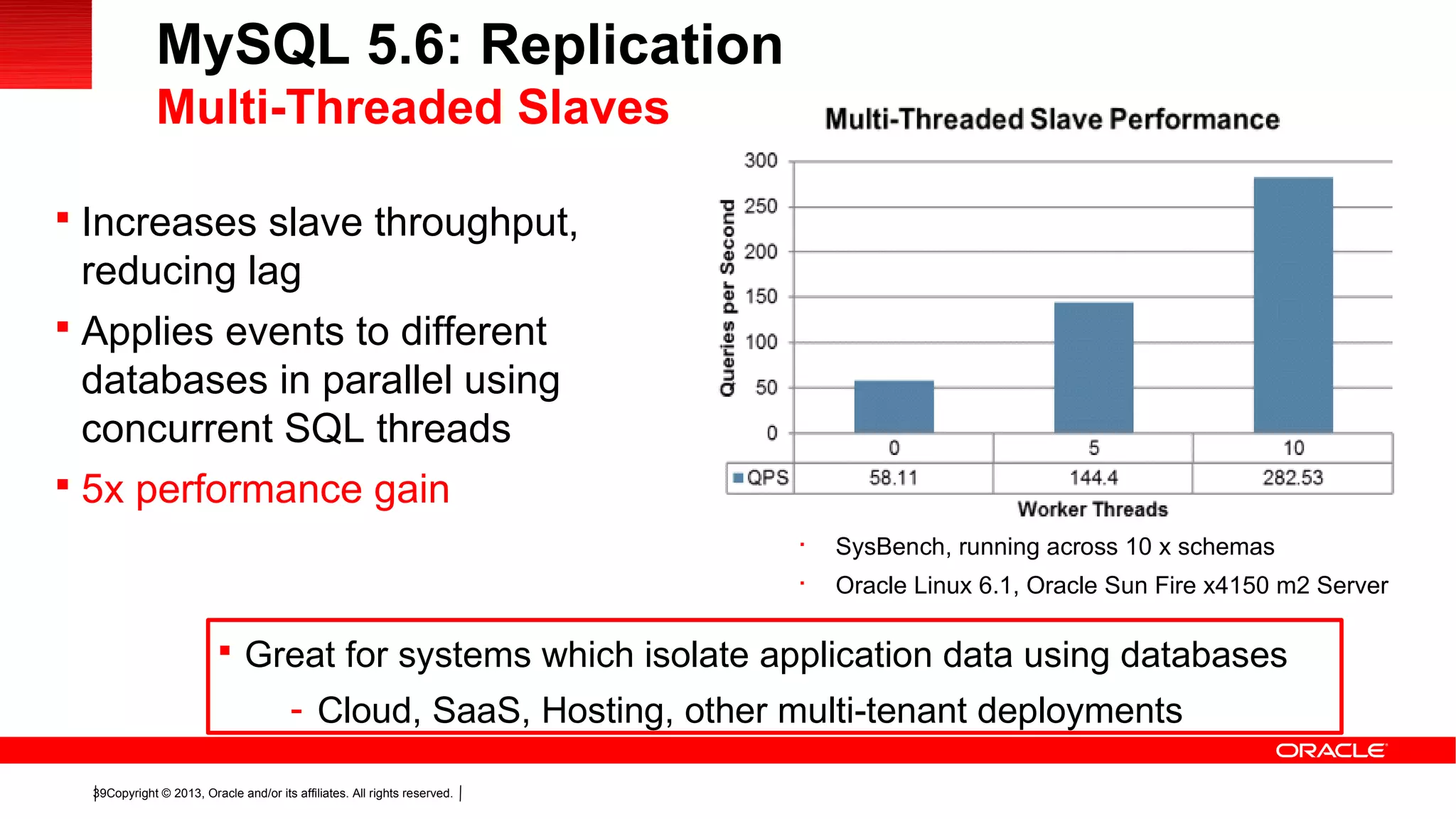

Multi-Threaded Slaves
 Increases slave throughput,
reducing lag
 Applies events to different
databases in parallel using
concurrent SQL threads
 5x performance gain
 Great for systems which isolate application data using databases
- Cloud, SaaS, Hosting, other multi-tenant deployments

SysBench, running across 10 x schemas

Oracle Linux 6.1, Oracle Sun Fire x4150 m2 Server

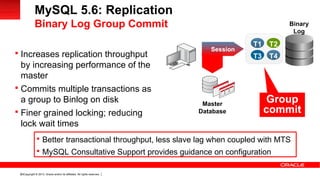

 Increases replication throughput
by increasing performance of the
master
 Commits multiple transactions as
a group to Binlog on disk
 Finer grained locking; reducing
lock wait times
Session
Binary
Log
Master
Database
T1 T2
T3 T4
Group
commit

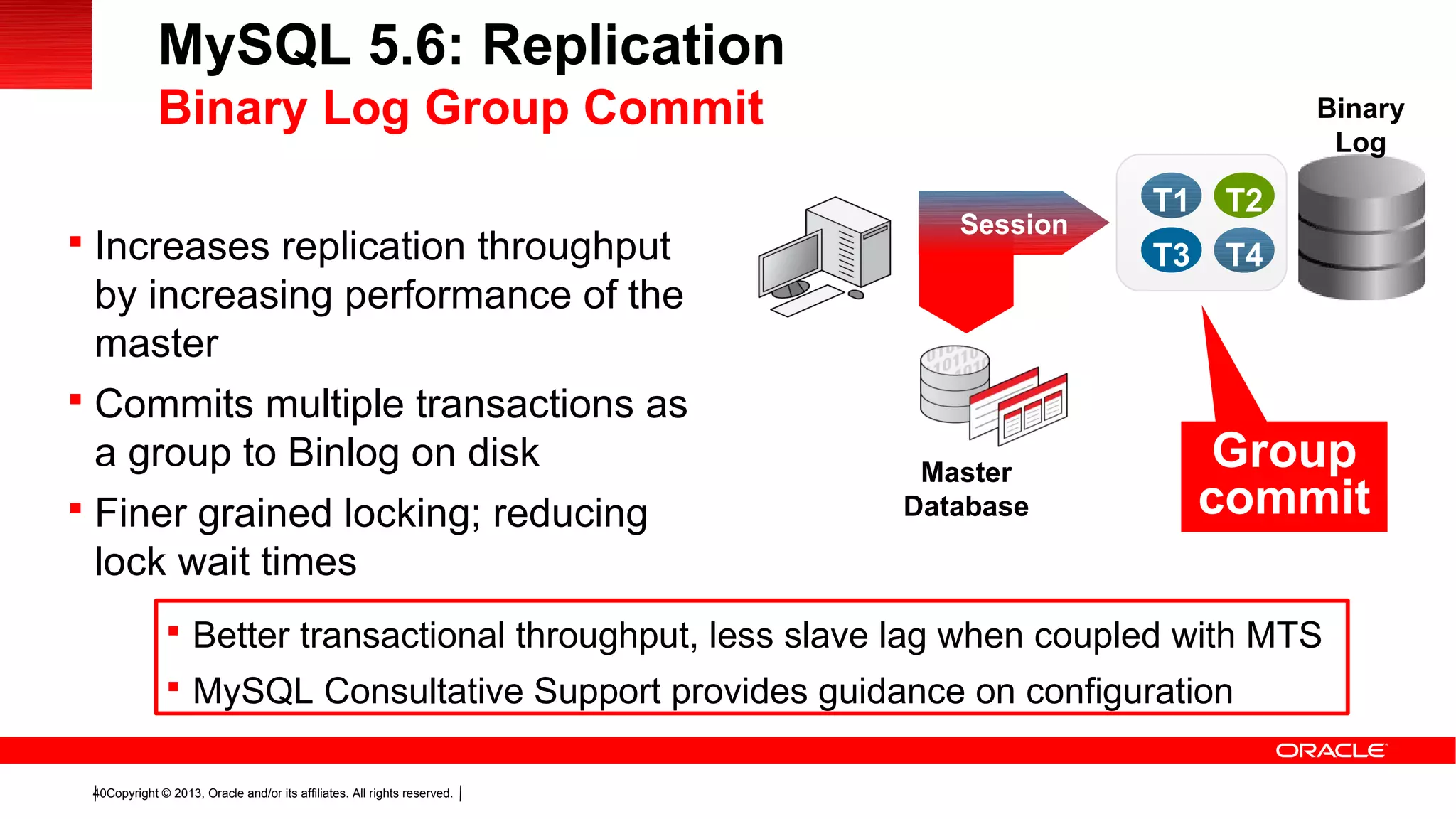

Binary Log Group Commit
 Better transactional throughput, less slave lag when coupled with MTS
 MySQL Consultative Support provides guidance on configuration

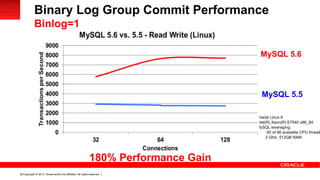

Binary Log Group Commit Performance
Binlog=1
MySQL 5.6
MySQL 5.5
180% Performance Gain
Oracle Linux 6
Intel(R) Xeon(R) E7540 x86_64
MySQL leveraging:
-
60 of 96 available CPU thread
-
2 GHz, 512GB RAM

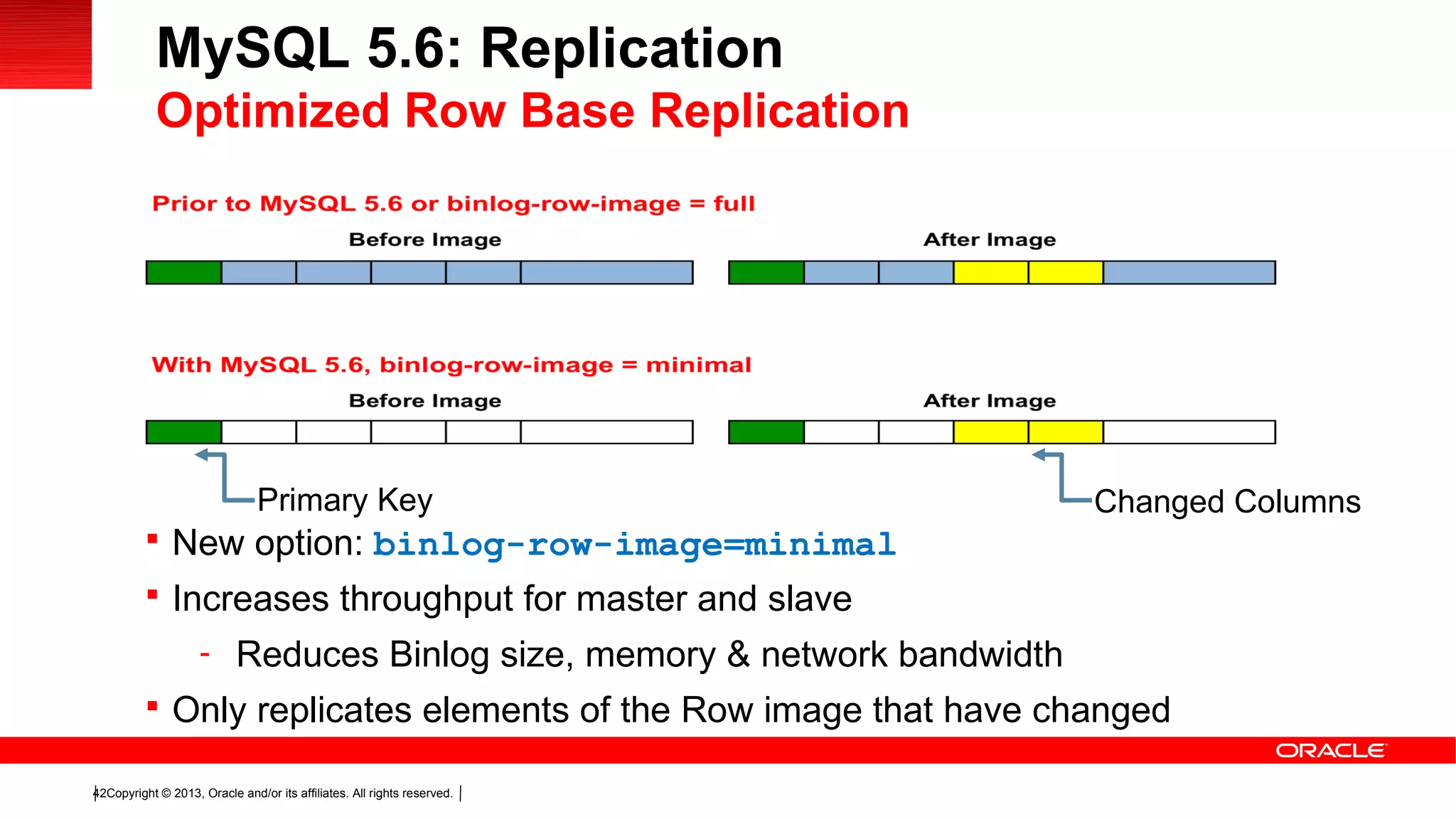

 New option: binlog-row-image=minimal
 Increases throughput for master and slave
- Reduces Binlog size, memory & network bandwidth
 Only replicates elements of the Row image that have changed
Primary Key Changed Columns
Optimized Row Base Replication

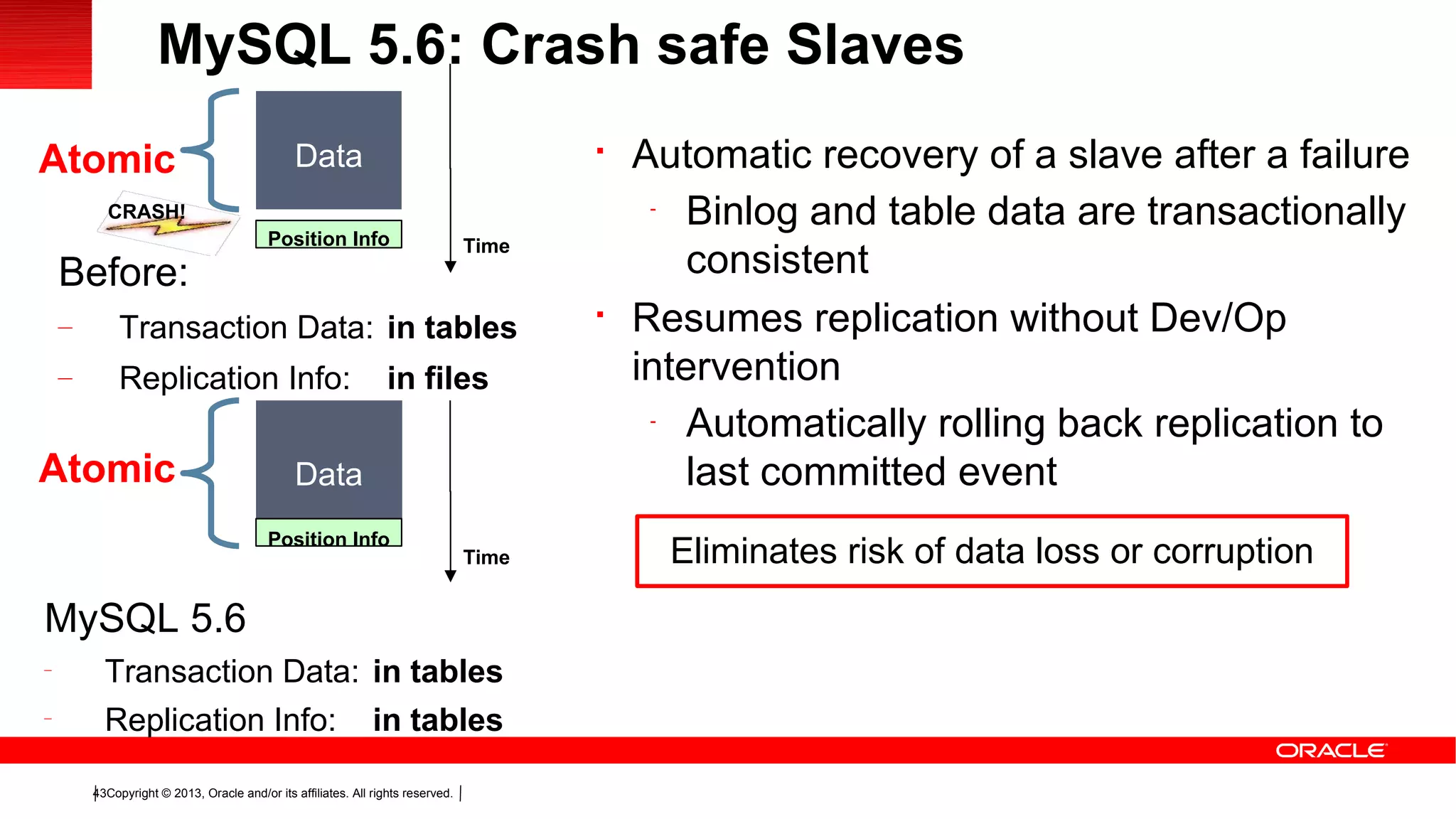

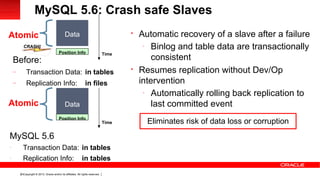

Before:
– Transaction Data: in tables
– Replication Info: in files
MySQL 5.6
–
Transaction Data: in tables
–
Replication Info: in tables
Data
Position Info
CRASH!
Time
Data
Position Info
Time

Automatic recovery of a slave after a failure
-
Binlog and table data are transactionally
consistent

Resumes replication without Dev/Op
intervention
-
Automatically rolling back replication to
last committed event
Atomic
Atomic
MySQL 5.6: Crash safe Slaves
Eliminates risk of data loss or corruption

 Ensures replicated data is correct,
consistent and accessible
 Detects corrupt replication events
before they’re applied
– Returns an error
 Protects entire replication path
– Memory
– Disk
– Network
– Bugs
Master
#
Slave
#

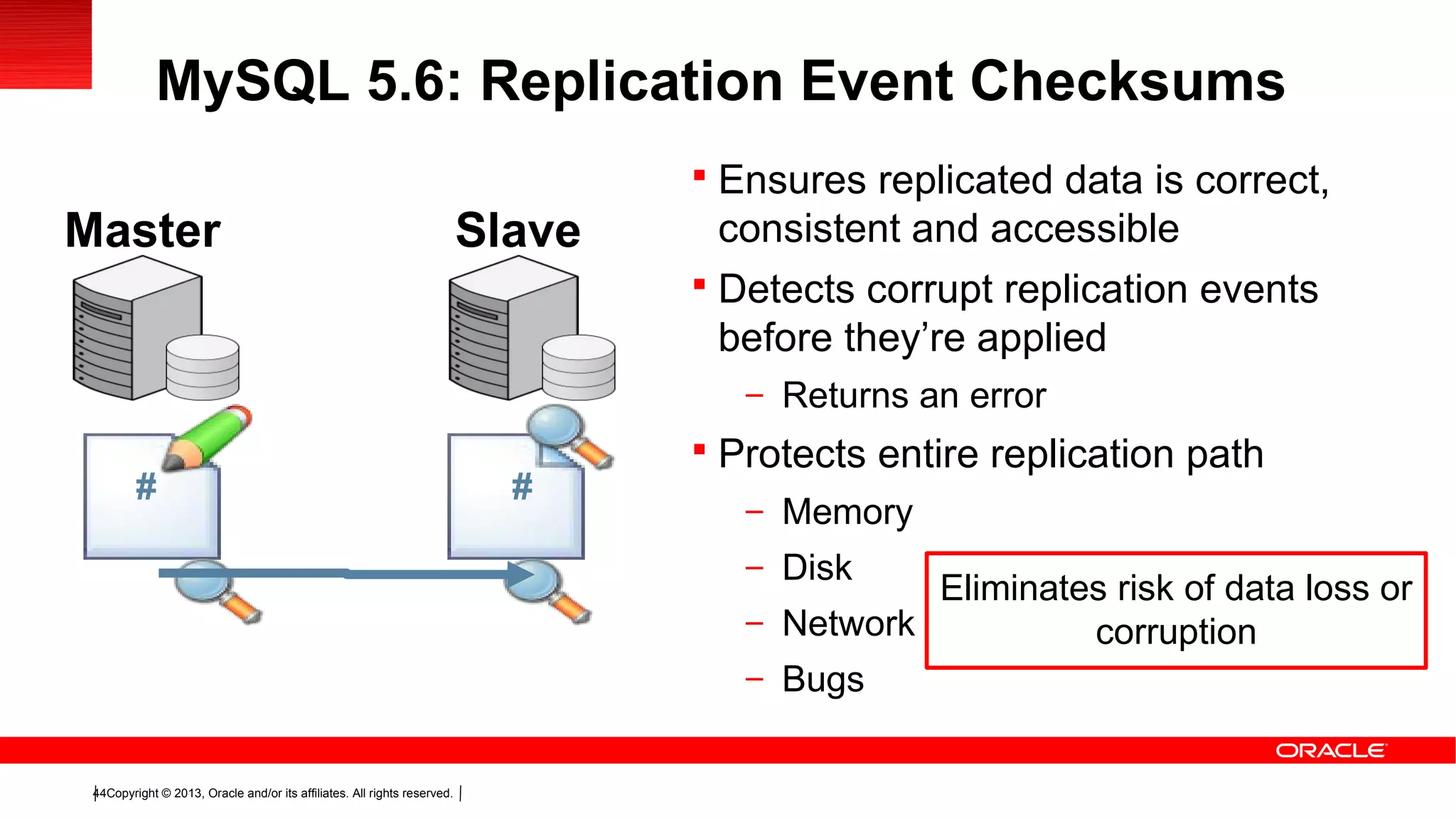

MySQL 5.6: Replication Event Checksums
Eliminates risk of data loss or
corruption

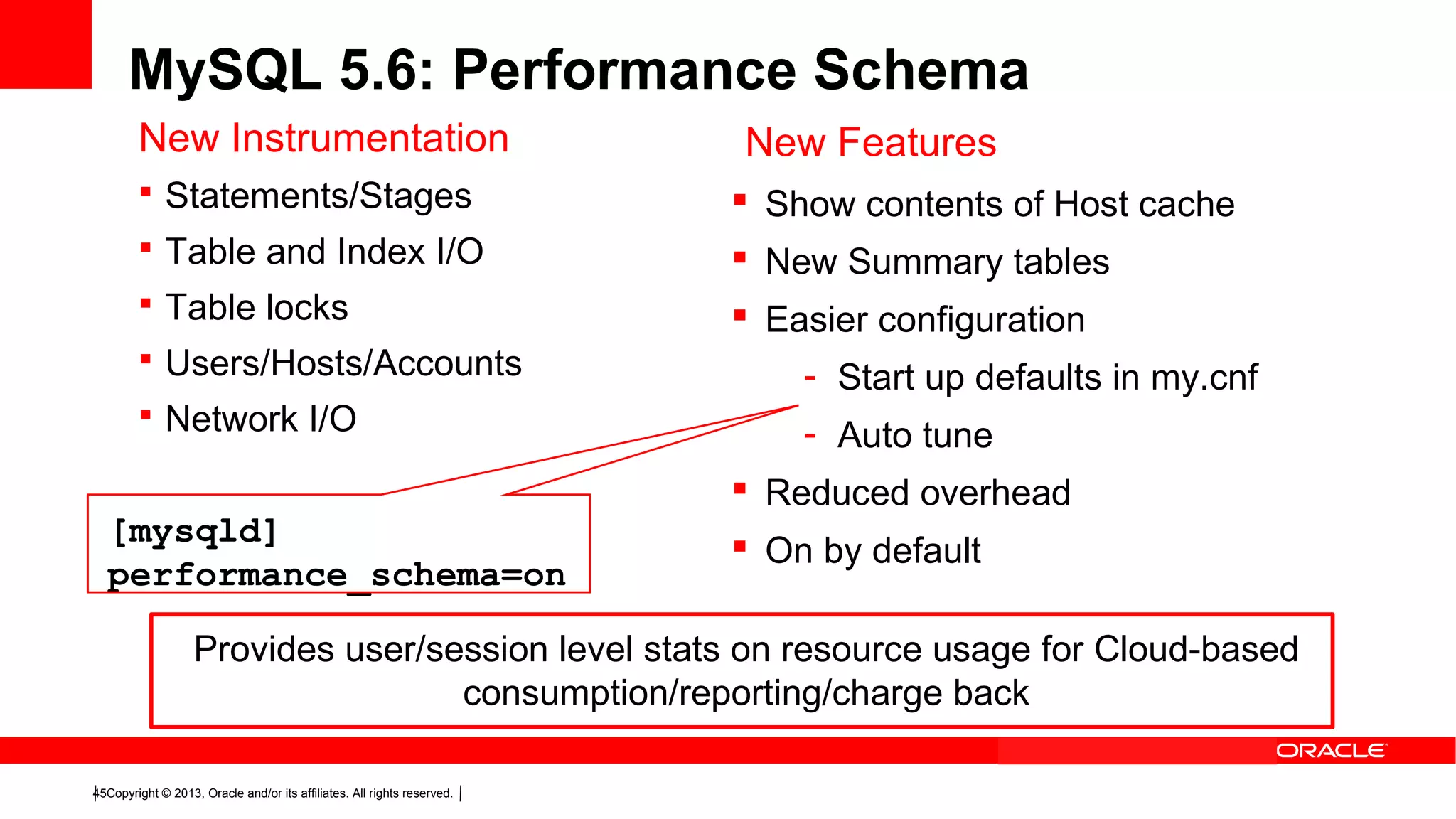

MySQL 5.6: Performance Schema
New Instrumentation
 Statements/Stages
 Table and Index I/O
 Table locks
 Users/Hosts/Accounts
 Network I/O
New Features
 Show contents of Host cache
 New Summary tables
 Easier configuration
- Start up defaults in my.cnf
- Auto tune
 Reduced overhead
 On by default
[mysqld]
performance_schema=on
Provides user/session level stats on resource usage for Cloud-based
consumption/reporting/charge back

Reaching Out to the Community
 Grown Community team
 Sponsored over 40 events
 Delivered over 70 talks at conferences
 Dozens of Tech Tours, Developer Days, Workshops and
User Groups
 MySQL tracks at SCaLE and SELF Conferences
 Blogs & social media
 MySQL Connect
In the Past Year:

TRENDS & PRODUCT
DIRECTIONS

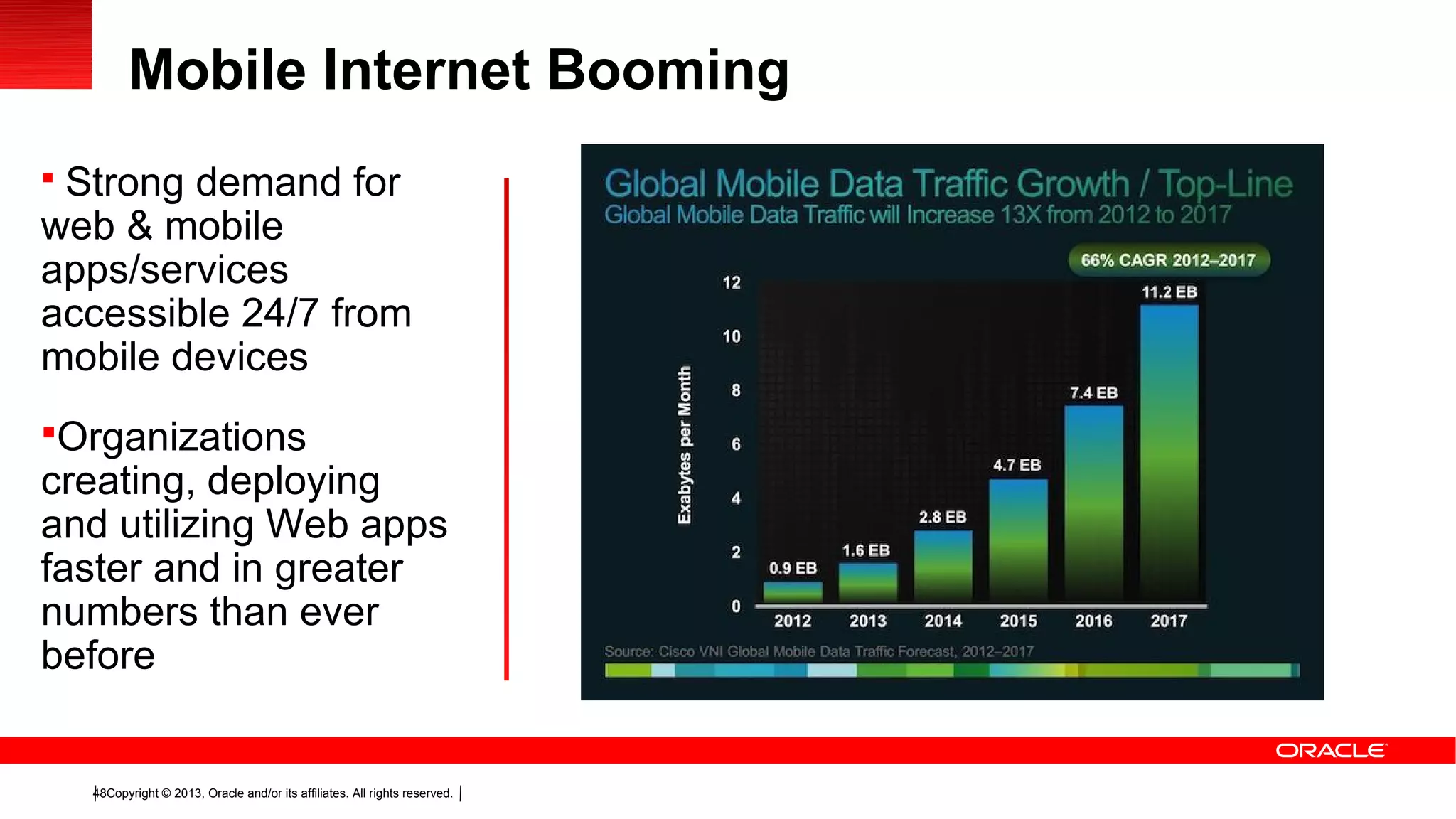

 Strong demand for
web & mobile
apps/services
accessible 24/7 from
mobile devices
Organizations
creating, deploying
and utilizing Web apps
faster and in greater
numbers than ever
before
Mobile Internet Booming

UBIQUITOUS IN THE CLOUD

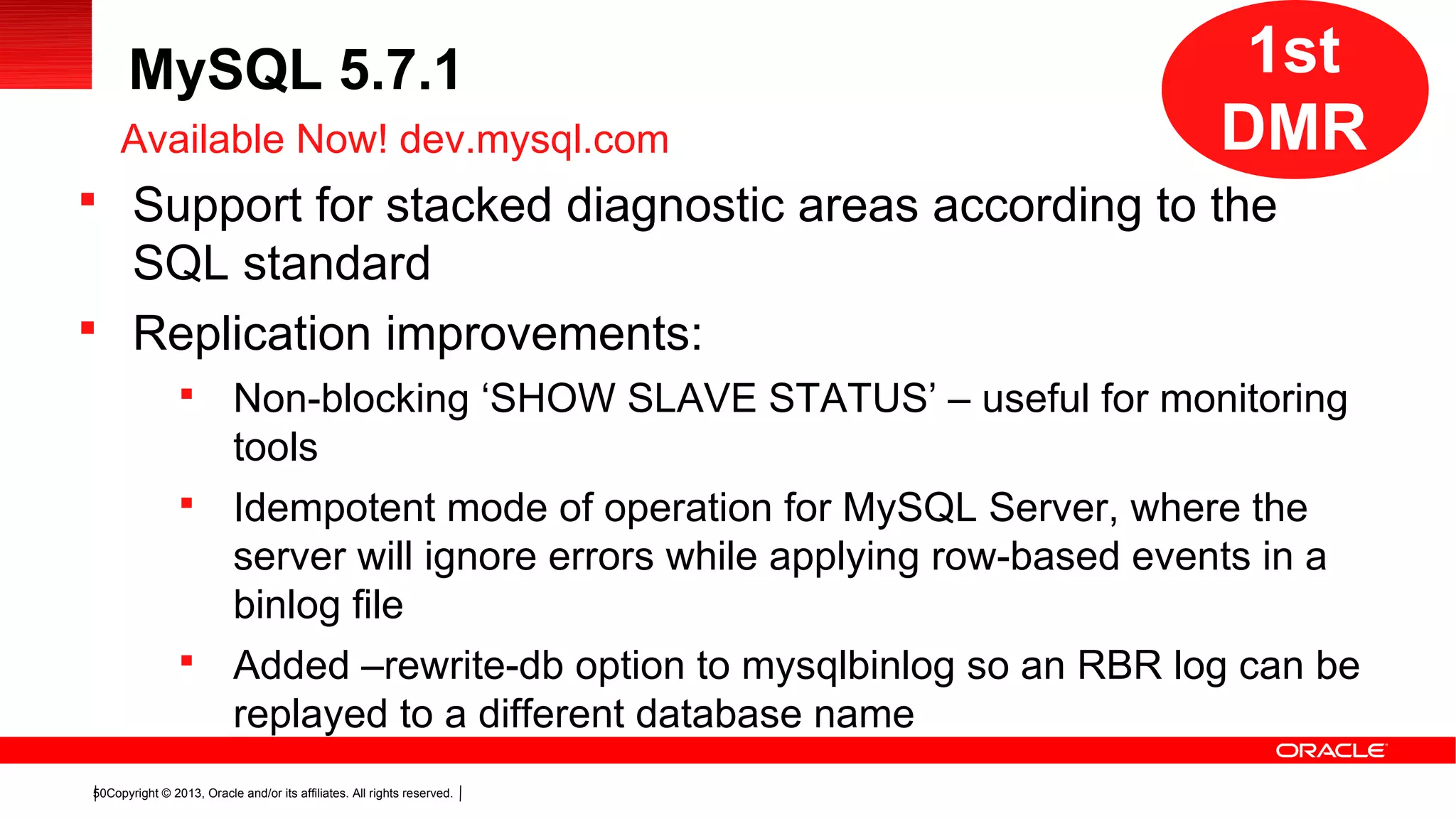

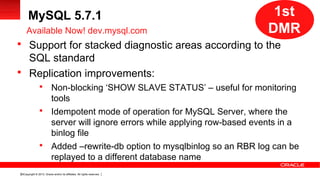

MySQL 5.7.1
 Support for stacked diagnostic areas according to the
SQL standard
 Replication improvements:
 Non-blocking ‘SHOW SLAVE STATUS’ – useful for monitoring
tools
 Idempotent mode of operation for MySQL Server, where the
server will ignore errors while applying row-based events in a
binlog file
 Added –rewrite-db option to mysqlbinlog so an RBR log can be
replayed to a different database name
Available Now! dev.mysql.com
1st
DMR

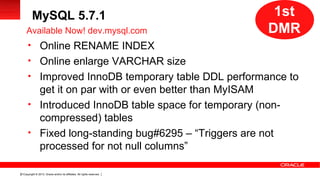

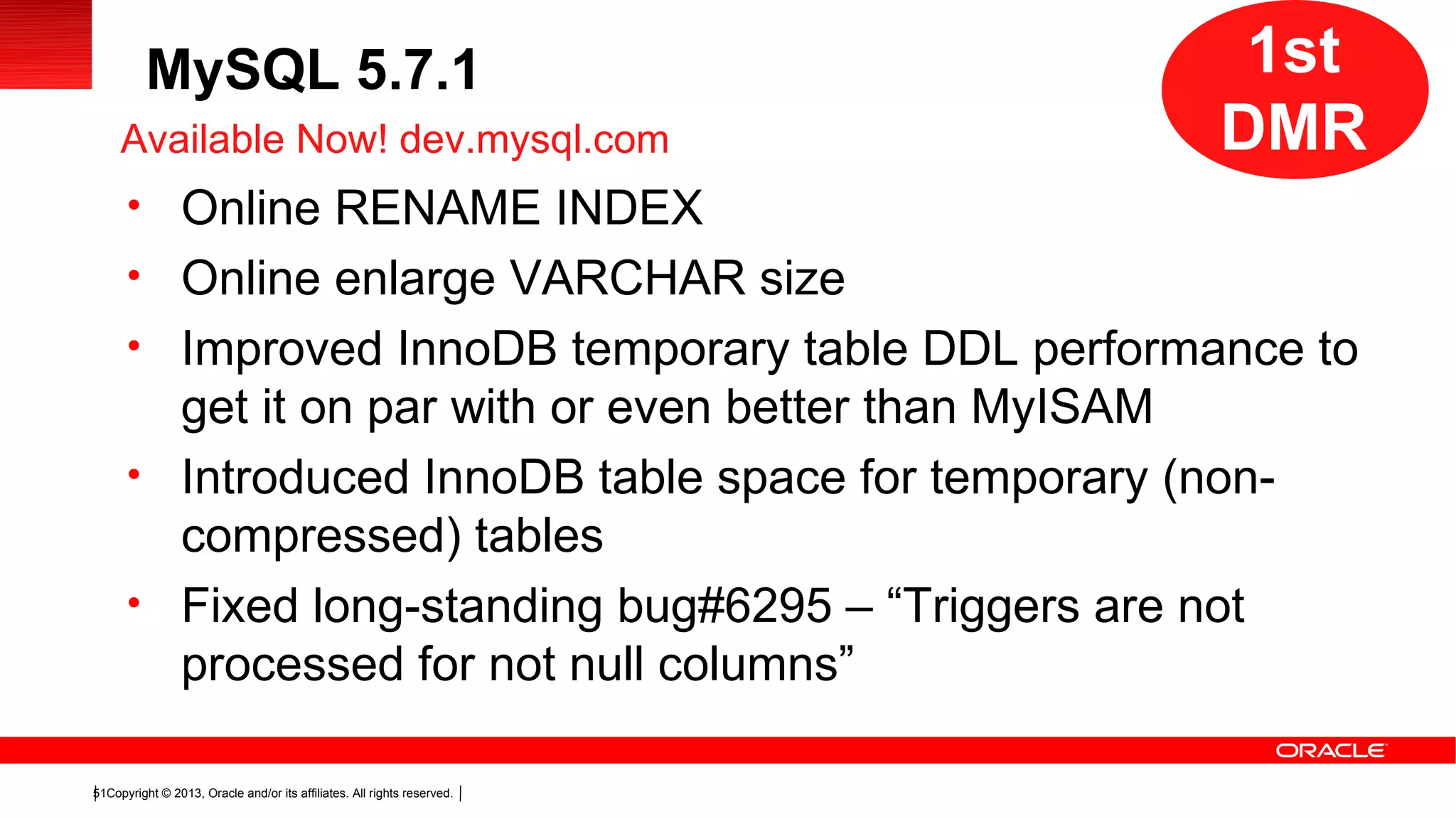

MySQL 5.7.1
• Online RENAME INDEX
• Online enlarge VARCHAR size
• Improved InnoDB temporary table DDL performance to
get it on par with or even better than MyISAM
• Introduced InnoDB table space for temporary (non-
compressed) tables
• Fixed long-standing bug#6295 – “Triggers are not
processed for not null columns”
Available Now! dev.mysql.com
1st
DMR
1st
DMR

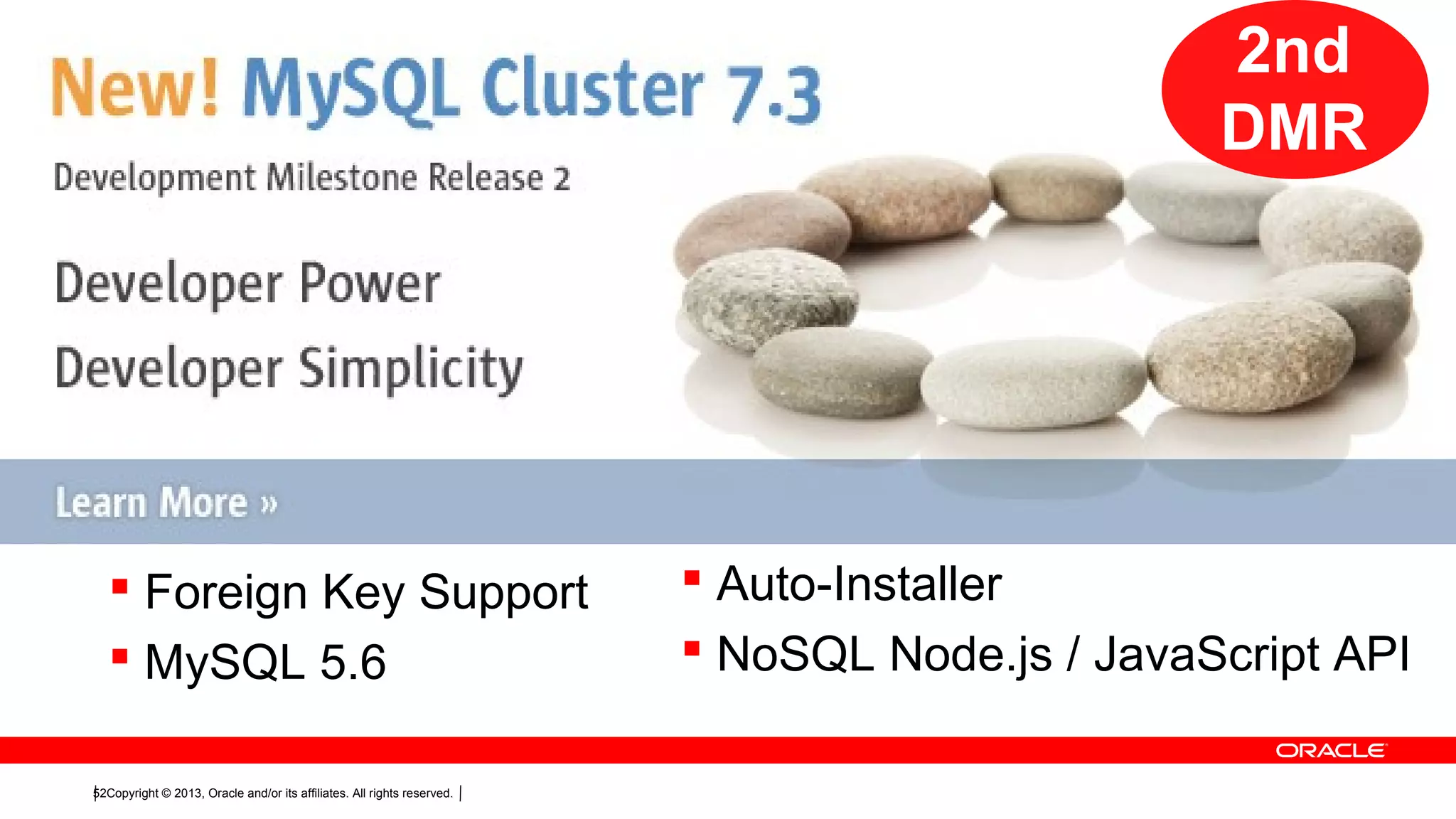

 Foreign Key Support
 MySQL 5.6
 Auto-Installer
 NoSQL Node.js / JavaScript API
2nd
DMR

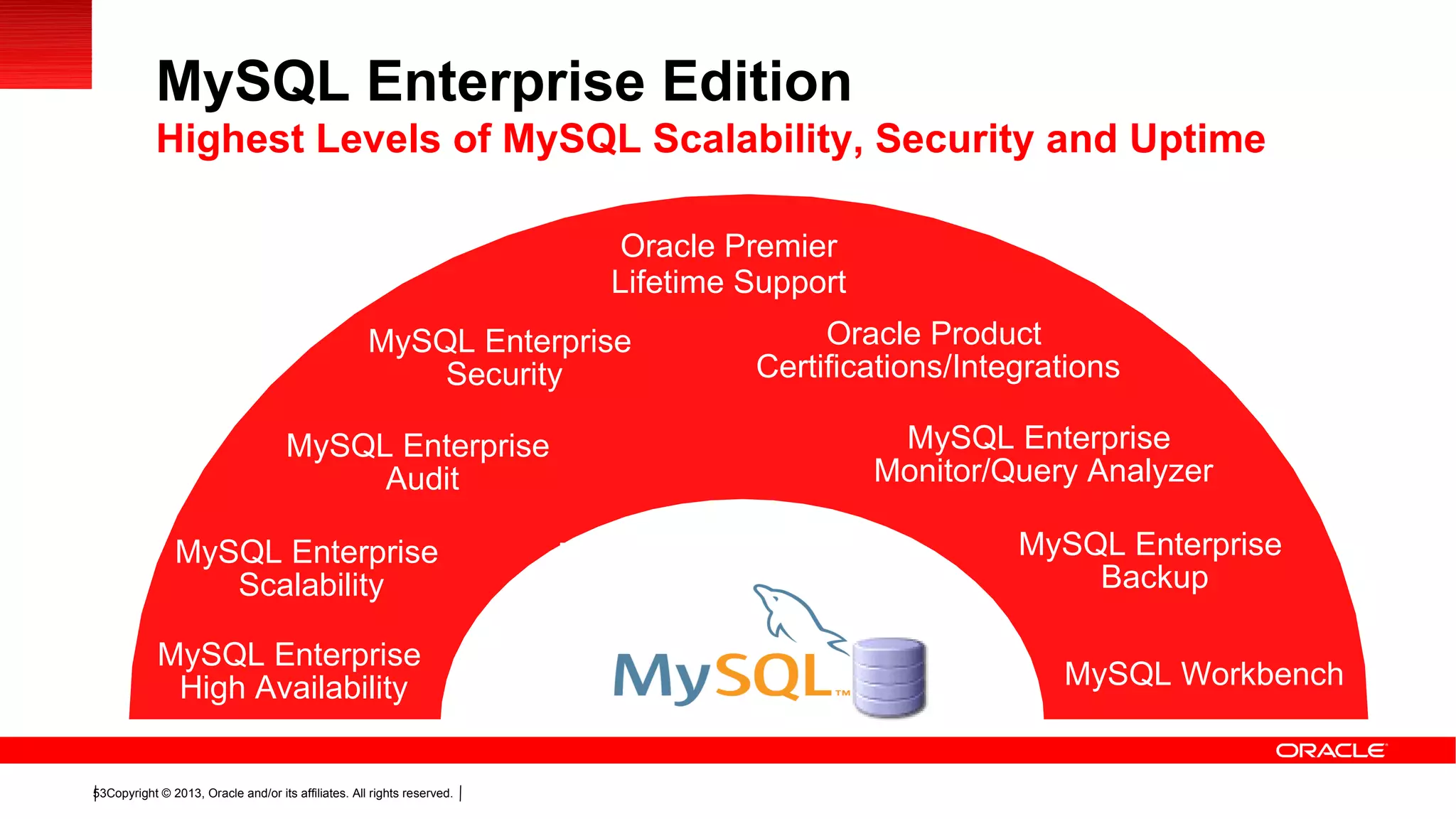

Oracle Premier
Lifetime Support
Oracle Product
Certifications/Integrations
MySQL Enterprise
High Availability
MySQL Enterprise
Security
MySQL Enterprise
Scalability
MySQL Enterprise
Backup
MySQL Enterprise
Monitor/Query Analyzer
MySQL Workbench
MySQL Enterprise Edition
Highest Levels of MySQL Scalability, Security and Uptime
MySQL Enterprise
Audit

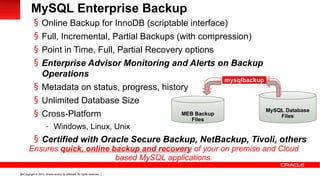

§ Online Backup for InnoDB (scriptable interface)
§ Full, Incremental, Partial Backups (with compression)
§ Point in Time, Full, Partial Recovery options
§ Enterprise Advisor Monitoring and Alerts on Backup
Operations
§ Metadata on status, progress, history
§ Unlimited Database Size
§ Cross-Platform
- Windows, Linux, Unix
§ Certified with Oracle Secure Backup, NetBackup, Tivoli, others
MEB Backup
Files
MySQL Database
Files
mysqlbackup
Ensures quick, online backup and recovery of your on premise and Cloud
based MySQL applications.

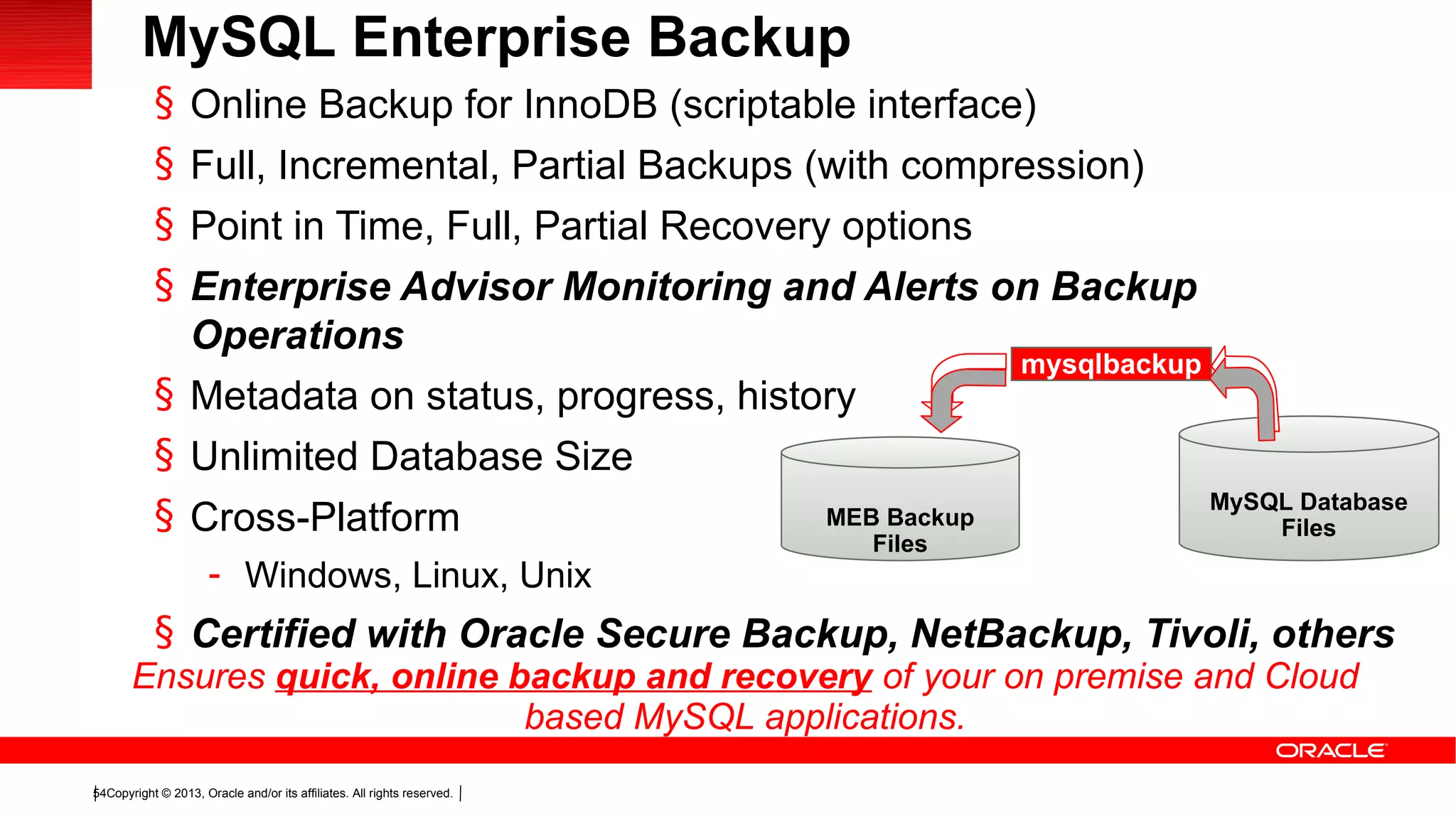

MySQL Enterprise Backup

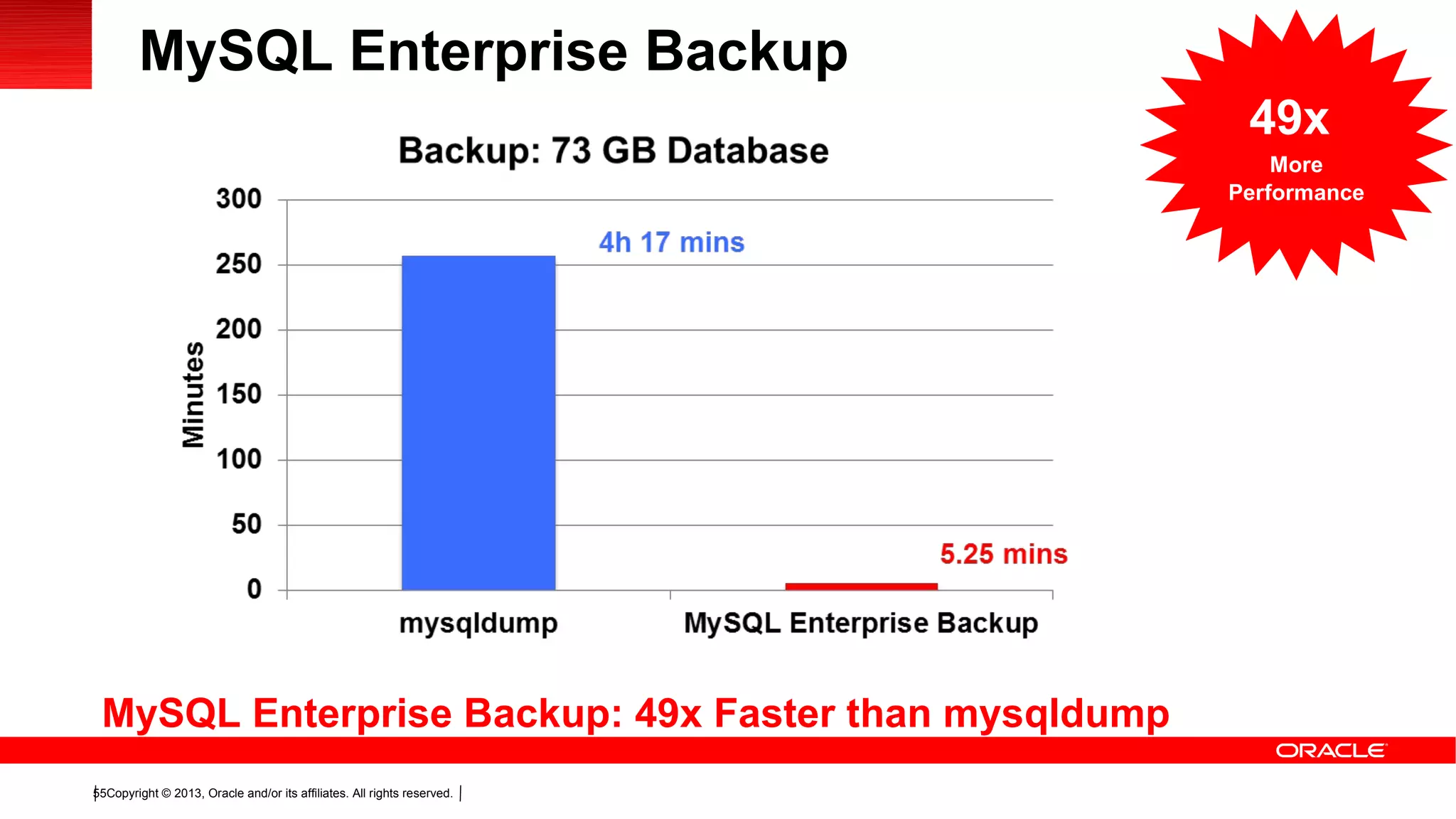

MySQL Enterprise Backup: 49x Faster than mysqldump
49x
More
Performance

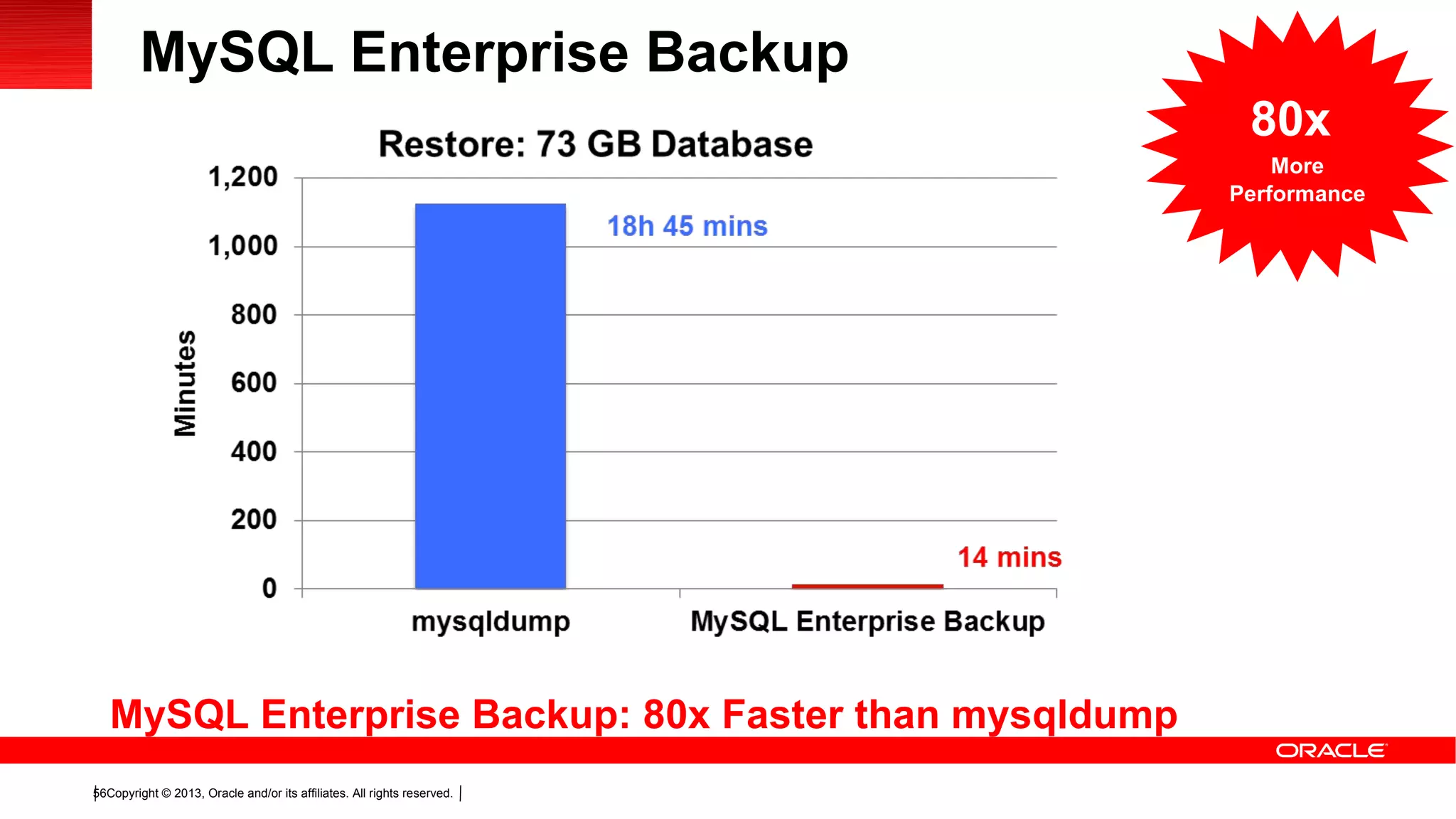

MySQL Enterprise Backup: 80x Faster than mysqldump
80x
More
Performance

MySQL Enterprise Monitor
 Real-time MySQL performance and availability monitoring
 Visually find & fix problem queries
 Disk monitoring for capacity planning
 Cloud friendly architecture (no agents)
 Start monitoring MySQL in 10 minutes
 Remote agent option provides OS monitoring
New!

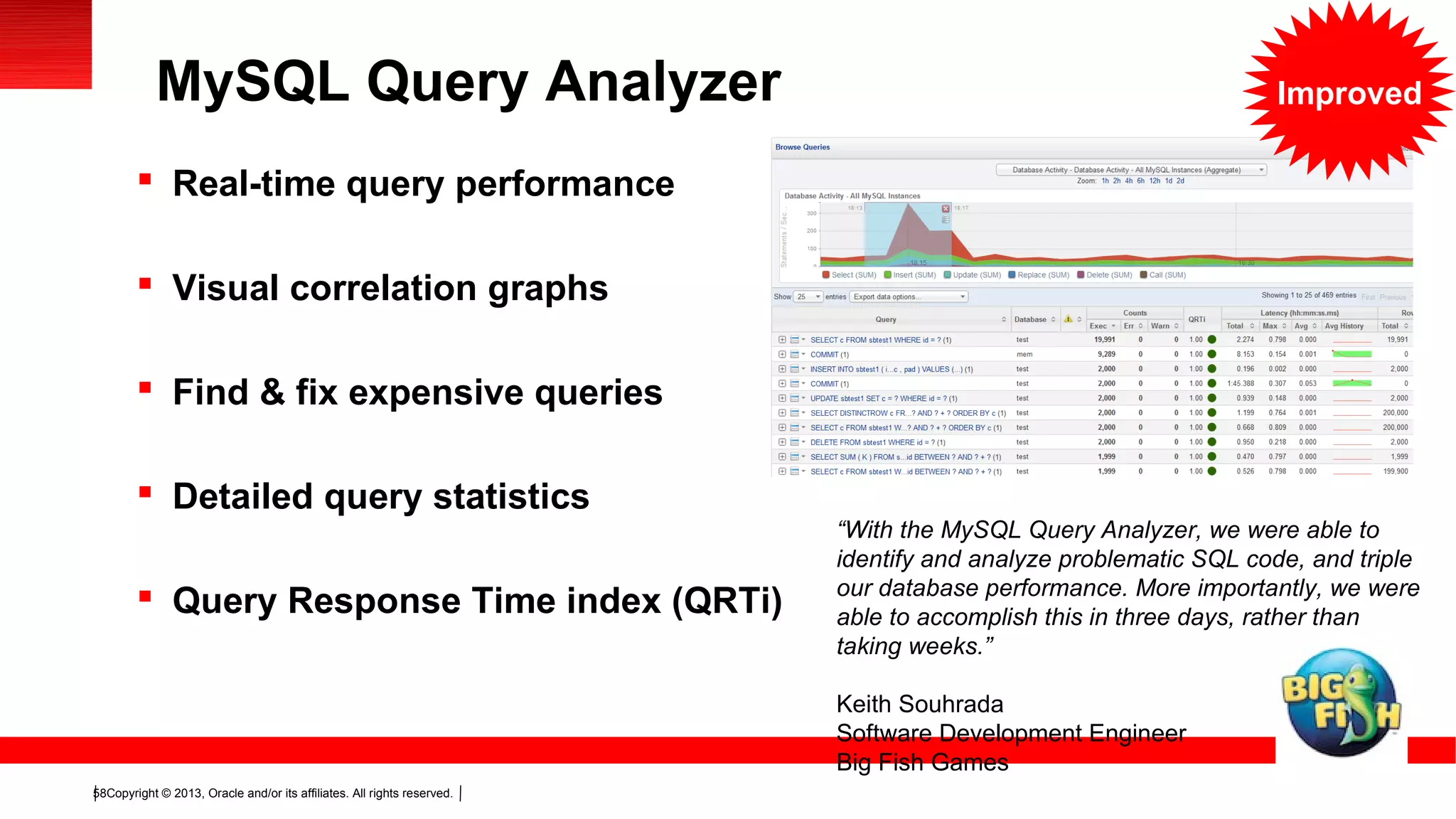

MySQL Query Analyzer
 Real-time query performance
 Visual correlation graphs
 Find & fix expensive queries
 Detailed query statistics
 Query Response Time index (QRTi)
“With the MySQL Query Analyzer, we were able to
identify and analyze problematic SQL code, and triple
our database performance. More importantly, we were
able to accomplish this in three days, rather than
taking weeks.”
Keith Souhrada
Software Development Engineer
Big Fish Games

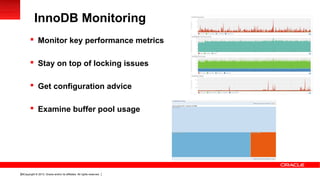

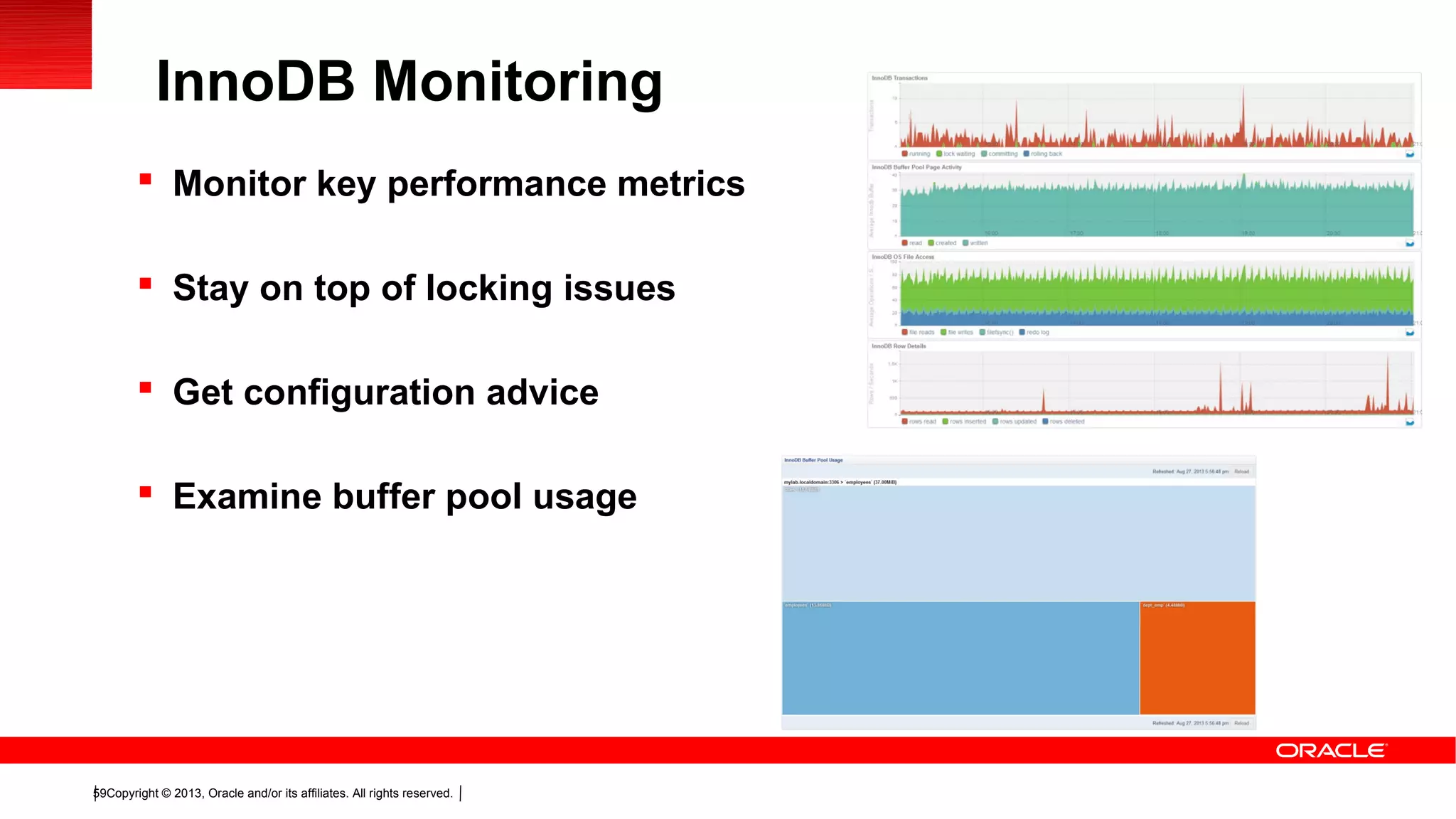

Improved

InnoDB Monitoring
 Monitor key performance metrics
 Stay on top of locking issues
 Get configuration advice
 Examine buffer pool usage

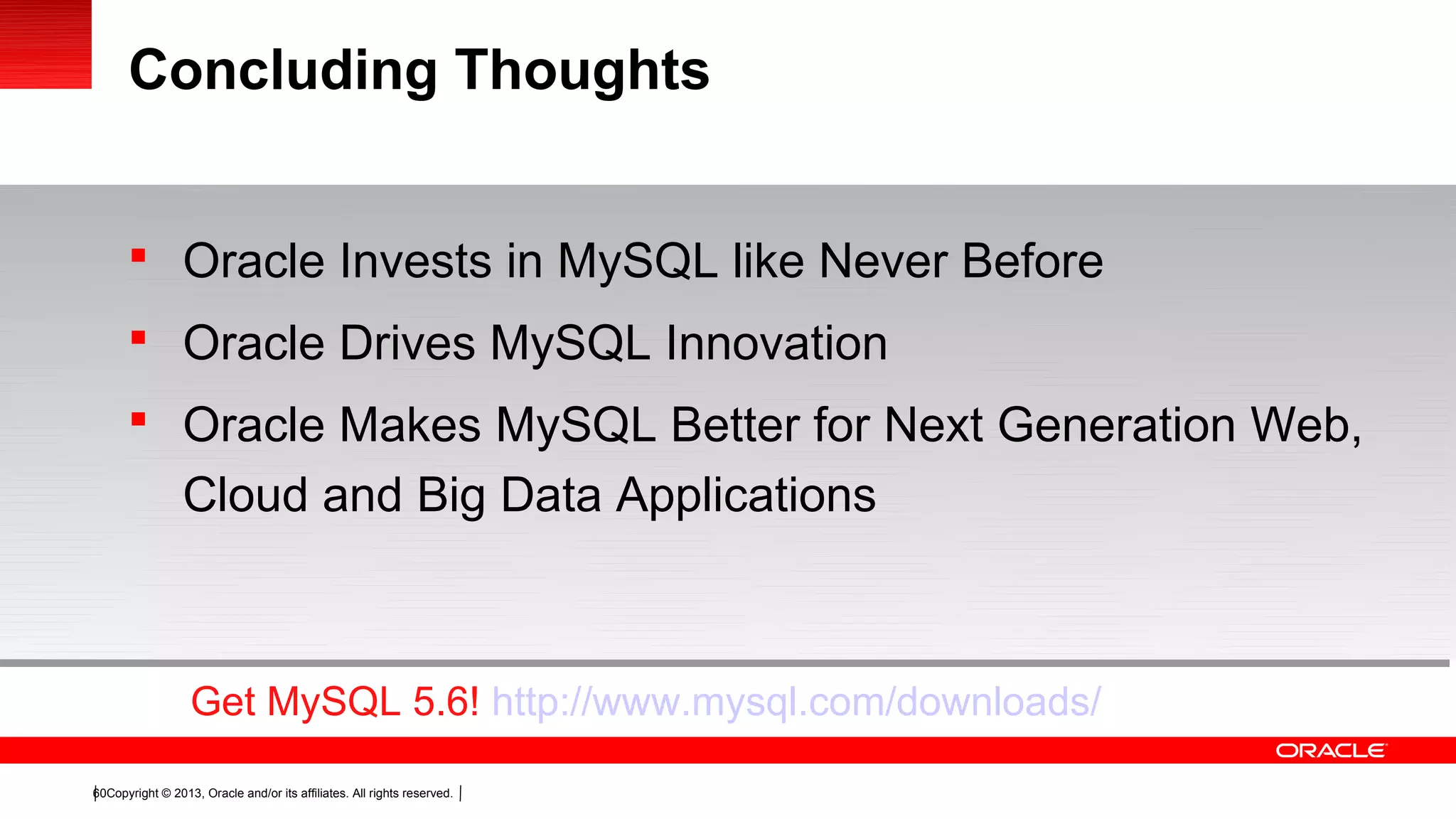

Concluding Thoughts
 Oracle Invests in MySQL like Never Before
 Oracle Drives MySQL Innovation
 Oracle Makes MySQL Better for Next Generation Web,
Cloud and Big Data Applications
Get MySQL 5.6! http://www.mysql.com/downloads/

My sql indo_comm

More Related Content

What's hot

Viewers also liked

Similar to My sql indo_comm

Recently uploaded

My sql indo_comm
