This is all about how replication could help scaling up an application, how to setup replication, master-slave replication/master-master replication. Here are the agenda for the meeting: - Replication - a brief introduction. - Multiple MySQL server Instances. - Setup replication - Master Configurations - Bin-log - Replication User with privilege - Slave Configurations - Relay-log - Replication Threads - Start slave - Trouble-shooting replication - Replication Compatibility and Upgrading - Scaling and replication - Backup and replication

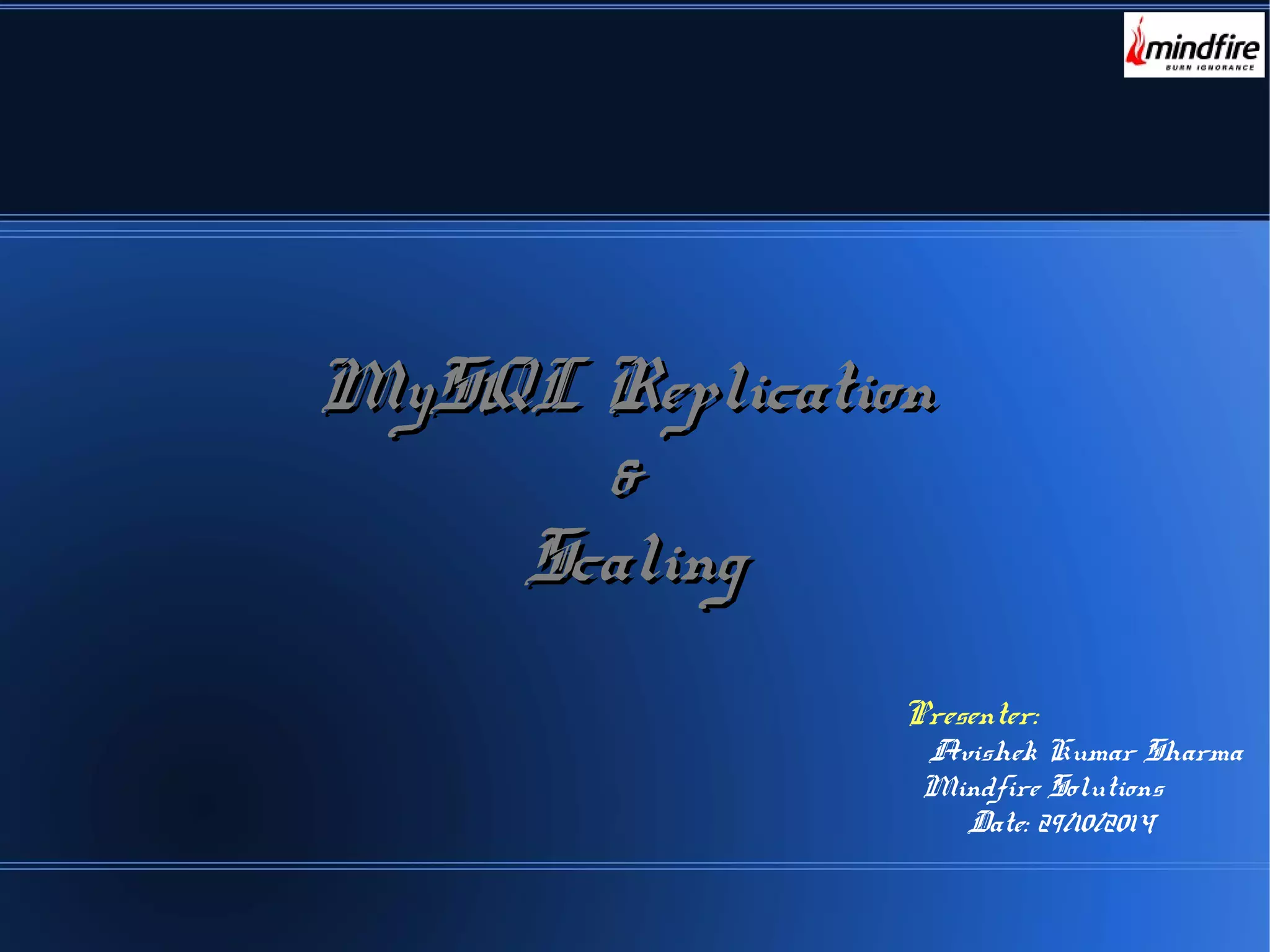

1. MySQL ReplicationMySQL Replication
&&
ScalingScaling
Presenter:
Avishek Kumar Sharma
Mindfire Solutions
Date: 29/10/2014

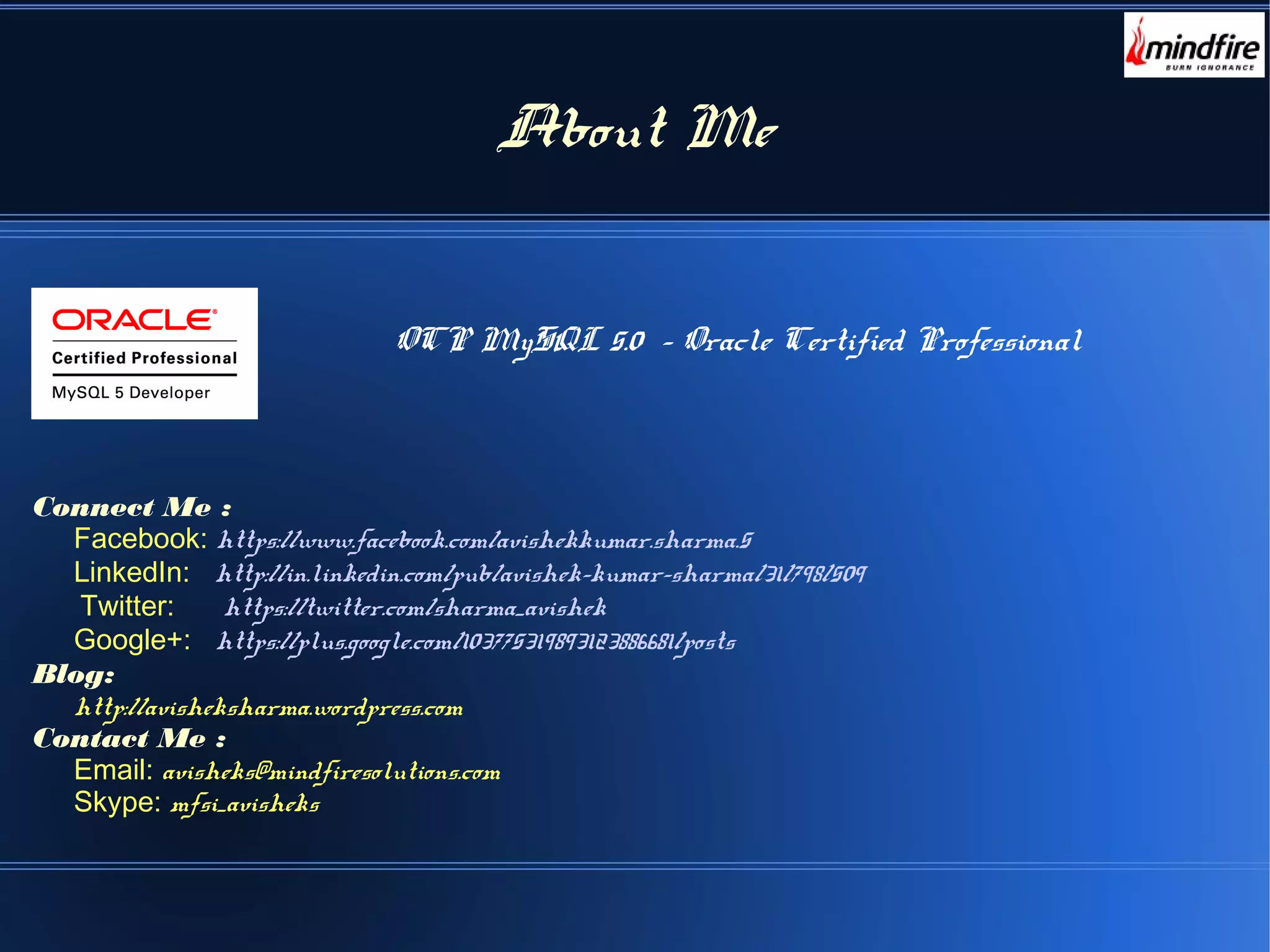

2. OCP MySQL 5.0 - Oracle Certified Professional
Connect Me :
Facebook: https://www.facebook.com/avishekkumar.sharma.5
LinkedIn: http://in.linkedin.com/pub/avishek-kumar-sharma/31/798/509
Twitter: https://twitter.com/sharma_avishek
Google+: https://plus.google.com/103775319893123886681/posts
Blog:
http://avisheksharma.wordpress.com
Contact Me :
Email: avisheks@mindfiresolutions.com
Skype: mfsi_avisheks
About Me

3. 3
Today's Talk
1. Replication- brief introduction
2. Multiple MySQL Instances
3. Replication Topology
4. Setting up Replication (Demo)
- Master Configurations
- Binlog
- Replication User
- Slave Configurations
- Relaylog
- Replication Thread
- Start Slave
5. Trouble Shooting Replication
6. Replication Compatibility and Upgrading
7. Replication and Scaling-out
8. Backup and replication(HA/Fault Tolerance)

4. 4
Replication- brief intro
- Capability that allows the databases on one server(the master) to
be made available on another servers(the slaves).
- Replication was introduced in MySQL version 3 and matured to a
robust, stable technology as of MySQL 4.0.2.

5. 5
Multiple MySQL Instances
Multiple MySQL server instances on a single host.
- new release testing
- administrative work
Caution:
- separate data-dir(unless readonly)
- separate network interfaces
- TCP/IP port
- socket files
- separate log/PID file

6. 6
Replication Topology

7. 7
Setting up Replication (demo)
- Sync both databases.
- Master Configurations
- Enable binlog
- set log_bin = /var/log/mysql/mysql-bin.log
- Replication User
- CREATE USER `replicator`@localhost IDENTIFIED BY `mindfire`;
- GRANT REPLICATION SLAVE ON *.* TO replicator@localhost;
- Slave Configurations
- Relaylog(optional)
- relay-log = /var/lib/mysql/slave-relay.log
- Set Master host
- CHANGE MASTER TO
MASTER_HOST = 'localhost',
MASTER_USER = 'replicator',
MASTER_PORT = 3306,
MASTER_PASSWORD = "mindfire",
MASTER_LOG_FILE = 'mysql-bin.000001',
MASTER_LOG_POS = 120;
- Start Slave
- START SLAVE;

8. 8
Trouble Shooting Replication
- If slave is running ?
- SHOW SLAVE [IO_THREAD/SQL_THREAD] STATUS;
if not, issue:
- START SLAVE [IO_THREAD/SQL_THREAD];
- monitor slave log.
- master/slave have unique server-ids ?
- binary_logging enabled on master ?
- SHOW VARIABLES LIKE "log_bin";
- connect master host from mysql client ?
- error information for “SHOW SLAVE STATUS”

9. 9
Replication Compatibility and Upgrading
- Slave trouble parsing binary log file sent from master.
- replication compatibility is the best when both master and slave
run on same server version.
- as a general rule “upgrade slave before upgrading master”

10. 10
Replication and “Scaling-out”

11. 11

12. 12
reads = 1200 - 2 * writes

13. 13
Backup and replication(HA/Fault Tolerance)

14. 14
before redundancy:

15. 15
Master went down, Slave 1 as new Master.
(monitor replication heartbeat)
1. On each slave,
- STOP SLAVE IO_THREAD
(check the output of SHOW PROCESSLIST until you see Has read all relay log)
2. On the slave Slave 1,
- STOP SLAVE
- RESET MASTER.
3. On the other slaves Slave 2 and Slave 3,
- STOP SLAVE
- CHANGE MASTER TO MASTER_HOST='Slave1'
- START SLAVE
4. tell each Web Client to direct its statements to Slave 1.
NB: Slaves must be running with --log-bin and without –log-slave-updates.

16. 16
after redundancy:
NB: after the master being available again, it has to become slave of “Slave 1” first for
being updated with all missed events before it become Master again.

17. 17
References
http://dev.mysql.com/doc/refman/5.6/en/replication.html
http://dev.mysql.com/doc/refman/5.6/en/replication-solutions-scaleout.html
http://dev.mysql.com/doc/refman/5.6/en/replication-solutions-switch.html
