MVC First Basic

MVC
Shyam N. Chawda
7874391191 www.shyamsir.com

ASP.NET
 Web Form
 Web Pages
 MVC

ASP.NET - 1.0 - 4.0
 Drag 'n drop GUI Programming
 Data Controls -
GridView,FormView,DetailsView,ListView,DataPager
 Data Access Controls –
SqlDataSource,ObjectDataSource
 Login control , Navigation control
 Masterpages
 Themes-Skins
 Code behind
 LINQ

ASP.NET
 When we generally talk about ASP.NET applications
built on a tiered architecture they are divided in four
parts:
 UI (ASPX pages)
 Code-behind (ASPX.CS pages)
 Middle tier (.NET classes)
 Data layer.

Problems with ASP.NET
 Unit Testing
 Separation of UI and Code behind
 Life Cycle

Good For
 It’s good for small scale applications with limited
team size.
 Less knowledge HTML, CSS , JavaScript.
 ASP.NET WebForms is Rapid Application
Development approach.

Today’s IT Company
We are professional software developer and we build complex, large scale
websites with a team of developers

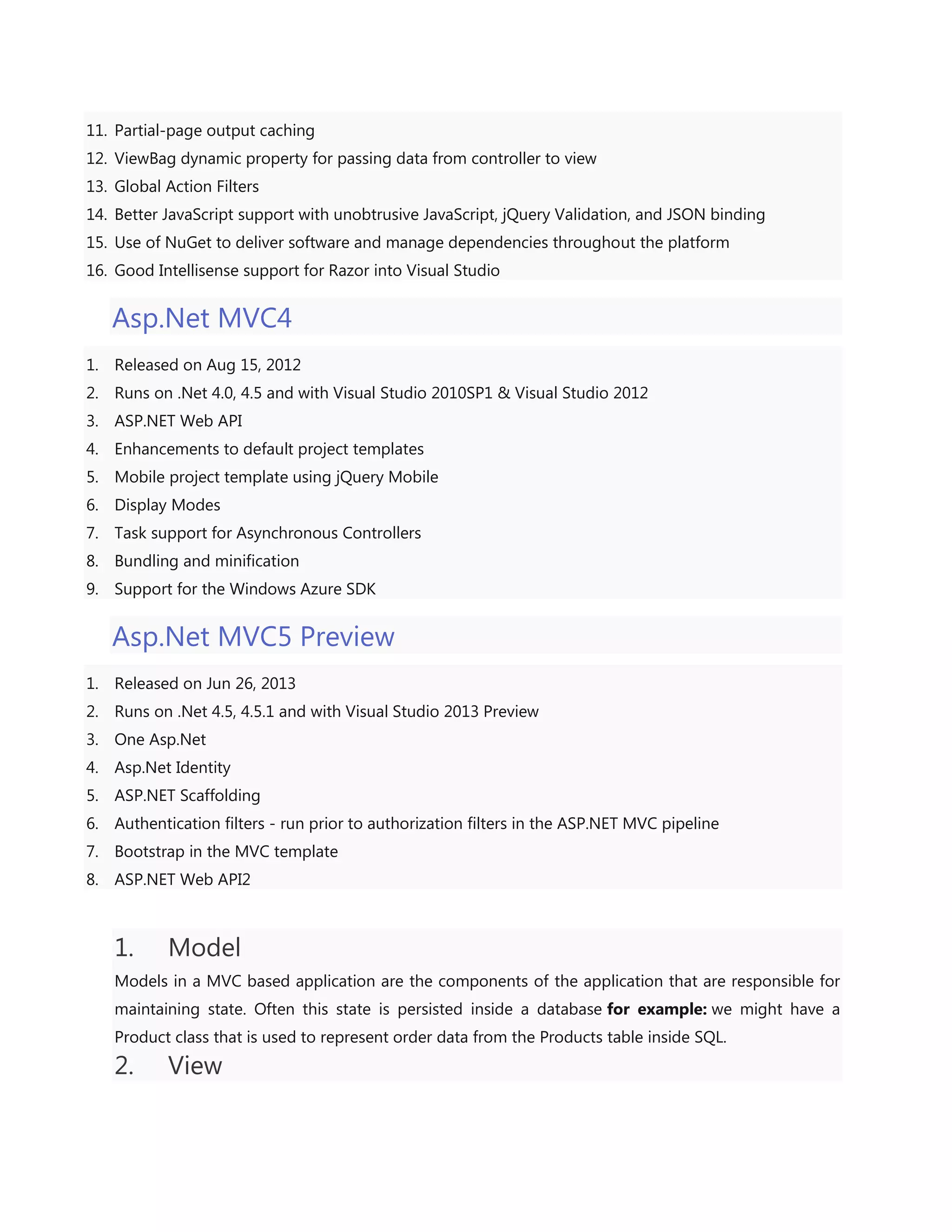

MVC
 Model View Controller
 Model–view–controller (MVC) is a software
pattern for implementing user interfaces.

MVC

MVC
 Model
 Implement the logic of the application
 Classes that represent the data of the application
and that use validation logic to enforce business
rules for that data.
 Notifies its associated views and controllers when
there has been a change in its state.
 This notification allows the views to produce updated
output, and the controllers to change the available
set of commands.

MVC
 Views
 Display data and present the UI
 Template files that your application uses to
dynamically generate HTML responses.
 Requests information from the model that it needs
for generating an output representation to the user

MVC
 Controllers
 Handle user interactions, work with models and
select next view to display
 A controller can send commands to the model to
update the model's state.
 It can also send commands to its associated view to
change the view's presentation of the model

Types of Project Template
 Empty: -
 The Empty template created the minimum
references and resources required.
 Basic: -
 In MVC 4 and. Basic project is much closer
structurally to Empty project.
 It includes Content and Scripts as well as few more
references

 Internet Application :-
 Adds two controllers( Account controller and Home
controller) to the Basic template with implemented
actions and views.
 Its a template used usually to start a normal web
project in action.

 Intranet Application :-
 It’s the Internet Application except for Membership
management.
 Windows authentication method.
 Mobile Application :-
 Mobile website programming is Template has
everything that Internet Application template has,
however it is using jQuery.mobile instead.
 Forms Authentication

 Web API Application :-
 It allows you to expose your data and service to the
web directly over Http.
 This template includes everything from Basic
Template expect Account controller and membership
functionality.

View Engine
 The view engine is responsible for creating HTML from
your views.
 Like ASP.NET .aspx <% %>
 Views are usually some kind of mix-up of HTML and a
programming language.
 Razor
 ASPX
 Spark
 NHaml
 NDjango
 Brail
 Hasic

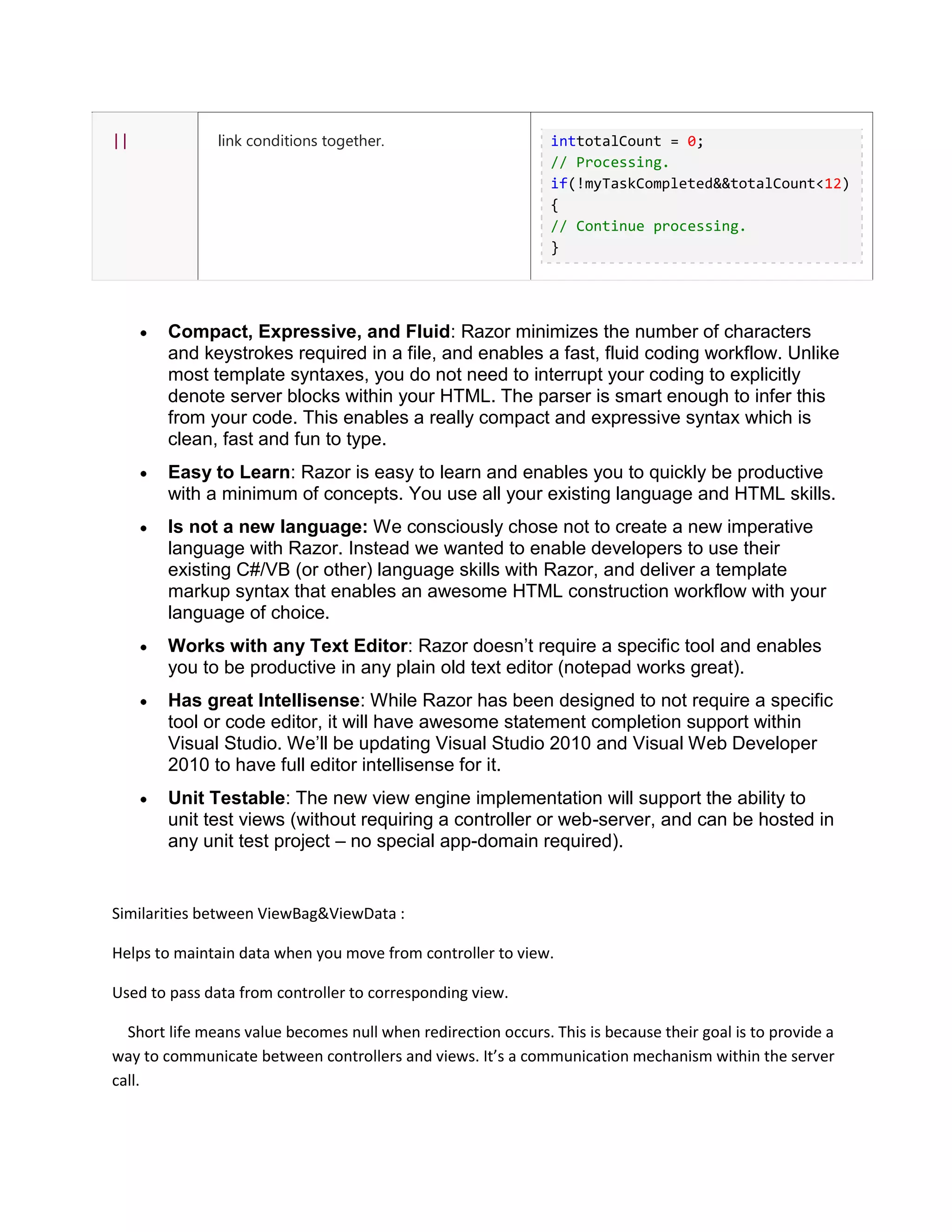

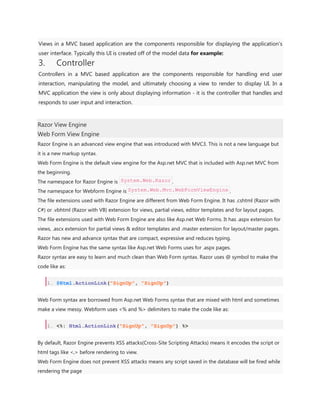

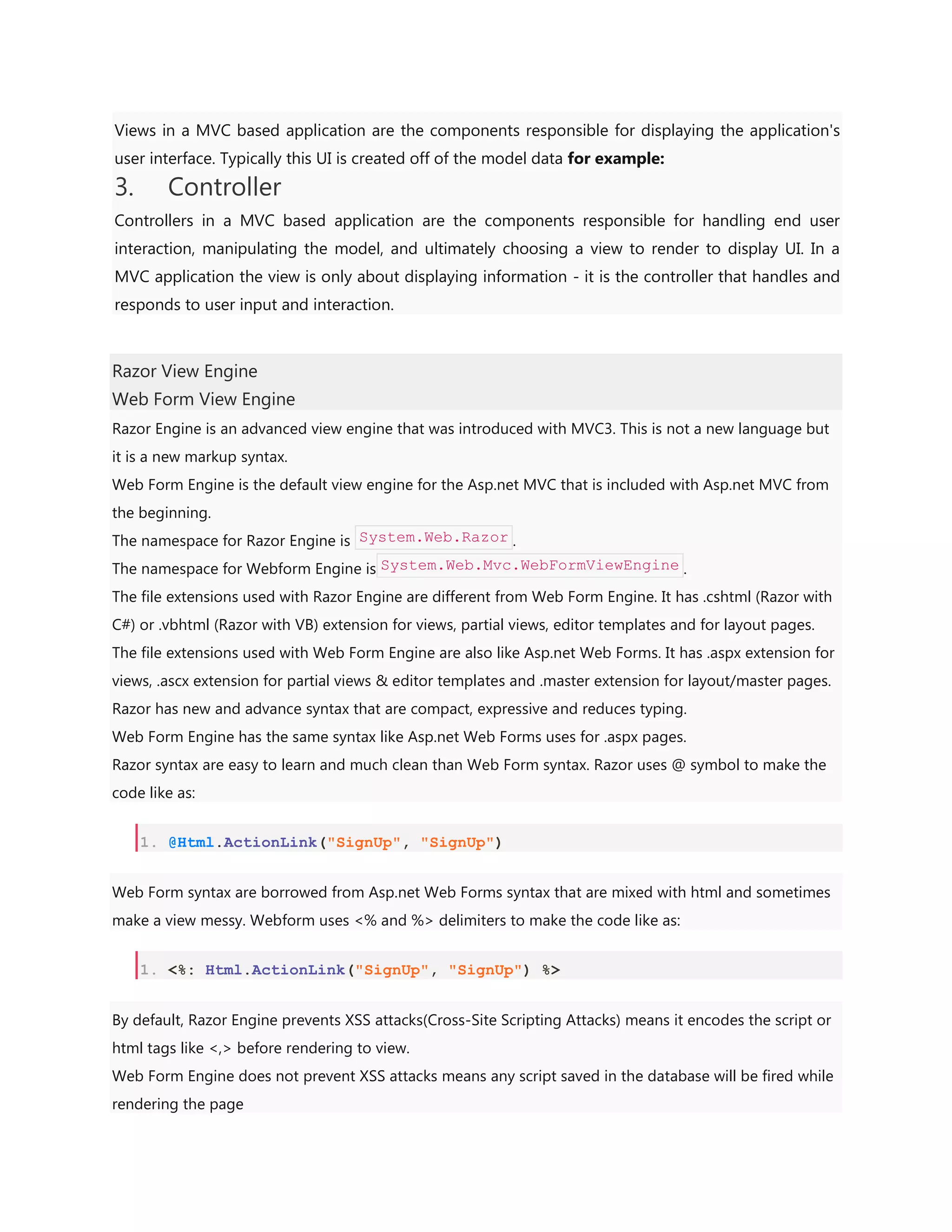

Razor - View Engine
 MVC 3.
 It’s not a programming language but uses C# syntax
for embedding code in a page without the ASP.NET
delimiters: <%= %>.
 Razor using an @
 Cshtml , vbhtml

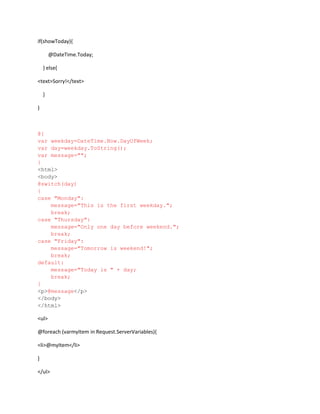

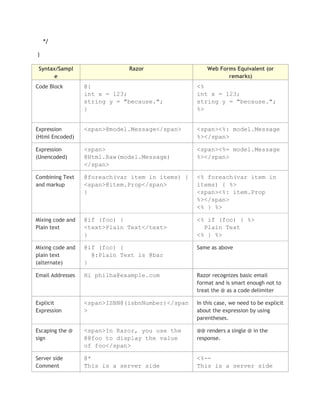

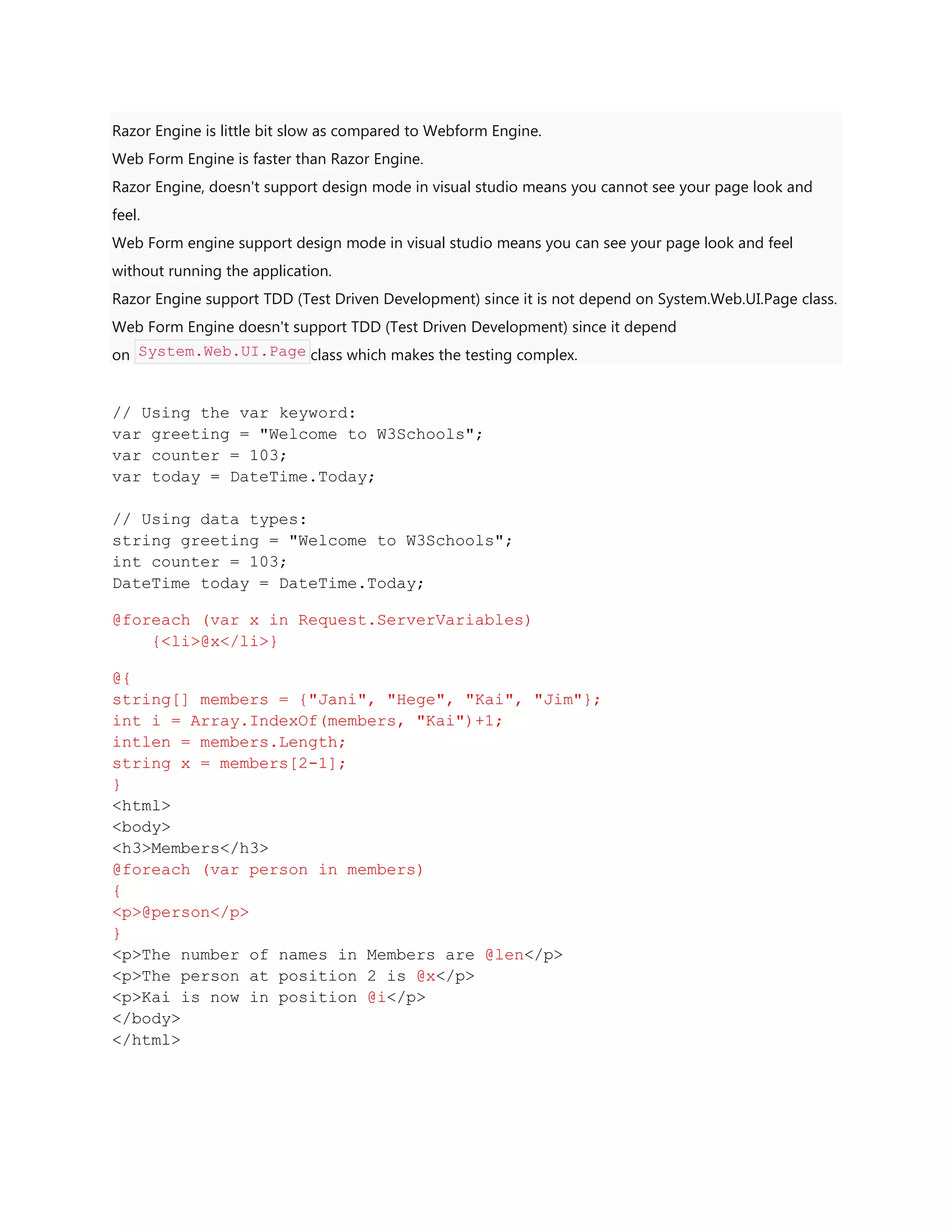

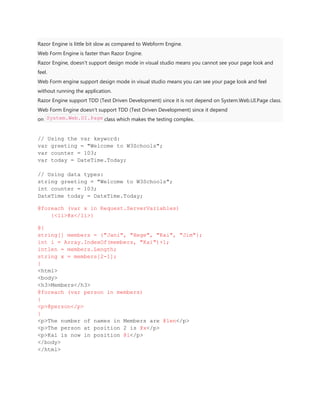

Razor – Syntax Rule
 Razor code blocks are enclosed in @{ ... }
 Inline expressions (variables and functions) start with
@
 Code statements end with semicolon
 Variables are declared with the var keyword
 Strings are enclosed with quotation marks

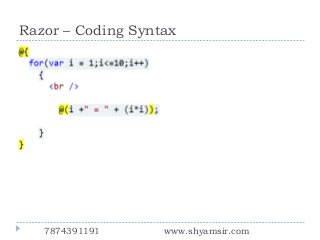

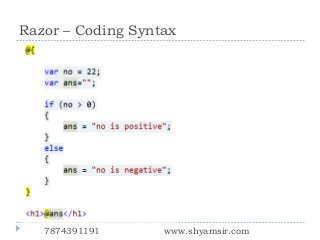

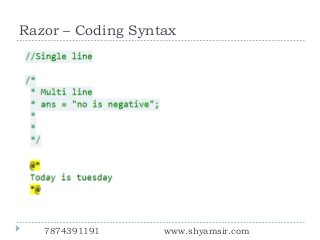

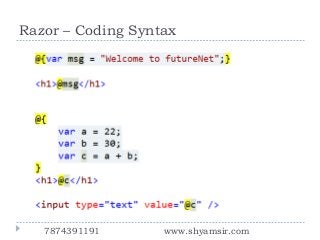

Razor – Coding Syntax

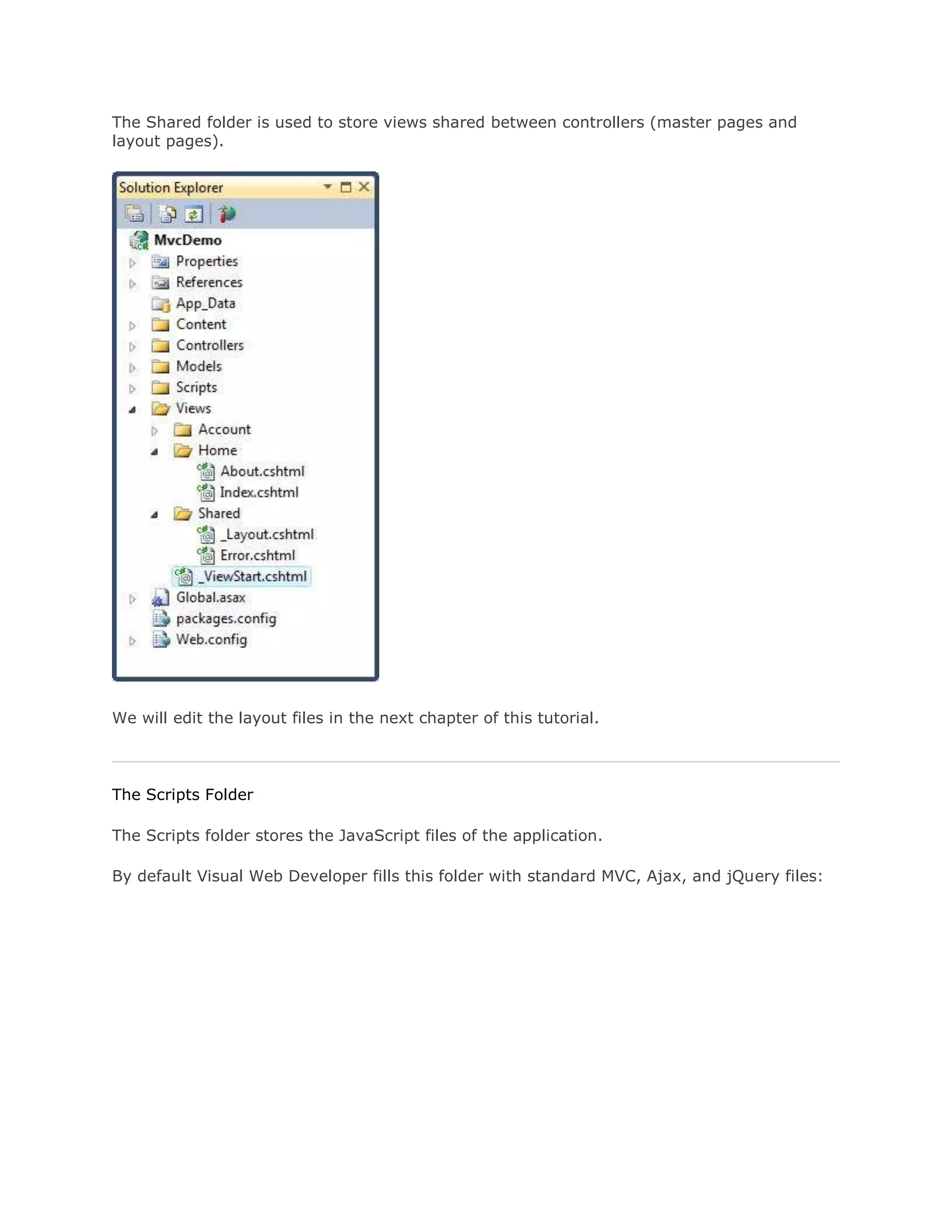

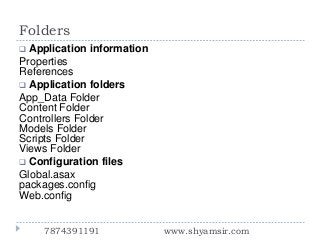

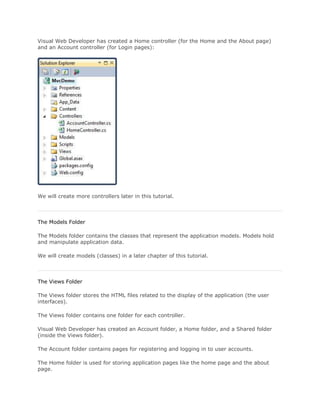

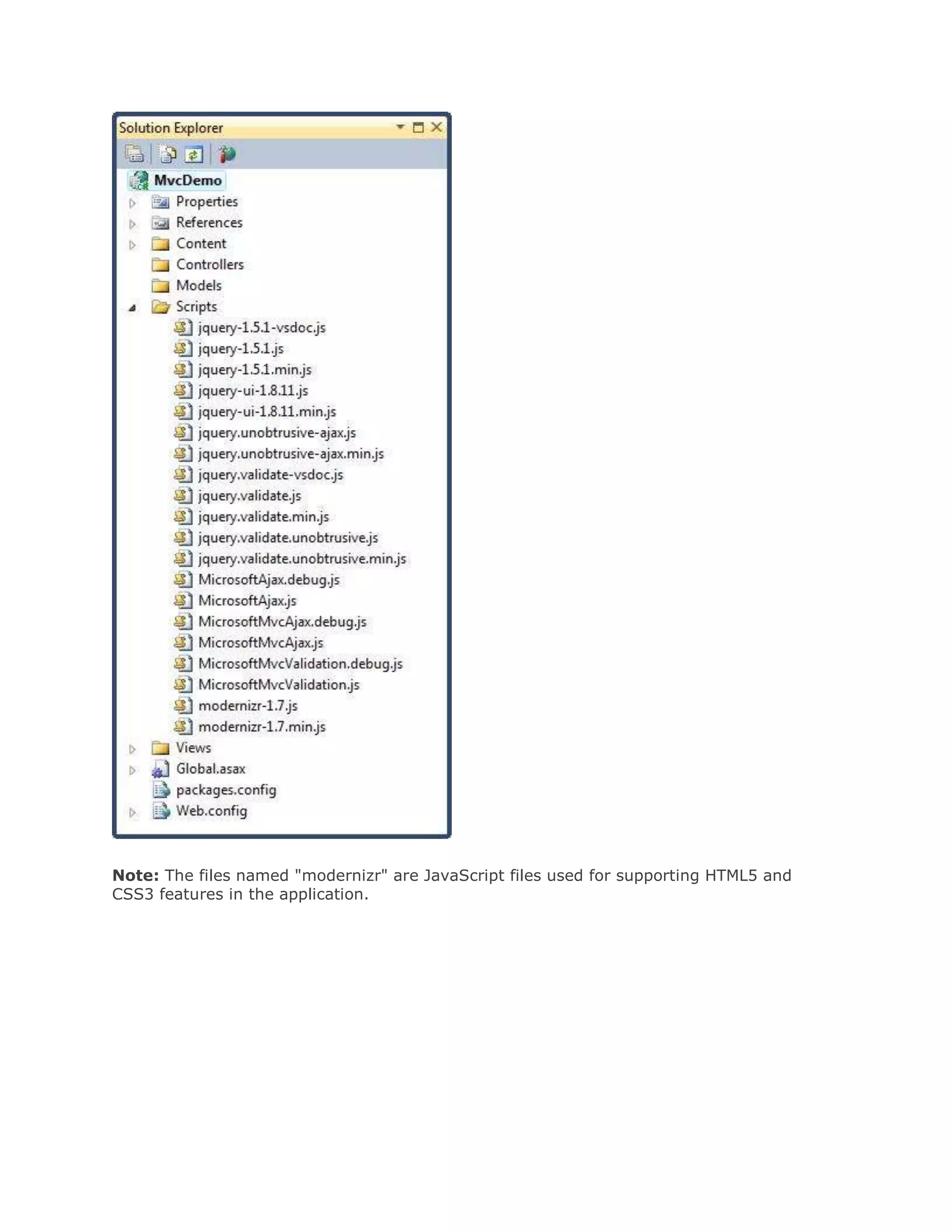

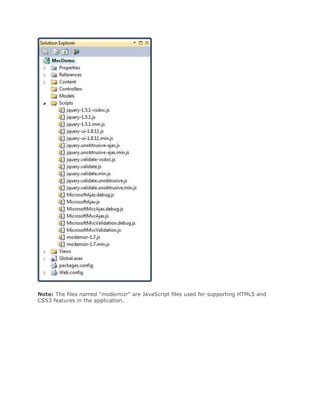

Folders
 Application information
Properties
References
 Application folders

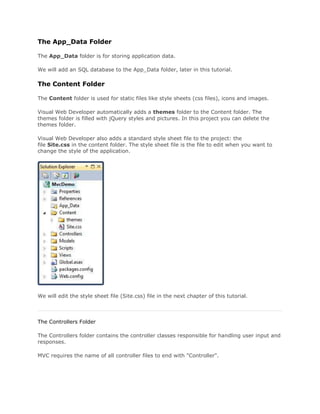

App_Data Folder
Content Folder
Controllers Folder
Models Folder
Scripts Folder
Views Folder
 Configuration files
Global.asax
packages.config
Web.config
