MVC Design in Web backend Server

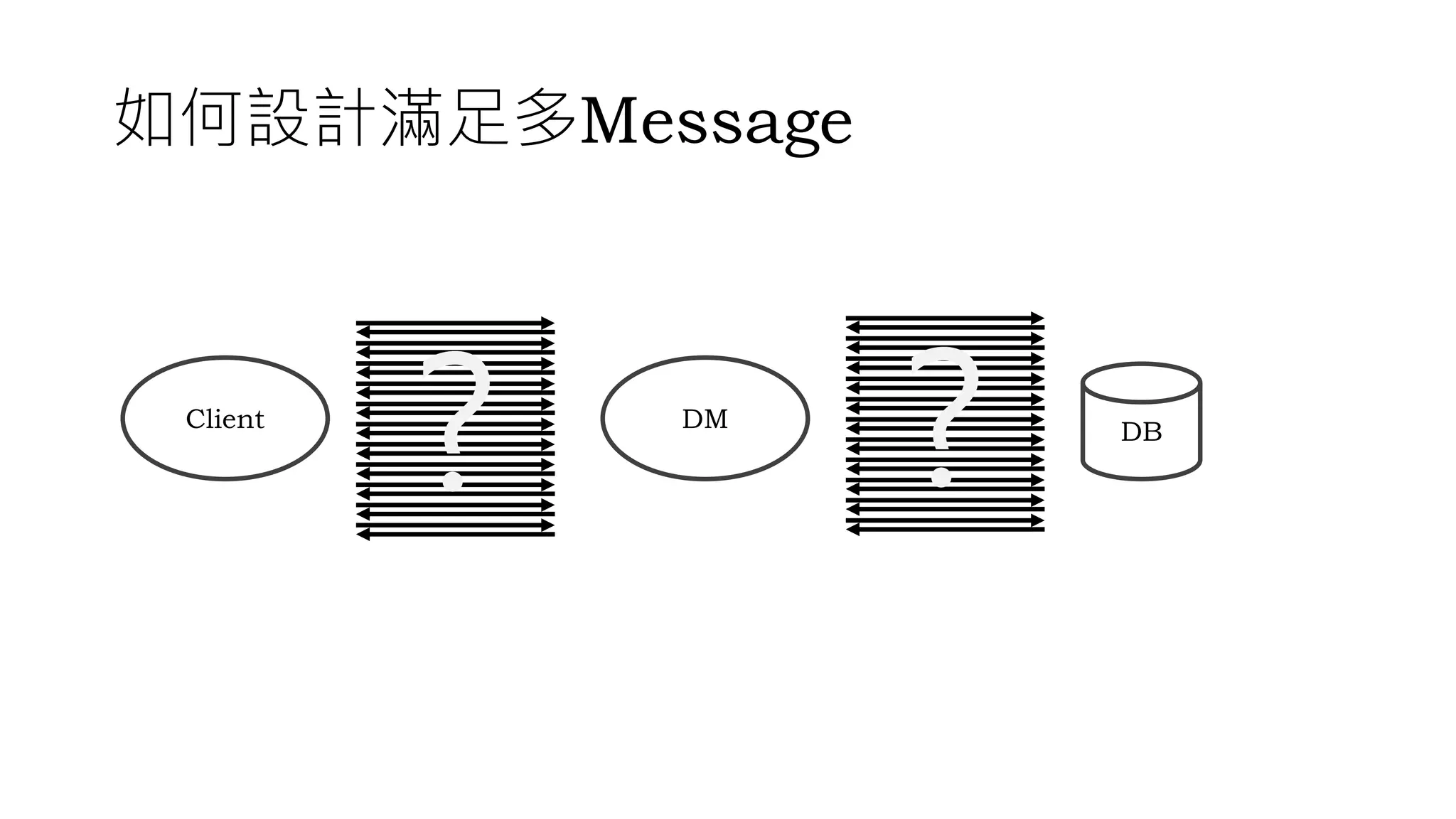

- 6. DM的設計 正片開始

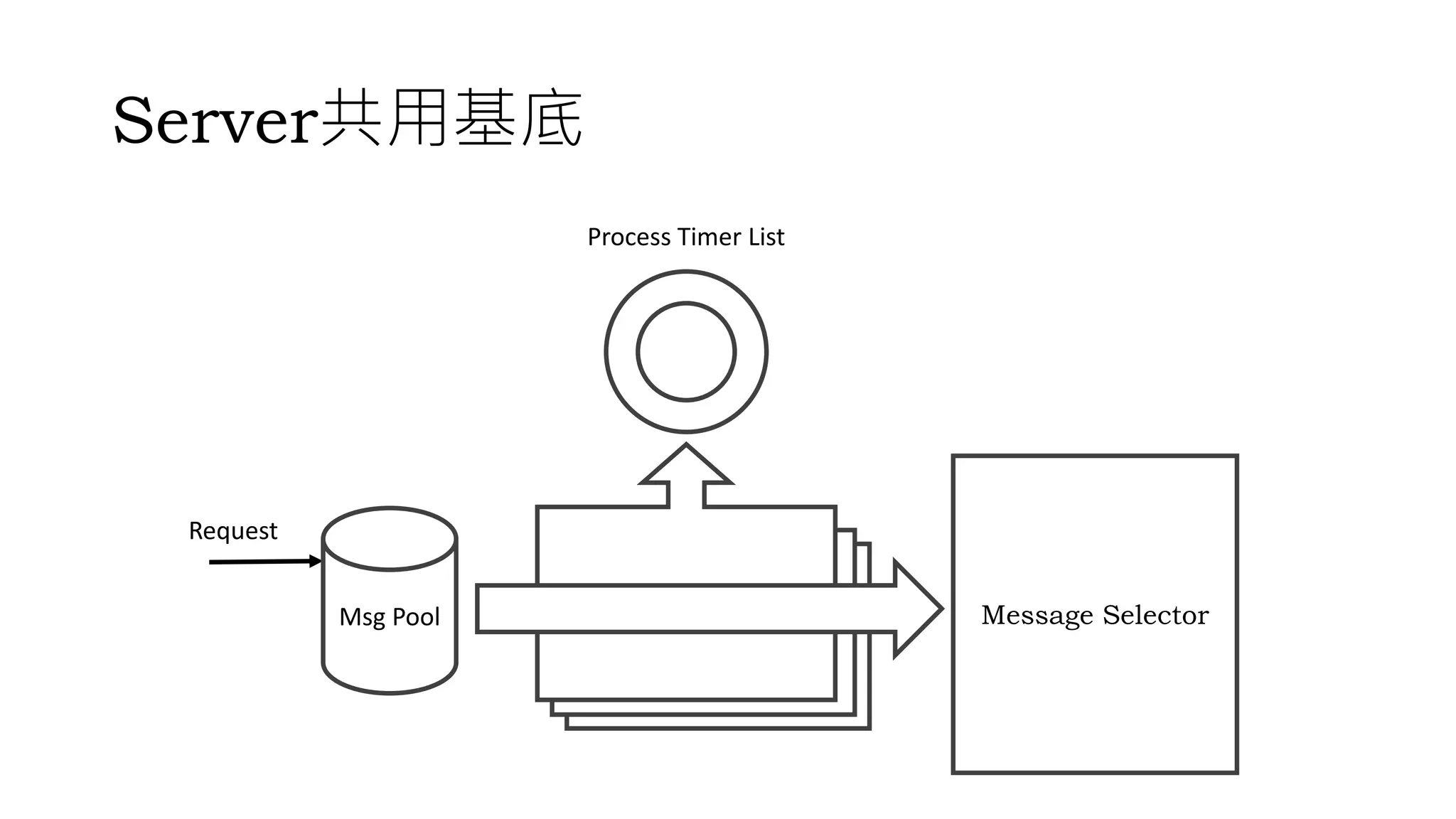

- 7. Message Selector Server共用基底 Request Msg Pool Process Timer List

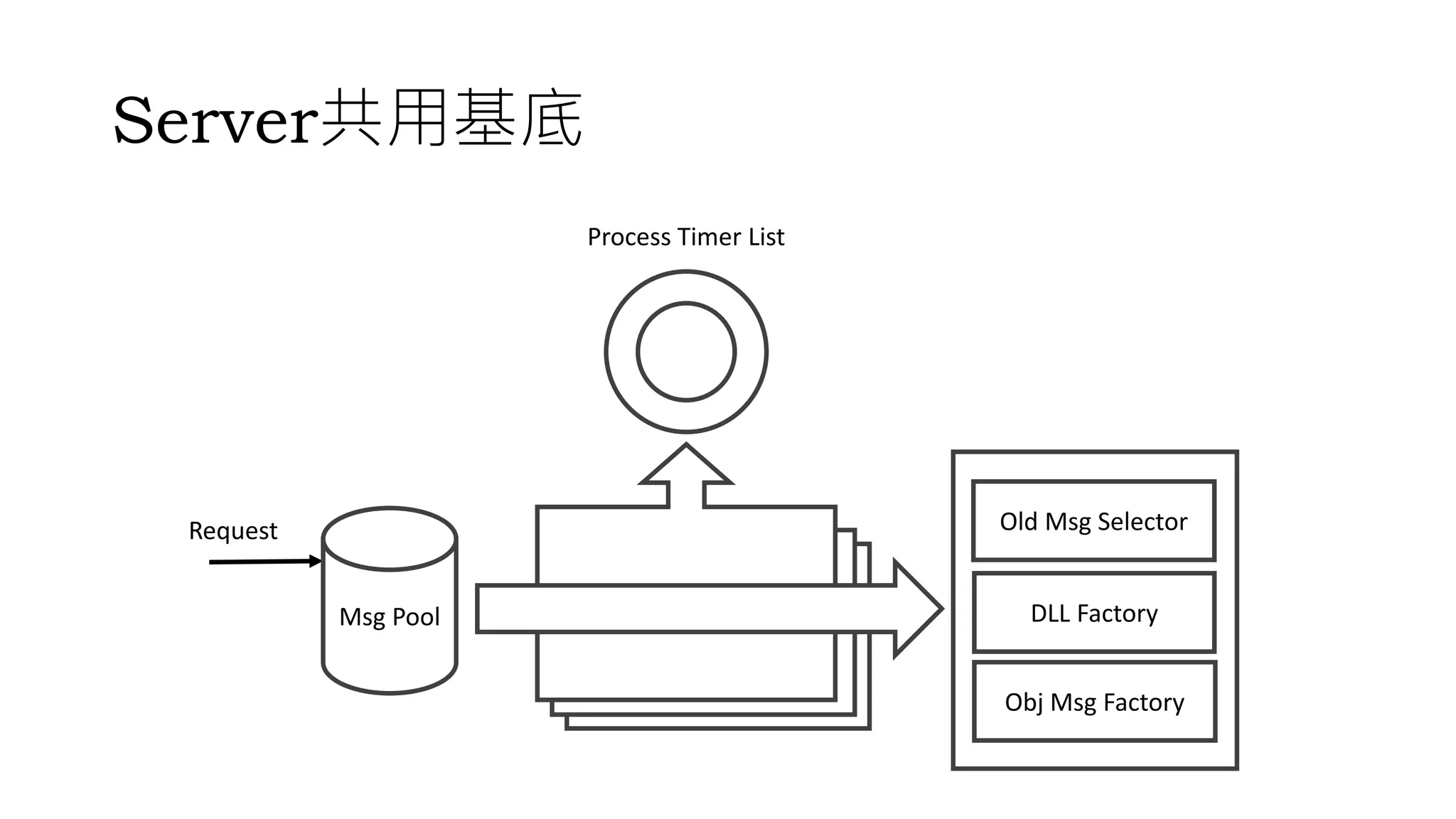

- 8. Server共用基底 Request Msg Pool Process Timer List DLL Factory Obj Msg Factory Old Msg Selector

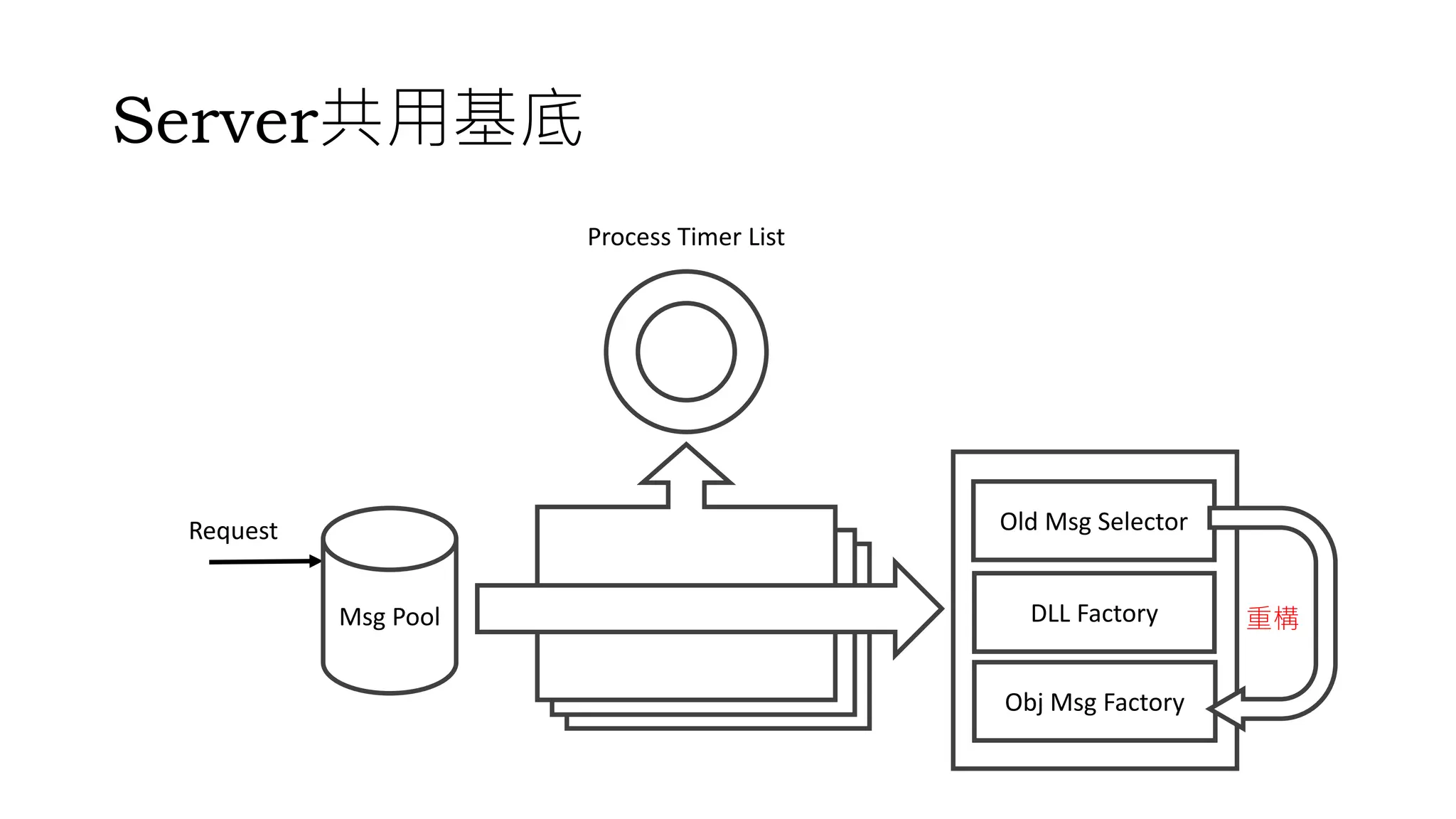

- 9. Server共用基底 Request Msg Pool Process Timer List DLL Factory Obj Msg Factory Old Msg Selector 重構

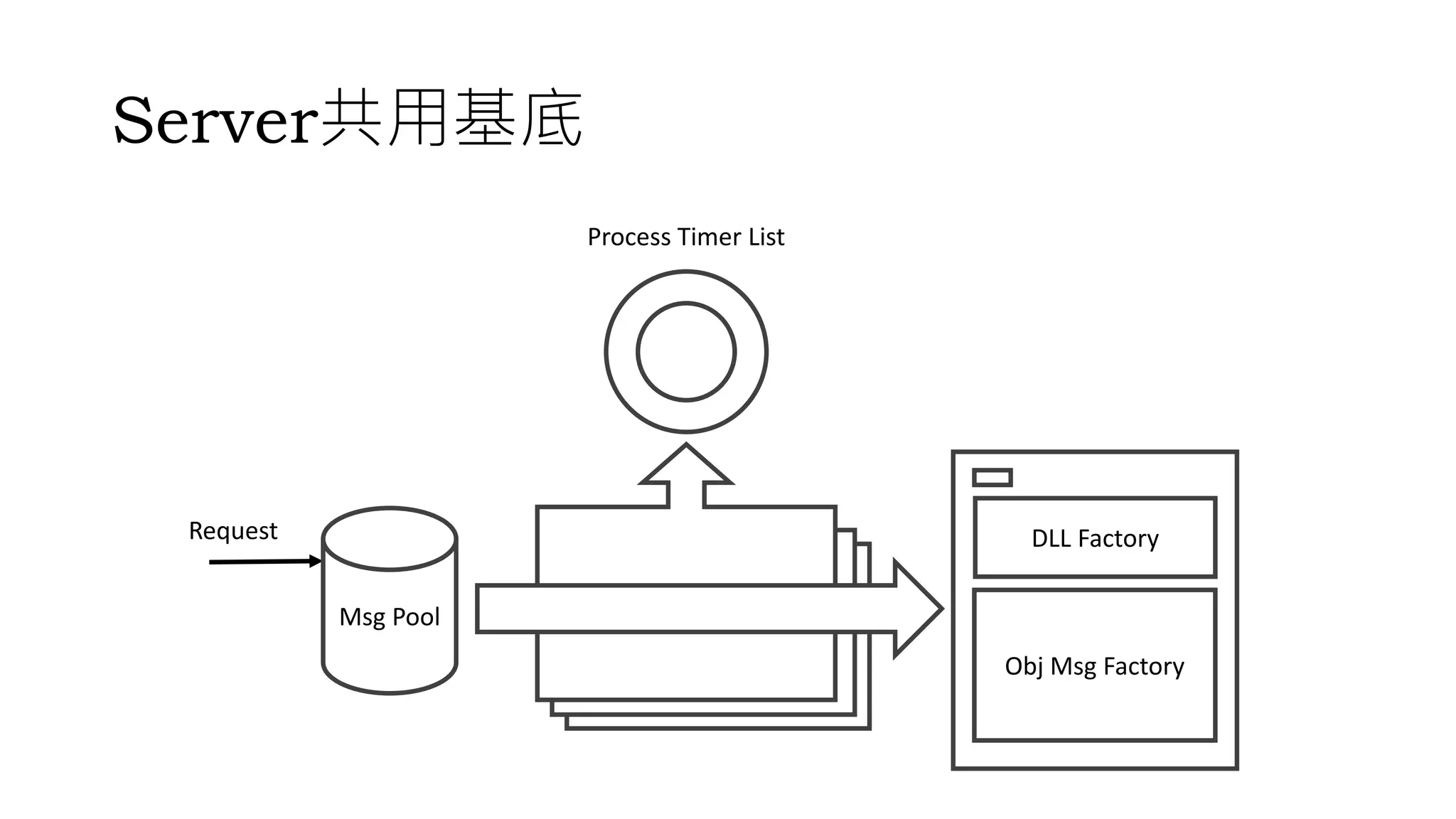

- 10. Server共用基底 Request Msg Pool Process Timer List DLL Factory Obj Msg Factory

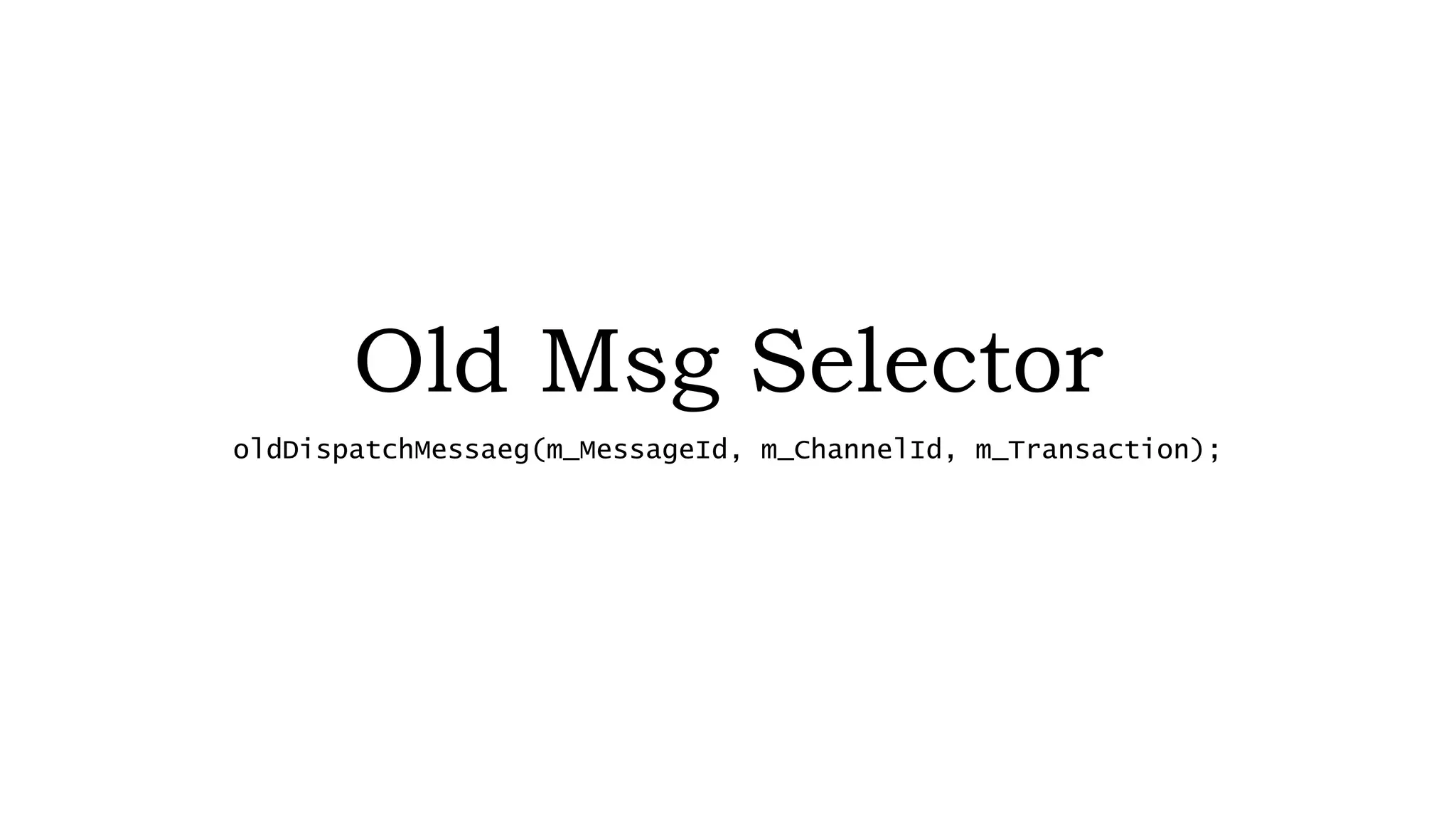

- 12. Old Msg Selector oldDispatchMessaeg(m_MessageId, m_ChannelId, m_Transaction);

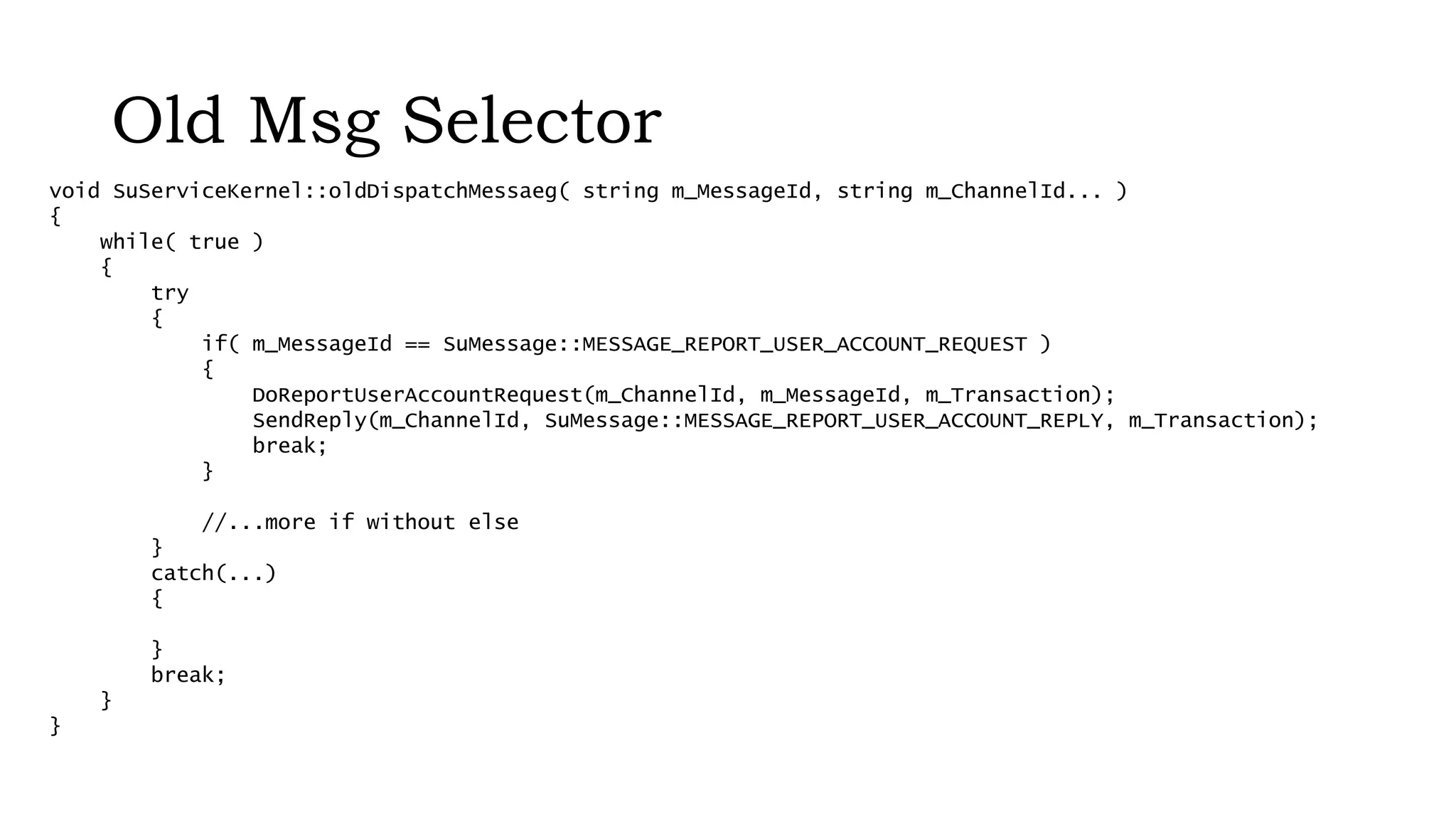

- 13. Old Msg Selector void SuServiceKernel::oldDispatchMessaeg( string m_MessageId, string m_ChannelId... ) { while( true ) { try { if( m_MessageId == SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REQUEST ) { DoReportUserAccountRequest(m_ChannelId, m_MessageId, m_Transaction); SendReply(m_ChannelId, SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REPLY, m_Transaction); break; } //...more if without else } catch(...) { } break; } }

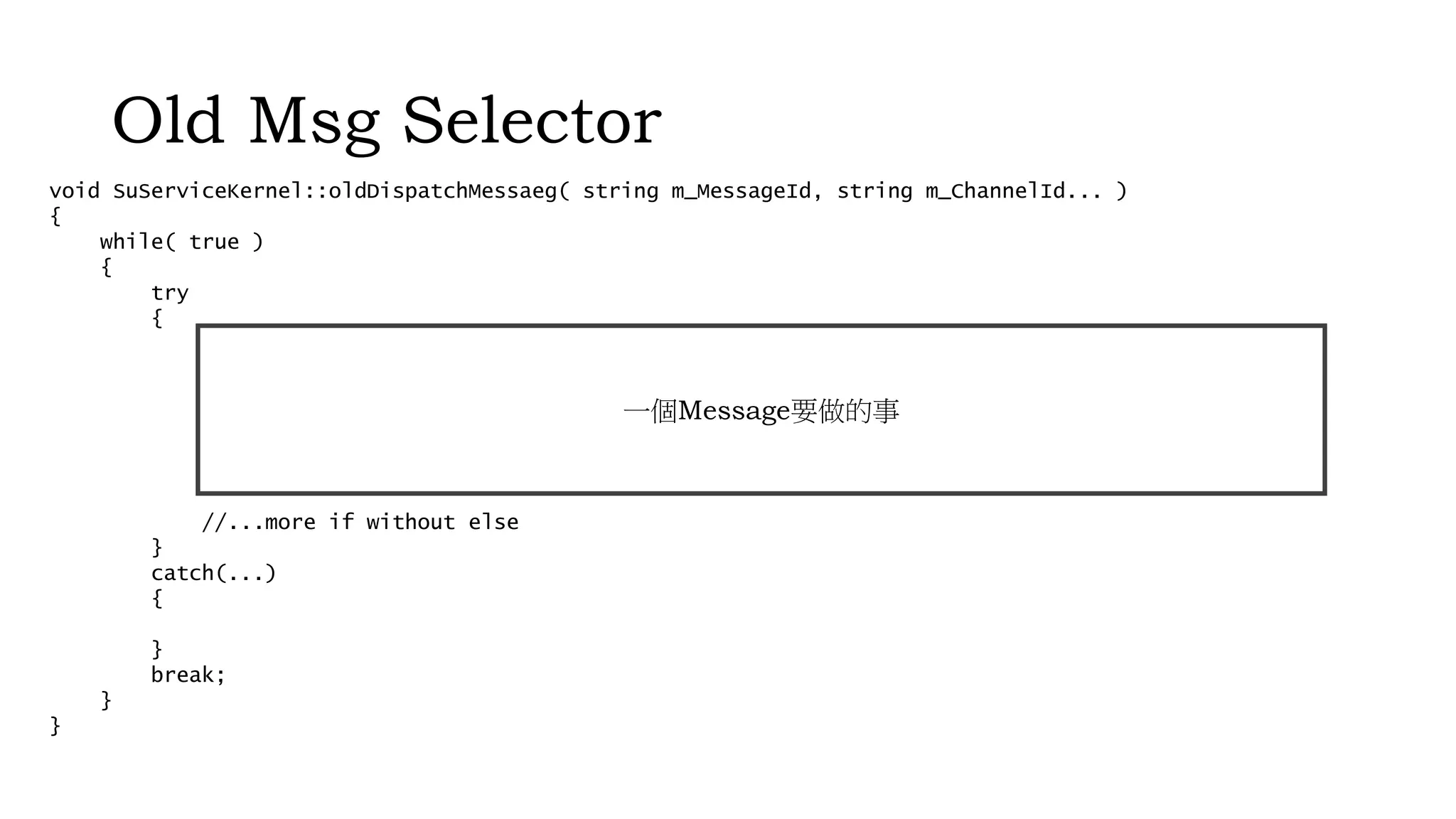

- 14. Old Msg Selector void SuServiceKernel::oldDispatchMessaeg( string m_MessageId, string m_ChannelId... ) { while( true ) { try { if( m_MessageId == SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REQUEST ) { DoReportUserAccountRequest(m_ChannelId, m_MessageId, m_Transaction); SendReply(m_ChannelId, SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REPLY, m_Transaction); break; } //...more if without else } catch(...) { } break; } } 一個Message要做的事

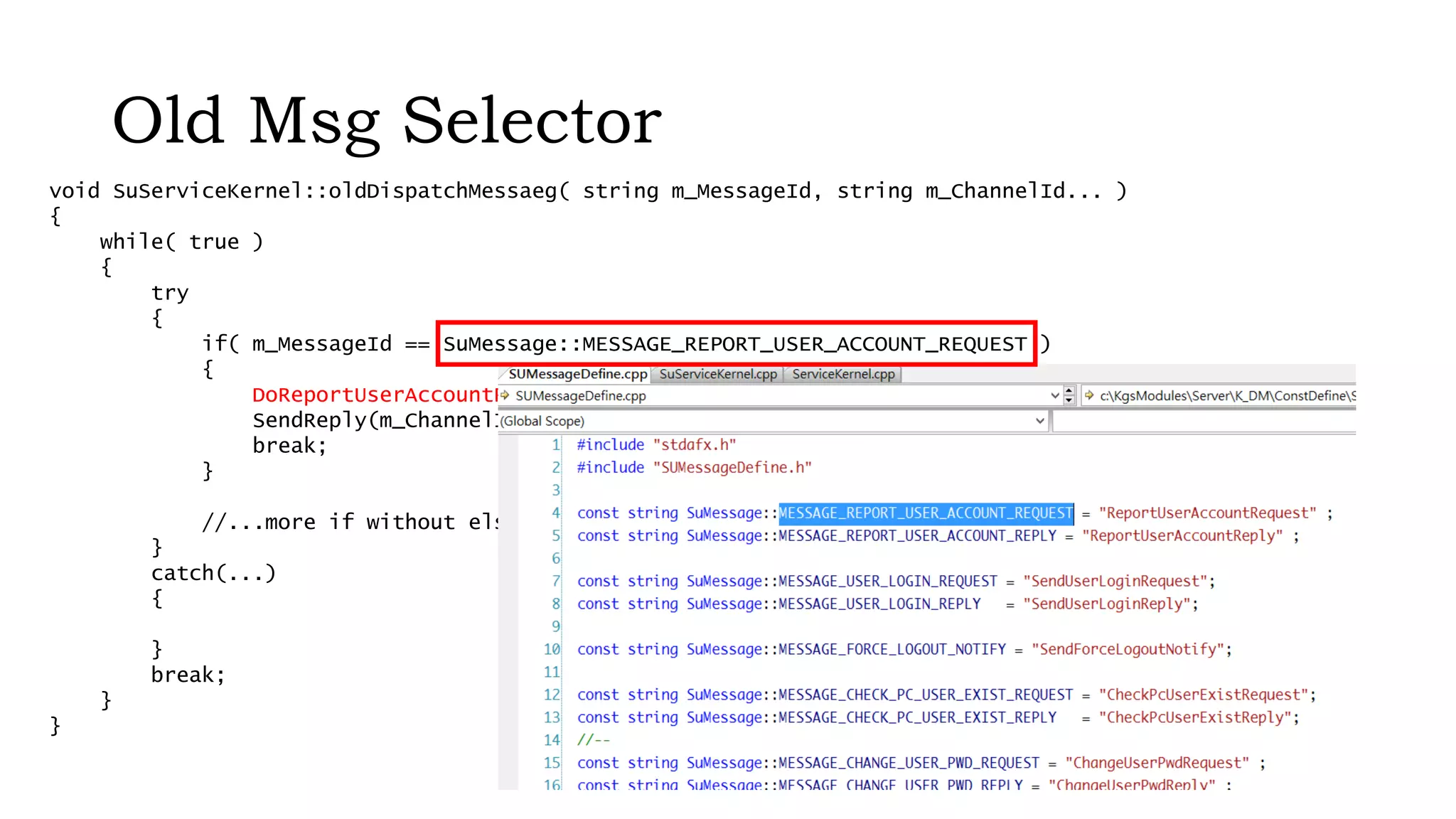

- 15. Old Msg Selector void SuServiceKernel::oldDispatchMessaeg( string m_MessageId, string m_ChannelId... ) { while( true ) { try { if( m_MessageId == SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REQUEST ) { DoReportUserAccountRequest(m_ChannelId, m_MessageId, m_Transaction); SendReply(m_ChannelId, SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REPLY, m_Transaction); break; } //...more if without else } catch(...) { } break; } }

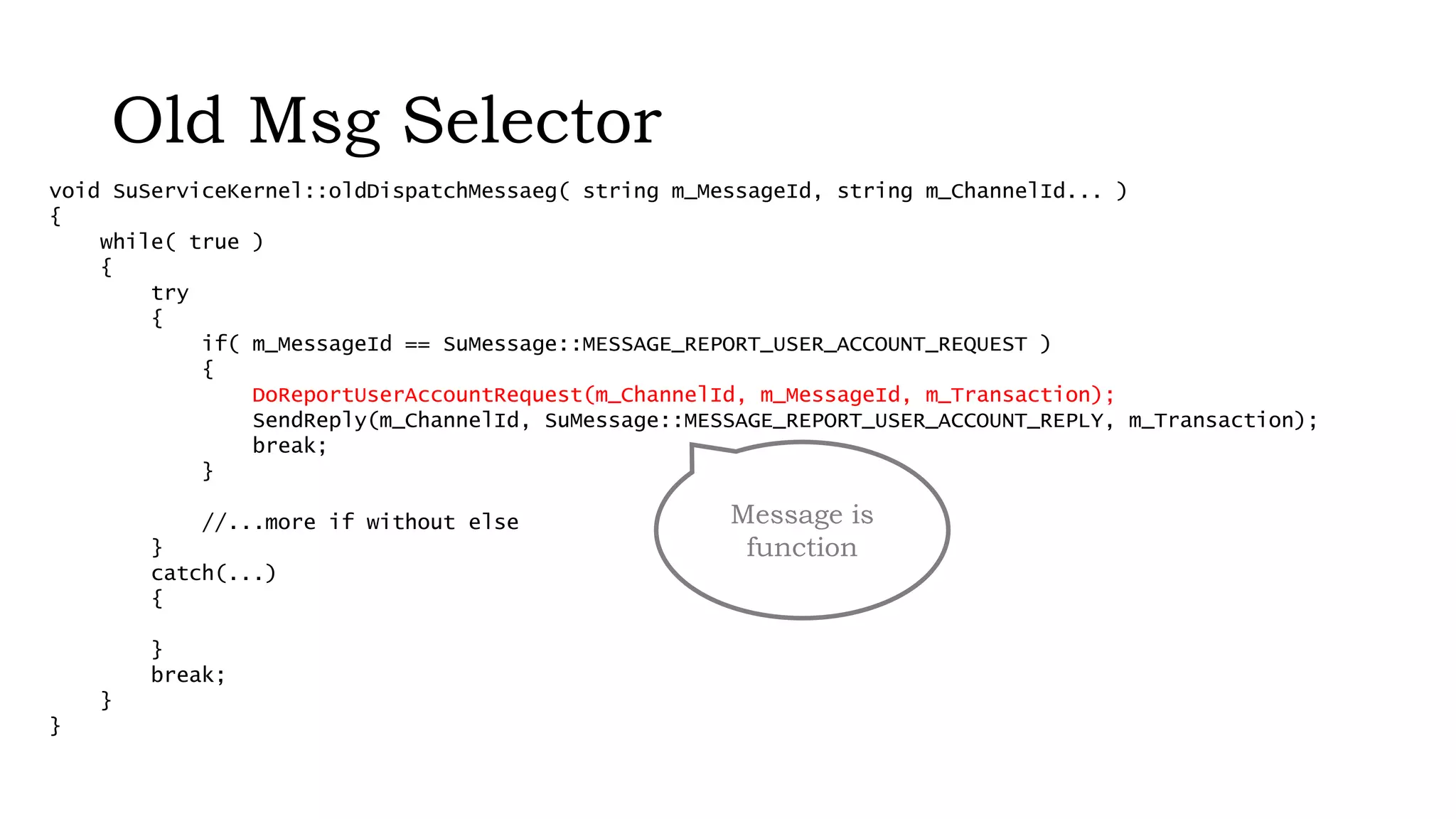

- 16. Old Msg Selector void SuServiceKernel::oldDispatchMessaeg( string m_MessageId, string m_ChannelId... ) { while( true ) { try { if( m_MessageId == SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REQUEST ) { DoReportUserAccountRequest(m_ChannelId, m_MessageId, m_Transaction); SendReply(m_ChannelId, SuMessage::MESSAGE_REPORT_USER_ACCOUNT_REPLY, m_Transaction); break; } //...more if without else } catch(...) { } break; } } Message is function

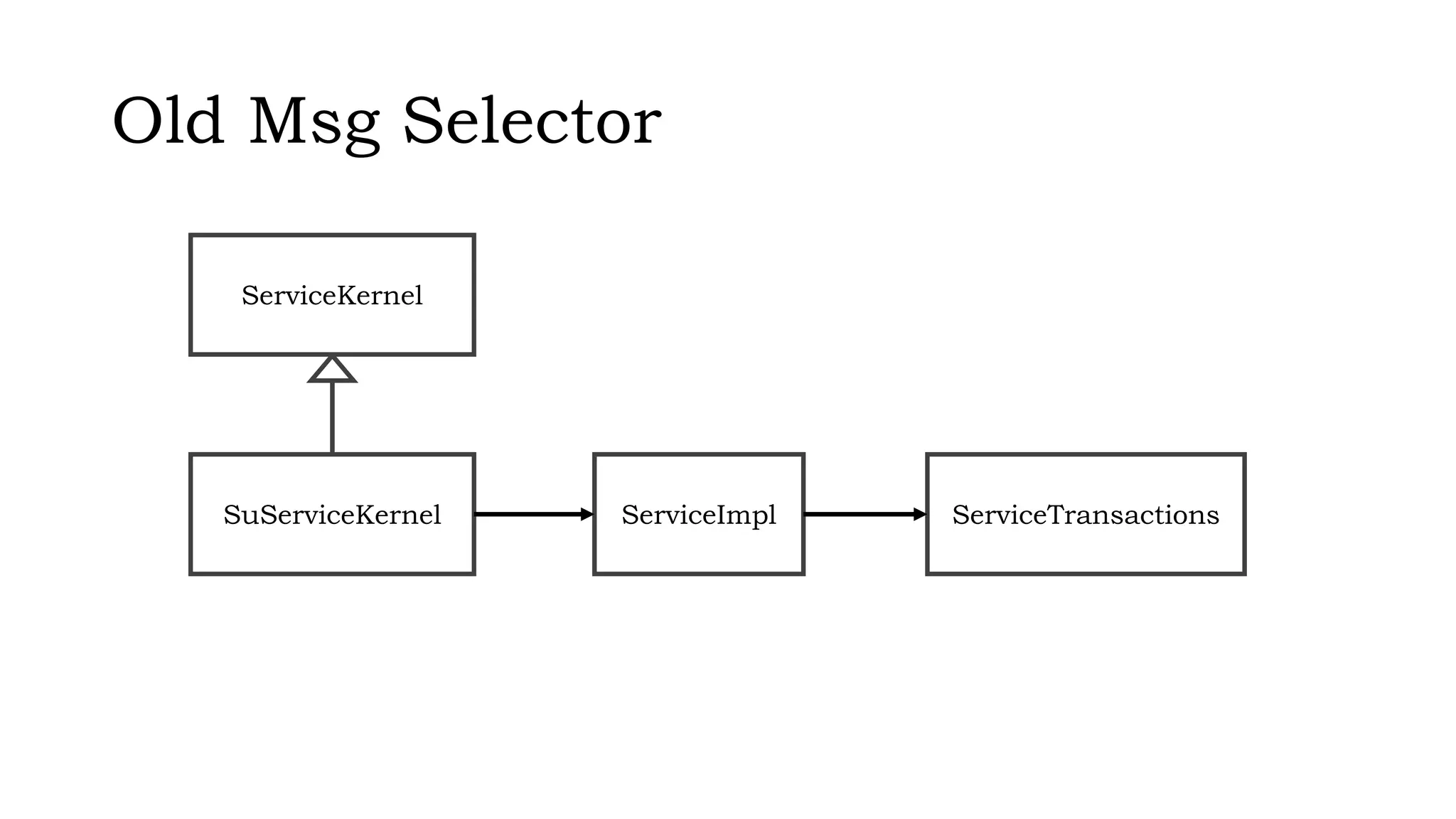

- 17. Old Msg Selector SuServiceKernel ServiceImpl ServiceTransactions ServiceKernel

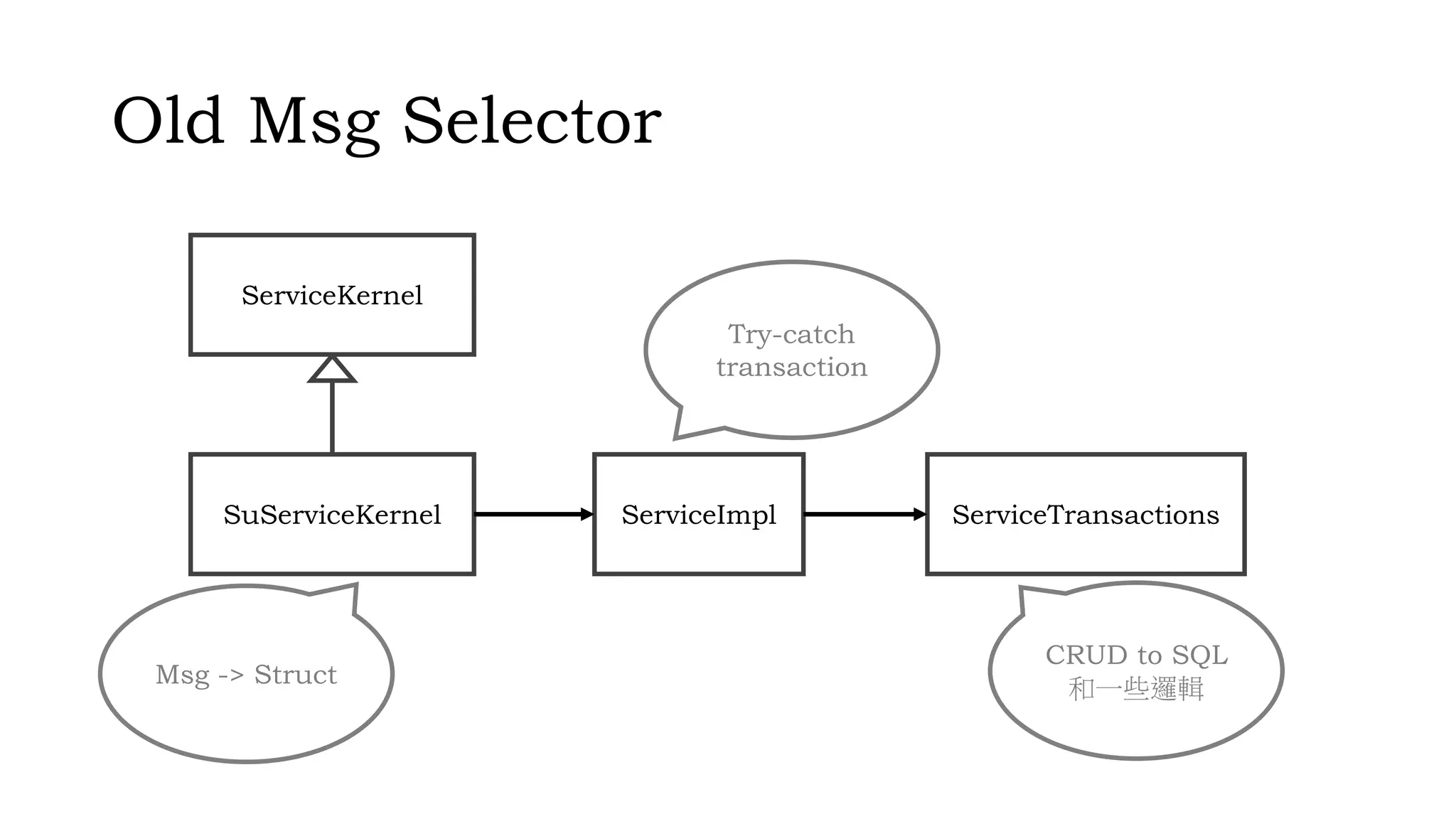

- 18. Old Msg Selector SuServiceKernel ServiceImpl ServiceKernel Msg -> Struct Try-catch transaction CRUD to SQL 和一些邏輯 ServiceTransactions

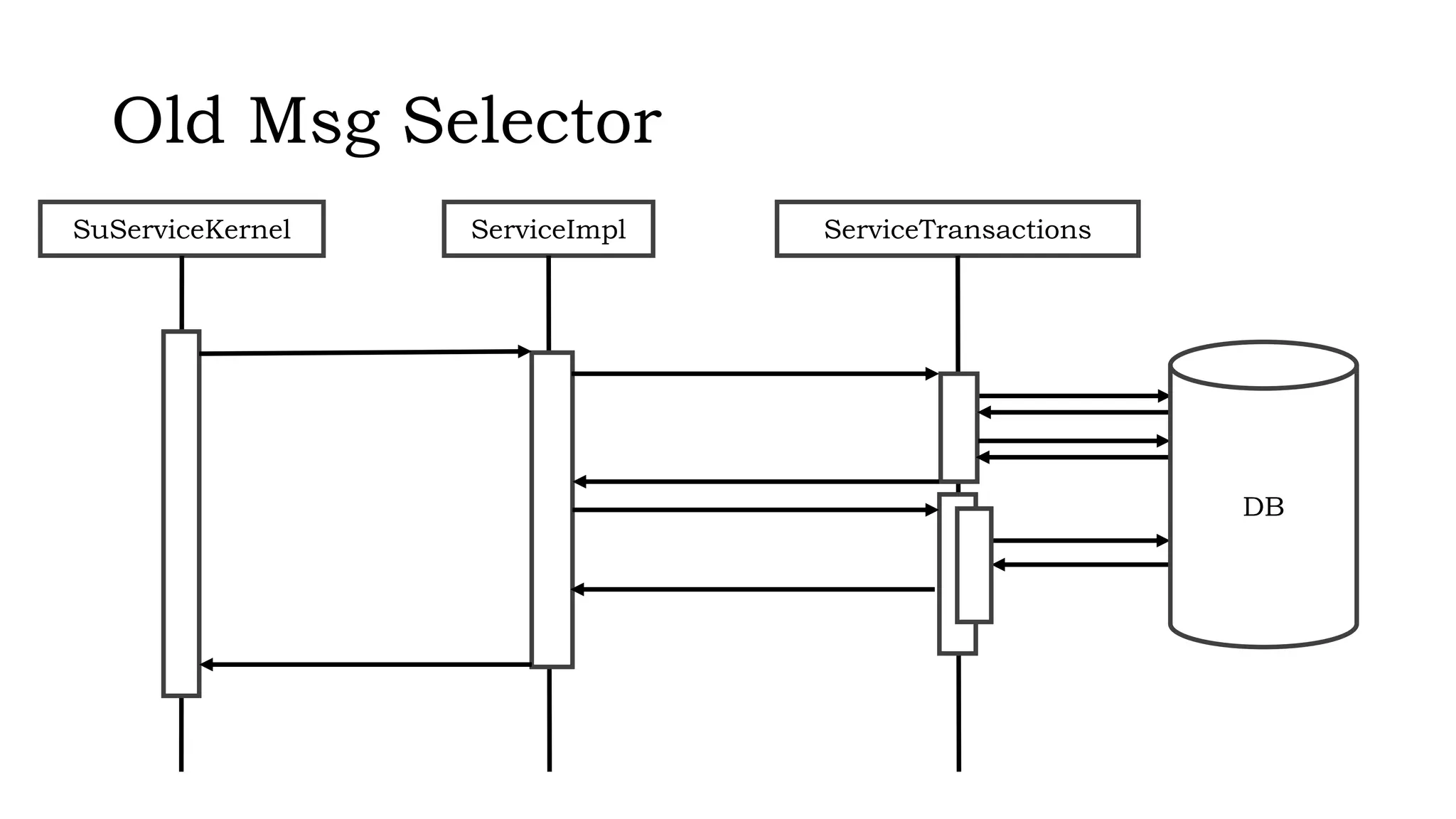

- 19. Old Msg Selector SuServiceKernel ServiceImpl ServiceTransactions DB

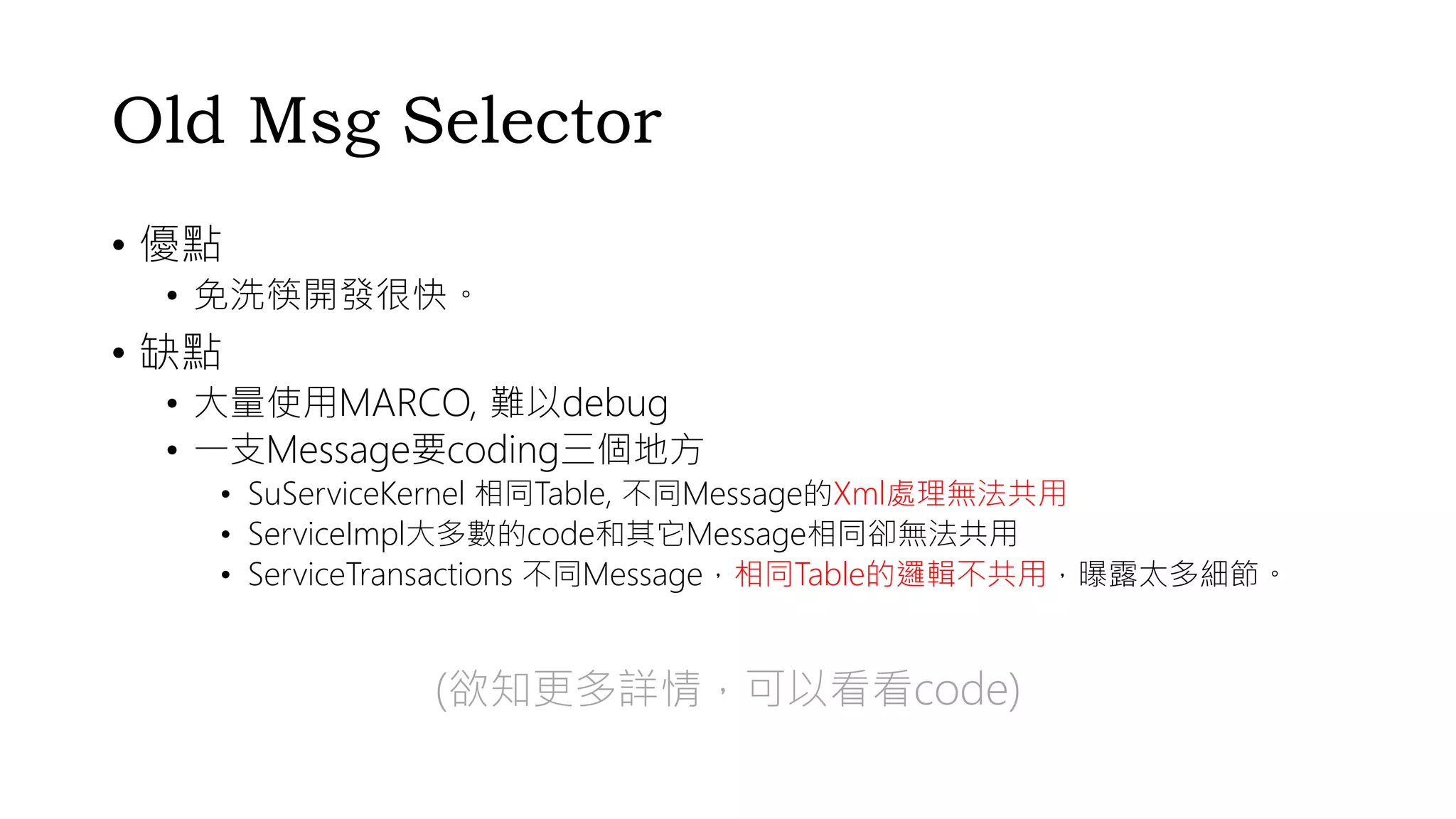

- 21. Old Msg Selector • 優點 • 免洗筷開發很快。 • 缺點 • 大量使用MARCO, 難以debug • 一支Message要coding三個地方 • SuServiceKernel 相同Table, 不同Message的Xml處理無法共用 • ServiceImpl大多數的code和其它Message相同卻無法共用 • ServiceTransactions 不同Message，相同Table的邏輯不共用，曝露太多細節。 (欲知更多詳情，可以看看code)

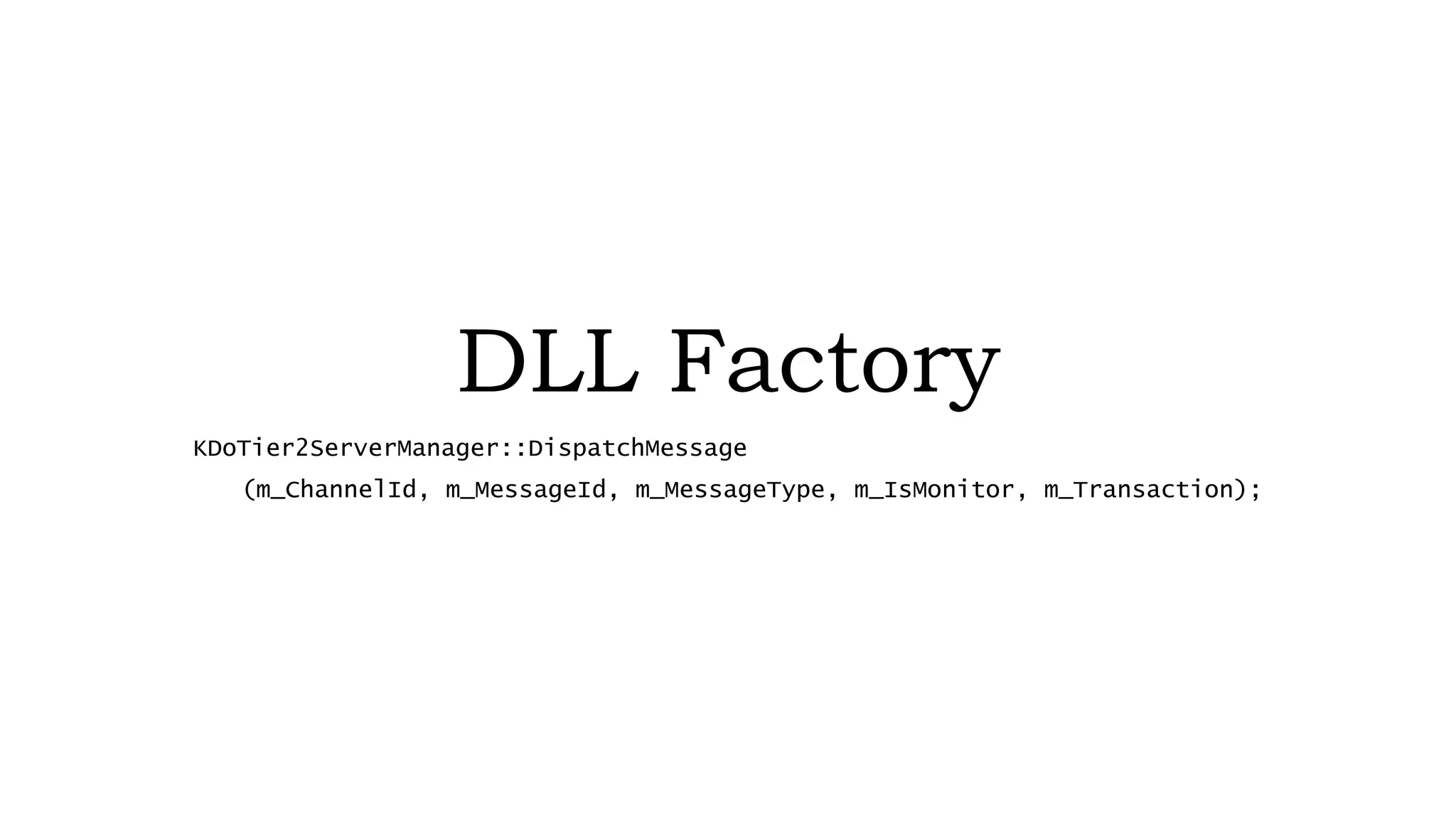

- 22. DLL Factory KDoTier2ServerManager::DispatchMessage (m_ChannelId, m_MessageId, m_MessageType, m_IsMonitor, m_Transaction);

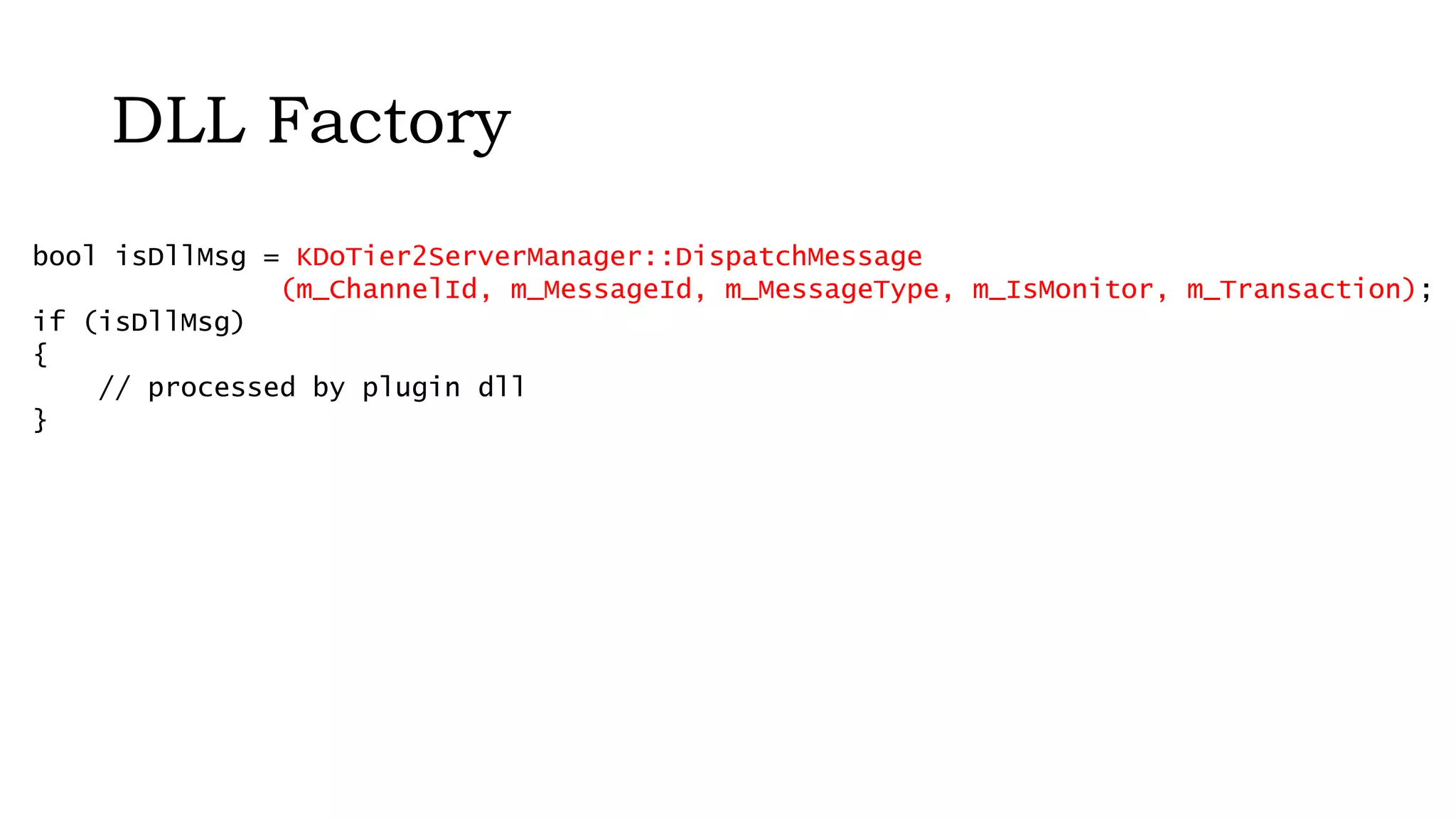

- 23. DLL Factory bool isDllMsg = KDoTier2ServerManager::DispatchMessage (m_ChannelId, m_MessageId, m_MessageType, m_IsMonitor, m_Transaction); if (isDllMsg) { // processed by plugin dll }
- 24. DLL Factory • 有興趣再來聊聊二次開發吧 • 其它的細節都在KgsLib • 優點 • 分散編譯負擔 • 隔離Server共用基礎實作與Message實作 • 缺點 • debug比較辛苦(要掛載執行檔才可以對dll做debug)

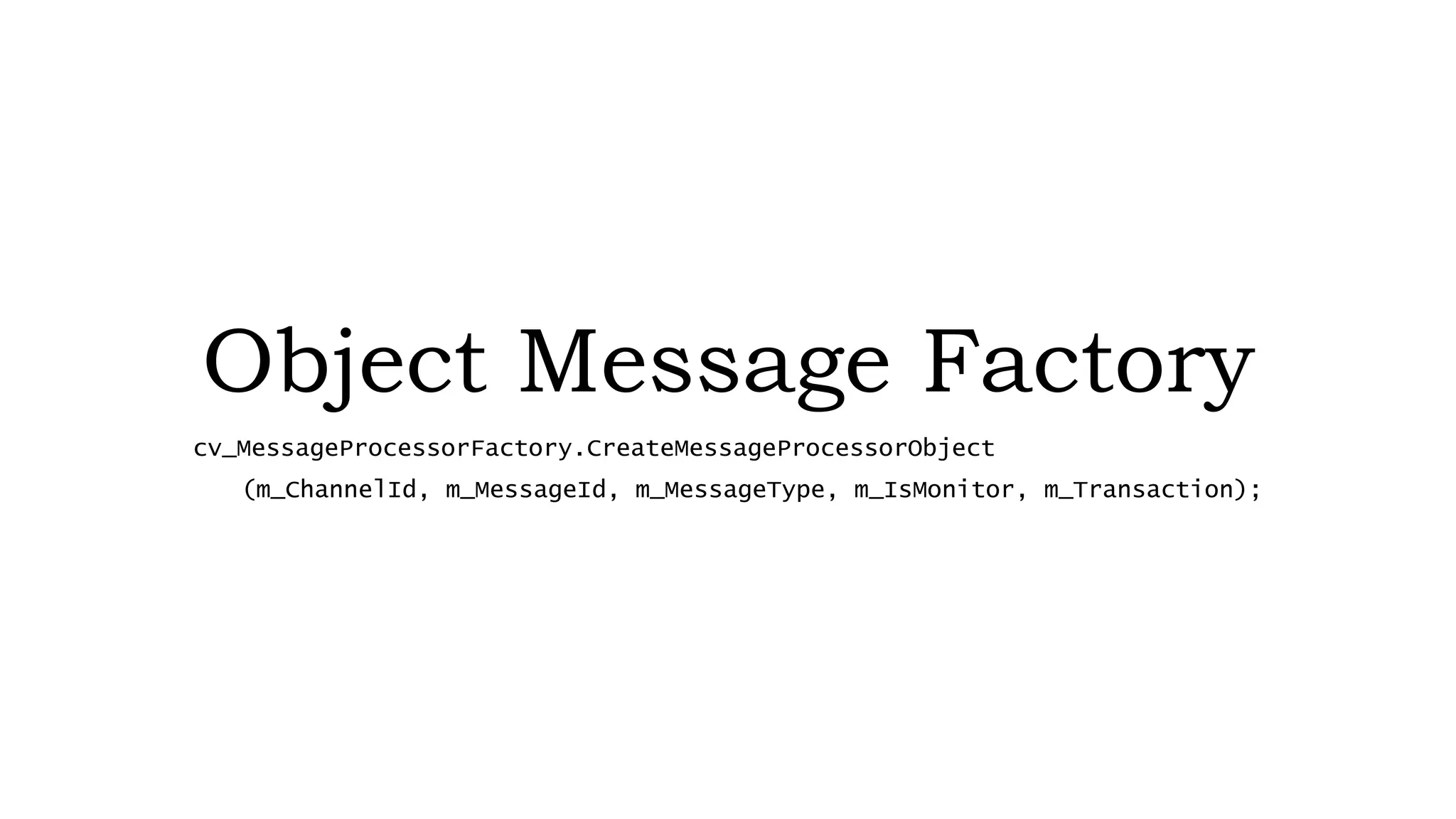

- 25. Object Message Factory cv_MessageProcessorFactory.CreateMessageProcessorObject (m_ChannelId, m_MessageId, m_MessageType, m_IsMonitor, m_Transaction);

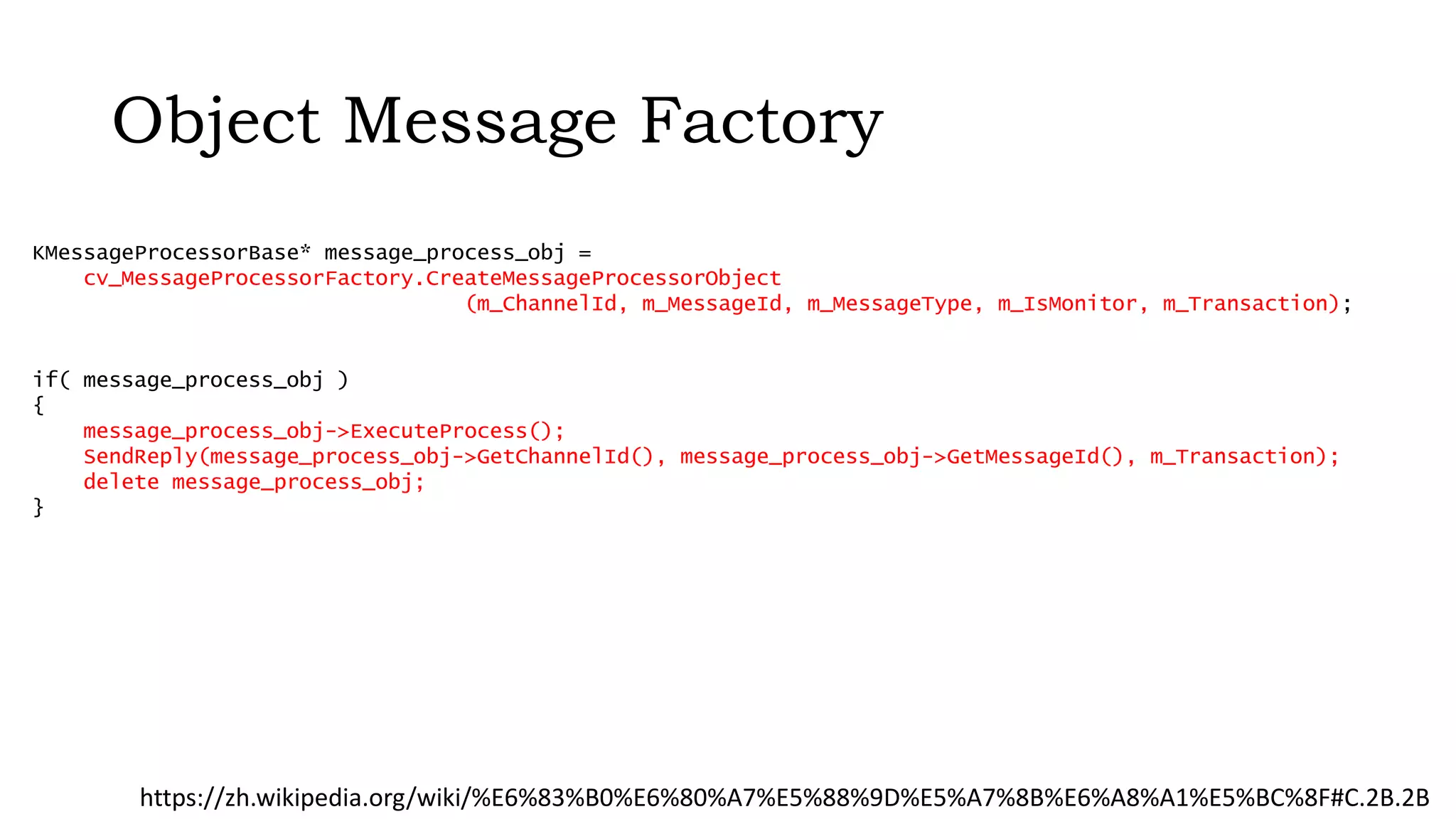

- 26. Object Message Factory KMessageProcessorBase* message_process_obj = cv_MessageProcessorFactory.CreateMessageProcessorObject (m_ChannelId, m_MessageId, m_MessageType, m_IsMonitor, m_Transaction); if( message_process_obj ) { message_process_obj->ExecuteProcess(); SendReply(message_process_obj->GetChannelId(), message_process_obj->GetMessageId(), m_Transaction); delete message_process_obj; } https://zh.wikipedia.org/wiki/%E6%83%B0%E6%80%A7%E5%88%9D%E5%A7%8B%E6%A8%A1%E5%BC%8F#C.2B.2B

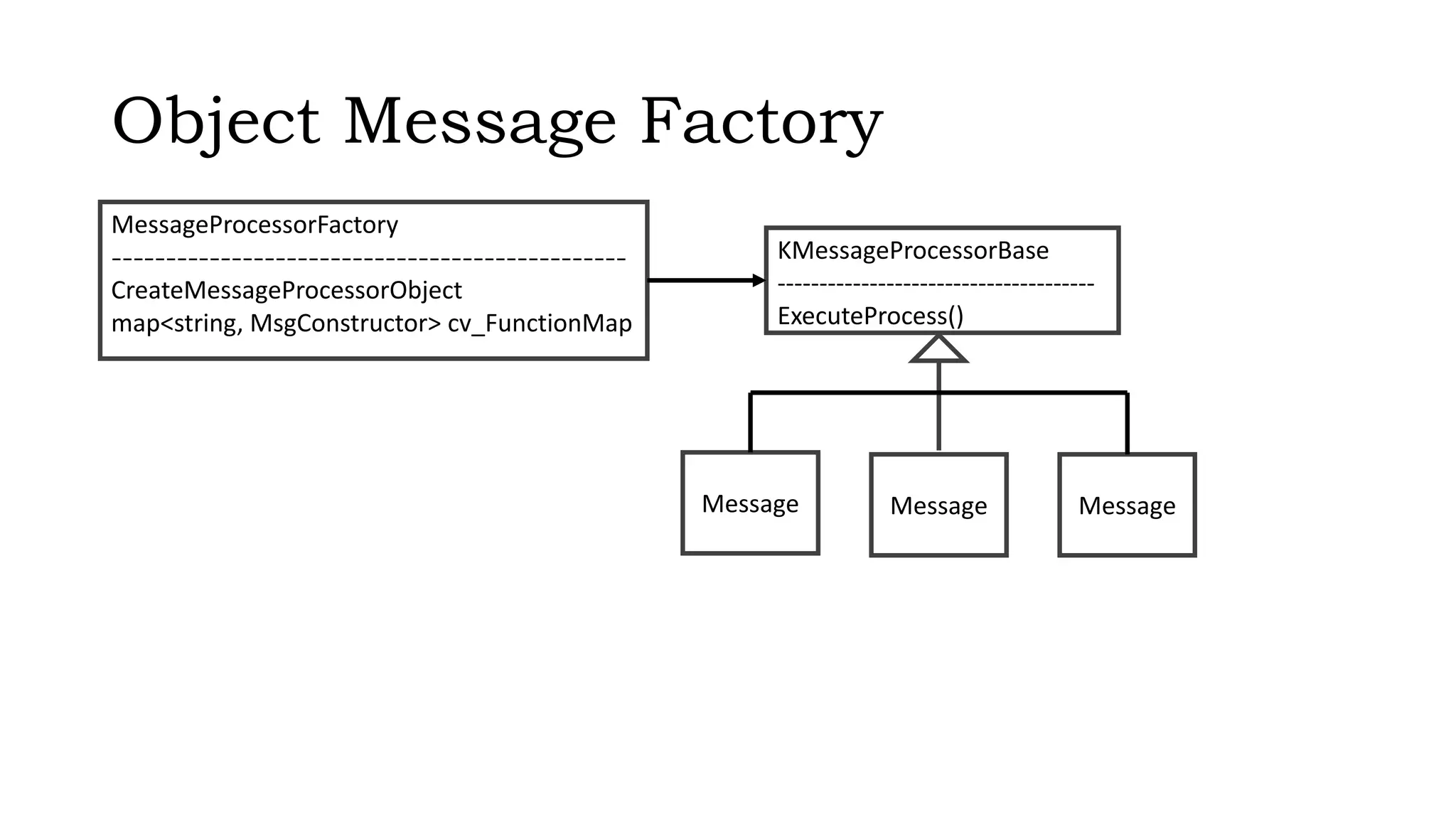

- 27. Object Message Factory MessageProcessorFactory ----------------------------------------------- CreateMessageProcessorObject map<string, MsgConstructor> cv_FunctionMap KMessageProcessorBase -------------------------------------- ExecuteProcess() Message MessageMessage

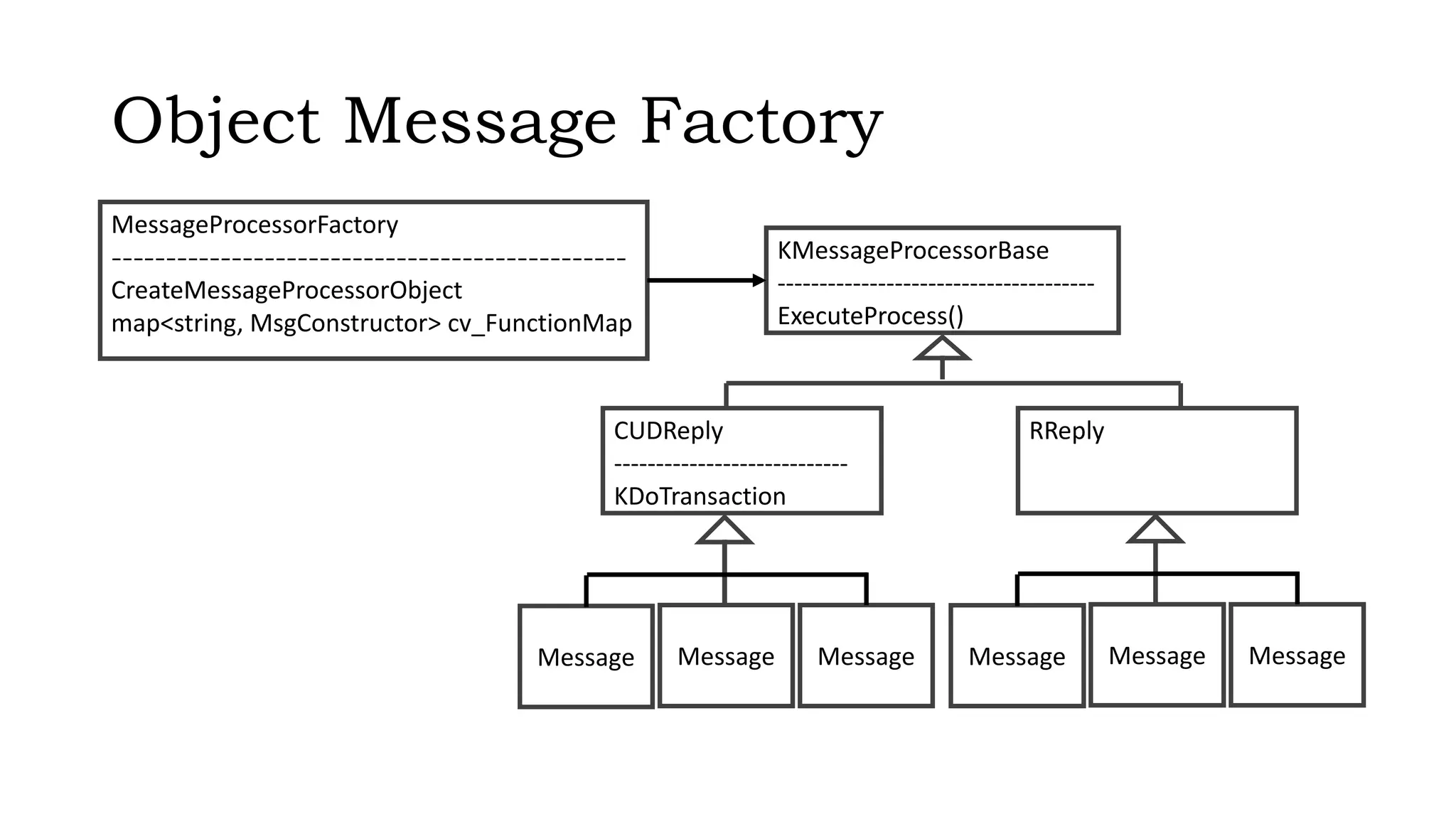

- 28. Object Message Factory CUDReply ---------------------------- KDoTransaction RReply MessageProcessorFactory ----------------------------------------------- CreateMessageProcessorObject map<string, MsgConstructor> cv_FunctionMap KMessageProcessorBase -------------------------------------- ExecuteProcess() Message MessageMessageMessage MessageMessage

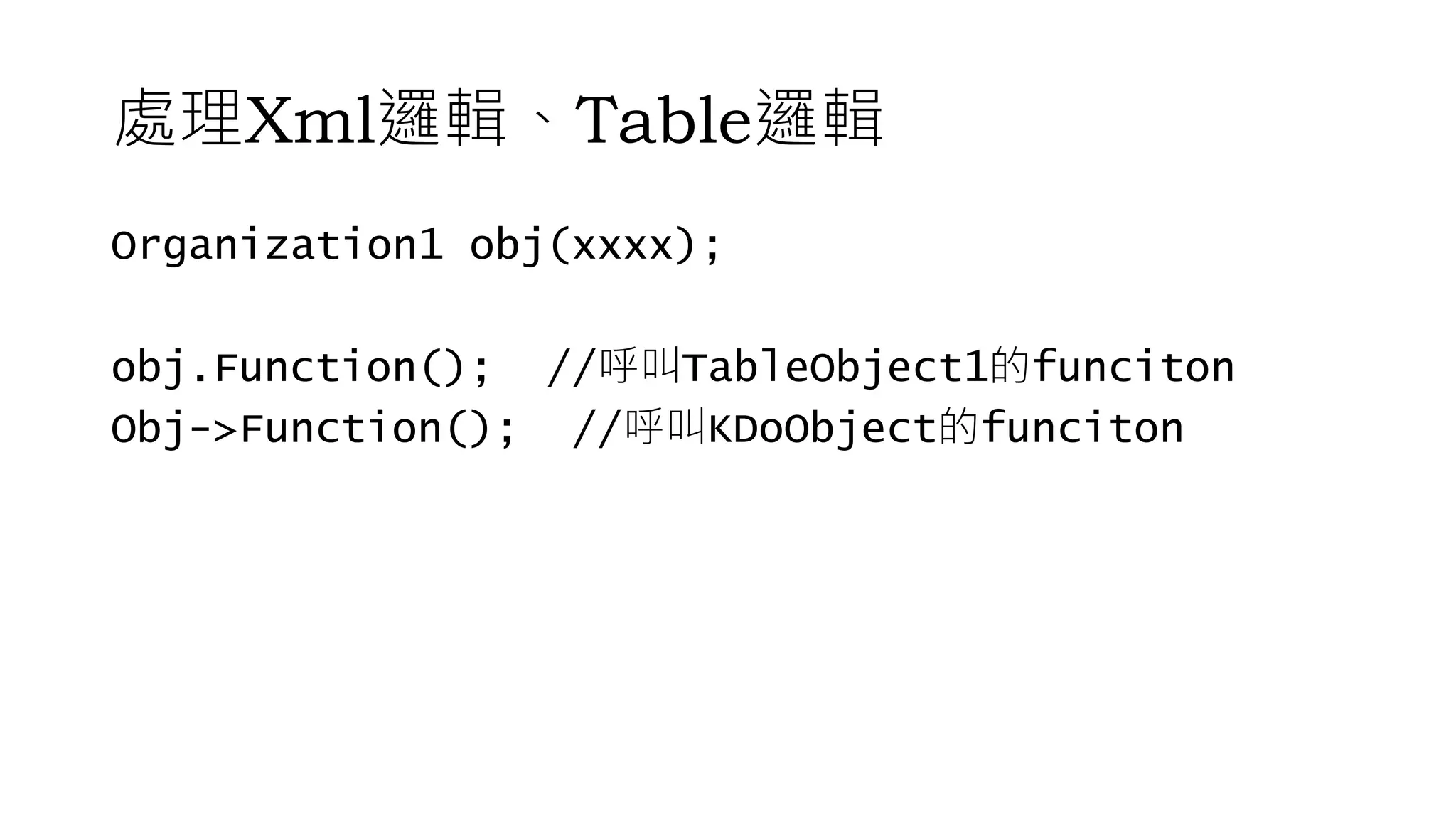

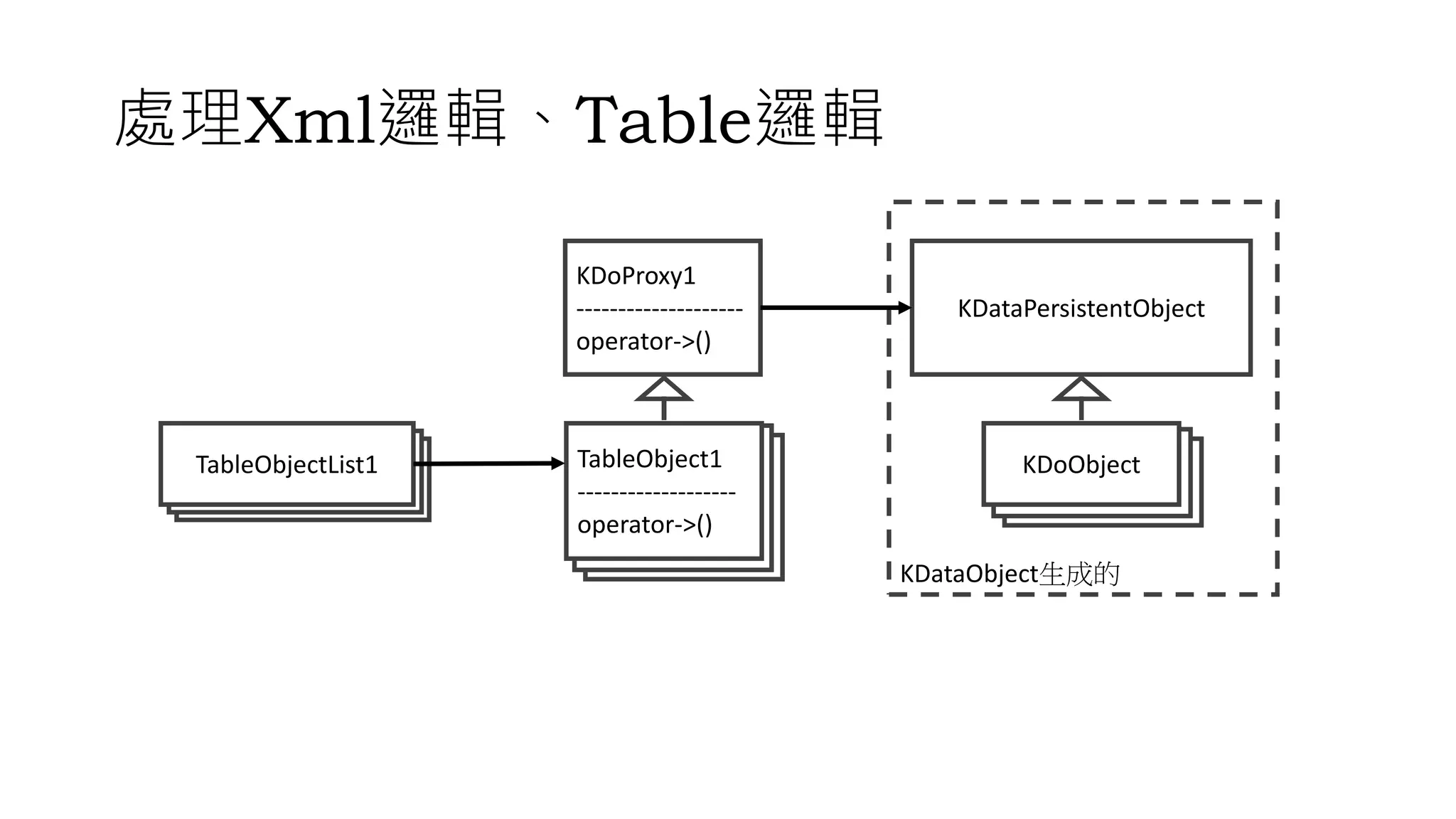

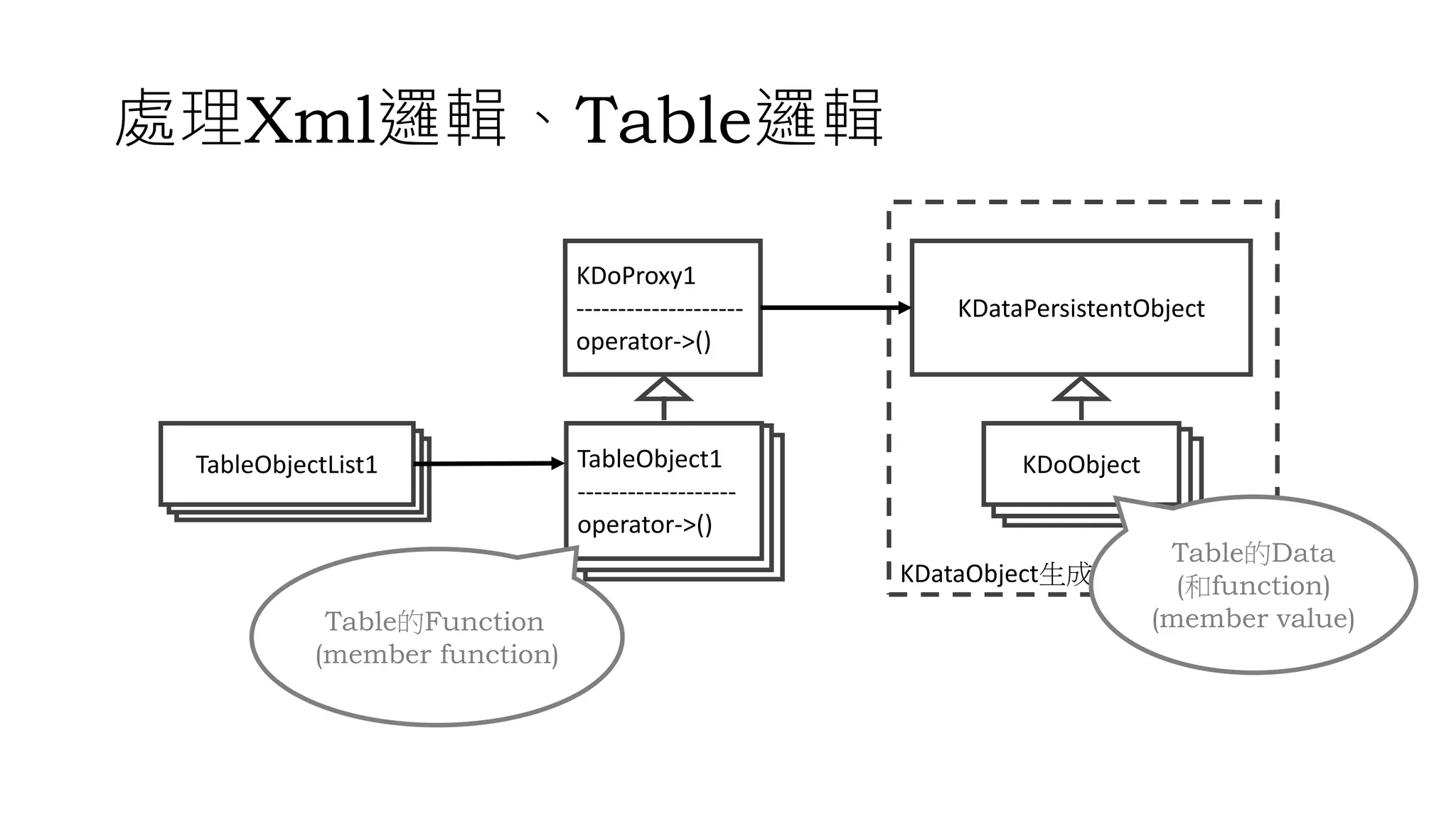

- 32. 處理Xml邏輯、Table邏輯 Organization1 obj(xxxx); obj.Function(); //呼叫TableObject1的funciton Obj->Function(); //呼叫KDoObject的funciton
- 34. TableObject1 先說說

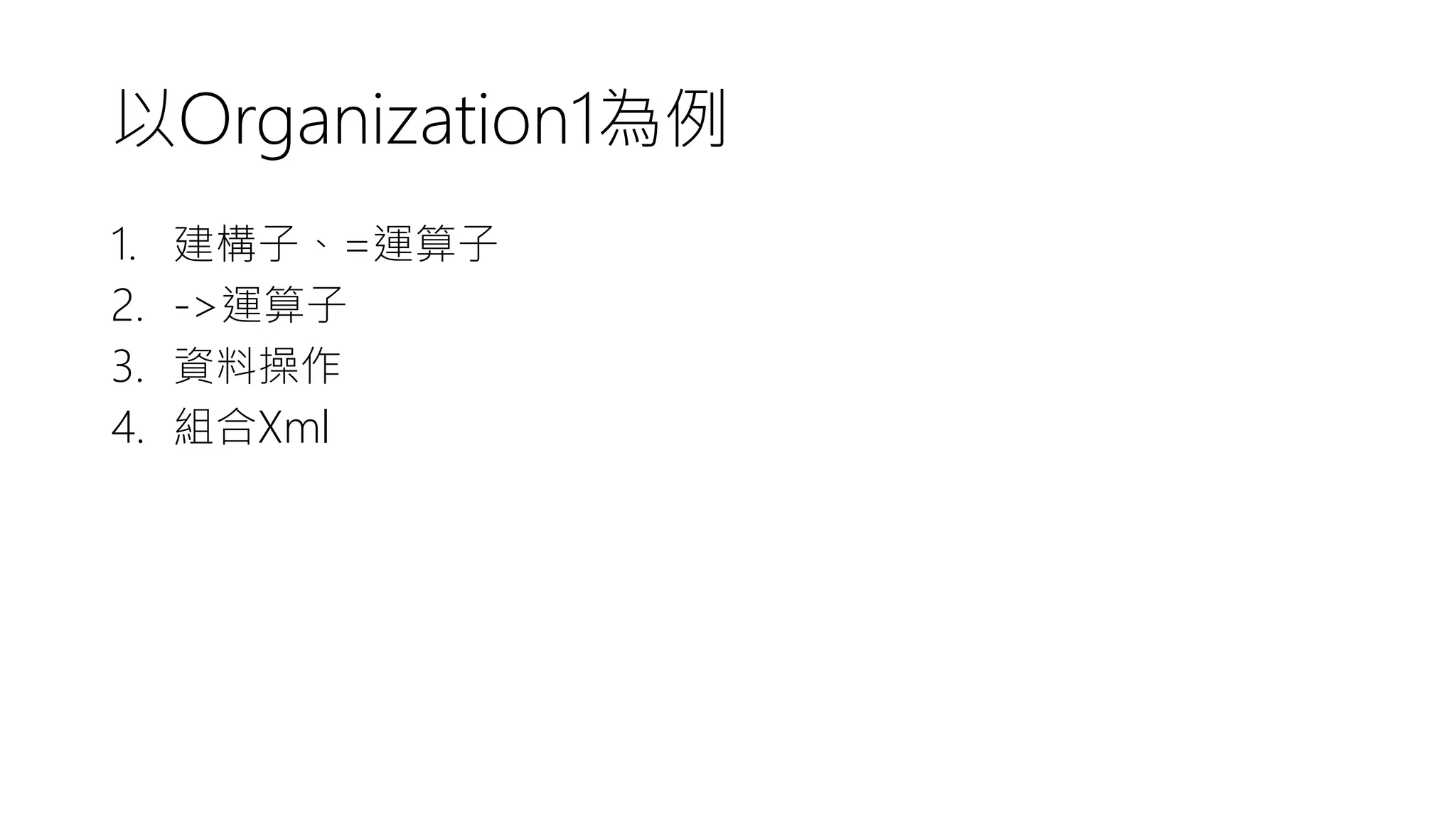

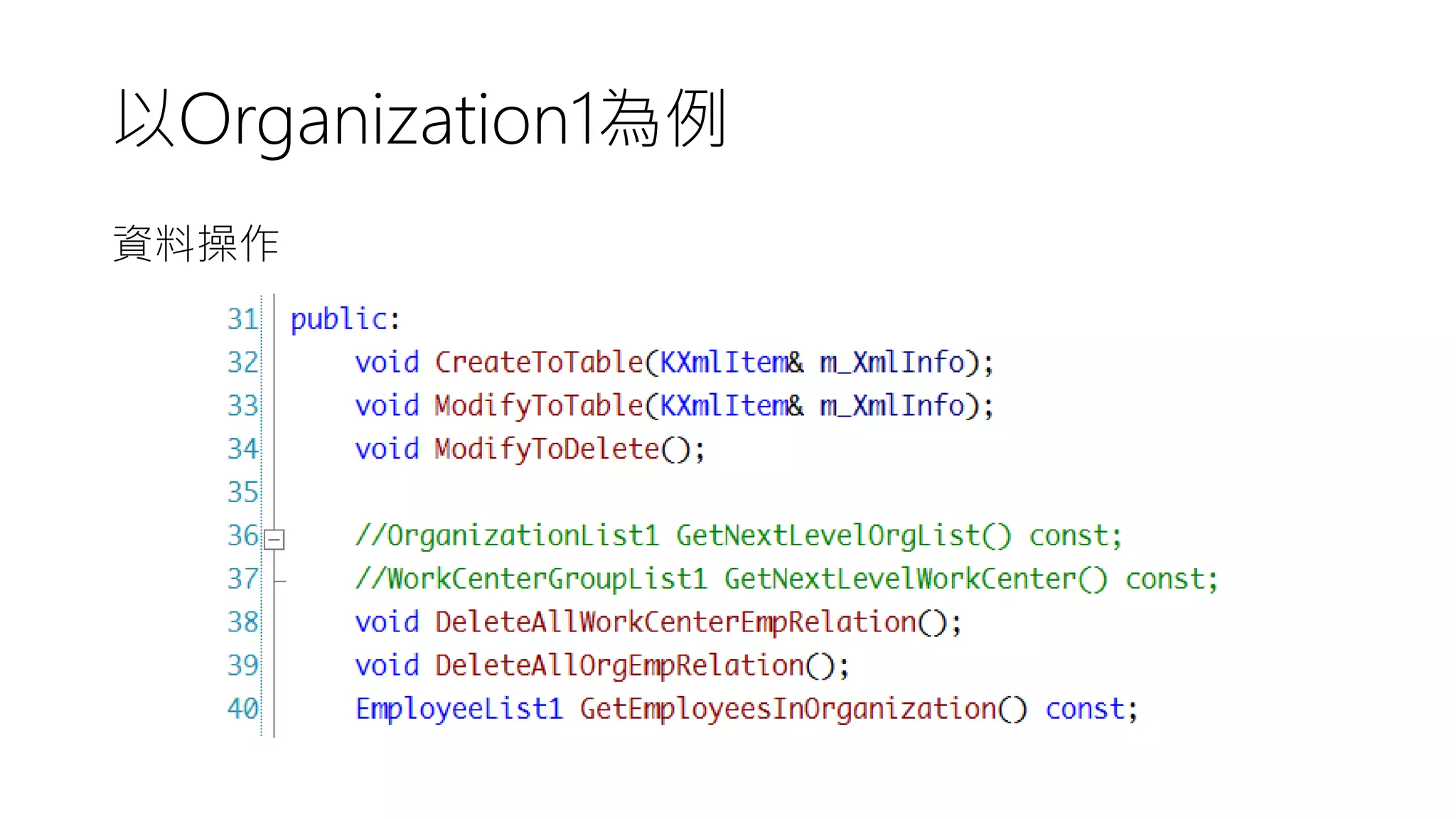

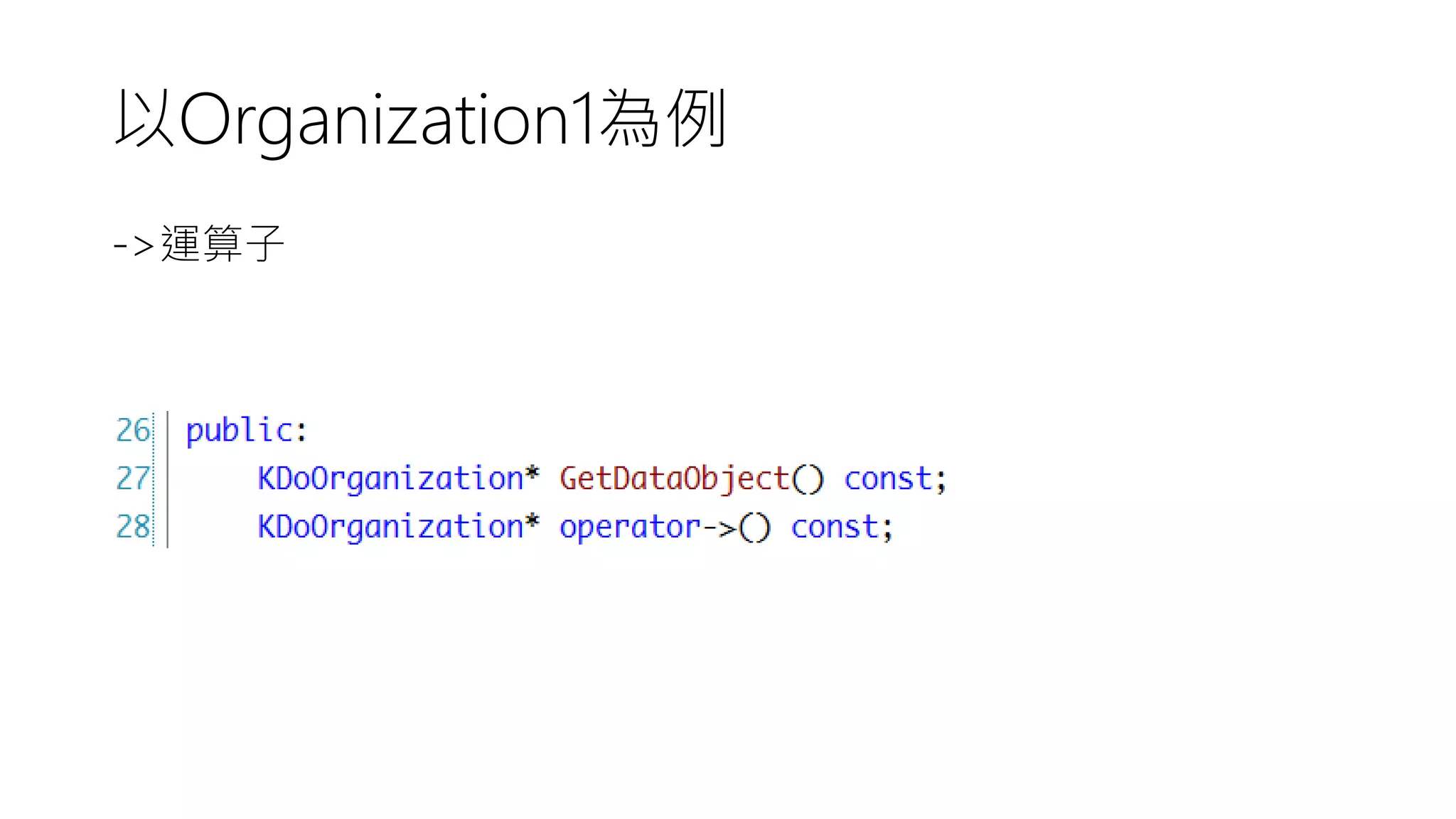

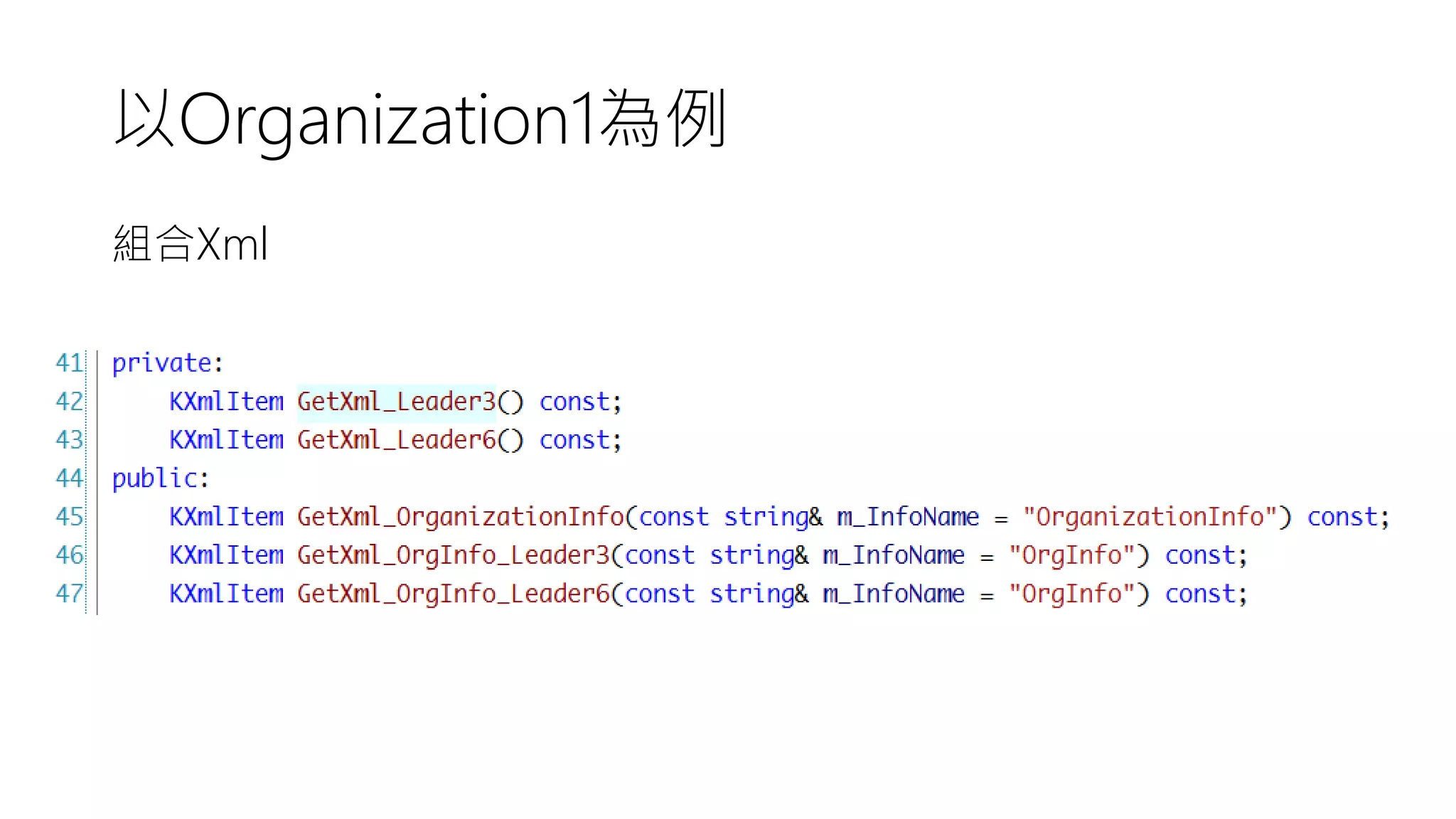

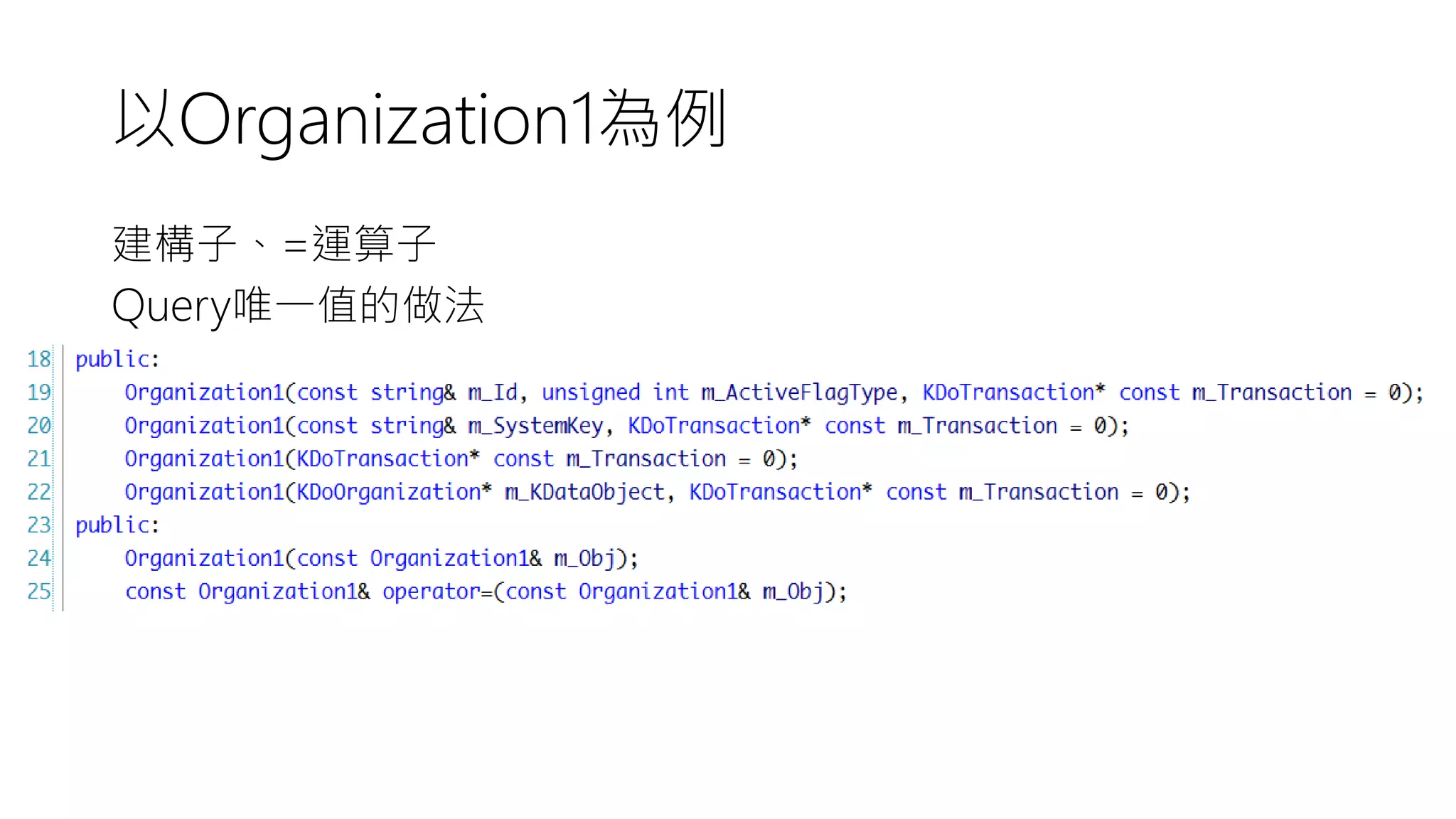

- 35. 以Organization1為例 1. 建構子、=運算子 2. ->運算子 3. 資料操作 4. 組合Xml

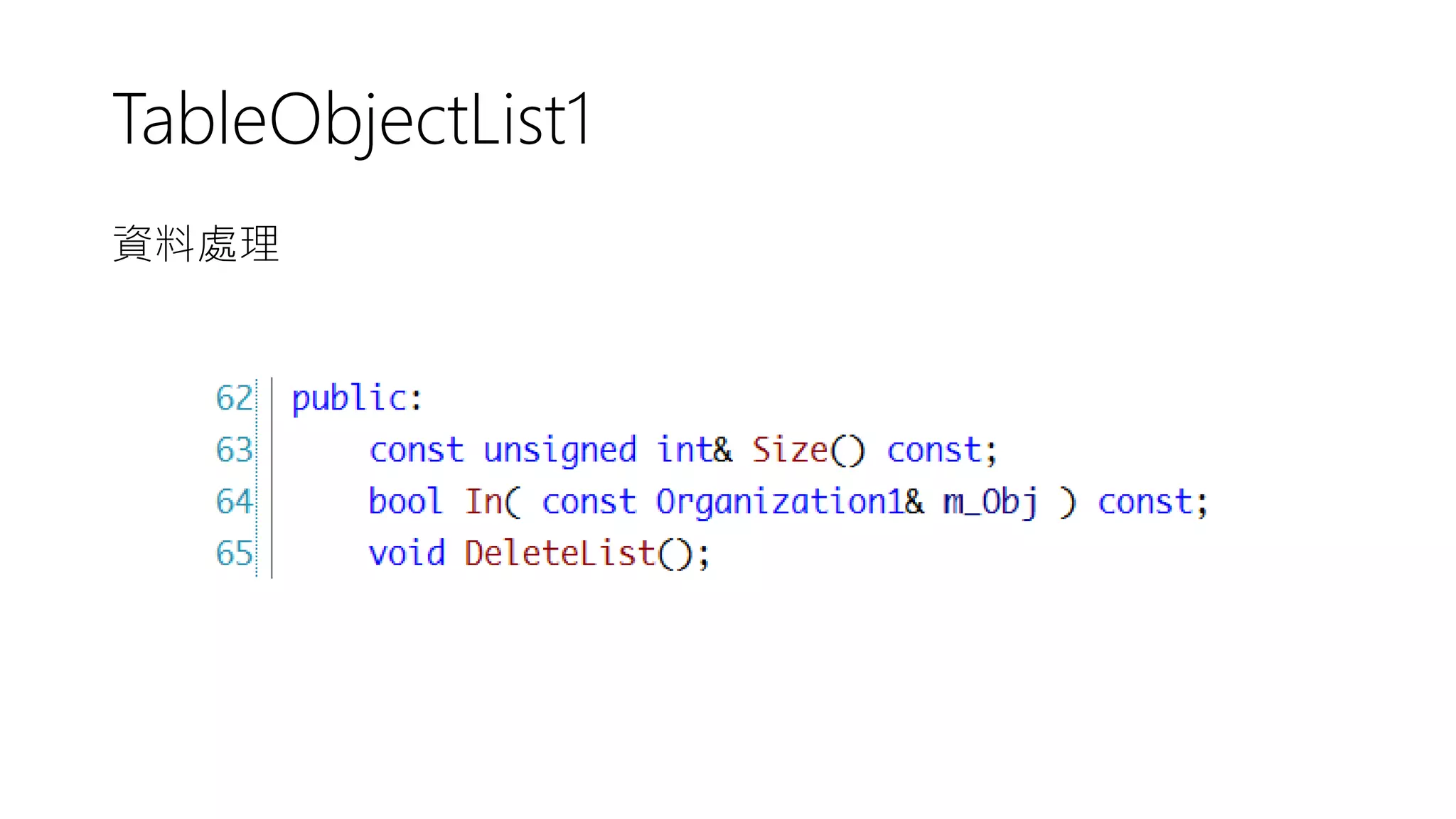

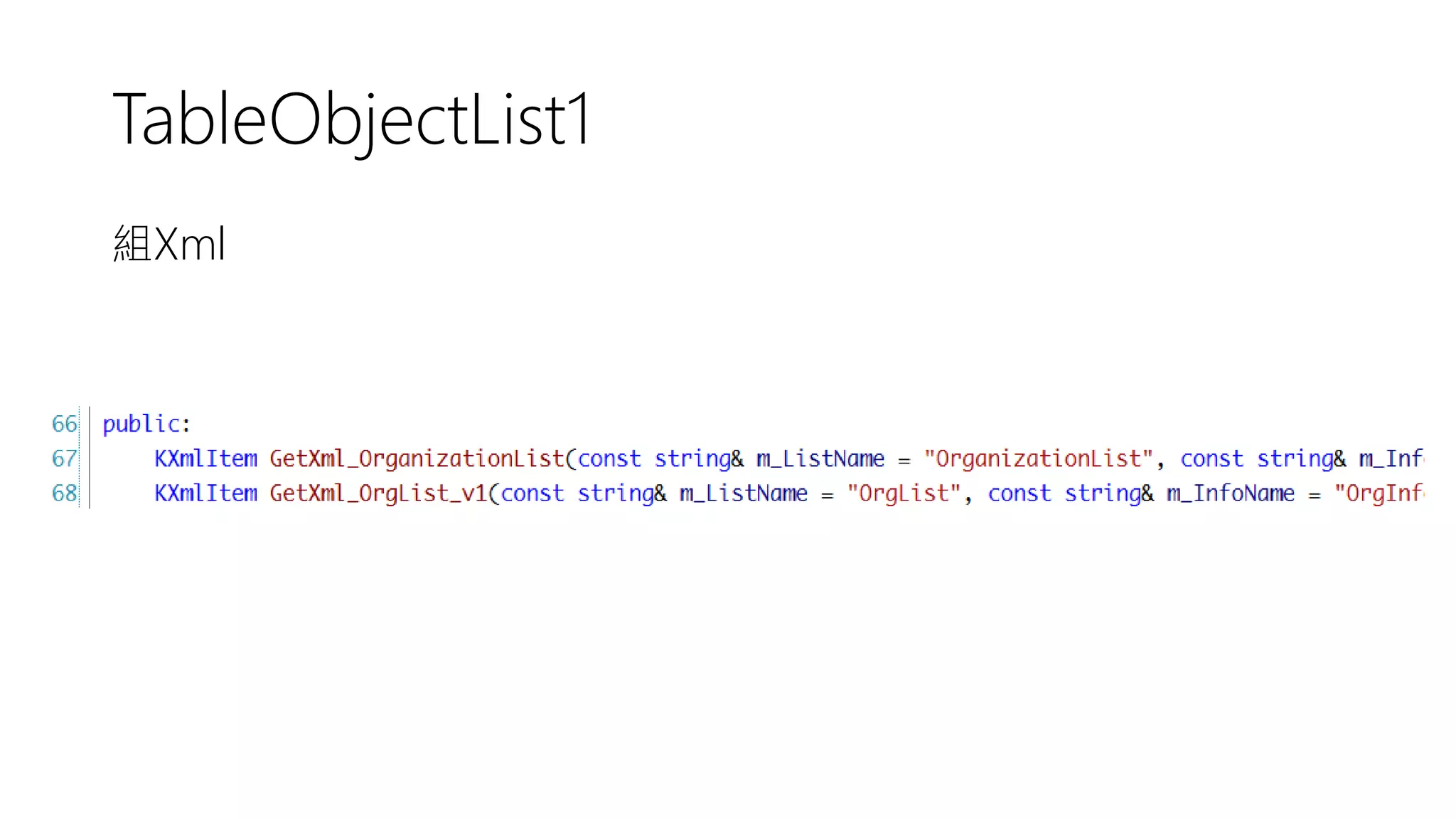

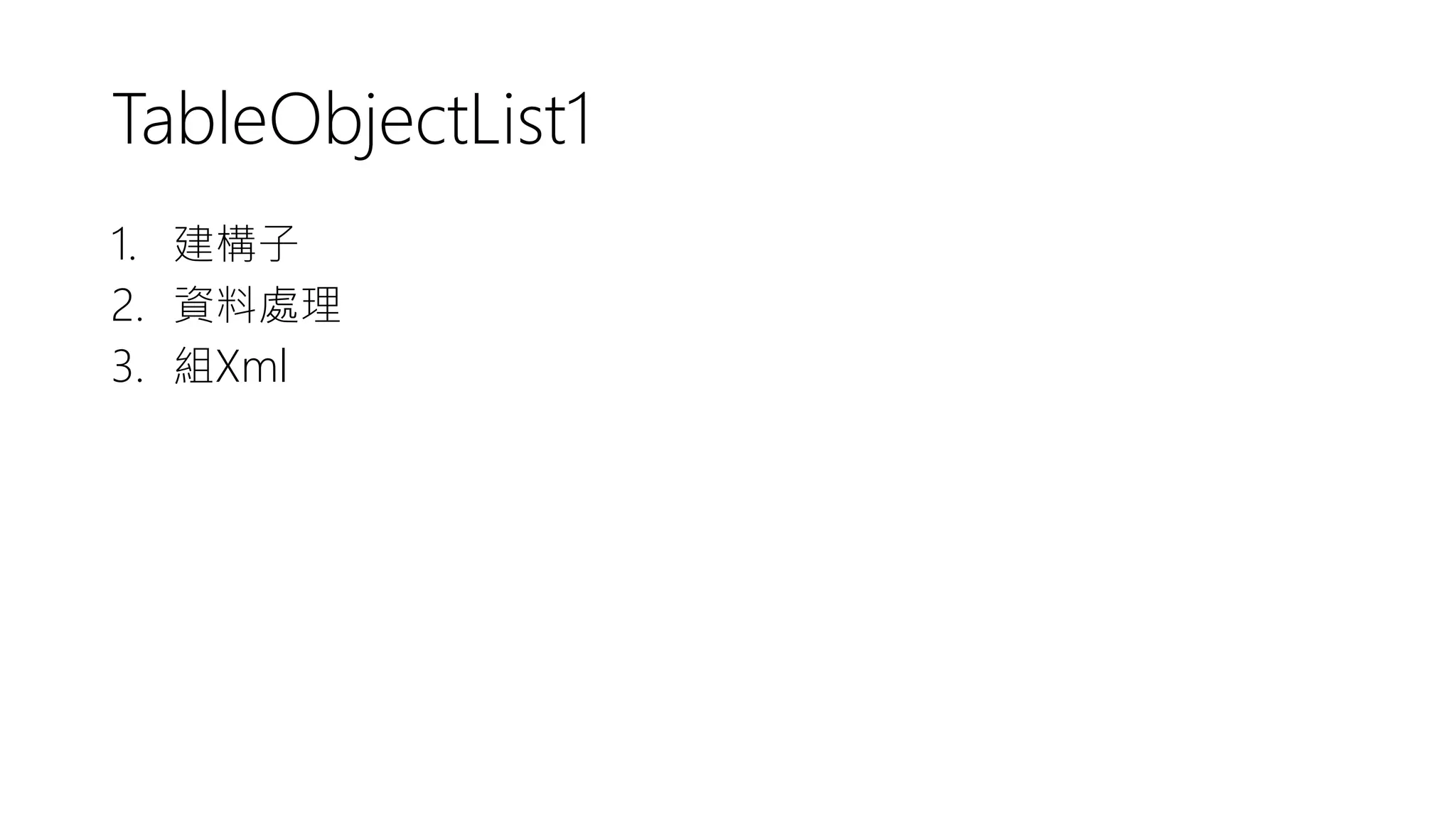

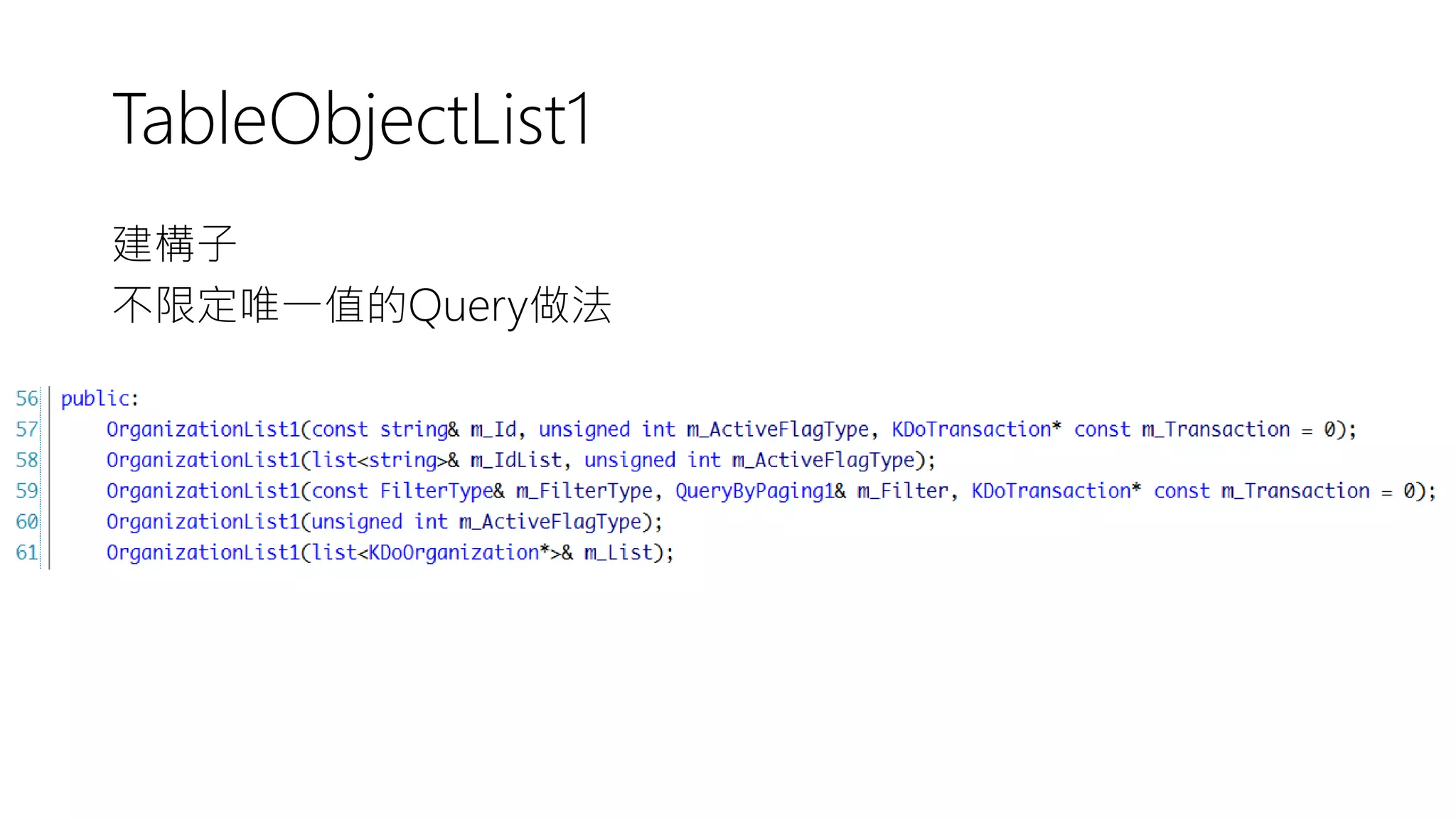

- 41. TableObjectList1 1. 建構子 2. 資料處理 3. 組Xml
