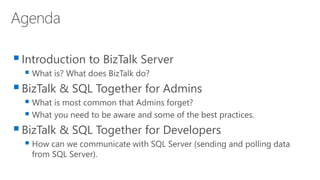

Introduction to BizTalk Server
 What is? What does BizTalk do?
BizTalk & SQL Together for Admins
 What is most common that Admins forget?
 What you need to be aware and some of the best practices.
BizTalk & SQL Together for Developers
 How can we communicate with SQL Server (sending and polling data
from SQL Server).

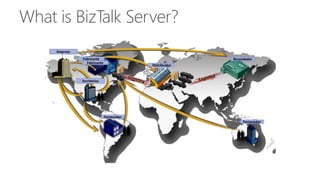

Escritórios
Fornecedor
Fornecedor
Fabricante
Distribuidor
Revendedor
Empresa
Fabricante

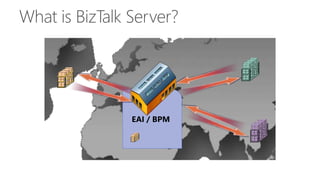

EAI / BPM
7

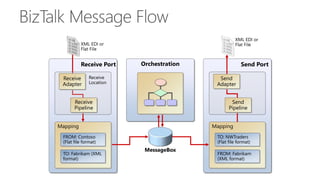

Receive Port Orchestration
XML EDI or
Flat File
XML EDI or
Flat File
Send Port
Send
Adapter
Send
Pipeline
MessageBox
Mapping
TO: NWTraders
(Flat file format)
FROM: Fabrikam
(XML format)
Mapping
FROM: Contoso
(Flat file format)
TO: Fabrikam (XML
format)
Receive
Location
Receive
Adapter
Receive
Pipeline
Receive
Location
Messages
received,
processed, and
published to the
MessageBox
database
2

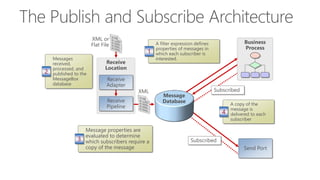

A filter expression defines
properties of messages in
which each subscriber is
interested.
1
Message properties are
evaluated to determine
which subscribers require a
copy of the message
3
XML or
Flat File
A copy of the
message is
delivered to each
subscriber
4
Receive
Adapter
Receive
Pipeline
XML
Subscribed
Business
Process
Subscribed
Message
Database
Send Port
Administration Tasks
Adding a new MessageBox database
Disabling new message publication
Deleting a MessageBox from a BizTalk group

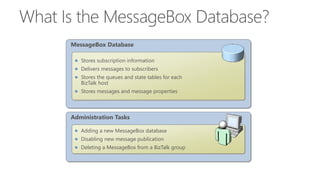

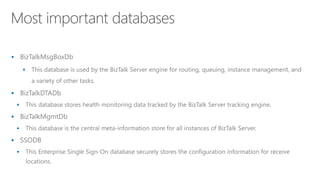

MessageBox Database
Stores subscription information
Delivers messages to subscribers
Stores the queues and state tables for each
BizTalk host
Stores messages and message properties













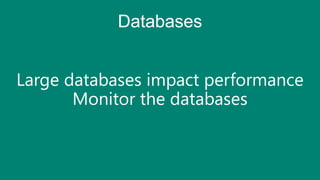

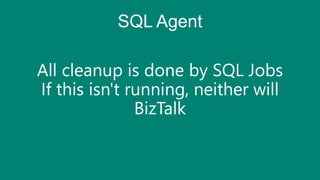

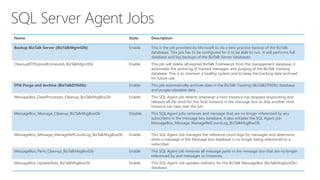

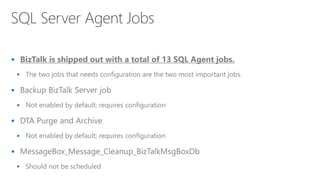

Name State Description

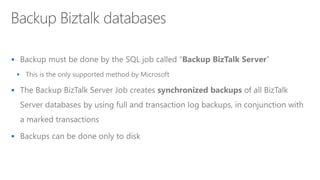

Backup BizTalk Server (BizTalkMgmtDb) Enable This is the job provided by Microsoft to do a best practice backup of the BizTalk
databases. This job has to be configured for it to be able to run.. It will performs full
database and log backups of the BizTalk Server databases.
CleanupBTFExpiredEntriesJob_BizTalkMgmtDb Enable This job will delete all expired BizTalk Framework from the management database, it
automates the archiving of tracked messages and purging of the BizTalk tracking
database. This is to maintain a healthy system and to keep the tracking data archived
for future use.

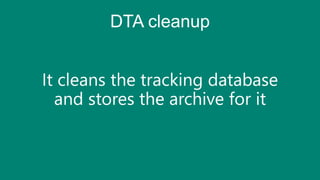

DTA Purge and Archive (BizTalkDTADb) Enable This job automatically archives data in the BizTalk Tracking (BizTalkDTADb) database
and purges obsolete data.
MessageBox_DeadProcesses_Cleanup_BizTalkMsgBoxDb Enable This SQL Agent job detects whenever a Host Instance has stopped responding and
releases all the work for this host instance in the message box so that another Host
Instance can take over the job.
MessageBox_Message_Cleanup_BizTalkMsgBoxDb Disable This SQL Agent jobs removes and message that are no longer referenced by any
subscribers in the message box database, it also initiates the SQL Agent job
MessageBox_Message_ManageRefCountLog_BizTalkMsgBoxDb.
MessageBox_Message_ManageRefCountLog_BizTalkMsgBoxDb Enable This SQL Agent Job manages the reference count logs for messages and determine
when a message in the Message box database is no longer being referenced to a
subscriber.
MessageBox_Parts_Cleanup_BizTalkMsgBoxDb Enable This SQL Agent job removes all message parts in the message box that are no longer
referenced by and messages or instances.
MessageBox_UpdateStats_BizTalkMsgBoxDb Enable This SQL Agent Job updates statistics for the BizTalk MessageBox (BizTalkMsgboxDb)
database.
Name State Description

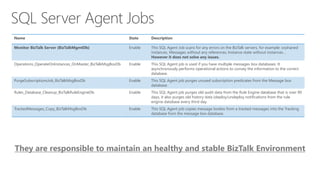

Monitor BizTalk Server (BizTalkMgmtDb) Enable This SQL Agent Job scans for any errors on the BizTalk servers, for example: orphaned
instances, Messages without any references, Instance state without instances…
However it does not solve any issues.
Operations_OperateOnInstances_OnMaster_BizTalkMsgBoxDb Enable This SQL Agent job is used if you have multiple messages box databases. It
asynchronously performs operational actions to convey the information to the correct
database.
PurgeSubscriptionsJob_BizTalkMsgBoxDb Enable This SQL Agent job purges unused subscription predicates from the Message box
database.
Rules_Database_Cleanup_BizTalkRuleEngineDb Enable This SQL Agent job purges old audit data from the Rule Engine database that is over 90
days, it also purges old history data (deploy/undeploy notifications from the rule
engine database every third day.
TrackedMessages_Copy_BizTalkMsgBoxDb Enable This SQL Agent job copies message bodies from a tracked messages into the Tracking
database from the message box database.














































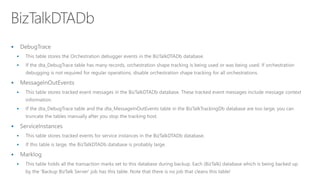

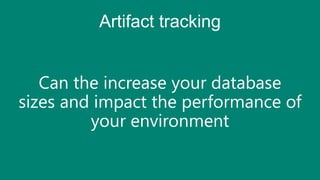

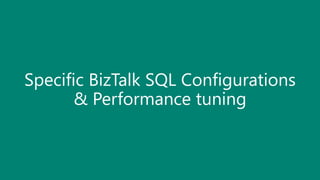

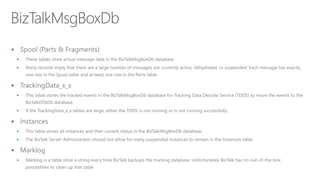

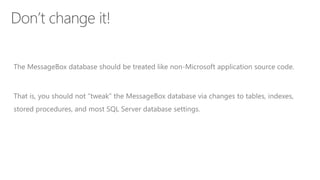

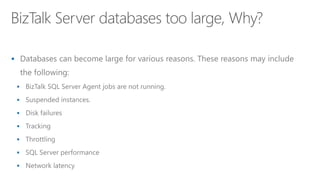

Specific BizTalk SQL Configurations
& Performance tuning

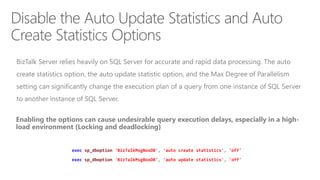

exec sp_dboption 'BizTalkMsgBoxDB', 'auto create statistics', 'off'
exec sp_dboption 'BizTalkMsgBoxDB', 'auto update statistics', 'off'

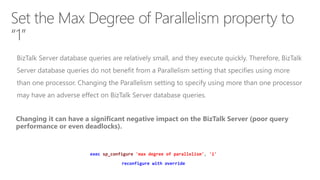

exec sp_configure 'max degree of parallelism', '1'
reconfigure with override

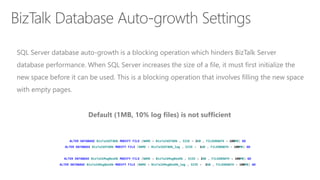

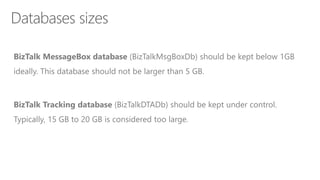

ALTER DATABASE BizTalkDTADb MODIFY FILE (NAME = BizTalkDTADb , SIZE = 2GB , FILEGROWTH = 100MB) GO
ALTER DATABASE BizTalkDTADb MODIFY FILE (NAME = BizTalkDTADb_log , SIZE = 1GB , FILEGROWTH = 100MB) GO
ALTER DATABASE BizTalkMsgBoxDb MODIFY FILE (NAME = BizTalkMsgBoxDb , SIZE = 2GB , FILEGROWTH = 100MB) GO
ALTER DATABASE BizTalkMsgBoxDb MODIFY FILE (NAME = BizTalkMsgBoxDb_log , SIZE = 2GB , FILEGROWTH = 100MB) GO

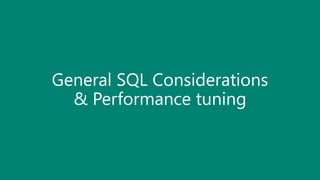

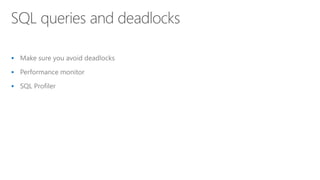

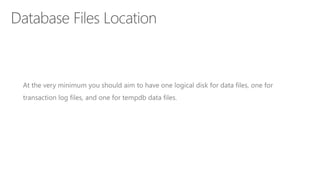

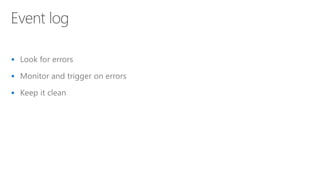

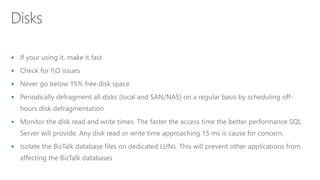

General SQL Considerations
& Performance tuning



















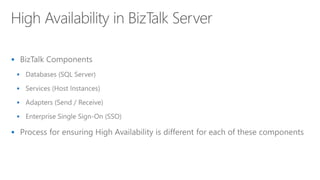

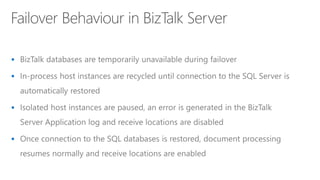

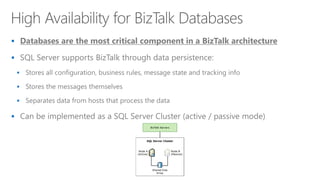

High Availability in BizTalk Server

















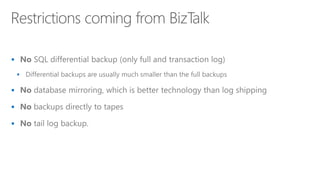

Restrictions





Demos
Sending and polling data from SQL Server. What is possible and how we can
do this.
www.devscope.net

BizTalk & SQL: Together for Developers & Admins
