- The document discusses developing and testing multi-platform apps. It provides information on SDKs, tools, and downloads for platforms like iOS, Android, Unity, and Node.js. - It demonstrates building a simple app that multiples an input number by 2 on different platforms, including sample code and project files. - It also describes testing the logic of the app using different languages and frameworks like Objective-C, Java, C#, and JavaScript.

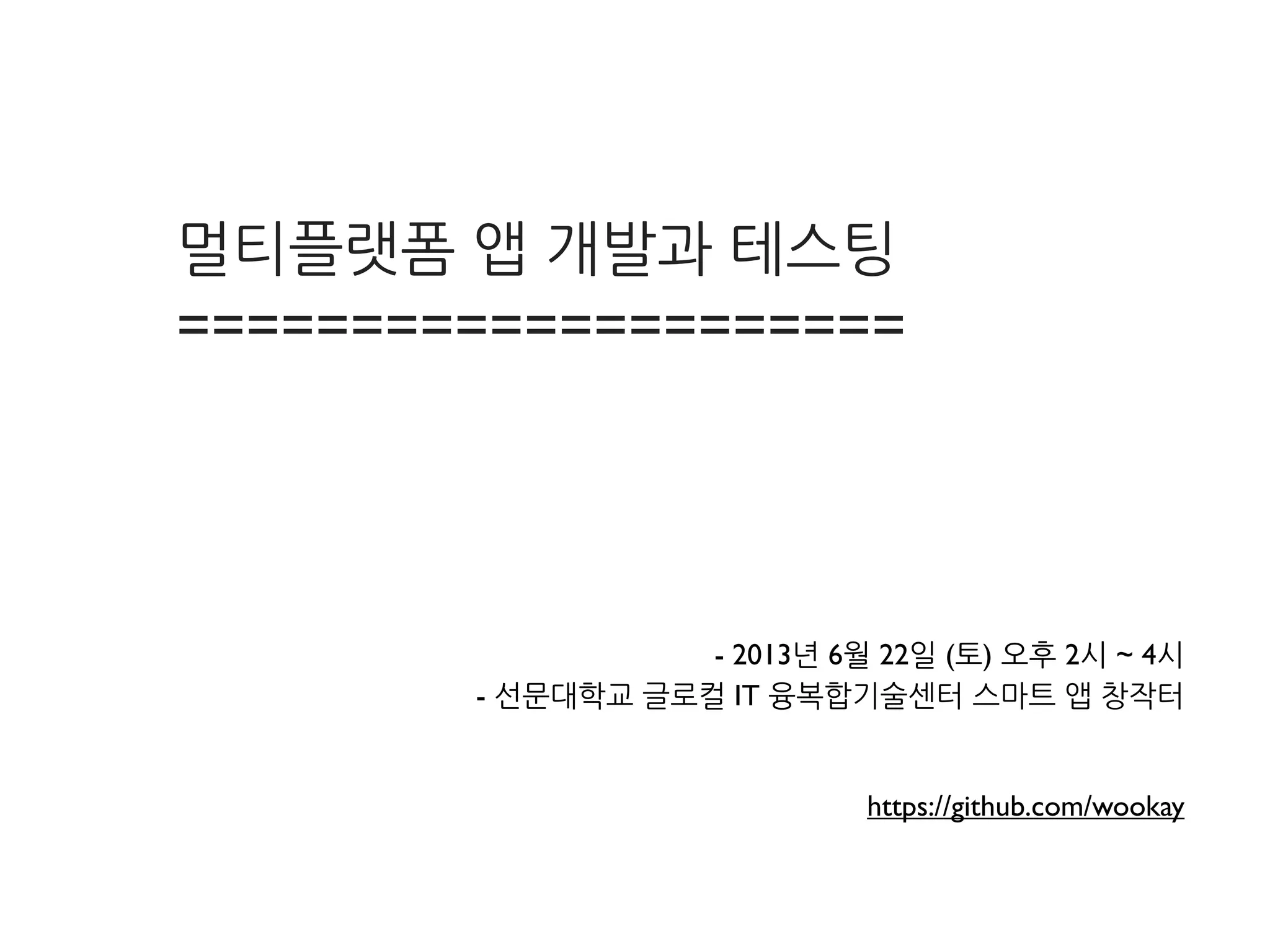

1. 멀티플랫폼 앱 개발과 테스팅
=====================
- 2013년 6월 22일 (토) 오후 2시 ~ 4시
- 선문대학교 글로컬 IT 융복합기술센터 스마트 앱 창작터
https://github.com/wookay

2. iOS https://developer.apple.com/technologies/ios/
Xcode developer toolset https://developer.apple.com/technologies/tools/
Android SDK http://developer.android.com/sdk/
Android Studio http://developer.android.com/sdk/installing/studio.html
Unity http://unity3d.com/unity/download/
Node.js http://nodejs.org/download/

3. 개발

4. SDK,

5. 툴

6. 다운로드

7. 플랫폼 별 숫자 곱하기 2 하는 앱을 만들어 봅니다

8. input
result
button

9. input
result
button

16. 소스

17. 코드와

18. 프로젝트

19. 파일은

20. 아래에

21. 올려뒀습니다
https://github.com/wookay/multiply2/
git clone git@github.com:wookay/multiply2.git

22. • UI 인터페이스: ViewController_iPhone.xib
• 헤더 파일: ViewController.h
• 구현 파일: ViewController.m

24. // platforms/ios/Sample/Sample/ViewController.h
#import UIKit/UIKit.h
@interface ViewController : UIViewController
@property (strong, nonatomic) IBOutlet UITextField* input;
@property (strong, nonatomic) IBOutlet UILabel* result;
- (IBAction) touchedButton:(id)sender;
@end

25. // platforms/ios/Sample/Sample/ViewController.m
#import ViewController.h
@interface ViewController ()
@end
@implementation ViewController
- (void)viewDidLoad {
[super viewDidLoad];
_input.placeholder = @숫자를 입력하시오;
_input.keyboardType = UIKeyboardTypeNumberPad;
_input.font = [UIFont fontWithName:@Helvetica size:26];
[_input becomeFirstResponder];
}
- (IBAction) touchedButton:(id)sender {
int num = _input.text.intValue;
_result.text = [NSString stringWithFormat:@%d x 2 = %d, num, num * 2];
NSLog(@input: %d, num);
}
@end

26. • 레이아웃: layout/activity_main.xml
• 메인 클래스: MainActivity.java

28. RelativeLayout xmlns:android=http://schemas.android.com/apk/res/android
xmlns:tools=http://schemas.android.com/tools
android:layout_width=match_parent
android:layout_height=match_parent
android:paddingLeft=@dimen/activity_horizontal_margin
android:paddingRight=@dimen/activity_horizontal_margin
android:paddingTop=@dimen/activity_vertical_margin
android:paddingBottom=@dimen/activity_vertical_margin
tools:context=.MainActivity
TextView
android:layout_width=wrap_content
android:layout_height=wrap_content
android:text=Result
android:layout_marginLeft=17dp
android:id=@+id/result
android:textSize=20dp
android:layout_below=@+id/input
android:layout_alignParentLeft=true
android:layout_marginTop=14dp/
EditText
android:layout_width=wrap_content
android:layout_height=wrap_content
android:inputType=number
android:ems=10
android:id=@+id/input
android:layout_marginTop=18dp
android:layout_alignParentTop=true
android:layout_alignLeft=@+id/result/
Button
android:layout_width=wrap_content
android:layout_height=wrap_content
android:text=x 2
android:id=@+id/button
android:layout_alignBottom=@+id/input
android:layout_toRightOf=@+id/input/
/RelativeLayout
platforms / android / SampleProject / Sample / src / main / res / layout / activity_main.xml

29. // platforms/android/SampleProject/Sample/src/main/java/com/factorcat/sample/MainActivity.java
package com.factorcat.sample;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.widget.EditText;
import android.widget.Button;
import android.widget.TextView;
import android.view.View;
import android.view.View.OnClickListener;
import android.util.Log;
public class MainActivity extends Activity {
EditText input;
Button button;
TextView result;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
input = (EditText) this.findViewById(R.id.input);
button = (Button) this.findViewById(R.id.button);
result = (TextView) this.findViewById(R.id.result);
button.setOnClickListener(new OnClickListener() {
@Override
public void onClick(final View v) {
int num = 0;
try {
num = Integer.parseInt(input.getText().toString());
} catch (NumberFormatException e) {
}
result.setText(String.format(%d x 2 = %d, num, num*2));
Log.i([log], input: + num);
}
});
}

30. 로직 테스트
• ios
• objective-c
• android
• java

31. // logic/objective-c/Test.m
#import UnitTest.h
int main (int argc, const char * argv[]) {
NSAutoreleasePool* pool = [[NSAutoreleasePool alloc] init];
assert_equal( 1 , 1 );
assert_equal( 3 , 1+2 );
assert_equal( @a , @a );
[pool release];
return 0;
}
~/multiply2/logic/objective-c master$ make
gcc -framework Foundation -o Test Test.m UnitTest.m
~/multiply2/logic/objective-c master$ ./Test
passed: 1
passed: 3
passed: a

32. // logic/java/Test.java
class Test {
static void assert_equal(int expected, int got) {
if (expected==got) {
System.out.println(passed: + expected);
} else {
System.out.println(Assertion failednExpected: + expected +
nGot: + got);
}
}
static void assert_equal(String expected, String got) {
if (expected.equals(got)) {
System.out.println(passed: + expected);
} else {
System.out.println(Assertion failednExpected: + expected +
nGot: + got);
}
}
public static void main(String[] args) {
assert_equal( 1 , 1 );
assert_equal( 3 , 1+2 );
assert_equal( a , a );
}
} ~/multiply2/logic/java master$ make
javac Test.java
~/multiply2/logic/java master$ CLASSPATH=. java Test
passed: 1
passed: 3
passed: a

33. 쉬는 시간

34. • C# 버전: NewBehaviourScript.cs
• 자바스크립트 버전: NewBehaviourScript.js

35. // platforms/unity/CSharpSample/Assets/NewBehaviourScript.cs
using UnityEngine;
using System.Collections;
using System;
public class NewBehaviourScript : MonoBehaviour {
private string input = ;
private string result = Result;
void OnGUI () {
GUI.Label(new Rect(20,102,204,21), result);
input = GUI.TextField(new Rect(20,50,200,30), input);
if (GUI.Button(new Rect(236,43,67,43), x 2)) {
int num = 0;
try {
num = Convert.ToInt32(input);
} catch (FormatException) {
}
result = String.Format({0} x 2 = {1}, num, num*2);
Debug.Log(String.Format(input: {0}, num));
}
}
}

36. // platforms/unity/JavascriptSample/Assets/NewBehaviourScript.js
#pragma strict
var input : String = ;
var result : String = Result;
function OnGUI () {
GUI.Label(Rect(20,102,204,21), result);
input = GUI.TextField(Rect(20,50,200,30), input);
if (GUI.Button(Rect(236,43,67,43), x 2)) {
var num = parseInt(input);
result = String.Format({0} x 2 = {1}, num, num * 2 );
Debug.Log(String.Format(input: {0}, num));
}
}

37. 로직 테스트
• unity
• C#
• javascript

38. // logic/csharp/Test.cs
using System;
class Test {
static void assert_equal(object expected, object got) {
if (expected.Equals(got)) {
Console.WriteLine(passed: + expected);
} else {
Console.WriteLine(Assertion failednExpected: + expected + nGot: + got);
}
}
static void Main() {
assert_equal( 1 , 1 );
assert_equal( 3 , 1+2 );
assert_equal( a , a );
}
}
~/multiply2/logic/csharp master$ make
mcs Test.cs
~/multiply2/logic/csharp master$ mono Test.exe
passed: 1
passed: 3
passed: a

39. // logic/javascript/Test.js
function assert_equal(expected, got) {
if (expected==got) {
console.log(passed: + expected);
} else {
console.log(Assertion failednExpected: + expected + nGot: + got);
}
}
assert_equal( 1 , 1 );
assert_equal( 3 , 1+2 );
assert_equal( a , a );
~/multiply2/logic/javascript master$ node Test.js
passed: 1
passed: 3
passed: a

40. ## 돈 벌기
인앱 구매 달기 In-App Purchase for Developers https://developer.apple.com/in-app-purchase/
광고 달기: 구글 애드몹 http://google.com/ads/admob/
쏘셜 펀딩: 텀블벅 프로젝트 보기 / 게임 https://tumblbug.com/ko/projects
## SNS 플랫폼
카카오게임 플랫폼 http://with.kakao.com/game
페이스북 개발자 http://developers.facebook.com
## 개발
프로젝트 할일 관리: 트렐로 http://trello.com
쏘셜 코딩: 깉헙 https://github.com
발표 슬라이드 공유 http://slideshare.net
인맥관리 링크드인 http://linkedin.com
## 방송
게임 개발자 랩소디 http://agebreak.iblug.com/
생활 코딩 http://opentutorials.org
참고

41. 사이트

42. 프로젝트 할일 관리: 트렐로 http://trello.com

43. 쏘셜 코딩: 깉헙 https://github.com

44. 발표 슬라이드 공유 http://slideshare.net

45. 게임 개발자 랩소디 http://agebreak.iblug.com/

46. 생활 코딩 http://opentutorials.org

47. 쏘셜 펀딩: 텀블벅 프로젝트 보기 / 게임 https://tumblbug.com/ko/projects

48. QA
• 질문

49. 끝
