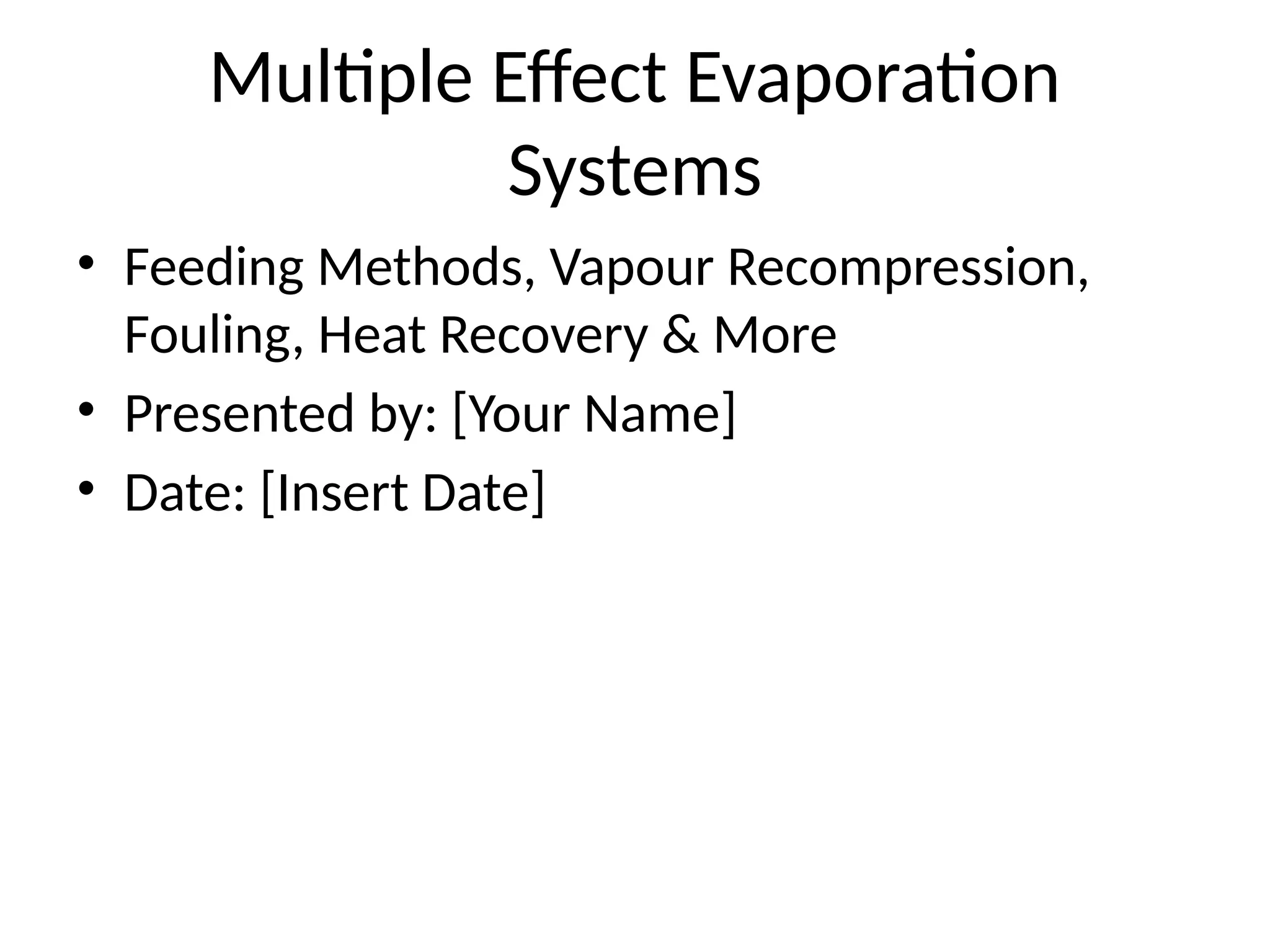

1. Multiple Effect Evaporation
Systems
• Feeding Methods, Vapour Recompression,
Fouling, Heat Recovery & More
• Presented by: [Your Name]
• Date: [Insert Date]

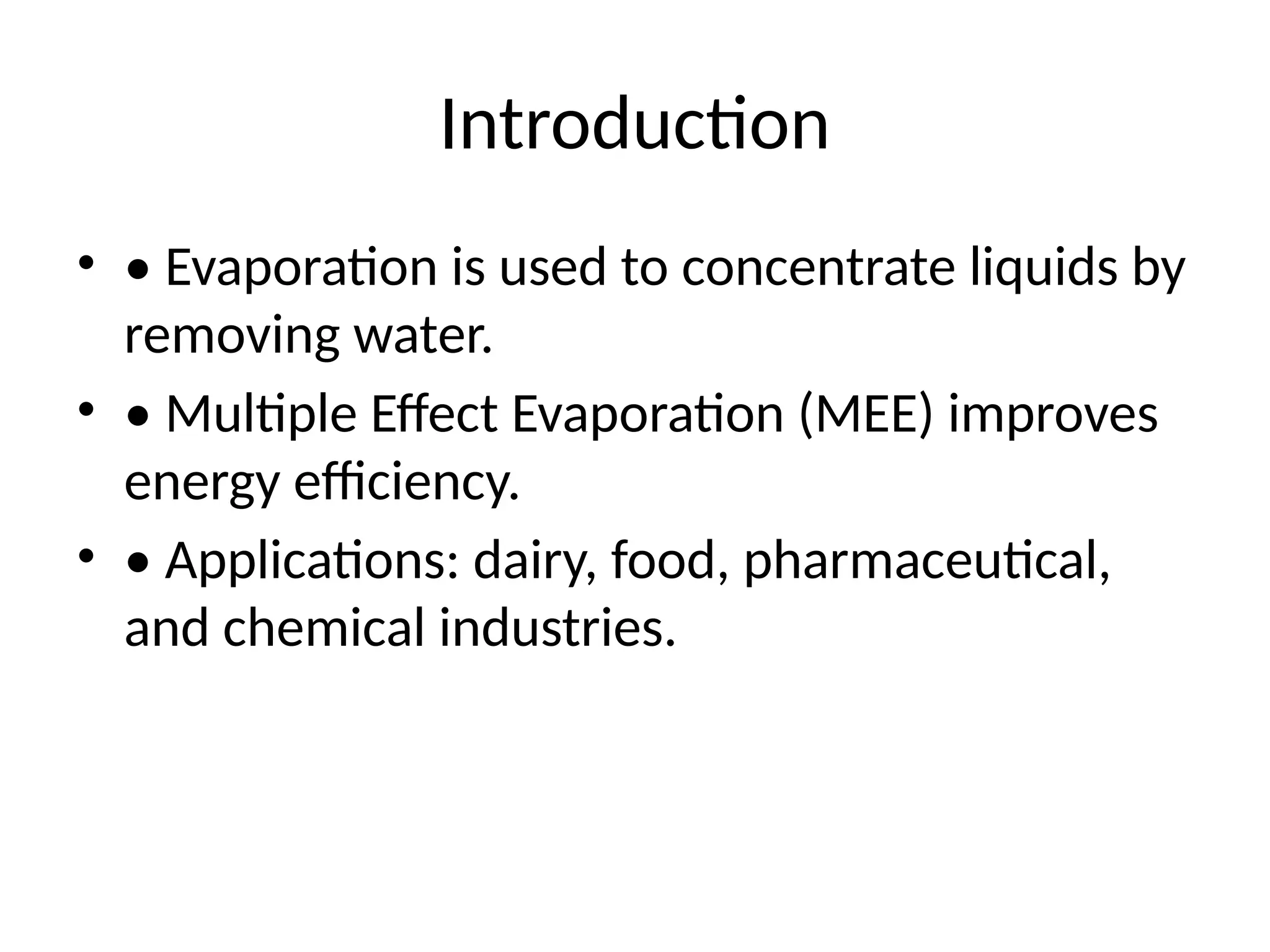

2. Introduction
• • Evaporation is used to concentrate liquids by
removing water.
• • Multiple Effect Evaporation (MEE) improves
energy efficiency.
• • Applications: dairy, food, pharmaceutical,
and chemical industries.

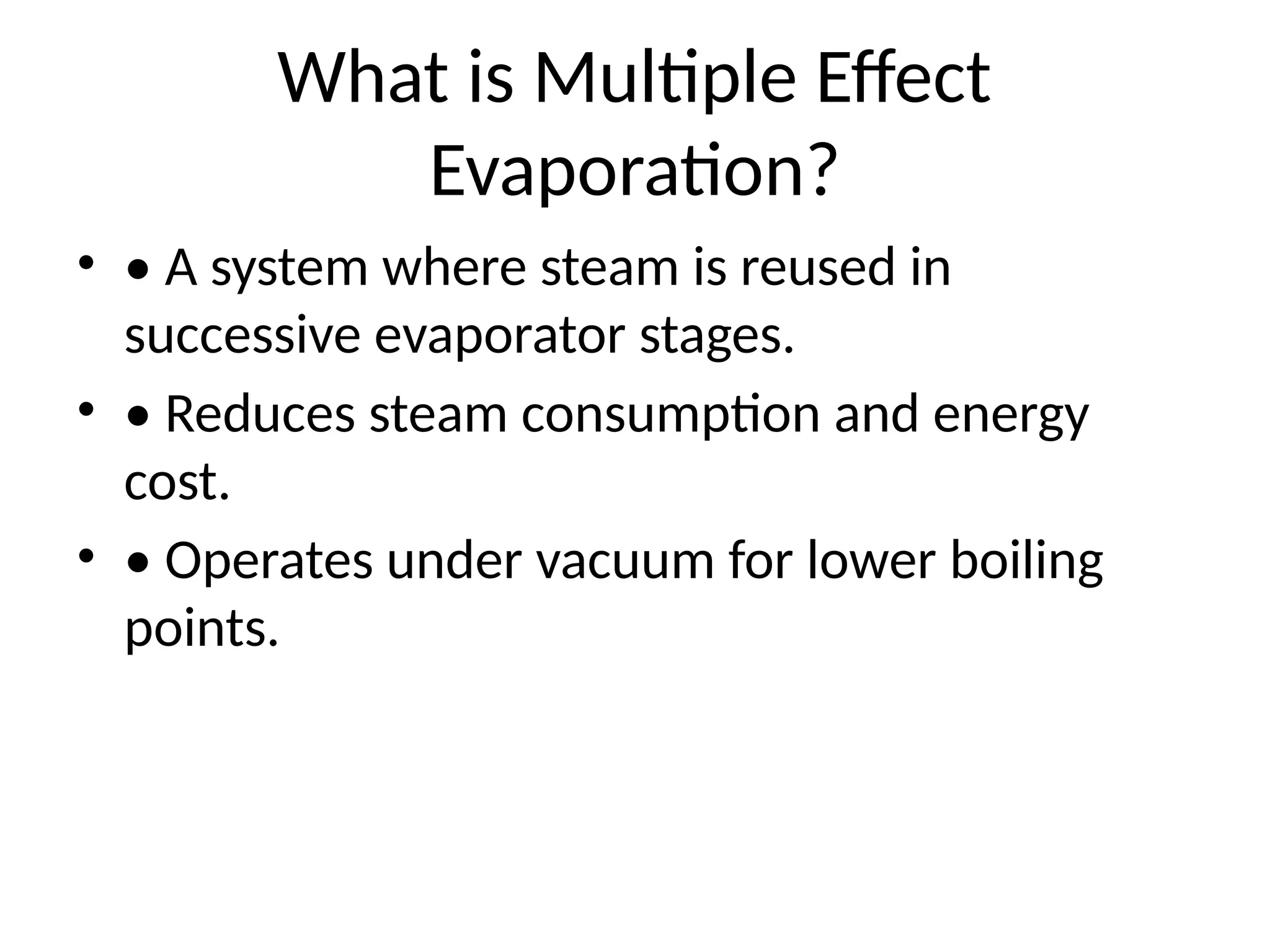

3. What is Multiple Effect
Evaporation?
• • A system where steam is reused in
successive evaporator stages.
• • Reduces steam consumption and energy
cost.
• • Operates under vacuum for lower boiling
points.

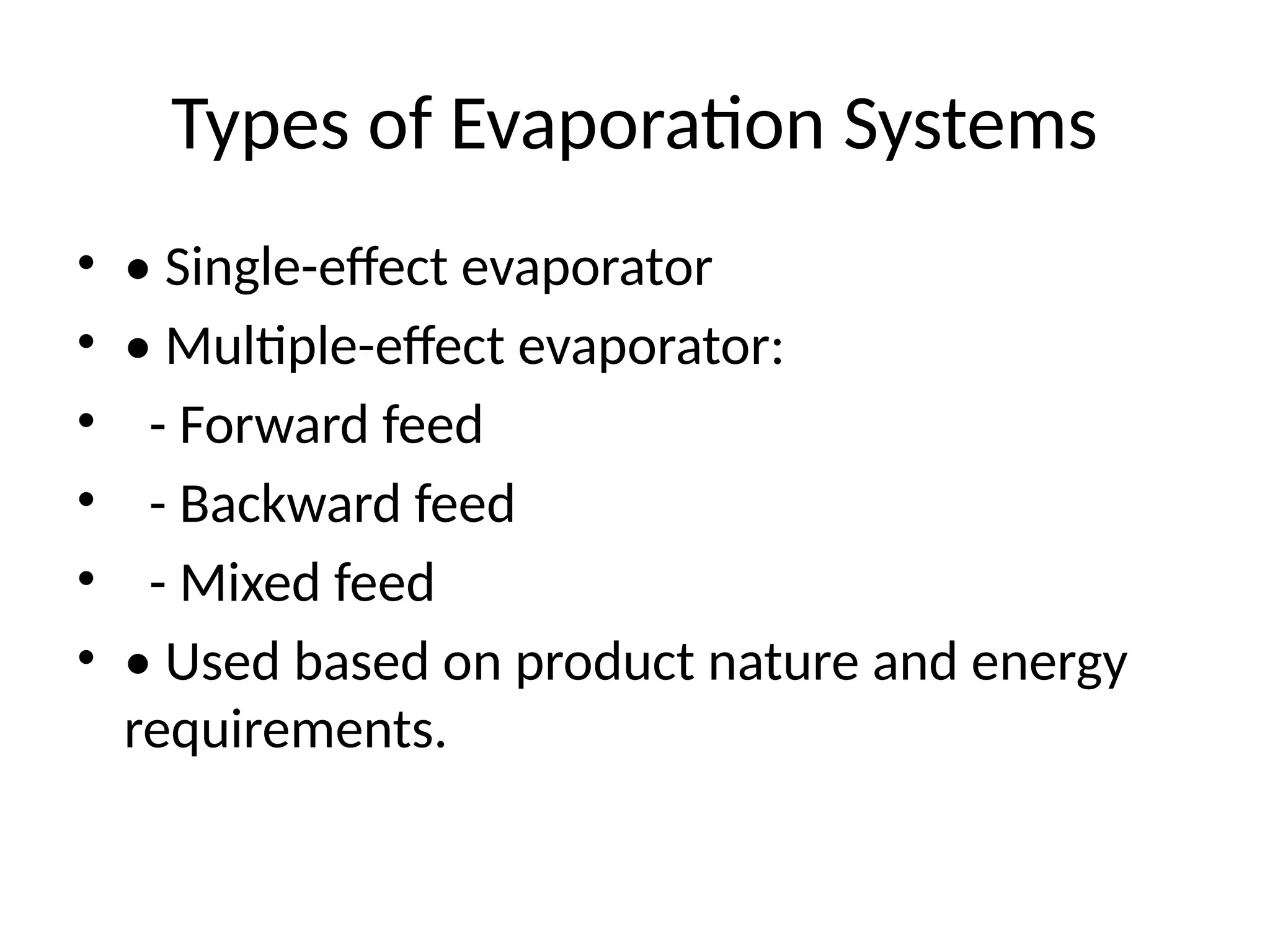

4. Types of Evaporation Systems
• • Single-effect evaporator
• • Multiple-effect evaporator:
• - Forward feed
• - Backward feed
• - Mixed feed
• • Used based on product nature and energy
requirements.

5. Feeding Method: Forward Feed
• • Simplest configuration
• • Feed enters at the first effect and moves to
the last.
• • Suitable for hot and less viscous feeds.
• • Lower pumping cost.

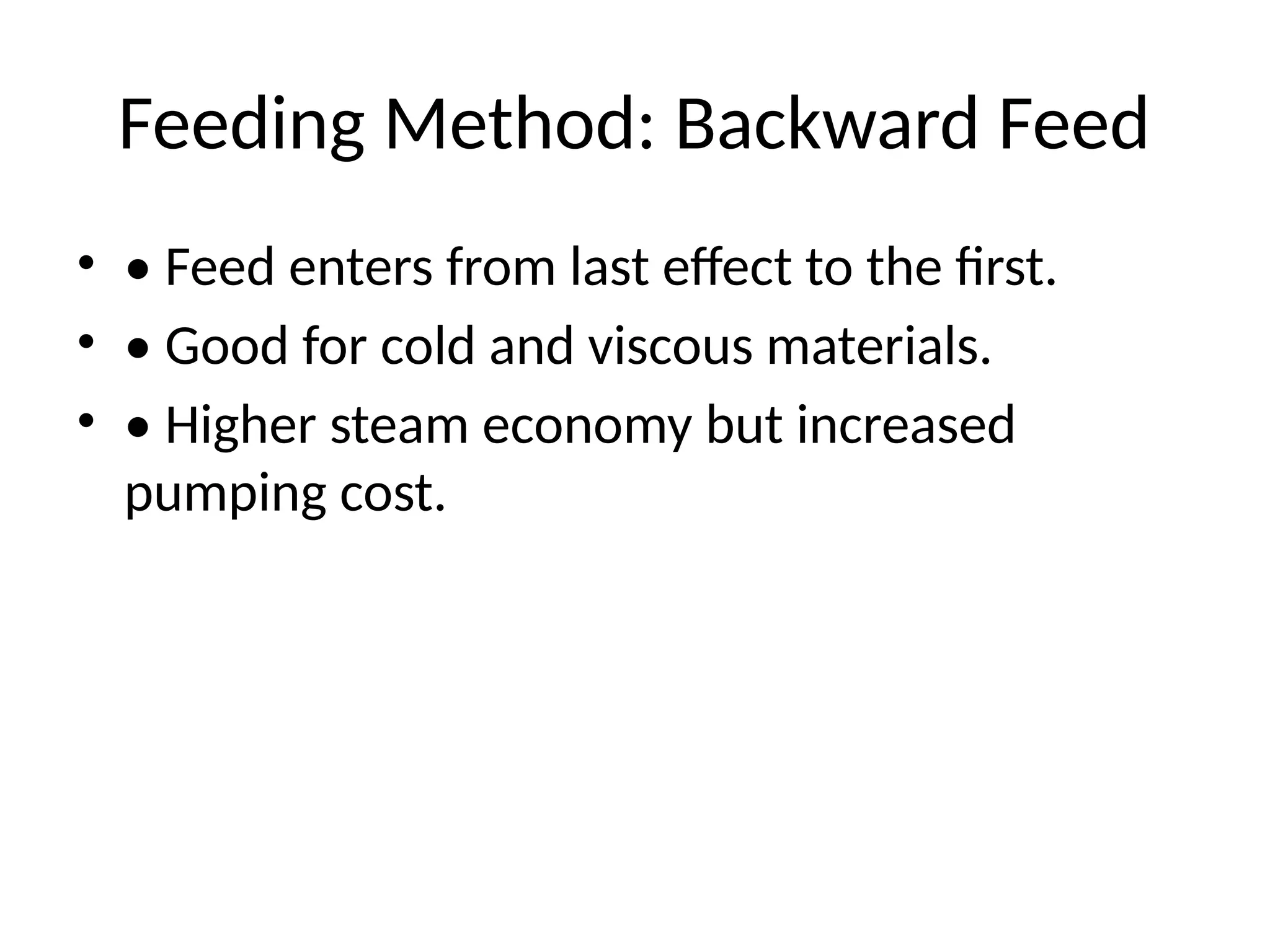

6. Feeding Method: Backward Feed
• • Feed enters from last effect to the first.
• • Good for cold and viscous materials.
• • Higher steam economy but increased
pumping cost.

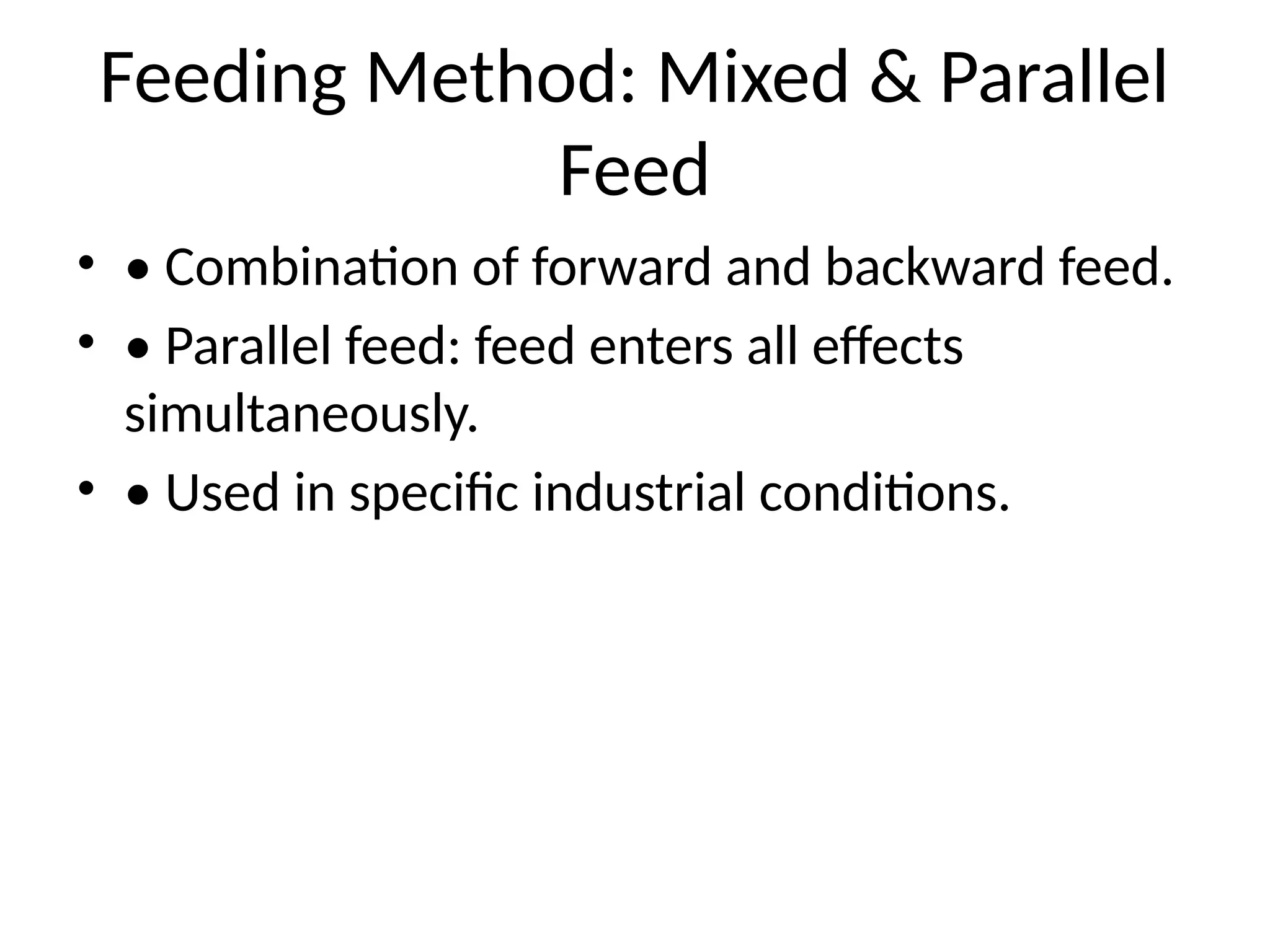

7. Feeding Method: Mixed & Parallel
Feed
• • Combination of forward and backward feed.
• • Parallel feed: feed enters all effects
simultaneously.
• • Used in specific industrial conditions.

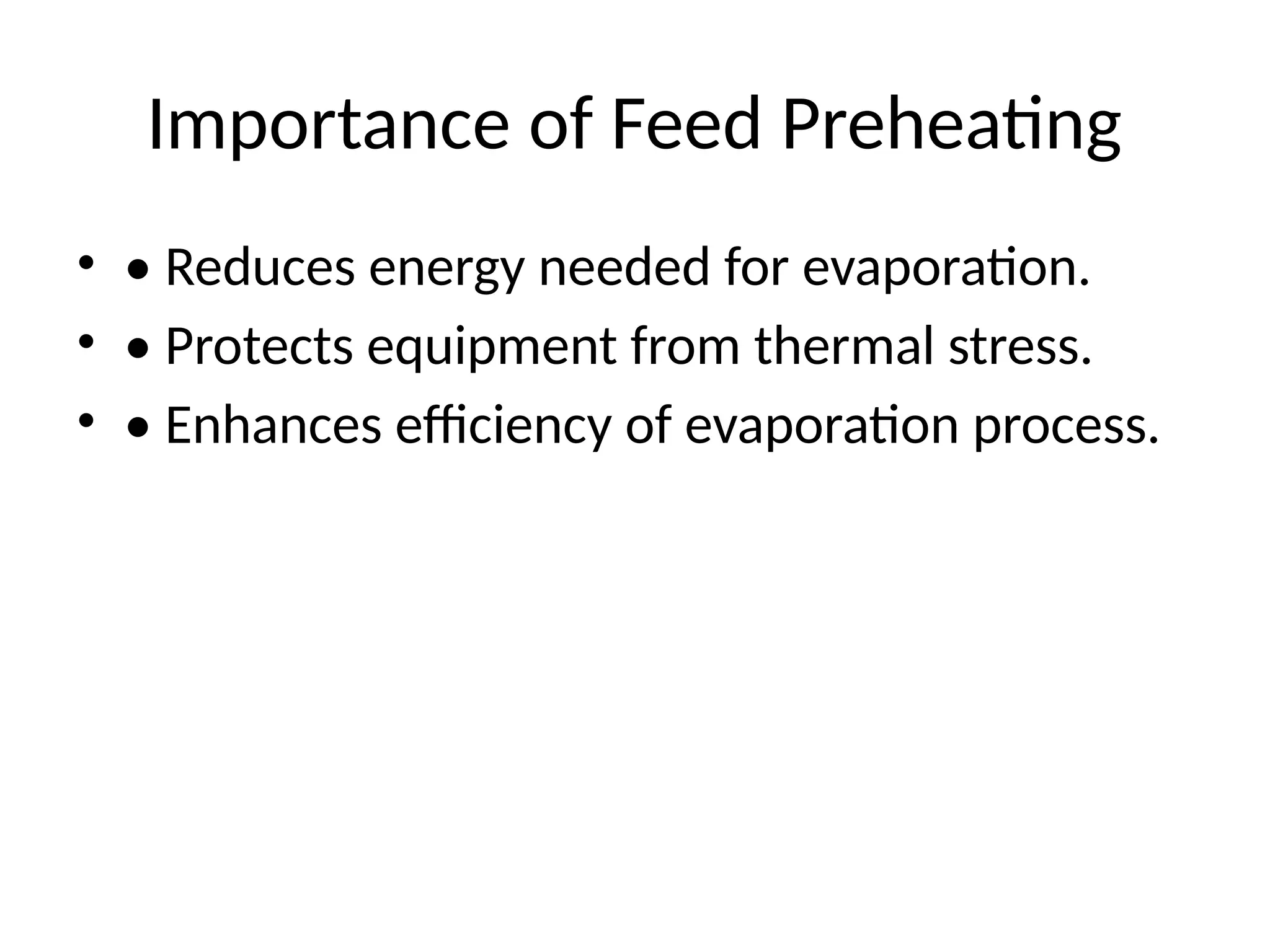

8. Importance of Feed Preheating
• • Reduces energy needed for evaporation.
• • Protects equipment from thermal stress.
• • Enhances efficiency of evaporation process.

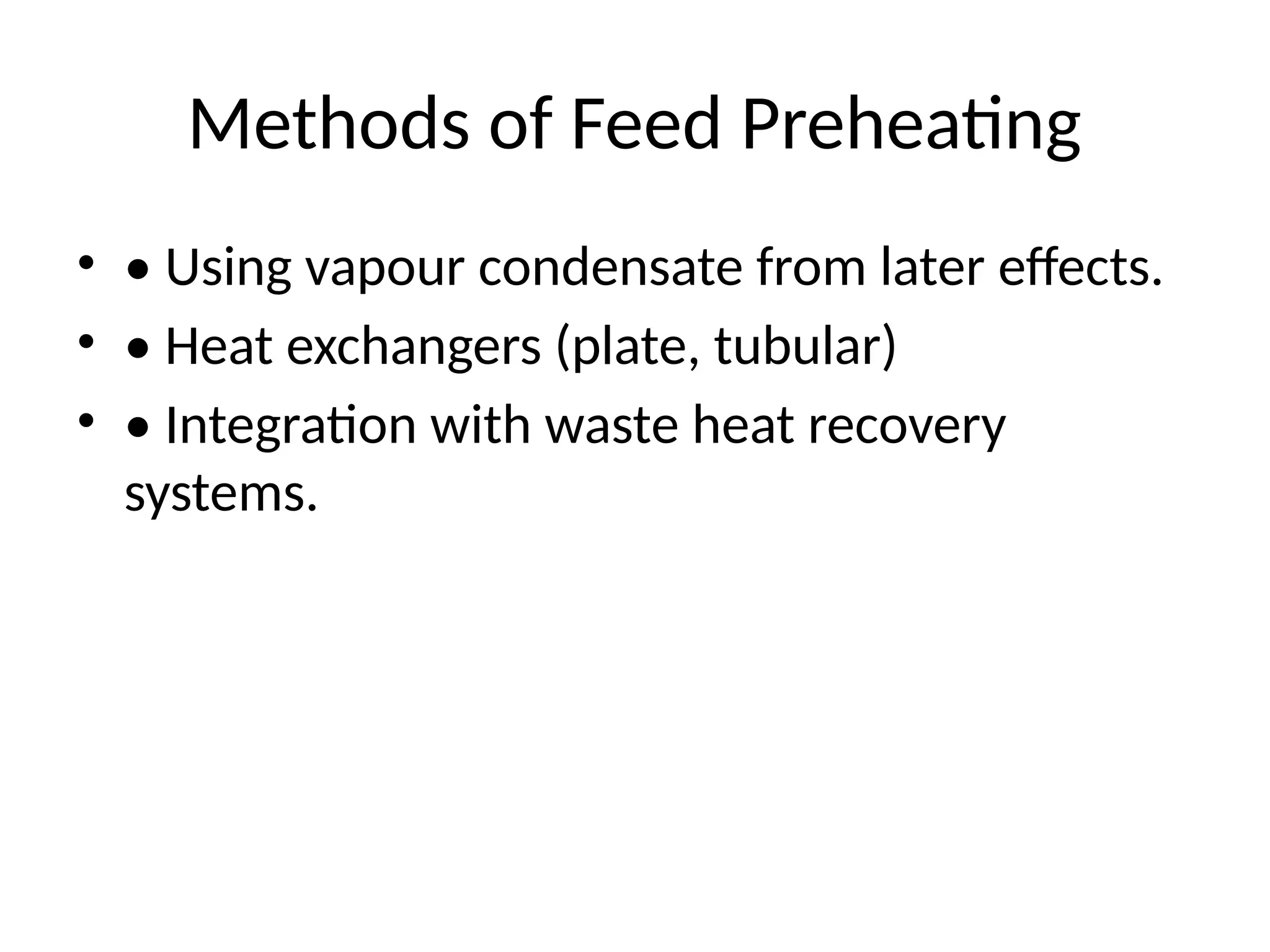

9. Methods of Feed Preheating
• • Using vapour condensate from later effects.
• • Heat exchangers (plate, tubular)
• • Integration with waste heat recovery
systems.

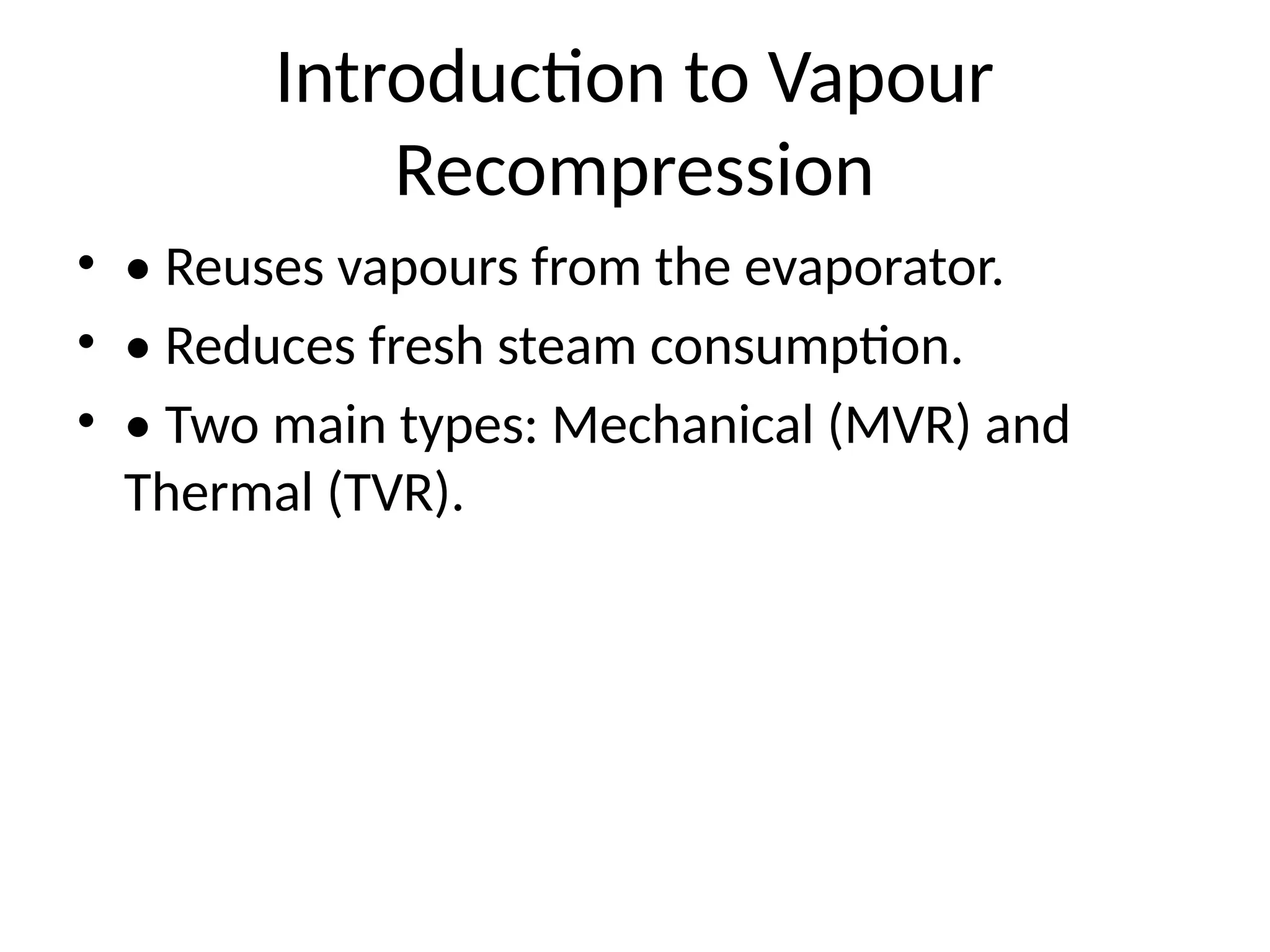

10. Introduction to Vapour
Recompression
• • Reuses vapours from the evaporator.
• • Reduces fresh steam consumption.
• • Two main types: Mechanical (MVR) and
Thermal (TVR).

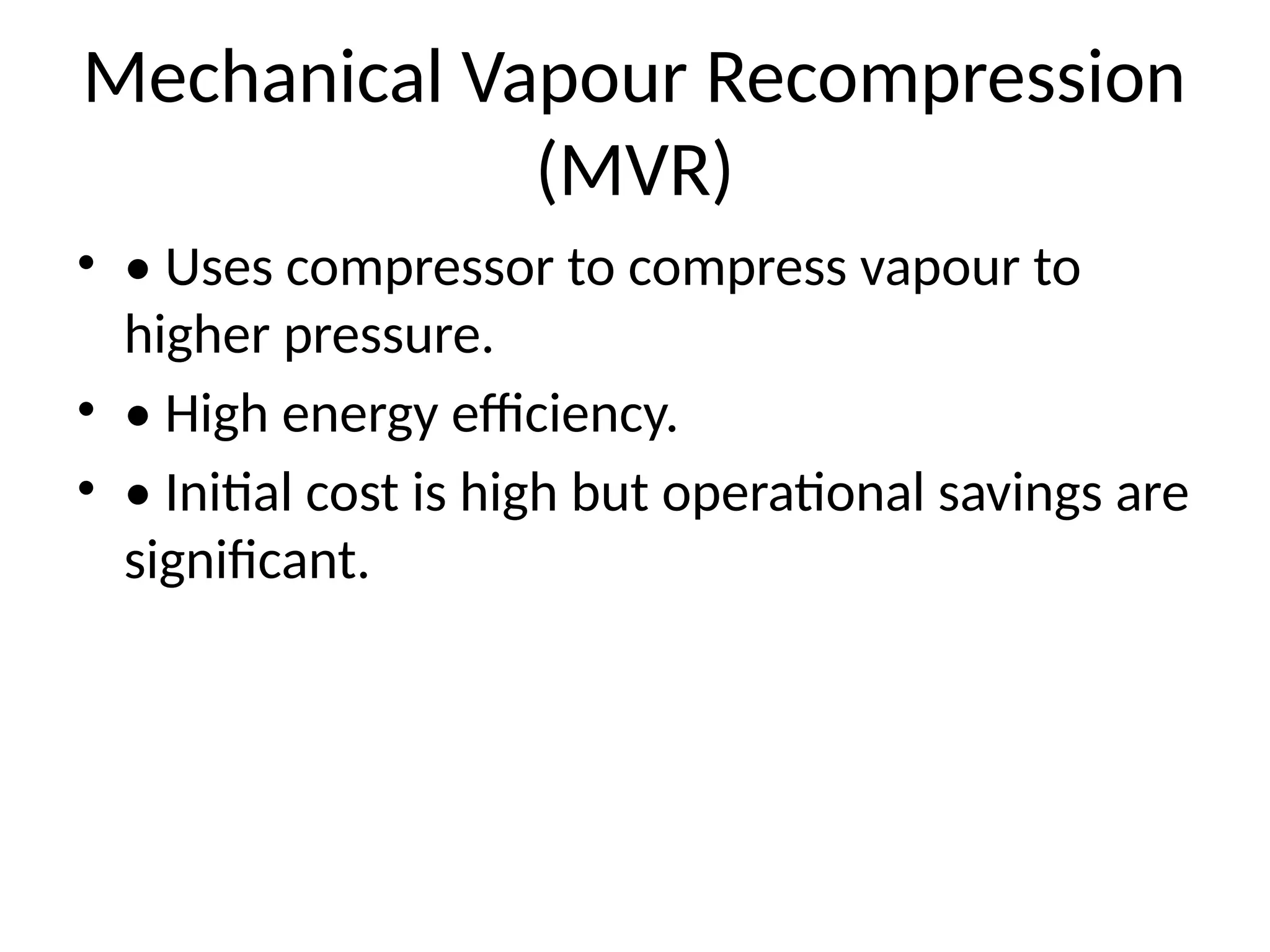

11. Mechanical Vapour Recompression
(MVR)
• • Uses compressor to compress vapour to
higher pressure.
• • High energy efficiency.
• • Initial cost is high but operational savings are
significant.

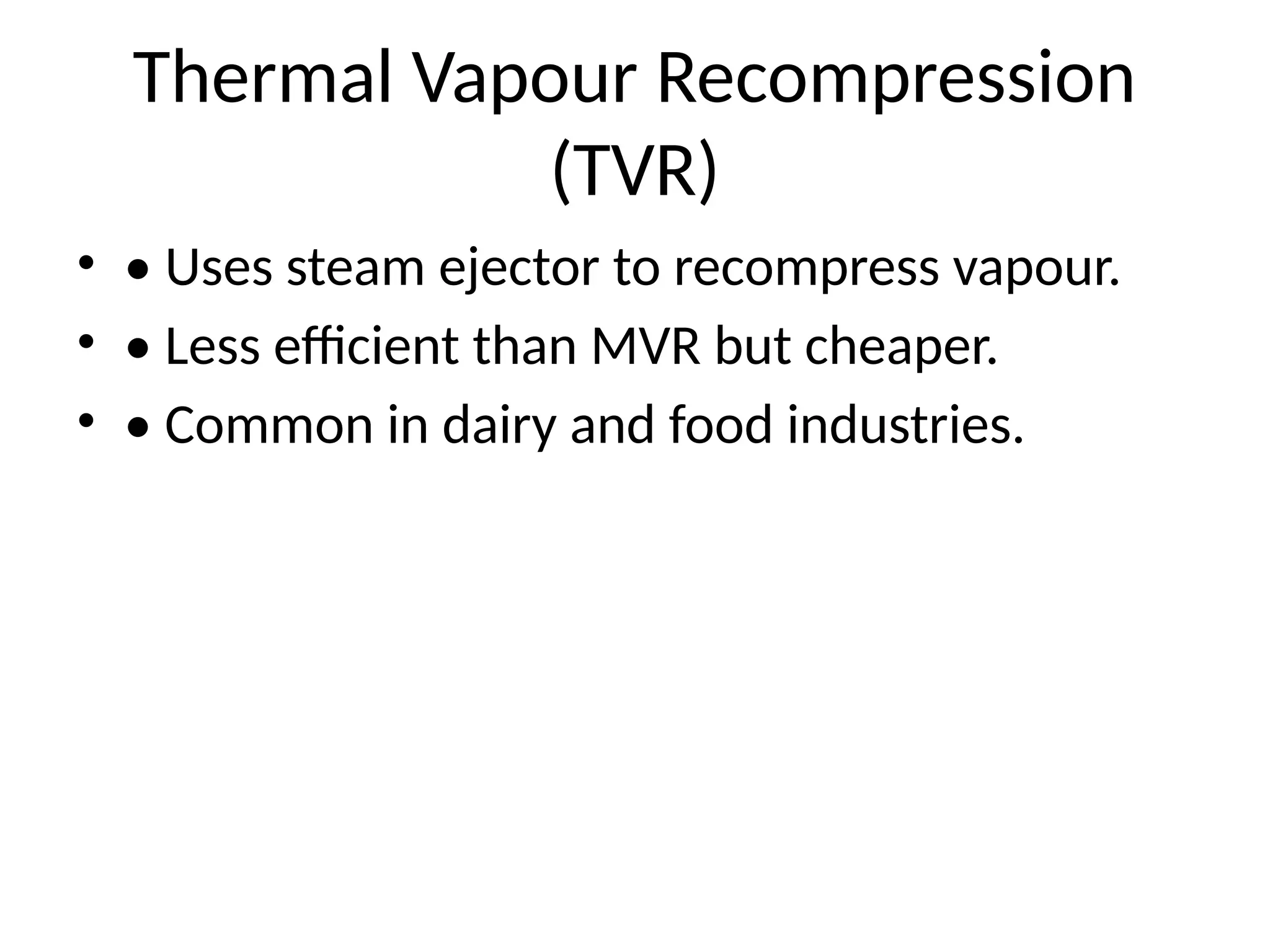

12. Thermal Vapour Recompression
(TVR)
• • Uses steam ejector to recompress vapour.
• • Less efficient than MVR but cheaper.
• • Common in dairy and food industries.

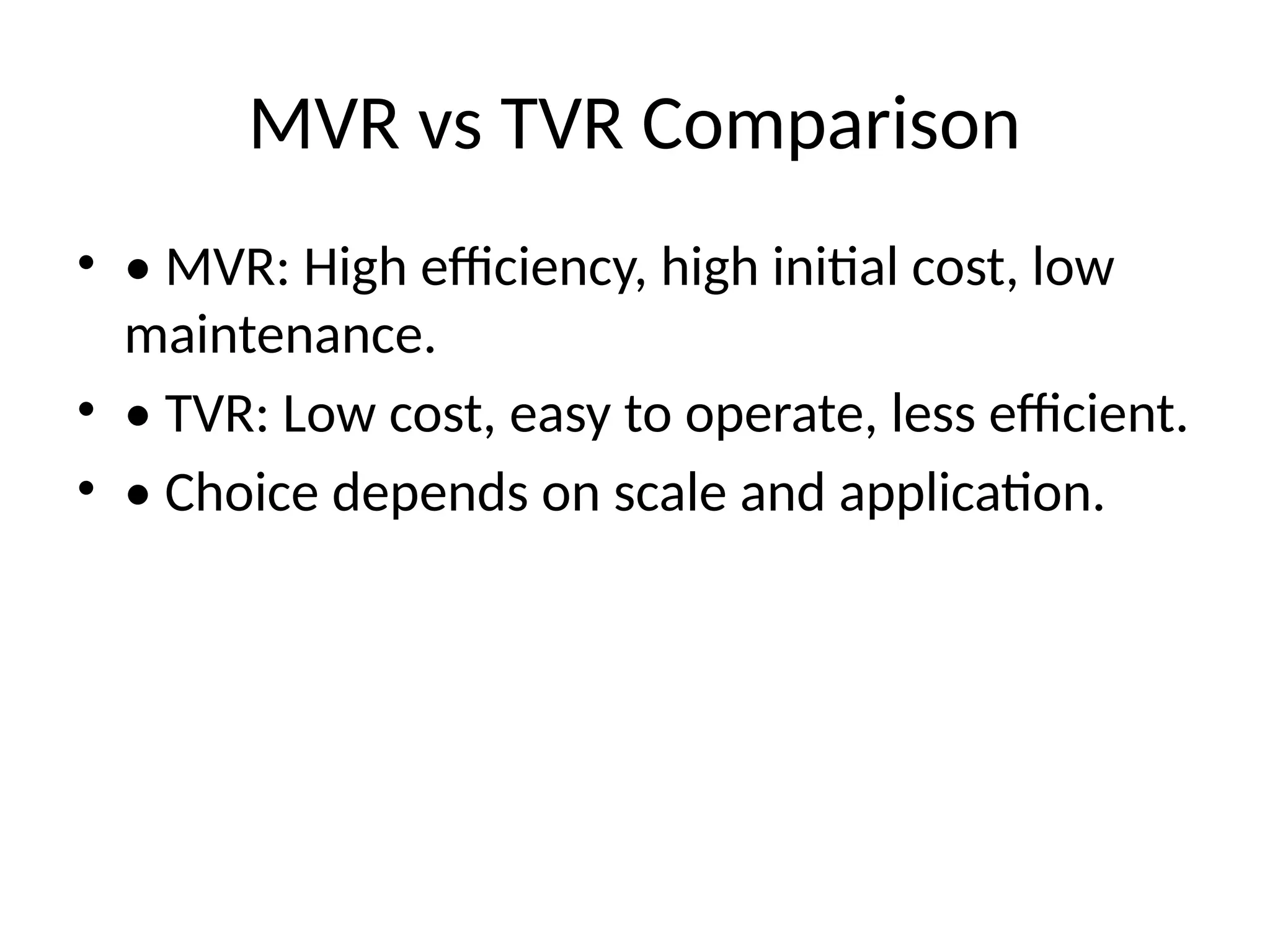

13. MVR vs TVR Comparison
• • MVR: High efficiency, high initial cost, low
maintenance.
• • TVR: Low cost, easy to operate, less efficient.
• • Choice depends on scale and application.

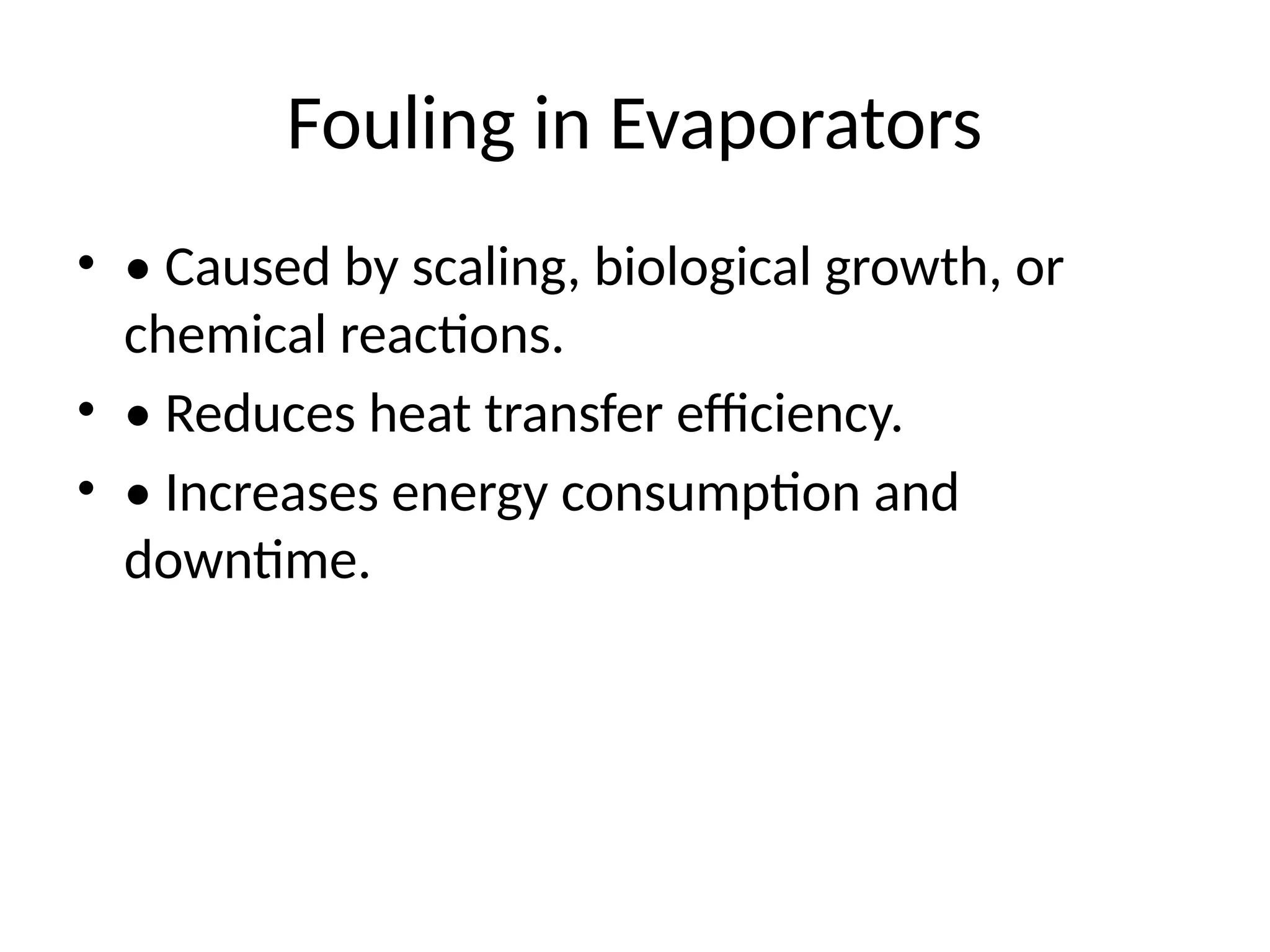

14. Fouling in Evaporators
• • Caused by scaling, biological growth, or
chemical reactions.
• • Reduces heat transfer efficiency.
• • Increases energy consumption and
downtime.

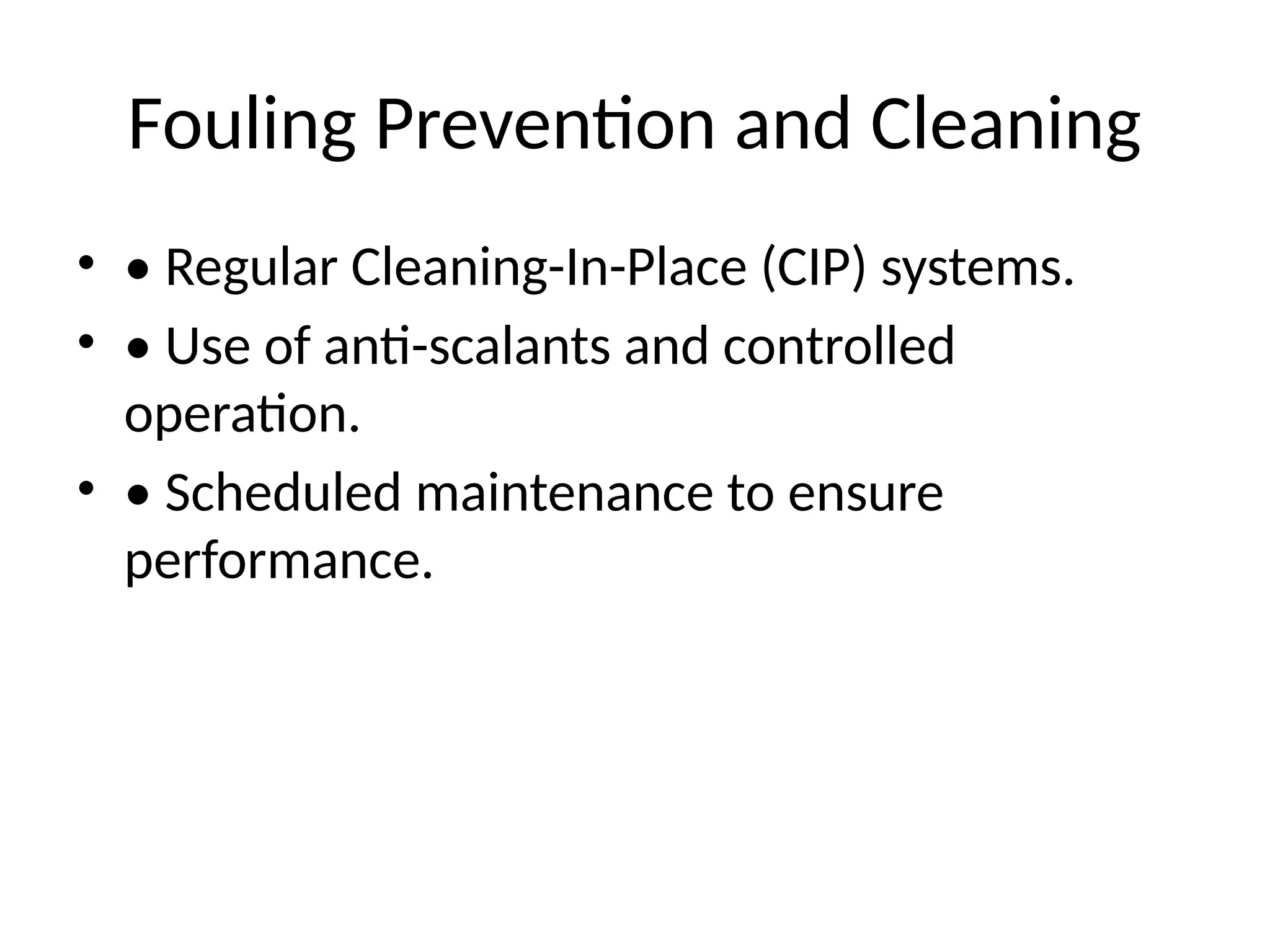

15. Fouling Prevention and Cleaning
• • Regular Cleaning-In-Place (CIP) systems.
• • Use of anti-scalants and controlled
operation.
• • Scheduled maintenance to ensure
performance.

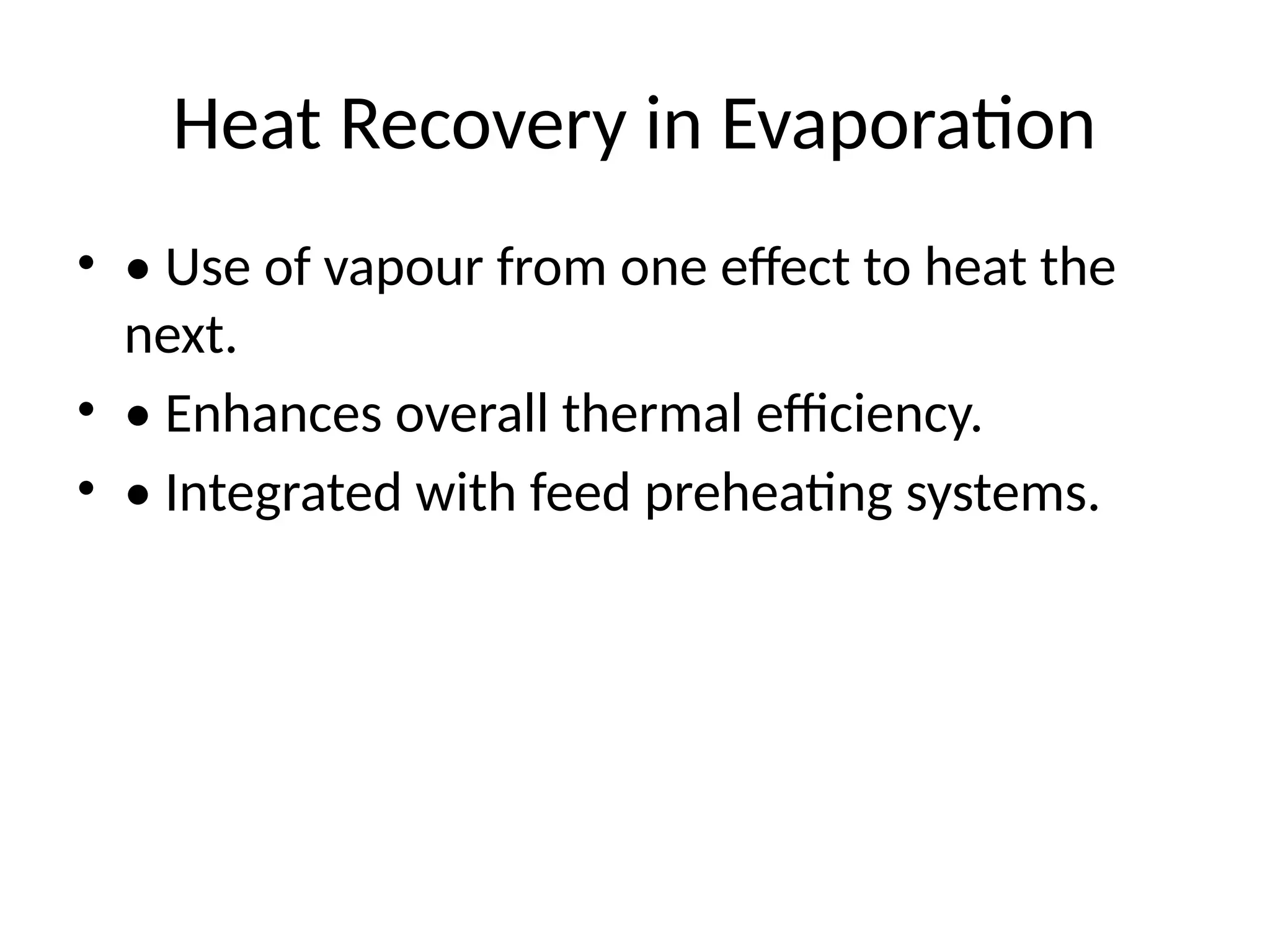

16. Heat Recovery in Evaporation
• • Use of vapour from one effect to heat the
next.
• • Enhances overall thermal efficiency.
• • Integrated with feed preheating systems.

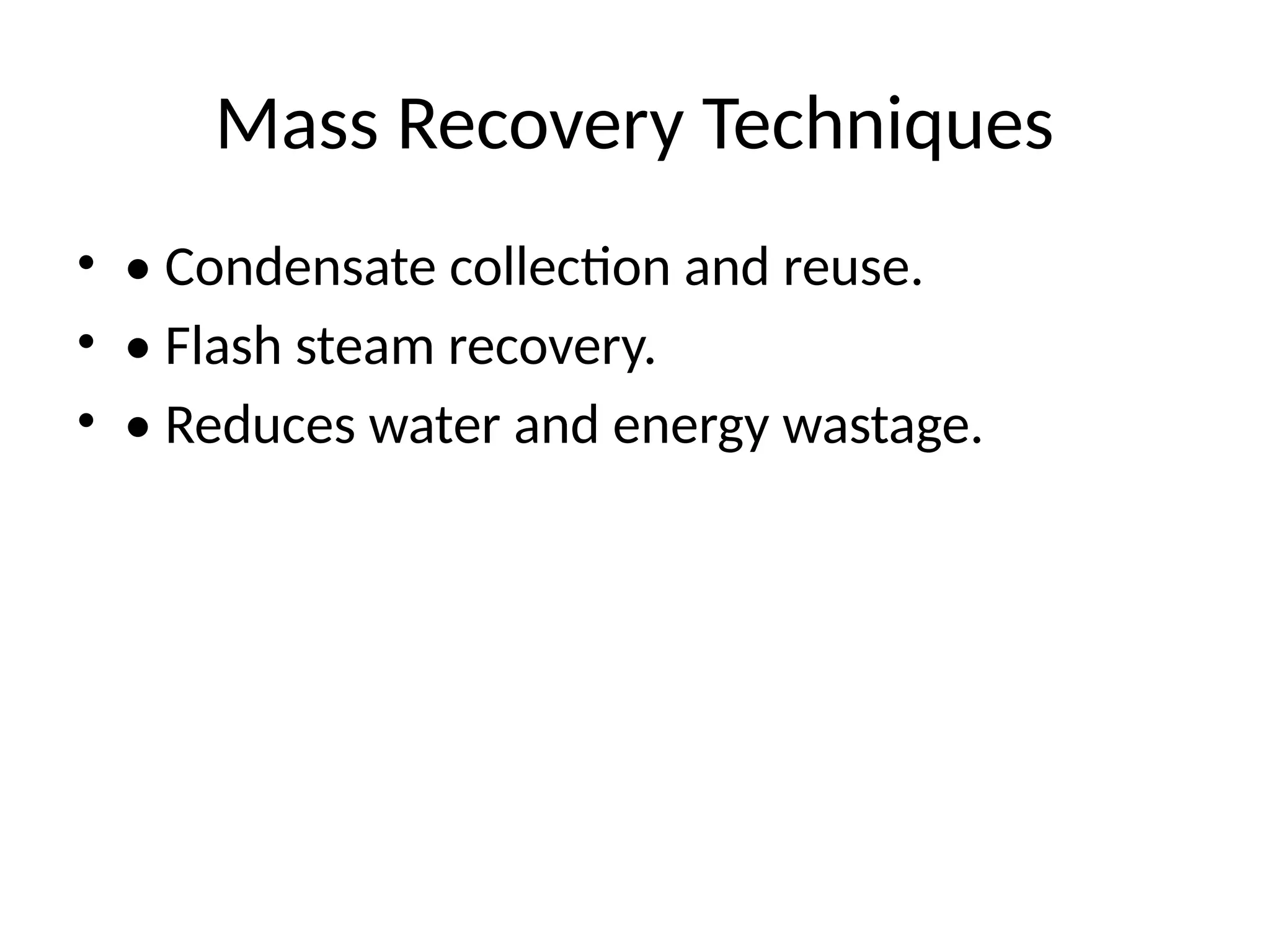

17. Mass Recovery Techniques
• • Condensate collection and reuse.
• • Flash steam recovery.
• • Reduces water and energy wastage.

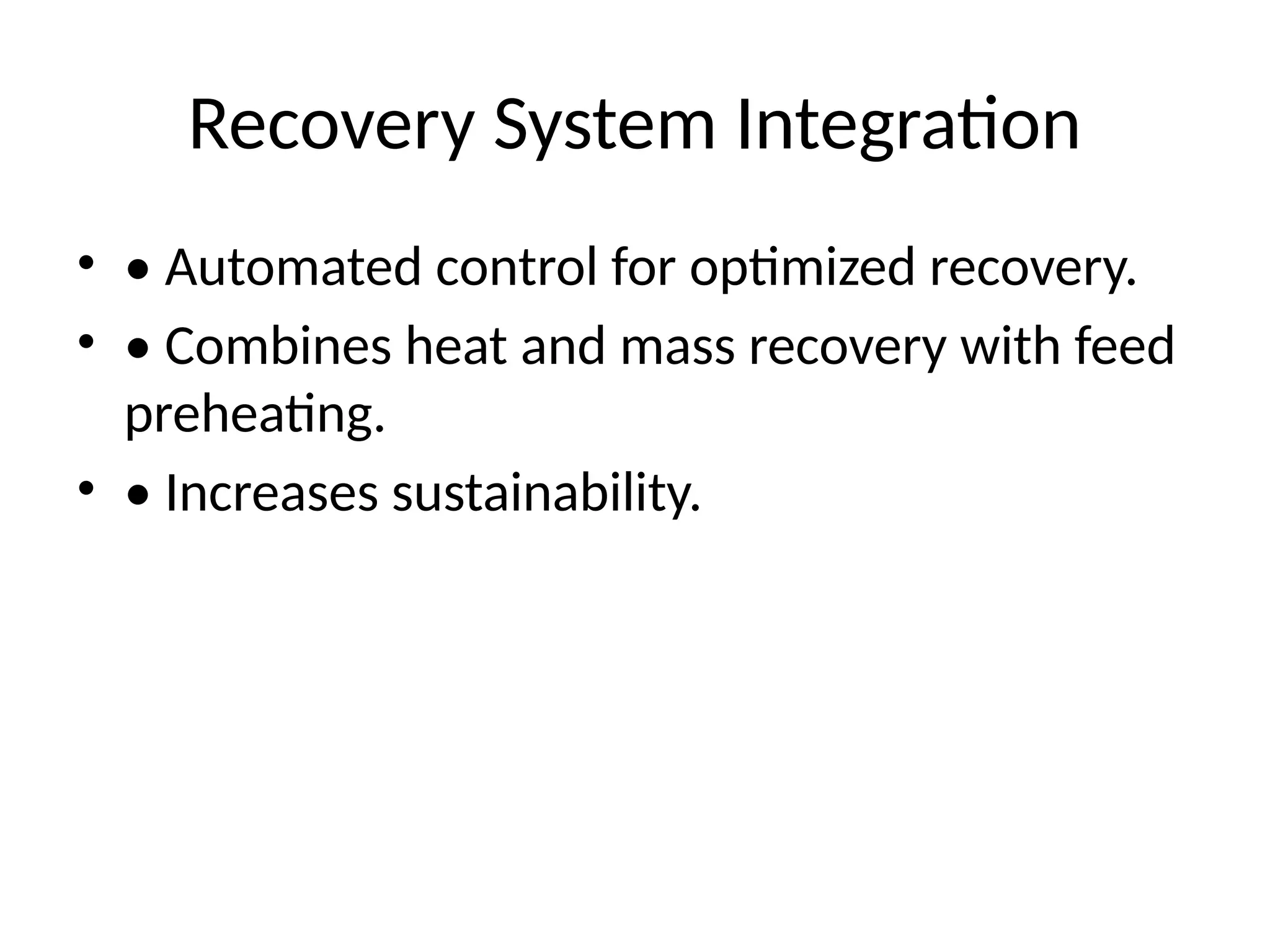

18. Recovery System Integration
• • Automated control for optimized recovery.
• • Combines heat and mass recovery with feed
preheating.
• • Increases sustainability.

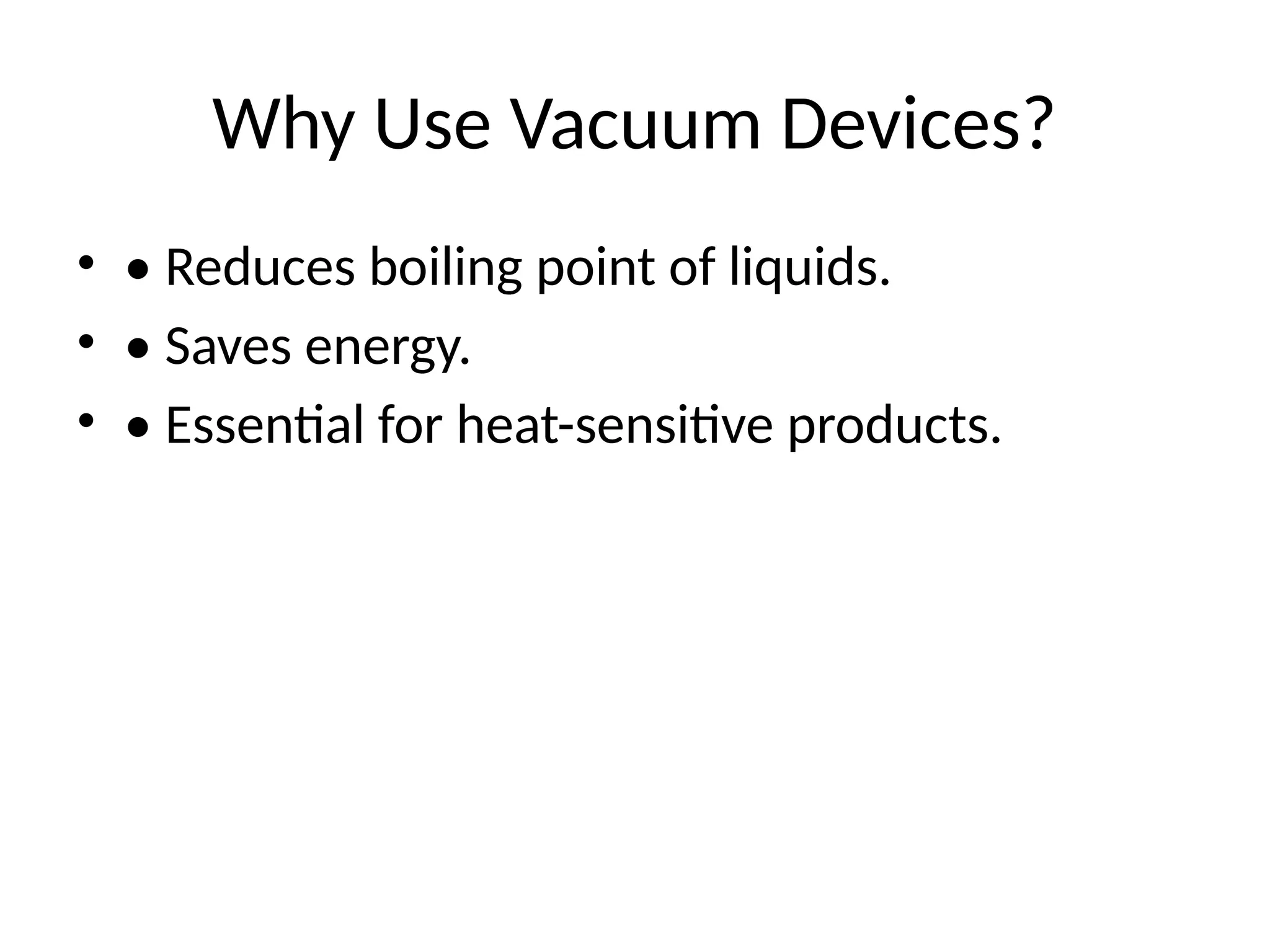

19. Why Use Vacuum Devices?
• • Reduces boiling point of liquids.
• • Saves energy.
• • Essential for heat-sensitive products.

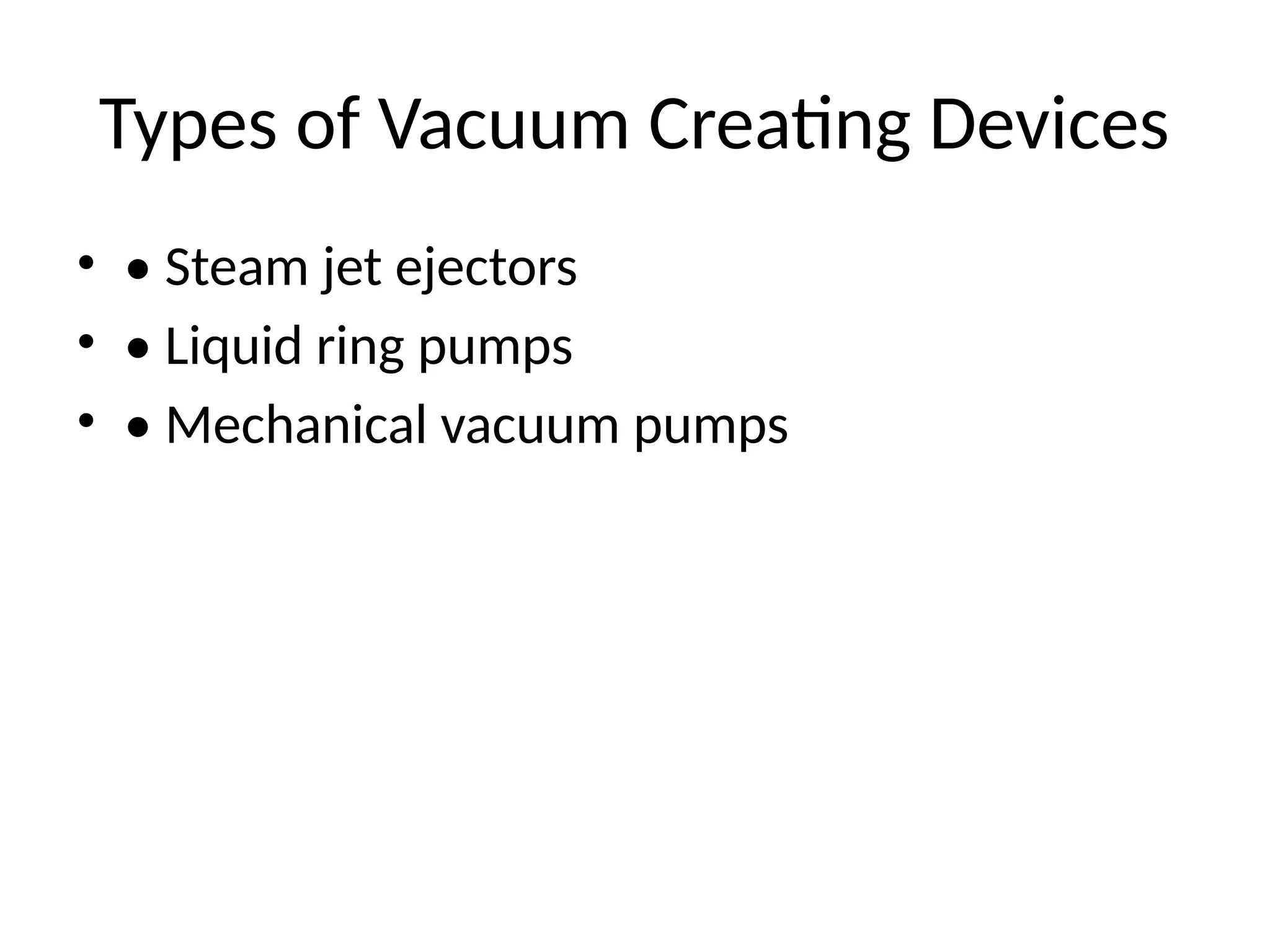

20. Types of Vacuum Creating Devices
• • Steam jet ejectors
• • Liquid ring pumps
• • Mechanical vacuum pumps

21. Vacuum System Setup
• • Vacuum maintained across effects.
• • Interlocks with vapour recompression
systems.
• • Includes condensers and receivers.

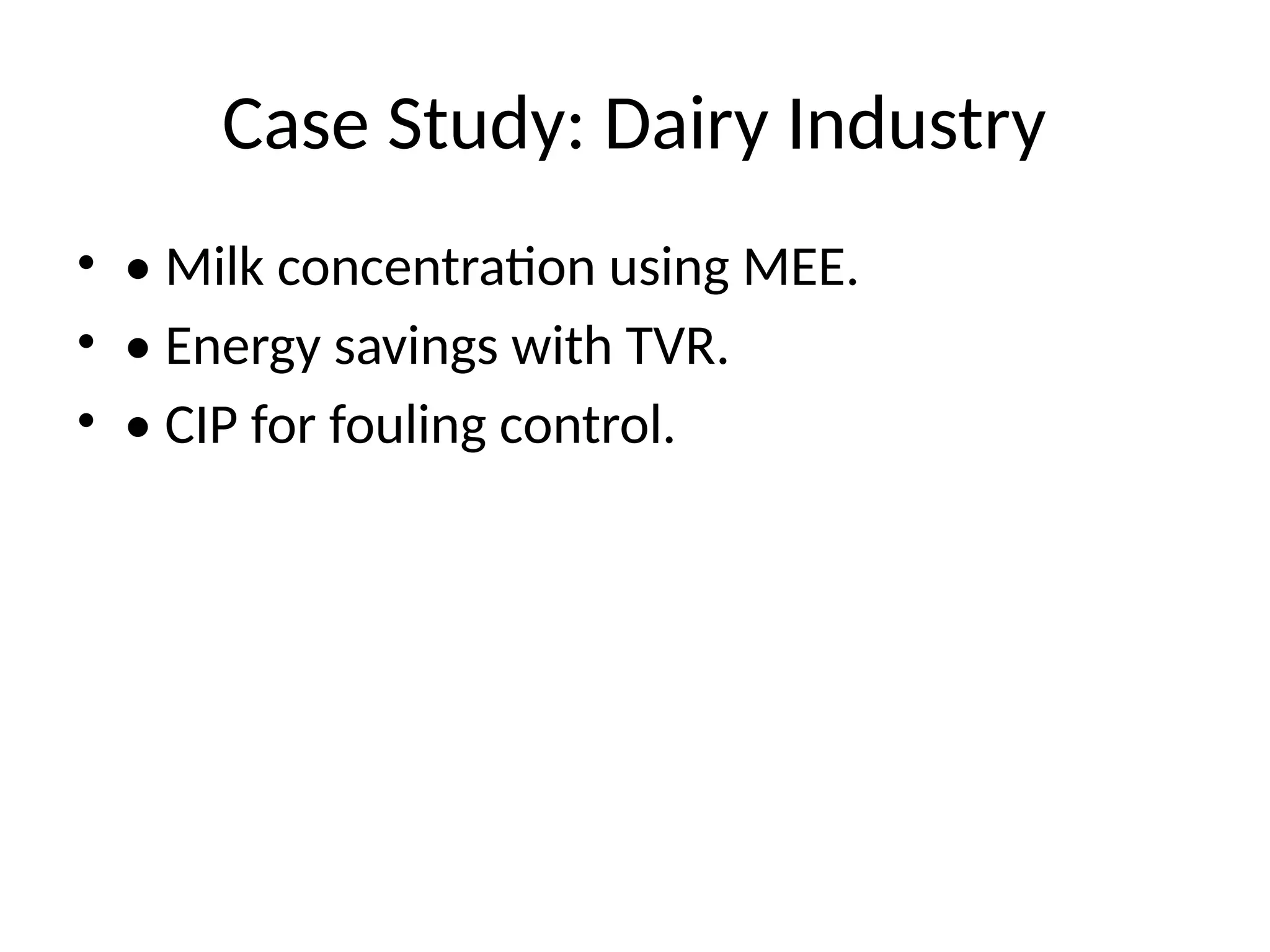

22. Case Study: Dairy Industry
• • Milk concentration using MEE.
• • Energy savings with TVR.
• • CIP for fouling control.

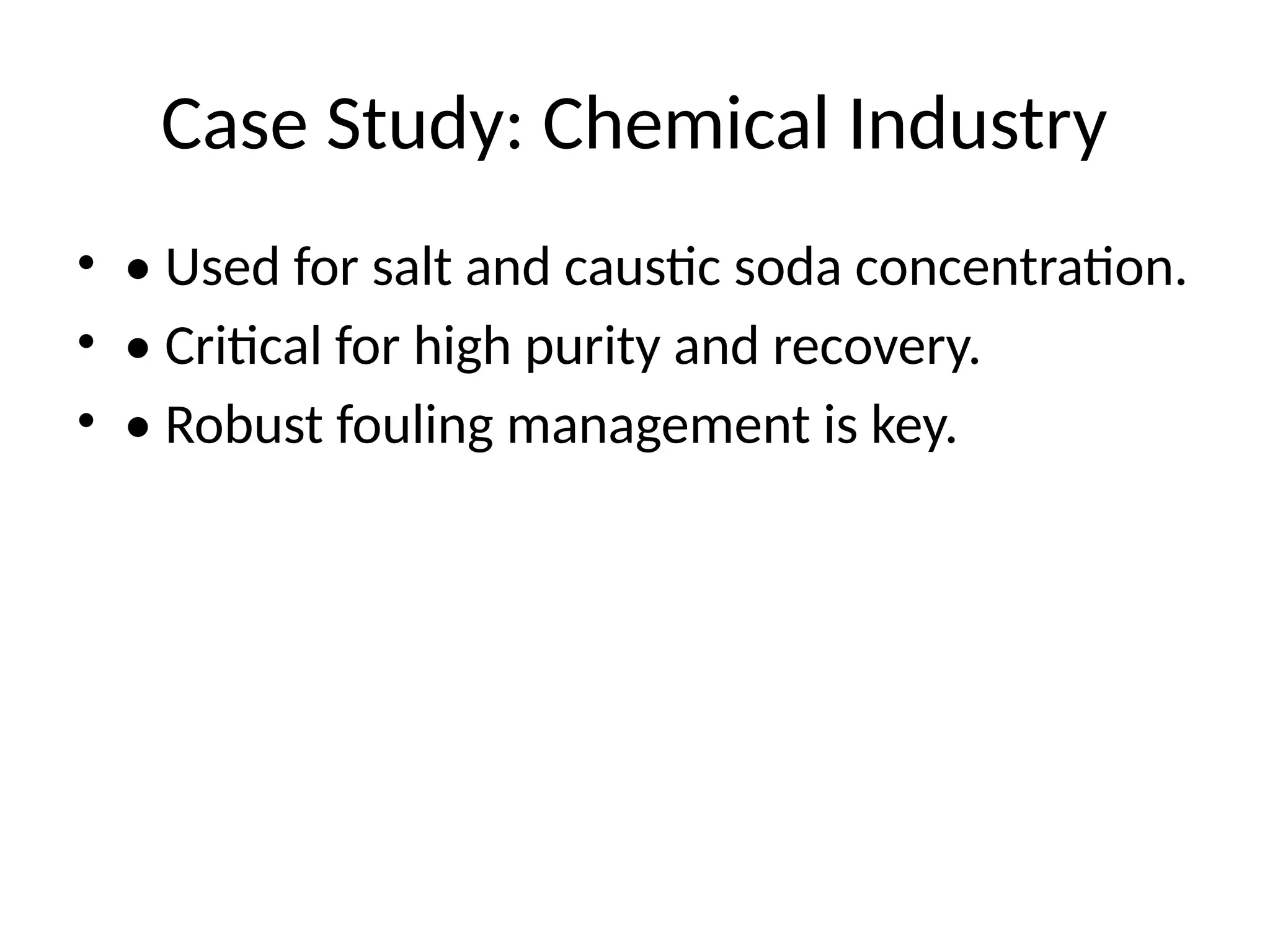

23. Case Study: Chemical Industry
• • Used for salt and caustic soda concentration.
• • Critical for high purity and recovery.
• • Robust fouling management is key.

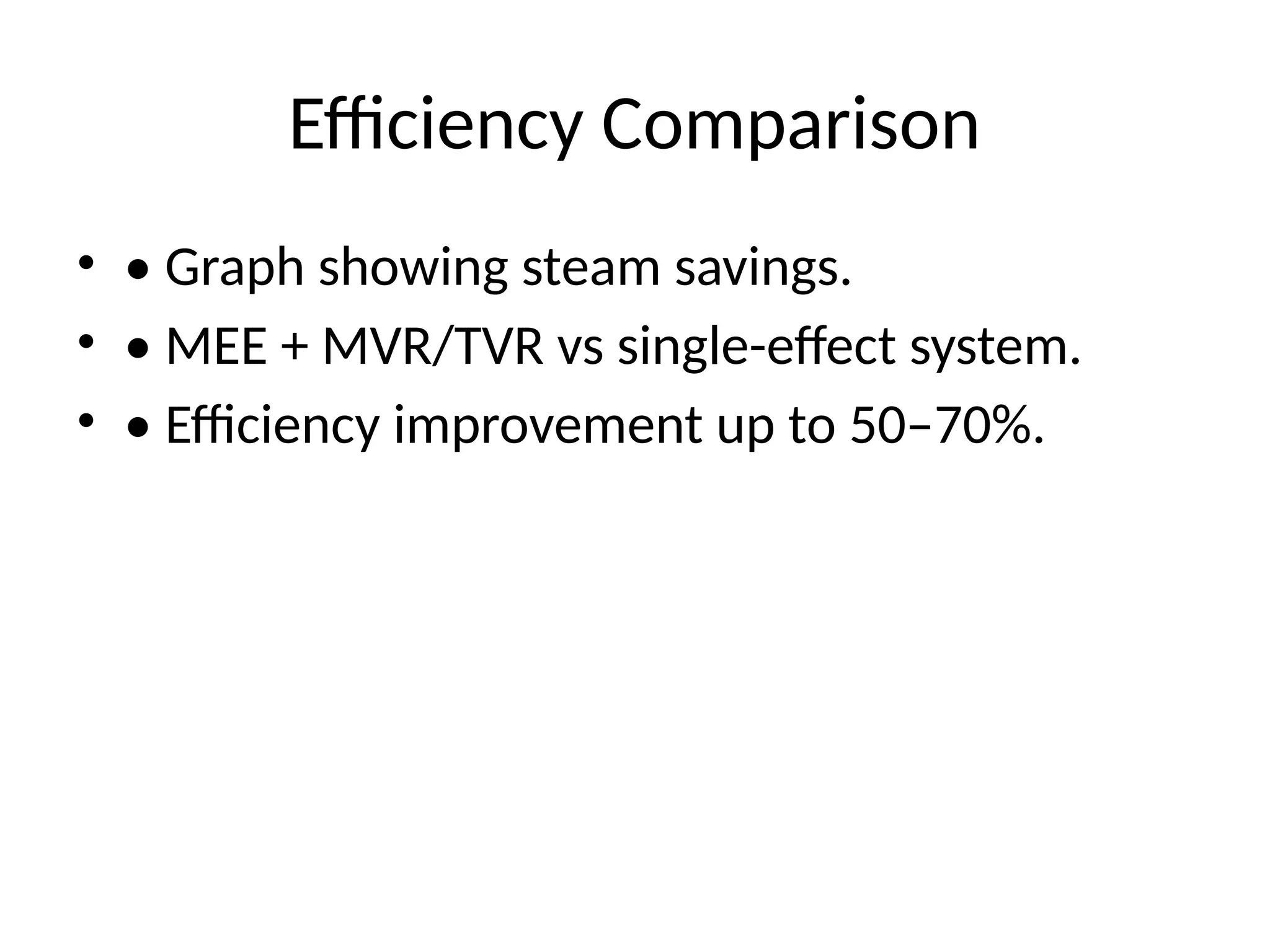

24. Efficiency Comparison
• • Graph showing steam savings.
• • MEE + MVR/TVR vs single-effect system.
• • Efficiency improvement up to 50–70%.

25. Conclusion
• • MEE is critical for energy-efficient
evaporation.
• • Recompression and recovery enhance
sustainability.
• • Proper design and maintenance reduce
operational costs.
