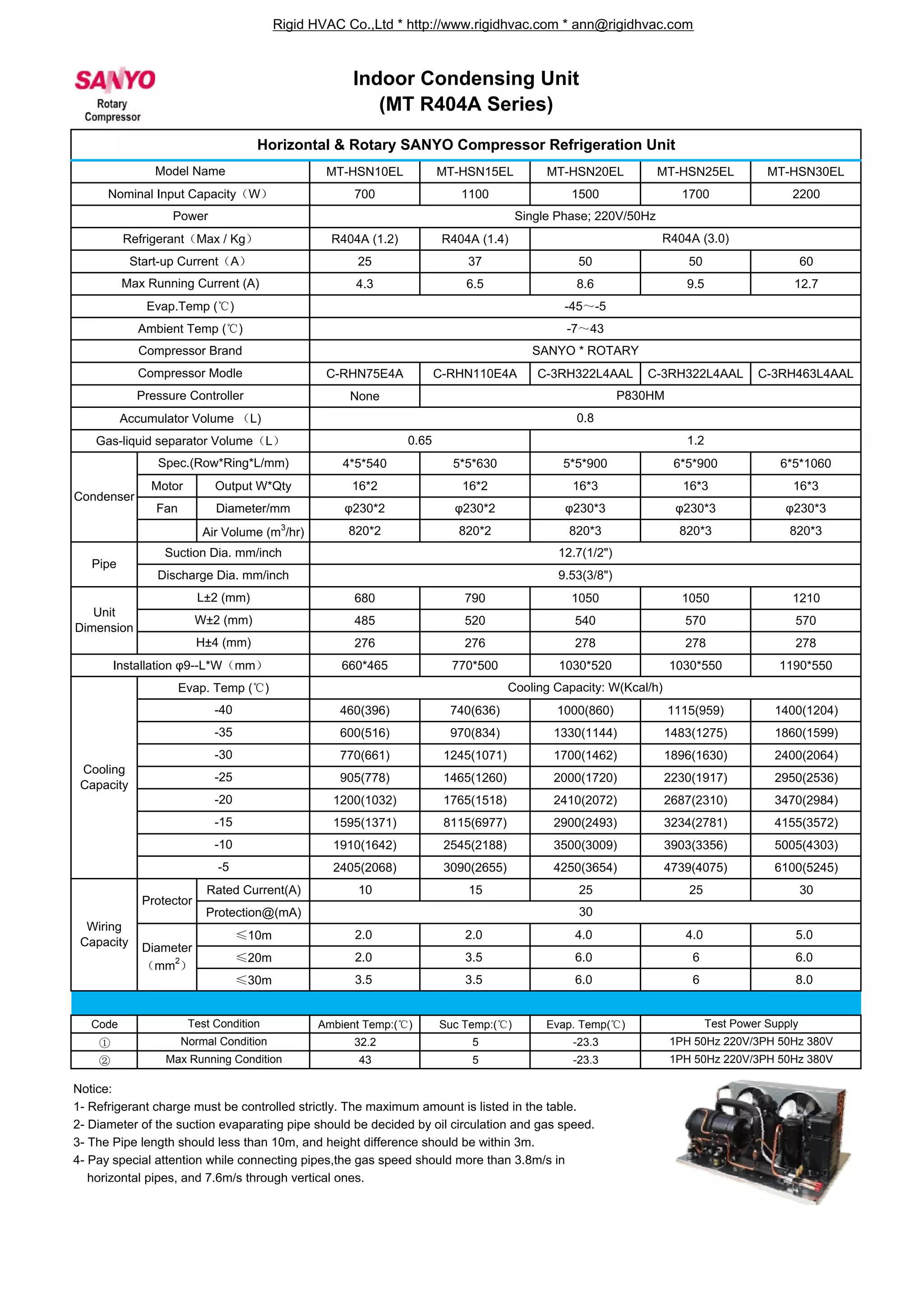

Indoor Condensing Unit
(MT R404A Series)
Horizontal & Rotary SANYO Compressor Refrigeration Unit
MT-HSN10EL MT-HSN15EL MT-HSN20EL MT-HSN25EL MT-HSN30EL
700 1100 1500 1700 2200
R404A (1.2) R404A (1.4)
25 37 50 50 60
4.3 6.5 8.6 9.5 12.7
Refrigerant(Max / Kg) R404A (3.0)
Start-up Current(A)
Max Running Current (A)
Model Name
Nominal Input Capacity(W)
Power Single Phase; 220V/50Hz
Horizontal & Rotary SANYO Compressor Refrigeration Unit
C-RHN75E4A C-RHN110E4A C-3RH322L4AAL C-3RH322L4AAL C-3RH463L4AAL
None
Accumulator Volume (L) 0.8
Gas-liquid separator Volume(L) 0.65 1.2
Ambient Temp (℃) -7~43
Compressor Modle
Pressure Controller P830HM
Compressor Brand SANYO * ROTARY
Evap.Temp (℃) -45~-5
4*5*540 5*5*630 5*5*900 6*5*900 6*5*1060
Motor Output W*Qty 16*2 16*2 16*3 16*3 16*3
Fan Diameter/mm φ230*2 φ230*2 φ230*3 φ230*3 φ230*3
Air Volume (m3
/hr) 820*2 820*2 820*3 820*3 820*3
Condenser
Spec.(Row*Ring*L/mm)
Pipe
Suction Dia. mm/inch 12.7(1/2")
Discharge Dia. mm/inch 9.53(3/8")
Gas-liquid separator Volume(L) 0.65 1.2
680 790 1050 1050 1210
485 520 540 570 570
276 276 278 278 278
660*465 770*500 1030*520 1030*550 1190*550
460(396) 740(636) 1000(860) 1115(959) 1400(1204)
600(516) 970(834) 1330(1144) 1483(1275) 1860(1599)
Evap. Temp (℃) Cooling Capacity: W(Kcal/h)
-40
-35
Unit
Dimension
L±2 (mm)
W±2 (mm)
H±4 (mm)
Installation φ9--L*W(mm)
( ) ( ) ( ) ( ) ( )
770(661) 1245(1071) 1700(1462) 1896(1630) 2400(2064)
905(778) 1465(1260) 2000(1720) 2230(1917) 2950(2536)
1200(1032) 1765(1518) 2410(2072) 2687(2310) 3470(2984)
1595(1371) 8115(6977) 2900(2493) 3234(2781) 4155(3572)
1910(1642) 2545(2188) 3500(3009) 3903(3356) 5005(4303)
2405(2068) 3090(2655) 4250(3654) 4739(4075) 6100(5245)
R t d C t(A) 10 15 25 25 30
Cooling
Capacity
-30
-25
-20
-15
-10
-5
Rated Current(A) 10 15 25 25 30
Protection@(mA)
≤10m 2.0 2.0 4.0 4.0 5.0
≤20m 2.0 3.5 6.0 6 6.0
≤30m 3.5 3.5 6.0 6 8.0
Code Ambient Temp:(℃) Suc Temp:(℃) Evap. Temp(℃)
Wiring
Capacity
Protector
30
Diameter
(mm2
)
Test Condition Test Power Supply
① 32.2 5 -23.3
② 43 5 -23.3
Notice:
1- Refrigerant charge must be controlled strictly. The maximum amount is listed in the table.
2- Diameter of the suction evaparating pipe should be decided by oil circulation and gas speed.
3- The Pipe length should less than 10m, and height difference should be within 3m.
4- Pay special attention while connecting pipes,the gas speed should more than 3.8m/s in
horizontal pipes, and 7.6m/s through vertical ones.
Max Running Condition
Normal Condition
1PH 50Hz 220V/3PH 50Hz 380V
1PH 50Hz 220V/3PH 50Hz 380V
horizontal pipes, and 7.6m/s through vertical ones.

MTH R404A condensing unit 220V
