The Intel Z370 series introduces the 8th generation Core processors (Coffee Lake-S) and the Z370 chipset, supporting up to 6 cores and turbo boost frequencies of up to 4.7GHz. The Z370 is not compatible with 6th or 7th generation CPUs and is optimized for high-performance gaming with features like advanced overclocking, enhanced memory support, and improved audio quality. MSI offers a range of motherboards within the Z370 series tailored for gaming and professional use, highlighting customizable RGB features and superior cooling solutions.

1. Intel Z370
Series info kit

2. Intel Z370 Platform
New Features

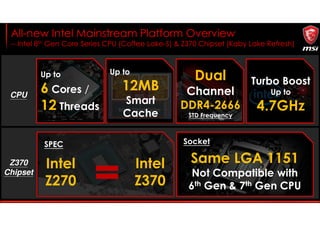

3. All-new Intel Mainstream Platform Overview
-- Intel 8th Gen Core Series CPU (Coffee Lake-S) & Z370 Chipset (Kaby Lake Refresh)
CPU
Z370
Chipset
Up to
6 Cores /
12 Threads
Up to
12MB
Smart
Cache
Dual
Channel
DDR4-2666
STD Frequency
Turbo Boost
Up to
4.7GHz
SPEC
Intel
Z270
Intel
Z370
Socket
Same LGA 1151
Not Compatible with
6th Gen & 7th Gen CPU

4. Continue to Use the LGA 1151 Socket
• Z370 motherboard still adapt the LGA 1151 socket design as same as Intel 200
series & 100 series.
• Due to the limitation of BIOS and ME (Intel Management Engine) , Coffee Lake-S
CPU will only be used in conjunction with the Z370 & other 300-series motherboard,
and will not work with the 100 and 200 series.
CPU
6th Generation
Core Series Family
(Skylake-S)
Socket 1151
7th Generation
Core Series Family
(Kaby Lake-S)
8th Generation
Core Series Family
(Coffee Lake-S)
Chipset
Z370 & Other Upcoming 300
Series Chipset
200 Series100 Series

5. CPU Core/Thread & STD Memory Frequency Transition
Core i7
7th Gen Core Series Family
(Kabylake-S)
4 Cores
8 Threads
6 Cores
12 Threads
Core i5
4 Cores
4 Threads
6 Cores
6 Threads
Core i3
2 Cores
4 Threads
4 Cores
4 Threads
• Core i7 7700K
• Core i7 7700
• Core i5 7600K
• Core i5 7500
• Core i5 7400
8th Gen Core Series Family (1st Wave)
(Coffee Lake-S)
• Core i3 7350K
• Core i3 7300
• Core i3 7100
• Core i7 8700K
• Core i7 8700
• Core i5 8600K
• Core i5 8400
• Core i3 8350K
• Core i3 8100
<DDR4-2400>
<DDR4-2400>
<DDR4-2400>
<DDR4-2666>
<DDR4-2666>
<DDR4-2400>

6. Processor
Number
Base Frequency
(GHz)
Cores/
Threads
Memory Speed
Support
Intel®
Turbo Boost
maximum frequency
L3 Cache
TDP
(W)
Socket 1151 95W
Core i7-8700K 3.7 6/12 DDR4 2666 4.7(GHz) 12MB, shared 95
Core i5-8600K 3.6 6/6 DDR4 2666 4.3(GHz) 9MB, shared 95
Core i3-8350K 4 4/4 DDR4 2400 N/A 8MB, shared 91
Socket 1151 Standard Power
Core i7-8700 3.2 6/12 DDR4 2666 4.6(GHz) 12MB, shared 65
Core i5-8400 2.8 6/6 DDR4 2666 4.0(GHz) 9MB, shared 65
Core i3-8100 3.6 4/4 DDR4 2400 N/A 6MB, shared 65
Intel 8th CPU Roadmap

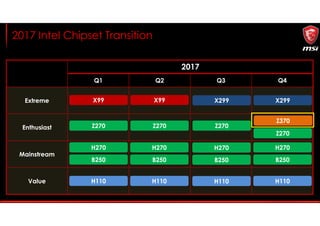

7. 2017 Intel Chipset Transition
2017
Q1 Q2 Q3 Q4
Extreme
Enthusiast
Mainstream
Value
X99 X99 X299 X299
Z270 Z270 Z270
Z270
Z370
H270 H270
B250 B250
H270
B250
H270
B250
H110 H110 H110 H110

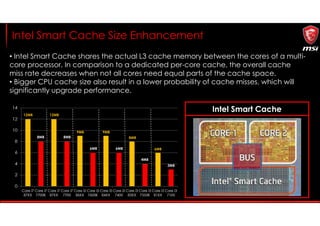

8. Intel Smart Cache Size Enhancement
• Intel Smart Cache shares the actual L3 cache memory between the cores of a multi-
core processor. In comparison to a dedicated per-core cache, the overall cache
miss rate decreases when not all cores need equal parts of the cache space.
• Bigger CPU cache size also result in a lower probability of cache misses, which will
significantly upgrade performance.
12MB
8MB
12MB
8MB
9MB
6MB
9MB
6MB
8MB
4MB
6MB
3MB
Intel Smart Cache

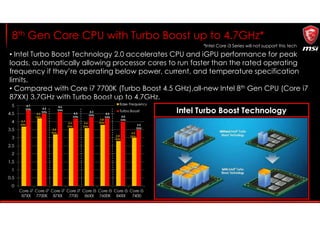

9. Intel Turbo Boost Technology
8th Gen Core CPU with Turbo Boost up to 4.7GHz*
• Intel Turbo Boost Technology 2.0 accelerates CPU and iGPU performance for peak
loads, automatically allowing processor cores to run faster than the rated operating
frequency if they’re operating below power, current, and temperature specification
limits.
• Compared with Core i7 7700K (Turbo Boost 4.5 GHz),all-new Intel 8th Gen CPU (Core i7
87XX) 3.7GHz with Turbo Boost up to 4.7GHz.
3.7
GHz
4.7
GHz
4.2
GHz
4.5
GHz
3.2
GHz
4.6
GHz
3.6
GHz
4.2
GHz
3.6
GHz
4.3
GHz
3.8
GHz
4.2
GHz
2.8
GHz
4.0
GHz
3.0
GHz
3.5
GHz
*Intel Core i3 Series will not support this tech

10. Z370, Z270 & X299 Chipset Comparison
Z370 Z270 X299
Code Name Coffee Lake Kaby Lake-S Skylake-X or Kaby Lake-X
CPU Type LGA1151 LGA 1151 LGA 2066
Memory Support DDR4 DDR4 or DDR3L DDR4
Memory Channels / DIMMs per
Channel
2/2 2/2 4/2
CPU Overclocking Yes Yes Yes
Independent Display Ports 3 3 N/A
Processor PCI Express 3.0
Configuration Support
1x16 , 1x8/1x8 or 1x8/1x4/1x4 1x16 , 1x8/1x8 or 1x8/1x4/1x4
1x16, 1x16/1x16, 1x16/1x16/1x8, or
x16/1x8/1x8/1x8 (SKL-X 44 Lanes)
1x16, 1x16/1x8 or 1x8/1x8/1x8
(SKL-X 28 Lanes)
1x16 , 1x8/1x8 or 1x8/1x4/1x4
(KBL-X)
Maximum PCI-Express Lanes (Gen) 24(3.0) 24(3.0) 24(3.0)
Total USB Port (USB 3.1 Gen 1) 14(10) 14(10) 14(10)
Total SATA Port (SATA 3.0) 6(6) 6 (6) 8(8)
Maximum Intel RST for PCIe Storage
Ports (x2 M.2 or x4 M.2)
3 3 3
RAID 0, 1, 5, 10 Yes Yes Yes
Intel® Optane™ Technology Yes Yes Yes
• The main spec of Z370 chipset will be as same as Z270.

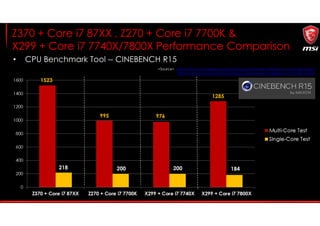

11. Z370 + Core i7 87XX , Z270 + Core i7 7700K &
X299 + Core i7 7740X/7800X Performance Comparison
• CPU Benchmark Tool -- CINEBENCH R15
1523
218
995
200
976
200
<Source> http://www.cpu-monkey.com/en/cpu_benchmark-cinebench_r15_single_core-7
http://www.cpu-monkey.com/en/cpu_benchmark-cinebench_r15_multi_core-8
1285
184

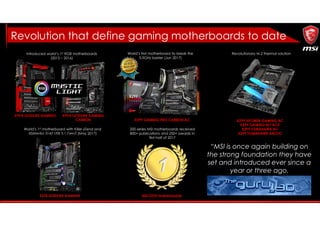

12. Introduced world’s 1st RGB motherboards
(2015 – 2016)
Revolutionary M.2 thermal solutionWorld’s first motherboard to break the
5.5GHz barrier (Jun 2017)
X99A GODLIKE GAMING X99A GODLIKE GAMING
CARBON X299 GAMING PRO CARBON AC X299 XPOWER GAMING AC
X299 GAMING M7 ACK
X299 TOMAHAWK AC
X299 TOMAHAWK ARCTIC
“MSI is once again building on
the strong foundation they have
set and introduced ever since a
year or three ago.
World’s 1st motherboard with Killer xTend and
ASMedia 3142 USB 3.1 Gen2 (May 2017)
1
200 series MSI motherboards received
800+ publications and 250+ awards in
first half of 2017
Z270 GODLIKE GAMING MSI Z270 motherboards
Revolution that define gaming motherboards to date

13. MASTER THE GAME GAME IN STYLE
CONQUER THE BATTLEFIELD ULTIMATE PERFORMANCE, MAXIMUM CLASS
MSI Z370 series: 3 GAMING segments and PRO Series

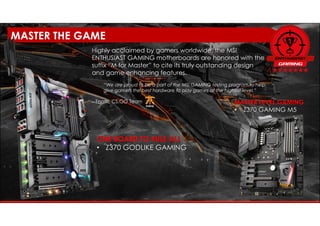

14. ONE BOARD TO RULE ALL
• Z370 GODLIKE GAMING
Highly acclaimed by gamers worldwide, the MSI
ENTHUSIAST GAMING motherboards are honored with the
suffix “M for Master” to cite its truly outstanding design
and game enhancing features.
“We are proud to be a part of the MSI GAMING testing program to help
give gamers the best hardware to play games at the highest level.”
– Fnatic CS:GO Team MASTER LEVEL GAMING
• Z370 GAMING M5
MASTER THE GAME

15. EXCEPTIONAL BY DESIGN
• Z370 GAMING PRO CARBON AC
• Z370 GAMING PRO CARBON
• Z370I GAMING PRO CARBON AC
The PERFORMANCE GAMING motherboards usher in a new era of gaming and
personalization. With its unique look & feel, unlimited customization options, packed
with more exclusive gaming features than ever, these GAMING motherboards are
sure to offer you the best of the best game experience.
RED GAMING DNA
• Z370 GAMING PLUS
• Z370M GAMING PRO AC
DARE TO BE DIFFERENT
• Z370 KRAIT GAMING
GAME IN STYLE

16. READY TO DOMINATE
• Z370 TOMAHAWK
Born to satisfy your gaming desire, ARSENAL’s unique styling features heavy plated
heat sinks and war style looks, ready for anything. Besides the outside, these
motherboards are fueled by Military Class 5 components and are packed with
gaming oriented features, boosting your gaming experience.
BLAST AWAY THE COMPETITION
• Z370M MORTAR
CONQUER THE BATTLEFIELD

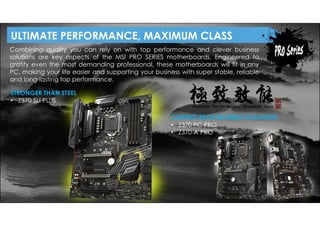

17. CUTTING-EDGE BUSINESS SOLUTIONS
• Z370 PC PRO
• Z370-A PRO
Combining quality you can rely on with top performance and clever business
solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to
gratify even the most demanding professional, these motherboards will fit in any
PC, making your life easier and supporting your business with super stable, reliable
and long-lasting top performance.
STRONGER THAN STEEL
• Z370 SLI PLUS
ULTIMATE PERFORMANCE, MAXIMUM CLASS

18. MSI 2017 GAMING features

19. MSI Z370: Optimized for 6-core processors
To maximize the performance from the new Intel® 6-
core processors, all MSI 300-series motherboards are
designed to deliver plenty of power.
• Fully digital PWM design specifically for 6-core
• More power phases and military class components
ensure the most stable experience and highest FPS.
MSI 300-series are built for hardcore gamers and PC
enthusiasts.
Others MSI
optimized
design
FPS
Breakingthelimit

20. External ClockGen
To break overclocking records, the Z370 motherboards come with a series of
specific OC features to push the boards harder.
V-check Points LiteOC PCBSlow Mode
Perfected for Overclocking
Up to 18
phase DrMOS
power design

21. Need more power from your CPU and memory to get more FPS? MSI Game Boost enables 1-
second overclocking, giving you the performance boost you need. Simply turn the dial or use
the Gaming App and your PC gets another adrenalin shot. With Game Boost going up to
eleven, a performance increase up to incredible 5.4GHz!
Without GAME BOOST
With MSI GAME BOOST 5.4 GHz
Default Game Boost
i7-8700K 3.7G 5.4G
i5-8600K 3.6G 5.0G
i3-8350K 4.0G 4.7G
1-Second Overclocking

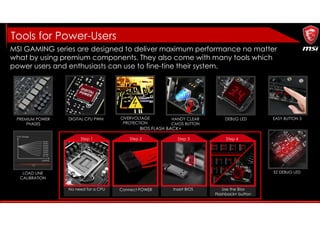

22. DIGITAL CPU PWM DEBUG LED
EZ DEBUG LED
EASY BUTTON 3OVERVOLTAGE
PROTECTION
PREMIUM POWER
PHASES
LOAD LINE
CALIBRATION
HANDY CLEAR
CMOS BUTTON
No need for a CPU Connect POWER Insert BIOS Use the Bios
Flashback+ button
BIOS FLASH BACK+
Step 1 Step 2 Step 3 Step 4
MSI GAMING series are designed to deliver maximum performance no matter
what by using premium components. They also come with many tools which
power users and enthusiasts can use to fine-tine their system.
Tools for Power-Users

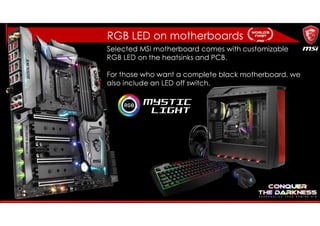

23. RGB LED on motherboards
Selected MSI motherboard comes with customizable
RGB LED on the heatsinks and PCB.
For those who want a complete black motherboard, we
also include an LED off switch.

24. With the convenience of Mystic Light Sync, you can control all the RGB components
from other brands, support both PC and smartphone. Mystic light SDK provides the
LED control functions for MSI products that upgrade Mystic light sync function to the
perfect match.
Mystic Light Sync & SDK

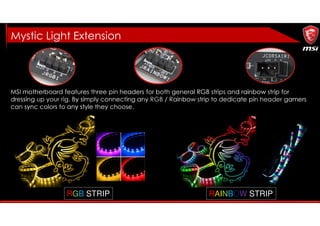

25. MSI motherboard features three pin headers for both general RGB strips and rainbow strip for
dressing up your rig. By simply connecting any RGB / Rainbow strip to dedicate pin header gamers
can sync colors to any style they choose.
RAINBOW STRIPRGB STRIP
Mystic Light Extension

26. The Mystic Light Party software enables you to link systems through software so you
can sync colors and effects with your teammates. This makes it easy to show off
your own team style at events or even at home for some extra team spirit.
Mystic Light Party

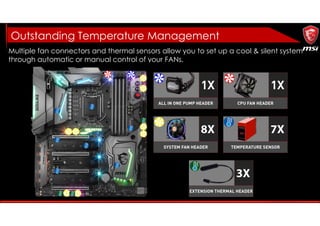

27. Multiple fan connectors and thermal sensors allow you to set up a cool & silent system
through automatic or manual control of your FANs.
Outstanding Temperature Management

28. MSI GAMING series come with plenty of 4-pin fan headers which are all controllable with BIOS or
Command Center. With advanced features as hysteresis support and LED indicators for PWM/DC
mode this will keep your system quiet and cool.
Smooth fan control with hysteresisPWM / DC mode LED indicators
FanRPM
Fully controllable fan headers
2 AMP Water cooling pin-header
Fully controllable

29. Triple Killer™ LAN plus Killer™ WIFI
GODLIKE features incredible 3x Killer™ connectors and the Killer™ Wi-Fi adapter to
work together for the ultimate high speed attack resulting in 3867 Mbps bandwidth.

30. Killer™ xTend - World’s first Wireless Extender Motherboard
Eliminate dead-zones in your home and create
stronger network connections with Killer xTend
Technology. The exclusive technology allows the
GODLIKE GAMING turns into a network extension
bridge no matter wired and wireless devices.
Router
GAMING Desktop
as a Switch
Laptop Tablet
GAMING
Laptop
Console
Smartphone

31. xTend Backhaul can be
wired or wireless
Each port can be
controlled
Killer™ xTend - World’s first Wireless Extender Motherboard
Access to wired or wireless connection
Killer xTend offers both Ethernet and Internet
connectivity controlled by Killer Control Center
to get your best network experience.
Powerful prioritization
Easily prioritize your critical traffic with all
the applications and devices connected
with your GODLIKE motherboard
Eliminate poor WiFi signals
Stop struggling with a weak Wi-Fi signal by
portable devices, Killer xTend give you better
wireless coverage throughout your home.

32. Both Killer and Intel come with:
Power Surges ProtectionBandwidth Management
Killer or Intel with bandwidth management and 15KV

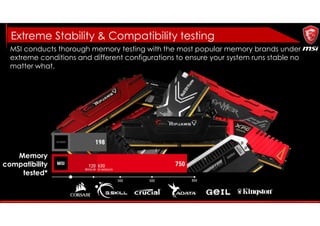

33. MSI conducts thorough memory testing with the most popular memory brands under
extreme conditions and different configurations to ensure your system runs stable no
matter what.
Memory
compatibility
tested*
Extreme Stability & Compatibility testing

34. Optimized traces and a fully isolated memory circuitry ensures perfect stability and
increased performance, so you never have to worry about your system crashing
during games.
This is why we created DDR4 Boost!

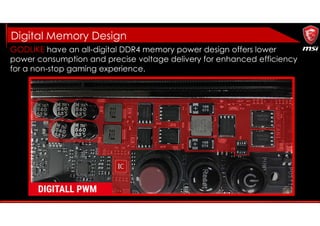

35. GODLIKE have an all-digital DDR4 memory power design offers lower
power consumption and precise voltage delivery for enhanced efficiency
for a non-stop gaming experience.
Digital Memory Design

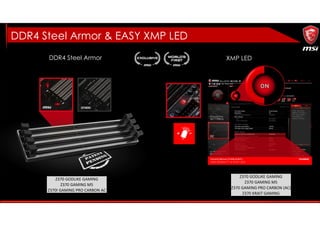

36. DDR4 Steel Armor
DDR4 Steel Armor & EASY XMP LED
XMP LED
Z370 GODLIKE GAMING
Z370 GAMING M5
Z370 GAMING PRO CARBON (AC)
Z370 KRAIT GAMING
Z370 GODLIKE GAMING
Z370 GAMING M5
Z370I GAMING PRO CARBON AC

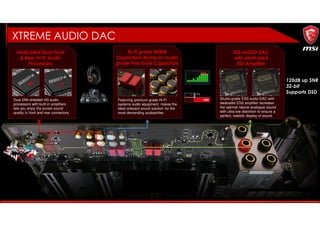

37. XTREME AUDIO DAC
• 120dB up SNR
• 32-bit
• Supports DSD
Dedicated Dual Front
& Rear HI-FI Audio
Processors
Dual EMI-shielded HD audio
processors with built-in amplifiers
lets you enjoy the purest sound
quality in front and rear connectors.
Hi-Fi grade WIMA
Capacitors/Nichicon audio
grade Fine Gold Capacitors
Featuring premium grade Hi-Fi
systems audio equipment, makes the
ideal onboard sound solution for the
most demanding audiophiles.
ESS AUDIO DAC
with dedicated
ESS Amplifier
Studio-grade ESS audio DAC with
dedicated ESS amplifier recreates
the optimal natural analogue sound
with ultra-low distortion to ensure a
perfect, realistic display of sound.

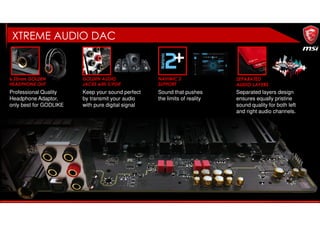

38. 6.35mm GOLDEN
HEADPHONE OUT
GOLDEN AUDIO
JACKS with S/PDIF
NAHIMIC 2
SUPPORT
Professional Quality
Headphone Adaptor,
only best for GODLIKE
Keep your sound perfect
by transmit your audio
with pure digital signal
Sound that pushes
the limits of reality
SEPARATED
AUDIO LAYERS
Separated layers design
ensures equally pristine
sound quality for both left
and right audio channels.
XTREME AUDIO DAC

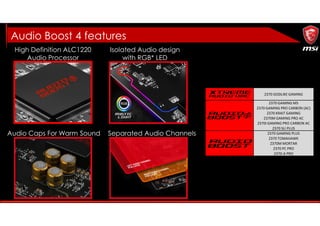

39. High Definition ALC1220
Audio Processor
Separated Audio ChannelsAudio Caps For Warm Sound
Audio Boost 4 features
Isolated Audio design
with RGB* LED
Z370 GODLIKE GAMING
Z370 GAMING M5
Z370 GAMING PRO CARBON (AC)
Z370 KRAIT GAMING
Z370M GAMING PRO AC
Z370I GAMING PRO CARBON AC
Z370 SLI PLUS
Z370 GAMING PLUS
Z370 TOMAHAWK
Z370M MORTAR
Z370 PC PRO
Z370-A PRO

40. Virtual Surround Sound Tracker Smart Loudness
Voice Clarity Bass Boost Voice Shaper
NAHIMIC Sound Technology is known for its quality and precision in
Military and Aeronautics projects. NAHIMIC allows you as a gamer to
experience the next level in immersive gameplay. Unique features,
including ‘Sound Tracker’ which visually shows the direction of in-
game sounds, give you the upper hand on the battlefield.
NAHIMIC 2+: Sound that pushes the limits of reality
Z370 GODLIKE GAMING
Z370 GAMING M5
Z370 GAMING PRO CARBON (AC)
Z370 KRAIT GAMING
Z370I GAMING PRO CARBON AC

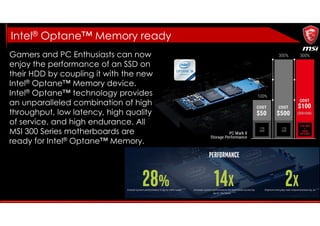

41. Gamers and PC Enthusiasts can now
enjoy the performance of an SSD on
their HDD by coupling it with the new
Intel® Optane™ Memory device.
Intel® Optane™ technology provides
an unparalleled combination of high
throughput, low latency, high quality
of service, and high endurance. All
MSI 300 Series motherboards are
ready for Intel® Optane™ Memory.
Intel® Optane™ Memory ready

42. Are you ready for ultra fast storage? Up to even 5x M.2 Gen 3 x4
connectors with MSI M.2 XPENDER-Z. GODLIKE come with a U.2 SSD
connector with steel armor. Both storage devices can be boosted using
MSI XBOOST software.
Up to three times M.2 Gen3 x4 and U.2 support
*Accessory for GODLIKE GAMING
Z370 GODLIKE GAMING

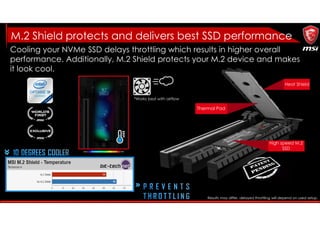

43. Cooling your NVMe SSD delays throttling which results in higher overall
performance. Additionally, M.2 Shield protects your M.2 device and makes
it look cool.
With own thin
heatsink
M.2 without
heatsink
Thermal Pad
Heat Shield
High speed M.2
SSD
Results may differ, delayed throttling will depend on used setup.
*Works best with airflow
M.2 Shield protects and delivers best SSD performance

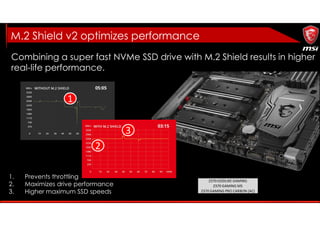

44. Combining a super fast NVMe SSD drive with M.2 Shield results in higher
real-life performance.
M.2 Shield v2 optimizes performance
1. Prevents throttling
2. Maximizes drive performance
3. Higher maximum SSD speeds
1
2
3
Z370 GODLIKE GAMING
Z370 GAMING M5
Z370 GAMING PRO CARBON (AC)

45. DDR4 STEEL ARMOR U.2 STEEL ARMOR
OTHERS
no strengthening
MSI STEEL ARMOR
reinforced, heavy
soldered connections
ANTI
BENDING
EMI
PROTECTION
Steel Armor strengthens the connector and
shields it from EMI.
Steel Armor forged
M.2 SHIELD

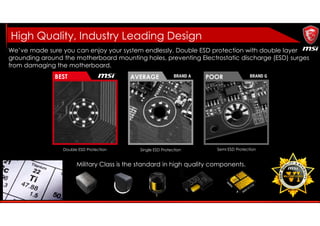

46. BEST AVERAGE POOR
Double ESD Protection Single ESD Protection Semi ESD Protection
Military Class is the standard in high quality components.
We’ve made sure you can enjoy your system endlessly. Double ESD protection with double layer
grounding around the motherboard mounting holes, preventing Electrostatic discharge (ESD) surges
from damaging the motherboard.
High Quality, Industry Leading Design

47. MSI GAMING Motherboards come with $90 value networking and streaming
software.
JOIN THE GAMERS
PRIVATE NETWORK.
YOUR GAME, YOUR
STREAM, YOUR FAME.
Worth
$29.95
Worth
$59,95
Additional GAMING software
Z370 GODLIKE GAMINGALL GAMING MODEL

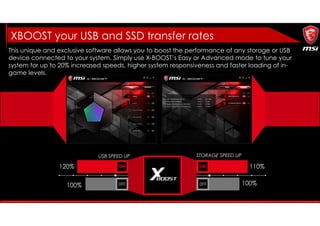

48. This unique and exclusive software allows you to boost the performance of any storage or USB
device connected to your system. Simply use X-BOOST’s Easy or Advanced mode to tune your
system for up to 20% increased speeds, higher system responsiveness and faster loading of in-
game levels.
USB SPEED UP STORAGE SPEED UP
120%
100%
110%
100%
XBOOST your USB and SSD transfer rates

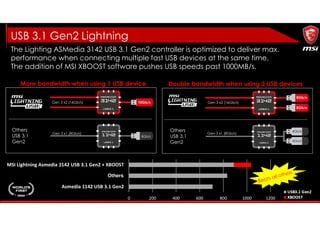

49. The Lighting ASMedia 3142 USB 3.1 Gen2 controller is optimized to deliver max.
performance when connecting multiple fast USB devices at the same time.
The addition of MSI XBOOST software pushes USB speeds past 1000MB/s.
8Gb/s
10Gb/s
Gen 3 x1 (8Gb/s)
Others
USB 3.1
Gen2
Gen 3 x2 (16Gb/s)
More bandwidth when using 1 USB device
8Gb/s
8Gb/s
4Gb/s
4Gb/s
Others
USB 3.1
Gen2
Gen 3 x1 (8Gb/s)
Gen 3 x2 (16Gb/s)
Double bandwidth when using 2 USB devices
0 200 400 600 800 1000 1200
Asmedia 1142 USB 3.1 Gen2
Intel Thunderbolt USB 3.1 Gen2
MSI Lightning Asmedia 2142 USB 3.1 Gen2 + XBOOST
Others
USB 3.1 Gen2 Lightning
3

50. Front Type-C USB 3.1 Gen 2 comes with a new chassis standard 20 pins header on
the motherboard.
Besides that we offer:
- Up to 4x Front USB 3.1 Gen1
- Double ESD protection
- Redrivers for longer cables
Type-C USB 3.1 Gen 2
Double ESD
Anti Surge protection
Up to 4x front USB 3.1 Gen 1
Redrivers ensure longer cable
support for gaming gear
Front USB 3.1 with new industry standard Type-C
Z370 GODLIKE GAMING
Z370M GAMING PRO AC

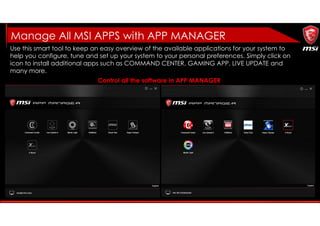

51. Use this smart tool to keep an easy overview of the available applications for your system to
help you configure, tune and set up your system to your personal preferences. Simply click on
icon to install additional apps such as COMMAND CENTER, GAMING APP, LIVE UPDATE and
many more.
Control all the software in APP MANAGER
Manage All MSI APPS with APP MANAGER

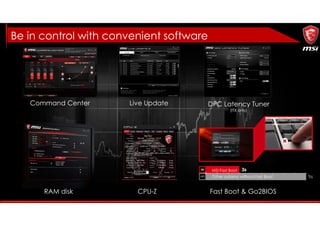

52. Command Center Live Update DPC Latency Tuner
(ITX only)
RAM disk CPU-Z Fast Boot & Go2BIOS
MSI Fast Boot
Other systems without Fast Boot
Be in control with convenient software

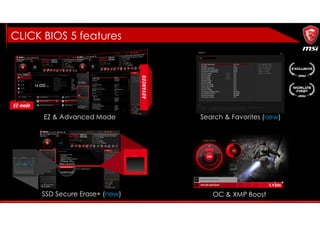

53. EZ & Advanced Mode Search & Favorites (new)
SSD Secure Erase+ (new) OC & XMP Boost
CLICK BIOS 5 features
5.4

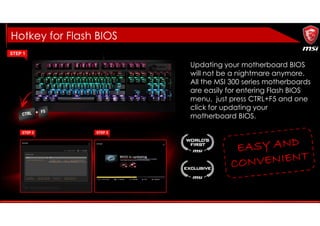

54. Hotkey for Flash BIOS
Updating your motherboard BIOS
will not be a nightmare anymore.
All the MSI 300 series motherboards
are easily for entering Flash BIOS
menu, just press CTRL+F5 and one
click for updating your
motherboard BIOS.

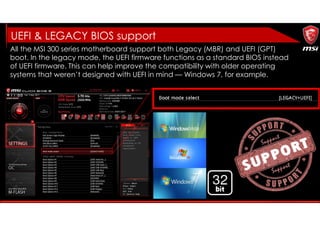

55. UEFI & LEGACY BIOS support
All the MSI 300 series motherboard support both Legacy (MBR) and UEFI (GPT)
boot. In the legacy mode, the UEFI firmware functions as a standard BIOS instead
of UEFI firmware. This can help improve the compatibility with older operating
systems that weren’t designed with UEFI in mind — Windows 7, for example.

56. Z370 GODLIKE
GAMING
Z370 GAMING M5
Form Factor E-ATX ATX
Power Phases 18 11
DDR4 Boost 4133 MHz + 4000 MHz +
DDR4 Steel Armor ● ●
Digital Memory PWM ● -
Turbo M.2 3x 2x
M.2 Shield V2 ● ●
Turbo U.2 with Steel Armor ● -
Lightning USB 3.1 Gen2 A+C A+C
Front USB 3.1 Gen2 Type-C ● -
USB 3.1 Gen1 / USB 2 10/6 6/7
PCIe Steel Armor ● ●
SLI/CF 2-SLI / 4-CF 2-SLI / 3-CF
Gaming LAN Triple Killer™ E2500 Killer™ E2500
Wifi Killer™ 1535 -
Audio Xtreme Audio DAC Audio Boost 4
Nahimic ● ●
Game Boost 8 Levels ●
OC Engine 2 ● ●
XBOOST ● ●
RGB Mystic Light 16.8M Colors / 17 Effects 16.8M Colors / 17 Effects
BIOS FLASHBACK+ ● ●
Dual BIOS ● -
Other Special Feature M.2 Xpander-Z -

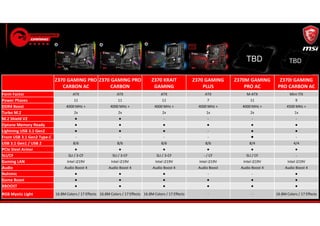

57. Z370 GAMING PRO
CARBON AC
Z370 GAMING PRO
CARBON
Z370 KRAIT
GAMING
Z370 GAMING
PLUS
Z370M GAMING
PRO AC
Z370I GAMING
PRO CARBON AC
Form Factor ATX ATX ATX ATX M-ATX Mini ITX
Power Phases 11 11 11 7 11 9
DDR4 Boost 4000 MHz + 4000 MHz + 4000 MHz + 4000 MHz + 4000 MHz + 4500 MHz +
Turbo M.2 2x 2x 2x 1x 2x 1x
M.2 Shield V2 ● ● - - - -
Optane Memory Ready ● ● ● ● ● ●
Lightning USB 3.1 Gen2 ● ● ● - ● ●
Front USB 3.1 Gen2 Type-C - - - - ● -
USB 3.1 Gen1 / USB 2 8/6 8/6 8/6 8/6 8/4 4/4
PCIe Steel Armor ● ● ● ● ● ●
SLI/CF SLI / 3-CF SLI / 3-CF SLI / 3-CF - / CF SLI / CF -
Gaming LAN Intel i219V Intel i219V Intel i219V Intel i219V Intel i219V Intel i219V
Audio Audio Boost 4 Audio Boost 4 Audio Boost 4 Audio Boost Audio Boost 4 Audio Boost 4
Nahimic ● ● ● - - ●
Game Boost ● ● ● ● ● ●
XBOOST ● ● ● ● ● ●
RGB Mystic Light 16.8M Colors / 17 Effects 16.8M Colors / 17 Effects 16.8M Colors / 17 Effects - - 16.8M Colors / 17 Effects
TBD TBD

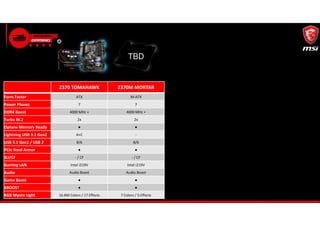

58. Z370 TOMAHAWK Z370M MORTAR
Form Factor ATX M-ATX
Power Phases 7 7
DDR4 Boost 4000 MHz + 4000 MHz +
Turbo M.2 2x 2x
Optane Memory Ready ● ●
Lightning USB 3.1 Gen2 A+C -
USB 3.1 Gen1 / USB 2 8/6 8/6
PCIe Steel Armor ● ●
SLI/CF - / CF - / CF
Gaming LAN Intel i219V Intel i219V
Audio Audio Boost Audio Boost
Game Boost ● ●
XBOOST ● ●
RGB Mystic Light 16.8M Colors / 17 Effects 7 Colors / 5 Effects
TBD

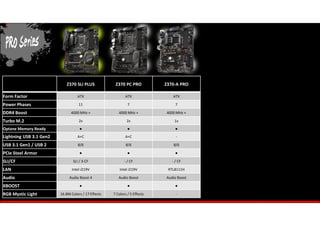

59. Z370 SLI PLUS Z370 PC PRO Z370-A PRO
Form Factor ATX ATX ATX
Power Phases 11 7 7
DDR4 Boost 4000 MHz + 4000 MHz + 4000 MHz +
Turbo M.2 2x 2x 1x
Optane Memory Ready ● ● ●
Lightning USB 3.1 Gen2 A+C A+C -
USB 3.1 Gen1 / USB 2 8/6 8/6 8/6
PCIe Steel Armor ● ● ●
SLI/CF SLI / 3-CF - / CF - / CF
LAN Intel i219V Intel i219V RTL8111H
Audio Audio Boost 4 Audio Boost Audio Boost
XBOOST ● ● ●

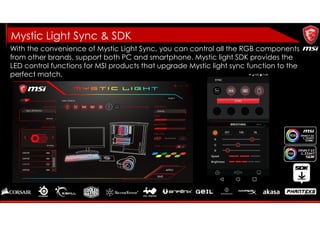

RGB Mystic Light 16.8M Colors / 17 Effects 7 Colors / 5 Effects -
