MSI, the leading motherboard manufacturer, is proud to announce that MSI B450 motherboards are on shelf now. To satisfy all kinds of gamers and users, MSI has prepared motherboards in Performance GAMING, Arsenal GAMING and PRO Series. With more MSI exclusive features and hardware improvements, MSI B450 motherboards allow users to maximize performance and gain better gaming experiences.This time, MSI motherboards are well-prepared, packed with several brand-new features to fulfill gamers and professional users’ needs. To make updating the BIOS even easier than before, most of the MSI B450 motherboards are equipped with BIOS Flashback+, which is built on the back panel to simplify flashing the BIOS and continue gaming within minutes. More conveniently, BIOS Flashback+ even works without a CPU, memory or graphics card installed. Shipped with the new AMD SSD technology ‘StoreMI’, and MSI’s exclusive X-Boost, MSI B450 motherboards will provide an optimized transfer experience. StoreMI helps create a virtual SSD by blending storage capacity, treats flash as primary storage and optimizes data access with continuous monitoring. Combined with MSI’s X-Boost, transfer performance can be increased up to 10%, significantly boosting data transferring speeds. ►More about MSI 400-Series Motherboard: https://www.msi.com/Landing/amd-ryzen-b450-gaming-motherboard Social: ►Facebook: hhttps://www.facebook.com/MSIGaming/ ►Twitter: https://twitter.com/msitweets ►Instagram: https://www.instagram.com/msigaming

1. MSI B450 Motherboard

2. Core Boost
Core Boost technology combines MSI’s
premium layout and digital power design
which allows for faster and undistorted
current delivery to the CPU at pin-point
precision.
Not only supporting multi-core CPU, also
creating the perfect conditions for your CPU
overclocking.

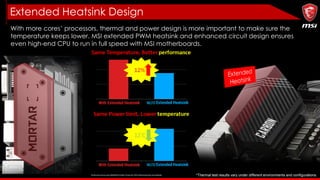

3. With more cores’ processors, thermal and power design is more important to make sure the
temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures
even high-end CPU to run in full speed with MSI motherboards.
Extended Heatsink Design
*Thermal test results vary under different environments and configurations.
W/O
W/O

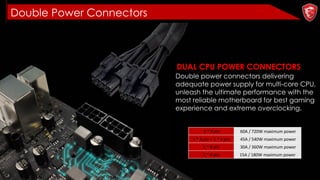

4. Double Power Connectors
Double power connectors delivering
adequate power supply for multi-core CPU,
unleash the ultimate performance with the
most reliable motherboard for best gaming
experience and extreme overclocking.
DUAL CPU POWER CONNECTORS
2 * 8 pin 60A / 720W maximum power
1 * 8 pin + 1 * 4 pin 45A / 540W maximum power
1 * 8 pin 30A / 360W maximum power
1 * 4 pin 15A / 180W maximum power

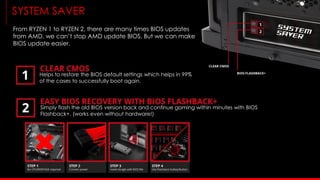

5. SYSTEM SAVER
Helps to restore the BIOS default settings which helps in 99%
of the cases to successfully boot again.
Simply flash the old BIOS version back and continue gaming within minutes with BIOS
Flashback+. (works even without hardware!)
From RYZEN 1 to RYZEN 2, there are many times BIOS updates
from AMD, we can’t stop AMD update BIOS, But we can make
BIOS update easier.

6. 6

7. DDR4 Boost
Optimized traces and a fully isolated memory circuitry ensures perfect stability and increased
performance, so you never have to worry about your system crashing during games.
Patented in:
• Germany
• Taiwan
• Japan
300 400 500 600 700 800
MSI X470 GAMING M7 AC
X470 AXXXS GAMING7
2000 Series CPU QVL list from official website

8. 1-Second Overclocking
Need more power from your CPU and memory to get more FPS? MSI Game Boost enables 1-second
overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming
App and your PC gets another adrenalin shot.
Without GAME BOOST
With MSI GAME BOOST
Results depend on MB, CPU, cooler configuration
SET 0
RYZEN 7 2700X : 3.7G
RYZEN 7 2700 : 3.2G
RYZEN 5 2600X : 3.6G
RYZEN 5 2600 : 3.4G
SET 1
RYZEN 7 2700X : 4.1G
RYZEN 7 2700 : 3.6G
RYZEN 5 2600X : 4G
RYZEN 5 2600 : 3.8G
SET 2
RYZEN 7 2700X : 4.15G
RYZEN 7 2700 : 3.65G
RYZEN 5 2600X : 4.05G
RYZEN 5 2600 : 3.85G
SET 4
RYZEN 7 2700X : 4.2G
RYZEN 7 2700 : 3.7G
RYZEN 5 2600X : 4.1G
RYZEN 5 2600 : 3.9G
SET 6
RYZEN 7 2700X : 4.25
RYZEN 7 2700 : 3.75G
RYZEN 5 2600X : 4.15G
RYZEN 5 2600 : 3.95G
SET 8
RYZEN 7 2700X : 4.3G
RYZEN 7 2700 : 3.8G
RYZEN 5 2600X : 4.2G
RYZEN 5 2600 : 4G
SET 10
RYZEN 7 2700X : 4.35G
RYZEN 7 2700 : 3.85G
RYZEN 5 2600X : 4.2G
RYZEN 5 2600 : 4G
SET 11
RYZEN 7 2700X : 4.4G
RYZEN 7 2700 : 3.9G
RYZEN 5 2600X : 4.25G
RYZEN 5 2600 : 4.05G

9. Fast & Stable: AMD Turbo USB 3.1 Gen2
Featuring the AMD USB 3.1 Gen2, MSI motherboards offer never before seen USB
speeds with more stability when connecting USB devices.
Type-C USB 3.1 Gen 2

10. Turbo M.2 & M.2 Shield (FROZR)
Are you ready for ultra fast storage? Up to M.2 Gen3 x4 connectors forged in M.2 Shield and M.2
Shield FROZR for the ultimate performance. Storage devices can be boosted using MSI XBOOST
software.
ALL Model support Turbo M.2 with Gen 3 x 4 speed M.2 SHIELD
M.2 SHIELD FROZR

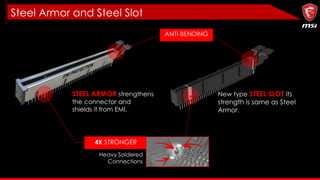

11. Steel Armor and Steel Slot
New type STEEL SLOT its
strength is same as Steel
Armor.
STEEL ARMOR strengthens
the connector and
shields it from EMI.
Heavy Soldered
Connections
4X STRONGER
ANTI-BENDING

12. First in and Keep moving on RGB
Selected MSI
motherboard comes
with customizable
RGB LED on the
heatsinks or PCB.
With the convenience of Mystic
Light Sync, you can control all the
RGB components from other
brands, support both PC and
smartphone.
Three pin headers for RGB
strips / rainbow strips /
Corsairs RGB devices for
dressing up your rig.
Brand new UI

13. Killer or Intel with bandwidth management and 15KV
Both Killer and Intel come with:
Power Surges ProtectionBandwidth Management

14. Audio Boost 4 and Nahimic
Exclusive Voice Boost
in GAMING APP
High Definition ALC1220
Audio Processor
Separated Audio
Channels
Audio Caps For
Warm Sound
Nahimic Audio
Enhancer

15. BIOS & SOFTWARE

16. Command Center Live Update APP Manager
CPU-Z
Be in control with convenient software
X-BOOST GAMING APP

17. EZ DEBUG LED
OVERVOLTAGE
PROTECTION
PREMIUM
POWER PHASES
LOAD LINE
CALIBRATION
MSI motherboards are designed to deliver maximum performance no matter what
by using premium components. They also come with many benefits which power
users and enthusiasts can use to fine-tine their system.
More for Reliability
Total Fan Control

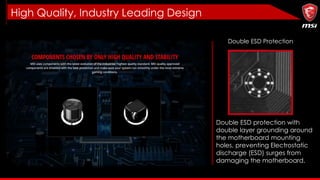

18. High Quality, Industry Leading Design
Double ESD Protection
Double ESD protection with
double layer grounding around
the motherboard mounting
holes, preventing Electrostatic
discharge (ESD) surges from
damaging the motherboard.

19. MSI B450
Motherboard Lineup

20. The MSI PERFORMANCE GAMING motherboards usher in a new era of gaming
and personalization. With unique look & feel, unlimited customization options,
and packed with more exclusive gaming features than ever, these GAMING
motherboards are sure to offer you the best of the best game experience.
GAME IN STYLE
EXCEPTIONAL BY DESIGN
X470 GAMING PRO CARBON (AC)
B450 GAMING PRO CARBON AC
RED GAMING DNA
X470 GAMING PLUS
B450 GAMING PLUS
B450M GAMING PLUS
B450I GAMING PLUS AC

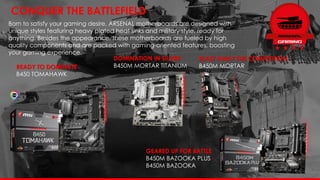

21. READY TO DOMINATE
B450 TOMAHAWK
Born to satisfy your gaming desire, ARSENAL motherboards are designed with
unique styles featuring heavy plated heat sinks and military style, ready for
anything. Besides the appearance, these motherboards are fueled by high
quality components and are packed with gaming-oriented features, boosting
your gaming experience.
CONQUER THE BATTLEFIELD
DOMINATION IN SILVER
B450M MORTAR TITANIUM
BLAST AWAY THE COMPETITION
B450M MORTAR
GEARED UP FOR BATTLE
B450M BAZOOKA PLUS
B450M BAZOOKA

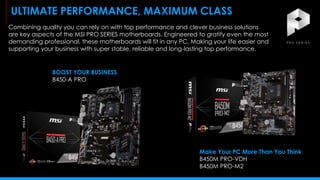

22. Combining quality you can rely on with top performance and clever business solutions
are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most
demanding professional, these motherboards will fit in any PC. Making your life easier and
supporting your business with super stable, reliable and long-lasting top performance.
ULTIMATE PERFORMANCE, MAXIMUM CLASS
BOOST YOUR BUSINESS
B450-A PRO
Make Your PC More Than You Think
B450M PRO-VDH
B450M PRO-M2

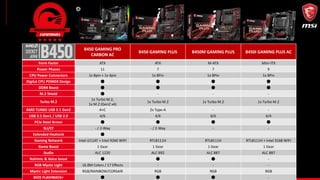

23. B450 GAMING PRO
CARBON AC
B450 GAMING PLUS B450M GAMING PLUS B450I GAMING PLUS AC
Form Factor ATX ATX M-ATX Mini-ITX
Power Phases 11 7 7 9
CPU Power Connectors 1x 8pin + 1x 4pin 1x 8Pin 1x 8Pin 1x 8Pin
Digital CPU POWER Design ● ● ● ●
DDR4 Boost ● ● ● ●
M.2 Shield ● - - -
Turbo M.2
1x Turbo M.2,
1x M.2 (Gen2 x4)
1x Turbo M.2 1x Turbo M.2 1x Turbo M.2
AMD TURBO USB 3.1 Gen2 A+C 2x Type-A - -
USB 3.1 Gen1 / USB 2.0 4/6 4/6 8/6 6/4
PCIe Steel Armor ● ● ● ●
SLI/CF - / 2-Way - / 2-Way - -
Extended Heatsink ●
Gaming Network Intel i211AT + Intel 9260 WIFI RTL8111H RTL8111H RTL8111H + Intel 3168 WIFI
Game Boost 1 Gear 1 Gear 1 Gear 1 Gear
Audio ALC 1220 ALC 892 ALC 887 ALC 887
Nahimic & Voice boost ● ● ● -
RGB Mystic Light 16.8M Colors / 17 Effects - - -
Mystic Light Extension RGB/RAINBOW/CORSAIR RGB RGB RGB
BIOS FLASHBACK+ ● ● ● -

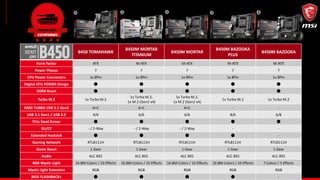

24. B450 TOMAHAWK
B450M MORTAR
TITANIUM
B450M MORTAR
B450M BAZOOKA
PLUS
B450M BAZOOKA
Form Factor ATX M-ATX M-ATX M-ATX M-ATX
Power Phases 7 7 7 7 7
CPU Power Connectors 1x 8Pin 1x 8Pin 1x 8Pin 1x 8Pin 1x 8Pin
Digital CPU POWER Design ● ● ● ● ●
DDR4 Boost ● ● ● ● ●
Turbo M.2 1x Turbo M.2
1x Turbo M.2,
1x M.2 (Gen2 x4)
1x Turbo M.2,
1x M.2 (Gen2 x4)
1x Turbo M.2 1x Turbo M.2
AMD TURBO USB 3.1 Gen2 A+C A+C A+C - -
USB 3.1 Gen1 / USB 2.0 4/6 6/6 6/6 8/6 6/8
PCIe Steel Armor ● ● ● ● ●
SLI/CF - / 2-Way - / 2-Way - / 2-Way - -
Extended Heatsink ● ● ● ● -
Gaming Network RTL8111H RTL8111H RTL8111H RTL8111H RTL8111H
Game Boost 1 Gear 1 Gear 1 Gear 1 Gear 1 Gear
Audio ALC 892 ALC 892 ALC 892 ALC 892 ALC 892
RGB Mystic Light 16.8M Colors / 10 Effects 16.8M Colors / 10 Effects 16.8M Colors / 10 Effects 16.8M Colors / 10 Effects 7 Colors / 5 Effects
Mystic Light Extension RGB RGB RGB RGB RGB
BIOS FLASHBACK+ ● ● ● ● -

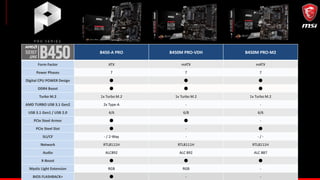

25. B450-A PRO B450M PRO-VDH B450M PRO-M2
Form Factor ATX mATX mATX
Power Phases 7 7 7
Digital CPU POWER Design ● ● ●
DDR4 Boost ● ● ●
Turbo M.2 1x Turbo M.2 1x Turbo M.2 1x Turbo M.2
AMD TURBO USB 3.1 Gen2 2x Type-A - -
USB 3.1 Gen1 / USB 2.0 4/6 6/8 6/6
PCIe Steel Armor ● ● -
PCIe Steel Slot ● - ●
SLI/CF - / 2-Way - - / -
Network RTL8111H RTL8111H RTL8111H
Audio ALC892 ALC 892 ALC 887
X-Boost ● ● ●
Mystic Light Extension RGB RGB -
BIOS FLASHBACK+ ● - -
