The document discusses factors to consider when choosing a graphics card (VGA card), including: 1. Check which slot(s) are available on your motherboard to ensure compatibility with graphics cards. The best slots are PCI-e x16, PCI-e x8, etc. 2. Consider the memory clock speed, memory bus width (BIT), and memory capacity listed in graphics card specifications. Higher numbers are generally better. 3. Other factors mentioned include cooling, price, and brand but the summary focuses on the key technical specifications to evaluate.

1. VGA
DIGITAL ALLIANCE Radeon HD 6790 Harga Rp 1,314,000
Graphic Interface PCIe 16x 2.1
Graphic Chipset RADEON 6790
Engine Clock Speed 840 Mhz
Memory Provided 1GB DDR5
Memory Bus 256-bit
Memory Clock Speed 4200 Mhz
Display Output DVI, HDMI,Display Port
Package Contents Contents May Vary*
Warranty 1 Year Limited Warranty By Authorized Distributor

2. Powercolor Radeon HD 6790 Harga Rp 1.354.450
Graphic Interface PCI-e x16 2.1
Graphic Chipset ATI Radeon HD6790
Engine Clock Speed 840 MHz
Memory Provided 1GB GDDR5
Memory Bus 256-bit
Memory Clock Speed 1050MHz (4.2Gbps)
Max. Video Resolution VGA 2048x1536
DVI 2560x1600
DisplayPort 2560x1600
HDMI 1920x1200
Display Output VGA, DVI, DisplayPort, HDMI
Package Contents Contents May Vary*
Warranty 1 Year Limited Warranty By Authorized Distributor

3. VENOM RX Bushmaster 500 Watt Harga Rp 444.000
Output Connector
1 x 20+4 pins main connector
1 x 4+4 pins ATX 12V
1 x Floppy Drive
4 x Serial ATA
5 x HDD
2 x 6 pins PCIE
Cable Application Non Mudular Warranty 1-year Limited Warranty by Authorized Distributor
Min 140 Watt Max 492 watt

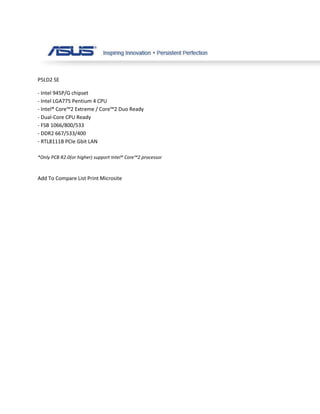

4. P5LD2 SE
- Intel 945P/G chipset
- Intel LGA775 Pentium 4 CPU
- Intel® Core™2 Extreme / Core™2 Duo Ready
- Dual-Core CPU Ready
- FSB 1066/800/533
- DDR2 667/533/400
- RTL8111B PCIe Gbit LAN
*Only PCB R2.0(or higher) support Intel® Core™2 processor
Add To Compare List Print Microsite

5. Intel LGA775 Pentium 4 CPU
This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package.
With 1066/ 800/ 533MHz FSB, Hyper-Threading Technology and core-speeds up to
3.8GHz and beyond, Intel's LGA775 Pentium 4 is one of the fastest desktop processors
to date.

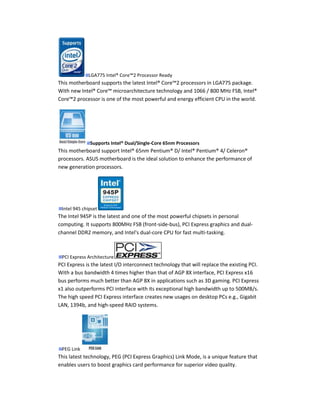

6. LGA775 Intel® Core™2 Processor Ready
This motherboard supports the latest Intel® Core™2 processors in LGA775 package.
With new Intel® Core™ microarchitecture technology and 1066 / 800 MHz FSB, Intel®
Core™2 processor is one of the most powerful and energy efficient CPU in the world.
Supports Intel® Dual/Single-Core 65nm Processors
This motherboard support Intel® 65nm Pentium® D/ Intel® Pentium® 4/ Celeron®
processors. ASUS motherboard is the ideal solution to enhance the performance of
new generation processors.
Intel 945 chipset
The Intel 945P is the latest and one of the most powerful chipsets in personal
computing. It supports 800MHz FSB (front-side-bus), PCI Express graphics and dual-
channel DDR2 memory, and Intel's dual-core CPU for fast multi-tasking.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI.
With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16
bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express
x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s.
The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit
LAN, 1394b, and high-speed RAID systems.
PEG Link
This latest technology, PEG (PCI Express Graphics) Link Mode, is a unique feature that
enables users to boost graphics card performance for superior video quality.

7. PEG Link allows users to raise GPU and VGA memory throughput via the motherboard
BIOS the same way system bus and memory bus are tweaked. PEG Link Mode enables
powerful video performance on DX8 and DX9 applications. ASUS engineers carefully
fine-tuned the parameters for every single PCI-Express card to provide system stability
during high-speed graphics operation.
Serial ATAII
Serial ATAII is the next generation ATA specification that provides scalable
performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial
ATA is faster than current Parallel ATA.
ASUS Q-Fan technology
Constant, high-pitched noise generated from heatsink fans are a thing of the past
thanks to ASUS Q-Fan. Q-Fan technology intelligently adjusts fan speeds according to
system loading to ensure quiet, cool and efficient operation.
ASUS MyLogo
ASUS MyLogo personalizes and adds style to your system with customizable boot
logos.
CrashFree BIOS2
CrashFree BIOS2 allows users to restore BIOS data from a floppy diskette even when
BIOS code and data are corrupted during upgrade or invaded by virus. Unlike other
competing vendors' products, ASUS motherboards now enable users to enjoy this
protection feature without the need to pay for an optional ROM.
Model Number : N50 >
Specifications
LGA775 socket for Intel® Core™2 Extreme / Core™2 Duo / Pentium® Extreme /
Pentium® D / Pentium® 4 / Celeron® D Processors
Intel® EM64T / EIST / Hyper-Threading Technology
CPU
New power design supports Intel® next generation 04B/04A & 05B/05A CPU
*Only PCB R2.0(or higher) support Intel® Core™2 processor
Intel 945P/G
Chipset
Intel ICH7
Front Side Bus 1066/800/533 MHz
Memory 4 x DIMM, max. 4GB, DDR2 667/533/400, Non-ECC, un-buffered memory

8. Dual Channel Architecture
* Due to general PC architecture, a small amount of memory is reserved for system
usage and thus the actual memory size is less than the stated amount.
1 xPCI-E x16
Expansion Slots 2 xPCI-E x1
3 xPCI
Intel ICH7 Southbridge:
Storage/RAID 1 x UltraDMA 100/66/33
4 x Serial ATA (3Gb/s)
ADI1986A 6-ch Audio CODEC
Audio Jack Sensing and Enumeration
S/PDIF out interface
LAN RTL8111B PCI-E Gb LAN controller
USB 6 USB2.0 ports
SFS (Stepless Frequency Selection): from 100MHz up to 450MHz at 1MHz
increment
ASUS PEG Link
Overclocking vCore: Adjustable CPU voltage at 0.025 V increment
Features ASUS EZFlash
Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.
4-step DRAM voltage control
ASUS C.P.R.(CPU Parameter Recall)
Other ASUS Special
ASUS Q-Fan
Features
1 x Parallel
1 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
Back Panel I/O Ports
1 x Audio I/O
1 x RJ45
1 x S/PDIF Out (Coaxial)
4 x USB
2 x USB connector supports additional 4 USB ports
Internal I/O CPU / Chassisx2 / Power FAN connectors
Connectors 24-pin ATX Power connector
4-pin ATX 12V Power connector

9. IDE LED connector, power LED connector
Chassis Intrusion
CD audio in
GAME/MIDI connector
Front panel audio connector
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash,
BIOS
ASUS CrashFree BIOS 2, ASUS MyLogo2
Manageability WOL by PME,WOR by PME, Chassis Intrusion
Drivers
ASUS PC Probe II
Support Disc
ASUS LiveUpdate
Anti-Virus Software
User's manual
1 x UltraDMA 133/100/66 cable
1 x 2-port USB/GAME cable
Accessories 1 x FDD cable
1 x I/O shield
1 x SATA Power cables for 1 SATA Devices
1 x SATA cable
Form Factor ATX 12"x 7.5" (30.5 cm x 19 cm)
Note Note: The specifications are subject to changes without notice.
Buy Microsoft ® Office 2010 to use the full-featured Office software on this PC.
Bottom of Form

10. Saat ini VGA Card sudah mulai beragam jenisnya, dari jenis slot sampai pada kecepatan, pendinginan
maupun merk yang menjadi daya saing penjualan VGA Card saat ini.
Nah, karena banyaknya merk dan tipe membuat orang kebanyakan malah bingung, bagaimana memilih
VGA Card yang diharapkan akan bekerja jauh lebih baik yang disesuaikan dengan ukuran kantong, klo
kantong kering mah mending tidur aja dech hehehe….
Nieh, saya kasih tips untuk memilih VGA Card, tetapi saya tidak ngomongin merk loh yaa….:
1. Perhatikan motherboard anda, apakah support VGA Card gak? dalam artian ada slotnya gitu, bisa slot
AGP, PCI ataupun PCI-e. Klo gak ada slotnya ya buang aja dech hehehehe, eh gak maksudnya gak perlu
beli VGA Card toh gak ada tempat buat menaruhnya….
Klo ada perhatikan slot apakah itu, nanti slot tersebut akan menjadi acuan pada pilihan VGA Card agar
sesuai dengan slot yang ada. Nah bagaimana bila slot lebih dari satu? Maka gunakan yang paling canggih
diantara pilihan slot yang ada:
Nie urutan dari paling canggih: PCI-e x16, PCI-e x8, PCI-e, PCI, AGP
Coba dech liat slot yang paling canggih dimotherboard kamu yang mana, trus jadikan acuan untuk
mencari VGA Card pada tahap selanjutnya, okeh
2. Perhatikan Kecepatan Memory Clock, BIT dan Kapasitas Memory pada spek VGA Card yang ada di
Toko Komputer:
Intinya jeli sebelum membeli okeh… . Lalu hubungan antara kecepatan memory clock, BIT dan
Kapasitas Memory pada spek VGA Card tersebut apa donk om..?
Nah hubungannya begini:
Contoh Kasus:
- VGA A RAM 1Gb DDR3 64bit
- VGA B RAM 512 Mb DDR3 128 bit
- VGA C RAM 256 Mb DDR3 256bit
Menurut anda mana yang tercepat??? VGA A? Ternyata yang tercepat adalah VGA C….
Loh kok bisa, padahal VGA C khan cuma 256MB?????
Jawabnya begini nie:
BIT= Lebar Jalur Data, semakin lebar semakin cepat (asumsi dalam kehidupan sehari2 dech, mana cepat jalan
di gang atau bypass?)
Perhitungannya:

11. Anggap dari ketiga contoh VGA td memiliki kecepatan memory clock yang sama yaitu misal 1000 MHz,
maka:
- VGA A = (1000 x 16) / 8 = 2000 atau 2GB/detik
- VGA B = (1000 x 128) / 8 = 16000 atau 16GB/ detik
- VGA C = (1000 x 256) / 8 = 32000 atau 32GB/ detik
Nah dari hasil tadi ketahuan khan kekuatan transfer data VGA C jauh lebih cepat (32GB/detik), 2x
kecepatan VGA B, dan 16x kecepatan VGA A.
Lalu kapasitas memory untuk apa? Kapasitas Memory VGA yang besar hanyalah berfungsi dan
menandakan VGA tersebut telah suport untuk resolusi tinggi….tapi kan monitor yang kita pake
resolusinya gak gede-gede amat………kalo Monitornya segede TV LCD baru kita pake yang RAM VGA nya
yang gede….hehehe
Jadi intinya sekali perhatikan pada besar BIT, Memory Clock dan Kapasitas Memory VGA.
Semoga membantu.
