1. Move into Drupal using
the Migrate Module
NYC Camp 2012
Ashok Modi (BTMash)

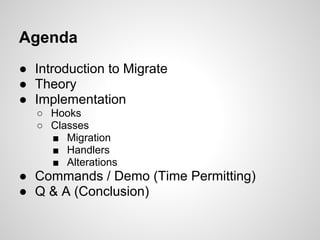

2. Agenda
● Introduction to Migrate
● Theory
● Implementation
○ Hooks
○ Classes
■ Migration
■ Handlers
■ Alterations
● Commands / Demo (Time Permitting)
● Q & A (Conclusion)

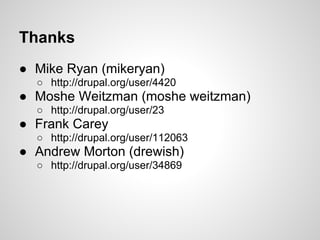

3. Thanks
● Mike Ryan (mikeryan)
○ http://drupal.org/user/4420
● Moshe Weitzman (moshe weitzman)
○ http://drupal.org/user/23
● Frank Carey
○ http://drupal.org/user/112063
● Andrew Morton (drewish)
○ http://drupal.org/user/34869

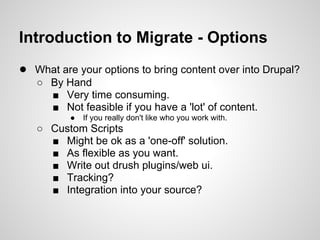

4. Introduction to Migrate - Options
● What are your options to bring content over into Drupal?
○ By Hand
■ Very time consuming.
■ Not feasible if you have a 'lot' of content.
● If you really don't like who you work with.
○ Custom Scripts
■ Might be ok as a 'one-off' solution.
■ As flexible as you want.
■ Write out drush plugins/web ui.
■ Tracking?
■ Integration into your source?

5. Introduction to Migrate - Options
Feeds
● Absolutely great option.
● Easy to setup.
● Maps fields from source -> destination
● Can Import RSS / Atom / Various Feeds
○ Plugins for CSV, Database, even LDAP
● Well documented.
● Performance issues.
● Content update handling.
● Doesn't work well wrt references from other
content (types).

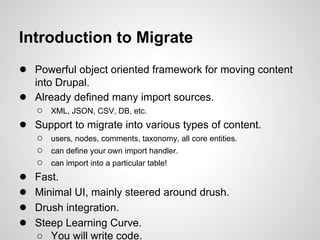

6. Introduction to Migrate
● Powerful object oriented framework for moving content
into Drupal.
● Already defined many import sources.
○ XML, JSON, CSV, DB, etc.
● Support to migrate into various types of content.
○ users, nodes, comments, taxonomy, all core entities.
○ can define your own import handler.
○ can import into a particular table!
● Fast.
● Minimal UI, mainly steered around drush.
● Drush integration.
● Steep Learning Curve.
○ You will write code.

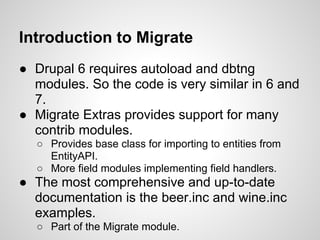

8. Introduction to Migrate
● Drupal 6 requires autoload and dbtng
modules. So the code is very similar in 6 and
7.
● Migrate Extras provides support for many
contrib modules.
○ Provides base class for importing to entities from
EntityAPI.
○ More field modules implementing field handlers.
● The most comprehensive and up-to-date
documentation is the beer.inc and wine.inc
examples.
○ Part of the Migrate module.

9. Goal
Source Destination
sid content_id(auto)
title title
user uid
field1 field1
field2 field2
... ...
fieldN fieldN

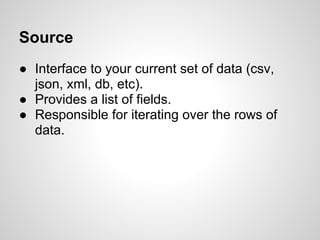

10. Source
● Interface to your current set of data (csv,
json, xml, db, etc).
● Provides a list of fields.
● Responsible for iterating over the rows of
data.

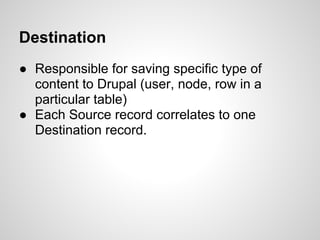

11. Destination
● Responsible for saving specific type of
content to Drupal (user, node, row in a
particular table)
● Each Source record correlates to one
Destination record.

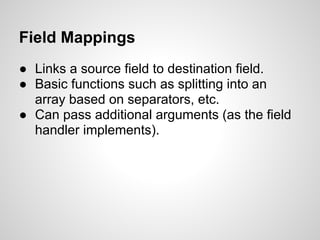

12. Field Mappings
● Links a source field to destination field.
● Basic functions such as splitting into an
array based on separators, etc.
● Can pass additional arguments (as the field
handler implements).

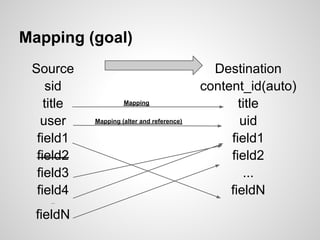

13. Mapping (goal)
Source Destination
sid content_id(auto)
title Mapping title
user Mapping (alter and reference) uid
field1 field1
field2 field2
field3 ...
field4 fieldN
...
fieldN

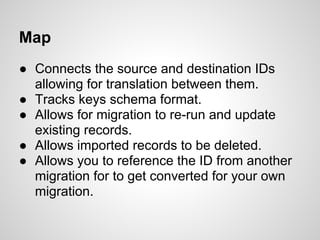

14. Map
● Connects the source and destination IDs
allowing for translation between them.
● Tracks keys schema format.
● Allows for migration to re-run and update
existing records.
● Allows imported records to be deleted.
● Allows you to reference the ID from another
migration for to get converted for your own
migration.

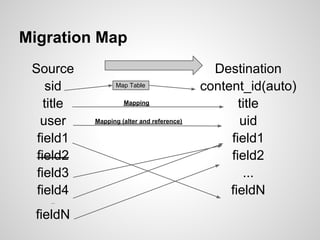

15. Migration Map
Source Destination
sid Map Table content_id(auto)
title Mapping title
user Mapping (alter and reference) uid
field1 field1
field2 field2
field3 ...
field4 fieldN
...
fieldN

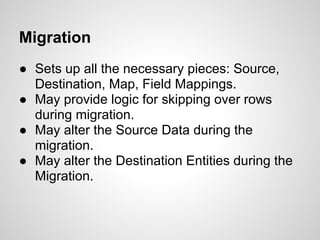

16. Migration
● Sets up all the necessary pieces: Source,
Destination, Map, Field Mappings.
● May provide logic for skipping over rows
during migration.
● May alter the Source Data during the
migration.
● May alter the Destination Entities during the
Migration.

17. Field Handler
● Converts your source data into a format that
Drupal understands.
● $row->bar = array('foo', 'bar') into
$entity_field_bar = array(
'und' => array(
0 => array('value' => 'foo'),
1 => array('value' => 'bar'),
),
);

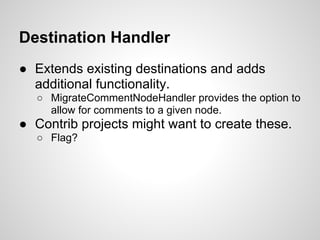

18. Destination Handler
● Extends existing destinations and adds
additional functionality.
○ MigrateCommentNodeHandler provides the option to
allow for comments to a given node.
● Contrib projects might want to create these.
○ Flag?

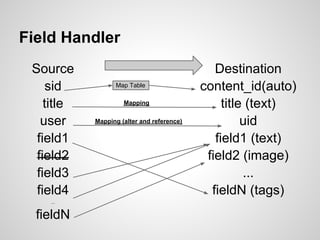

19. Field Handler
Source Destination
sid Map Table content_id(auto)
title Mapping title (text)
user Mapping (alter and reference) uid
field1 field1 (text)
field2 field2 (image)
field3 ...
field4 fieldN (tags)
...
fieldN

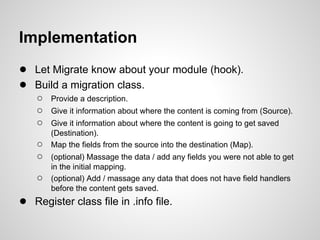

20. Implementation
● Let Migrate know about your module (hook).
● Build a migration class.
○ Provide a description.
○ Give it information about where the content is coming from (Source).
○ Give it information about where the content is going to get saved
(Destination).
○ Map the fields from the source into the destination (Map).
○ (optional) Massage the data / add any fields you were not able to get
in the initial mapping.
○ (optional) Add / massage any data that does not have field handlers
before the content gets saved.
● Register class file in .info file.

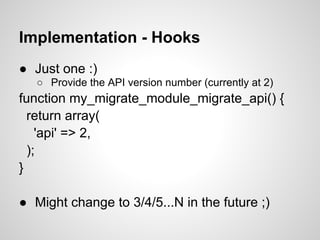

21. Implementation - Hooks
● Just one :)
○ Provide the API version number (currently at 2)
function my_migrate_module_migrate_api() {
return array(
'api' => 2,
);
}
● Might change to 3/4/5...N in the future ;)

22. Implementation - Class
● Consists of at least 1 function and 3 optional
functions.
class MYBundleMigration extends Migration {
public function __construct() { ... } # REQ'D.
public function prepareRow($row)
public function prepare($entity, $row)
public function complete($entity, $row)
}

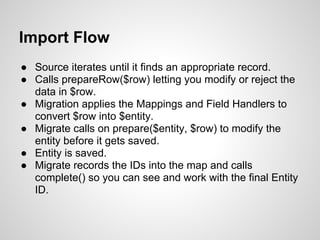

23. Import Flow
● Source iterates until it finds an appropriate record.
● Calls prepareRow($row) letting you modify or reject the
data in $row.
● Migration applies the Mappings and Field Handlers to
convert $row into $entity.
● Migrate calls on prepare($entity, $row) to modify the
entity before it gets saved.
● Entity is saved.
● Migrate records the IDs into the map and calls
complete() so you can see and work with the final Entity
ID.

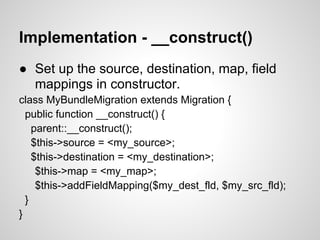

24. Implementation - __construct()
● Set up the source, destination, map, field
mappings in constructor.
class MyBundleMigration extends Migration {
public function __construct() {
parent::__construct();
$this->source = <my_source>;
$this->destination = <my_destination>;
$this->map = <my_map>;
$this->addFieldMapping($my_dest_fld, $my_src_fld);
}
}

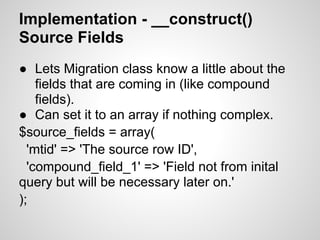

25. Implementation - __construct()
Source Fields
● Lets Migration class know a little about the
fields that are coming in (like compound
fields).
● Can set it to an array if nothing complex.
$source_fields = array(
'mtid' => 'The source row ID',
'compound_field_1' => 'Field not from inital
query but will be necessary later on.'
);

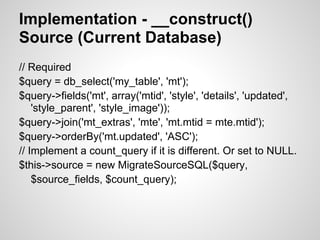

26. Implementation - __construct()
Source (Current Database)
// Required
$query = db_select('my_table', 'mt');
$query->fields('mt', array('mtid', 'style', 'details', 'updated',
'style_parent', 'style_image'));
$query->join('mt_extras', 'mte', 'mt.mtid = mte.mtid');
$query->orderBy('mt.updated', 'ASC');
// Implement a count_query if it is different. Or set to NULL.
$this->source = new MigrateSourceSQL($query,
$source_fields, $count_query);

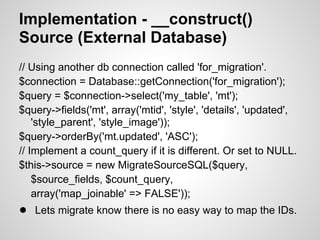

27. Implementation - __construct()
Source (External Database)
// Using another db connection called 'for_migration'.
$connection = Database::getConnection('for_migration');
$query = $connection->select('my_table', 'mt');
$query->fields('mt', array('mtid', 'style', 'details', 'updated',
'style_parent', 'style_image'));
$query->orderBy('mt.updated', 'ASC');
// Implement a count_query if it is different. Or set to NULL.
$this->source = new MigrateSourceSQL($query,
$source_fields, $count_query,
array('map_joinable' => FALSE'));
● Lets migrate know there is no easy way to map the IDs.

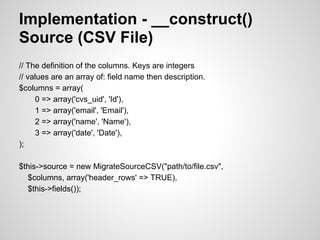

28. Implementation - __construct()
Source (CSV File)
// The definition of the columns. Keys are integers
// values are an array of: field name then description.
$columns = array(
0 => array('cvs_uid', 'Id'),
1 => array('email', 'Email'),
2 => array('name', 'Name'),
3 => array('date', 'Date'),
);
$this->source = new MigrateSourceCSV("path/to/file.csv",
$columns, array('header_rows' => TRUE),
$this->fields());

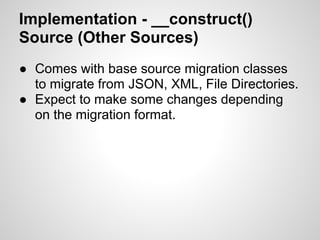

29. Implementation - __construct()
Source (Other Sources)
● Comes with base source migration classes
to migrate from JSON, XML, File Directories.
● Expect to make some changes depending
on the migration format.

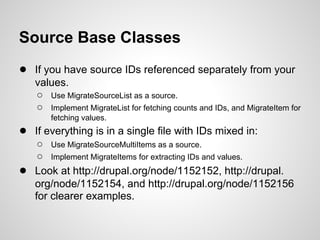

30. Source Base Classes
● If you have source IDs referenced separately from your
values.
○ Use MigrateSourceList as a source.
○ Implement MigrateList for fetching counts and IDs, and MigrateItem for
fetching values.
● If everything is in a single file with IDs mixed in:
○ Use MigrateSourceMultiItems as a source.
○ Implement MigrateItems for extracting IDs and values.
● Look at http://drupal.org/node/1152152, http://drupal.
org/node/1152154, and http://drupal.org/node/1152156
for clearer examples.

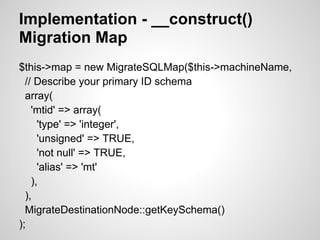

31. Implementation - __construct()
Migration Map
$this->map = new MigrateSQLMap($this->machineName,
// Describe your primary ID schema
array(
'mtid' => array(
'type' => 'integer',
'unsigned' => TRUE,
'not null' => TRUE,
'alias' => 'mt'
),
),
MigrateDestinationNode::getKeySchema()
);

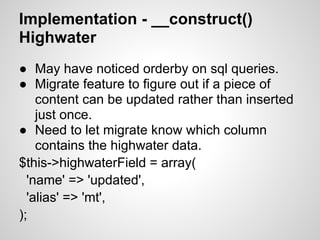

32. Implementation - __construct()
Highwater
● May have noticed orderby on sql queries.
● Migrate feature to figure out if a piece of
content can be updated rather than inserted
just once.
● Need to let migrate know which column
contains the highwater data.
$this->highwaterField = array(
'name' => 'updated',
'alias' => 'mt',
);

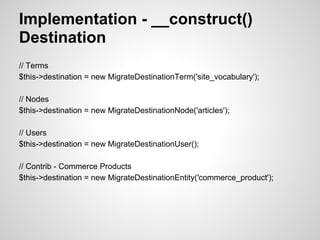

33. Implementation - __construct()
Destination
// Terms
$this->destination = new MigrateDestinationTerm('site_vocabulary');
// Nodes
$this->destination = new MigrateDestinationNode('articles');
// Users
$this->destination = new MigrateDestinationUser();
// Contrib - Commerce Products
$this->destination = new MigrateDestinationEntity('commerce_product');

34. Implementation - __construct()
Field Mapping
// Can be simple.
$this->addFieldMapping('dest_name', 'source_name');
// Can be a set value.
$this->addFieldMapping('uid')->defaultValue(1);
// Can have no value (or whatever the system default is)
$this->addFieldMapping('path')->issueGroup('DNM');
// Can be multiple values with a separator.
$this->addFieldMapping('field_tags', 'source_tags')->separator(',');
// Can have arguments
$this->addFieldMapping('field_body', 'description')->arguments($arguments);

35. Implementation - __construct()
Field Mapping (cont'd)
● Most meta settings for fields now also field mappings.
○ $this->addFieldMapping('field_body:teaser', 'teaser_source_field');
○ Implemented for field handlers
via the fields() function in 2.4.
○ Just provide scalar or array!
● 'More' Mapping.
○ Simpler to understand.
● Still some magic.
○ Files mappings still strange.
○ http://drupal.org/node/1540106
○ Create a destination dir for files
as tokens are iffy.
Or migrate via file IDs (easier)

36. Implementation - __construct()

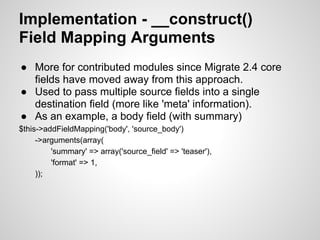

Field Mapping Arguments
● More for contributed modules since Migrate 2.4 core
fields have moved away from this approach.
● Used to pass multiple source fields into a single
destination field (more like 'meta' information).
● As an example, a body field (with summary)
$this->addFieldMapping('body', 'source_body')
->arguments(array(
'summary' => array('source_field' => 'teaser'),
'format' => 1,
));

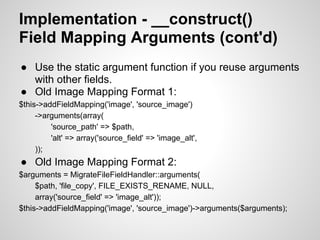

37. Implementation - __construct()
Field Mapping Arguments (cont'd)
● Use the static argument function if you reuse arguments
with other fields.
● Old Image Mapping Format 1:
$this->addFieldMapping('image', 'source_image')
->arguments(array(
'source_path' => $path,
'alt' => array('source_field' => 'image_alt',
));
● Old Image Mapping Format 2:
$arguments = MigrateFileFieldHandler::arguments(
$path, 'file_copy', FILE_EXISTS_RENAME, NULL,
array('source_field' => 'image_alt'));
$this->addFieldMapping('image', 'source_image')->arguments($arguments);

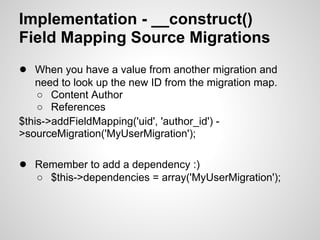

38. Implementation - __construct()
Field Mapping Source Migrations
● When you have a value from another migration and
need to look up the new ID from the migration map.
○ Content Author
○ References
$this->addFieldMapping('uid', 'author_id') -
>sourceMigration('MyUserMigration');
● Remember to add a dependency :)
○ $this->dependencies = array('MyUserMigration');

39. Implementation - Additional
Processing
● Three ways to insert/modify the imported
data mappings.
○ prepareRow($row)
○ prepare($entity, $row)
○ complete($entity, $row)
● Each one is useful in different
circumstances.

40. Implementation - prepareRow($row)
● Passes in the row from the current source as
an object so you can make modifications.
● Can indicate that a row should be skipped
during import by returning FALSE;
● Add or change field values:
$row->field3 = $row->field4 .' '. $row->field5;
$row->created = strtotime($row->access);
$row->images = array('image1', 'image2');

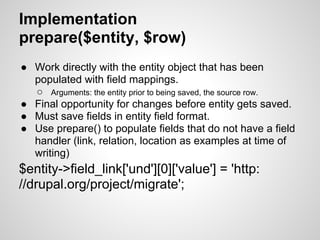

41. Implementation
prepare($entity, $row)
● Work directly with the entity object that has been
populated with field mappings.
○ Arguments: the entity prior to being saved, the source row.
● Final opportunity for changes before entity gets saved.
● Must save fields in entity field format.
● Use prepare() to populate fields that do not have a field
handler (link, relation, location as examples at time of
writing)
$entity->field_link['und'][0]['value'] = 'http:
//drupal.org/project/migrate';

42. Implementation
complete($entity, $row)
● Called after entity is saved - chance to
update any *other* records that reference
the current entity.
● Don't use it to save the same record again...

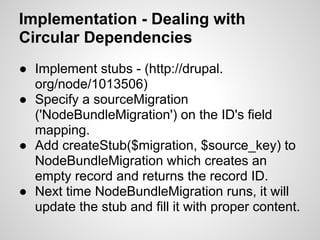

43. Implementation - Dealing with
Circular Dependencies
● Implement stubs - (http://drupal.
org/node/1013506)
● Specify a sourceMigration
('NodeBundleMigration') on the ID's field
mapping.
● Add createStub($migration, $source_key) to
NodeBundleMigration which creates an
empty record and returns the record ID.
● Next time NodeBundleMigration runs, it will
update the stub and fill it with proper content.

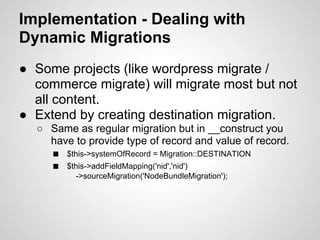

44. Implementation - Dealing with
Dynamic Migrations
● Some projects (like wordpress migrate /
commerce migrate) will migrate most but not
all content.
● Extend by creating destination migration.
○ Same as regular migration but in __construct you
have to provide type of record and value of record.
■ $this->systemOfRecord = Migration::DESTINATION
■ $this->addFieldMapping('nid','nid')
->sourceMigration('NodeBundleMigration');

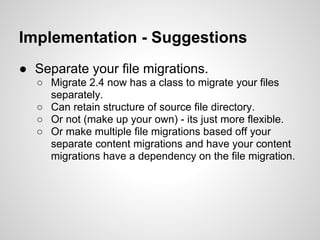

45. Implementation - Suggestions
● Separate your file migrations.
○ Migrate 2.4 now has a class to migrate your files
separately.
○ Can retain structure of source file directory.
○ Or not (make up your own) - its just more flexible.
○ Or make multiple file migrations based off your
separate content migrations and have your content
migrations have a dependency on the file migration.

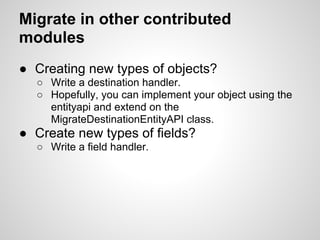

46. Migrate in other contributed
modules
● Creating new types of objects?
○ Write a destination handler.
○ Hopefully, you can implement your object using the
entityapi and extend on the
MigrateDestinationEntityAPI class.
● Create new types of fields?
○ Write a field handler.

47. References
Projects
● http://drupal.org/project/migrate
● http://drupal.org/project/migrate_extras
Drupal -> Drupal Migration Sandboxes
● http://drupal.org/sandbox/mikeryan/1234554
● http://drupal.org/sandbox/btmash/1092900
● http://drupal.org/sandbox/btmash/1492598
Documentation
● http://drupal.org/node/415260
● http://denver2012.drupal.org/program/sessions/getting-
it-drupal-migrate
● http://btmash.com/tags/migrate

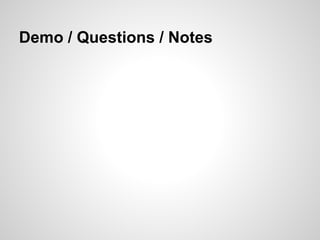

48. Demo / Questions / Notes

49. Thank you :)
