This document discusses migrating from Drupal 6 and 7 to Drupal 8. It provides an overview of the Migrate module, which allows importing content and configuration from other Drupal versions or external systems. Key aspects covered include the source and destination plugins, processing pipelines, and the overall migration workflow of mapping, processing and importing data. Examples of how to configure and execute migrations using Drush or custom code are also presented.

1. Мигрируем на Drupal 8!
#dckiev14

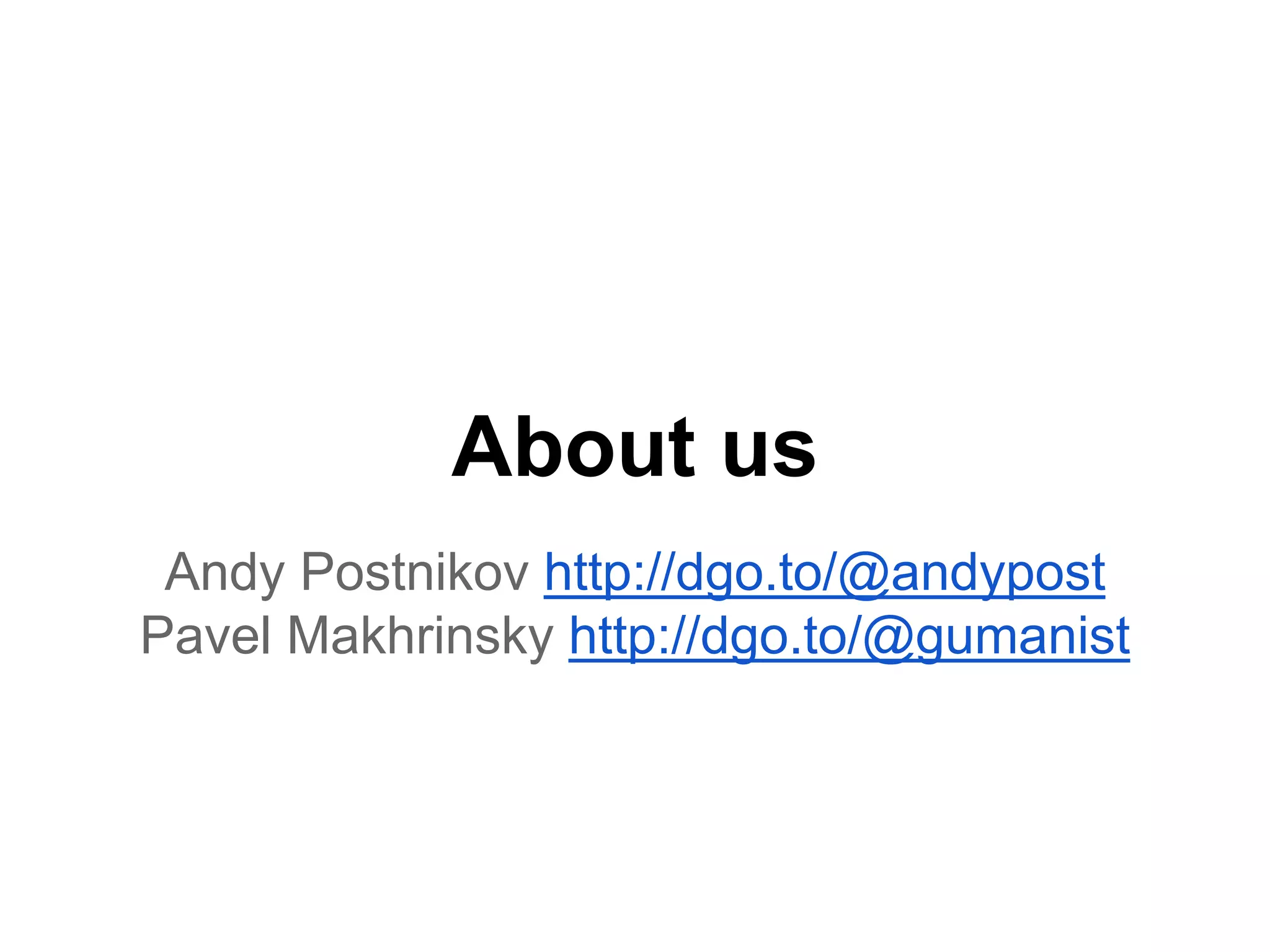

2. About us
Andy Postnikov http://dgo.to/@andypost
Pavel Makhrinsky http://dgo.to/@gumanist

3. More then 2% of all sites
How many sites are running Drupal 6 and 7?

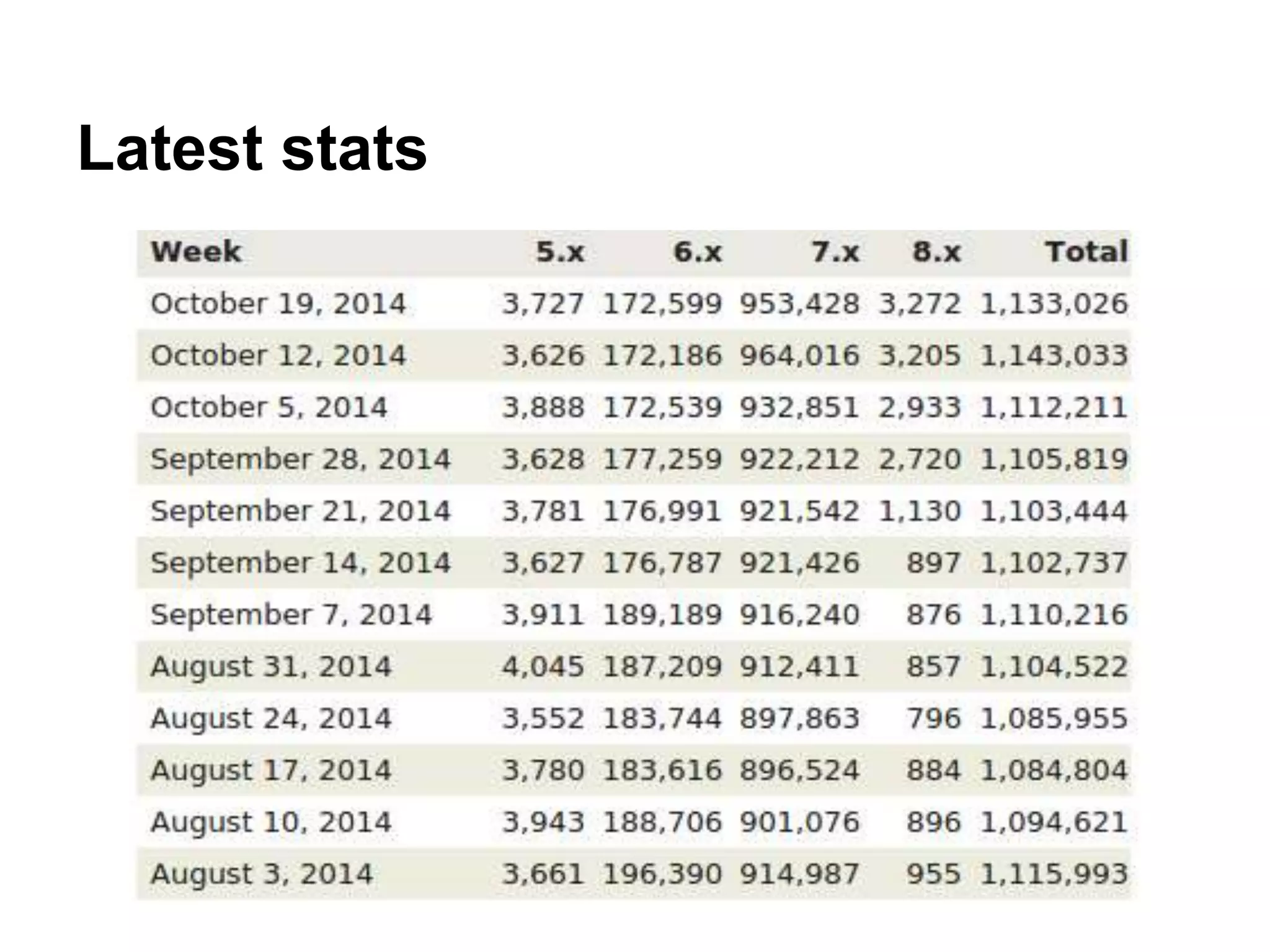

4. Latest stats

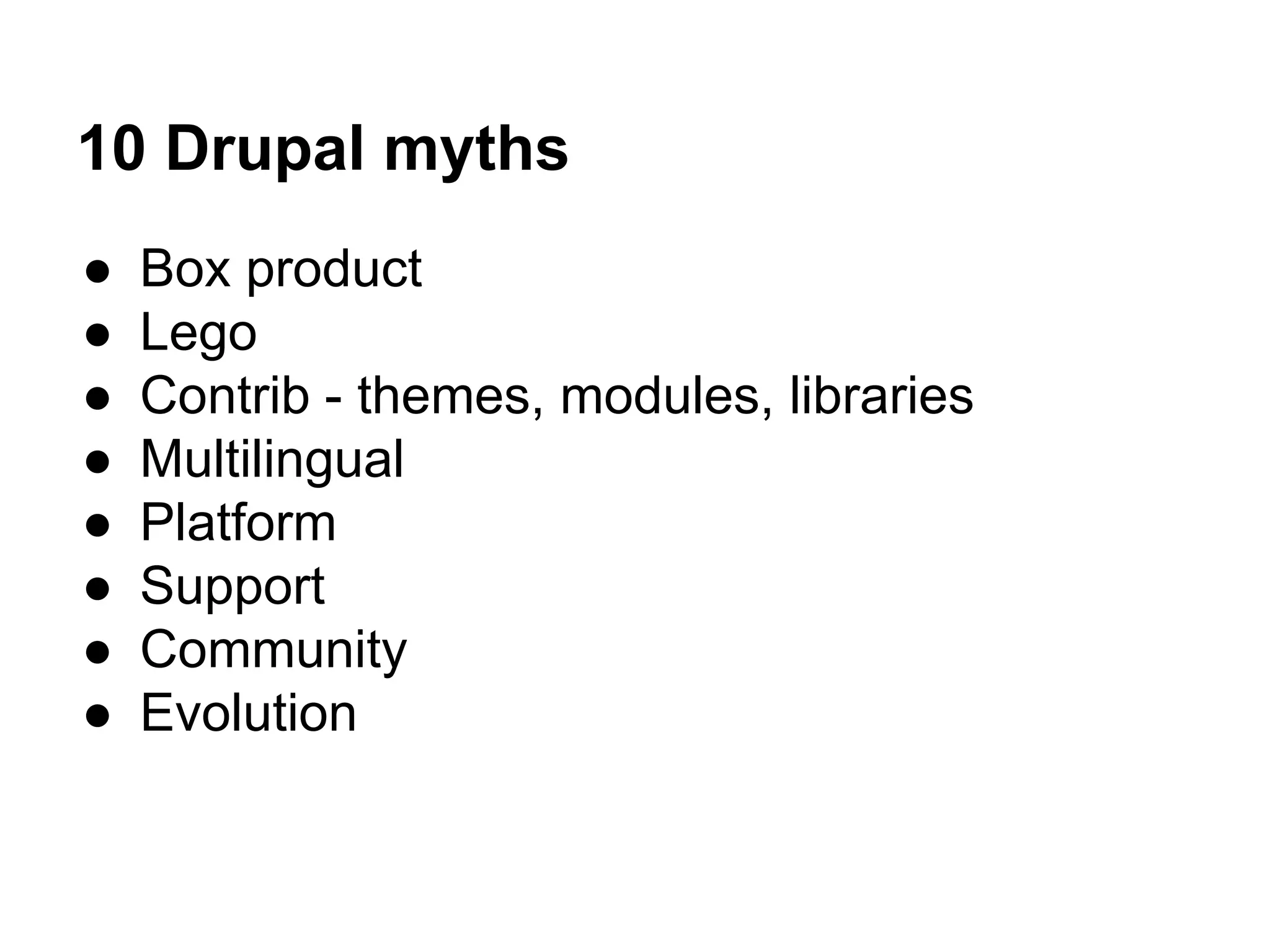

5. 10 Drupal myths
● Box product
● Lego
● Contrib - themes, modules, libraries
● Multilingual
● Platform
● Support
● Community
● Evolution

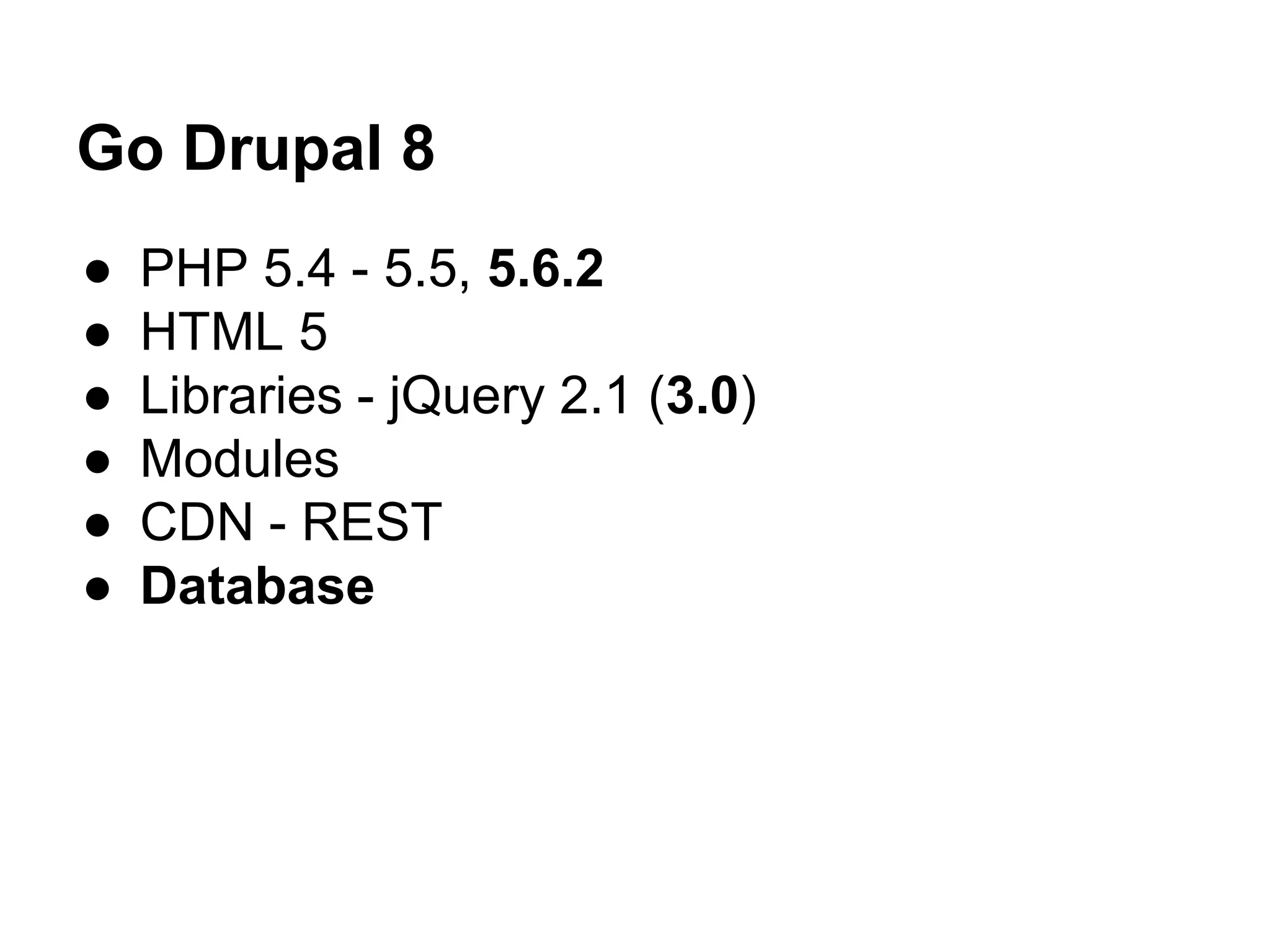

6. Go Drupal 8
● PHP 5.4 - 5.5, 5.6.2
● HTML 5
● Libraries - jQuery 2.1 (3.0)
● Modules
● CDN - REST
● Database

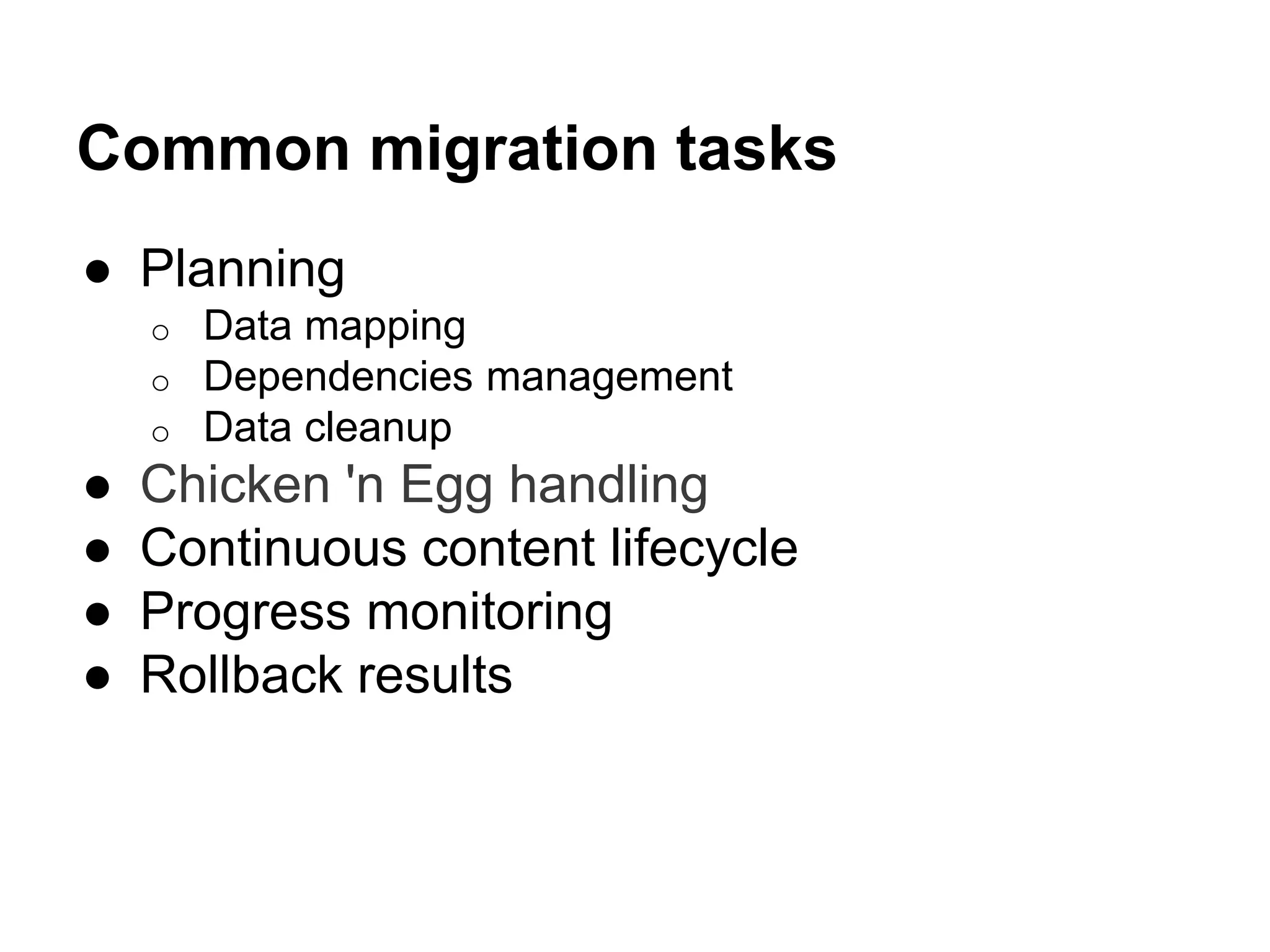

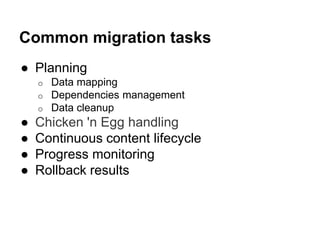

7. Common migration tasks
● Planning
o Data mapping
o Dependencies management
o Data cleanup
● Chicken 'n Egg handling
● Continuous content lifecycle
● Progress monitoring
● Rollback results

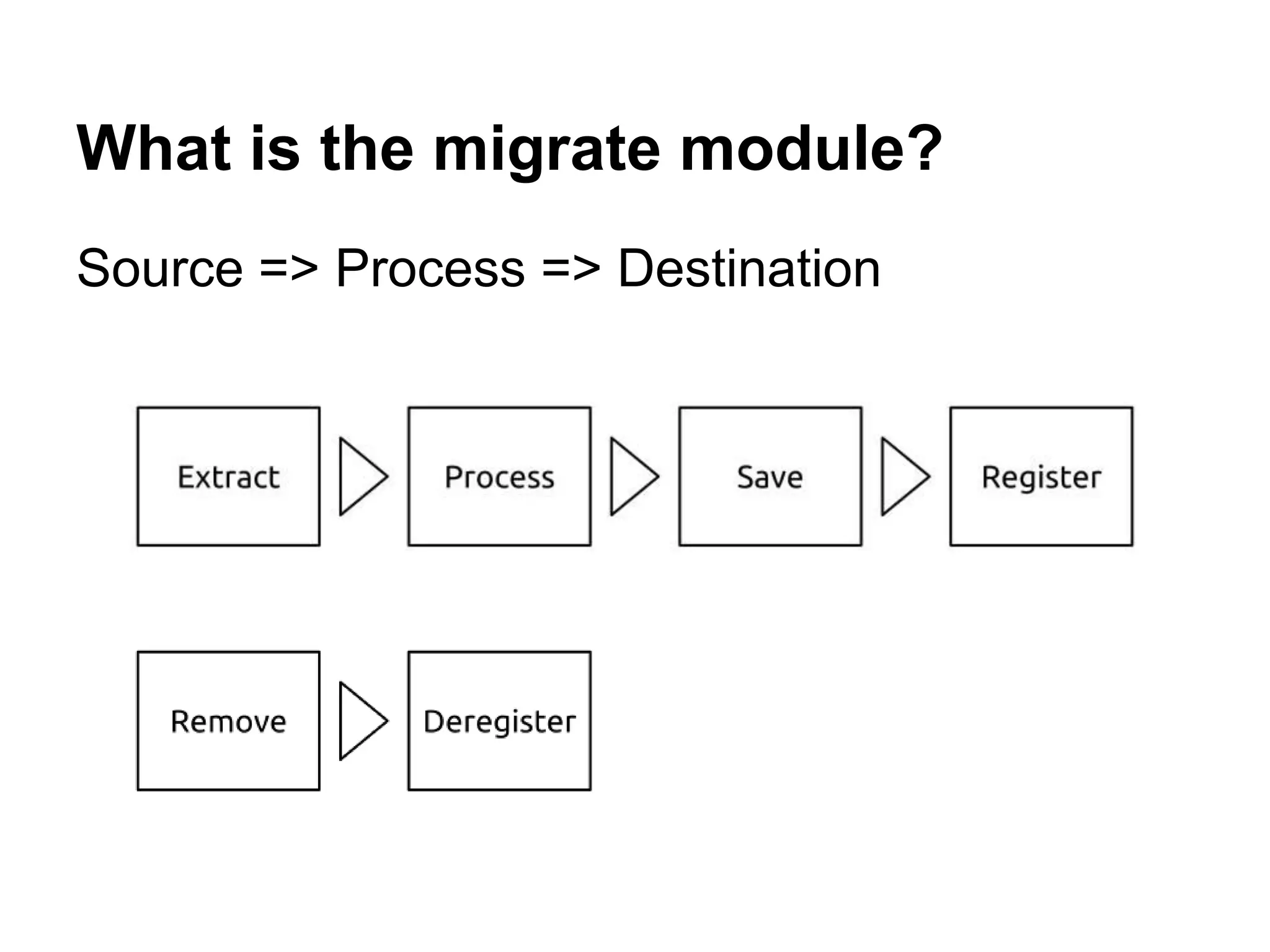

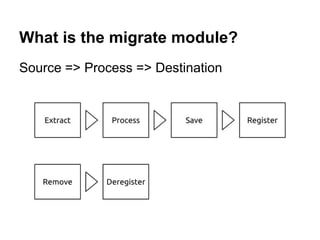

8. What is the migrate module?
Source => Process => Destination

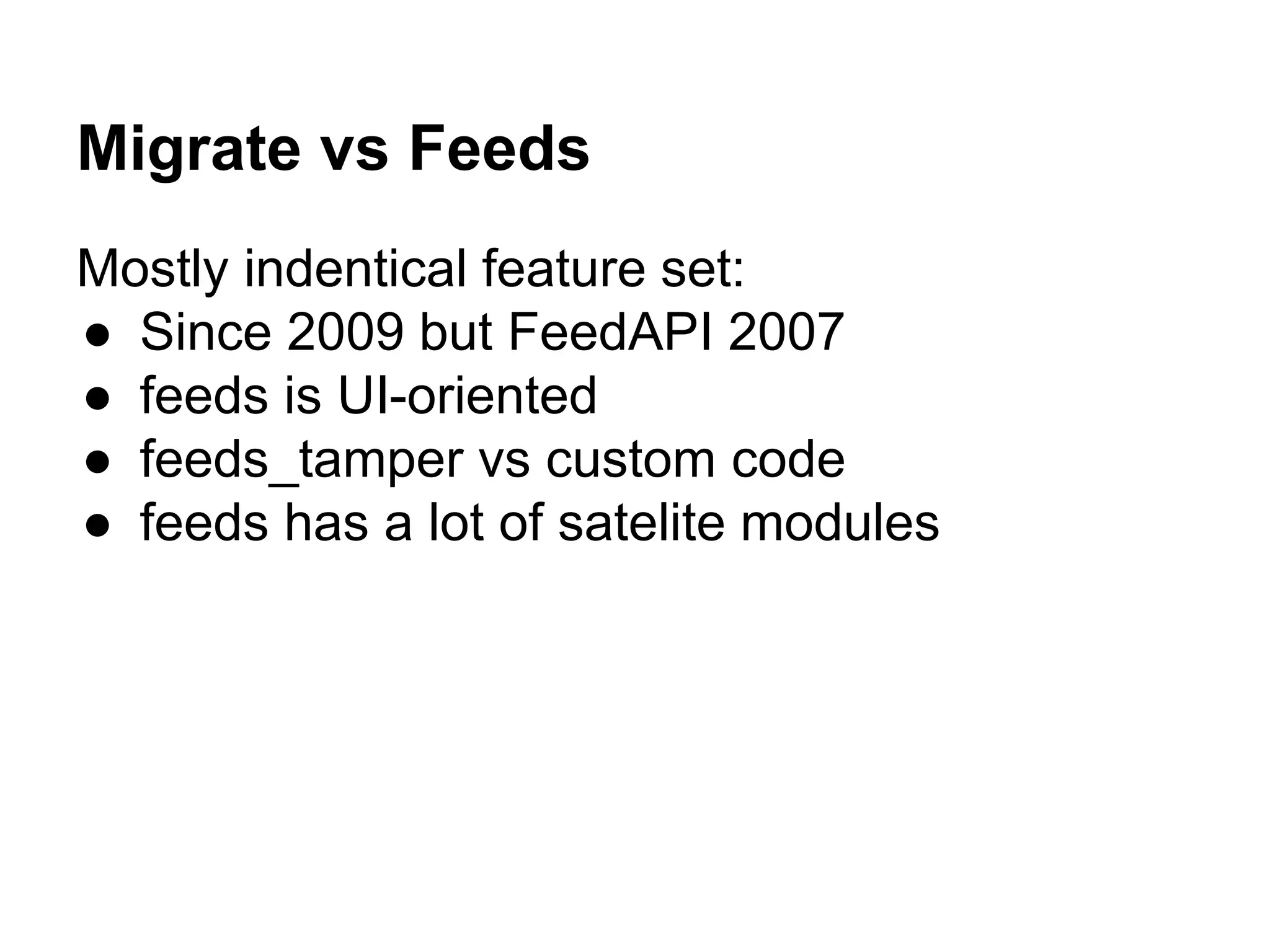

9. Migrate vs Feeds
Mostly indentical feature set:
● Since 2009 but FeedAPI 2007
● feeds is UI-oriented
● feeds_tamper vs custom code
● feeds has a lot of satelite modules

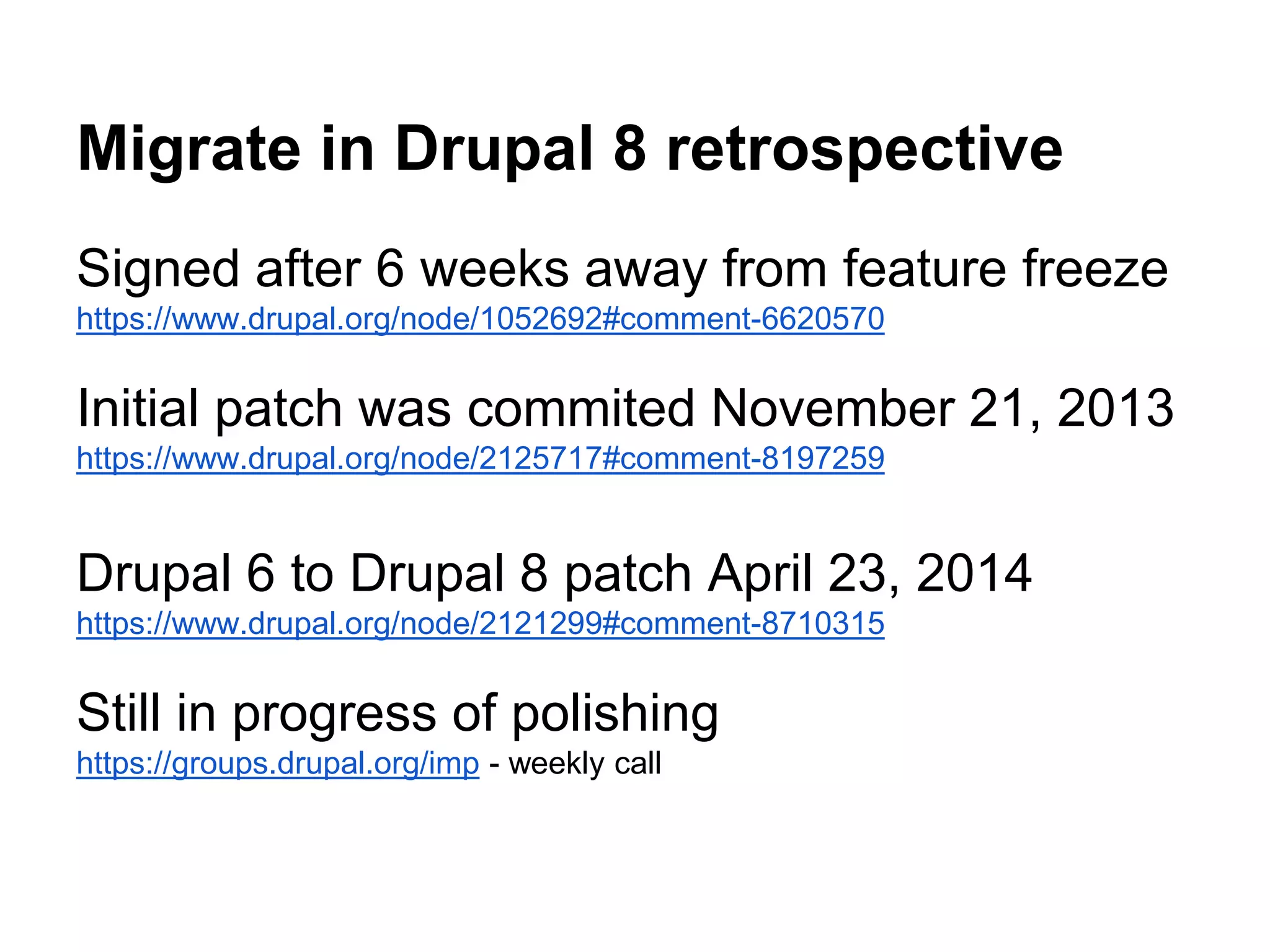

10. Migrate in Drupal 8 retrospective
Signed after 6 weeks away from feature freeze
https://www.drupal.org/node/1052692#comment-6620570
Initial patch was commited November 21, 2013
https://www.drupal.org/node/2125717#comment-8197259
Drupal 6 to Drupal 8 patch April 23, 2014
https://www.drupal.org/node/2121299#comment-8710315
Still in progress of polishing
https://groups.drupal.org/imp - weekly call

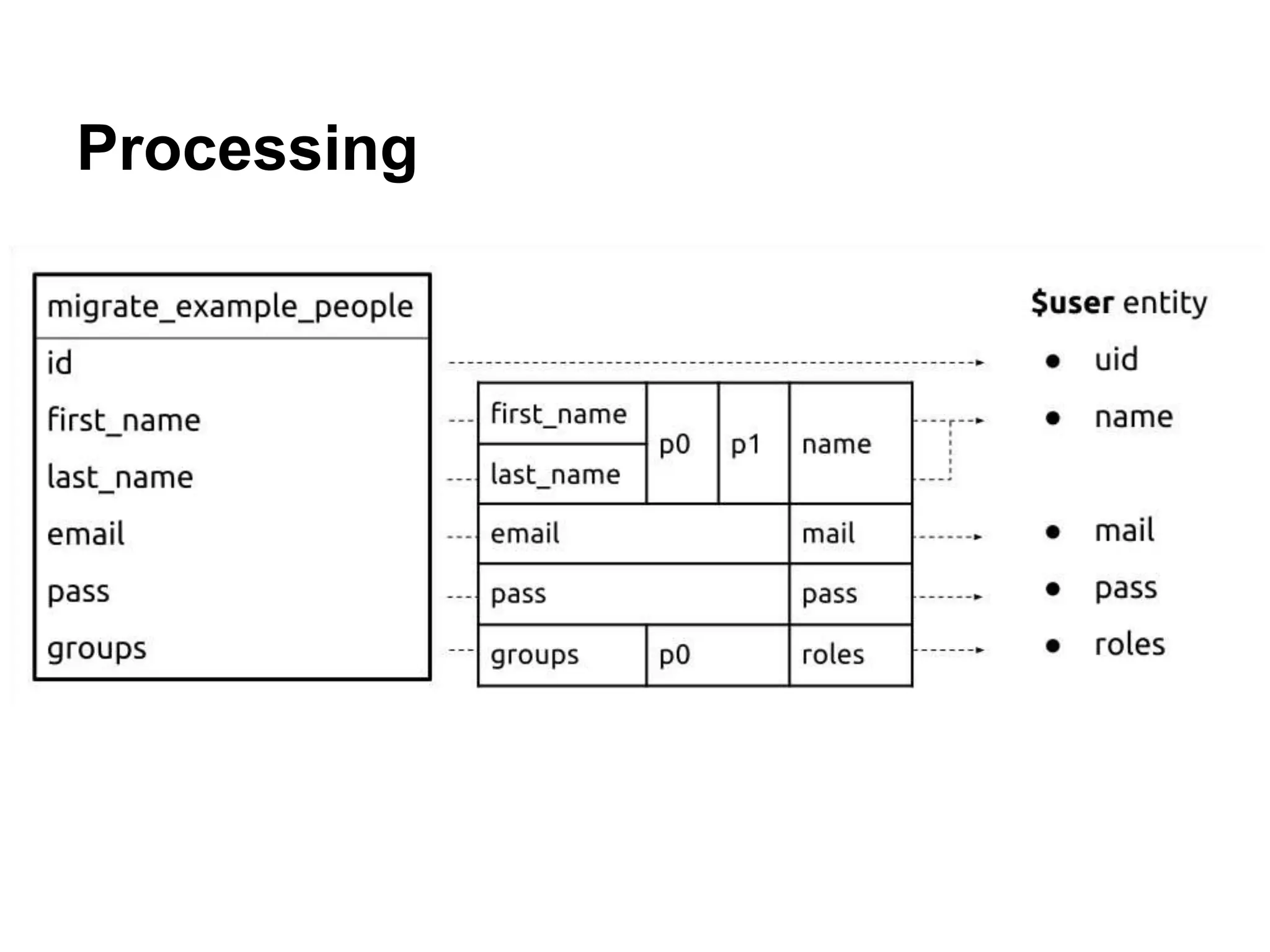

11. Processing

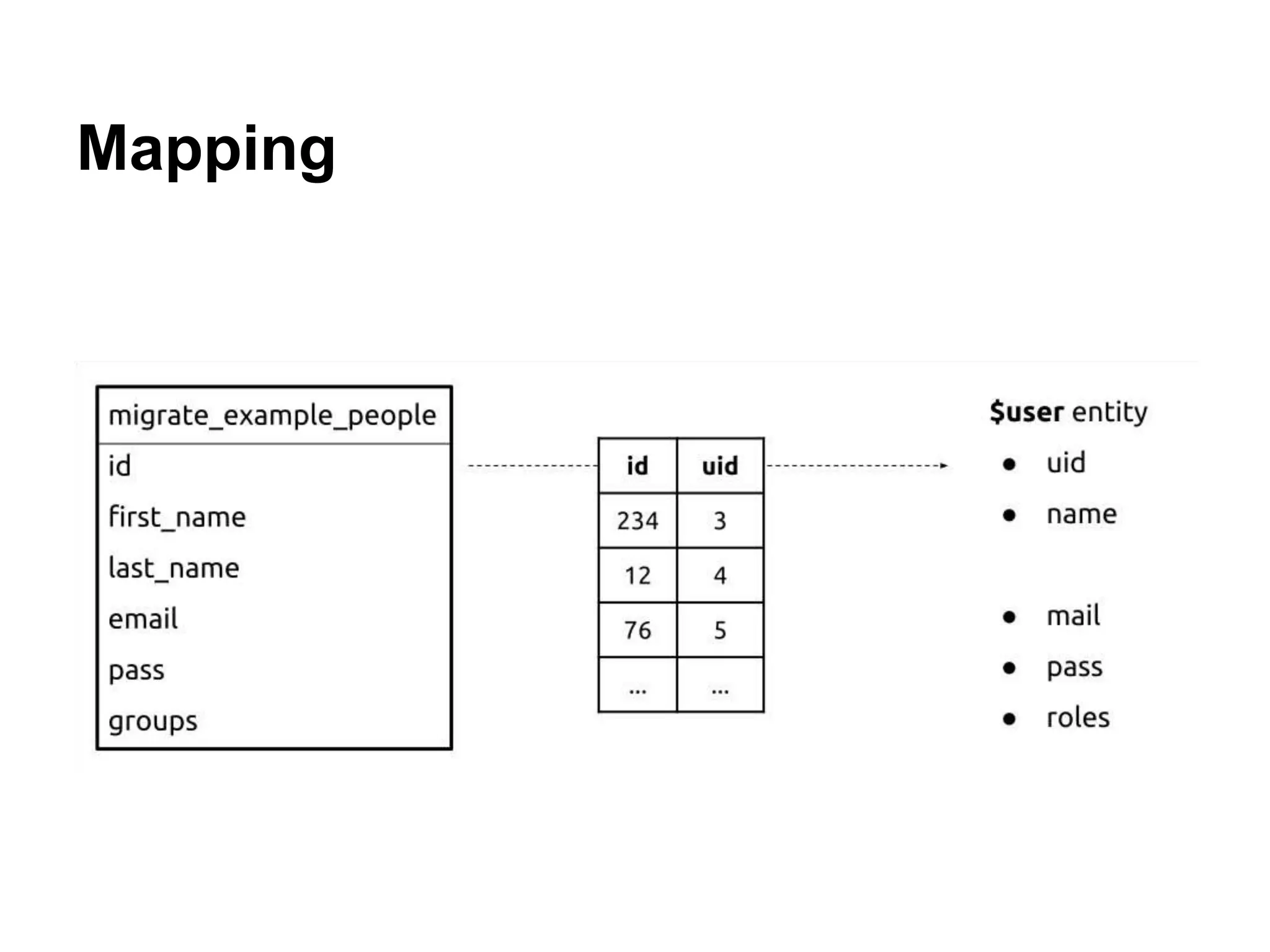

12. Mapping

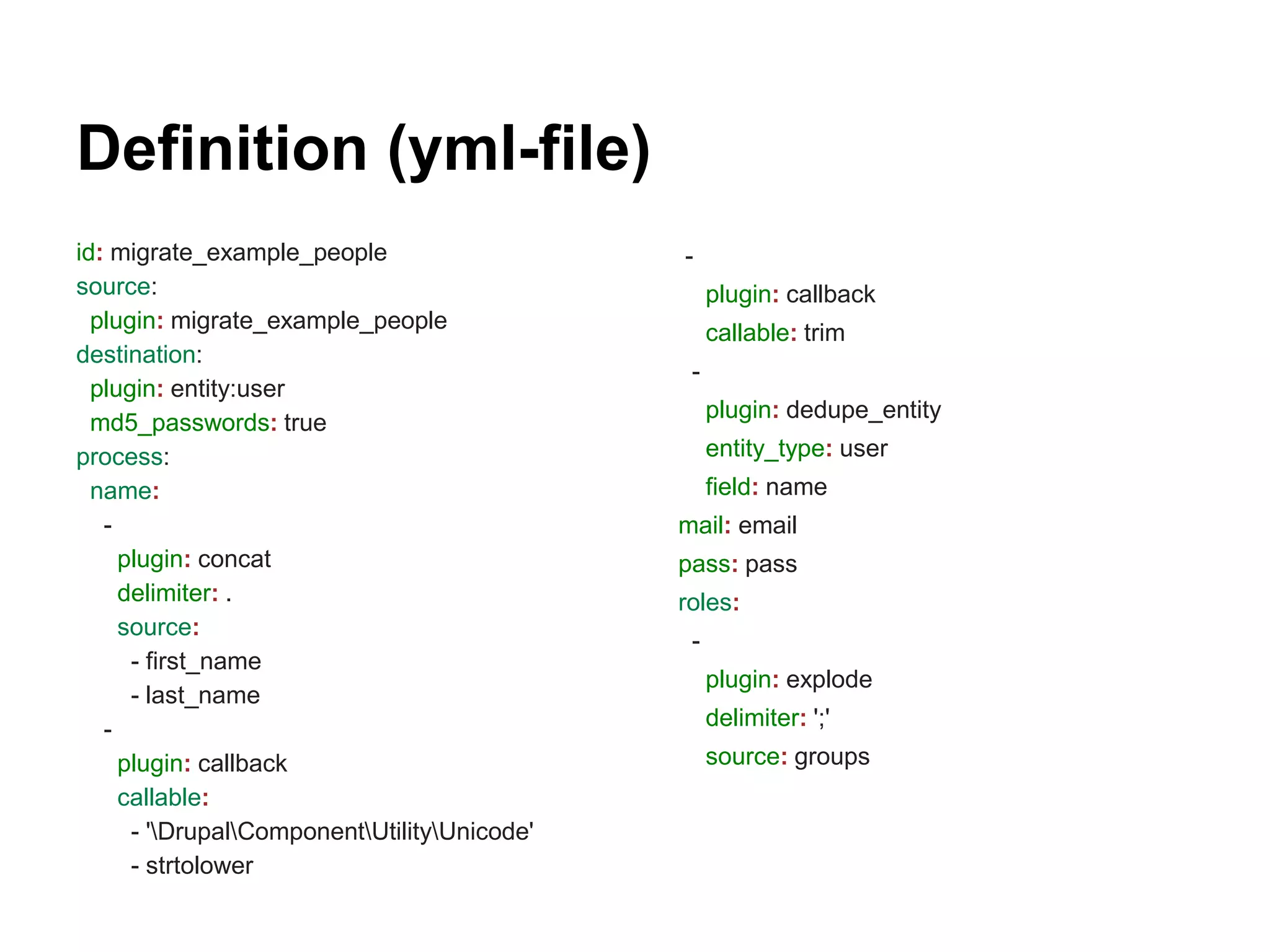

13. Definition (yml-file)
id: migrate_example_people
source:
plugin: migrate_example_people
destination:
plugin: entity:user
md5_passwords: true
process:
name:
-
plugin: concat
delimiter: .
source:
- first_name
- last_name
-
plugin: callback
callable:
- 'DrupalComponentUtilityUnicode'
- strtolower
-
plugin: callback
callable: trim
-
plugin: dedupe_entity
entity_type: user
field: name
mail: email
pass: pass
roles:
-
plugin: explode
delimiter: ';'
source: groups

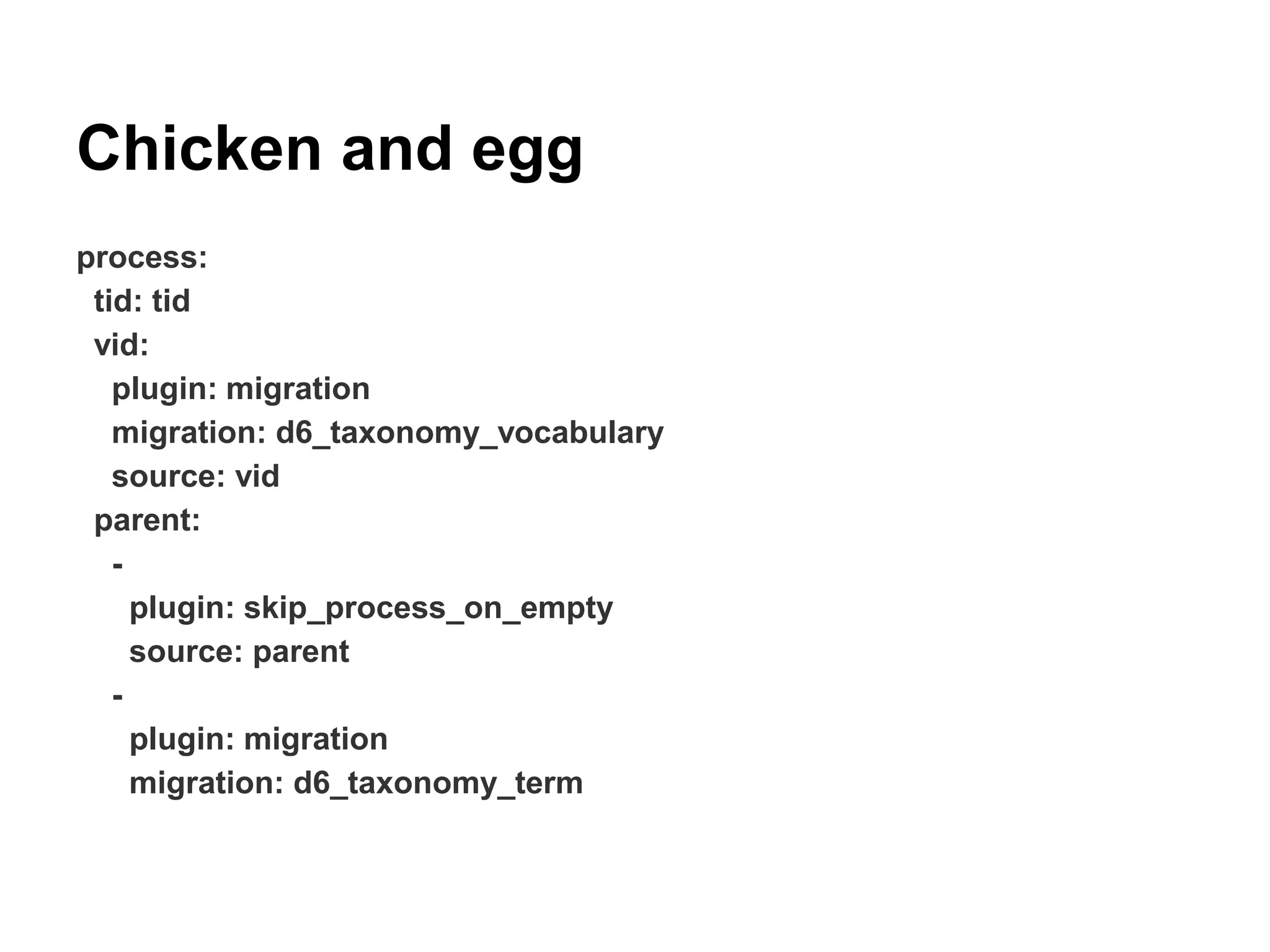

14. Chicken and egg
process:
tid: tid
vid:
plugin: migration
migration: d6_taxonomy_vocabulary
source: vid
parent:
-
plugin: skip_process_on_empty
source: parent
-
plugin: migration
migration: d6_taxonomy_term

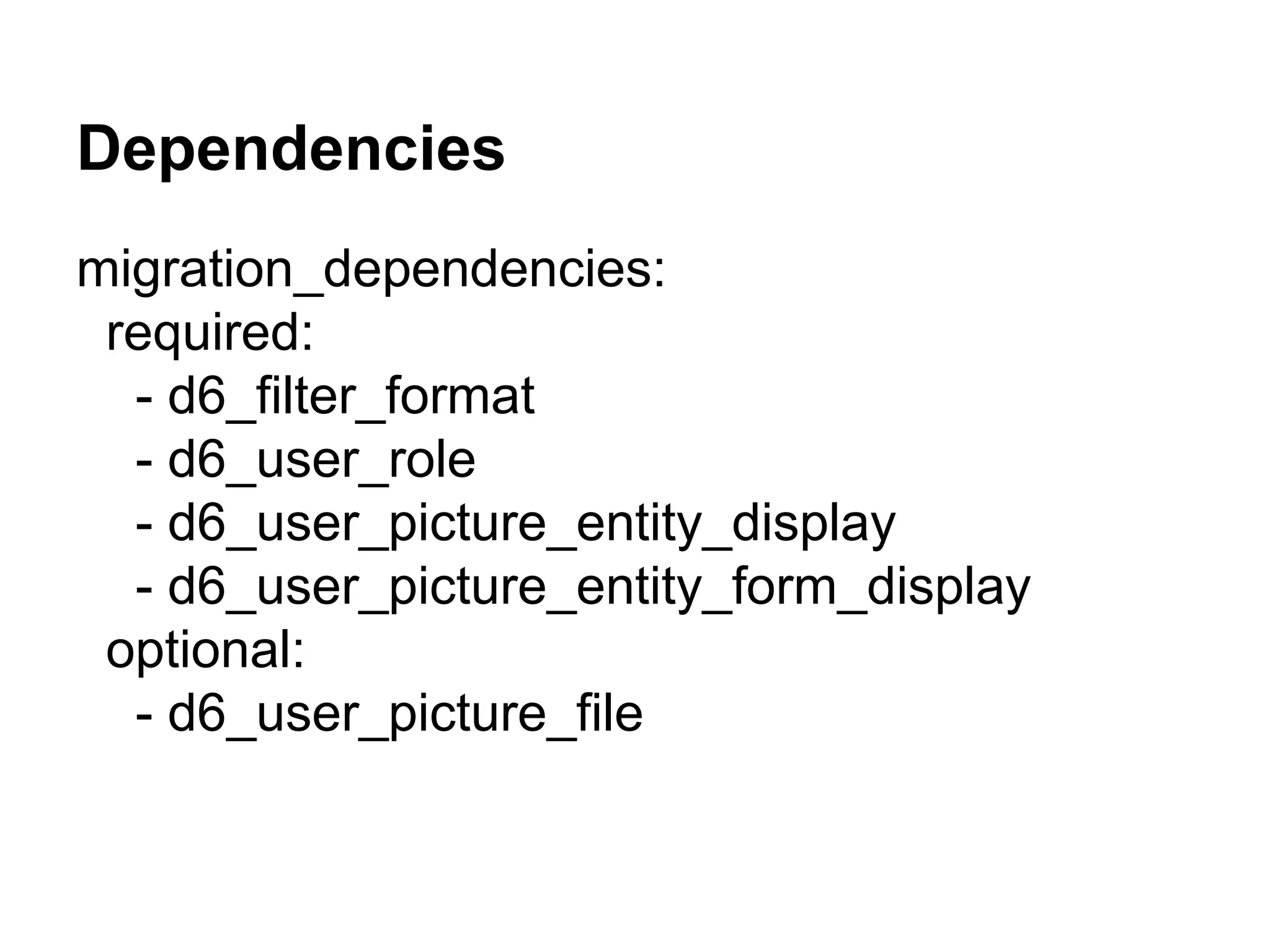

15. Dependencies
migration_dependencies:
required:
- d6_filter_format
- d6_user_role
- d6_user_picture_entity_display
- d6_user_picture_entity_form_display
optional:
- d6_user_picture_file

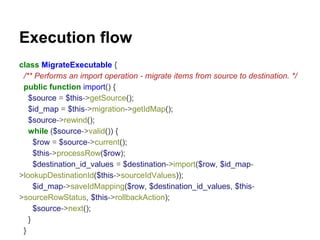

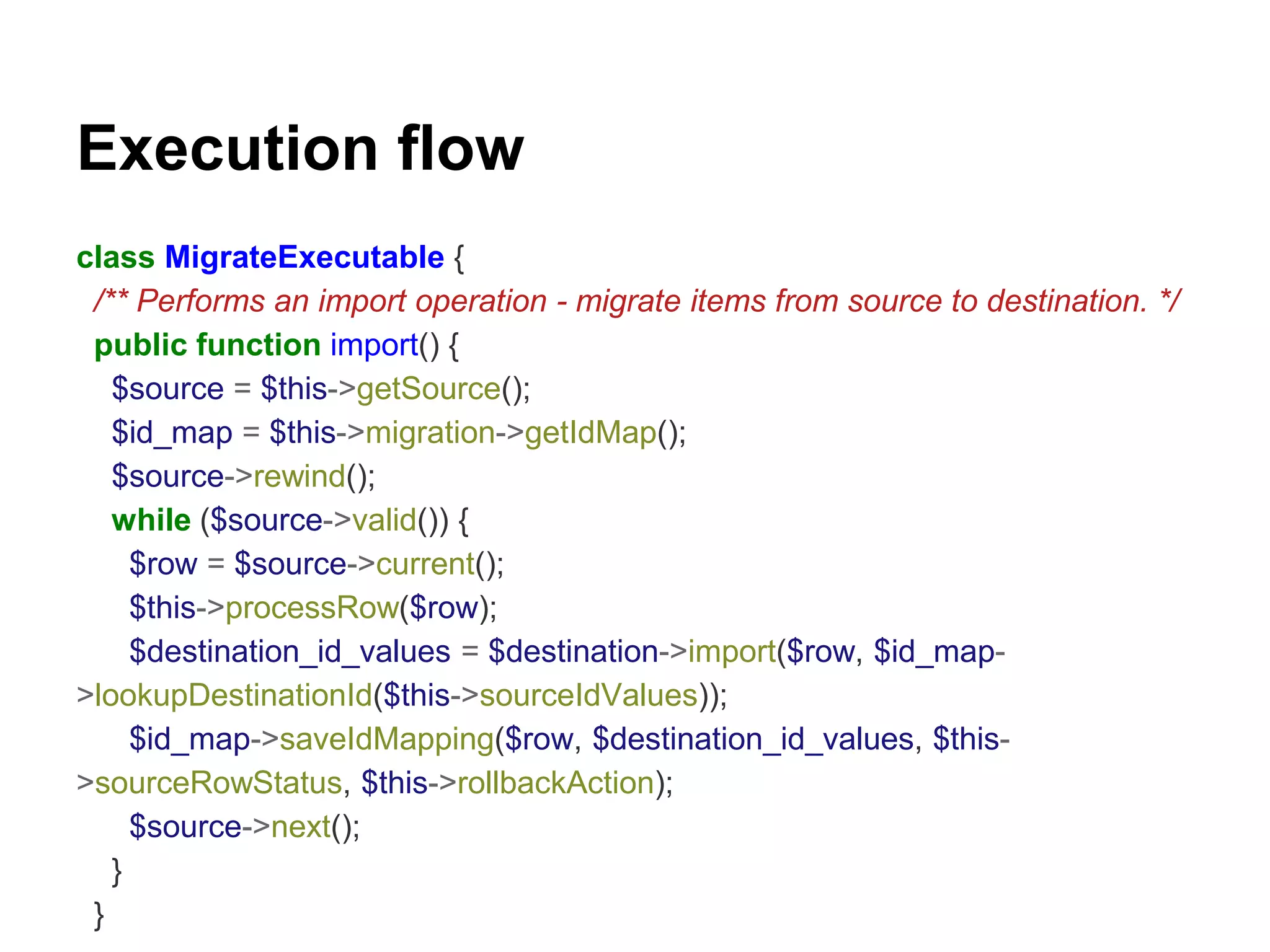

16. Execution flow
class MigrateExecutable {
/** Performs an import operation - migrate items from source to destination. */
public function import() {
$source = $this->getSource();
$id_map = $this->migration->getIdMap();
$source->rewind();
while ($source->valid()) {
$row = $source->current();
$this->processRow($row);
$destination_id_values = $destination->import($row, $id_map-
>lookupDestinationId($this->sourceIdValues));
$id_map->saveIdMapping($row, $destination_id_values, $this-
>sourceRowStatus, $this->rollbackAction);
$source->next();
}
}

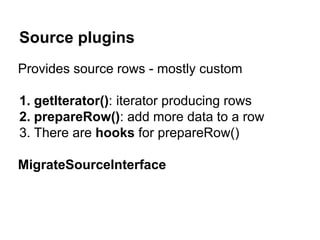

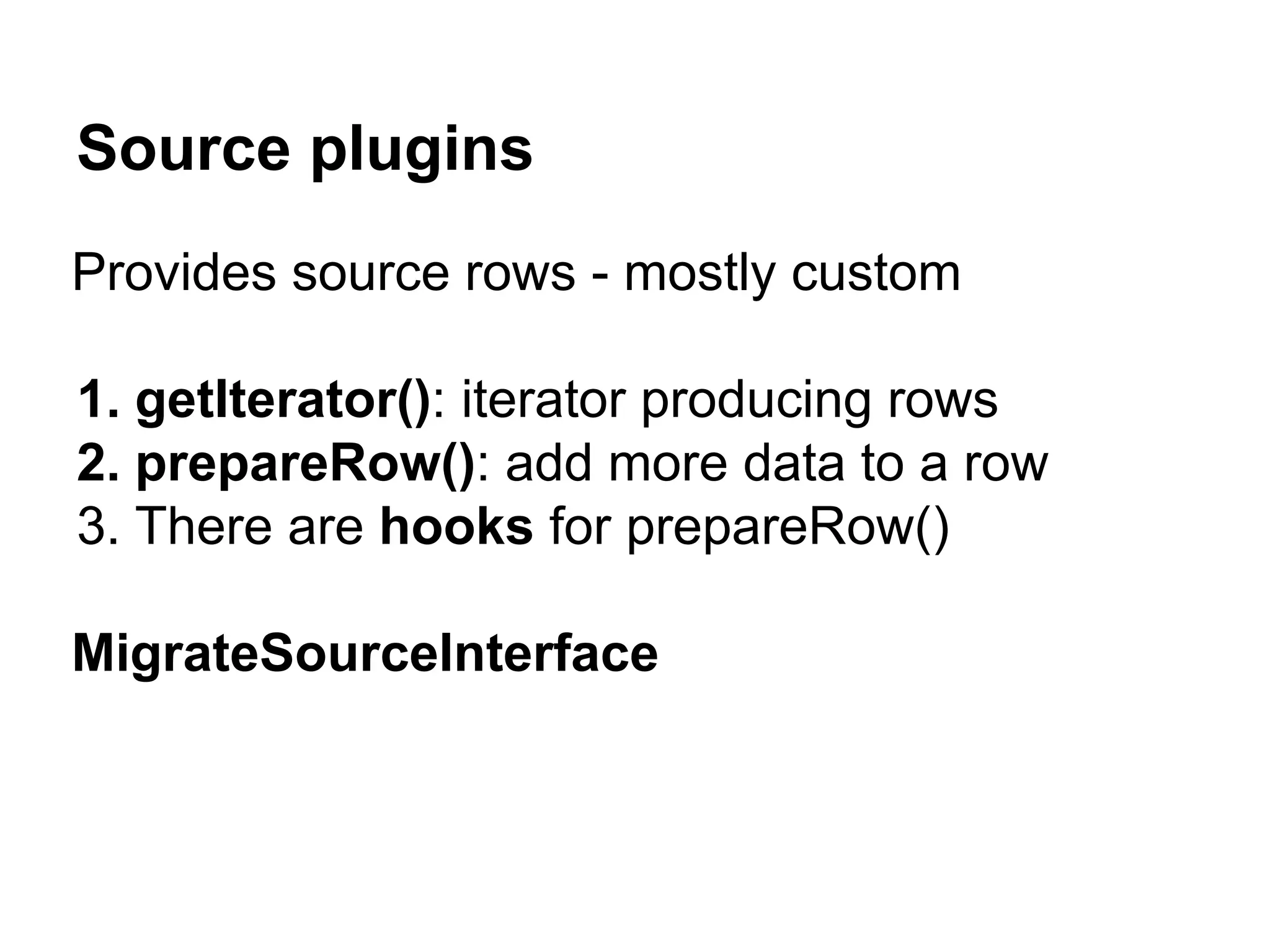

17. Source plugins
Provides source rows - mostly custom
1. getIterator(): iterator producing rows
2. prepareRow(): add more data to a row
3. There are hooks for prepareRow()
MigrateSourceInterface

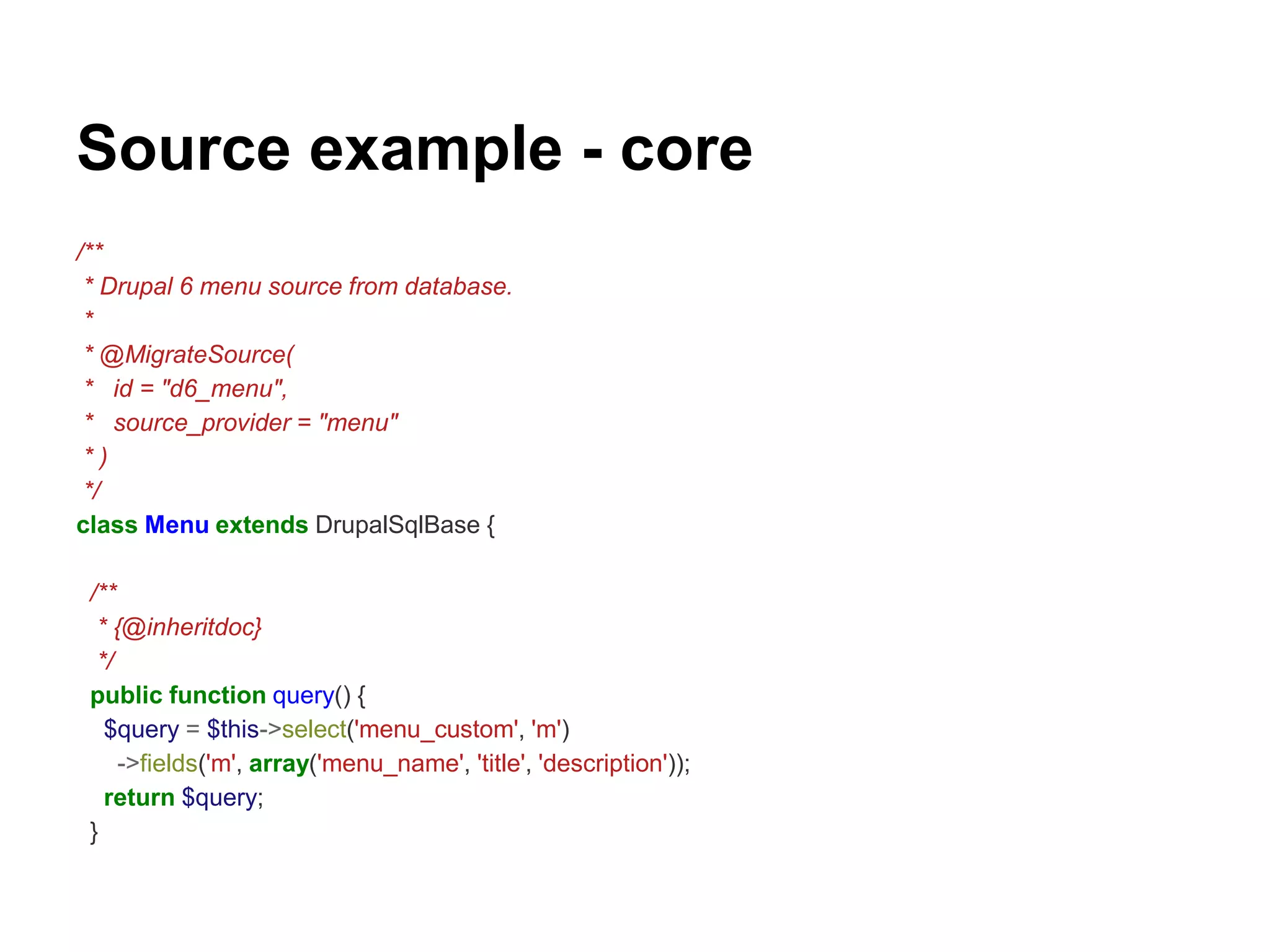

18. Source example - core
/**
* Drupal 6 menu source from database.
*
* @MigrateSource(
* id = "d6_menu",
* source_provider = "menu"
* )
*/
class Menu extends DrupalSqlBase {
/**
* {@inheritdoc}
*/
public function query() {
$query = $this->select('menu_custom', 'm')
->fields('m', array('menu_name', 'title', 'description'));
return $query;
}

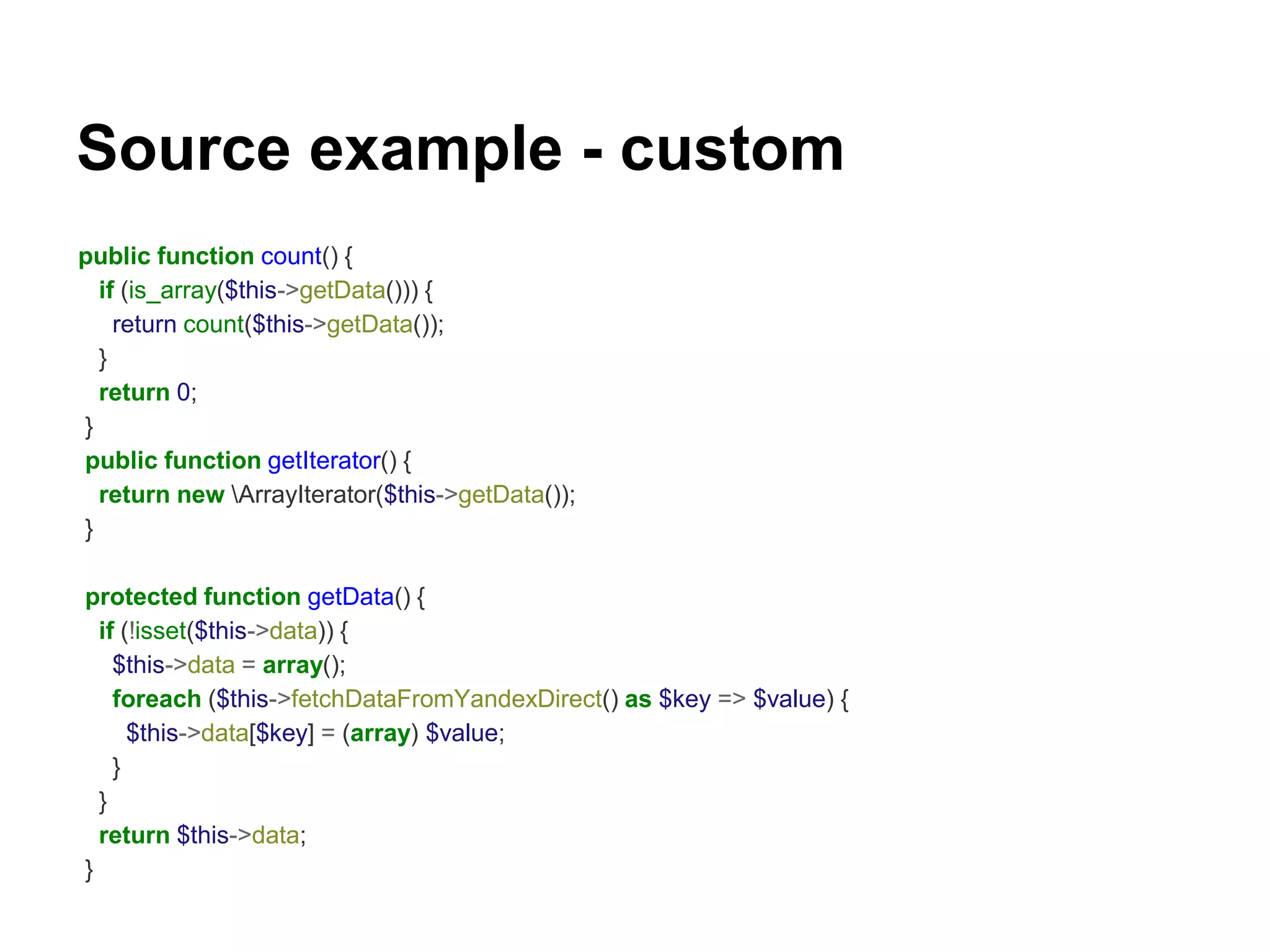

19. Source example - custom
public function count() {
if (is_array($this->getData())) {
return count($this->getData());
}
return 0;
}
public function getIterator() {
return new ArrayIterator($this->getData());
}
protected function getData() {
if (!isset($this->data)) {
$this->data = array();
foreach ($this->fetchDataFromYandexDirect() as $key => $value) {
$this->data[$key] = (array) $value;
}
}
return $this->data;
}

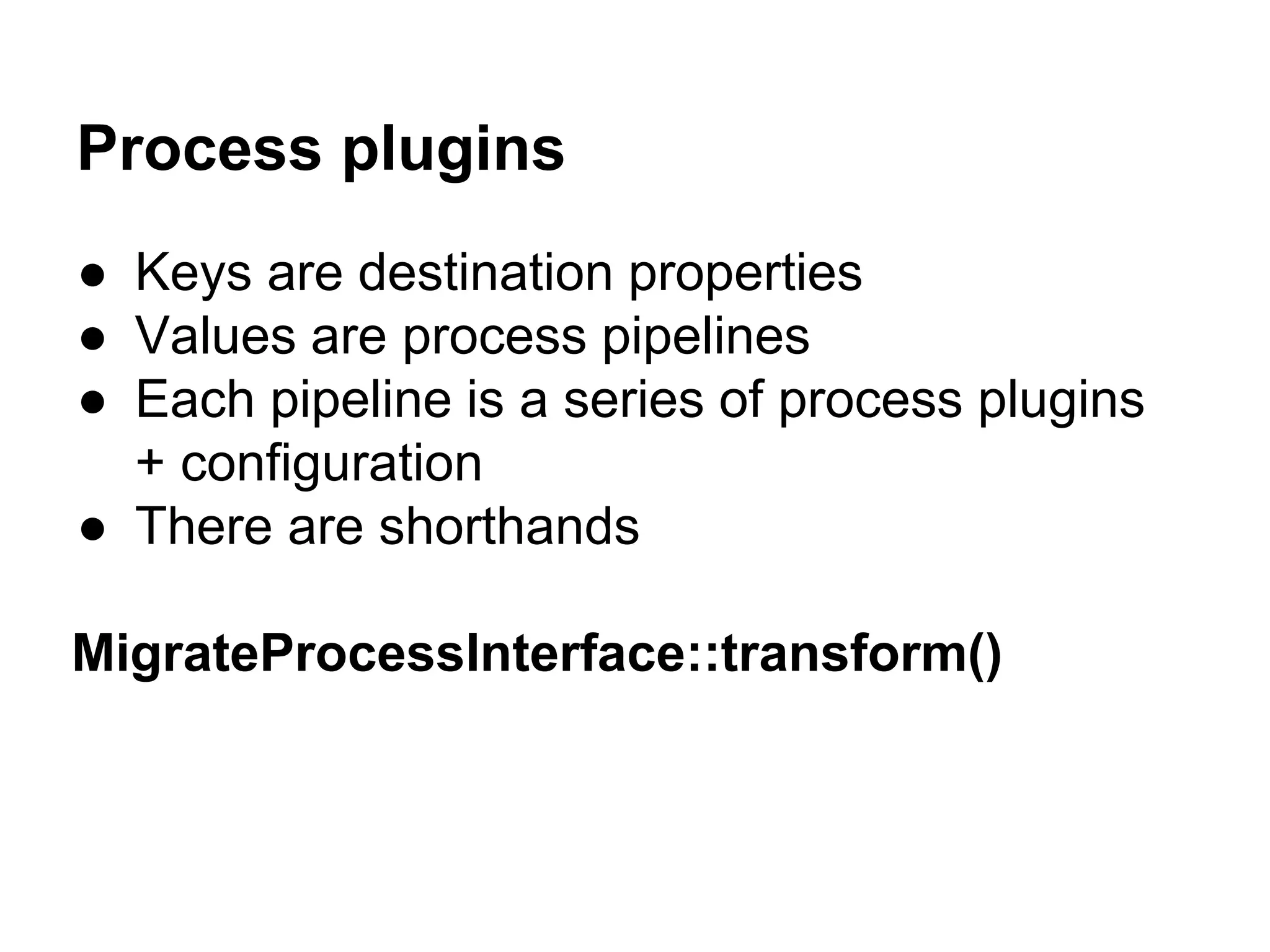

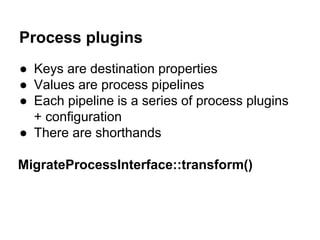

20. Process plugins
● Keys are destination properties
● Values are process pipelines
● Each pipeline is a series of process plugins
+ configuration
● There are shorthands
MigrateProcessInterface::transform()

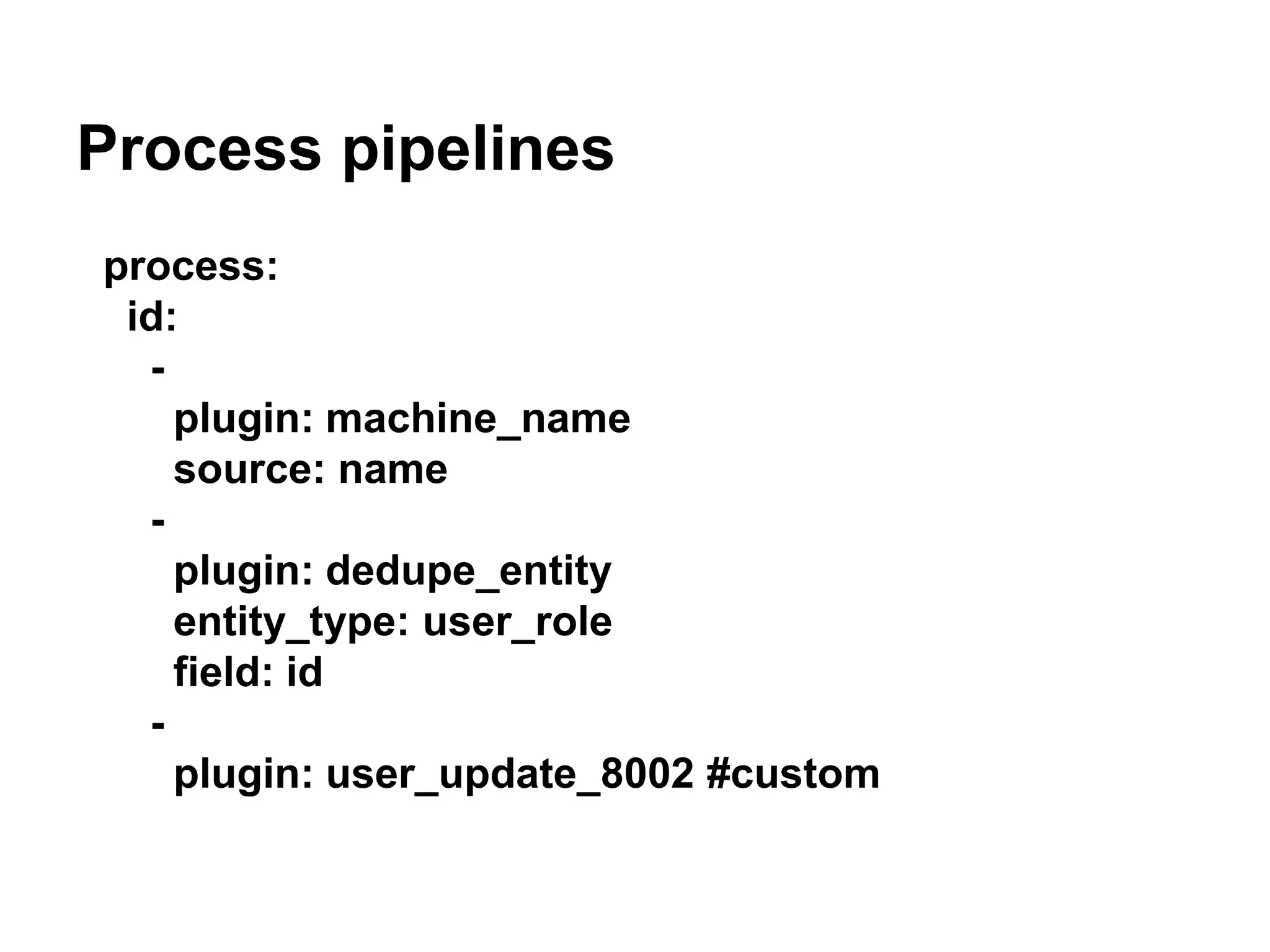

21. Process pipelines
process:
id:
-
plugin: machine_name
source: name
-
plugin: dedupe_entity
entity_type: user_role
field: id
-
plugin: user_update_8002 #custom

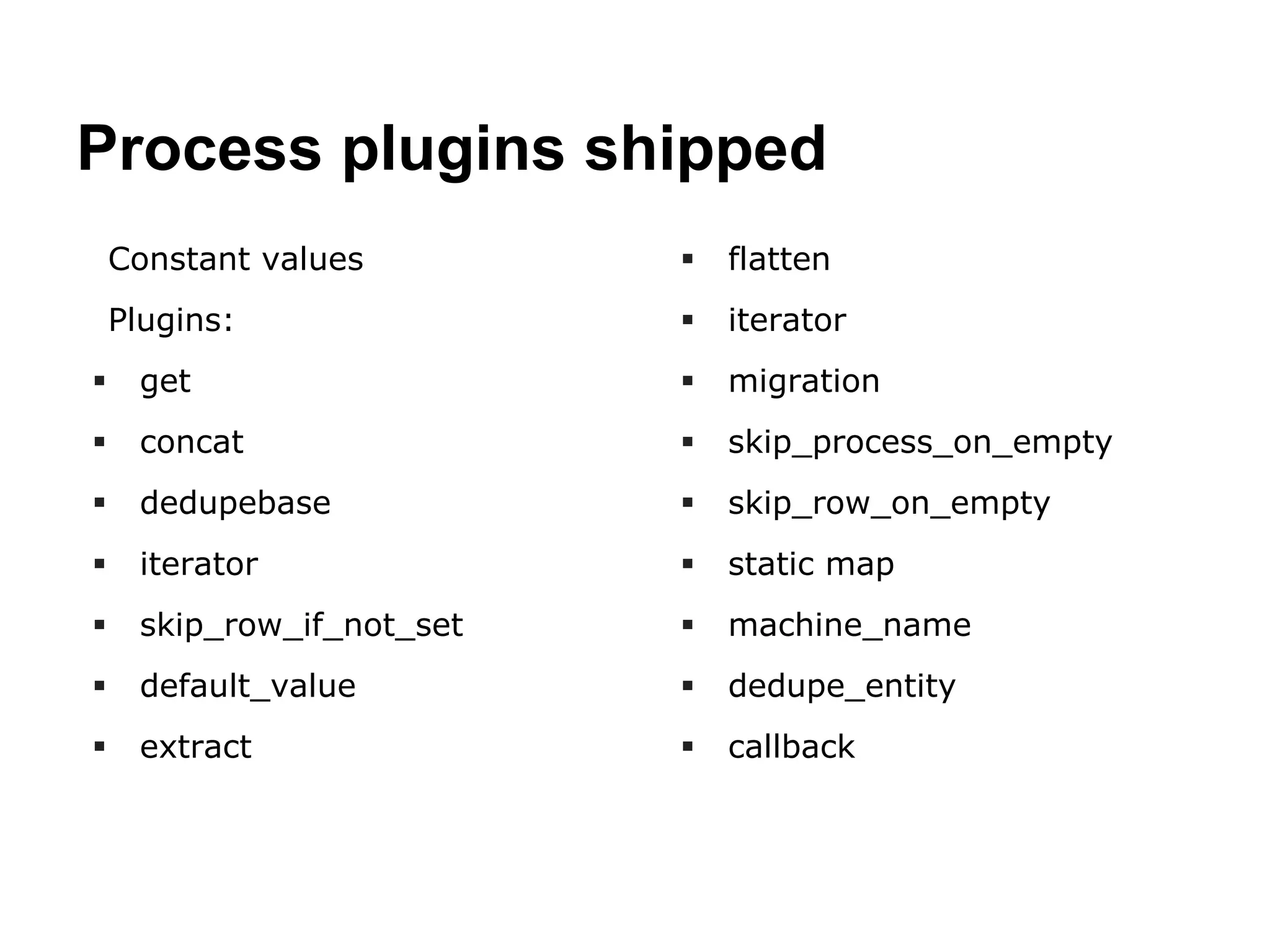

22. Process plugins shipped
Constant values
Plugins:
 get
 concat
 dedupebase
 iterator
 skip_row_if_not_set
 default_value
 extract
 flatten
 iterator
 migration
 skip_process_on_empty
 skip_row_on_empty
 static map
 machine_name
 dedupe_entity
 callback

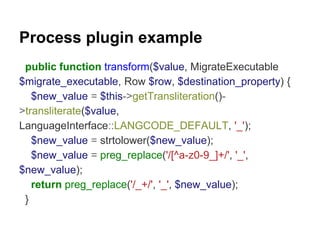

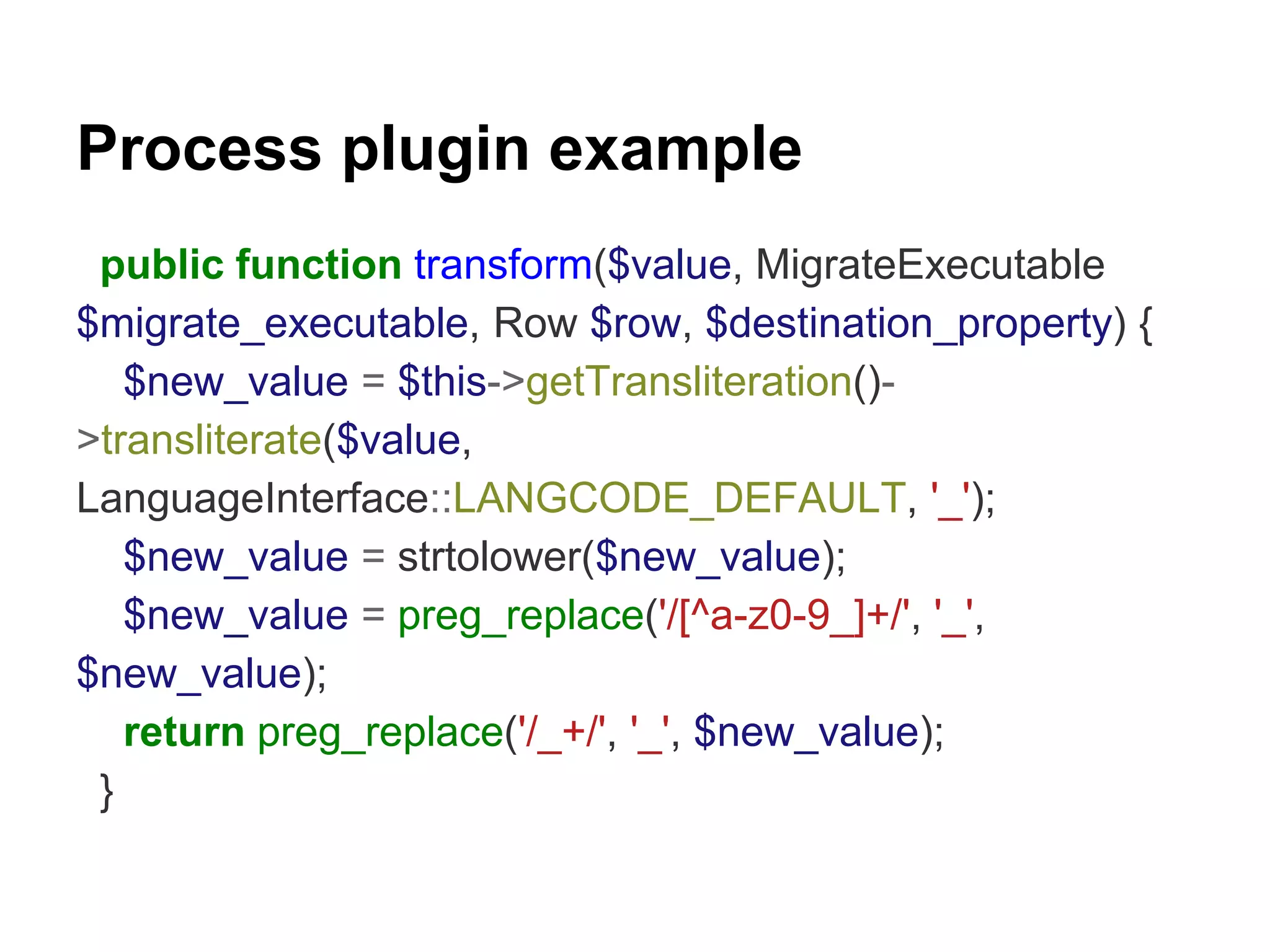

23. Process plugin example
public function transform($value, MigrateExecutable
$migrate_executable, Row $row, $destination_property) {
$new_value = $this->getTransliteration()-
>transliterate($value,
LanguageInterface::LANGCODE_DEFAULT, '_');
$new_value = strtolower($new_value);
$new_value = preg_replace('/[^a-z0-9_]+/', '_',
$new_value);
return preg_replace('/_+/', '_', $new_value);
}

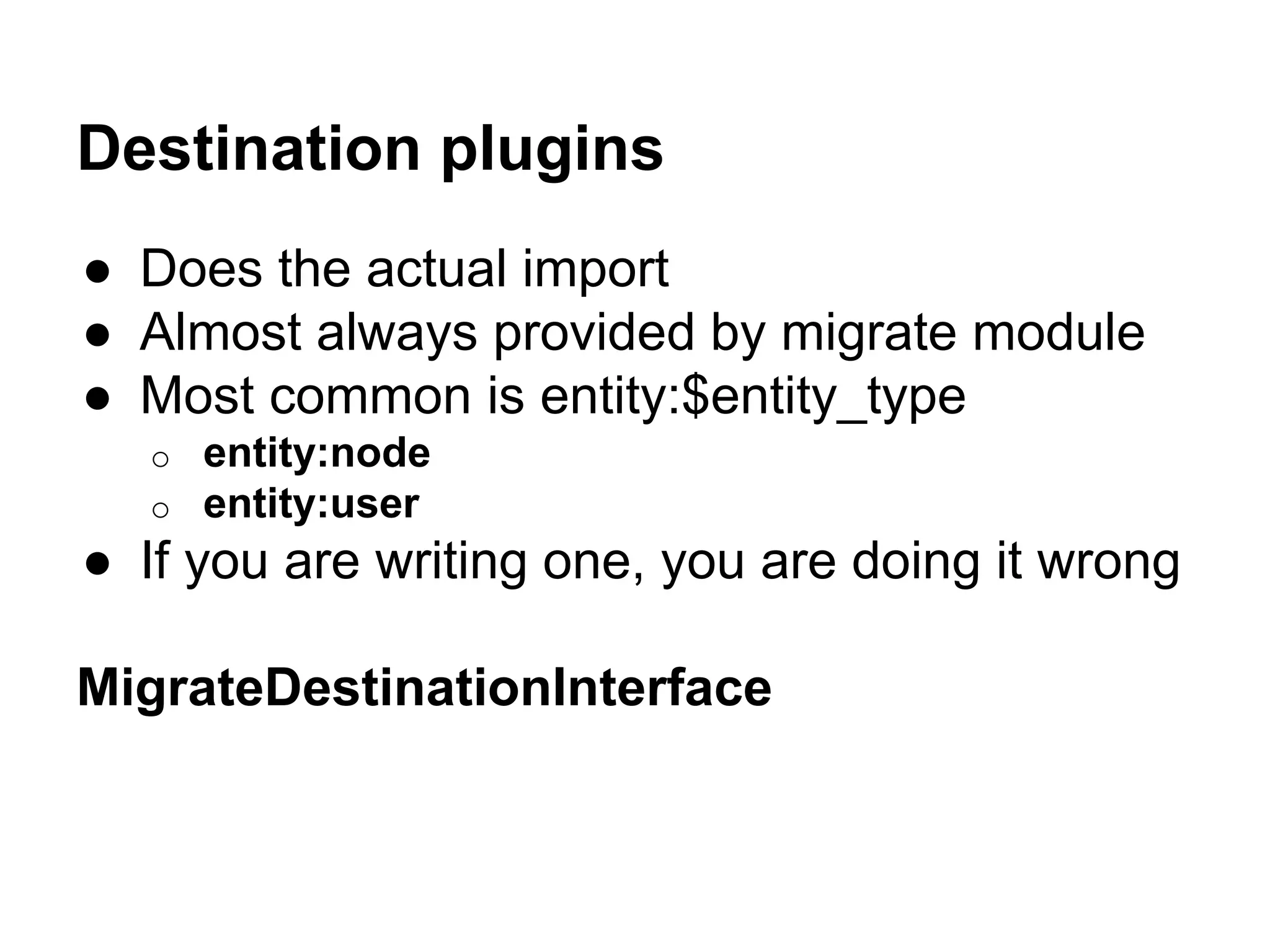

24. Destination plugins
● Does the actual import
● Almost always provided by migrate module
● Most common is entity:$entity_type
o entity:node
o entity:user
● If you are writing one, you are doing it wrong
MigrateDestinationInterface

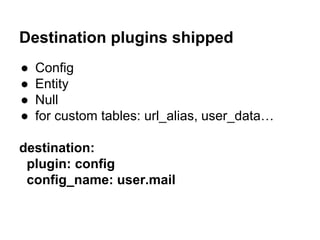

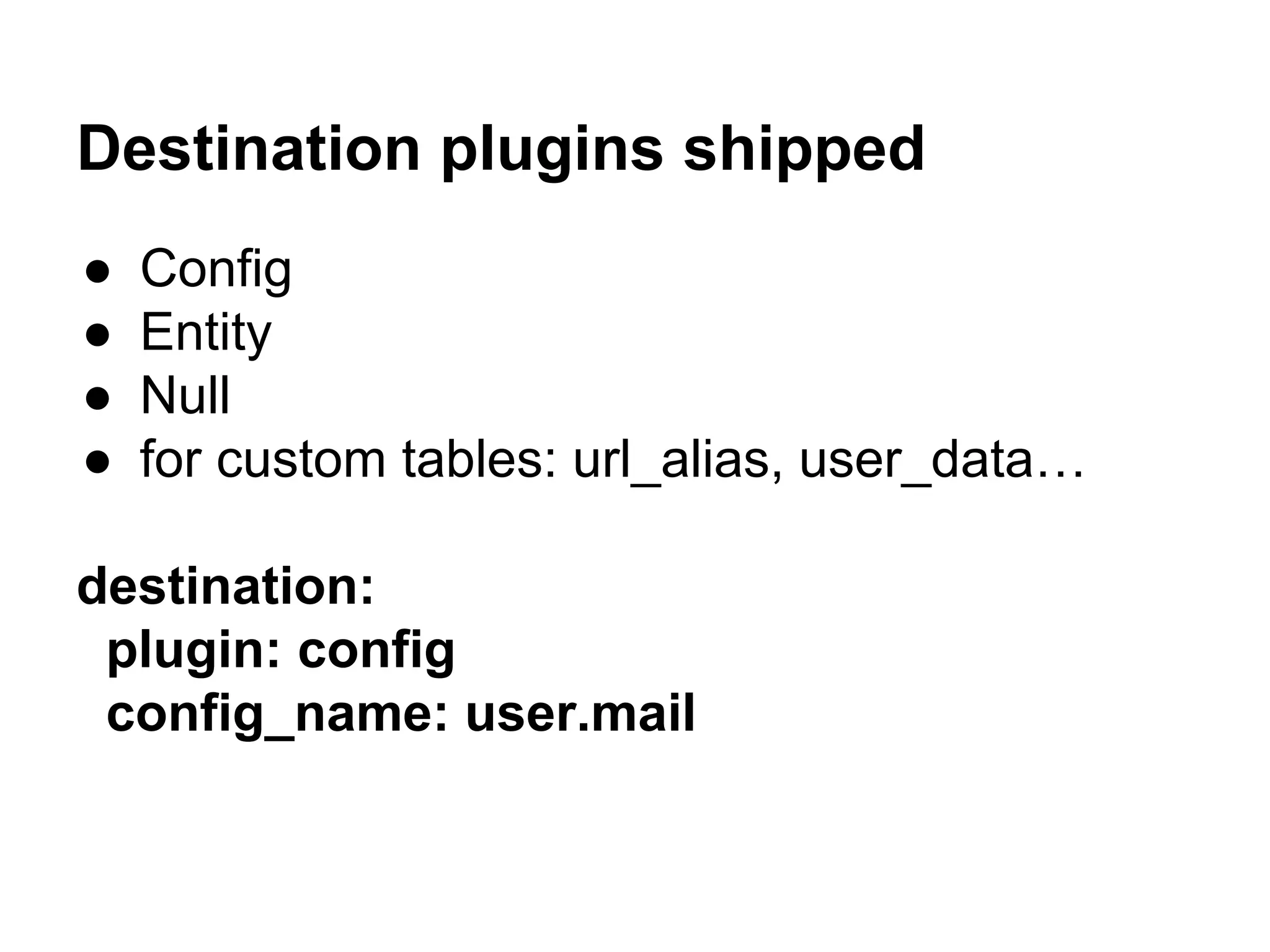

25. Destination plugins shipped
● Config
● Entity
● Null
● for custom tables: url_alias, user_data…
destination:
plugin: config
config_name: user.mail

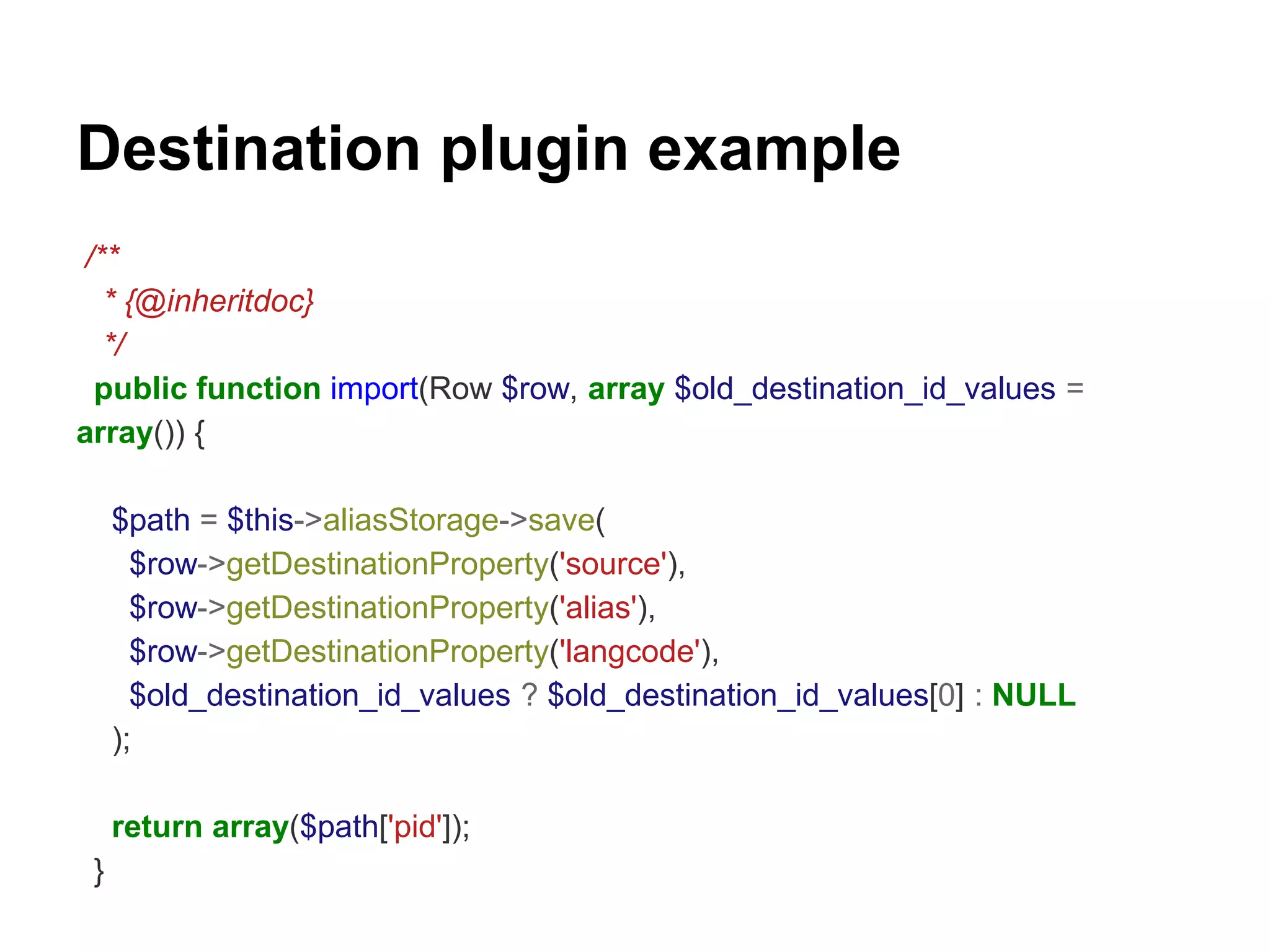

26. Destination plugin example
/**
* {@inheritdoc}
*/
public function import(Row $row, array $old_destination_id_values =
array()) {
$path = $this->aliasStorage->save(
$row->getDestinationProperty('source'),
$row->getDestinationProperty('alias'),
$row->getDestinationProperty('langcode'),
$old_destination_id_values ? $old_destination_id_values[0] : NULL
);
return array($path['pid']);
}

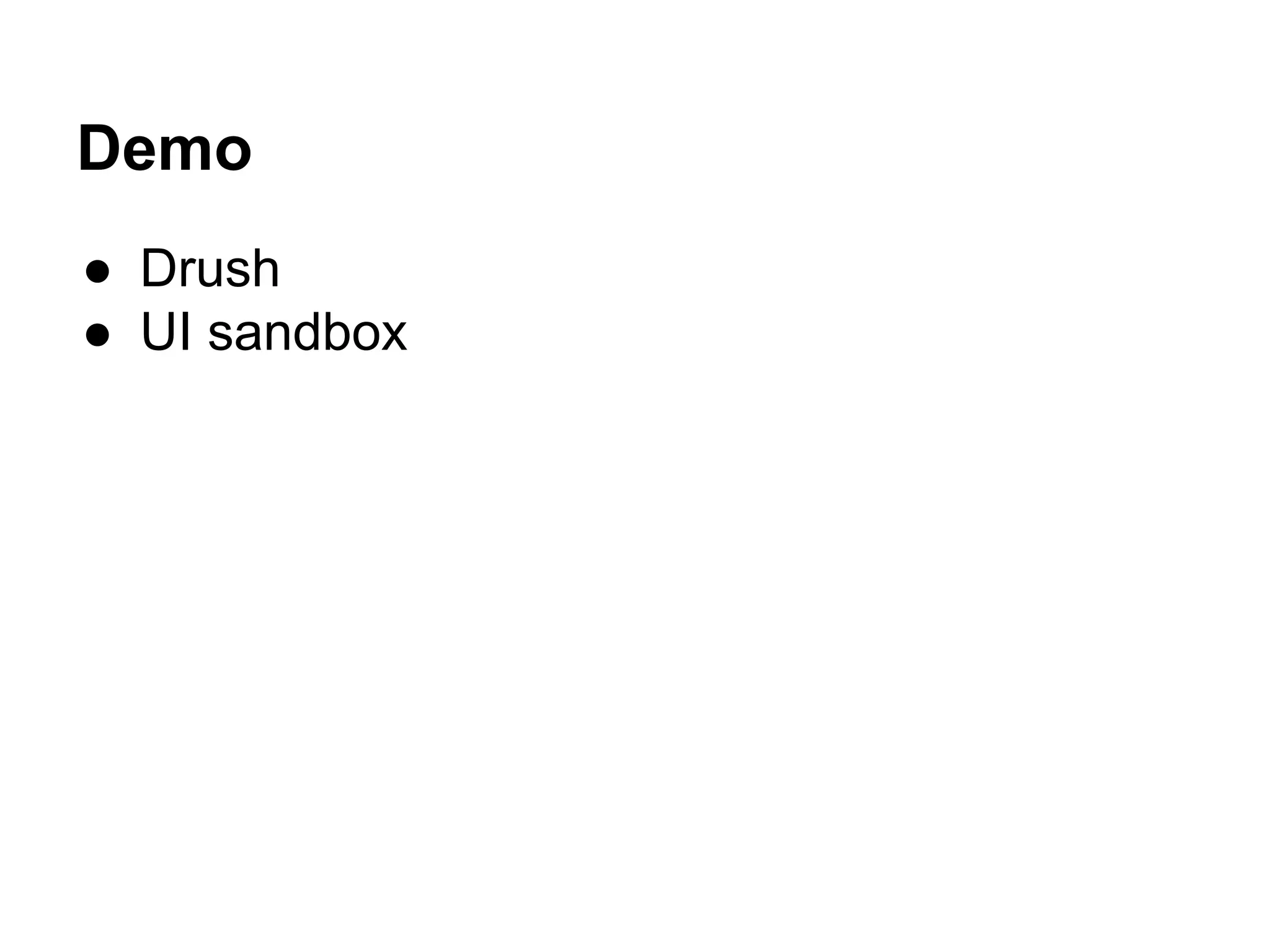

27. Demo
● Drush
● UI sandbox

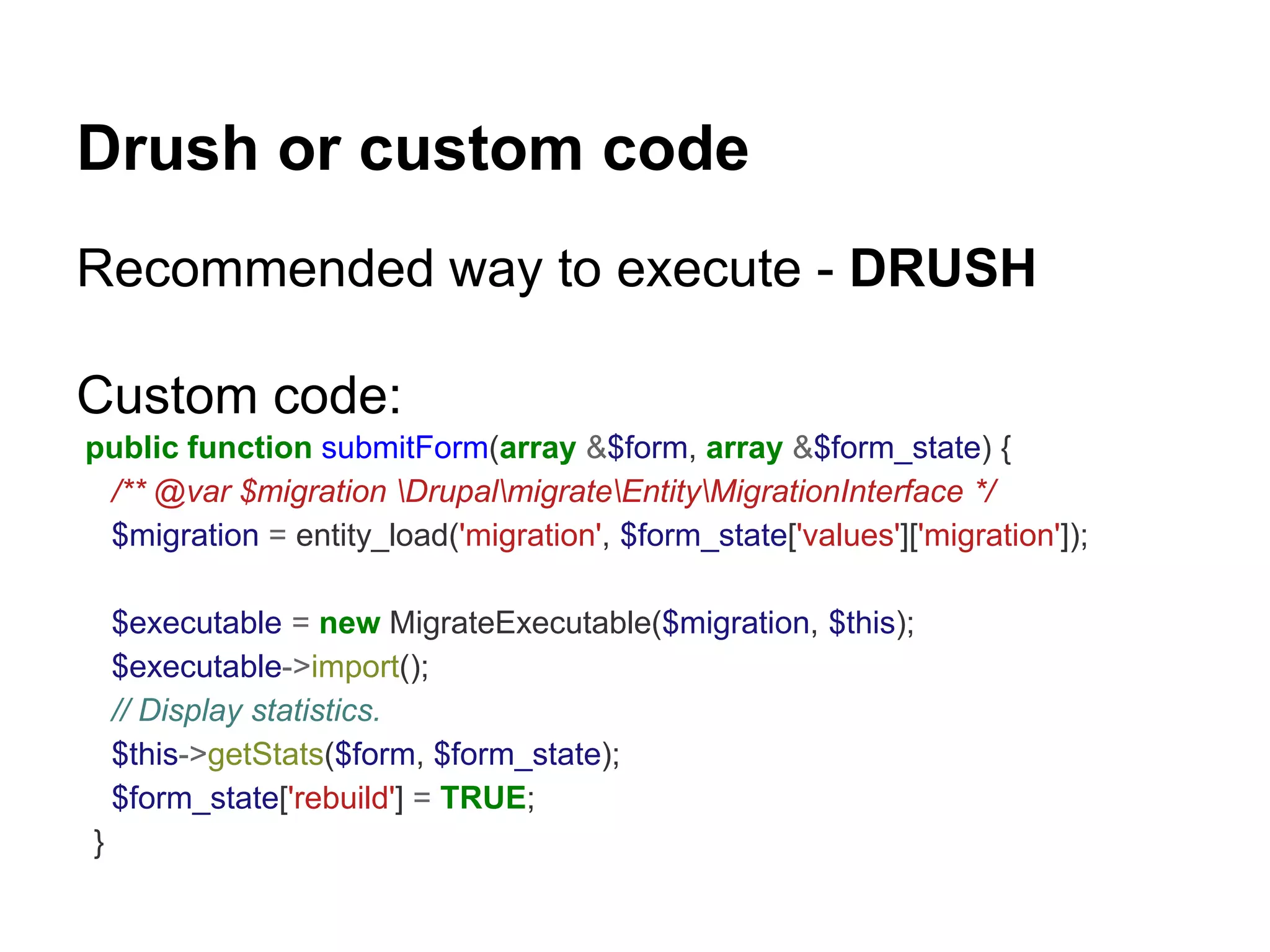

28. Drush or custom code
Recommended way to execute - DRUSH
Custom code:
public function submitForm(array &$form, array &$form_state) {
/** @var $migration DrupalmigrateEntityMigrationInterface */
$migration = entity_load('migration', $form_state['values']['migration']);
$executable = new MigrateExecutable($migration, $this);
$executable->import();
// Display statistics.
$this->getStats($form, $form_state);
$form_state['rebuild'] = TRUE;
}

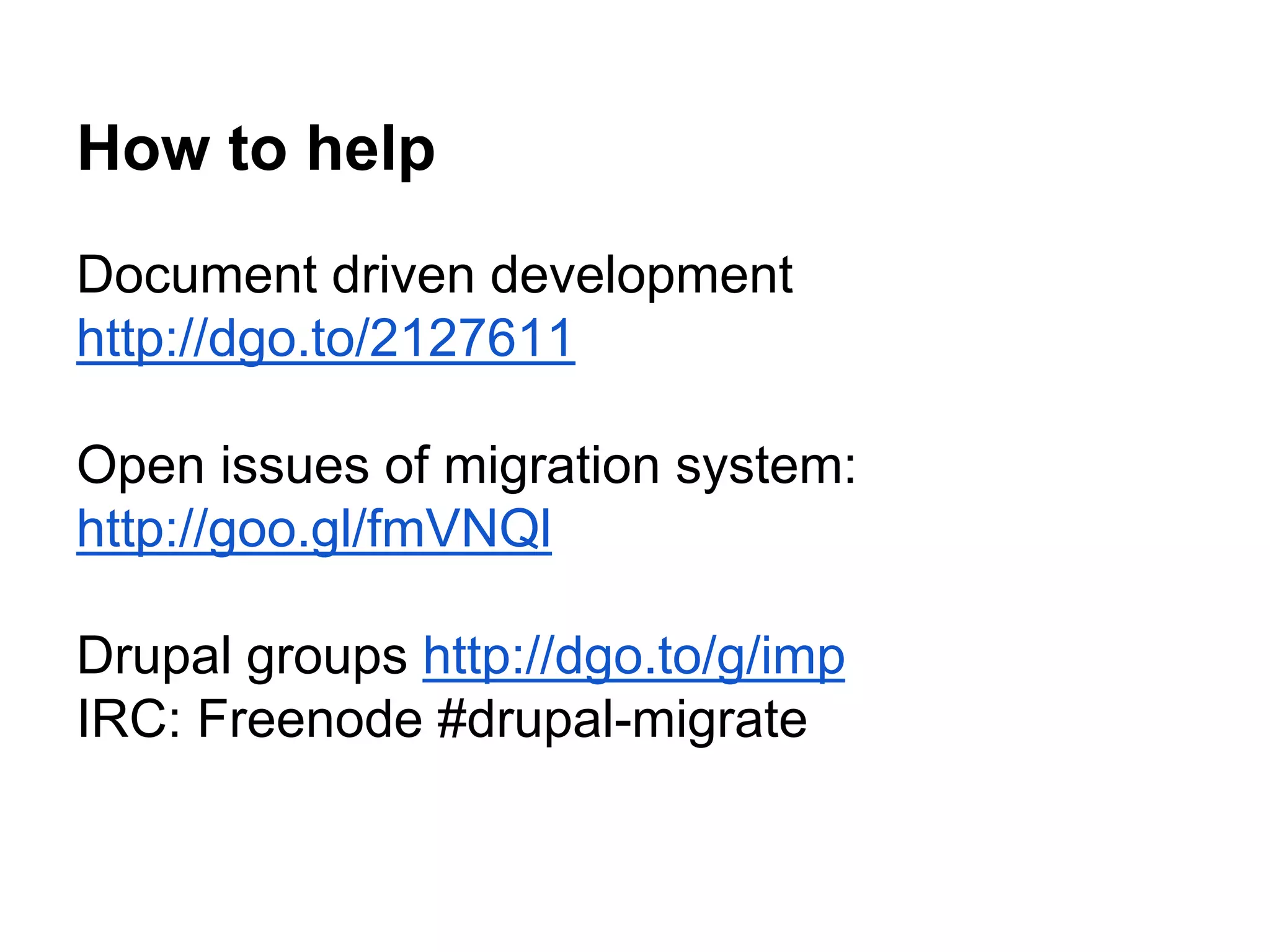

29. How to help
Document driven development
http://dgo.to/2127611
Open issues of migration system:
http://goo.gl/fmVNQl
Drupal groups http://dgo.to/g/imp
IRC: Freenode #drupal-migrate

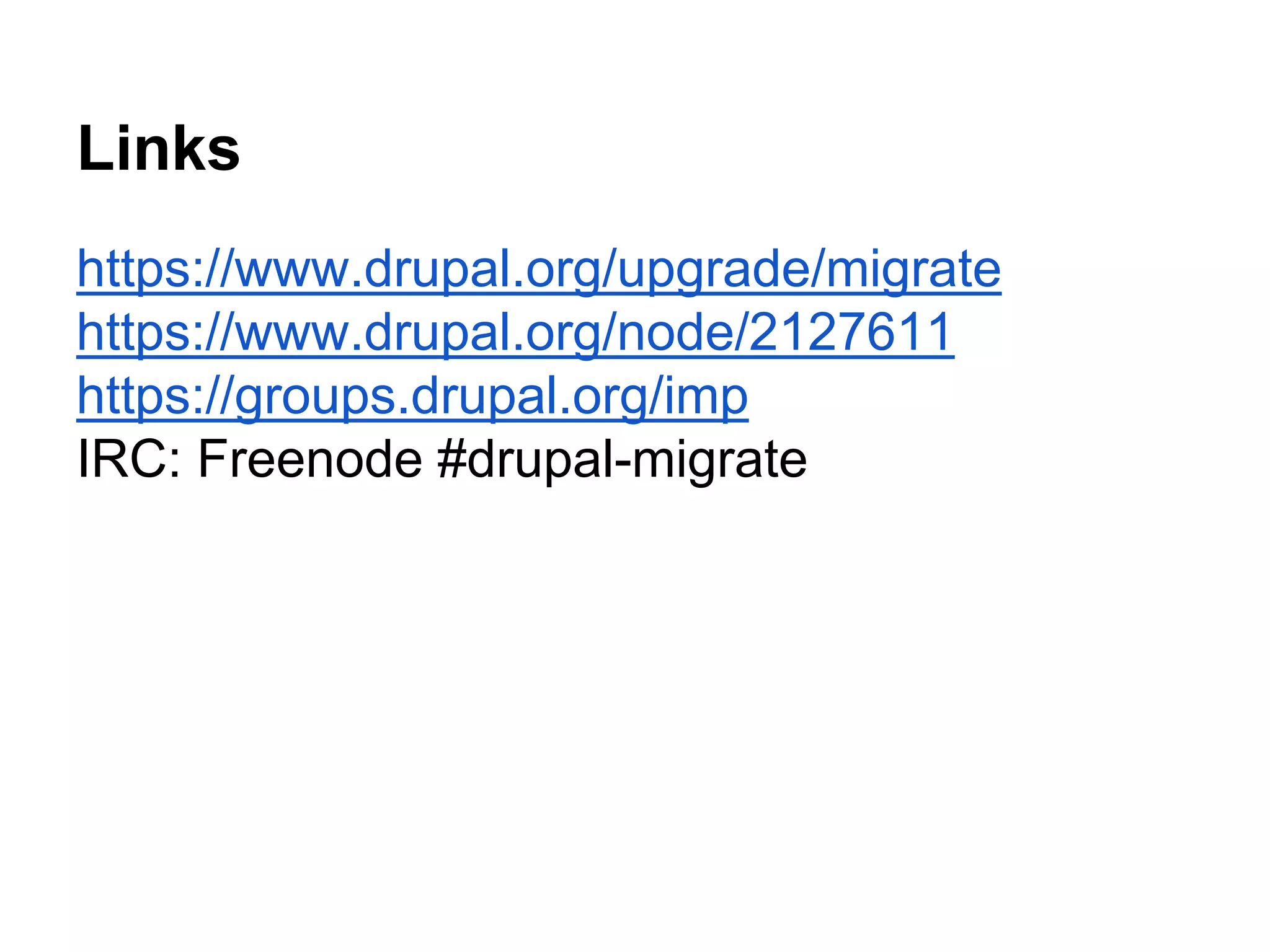

30. Links
https://www.drupal.org/upgrade/migrate
https://www.drupal.org/node/2127611
https://groups.drupal.org/imp
IRC: Freenode #drupal-migrate

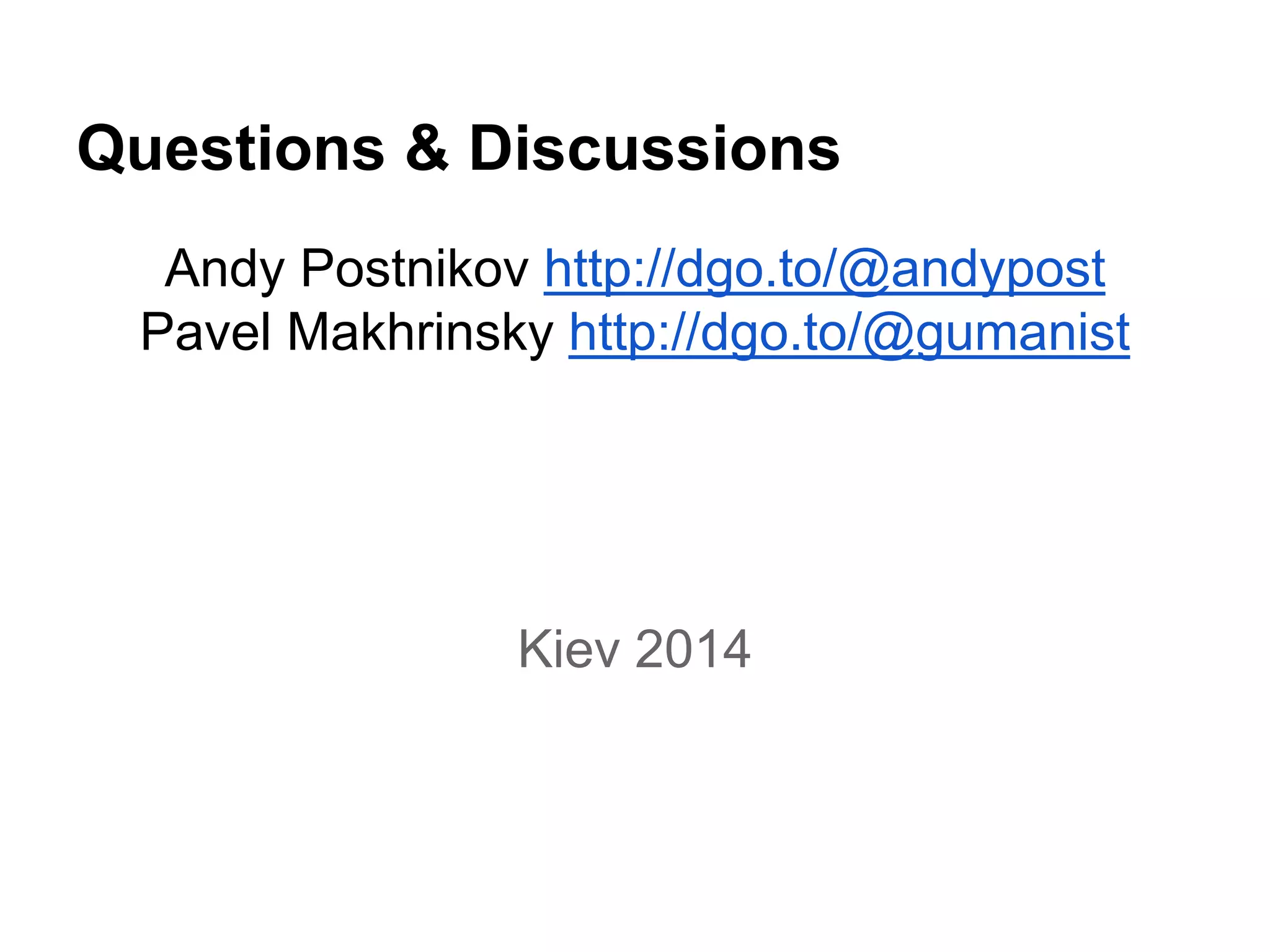

31. Questions & Discussions
Andy Postnikov http://dgo.to/@andypost
Pavel Makhrinsky http://dgo.to/@gumanist
Kiev 2014

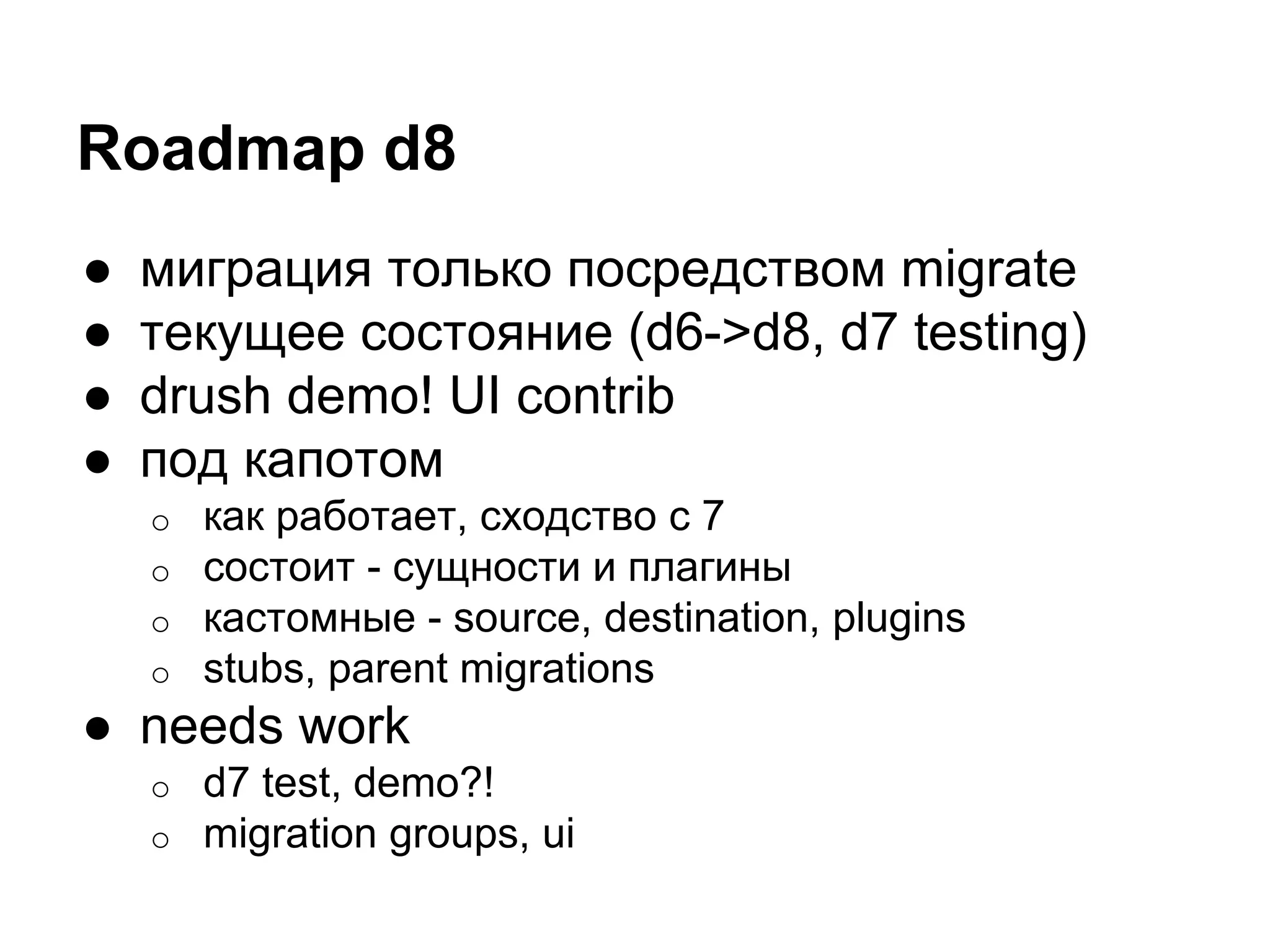

32. Roadmap d8
● миграция только посредством migrate
● текущее состояние (d6->d8, d7 testing)
● drush demo! UI contrib
● под капотом
o как работает, сходство с 7
o состоит - сущности и плагины
o кастомные - source, destination, plugins
o stubs, parent migrations
● needs work
o d7 test, demo?!
o migration groups, ui
