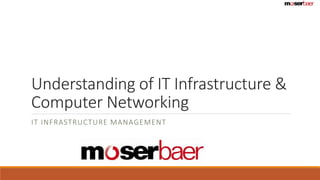

2. Understanding of IT Infrastructure &
Computer Networking
IT INFRASTRUCTURE MANAGEMENT

3. About MoserBaer India Ltd
Vision :
“Touching every life across the globe through high technology products and services.”
Mission:
o We will drive growth through our excellence in mass manufacturing.
o We will move up the value chain through rapid development of technology, products and services.
o We will leverage our relationships, distribution, cost leadership and “can do' attitude to become a global
market leader in every business.
Teamwork Integrity
Passion Speed
Values :

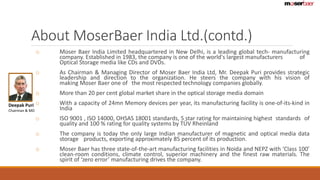

4. About MoserBaer India Ltd.(contd.)
o Moser Baer India Limited headquartered in New Delhi, is a leading global tech- manufacturing
company. Established in 1983, the company is one of the world's largest manufacturers of
Optical Storage media like CDs and DVDs.
o As Chairman & Managing Director of Moser Baer India Ltd, Mr. Deepak Puri provides strategic
leadership and direction to the organization. He steers the company with his vision of
making Moser Baer one of the most respected technology companies globally.
o More than 20 per cent global market share in the optical storage media domain
o With a capacity of 24mn Memory devices per year, its manufacturing facility is one-of-its-kind in
India
o ISO 9001 , ISO 14000, OHSAS 18001 standards, 5 star rating for maintaining highest standards of
quality and 100 % rating for quality systems by TÜV Rheinland
o The company is today the only large Indian manufacturer of magnetic and optical media data
storage products, exporting approximately 85 percent of its production.
o Moser Baer has three state-of-the-art manufacturing facilities in Noida and NEPZ with ‘Class 100’
clean-room conditions, climate control, superior machinery and the finest raw materials. The
spirit of ‘zero error’ manufacturing drives the company.
Deepak Puri
Chairman & MD

5. About MoserBaer India Ltd.(contd.)
Low cost
High
margins
High
Profit
Capacity
Growth
Reinves-tment

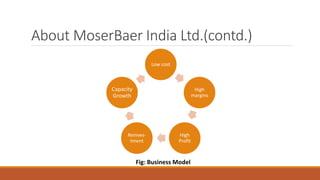

Fig: Business Model

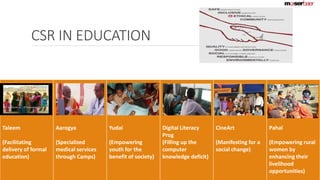

6. CSR IN EDUCATION
Taleem
(Facilitating
delivery of formal
education)
Aarogya
(Specialized
medical services
through Camps)
Yudai
(Empowering
youth for the
benefit of society)
Digital Literacy
Prog
(Filling up the
computer
knowledge deficit)
CineArt
(Manifesting for a
social change)
Pahal
(Empowering rural
women by
enhancing their
livelihood
opportunities)

7. Internship Cycle
Induction
Period
Objective
Identifying
area of work
Planning the
project
Discussion
with
concerned
executive at
the place
Finishing up our
project with
recommendation
Analysing

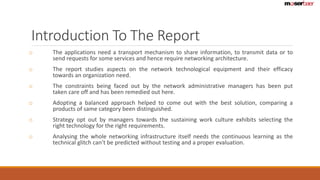

8. Introduction To The Report
o The applications need a transport mechanism to share information, to transmit data or to
send requests for some services and hence require networking architecture.
o The report studies aspects on the network technological equipment and their efficacy
towards an organization need.
o The constraints being faced out by the network administrative managers has been put
taken care off and has been remedied out here.
o Adopting a balanced approach helped to come out with the best solution, comparing a
products of same category been distinguished.
o Strategy opt out by managers towards the sustaining work culture exhibits selecting the
right technology for the right requirements.
o Analysing the whole networking infrastructure itself needs the continuous learning as the
technical glitch can’t be predicted without testing and a proper evaluation.

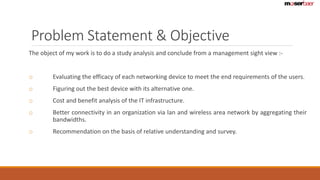

9. Problem Statement & Objective
The object of my work is to do a study analysis and conclude from a management sight view :-
o Evaluating the efficacy of each networking device to meet the end requirements of the users.
o Figuring out the best device with its alternative one.
o Cost and benefit analysis of the IT infrastructure.
o Better connectivity in an organization via lan and wireless area network by aggregating their
bandwidths.
o Recommendation on the basis of relative understanding and survey.

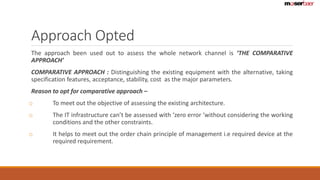

10. Approach Opted
The approach been used out to assess the whole network channel is ‘THE COMPARATIVE
APPROACH’
COMPARATIVE APPROACH : Distinguishing the existing equipment with the alternative, taking
specification features, acceptance, stability, cost as the major parameters.
Reason to opt for comparative approach –
o To meet out the objective of assessing the existing architecture.
o The IT infrastructure can’t be assessed with ‘zero error ‘without considering the working
conditions and the other constraints.
o It helps to meet out the order chain principle of management i.e required device at the
required requirement.

11. Analysis
The analysis has been opted out by looking out the components of IT infrastructure that includes
bonded and unbonded media such as cables, switches, types of servers, capable routers,
transmitting channel etc.
MBIL DATA CENTER
SERVER
FARM
CORE
SWITCHES
FIREWALL
Plant 1 Plant 2 Plant 3
Connected
Fig: MBIL LAN CONNECTION OUTLINED.

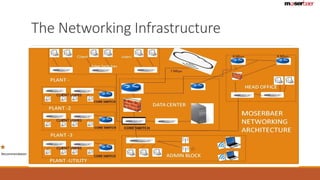

12. The Networking Infrastructure
Recommendation

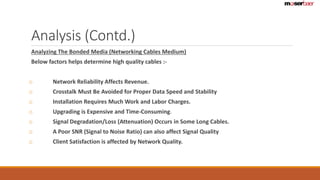

13. Analysis (Contd.)
Analyzing The Bonded Media (Networking Cables Medium)
Below factors helps determine high quality cables :-
o Network Reliability Affects Revenue.
o Crosstalk Must Be Avoided for Proper Data Speed and Stability
o Installation Requires Much Work and Labor Charges.
o Upgrading is Expensive and Time-Consuming.
o Signal Degradation/Loss (Attenuation) Occurs in Some Long Cables.
o A Poor SNR (Signal to Noise Ratio) can also affect Signal Quality
o Client Satisfaction is affected by Network Quality.

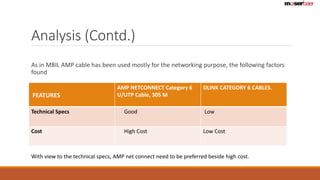

14. Analysis (Contd.)
As in MBIL AMP cable has been used mostly for the networking purpose, the following factors
found
FEATURES
AMP NETCONNECT Category 6
U/UTP Cable, 305 M
DLINK CATEGORY 6 CABLES.
Technical Specs Good Low
Cost High Cost Low Cost
With view to the technical specs, AMP net connect need to be preferred beside high cost.

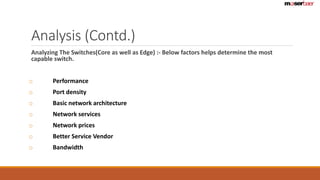

15. Analysis (Contd.)
Analyzing The Switches(Core as well as Edge) :- Below factors helps determine the most
capable switch.
o Performance
o Port density
o Basic network architecture
o Network services
o Network prices
o Better Service Vendor
o Bandwidth

16. Analysis (Contd.)

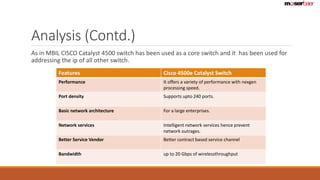

As in MBIL CISCO Catalyst 4500 switch has been used as a core switch and it has been used for
addressing the ip of all other switch.
Features Cisco 4500e Catalyst Switch
Performance It offers a variety of performance with nexgen
processing speed.
Port density Supports upto 240 ports.
Basic network architecture For a large enterprises.
Network services Intelligent network services hence prevent
network outrages.
Better Service Vendor Better contract based service channel
Bandwidth up to 20 Gbps of wirelessthroughput

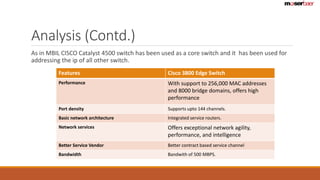

17. Analysis (Contd.)
As in MBIL CISCO Catalyst 4500 switch has been used as a core switch and it has been used for
addressing the ip of all other switch.
Features Cisco 3800 Edge Switch
Performance With support to 256,000 MAC addresses
and 8000 bridge domains, offers high
performance
Port density Supports upto 144 channels.
Basic network architecture Integrated service routers.
Network services Offers exceptional network agility,
performance, and intelligence
Better Service Vendor Better contract based service channel
Bandwidth Bandwith of 500 MBPS.

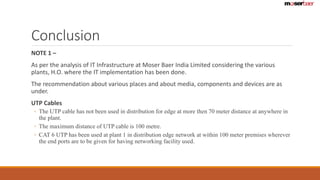

18. Conclusion
NOTE 1 –
As per the analysis of IT Infrastructure at Moser Baer India Limited considering the various
plants, H.O. where the IT implementation has been done.
The recommendation about various places and about media, components and devices are as
under.
UTP Cables
◦ The UTP cable has not been used in distribution for edge at more then 70 meter distance at anywhere in
the plant.
◦ The maximum distance of UTP cable is 100 metre.
◦ CAT 6 UTP has been used at plant 1 in distribution edge network at within 100 meter premises wherever
the end ports are to be given for having networking facility used.

19. Conclusion(Contd.)

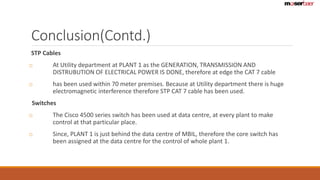

STP Cables
o At Utility department at PLANT 1 as the GENERATION, TRANSMISSION AND
DISTRUBUTION OF ELECTRICAL POWER IS DONE, therefore at edge the CAT 7 cable
o has been used within 70 meter premises. Because at Utility department there is huge
electromagnetic interference therefore STP CAT 7 cable has been used.
Switches
o The Cisco 4500 series switch has been used at data centre, at every plant to make
control at that particular place.
o Since, PLANT 1 is just behind the data centre of MBIL, therefore the core switch has
been assigned at the data centre for the control of whole plant 1.

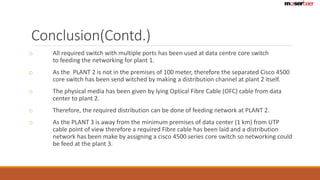

20. Conclusion(Contd.)
o All required switch with multiple ports has been used at data centre core switch
to feeding the networking for plant 1.
o As the PLANT 2 is not in the premises of 100 meter, therefore the separated Cisco 4500
core switch has been send witched by making a distribution channel at plant 2 itself.
o The physical media has been given by lying Optical Fibre Cable (OFC) cable from data
center to plant 2.
o Therefore, the required distribution can be done of feeding network at PLANT 2.
o As the PLANT 3 is away from the minimum premises of data center (1 km) from UTP
cable point of view therefore a required Fibre cable has been laid and a distribution
network has been make by assigning a cisco 4500 series core switch so networking could
be feed at the plant 3.

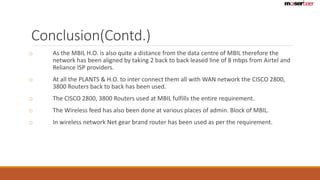

21. Conclusion(Contd.)
o As the MBIL H.O. is also quite a distance from the data centre of MBIL therefore the
network has been aligned by taking 2 back to back leased line of 8 mbps from Airtel and
Reliance ISP providers.
o At all the PLANTS & H.O. to inter connect them all with WAN network the CISCO 2800,
3800 Routers back to back has been used.
o The CISCO 2800, 3800 Routers used at MBIL fulfills the entire requirement.
o The Wireless feed has also been done at various places of admin. Block of MBIL.
o In wireless network Net gear brand router has been used as per the requirement.

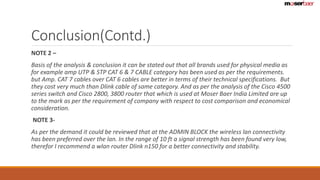

22. Conclusion(Contd.)
NOTE 2 –
Basis of the analysis & conclusion it can be stated out that all brands used for physical media as
for example amp UTP & STP CAT 6 & 7 CABLE category has been used as per the requirements.
but Amp. CAT 7 cables over CAT 6 cables are better in terms of their technical specifications. But
they cost very much than Dlink cable of same category. And as per the analysis of the Cisco 4500
series switch and Cisco 2800, 3800 router that which is used at Moser Baer India Limited are up
to the mark as per the requirement of company with respect to cost comparison and economical
consideration.
NOTE 3-
As per the demand it could be reviewed that at the ADMIN BLOCK the wireless lan connectivity
has been preferred over the lan. In the range of 10 ft a signal strength has been found very low,
therefor I recommend a wlan router Dlink n150 for a better connectivity and stability.
