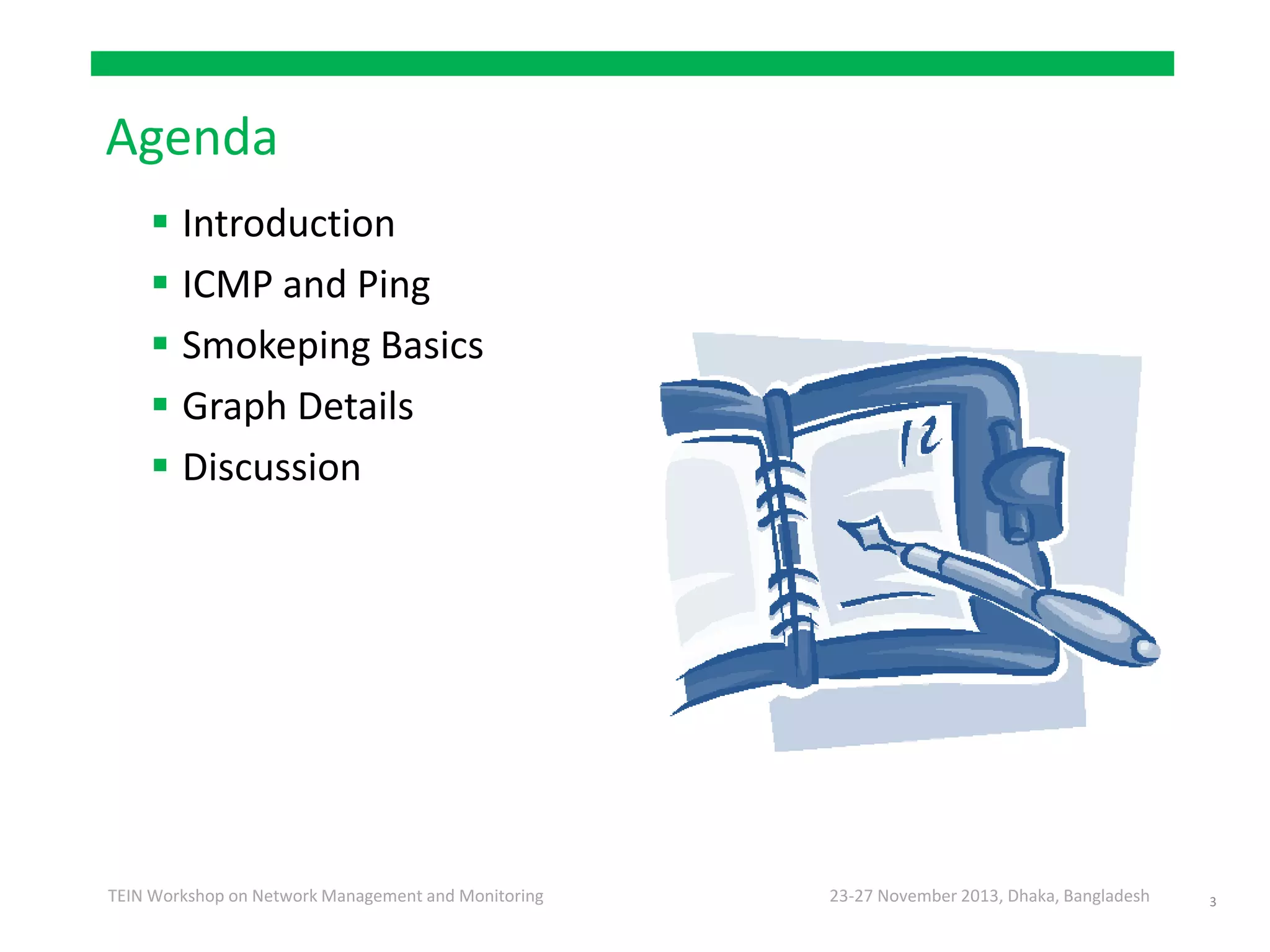

Agenda
 Introduction
 ICMP and Ping
 Smokeping Basics
 Graph Details
 Discussion
3

4. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
Terminology
 Ping
 Internet Control Message Protocol (ICMP)
 Round-Trip Time (RTT)
 Packet Loss
 Jitter
 Median
 Standard Deviation (SD)
4

5. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring

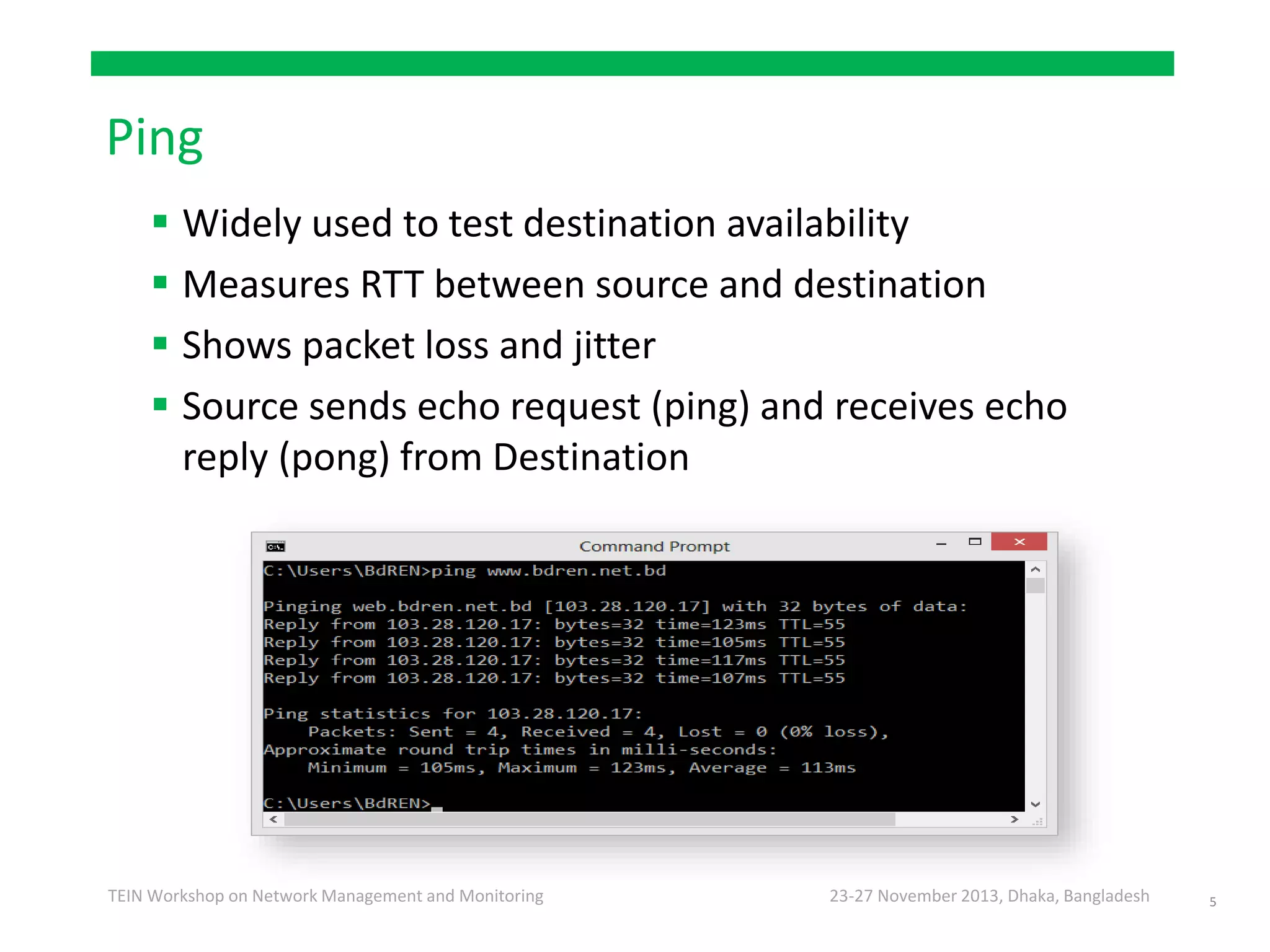

Ping
 Widely used to test destination availability
 Measures RTT between source and destination
 Shows packet loss and jitter
 Source sends echo request (ping) and receives echo
reply (pong) from Destination
5

6. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
ICMP Packet
6
* Diagram from www.wikipedia.org

7. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
Ping Packet
 Echo Request
 Echo Reply
7
* Diagram from www.wikipedia.org
* Diagram from www.wikipedia.org

8. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
How Ping Works
8
* Diagram from www.wikipedia.org
Ping No. Source Destination RTT
1 a.b.c.d 103.28.120.17 123 ms
a.b.c.d
www.bdren.net.bd
103.28.120.17
Source/Destination
Echo Request
Echo Reply
2 a.b.c.d 103.28.120.17 105 ms
3 a.b.c.d 103.28.120.17 117 ms
4 a.b.c.d 103.28.120.17 107 ms
Ping www.bdren.net.bd

9. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring

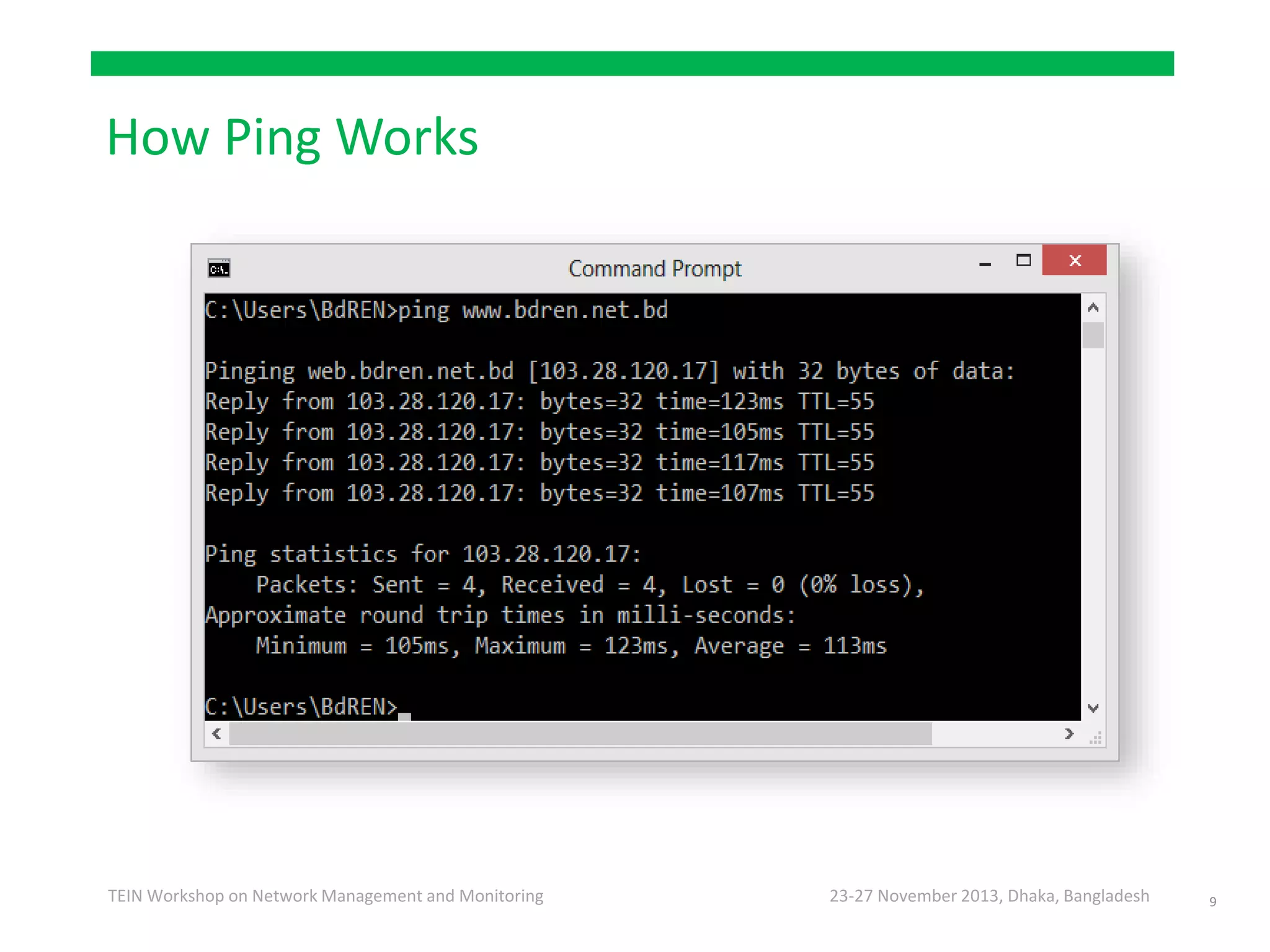

How Ping Works
9

10. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
Monitoring With Ping
10

11. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
Introduction to Smokeping
 Best of breed latency visualization
 Interactive graph explorer
 Wide range of latency measurement plugins
 Master/Slave System for distributed measurement
 Highly configurable alerting system
 Live Latency Charts with the most 'interesting' graphs
 Free and OpenSource Software written in Perl written
by Tobi Oetiker, the creator of MRTG and RRDtool
11

12. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
Smokeping Features
 Latency measurement tool
 Visual representation of ICMP delay
 Lots of information in a picture
 Easy to install and configure
 Written in Perl
 Based on RRDTool
 Generate alarms
 Integration with ticketing system
12

13. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring

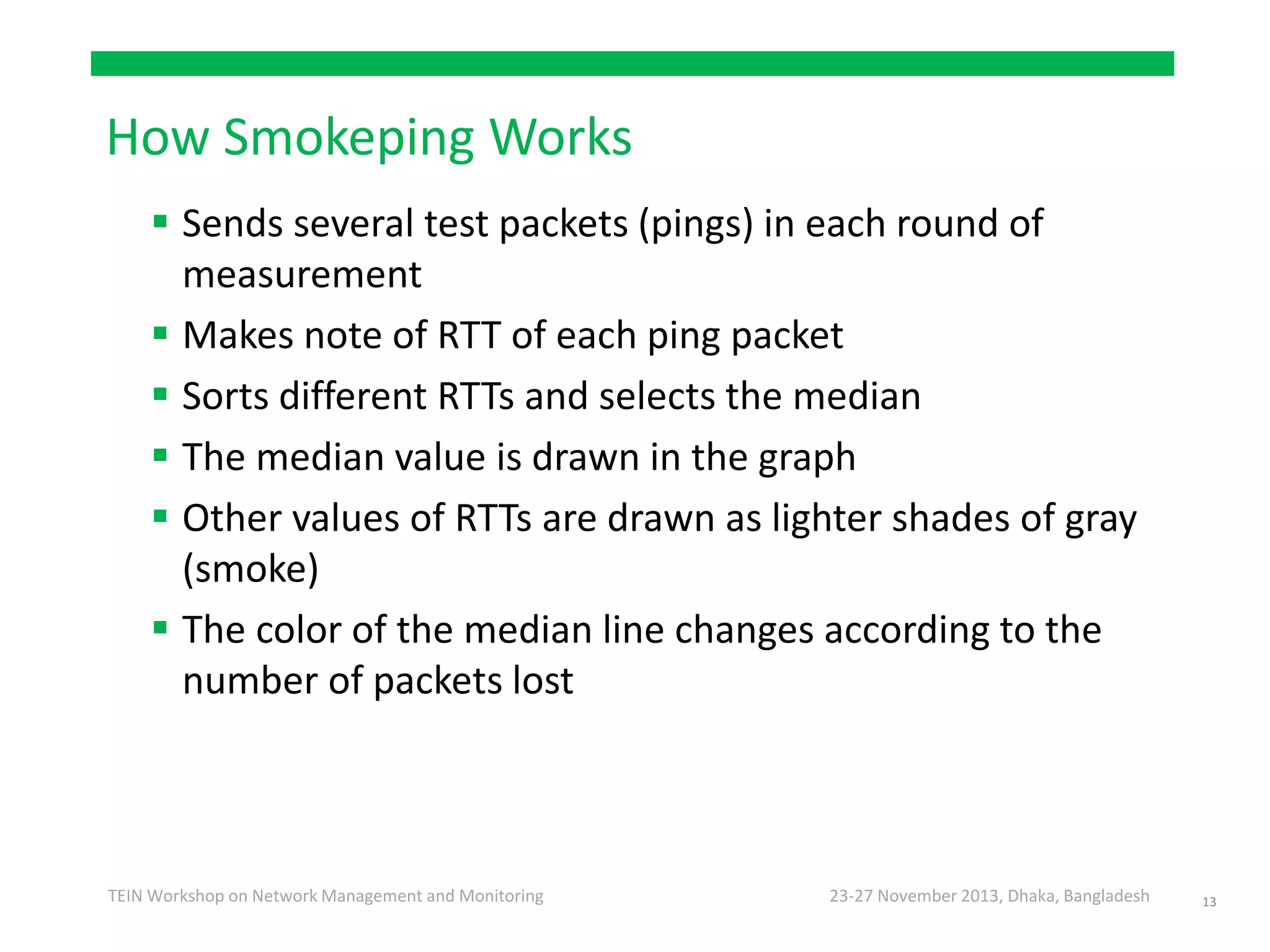

How Smokeping Works
 Sends several test packets (pings) in each round of
measurement
 Makes note of RTT of each ping packet
 Sorts different RTTs and selects the median
 The median value is drawn in the graph
 Other values of RTTs are drawn as lighter shades of gray
(smoke)
 The color of the median line changes according to the
number of packets lost
13

14. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring

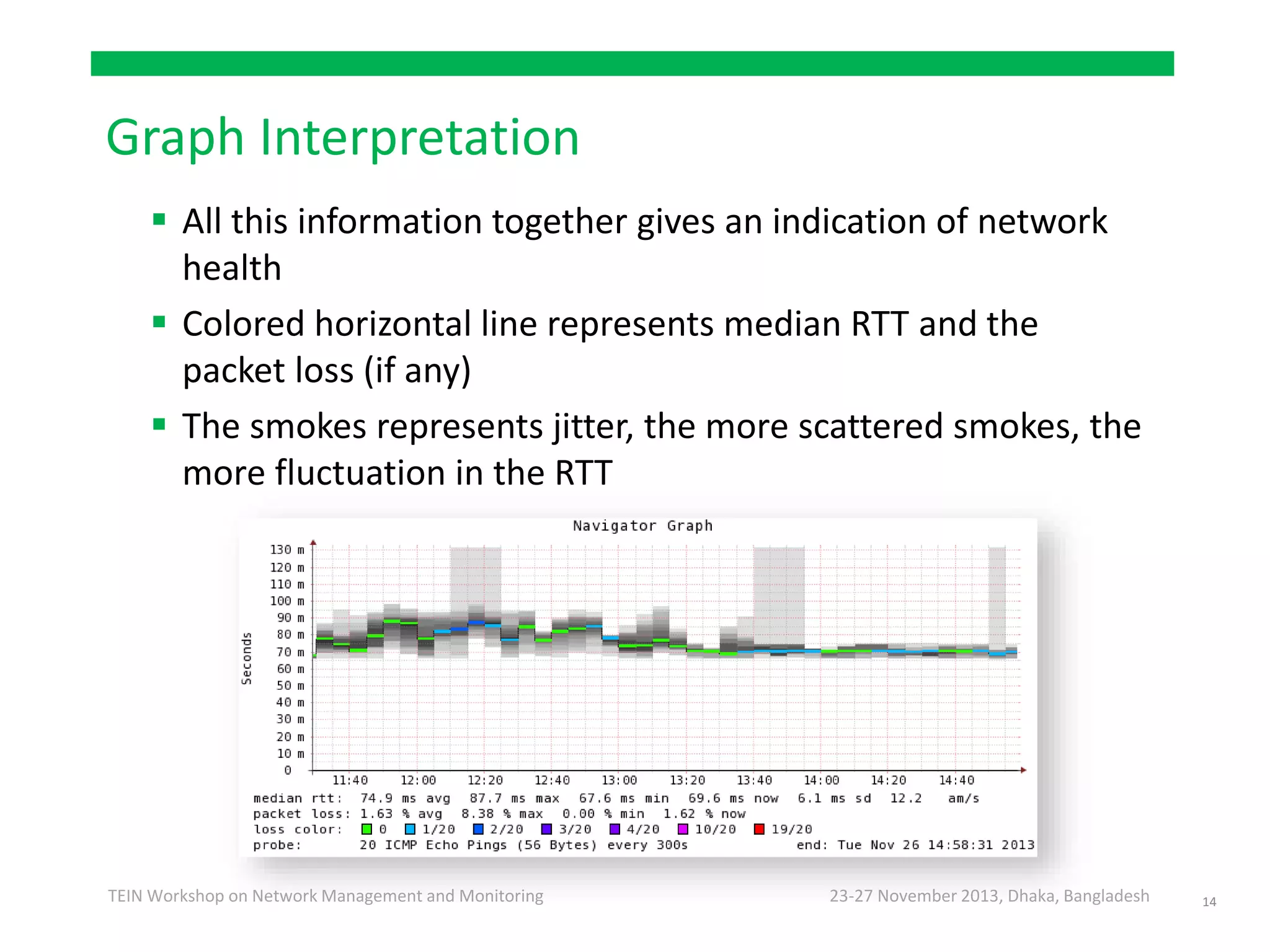

Graph Interpretation
 All this information together gives an indication of network
health
 Colored horizontal line represents median RTT and the
packet loss (if any)
 The smokes represents jitter, the more scattered smokes, the
more fluctuation in the RTT
14

15. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
An Example
15

16. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring

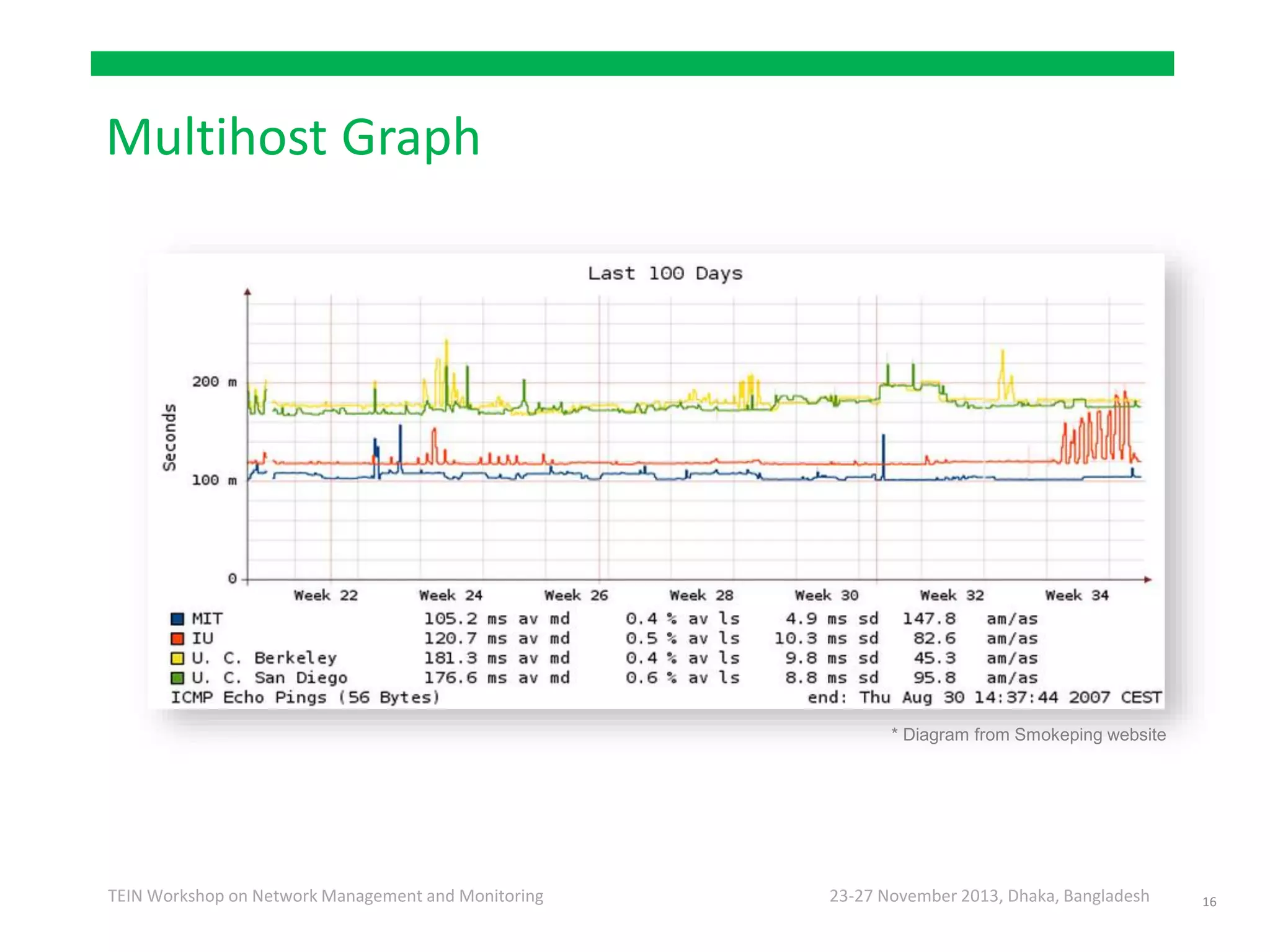

Multihost Graph
16
* Diagram from Smokeping website

17. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
Advantages
 Simple but powerful network monitoring
 Monitor machines, services and link health
 Easy to configure and customize, but very extensible
 Shows historical graphs
 Can use with Ticketing Systems to automate alerts
 Very small disk and CPU footprint
 Distributed instances for external views
17

18. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring

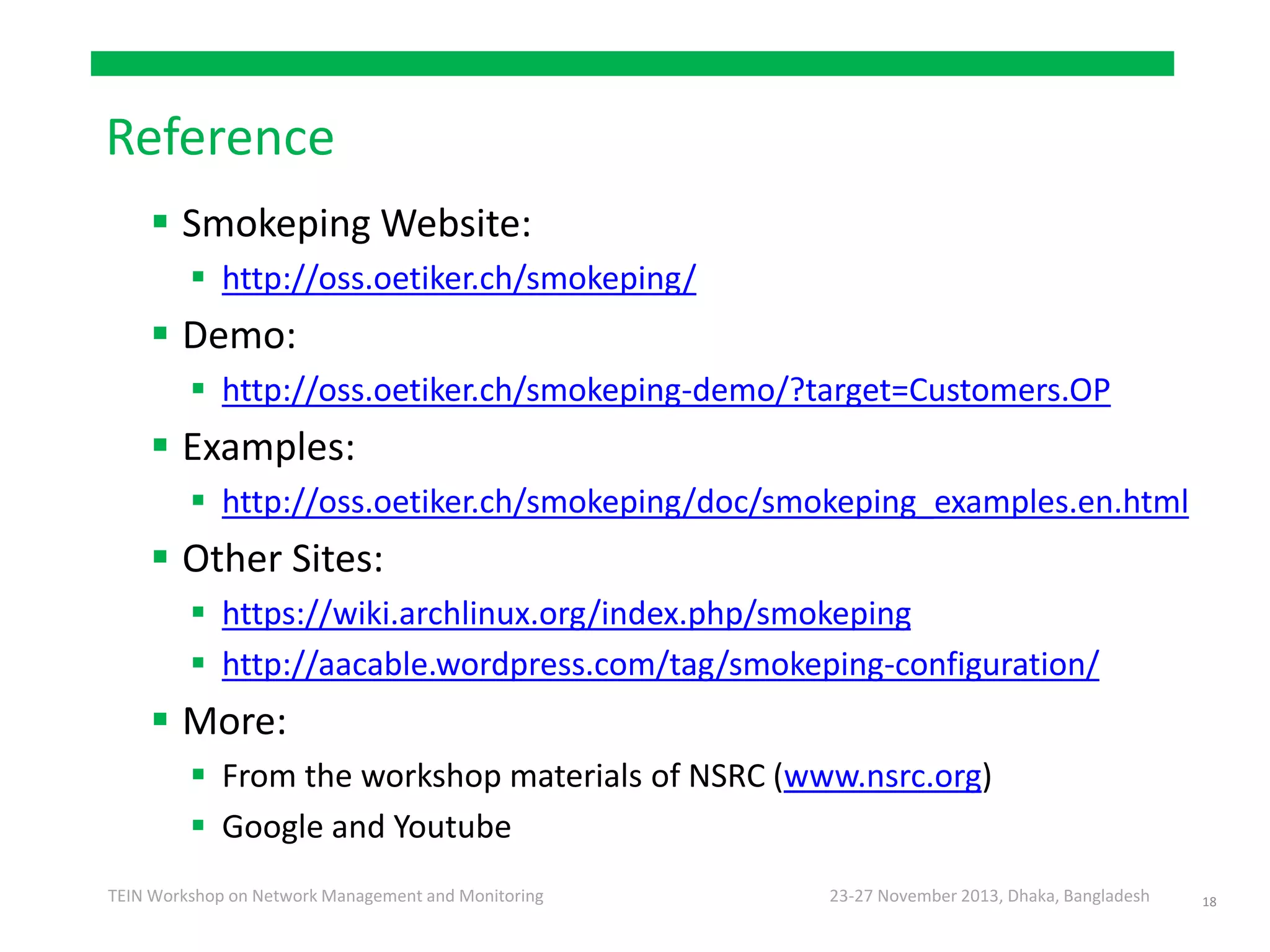

Reference
 Smokeping Website:
 http://oss.oetiker.ch/smokeping/
 Demo:
 http://oss.oetiker.ch/smokeping-demo/?target=Customers.OP
 Examples:
 http://oss.oetiker.ch/smokeping/doc/smokeping_examples.en.html
 Other Sites:
 https://wiki.archlinux.org/index.php/smokeping
 http://aacable.wordpress.com/tag/smokeping-configuration/
 More:
 From the workshop materials of NSRC (www.nsrc.org)
 Google and Youtube
18

19. 23-27 November 2013, Dhaka, BangladeshTEIN Workshop on Network Management and Monitoring
Discussion
19
