Lauren Schaefer, a developer advocate at MongoDB, discusses the transition from SQL to NoSQL, specifically MongoDB, emphasizing the need to change one's mindset and understand the advantages of MongoDB. The document highlights key concepts, such as mapping SQL terms to MongoDB, the benefits of document storage, and practical examples demonstrating data modeling and database interactions. It also contrasts the approach to data management in relational databases versus MongoDB, showing how the latter streamlines operations and enhances scalability.

1. Lauren Schaefer, Developer Advocate, MongoDB
From SQL to NoSQL—Changing Your Mindset
Lauren_Schaefer

2. Parks and Recreation, Season 6, Episode 14

6. Parks and Recreation, Season 6, Episode 14

7. @Lauren_Schaefer
Developer Advocate, MongoDB

9. From SQL to NoSQL
Changing Your Mindset

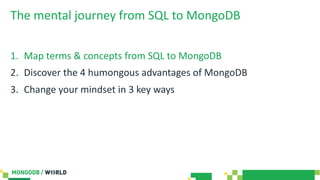

10. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways

11. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways

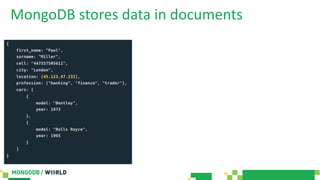

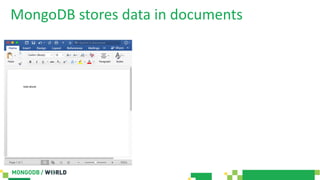

12. MongoDB stores data in documents

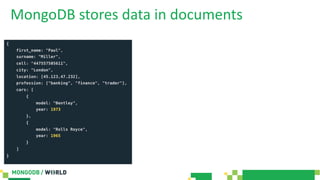

13. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

14. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

15. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

16. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

17. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

18. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

19. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

20. MongoDB stores data in documents
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

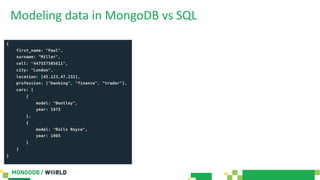

21. Modeling data in MongoDB vs SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}

22. Modeling data in MongoDB vs SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users

23. Modeling data in MongoDB vs SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions

24. Modeling data in MongoDB vs SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions
ID user_id model year
20 1 Bentley 1973
21 1 Rolls Royce 1965
Cars

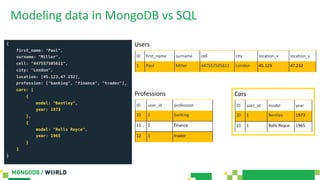

25. Modeling data in MongoDB vs SQL
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions
ID user_id model year
20 1 Bentley 1973
21 1 Rolls Royce 1965
Cars

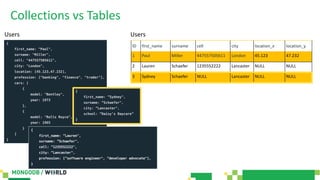

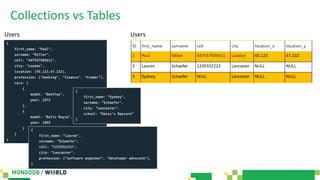

26. Collections vs Tables
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
2 Lauren Schaefer 1235552222 Lancaster NULL NULL
3 Sydney Schaefer NULL Lancaster NULL NULL
UsersUsers

27. Collections vs Tables
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}
UsersUsers
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
2 Lauren Schaefer 1235552222 Lancaster NULL NULL
3 Sydney Schaefer NULL Lancaster NULL NULL

28. Collections vs Tables
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}
UsersUsers
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
2 Lauren Schaefer 1235552222 Lancaster NULL NULL
3 Sydney Schaefer NULL Lancaster NULL NULL

29. Schemaless
database

30. Don’t panic!
Use schema validation.
Schemaless
database

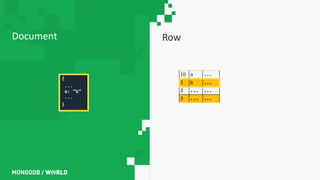

31. RowDocument
{
...
a: “b”
...
}
ID a ...
1 b ...
2 ... ...
3 ... ...

32. Row(s)Document
{
...
a: “b”
...
}
ID a ...
1 b ...
2 ... ...
3 ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

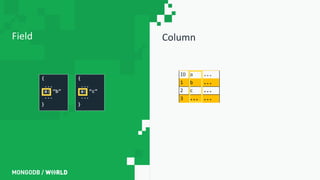

33. ColumnField
ID a ...
1 b ...
2 c ...
3 ... ...
{
...
a: “b”
...
}
{
...
a: “c”
...
}

34. TableCollection
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}

35. DatabaseDatabase
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

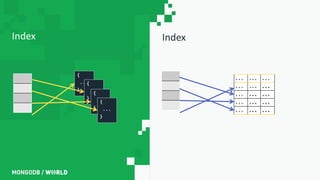

36. IndexIndex
{
...
}
{
...
}
{
...
}
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

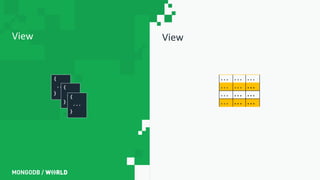

37. ViewView
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}

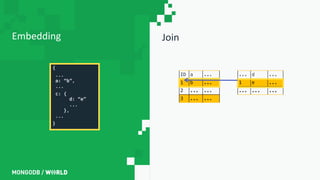

38. JoinEmbedding
{
...
a: “b”,
...
c: {
d: “e”
...
},
...
}
ID a ...
1 b ...
2 ... ...
3 ... ...
... d ...
1 e ...
... ... ...

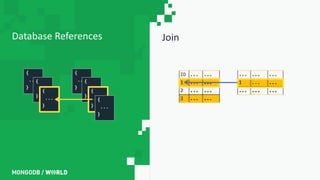

39. JoinDatabase References
ID ... ...
1 ... ...
2 ... ...
3 ... ...
... ... ...
1 ... ...
... ... ...
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}

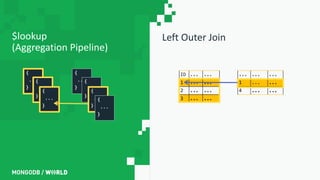

40. Left Outer Join$lookup
(Aggregation Pipeline)
ID ... ...
1 ... ...
2 ... ...
3 ... ...
... ... ...
1 ... ...
4 ... ...
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}

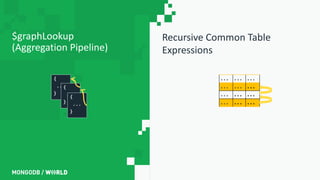

41. Recursive Common Table
Expressions
$graphLookup
(Aggregation Pipeline)
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
{
...
}
{
...
}

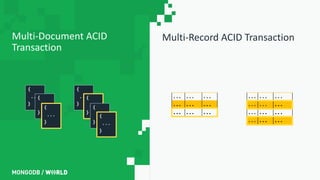

42. Multi-Record ACID TransactionMulti-Document ACID
Transaction
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...

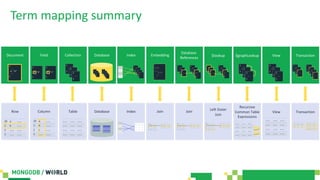

43. Term mapping summary
Row Column Table Database Index Join Join Left Outer
Join
Recursive
Common Table
Expressions
View Transaction
Document Field Collection Database Index Embedding
Database
References
$lookup $graphLookup View Transaction

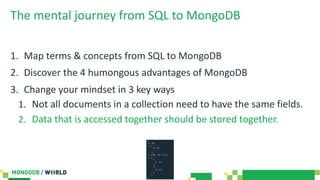

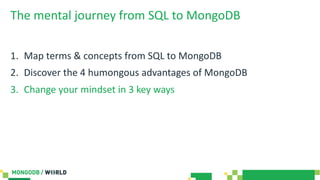

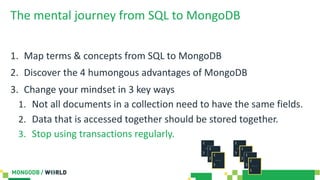

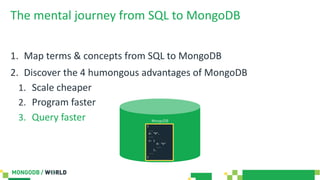

44. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways

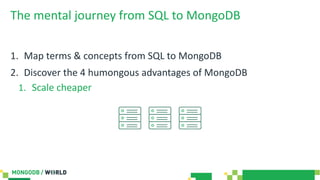

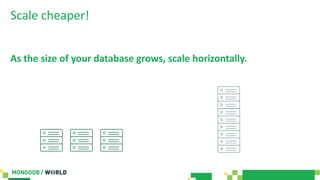

47. Scale cheaper!
As the size of your database grows, scale horizontally.

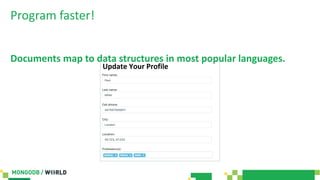

48. Program faster!
Documents map to data structures in most popular languages.
Update Your Profile

49. Program faster!
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
}
ID first_name surname cell city location_x location_y
1 Paul Miller 447557505611 London 45.123 47.232
Users
ID user_id profession
10 1 banking
11 1 finance
12 1 trader
Professions

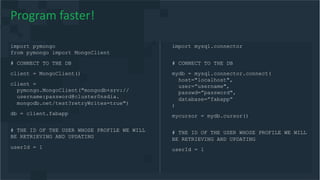

50. import pymongo
from pymongo import MongoClient
# CONNECT TO THE DB
client = MongoClient()
client =
pymongo.MongoClient("mongodb+srv://
username:password@cluster0nsdia.
mongodb.net/test?retryWrites=true")
db = client.fabapp
# THE ID OF THE USER WHOSE PROFILE WE WILL
BE RETRIEVING AND UPDATING
userId = 1
Program faster!
import mysql.connector
# CONNECT TO THE DB
mydb = mysql.connector.connect(
host="localhost",
user=”username",
passwd=”password",
database=”fabapp”
)
mycursor = mydb.cursor()
# THE ID OF THE USER WHOSE PROFILE WE WILL
BE RETRIEVING AND UPDATING
userId = 1

51. # GET THE USER'S PROFILE INFORMATION
### Pull the info from the Users table & put
it in the user dictionary
sql = "Select * FROM Users WHERE Users.ID=%s”
values = (userId,)
mycursor.execute(sql, values)
result = mycursor.fetchone()
user = {
"first_name": result[1],
"surname": result[2],
"cell": result[3],
"city": result[4],
"location_x": result[5],
"location_y": result[6]
}
# GET THE USER'S PROFILE INFORMATION
## We can pull all of the info from the same
document since we used embedding
user = db['Users'].find_one({"_id": userId})
Program faster!
### Pull the info from the Professions table
& put it in the user dictionary
sql = "Select * FROM Professions WHERE
Professions.user_id=%s”
values = (userId,)
mycursor.execute(sql, values)
results = mycursor.fetchall()
professions = []
for result in results:
professions.append(result[2])
user["professions"] = professions

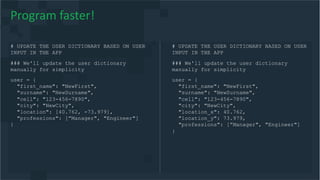

52. # UPDATE THE USER DICTIONARY BASED ON USER
INPUT IN THE APP
### We'll update the user dictionary
manually for simplicity
user = {
"first_name": "NewFirst",
"surname": "NewSurname",
"cell": "123-456-7890",
"city": "NewCity",
"location": [40.762, -73.979],
"professions": [”Manager", "Engineer"]
}
Program faster!
# UPDATE THE USER DICTIONARY BASED ON USER
INPUT IN THE APP
### We'll update the user dictionary
manually for simplicity
user = {
"first_name": "NewFirst",
"surname": "NewSurname",
"cell": "123-456-7890",
"city": "NewCity",
"location_x": 40.762,
"location_y": 73.979,
"professions": [”Manager", "Engineer"]
}

53. # UPDATE THE USER'S PROFILE IN THE DATABASE
### First update what is stored in the Users
table
sql = "UPDATE Users SET first_name=%s,
surname=%s, cell=%s, city=%s, location_x=%s,
location_y=%s WHERE (ID=%s)"
values = (
user["first_name"],
user["surname"],
user["cell"],
user["city"],
user["location_x"],
user["location_y"],
userId)
mycursor.execute(sql, values)
mydb.commit()
# UPDATE THE USER'S PROFILE IN THE DATABASE
### Since the user's data is stored in a
single document, we only have to make one
update
result = db['Users'].update_one(
{"_id": userId}, {"$set": user})
Program faster!
### Delete existing records in Professions
table and add new ones
sql = "DELETE FROM Professions WHERE
user_id=%s”
values = (userId,)
mycursor.execute(sql, values)
mydb.commit()
if(len(user["professions"]) > 0):
sql = "INSERT INTO Professions
(user_id,profession) VALUES (%s, %s)”
values = []
for profession in user["professions"]:
values.append((userId, profession))
mycursor.executemany(sql,values)
mydb.commit()

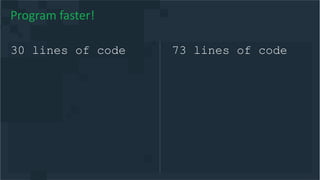

54. 30 lines of code
Program faster!
73 lines of code

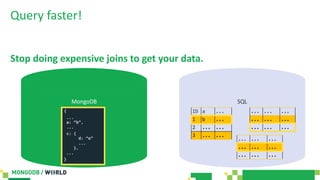

55. SQLMongoDB
Query faster!
Stop doing expensive joins to get your data.
ID a ...
1 b ...
2 ... ...
3 ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
... ... ...
{
...
a: “b”,
...
c: {
d: “e”
...
},
...
}

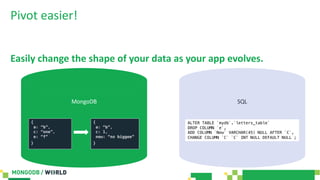

56. Pivot easier!
Easily change the shape of your data as your app evolves.
SQLMongoDB
{
a: “b”,
c: “one”,
e: “f”
}
{
a: “b”,
c: 1,
new: “no biggee”
}
ALTER TABLE `mydb`.`letters_table`
DROP COLUMN `e`,
ADD COLUMN `New` VARCHAR(45) NULL AFTER `C`,
CHANGE COLUMN `C` `C` INT NULL DEFAULT NULL ;

57. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways

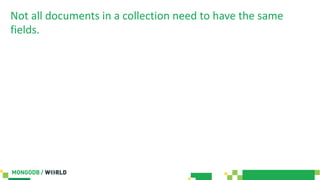

60. Not all documents in a collection need to have the same
fields.

61. Not all documents in a collection need to have the same
fields.
The Polymorphic Pattern
{
first_name: "Paul",
surname: "Miller",
cell: "447557505611",
city: "London",
location: [45.123,47.232],
profession: ["banking", "finance", "trader"],
cars: [
{
model: "Bentley",
year: 1973
},
{
model: "Rolls Royce",
year: 1965
}
]
}
{
first_name: ”Lauren",
surname: ”Schaefer",
cell: ”1235552222",
city: ”Lancaster",
profession: [”software engineer", ”developer advocate"],
}
{
first_name: ”Sydney",
surname: ”Schaefer",
city: ”Lancaster",
school: ”Daisy’s Daycare”
}

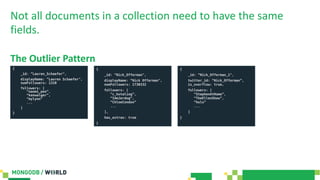

62. Not all documents in a collection need to have the same
fields.
The Outlier Pattern
{
_id: ”Lauren_Schaefer",
displayName: ”Lauren Schaefer",
numFollowers: 1310
followers: [
“naomi_pen”,
“kenwalger”,
“mylynn”
...
]
}
{
_id: ”Nick_Offerman",
displayName: ”Nick Offerman",
numFollowers: 1730332
followers: [
“c_hotaling”,
“IAmJerdog”,
“ChloeCondon”
...
],
has_extras: true
}
{
_id: ”Nick_Offerman_1",
twitter_id: “Nick_Offerman”,
is_overflow: true,
followers: [
“StephenAtHome”,
“TheEllenShow”,
“hulu”
...
]
}

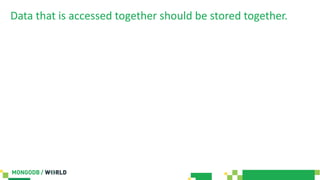

63. Data that is accessed together should be stored together.

64. Data that is accessed together should be stored together.

65. Data that is accessed together should be stored together.

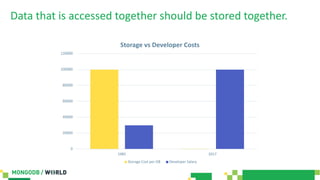

1985 2017
0
20000
40000
60000
80000
100000
120000
Storage vs Developer Costs
Storage Cost per GB Developer Salary

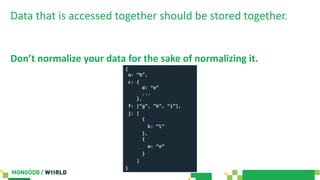

66. Data that is accessed together should be stored together.
Don’t normalize your data for the sake of normalizing it.
{
a: “b”,
c: {
d: “e”
...
},
f: [“g”, “h”, “i”],
j: [
{
k: “l”
},
{
m: “n”
}
]
}

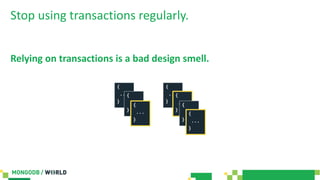

67. Stop using transactions regularly.
Relying on transactions is a bad design smell.
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}
{
...
}

68. The mental journey from SQL to MongoDB

69. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
Row Column Table Database Index Join Join Left Outer
Join
Recursive
Common Table
Expressions
View Transaction
Document Field Collection Database Index Embedding
Database
References
$lookup $graphLookup View Transaction

70. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB

71. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper

72. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper
2. Program faster
# UPDATE THE USER'S PROFILE IN THE DATABASE
### First update what is stored in the Users table
sql = "UPDATE Users SET first_name=%s, surname=%s, cell=%s,
city=%s, location_x=%s, location_y=%s WHERE (ID=%s)"
values = (
user["first_name"],
user["surname"],
user["cell"],
user["city"],
user["location_x"],
user["location_y"],
userId)
mycursor.execute(sql, values)
mydb.commit()
# UPDATE THE USER'S PROFILE IN THE DATABASE
### Since the user's data is stored in a single document, we only
have to make one update
result = db['Users'].update_one(
{"_id": userId}, {"$set": user})

73. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper
2. Program faster
3. Query faster

74. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
1. Scale cheaper
2. Program faster
3. Query faster
4. Pivot easier

75. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways

76. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
1. Not all documents in a collection need to have the same fields.

77. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
1. Not all documents in a collection need to have the same fields.
2. Data that is accessed together should be stored together.

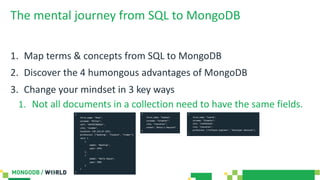

78. The mental journey from SQL to MongoDB
1. Map terms & concepts from SQL to MongoDB
2. Discover the 4 humongous advantages of MongoDB
3. Change your mindset in 3 key ways
1. Not all documents in a collection need to have the same fields.
2. Data that is accessed together should be stored together.
3. Stop using transactions regularly.

79. Don’t be Ron Swanson
(in this particular case)

80. Don’t be Ron Swanson
(in this particular case)
Change your mindset &
get the full value of MongoDB

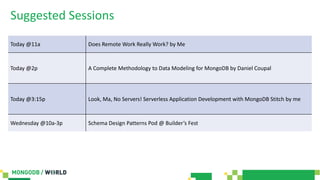

81. Suggested Sessions
Today @11a Does Remote Work Really Work? by Me
Today @2p A Complete Methodology to Data Modeling for MongoDB by Daniel Coupal
Today @3:15p Look, Ma, No Servers! Serverless Application Development with MongoDB Stitch by me
Wednesday @10a-3p Schema Design Patterns Pod @ Builder’s Fest

82. Additional resources on data modeling patterns
• Advanced Schema Design Patterns (webinar)
• Building with Patterns: A Summary (blog series)
• M320: Data Modeling (MongoDB University Course -- coming
soon!)

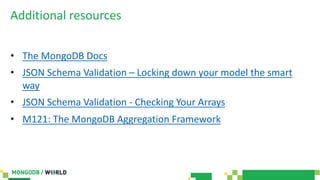

83. Additional resources
• The MongoDB Docs
• JSON Schema Validation – Locking down your model the smart
way
• JSON Schema Validation - Checking Your Arrays
• M121: The MongoDB Aggregation Framework

84. Don’t be Ron Swanson
(in this particular case)
Change your mindset &
get the full value of MongoDB
Get the slides on my Twitter
page: @Lauren_Schaefer
