Deze presentatie werd in Maart 2014 op onze infodag getoond. We behandelden onze nieuwe add-on modules: - RF-STEEL Plastic: voor gevallen dat EC3 geen oplossing biedt. - RF-STEEL Fatigue: vermoeiing cfr. EN 1993-1-9 - RF-LIMITS: controle van allerhande verbindingen

1. Software for Structural Analysis and Design

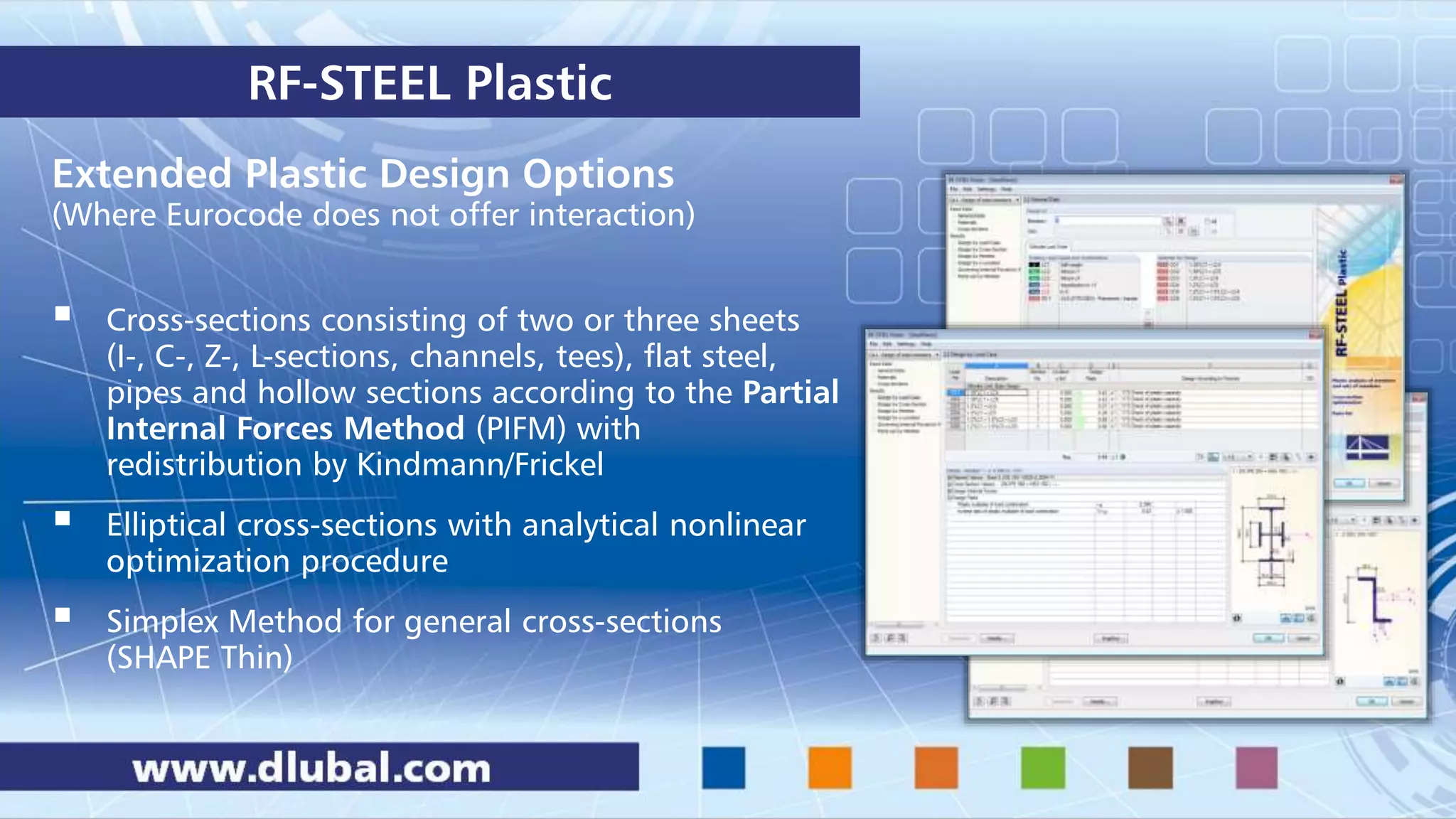

2. Extended Plastic Design Options
(Where Eurocode does not offer interaction)
 Cross-sections consisting of two or three sheets
(I-, C-, Z-, L-sections, channels, tees), flat steel,
pipes and hollow sections according to the Partial
Internal Forces Method (PIFM) with
redistribution by Kindmann/Frickel
 Elliptical cross-sections with analytical nonlinear
optimization procedure
 Simplex Method for general cross-sections
(SHAPE Thin)
RF-STEEL Plastic

3. Fatigue Design for Members
according to EN 1993-1-9
 Fatigue Design for Axial and Shear Stress
 Damage tolerant and Safe Life Design
 Low and High Consequence Design
 Flexible Assignment of Detail Categories for all
possible Stress Points
RF-STEEL Fatigue

4. Design based on Comparison of Results
with Defined Limit States
 Check of forces and deformations against
prequalified values from a database
 Optional check of dimensions
 Service Classes according to Eurocode or DIN
(needed for Timber Design)
 Ideal for connections or pre-fabricated parts
RF-LIMITS

5. Software for Structural Analysis and Design
