Concrete and prestressing made simple - IDEA StatiCa version 8
This document introduces the IDEA StatiCa software for structural engineering. It provides concise summaries of the key points: 1) IDEA StatiCa is structural design software developed by a team with 20 years experience, used for concrete cross sections, beams, joints and details. It complements CAE programs by focusing on structural elements. 2) The software allows complex structural members to be designed in under an hour, helping engineers comply with codes easily for both standard and non-standard beams. 3) IDEA StatiCa provides solutions for cast-in-place buildings, bridges, and prefabricated concrete through features like prestressing analysis, construction staging, and code checking.
More Related Content
Similar to Concrete and prestressing made simple - IDEA StatiCa version 8
Concrete and prestressing made simple - IDEA StatiCa version 8
- 1. Concrete & Prestressingmade simple Ing. Jo Gijbels MSc. Support & Sales manager IDEA StatiCa Benelux and France Release 8.0
- 2. 2 IDEA StatiCa FORSTRUCTURAL ENGINEERING Development team with 20 years of experience of making innovative software for structural engineers in more than 40 countries.
- 3. Engineering software dedicatedto structural design and code-check of cross sections, beams, joints and other details. 1000+ desktop licenses Software results validated by universities Linked to 12+ CAE/CAD programs 30+ employees 15+ resellers

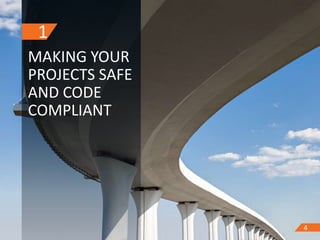

- 4. 4 1 MAKING YOUR PROJECTS SAFE ANDCODE COMPLIANT 4
- 5. 55 CAE PROGRAMS Focus onthe model of the whole structure.

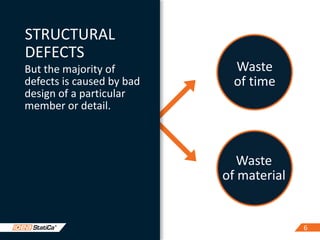

- 6. 66 STRUCTURAL DEFECTS But the majorityof defects is caused by bad design of a particular member or detail. Waste of time Waste of material
- 7. 7 IDEA StatiCa FOCUSESON CROSS-SECTIONS, BEAMS AND DETAILS 7

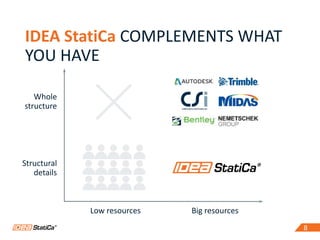

- 8. 88 IDEA StatiCa COMPLEMENTSWHAT YOU HAVE Whole structure Structural details Low resources Big resources
- 9. 9 IDEA StatiCa isthe first one to provide SW for concrete members and details with development capacity and professionalism of CAE programs.

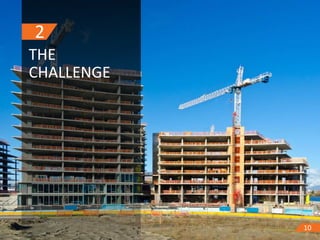

- 10.
- 11. 11 WE WANT TOBE ON THE SAFE SIDE To comply with Eurocode, SIA, etc.
- 12.

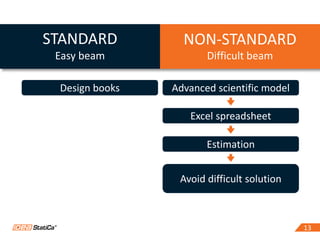

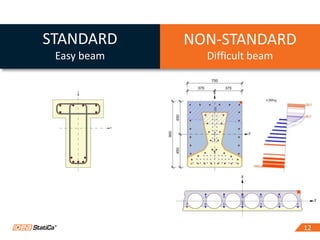

- 13. 1313 Design books Advancedscientific model Excel spreadsheet Estimation Avoid difficult solution STANDARD Easy beam NON-STANDARD Difficult beam

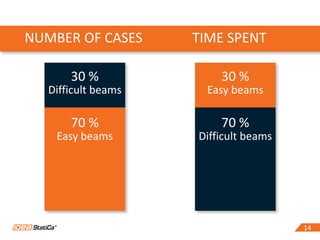

- 14. 1414 30 % Difficult beams 70% Easy beams 30 % Easy beams 70 % Difficult beams NUMBER OF CASES TIME SPENT
- 15. 15 We are herewith a tool to design complex structural members in less than an hour.
- 16.

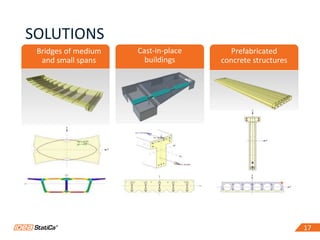

- 17. 1717 SOLUTIONS Cast-in-place buildings Bridges of medium andsmall spans Prefabricated concrete structures

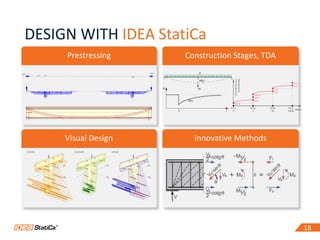

- 18. 1818 DESIGN WITH IDEAStatiCa Prestressing Stiffness Analysis Construction Stages, TDA Visual Design Innovative Methods
- 19. 1919 The active roleof prestressing becomes more apparent if we replace the prestressing reinforcement with a system of forces acting along the beam Construction Stages, TDA Visual Design Innovative MethodsPrestressing
- 20.

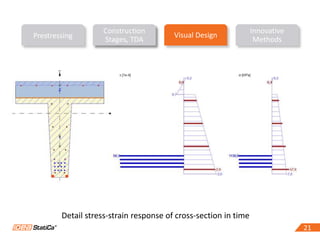

- 21. 21 Construction Stages, TDA Detail stress-strainresponse of cross-section in time Visual Design Innovative MethodsPrestressing Construction Stages, TDA 21
- 22. 2222 INTERACTION OF INTERNAL FORCES 1 2 3 5 4 p ini c ini compositesection long-term effects initial stresses variable load effects Mq Nq INITIAL STRESS-STATE METHOD STRESS-STRAIN RESPONSE Construction Stages, TDA Visual Design Innovative MethodsPrestressing
- 23. 23 EN 1992-1-1 23 COMPLETE CODECHECKS IDEA StatiCa Ultimate Limit States Flexure Shear Torsion Interaction of internal forces Fatigue Shear in composite joint Stress limitation Decompression condition Crack width Brittle failure Deflection Serviceability Limit States 8 National Annexes EN 1992-2 EN 1992-3 SIA 262
- 24.
- 25. 2525 POUTRE IV IDEAStatiCa

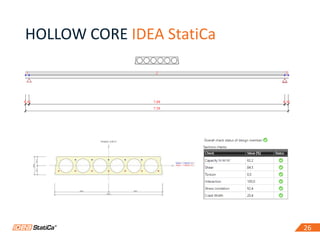

- 26. 2626 HOLLOW CORE IDEAStatiCa
- 27. 2727 POUTRE RECTOR CZIDEA StatiCa
- 28. 28 Complete, safe andeconomic design of reinforced and prestressed concrete members in visual form.
- 29.
- 30. 3030 Retrofitting of concrete compositecolumn, forensic engineering expertise, Slovakia TESTIMONIAL BRNO UNIVERSITY OF TECHNOLOGY Assoc. Prof. MILOS ZICH, Ph.D. „We did not find capabilities and analysis methods of IDEA StatiCa in any other commercial structural design tools.“

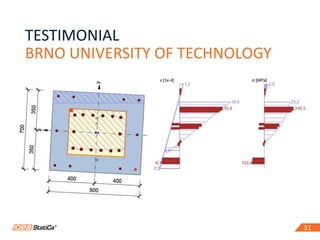

- 31. 3131 TESTIMONIAL BRNO UNIVERSITY OFTECHNOLOGY
- 32. 3232 VERIFICATION Long-term experience in researchand in-situ measurements. Numerical models created in various software. Collaboration with universities. Technical papers. Book.
- 33. 33 ANYONE CAN LEARNPRESTRESSING 33

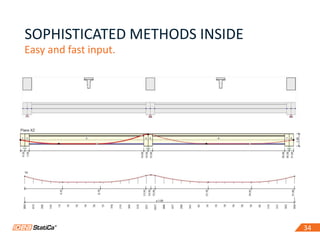

- 34. 34 Easy and fastinput. 34 SOPHISTICATED METHODS INSIDE

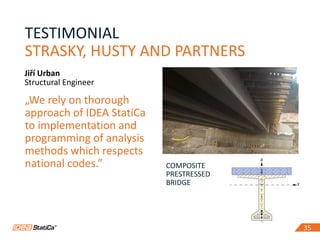

- 35. 3535 „We rely onthorough approach of IDEA StatiCa to implementation and programming of analysis methods which respects national codes.” COMPOSITE PRESTRESSED BRIDGE TESTIMONIAL STRASKY, HUSTY AND PARTNERS Jiří Urban Structural Engineer

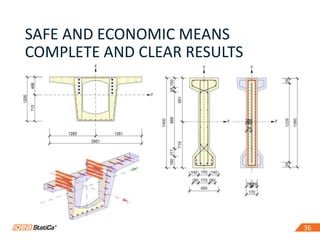

- 36. 36 SAFE AND ECONOMICMEANS COMPLETE AND CLEAR RESULTS 36
- 37. 37 TESTIMONIAL ŠIRBEGOVIĆ INŽENJERING 37 Mirza Bajraktarević R&DManager „IDEA StatiCa is the most economic, cost effective as well as user friendly structural design tool, fully utilizing by compliance to EUROCODE design provisions, and its benefits in precast industry, giving to structural designer the full liability and design control over the various types of projects.“
- 38.
- 39. 3939 OFFERING LIFETIME LICENSE IDEAConcrete Yearly Maintenance 20% (Technical support & Upgrades) -30% discount for second license. €2.490 IDEA Prestress Yearly Maintenance 20% (Technical support & Upgrades) -30% discount for second license. € 5.950

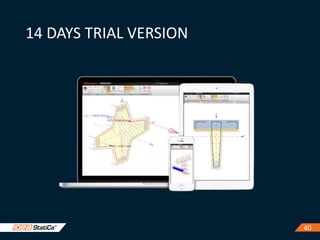

- 40. 4040 14 DAYS TRIALVERSION
- 41. 4141 No one hasever returned IDEA StatiCa software.
- 42.
- 43. 4343 MIDAS Civil/GEN ROBOT STRUCTURAL ANALYSIS PROFESSIONAL BIMINTERFACE – FEA PROGRAMS
- 44. 4444 BIM INTERFACE –FEA PROGRAMS Robot, SCIA Engineer, SAP 2000, MIDAS Civil, RFEM, AxisVM, etc.

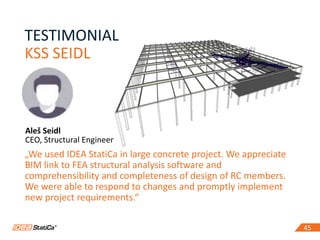

- 45. 45 TESTIMONIAL KSS SEIDL 45 Aleš Seidl CEO,Structural Engineer „We used IDEA StatiCa in large concrete project. We appreciate BIM link to FEA structural analysis software and comprehensibility and completeness of design of RC members. We were able to respond to changes and promptly implement new project requirements.“
- 46. 46 CASE STUDY BRIDGE LOADRATING 46 The calculation to determine the safe live load-carrying capacity of the bridge, while all other relevant loads are acting. Existing and new bridges
- 47. 4747 IDEA StatiCa wouldnot build such strong links without having strong relationships with the key players in our industry.
- 48.

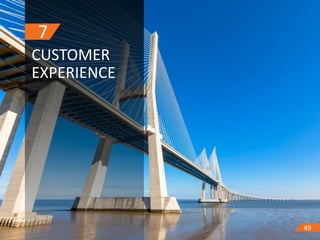

- 49.

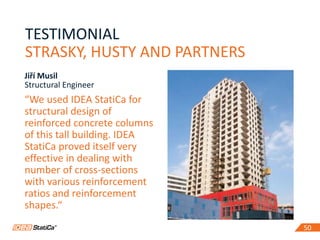

- 50. 5050 TESTIMONIAL STRASKY, HUSTY ANDPARTNERS “We used IDEA StatiCa for structural design of reinforced concrete columns of this tall building. IDEA StatiCa proved itself very effective in dealing with number of cross-sections with various reinforcement ratios and reinforcement shapes.“ Jiří Musil Structural Engineer
- 51.
- 52. 5252 95 %of tickets sortedwithin a week. Technical support is done by structural engineers.
- 53.
- 54. 5454 REPORTING We support Eurocodeand SIA. Various sets of material types, cross-sections, reinforcement, etc. Different types of reports. Schemes of drawings.

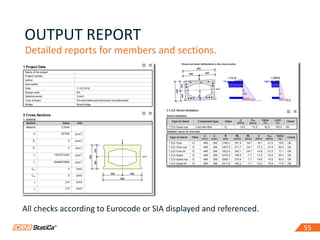

- 55. 5555 OUTPUT REPORT Detailed reportsfor members and sections. All checks according to Eurocode or SIA displayed and referenced.

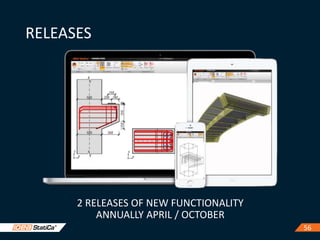

- 56. 5656 RELEASES 2 RELEASES OFNEW FUNCTIONALITY ANNUALLY APRIL / OCTOBER
- 57. 5757 99 %of our customerssaw the potential of IDEA StatiCa after 2 hours of testing.

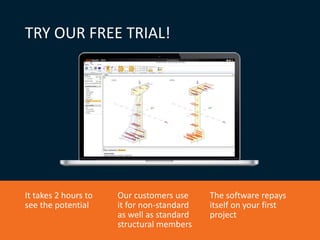

- 58. TRY OUR FREETRIAL! It takes 2 hours to see the potential Our customers use it for non-standard as well as standard structural members The software repays itself on your first project
- 59. Jo Gijbels, Supportand Sales Manager IDEA StatiCa Benelux and France www.ideastatica.com
