IDEA StatiCa Concrete detail
Idea Statica Detail is a software tool designed for the efficient design and checking of concrete structures, enabling engineers to save time and optimize material usage. It provides clear pass/fail checks that comply with codes, detailed output reports, and can efficiently manage complex structural areas. The software allows for flexible geometric definition and reinforcement of any detail type without limits, facilitating quick design processes suitable for everyday engineering tasks.
IDEA StatiCa Concrete detail
- 1. IDEA StatiCa Detail www.ideastatica.comCalculate yesterday‘s estimates IDEA StatiCa Detail Concrete detail design – reinvented IDEA StatiCa introduces a novel way to design and check concrete details and walls. With it, engineers can break the limits of standard design tools to save time and optimize the material usage. Clear pass/fail checks according to the code are available in minutes, as well as complete output reports. IDEA StatiCa Detail deals efficiently with all parts of structure also known as discontinuity regions such as walls, dapped ends, openings, hangings, brackets, and areas above supports. It provides precise checks of concrete and reinforcement strength, stresses and strains. These results are clearly visualized for better understanding of details of structures. ANY TOPOLOGY No limits in type or shape of detail. Every type can be easily geometrically defined, reinforced and calculated as your project demands. ANY LOADING The overall check of the detail takes into account interactions of internal forces in a plane. Engineer stay on the safe side all the time.. IN MINUTES The whole design and check process is kept short enough to be a part of everyday work of structural engineers and fabricators all around the world. Beam details Wall details Diaphragms Frame joints Hangings Brackets

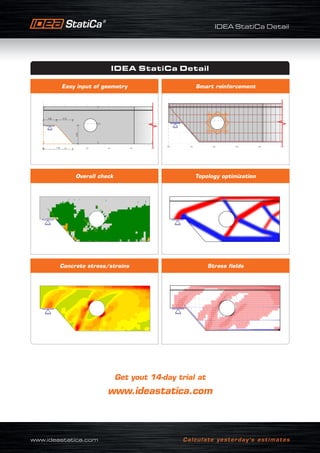

- 2. IDEA StatiCa Detail Calculateyesterday‘s estimateswww.ideastatica.com Get yout 14-day trial at www.ideastatica.com IDEA StatiCa Detail Easy input of geometry Overall check Concrete stress/strains Smart reinforcement Topology optimization Stress fields
