The document discusses the necessity of modernizing websites using Adobe Experience Manager (AEM), detailing benefits such as shorter development cycles and improved content management. It outlines the process for migrating to editable templates and core components with the AEM modernization toolkit, which facilitates these upgrades. A demo is included, along with references to additional resources for implementing the discussed strategies.

1. EXPERIENCE
LEAGUE
SKILL BUILDER:
AEM MODERNIZATION
SUITE

2. HANISH BANSAL
COMPUTER SCIENTIST
ADOBE ENGINEERING
habansal@adobe.com
Linkedin: hanishbansal93

3. AGENDA
 WHAT I mean by Sites Modernization & WHY is it needed
 WHICH AEM features can help achieve it and HOW
 HOW to migrate to those new features easily using the Toolkit
 Demo
 References/Q&A

4. How experiences often get built
ImplementDesign
Content
1 2 3 4 50
How experiences should be built
1 20
Design
Content
Design
Design
Implement
Implement
Implement
Pros:
• Shorter Development Cycle
• Content Drives Implementation
• Iterative Improvement (Agile)
• Write once, use Everywhere

5. An Example
Let’s look at the process to implement an experience from a design.

6. When Designs Define Components
ImplementDesign
Content
1 2 3 4 50
😞
Components on the page:
 Hero banner
 Rich text
 Highlighted banner
 Image and text
 Text and image

7. NEW Optimized Approach
1. Searching for commonalities:
 Title, text, link(s), image
 Title, text, link(s), image
 Title, text, link(s), image
 Title, text, link(s), image
 Title, text, link(s), image

8. NEW Optimized Approach
2. Search matching Core
Component(s):
 Teaser component
 Title (optional)
 Image (optional)
 Rich text (optional)
 List of call to action (optional)1 20
Design
Content
Design
Design
Implement
Implement
Implement

9. Migrations required to Modernize
Static Templates
& Column Control
Editable Templates
& Responsive Grid
Foundation
Components
Core
Components
Designs &
Design Dialogs
Editable Template
Policies
ExtJS
Dialogs
TouchUI
Dialogs

10. Achieving this Modernization
 Project level effort
 Plan => review => convert => validate => launch
 Similar sizing to AEM Upgrade Project
 Enter AEM Modernization Tools - Converts:
 Page’s Template
 Component
 Dialog
 Policy

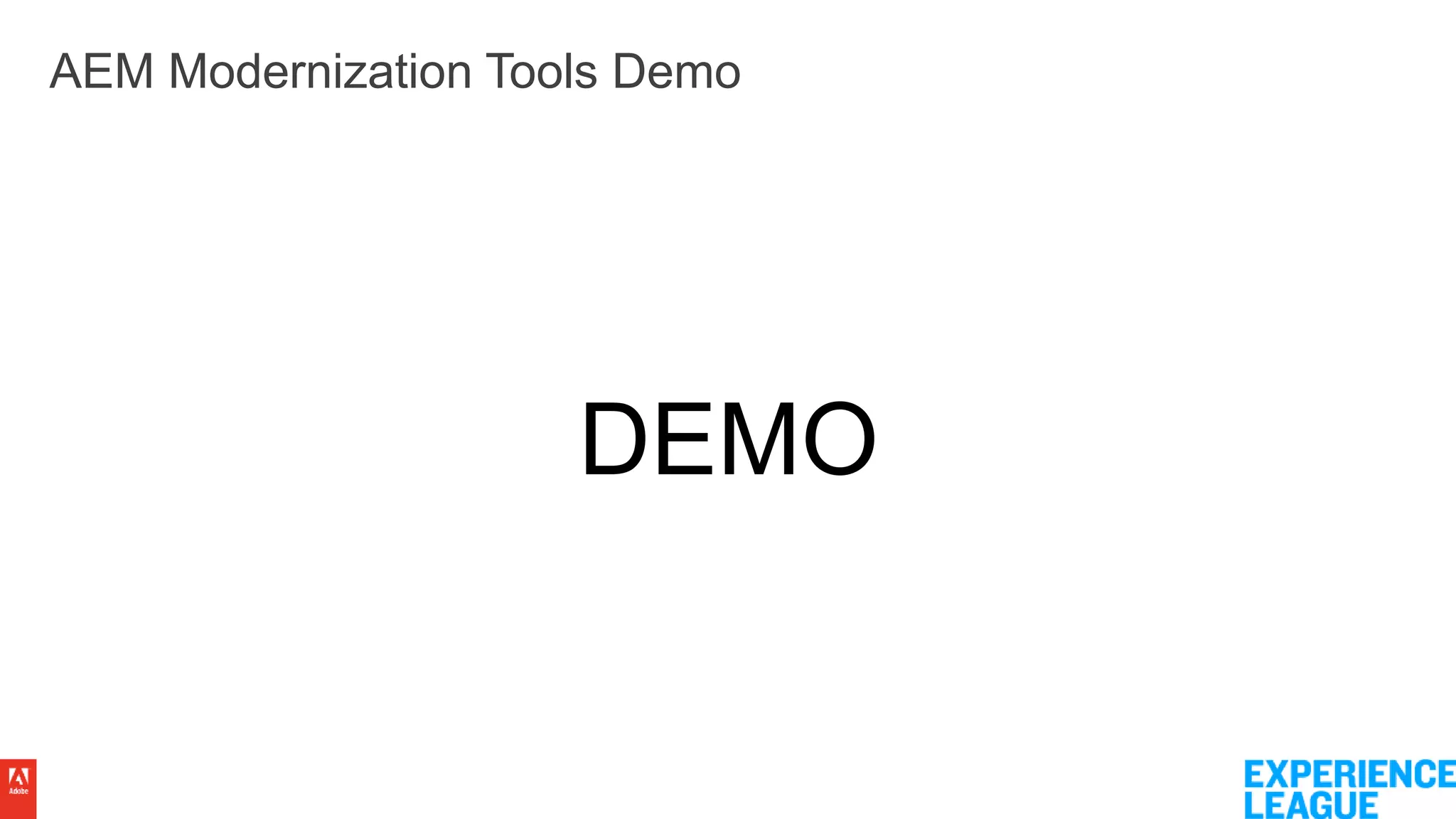

11. AEM Modernization Tools Demo
DEMO

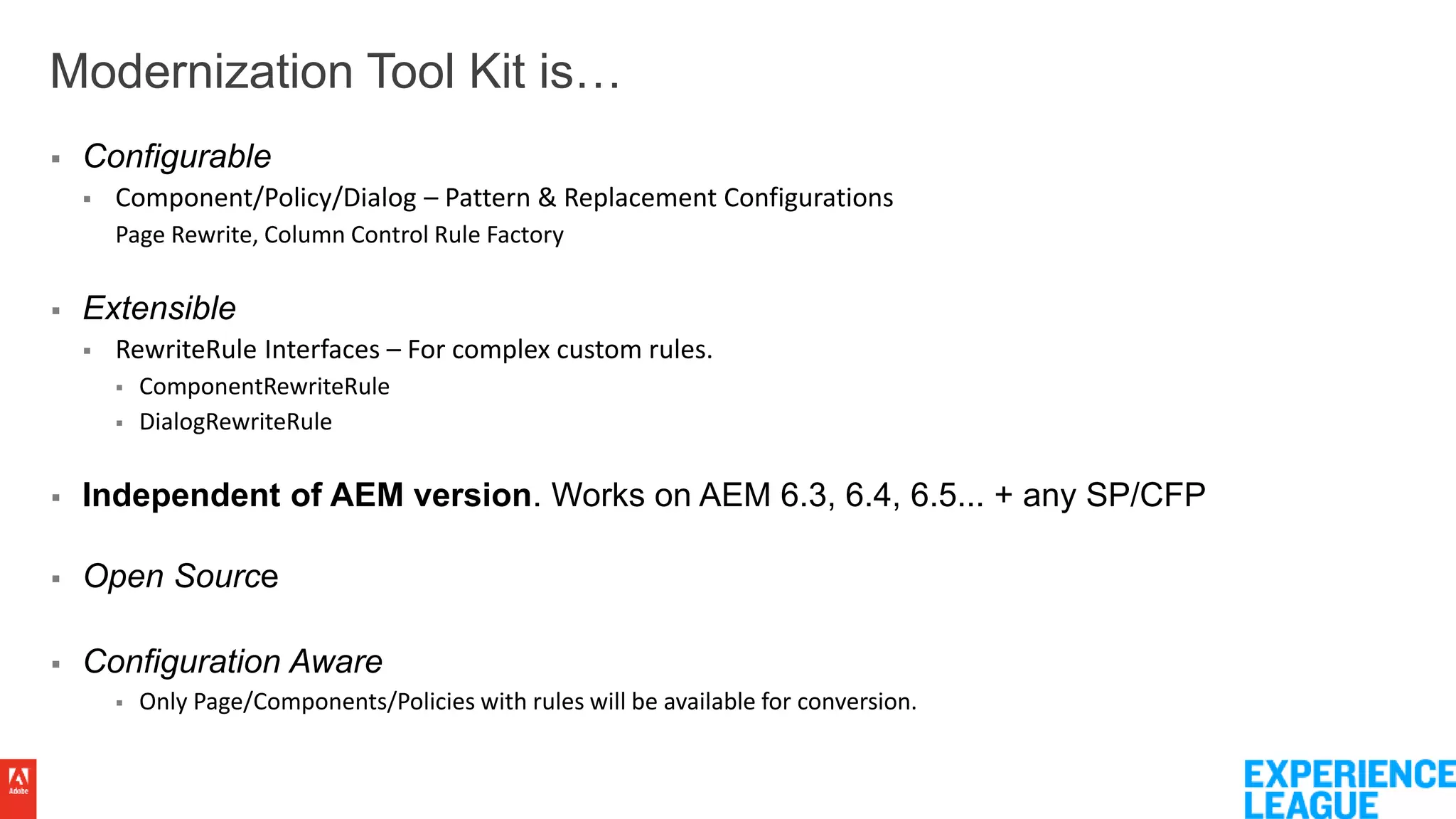

12. Modernization Tool Kit is…
 Configurable
 Component/Policy/Dialog – Pattern & Replacement Configurations
Page Rewrite, Column Control Rule Factory
 Extensible
 RewriteRule Interfaces – For complex custom rules.
 ComponentRewriteRule
 DialogRewriteRule
 Independent of AEM version. Works on AEM 6.3, 6.4, 6.5... + any SP/CFP
 Open Source
 Configuration Aware
 Only Page/Components/Policies with rules will be available for conversion.

13. Hanish Bansal
habansal@adobe.com
LinkedIn: https://www.linkedin.com/in/hanishbansal93/

14. SUMMARY
• WHY do you need to Modernize your Sites Code base
• How can Editable Templates, Core components, new UI will help
• How to use the new AEM Modernization Toolkit to migrate to the new features
• Migration to Editable templates:
• Create an Editable Template matching page structure.
• Use the Toolkit 
• Migration to Core components:
• Find/Create matching Core components
• Create Rewrite Rules
• Use the Toolkit 
• Migrate to Touch UI Dialogs:
• Create Dialog Re-write Rules
• Use the Toolkit 

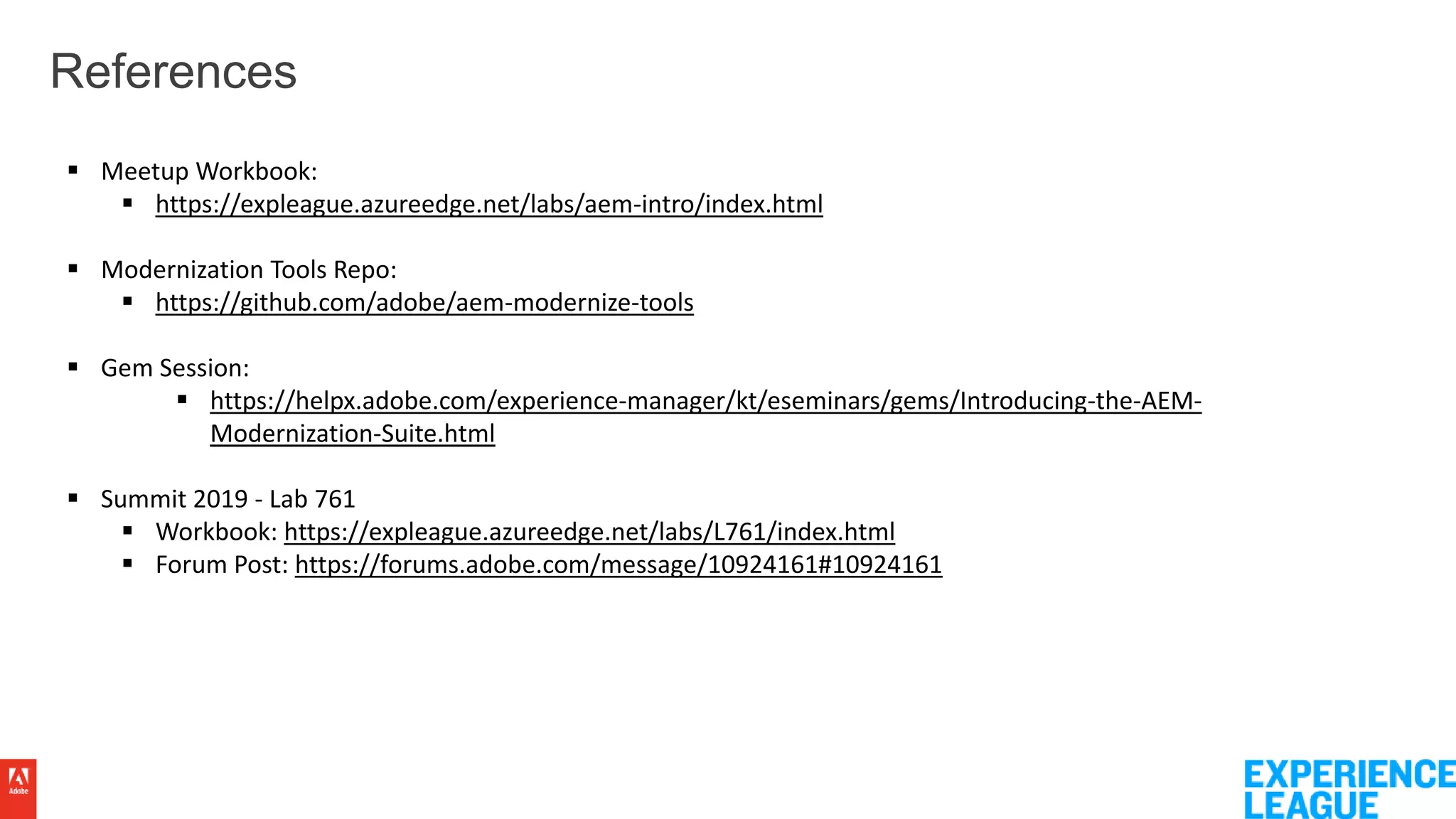

15. References
 Meetup Workbook:
 https://expleague.azureedge.net/labs/aem-intro/index.html
 Modernization Tools Repo:
 https://github.com/adobe/aem-modernize-tools
 Gem Session:
 https://helpx.adobe.com/experience-manager/kt/eseminars/gems/Introducing-the-AEM-
Modernization-Suite.html
 Summit 2019 - Lab 761
 Workbook: https://expleague.azureedge.net/labs/L761/index.html
 Forum Post: https://forums.adobe.com/message/10924161#10924161

17. Page/Template Converter – Evaluate Template
17

18. Core Components
Template components
1. Page: Responsive page that works well with the Template
Editor.
2. Navigation: Site navigation that handles globalized structures.
3. Language Navigation: Displays the language structure of a
site.
4. Breadcrumb: Lists the hierarchy of parent pages.
5. Quick Search: Incremental search field.
Basic components
6. Title: Headings configurable to allow levels 1 to 6.
7. Text: Plain or rich text with configurable capabilities.
8. Image: Smart image display with configurable capabilities.
9. Separator: Visual spacer between the components
Social components
10. Sharing: Facebook and Pinterest widgets.
Referencing components
11. List: Lists pages that match the configured criteria.
12. Teaser: Visual link to a page teasing its content with an image.
13. Content Fragment: Displays reusable content.
14. Content Fragment List: Query content fragments to display.
Container components
15. Carousel: Slideshow presentation of content.
16. Tabs: Organizes content into accessible tabs.
Form components
17. Form Container: Form paragraph system.
18. Form Text: Text input field (text, text area, email, phone, date,
…).
19. Form Options: Multi-input filed (checkboxes, radios, drop-
down, …).
20. Form Button: Submit or scriptable button.
21. Form Hidden: Invisible input field, for sending information
along.

19. Core Components
Flexible and configurable components that can be freely
combined by authors to create various kind of content.
Useable as-is: lean markup, better SEO and
Accessibility
The Component Library allows to easily understand how
to style the semantic markup of the components.
Expressive Blocks
Production Ready
Easy to Style

20. Template Editor
Instead of developing every page variation,
compose, configure and style them!

21. Template Editor
Assemble combinations of page header & footer, and
define the responsive layouts.
Define the allowed and mandatory components, and
configure them for the authors.
Content creation is made independent from the styles
that can be applied later where needed.
Compose Templates
Configure
Components
Unblock Authors
