Model-Based Simulation of Legal
Requirements: Experience from Tax
Policy Simulation

Ghanem Soltana, Mehrdad Sabetzadeh, and Lionel Briand

SnT Centre for Security, Reliability and Trust
University of Luxembourg, Luxembourg

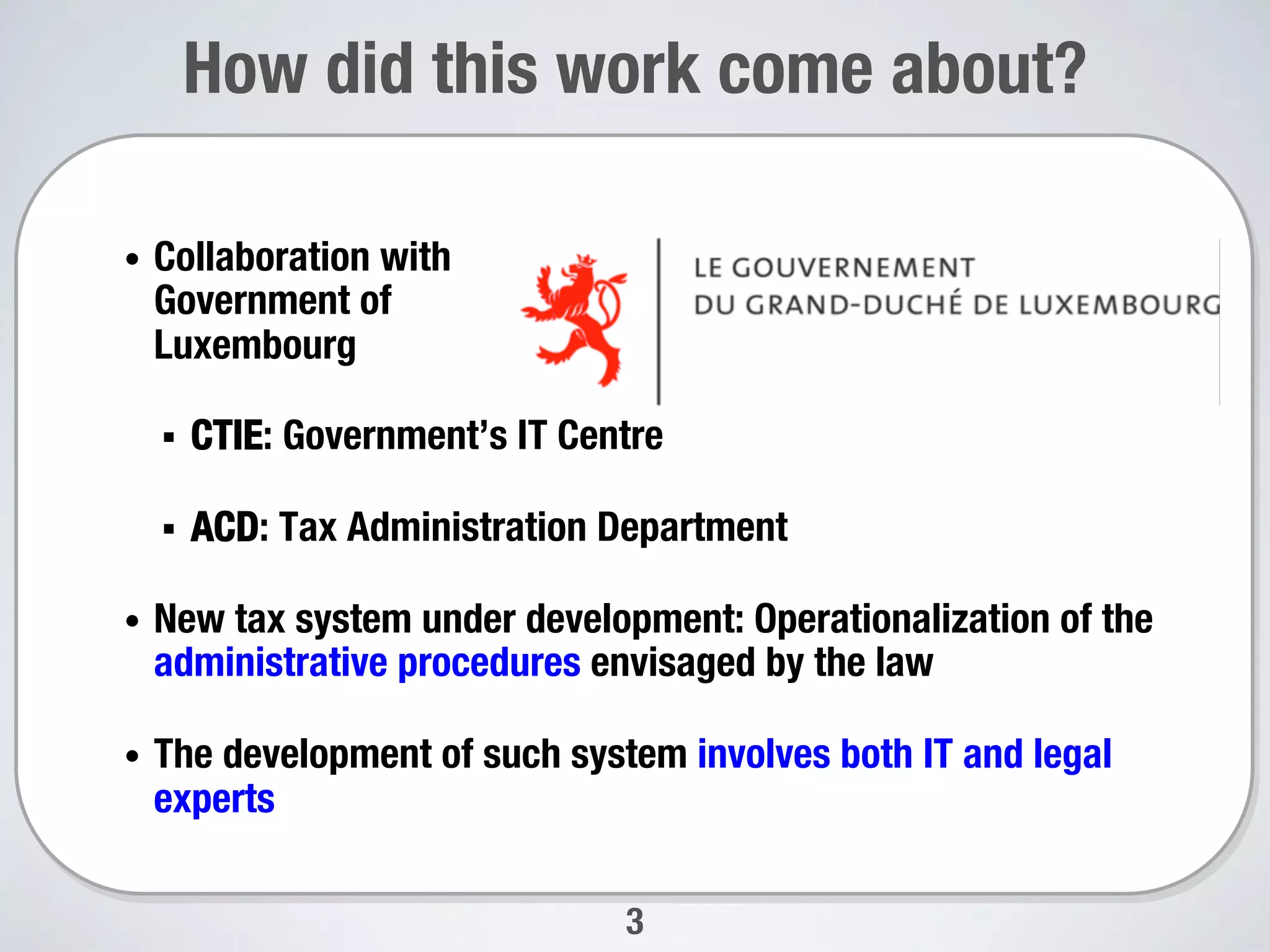

How did this work come about?
3
•  Collaboration with"
Government of "
Luxembourg
§  CTIE: Government’s IT Centre
§  ACD: Tax Administration Department
•  New tax system under development: Operationalization of the
administrative procedures envisaged by the law
•  The development of such system involves both IT and legal
experts

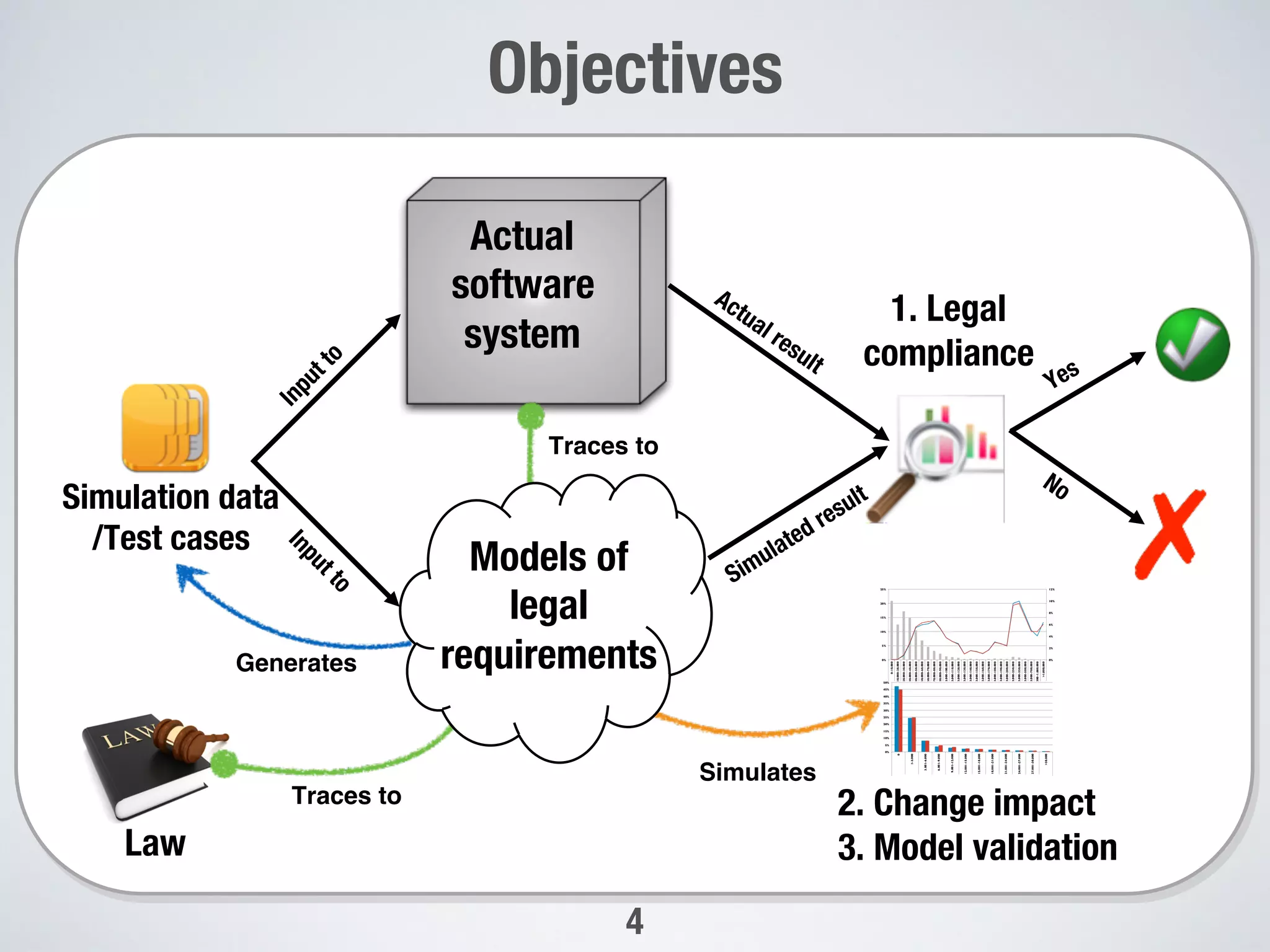

Objectives
Simulation data
/Test cases
Actual
software
system
Traces to
Traces to
Models of
legal
requirements
Generates
1. Legal
compliance
2. Change impact
3. Model validation
Simulates
Law
4
0%
2%
4%
6%
8%
10%
12%
0%
5%
10%
15%
20%
25%
0-10.000
10.000-20.000
20.000-30.000
30.000-40.000
40.000-50.000
50.000-60.000
60.000-70.000
70.000-80.000
80.000-90.000
90.000-100.000
100.000-110.000
110.000-120.000
120.000-130.000
130.000-140.000
140.000-150.000
150.000-160.000
160.000-170.000
170.000-180.000
180.000-190.000
190.000-200.000
200.000-250.000
250.000-350.000
350.000-500.000
500.000-700.000
700.000-1.000.000
>1.000.000
Gross annual income (in Euros)
Contributiontorevenue
Households
Percentage of households
Percentage of contribution before change
Percentage of contribution after change
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
50%
0
1-3.000
3.001-6.000
6.001-9.000
9.001-12.000
12.001-15.000
15.001-18.000
18.001-21.000
21.001-24.000
24.001-27.000
27.001-30.000
>30.000
Annual income taxes due (in Euros)
Households
Before change
After change

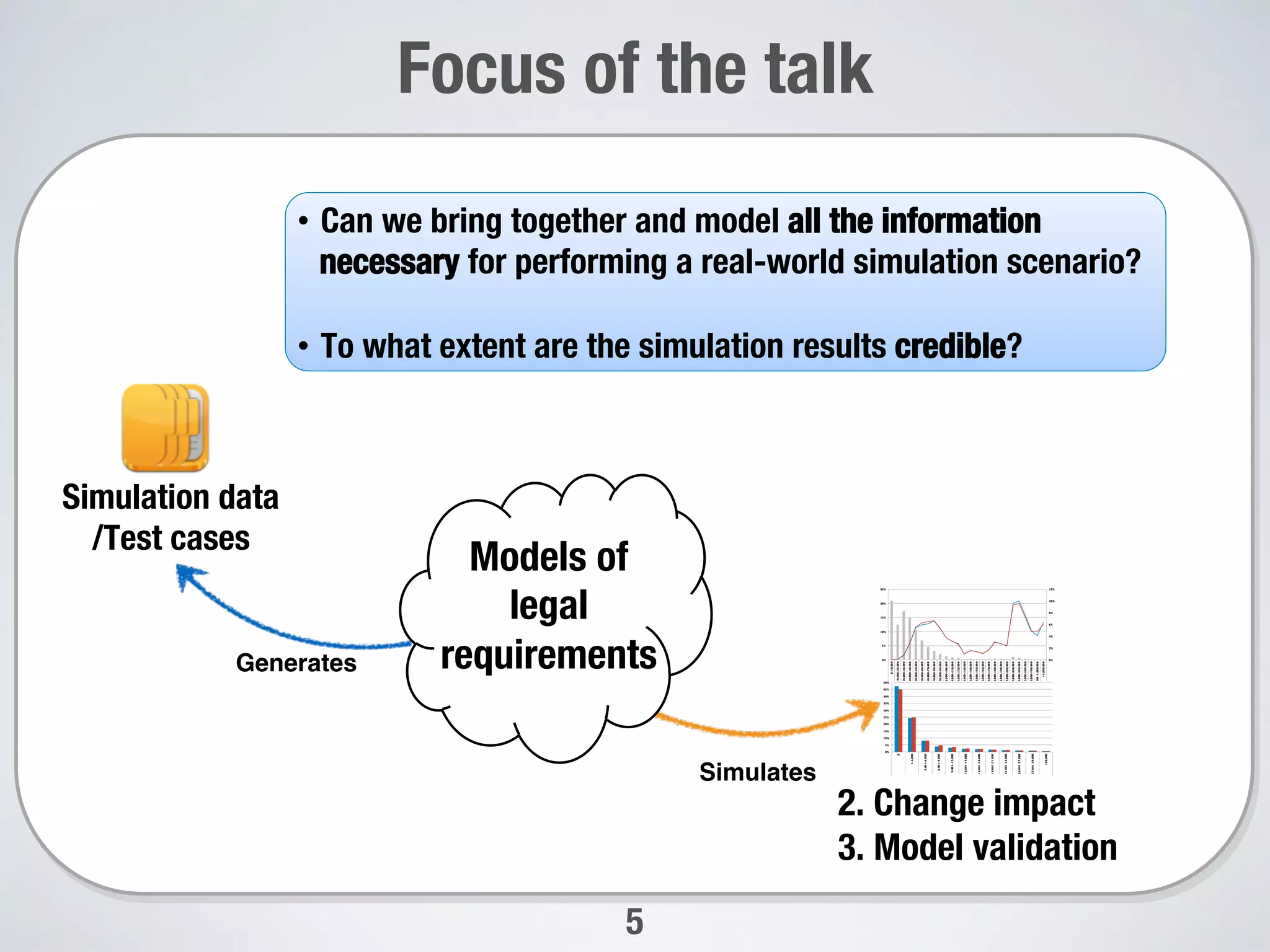

Focus of the talk
Simulation data
/Test cases
Generates
Simulates
•  Can we bring together and model all the information
necessary for performing a real-world simulation scenario?
•  To what extent are the simulation results credible?
5
Models of
legal
requirements
0%
2%
4%
6%
8%
10%
12%
0%
5%
10%
15%
20%
25%
0-10.000
10.000-20.000
20.000-30.000
30.000-40.000
40.000-50.000
50.000-60.000
60.000-70.000
70.000-80.000
80.000-90.000
90.000-100.000
100.000-110.000
110.000-120.000
120.000-130.000
130.000-140.000
140.000-150.000
150.000-160.000
160.000-170.000
170.000-180.000
180.000-190.000
190.000-200.000
200.000-250.000
250.000-350.000
350.000-500.000
500.000-700.000
700.000-1.000.000
>1.000.000
Gross annual income (in Euros)
Households
Percentage of households
Percentage of contribution before change
Percentage of contribution after change
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
50%
0
1-3.000
3.001-6.000
6.001-9.000
9.001-12.000
12.001-15.000
15.001-18.000
18.001-21.000
21.001-24.000
24.001-27.000
27.001-30.000
>30.000
Annual income taxes due (in Euros)
Households
Before change
After change
2. Change impact
3. Model validation

State of the art
6
State of the art

Legal policy simulation in practice
7
Some existing simulation tools focused on taxation and social security:

•  ASSERT: Assessing the effects of reforms in taxation
•  SYSIFF: A micro-simulation model for the French tax system
•  EUROMOD: European beneﬁt-tax model and social integration

Dee

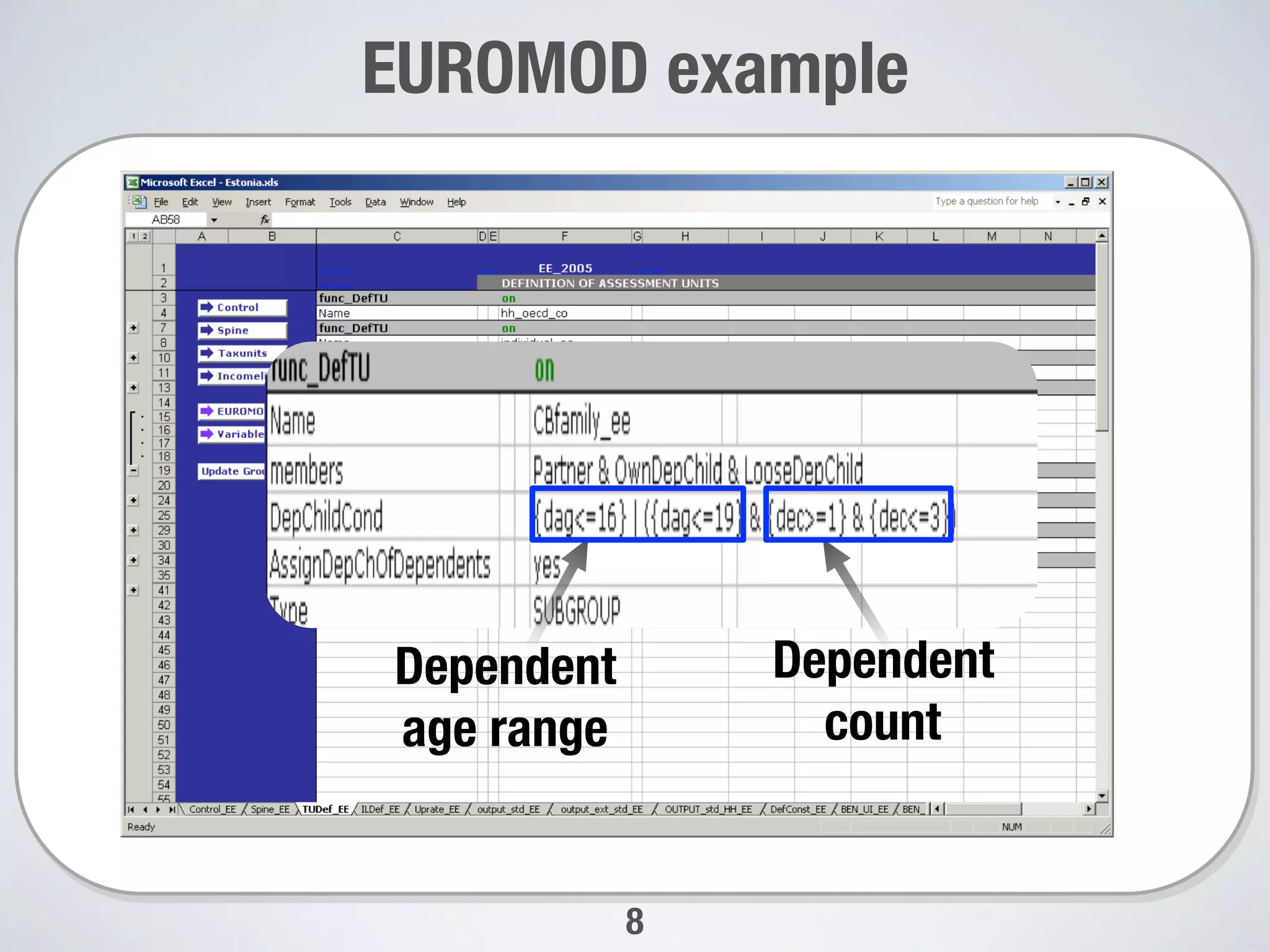

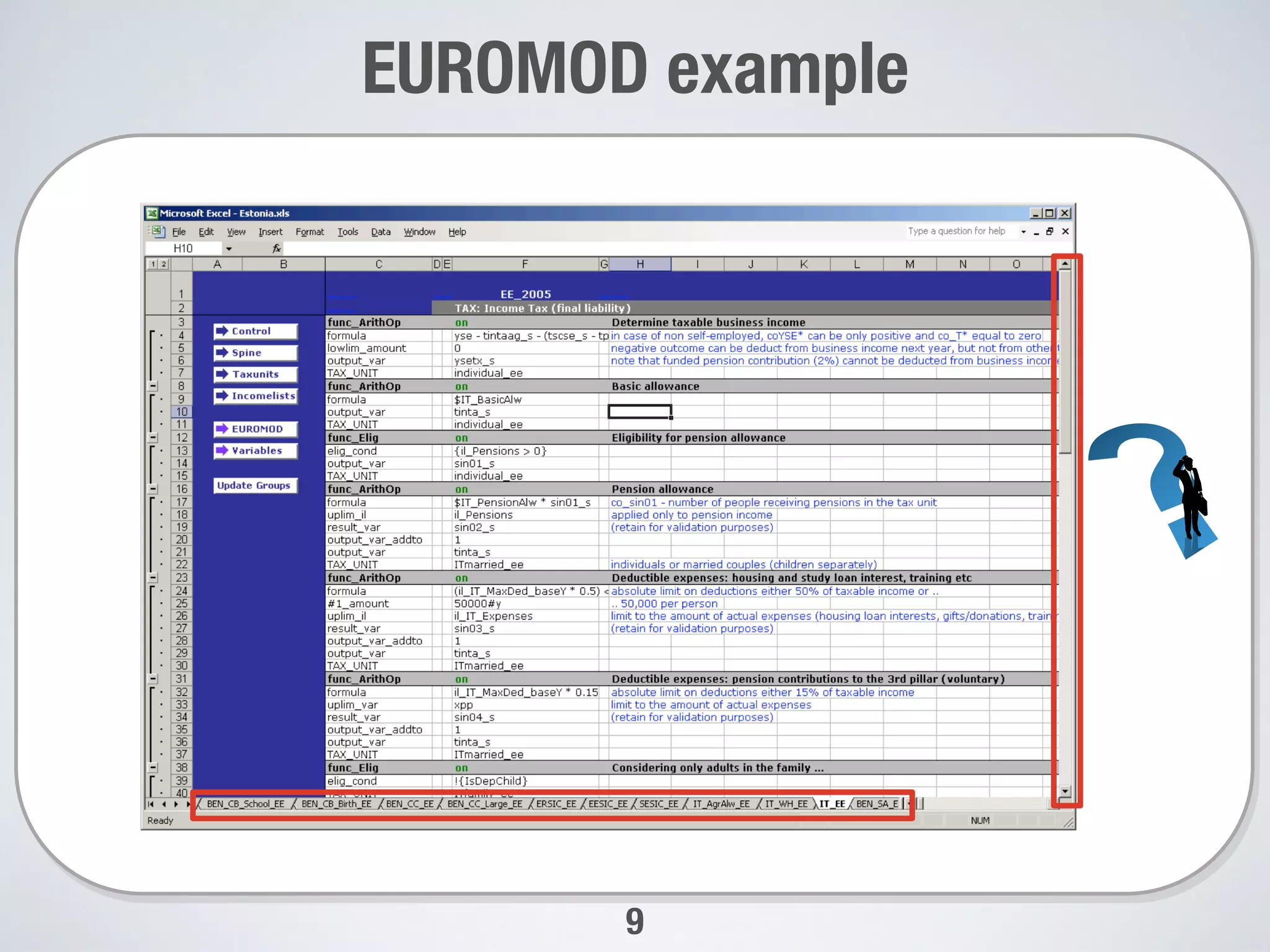

EUROMOD example
8
Dependent
age range
Dependent
count

Limitations of current simulation frameworks
10
•  Legal policies are hard-to-validate
•  Single-purpose models
•  Unusable when simulation data is not available

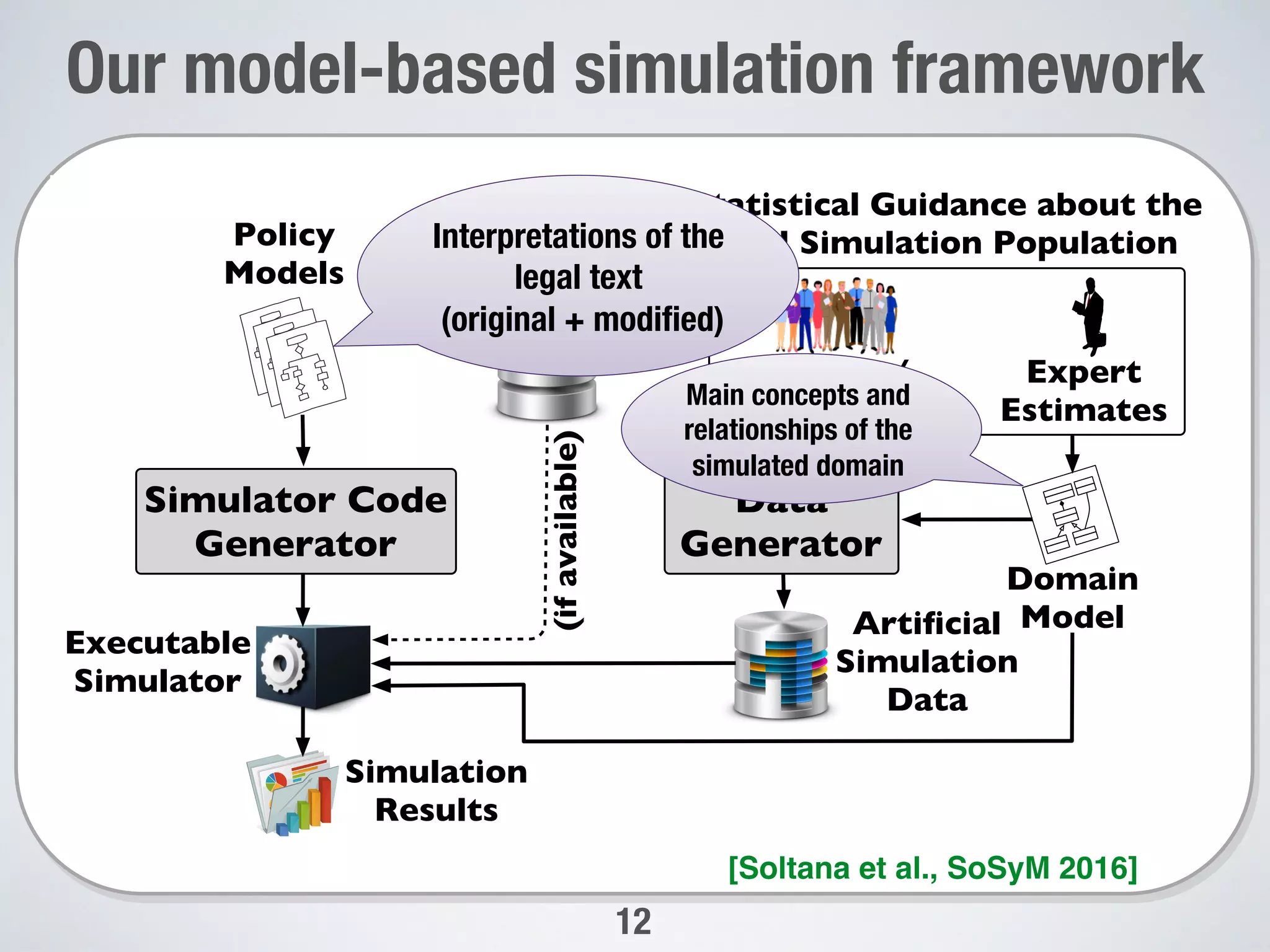

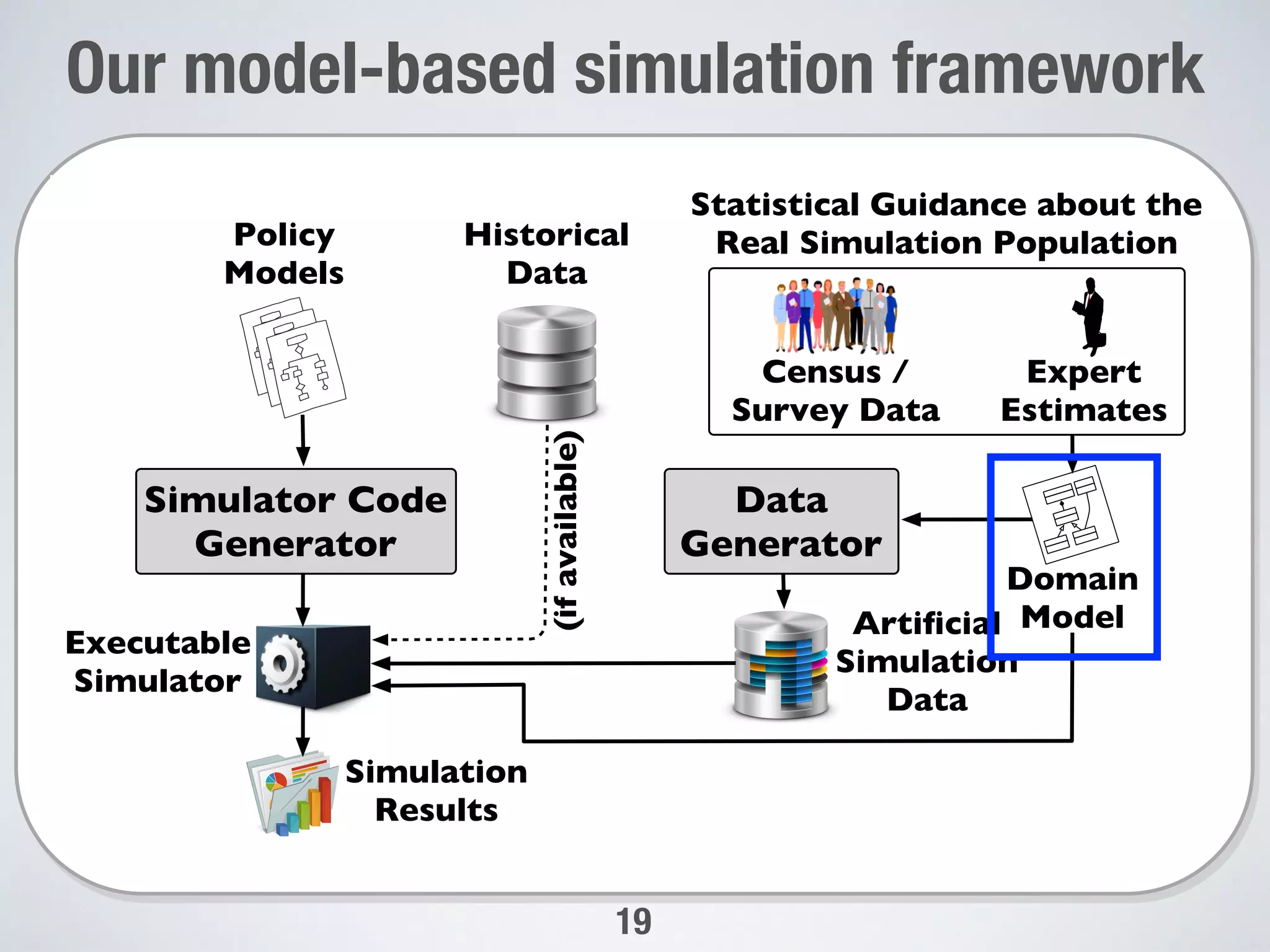

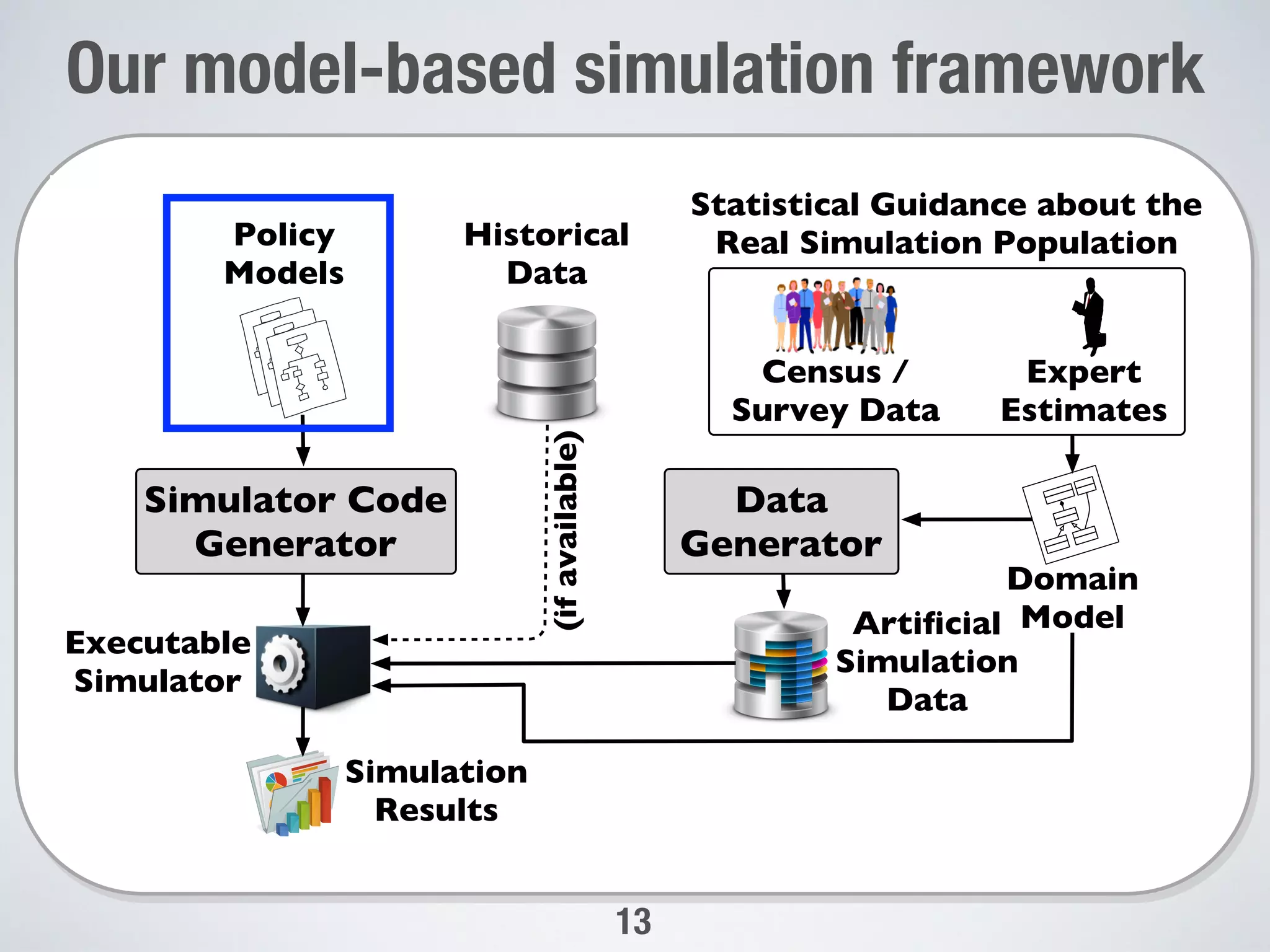

Our model-based simulation framework
12
Policy
Models
Executable
Simulator
Simulator Code
Generator
Historical
Data
Statistical Guidance about the
Real Simulation Population
Census /
Survey Data
Expert
Estimates
Data
Generator
Artiﬁcial
Simulation
Data
(ifavailable)
Simulation
Results
Domain
Model
Interpretations of the
legal text
(original + modiﬁed)
Main concepts and
relationships of the
simulated domain
[Soltana et al., SoSyM 2016]

13
Policy
Models
Executable
Simulator
Simulator Code
Generator
Historical
Data
Census /
Survey Data
Expert
Estimates
Data
Generator
Artiﬁcial
Simulation
Data
(ifavailable)
Simulation
Results
Domain
Model

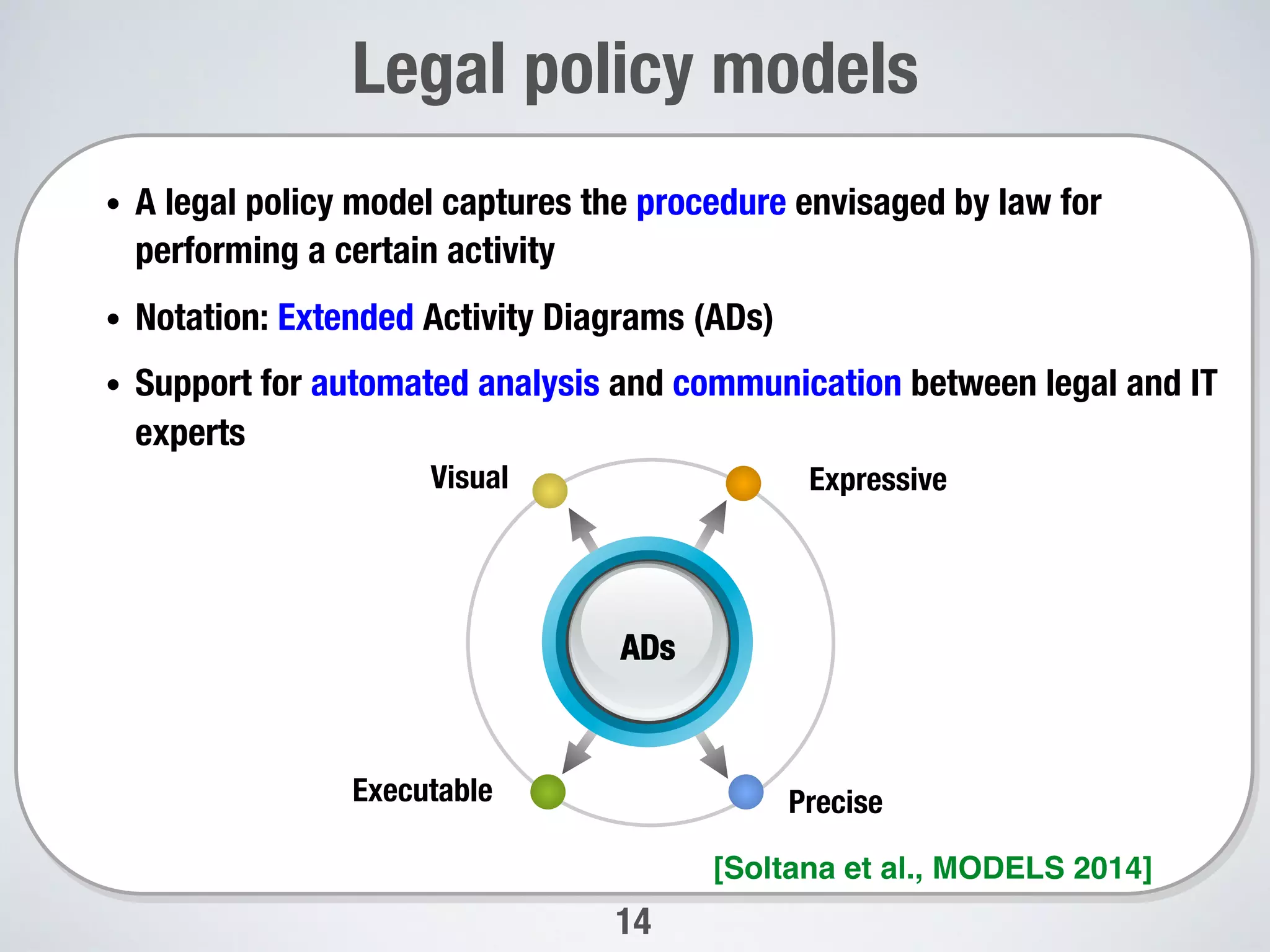

•  A legal policy model captures the procedure envisaged by law for
performing a certain activity
•  Notation: Extended Activity Diagrams (ADs)
•  Support for automated analysis and communication between legal and IT
experts
Expressive
Visual
Precise
Executable
ADs
Legal policy models
[Soltana et al., MODELS 2014]
14

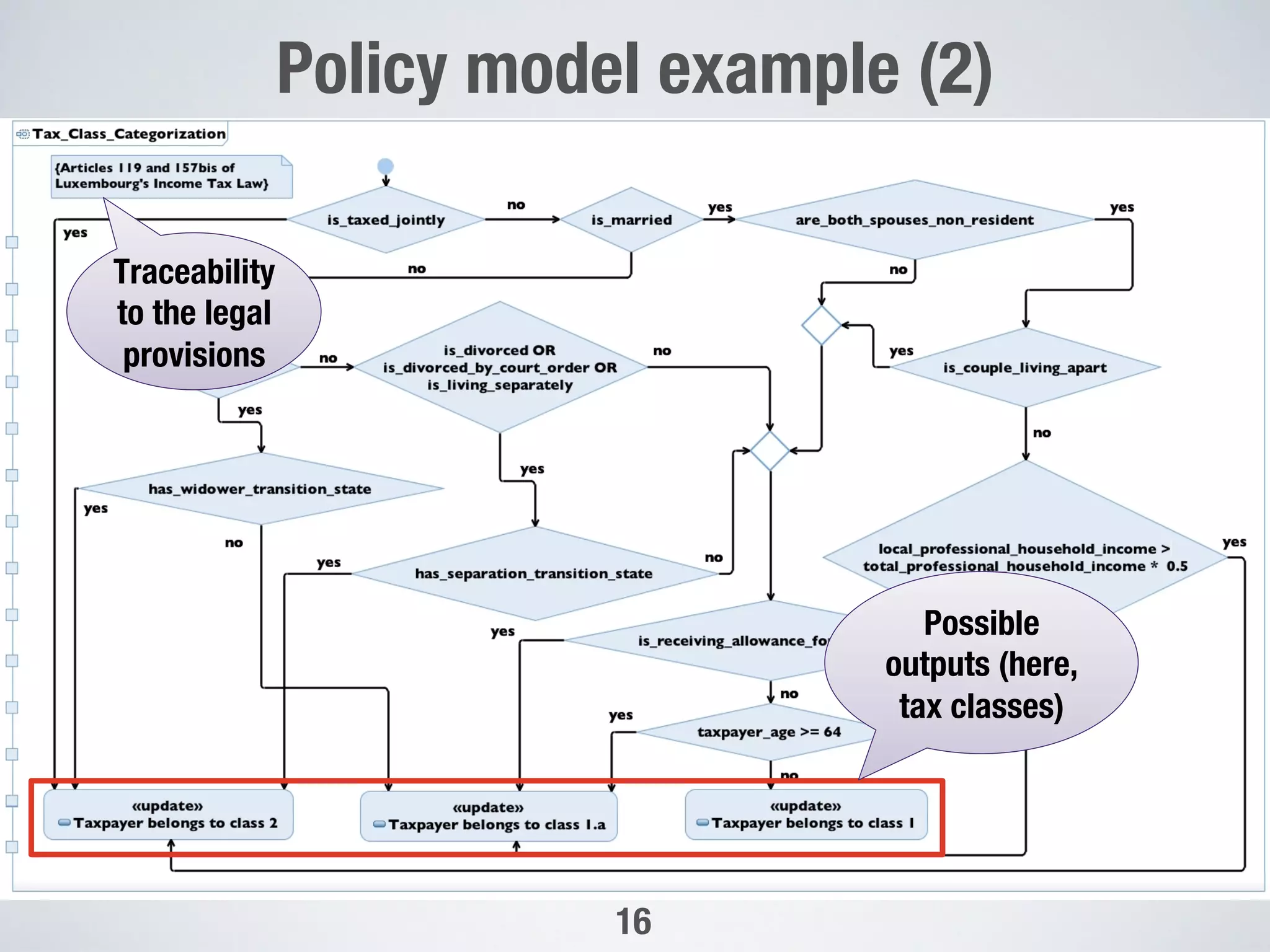

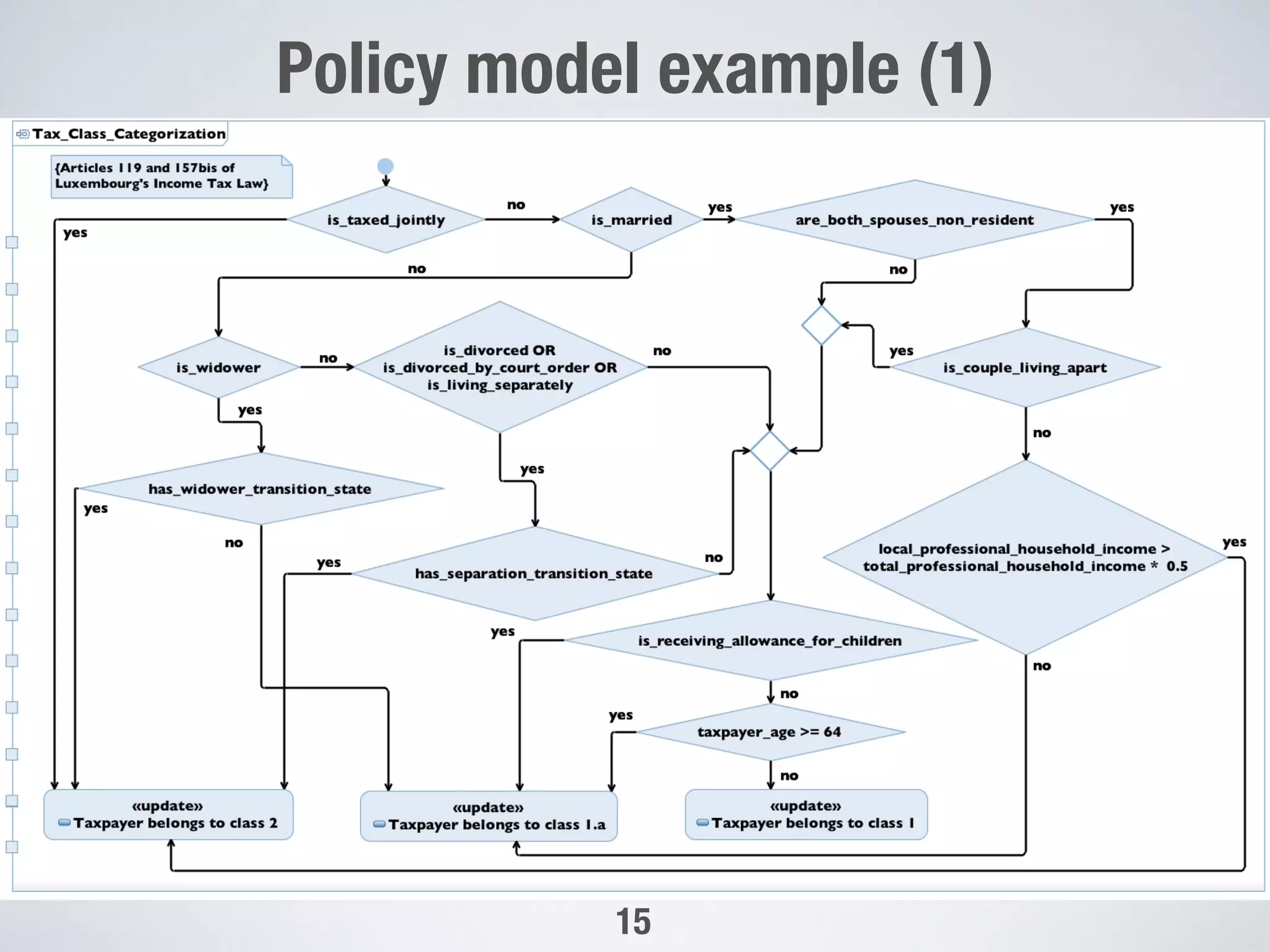

Policy model example (2)
16
Possible
outputs (here,
tax classes)
Traceability
to the legal
provisions

17

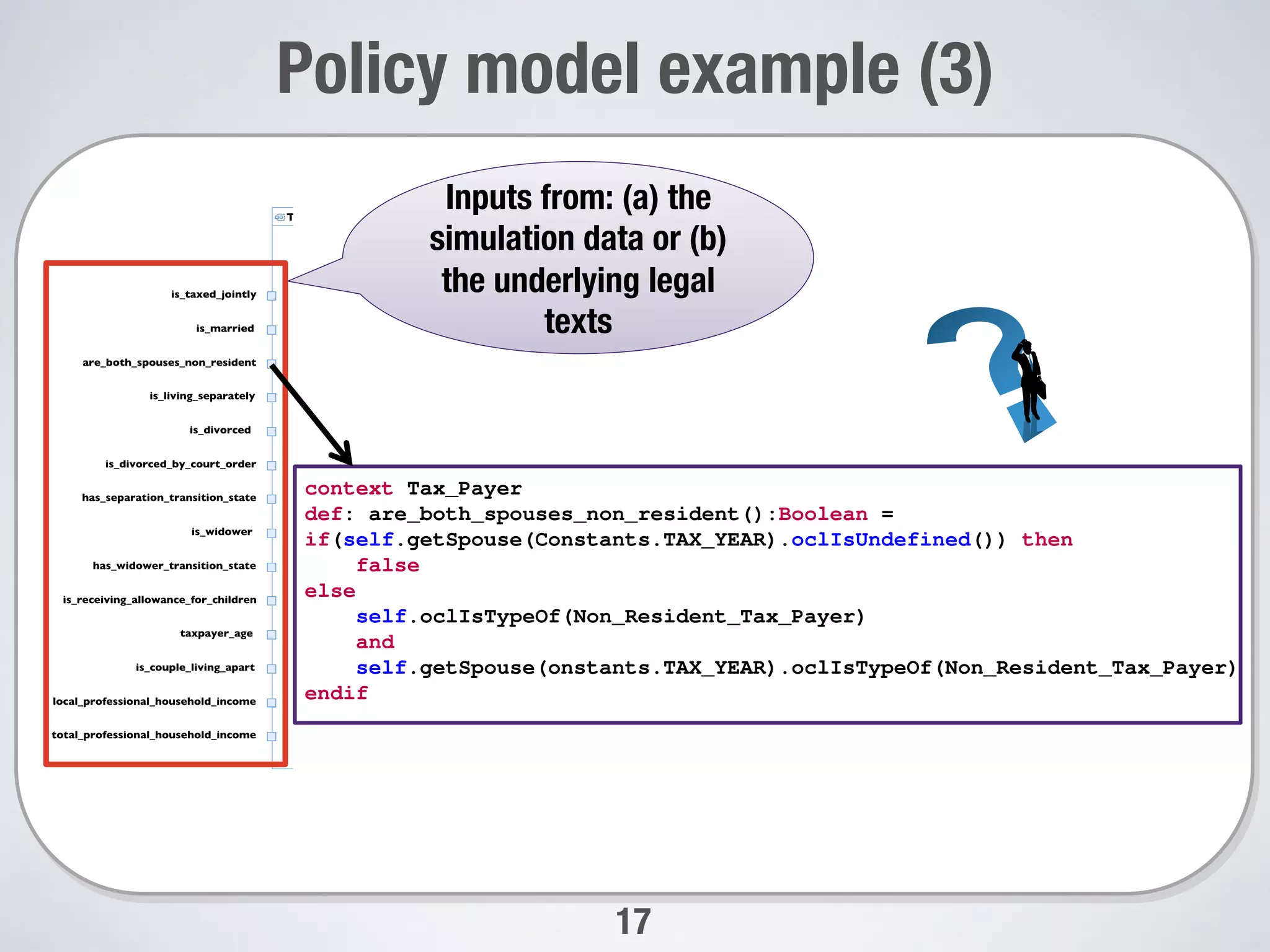

Inputs from: (a) the
simulation data or (b)
the underlying legal
texts
context Tax_Payer
def: are_both_spouses_non_resident():Boolean =
if(self.getSpouse(Constants.TAX_YEAR).oclIsUndefined()) then
false
else
self.oclIsTypeOf(Non_Resident_Tax_Payer)
and
self.getSpouse(onstants.TAX_YEAR).oclIsTypeOf(Non_Resident_Tax_Payer)
endif

18

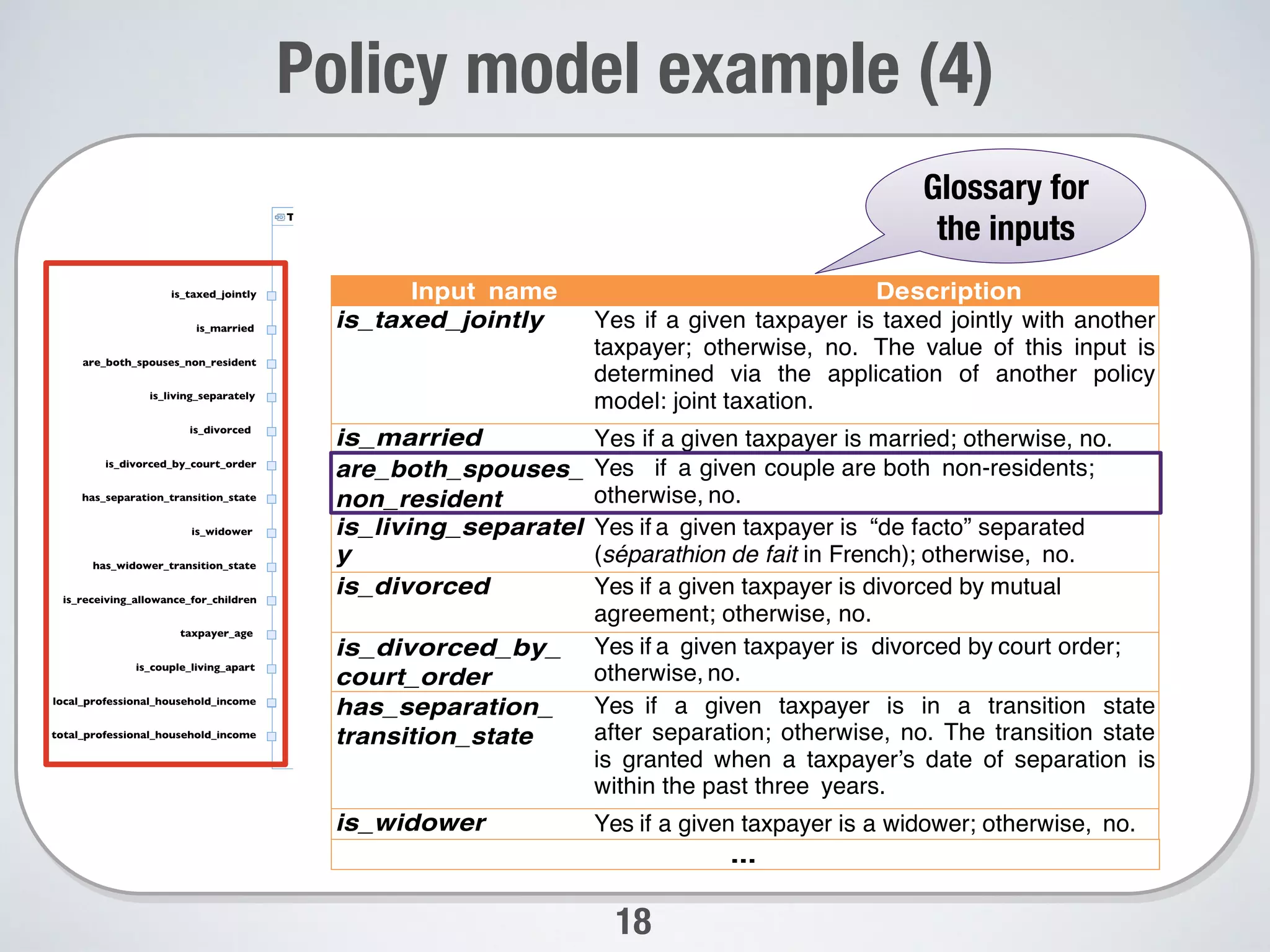

Input name Description
is_taxed_jointly Yes if a given taxpayer is taxed jointly with another
taxpayer; otherwise, no. The value of this input is
determined via the application of another policy
model: joint taxation.
is_married Yes if a given taxpayer is married; otherwise, no.
are_both_spouses_
non_resident
Yes if a given couple are both non-residents;
otherwise, no.
is_living_separatel
y
Yes if a given taxpayer is “de facto” separated
(séparathion de fait in French); otherwise, no.
is_divorced Yes if a given taxpayer is divorced by mutual
agreement; otherwise, no.
is_divorced_by_
court_order
Yes if a given taxpayer is divorced by court order;
otherwise, no.
has_separation_
transition_state
Yes if a given taxpayer is in a transition state
after separation; otherwise, no. The transition state
is granted when a taxpayer’s date of separation is
within the past three years.
is_widower Yes if a given taxpayer is a widower; otherwise, no.
...
.. .
Glossary for
the inputs

19
Policy
Models
Executable
Simulator
Simulator Code
Generator
Historical
Data
Census /
Survey Data
Expert
Estimates
Data
Generator
Artiﬁcial
Simulation
Data
(ifavailable)
Simulation
Results
Domain
Model

20

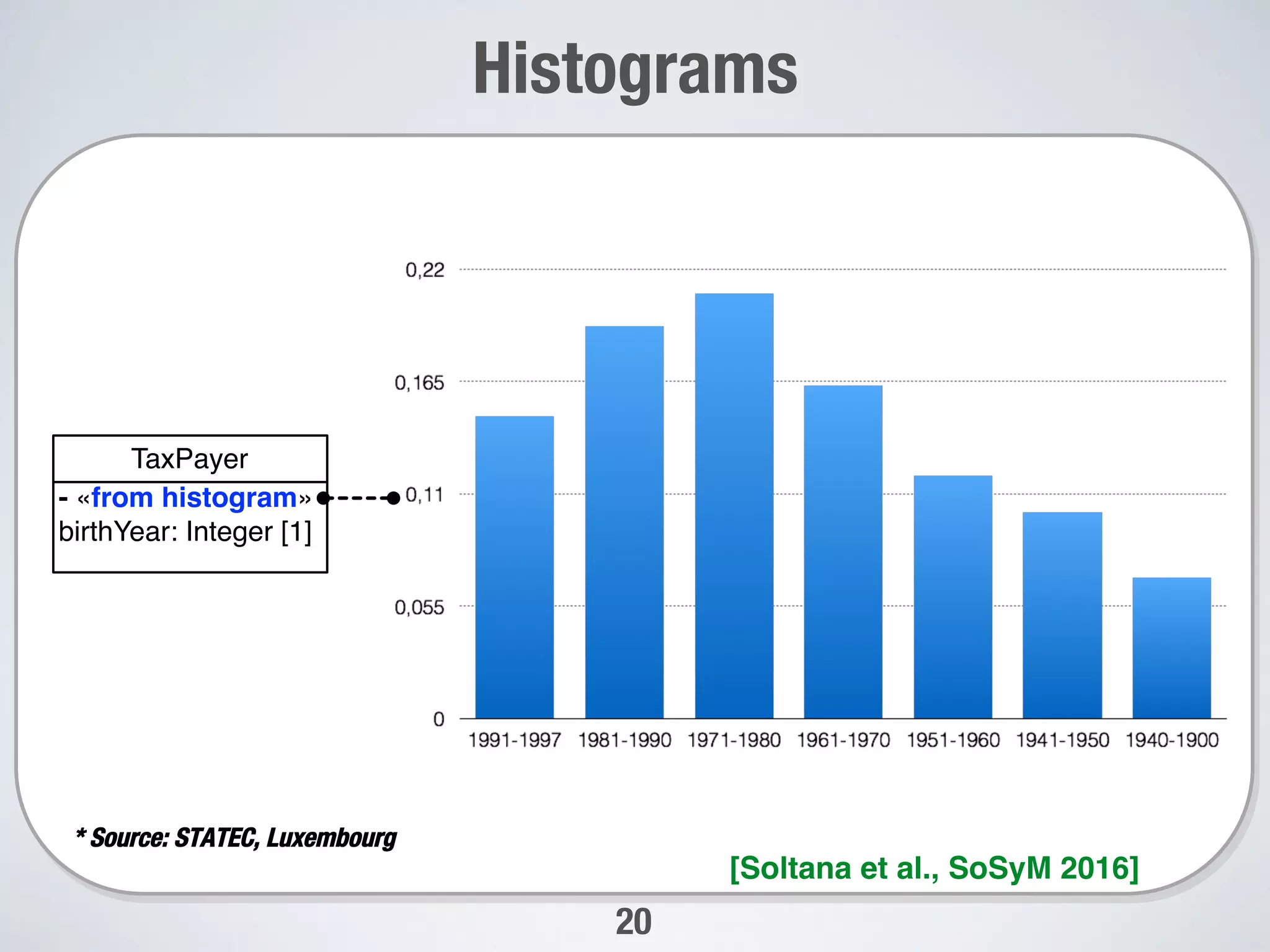

Histograms
* Source: STATEC, Luxembourg

- «from histogram»
birthYear: Integer [1]
TaxPayer

21
* Source: STATEC, Luxembourg

1 taxpayer incomes 1..*
Income
TaxPayer (abstract)
«type dependency»
{relativeTo: Income;
condition: self.getAge() >= 60;
source: «from barchart»}

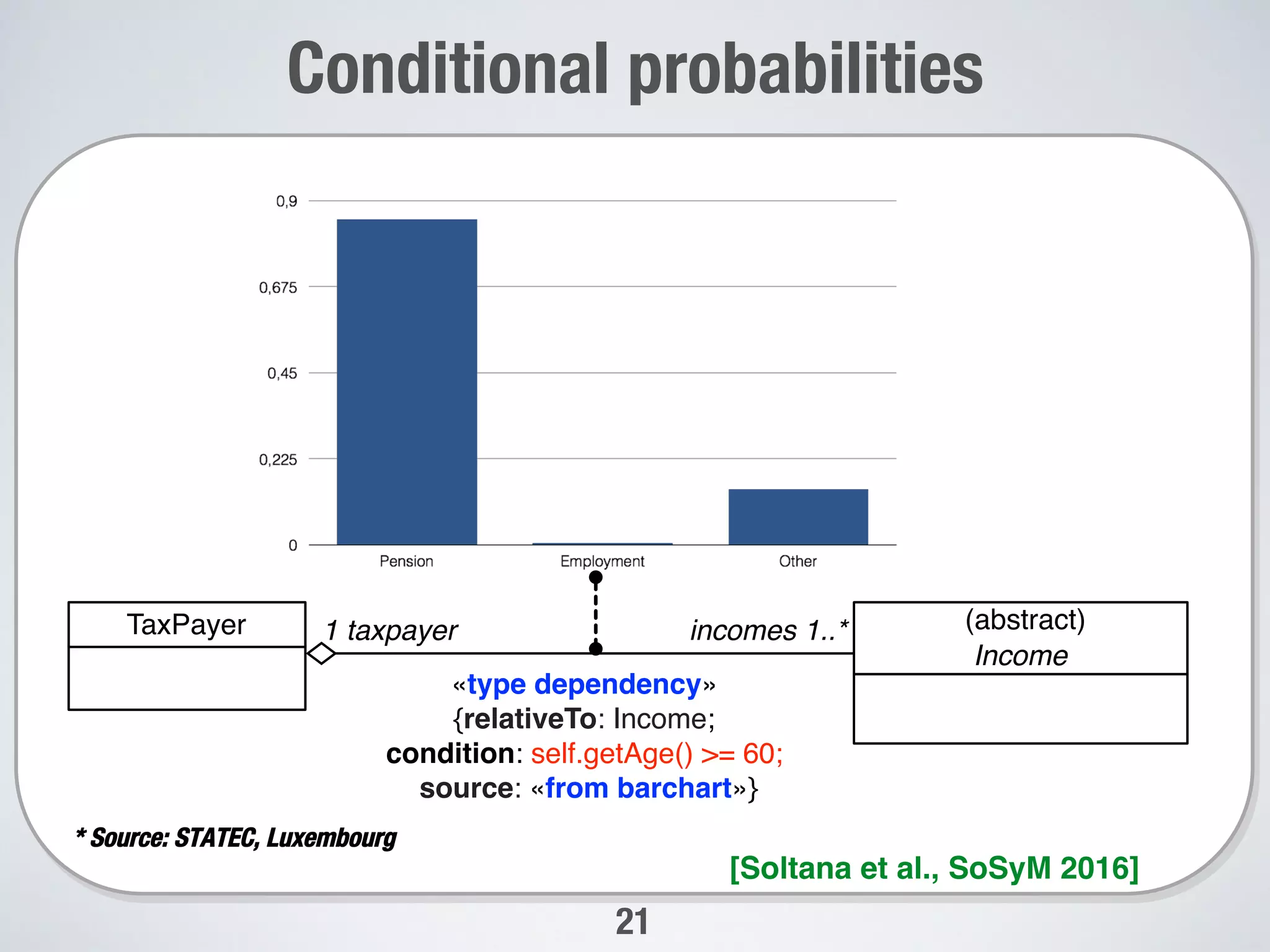

Conditional probabilities

23
Overview

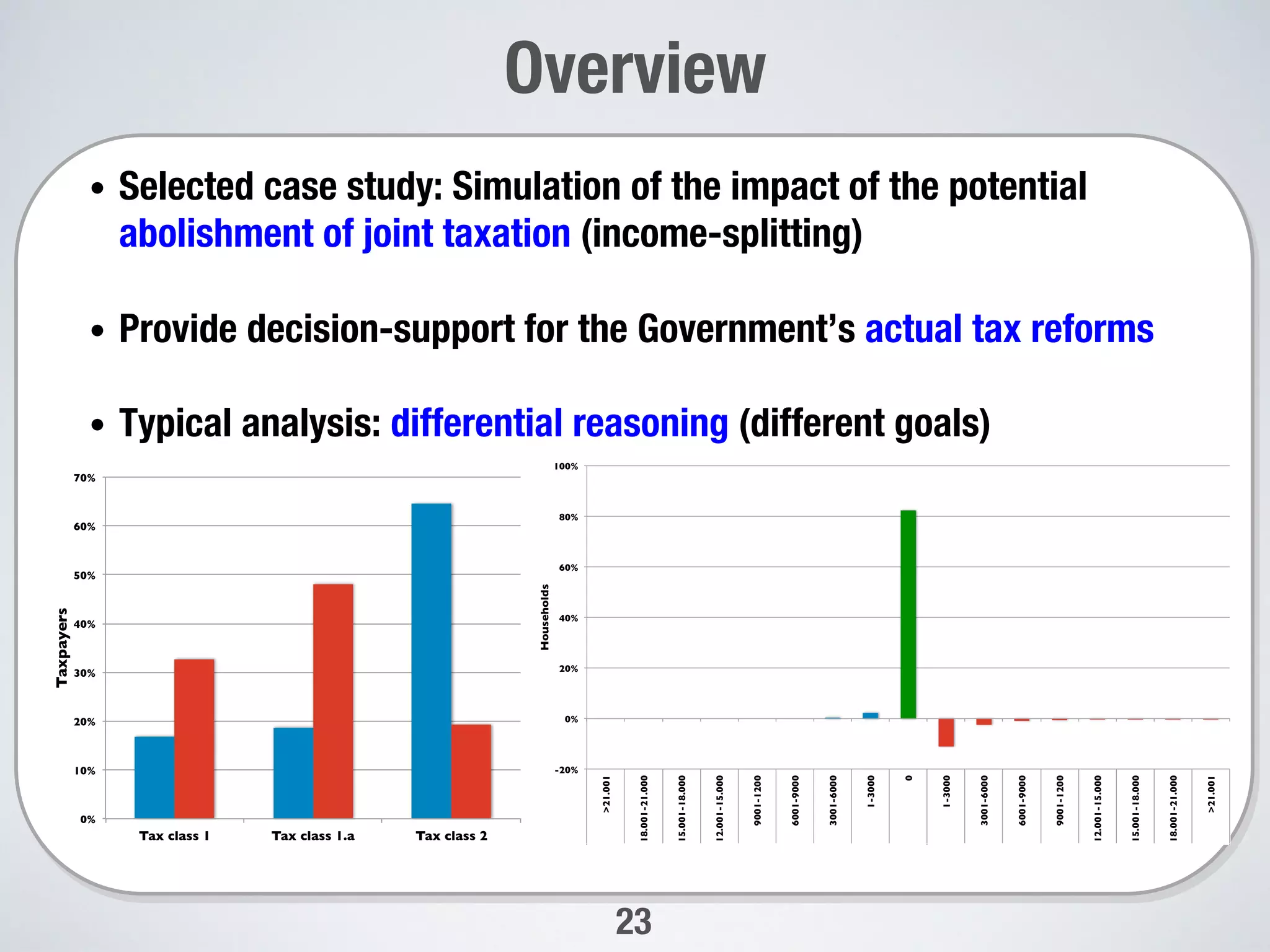

•  Selected case study: Simulation of the impact of the potential
abolishment of joint taxation (income-splitting)
•  Provide decision-support for the Government’s actual tax reforms
•  Typical analysis: differential reasoning (different goals)

0%
10%
20%
30%
40%
50%
60%
70%
Tax class 1 Tax class 1.a Tax class 2
Taxpayers
Before change
After change
-20%!
0%!
20%!
40%!
60%!
80%!
100%!
>21.001!
18.001-21.000!
15.001-18.000!
12.001-15.000!
9001-1200!
6001-9000!
3001-6000!
1-3000!
0!
1-3000!
3001-6000!
6001-9000!
9001-1200!
12.001-15.000!
15.001-18.000!
18.001-21.000!
>21.001!
Less taxes to pay! More taxes to pay!
Annual decrease / increase in taxes due (in Euros)!
Households!

24
Goals of the case study
•  RQ1: Can we bring together and model all the information
a.  Is the required modeling effort practical?
b.  Is it possible to provide the input (statistical information)
necessary for the generation of simulation data?

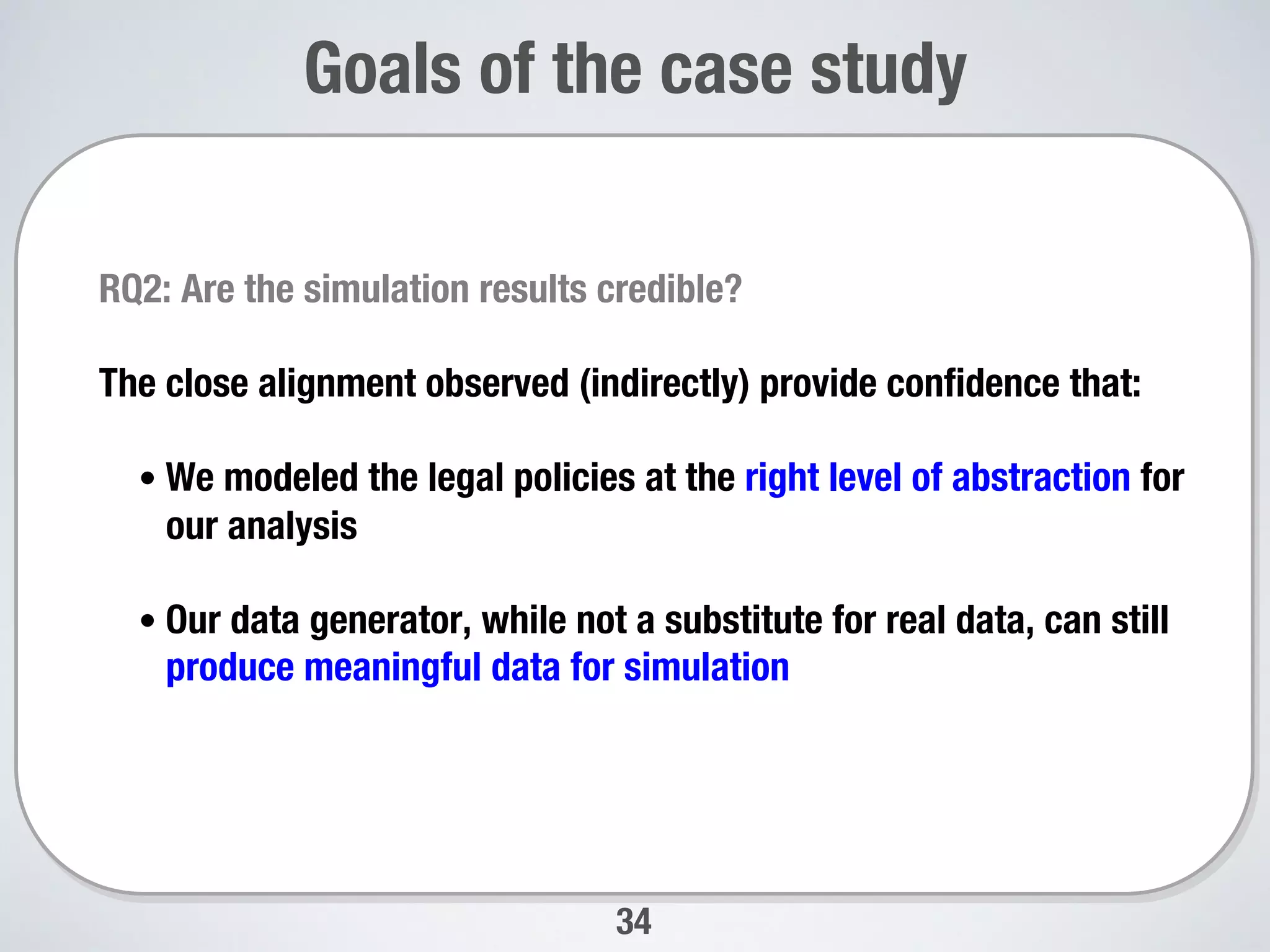

•  RQ2: Are the simulation results credible?

25

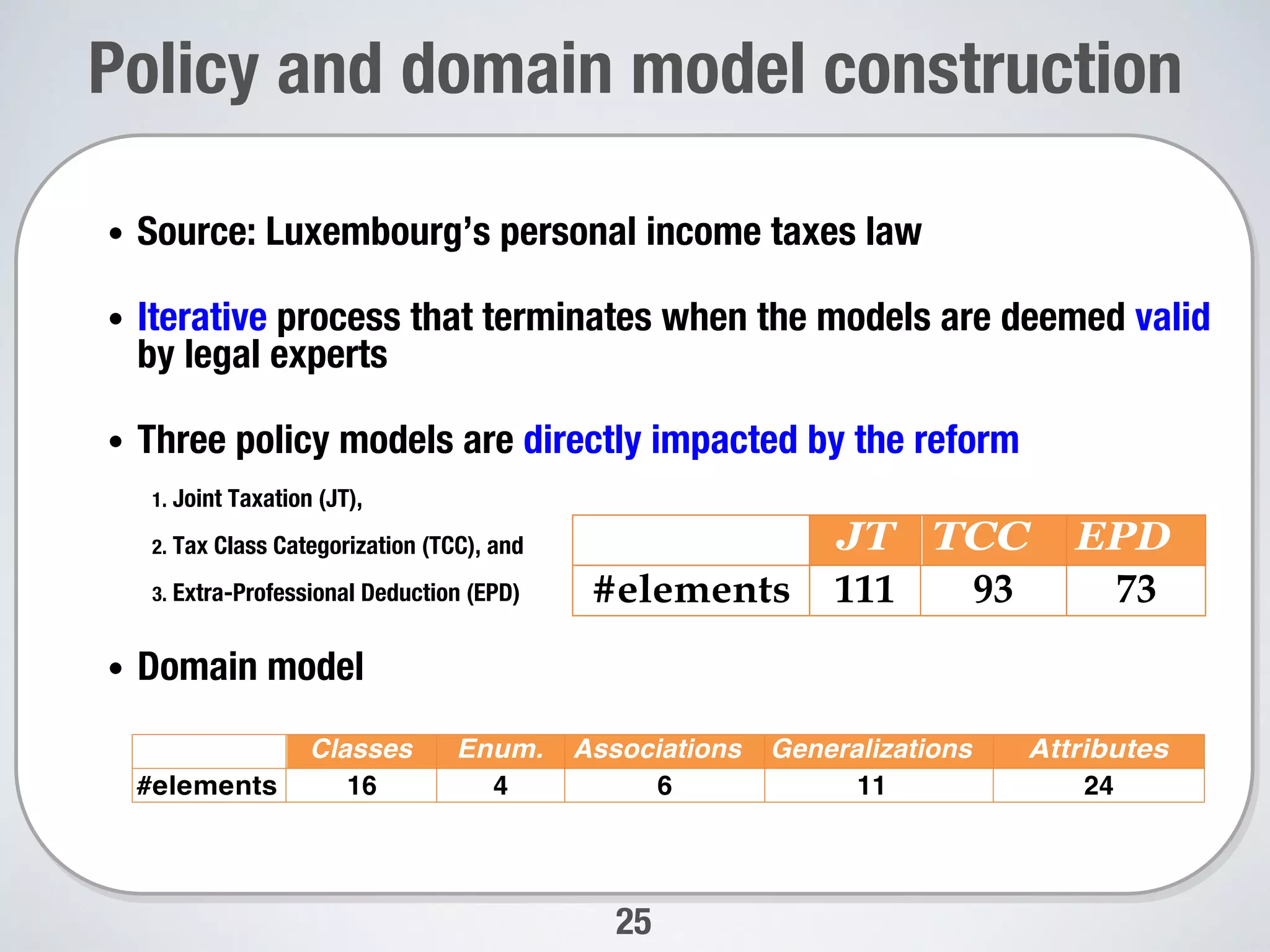

Policy and domain model construction

•  Source: Luxembourg’s personal income taxes law
•  Iterative process that terminates when the models are deemed valid
by legal experts
•  Three policy models are directly impacted by the reform
1.  Joint Taxation (JT),
2.  Tax Class Categorization (TCC), and
3.  Extra-Professional Deduction (EPD)
•  Domain model
Classes Enum. Associations Generalizations Attributes
#elements 16 4 6 11 24
JT TCC EPD
#elements 111 93 73

26

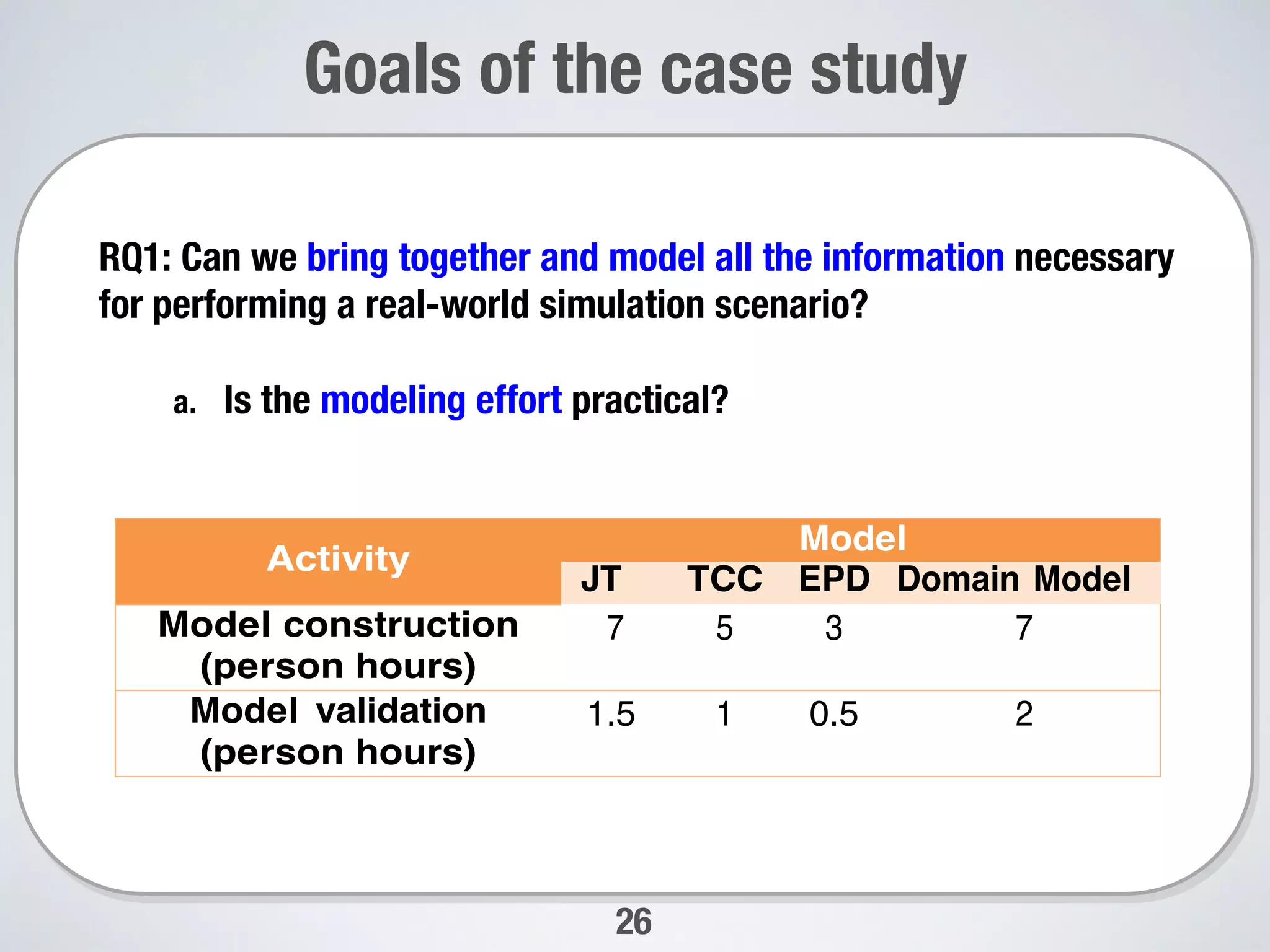

RQ1: Can we bring together and model all the information necessary
for performing a real-world simulation scenario?
a.  Is the modeling effort practical?
Activity
Model
JT TCC EPD Domain Model
Model construction
(person hours)
7 5 3 7
Model validation
(person hours)
1.5 1 0.5 2

27

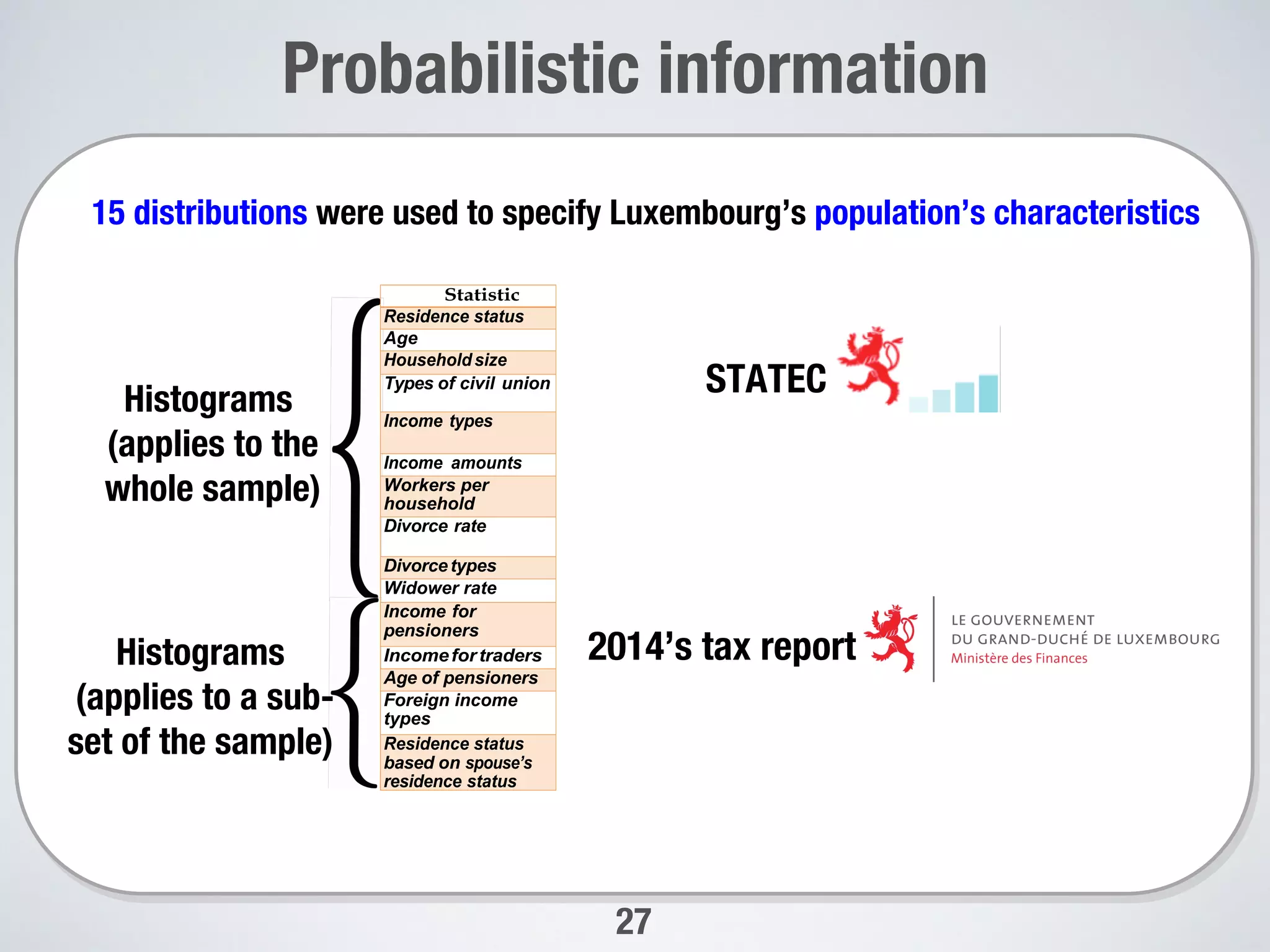

Probabilistic information
15 distributions were used to specify Luxembourg’s population’s characteristics
STATEC
Histograms
(applies to the
whole sample)
Histograms
(applies to a sub-
set of the sample)
2014’s tax report
Statistic
Residence status
Age
Household size
Types of civil union
Income types
Income amounts
Workers per
household
Divorce rate
Divorcetypes
Widower rate
Income for
pensioners
Incomefortraders
Age of pensioners
Foreign income
types
Residence status
based on spouse’s
residence status

28

RQ1: Can we bring together and model all the information necessary
for performing a real-world simulation scenario?

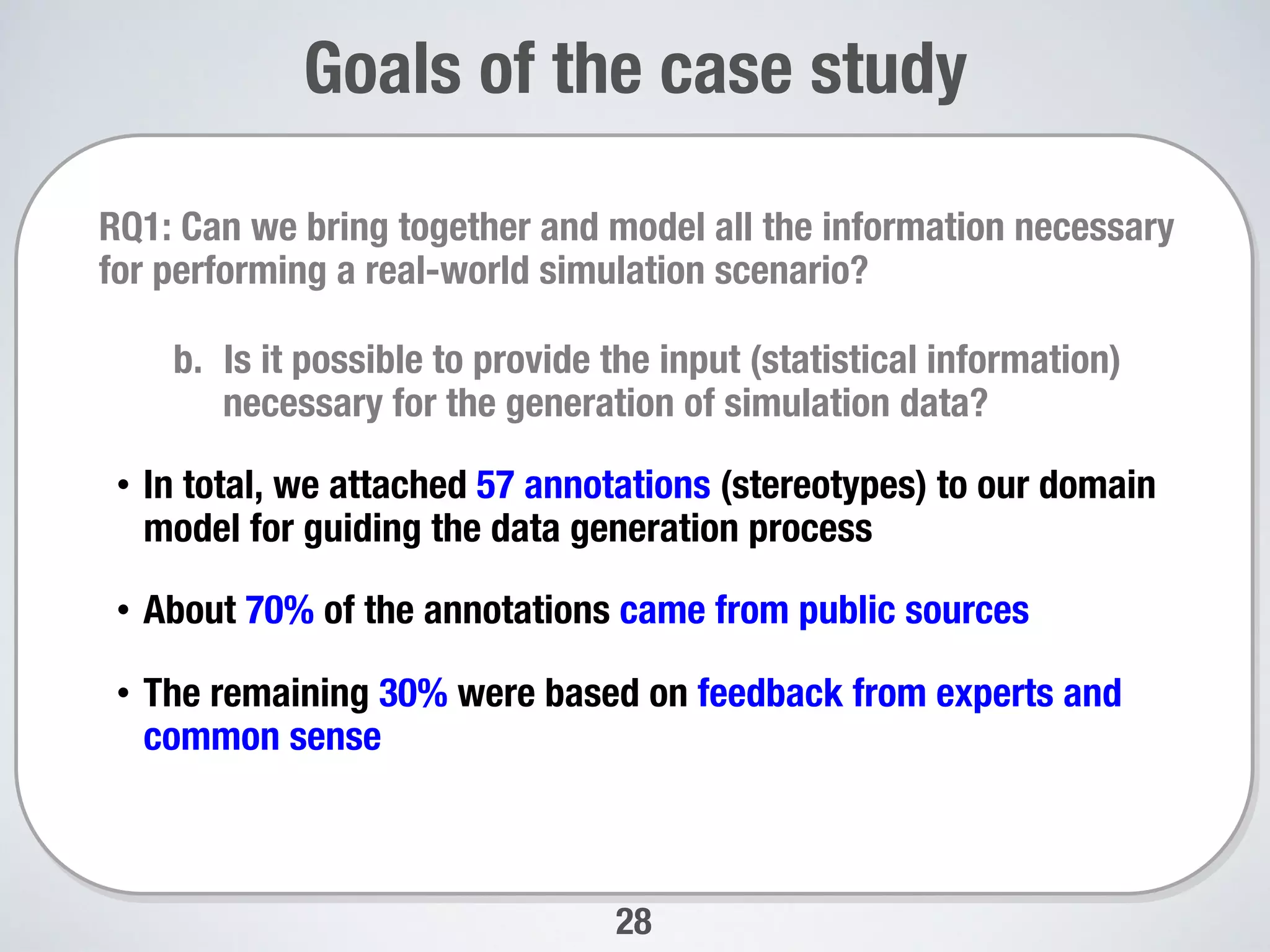

•  In total, we attached 57 annotations (stereotypes) to our domain
model for guiding the data generation process
•  About 70% of the annotations came from public sources
•  The remaining 30% were based on feedback from experts and
common sense

29
•  RQ1: Can we bring together and model all the information
a.  Is the required modeling effort practical?

30

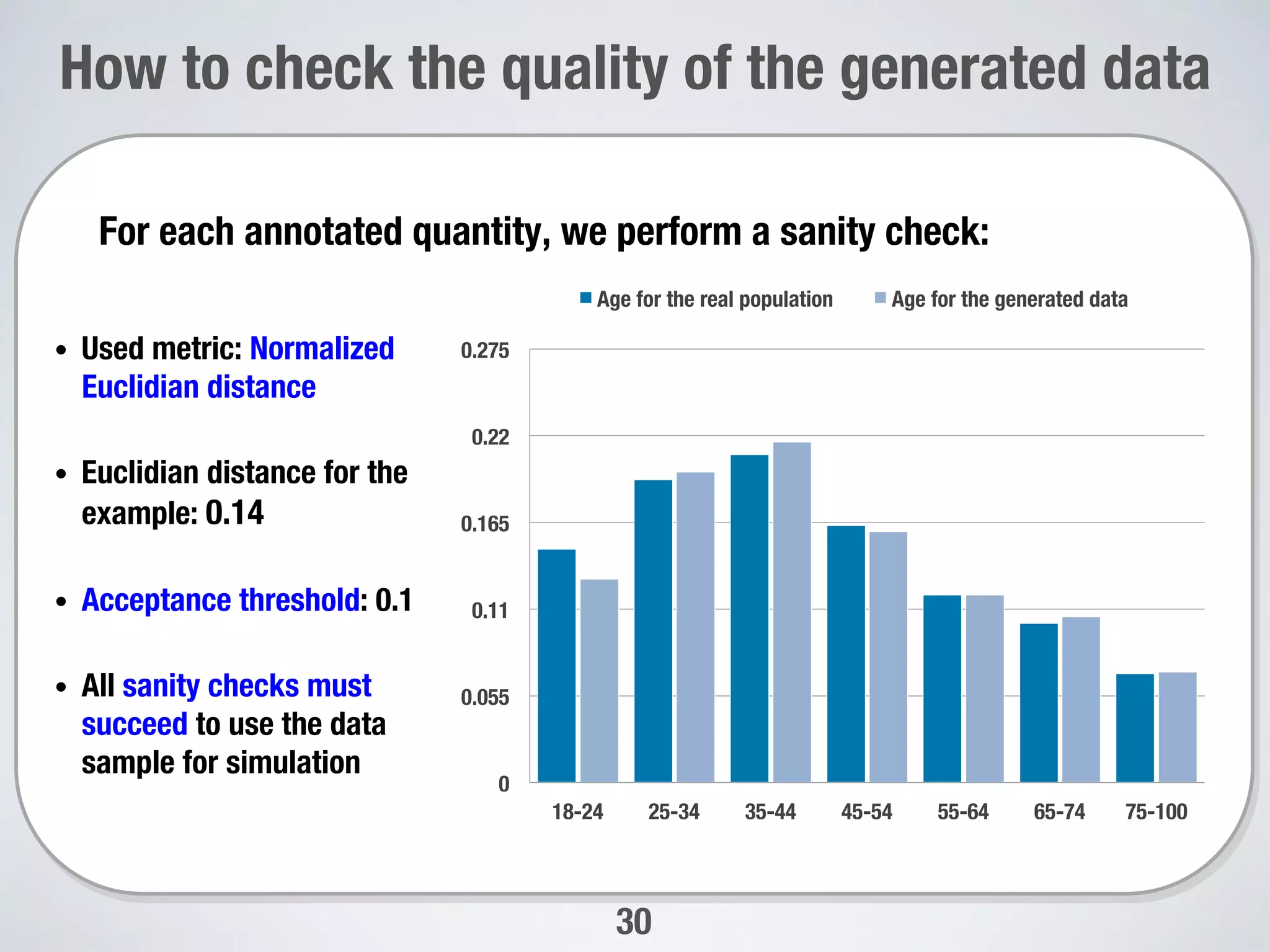

How to check the quality of the generated data

For each annotated quantity, we perform a sanity check:
•  Used metric: Normalized
Euclidian distance
•  Euclidian distance for the
example: 0.14
•  Acceptance threshold: 0.1
•  All sanity checks must
succeed to use the data
sample for simulation
0
0.055
0.11
0.165
0.22
0.275
18-24
25-34
35-44
45-54
55-64
65-74
75-100
Age for the real population
Age for the generated data

31

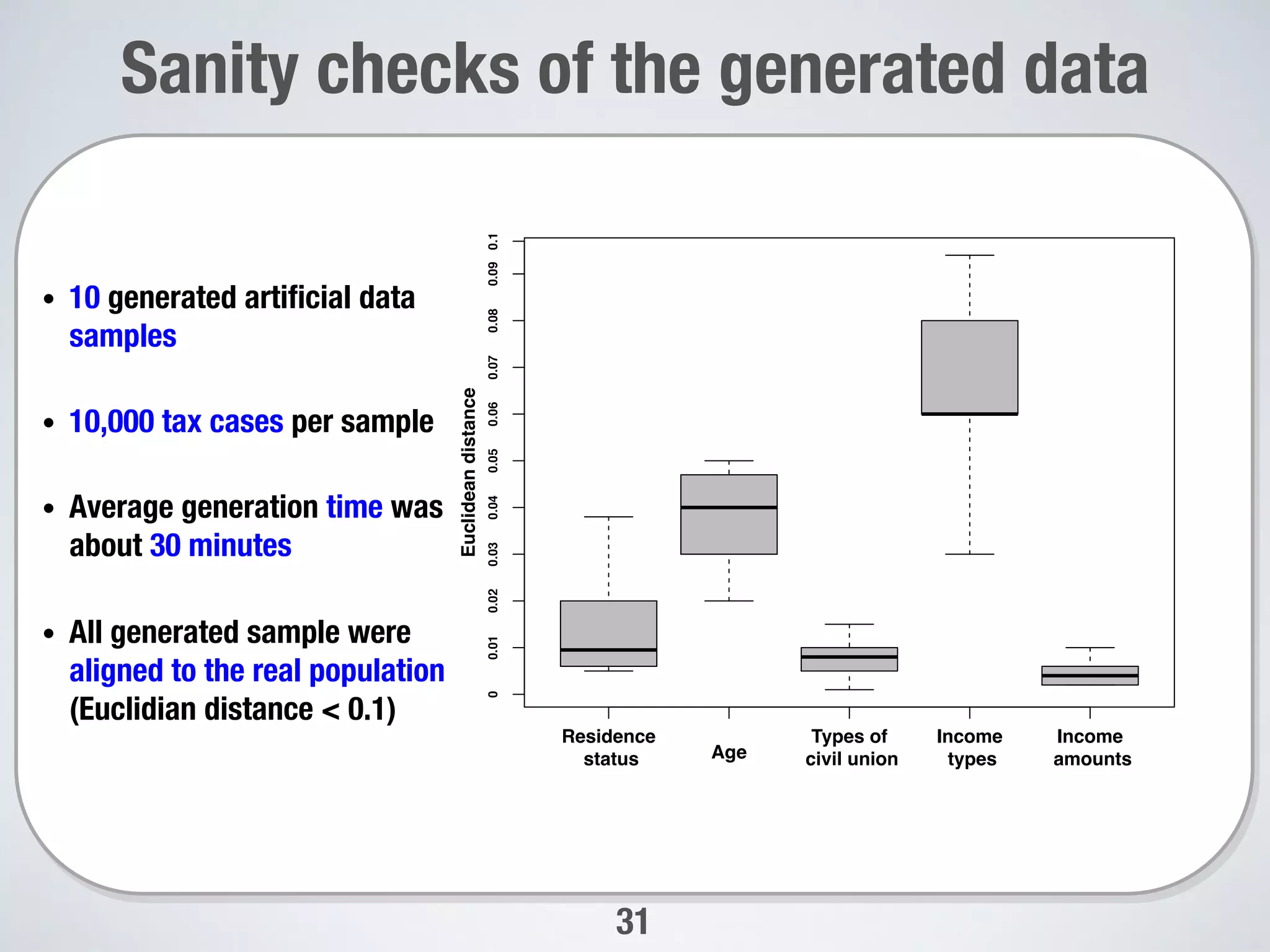

Sanity checks of the generated data
00.010.020.030.040.050.060.070.080.090.1
Residence
status Age
Types of
civil union
Income
types
Income
amounts
Euclideandistance

•  10 generated artiﬁcial data
samples
•  10,000 tax cases per sample
•  Average generation time was
about 30 minutes
•  All generated sample were
aligned to the real population
(Euclidian distance < 0.1)

32

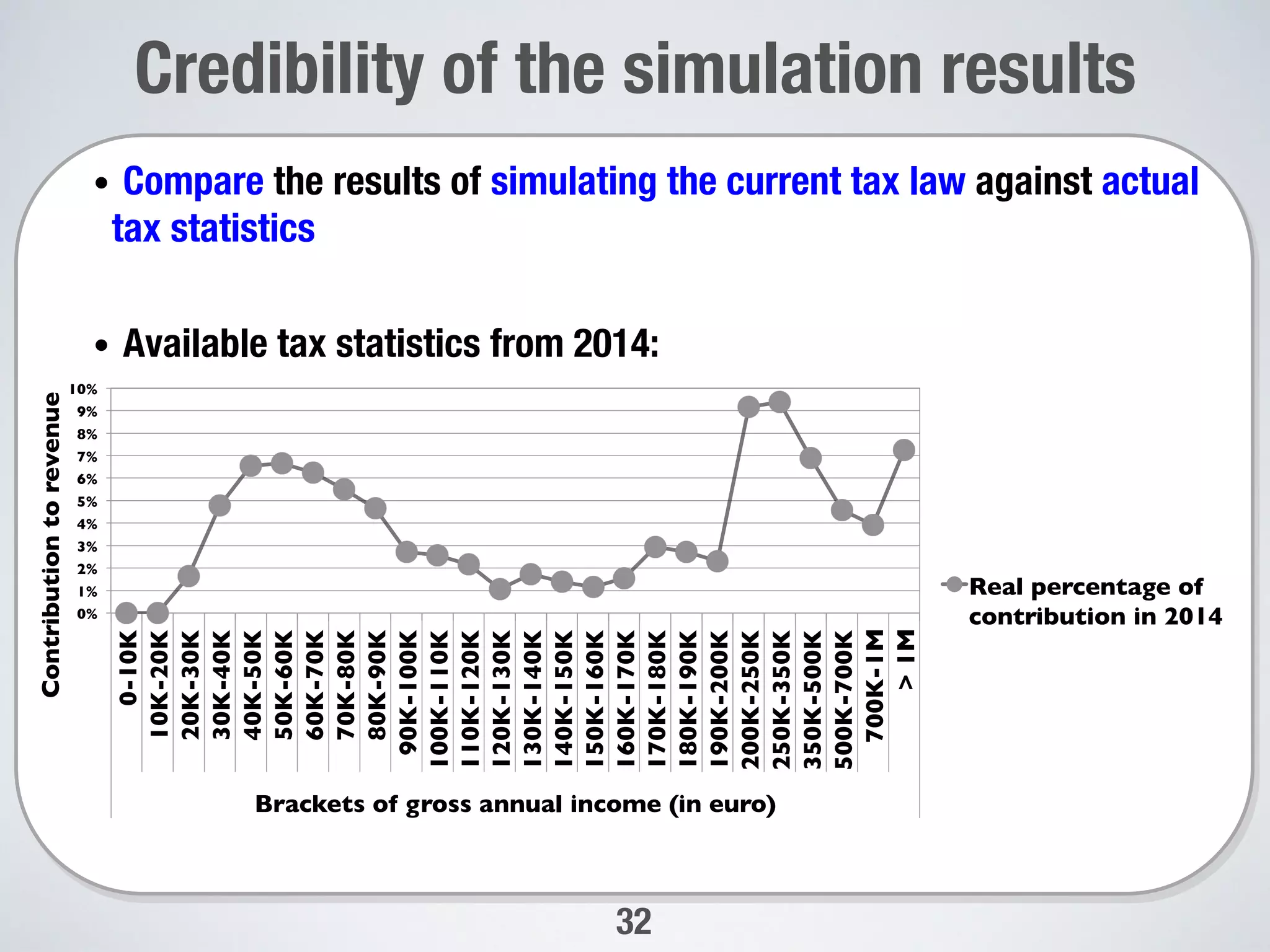

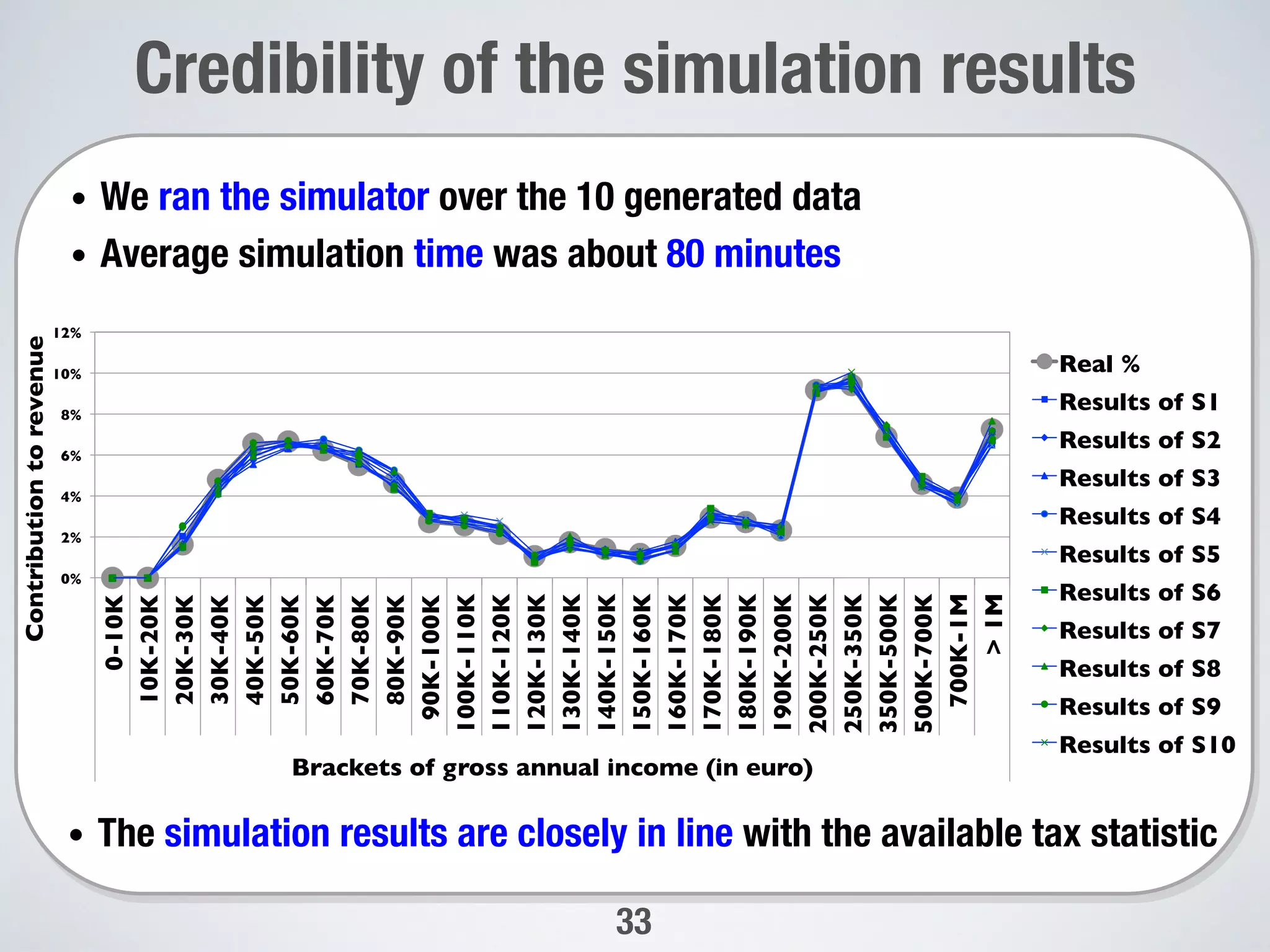

Credibility of the simulation results

0%
1%
2%
3%
4%
5%
6%
7%
8%
9%
10%
0-10K
10K-20K
20K-30K
30K-40K
40K-50K
50K-60K
60K-70K
70K-80K
80K-90K
90K-100K
100K-110K
110K-120K
120K-130K
130K-140K
140K-150K
150K-160K
160K-170K
170K-180K
180K-190K
190K-200K
200K-250K
250K-350K
350K-500K
500K-700K
700K-1M
>1M
Brackets of gross annual income (in euro)
Real percentage of
contribution in 2014
•  Compare the results of simulating the current tax law against actual
tax statistics
•  Available tax statistics from 2014:

33
Credibility of the simulation results

•  We ran the simulator over the 10 generated data
•  Average simulation time was about 80 minutes
•  The simulation results are closely in line with the available tax statistic
0%
2%
4%
6%
8%
10%
12%
0-10K
10K-20K
20K-30K
30K-40K
40K-50K
50K-60K
60K-70K
70K-80K
80K-90K
90K-100K
100K-110K
110K-120K
120K-130K
130K-140K
140K-150K
150K-160K
160K-170K
170K-180K
180K-190K
190K-200K
200K-250K
250K-350K
350K-500K
500K-700K
700K-1M
>1M
Brackets of gross annual income (in euro)
Real %
Results of S1
Results of S2
Results of S3
Results of S4
Results of S5
Results of S6
Results of S7
Results of S8
Results of S9
Results of S10

34
RQ2: Are the simulation results credible?
The close alignment observed (indirectly) provide conﬁdence that:
• We modeled the legal policies at the right level of abstraction for
our analysis
• Our data generator, while not a substitute for real data, can still
produce meaningful data for simulation

Lessons learned
35
Lessons learned

36

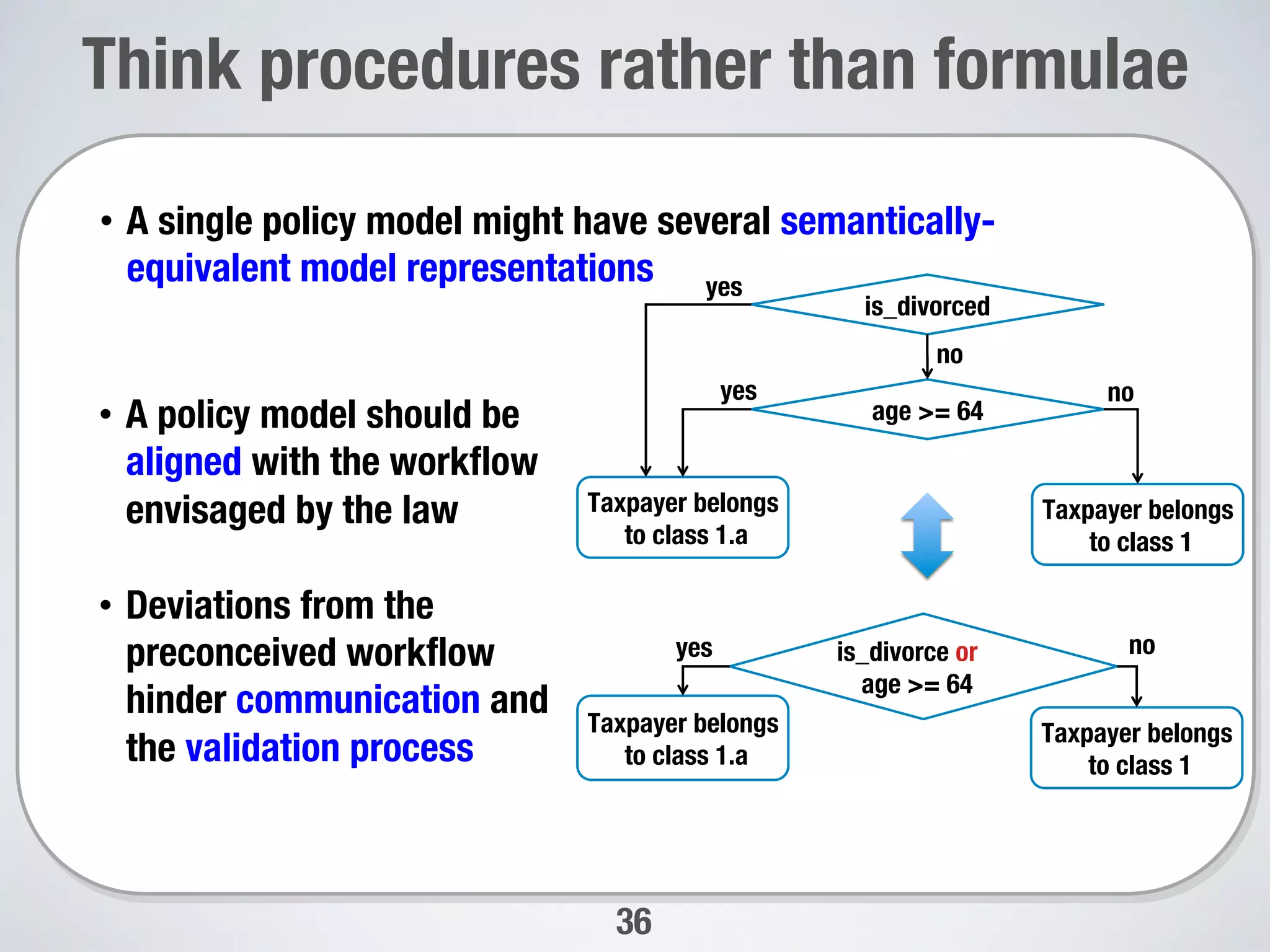

Think procedures rather than formulae

•  A single policy model might have several semantically-
equivalent model representations

•  A policy model should be
aligned with the workﬂow
envisaged by the law
•  Deviations from the
preconceived workﬂow
hinder communication and
the validation process
is_divorced
age >= 64
Taxpayer belongs
to class 1.a
Taxpayer belongs
to class 1
no
yes
no
yes
is_divorce or
age >= 64
Taxpayer belongs
to class 1.a
Taxpayer belongs
to class 1
no
yes

37

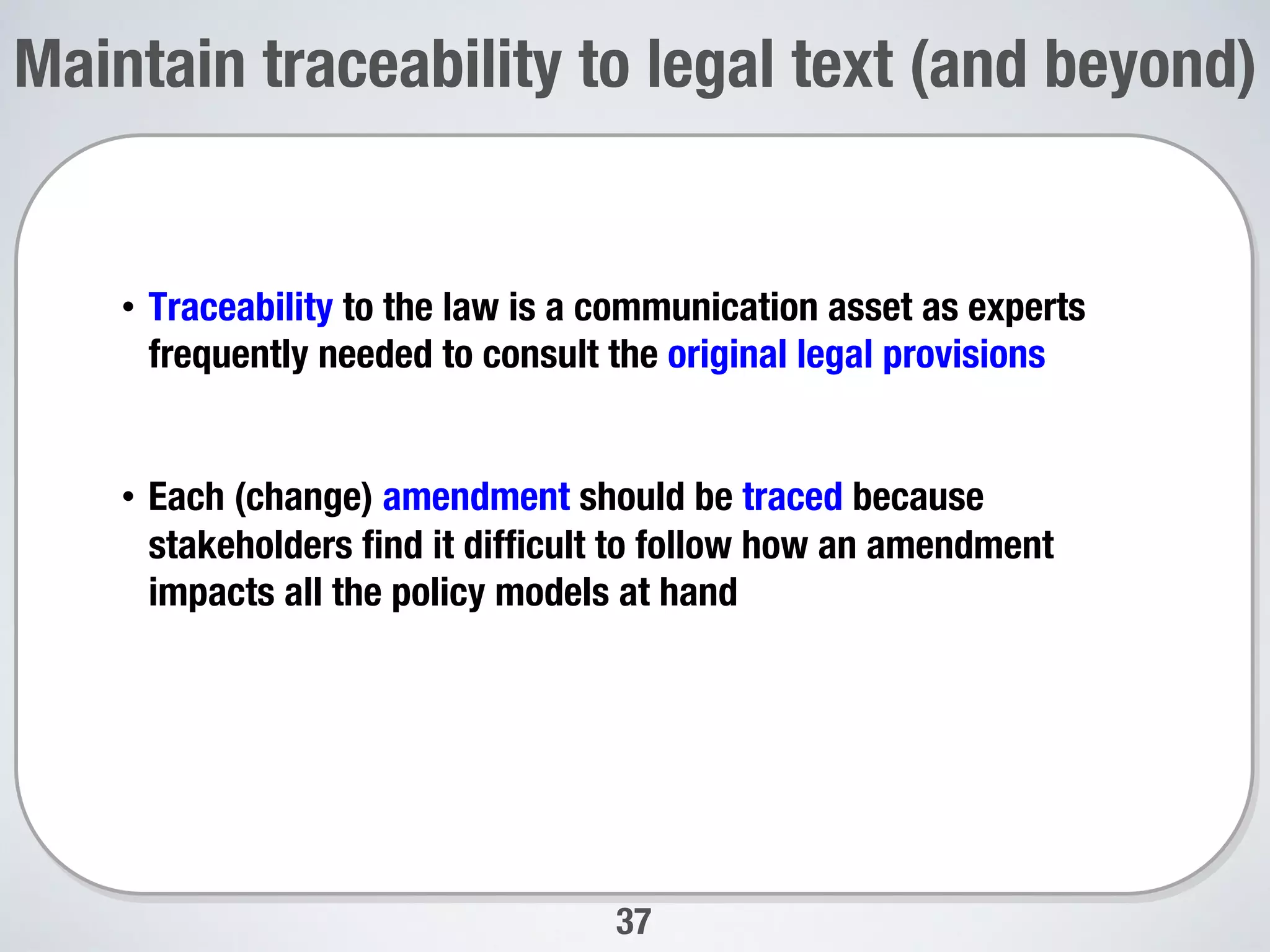

Maintain traceability to legal text (and beyond)

•  Traceability to the law is a communication asset as experts
frequently needed to consult the original legal provisions
•  Each (change) amendment should be traced because
stakeholders ﬁnd it difﬁcult to follow how an amendment
impacts all the policy models at hand

38
Keep the modeling notation simple and lean

•  Models should support different representations of the same
information (according to users’ backgrounds)
•  The right representation for legal requirements should be
carefully considered and experimented with legal experts

39
Summary

•  Case study of our model-based simulation framework to analyze
a real legal reform
•  Applying our approach in real settings is feasible with
reasonable effort
•  The produced simulation results are deemed credible,
considering we had no access to real data
•  Lessons learned:
a.  Think procedures rather than formulas
b.  Maintain Traceability to legal texts (and beyond)
c.  Keep the modeling notation as simple and lean as possible
•  Tool available at http://people.svv.lu/tools/polisim/

40
Beyond tax law
What is beneﬁcial to other (prescriptive) laws:
•  Lessons learned
•  Experience in addressing the communication gap between IT
and legal experts
•  Systematic approach for enabling automated analysis
•  Tooling (automated data-generator, simulator, etc.)

Model-Based Simulation of Legal Requirements: Experience from Tax Policy SimulationSince in our system under test we need to handel dynamic a

More Related Content

Viewers also liked

Similar to Model-Based Simulation of Legal Requirements: Experience from Tax Policy SimulationSince in our system under test we need to handel dynamic a

Recently uploaded

Model-Based Simulation of Legal Requirements: Experience from Tax Policy SimulationSince in our system under test we need to handel dynamic a
