Models15

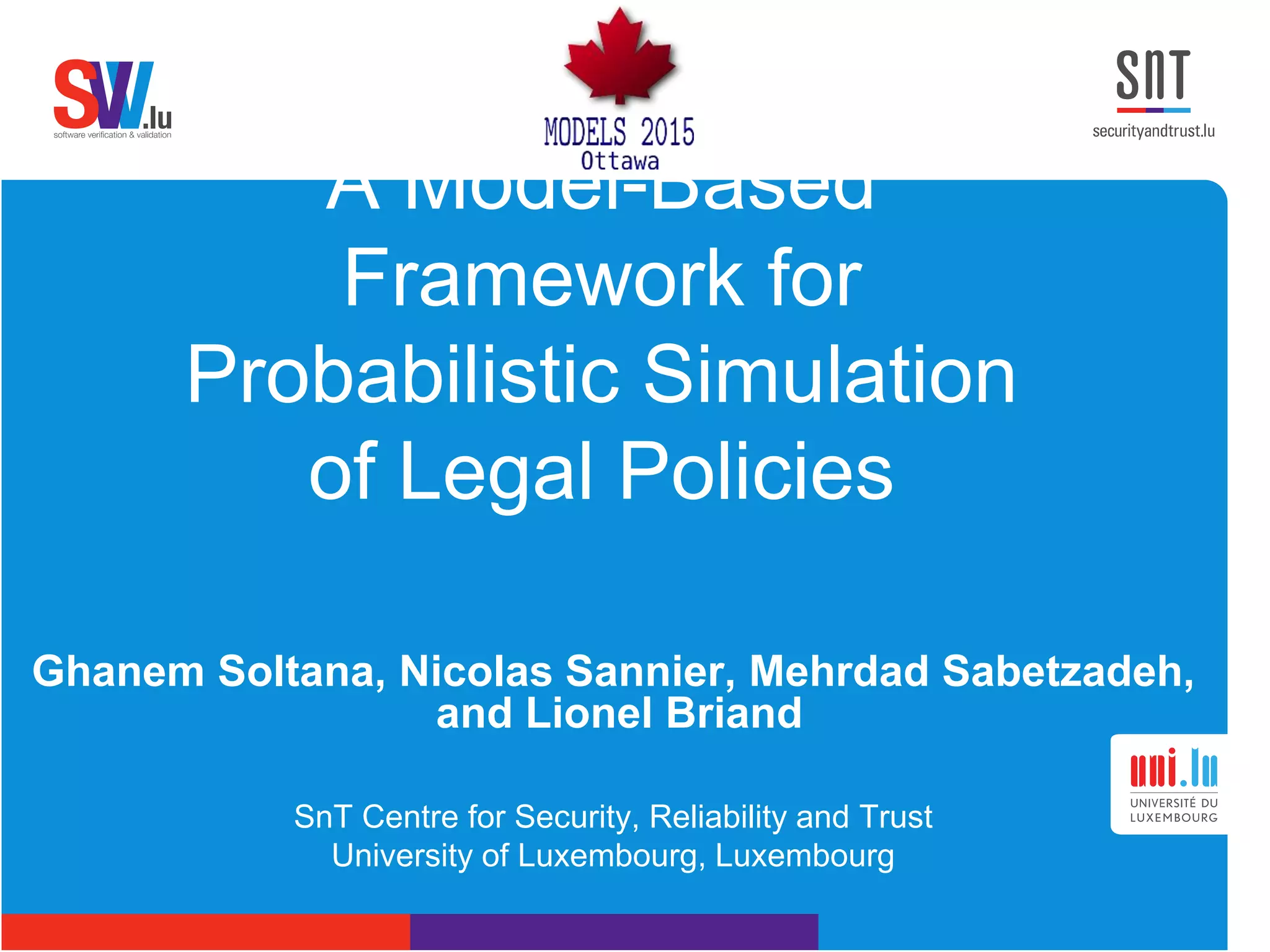

- 1. A Model-Based Framework for Probabilistic Simulation of Legal Policies Ghanem Soltana, Nicolas Sannier, Mehrdad Sabetzadeh, and Lionel Briand SnT Centre for Security, Reliability and Trust University of Luxembourg, Luxembourg
- 2. How did this work come about? 2 • Collaboration with Government of Luxembourg CTIE: Government’s IT Centre ACD: Tax Administration Department • New tax system under development • Develop tailored solutions for decision-support and software verification
- 3. Context 3 Using UM L for M odeling Procedural Legal Rules: A pproach and a Study of Luxembourg’s Tax Law Ghanem Soltana, Elizabeta Fourneret, Morayo Adedjouma, Mehrdad Sabetzadeh, and Lionel Briand SnT Centre for Security, Reliability and Trust, University of Luxembourg { f i r st name. l ast name} @uni . l u A bst ract . Many laws, e.g., those concerning taxes and social benefits, need to be operationalized and implemented into public administration procedures and eGovernment applications. Where such operationaliza- tion is warranted, the legal frameworks that interpret the underlying
- 4. Context 4 Simulation data Generates (optional) Simulates Models of legal policies 0% 2% 4% 6% 8% 10% 12% 0% 5% 10% 15% 20% 25% 0-10.000 10.000-20.000 20.000-30.000 30.000-40.000 40.000-50.000 50.000-60.000 60.000-70.000 70.000-80.000 80.000-90.000 90.000-100.000 100.000-110.000 110.000-120.000 120.000-130.000 130.000-140.000 140.000-150.000 150.000-160.000 160.000-170.000 170.000-180.000 180.000-190.000 190.000-200.000 200.000-250.000 250.000-350.000 350.000-500.000 500.000-700.000 700.000-1.000.000 >1.000.000 Gross annual income (in Euros) Contributiontorevenue Households Percentage Percentage Percentage 0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50% 0 1-3.000 3.001-6.000 6.001-9.000 9.001-12.000 12.001-15.000 15.001-18.000 18.001-21.000 21.001-24.000 24.001-27.000 27.001-30.000 >30.000 Annual income taxes due (in Euros) Households Before change After change Input to Impact of legal policy changes on variables of interest
- 5. Objectives 5 • Simulating the impact of legal policy changes • Enabling simulation even when simulation data is not available Simulation data Generates (optional) Simulates Models of legal policies 0% 2% 4% 6% 8% 10% 12% 0% 5% 10% 15% 20% 25% 0-10.000 10.000-20.000 20.000-30.000 30.000-40.000 40.000-50.000 50.000-60.000 60.000-70.000 70.000-80.000 80.000-90.000 90.000-100.000 100.000-110.000 110.000-120.000 120.000-130.000 130.000-140.000 140.000-150.000 150.000-160.000 160.000-170.000 170.000-180.000 180.000-190.000 190.000-200.000 200.000-250.000 250.000-350.000 350.000-500.000 500.000-700.000 700.000-1.000.000 >1.000.000 Gross annual income (in Euros) Contributiontorevenue Households Percentage Percentage Percentage 0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50% 0 1-3.000 3.001-6.000 6.001-9.000 9.001-12.000 12.001-15.000 15.001-18.000 18.001-21.000 21.001-24.000 24.001-27.000 27.001-30.000 >30.000 Annual income taxes due (in Euros) Households Before change After change Input to Impact of legal policy changes on variables of interest
- 6. Legal policy simulation in practice 6 Some existing simulation tools focused on taxation and social security: • ASSERT: Assessing the effects of reforms in taxation • SYSIFF: A micro-simulation model for the French tax system • POLIMOD: A national static tax-benefit model for the UK • EUROMOD: European benefit-tax model and social integration
- 7. Dee EUROMOD example 7 Dependent age range Dependent count
- 9. Limitations of current simulation frameworks 9 • Legal policies are hard-to-validate • Single-purpose models • Unusable when simulation data is not available
- 10. • Legal policies should be captured in a precise and yet easy to understand manner • Automated simulation/analysis should be possible even when data is not available Desiderata 10
- 11. 11 • Legal policies are from prescriptive laws - Taxation and social benefits • No change in human behavior due to legal policy modifications Working assumptions
- 12. Our policy simulation framework Relevant legal texts Domain model Policy models Model legal policies Generated simulation data Simulation results ¨ Generate simulation data Annotated domain model <<s>> <<p>> <<p>> <<m>> Annotate domain model with probabilities ≠ ÆØPerform simulation Is simulation data available? Yes No Simulation data 12
- 13. • A legal policy model captures the procedure envisaged by law for performing a certain activity • Notation: Extended Activity Diagrams (ADs) • Facilitates communication between legal and IT experts ExpressiveVisual PreciseExecutable ADs Legal policy models [Soltana et al., 2014] 13
- 14. Art. 105bis […] The commuting expenses deduction is defined as a function over the distance between the principal towns of the municipalities of a taxpayer's home and his place of work. The distance is measured in units of distance expressing the kilometric distance between [principal] towns. A ministerial regulation provides these distances. The amount of the deduction is calculated as follows: • If the distance exceeds 4 units but is less than 30 units, the deduction is 99€ per unit of distance. • The first 4 units are not taken into account and the deduction for a distance exceeding 30 units is limited to 2,574€. * Translation from French text Excerpt from the income tax law 14
- 15. Example policy model 15 Procedure defined by the legal policy
- 16. Example policy model 16 Inputs from the legal policy
- 17. Example policy model 17 Inputs from the simulation data Domain model (partial)
- 18. Simulation framework overview Relevant legal texts Domain model Policy models Model legal policies Generated simulation data Simulation results ¨ Generate simulation data Annotated domain model <<s>> <<p>> <<p>> <<m>> Annotate domain model with probabilities ≠ ÆØPerform simulation Is simulation data available? Yes No Simulation data 18
- 19. Related work on instance generation • Exhaustive search: - UML2CSP [Cabot et al., 2014] - Alloy [Jackson, 2009] • Non-exhaustive techniques: - Metaheuristic-search [Ali et al., 2013] - Predefined patterns [Gogolla et al., 2005] - Mutation analysis [Di Nardo et al., 2015] - Configurable random generation [Hartmann et al., 2014] 19
- 20. Limitations in existing work Existing techniques cannot generate data that is suitable for our analysis needs 20 Representativenes s Scalability Limitation s
- 21. Our solution to generate simulation data 21 Random generation Profile for capturing probabilistic characteristics of the real population Scalability Representativenes s guided by Limitation s
- 22. Relative frequencies * Source: STATEC, Luxembourg 60% of income types are Employment, 20% are Pension, and the remaining 20% are Other 22
- 23. 23 Histograms * Source: STATEC, Luxembourg - «from histogram» birthYear: Integer [1] TaxPayer
- 24. 24 Distributions * Source: Synthetized data OCL query
- 25. 25 Probabilistic multiplicities * Source: STATEC, Luxembourg «multiplicity» {relativeTo: Income source: «from barchart»} 1 taxpayer incomes 1..* Income TaxPayer (abstract)
- 26. 26 Conditional probabilities * Source: STATEC, Luxembourg 1 taxpayer incomes 1..* Income TaxPayer (abstract) «type dependency» {relativeTo: Income; condition: self.getAge() >= 60; source: «from barchart»}
- 27. 27 Consistency constraints The sound application of the profile’s stereotypes is enforced by several consistency constraints: • Completeness of the probabilistic information • Well-formedness of the probabilistic information • Mutual-exclusiveness application of certain stereotypes
- 28. Simulation framework overview Relevant legal texts Domain model Policy models Model legal policies Generated simulation data Simulation results ¨ Generate simulation data Annotated domain model <<s>> <<p>> <<p>> <<m>> Annotate domain model with probabilities ≠ ÆØPerform simulation Is simulation data available? Yes No Simulation data 28
- 29. 29 Fully automated data generation Policy models (set) Simulation data (instance of slice model) Annotated domain model <<s>> <<p>> <<p>> Slice model Slice domain model ¨ 1 2 6 3 7 8 9 5 4 Instantiate slice model Ø Traversal order a c b d a' b' c' d' Segments classification Identify traversal order ÆClassify path segments Simulation unit (class) ≠ Sample size
- 30. Simulation framework overview Relevant legal texts Domain model Policy models Model legal policies Generated simulation data Simulation results ¨ Generate simulation data Annotated domain model <<s>> <<p>> <<p>> <<m>> Annotate domain model with probabilities ≠ ÆØPerform simulation Is simulation data available? Yes No Simulation data 30
- 31. 31 Simulation process Activity Diagram(s) (legal rule) Feedback Generate simulation code Simulation code Visualize and analyze results Run simulator Simulation Results Simulation data Domain model Original and modified sets of legal policies
- 32. Evaluation 32
- 33. 33 Research questions • RQ1: Do data generation and simulation run in reasonable time? • RQ2: Does our data generator produce data that is consistent with the specified characteristics of the population? • RQ3: Are the results of different data generation runs consistent (up to random variation)?
- 34. 34 Case study • Models for personal income taxes were created (domain model + policy models) • Six representative policy models were selected (out of 18 policy models) • All models used in this evaluation were validated by legal experts
- 35. 35 Probabilistic information Statistic Description Age Distribution of taxpayers by age Income type Relative distribution of different incomes types (employment, agriculture, business and trade, etc.) Income rage Distribution of the annual income ranges for taxpayers Invalidity rate Percentage of invalid taxpayers Invalidity type Relative distribution of different invalidity types Residence status Relative distribution of resident versus non-resident taxpayers … 15 distributions (from census and synthetized data) were used to specify Luxembourg’s population’s characteristics STATEC, Luxembourg
- 36. 36 RQ1: Do data generation and simulation run in reasonable time? 0 1k 2k 3k 4k 5k 6k 7k 8k 9k 10k 051015202530 ID + CIS + PE + FD + LD + CIP ID + CIS + PE + FD + LD ID + CIS + PE + FD ID + CIS + PE ID + CIS ID Number of generated tax cases Executiontime(inminutes) Results for the generator - Deduction for invalidity (ID) - Credit for salaried workers (CIS) - Deduction for permanent expenses (PE) - Deduction for commuting expenses (FD) - Deduction for long-term debts (LD) - Credits for pensioners (CIP)
- 37. 37 - Deduction for invalidity (ID) - Credit for salaried workers (CIS) - Deduction for permanent expenses (PE) - Deduction for commuting expenses (FD) - Deduction for long-term debts (LD) - Credits for pensioners (CIP) Results for the simulator RQ1: Do data generation and simulation run in reasonable time?
- 38. 38 RQ2: Does our data generator produce data that is consistent with the specified characteristics? Generated sample starts to be representative for a size above 2000 units
- 39. 39 RQ3: Are the results of different data generation runs consistent? • 5 samples of 5000 tax cases • Pairwise comparison of the generated samples using kolmogorov-smirnov test No counter-evidence that the samples come from different populations
- 40. 40 Ongoing work • Decision-support for the Government’s actual tax reforms • Evaluating the accuracy of the simulation results 0% 10% 20% 30% 40% 50% 60% 70% Tax class 1 Tax class 1.a Tax class 2 Taxpayers Before change After change - 20%! 0%! 20%! 40%! 60%! 80%! 100%! >21.001! 18.001-21.000! 15.001-18.000! 12.001-15.000! 9001-1200! 6001-9000! 3001-6000! 1-3000! 0! 1-3000! 3001-6000! 6001-9000! 9001-1200! 12.001-15.000! 15.001-18.000! 18.001-21.000! >21.001! Less taxes to pay! More taxes to pay! Annual decrease / increase in taxes due (in Euros)! Households!
- 41. 41 Summary • Model-based simulation framework for legal policies • A profile for expressing probabilistic characteristics of a population • An automated stochastic data generator • Preliminary evaluation of scalability, representativeness, and reproducibility is promising • Applied to assess actual tax reforms
- 42. A Model-Based Framework for Probabilistic Simulation of Legal Policies Ghanem Soltana, Nicolas Sannier, Mehrdad Sabetzadeh, and Lionel Briand SnT Centre for Security, Reliability and Trust University of Luxembourg, Luxembourg
- 43. 43 Model sizes • The domain model has: 64 classes, 43 generalizations, 344 attributes, and 53 associations • The six policy models have an average of 35 elements
- 44. 44 Path segments classification illustration Sample unit 3 2 1 Safe Unsafe
- 45. 45 Traversal order illustration Sample unit 3 2 1
- 46. 46 Simulation results Taxpayer AEP (old) AEP (new) Old Tax Class New Tax Class Income Type Gross Taxable Taxes (new) Taxes (old) Resident_Tax_Payer 1 0 0 One_A One_A Other 21535,32 19150 0 0 Resident_Tax_Payer 2 0 0 Two One Pension 21588 21550 1218 0 Non_Resident_Tax_Payer 3 0 0 Two Two Employment 21600 19200 0 0 Resident_Tax_Payer 4 0 0 Two One Employment 21600 19200 790 14124 (with spouse) Resident_Tax_Payer 5 4500 0 Two One_A Employment 21600 19200 0 3146(with spouse) Resident_Tax_Payer 6 0 0 Two One Employment 21612 19200 790 10283(with spouse) … 0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50% 0 1-3.000 3.001-6.000 6.001-9.000 9.001-12.000 12.001-15.000 15.001-18.000 18.001-21.000 21.001-24.000 24.001-27.000 27.001-30.000 >30.000 Annual income taxes due (in Euros) Households Before change After change
Editor's Notes
- The work that I am about to present is a continuation to the work that we started and presented in MODLES last year. In particular what we tried to is is to use models as oracles for what the actual system does This is what I described last year, what I am presenting today is another facet of the project to verify that the system does behave properly and is compliant to the law The first facet of the project focuses on testing Utilizes the same models for a very different purpose
- One major concern when development such a system is ensuring compliance to the underlying laws. focus on the simulation rather than the compliance use case Second track Models of legal policies Previous
- One major concern when development such a system is ensuring compliance to the underlying laws. focus on the simulation rather than the compliance use case Second track
- Simulating the impact of policy changes Enabling realistic and yet practical simulation even when sample data is not available Descriptive model + procedural model
- Show that we get easily confused and lost
- Show that we get easily confused and lost
- Challenges and desired characteristics Inheritance laws.
- Challenges and desired characteristics Are very much aligned to what need to be improved in these frameworks
- Challenges and desired characteristics Deontic modalities Permissions, obligations, prohibitions We assume that there is no behavioral change to the law modification. When the law changes the taxpayers might change their behavior
- The normal flow. We faced this issues with acd Step one was elaborated in a previous work. I will basically do the bear minimum to give a feel a bout what are these policy models that I am talking about and then focus on the main contributions of this current work which are illustrated through steps 2 to 4
- One of the goals that I have mentioned is to make the specification as intuitive as possible This is something that we have dealt with in previous Just let me give you example
- This on of the various deduction that you have In Luxembourg as in many other countries you can claim a deduction for the commute that you have every morning from the commut from your home to your work place The amount of the deduction is determined based on your commute distance
- This is the main artifacts used by the simulator. You can think of this as a database that one would query to retrieve the appropriate input to. And that domain model would be the basis for describing your data samples Which lead us to the next step of which deals with
- This is the main artifacts used by the simulator. You can think of this as a database that one would query to retrieve the appropriate input to. And that domain model would be the basis for describing your data samples Which lead us to the next step of which deals with
- This is the main artifacts used by the simulator. You can think of this as a database that one would query to retrieve the appropriate input to. And that domain model would be the basis for describing your data samples Which lead us to the next step of which deals with
- Mention the source of the data
- They are aimed at Testing and system configuration By this I do not mean that all techniques are both not scalable and not representatives. But we were unable to find any technique that is both scalable and provides representative samples Exhaustive if they finish.
- In testing you are looking for these pathological situations for the situations Boundary cases where something can go wrong. This is different the data needs to be aligned to hat the real population is
- Get back to the domain model Feed it Statec
- The pervious annotations are also used to define the cardinalities between objects from the domain model
- As I already mentioned over the previous slide, we have simulation as the main target for automation There are two main directions that we are pursuing with regards to simulation. Simulating the behavior of software systems. Simulation of legal decisions Traceability and generation
- In the interest of time. We have the domain model annotated with probabilistic annotations as we saw We have the policy models This in same sense the root or the starting point The size of the sample We have the size of the sample There are many technical details I will not get through these But here what happens at a high level of abstraction Essentially this what happen We first figure out what are the part Obviously, if we want to simulate This is done basically to get the data generator targeted and efficient Than we have to figure out in which order the classes and attributes should be instantiated We call a path segment an association traverse in a given direction This classification will ensure that the generator will not fall into an infinite loop caused by cyclic association paths in the slice mode Fails From time to time we generate inconsistent objects We use OCL imperatively
- As I already mentioned over the previous slide, we have simulation as the main target for automation There are two main directions that we are pursuing with regards to simulation. Simulating the behavior of software systems. Simulation of legal decisions Traceability and generation
- Our framework additionally supports result differencing, meaning that the user can provide an original and a modified set of policies, subject both sets to the same simulation data, and compare the simulation results to quantify the impact. This type of analysis does not add any new conceptual element to our framework and is thus not further discussed.
- Our framework additionally supports result differencing, meaning that the user can provide an original and a modified set of policies, subject both sets to the same simulation data, and compare the simulation results to quantify the impact. This type of analysis does not add any new conceptual element to our framework and is thus not further discussed.
- In Luxembourg they have a tax card that contains all the relevant tax information like deductions. Mention what we mean by validation
- All the sources were real.
- Random order In the slopse
- The simulation code These models are querying the instance model for inputs via OCL queries And obviously the way that you define the queries would have an impact on the scalability This a important observation and when we investigate that the reason why the trend is not perfectly linear was because we were using all Instances in some of the queries Get les less efficient as the instance model grows But still
- Sentence a bout the Euclidian distance Pairs of histograms. 0 they are the same. 1 they are significantly different Ideally we would like to have very large number As you see past 200 thous, we get
- to determine whether the generated quantities of different samples are likely to be derived from the same population We compared pairwise the generated samples. Details paper The results no counter evidence Make a transition before going to future work
- The government is discussing a big change They are thinking of removing benefits that married are getting just by being taxed jointly
- Take home messages. Our context was this But the technology is quiet generic The work was motivated by addressing a very specific and contextual problem But the profile and the data generator that e have built for addressing this specific have many useful features that we believe can be used for other context and other type of simulation such as system simulation
- Our framework additionally supports result differencing, meaning that the user can provide an original and a modified set of policies, subject both sets to the same simulation data, and compare the simulation results to quantify the impact. This type of analysis does not add any new conceptual element to our framework and is thus not further discussed.
- Our framework additionally supports result differencing, meaning that the user can provide an original and a modified set of policies, subject both sets to the same simulation data, and compare the simulation results to quantify the impact. This type of analysis does not add any new conceptual element to our framework and is thus not further discussed.
- Our framework additionally supports result differencing, meaning that the user can provide an original and a modified set of policies, subject both sets to the same simulation data, and compare the simulation results to quantify the impact. This type of analysis does not add any new conceptual element to our framework and is thus not further discussed.
