1. Model-Based
Vulnerability Testing for
Web Applications
Presented By:-
K.Archana
100101CSR027
Branch:-CSE
Head of Department:-
Mr. Monoj Kar

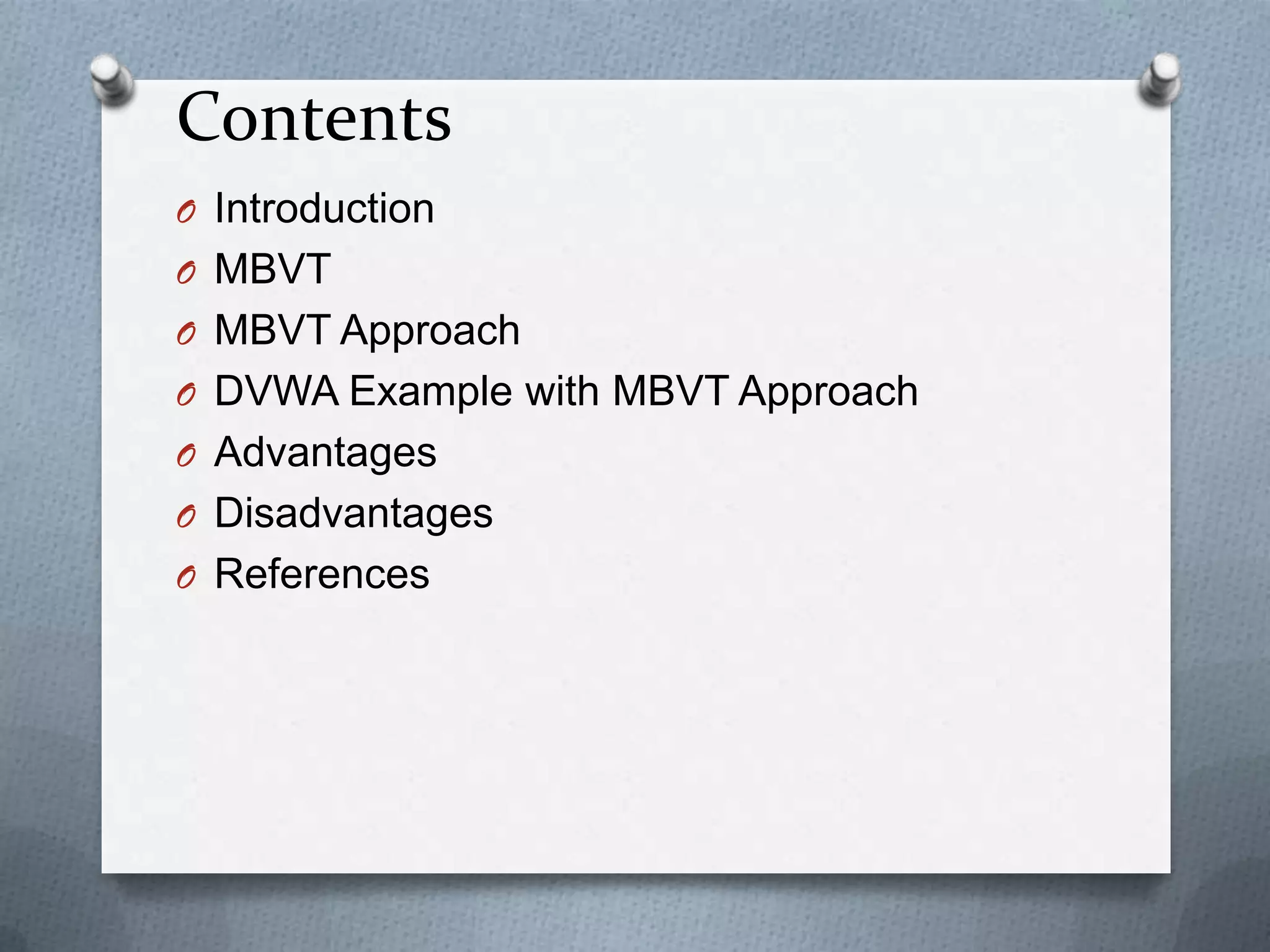

2. Contents
O Introduction
O MBVT
O MBVT Approach
O DVWA Example with MBVT Approach
O Advantages
O Disadvantages
O References

3. Introduction
O Web applications are becoming more popular in
means of modern information interaction, which
leads to a growth of the demand of Web
applications.
O At the same time, Web application
vulnerabilities are drastically increasing.
O One of the most important software security
practices that is used to mitigate the increasing
number of vulnerabilities is security testing.

4. Continue…
O One of the security testing is Model-Based
Vulnerability Testing(MBVT).

5. MBVT
O Model-Based Vulnerability Testing (MBVT)
for Web applications, aims at improving the
accuracy and precision of vulnerability
testing.
O Accuracy:- capability to focus on the relevant
part of the software
O Precision:- capability to avoid both false
positive and false negative.
O MBVT adapted the traditional approach of
Model-Based Testing (MBT) in order to
generate vulnerability test cases for Web
applications.

6. MBVT Approach

7. DVWA Example using MBVT
Approach
O DVWA:- Damn Vulnerable Web Application
O DVWA is an open-source Web application test
bed, based on PHP/MySQL.
O DVWA embeds several vulnerabilities(like SQL
Injection and Blind SQL Injection, and Reflected
and Stored XSS).

8. O In this example we will focus on RXSS
vulnerabilities through form fields.
O RXSS is one of the major breach because it is
highly used and its exploitation leads to severe
risks.
O We will apply the four activities of MBVT
approach to DVWA.

9. 1. Formalizing Vulnerability Test Patterns
into Test Purposes
O Vulnerability Test Patterns (vTP) are the initial
artefacts of our approach.
O A vTP expresses the testing needs and
procedures allowing the identification of a
particular breach in a Web application.

10. A vTP of Reflected XSS

11. O A test purpose is a high level expression that
formalizes a test intention linked to a testing
objective.
O We propose test purposes as a mean to drive
the automated test generation.
O Smartesting Test Purpose Language is a textual
language based on regular expressions,
allowing the formalization of vulnerability test
intention in terms of states to be reach and
operations to be called.

12. test Purpose formalizing the vTP on DVWA

13. 2. Modeling:-
O The modeling activity produces a model based
on the functional specifications of the
application, and on the test purposes.
Class diagram of the SUT structure, for our MBVT approach

14. 3. Test Generation:-
O The main purpose of the test generation activity
is to produce test cases from both the model
and the test purposes.
O This activity consists of three phases.
O The first phase transforms the model and the
test purposes into elements usable by the
Smartesting CertifyIt MBT tool.

15. O The second phase produces the abstract test
cases from the test targets.
O The third phase exports the abstract test cases
into the execution environment.

16. Generated abstract test case
example

17. 4. Adaptation and test execution:-
a. Adaptation:-
O During the modeling activity, all data used by
the application, are modeled in a abstract way.
O Hence, the test suite can’t be executed as it is.
O So, the generated abstract test cases are
translated into executable scripts.

18. b. Test Execution:-
O The adapted test cases are executed in order to
produce a verdict.
O There is a new terminology fitting the
characteristics of a test execution:-
Attack-pass
Attack-fail
Inconclusive
O Our model defines four malicious data dedicated
to Reflected XSS attacks.

19. O These values are defined in an abstract way,
and must be adapted.
O Each of them is mapped to a concrete value, as
shown in figure:
Mapping between abstract and concrete
values

20. Advantages
O MBVT can address both technical and logical
vulnerabilities.

21. Disadvantages
O Needed effort to design models, test patterns
and adapter.

22. References
O www.infoq.com/articles/defending-against-web-
application-vulnerabilities
O G Erdogan - 2009 - ntnu.diva-portal.org
O http://narainko.wordpress.com/2012/08/26/unde
rstanding-false-positive-and-false-negative
O http://istina.msu.ru/media/publications/articles/5
db/2e2/2755271/OWASP-AppSecEU08-
Petukhov.pdf
O http://www.spacios.eu/sectest2013/pdfs/sectest
2013_submission_8.pdf
