Mobile Graphics (part1)

www.crs4.it/vic/
Visual Computing Group
Mobile Graphics
• Marco Agus
• Marcos Balsa
June 2015
1

Marco Agus & Marcos Balsa
Outline
• Part 1: Evolution of mobile graphics
• Part 2: Graphics development for mobile systems
• Part 3: Mobile graphics trends and real time visualization
of massive models on mobile systems
2

Part 1
Evolution of mobile graphics
3

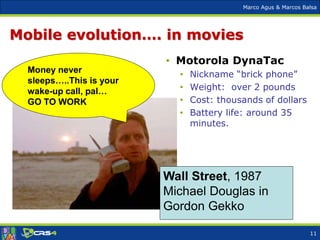

Mobile evolution…. in movies
• Motorola DynaTac
• Nickname “brick phone”
• Weight: over 2 pounds
• Cost: thousands of dollars
• Battery life: around 35
minutes.
Money never
sleeps…..This is your
wake-up call, pal…
GO TO WORK
Wall Street, 1987
Michael Douglas in
Gordon Gekko
11

Mobile evolution… in movies
Hello Neo…
Do you know who
this is?
The Matrix, 1999
Laurence Fishburne in
Morpheus
• Nokia 8110
• Nickname “banana phone”
• 145g, display
monochrome, Smart SMS
• It costed 1000 eur
12

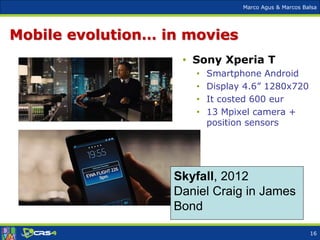

Skyfall, 2012
Daniel Craig in James
Bond
• Sony Xperia T
• Smartphone Android
• Display 4.6” 1280x720
• It costed 600 eur
• 13 Mpixel camera +
position sensors
16

Iron Man 3, 2013
Robert Downey Jr in
Tony Stark
• Future devices?
• Transparent and foldable
high resolution screens
• Gesture interfaces
• Wearable / integrated to
body
17

Mobile evolution... in games
• Nokia Snakes
– From 1997 an estimated
350 Mdevices, making it
one of the most widely
distributed games ever
created.
– Installed on Nokia devices
until 2007
19

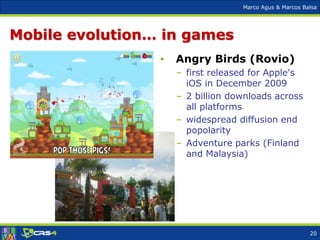

Mobile evolution… in games
• Angry Birds (Rovio)
– first released for Apple's
iOS in December 2009
– 2 billion downloads across
all platforms
– widespread diffusion end
popolarity
– Adventure parks (Finland
and Malaysia)
20

Mobile evolution… in games
• Unreal Engine (GDC &
Google I/O 2014)
– running on an Nvidia Tegra K1
processor
– will support Google Tango and
Samsung Gear VR
– easy porting of games
– sophisticated 3d effects
21

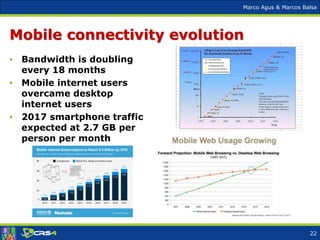

Mobile connectivity evolution
• Bandwidth is doubling
every 18 months
• Mobile internet users
overcame desktop
internet users
• 2017 smartphone traffic
expected at 2.7 GB per
person per month
22

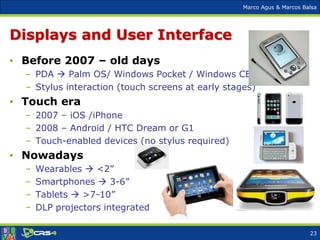

Displays and User Interface
• Before 2007 – old days
– PDA  Palm OS/ Windows Pocket / Windows CE
– Stylus interaction (touch screens at early stages)
• Touch era
– 2007 – iOS /iPhone
– 2008 – Android / HTC Dream or G1
– Touch-enabled devices (no stylus required)
• Nowadays
– Wearables  <2”
– Smartphones  3-6”
– Tablets  >7-10”
– DLP projectors integrated
23

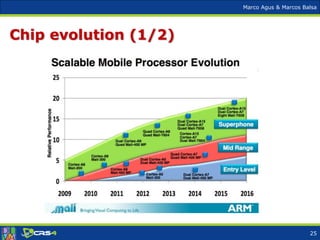

Chip evolution (1/2)
25

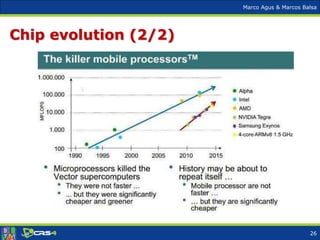

Chip evolution (2/2)
26

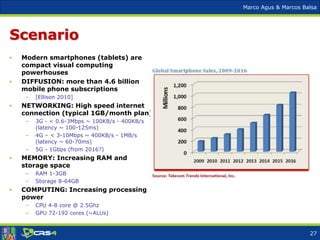

• Modern smartphones (tablets) are
compact visual computing
powerhouses
• DIFFUSION: more than 4.6 billion
mobile phone subscriptions
– [Ellison 2010]
• NETWORKING: High speed internet
connection (typical 1GB/month plan)
– 3G - < 0.6-3Mbps ~ 100KB/s - 400KB/s
(latency ~ 100-125ms)
– 4G – < 3-10Mbps ~ 400KB/s - 1MB/s
(latency ~ 60-70ms)
– 5G - 1Gbps (from 2016?)
• MEMORY: Increasing RAM and
storage space
– RAM 1-3GB
– Storage 8-64GB
• COMPUTING: Increasing processing
power
– CPU 4-8 core @ 2.5Ghz
– GPU 72-192 cores (~ALUs)
Scenario
27

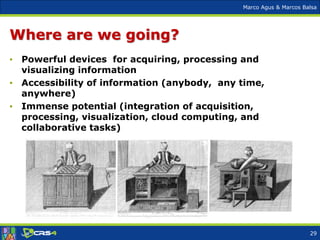

Where are we going?
• Powerful devices for acquiring, processing and
visualizing information
• Accessibility of information (anybody, any time,
anywhere)
• Immense potential (integration of acquisition,
processing, visualization, cloud computing, and
collaborative tasks)
29

www.crs4.it/vic/
Visual Computing Group
Mobile Graphics
• Marco Agus
• Marcos Balsa
June 2015
Development
30

Mobile Graphics
OS
architecture
programming
languages
3D APIs
IDEs
Heterogeneity
31

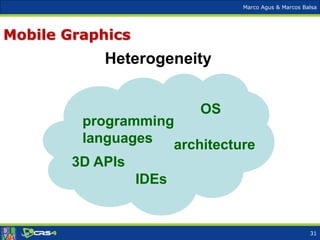

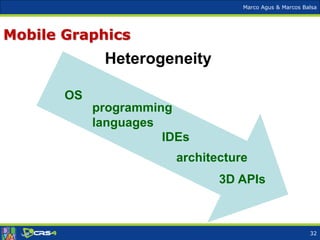

Mobile Graphics
OS
architecture
programming
languages
3D APIs
IDEs
Heterogeneity
32

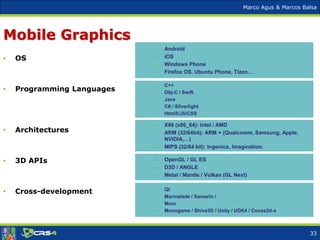

Mobile Graphics
• OS
• Programming Languages
• Architectures
• 3D APIs

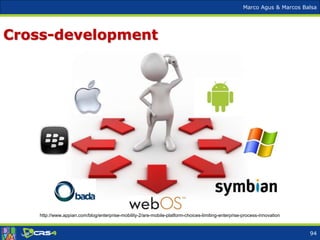

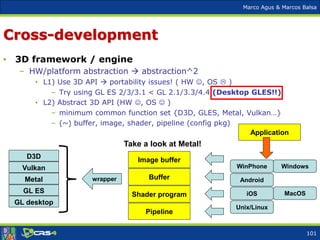

• Cross-development
– X86 (x86_64): Intel / AMD
– ARM (32/64bit): ARM + (Qualcomm, Samsung, Apple,
NVIDIA,…)
– MIPS (32/64 bit): Ingenics, Imagination.
– Android
– iOS
– Windows Phone
– Firefox OS, Ubuntu Phone, Tizen…
– C++
– Obj-C / Swift
– Java
– C# / Silverlight
– Html5/JS/CSS
– OpenGL / GL ES
– D3D / ANGLE
– Metal / Mantle / Vulkan (GL Next)
– Qt
– Marmalade / Xamarin /
– Muio
– Monogame / Shiva3D / Unity / UDK4 / Cocos2d-x
33

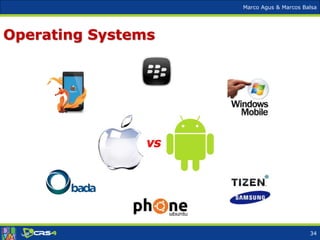

Operating Systems
34

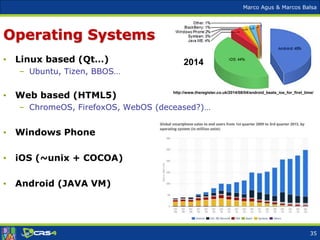

Operating Systems
• Linux based (Qt…)
– Ubuntu, Tizen, BBOS…
• Web based (HTML5)
– ChromeOS, FirefoxOS, WebOS (deceased?)…
• Windows Phone
• iOS (~unix + COCOA)
• Android (JAVA VM)
http://www.theregister.co.uk/2014/08/04/android_beats_ios_for_first_time/
2014
35

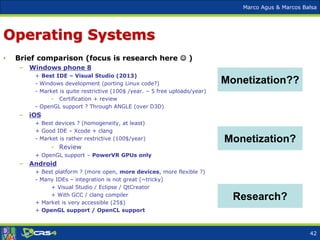

Operating Systems
• Brief comparison (focus is research here  )
– Windows phone 8
+ Best IDE – Visual Studio (2013)
- Windows development (porting Linux code?)
- Market is quite restrictive (100$ /year. – 5 free uploads/year)
- Certification + review
- OpenGL support ? Through ANGLE (over D3D)
– iOS
+ Best devices ? (homogeneity, at least)
+ Good IDE – Xcode + clang
- Market is rather restrictive (100$/year)
- Review
+ OpenGL support – PowerVR GPUs only
– Android
+ Best platform ? (more open, more devices, more flexible ?)
- Many IDEs – integration is not great (~tricky)
+ Visual Studio / Eclipse / QtCreator
+ With GCC / clang compiler
+ Market is very accessible (25$)
+ OpenGL support / OpenCL support
Monetization?
Research?
Monetization??
42

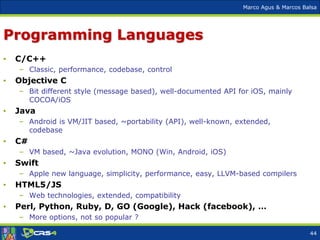

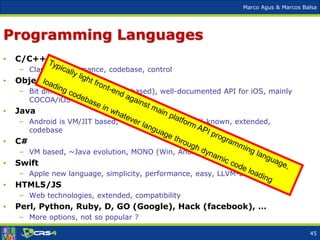

Programming Languages
http://www.tops-int.com/blog/which-programming-languages-are-used-for-web-desktop-and-mobile-apps/
43

• C/C++
– Classic, performance, codebase, control
• Objective C
– Bit different style (message based), well-documented API for iOS, mainly
COCOA/iOS
• Java
– Android is VM/JIT based, ~portability (API), well-known, extended,
codebase
• C#
– VM based, ~Java evolution, MONO (Win, Android, iOS)
• Swift
– Apple new language, simplicity, performance, easy, LLVM-based compilers
• HTML5/JS
– Web technologies, extended, compatibility
• Perl, Python, Ruby, D, GO (Google), Hack (facebook), …
– More options, not so popular ?
44

• C/C++
– Classic, performance, codebase, control
• Objective C
– Bit different style (message based), well-documented API for iOS, mainly
COCOA/iOS
• Java
– Android is VM/JIT based, ~portability (API), well-known, extended,
codebase
• C#
– VM based, ~Java evolution, MONO (Win, Android, iOS)
• Swift
– Apple new language, simplicity, performance, easy, LLVM-based compilers
• HTML5/JS
– Web technologies, extended, compatibility
• Perl, Python, Ruby, D, GO (Google), Hack (facebook), …
– More options, not so popular ?
45

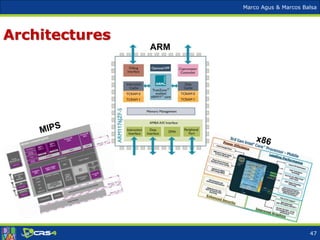

Architectures
ARM
47

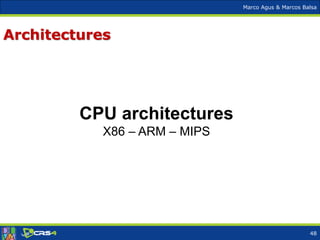

Architectures
CPU architectures
X86 – ARM – MIPS
48

Architectures
• x86 (CISC 32/64bit)
– Intel Atom Z3740/Z3770
• Bay Trail (2W)
– AMD Mullins (not yet in the market)
• 4.5W
-Power consumption
+Performance PartOf(desktop class GPU!)
+compatibility with old SW ?
49

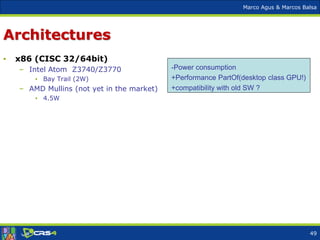

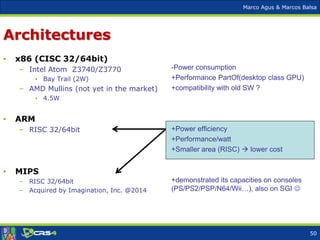

Architectures
• x86 (CISC 32/64bit)
– Intel Atom Z3740/Z3770
• Bay Trail (2W)
– AMD Mullins (not yet in the market)
• 4.5W
• ARM
– RISC 32/64bit
• MIPS
– RISC 32/64bit
– Acquired by Imagination, Inc. @2014
-Power consumption
+Performance PartOf(desktop class GPU)
+compatibility with old SW ?
+Power efficiency
+Performance/watt
+Smaller area (RISC)  lower cost
+demonstrated its capacities on consoles
(PS/PS2/PSP/N64/Wii…), also on SGI 
50

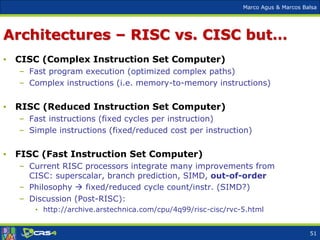

Architectures – RISC vs. CISC but…
• CISC (Complex Instruction Set Computer)
– Fast program execution (optimized complex paths)
– Complex instructions (i.e. memory-to-memory instructions)
• RISC (Reduced Instruction Set Computer)
– Fast instructions (fixed cycles per instruction)
– Simple instructions (fixed/reduced cost per instruction)
• FISC (Fast Instruction Set Computer)
– Current RISC processors integrate many improvements from
CISC: superscalar, branch prediction, SIMD, out-of-order
– Philosophy  fixed/reduced cycle count/instr. (SIMD?)
– Discussion (Post-RISC):
• http://archive.arstechnica.com/cpu/4q99/risc-cisc/rvc-5.html
51

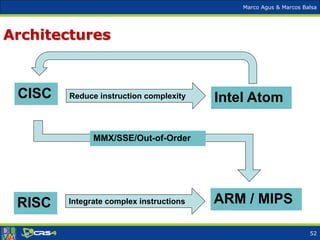

Architectures
RISC Integrate complex instructions ARM / MIPS
CISC Reduce instruction complexity Intel Atom
MMX/SSE/Out-of-Order
52

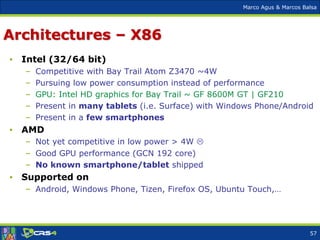

Architectures – X86
• Intel (32/64 bit)
– Competitive with Bay Trail Atom Z3470 ~4W
– Pursuing low power consumption instead of performance
– GPU: Intel HD graphics for Bay Trail ~ GF 8600M GT | GF210
– Present in many tablets (i.e. Surface) with Windows Phone/Android
– Present in a few smartphones
• AMD
– Not yet competitive in low power > 4W 
– Good GPU performance (GCN 192 core)
– No known smartphone/tablet shipped
• Supported on
– Android, Windows Phone, Tizen, Firefox OS, Ubuntu Touch,…
57

Architectures – ARM
• ARM Ltd.
– RISC processor (32/64 bit) – getting to 64bit ~ 2014/15
– IP (intellectual property) – Instruction Set / ref. implementation
– CPU / GPU (Mali)
• Licenses (instruction set OR ref. design)
– Instruction Set license -> custom made design (SnapDragon,
Hummingbird in iPhone 4 & Galaxy S)
• Optimizations (particular paths, improved core freq. control,…)
– Reference design (Cortex A9, Cortex A15, Cortex A53/A57…)
• Licensees (instruction set OR ref. design)
– Apple, Qualcomm, Samsung, Nvidia, MediaTek, AMD @<2014…
– Few IS licenses, mostly adopting reference design
• Manufacturers
– Contracted by Licensees
• GlobalFoundries, United Microelectronics, TSM, and Intel (@2013) 
59

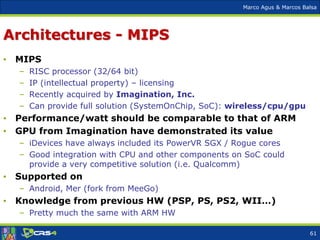

Architectures - MIPS
• MIPS
– RISC processor (32/64 bit)
– IP (intellectual property) – licensing
– Recently acquired by Imagination, Inc.
– Can provide full solution (SystemOnChip, SoC): wireless/cpu/gpu
• Performance/watt should be comparable to that of ARM
• GPU from Imagination have demonstrated its value
– iDevices have always included its PowerVR SGX / Rogue cores
– Good integration with CPU and other components on SoC could
provide a very competitive solution (i.e. Qualcomm)
• Supported on
– Android, Mer (fork from MeeGo)
• Knowledge from previous HW (PSP, PS, PS2, WII…)
– Pretty much the same with ARM HW
61

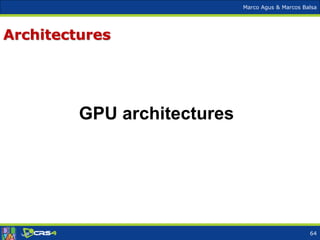

Architectures
GPU architectures
64

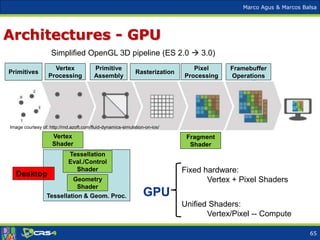

Tessellation & Geom. Proc.
Architectures - GPU
Primitives
Vertex
Processing
Primitive
Assembly
Rasterization
Pixel
Processing
Framebuffer
Operations
Vertex
Shader
Geometry
Shader
Fragment
Shader
Tessellation
Eval./Control
Shader
Image courtesy of: http://rnd.azoft.com/fluid-dynamics-simulation-on-ios/
Simplified OpenGL 3D pipeline (ES 2.0  3.0)
Fixed hardware:
Vertex + Pixel Shaders
GPU
Unified Shaders:
Vertex/Pixel -- Compute
Desktop
65

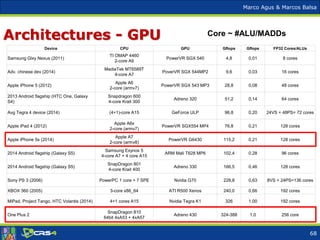

Architectures - GPU
Device CPU GPU Gflops Gflops FP32 Cores/ALUs
Samsung Glxy Nexus (2011)
TI OMAP 4460
2-core A9
PowerVR SGX 540 4,8 0,01 8 cores
Adv. chinese dev (2014)
MediaTek MT6589T
4-core A7
PoverVR SGX 544MP2 9,6 0,03 16 cores
Apple iPhone 5 (2012)
Apple A6
2-core (armv7)
PowerVR SGX 543 MP3 28,8 0,08 48 cores
2013 Android flagship (HTC One, Galaxy
S4)
Snapdragon 600
4-core Krait 300
Adreno 320 51,2 0,14 64 cores
Avg Tegra 4 device (2014) (4+1)-core A15 GeForce ULP 96,8 0,20 24VS + 48PS= 72 cores
Apple iPad 4 (2012)
Apple A6x
2-core (armv7)
PowerVR SGX554 MP4 76,8 0,21 128 cores
Apple iPhone 5s (2014)
Apple A7
2-core (armv8)
PowerVR G6430 115,2 0,21 128 cores
2014 Android flagship (Galaxy S5)
Samsung Exynos 5
4-core A7 + 4 core A15
ARM Mali T628 MP6 102,4 0,28 96 cores
2014 Android flagship (Galaxy S5)
SnapDragon 801
4-core Krait 400
Adreno 330 166,5 0,46 128 cores
Sony PS 3 (2006) PowerPC 1 core + 7 SPE Nvidia G70 228,8 0,63 8VS + 24PS=136 cores
XBOX 360 (2005) 3-core x86_64 ATI R500 Xenos 240,0 0,66 192 cores
MiPad, Project Tango, HTC Volantis (2014) 4+1 cores A15 Nvidia Tegra K1 326 1,00 192 cores
One Plus 2
SnapDragon 810
64bit 4xA53 + 4xA57
Adreno 430 324-388 1,0 256 core
Core ~ #ALU/MADDs
68

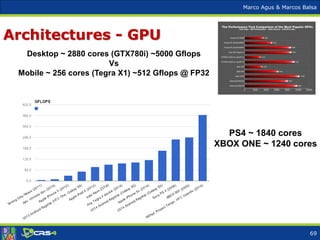

Architectures - GPU
Desktop ~ 2880 cores (GTX780i) ~5000 Gflops
Vs
Mobile ~ 256 cores (Tegra X1) ~512 Gflops @ FP32
PS4 ~ 1840 cores
XBOX ONE ~ 1240 cores
69

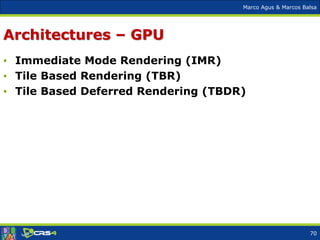

Architectures – GPU
• Immediate Mode Rendering (IMR)
• Tile Based Rendering (TBR)
• Tile Based Deferred Rendering (TBDR)
70

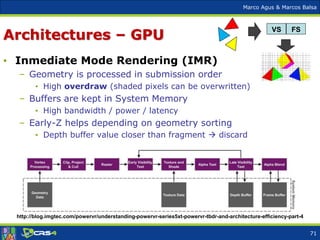

• Inmediate Mode Rendering (IMR)
– Geometry is processed in submission order
• High overdraw (shaded pixels can be overwritten)
– Buffers are kept in System Memory
• High bandwidth / power / latency
– Early-Z helps depending on geometry sorting
• Depth buffer value closer than fragment  discard
http://blog.imgtec.com/powervr/understanding-powervr-series5xt-powervr-tbdr-and-architecture-efficiency-part-4
VS FS
71

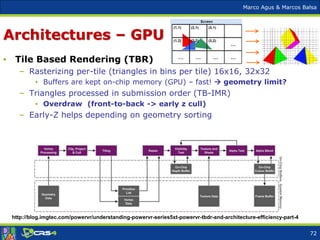

• Tile Based Rendering (TBR)
– Rasterizing per-tile (triangles in bins per tile) 16x16, 32x32
• Buffers are kept on-chip memory (GPU) – fast!  geometry limit?
– Triangles processed in submission order (TB-IMR)
• Overdraw (front-to-back -> early z cull)
– Early-Z helps depending on geometry sorting
72

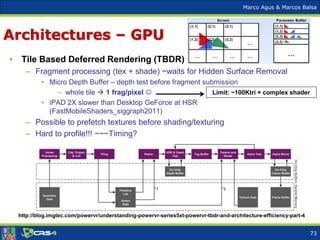

• Tile Based Deferred Rendering (TBDR)
– Fragment processing (tex + shade) ~waits for Hidden Surface Removal
• Micro Depth Buffer – depth test before fragment submission
– whole tile  1 frag/pixel 
• iPAD 2X slower than Desktop GeForce at HSR
(FastMobileShaders_siggraph2011)
– Possible to prefetch textures before shading/texturing
– Hard to profile!!! ~~~Timing?
Limit: ~100Ktri + complex shader
73

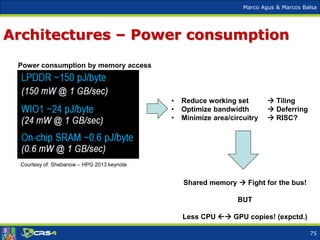

Architectures – Power consumption
• Reduce working set  Tiling
• Optimize bandwidth  Deferring
• Minimize area/circuitry  RISC?
Power consumption by memory access
Courtesy of: Shebanow – HPG 2013 keynote
Shared memory  Fight for the bus!
BUT
Less CPU  GPU copies! (expctd.)
75

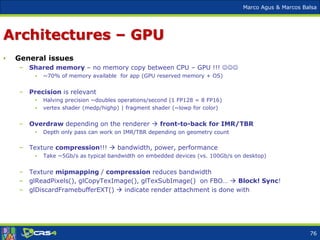

• General issues
– Shared memory – no memory copy between CPU – GPU !!! 
• ~70% of memory available for app (GPU reserved memory + OS)
– Precision is relevant
• Halving precision ~doubles operations/second (1 FP128 = 8 FP16)
• vertex shader (medp/highp) | fragment shader (~lowp for color)
– Overdraw depending on the renderer  front-to-back for IMR/TBR
• Depth only pass can work on IMR/TBR depending on geometry count
– Texture compression!!!  bandwidth, power, performance
• Take ~5Gb/s as typical bandwidth on embedded devices (vs. 100Gb/s on desktop)
– Texture mipmapping / compression reduces bandwidth
– glReadPixels(), glCopyTexImage(), glTexSubImage() on FBO…  Block! Sync!
– glDiscardFramebufferEXT()  indicate render attachment is done with
76

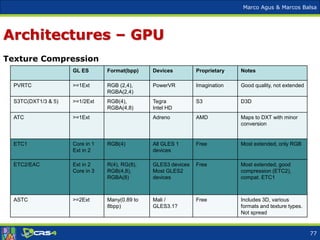

Texture Compression
GL ES Format(bpp) Devices Proprietary Notes
PVRTC >=1Ext RGB (2,4),
RGBA(2,4)
PowerVR Imagination Good quality, not extended
S3TC(DXT1/3 & 5) >=1/2Ext RGB(4),
RGBA(4,8)
Tegra
Intel HD
S3 D3D
ATC >=1Ext Adreno AMD Maps to DXT with minor
conversion
ETC1 Core in 1
Ext in 2
RGB(4) All GLES 1
devices
Free Most extended, only RGB
ETC2/EAC Ext in 2
Core in 3
R(4), RG(8),
RGB(4,8),
RGBA(8)
GLES3 devices
Most GLES2
devices
Free Most extended, good
compression (ETC2),
compat. ETC1
ASTC >=2Ext Many(0.89 to
8bpp)
Mali /
GLES3.1?
Free Includes 3D, various
formats and texture types.
Not spread
77

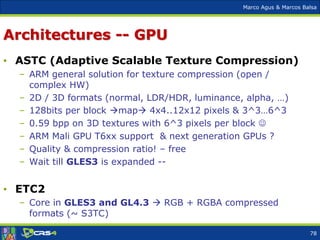

Architectures -- GPU
• ASTC (Adaptive Scalable Texture Compression)
– ARM general solution for texture compression (open /
complex HW)
– 2D / 3D formats (normal, LDR/HDR, luminance, alpha, …)
– 128bits per block map 4x4..12x12 pixels & 3^3…6^3
– 0.59 bpp on 3D textures with 6^3 pixels per block 
– ARM Mali GPU T6xx support & next generation GPUs ?
– Quality & compression ratio! – free
– Wait till GLES3 is expanded --
• ETC2
– Core in GLES3 and GL4.3  RGB + RGBA compressed
formats (~ S3TC)
78

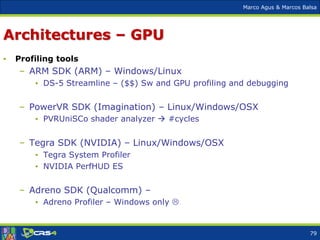

• Profiling tools
– ARM SDK (ARM) – Windows/Linux
• DS-5 Streamline – ($$) Sw and GPU profiling and debugging
– PowerVR SDK (Imagination) – Linux/Windows/OSX
• PVRUniSCo shader analyzer  #cycles
– Tegra SDK (NVIDIA) – Linux/Windows/OSX
• Tegra System Profiler
• NVIDIA PerfHUD ES
– Adreno SDK (Qualcomm) –
• Adreno Profiler – Windows only 
79

3D APIs
80

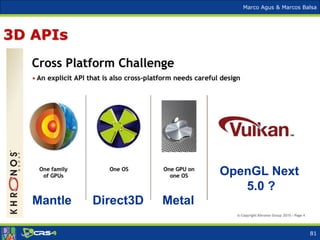

3D APIs
Mantle Direct3D Metal
OpenGL Next
5.0 ?
81

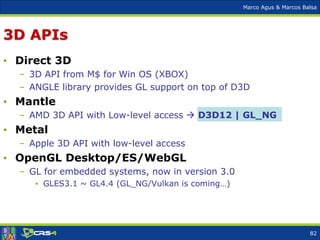

• Direct 3D
– 3D API from M$ for Win OS (XBOX)
– ANGLE library provides GL support on top of D3D
• Mantle
– AMD 3D API with Low-level access  D3D12 | GL_NG
• Metal
– Apple 3D API with low-level access
• OpenGL Desktop/ES/WebGL
– GL for embedded systems, now in version 3.0
• GLES3.1 ~ GL4.4 (GL_NG/Vulkan is coming…)
3D APIs
82

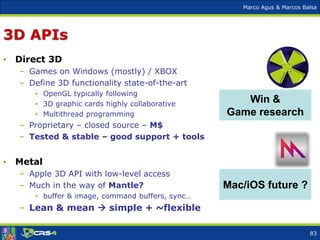

3D APIs
• Direct 3D
– Games on Windows (mostly) / XBOX
– Define 3D functionality state-of-the-art
• OpenGL typically following
• 3D graphic cards highly collaborative
• Multithread programming
– Proprietary – closed source – M$
– Tested & stable – good support + tools
• Metal
– Apple 3D API with low-level access
– Much in the way of Mantle?
• buffer & image, command buffers, sync…
– Lean & mean  simple + ~flexible
Win &
Game research
Mac/iOS future ?
83

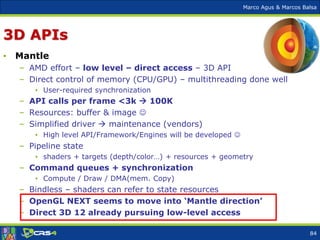

3D APIs
• Mantle
– AMD effort – low level – direct access – 3D API
– Direct control of memory (CPU/GPU) – multithreading done well
• User-required synchronization
– API calls per frame <3k  100K
– Resources: buffer & image 
– Simplified driver  maintenance (vendors)
• High level API/Framework/Engines will be developed 
– Pipeline state
• shaders + targets (depth/color…) + resources + geometry
– Command queues + synchronization
• Compute / Draw / DMA(mem. Copy)
– Bindless – shaders can refer to state resources
– OpenGL NEXT seems to move into ‘Mantle direction’
– Direct 3D 12 already pursuing low-level access
84

3D APIs

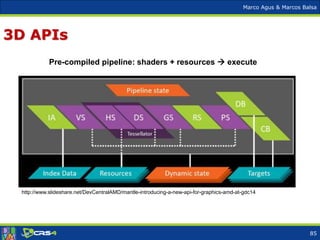

Pre-compiled pipeline: shaders + resources  execute
http://www.slideshare.net/DevCentralAMD/mantle-introducing-a-new-api-for-graphics-amd-at-gdc14
85

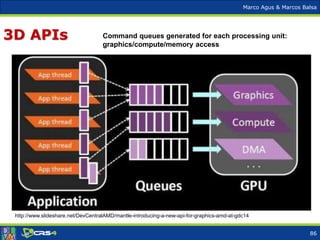

3D APIs Command queues generated for each processing unit:
graphics/compute/memory access
86

3D APIs

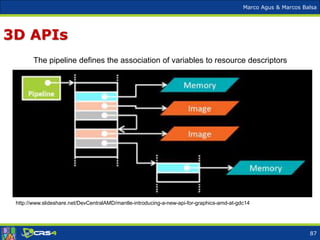

The pipeline defines the association of variables to resource descriptors
87

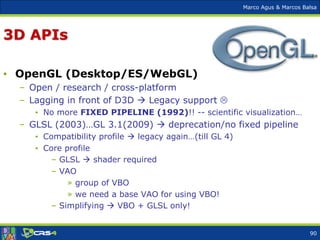

3D APIs
• OpenGL (Desktop/ES/WebGL)
– Open / research / cross-platform
– Lagging in front of D3D  Legacy support 
• No more FIXED PIPELINE (1992)!! -- scientific visualization…
– GLSL (2003)…GL 3.1(2009)  deprecation/no fixed pipeline
• Compatibility profile  legacy again…(till GL 4)
• Core profile
– GLSL  shader required
– VAO
» group of VBO
» we need a base VAO for using VBO!
– Simplifying  VBO + GLSL only!
90

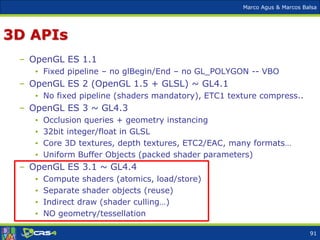

3D APIs
– OpenGL ES 1.1
• Fixed pipeline – no glBegin/End – no GL_POLYGON -- VBO
– OpenGL ES 2 (OpenGL 1.5 + GLSL) ~ GL4.1
• No fixed pipeline (shaders mandatory), ETC1 texture compress..
– OpenGL ES 3 ~ GL4.3
• Occlusion queries + geometry instancing
• 32bit integer/float in GLSL
• Core 3D textures, depth textures, ETC2/EAC, many formats…
• Uniform Buffer Objects (packed shader parameters)
– OpenGL ES 3.1 ~ GL4.4
• Compute shaders (atomics, load/store)
• Separate shader objects (reuse)
• Indirect draw (shader culling…)
• NO geometry/tessellation
91

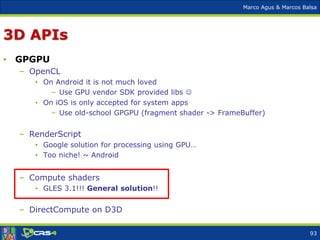

3D APIs
• GPGPU
– OpenCL
• On Android it is not much loved
– Use GPU vendor SDK provided libs 
• On iOS is only accepted for system apps
– Use old-school GPGPU (fragment shader -> FrameBuffer)
– RenderScript
• Google solution for processing using GPU…
• Too niche! ~ Android
– Compute shaders
• GLES 3.1!!! General solution!!
– DirectCompute on D3D
93

Cross-development
http://www.appian.com/blog/enterprise-mobility-2/are-mobile-platform-choices-limiting-enterprise-process-innovation
94

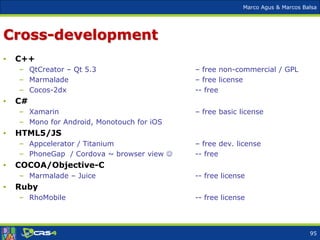

Cross-development
• C++
– QtCreator – Qt 5.3 – free non-commercial / GPL
– Marmalade – free license
– Cocos-2dx -- free
• C#
– Xamarin – free basic license
– Mono for Android, Monotouch for iOS
• HTML5/JS
– Appcelerator / Titanium – free dev. license
– PhoneGap / Cordova ~ browser view  -- free
• COCOA/Objective-C
– Marmalade – Juice -- free license
• Ruby
– RhoMobile -- free license
95

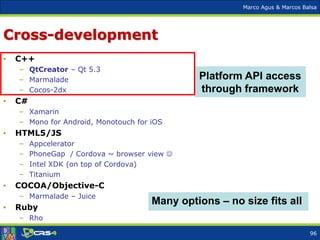

Cross-development
• C++
– QtCreator – Qt 5.3
– Marmalade
– Cocos-2dx
• C#
– Xamarin
– Mono for Android, Monotouch for iOS
• HTML5/JS
– Appcelerator
– PhoneGap / Cordova ~ browser view 
– Intel XDK (on top of Cordova)
– Titanium
• COCOA/Objective-C
– Marmalade – Juice
• Ruby
– Rho
Many options – no size fits all
Platform API access
through framework
96

Cross-development

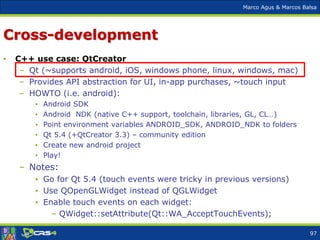

• C++ use case: QtCreator
– Qt (~supports android, iOS, windows phone, linux, windows, mac)
– Provides API abstraction for UI, in-app purchases, ~touch input
– HOWTO (i.e. android):
• Android SDK
• Android NDK (native C++ support, toolchain, libraries, GL, CL…)
• Point environment variables ANDROID_SDK, ANDROID_NDK to folders
• Qt 5.4 (+QtCreator 3.3) – community edition
• Create new android project
• Play!
– Notes:
• Go for Qt 5.4 (touch events were tricky in previous versions)
• Use QOpenGLWidget instead of QGLWidget
• Enable touch events on each widget:
– QWidget::setAttribute(Qt::WA_AcceptTouchEvents);
97

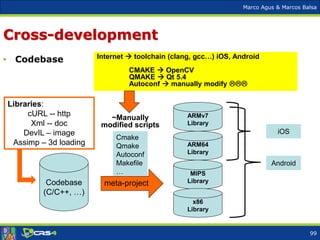

Cross-development
• Codebase
Codebase
(C/C++, …)
meta-project
Cmake
Qmake
Autoconf
Makefile
…
ARMv7
Library
ARM64
Library
MIPS
Library
x86
Library
iOS
Android
~Manually
modified scripts
Internet  toolchain (clang, gcc…) iOS, Android
CMAKE  OpenCV
QMAKE  Qt 5.4
Autoconf  manually modify 
99
Libraries:
cURL -- http
Xml -- doc
DevIL – image
Assimp – 3d loading

Cross-development

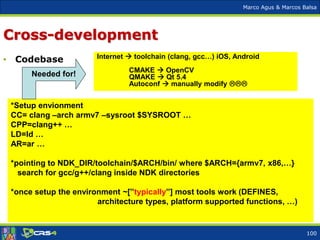

• Codebase Internet  toolchain (clang, gcc…) iOS, Android
CMAKE  OpenCV
QMAKE  Qt 5.4
Autoconf  manually modify 
100
*Setup envionment
CC= clang –arch armv7 –sysroot $SYSROOT …
CPP=clang++ …
LD=ld …
AR=ar …
*pointing to NDK_DIR/toolchain/$ARCH/bin/ where $ARCH={armv7, x86,…}
search for gcc/g++/clang inside NDK directories
*once setup the environment ~[”typically”] most tools work (DEFINES,
architecture types, platform supported functions, …)
Needed for!

Cross-development
• 3D framework / engine
– HW/platform abstraction  abstraction^2
• L1) Use 3D API  portability issues! ( HW , OS  )
– Try using GL ES 2/3/3.1 < GL 2.1/3.3/4.4 (Desktop GLES!!)
• L2) Abstract 3D API (HW , OS  )
– minimum common function set {D3D, GLES, Metal, Vulkan…}
– (~) buffer, image, shader, pipeline (config pkg)
Metal
GL ES
GL desktop
Vulkan
D3D
wrapper
Shader program
Pipeline
Buffer
Image buffer
Take a look at Metal!
WinPhone
Android
iOS
Unix/Linux
Windows
MacOS
101
Application

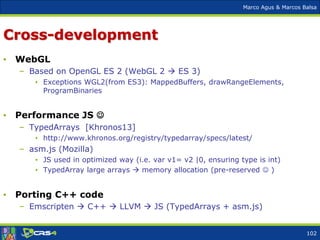

Cross-development
• WebGL
– Based on OpenGL ES 2 (WebGL 2  ES 3)
• Exceptions WGL2(from ES3): MappedBuffers, drawRangeElements,
ProgramBinaries
• Performance JS 
– TypedArrays [Khronos13]
• http://www.khronos.org/registry/typedarray/specs/latest/
– asm.js (Mozilla)
• JS used in optimized way (i.e. var v1= v2 |0, ensuring type is int)
• TypedArray large arrays  memory allocation (pre-reserved  )
• Porting C++ code
– Emscripten  C++  LLVM  JS (TypedArrays + asm.js)
102

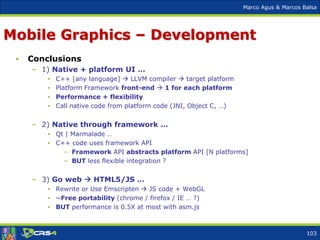

Mobile Graphics – Development
• Conclusions
– 1) Native + platform UI …
• C++ [any language]  LLVM compiler  target platform
• Platform Framework front-end  1 for each platform
• Performance + flexibility
• Call native code from platform code (JNI, Object C, …)
– 2) Native through framework …
• Qt | Marmalade …
• C++ code uses framework API
– Framework API abstracts platform API [N platforms]
– BUT less flexible integration ?
– 3) Go web  HTML5/JS …
• Rewrite or Use Emscripten  JS code + WebGL
• ~Free portability (chrome / firefox / IE … ?)
• BUT performance is 0.5X at most with asm.js
103

Mobile Graphics (part1)

More Related Content

Viewers also liked

Similar to Mobile Graphics (part1)

More from CRS4 Research Center in Sardinia

Recently uploaded

Mobile Graphics (part1)

Editor's Notes
