Miriam RAM Studio is a cloud-based simulation tool designed for reliability, availability, and maintainability (RAM) analysis, improving productivity and reducing costs. With features like advanced flow allocation algorithms and on-the-fly simulation, it allows users to create detailed models, conduct Monte Carlo simulations, and collaborate effectively across locations. The platform supports extensive customization, ensuring accurate modeling for various industries with user-friendly capabilities.

1. RAMSTUDIO
Flow Performance Forecasting –
in the Cloud
March 6, 2018

2. RAMSTUDIO
Miriam RAM Studio is the most powerful
and flexible RAM simulation tool on the
market. The hosted platform allows for
unprecedented availability and
integration capabilities, that boasts
collaboration and analytics-based
decision making.

3. Page
3
What is RAM
• RAM refers to Reliability, Availability and Maintainability.
• Reliability is the probability of survival after the unit/system operates for a certain period
of time (e.g. a unit has a 95% probability of survival after 8000 hours).
• Reliability defines the failure frequency and determines the uptime patterns.
• Maintainability describes how soon the unit/system can be repaired, which determines
the downtime patterns.
• Availability is the percentage of uptime over the time horizon, and is determined by
reliability and maintainability.

4. Page
4

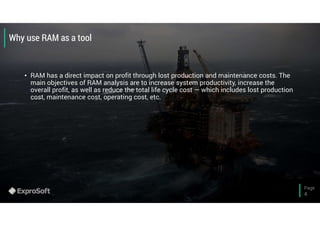

Why use RAM as a tool
• RAM has a direct impact on profit through lost production and maintenance costs. The
main objectives of RAM analysis are to increase system productivity, increase the
overall profit, as well as reduce the total life cycle cost — which includes lost production
cost, maintenance cost, operating cost, etc.

5. Page
5
Miriam RAM Studio
Key Features
Flow
Allocation
Algorithm
CollaborationUnlimited
Input
Advanced
Blaming
Fast &
Powerful
Gas
Physics
On-the-Fly
Simulation
Multiple
Distributions

6. Page
6
Miriam RAM Studio

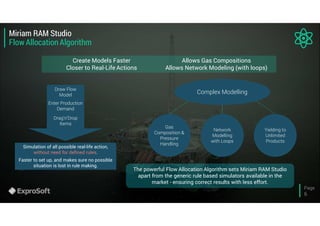

Flow Allocation Algorithm
Create Models Faster
Closer to Real-Life Actions
Allows Gas Compositions
Allows Network Modeling (with loops)
Draw Flow
Model
Enter Production
Demand
Drag’n’Drop
Items
Simulation of all possible real-life action,
without need for defined rules.
Faster to set up, and makes sure no possible
situation is lost in rule making.
Complex Modelling
Gas
Composition &
Pressure
Handling
Network
Modelling
with Loops
Yielding to
Unlimited
Products
The powerful Flow Allocation Algorithm sets Miriam RAM Studio
apart from the generic rule based simulators available in the
market - ensuring correct results with less effort.

7. Page
7
Miriam RAM Studio
Advanced Blaming
Real blaming calculations
you can trust
Loss calculated for each product, even
when several items fail at the same time
Due to the powerful
Flow Allocation Algorithm,
Miriam RAM Studio provides
the most accurate blaming
results of any commercially
available reliability modelling
tool.

8. Page
8
Miriam RAM Studio
On-the-Fly Simulation & Life Cycle Event Playback
View Complete List of Simulated Events
Easy Model Debugging
What-If-Analysis
Ensure Model is as the Real Life System
Simulate One Life
Cycle Replication
View List of
Playback Events
Notice an
Anomaly
Assess Failure Distribu-
tion, Production Profile,
Yielding Values, etc.
Verify Flow with On-
the-Fly Simulation
Run Full Monte Carlo
Simulation
Miriam RAM Studio makes it easy to validate the model
before running simulations, ensuring that the end result is as
close to real life as possible.
Instantly see the effects
of failed item(s)

9. Page
9
Miriam RAM Studio

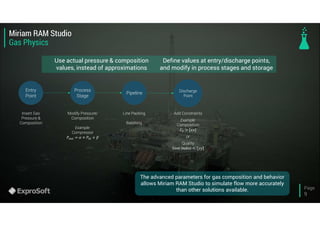

Gas Physics
Use actual pressure & composition
values, instead of approximations
Define values at entry/discharge points,
and modify in process stages and storage
Insert Gas
Pressure &
Composition
Modify Pressure/
Composition
Example:
Compressor
𝑃 = 𝛼 × 𝑃 + 𝛽
Line Packing
Batching
Add Constraints
Example:
Composition
𝐶 > 𝑥𝑥
or
Quality
𝑆𝑜𝑜𝑡 𝐼𝑛𝑑𝑒𝑥 < 𝑦𝑦
Entry
Point
Process
Stage
Pipeline Discharge
Point
The advanced parameters for gas composition and behavior
allows Miriam RAM Studio to simulate flow more accurately
than other solutions available.

10. Page
10
Miriam RAM Studio
Unlimited Input
Create Models with No Limitations in
Amount or Depth of Products
Multiple Entry and Discharge Points,
with Unlimited Amount of Products
Miriam RAM Studio’s lego concept allows the market’s most
flexible and advanced modelling for all industries.

11. Page
11
Miriam RAM Studio

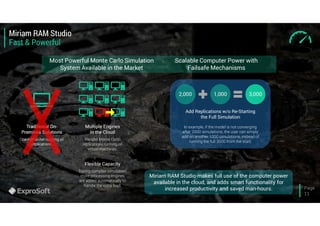

Fast & Powerful
Most Powerful Monte Carlo Simulation
System Available in the Market
Scalable Computer Power with
Failsafe Mechanisms
Multiple Engines
in the Cloud
Parallel Monte Carlo
replications running on
virtual machines.
Add Replications w/o Re-Starting
the Full Simulation
In example, if the model is not converging
after 2000 simulations, the user can simply
add on another 1000 simulations, instead of
running the full 3000 from the start.
2,000 1,000 3,000
Miriam RAM Studio makes full use of the computer power
available in the cloud, and adds smart functionality for
increased productivity and saved man-hours.
Traditional On-
Premises Solutions
One computer running all
replications
Flexible Capacity
During complex simulation,
more processing engines
are added automatically to
handle the extra load.

12. Page
12
Miriam RAM Studio

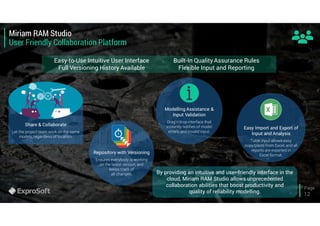

User Friendly Collaboration Platform
Easy-to-Use Intuitive User Interface
Full Versioning History Available
Built-In Quality Assurance Rules
Flexible Input and Reporting
Share & Collaborate
Let the project team work on the same
models, regardless of location.
Repository with Versioning
Ensures everybody is working
on the latest version, and
keeps track of
all changes.
Modelling Assistance &
Input Validation
Drag’n’drop interface that
instantly notifies of model
errors, and invalid input.
Easy Import and Export of
Input and Analysis
Table input allows easy
copy/paste from Excel, and all
reports are exported in
Excel format.
By providing an intuitive and user-friendly interface in the
cloud, Miriam RAM Studio allows unprecedented
collaboration abilities that boost productivity and
quality of reliability modelling.

13. Page
13
Miriam RAM Studio

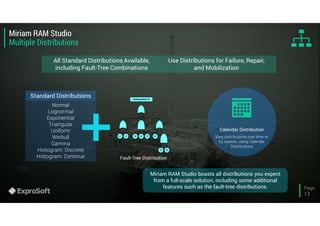

Multiple Distributions
All Standard Distributions Available,
including Fault-Tree Combinations
Use Distributions for Failure, Repair,
and Mobilization
Standard Distributions
Normal
Lognormal
Exponential
Triangular
Uniform
Weibull
Gamma
Histogram: Discrete
Histogram: Continue
Calendar Distribution
Vary distributions over time or
by season, using Calendar
Distributions
Miriam RAM Studio boasts all distributions you expect
from a full-scale solution, including some additional
features such as the fault-tree distributions.
Fault-Tree Distribution

14. Page
14
Miriam RAM Studio

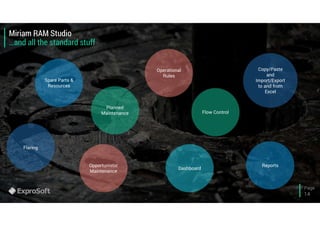

…and all the standard stuff
Spare Parts &
Resources
Dashboard
Flaring
Operational
Rules
Opportunistic
Maintenance
Flow Control
Planned
Maintenance
Copy/Paste
and
Import/Export
to and from
Excel
Reports
