Karen Lopez, a data evangelist with over 20 years of experience, discusses the complexities and considerations involved in migrating data to Azure, emphasizing that many upgrades are essentially migration projects. She outlines various tools and methodologies, including Azure Migrate and the Data Migration Assistant, that facilitate this process, while also addressing potential challenges such as vendor lock-in and security concerns. The presentation highlights the importance of planning, testing, and leveraging new features during the migration to ensure a successful transition.

1. Karen Lopez
Data Evangelist,
InfoAdvisors
Level: Intermediate
Migrating Data &
Databases to Azure

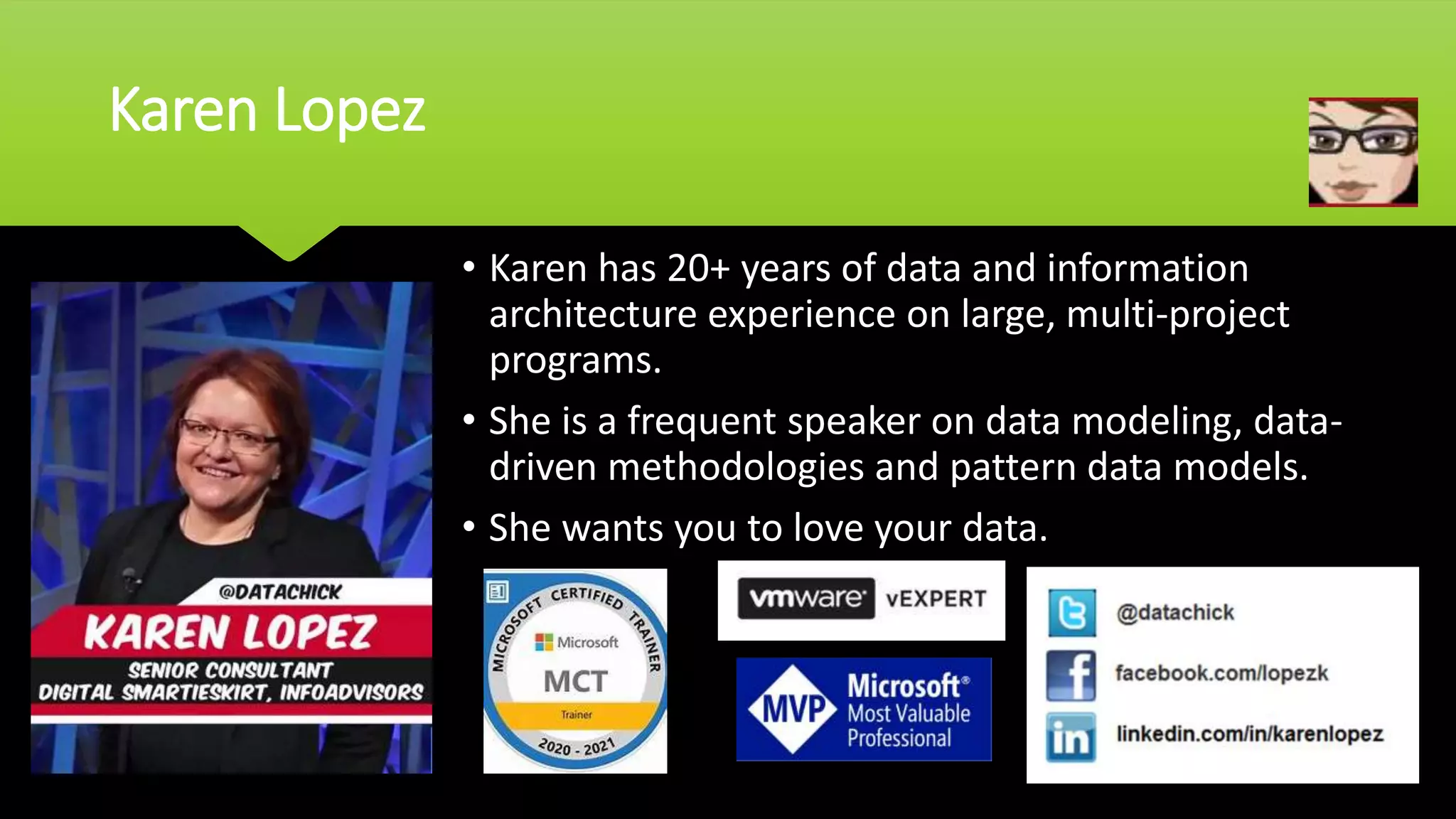

2. Karen Lopez
• Karen has 20+ years of data and information
architecture experience on large, multi-project
programs.
• She is a frequent speaker on data modeling, data-
driven methodologies and pattern data models.
• She wants you to love your data.

3. Why this topic?
So many migration stories out there…
Upgrades are Migration projects, too.
There are many “gotchas”
New tools, new reasons
Many techniques

4. POLL: Who Are You?

5. POLL: Have you participated
in a production migration?

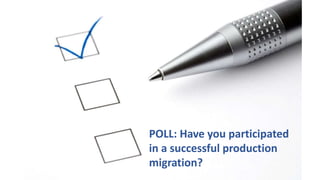

6. POLL: Have you participated
in a successful production
migration?

7. POLL: Do you have
production experience
with the tools?

8. Roles and responsibilities on migration projects
• What do Data Professionals do?
• DBA
• Data Analyst
• BI folks
• DB Devs
• Server team
• Storage “guys”
• Architects just booze

9. Why "lift and shift" may not be right choice
Cloud isn't the same as your data center
Performance expectations
Baseline performance
Security
Many service offerings

10. Why Migrate to Azure SQL
DB?
• Performance and scale
without downtime
• Elastic pools
• Pooled databases
• Monitoring and
alerting
• Uptime, SLAs, DR, BCP
• Securing data

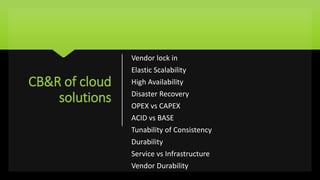

11. CB&R of cloud
solutions
Vendor lock in
Elastic Scalability
High Availability
Disaster Recovery
OPEX vs CAPEX
ACID vs BASE
Tunability of Consistency
Durability
Service vs Infrastructure
Vendor Durability

12. Upgrade workflow
Discover
Assess
Plan
Implement
Review
Monitoring
Upgrade is a complicated
process with many
considerations
Most upgrades are actually
“migration projects”
Upgrades are always
coming
Simplicity

13. Migration Tool Options
Azure Migrate
• Collection of tools
and services
• Discovery of
databases
• More than just DBs
• Estimating costs and
sizes
• Lift and Shift at scale
Data Migration
Assistant (DMA)
• App that Assesses
Compatibility,
Blocking features
• SQL Server upgrade
migrations
• SQL Server to Azure
SQL
• Moves Schema and
Data
SQL Server Migration
Assistant (SSMA)
• MS Access, MySQL,
Oracle, SAP ASE to
SQL Server or Azure
SQL
Azure Database
Migration Service
(DMS)
• Scaling
• Larger DBs or Many
of them
Database
Experimentation
Assistant (DEA)
• For upgrades

14. Method 1 Method 2 Method 3
Target
DB
SQL Database
SQL Server
SSMS
2. Import
1. Deploy
OR
.bacpac
1. Export
Source
DB
Target
DB
SQL Database
SQL Server
Data
Migration
Assistant
2. Execute
1. Generate
T-SQL
Source
DB
Target
DB
SQL Database
SQL Server
DMA
6. Deploy
5. Import
Copy
DB
Source
DB
4. Publish
1. Import
Visual
Studio
database
project
2. Transform
3. Edit, build
and test
*.sql
4. Publish (schema only)
Migrate a compatible database
using SSMS
Migrate a compatible database
using DMA
Update the database schema offline using
Visual Studio, then deploy it with DMA
Migration Options

15. Planning
Points
Map Toolkit
SQL PowerDoc
Data Modeling Tools
Change Management Tools
CMDB
…all the tool choices

16. SQL Server Migration Assistant:
Sources
• SQL Server
• Oracle
• DB2
• MySQL
• PostgreSQL
• SAP ASE
• Access
• MongoDB
• Azure Table Storage

17. SQL Server Migration
Assistant: Destinations
• SQL Server
• Azure SQL DB
• Azure PostgreSQL (from
Oracle, PostgreSQL)
• Azure MySQL (from
MySQL)
• Azure CosmosDB (From
MongoDB, Azure Table
Storage)

18. Data Migration
Assistant

19. Data Migration
Services
https://docs.microsoft.com/
en-us/azure/dms/migration-
using-azure-data-studio

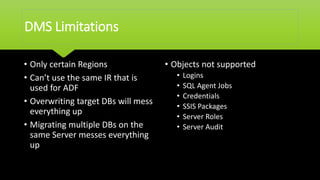

20. DMS Limitations
• Only certain Regions
• Can’t use the same IR that is
used for ADF
• Overwriting target DBs will mess
everything up
• Migrating multiple DBs on the
same Server messes everything
up
• Objects not supported
• Logins
• SQL Agent Jobs
• Credentials
• SSIS Packages
• Server Roles
• Server Audit

21. DEMOs….

22. Pre-Upgrade Thinking
Know your path
Know Licensing changes
Know your options
Gather inventory details

23. Pre-Upgrade Tasks
Deprecated features
Discontinued features
Breaking changes
Behavioral changes
Read the Release Notes

24. Pre-Upgrade Tasks
New environment
requirements
Take baselines
Capture workloads
Test server O/S
Take backups

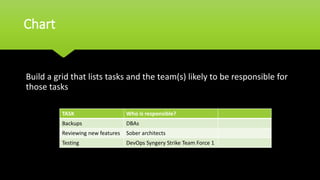

25. Chart
Build a grid that lists tasks and the team(s) likely to be responsible for
those tasks
TASK Who is responsible?
Backups DBAs
Reviewing new features Sober architects
Testing DevOps Syngery Strike Team Force 1

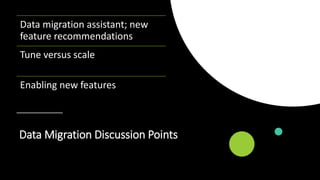

26. Data Migration Discussion Points
Data migration assistant; new
feature recommendations
Tune versus scale
Enabling new features

27. Data Migration process
Test target database for compatibility issues
Make all necessary changes
Migrate the database
(The simple version)

28. Data Migration process
Identify new features you want to use
Identify the stuff you don’t need any more
Test target database for compatibility issues
Make all necessary changes
Migrate the database
(The not-as-simple version)

29. Data Migration process: DIY
Test target database for
compatibility issues
• Use SSMS to export/extract
• Use DMA to analyze/migrate
• Use VS to create a database project
• Manually script using SQLPackage.exe

30. Data Migration process: DIY
Make changes
• SSMS
• VS database projects best
suited for this task

31. Data Migration process: DIY
Migrate database
• Export/Import
• DACPAC and BCP
• Trx replication
• Backup/Restore

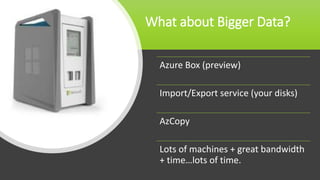

32. What about Bigger Data?
Azure Box (preview)
Import/Export service (your disks)
AzCopy
Lots of machines + great bandwidth
+ time…lots of time.

33. Security & Privacy
Data categorization
BACPAC & Files
Encryption keys – best
practices
Data Movement for large data
Encryption technologies
Non-standard ops are
when secret tend to
leak!
See something/Say
Something

34. Post-Migration Tasks
Take backups
DBCC commands
Verify counts (data from inventory
gathering)
Check configurations
Enable/Deploy new features

35. Testing….
• In your planning phase, you should have developed
post-migration
• Test Plan
• Test Harness
• Test Data (not production data)
• Automated Testing scripts
• …all the Test Driven Development things you do for Dev
projects.
• You did that all, right?

36. Testing….
• User Acceptance Testing
• End-to-end testing
• Performance benchmarks (updated)
• Cycle testing
• Security and Privacy testing
• HADR
• Monitoring & Alerting
• Networking
• …the rest of IT knows there’s a new thing / place

37. Data Migration Summary
1.Features: take advantage of new things
2.Use Visual Studio to create a database project
3.Test target source and database for compatibility issues
4.Downtimes:
1.Minimal downtime: Transactional replication
2.Some downtime, trx consistent: Backup/Restore
3.Some downtime, not trx consistent: SSMS Import/Export
data wizard
5.Tools help you engineer out the stupid
6.Testing needs to be just as rigorous as development testing.

38. Tips & tricks
Rolling Upgrades
Newer is Better
Learn to Count
Script all the things
Azure option for POC
Baseline performance
Query Store
DMA isn’t perfect
Data Migration Guide
Data Architects have great tools
and techniques to help
Data Architects know the data and
the structure

39. Karen Lopez – Thank You!
