1. MICROSOFT S.Q.L SERVER
2016 PRACTICAL (LAB
SESSIONS)
KHALID MAHMOOD, ICIT, GOMAL UNIVERSITY, D.I.KHAN

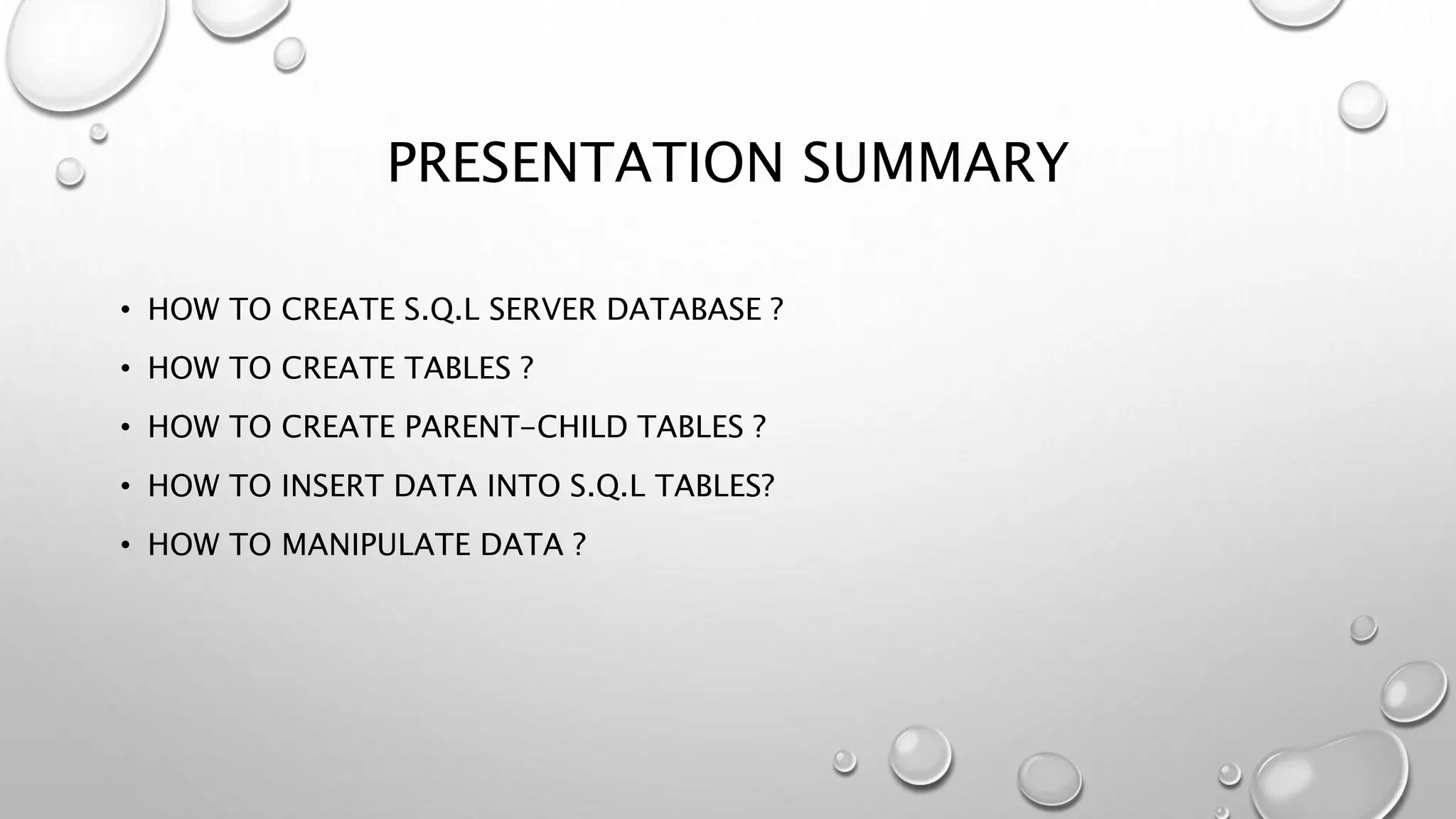

2. PRESENTATION SUMMARY
• HOW TO CREATE S.Q.L SERVER DATABASE ?
• HOW TO CREATE TABLES ?
• HOW TO CREATE PARENT-CHILD TABLES ?
• HOW TO INSERT DATA INTO S.Q.L TABLES?
• HOW TO MANIPULATE DATA ?

3. SQL:CREATE DATABASE Statement
Things to consider before you create your
DATABASE are:
NO TWO DATABASE’S SHOULD HAVE THE
SAME NAME ON THE SYSTEM.
THE FIRST CHARACTER IN DATABASE NAME
MUST BE ALPHABET.
CREATE DATABASE statement syntax:
CREATE DATABASE <DATABASENAME>

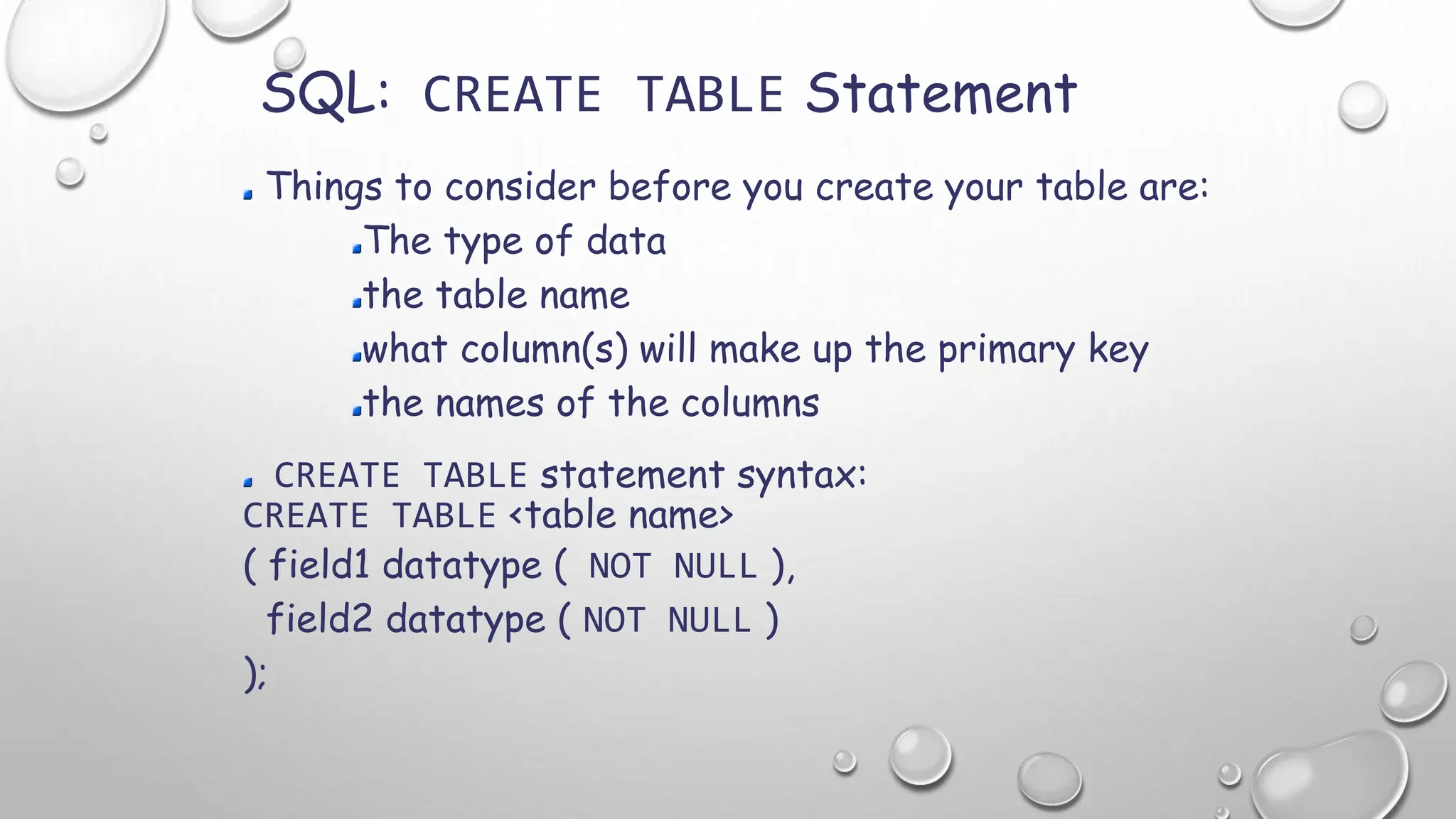

4. SQL: CREATE TABLE Statement
Things to consider before you create your table are:
The type of data
the table name
what column(s) will make up the primary key
the names of the columns
CREATE TABLE statement syntax:
CREATE TABLE <table name>
( field1 datatype ( NOT NULL ),
field2 datatype ( NOT NULL )
);

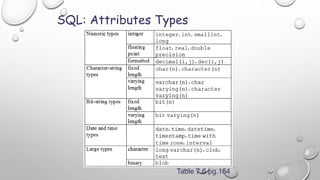

5. SQL: Attributes Types
Table 7.6 pg.164

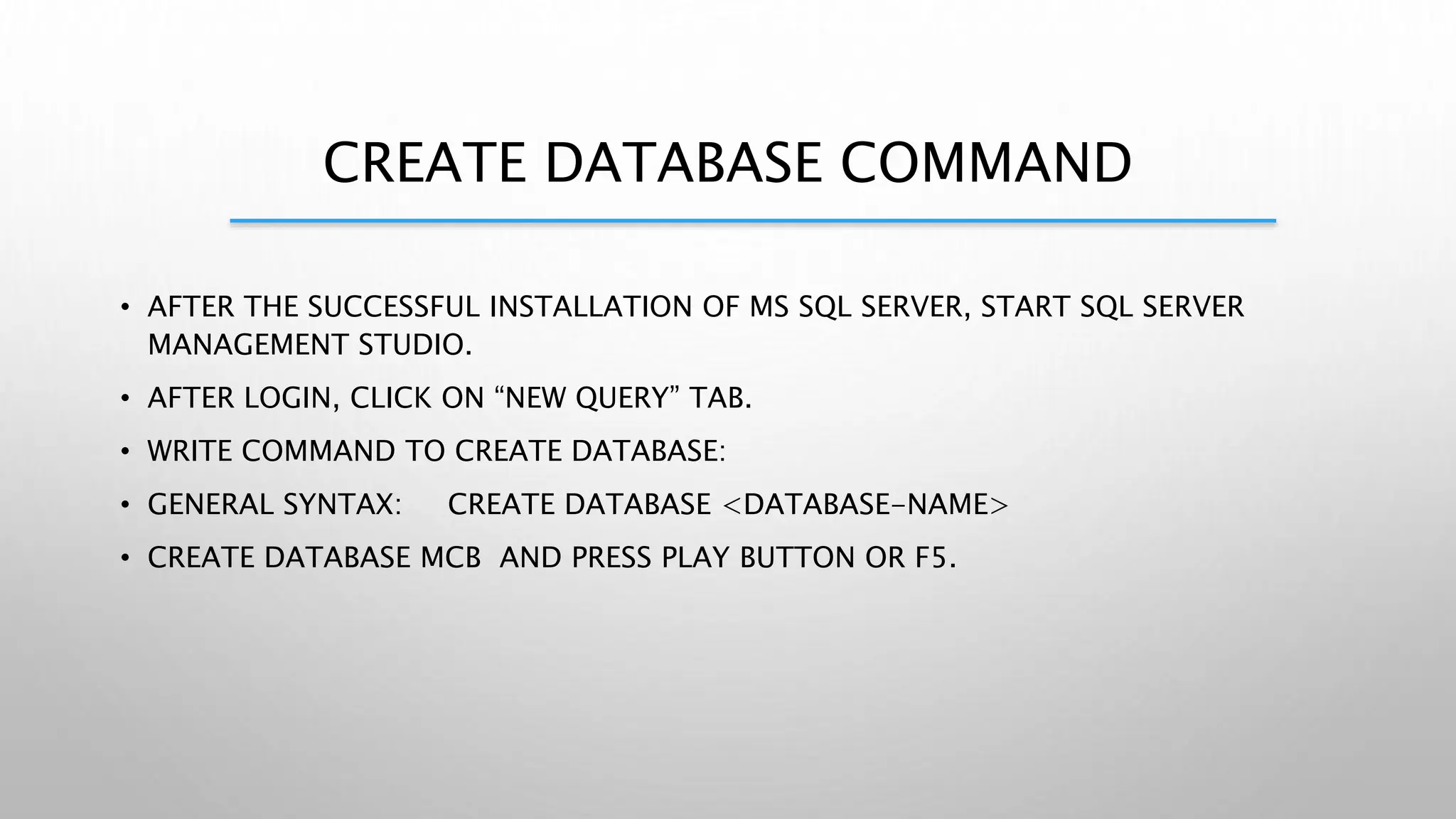

6. CREATE DATABASE COMMAND
• AFTER THE SUCCESSFUL INSTALLATION OF MS SQL SERVER, START SQL SERVER
MANAGEMENT STUDIO.
• AFTER LOGIN, CLICK ON “NEW QUERY” TAB.
• WRITE COMMAND TO CREATE DATABASE:
• GENERAL SYNTAX: CREATE DATABASE <DATABASE-NAME>
• CREATE DATABASE MCB AND PRESS PLAY BUTTON OR F5.

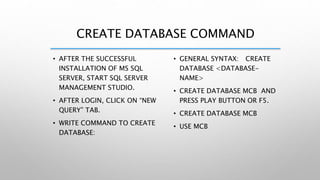

7. CREATE DATABASE COMMAND
• AFTER THE SUCCESSFUL
INSTALLATION OF MS SQL
SERVER, START SQL SERVER
MANAGEMENT STUDIO.
• AFTER LOGIN, CLICK ON “NEW
QUERY” TAB.
• WRITE COMMAND TO CREATE
DATABASE:
• GENERAL SYNTAX: CREATE
DATABASE <DATABASE-
NAME>
• CREATE DATABASE MCB AND
PRESS PLAY BUTTON OR F5.
• CREATE DATABASE MCB
• USE MCB

8. Example:
CREATE TABLE FoodCart (
date varchar(10),
food varchar(20),
profit float
)
CREATE TABLE Branch
(bno int Primary Key,
bname varchar(20),
Street varchar(15), city
varchar(20)
)
profit
food
date
city
street
bname
bno
FoodCart
Branch
How to Create Table in SQL

9. TABLE CREATION USING
PRIMARY KEY & FOREIGN KEY CONSTRAINTS
• PARENT TABLE:
• BRANCH (BNO, BNAME,
STREET, CITY)
• CHILD TABLE:
• STAFF( STAFFNO, STAFFNAME,
DESIGNATION, SALARY, CITY,
BNO)
• CREATE TABLE BRANCH(BNO INT
PRIMARY KEY, BNAME
VARCHAR(20), STREET
VARCHAR(15), CITY
VARCHAR(20))
• CREATE TABLE STAFF(STAFFNO
INT PRIMARY KEY, STAFFNAME
VARCHAR(20), DESIGNATION
VARCHAR(15), SALARY MONEY,
CITY VARCHAR(20), BNO INT
FOREIGN KEY (BNO) REFERENCES
BRANCH)

11. SQL: DML Commands
INSERT: adds new rows to a table.
UPDATE: modifies one or more attributes.
DELETE: deletes one or more rows from a table.

12. SQL: INSERT Statement
To insert a row into a table, it is necessary to
have a value for each attribute, and order matters.
INSERT statement syntax:
INSERT into <table name>
VALUES ('value1', 'value2', NULL);
Example: INSERT into FoodCart
VALUES (’02/26/08', ‘pizza', 70 );
FoodCart
70
pizza
02/26/08
500
hotdog
02/26/08
350
pizza
02/25/08
sold
food
date
500
hotdog
02/26/08
350
pizza
02/25/08
sold
food
date
