1. VINCENT KOK | ENGINEERING MANAGER, TRELLO | @VINCENTKOK
Microservices
5 things I wish I’d known5 6 things I wish I’d known

2. Part-time speaker
For fun and zero profit
About me: @vincentkok
Trello
Engineering Manager on the
Trello team
Dutch
You probably heard that already ;)

3. Microservices
Everybody seems to want them. Do we
really know the impact of our choices?
Why do we want them so badly?
Microservices are messy!
https://flic.kr/p/9u5pDA

4. http://geek-and-poke.com/geekandpoke/2013/7/13/foodprints

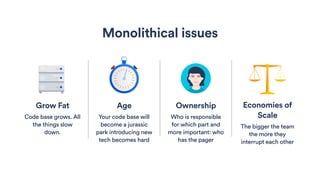

5. Grow Fat
Code base grows. All
the things slow
down.
Age
Your code base will
become a jurassic
park introducing new
tech becomes hard
Ownership
Who is responsible
for which part and
more important: who
has the pager
Economies of
Scale
The bigger the team
the more they
interrupt each other
Monolithical issues

7. 8100
Build jobs ran last week

8. 31992
Automated tests

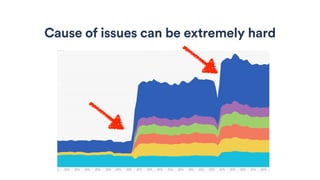

9. Cause of issues can be extremely hard

10. Who is having the pager?
INCIDENT RESPONSE

11. Remember, we’re not all
webscale

13. Optimise for rapid and
sustainable flow of value.
DAN NORD

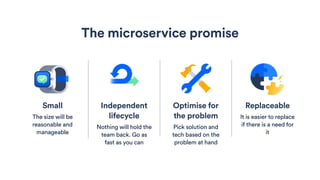

15. Small
The size will be
reasonable and
manageable
Independent
lifecycle
Nothing will hold the
team back. Go as
fast as you can
Optimise for
the problem
Pick solution and
tech based on the
problem at hand
Replaceable
It is easier to replace
if there is a need for
it
The microservice promise

16. Patterns
Basics
Deployments
Testing
Security
Operations
https://flic.kr/p/9t2138
Decomposition

17. #1: Basics
https://flic.kr/p/5E9ZF

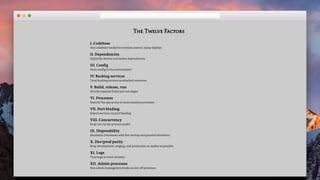

18. Creating a call-out
Watch the tutorial in the
Presentation Guidelines to learn
how to create call-outs on
screenshots within this template.

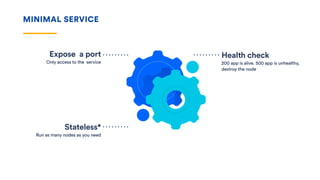

19. MINIMAL SERVICE
Health check
200 app is alive. 500 app is unhealthy,
destroy the node
Stateless*
Run as many nodes as you need
Expose a port
Only access to the service

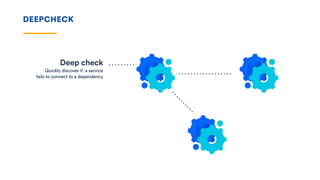

20. DEEPCHECK
Deep check
Quickly discover if a service
fails to connect to a dependency

21. DEEPCHECK EXAMPLE
{
"avatar": {
"details": {
"avatarRepository": {
"isHealthy": true
},
"crowd": {
"isHealthy": true
},
"deadlock": {
"isHealthy": true

22. CODE & BUILDS
1 repository 1 build

23. Libraries
Feel free to use
shared libraries but
keep them loose
Config
Be aware of the
configuration
lifecycle
Schemas
Make sure that
services are resilient
to schema changes
-> Postel’s law
Testing
Test in isolation.
Keep them decoupled

24. Strict separation of config
from code.
12 FACTOR APP

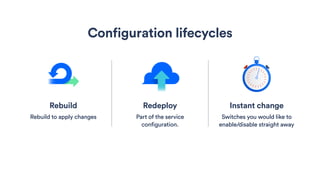

25. Redeploy
Part of the service
configuration.
Configuration lifecycles
Instant change
Switches you would like to
enable/disable straight away
Rebuild
Rebuild to apply changes

26. Treat them as cattle, not
pets.
BILL BAKER

27. #2: Deployments
https://flic.kr/p/qP31Tf

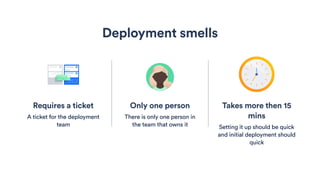

28. Only one person
There is only one person in
the team that owns it
Deployment smells
Takes more then 15
mins
Setting it up should be quick
and initial deployment should
quick
Requires a ticket
A ticket for the deployment
team

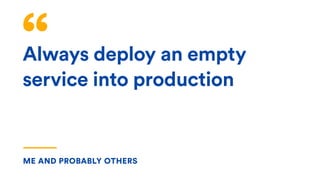

29. Always deploy an empty
service into production
ME AND PROBABLY OTHERS

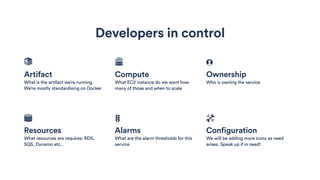

30. Developers in control
Artifact
What is the artifact we’re running.
We’re mostly standardising on Docker
Resources
What resources are requires: RDS,
SQS, Dynamo etc..
Compute
What EC2 instance do we want how
many of those and when to scale
Alarms
What are the alarm thresholds for this
service
Ownership
Who is owning the service
Configuration
We will be adding more icons as need
arises. Speak up if in need!

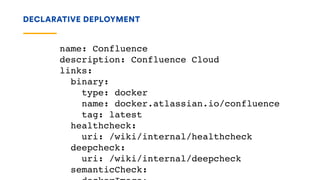

31. DECLARATIVE DEPLOYMENT
name: Confluence
description: Confluence Cloud
links:
binary:
type: docker
name: docker.atlassian.io/confluence
tag: latest
healthcheck:
uri: /wiki/internal/healthcheck
deepcheck:
uri: /wiki/internal/deepcheck
semanticCheck:

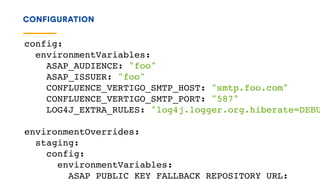

32. CONFIGURATION
config:
environmentVariables:
ASAP_AUDIENCE: "foo"
ASAP_ISSUER: "foo"
CONFLUENCE_VERTIGO_SMTP_HOST: "smtp.foo.com"
CONFLUENCE_VERTIGO_SMTP_PORT: "587"
LOG4J_EXTRA_RULES: "log4j.logger.org.hiberate=DEBU
environmentOverrides:
staging:
config:
environmentVariables:
ASAP_PUBLIC_KEY_FALLBACK_REPOSITORY_URL:

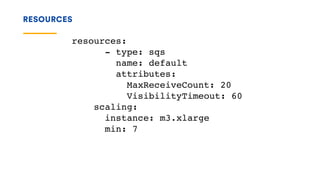

33. RESOURCES
resources:
- type: sqs
name: default
attributes:
MaxReceiveCount: 20
VisibilityTimeout: 60
scaling:
instance: m3.xlarge
min: 7

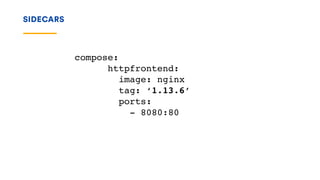

34. SIDECARS
compose:
httpfrontend:
image: nginx
tag: ‘1.13.6’
ports:
- 8080:80

35. 500
Services in production

36. #3: Testing
https://flic.kr/p/hn4K4b

37. Testing microservices

38. TESTING MONOLITHS IS EASY

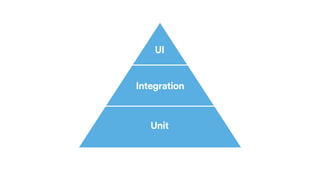

39. Unit
Integration
UI

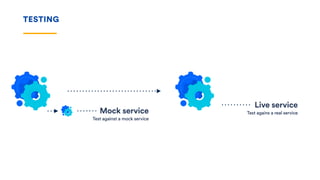

40. TESTING
Live service
Test agains a real serviceMock service
Test against a mock service

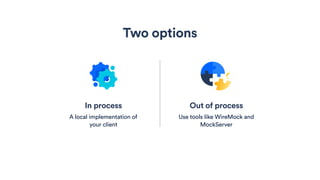

41. In process
A local implementation of
your client
Out of process
Use tools like WireMock and
MockServer
Two options

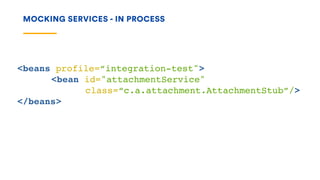

42. MOCKING SERVICES - IN PROCESS
<beans profile=“integration-test">
<bean id="attachmentService"
class=“c.a.attachment.AttachmentStub”/>
</beans>

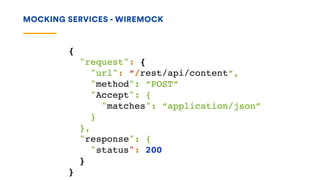

43. MOCKING SERVICES - WIREMOCK
{
"request": {
"url": “/rest/api/content“,
"method": “POST”
"Accept": {
"matches": “application/json”
}
},
"response": {
"status": 200
}
}

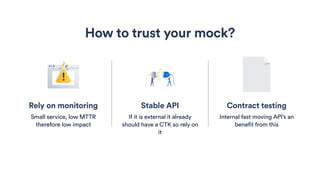

44. Stable API
If it is external it already
should have a CTK so rely on
it
How to trust your mock?
Contract testing
Internal fast moving API’s an
benefit from this
Rely on monitoring
Small service, low MTTR
therefore low impact

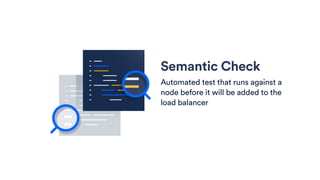

45. Semantic Check
Automated test that runs against a
node before it will be added to the
load balancer

46. #4: Security
https://flic.kr/p/7LcF2W

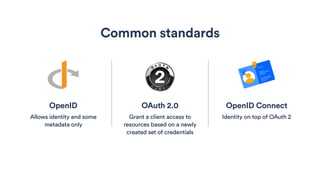

47. OAuth 2.0
Grant a client access to
resources based on a newly
created set of credentials
Common standards
OpenID Connect
Identity on top of OAuth 2
OpenID
Allows identity and some
metadata only

48. How to secure a set of many
services?
SECURING SERVICES

49. ASAP
Atlassian Service Authentication Protocol

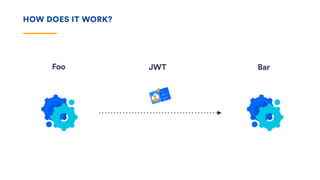

50. HOW DOES IT WORK?
Foo BarJWT

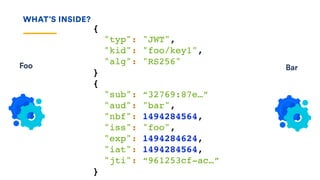

51. WHAT’S INSIDE?
Foo Bar
{
"typ": "JWT",
"kid": "foo/key1",
"alg": "RS256"
}
{
"sub": “32769:87e…”
"aud": "bar",
"nbf": 1494284564,
"iss": "foo",
"exp": 1494284624,
"iat": 1494284564,
"jti": “961253cf-ac…”
}

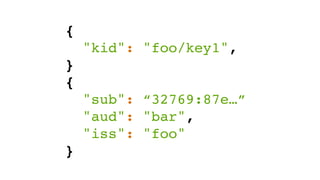

52. {
"kid": "foo/key1",
}
{
"sub": “32769:87e…”
"aud": "bar",
"iss": "foo"
}

53. s2sauth.bitbucket.io
AVAILABLE ON BITBUCKET

54. #5: Operations
https://flic.kr/p/npbxAm

55. 100 lbs
99% water
dehydrate 98%
Guess the weight!
https://flic.kr/p/npbxAm

56. 50
lbs

57. Uptime of a system with 30
services of 99.99?
TRANSLATING THIS TO A MICROSERVICE ARCHITECTURE

58. 2 hours
99.99 = 99.7
30

59. Failure is imminent
RESILIENCE

60. Circuit breakers
Write code with failure in
mind
Three must haves
Request tracing
Don’t spend hours debugging
Log aggregations
Stream all logs into one
place.

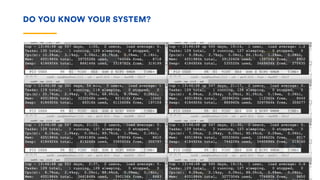

61. DO YOU KNOW YOUR SYSTEM?

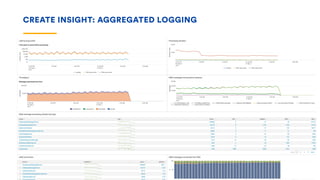

62. CREATE INSIGHT: AGGREGATED LOGGING

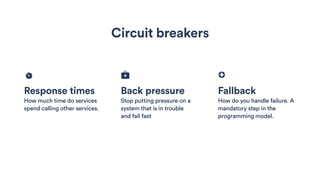

63. Response times
How much time do services
spend calling other services.
Back pressure
Stop putting pressure on a
system that is in trouble
and fail fast
Fallback
How do you handle failure. A
mandatory step in the
programming model.
Circuit breakers

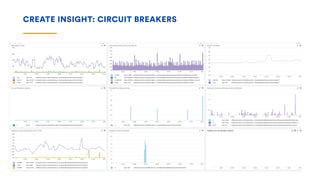

64. CREATE INSIGHT: CIRCUIT BREAKERS

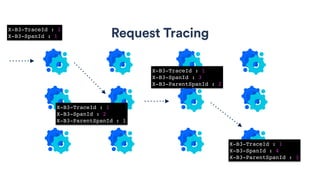

65. Request TracingX-B3-TraceId : 1
X-B3-SpanId : 1
X-B3-TraceId : 1
X-B3-SpanId : 2
X-B3-ParentSpanId : 1
X-B3-TraceId : 1
X-B3-SpanId : 3
X-B3-ParentSpanId : 2
X-B3-TraceId : 1
X-B3-SpanId : 4
X-B3-ParentSpanId : 3

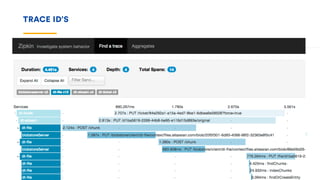

66. TRACE ID’S

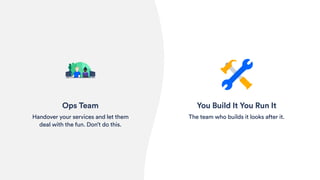

67. You Build It You Run It
The team who builds it looks after it.
Ops Team
Handover your services and let them
deal with the fun. Don’t do this.

68. #6: Decomposition
https://flic.kr/p/4hAC16

69. The monolith is deprecated
MAKE A STATEMENT

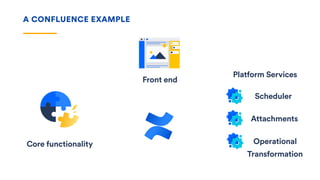

70. A CONFLUENCE EXAMPLE
Core functionality
Scheduler
Attachments
Operational
Transformation
Platform Services
Front end

71. Code
Team is responsible for the codebase.Focus on
ownership
Pipeline
Team responsible for CI and Deployment
Incidents
You built it you run it

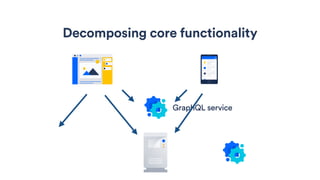

72. Decomposing core functionality
GraphQL service

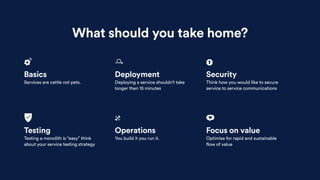

73. What should you take home?
Basics
Services are cattle not pets.
Testing
Testing a monolith is “easy” think
about your service testing strategy
Deployment
Deploying a service shouldn’t take
longer then 15 minutes
Operations
You build it you run it.
Security
Think how you would like to secure
service to service communications
Focus on value
Optimise for rapid and sustainable
flow of value

74. VINCENT KOK | ENGINEERING MANAGER, TRELLO | @VINCENTKOK
Thanks!
