1. Microprocessor
Lecturer: PhD. Nguyễn Trọng Kiên
Department Head of Signal Processing and Communications,
Posts & Telecommunications Institute of Technology, HCM City.

2. CHAPTER 4: < PIC16F887
MICROCONTROLLER: THE
BASICS OF C PROGRAMMING
LANGUAGE>

3. Chapter 4: C Programming
3

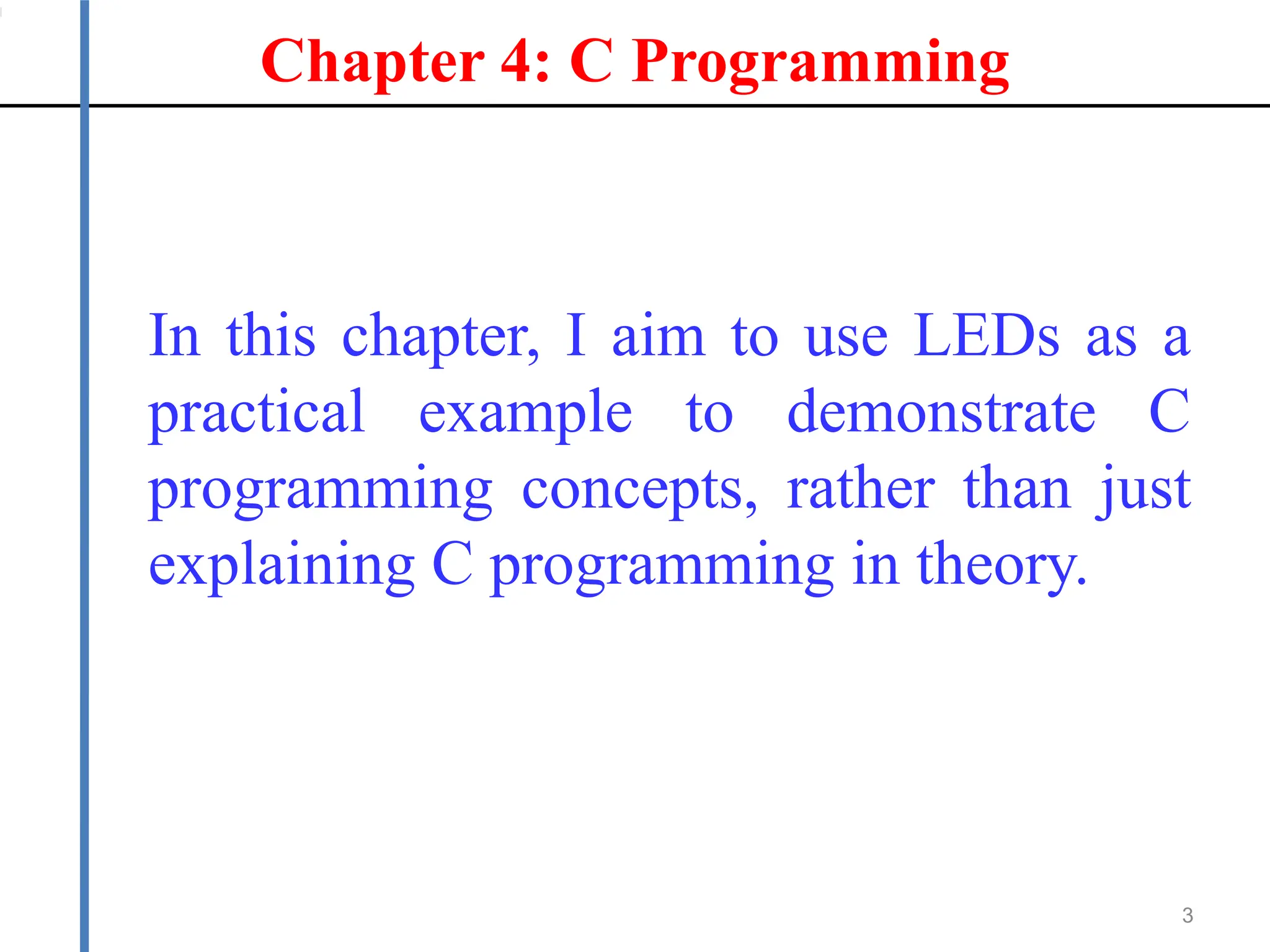

In this chapter, I aim to use LEDs as a
practical example to demonstrate C
programming concepts, rather than just
explaining C programming in theory.

4. LED Connection
4
Current Calculation

5. Proteus
5
Connect 8 LEDs to PORTD as follows:
Reset Button Crystal

6. Compiler - Create a new Project
6
Project Wizard Device Selection: PIC16F887
Crystal: 20 MHz

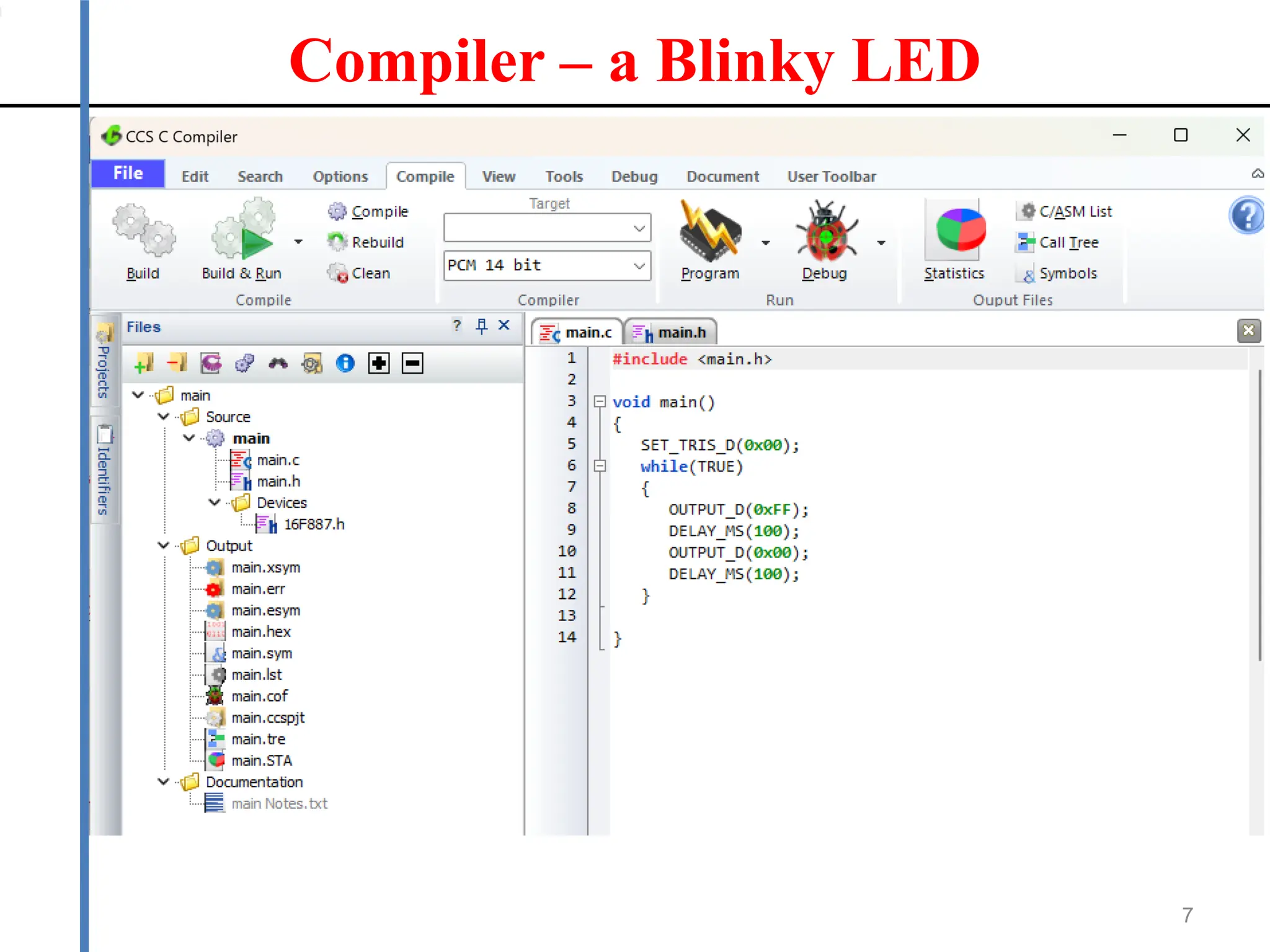

7. Compiler – a Blinky LED
7

8. Data Direction
8
Bit 1 indicates input, bit 0 indicates output .
Ex:
set_tris_d(0x00); -> all pins of PORT D are output

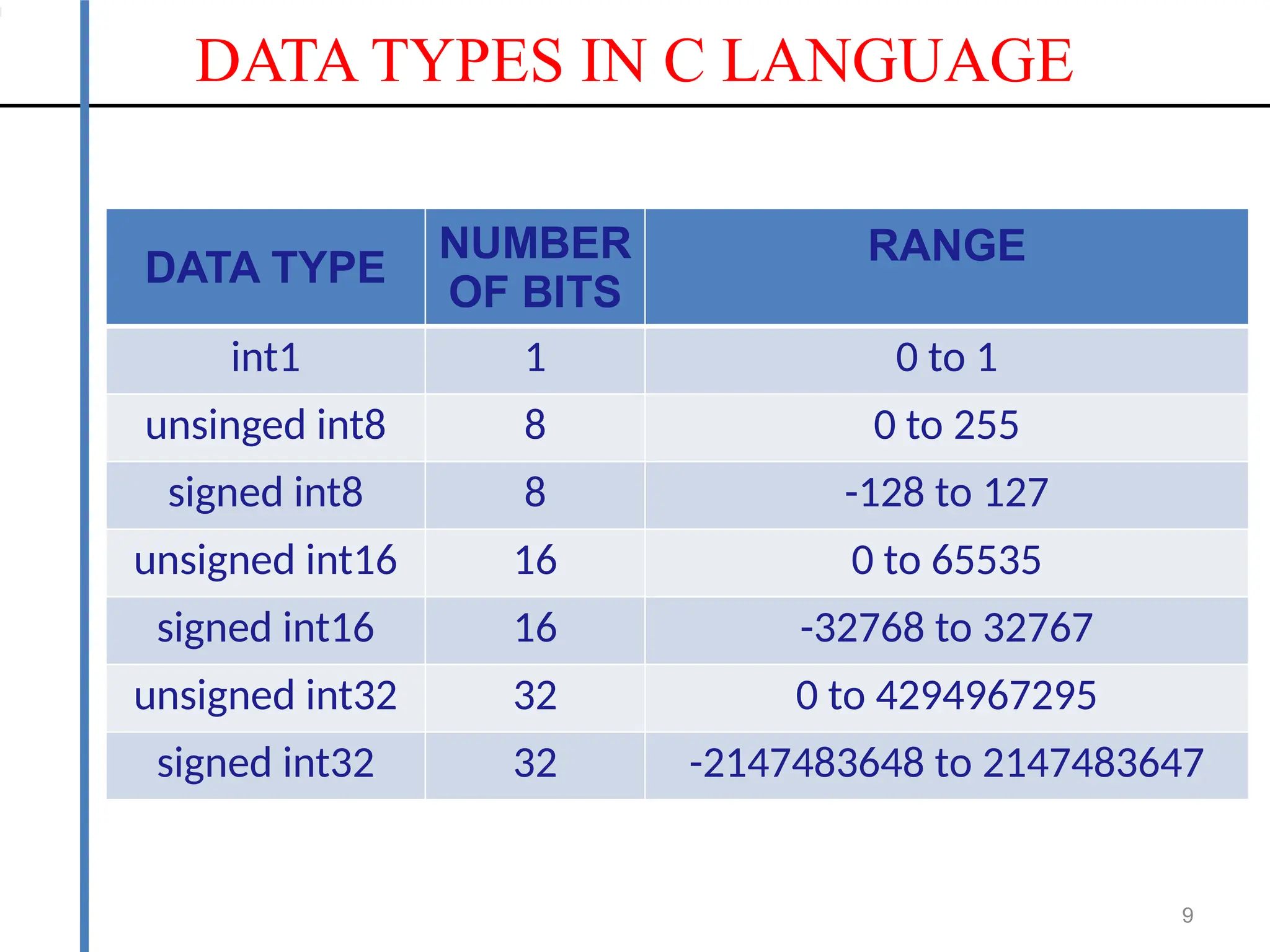

9. DATA TYPES IN C LANGUAGE
9
DATA TYPE
NUMBER
OF BITS
RANGE
int1 1 0 to 1
unsinged int8 8 0 to 255
signed int8 8 -128 to 127
unsigned int16 16 0 to 65535
signed int16 16 -32768 to 32767
unsigned int32 32 0 to 4294967295
signed int32 32 -2147483648 to 2147483647

10. 10
This line tells the compiler to include
the header file for the PIC16F887
Blinky LED - PORTD
Nowdt: disables Watchdog Timer
hs: High-Speed Oscillator
Noput : disables Power-Up Timer
Noprotect: disables Code Protection

11. 11
This line tells the compiler to include
the header file for the PIC16F887
Blinky LED - PORTD

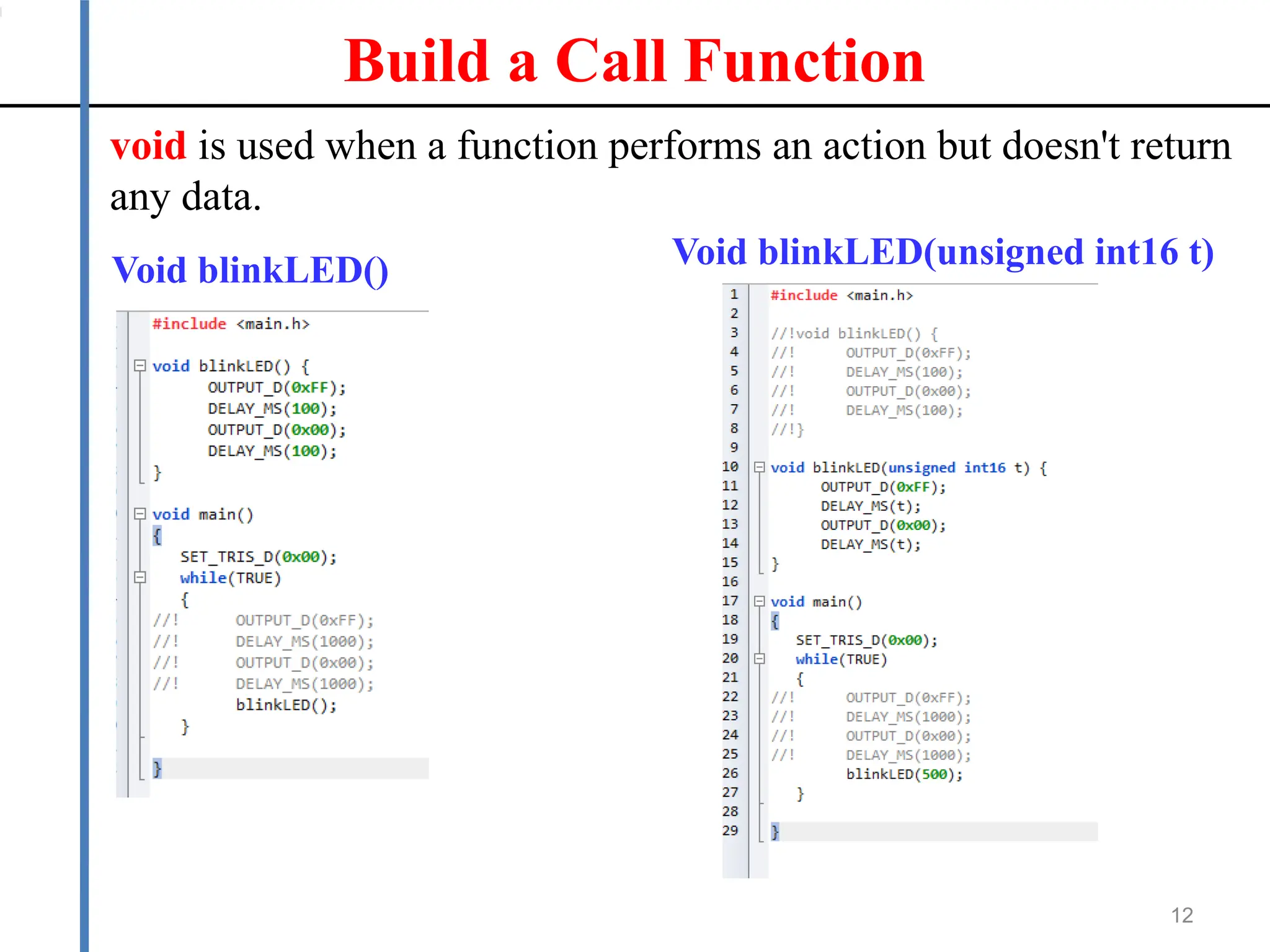

12. Build a Call Function
12
void is used when a function performs an action but doesn't return
any data.
Void blinkLED() Void blinkLED(unsigned int16 t)

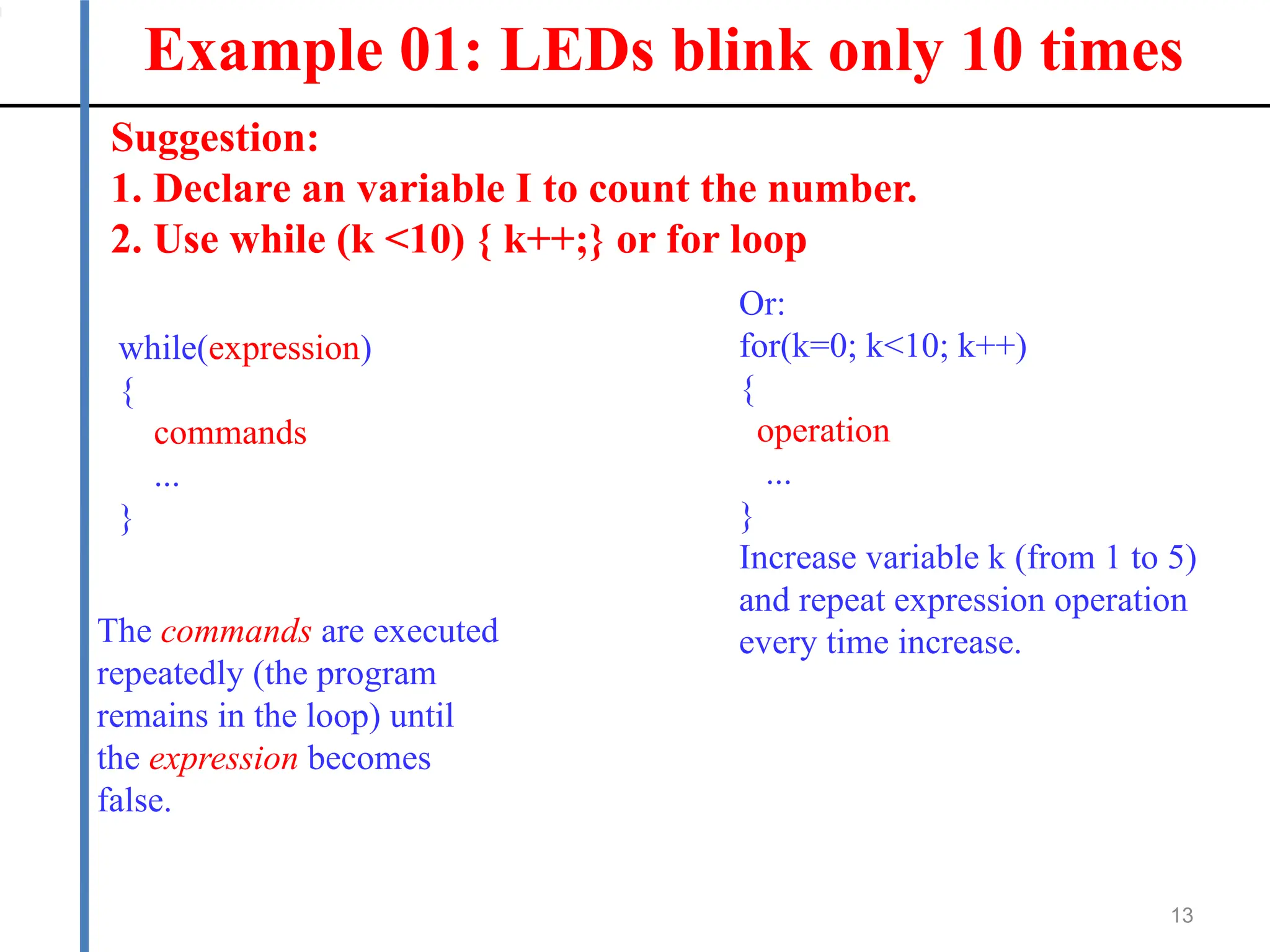

13. Example 01: LEDs blink only 10 times
13
Suggestion:
1. Declare an variable I to count the number.
2. Use while (k <10) { k++;} or for loop
while(expression)
{
commands
...
}
The commands are executed
repeatedly (the program
remains in the loop) until
the expression becomes
false.
Or:
for(k=0; k<10; k++)
{
operation
...
}
Increase variable k (from 1 to 5)
and repeat expression operation
every time increase.

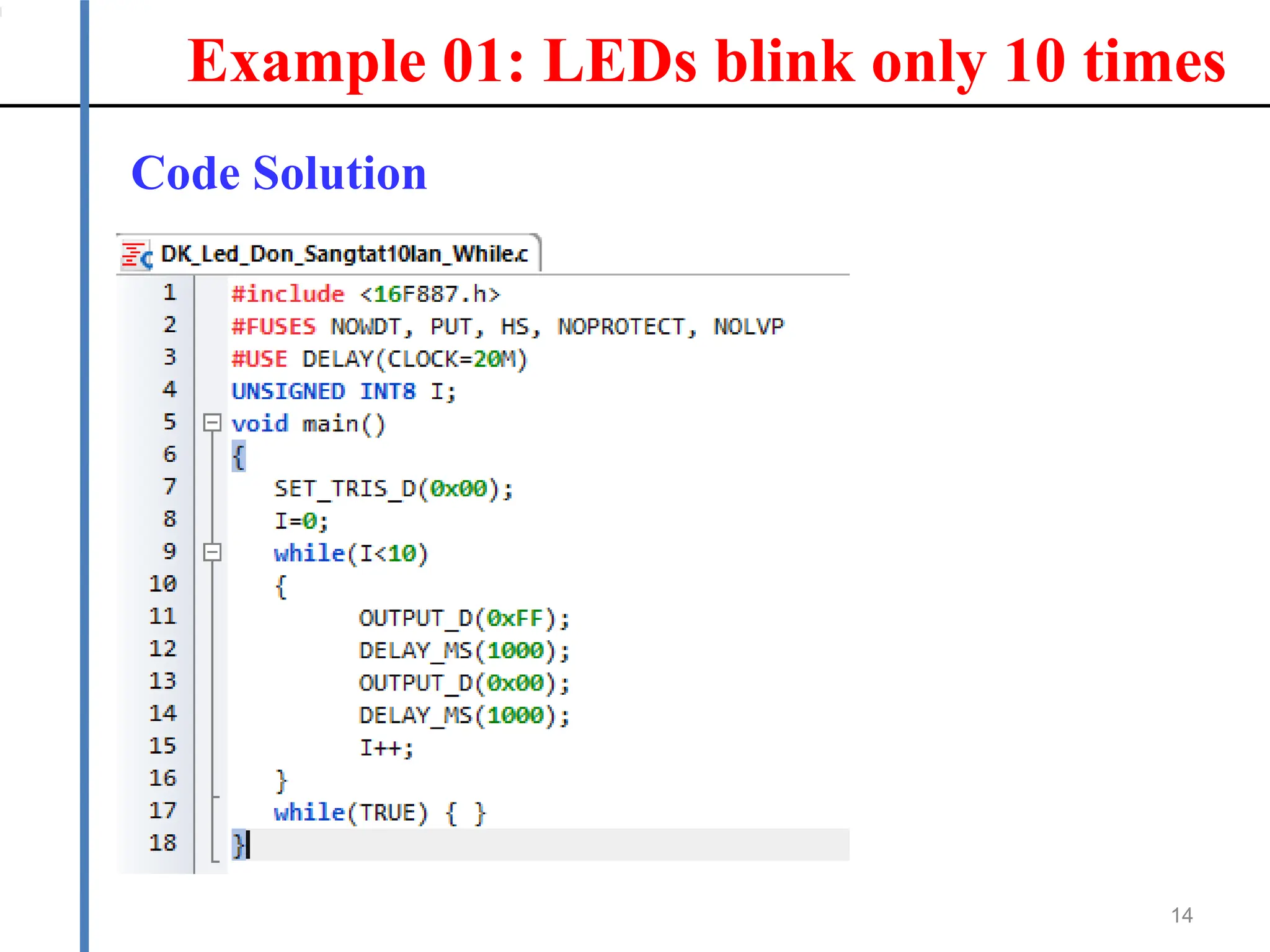

14. Example 01: LEDs blink only 10 times
14
Code Solution

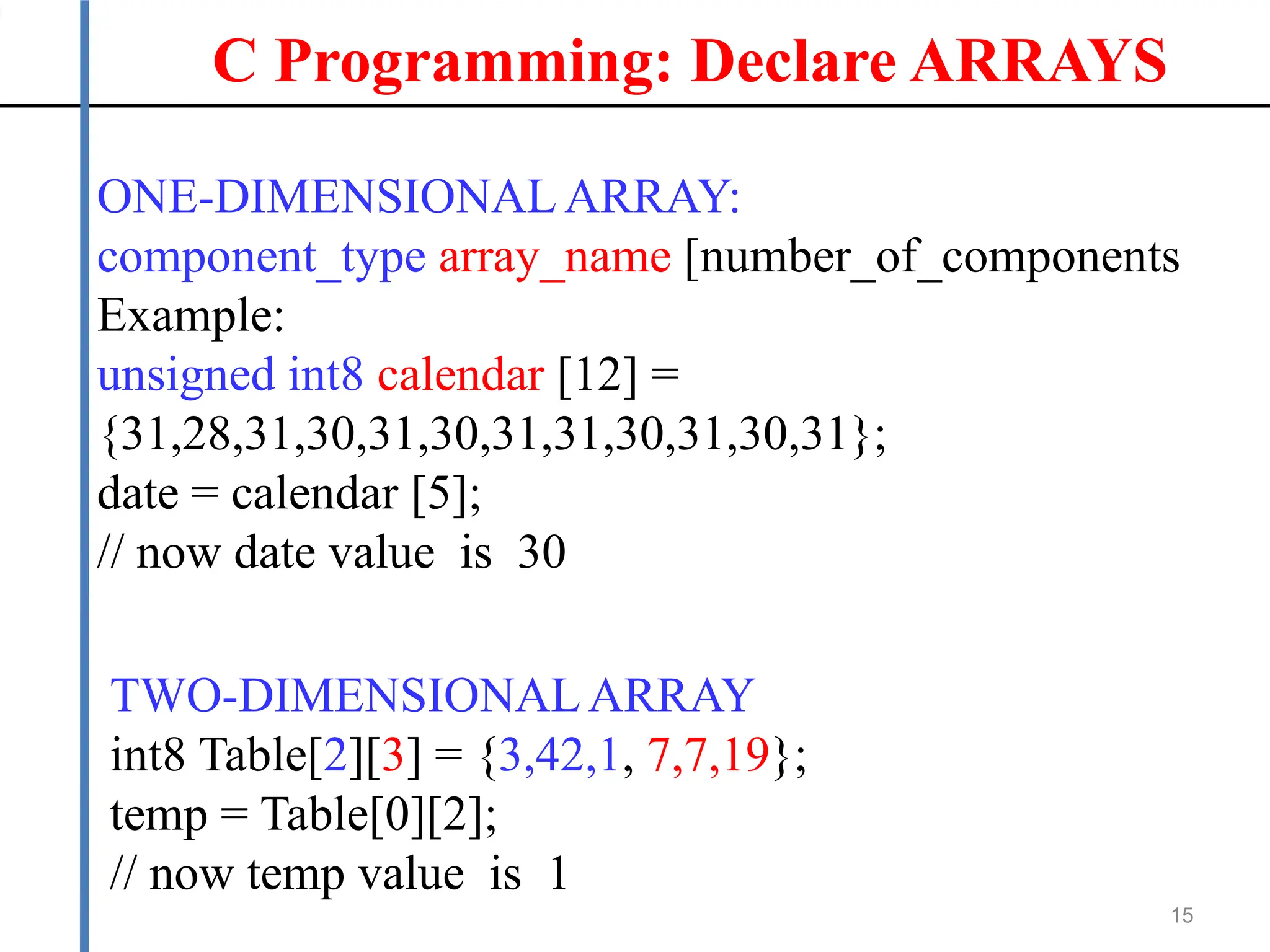

15. C Programming: Declare ARRAYS
15
ONE-DIMENSIONAL ARRAY:
component_type array_name [number_of_components
Example:
unsigned int8 calendar [12] =
{31,28,31,30,31,30,31,31,30,31,30,31};
date = calendar [5];
// now date value is 30
TWO-DIMENSIONALARRAY
int8 Table[2][3] = {3,42,1, 7,7,19};
temp = Table[0][2];
// now temp value is 1

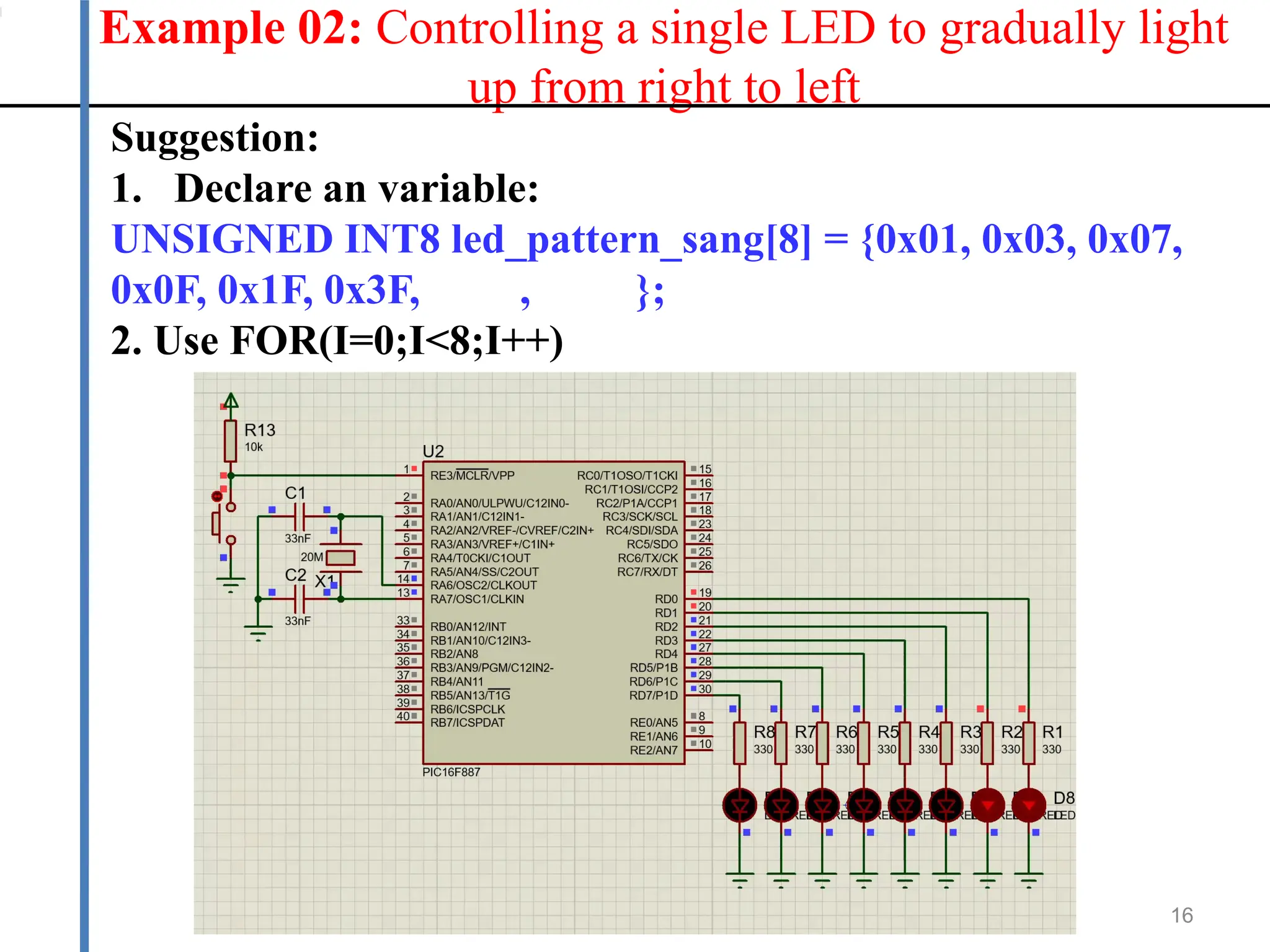

16. Example 02: Controlling a single LED to gradually light
up from right to left
16
Suggestion:
1. Declare an variable:
UNSIGNED INT8 led_pattern_sang[8] = {0x01, 0x03, 0x07,
0x0F, 0x1F, 0x3F, 0x7F, 0xFF};
2. Use FOR(I=0;I<8;I++)

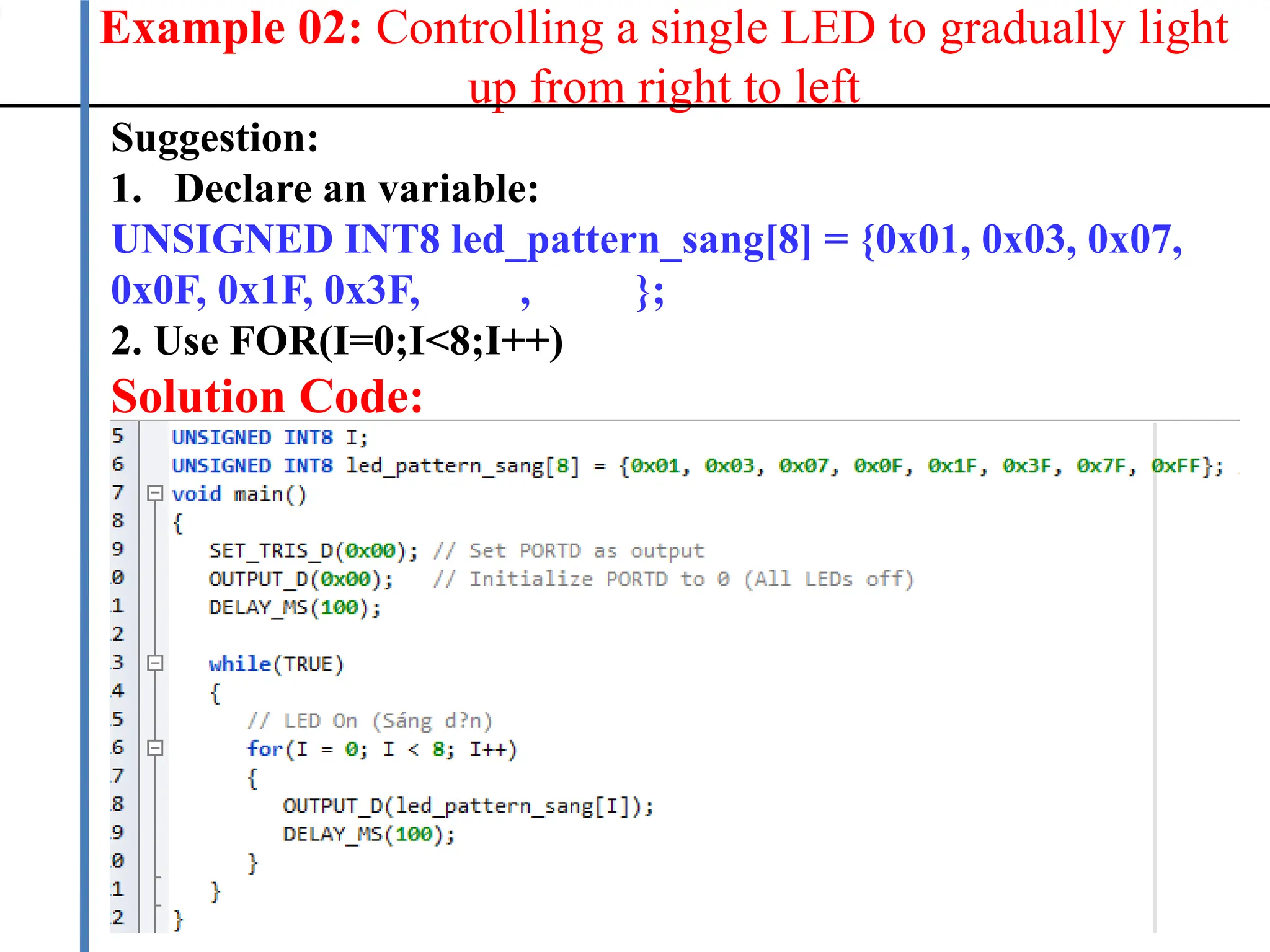

17. Example 02: Controlling a single LED to gradually light
up from right to left
17
Suggestion:
1. Declare an variable:
UNSIGNED INT8 led_pattern_sang[8] = {0x01, 0x03, 0x07,
0x0F, 0x1F, 0x3F, 0x7F, 0xFF};
2. Use FOR(I=0;I<8;I++)
Solution Code:

18. BITWISE OPERATORS
18
OPER MEANING EXAMPLE RESULT
~ Bitwise
complement a = ~b b = 11110000 a = 00001111
<< Shift left a = b << 2 b = 11110011 a = 11001100
>> Shift right a = b >> 3 b = 11110011 a = 00011110
& Bitwise AND c = a & b a = 11100011
b = 11001100
c = 11000000
| Bitwise OR c = a | b a = 11100011
b = 11001100 c = 11101111
^ Bitwise EXOR c = a ^ b a = 11100011
b = 11001100 c = 00101111

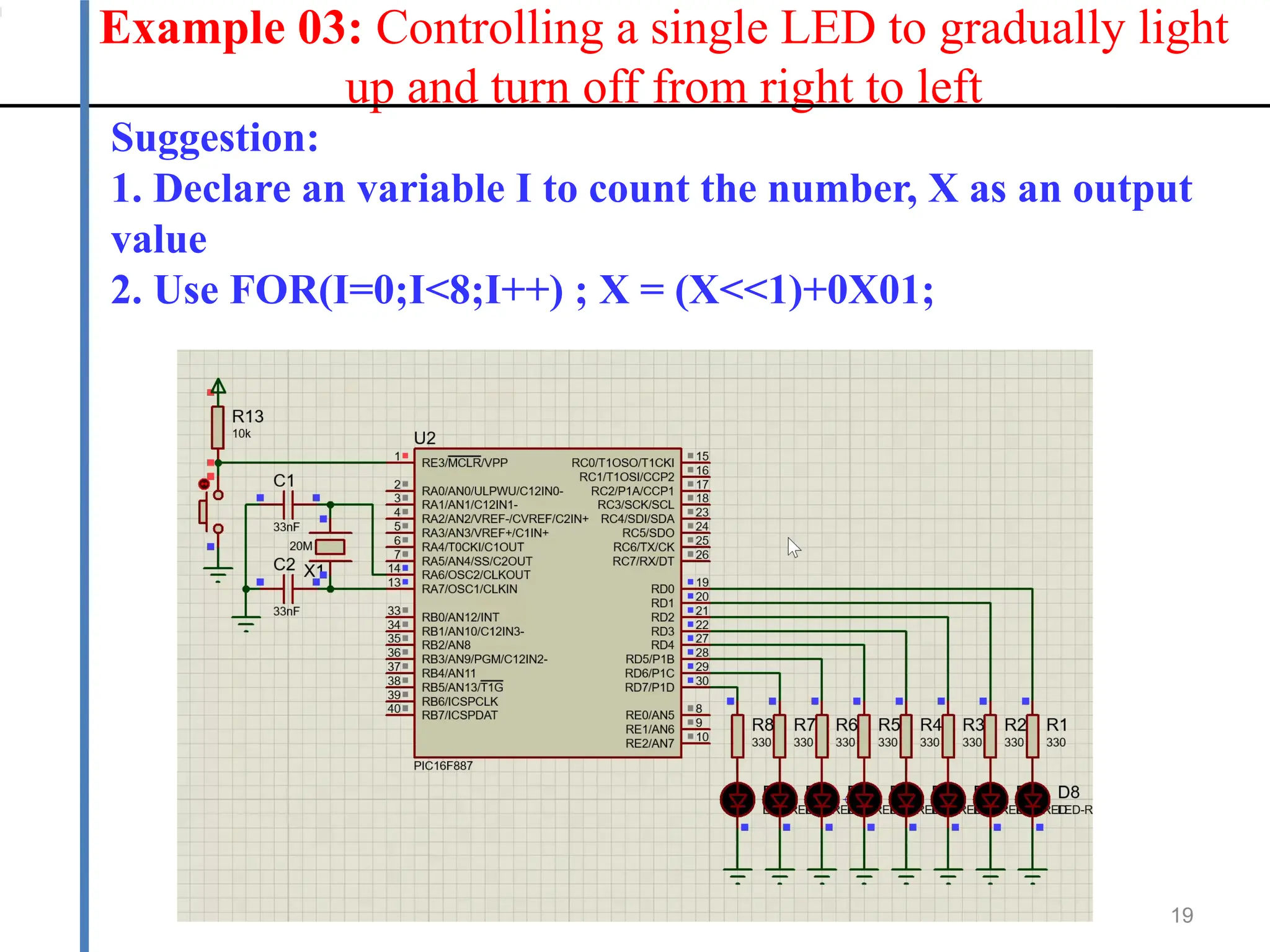

19. Example 03: Controlling a single LED to gradually light
up and turn off from right to left
19
Suggestion:
1. Declare an variable I to count the number, X as an output
value
2. Use FOR(I=0;I<8;I++) ; X = (X<<1)+0X01;

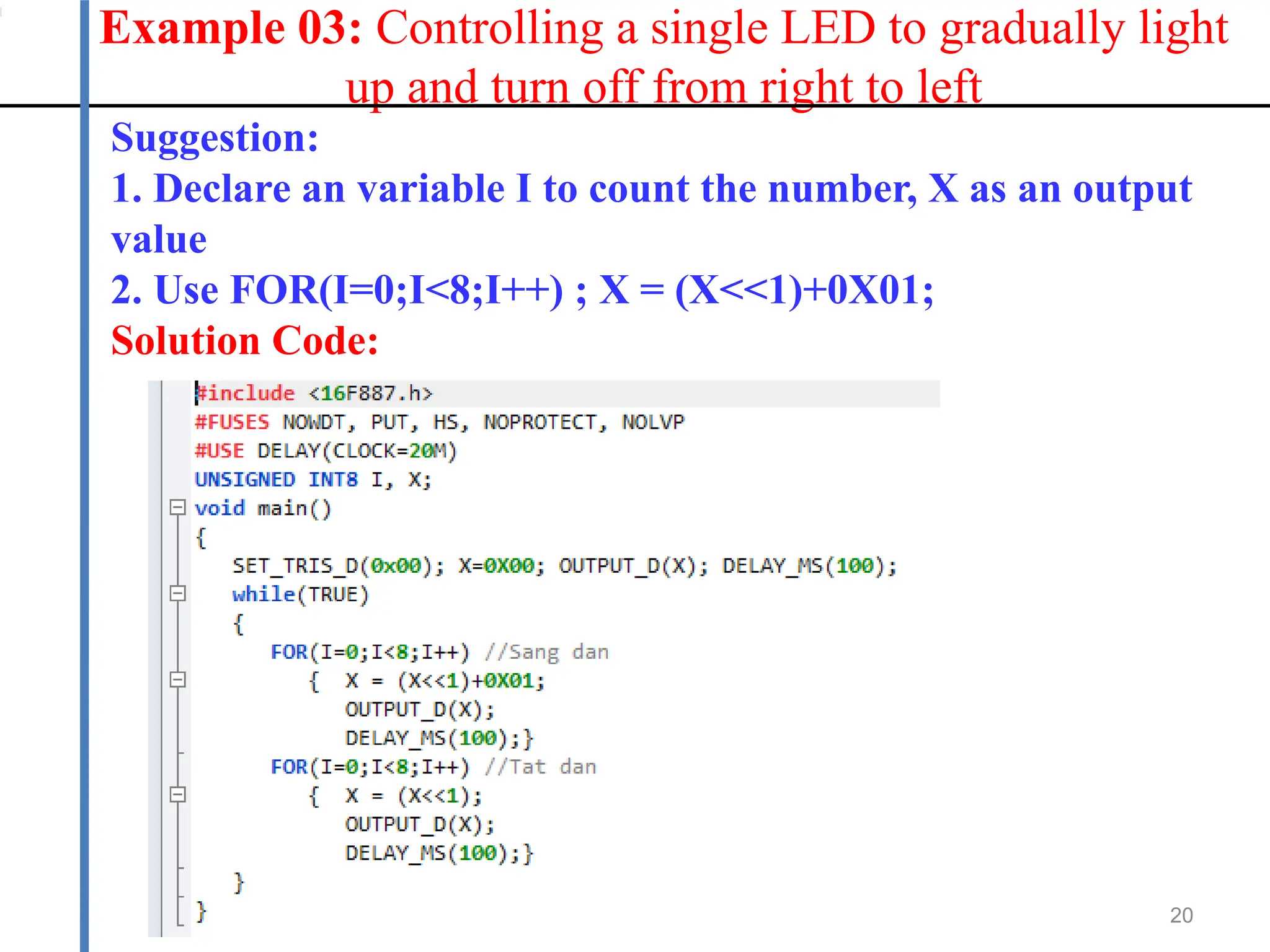

20. Example 03: Controlling a single LED to gradually light
up and turn off from right to left
20
Suggestion:
1. Declare an variable I to count the number, X as an output
value
2. Use FOR(I=0;I<8;I++) ; X = (X<<1)+0X01;
Solution Code:
