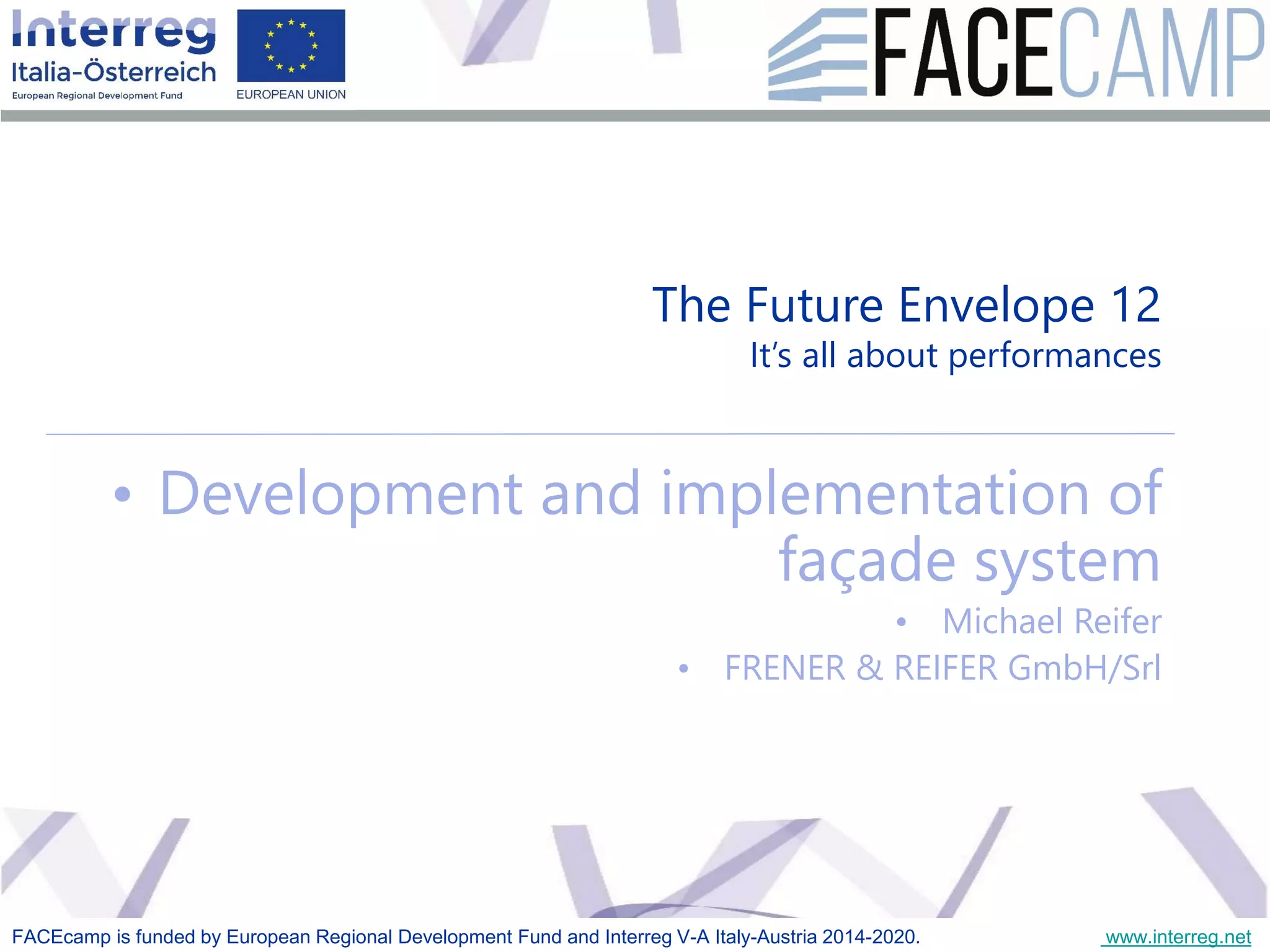

Michael Reifer, Frener & Reifer, Brixen (IT) “Development and implementation of façade system”

The document outlines the Future Envelope 12 event held in Bolzano on May 20-21, 2019, focusing on innovative façade systems and architectural advancements. It highlights various R&D projects related to structural glass, adaptive facades, and sustainable building practices, emphasizing collaboration and emerging technologies in construction. The content also discusses the broader implications of these innovations on the architecture and construction industries, including trends, supply chain development, and circular economy principles.

Embed presentation

1 / 101
2 / 101
3 / 101
4 / 101
5 / 101
6 / 101
7 / 101
8 / 101
9 / 101
10 / 101
11 / 101
12 / 101
13 / 101
14 / 101
15 / 101
16 / 101
17 / 101
18 / 101
19 / 101
20 / 101
21 / 101
22 / 101
23 / 101
24 / 101
25 / 101
26 / 101
27 / 101
28 / 101
29 / 101
30 / 101
31 / 101
32 / 101
33 / 101
34 / 101
35 / 101
36 / 101
37 / 101
38 / 101
39 / 101
40 / 101
41 / 101
42 / 101
43 / 101
44 / 101
45 / 101
46 / 101
47 / 101
48 / 101
49 / 101
50 / 101
51 / 101
52 / 101
53 / 101
54 / 101
55 / 101
56 / 101
57 / 101
58 / 101
59 / 101
60 / 101
61 / 101
62 / 101
63 / 101
64 / 101
65 / 101
66 / 101
67 / 101
68 / 101
69 / 101
70 / 101
71 / 101
72 / 101
73 / 101
74 / 101
75 / 101
76 / 101
77 / 101
78 / 101
79 / 101
80 / 101
81 / 101
82 / 101
83 / 101
84 / 101
85 / 101
86 / 101
87 / 101
88 / 101
89 / 101
90 / 101
91 / 101
92 / 101
93 / 101
94 / 101
95 / 101
96 / 101
97 / 101
98 / 101
99 / 101
100 / 101
101 / 101
The Future Envelope 12 final event 20-21 May 2019, Bolzano The Future Envelope 12 It’s all about performances • Development and implementation of façade system • Michael Reifer • FRENER & REIFER GmbH/Srl FACEcamp is funded by European Regional Development Fund and Interreg V-A Italy-Austria 2014-2020. www.interreg.net
The Future Envelope 12 final event 20-21 May 2019, Bolzano FRENER REIFER Company development
The Future Envelope 12 final event 20-21 May 2019, Bolzano Euregio region TAAT SOUTH TYROL

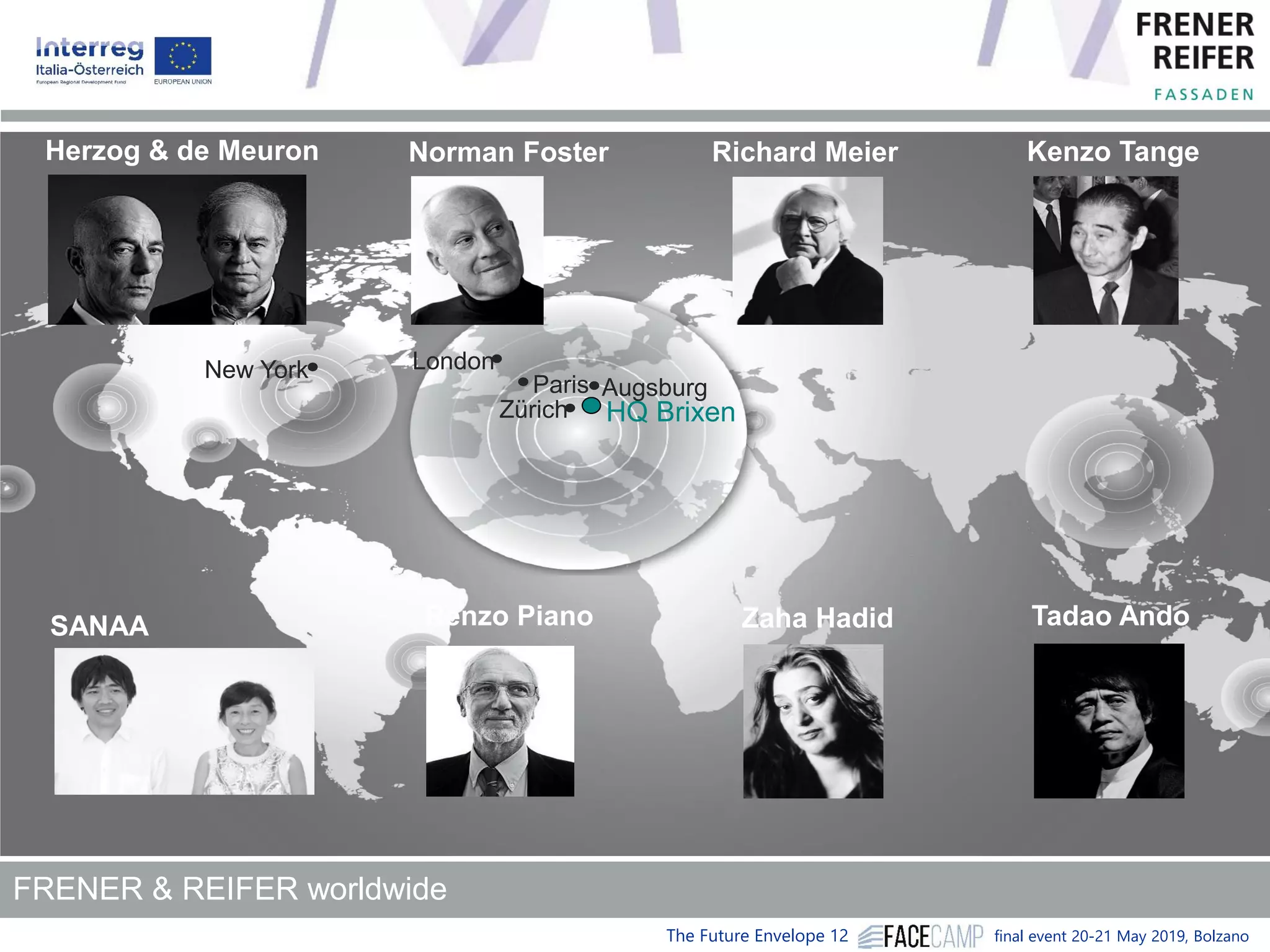

The Future Envelope 12 final event 20-21 May 2019, Bolzano FRENER & REIFER history
The Future Envelope 12 final event 20-21 May 2019, Bolzano FRENER & REIFER history
The Future Envelope 12 final event 20-21 May 2019, Bolzano New York HQ Brixen Augsburg Zürich Paris London Richard Meier Kenzo Tange Tadao Ando Norman Foster SANAA Renzo Piano Herzog & de Meuron Zaha Hadid FRENER & REIFER worldwide
The Future Envelope 12 final event 20-21 May 2019, Bolzano FRENER & REIFER Film
The Future Envelope 12 final event 20-21 May 2019, Bolzano (r) & D - Projects Iconic Architecture Complex Geometry

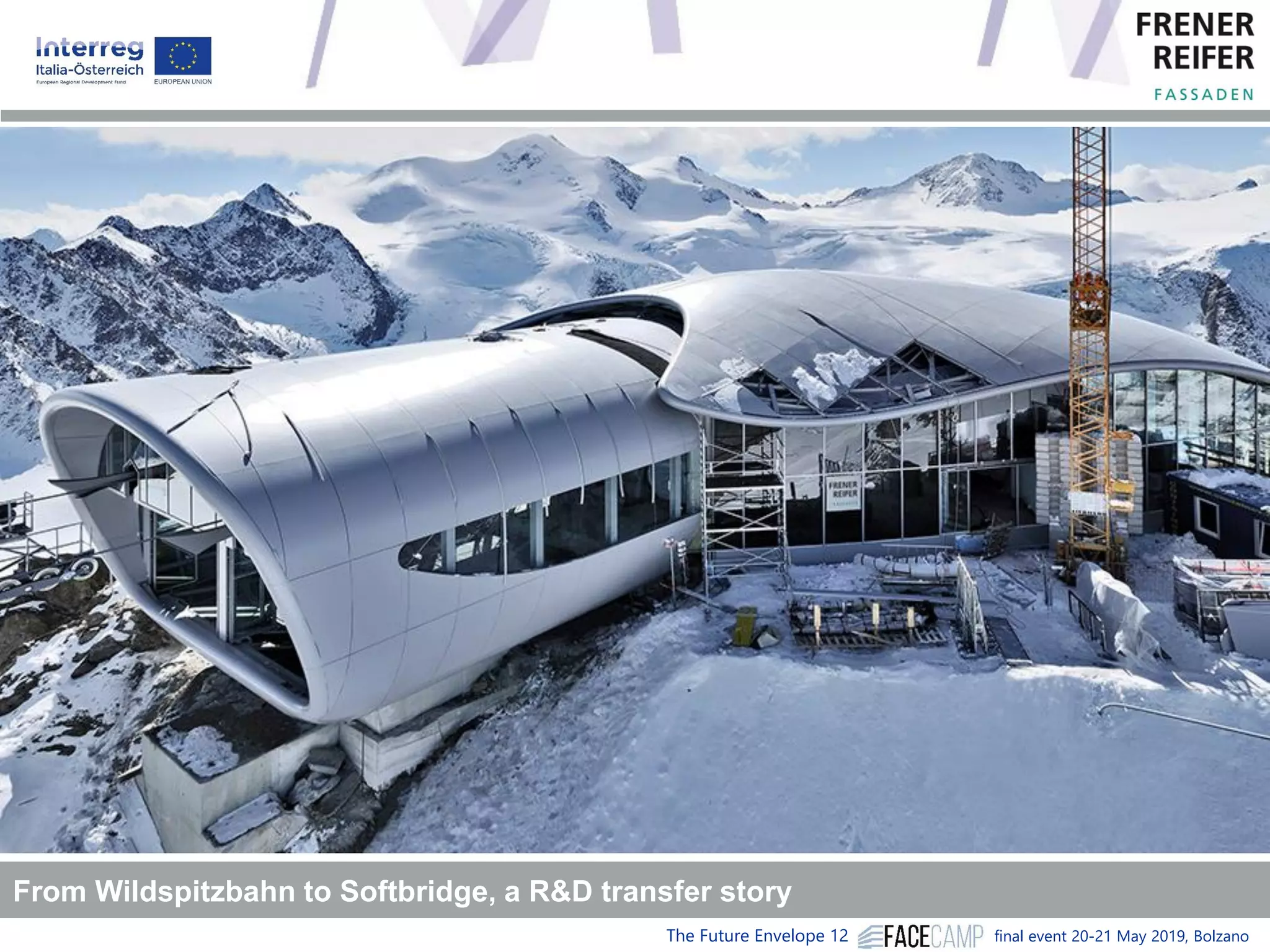

The Future Envelope 12 final event 20-21 May 2019, Bolzano From Wildspitzbahn to Softbridge, a R&D transfer story

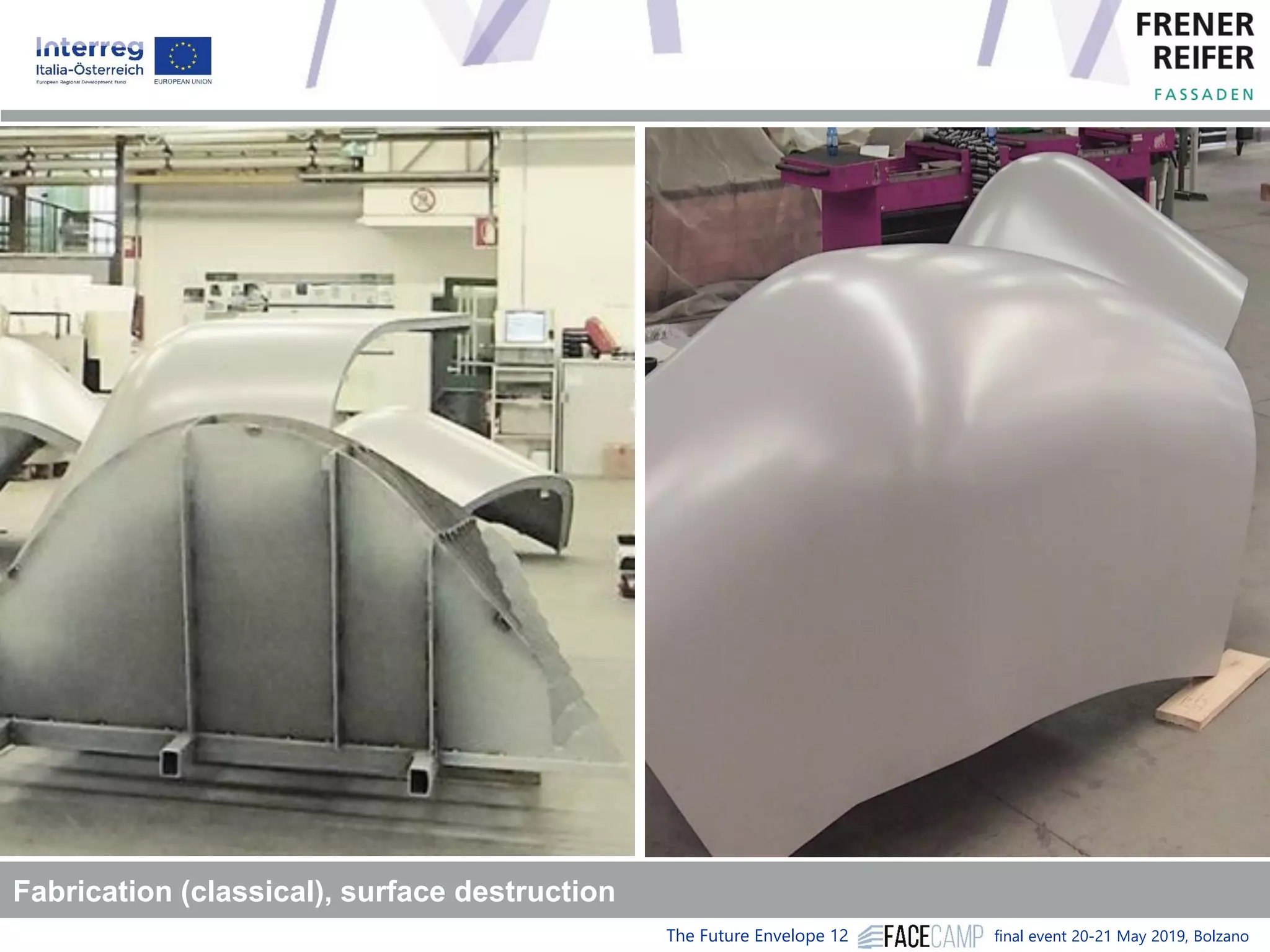

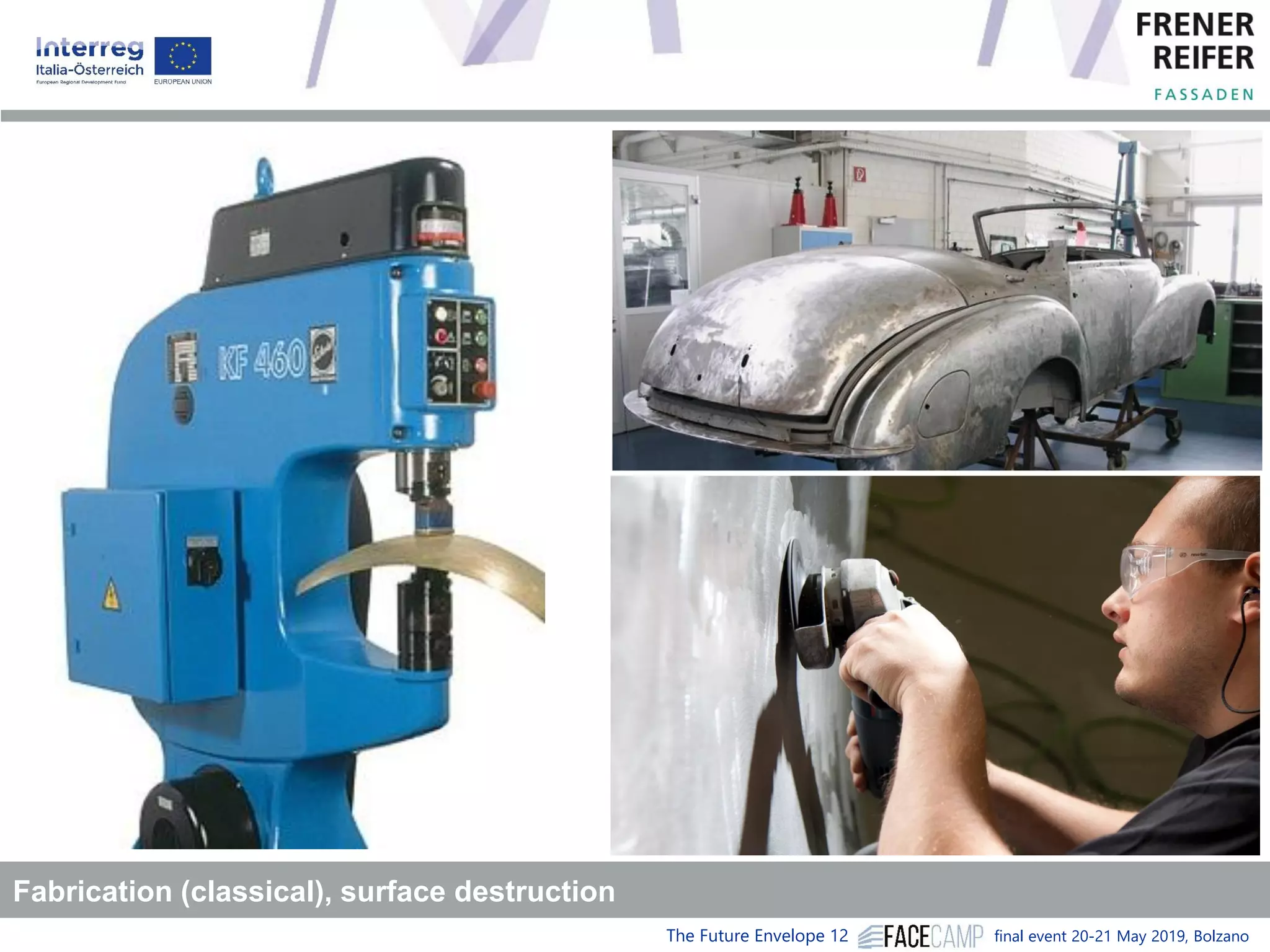

The Future Envelope 12 final event 20-21 May 2019, Bolzano Fabrication (classical), surface destruction
The Future Envelope 12 final event 20-21 May 2019, Bolzano Fabrication (classical), surface destruction
The Future Envelope 12 final event 20-21 May 2019, Bolzano Fabrication (classical), surface destruction

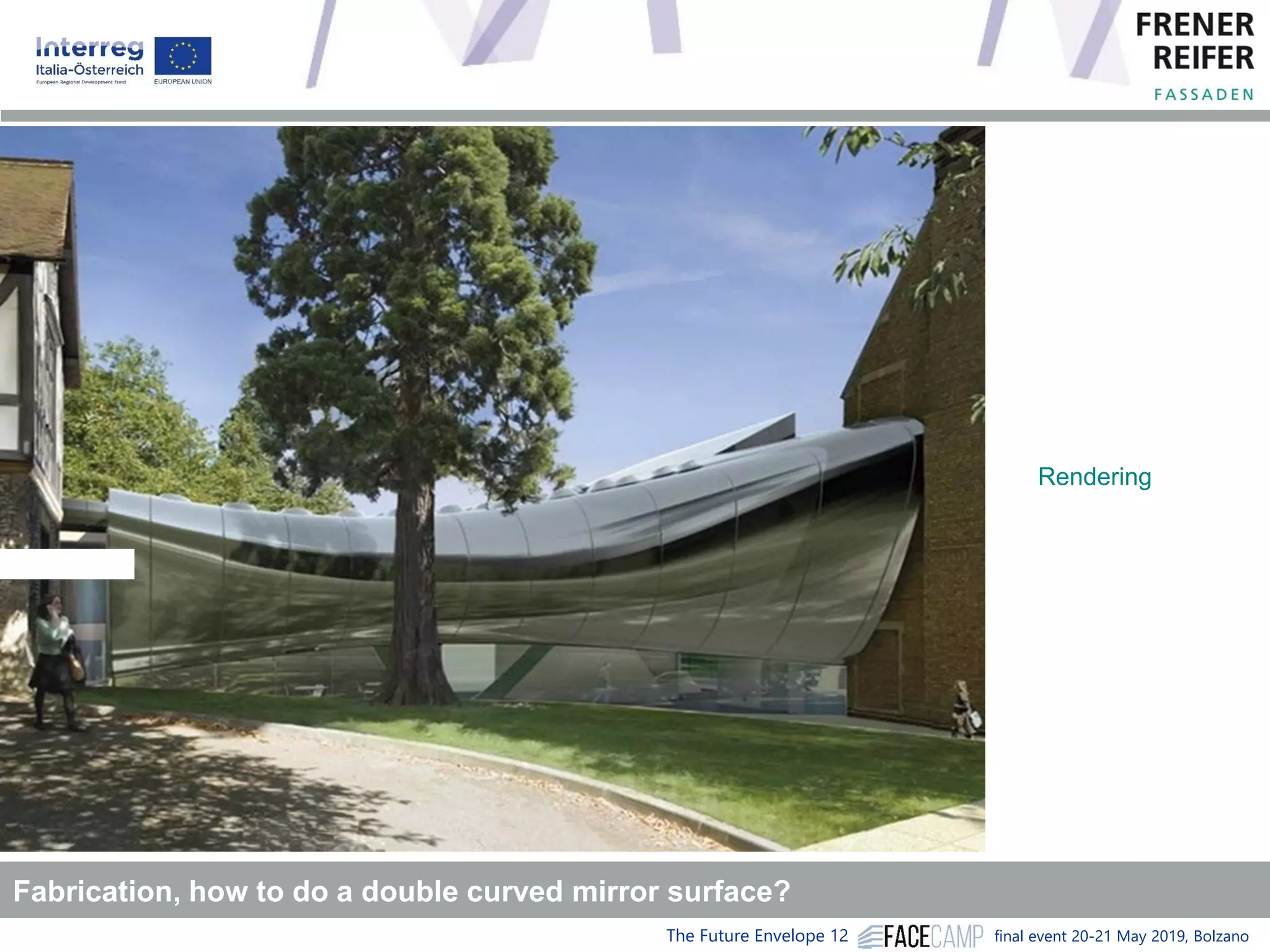

The Future Envelope 12 final event 20-21 May 2019, Bolzano Rendering Fabrication, how to do a double curved mirror surface?

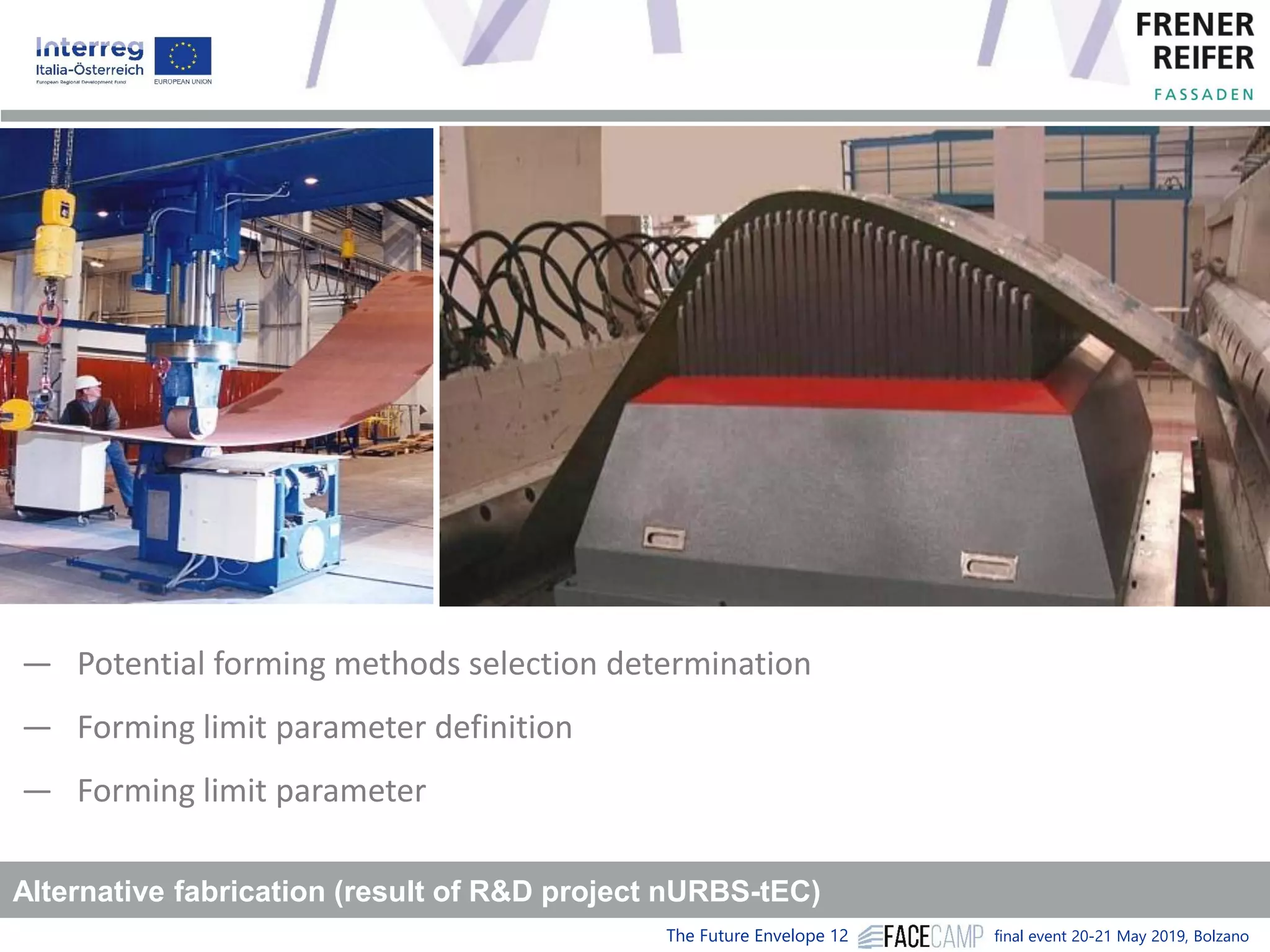

The Future Envelope 12 final event 20-21 May 2019, Bolzano Alternative fabrication (result of R&D project nURBS-tEC) ― Potential forming methods selection determination ― Forming limit parameter definition ― Forming limit parameter

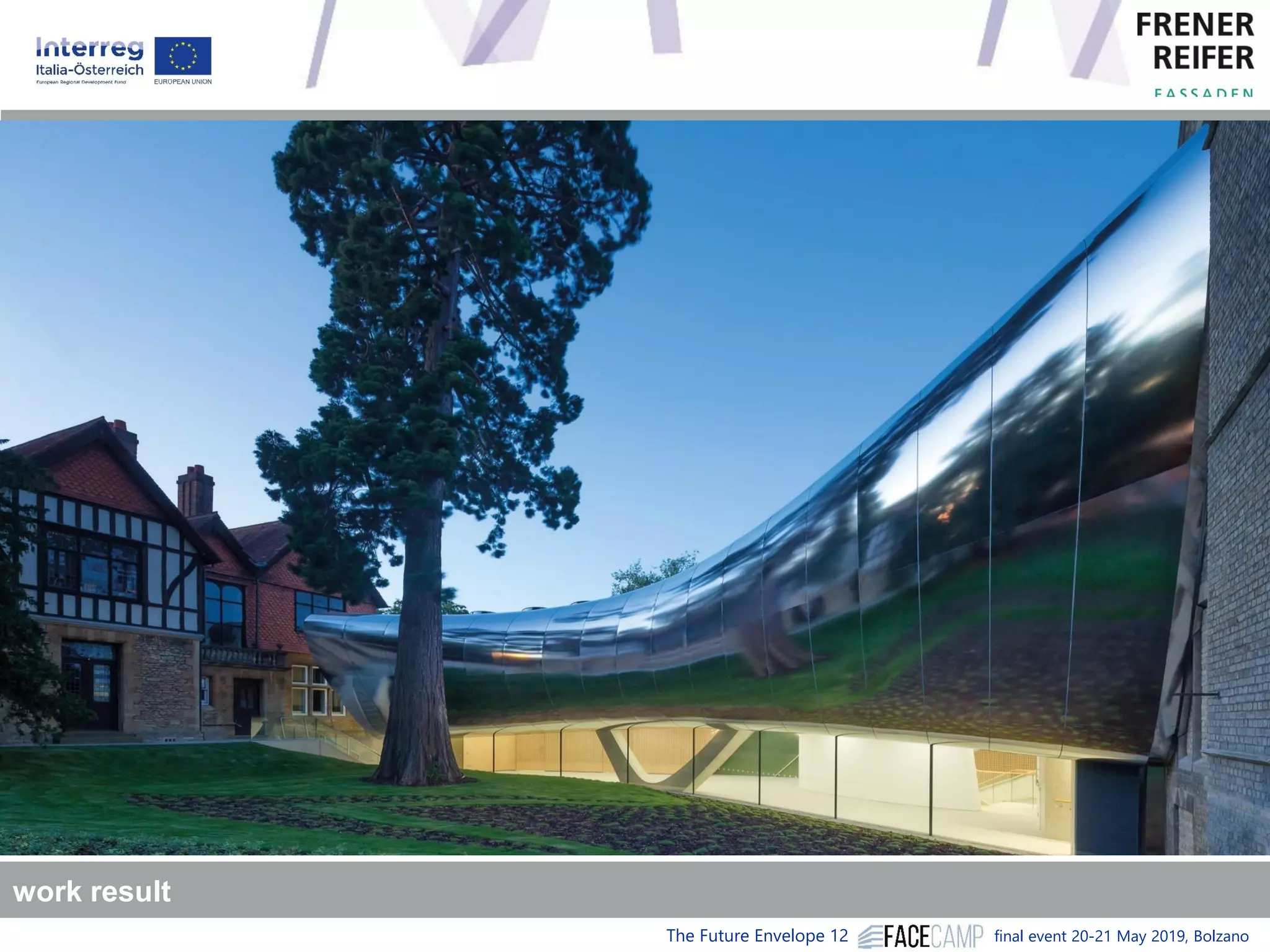

The Future Envelope 12 final event 20-21 May 2019, BolzanoREFERENCES Prototyping alternative fabrication (MockUp passed)
The Future Envelope 12 final event 20-21 May 2019, BolzanoREFERENCES Installation

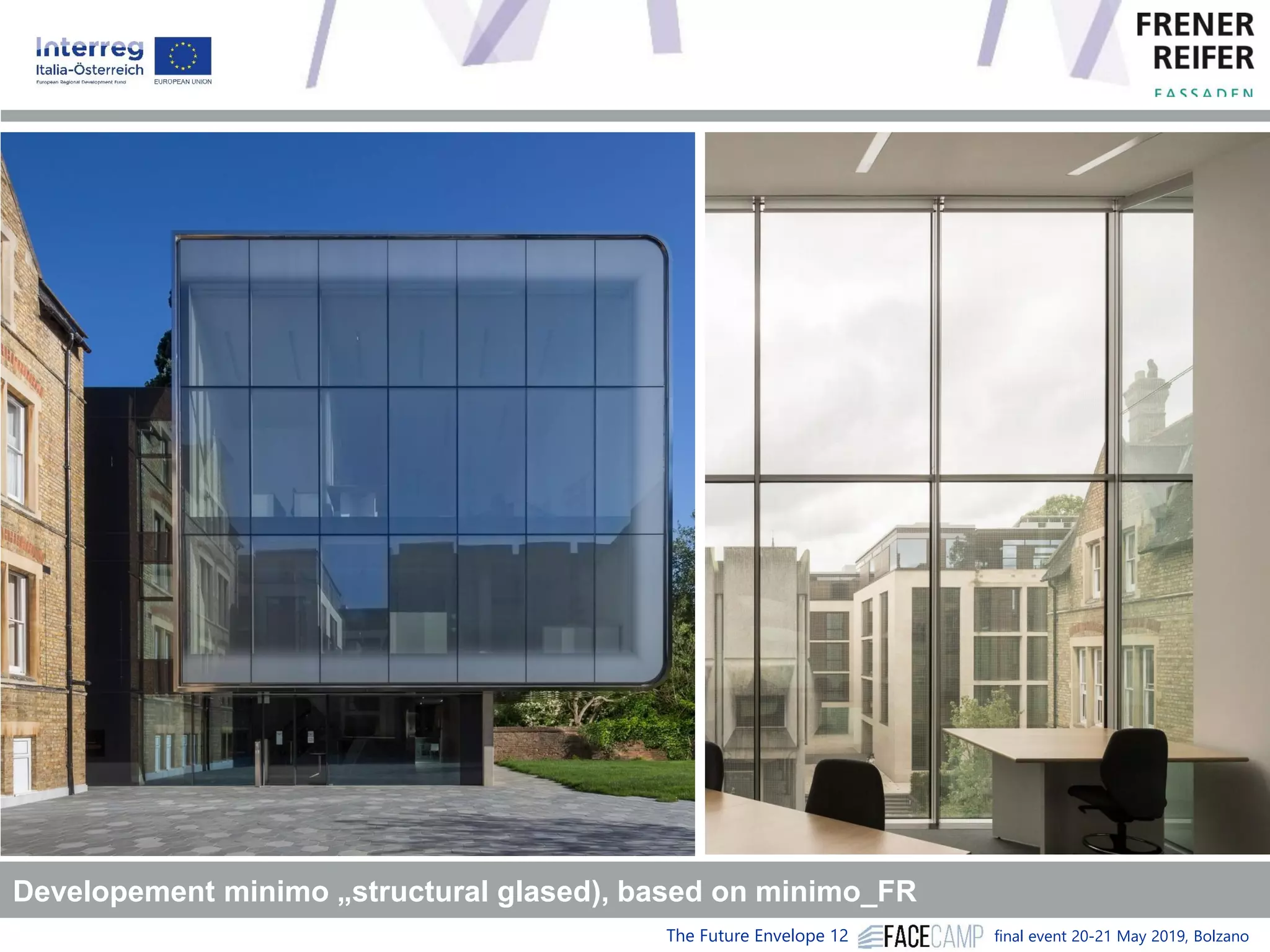

The Future Envelope 12 final event 20-21 May 2019, BolzanoREFERENCES work result
The Future Envelope 12 final event 20-21 May 2019, BolzanoREFERENCES Developement minimo „structural glased), based on minimo_FR
The Future Envelope 12 final event 20-21 May 2019, Bolzano (r) & D - Projects Iconic Architecture, structural glass

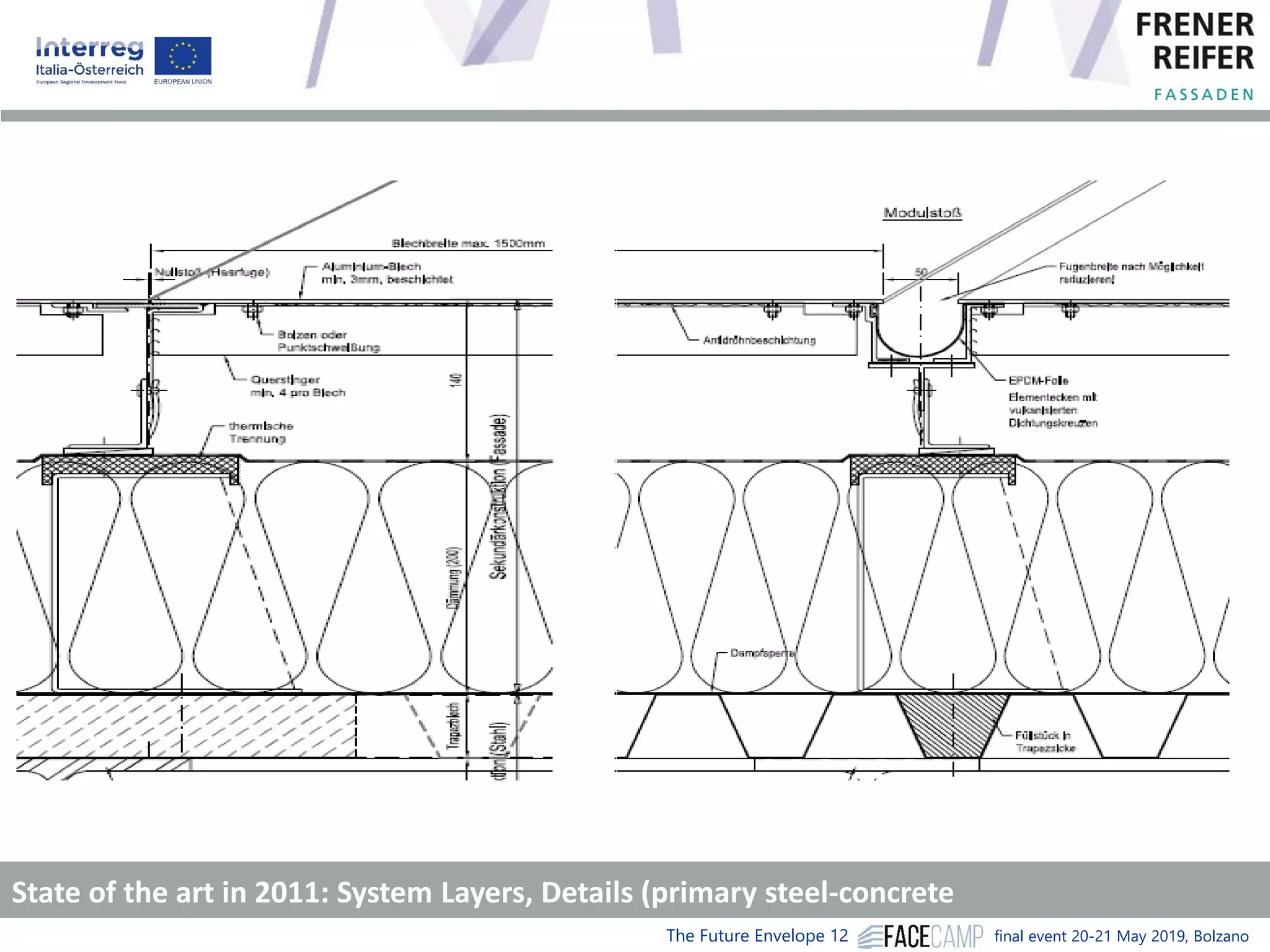

The Future Envelope 12 final event 20-21 May 2019, Bolzano Structural glass pyramide, Hotel Adler, Val Gardena, pretensioned glas structure

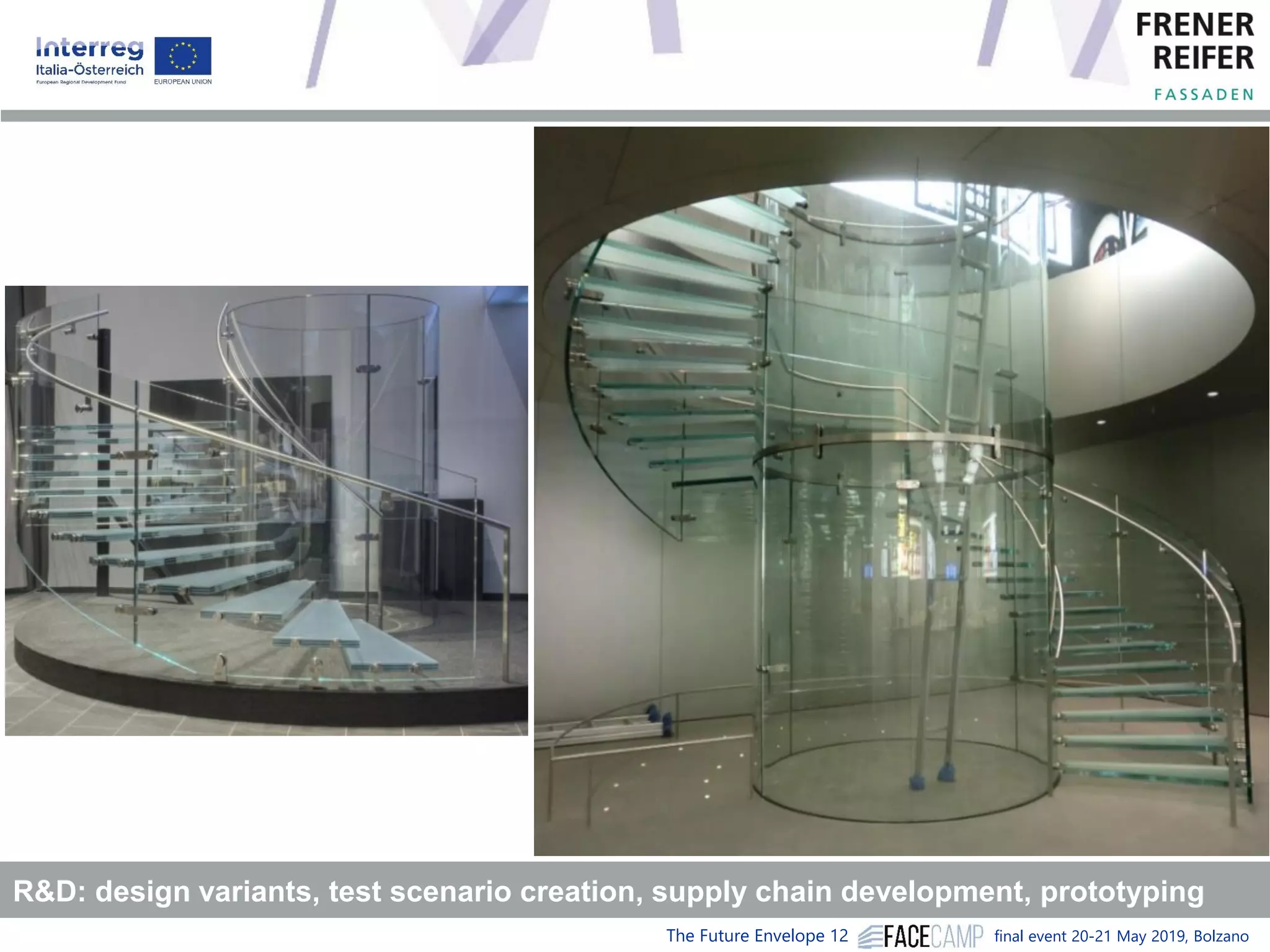

The Future Envelope 12 final event 20-21 May 2019, Bolzano R&D: design variants, test scenario creation, supply chain development, prototyping
The Future Envelope 12 final event 20-21 May 2019, Bolzano (r) & D - Projects Iconic Architecture, adaptive facades
The Future Envelope 12 final event 20-21 May 2019, Bolzano New challenge: adaptive high end facade

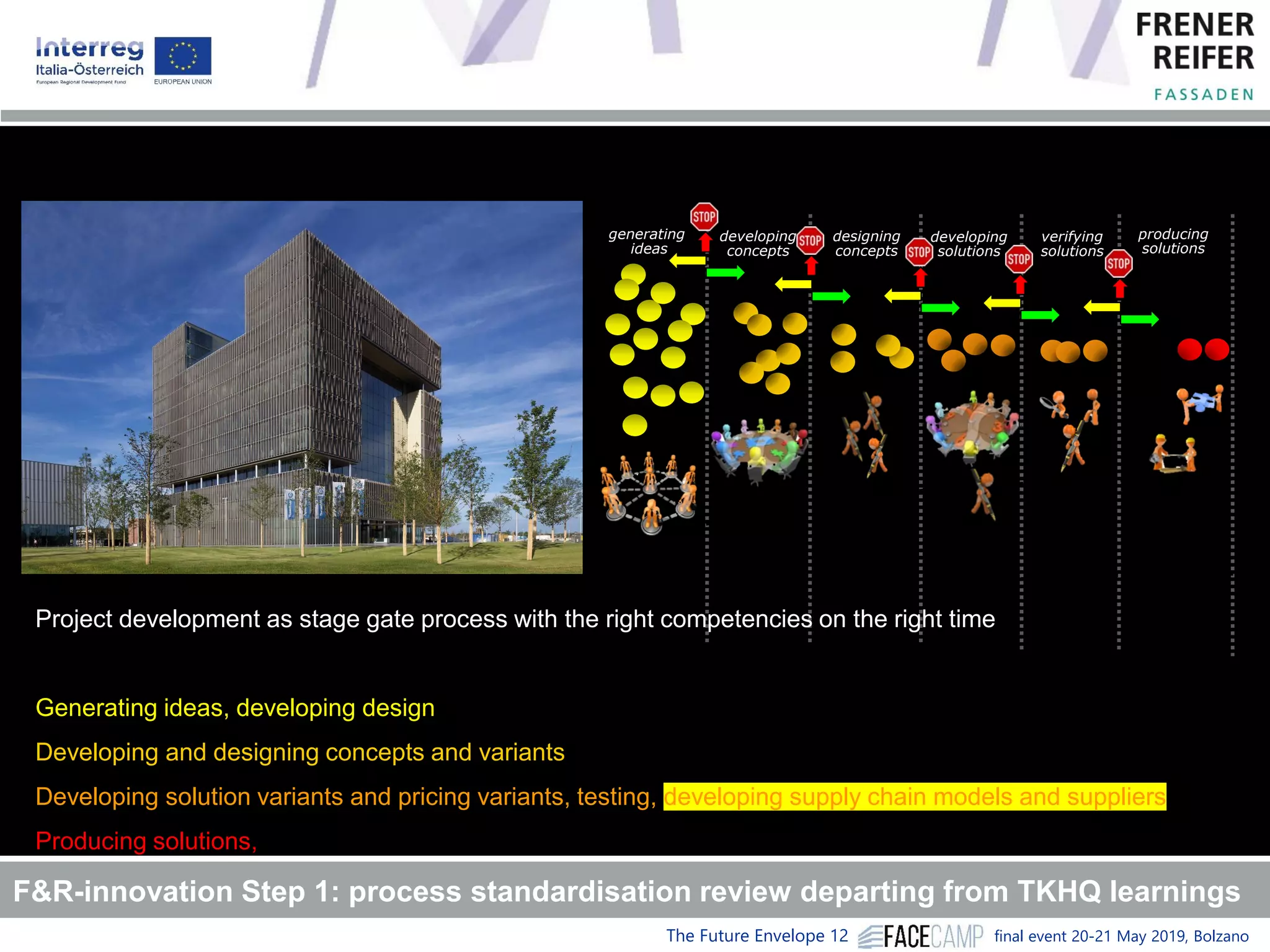

The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 1: make feasable the architectural vision
The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 2: functionality and visual design, and supply chain logic development

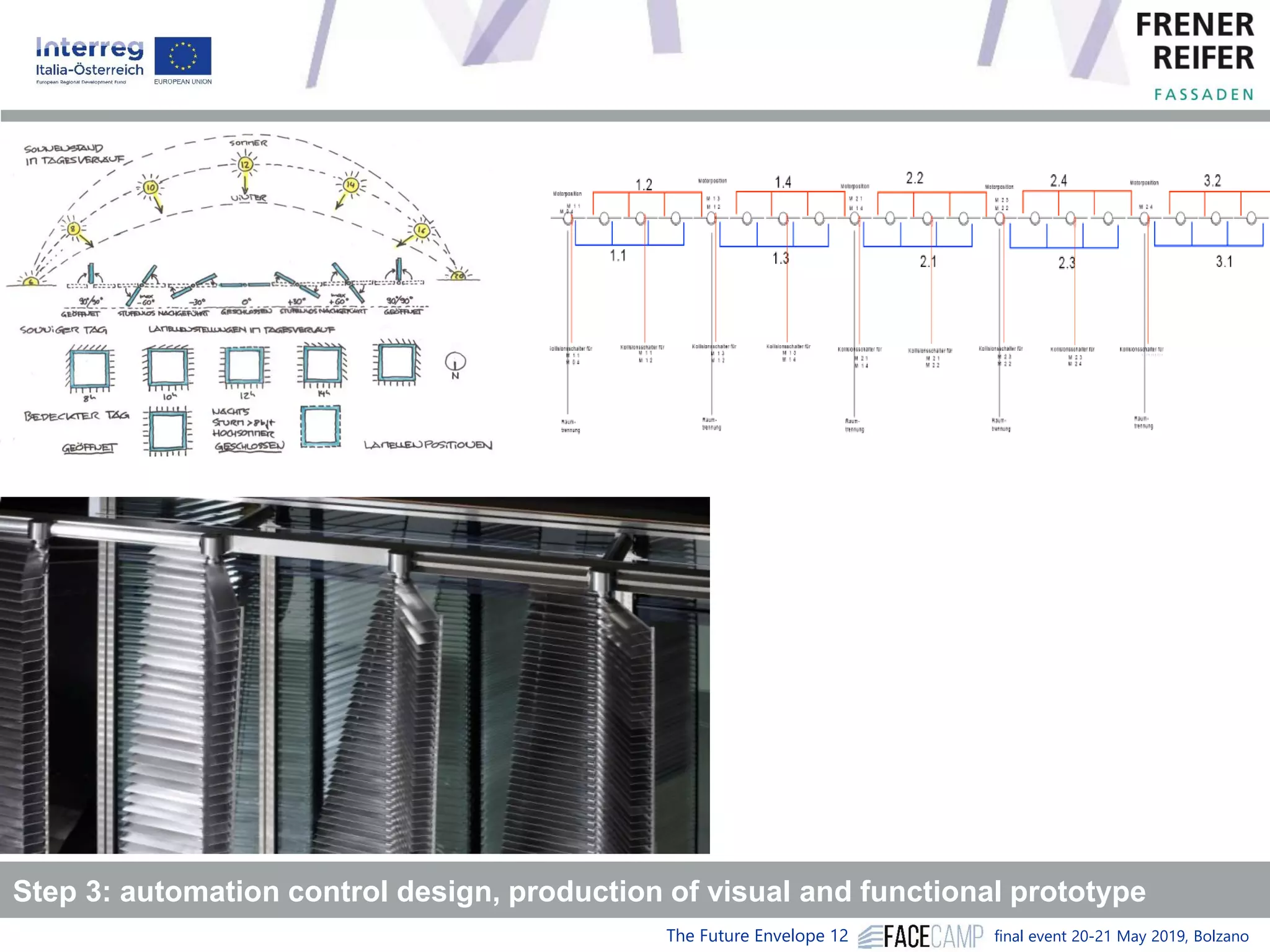

The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 3: automation control design, production of visual and functional prototype

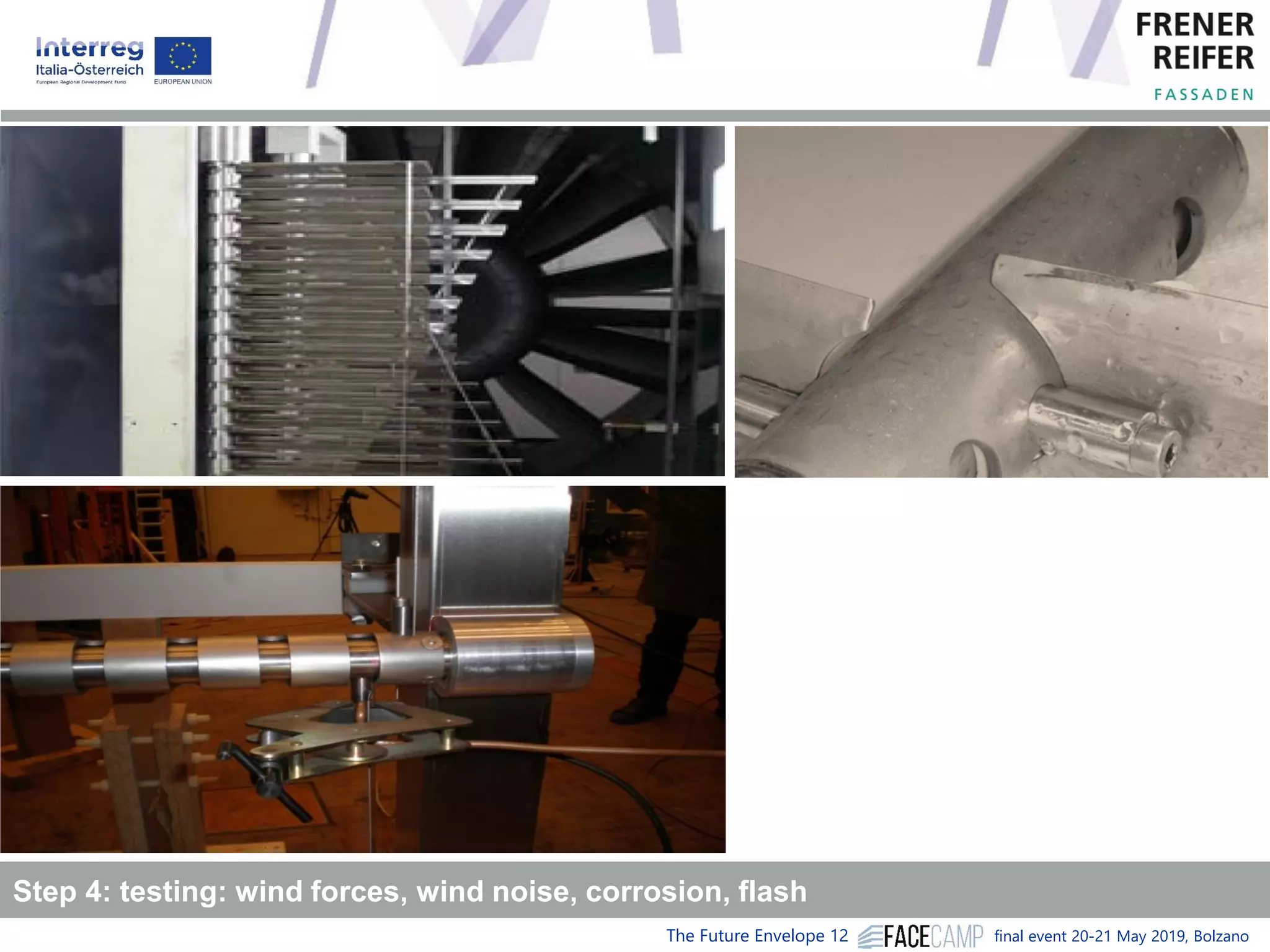

The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 4: testing: wind forces, wind noise, corrosion, flash

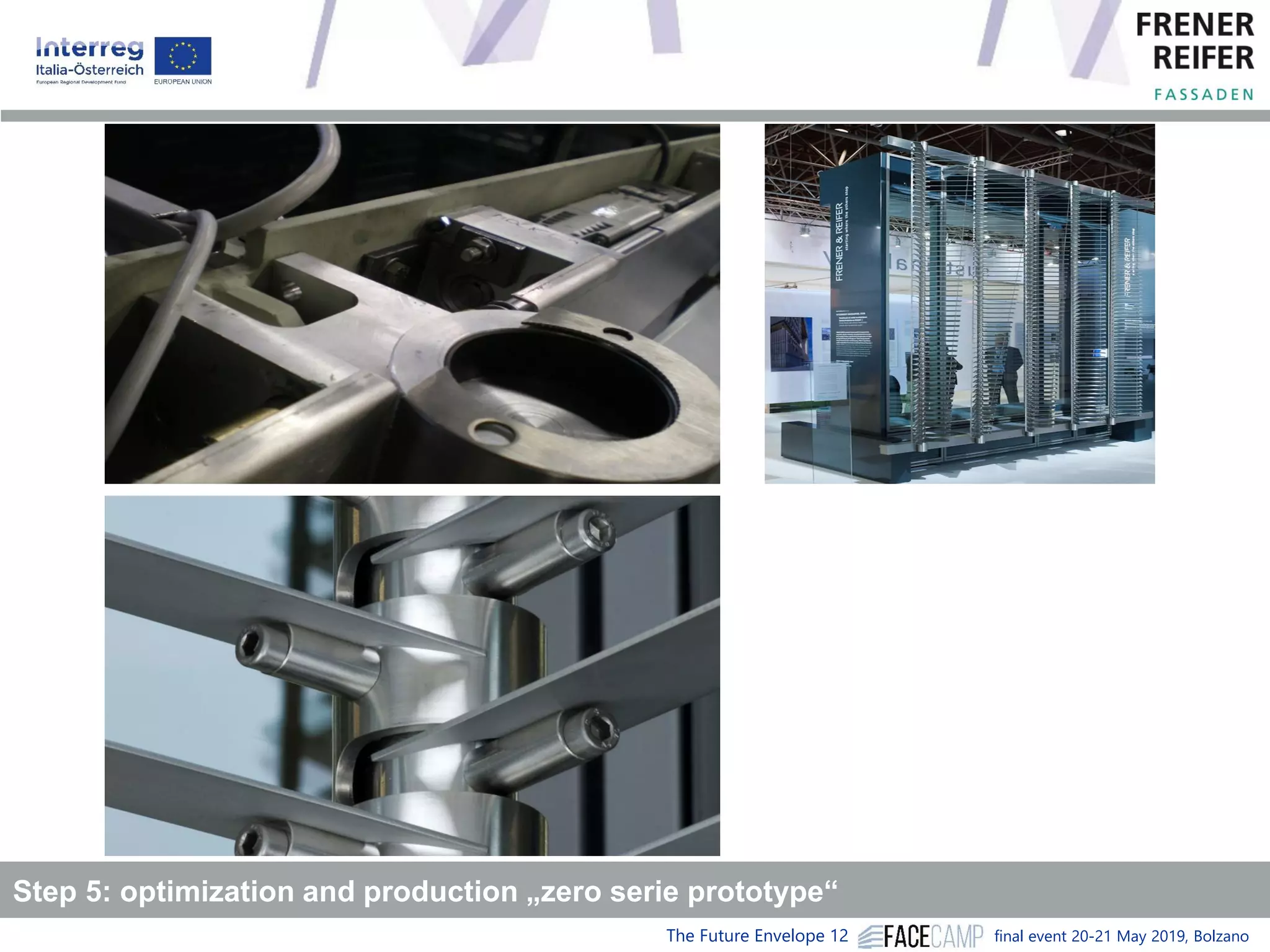

The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 5: optimization and production „zero serie prototype“

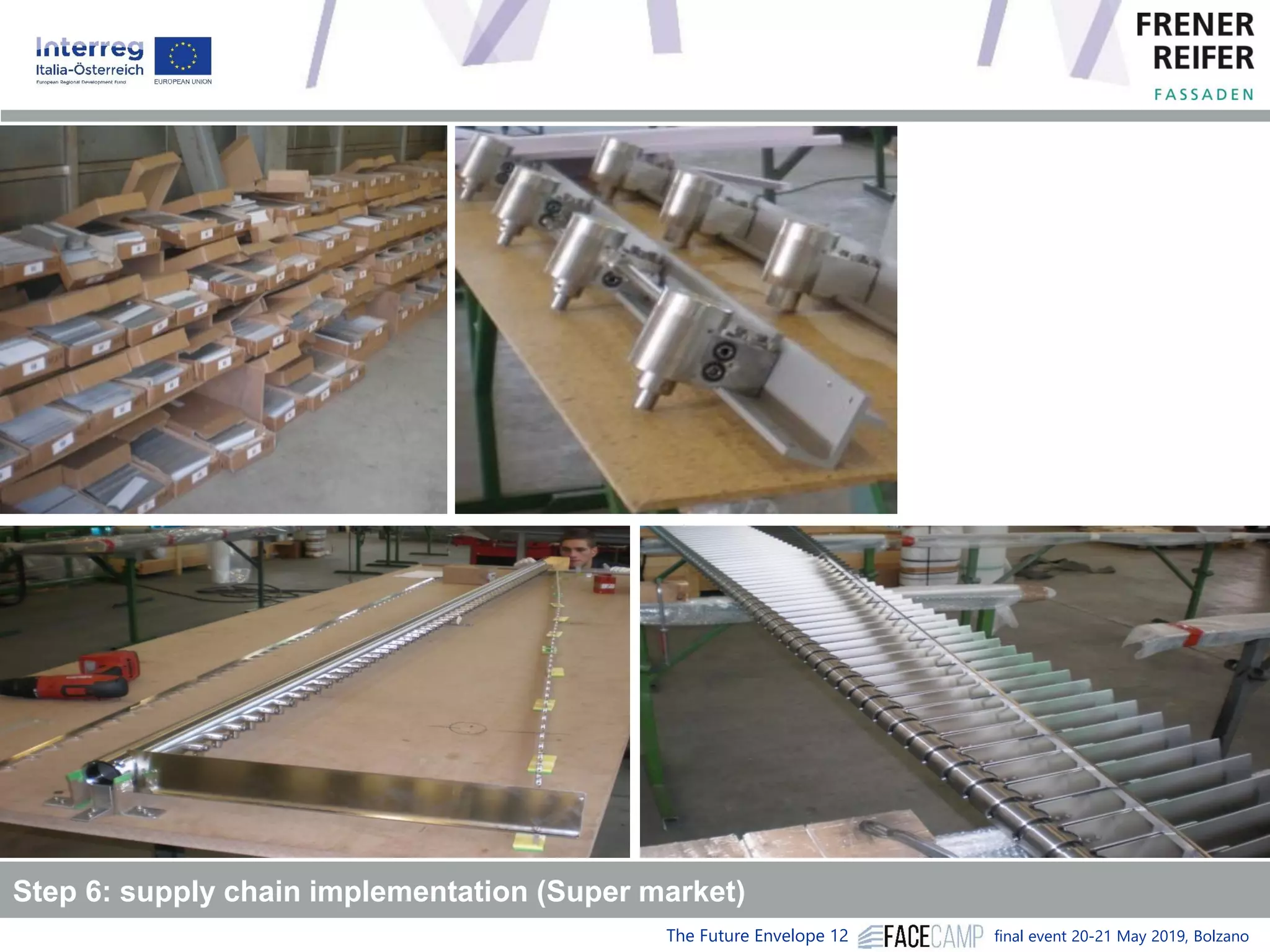

The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 6: supply chain implementation (Super market)

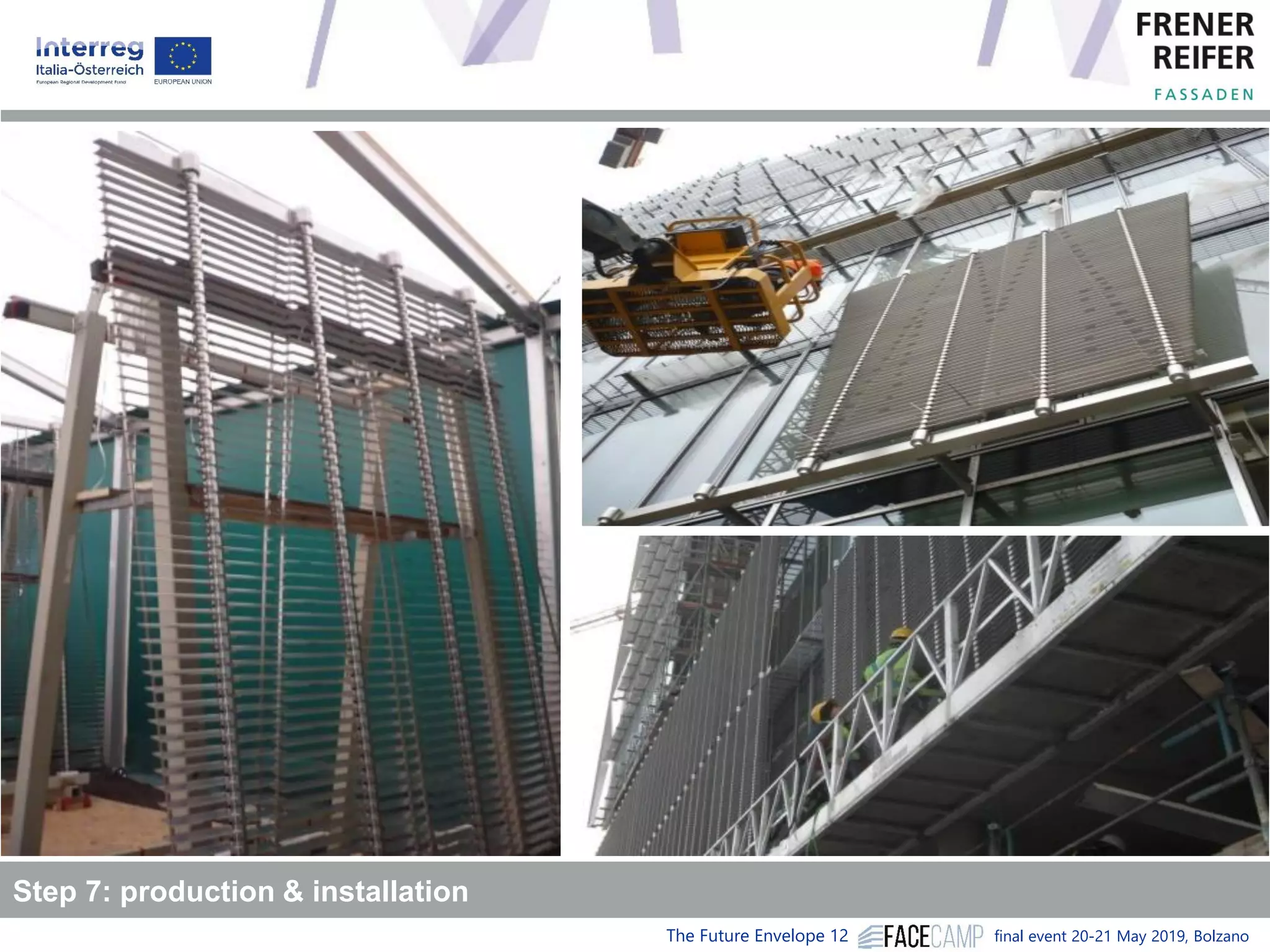

The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 7: production & installation
The Future Envelope 12 final event 20-21 May 2019, Bolzano Step 8: impressions
The Future Envelope 12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! Step 9: R&D process standardisation for a complex ETO building system supplier Project development as stage gate process with the right competencies on the right time Generating ideas, developing design Developing and designing concepts and variants Developing solution variants and pricing variants, testing, developing supply chain models and suppliers Producing solutions,

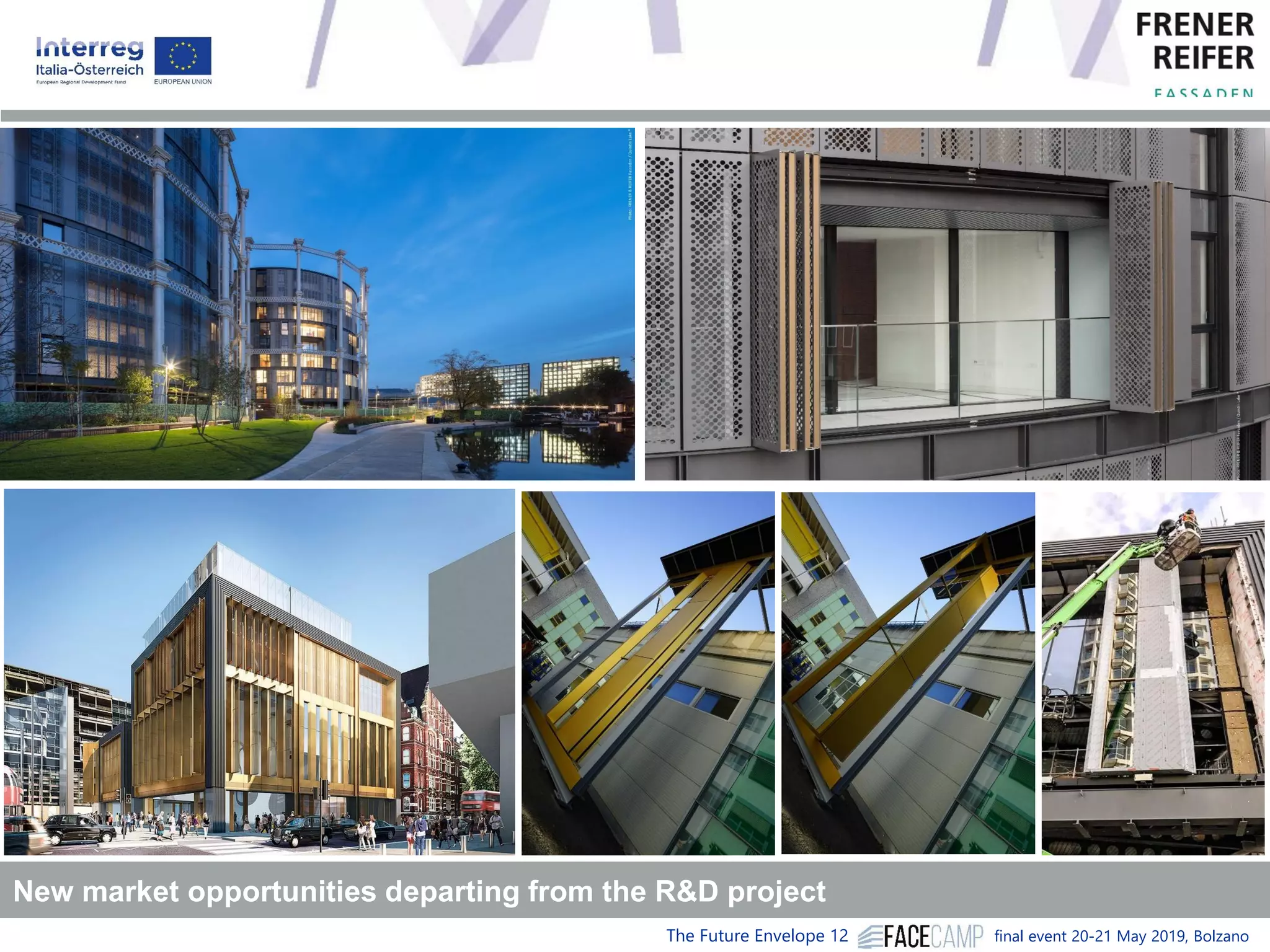

The Future Envelope 12 final event 20-21 May 2019, Bolzano New market opportunities departing from the R&D project
The Future Envelope 12 final event 20-21 May 2019, Bolzano Building Envelopes Context driven R&D Aproach R&D holistic context driven innovation approach

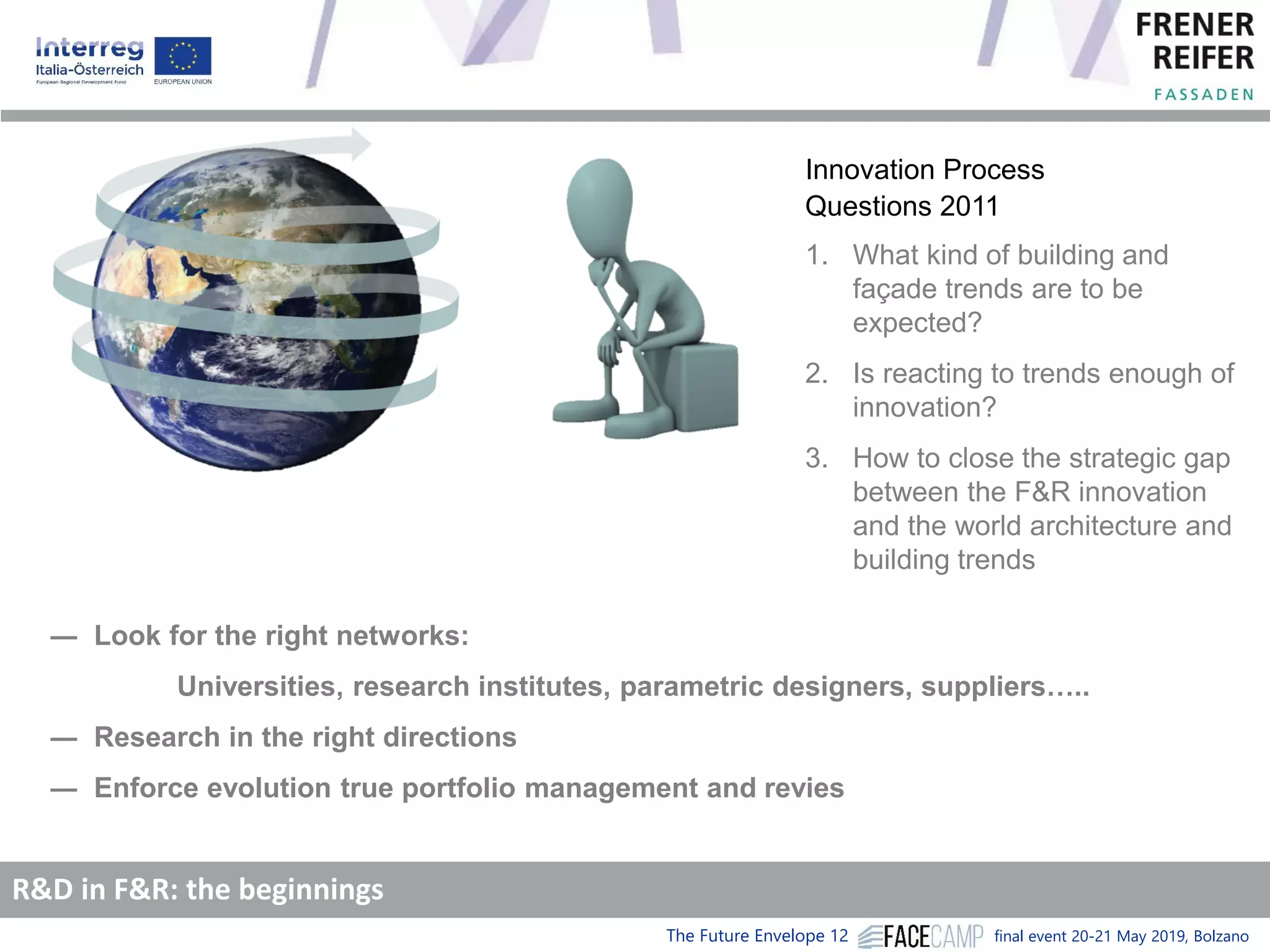

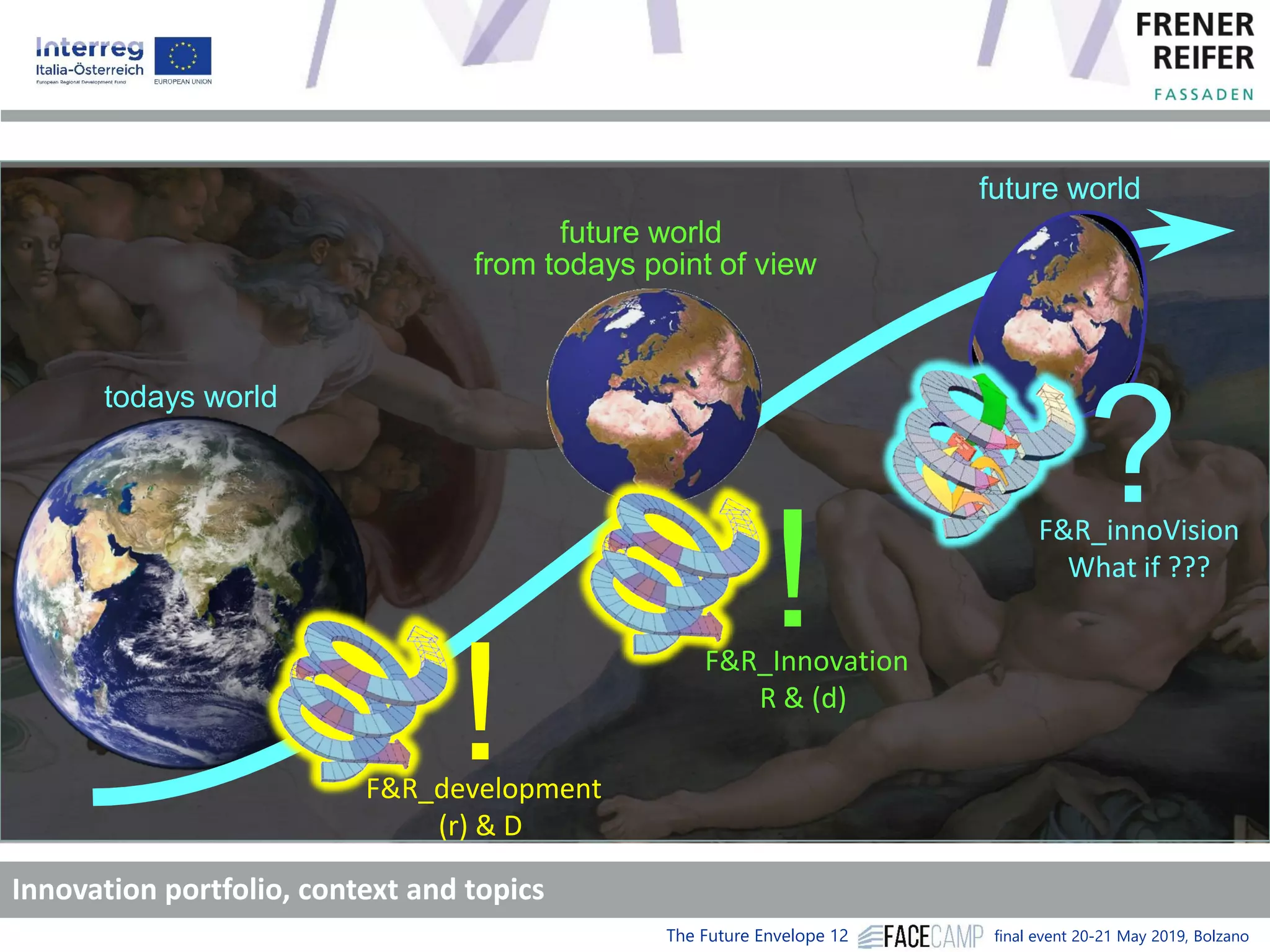

The Future Envelope 12 final event 20-21 May 2019, Bolzano Innovation Process Questions 2011 1. What kind of building and façade trends are to be expected? 2. Is reacting to trends enough of innovation? 3. How to close the strategic gap between the F&R innovation and the world architecture and building trends ― Look for the right networks: Universities, research institutes, parametric designers, suppliers….. ― Research in the right directions ― Enforce evolution true portfolio management and revies R&D in F&R: the beginnings

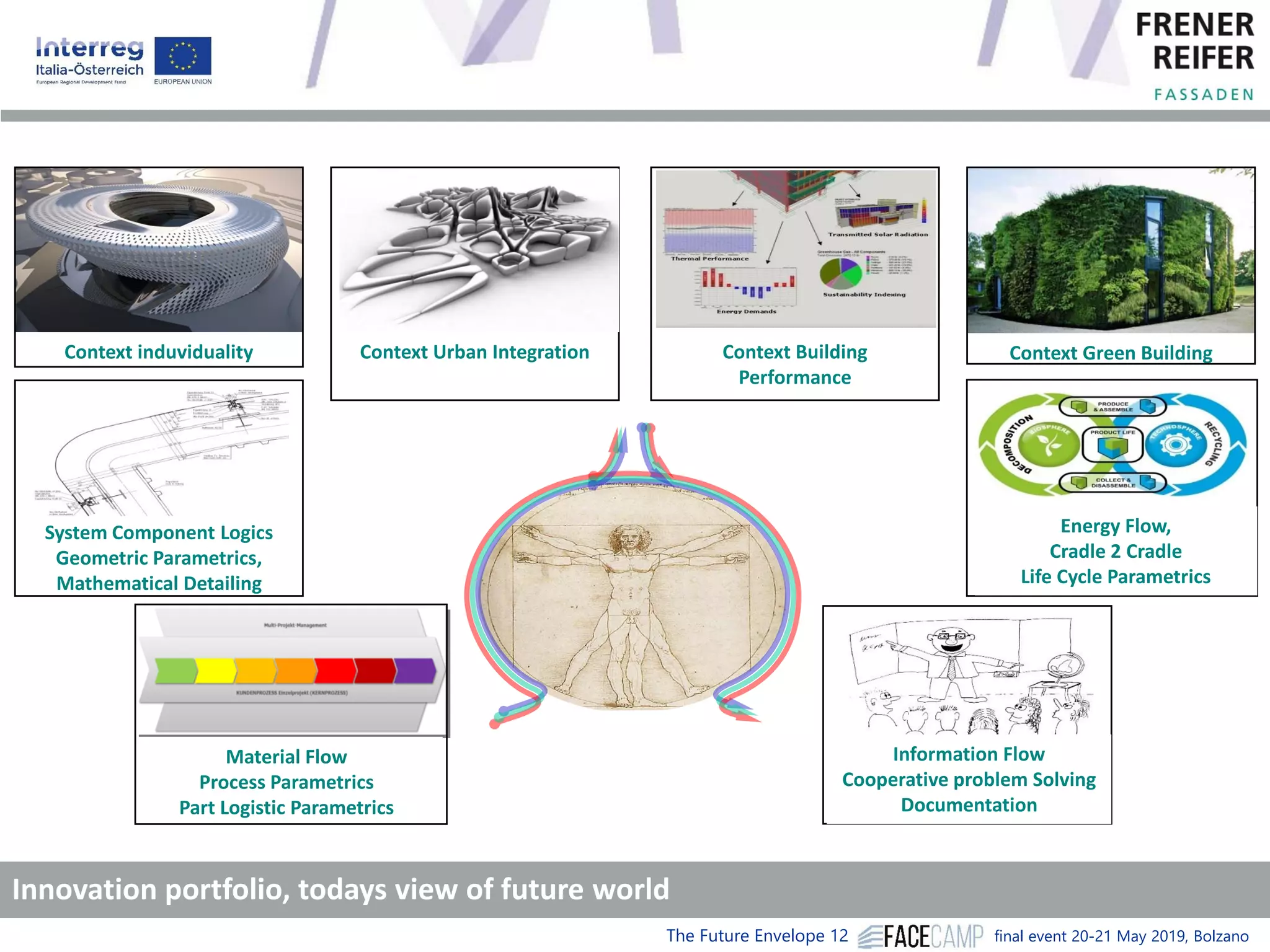

The Future Envelope 12 final event 20-21 May 2019, Bolzano Information Flow Cooperative problem Solving Documentation Energy Flow, Cradle 2 Cradle Life Cycle Parametrics Context induviduality System Component Logics Geometric Parametrics, Mathematical Detailing Context Green BuildingContext Urban Integration Material Flow Process Parametrics Part Logistic Parametrics Context Building Performance Innovation portfolio, context and topics

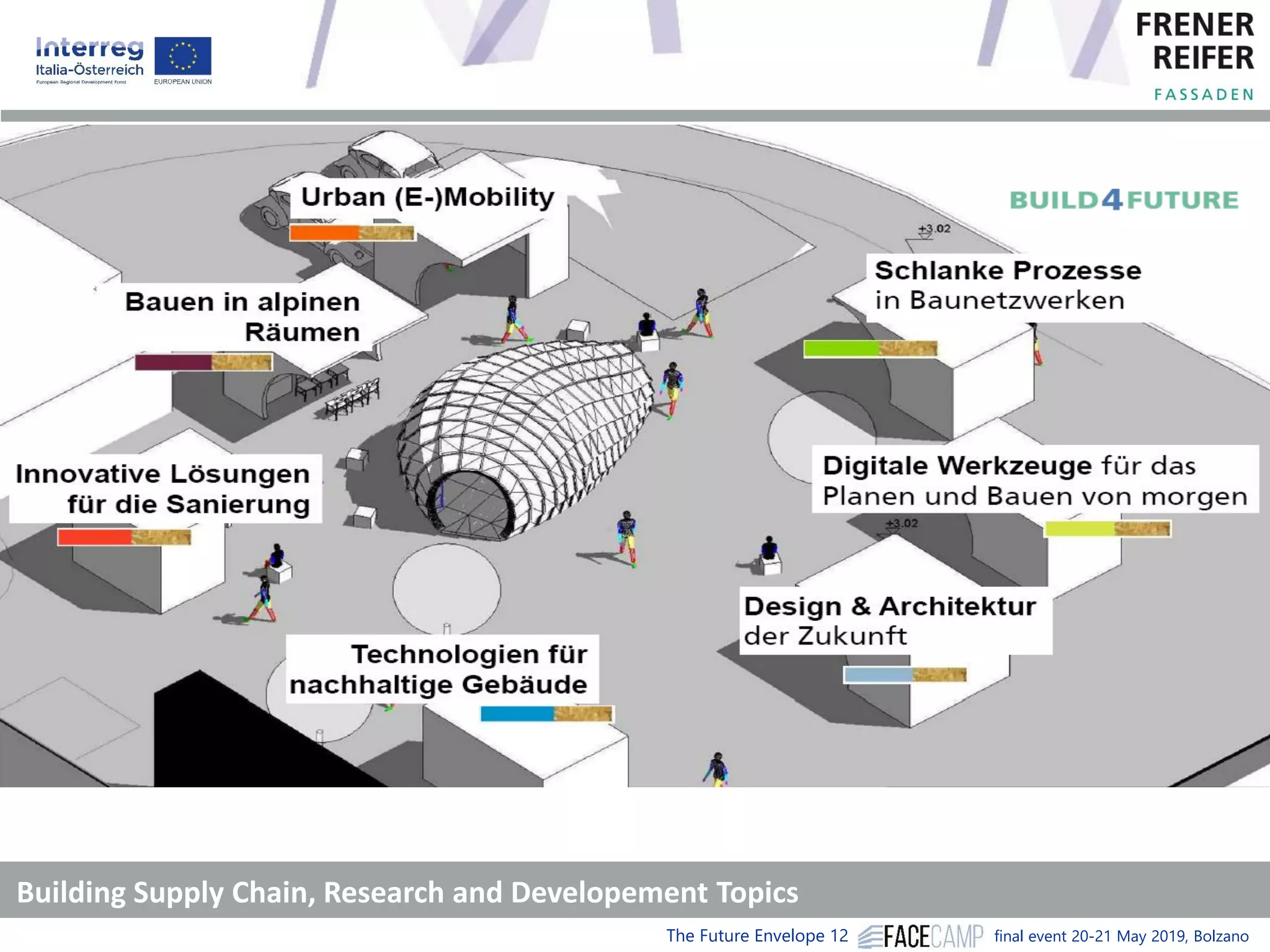

The Future Envelope 12 final event 20-21 May 2019, Bolzano Building Supply Chain, Research and Developement Topics
The Future Envelope 12 final event 20-21 May 2019, Bolzano R & (d) - projects functional design free form technology
The Future Envelope 12 final event 20-21 May 2019, Bolzano State of the art in 2011: System Layers, Details (primary steel-concrete Construction), RWTH

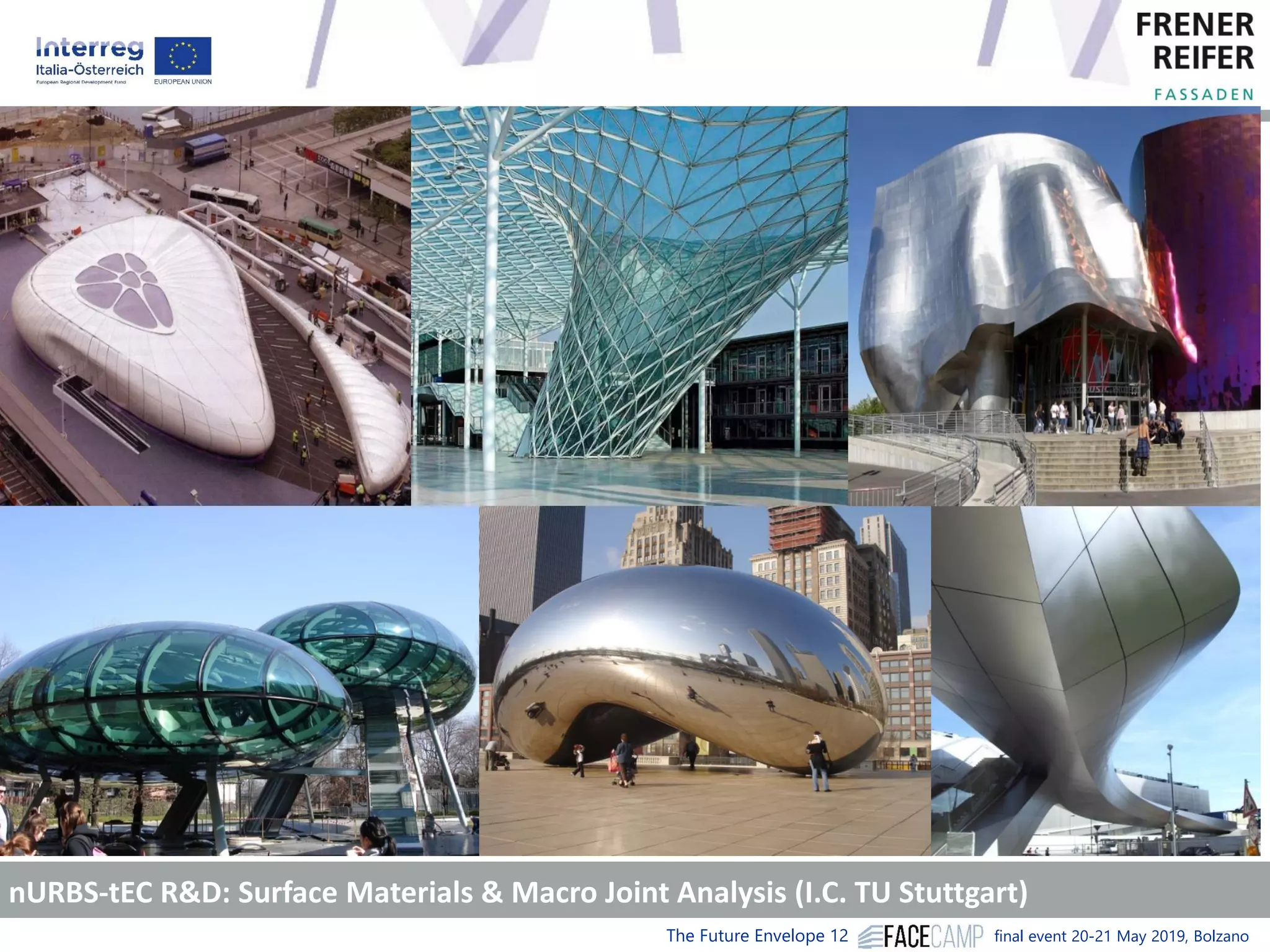

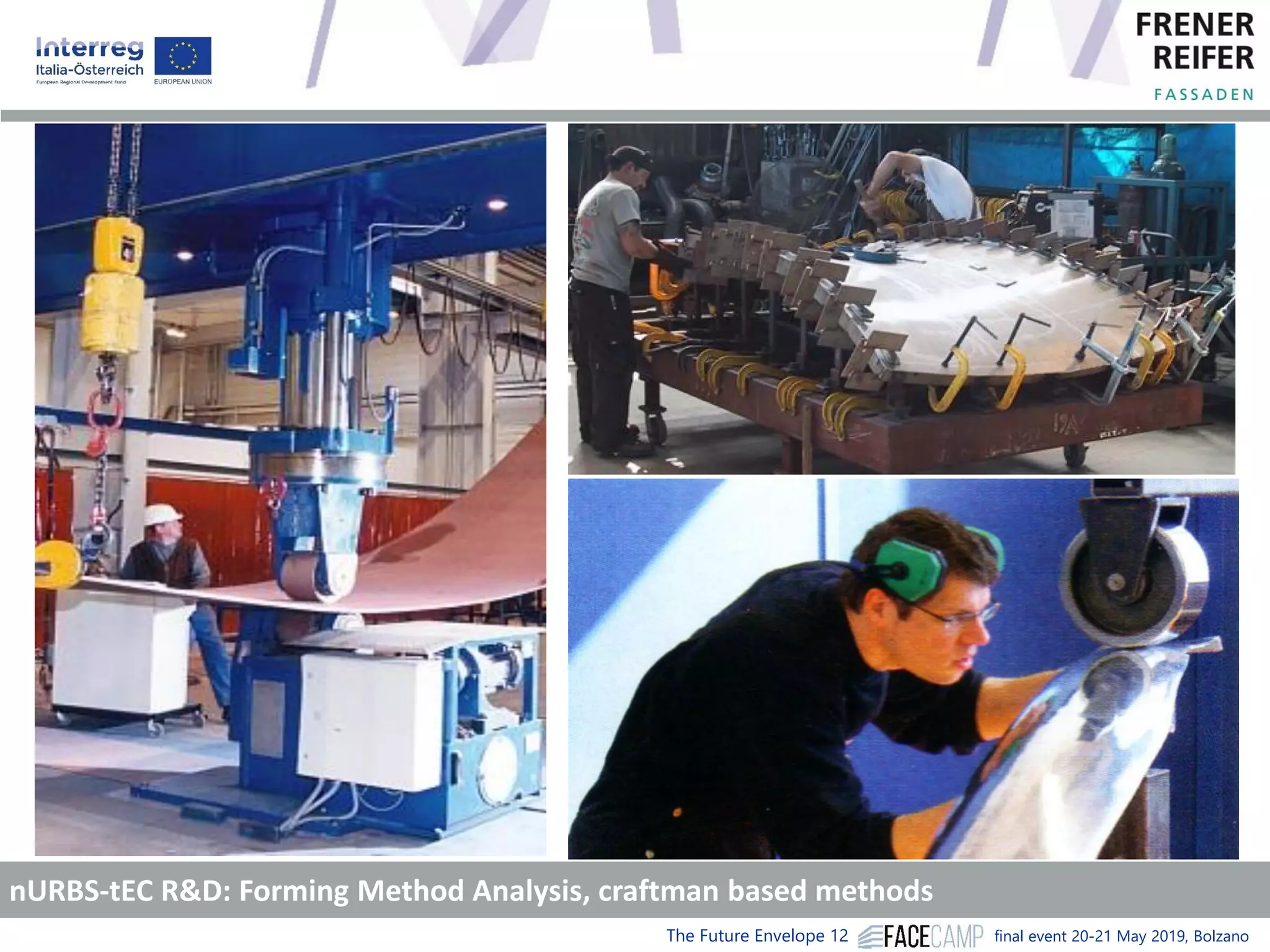

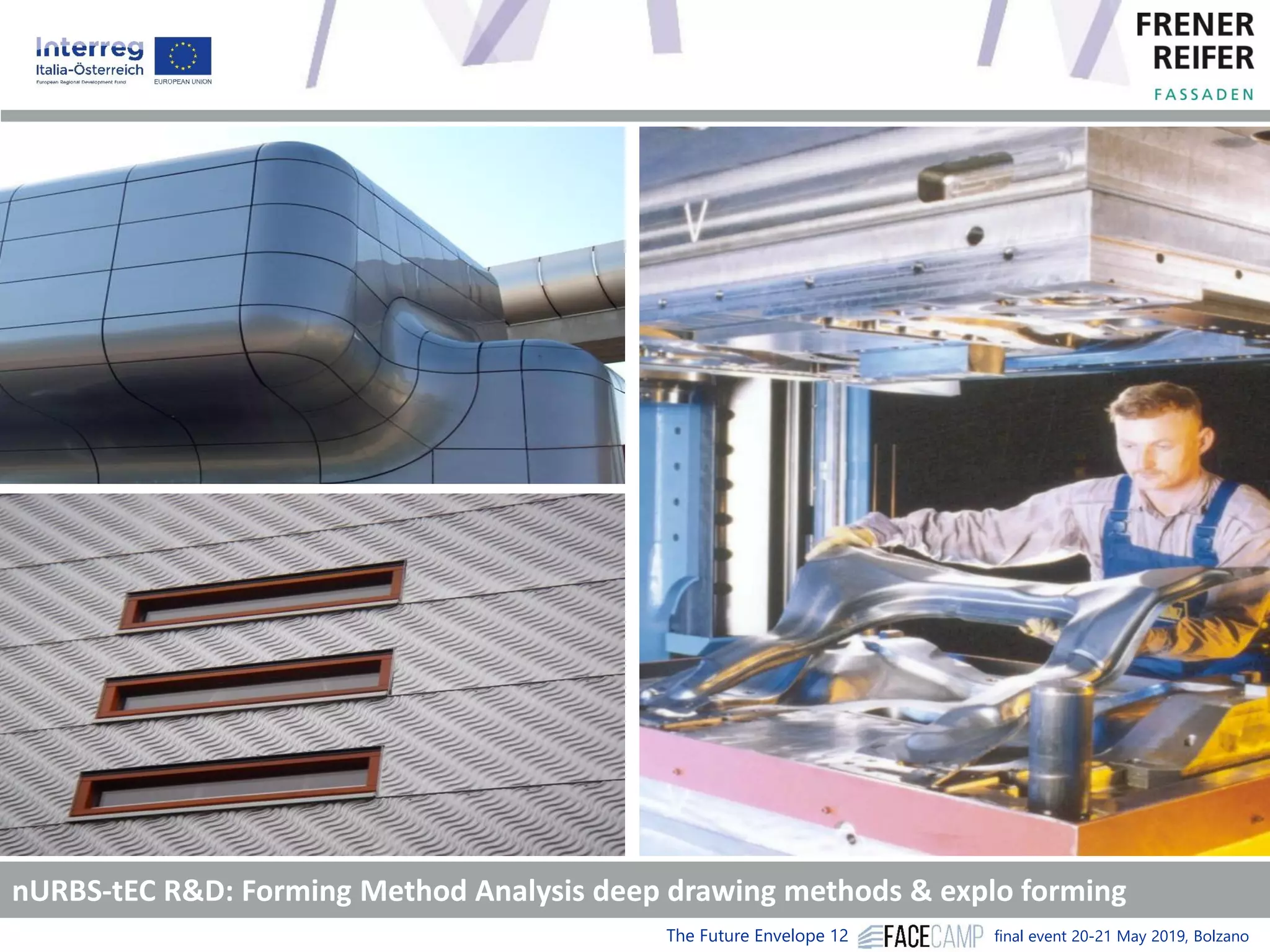

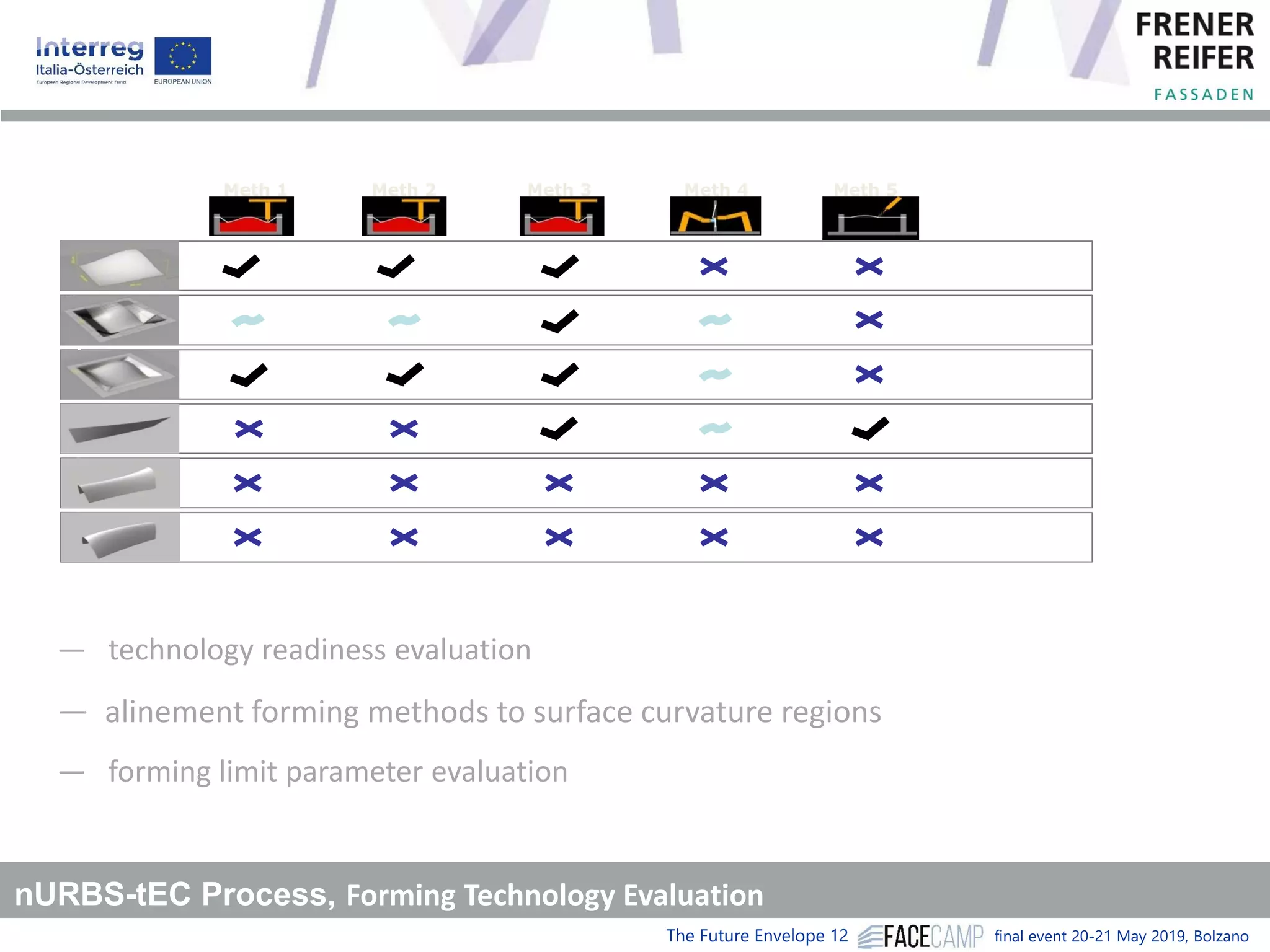

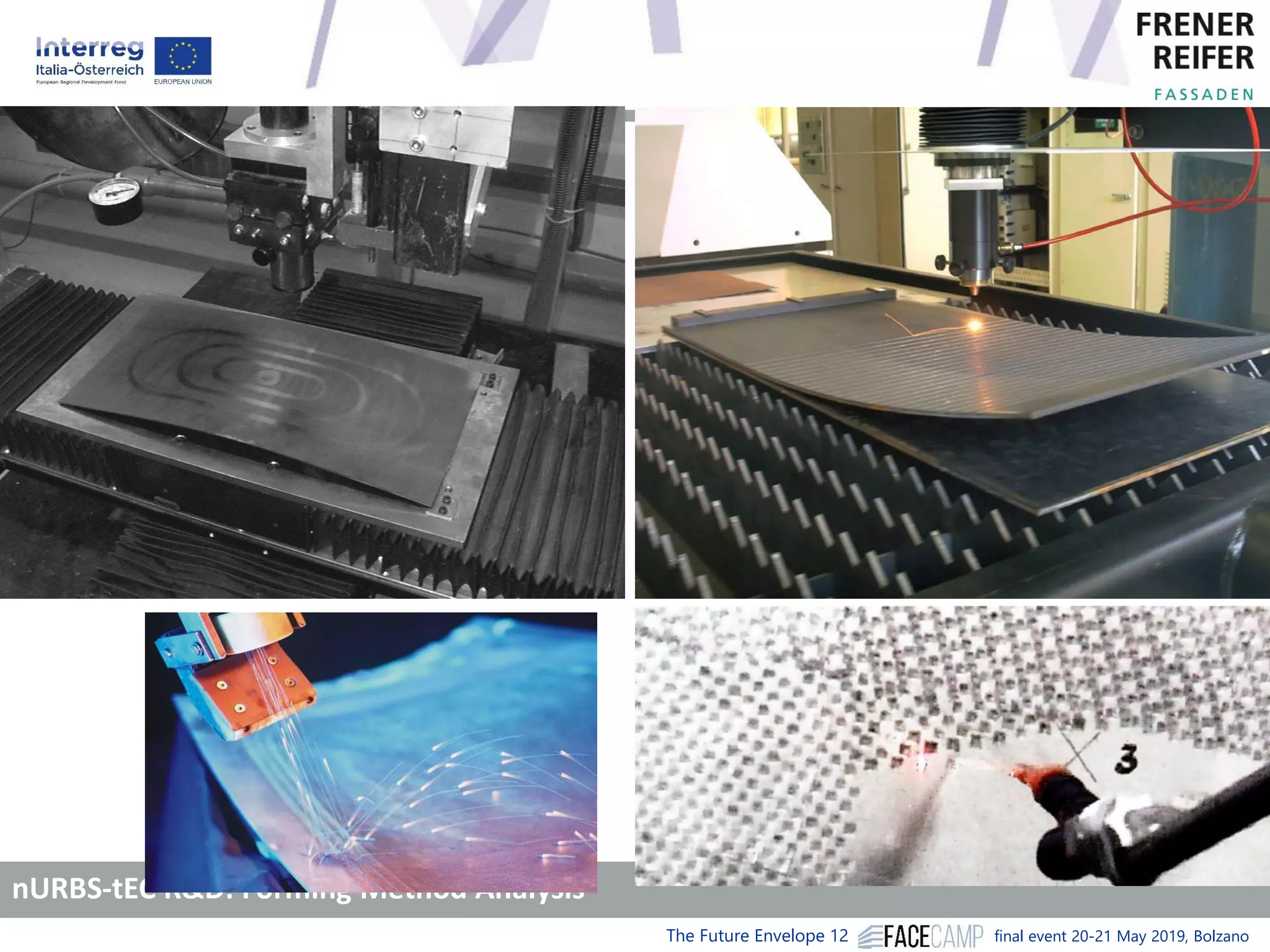

The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Surface Materials & Macro Joint Analysis (I.C. TU Stuttgart)

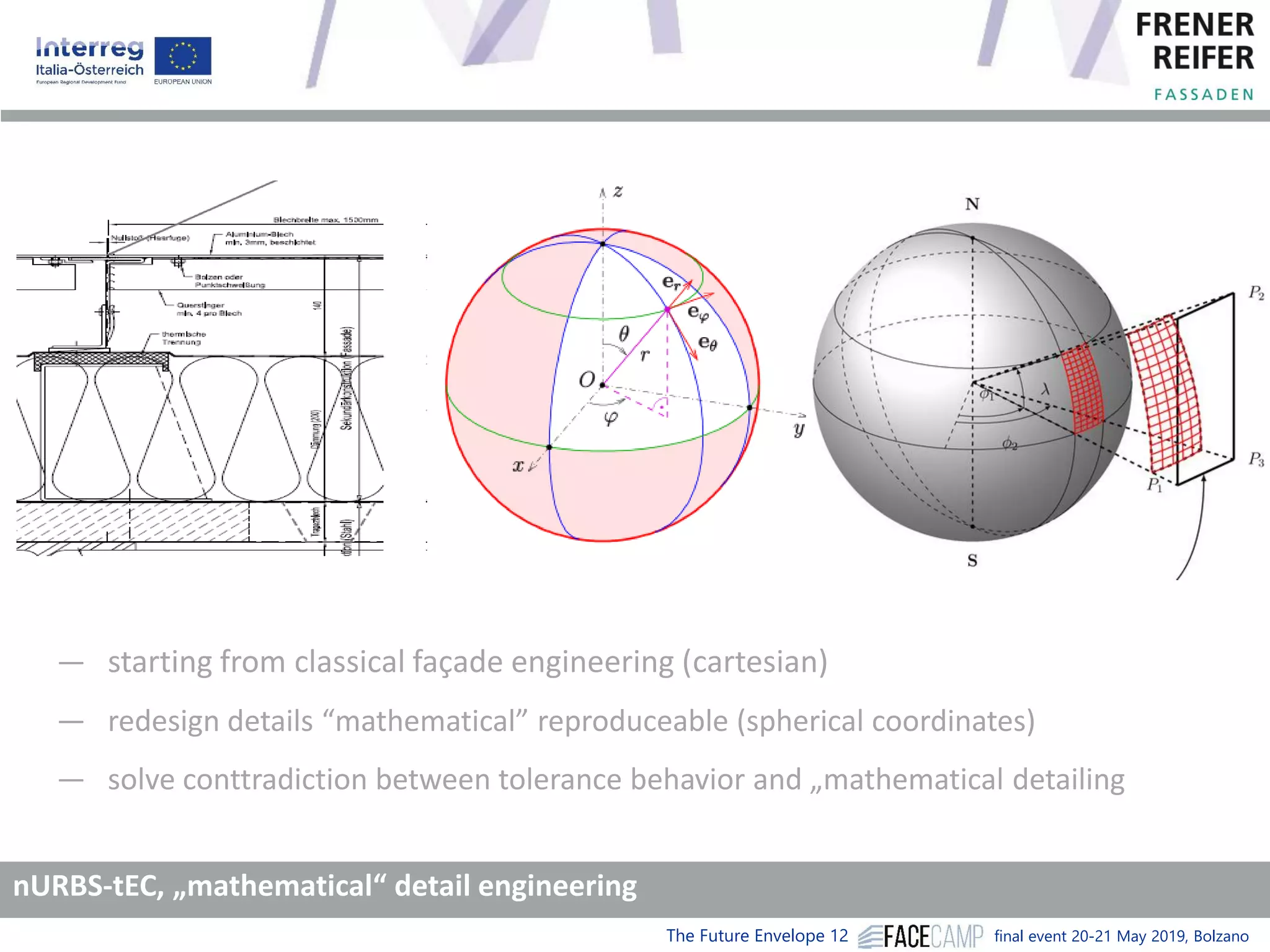

The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis, craftman based methods
The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis deep drawing methods & explo forming
The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis deep drawing methods & explo forming
The Future Envelope 12 final event 20-21 May 2019, Bolzano Institut für Baukonstruktion und Entwerfen Lehrstuhl 2, Prof. Stefan Behling nURBS-tEC R&D: Forming Method Analysis
The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis
The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC Process, Forming Technology Evaluation Meth 1 Meth 2 Meth 3 Meth 4 Meth 5 Form 1 A 1 B 1 C 2 3 A ― technology readiness evaluation ― alinement forming methods to surface curvature regions ― forming limit parameter evaluation

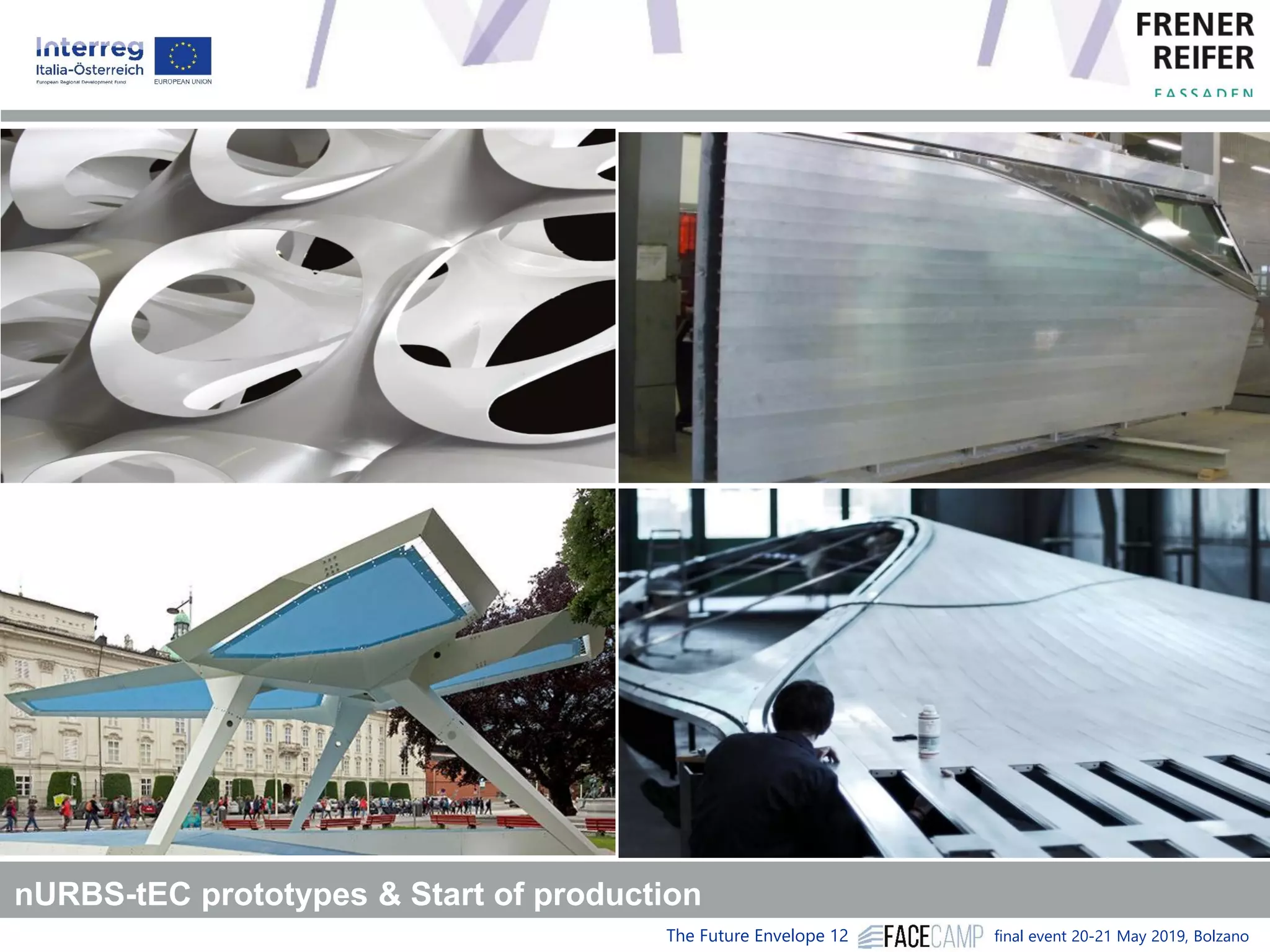

The Future Envelope 12 final event 20-21 May 2019, BolzanoRESEARCH AND nURBS-tEC prototypes & Start of production

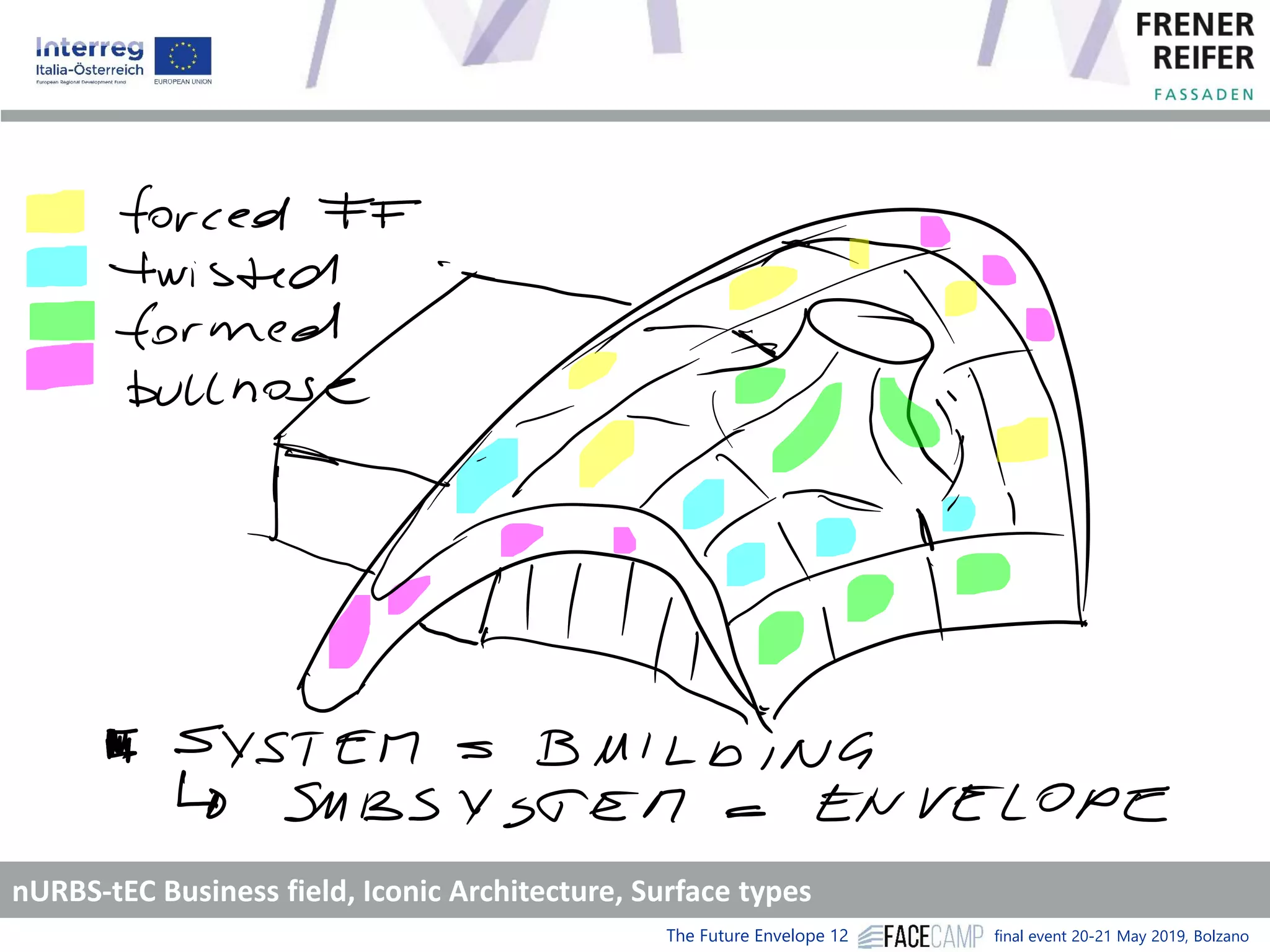

The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC Business field, Iconic Architecture, Surface types
The Future Envelope 12 final event 20-21 May 2019, Bolzano Intelligent Architecture Iconic Architecture Brand Architecture Exclusive Living Products and technologies Organic Construction Iconic Architecture Iconic Superyots Wide Size Prototyping Digital Chain •building envelope system supplier (design 2 build) •Other industries •architectural freeform know how •façade engineering and detailing •„mathematical“ detailing nURBS-tEC, business modelling, strategy alinement
The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC, R&D:„Sandwich“ Core Parametrics ― research, test and parametrization of cut sheet metal core solutions ― research, test and parametrization of auxetic and folded core solutions ― research, test and parametrization of blown core solutions
The Future Envelope 12 final event 20-21 May 2019, Bolzano nURBS-tEC, „mathematical“ detail engineering ― starting from classical façade engineering (cartesian) ― redesign details “mathematical” reproduceable (spherical coordinates) ― solve conttradiction between tolerance behavior and „mathematical detailing

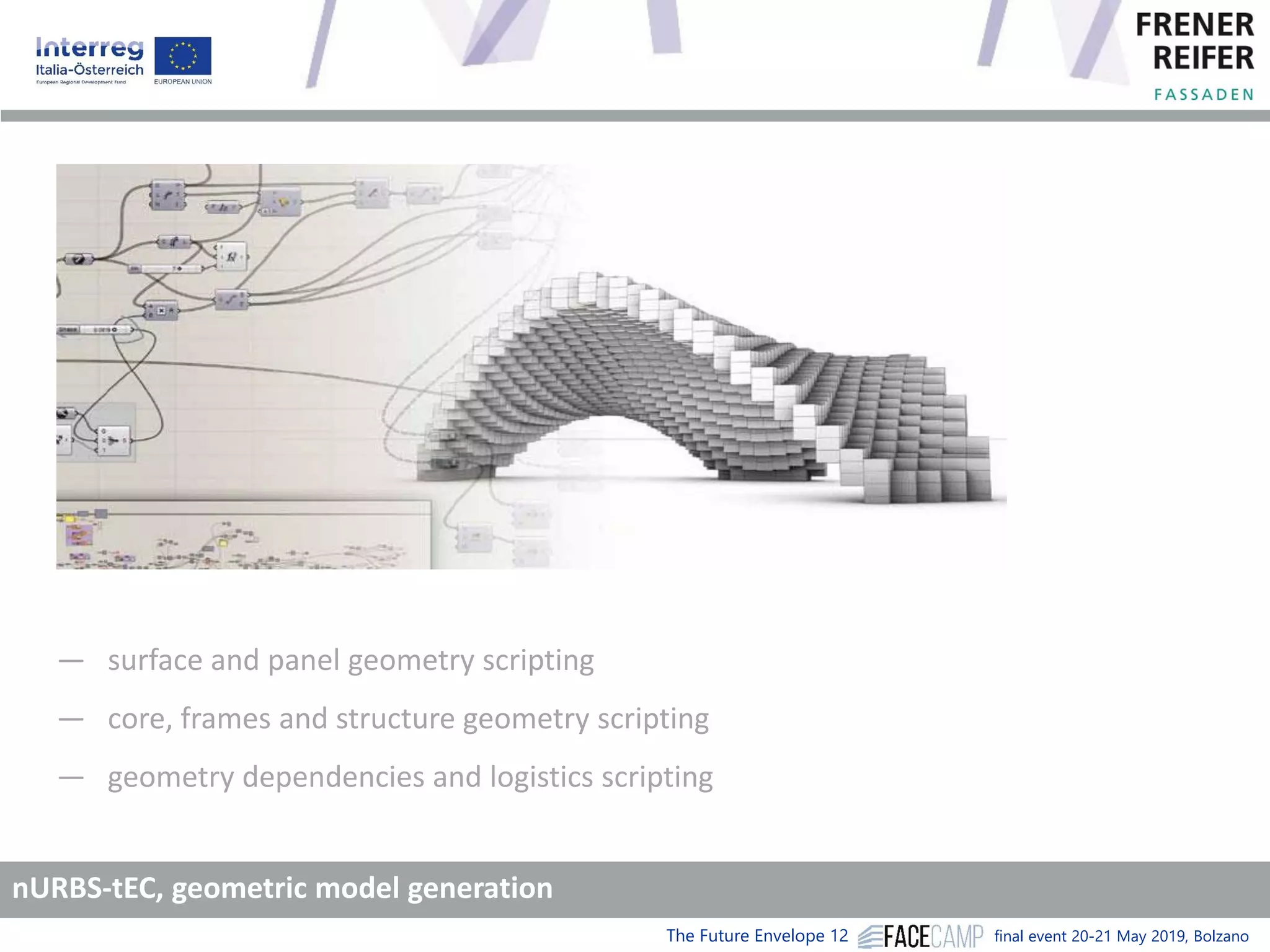

The Future Envelope 12 final event 20-21 May 2019, Bolzano ― surface and panel geometry scripting ― core, frames and structure geometry scripting ― geometry dependencies and logistics scripting nURBS-tEC, geometric model generation

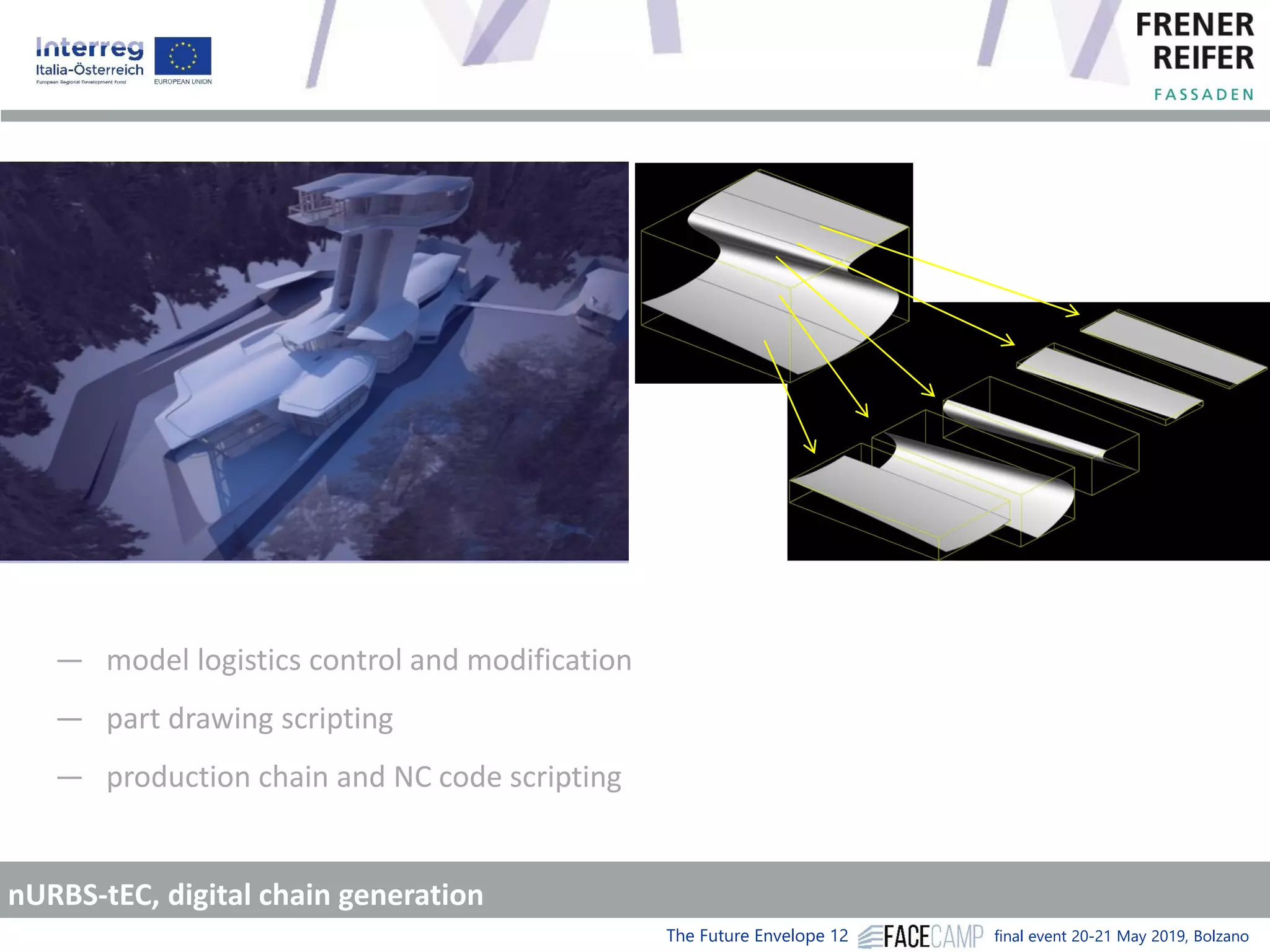

The Future Envelope 12 final event 20-21 May 2019, Bolzano ― model logistics control and modification ― part drawing scripting ― production chain and NC code scripting nURBS-tEC, digital chain generation
The Future Envelope 12 final event 20-21 May 2019, Bolzano R & (d) - Projects sustainability integral facades

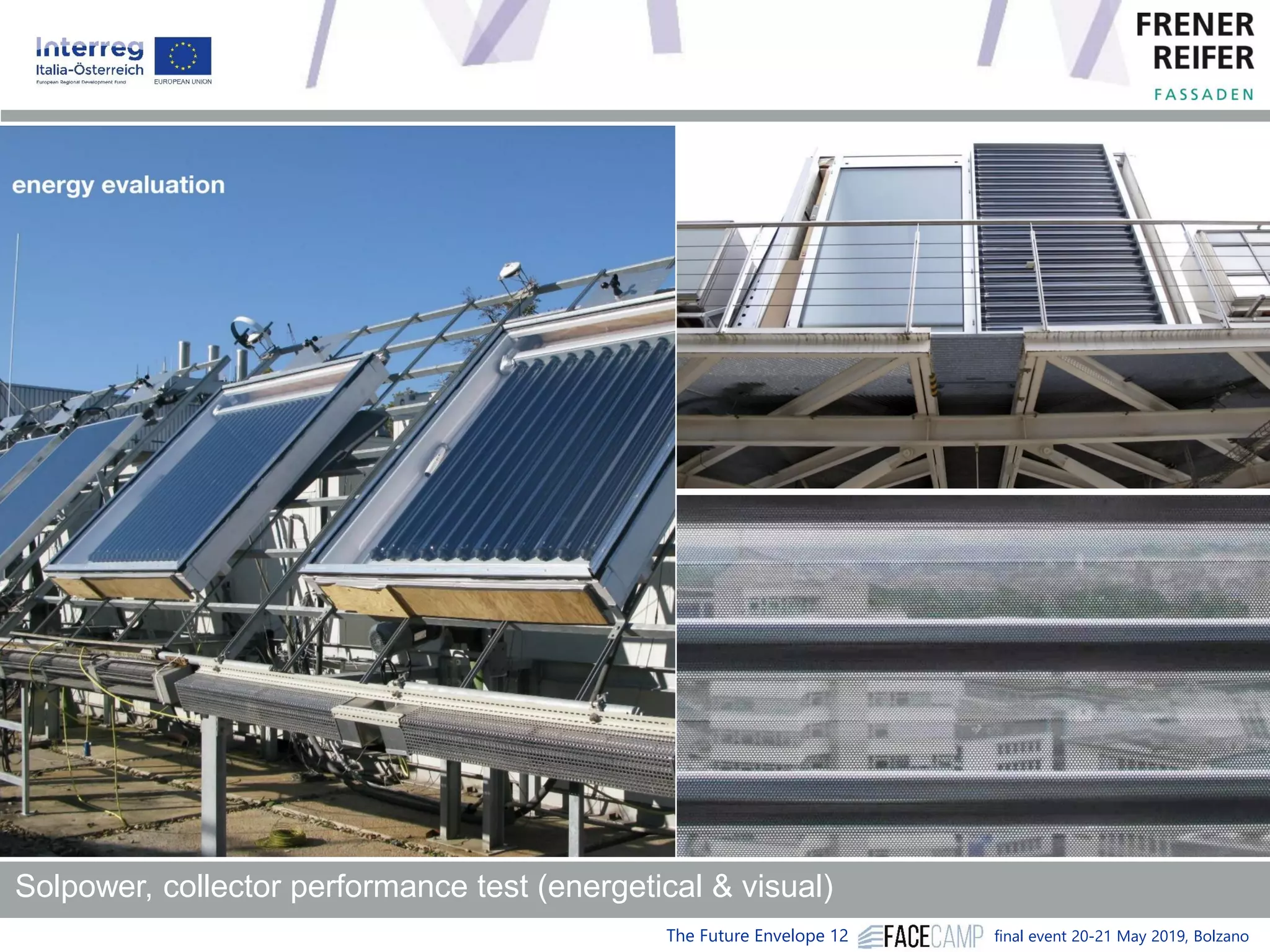

The Future Envelope 12 final event 20-21 May 2019, Bolzano Solpower, integrated semitransparent facade collector (I.C. TU Stuttgart, TU Munich
The Future Envelope 12 final event 20-21 May 2019, Bolzano Solpower, collector performance test (energetical & visual)

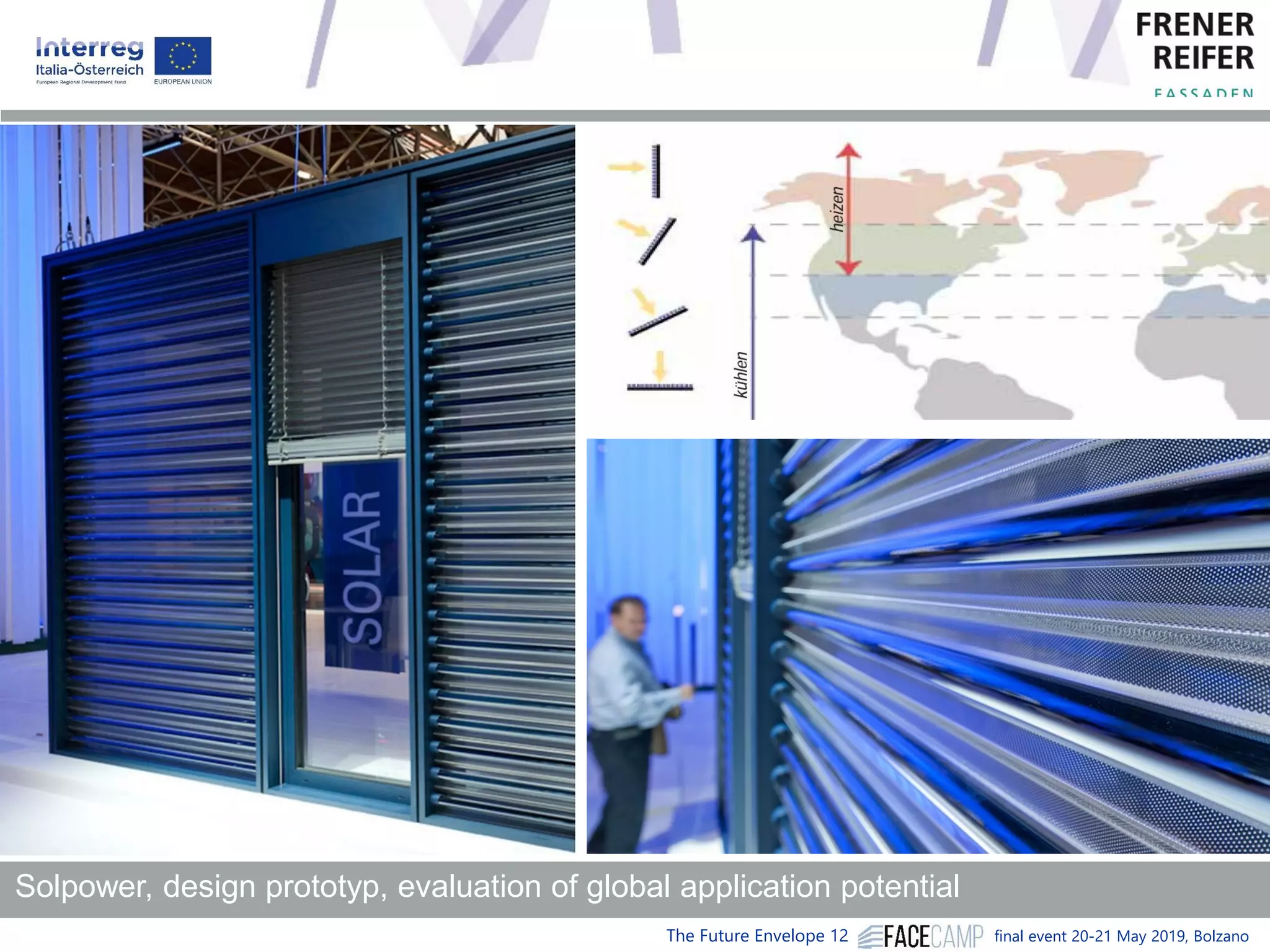

The Future Envelope 12 final event 20-21 May 2019, Bolzano Solpower, design prototyp, evaluation of global application potential
The Future Envelope 12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability integral envelopes

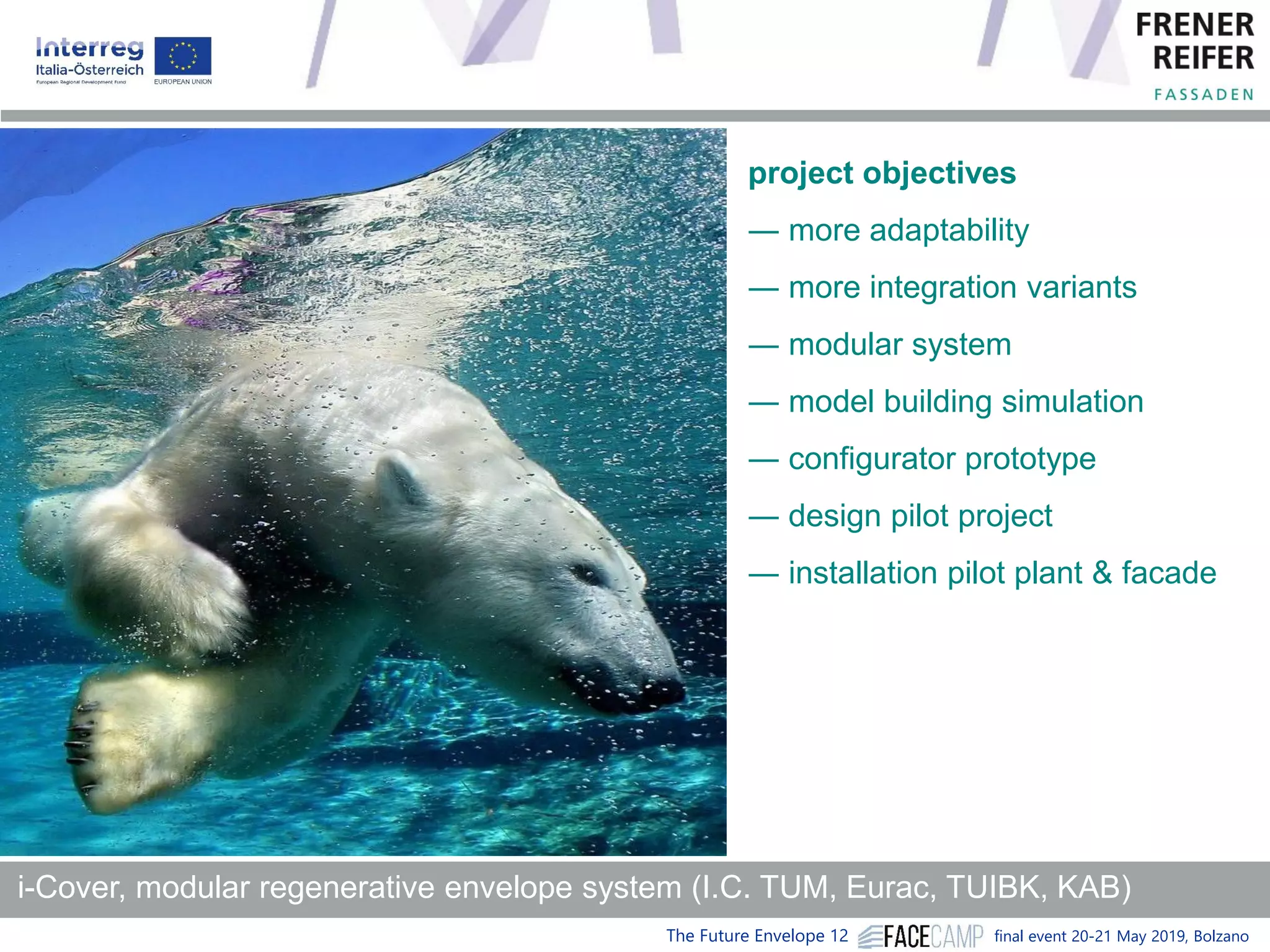

The Future Envelope 12 final event 20-21 May 2019, Bolzano i-Cover, modular regenerative envelope system (I.C. TUM, Eurac, TUIBK, KAB) project objectives ― more adaptability ― more integration variants ― modular system ― model building simulation ― configurator prototype ― design pilot project ― installation pilot plant & facade

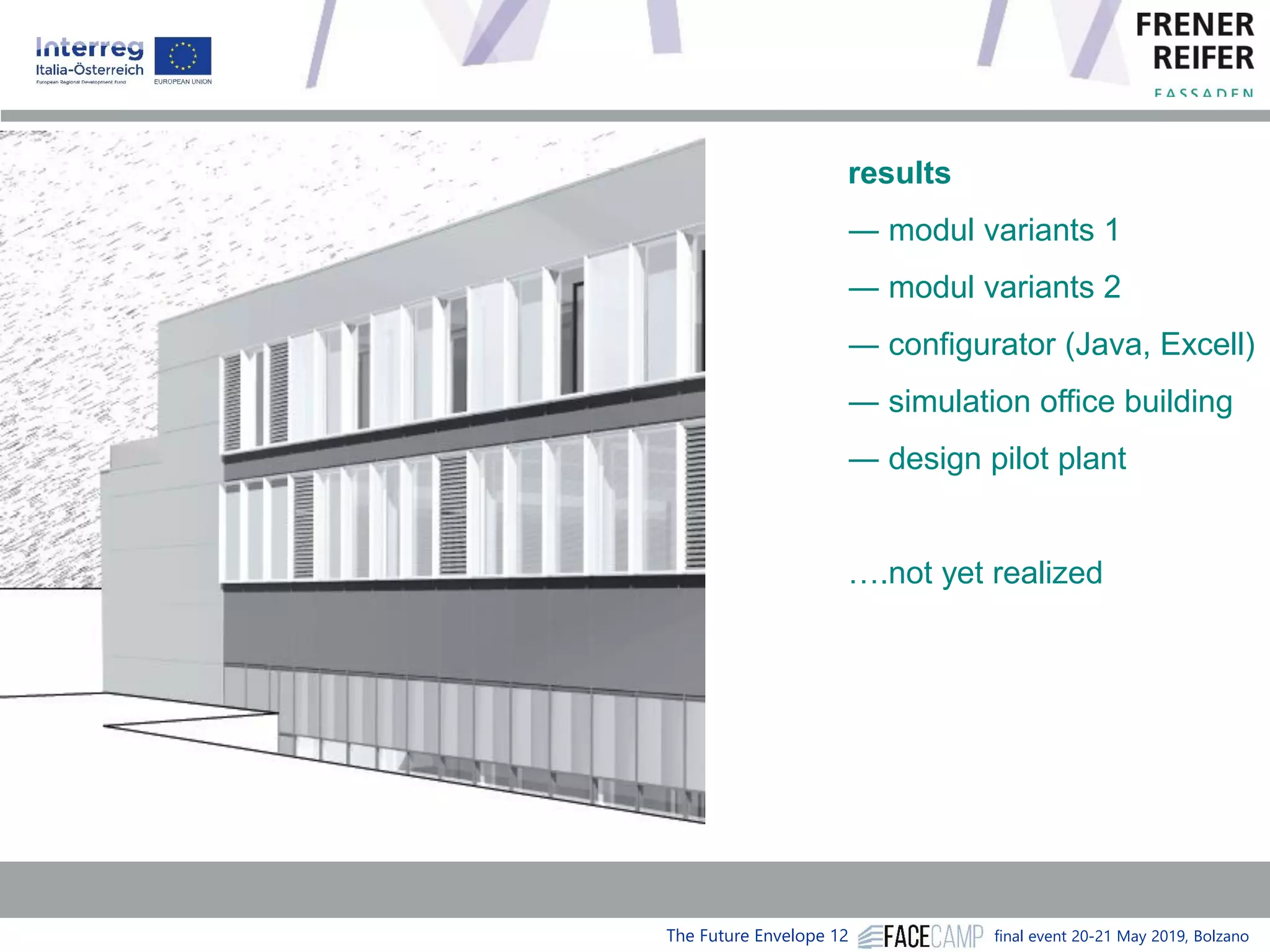

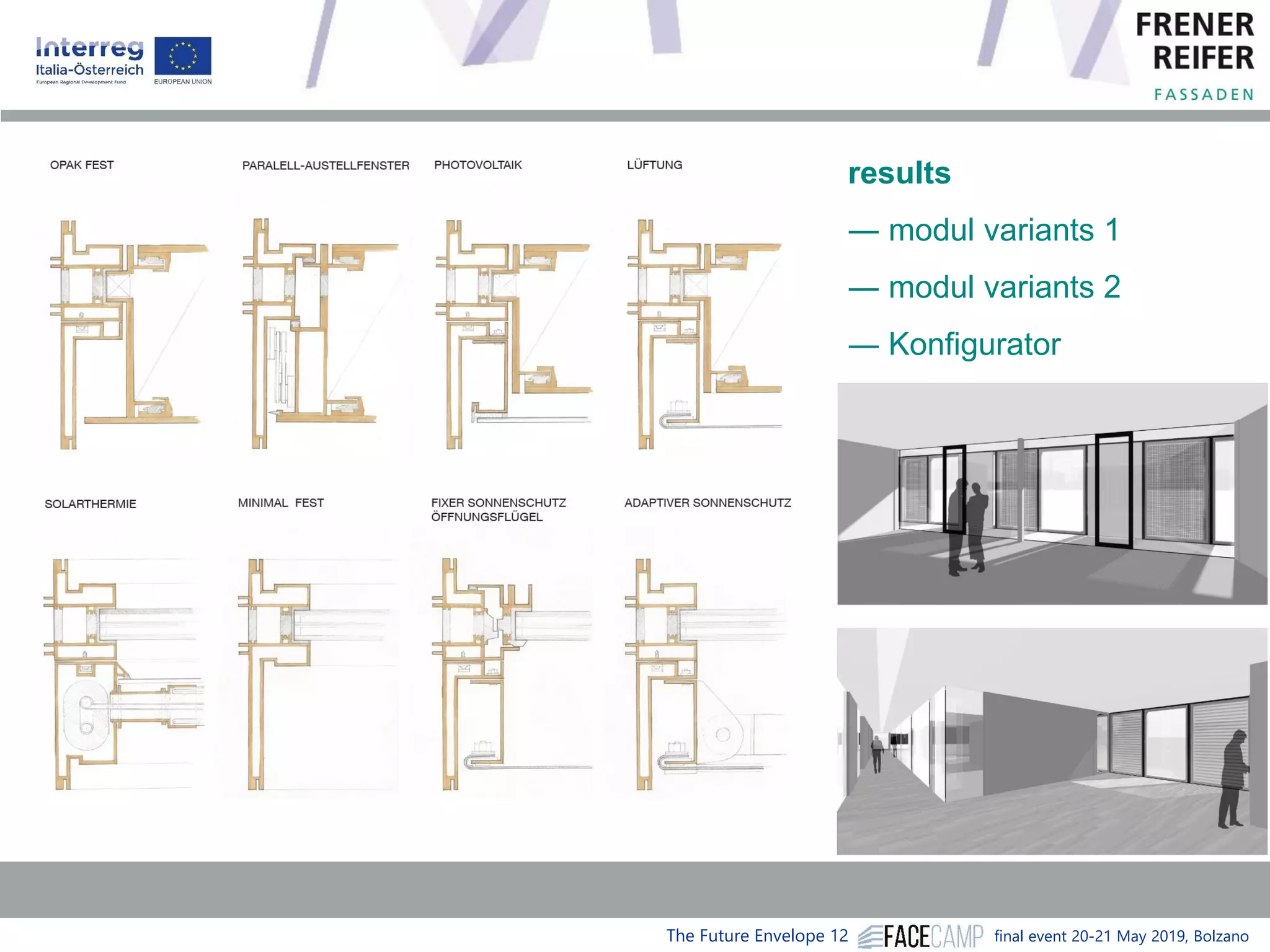

The Future Envelope 12 final event 20-21 May 2019, Bolzano results ― modul variants 1 ― modul variants 2 ― Konfigurator
The Future Envelope 12 final event 20-21 May 2019, Bolzano results ― modul variants 1 ― modul variants 2 ― configurator (Java, Excell) ― simulation office building ― design pilot plant ….not yet realized
The Future Envelope 12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability adaptive facades

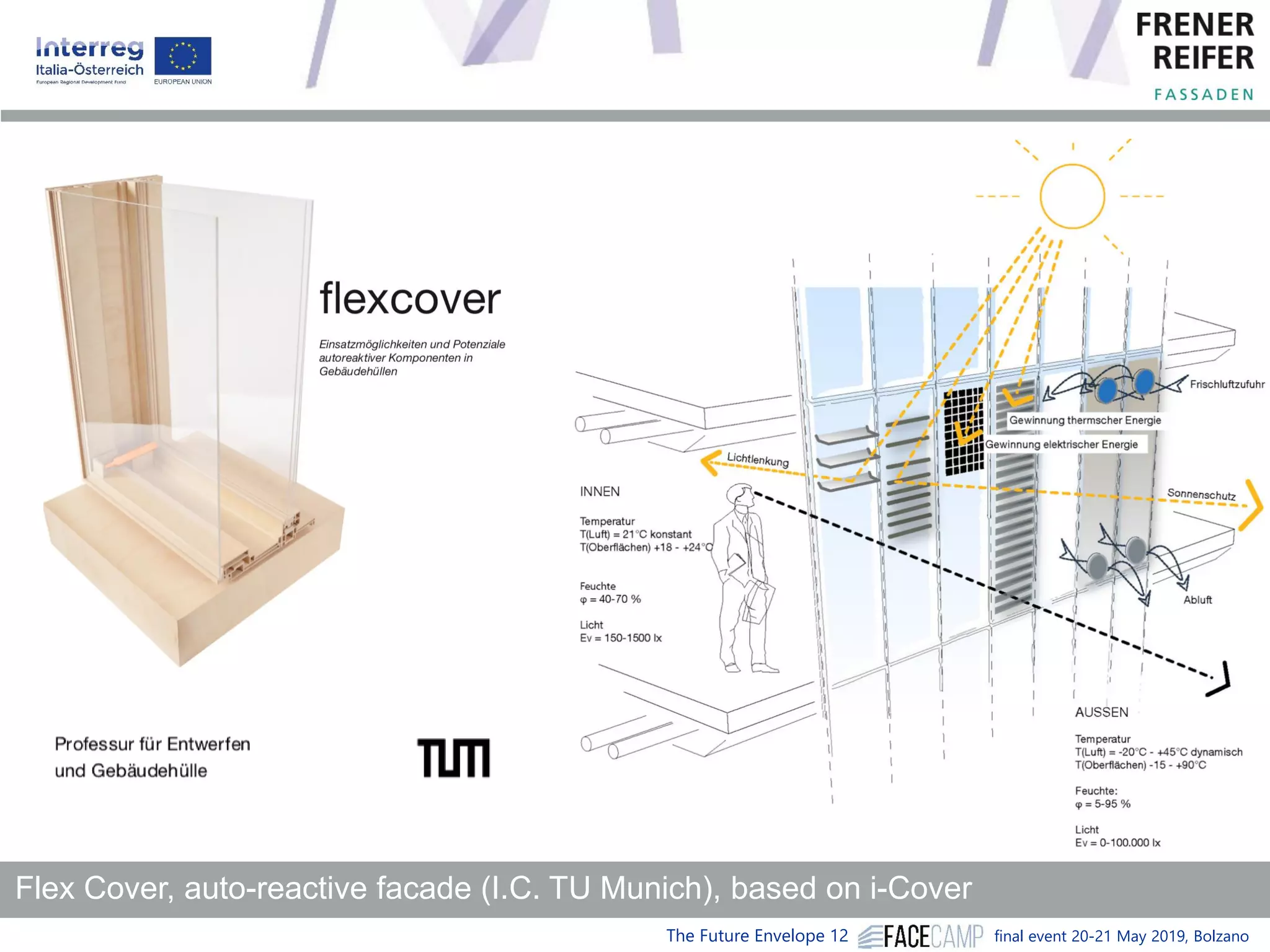

The Future Envelope 12 final event 20-21 May 2019, Bolzano Flex Cover, auto-reactive facade (I.C. TU Munich), based on i-Cover

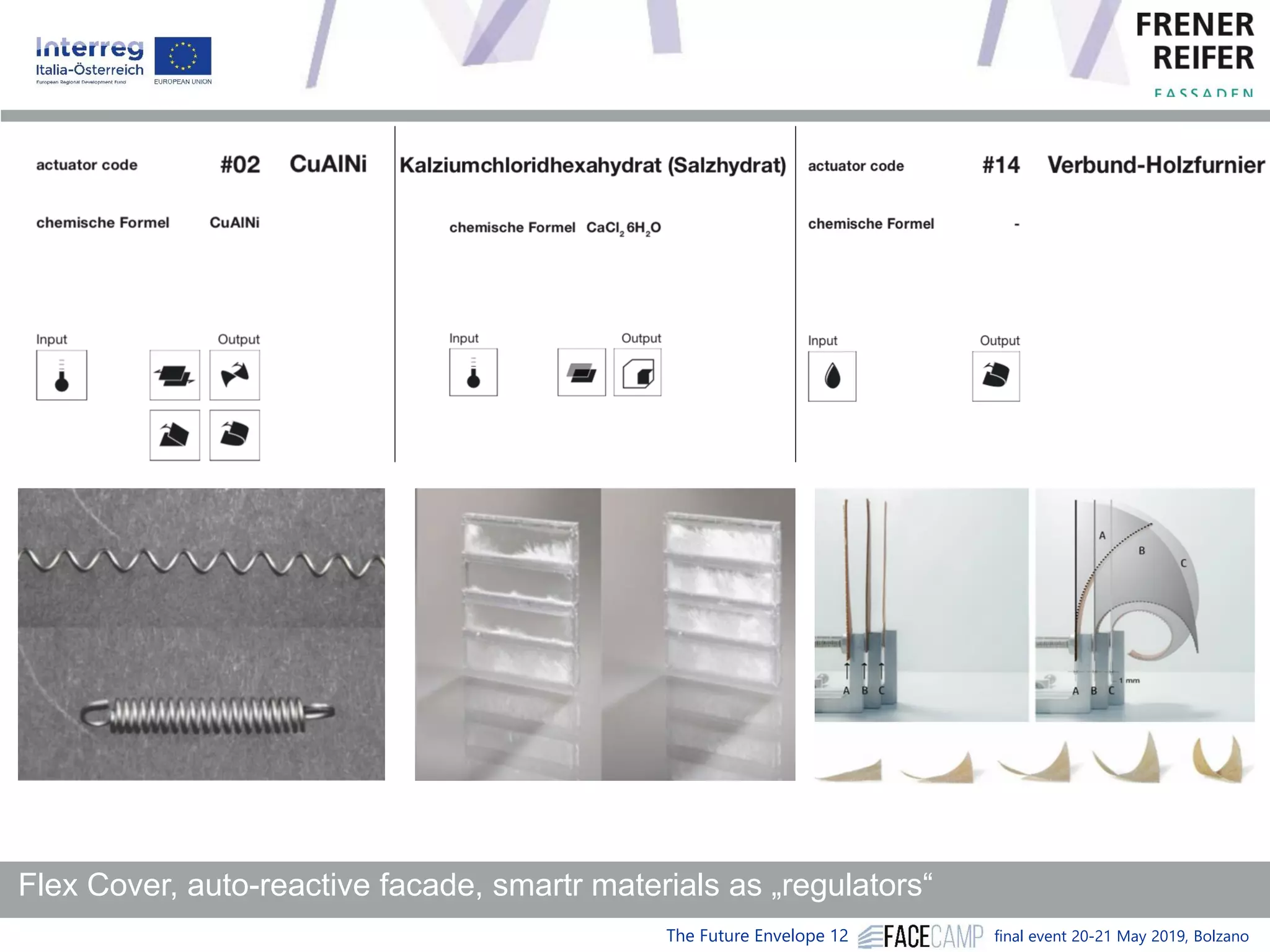

The Future Envelope 12 final event 20-21 May 2019, Bolzano Flex Cover, auto-reactive facade, smartr materials as „regulators“

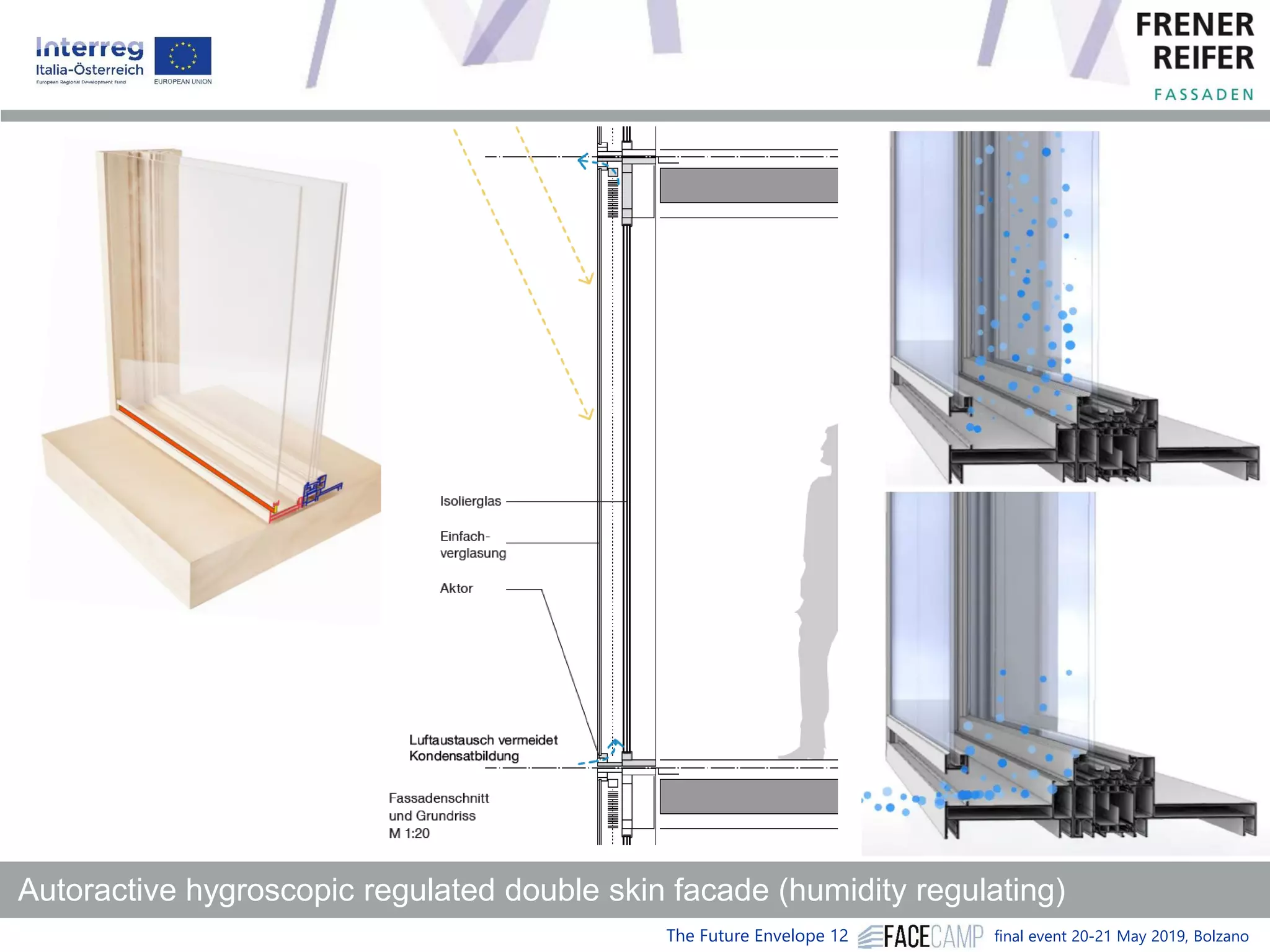

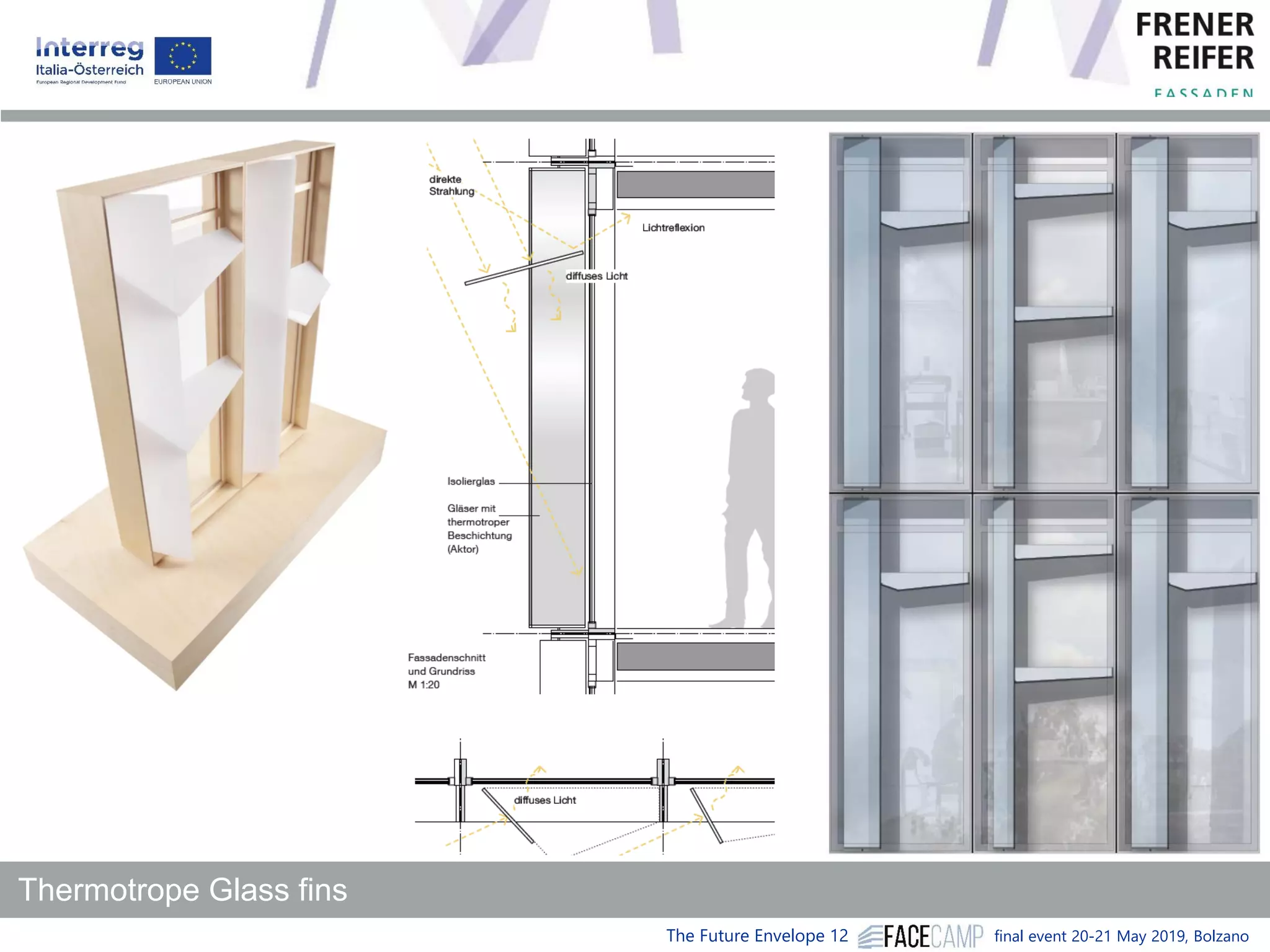

The Future Envelope 12 final event 20-21 May 2019, Bolzano Thermotrope Glass fins

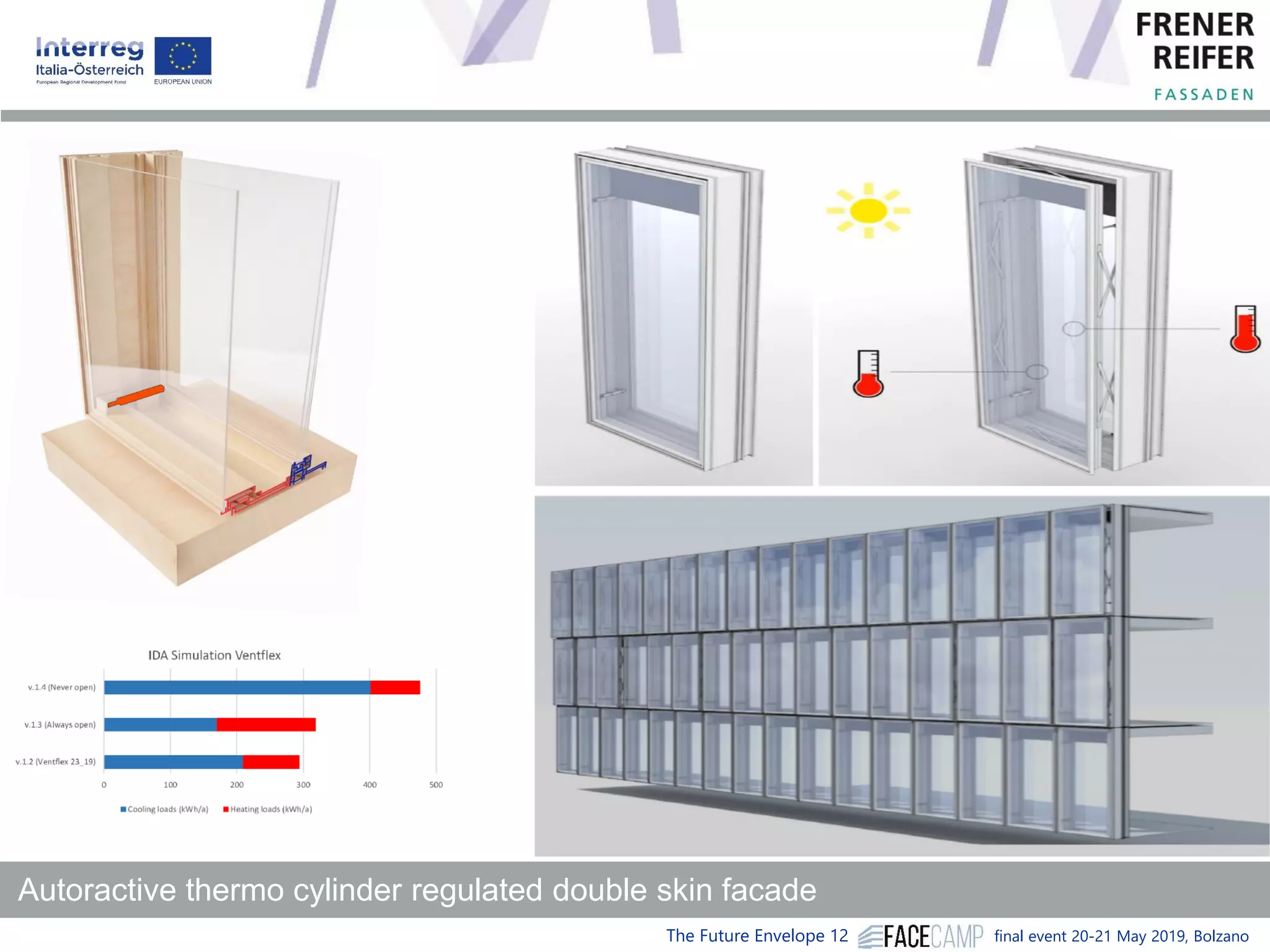

The Future Envelope 12 final event 20-21 May 2019, Bolzano Autoractive thermo cylinder regulated double skin facade
The Future Envelope 12 final event 20-21 May 2019, Bolzano Autoractive hygroscopic regulated double skin facade (humidity regulating)

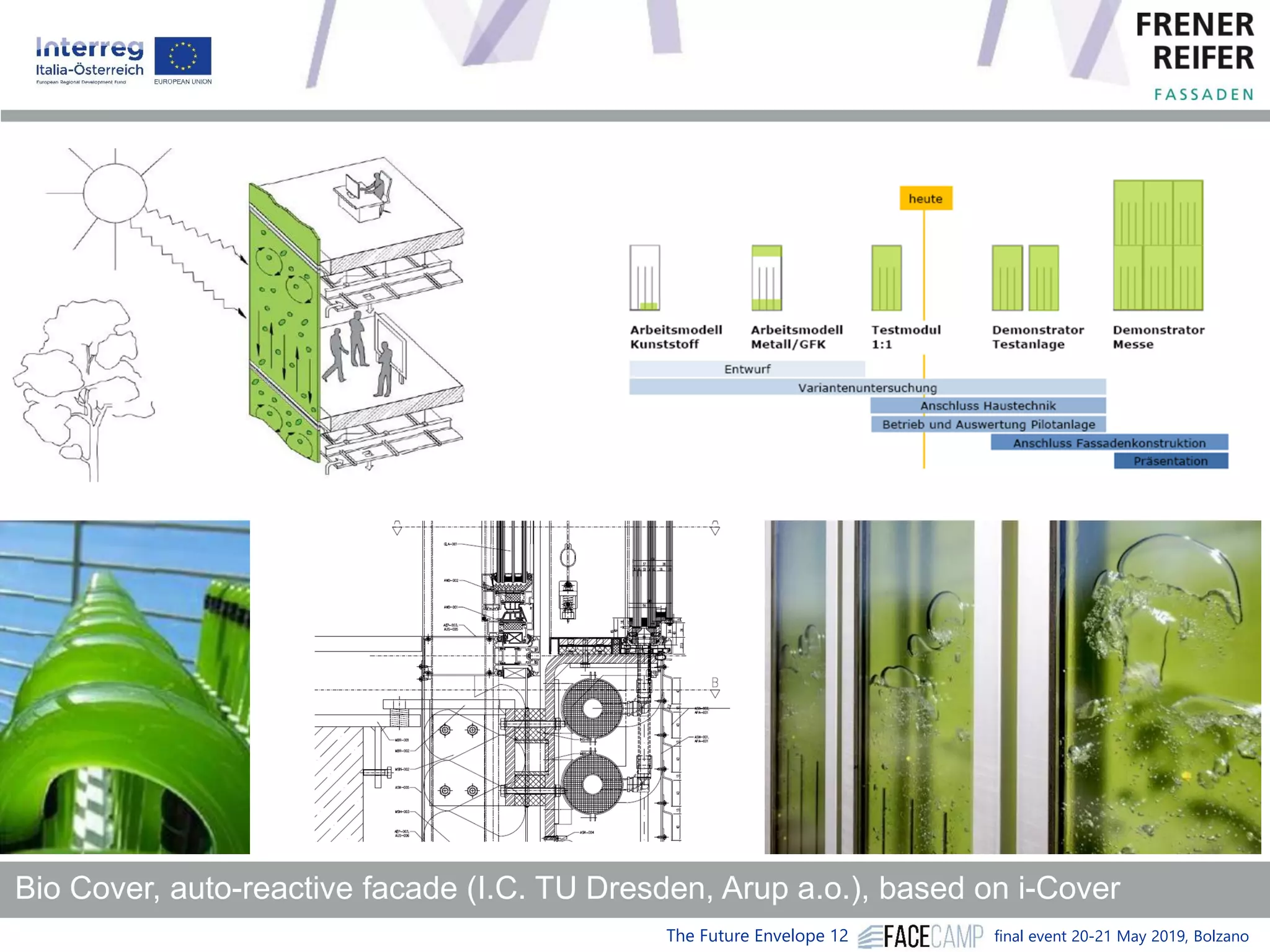

The Future Envelope 12 final event 20-21 May 2019, Bolzano Bio Cover, auto-reactive facade (I.C. TU Dresden, Arup a.o.), based on i-Cover
The Future Envelope 12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability adaptive spaces
The Future Envelope 12 final event 20-21 May 2019, Bolzano L.I.S.A. liviing indepentently in ST AA, inteligent wardrobe (ageing society)
The Future Envelope 12 final event 20-21 May 2019, BolzanoREFERENCES Flissade, the convertible space
The Future Envelope 12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability circular Economie
The Future Envelope 12 final event 20-21 May 2019, Bolzano As part of the “London Design Festival”, Arup has collaborated with FRENER & REIFER and BAM to create the Circular Building, The partners have teamed up to apply and test circular economy principles in the construction industry by asking the following question: “Can we design a building where, at the end of its life, all its components and materials can be re-used, re-manufactured, just at least re-cycled?” Circular Building ― Installation and exhibition in London

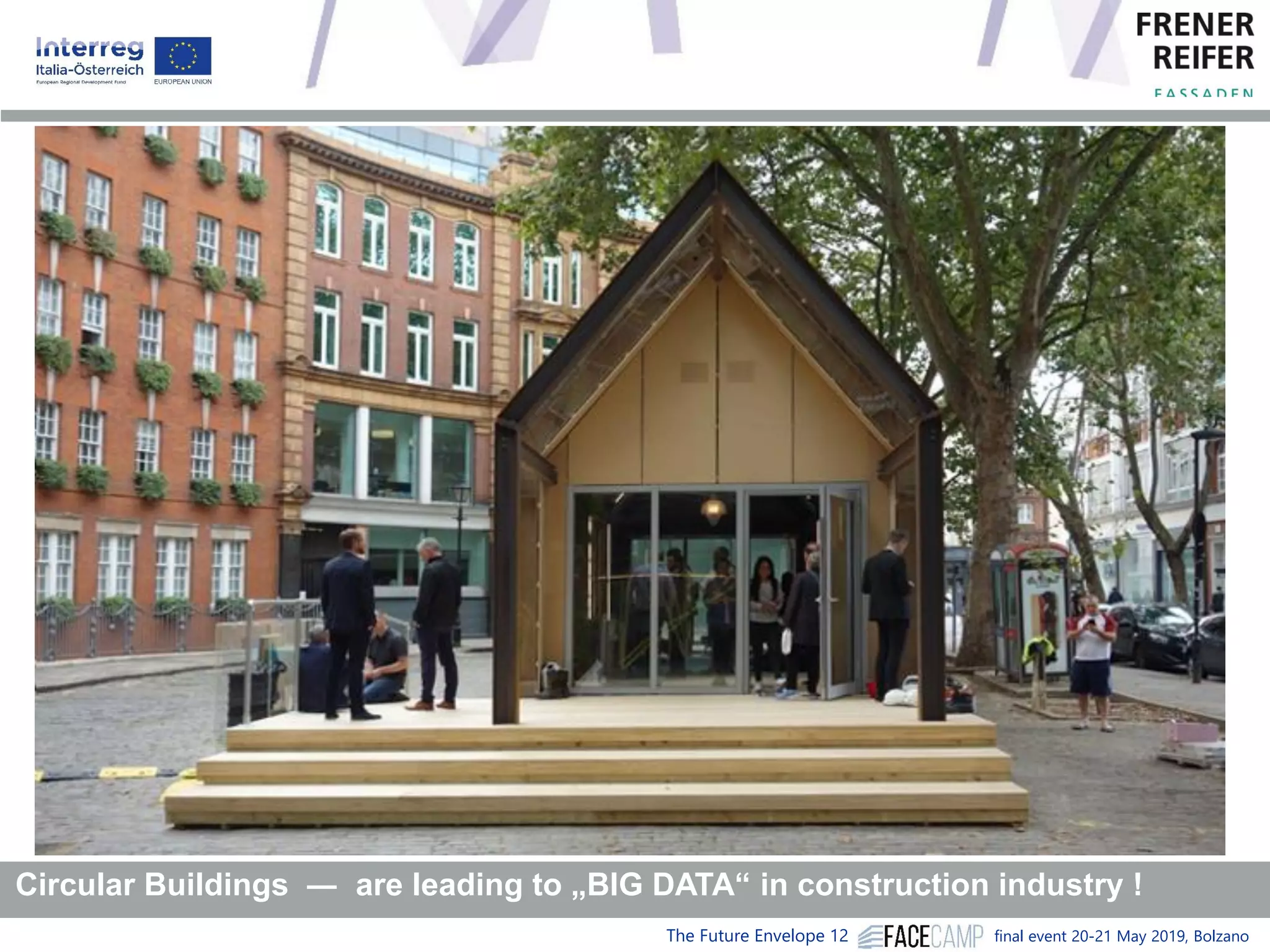

The Future Envelope 12 final event 20-21 May 2019, Bolzano Circular Buildings ― are leading to „BIG DATA“ in construction industry !
The Future Envelope 12 final event 20-21 May 2019, Bolzano R&D process innovation construction 4.0

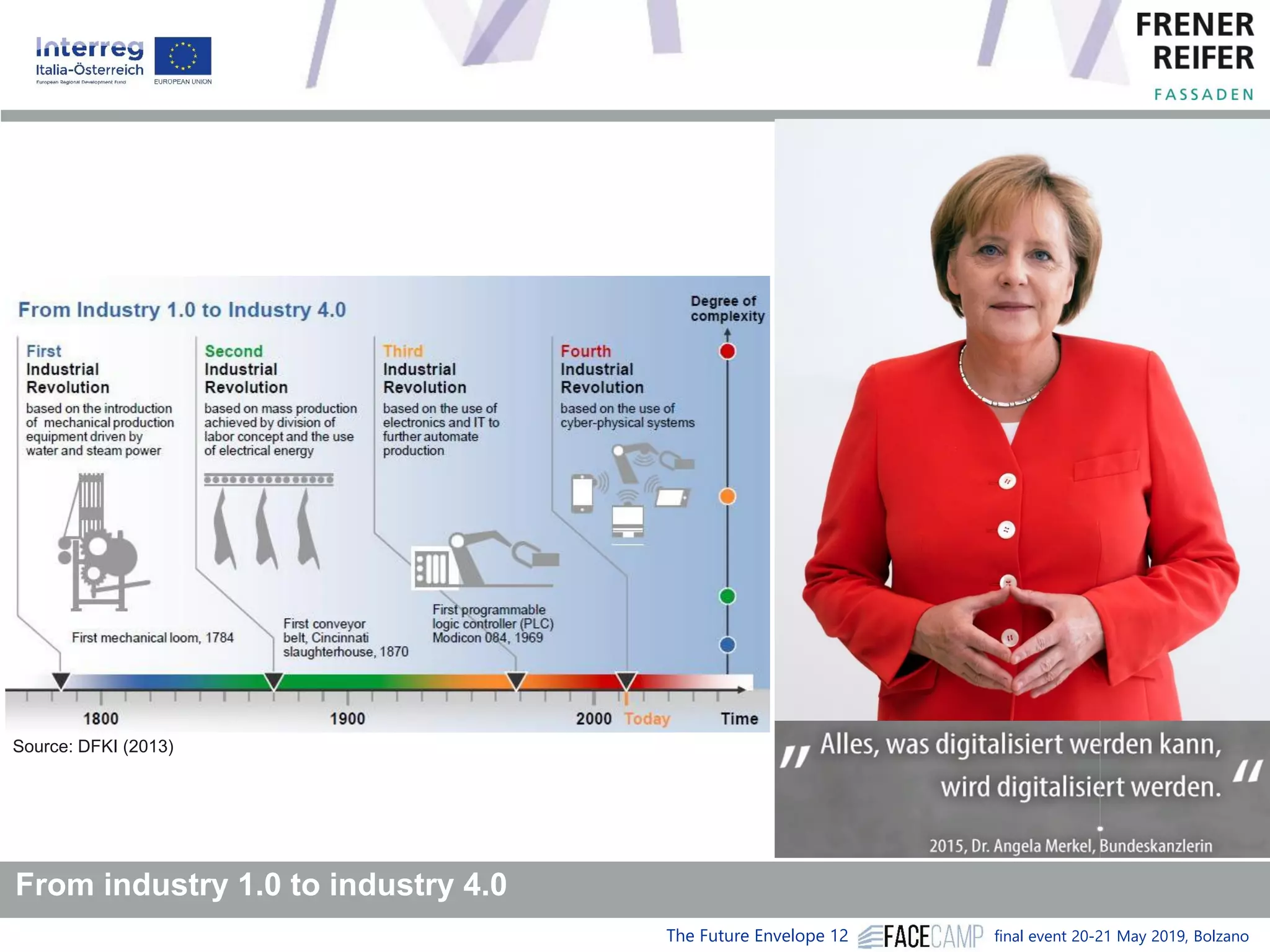

The Future Envelope 12 final event 20-21 May 2019, Bolzano Source: DFKI (2013) From industry 1.0 to industry 4.0
The Future Envelope 12 final event 20-21 May 2019, Bolzano Design Construction Operation Building Information Modeling (BIM) Cloud Computing Virtual Reality (VR) Augmented Reality Simulations Robotics Additive Manufacturing From industry 1.0 to industry 4.0, main building processes & digital context Lean Construction
The Future Envelope 12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! F&R-innovation Step 1: process standardisation review departing from TKHQ learnings Project development as stage gate process with the right competencies on the right time Generating ideas, developing design Developing and designing concepts and variants Developing solution variants and pricing variants, testing, developing supply chain models and suppliers Producing solutions,

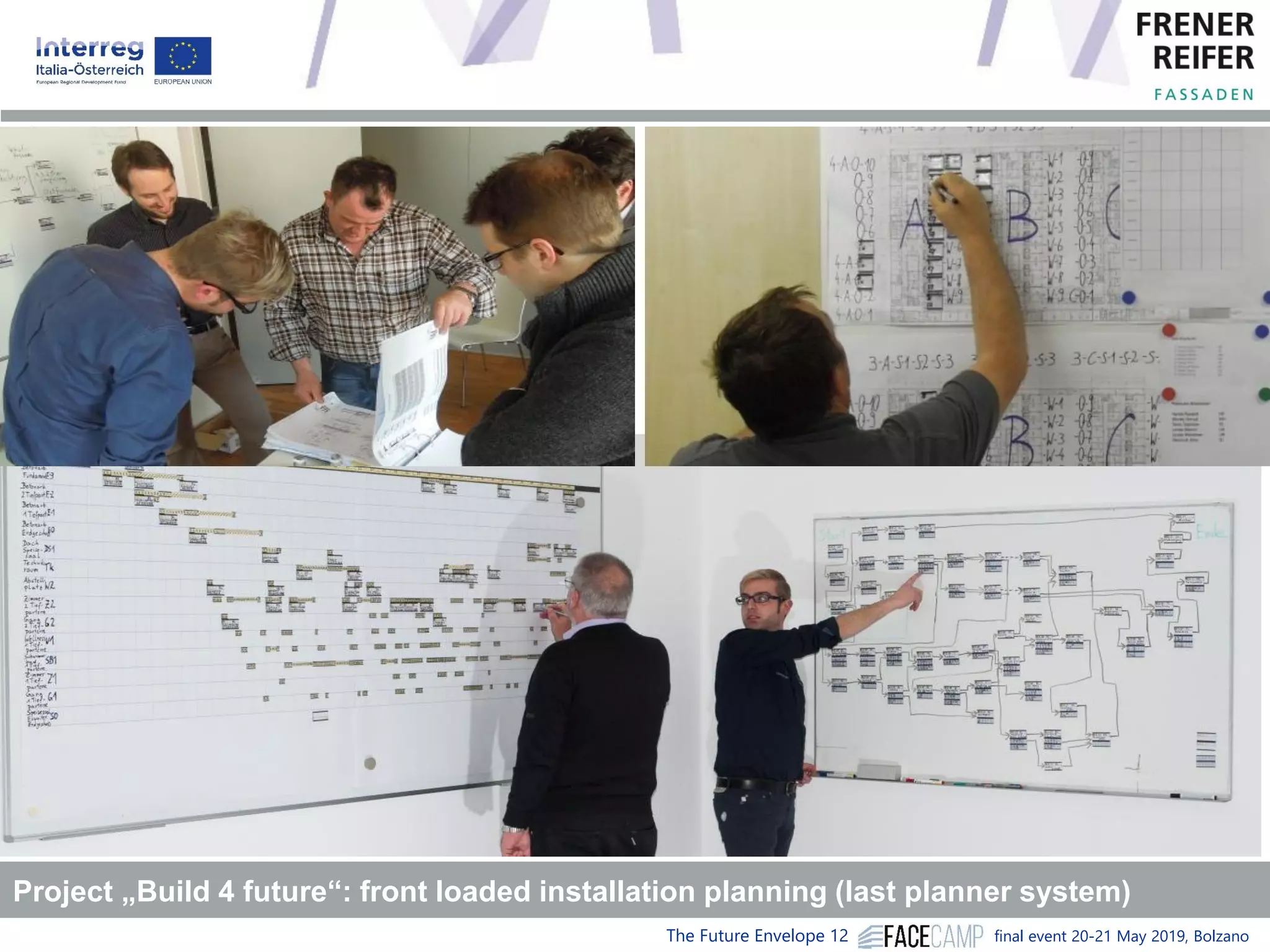

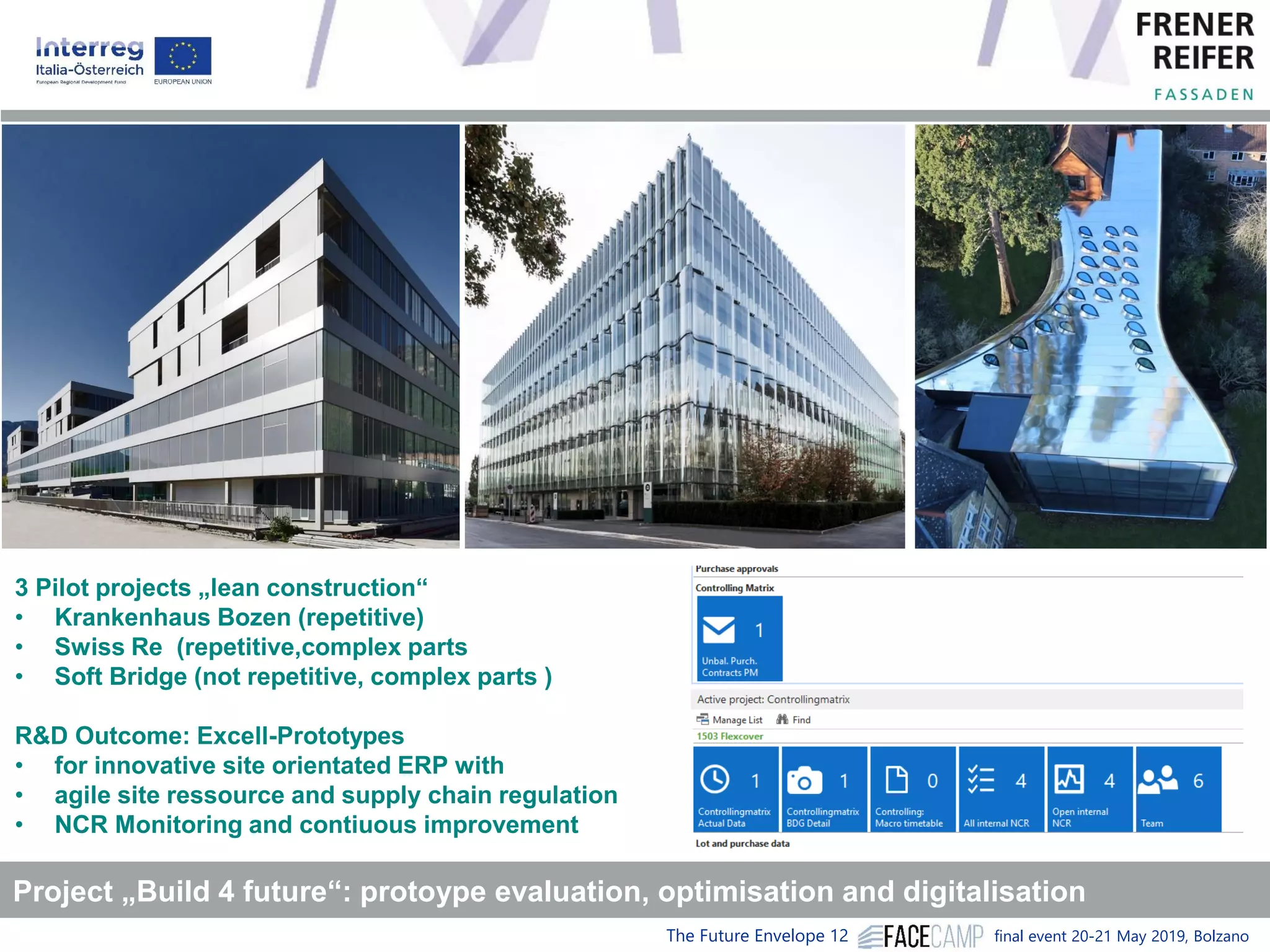

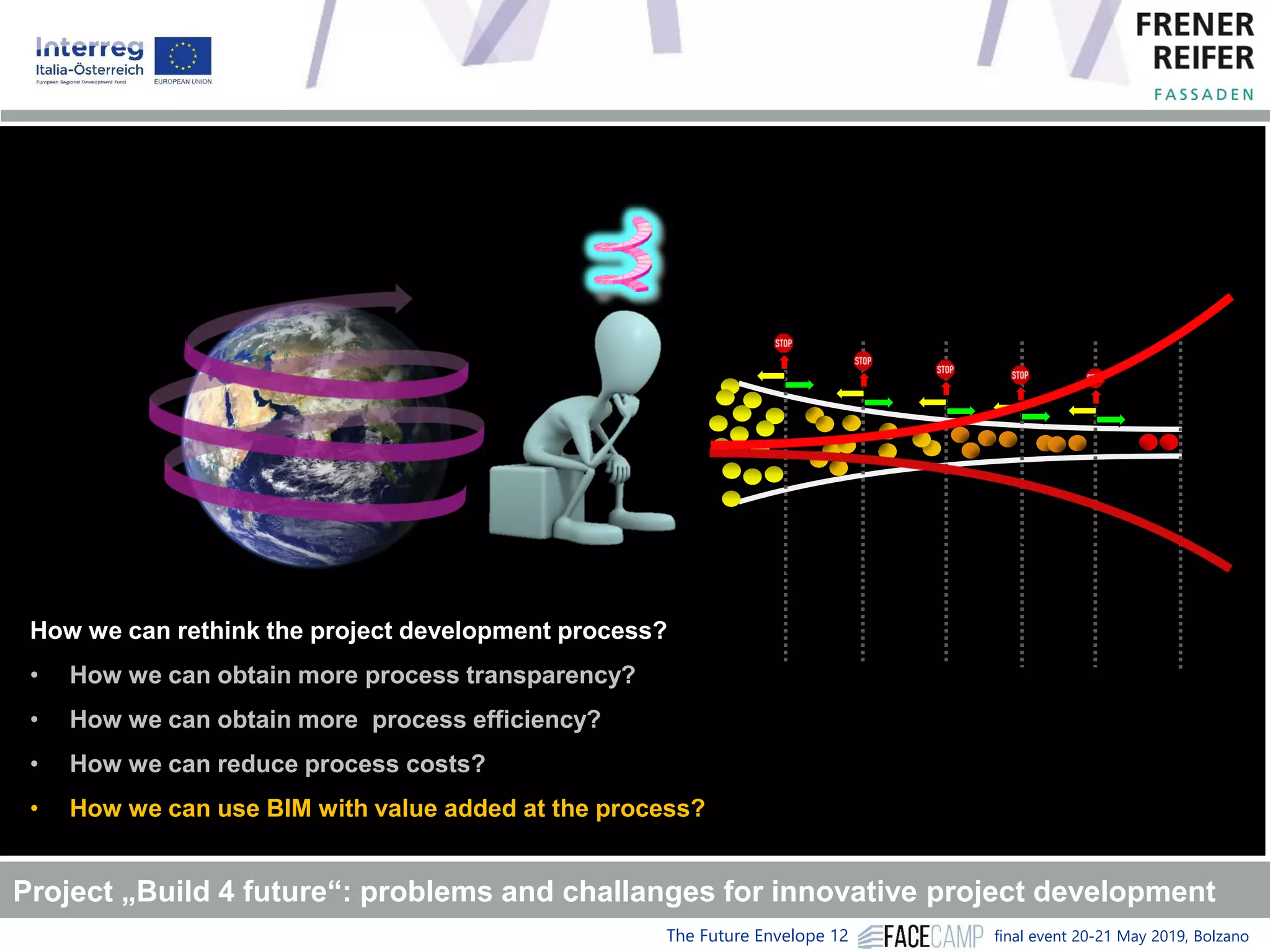

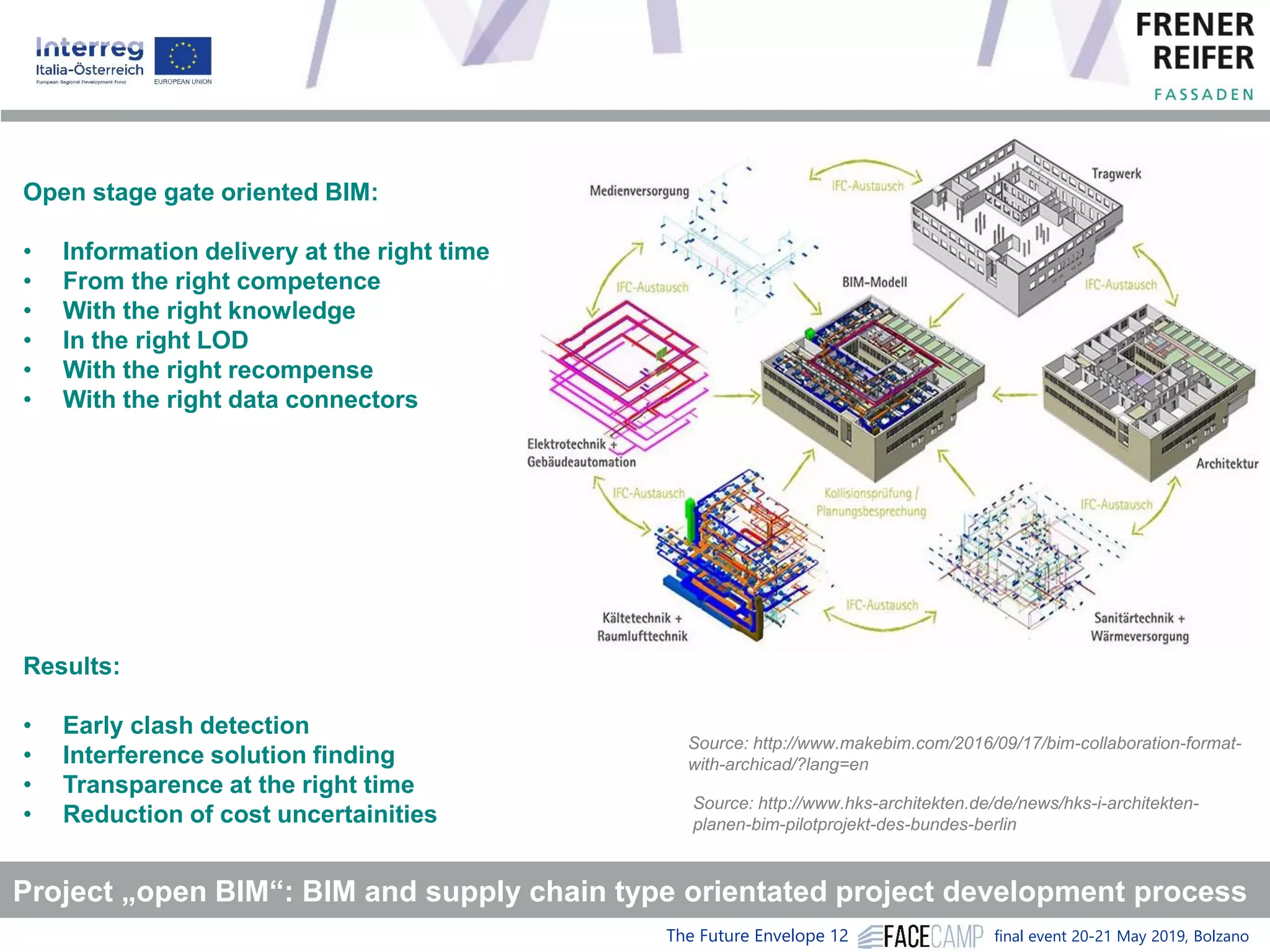

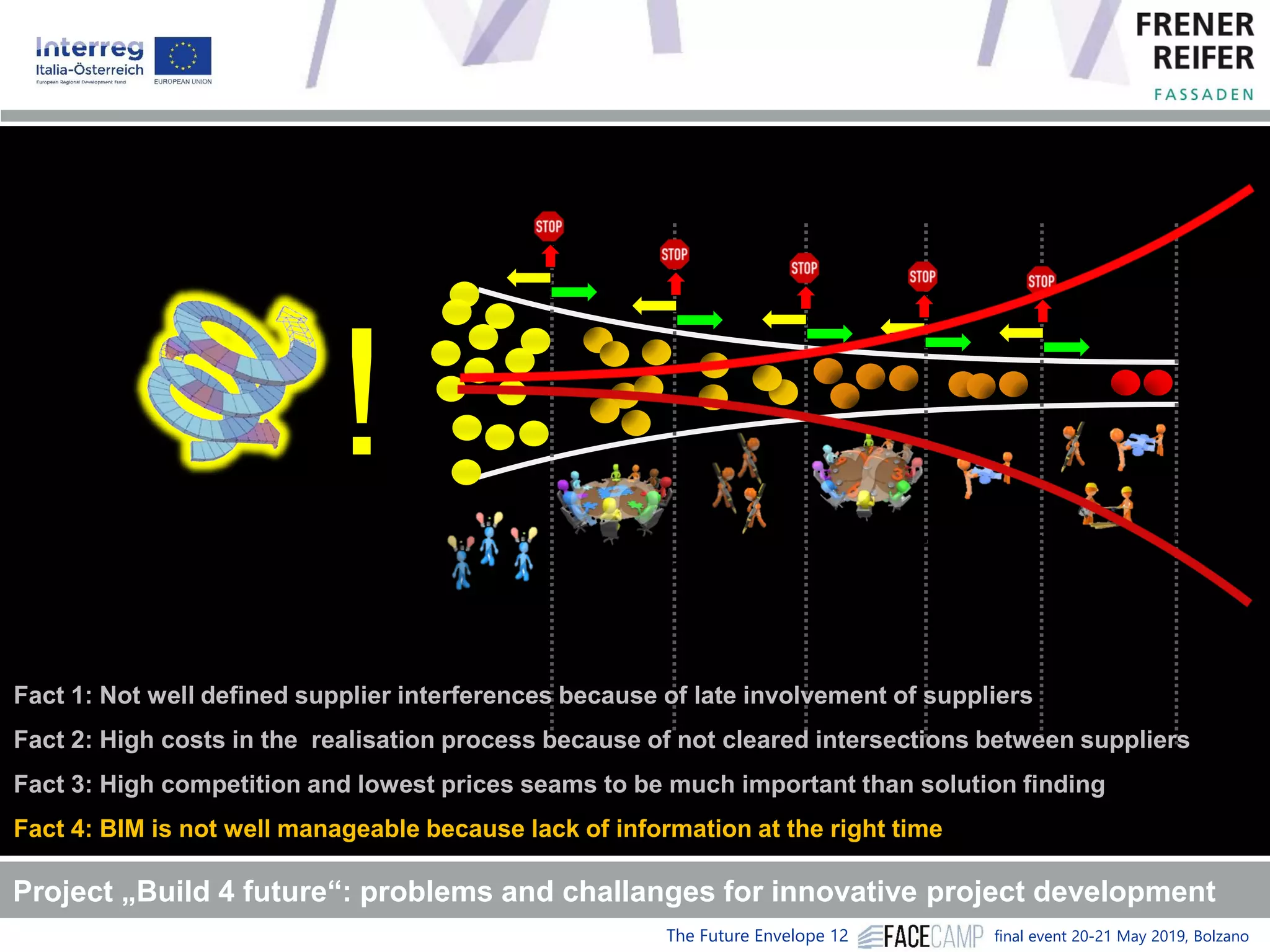

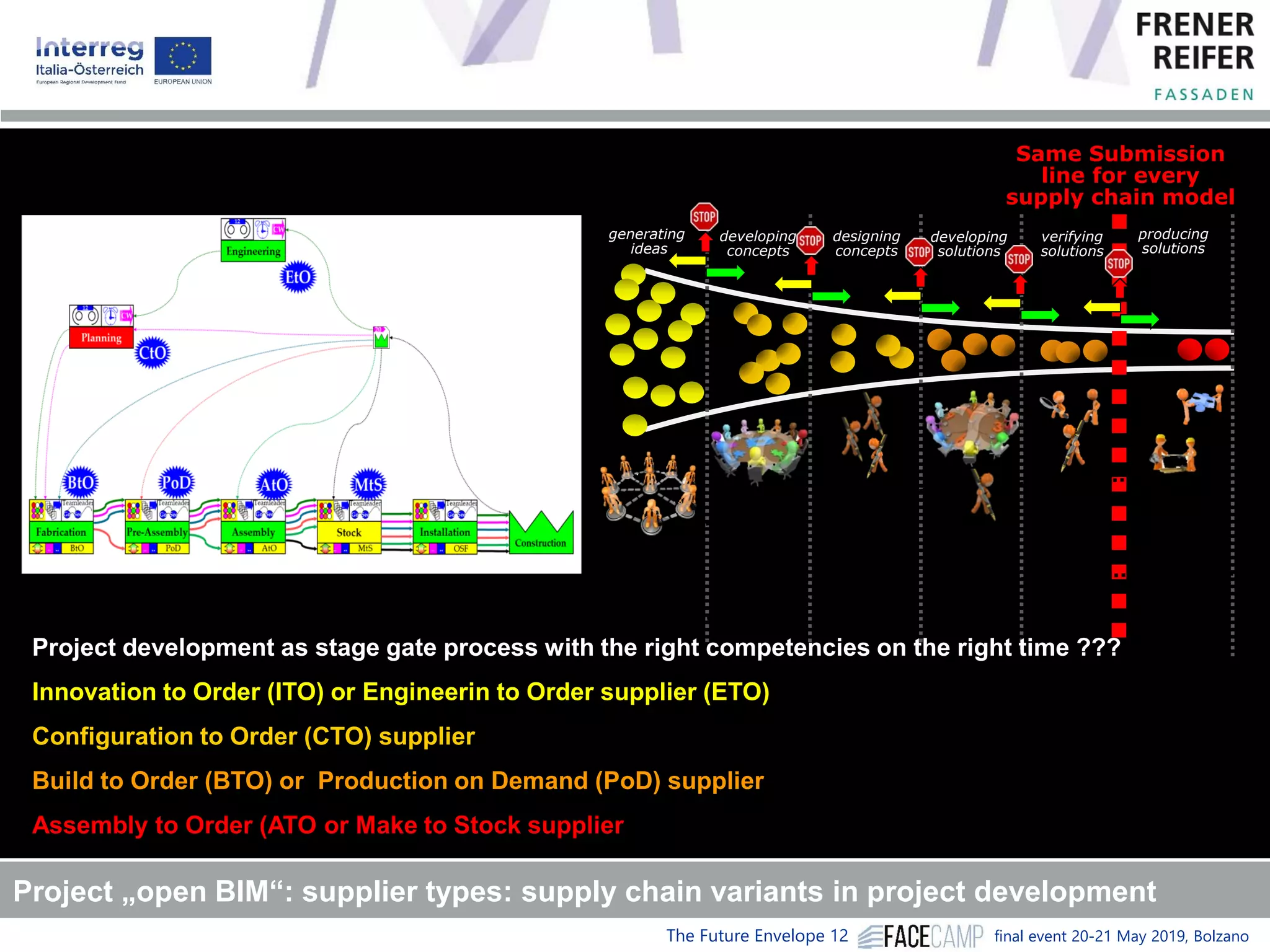

The Future Envelope 12 final event 20-21 May 2019, Bolzano Project „Build 4 future“: front loaded installation planning (last planner system)
The Future Envelope 12 final event 20-21 May 2019, BolzanoInformationsfluss=Kultur Jolly Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja 12 gt. gt. gt. gt. 0 gt. 0 0 0 gt. gt. gt. gt. gt. gt. 0 gt. 0 0 0 0 gt. 0 MF PP NM DA EC FM GP GG RH HD LM LW MH OJ PP1 RD RM SF SE SS TV VA WC 9 0 9 0 0 0 0 0 0 0 9 9 9 0 9 0 9 0 0 0 0 9 0 h 9 9 9 9 0 9 0 0 0 9 9 9 9 9 9 0 9 0 0 0 0 9 0 h/d PP PP NM DA FM HD LM LW MH OJ PP1RM VA AK h PP NM DA FM HD LM LW MH OJ PP1 RM VA 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 3 27 0 0 0 0 0 0 0 0 0 0 9 0 9 0 9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X X X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 r Bauabschnitte Anwesenheitsliste Mittwoch KW 43 woch KW 43 Ostfassade 1-A 1-A-O-4 1-A-O-5 1-A-O-6 1-A-O-7 1-A-O-8 1-A-O-9 1-A-O-1 1-A-O-2 1-A-O-3 1-A-O-10 Bedarf 0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0 5,5 6,0 6,5 7,0 7,5 8,0 8,5 9,0 9,5 MF PP NM DA EC FM GP GG RH HD LM LW MH OJ PP1 RD RM SF SE SS TV VA WC Project „Build 4 future“: Excell prototyping, ressources, materials, NCRs Project Build 4 future: I.C, FUBZ, Fraunhofer Italia, 10 building industry companies

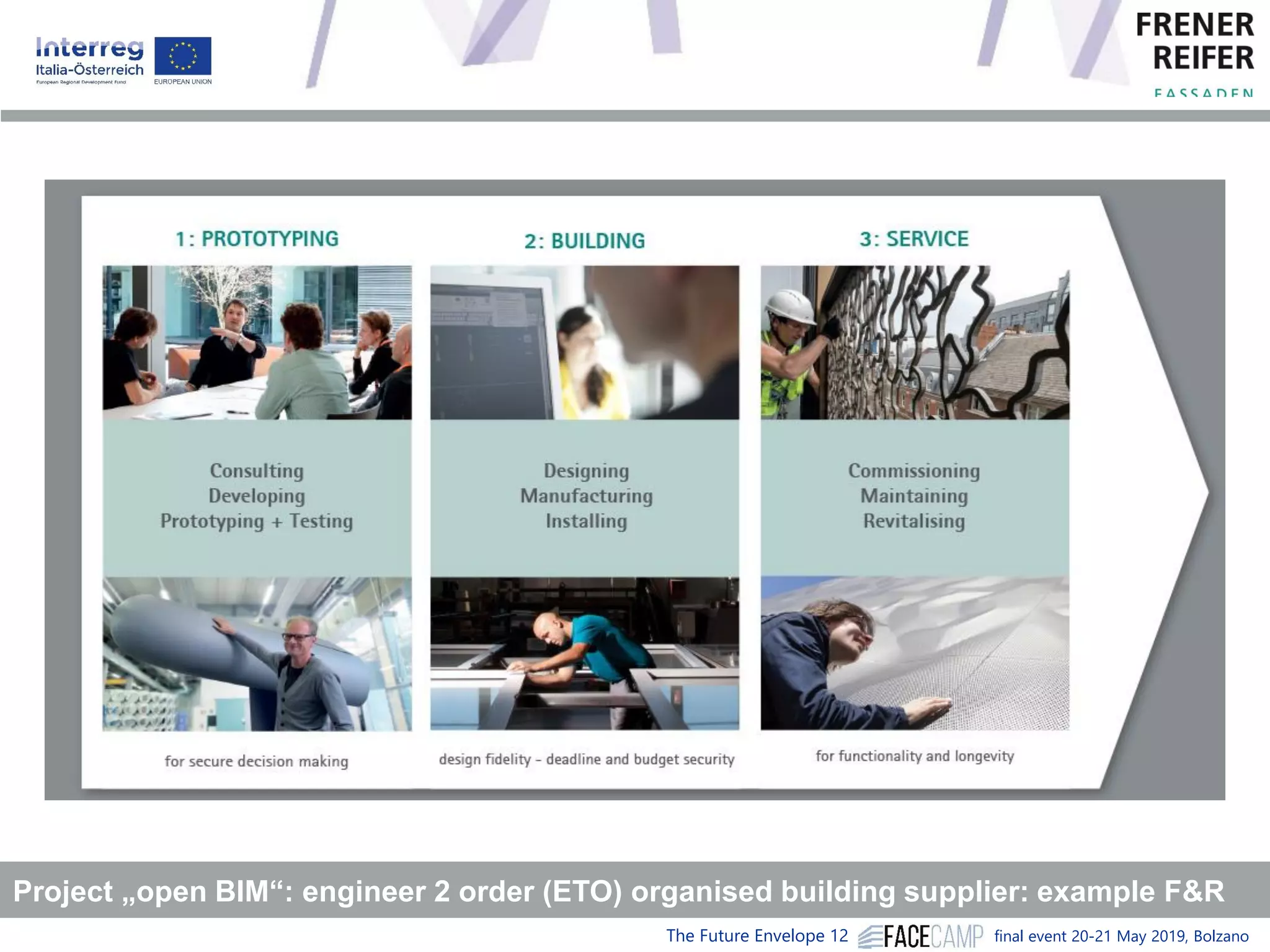

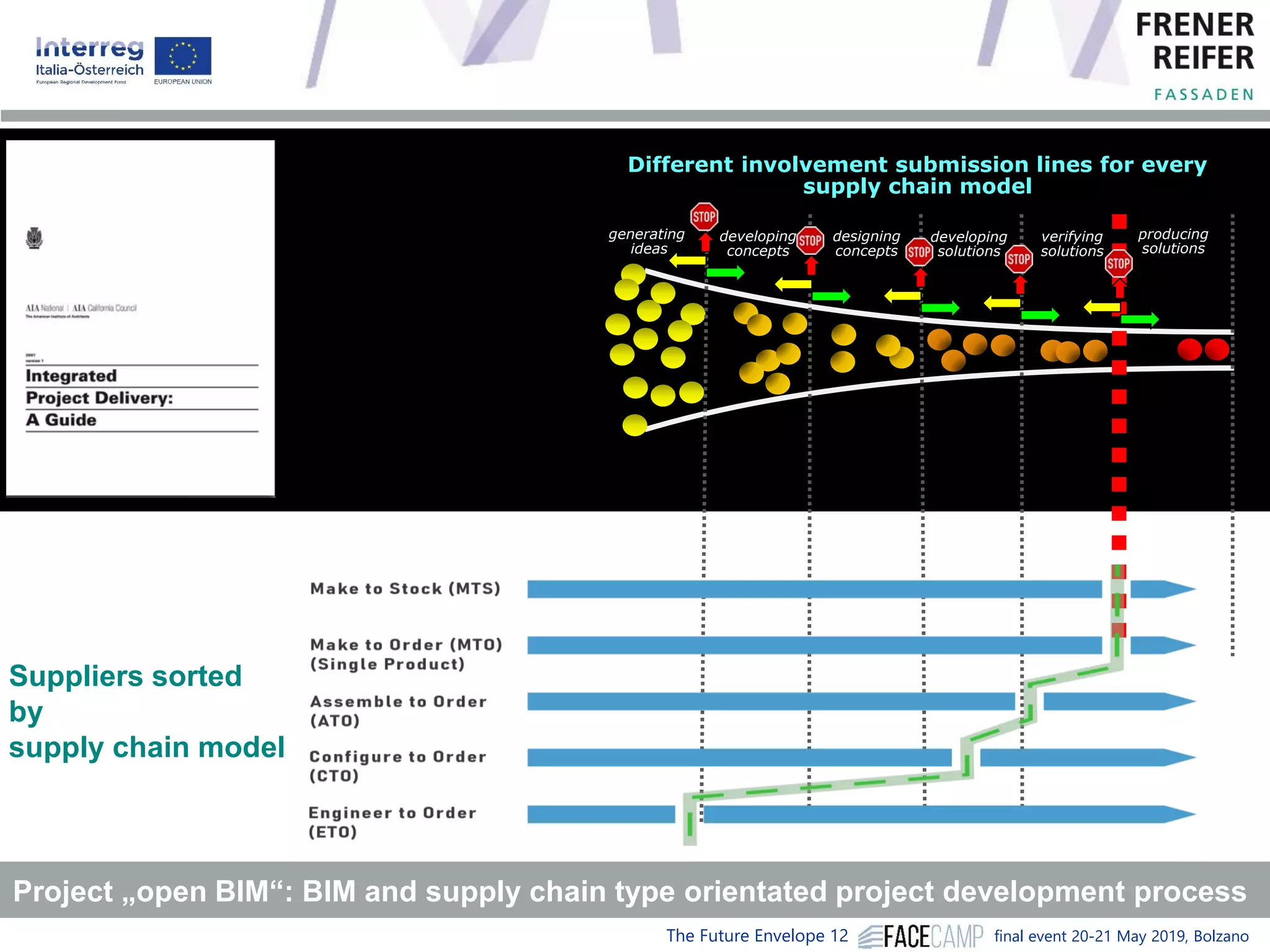

The Future Envelope 12 final event 20-21 May 2019, Bolzano Project „Build 4 future“: protoype evaluation, optimisation and digitalisation 3 Pilot projects „lean construction“ • Krankenhaus Bozen (repetitive) • Swiss Re (repetitive,complex parts • Soft Bridge (not repetitive, complex parts ) R&D Outcome: Excell-Prototypes • for innovative site orientated ERP with • agile site ressource and supply chain regulation • NCR Monitoring and contiuous improvement

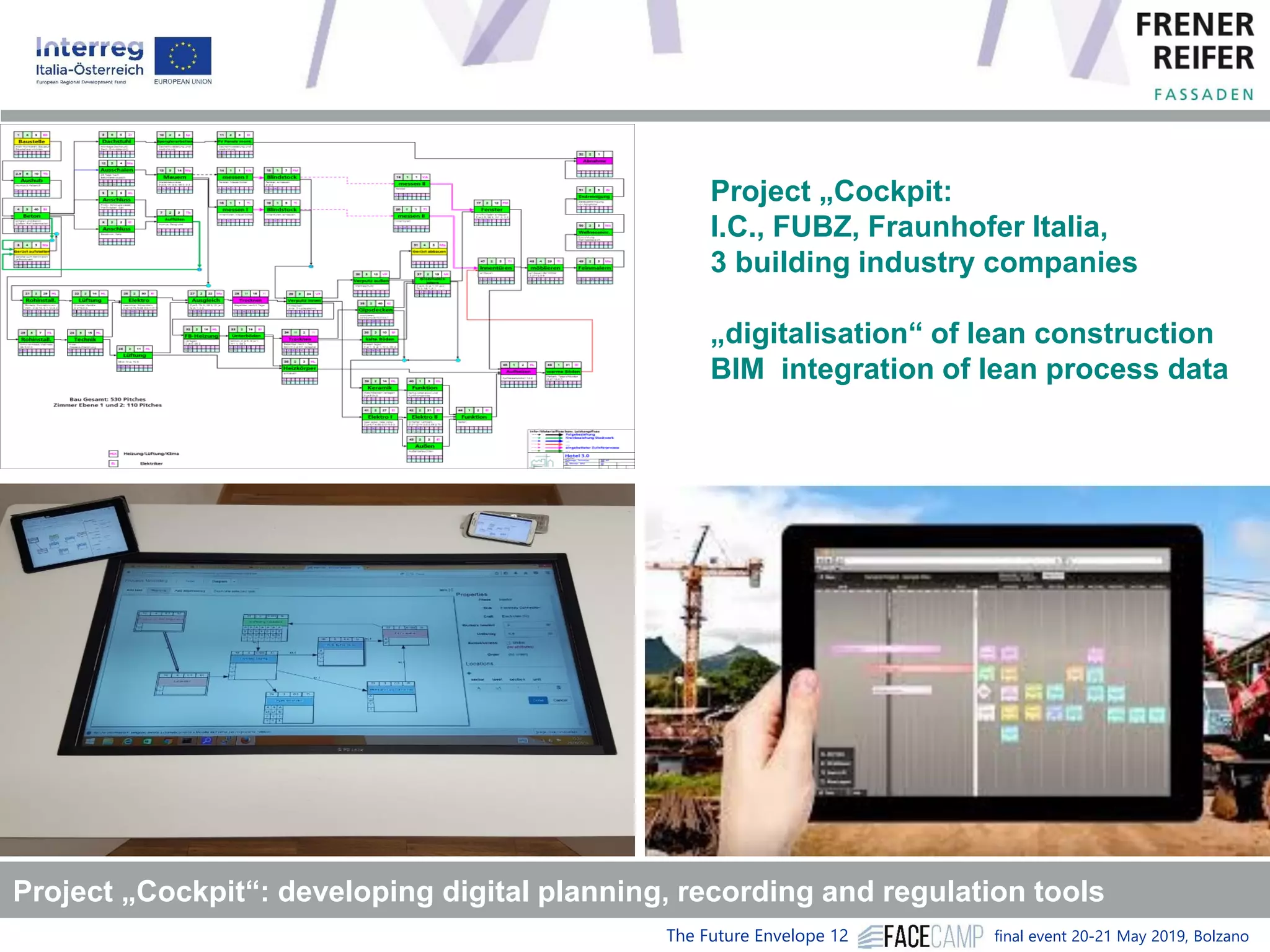

The Future Envelope 12 final event 20-21 May 2019, Bolzano Project „Cockpit“: developing digital planning, recording and regulation tools Project „Cockpit: I.C., FUBZ, Fraunhofer Italia, 3 building industry companies „digitalisation“ of lean construction BIM integration of lean process data
The Future Envelope 12 final event 20-21 May 2019, Bolzano R&D process innovation construction design 4.0
The Future Envelope 12 final event 20-21 May 2019, Bolzano Project „open BIM“: engineer 2 order (ETO) organised building supplier: example F&R
The Future Envelope 12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions ! Fact 1: Not well defined supplier interferences because of late involvement of suppliers Fact 2: High costs in the realisation process because of not cleared intersections between suppliers Fact 3: High competition and lowest prices seams to be much important than solution finding Fact 4: BIM is not well manageable because lack of information at the right time Project „Build 4 future“: problems and challanges for innovative project development
The Future Envelope 12 final event 20-21 May 2019, Bolzano How we can rethink the project development process? • How we can obtain more process transparency? • How we can obtain more process efficiency? • How we can reduce process costs? • How we can use BIM with value added at the process? The project development process Project „Build 4 future“: problems and challanges for innovative project development
The Future Envelope 12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! Project development as stage gate process with the right competencies on the right time ??? Innovation to Order (ITO) or Engineerin to Order supplier (ETO) Configuration to Order (CTO) supplier Build to Order (BTO) or Production on Demand (PoD) supplier Assembly to Order (ATO or Make to Stock supplier Project „open BIM“: supplier types: supply chain variants in project development Same Submission line for every supply chain model
The Future Envelope 12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! Project development as BIM friendly stage gate process !!! • Defining supplier technology complexities from start • Defining supplier supply chain model types from start • Defining the integrated project delivery strategy and submission stages • Defining the BIM strategy (stage orientated LOD) Project „open BIM“: BIM and supply chain type orientated project development process Same Submission line for every supply chain model
The Future Envelope 12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process Project „open BIM“: BIM and supply chain type orientated project development process Different involvement submission lines for every supply chain model Suppliers sorted by supply chain model
The Future Envelope 12 final event 20-21 May 2019, Bolzano Source: http://www.makebim.com/2016/09/17/bim-collaboration-format- with-archicad/?lang=en Source: http://www.hks-architekten.de/de/news/hks-i-architekten- planen-bim-pilotprojekt-des-bundes-berlin Project „open BIM“: BIM and supply chain type orientated project development process Open stage gate oriented BIM: • Information delivery at the right time • From the right competence • With the right knowledge • In the right LOD • With the right recompense • With the right data connectors Results: • Early clash detection • Interference solution finding • Transparence at the right time • Reduction of cost uncertainities
The Future Envelope 12 final event 20-21 May 2019, Bolzano R&D process digitalization robotics in construction
The Future Envelope 12 final event 20-21 May 2019, Bolzano Construction robotics: : additive manufacturing: installation automation Robotics in construction: Installation automation: • Scaffolding • Brick positioning • Brick installation

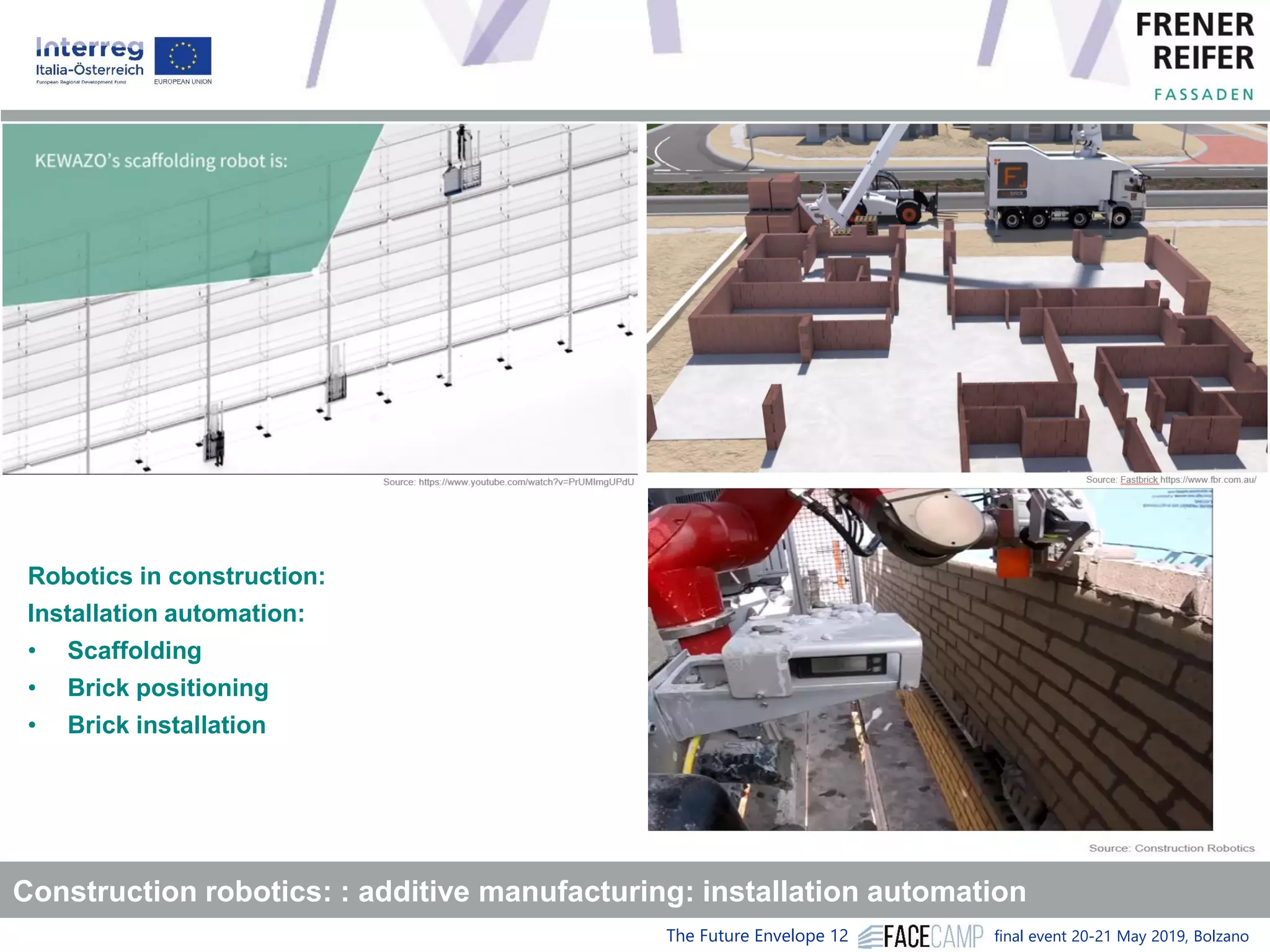

The Future Envelope 12 final event 20-21 May 2019, Bolzano Construction robotics: additive manufacturing: 3d „printing“ Robotics in construction: 3d printing: • Concrete casting • Concrete printing large scale • 3d metal welding
The Future Envelope 12 final event 20-21 May 2019, Bolzano R & (d) - projects facecamp knowlegde management

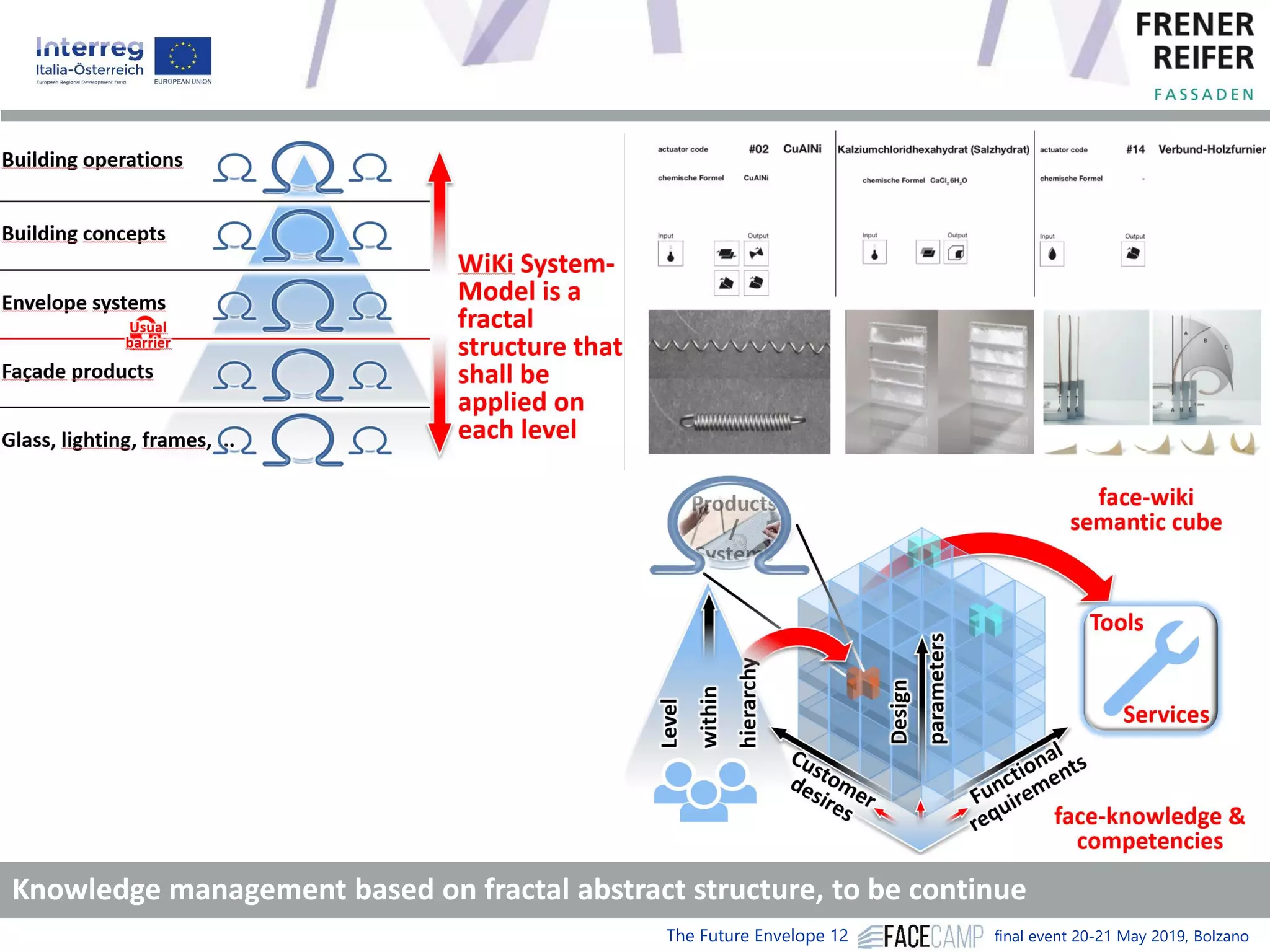

The Future Envelope 12 final event 20-21 May 2019, Bolzano Knowledge management based on fractal abstract structure, tested in flexcover

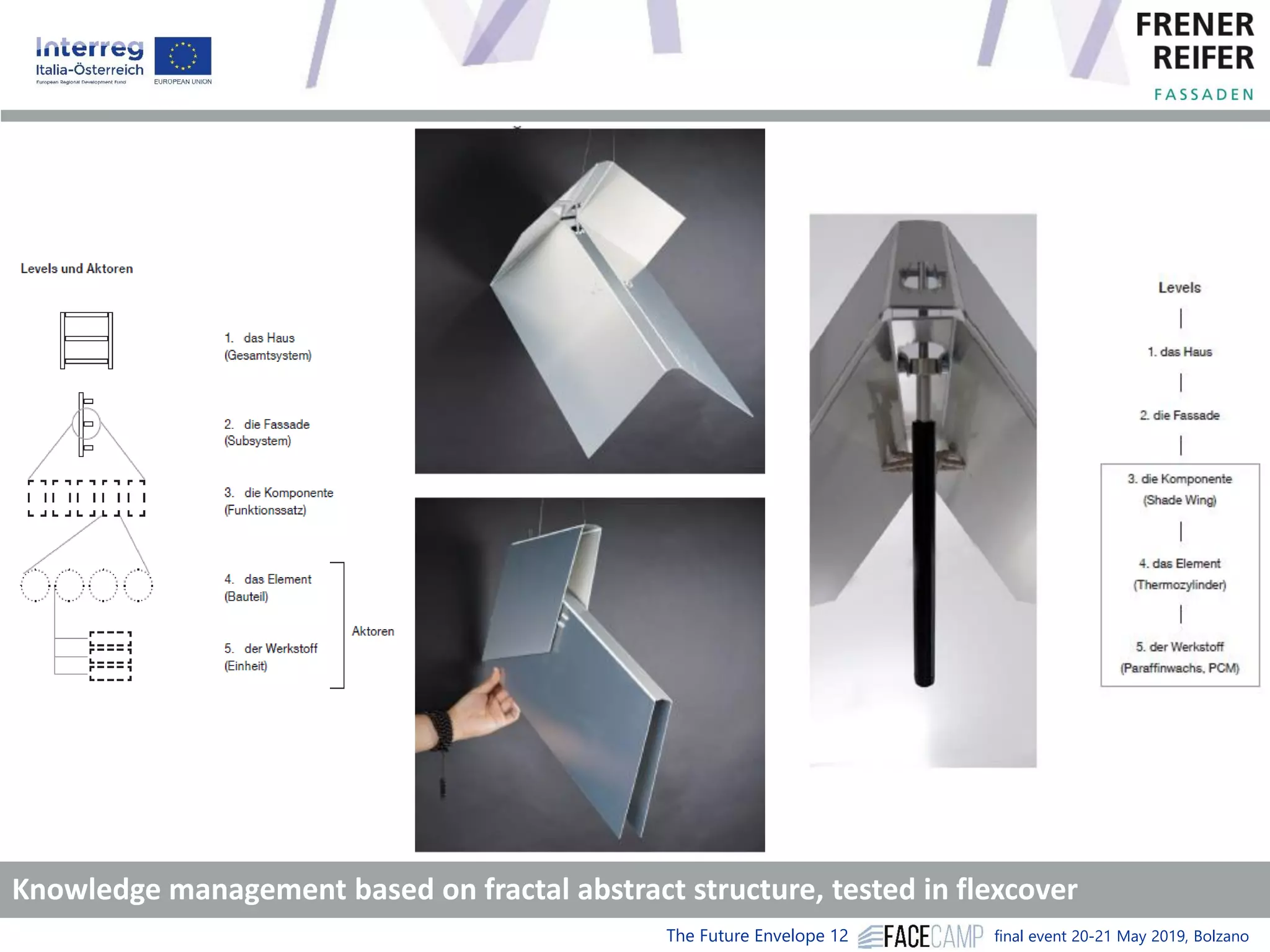

The Future Envelope 12 final event 20-21 May 2019, Bolzano Knowledge management based on fractal abstract structure, to be continue

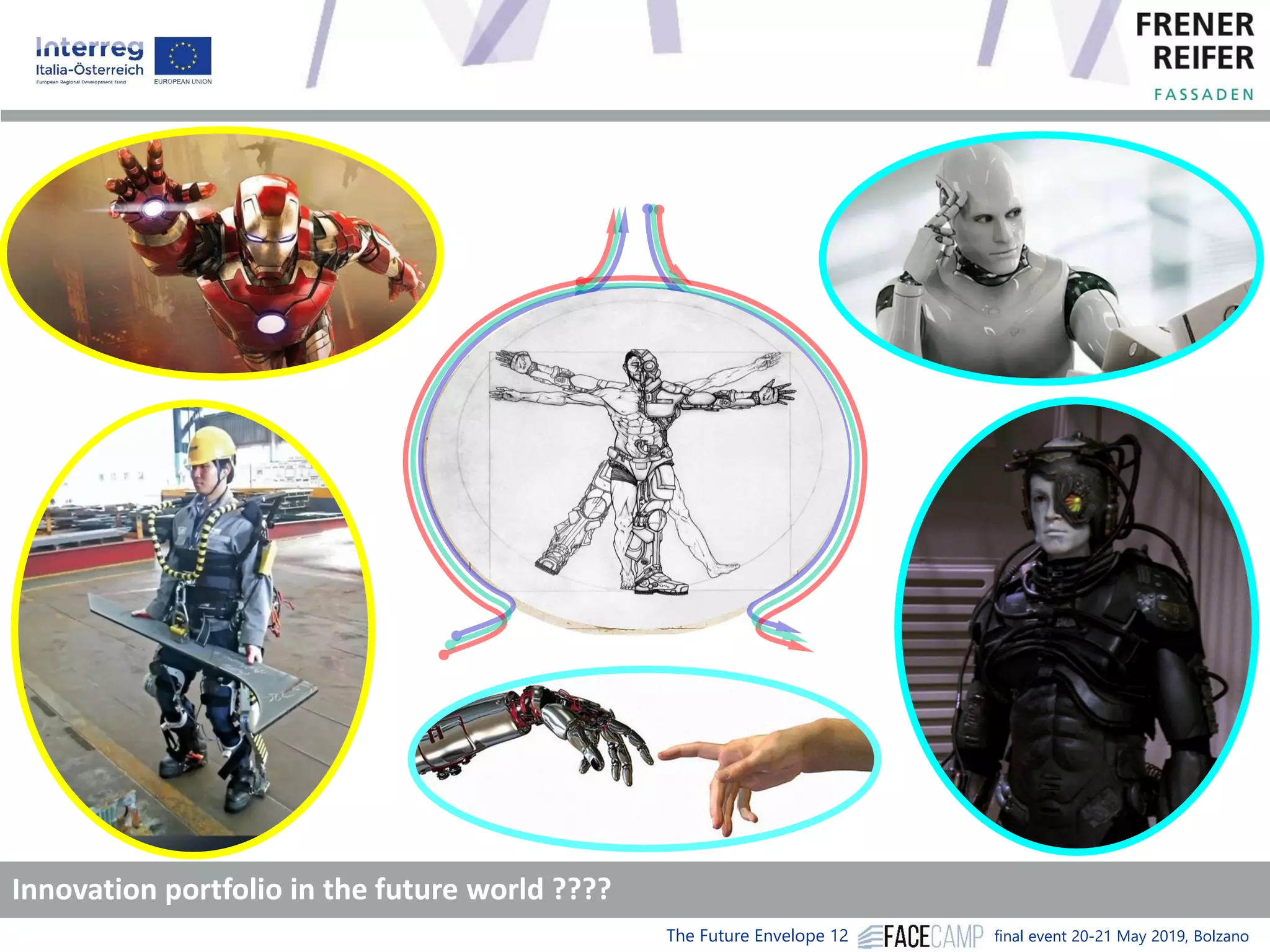

The Future Envelope 12 final event 20-21 May 2019, Bolzano Inventing future envelopes What If ???
The Future Envelope 12 final event 20-21 May 2019, Bolzano Innovation portfolio, context and topics todays world future world F&R_development (r) & D ! future world from todays point of view F&R_Innovation R & (d) ! ?F&R_innoVision What if ???
The Future Envelope 12 final event 20-21 May 2019, Bolzano Information Flow Cooperative problem Solving Documentation Energy Flow, Cradle 2 Cradle Life Cycle Parametrics Context induviduality System Component Logics Geometric Parametrics, Mathematical Detailing Context Green BuildingContext Urban Integration Material Flow Process Parametrics Part Logistic Parametrics Context Building Performance Innovation portfolio, todays view of future world
The Future Envelope 12 final event 20-21 May 2019, Bolzano Innovation portfolio in the future world ????
The Future Envelope 12 final event 20-21 May 2019, Bolzano Thank you for your attention! • Michael Reifer • FRENER & REIFER GmbH/Srl • m.reifer@frener-reifer.com FACEcamp is funded by European Regional Development Fund and Interreg V-A Italy-Austria 2014-2020. www.interreg.net

More Related Content

PDF
Façade innovation management Ingrid Demanega (Frener & Reifer)
byIDM Südtirol - Alto Adige

PDF
Facade Fire Safety Engineering Stefano Prosseda (IDM South Tyrol)
byIDM Südtirol - Alto Adige

PDF
FACEcamp CoCe: Vision, Mission & Sustainability plan Carlo Battisti (IDM Sout...
byIDM Südtirol - Alto Adige

PDF
FACE course as a market driven success story Carlo Battisti (IDM South Tyrol)
byIDM Südtirol - Alto Adige

PDF
Issues concerning cost calculation and control in the BIM process - James Fis...
byGiacomo Bergonzoni

PPSX
Manufacturers Data Moving from PDF's to digital
byMariela Daskalova

PPTX
Construction products in BIM: a winning commercial formula
byMariela Daskalova

PPT
Project overview
byjexxon

Façade innovation management Ingrid Demanega (Frener & Reifer)
byIDM Südtirol - Alto Adige

Facade Fire Safety Engineering Stefano Prosseda (IDM South Tyrol)
byIDM Südtirol - Alto Adige

FACEcamp CoCe: Vision, Mission & Sustainability plan Carlo Battisti (IDM Sout...
byIDM Südtirol - Alto Adige

FACE course as a market driven success story Carlo Battisti (IDM South Tyrol)
byIDM Südtirol - Alto Adige

Issues concerning cost calculation and control in the BIM process - James Fis...
byGiacomo Bergonzoni

Manufacturers Data Moving from PDF's to digital
byMariela Daskalova

Construction products in BIM: a winning commercial formula
byMariela Daskalova

Project overview
byjexxon


What's hot

PDF
Relim open bim_20160330_1-2
byJan Karlshøj

PPTX
An Overview of buildingSMART
byMariela Daskalova

PDF
Relim open bim_20160330_3
byJan Karlshøj

PDF
HKIBIM Annual Conference 2018 - Call for Paper
byThe Hong Kong Institute of Building Information Modelling (HKIBIM)

PDF
Stefano Avesani, Eurac Research, Institute for Renewable Energy - FACEcamp ov...
byIDM Südtirol - Alto Adige

PPTX
How to share manufacturer product data in 2017
byMariela Daskalova

PPTX
International BIM standardization - CEN/TC 442 and ISO/TC 59
byMariela Daskalova

PDF
CompositeBuild Presentation (Eng)
byRedenex

PPTX
BIM in France - A journey from standard to dictionary
byMariela Daskalova

PDF
Presentation of coBuilder solutions - and our work
byØystein Iversen

PDF
HKIBIM 10th Anniversary Conference
byThe Hong Kong Institute of Building Information Modelling (HKIBIM)

PDF
Opening Keynote Speech (By Video) Ms. Ada Fung, JP Chairperson, The Construct...
byThe Hong Kong Institute of Building Information Modelling (HKIBIM)

PPTX
ProductInfoX - goals and results
byMariela Daskalova

PPS
CV Bonanni Fabrizio
byFabrizio Bonanni BonFa

PDF
Agenda, SIGMA Workshop on PPP contracts, Turkey, 11-12 April 2018
bySupport for Improvement in Governance and Management SIGMA

PDF
2017 Q1 - BIMserver introduction and overview
byLéon Berlo

PPTX
Elasstic eview presentation about BIM
byLéon Berlo

PDF
Agenda, public procurement review bodies, SIGMA 11 May 2021
bySupport for Improvement in Governance and Management SIGMA

PDF
Frank Salliau (iMinds): Flanders’ digital Research & Incubation Institute @ N...
byTISP Project

PDF
MSc-SociomaterialityandBIM_ExchanginginformationwithintheUKdesignprocess-Abst...
byKieran Stapleton

Relim open bim_20160330_1-2
byJan Karlshøj

An Overview of buildingSMART
byMariela Daskalova

Relim open bim_20160330_3
byJan Karlshøj

HKIBIM Annual Conference 2018 - Call for Paper
byThe Hong Kong Institute of Building Information Modelling (HKIBIM)

Stefano Avesani, Eurac Research, Institute for Renewable Energy - FACEcamp ov...
byIDM Südtirol - Alto Adige

How to share manufacturer product data in 2017
byMariela Daskalova

International BIM standardization - CEN/TC 442 and ISO/TC 59
byMariela Daskalova

CompositeBuild Presentation (Eng)
byRedenex

BIM in France - A journey from standard to dictionary
byMariela Daskalova

Presentation of coBuilder solutions - and our work
byØystein Iversen

HKIBIM 10th Anniversary Conference
byThe Hong Kong Institute of Building Information Modelling (HKIBIM)

Opening Keynote Speech (By Video) Ms. Ada Fung, JP Chairperson, The Construct...
byThe Hong Kong Institute of Building Information Modelling (HKIBIM)

ProductInfoX - goals and results
byMariela Daskalova

CV Bonanni Fabrizio
byFabrizio Bonanni BonFa

Agenda, SIGMA Workshop on PPP contracts, Turkey, 11-12 April 2018
bySupport for Improvement in Governance and Management SIGMA

2017 Q1 - BIMserver introduction and overview
byLéon Berlo

Elasstic eview presentation about BIM
byLéon Berlo

Agenda, public procurement review bodies, SIGMA 11 May 2021
bySupport for Improvement in Governance and Management SIGMA

Frank Salliau (iMinds): Flanders’ digital Research & Incubation Institute @ N...
byTISP Project

MSc-SociomaterialityandBIM_ExchanginginformationwithintheUKdesignprocess-Abst...
byKieran Stapleton


Similar to Michael Reifer, Frener & Reifer, Brixen (IT) “Development and implementation of façade system”

PDF
Chiara Pozzuoli, RWDI, London (UK) “The Art of Shaping the Building Envelope ...
byIDM Südtirol - Alto Adige

PDF
Daniel Arztmann, Schüco International KG, Bielefeld (DE) “Facade Design Strat...
byIDM Südtirol - Alto Adige

PDF
The Future Envelope 12. It’s all about performances.
byIDM Südtirol - Alto Adige

PDF
Paolo Rosato, University of Trieste (IT) “Managing economic analysis of build...
byIDM Südtirol - Alto Adige

PDF
Darren Woolf, Hoare Lea, London (UK) “How flow can you go?”
byIDM Südtirol - Alto Adige

PDF
Modelling tool chain for advanced façade performance assessment Daniel Plorer...
byIDM Südtirol - Alto Adige

Chiara Pozzuoli, RWDI, London (UK) “The Art of Shaping the Building Envelope ...
byIDM Südtirol - Alto Adige

Daniel Arztmann, Schüco International KG, Bielefeld (DE) “Facade Design Strat...
byIDM Südtirol - Alto Adige

The Future Envelope 12. It’s all about performances.
byIDM Südtirol - Alto Adige

Paolo Rosato, University of Trieste (IT) “Managing economic analysis of build...
byIDM Südtirol - Alto Adige

Darren Woolf, Hoare Lea, London (UK) “How flow can you go?”
byIDM Südtirol - Alto Adige

Modelling tool chain for advanced façade performance assessment Daniel Plorer...
byIDM Südtirol - Alto Adige


More from IDM Südtirol - Alto Adige

PDF
Sabine Hoffmann, Technische Universität Kaiserslautern (DE) “How facades impa...
byIDM Südtirol - Alto Adige

PDF
in-situ g-value for monitoring of existing building facades Daniel Plorer (Un...
byIDM Südtirol - Alto Adige

PDF
Approaches and technologies for daylight Non-visual comfort in indoor space W...
byIDM Südtirol - Alto Adige

PDF
A new modelling approach for Complex Fenestration system via CFD and Radiance...
byIDM Südtirol - Alto Adige

PDF
FaçadeGIS as tool for performance driven facade design Luca Papaiz (glassAdvi...
byIDM Südtirol - Alto Adige

PDF
Harald Spitaler, Stahlbau Pichler, Bolzano (IT) “The design assist approach f...
byIDM Südtirol - Alto Adige

PDF
Wilfried Pohl, Bartenbach GmbH, Aldrans (AT) “Visual comfort, well-being and ...
byIDM Südtirol - Alto Adige

PDF
Roberto Lollini, Eurac Research, Institute for Renewable Energy
byIDM Südtirol - Alto Adige

PDF
Christina Hopfe, Loughborough University (UK) “Addressing uncertainties in si...
byIDM Südtirol - Alto Adige

PDF
Michael Grobbauer, Fachhochschule Salzburg (AT) “Hot building skins”
byIDM Südtirol - Alto Adige

PDF
Jan Cremers, Hochschule für Technik Stuttgart (DE) “Designing Complex Membran...
byIDM Südtirol - Alto Adige

PDF
Zona Comfort | Roberta Tomasi, Eurotherm SpA
byIDM Südtirol - Alto Adige

PDF
Zona Comfort | Luca Verdi, Laboratorio di chimica fisica, Agenzia provinciale...
byIDM Südtirol - Alto Adige

PDF
Zona Comfort | Marco Fellin, CNR-IVALSA
byIDM Südtirol - Alto Adige

PDF
Zona Comfort | Clara Peretti, Consorzio Q-RAD
byIDM Südtirol - Alto Adige

PDF
Zona Comfort | Die Komfortzone
byIDM Südtirol - Alto Adige

PDF
Solar Decathlon 17.04.2014 @ TIS | David Calas (LISI on tour)
byIDM Südtirol - Alto Adige

PDF
Solar Decathlon 17.04.2014 @ TIS | Mario Grimaudo (RhOME for denCity)
byIDM Südtirol - Alto Adige

PDF
Solar Decathlon 17.04.2014 @ TIS | Mario Grimaudo (MED in Italy)
byIDM Südtirol - Alto Adige

Sabine Hoffmann, Technische Universität Kaiserslautern (DE) “How facades impa...
byIDM Südtirol - Alto Adige

in-situ g-value for monitoring of existing building facades Daniel Plorer (Un...
byIDM Südtirol - Alto Adige

Approaches and technologies for daylight Non-visual comfort in indoor space W...
byIDM Südtirol - Alto Adige

A new modelling approach for Complex Fenestration system via CFD and Radiance...
byIDM Südtirol - Alto Adige

FaçadeGIS as tool for performance driven facade design Luca Papaiz (glassAdvi...
byIDM Südtirol - Alto Adige

Harald Spitaler, Stahlbau Pichler, Bolzano (IT) “The design assist approach f...
byIDM Südtirol - Alto Adige

Wilfried Pohl, Bartenbach GmbH, Aldrans (AT) “Visual comfort, well-being and ...
byIDM Südtirol - Alto Adige

Roberto Lollini, Eurac Research, Institute for Renewable Energy
byIDM Südtirol - Alto Adige

Christina Hopfe, Loughborough University (UK) “Addressing uncertainties in si...
byIDM Südtirol - Alto Adige

Michael Grobbauer, Fachhochschule Salzburg (AT) “Hot building skins”
byIDM Südtirol - Alto Adige

Jan Cremers, Hochschule für Technik Stuttgart (DE) “Designing Complex Membran...
byIDM Südtirol - Alto Adige

Zona Comfort | Roberta Tomasi, Eurotherm SpA
byIDM Südtirol - Alto Adige

Zona Comfort | Luca Verdi, Laboratorio di chimica fisica, Agenzia provinciale...
byIDM Südtirol - Alto Adige

Zona Comfort | Marco Fellin, CNR-IVALSA
byIDM Südtirol - Alto Adige

Zona Comfort | Clara Peretti, Consorzio Q-RAD
byIDM Südtirol - Alto Adige

Zona Comfort | Die Komfortzone
byIDM Südtirol - Alto Adige

Solar Decathlon 17.04.2014 @ TIS | David Calas (LISI on tour)
byIDM Südtirol - Alto Adige

Solar Decathlon 17.04.2014 @ TIS | Mario Grimaudo (RhOME for denCity)
byIDM Südtirol - Alto Adige

Solar Decathlon 17.04.2014 @ TIS | Mario Grimaudo (MED in Italy)
byIDM Südtirol - Alto Adige


Recently uploaded

PDF
HCSP-Presales-Campus Network Planning and Design V2.0
byVeronica916344

PPTX
Emancipatory Information Retrieval: Radically Reorienting Information Retriev...
byBhaskar Mitra

PDF
TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

PPTX
Why Most GenAI Projects Fail to Scale and How to Become One of the Success St...
byEarley Information Science

PPTX
communication-skills-with-technology tools
byJaleto Sunkemo

PDF
10 Things AI-First Apps Do Differently by iProgrammer Solutions
byiProgrammer Solutions Private Limited

PPTX
DYNAMICALLY.pptx good for the teachers or students to do seminars and for tea...
bympoorvika031

PDF
Fundamentals and Frontiers of Post Quantum Cryptography
byGokul Alex

PDF
Unlocking the Power of Salesforce Architecture: Frameworks for Effective Solu...
byvarsha30tiwari

PPTX
Building Agents in Microsoft Agent Framework.pptx
byUdaiappa Ramachandran

PPTX
Session 2 - Solving Unstructured & Complex Documents with UiPath IXP
byDianaGray10

PDF
What Is a Private LLM and Why Enterprises Need It
byAivada

PPTX
How to make Ai agents using Google Gemini AI.pptx
bypkluffy111

PDF
Lab 1.5 - Sharing Secrets with GPG ~ 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

PPTX
Technology Consulting _ by Slidesgo.pptx
byfh82277

PPTX
Software Analysis &Design ethiopia chap-2.pptx
byAbbas484771

DOCX
iRobot Post‑Mortem and Alternative Paths - Discussion Document for Boards and...
byDave Litwiller

PDF
Real-Time Data Insight Using Microsoft Forms for Business
byElevate

PDF
Access Control 2025: From Security Silo to Software-Defined Ecosystem
byMemoori

PPTX
Conversational Agents – Building Intelligent Assistants [Virtual Hands-on Wor...
byUiPathCommunity

HCSP-Presales-Campus Network Planning and Design V2.0
byVeronica916344

Emancipatory Information Retrieval: Radically Reorienting Information Retriev...
byBhaskar Mitra

TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

Why Most GenAI Projects Fail to Scale and How to Become One of the Success St...
byEarley Information Science

communication-skills-with-technology tools
byJaleto Sunkemo

10 Things AI-First Apps Do Differently by iProgrammer Solutions
byiProgrammer Solutions Private Limited

DYNAMICALLY.pptx good for the teachers or students to do seminars and for tea...
bympoorvika031

Fundamentals and Frontiers of Post Quantum Cryptography
byGokul Alex

Unlocking the Power of Salesforce Architecture: Frameworks for Effective Solu...
byvarsha30tiwari

Building Agents in Microsoft Agent Framework.pptx
byUdaiappa Ramachandran

Session 2 - Solving Unstructured & Complex Documents with UiPath IXP
byDianaGray10

What Is a Private LLM and Why Enterprises Need It
byAivada

How to make Ai agents using Google Gemini AI.pptx
bypkluffy111

Lab 1.5 - Sharing Secrets with GPG ~ 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

Technology Consulting _ by Slidesgo.pptx
byfh82277

Software Analysis &Design ethiopia chap-2.pptx
byAbbas484771

iRobot Post‑Mortem and Alternative Paths - Discussion Document for Boards and...
byDave Litwiller

Real-Time Data Insight Using Microsoft Forms for Business
byElevate

Access Control 2025: From Security Silo to Software-Defined Ecosystem
byMemoori

Conversational Agents – Building Intelligent Assistants [Virtual Hands-on Wor...
byUiPathCommunity


Michael Reifer, Frener & Reifer, Brixen (IT) “Development and implementation of façade system”

  • 1.

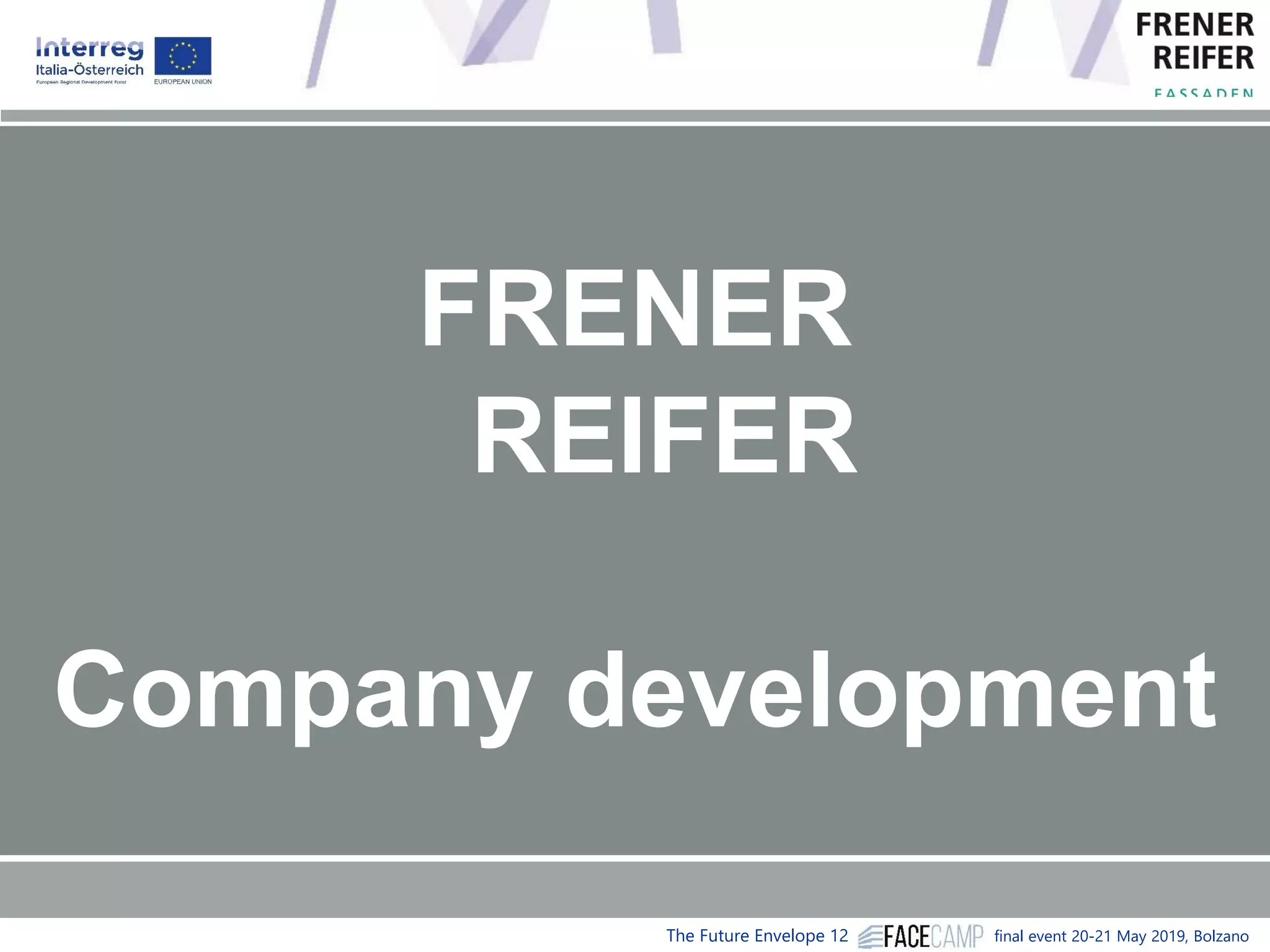

    The Future Envelope12 final event 20-21 May 2019, Bolzano The Future Envelope 12 It’s all about performances • Development and implementation of façade system • Michael Reifer • FRENER & REIFER GmbH/Srl FACEcamp is funded by European Regional Development Fund and Interreg V-A Italy-Austria 2014-2020. www.interreg.net
  • 2.

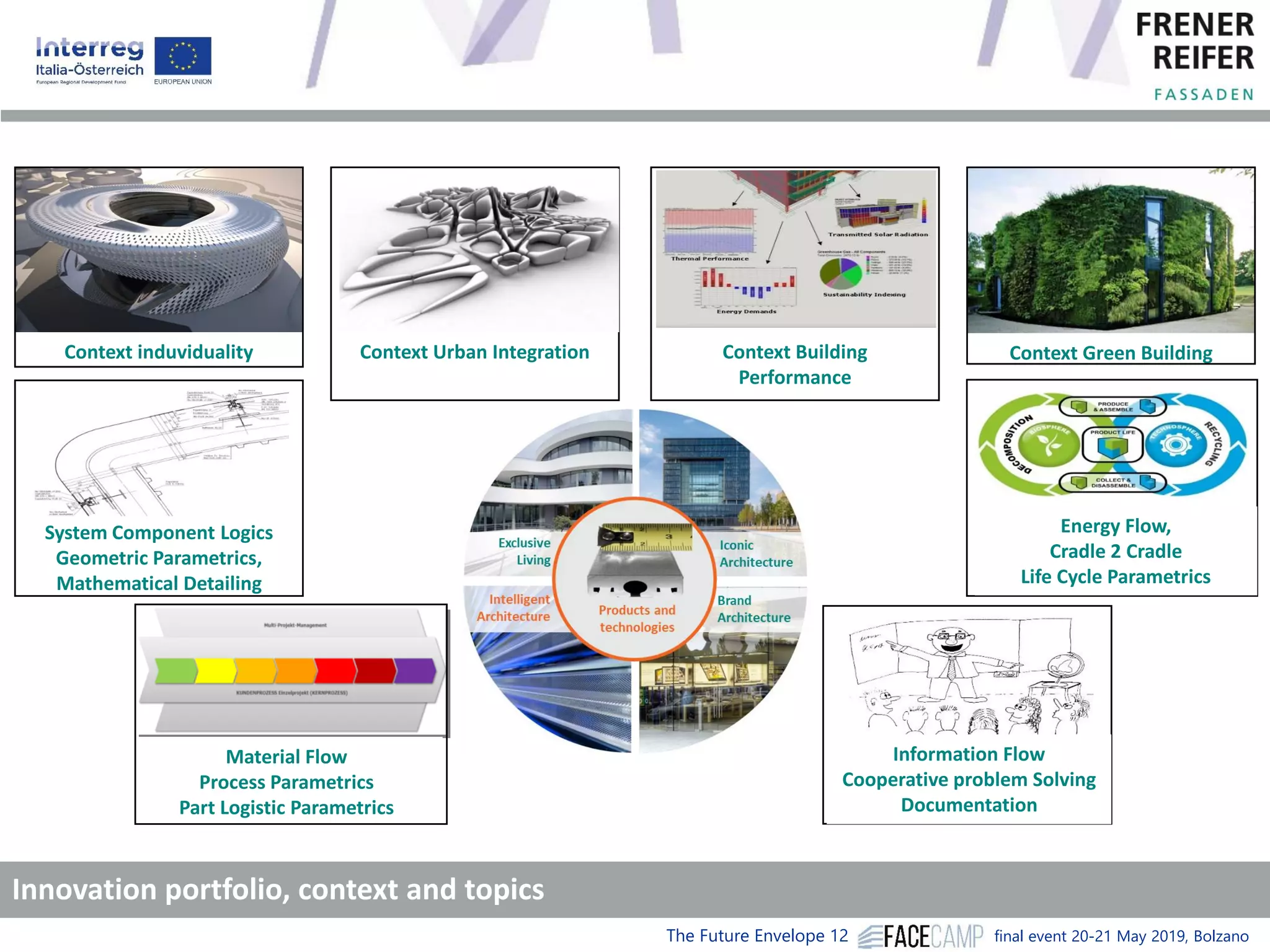

    The Future Envelope12 final event 20-21 May 2019, Bolzano FRENER REIFER Company development
  • 3.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Euregio region TAAT SOUTH TYROL
  • 4.
    The Future Envelope12 final event 20-21 May 2019, Bolzano FRENER & REIFER history
  • 5.
    The Future Envelope12 final event 20-21 May 2019, Bolzano FRENER & REIFER history
  • 6.
    The Future Envelope12 final event 20-21 May 2019, Bolzano New York HQ Brixen Augsburg Zürich Paris London Richard Meier Kenzo Tange Tadao Ando Norman Foster SANAA Renzo Piano Herzog & de Meuron Zaha Hadid FRENER & REIFER worldwide
  • 7.
    The Future Envelope12 final event 20-21 May 2019, Bolzano FRENER & REIFER Film
  • 8.
    The Future Envelope12 final event 20-21 May 2019, Bolzano (r) & D - Projects Iconic Architecture Complex Geometry
  • 9.
    The Future Envelope12 final event 20-21 May 2019, Bolzano From Wildspitzbahn to Softbridge, a R&D transfer story
  • 10.

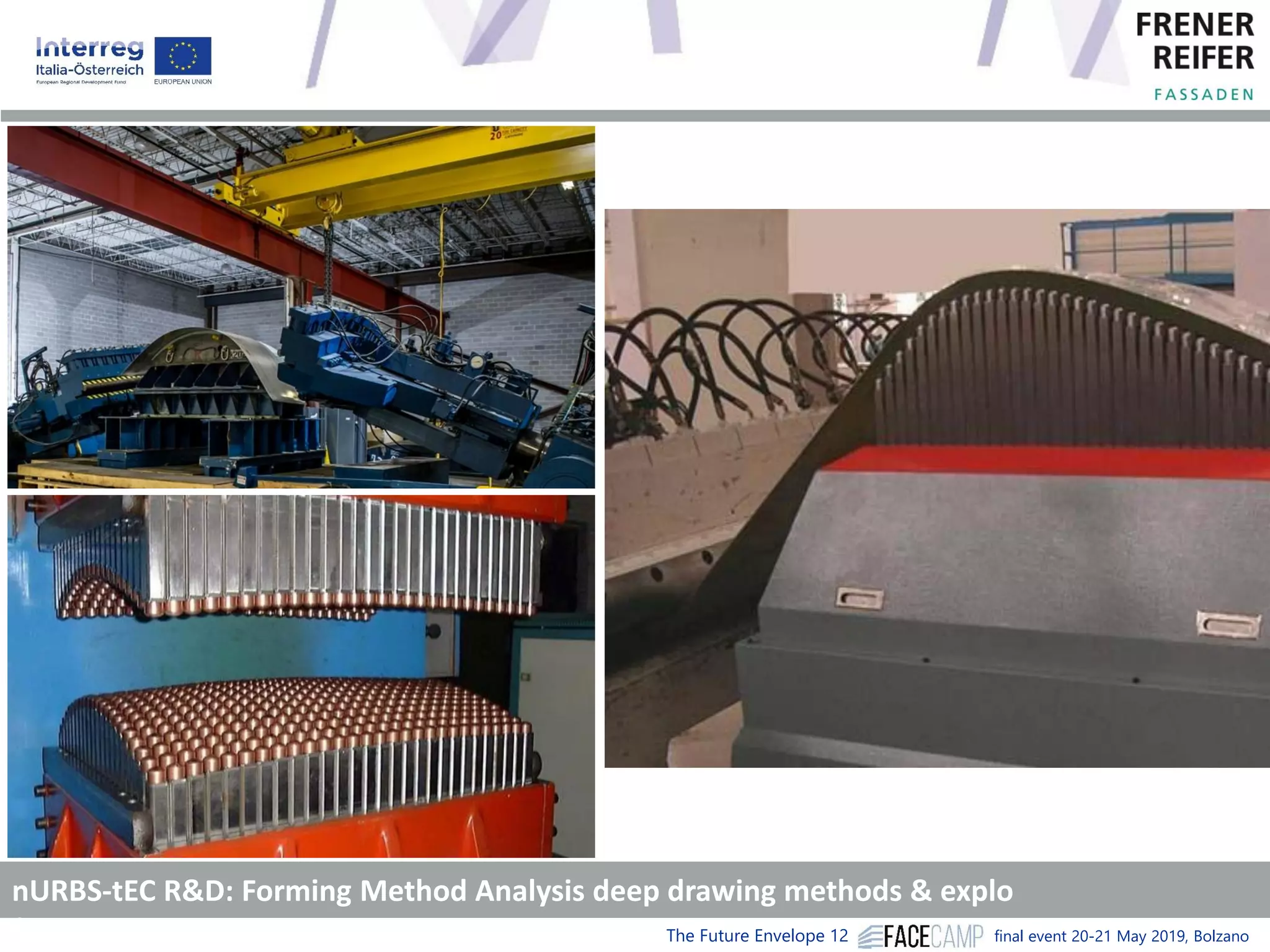

    The Future Envelope12 final event 20-21 May 2019, Bolzano Fabrication (classical), surface destruction
  • 11.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Fabrication (classical), surface destruction
  • 12.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Fabrication (classical), surface destruction
  • 13.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Rendering Fabrication, how to do a double curved mirror surface?
  • 14.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Alternative fabrication (result of R&D project nURBS-tEC) ― Potential forming methods selection determination ― Forming limit parameter definition ― Forming limit parameter
  • 15.
    The Future Envelope12 final event 20-21 May 2019, BolzanoREFERENCES Prototyping alternative fabrication (MockUp passed)
  • 16.

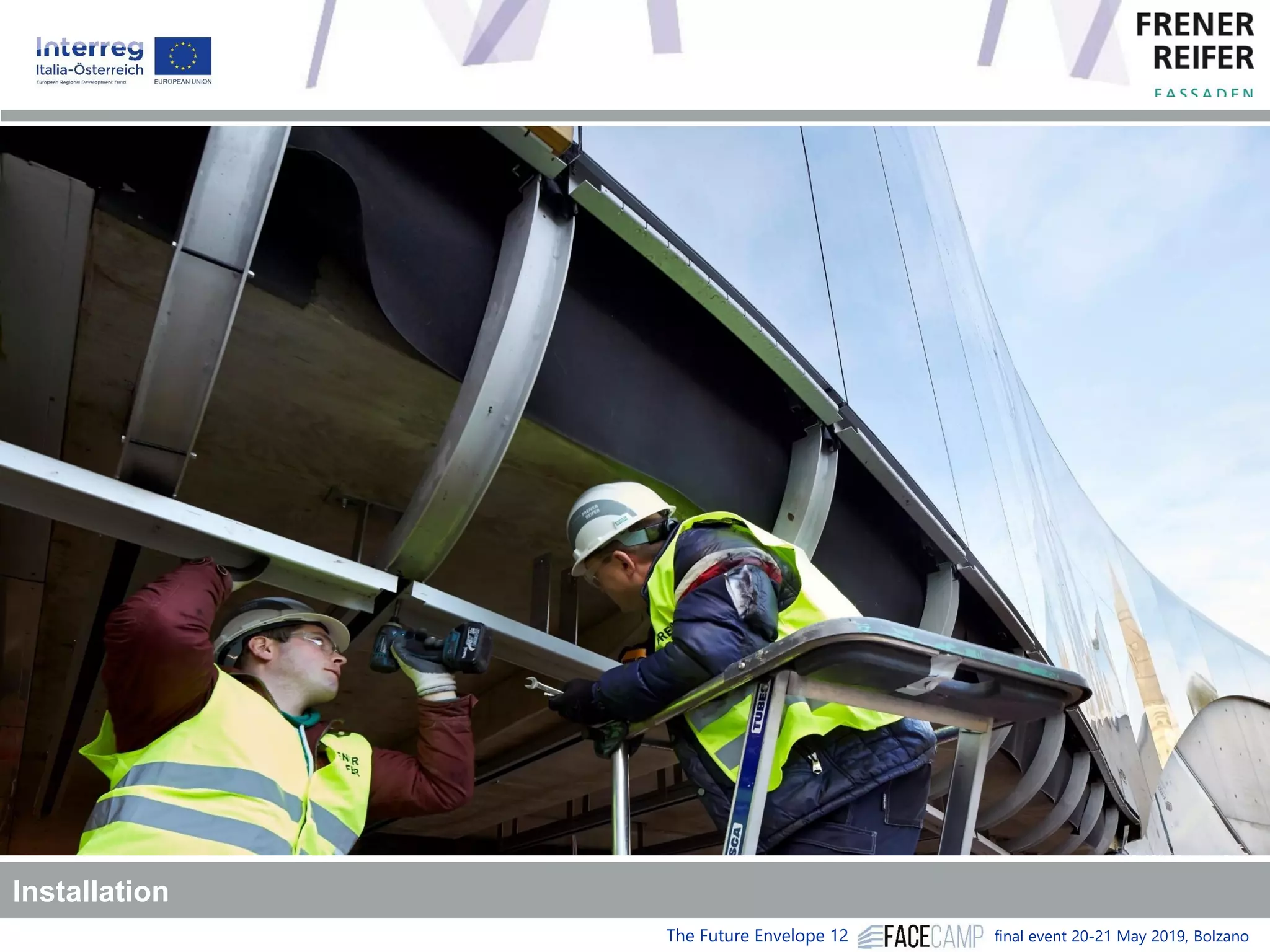

    The Future Envelope12 final event 20-21 May 2019, BolzanoREFERENCES Installation
  • 17.
    The Future Envelope12 final event 20-21 May 2019, BolzanoREFERENCES work result
  • 18.
    The Future Envelope12 final event 20-21 May 2019, BolzanoREFERENCES Developement minimo „structural glased), based on minimo_FR
  • 19.
    The Future Envelope12 final event 20-21 May 2019, Bolzano (r) & D - Projects Iconic Architecture, structural glass
  • 20.

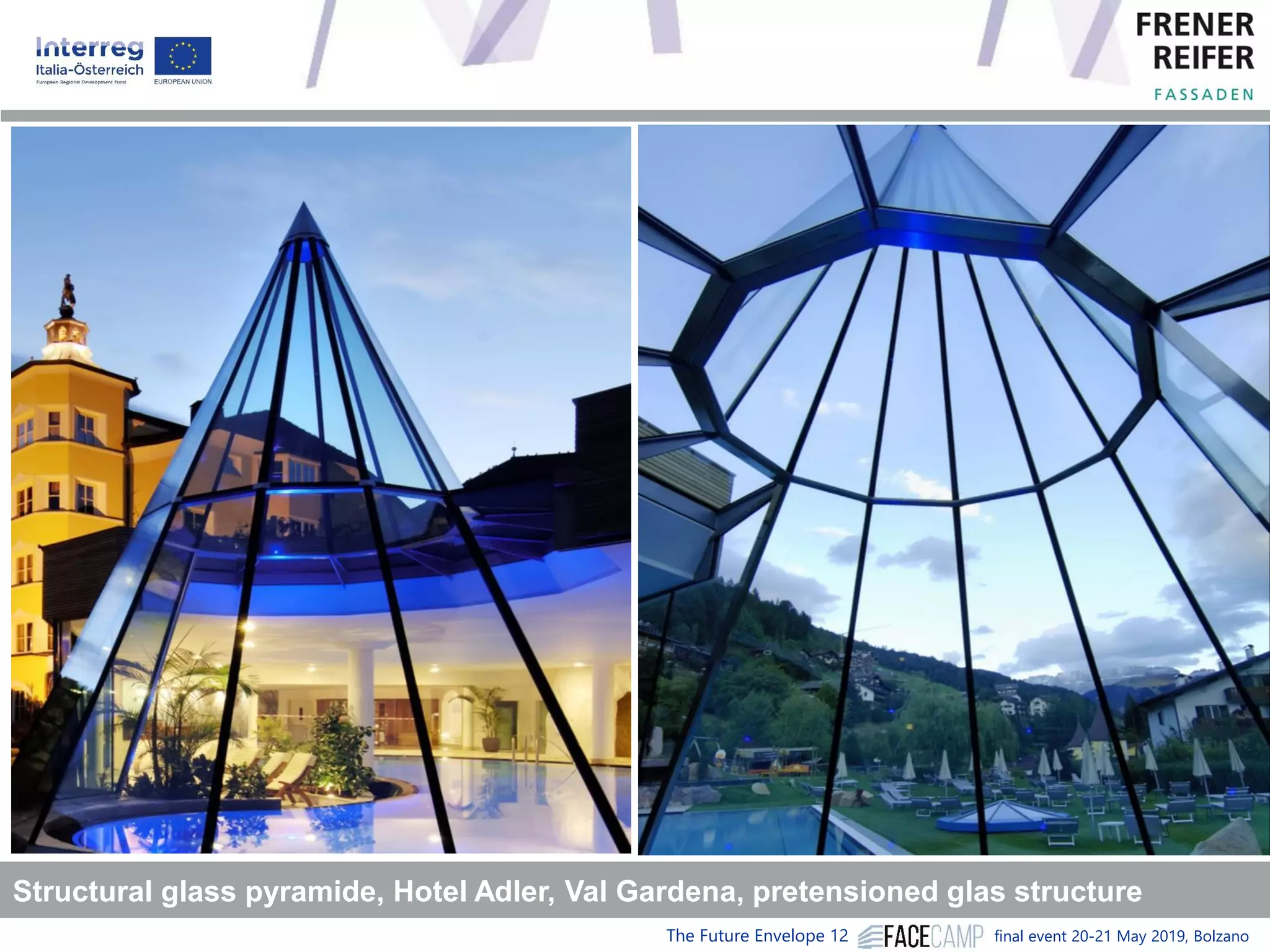

    The Future Envelope12 final event 20-21 May 2019, Bolzano Structural glass pyramide, Hotel Adler, Val Gardena, pretensioned glas structure
  • 21.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R&D: design variants, test scenario creation, supply chain development, prototyping
  • 22.
    The Future Envelope12 final event 20-21 May 2019, Bolzano (r) & D - Projects Iconic Architecture, adaptive facades
  • 23.
    The Future Envelope12 final event 20-21 May 2019, Bolzano New challenge: adaptive high end facade
  • 24.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 1: make feasable the architectural vision
  • 25.

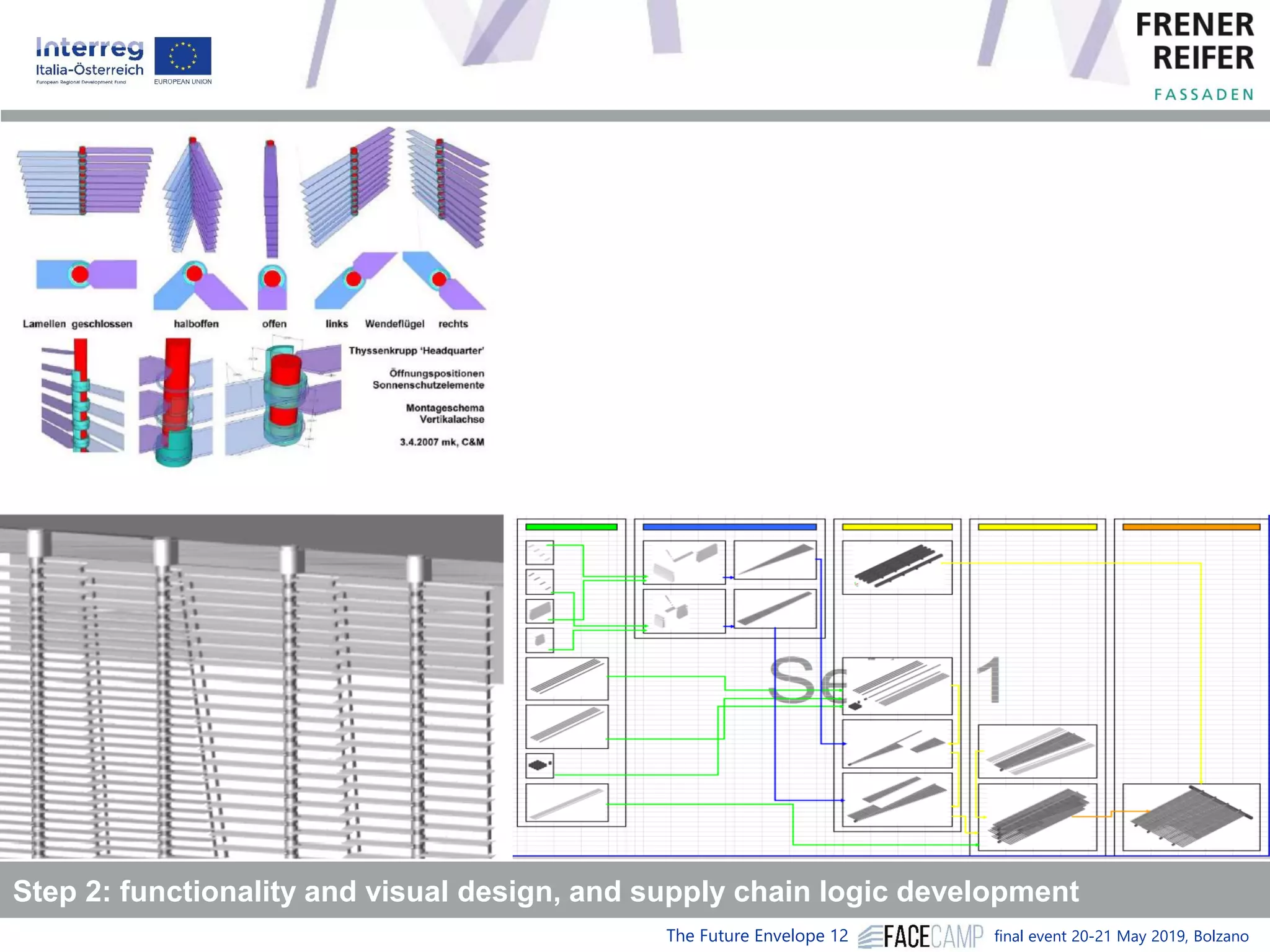

    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 2: functionality and visual design, and supply chain logic development
  • 26.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 3: automation control design, production of visual and functional prototype
  • 27.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 4: testing: wind forces, wind noise, corrosion, flash
  • 28.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 5: optimization and production „zero serie prototype“
  • 29.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 6: supply chain implementation (Super market)
  • 30.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 7: production & installation
  • 31.

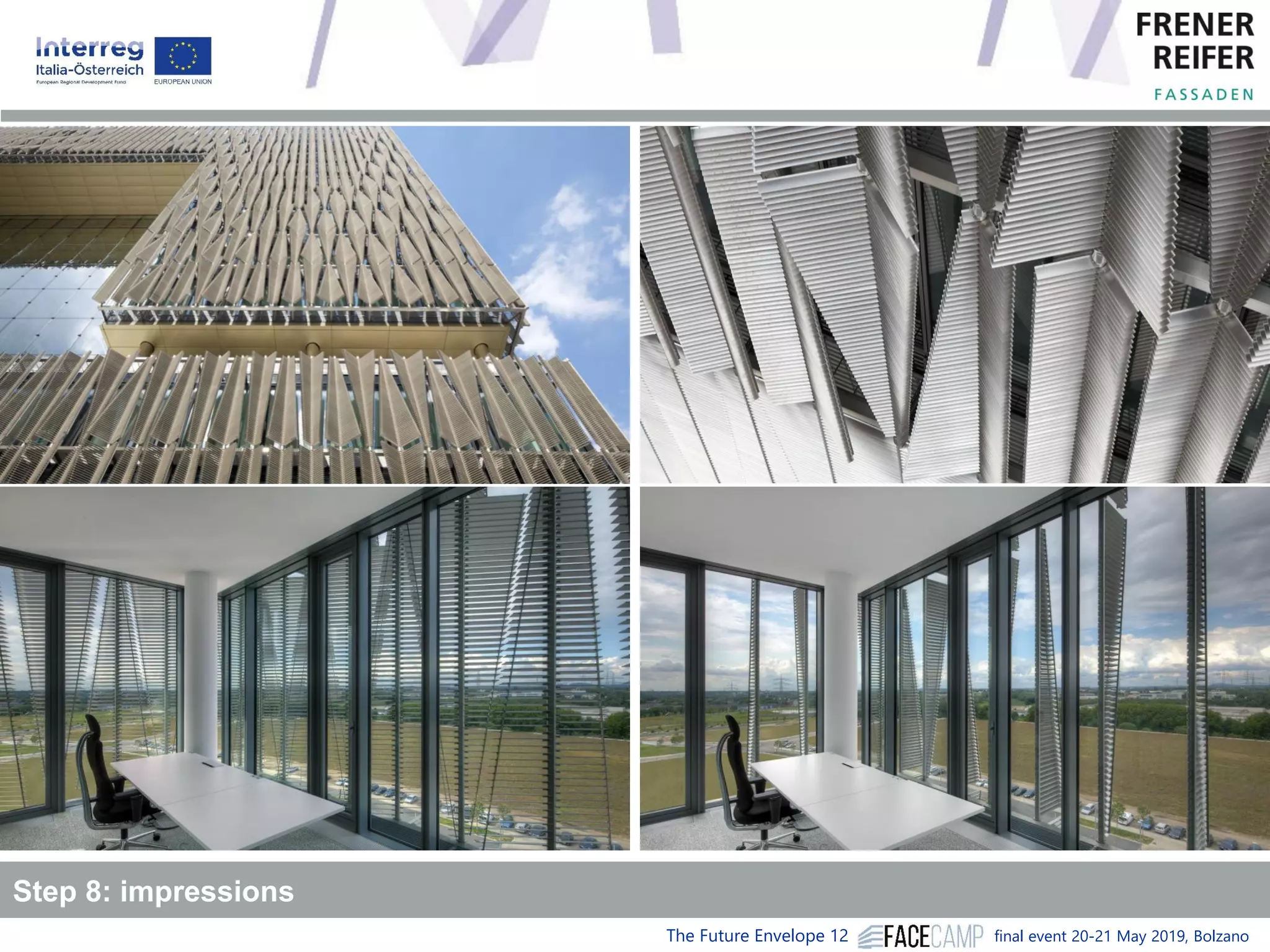

    The Future Envelope12 final event 20-21 May 2019, Bolzano Step 8: impressions
  • 32.
    The Future Envelope12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! Step 9: R&D process standardisation for a complex ETO building system supplier Project development as stage gate process with the right competencies on the right time Generating ideas, developing design Developing and designing concepts and variants Developing solution variants and pricing variants, testing, developing supply chain models and suppliers Producing solutions,
  • 33.
    The Future Envelope12 final event 20-21 May 2019, Bolzano New market opportunities departing from the R&D project
  • 34.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Building Envelopes Context driven R&D Aproach R&D holistic context driven innovation approach
  • 35.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Innovation Process Questions 2011 1. What kind of building and façade trends are to be expected? 2. Is reacting to trends enough of innovation? 3. How to close the strategic gap between the F&R innovation and the world architecture and building trends ― Look for the right networks: Universities, research institutes, parametric designers, suppliers….. ― Research in the right directions ― Enforce evolution true portfolio management and revies R&D in F&R: the beginnings
  • 36.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Information Flow Cooperative problem Solving Documentation Energy Flow, Cradle 2 Cradle Life Cycle Parametrics Context induviduality System Component Logics Geometric Parametrics, Mathematical Detailing Context Green BuildingContext Urban Integration Material Flow Process Parametrics Part Logistic Parametrics Context Building Performance Innovation portfolio, context and topics
  • 37.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Building Supply Chain, Research and Developement Topics
  • 38.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R & (d) - projects functional design free form technology
  • 39.
    The Future Envelope12 final event 20-21 May 2019, Bolzano State of the art in 2011: System Layers, Details (primary steel-concrete Construction), RWTH
  • 40.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Surface Materials & Macro Joint Analysis (I.C. TU Stuttgart)
  • 41.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis, craftman based methods
  • 42.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis deep drawing methods & explo forming
  • 43.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis deep drawing methods & explo forming
  • 44.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Institut für Baukonstruktion und Entwerfen Lehrstuhl 2, Prof. Stefan Behling nURBS-tEC R&D: Forming Method Analysis
  • 45.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC R&D: Forming Method Analysis
  • 46.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC Process, Forming Technology Evaluation Meth 1 Meth 2 Meth 3 Meth 4 Meth 5 Form 1 A 1 B 1 C 2 3 A ― technology readiness evaluation ― alinement forming methods to surface curvature regions ― forming limit parameter evaluation
  • 47.
    The Future Envelope12 final event 20-21 May 2019, BolzanoRESEARCH AND nURBS-tEC prototypes & Start of production
  • 48.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC Business field, Iconic Architecture, Surface types
  • 49.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Intelligent Architecture Iconic Architecture Brand Architecture Exclusive Living Products and technologies Organic Construction Iconic Architecture Iconic Superyots Wide Size Prototyping Digital Chain •building envelope system supplier (design 2 build) •Other industries •architectural freeform know how •façade engineering and detailing •„mathematical“ detailing nURBS-tEC, business modelling, strategy alinement
  • 50.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC, R&D:„Sandwich“ Core Parametrics ― research, test and parametrization of cut sheet metal core solutions ― research, test and parametrization of auxetic and folded core solutions ― research, test and parametrization of blown core solutions
  • 51.
    The Future Envelope12 final event 20-21 May 2019, Bolzano nURBS-tEC, „mathematical“ detail engineering ― starting from classical façade engineering (cartesian) ― redesign details “mathematical” reproduceable (spherical coordinates) ― solve conttradiction between tolerance behavior and „mathematical detailing
  • 52.
    The Future Envelope12 final event 20-21 May 2019, Bolzano ― surface and panel geometry scripting ― core, frames and structure geometry scripting ― geometry dependencies and logistics scripting nURBS-tEC, geometric model generation
  • 53.
    The Future Envelope12 final event 20-21 May 2019, Bolzano ― model logistics control and modification ― part drawing scripting ― production chain and NC code scripting nURBS-tEC, digital chain generation
  • 54.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R & (d) - Projects sustainability integral facades
  • 55.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Solpower, integrated semitransparent facade collector (I.C. TU Stuttgart, TU Munich
  • 56.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Solpower, collector performance test (energetical & visual)
  • 57.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Solpower, design prototyp, evaluation of global application potential
  • 58.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability integral envelopes
  • 59.
    The Future Envelope12 final event 20-21 May 2019, Bolzano i-Cover, modular regenerative envelope system (I.C. TUM, Eurac, TUIBK, KAB) project objectives ― more adaptability ― more integration variants ― modular system ― model building simulation ― configurator prototype ― design pilot project ― installation pilot plant & facade
  • 60.
    The Future Envelope12 final event 20-21 May 2019, Bolzano results ― modul variants 1 ― modul variants 2 ― Konfigurator
  • 61.
    The Future Envelope12 final event 20-21 May 2019, Bolzano results ― modul variants 1 ― modul variants 2 ― configurator (Java, Excell) ― simulation office building ― design pilot plant ….not yet realized
  • 62.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability adaptive facades
  • 63.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Flex Cover, auto-reactive facade (I.C. TU Munich), based on i-Cover
  • 64.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Flex Cover, auto-reactive facade, smartr materials as „regulators“
  • 65.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Thermotrope Glass fins
  • 66.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Autoractive thermo cylinder regulated double skin facade
  • 67.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Autoractive hygroscopic regulated double skin facade (humidity regulating)
  • 68.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Bio Cover, auto-reactive facade (I.C. TU Dresden, Arup a.o.), based on i-Cover
  • 69.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability adaptive spaces
  • 70.
    The Future Envelope12 final event 20-21 May 2019, Bolzano L.I.S.A. liviing indepentently in ST AA, inteligent wardrobe (ageing society)
  • 71.
    The Future Envelope12 final event 20-21 May 2019, BolzanoREFERENCES Flissade, the convertible space
  • 72.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R & (d) - projects sustainability circular Economie
  • 73.
    The Future Envelope12 final event 20-21 May 2019, Bolzano As part of the “London Design Festival”, Arup has collaborated with FRENER & REIFER and BAM to create the Circular Building, The partners have teamed up to apply and test circular economy principles in the construction industry by asking the following question: “Can we design a building where, at the end of its life, all its components and materials can be re-used, re-manufactured, just at least re-cycled?” Circular Building ― Installation and exhibition in London
  • 74.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Circular Buildings ― are leading to „BIG DATA“ in construction industry !
  • 75.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R&D process innovation construction 4.0
  • 76.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Source: DFKI (2013) From industry 1.0 to industry 4.0
  • 77.

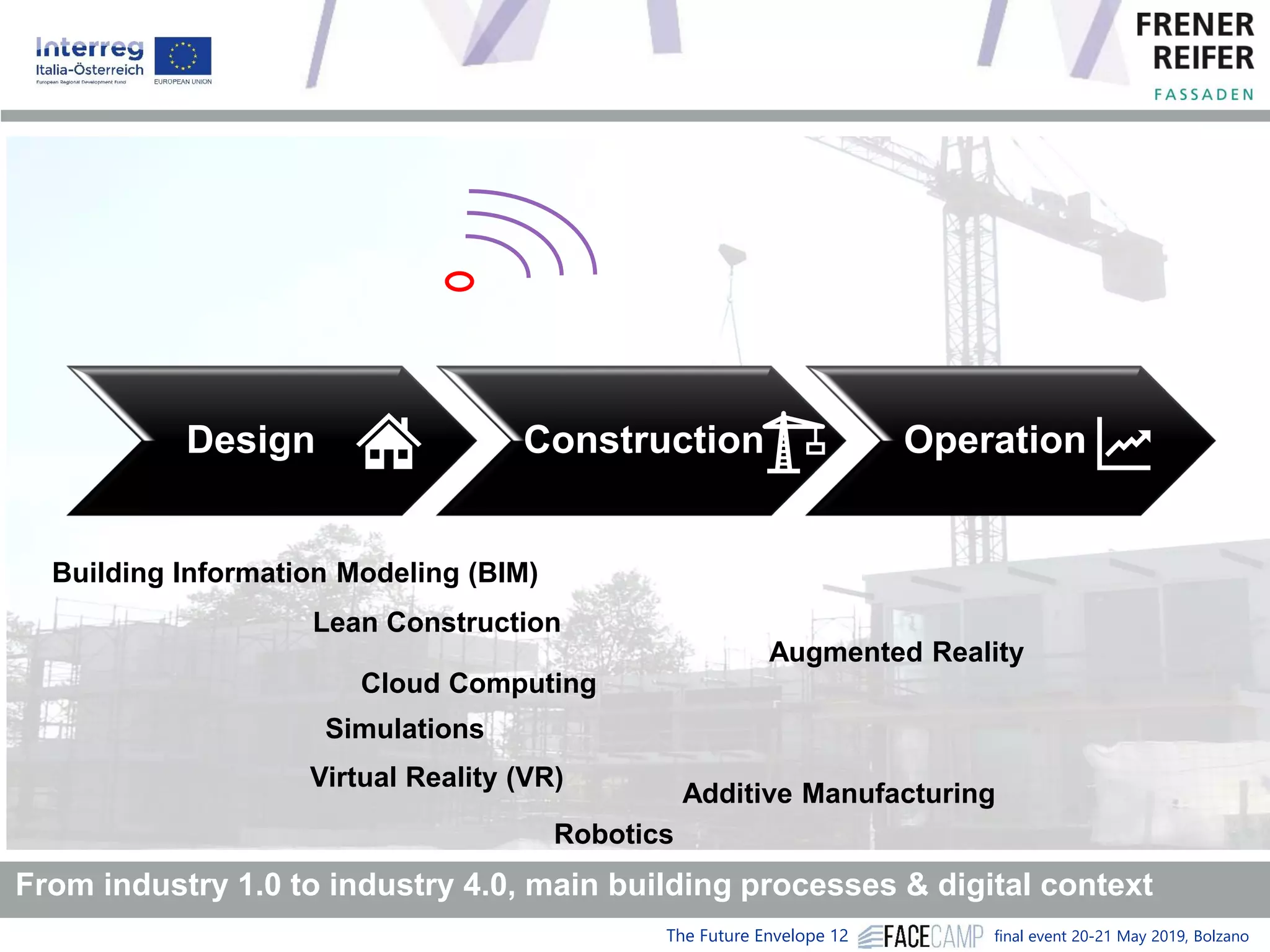

    The Future Envelope12 final event 20-21 May 2019, Bolzano Design Construction Operation Building Information Modeling (BIM) Cloud Computing Virtual Reality (VR) Augmented Reality Simulations Robotics Additive Manufacturing From industry 1.0 to industry 4.0, main building processes & digital context Lean Construction
  • 78.
    The Future Envelope12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! F&R-innovation Step 1: process standardisation review departing from TKHQ learnings Project development as stage gate process with the right competencies on the right time Generating ideas, developing design Developing and designing concepts and variants Developing solution variants and pricing variants, testing, developing supply chain models and suppliers Producing solutions,
  • 79.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Project „Build 4 future“: front loaded installation planning (last planner system)
  • 80.
    The Future Envelope12 final event 20-21 May 2019, BolzanoInformationsfluss=Kultur Jolly Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja 12 gt. gt. gt. gt. 0 gt. 0 0 0 gt. gt. gt. gt. gt. gt. 0 gt. 0 0 0 0 gt. 0 MF PP NM DA EC FM GP GG RH HD LM LW MH OJ PP1 RD RM SF SE SS TV VA WC 9 0 9 0 0 0 0 0 0 0 9 9 9 0 9 0 9 0 0 0 0 9 0 h 9 9 9 9 0 9 0 0 0 9 9 9 9 9 9 0 9 0 0 0 0 9 0 h/d PP PP NM DA FM HD LM LW MH OJ PP1RM VA AK h PP NM DA FM HD LM LW MH OJ PP1 RM VA 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 3 27 0 0 0 0 0 0 0 0 0 0 9 0 9 0 9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X X X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 X X X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 r Bauabschnitte Anwesenheitsliste Mittwoch KW 43 woch KW 43 Ostfassade 1-A 1-A-O-4 1-A-O-5 1-A-O-6 1-A-O-7 1-A-O-8 1-A-O-9 1-A-O-1 1-A-O-2 1-A-O-3 1-A-O-10 Bedarf 0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0 5,5 6,0 6,5 7,0 7,5 8,0 8,5 9,0 9,5 MF PP NM DA EC FM GP GG RH HD LM LW MH OJ PP1 RD RM SF SE SS TV VA WC Project „Build 4 future“: Excell prototyping, ressources, materials, NCRs Project Build 4 future: I.C, FUBZ, Fraunhofer Italia, 10 building industry companies
  • 81.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Project „Build 4 future“: protoype evaluation, optimisation and digitalisation 3 Pilot projects „lean construction“ • Krankenhaus Bozen (repetitive) • Swiss Re (repetitive,complex parts • Soft Bridge (not repetitive, complex parts ) R&D Outcome: Excell-Prototypes • for innovative site orientated ERP with • agile site ressource and supply chain regulation • NCR Monitoring and contiuous improvement
  • 82.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Project „Cockpit“: developing digital planning, recording and regulation tools Project „Cockpit: I.C., FUBZ, Fraunhofer Italia, 3 building industry companies „digitalisation“ of lean construction BIM integration of lean process data
  • 83.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R&D process innovation construction design 4.0
  • 84.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Project „open BIM“: engineer 2 order (ETO) organised building supplier: example F&R
  • 85.
    The Future Envelope12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions ! Fact 1: Not well defined supplier interferences because of late involvement of suppliers Fact 2: High costs in the realisation process because of not cleared intersections between suppliers Fact 3: High competition and lowest prices seams to be much important than solution finding Fact 4: BIM is not well manageable because lack of information at the right time Project „Build 4 future“: problems and challanges for innovative project development
  • 86.
    The Future Envelope12 final event 20-21 May 2019, Bolzano How we can rethink the project development process? • How we can obtain more process transparency? • How we can obtain more process efficiency? • How we can reduce process costs? • How we can use BIM with value added at the process? The project development process Project „Build 4 future“: problems and challanges for innovative project development
  • 87.
    The Future Envelope12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! Project development as stage gate process with the right competencies on the right time ??? Innovation to Order (ITO) or Engineerin to Order supplier (ETO) Configuration to Order (CTO) supplier Build to Order (BTO) or Production on Demand (PoD) supplier Assembly to Order (ATO or Make to Stock supplier Project „open BIM“: supplier types: supply chain variants in project development Same Submission line for every supply chain model
  • 88.
    The Future Envelope12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process ! Project development as BIM friendly stage gate process !!! • Defining supplier technology complexities from start • Defining supplier supply chain model types from start • Defining the integrated project delivery strategy and submission stages • Defining the BIM strategy (stage orientated LOD) Project „open BIM“: BIM and supply chain type orientated project development process Same Submission line for every supply chain model
  • 89.
    The Future Envelope12 final event 20-21 May 2019, Bolzano developing concepts verifying solutions developing solutions designing concepts generating ideas producing solutions The F&R stage gate process Project „open BIM“: BIM and supply chain type orientated project development process Different involvement submission lines for every supply chain model Suppliers sorted by supply chain model
  • 90.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Source: http://www.makebim.com/2016/09/17/bim-collaboration-format- with-archicad/?lang=en Source: http://www.hks-architekten.de/de/news/hks-i-architekten- planen-bim-pilotprojekt-des-bundes-berlin Project „open BIM“: BIM and supply chain type orientated project development process Open stage gate oriented BIM: • Information delivery at the right time • From the right competence • With the right knowledge • In the right LOD • With the right recompense • With the right data connectors Results: • Early clash detection • Interference solution finding • Transparence at the right time • Reduction of cost uncertainities
  • 91.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R&D process digitalization robotics in construction
  • 92.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Construction robotics: : additive manufacturing: installation automation Robotics in construction: Installation automation: • Scaffolding • Brick positioning • Brick installation
  • 93.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Construction robotics: additive manufacturing: 3d „printing“ Robotics in construction: 3d printing: • Concrete casting • Concrete printing large scale • 3d metal welding
  • 94.
    The Future Envelope12 final event 20-21 May 2019, Bolzano R & (d) - projects facecamp knowlegde management
  • 95.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Knowledge management based on fractal abstract structure, tested in flexcover
  • 96.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Knowledge management based on fractal abstract structure, to be continue
  • 97.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Inventing future envelopes What If ???
  • 98.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Innovation portfolio, context and topics todays world future world F&R_development (r) & D ! future world from todays point of view F&R_Innovation R & (d) ! ?F&R_innoVision What if ???
  • 99.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Information Flow Cooperative problem Solving Documentation Energy Flow, Cradle 2 Cradle Life Cycle Parametrics Context induviduality System Component Logics Geometric Parametrics, Mathematical Detailing Context Green BuildingContext Urban Integration Material Flow Process Parametrics Part Logistic Parametrics Context Building Performance Innovation portfolio, todays view of future world
  • 100.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Innovation portfolio in the future world ????
  • 101.
    The Future Envelope12 final event 20-21 May 2019, Bolzano Thank you for your attention! • Michael Reifer • FRENER & REIFER GmbH/Srl • m.reifer@frener-reifer.com FACEcamp is funded by European Regional Development Fund and Interreg V-A Italy-Austria 2014-2020. www.interreg.net
