CamelOne 2013
June 10-11 2013
Boston, MA
Messaging for web and
mobile with Apache
ActiveMQ
By Bosanac Dejan
1
CamelOne 2013
CamelOne
2

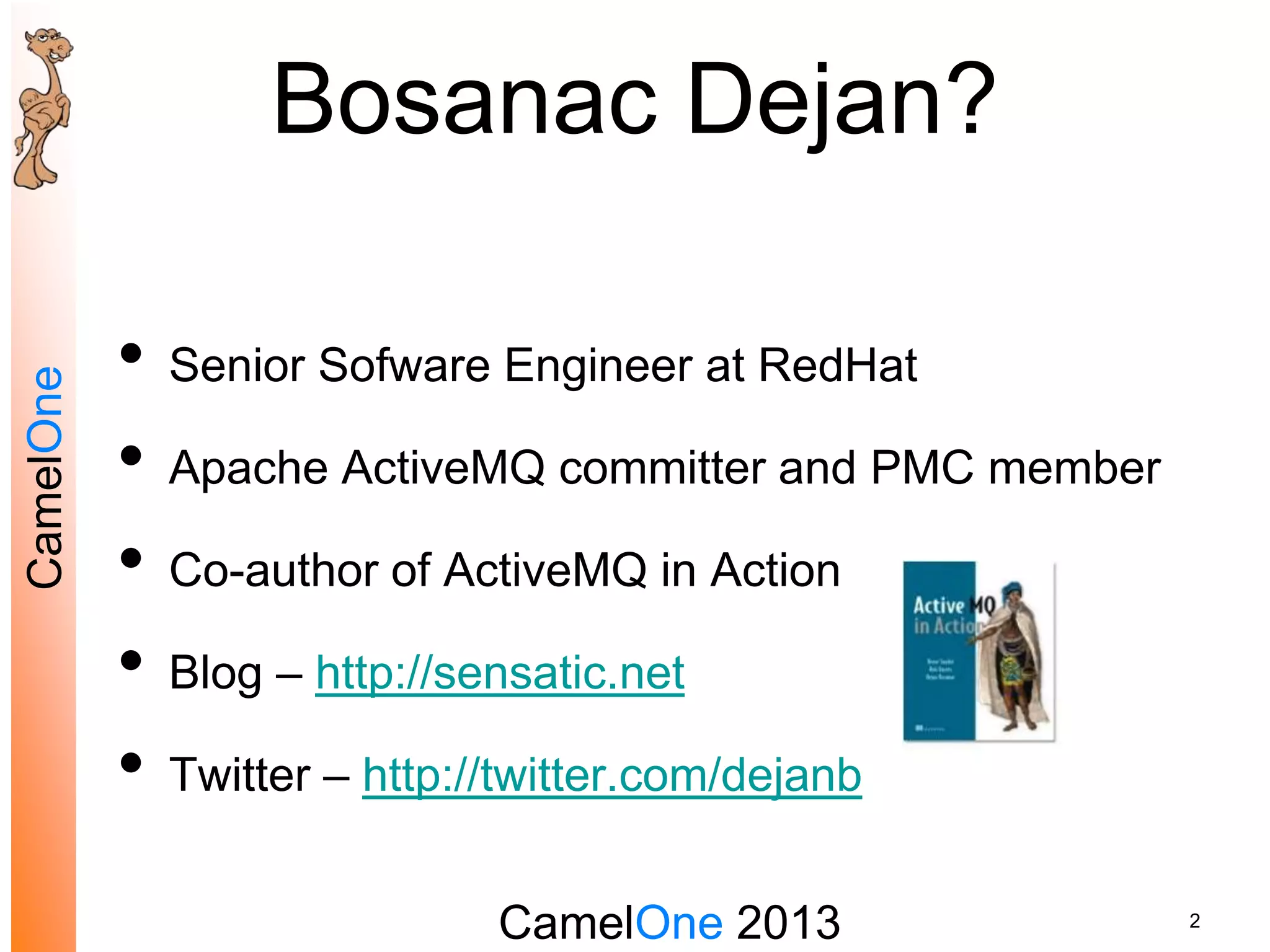

Bosanac Dejan?
• Senior Sofware Engineer at RedHat
• Apache ActiveMQ committer and PMC member
• Co-author of ActiveMQ in Action
• Blog – http://sensatic.net
• Twitter – http://twitter.com/dejanb
CamelOne 2013
CamelOne

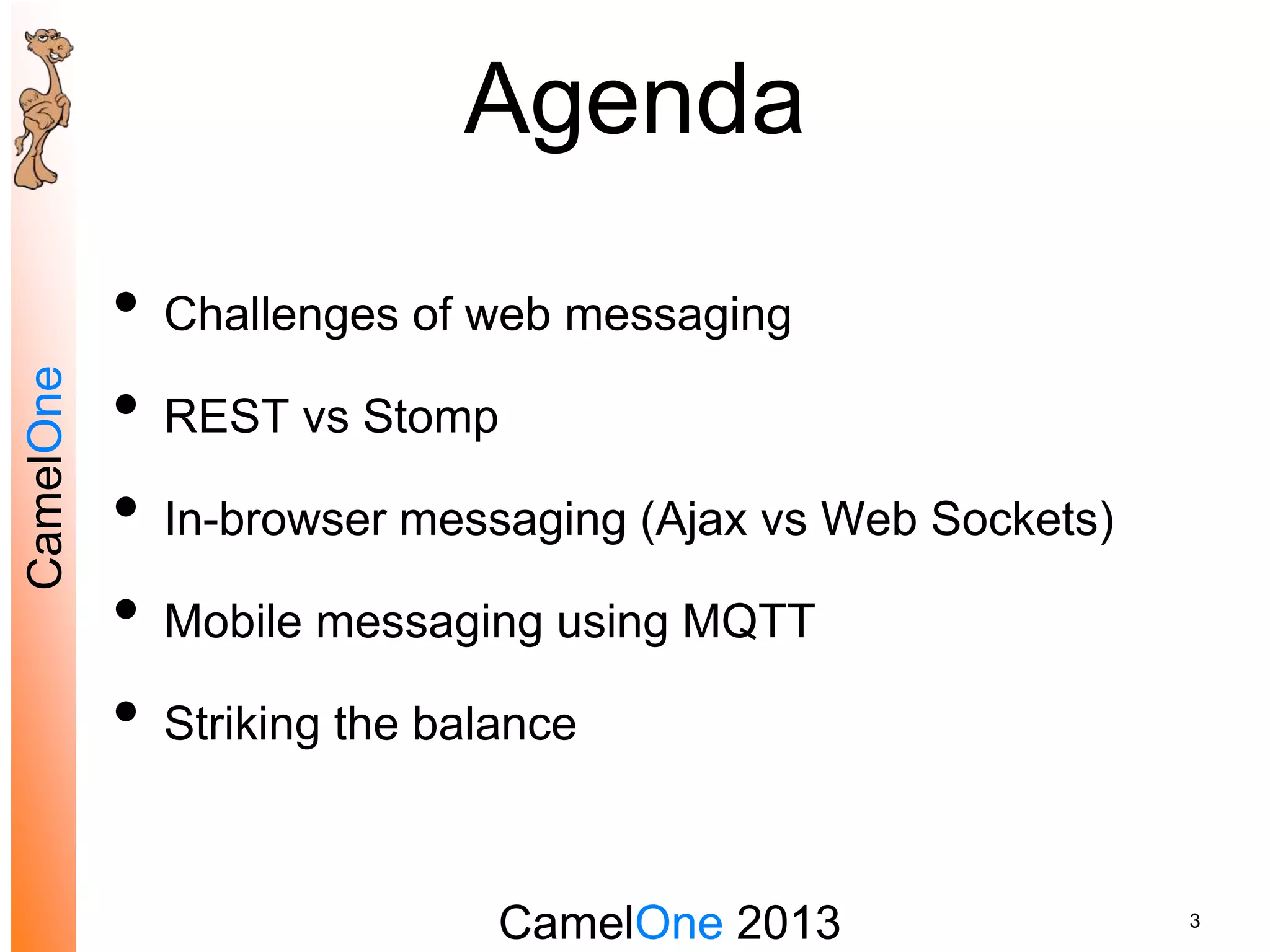

Agenda
• Challenges of web messaging
• REST vs Stomp
• In-browser messaging (Ajax vs Web Sockets)
• Mobile messaging using MQTT
• Striking the balance
3
CamelOne 2013
CamelOne

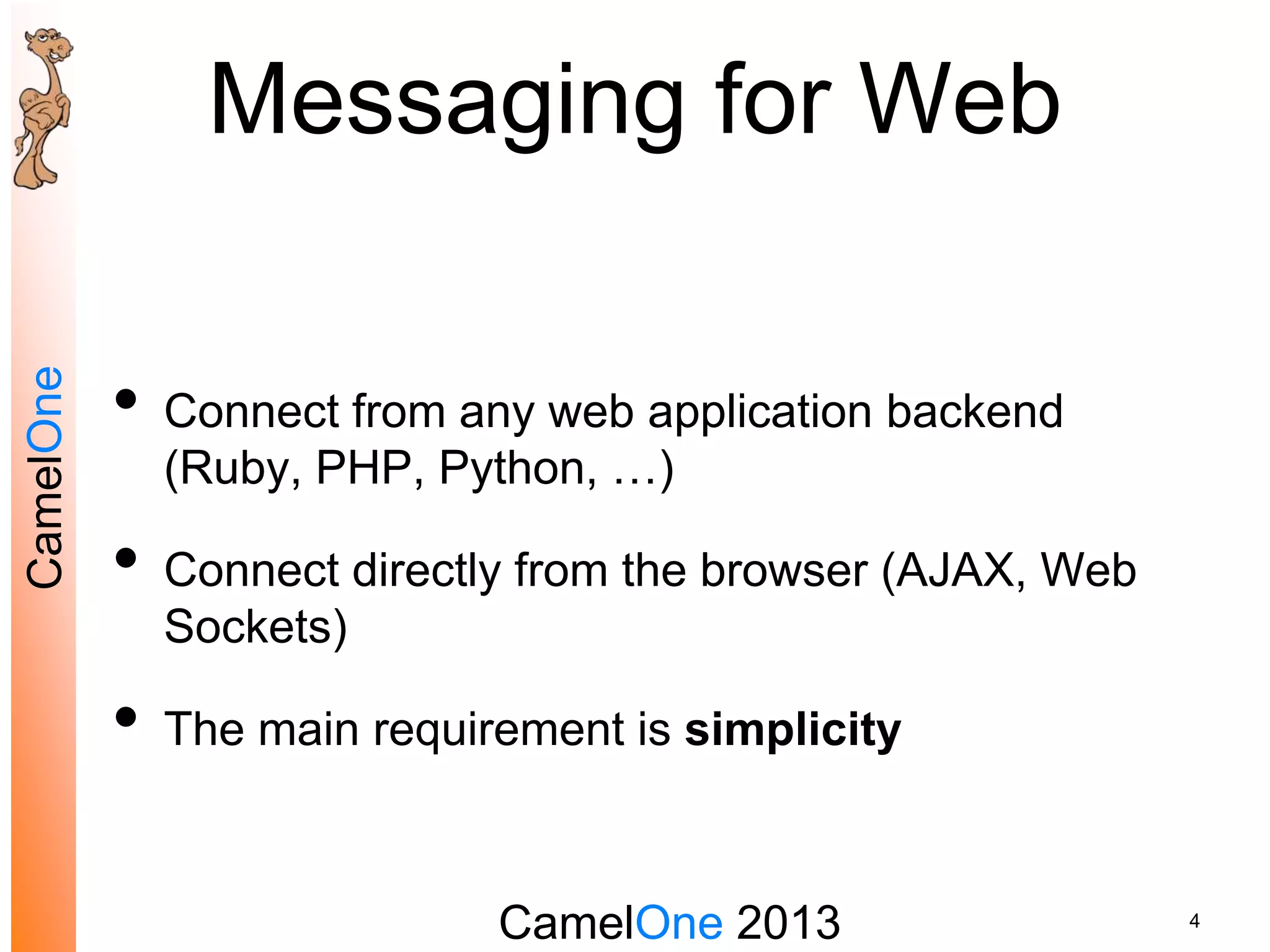

Messaging for Web
• Connect from any web application backend
(Ruby, PHP, Python, …)
• Connect directly from the browser (AJAX, Web
Sockets)
• The main requirement is simplicity
4
CamelOne 2013
CamelOne

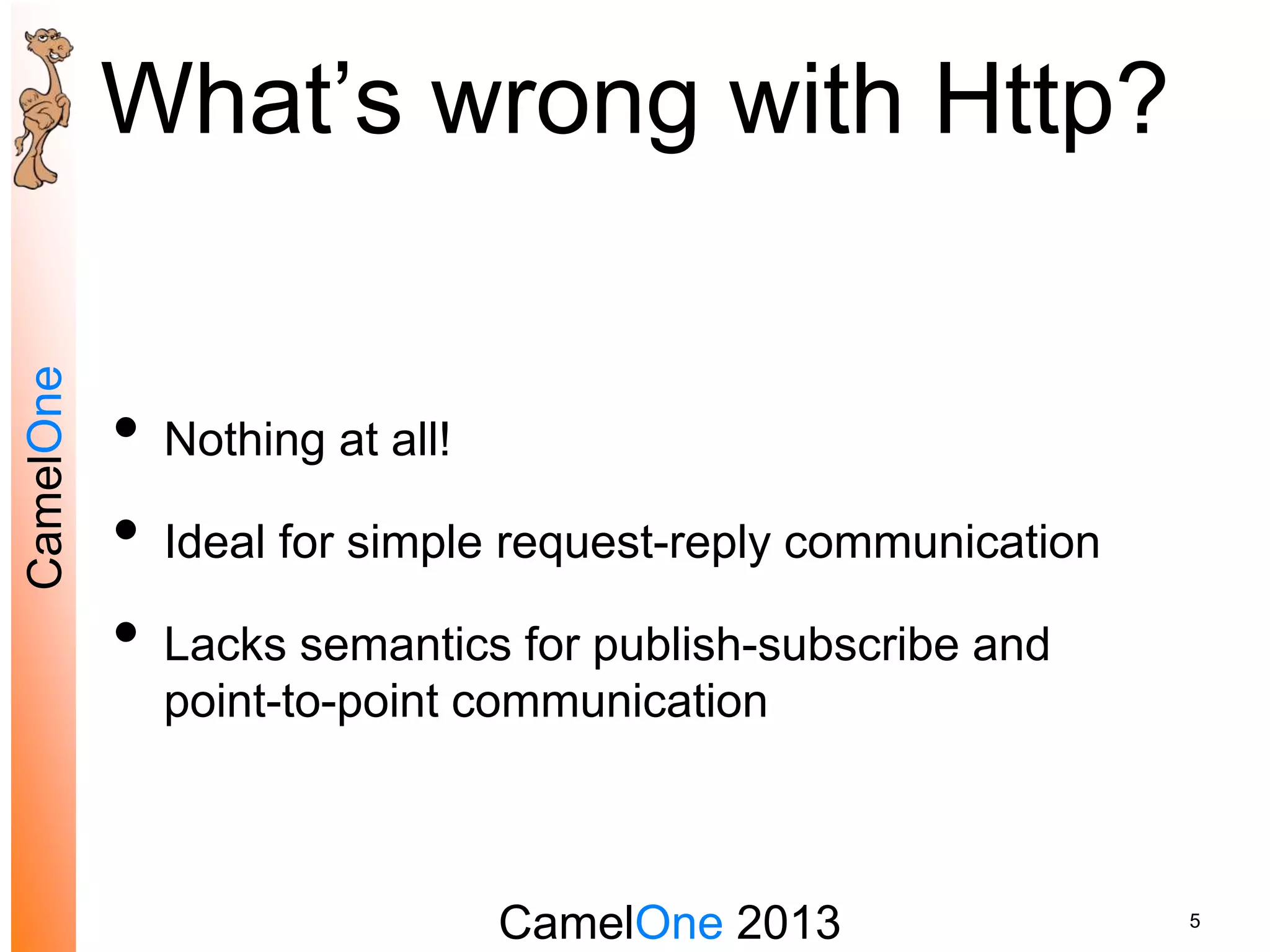

What’s wrong with Http?
• Nothing at all!
• Ideal for simple request-reply communication
• Lacks semantics for publish-subscribe and
point-to-point communication
5
CamelOne 2013
CamelOne

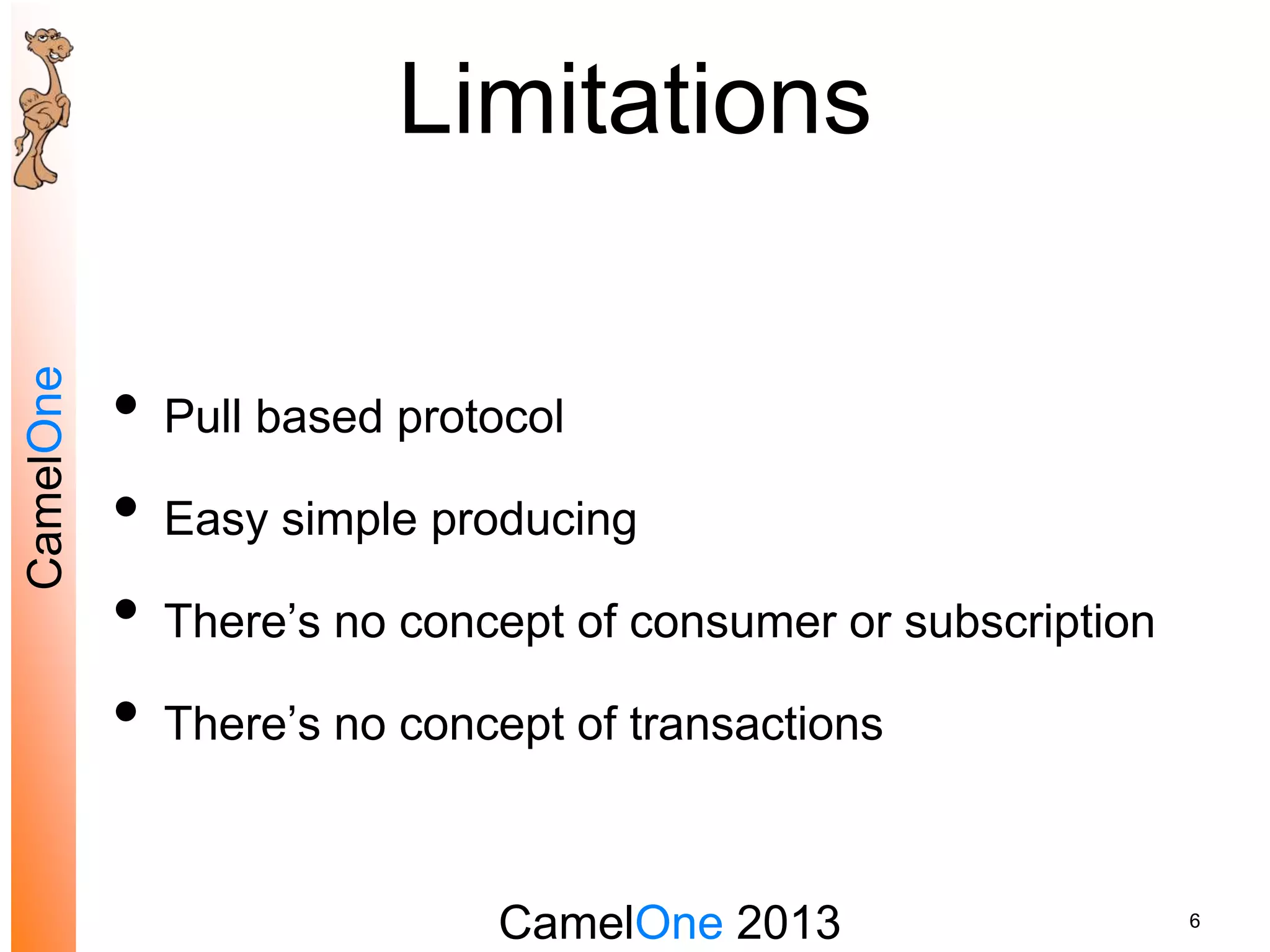

Limitations
• Pull based protocol
• Easy simple producing
• There’s no concept of consumer or subscription
• There’s no concept of transactions
6
CamelOne 2013
CamelOne

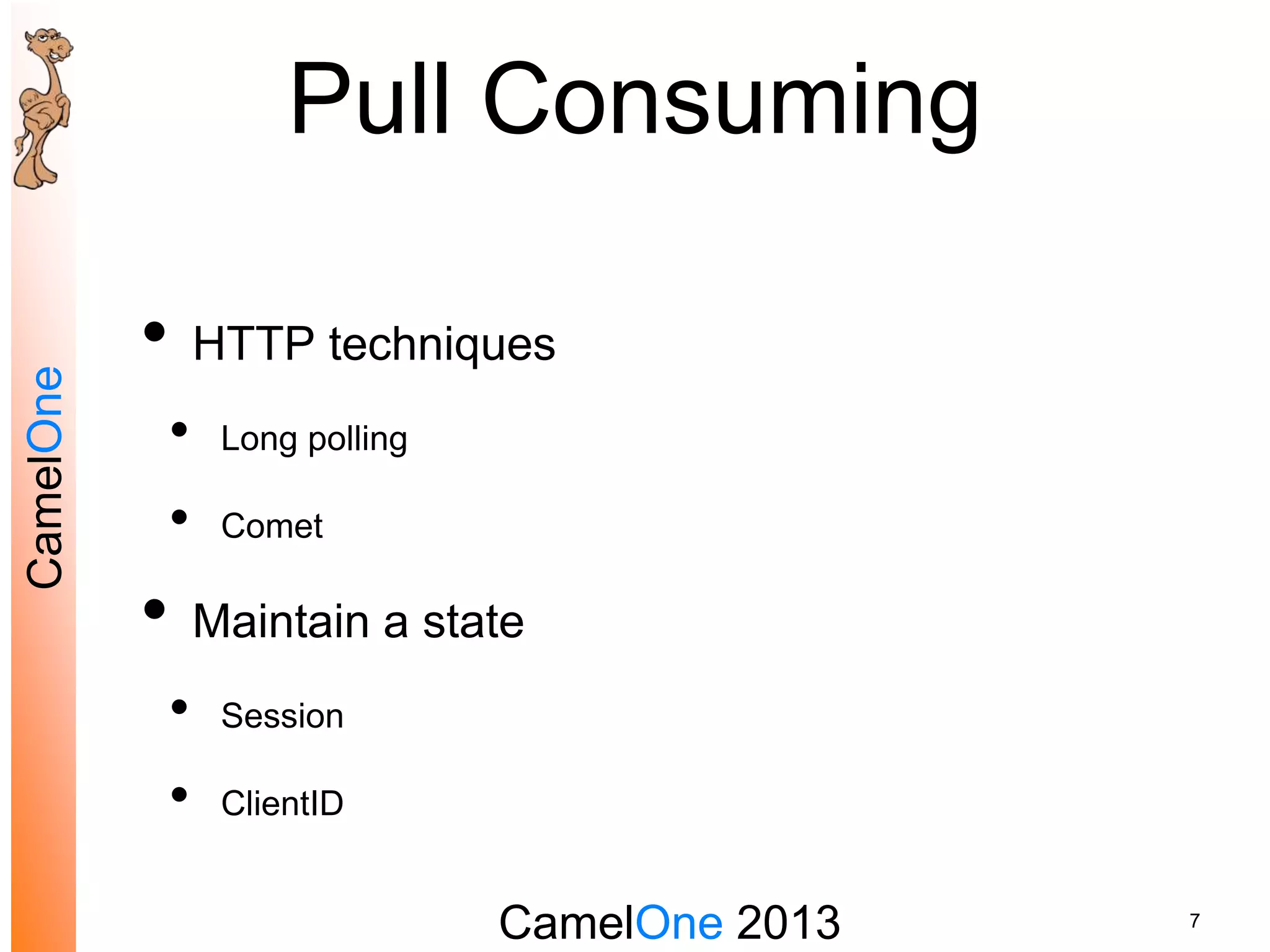

Pull Consuming
• HTTP techniques
• Long polling
• Comet
• Maintain a state
• Session
• ClientID
7
CamelOne 2013
CamelOne

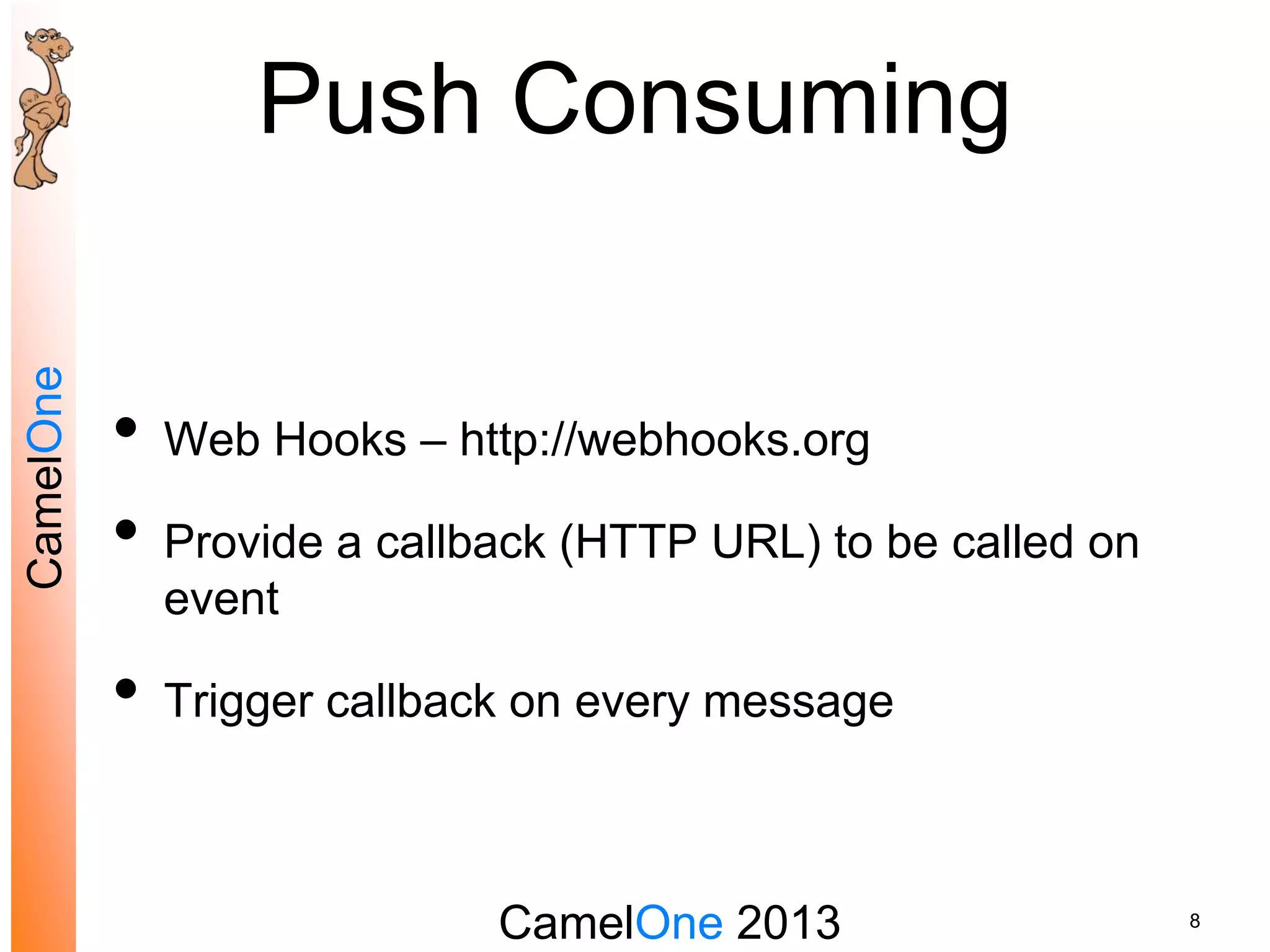

Push Consuming
• Web Hooks – http://webhooks.org
• Provide a callback (HTTP URL) to be called on
event
• Trigger callback on every message
8
CamelOne 2013

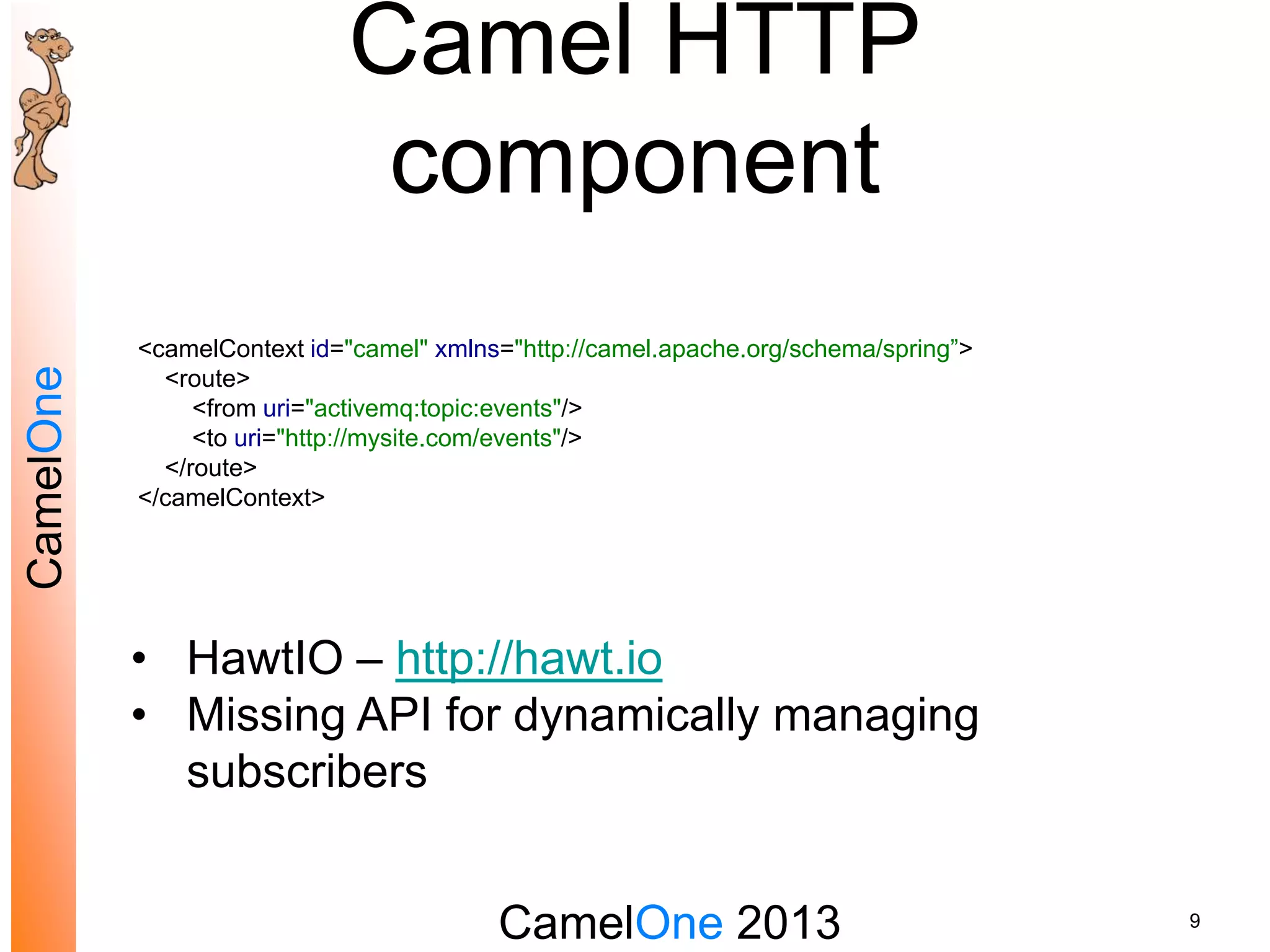

CamelOne Camel HTTP
component
9
<camelContext id="camel" xmlns="http://camel.apache.org/schema/spring”>
<route>
<from uri="activemq:topic:events"/>
<to uri="http://mysite.com/events"/>
</route>
</camelContext>
• HawtIO – http://hawt.io
• Missing API for dynamically managing
subscribers
CamelOne 2013
CamelOne

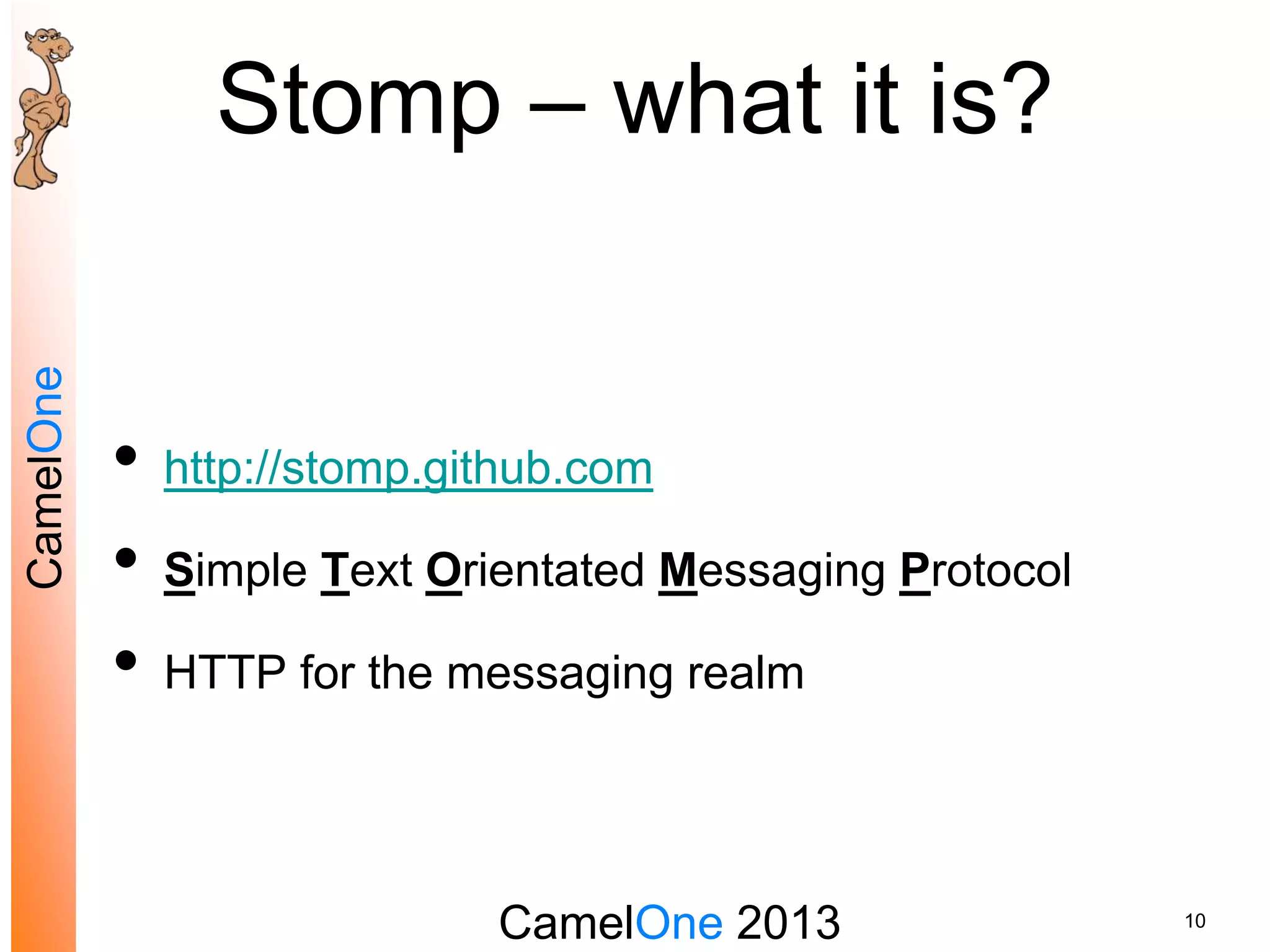

Stomp – what it is?
• http://stomp.github.com
• Simple Text Orientated Messaging Protocol
• HTTP for the messaging realm
10
CamelOne 2013
CamelOne

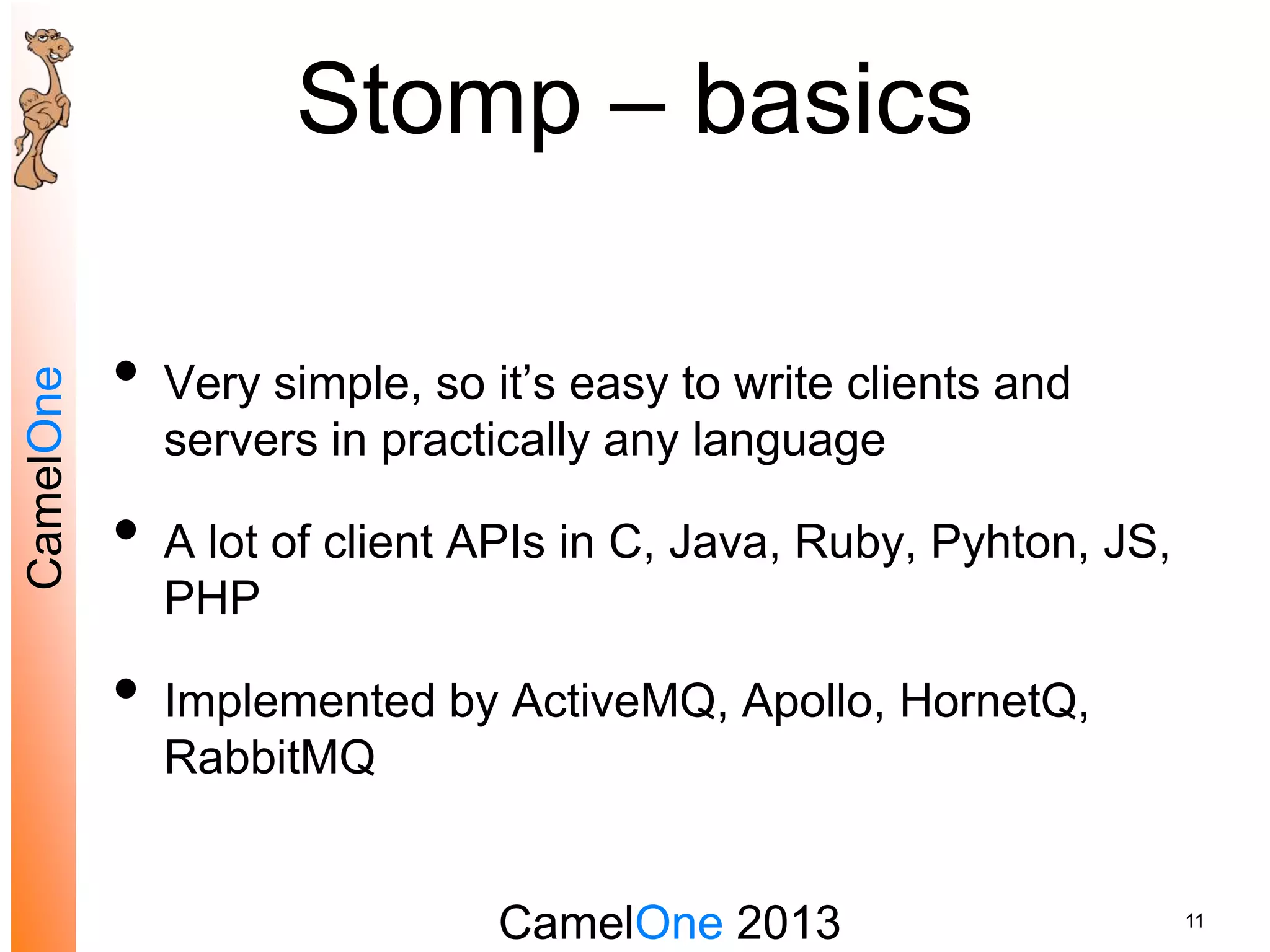

Stomp – basics
• Very simple, so it’s easy to write clients and
servers in practically any language
• A lot of client APIs in C, Java, Ruby, Pyhton, JS,
PHP
• Implemented by ActiveMQ, Apollo, HornetQ,
RabbitMQ
11
CamelOne 2013
CamelOne

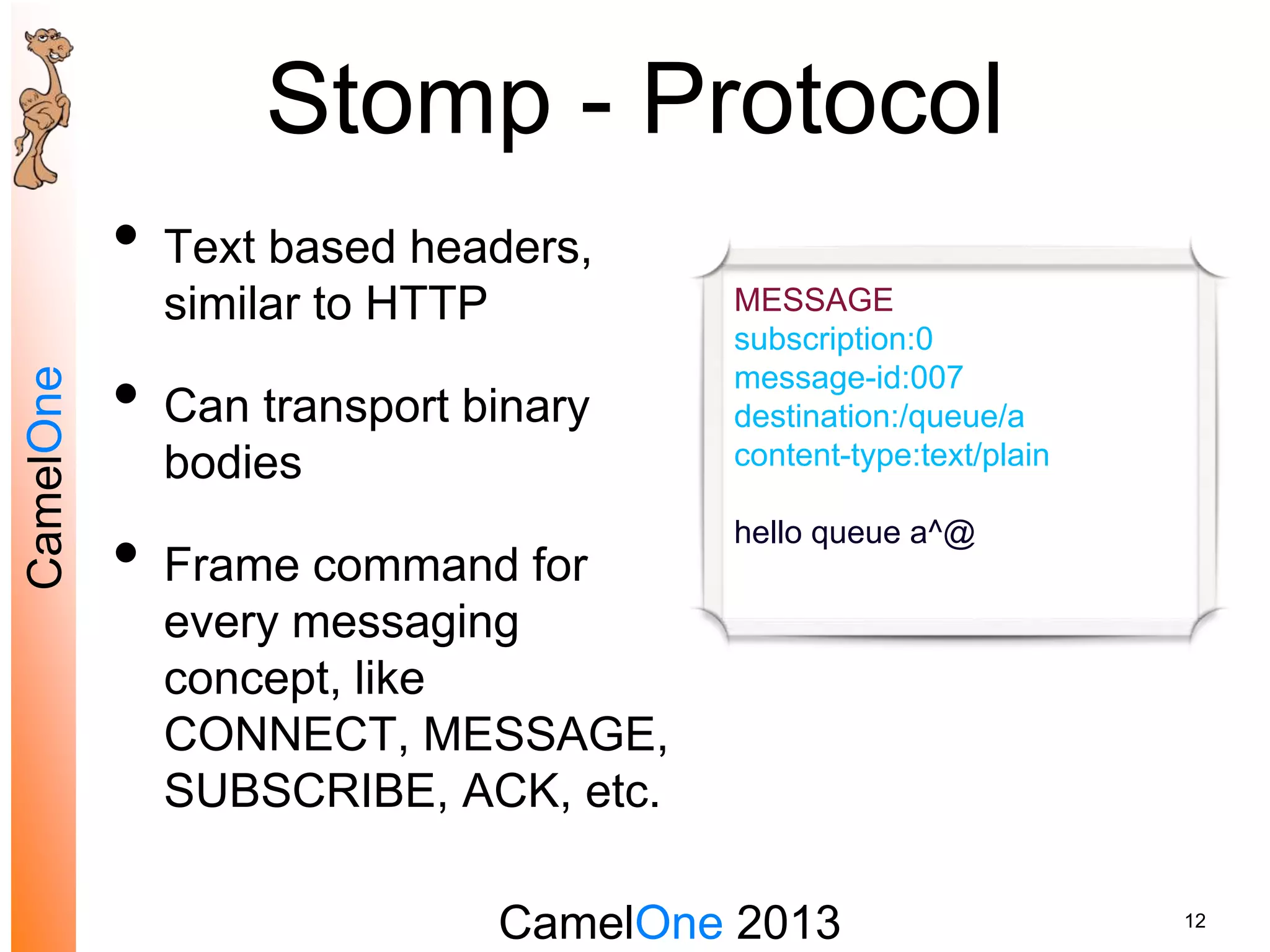

Stomp - Protocol
• Text based headers,
similar to HTTP
• Can transport binary
bodies
• Frame command for
every messaging
concept, like
CONNECT, MESSAGE,
SUBSCRIBE, ACK, etc.
12
MESSAGE
subscription:0
message-id:007
destination:/queue/a
content-type:text/plain
hello queue a^@
CamelOne 2013
CamelOne

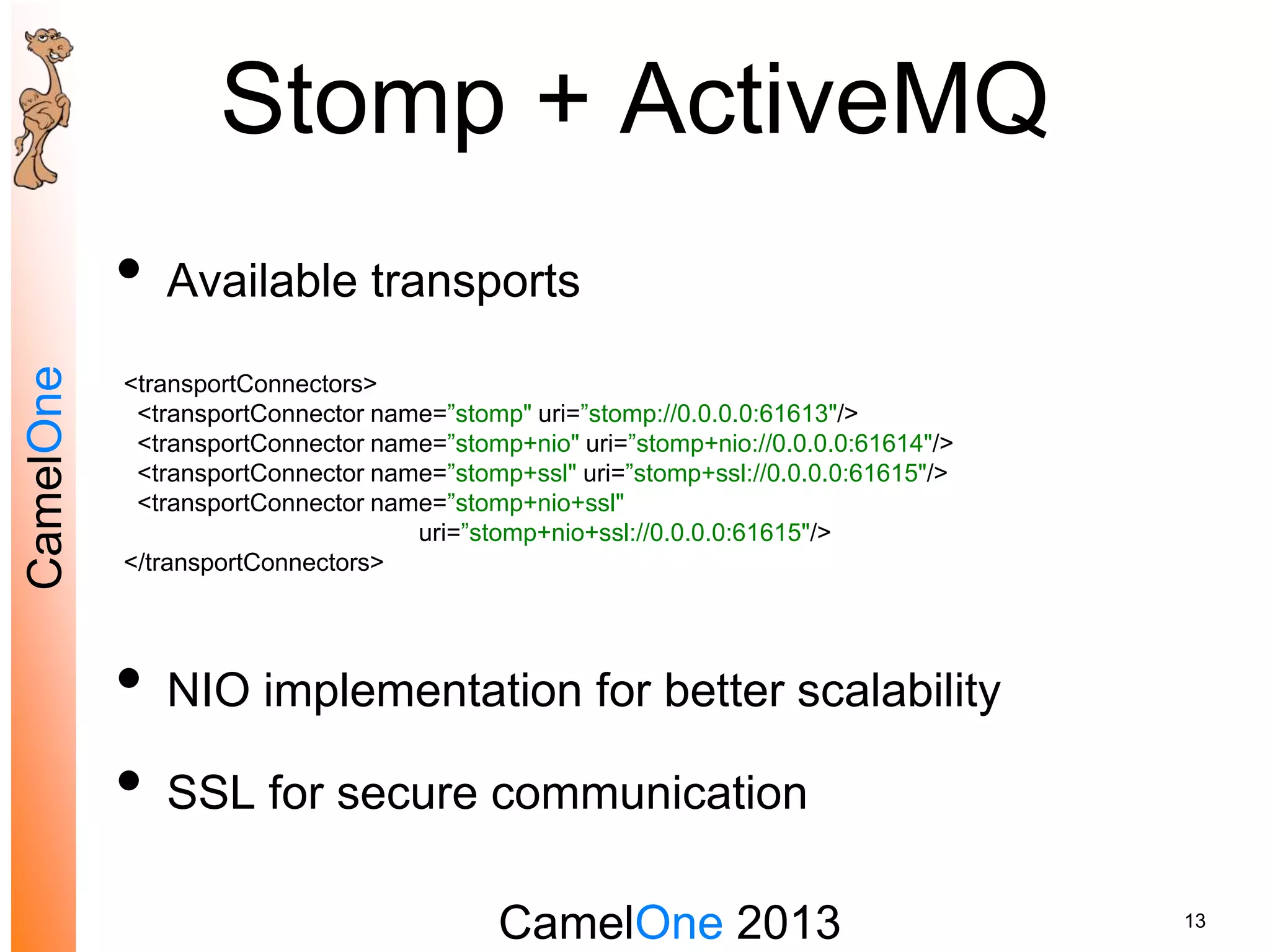

Stomp + ActiveMQ
• Available transports
• NIO implementation for better scalability
• SSL for secure communication
13
<transportConnectors>
<transportConnector name=”stomp" uri=”stomp://0.0.0.0:61613"/>
<transportConnector name=”stomp+nio" uri=”stomp+nio://0.0.0.0:61614"/>
<transportConnector name=”stomp+ssl" uri=”stomp+ssl://0.0.0.0:61615"/>
<transportConnector name=”stomp+nio+ssl"
uri=”stomp+nio+ssl://0.0.0.0:61615"/>
</transportConnectors>
CamelOne 2013
CamelOne

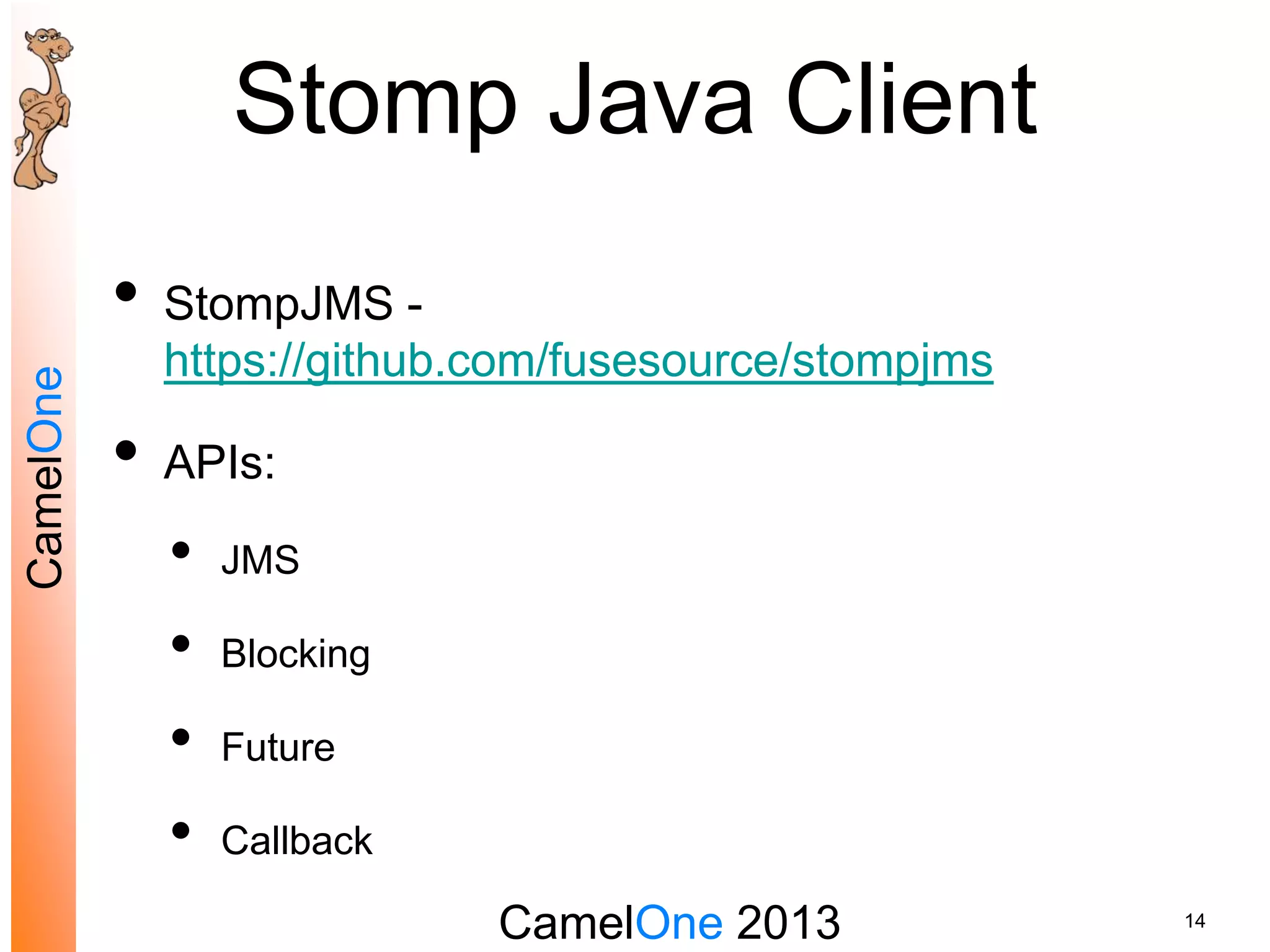

Stomp Java Client
• StompJMS -
https://github.com/fusesource/stompjms
• APIs:
• JMS
• Blocking
• Future
• Callback
14
CamelOne 2013
CamelOne
15
Stomp stomp = new Stomp("localhost", 61613);
Future<FutureConnection> future = stomp.connectFuture();
FutureConnection connection = future.await();
CONNECT
host:localhost
accept-version:1.1
CONNECTED
heart-beat:0,0
session:ID:vidra.local-56933-1369046267671-2:1
server:ActiveMQ/5.9-SNAPSHOT
version:1.1
CamelOne 2013
CamelOne
16

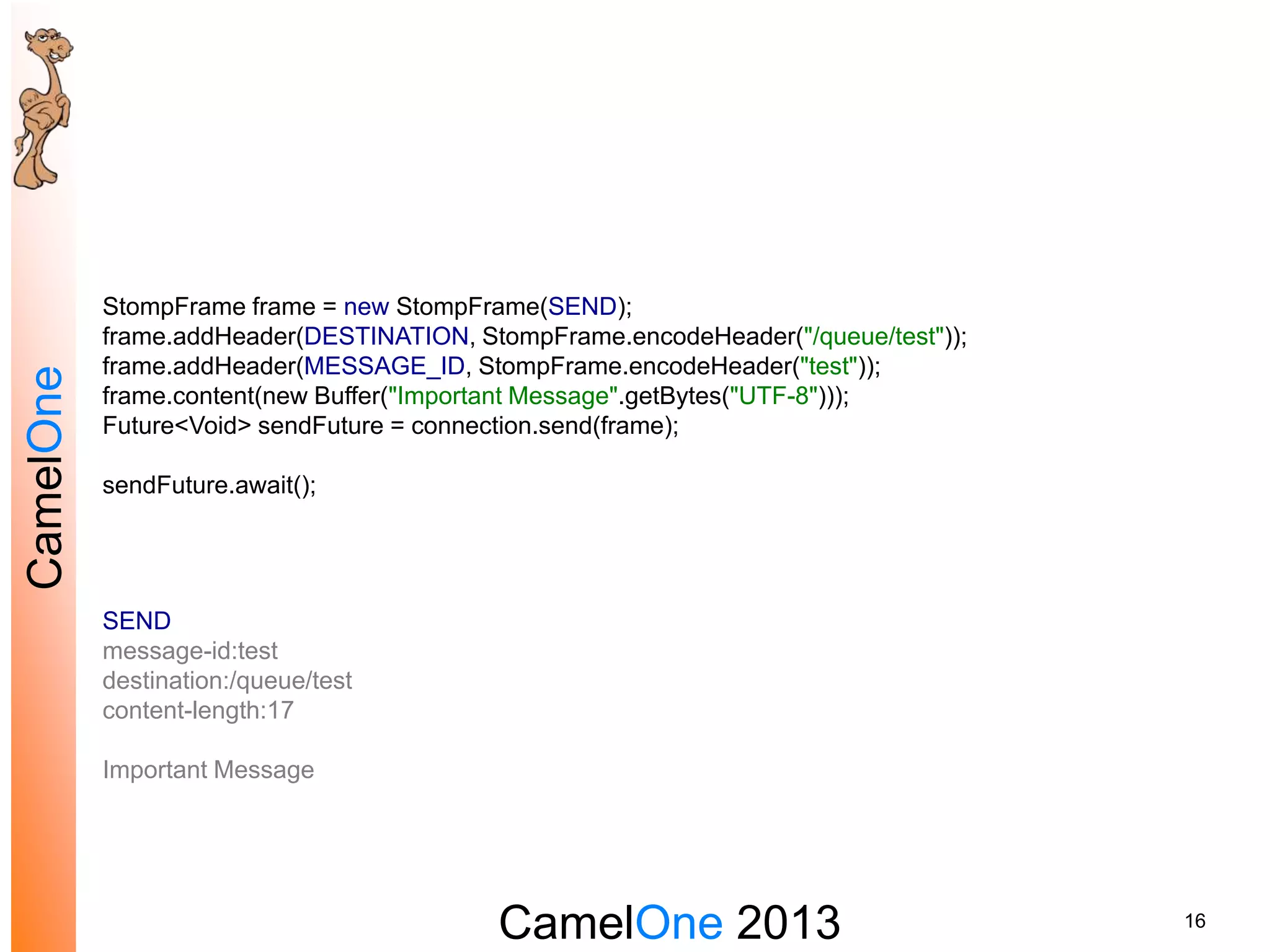

StompFrame frame = new StompFrame(SEND);
frame.addHeader(DESTINATION, StompFrame.encodeHeader("/queue/test"));
frame.addHeader(MESSAGE_ID, StompFrame.encodeHeader("test"));
frame.content(new Buffer("Important Message".getBytes("UTF-8")));
Future<Void> sendFuture = connection.send(frame);
sendFuture.await();
SEND
message-id:test
destination:/queue/test
content-length:17
Important Message
CamelOne 2013
CamelOne
17

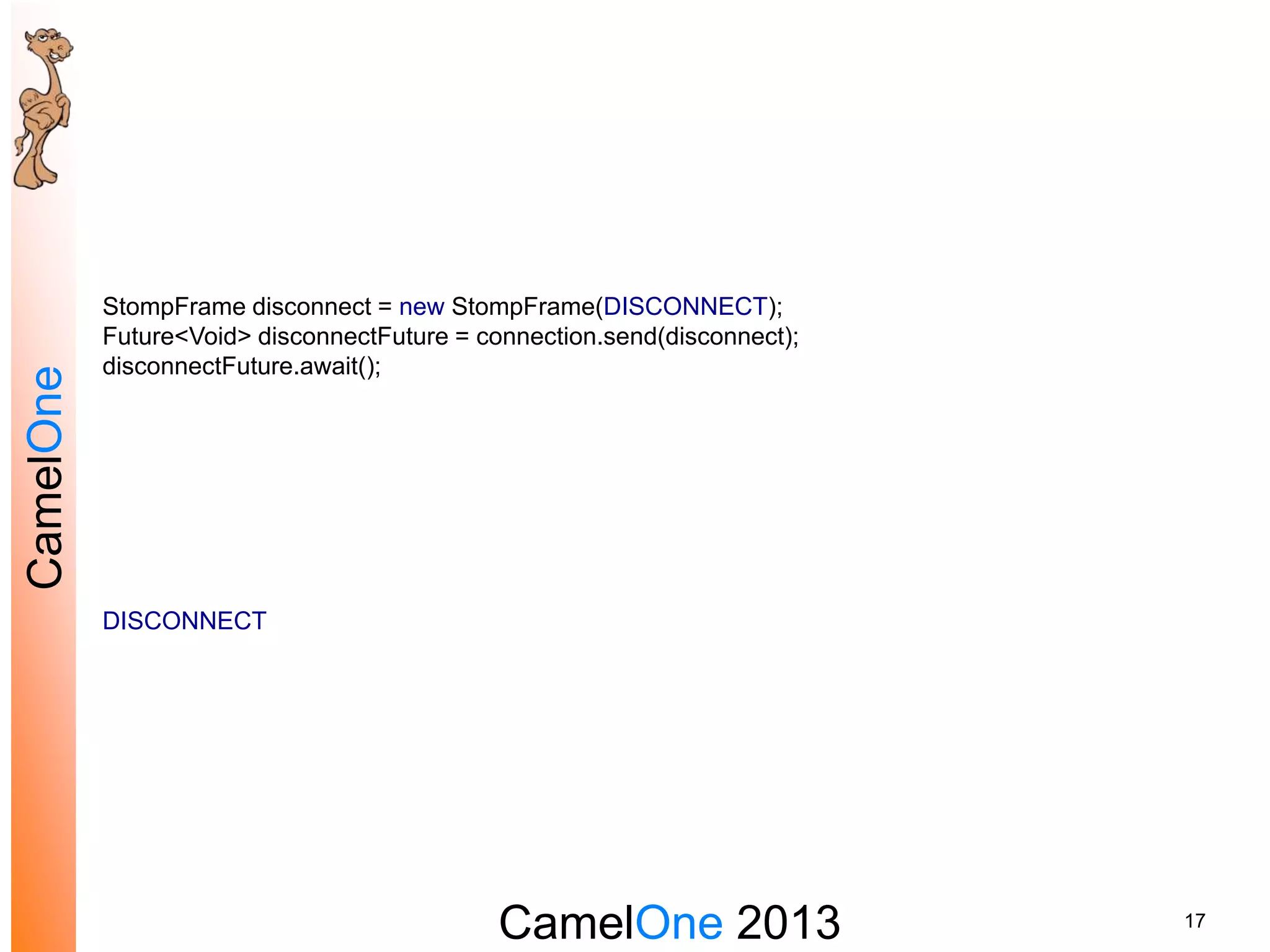

StompFrame disconnect = new StompFrame(DISCONNECT);
Future<Void> disconnectFuture = connection.send(disconnect);
disconnectFuture.await();
DISCONNECT
CamelOne 2013
CamelOne

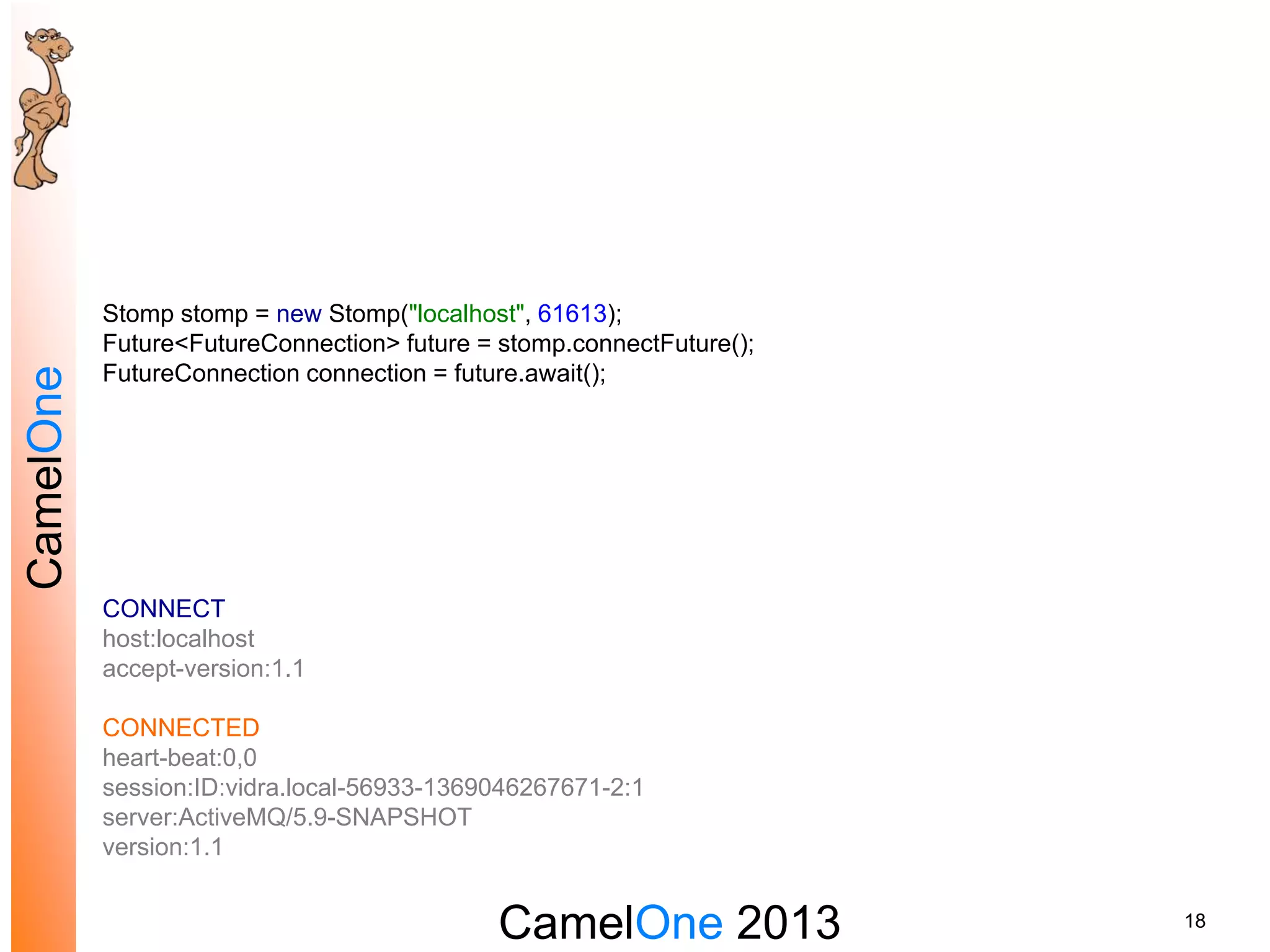

18
Stomp stomp = new Stomp("localhost", 61613);
Future<FutureConnection> future = stomp.connectFuture();
FutureConnection connection = future.await();
CONNECT
host:localhost
accept-version:1.1
CONNECTED
heart-beat:0,0
session:ID:vidra.local-56933-1369046267671-2:1
server:ActiveMQ/5.9-SNAPSHOT
version:1.1
CamelOne 2013
CamelOne
19

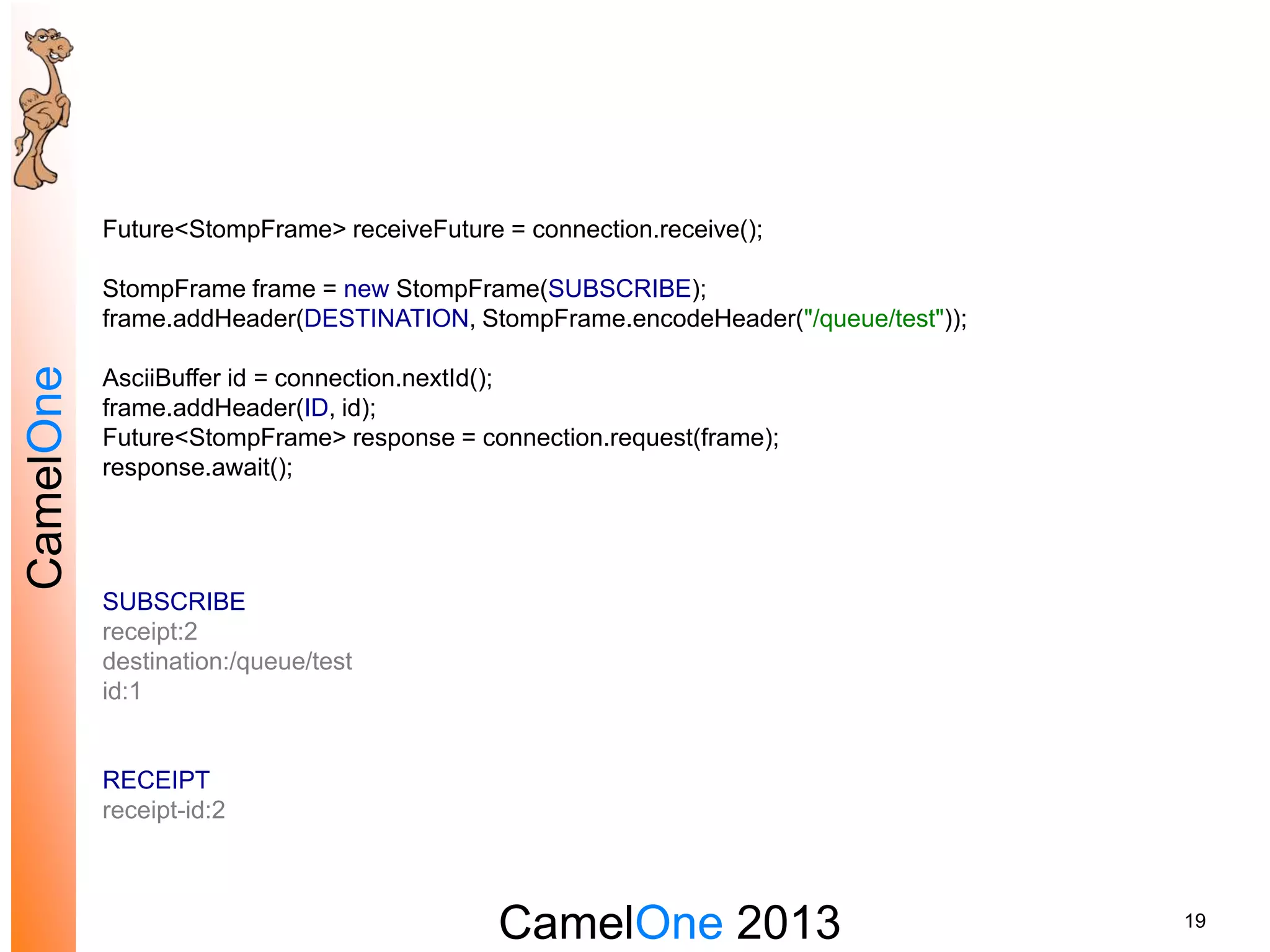

Future<StompFrame> receiveFuture = connection.receive();
StompFrame frame = new StompFrame(SUBSCRIBE);
frame.addHeader(DESTINATION, StompFrame.encodeHeader("/queue/test"));
AsciiBuffer id = connection.nextId();
frame.addHeader(ID, id);
Future<StompFrame> response = connection.request(frame);
response.await();
SUBSCRIBE
receipt:2
destination:/queue/test
id:1
RECEIPT
receipt-id:2
CamelOne 2013
CamelOne
20

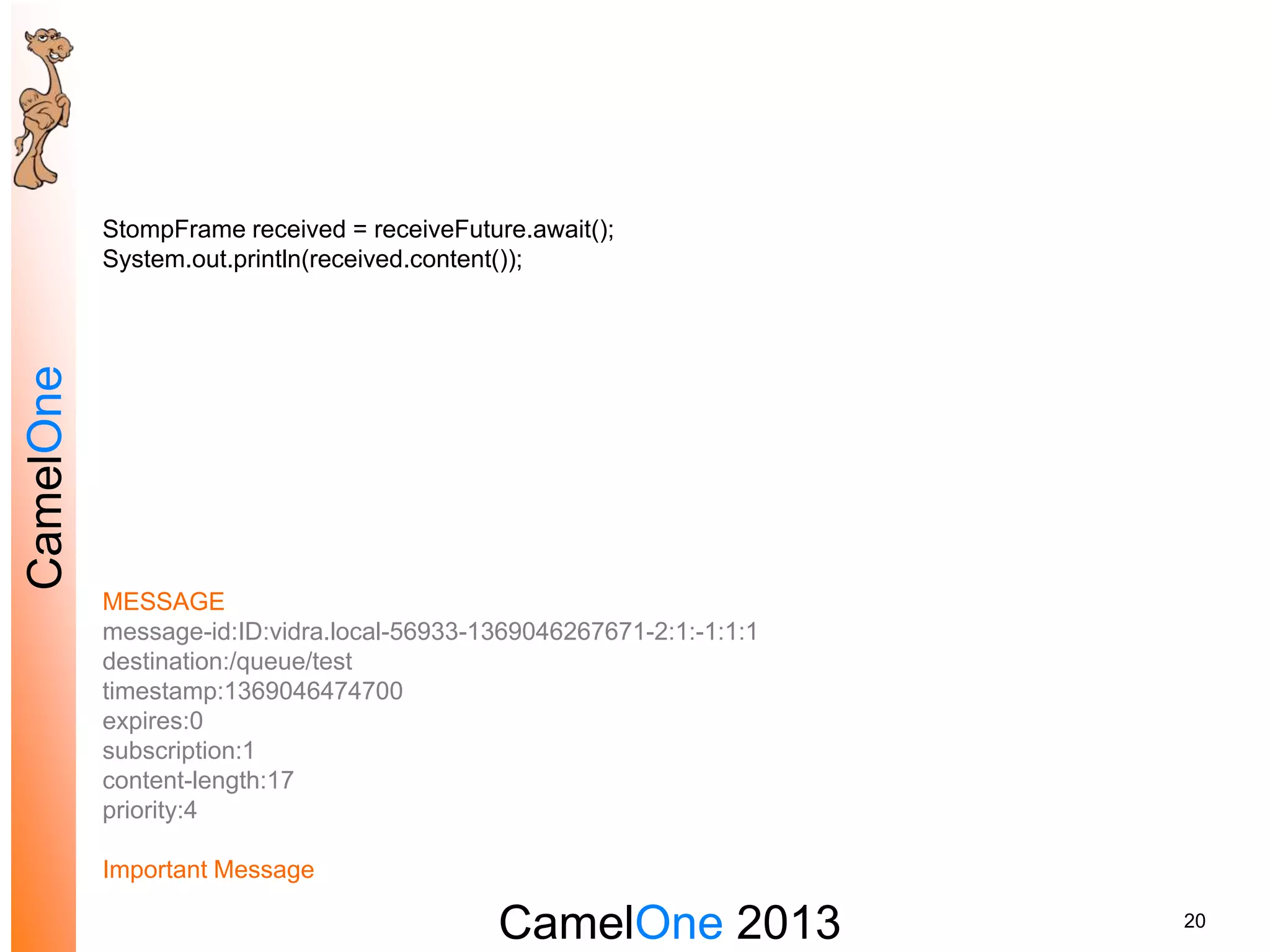

StompFrame received = receiveFuture.await();
System.out.println(received.content());
MESSAGE
message-id:ID:vidra.local-56933-1369046267671-2:1:-1:1:1
destination:/queue/test
timestamp:1369046474700
expires:0
subscription:1
content-length:17
priority:4
Important Message
CamelOne 2013
CamelOne
21

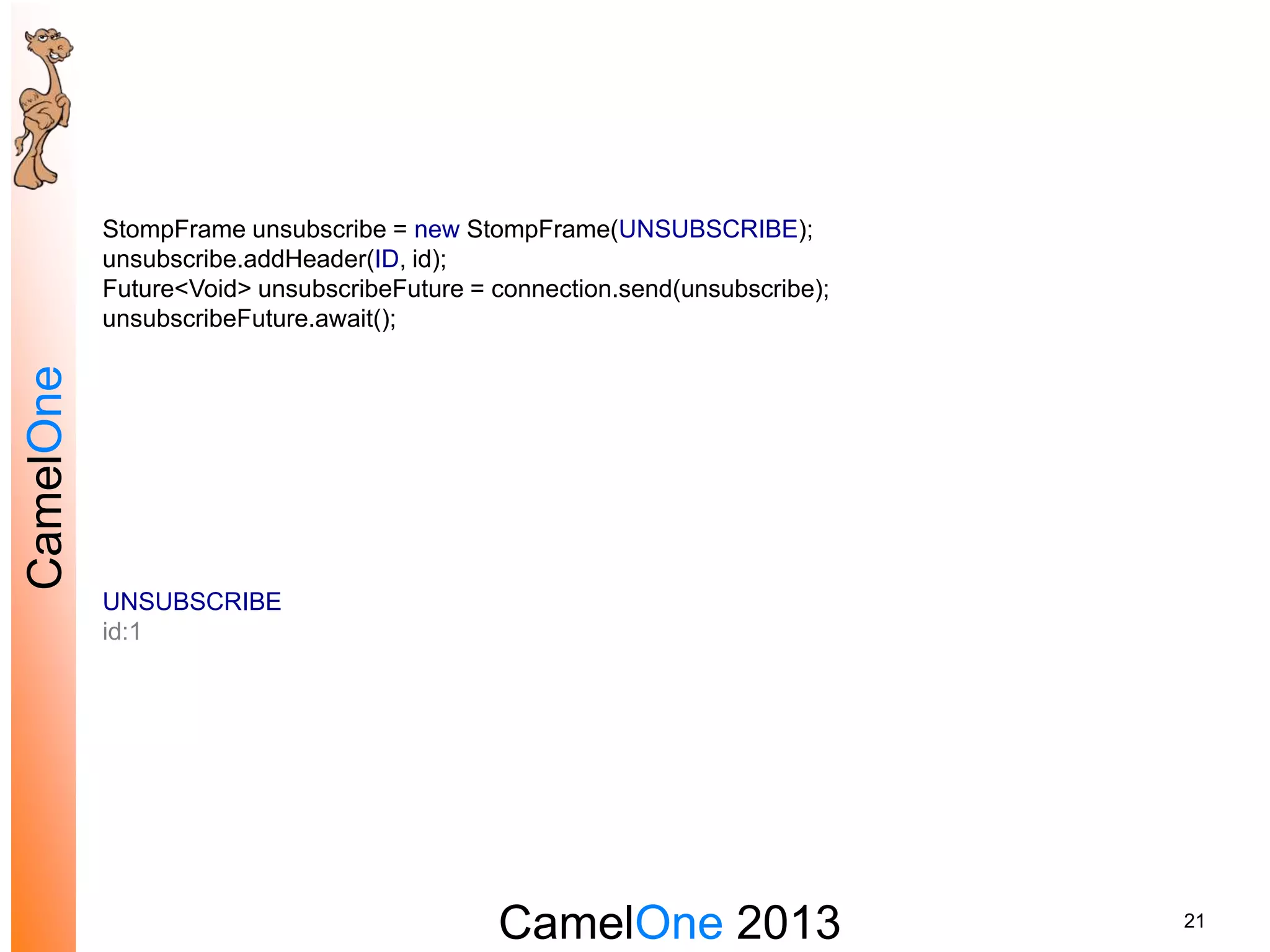

StompFrame unsubscribe = new StompFrame(UNSUBSCRIBE);
unsubscribe.addHeader(ID, id);
Future<Void> unsubscribeFuture = connection.send(unsubscribe);
unsubscribeFuture.await();
UNSUBSCRIBE
id:1
CamelOne 2013
CamelOne
22
StompFrame disconnect = new StompFrame(DISCONNECT);
Future<Void> disconnectFuture = connection.send(disconnect);
disconnectFuture.await();
DISCONNECT
CamelOne 2013
CamelOne

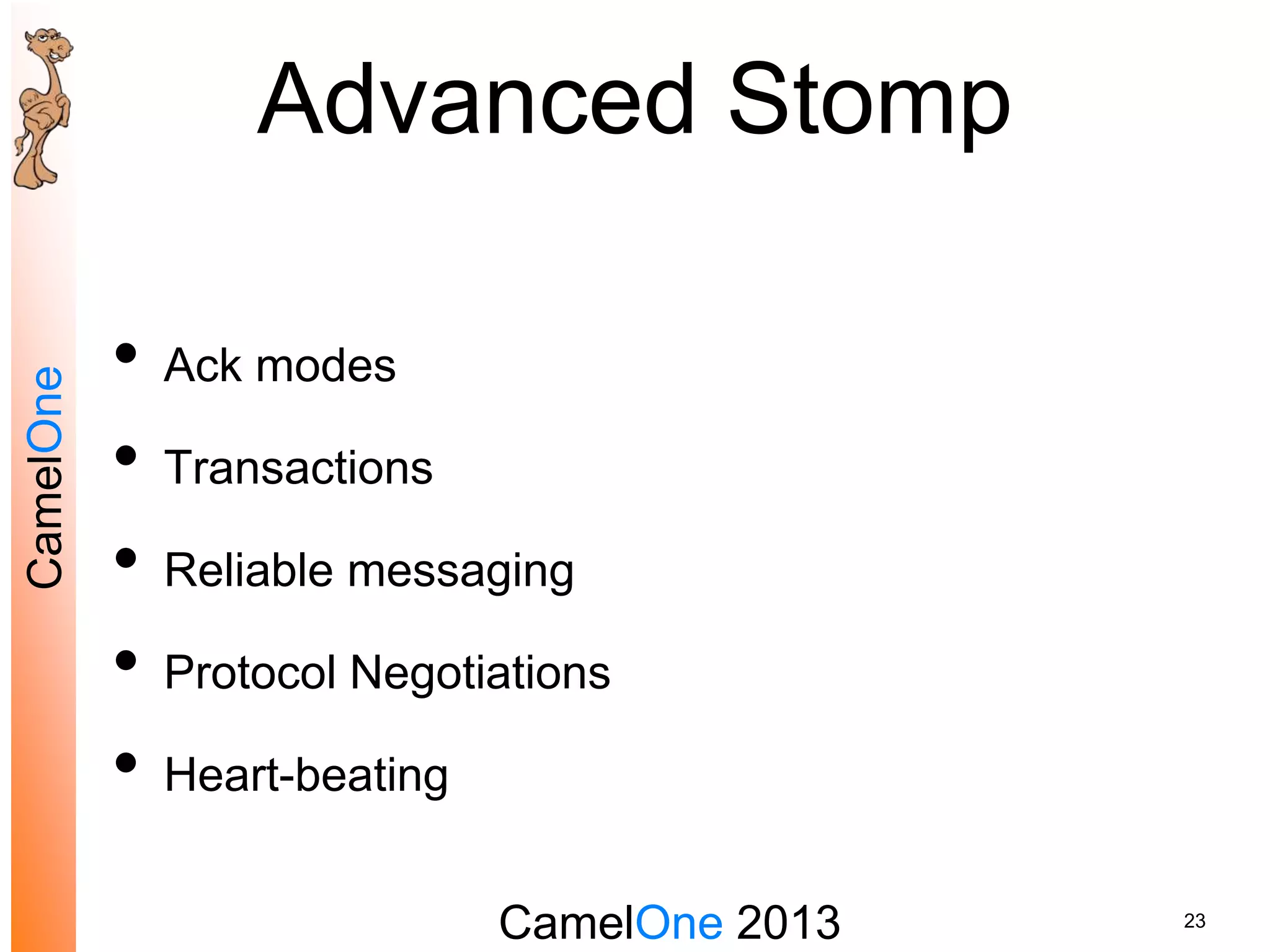

Advanced Stomp
• Ack modes
• Transactions
• Reliable messaging
• Protocol Negotiations
• Heart-beating
23
CamelOne 2013
CamelOne

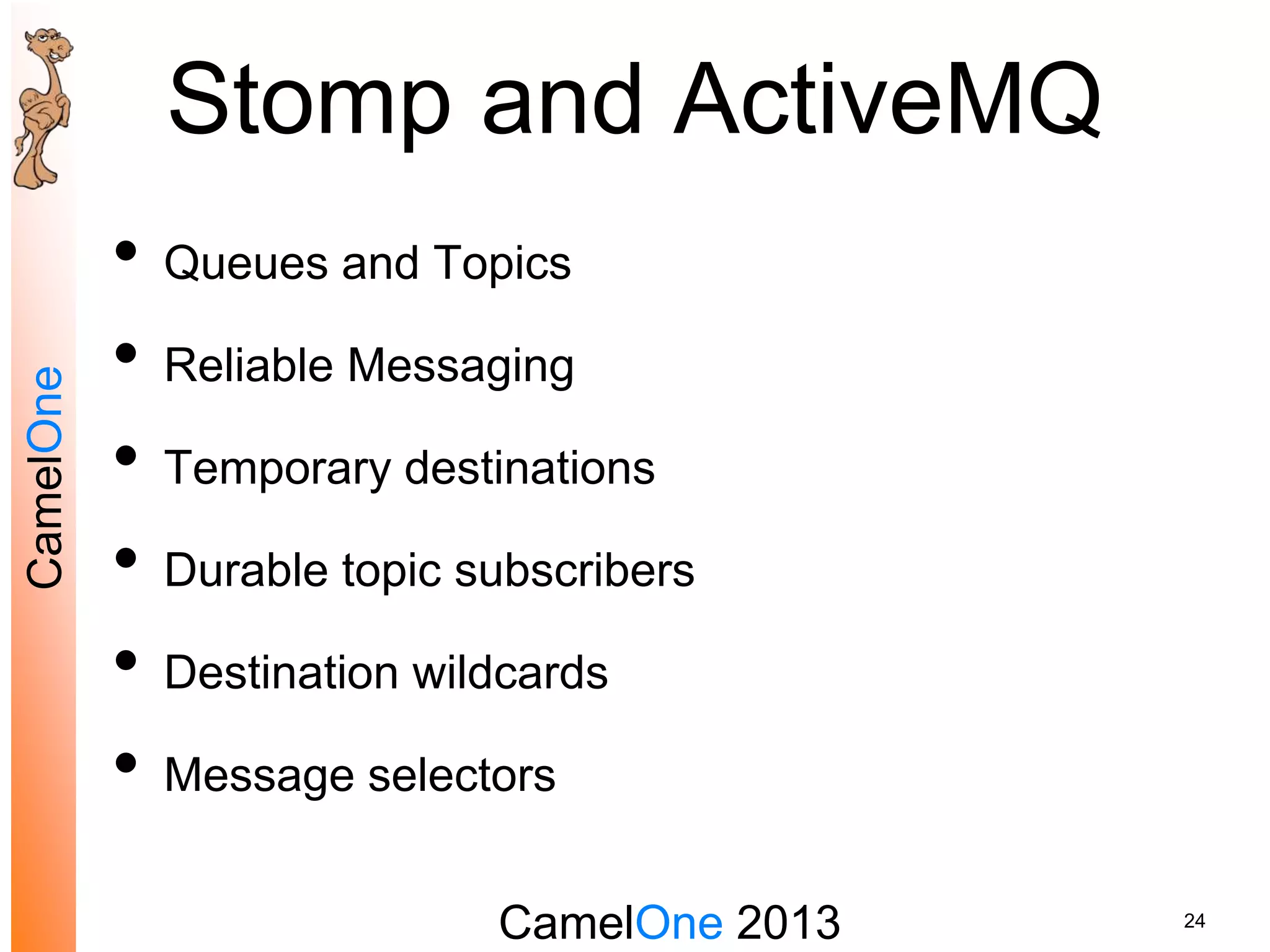

Stomp and ActiveMQ
• Queues and Topics
• Reliable Messaging
• Temporary destinations
• Durable topic subscribers
• Destination wildcards
• Message selectors
24
CamelOne 2013
CamelOne

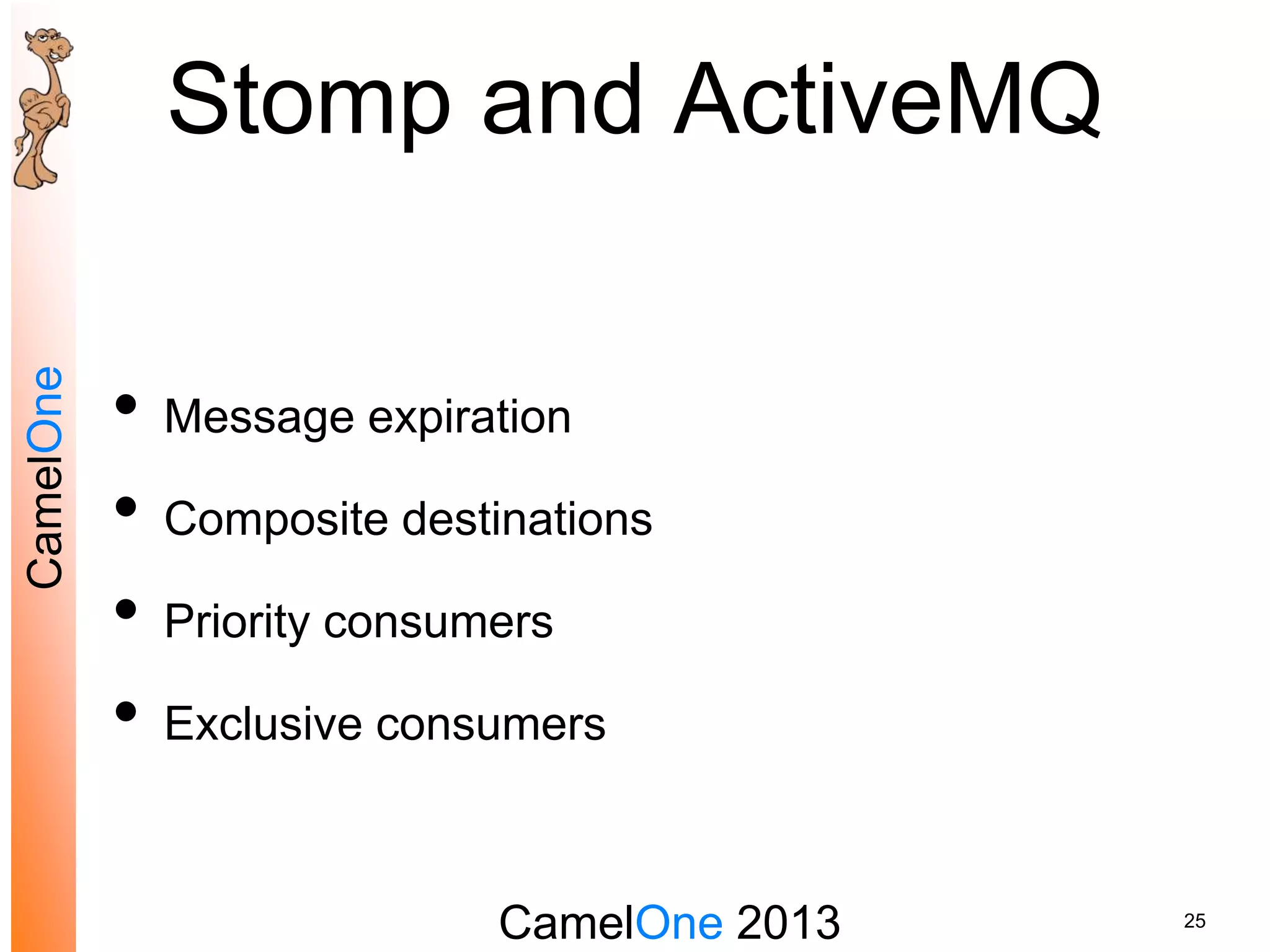

Stomp and ActiveMQ
• Message expiration
• Composite destinations
• Priority consumers
• Exclusive consumers
25
CamelOne 2013
CamelOne

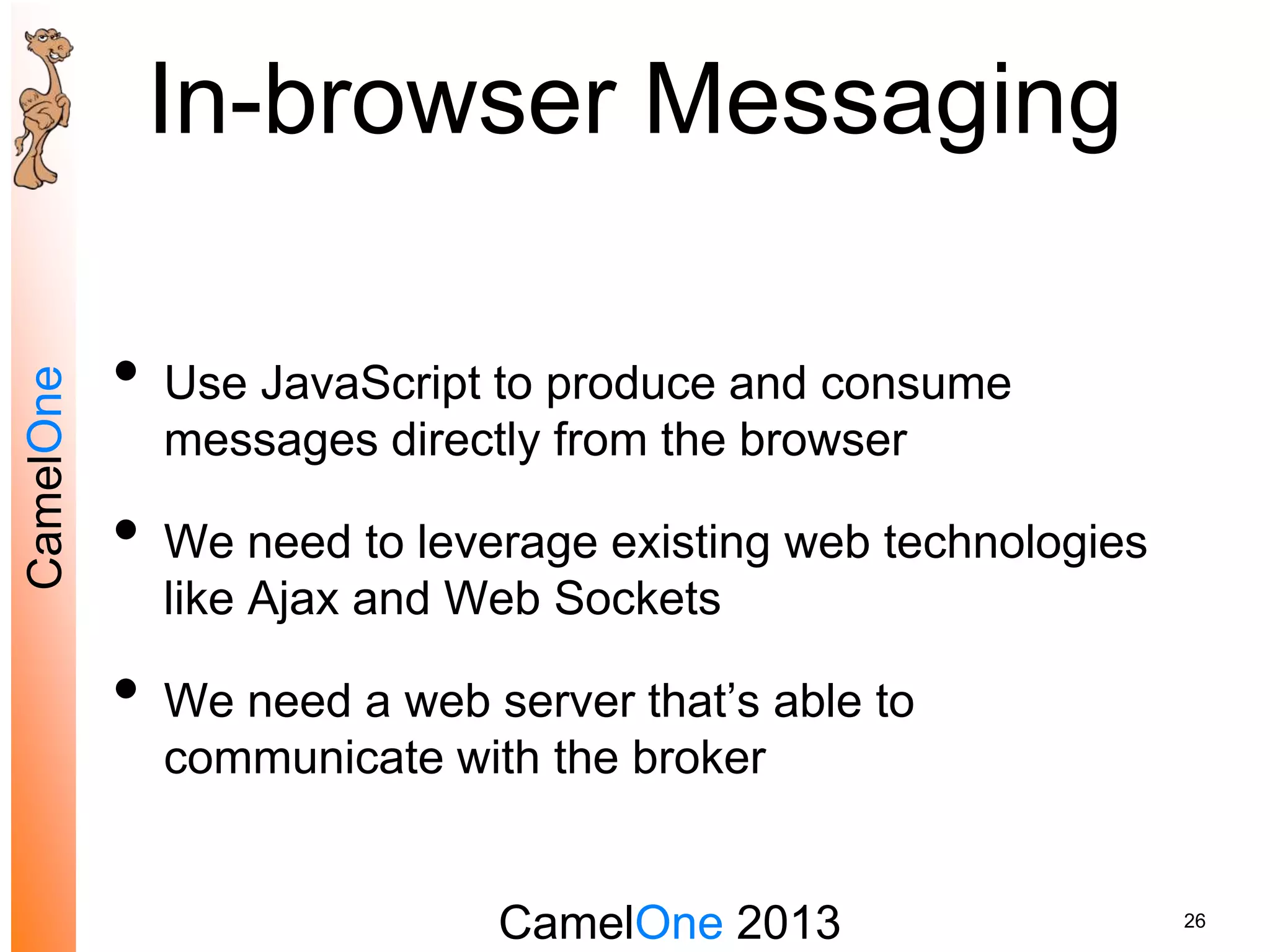

In-browser Messaging
• Use JavaScript to produce and consume
messages directly from the browser
• We need to leverage existing web technologies
like Ajax and Web Sockets
• We need a web server that’s able to
communicate with the broker
26
CamelOne 2013
CamelOne

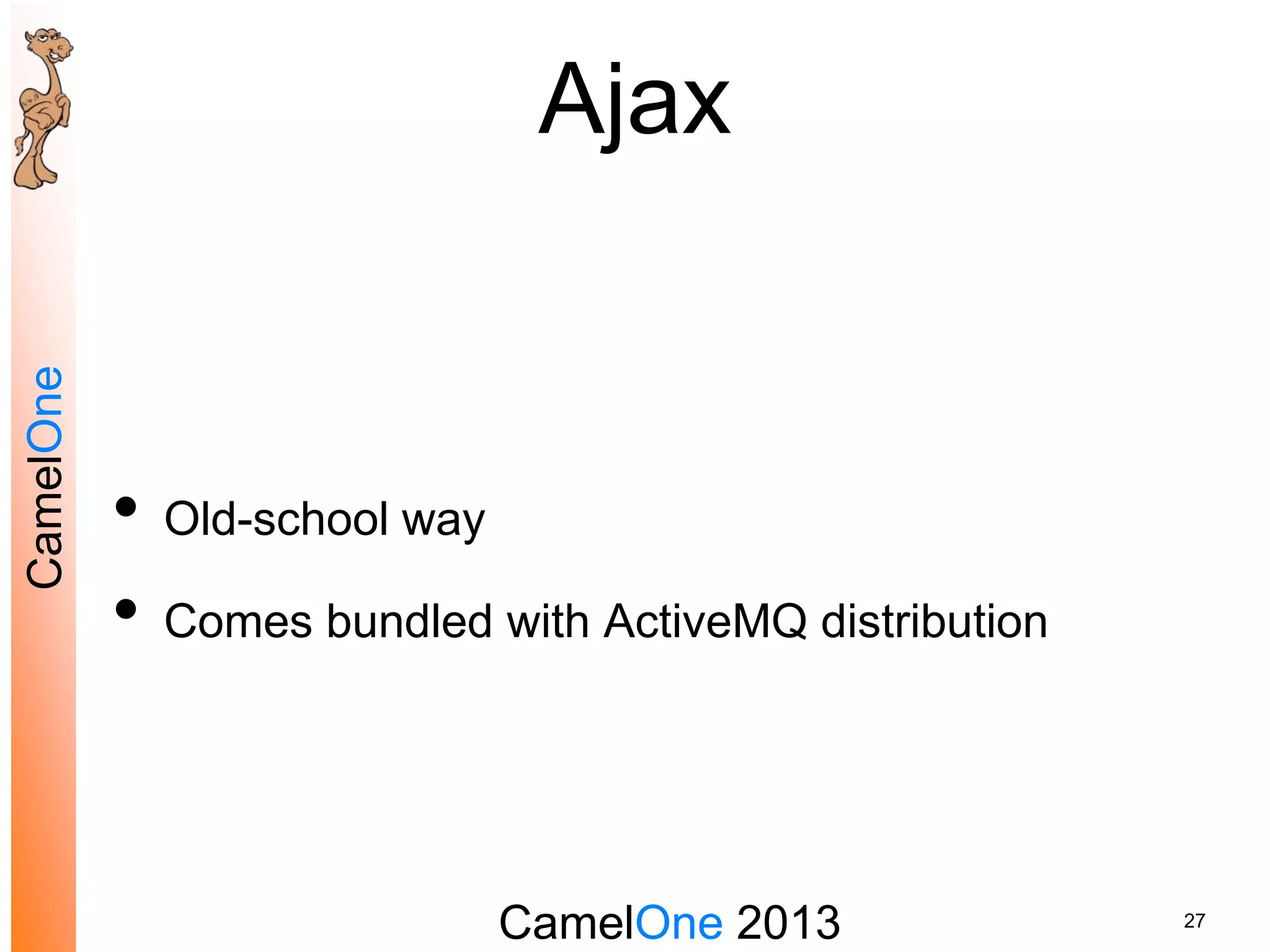

Ajax
• Old-school way
• Comes bundled with ActiveMQ distribution
27
CamelOne 2013
CamelOne

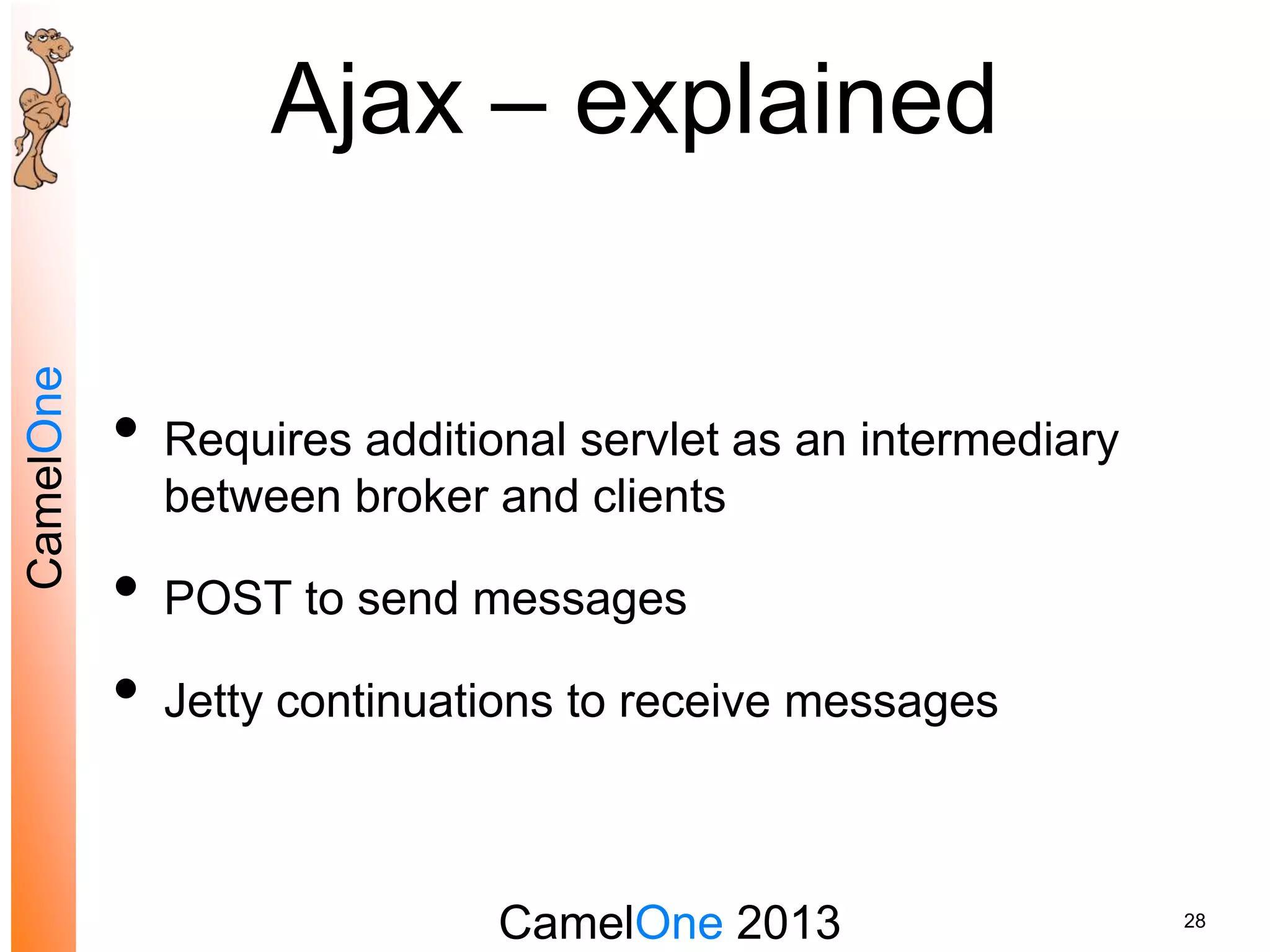

Ajax – explained
• Requires additional servlet as an intermediary
between broker and clients
• POST to send messages
• Jetty continuations to receive messages
28
CamelOne 2013
CamelOne

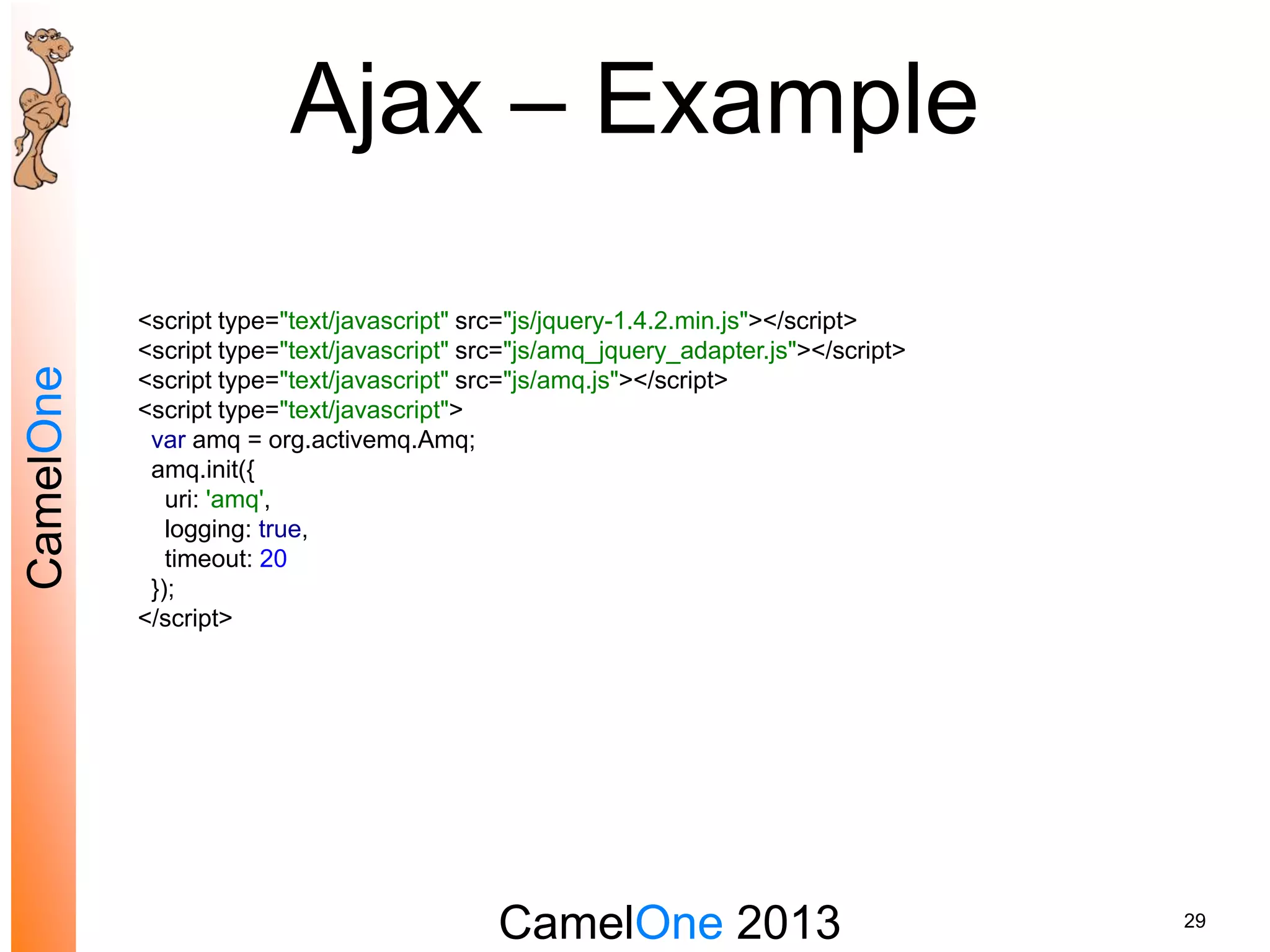

Ajax – Example
29
<script type="text/javascript" src="js/jquery-1.4.2.min.js"></script>
<script type="text/javascript" src="js/amq_jquery_adapter.js"></script>
<script type="text/javascript" src="js/amq.js"></script>
<script type="text/javascript">
var amq = org.activemq.Amq;
amq.init({
uri: 'amq',
logging: true,
timeout: 20
});
</script>
CamelOne 2013
CamelOne

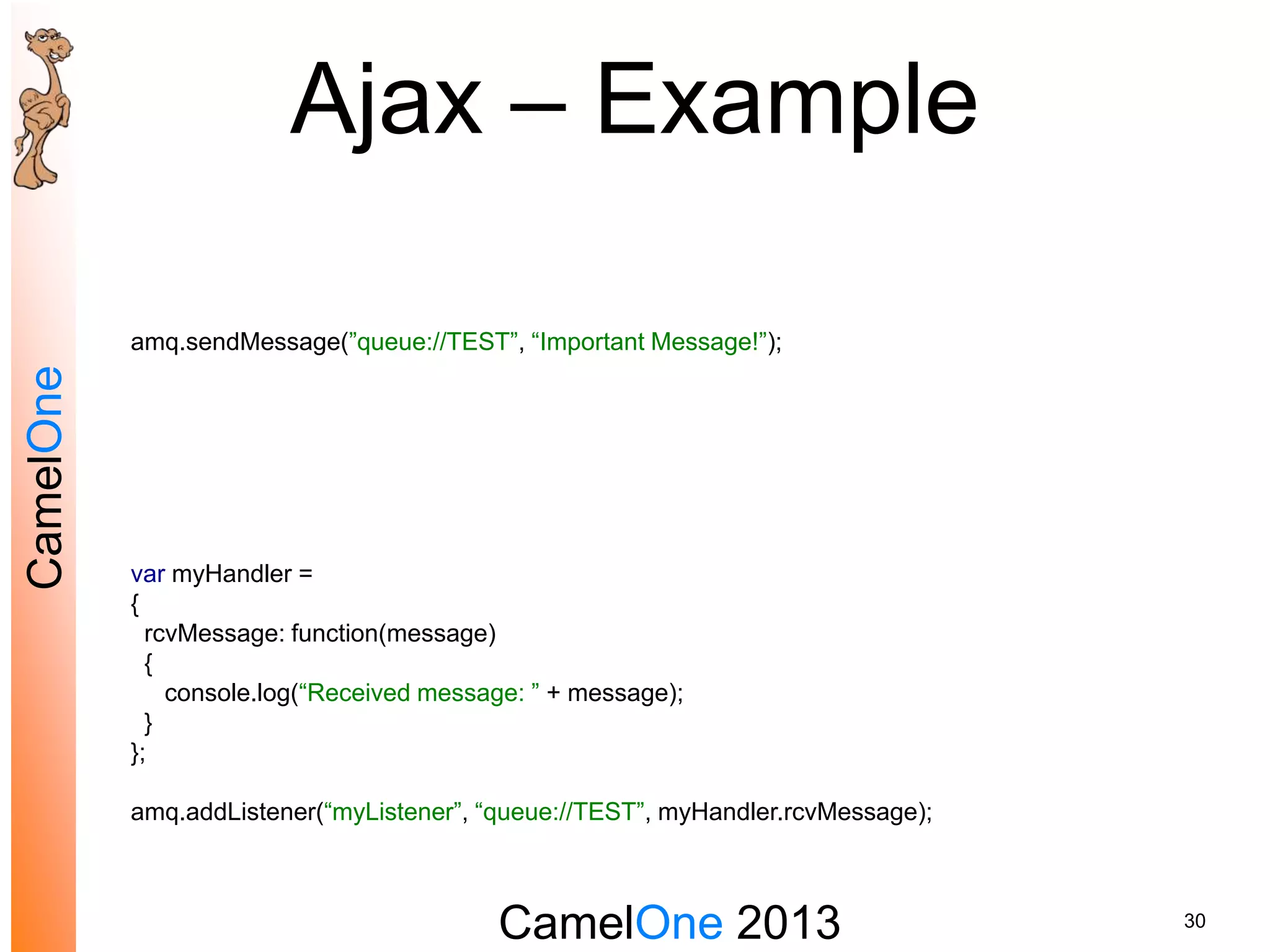

Ajax – Example
30
amq.sendMessage(”queue://TEST”, “Important Message!”);
var myHandler =
{
rcvMessage: function(message)
{
console.log(“Received message: ” + message);
}
};
amq.addListener(“myListener”, “queue://TEST”, myHandler.rcvMessage);
CamelOne 2013
CamelOne

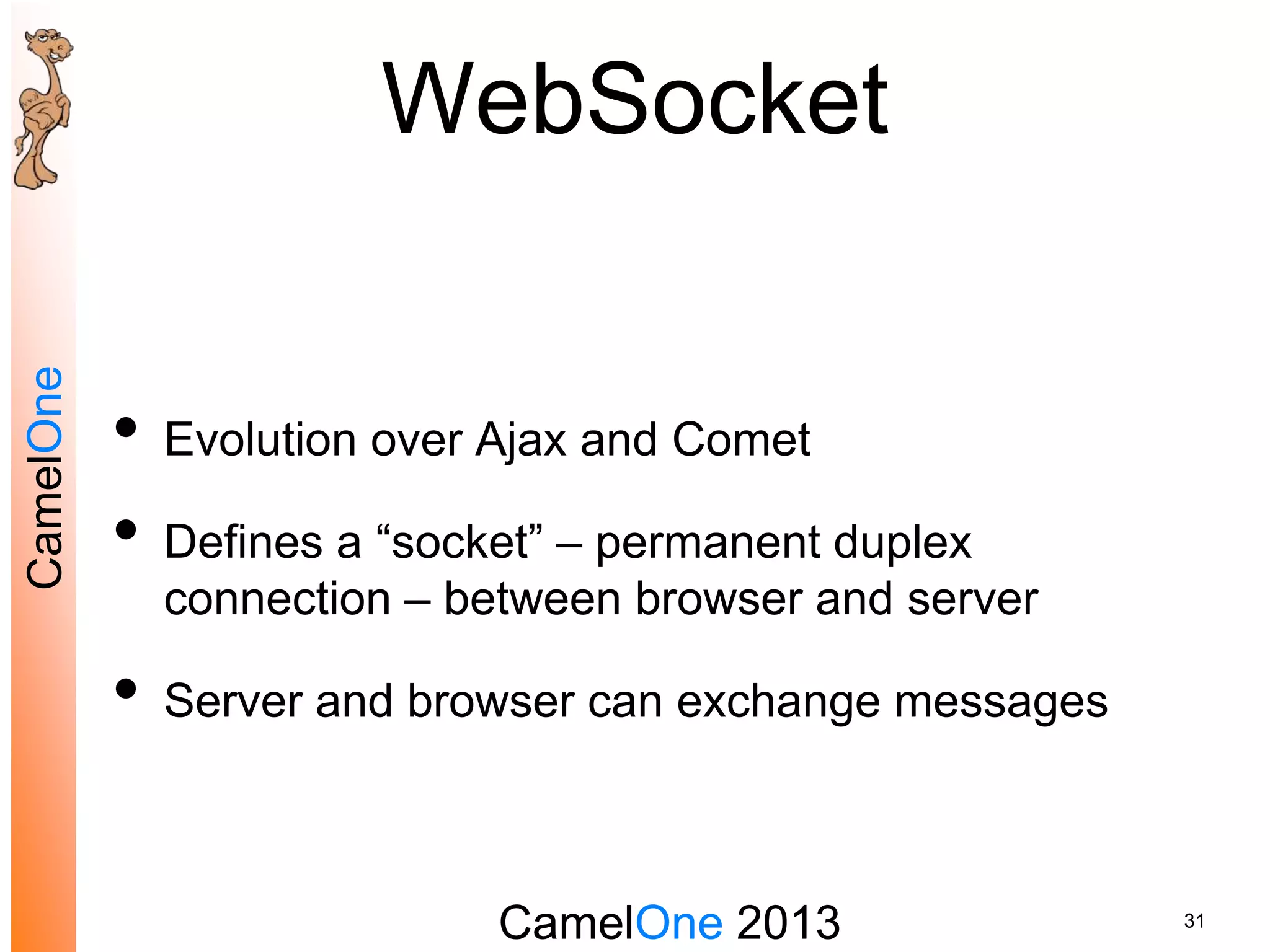

WebSocket
• Evolution over Ajax and Comet
• Defines a “socket” – permanent duplex
connection – between browser and server
• Server and browser can exchange messages
31
CamelOne 2013
CamelOne

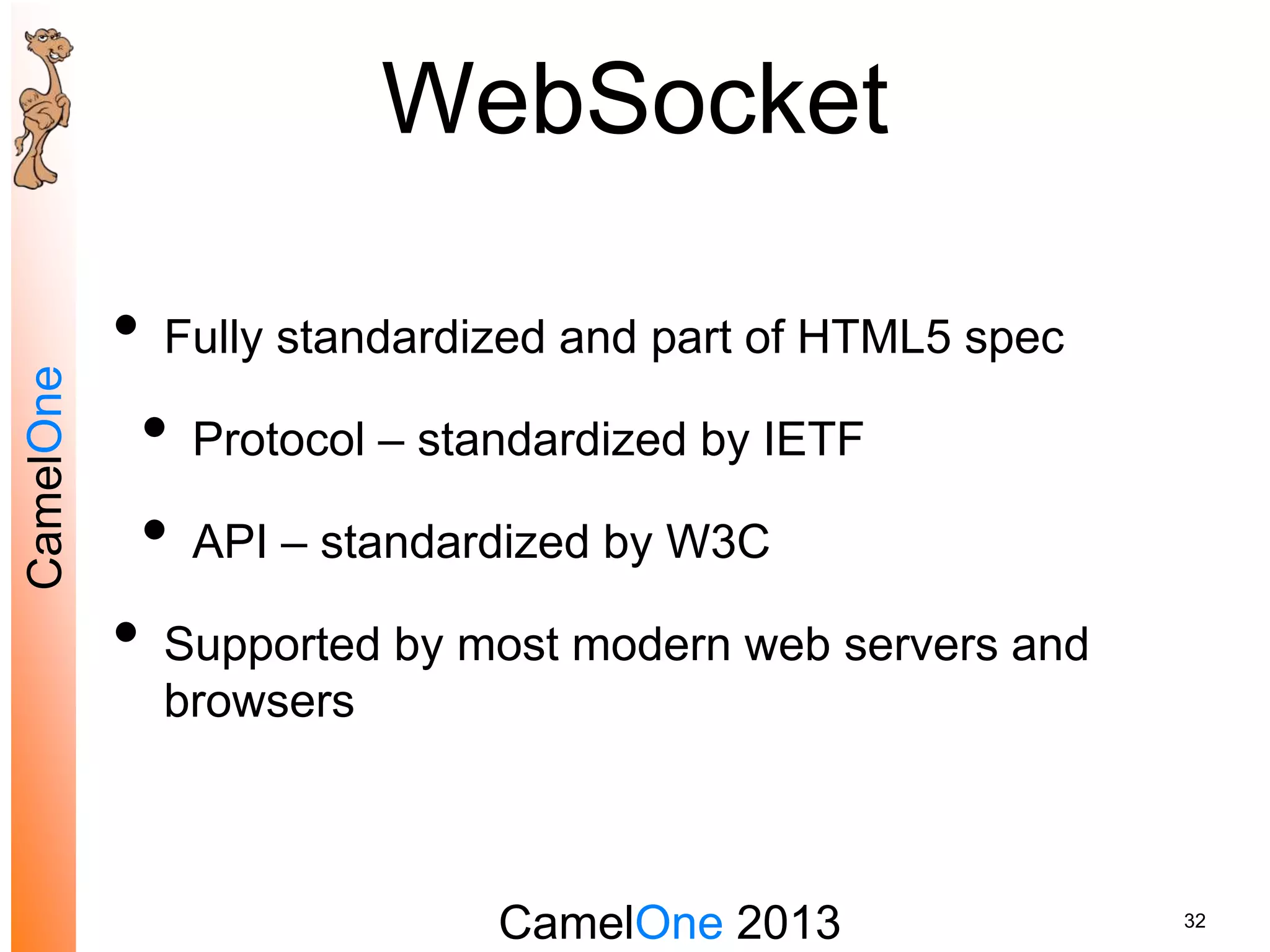

WebSocket
• Fully standardized and part of HTML5 spec
• Protocol – standardized by IETF
• API – standardized by W3C
• Supported by most modern web servers and
browsers
32
CamelOne 2013
CamelOne

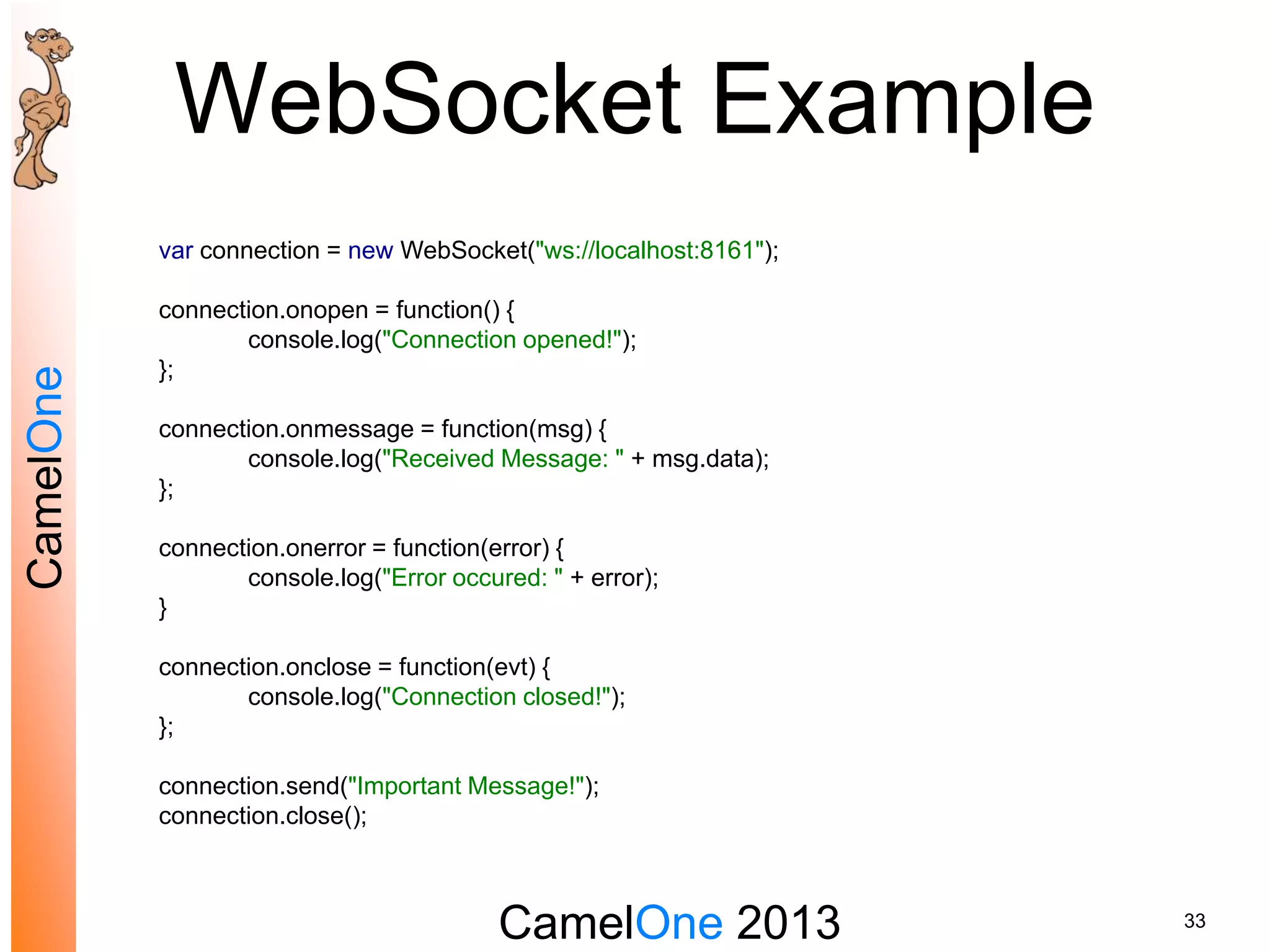

WebSocket Example
33
var connection = new WebSocket("ws://localhost:8161");
connection.onopen = function() {
console.log("Connection opened!");
};
connection.onmessage = function(msg) {
console.log("Received Message: " + msg.data);
};
connection.onerror = function(error) {
console.log("Error occured: " + error);
}
connection.onclose = function(evt) {
console.log("Connection closed!");
};
connection.send("Important Message!");
connection.close();
CamelOne 2013
CamelOne

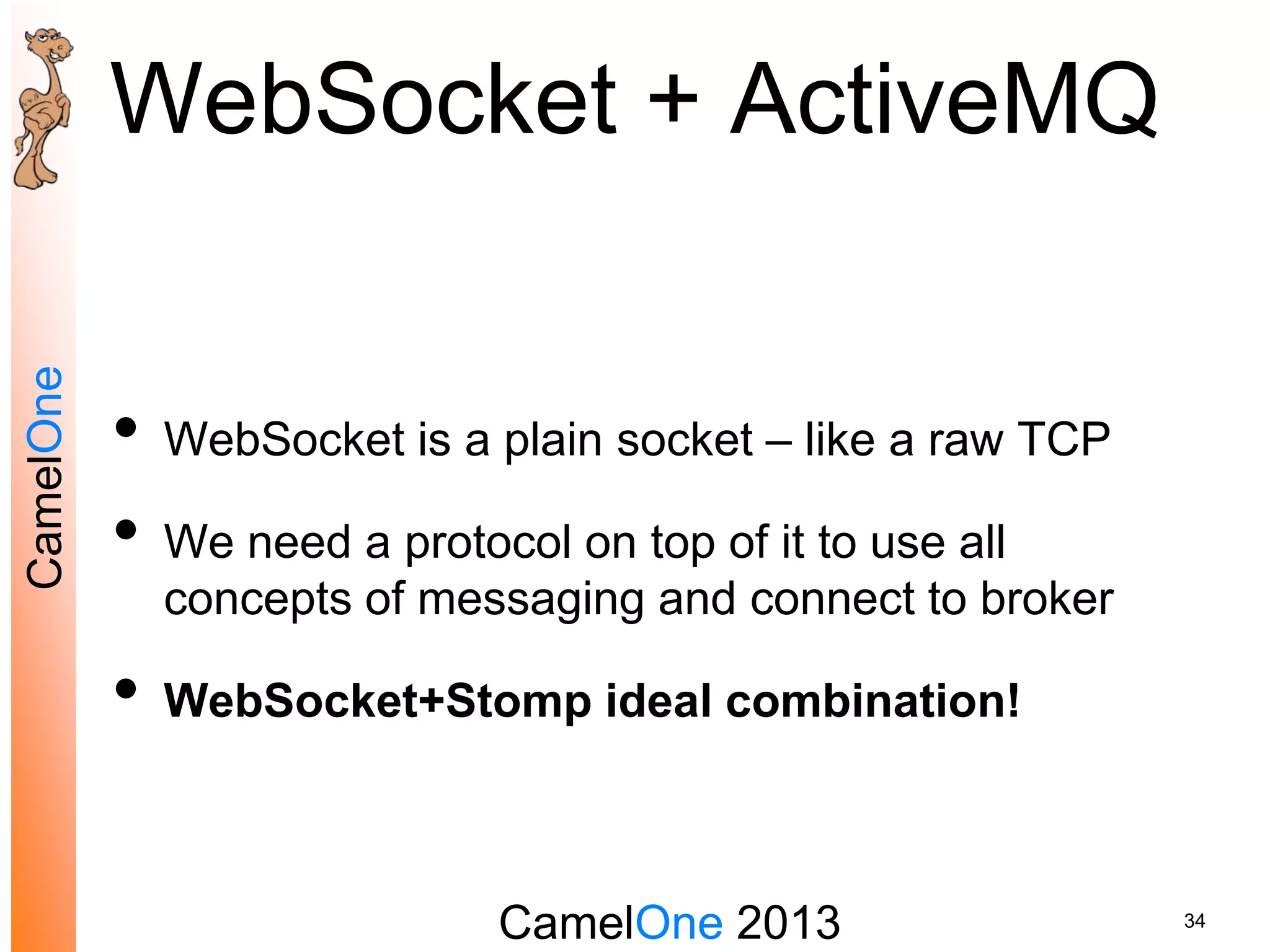

WebSocket + ActiveMQ
• WebSocket is a plain socket – like a raw TCP
• We need a protocol on top of it to use all
concepts of messaging and connect to broker
• WebSocket+Stomp ideal combination!
34
CamelOne 2013
CamelOne

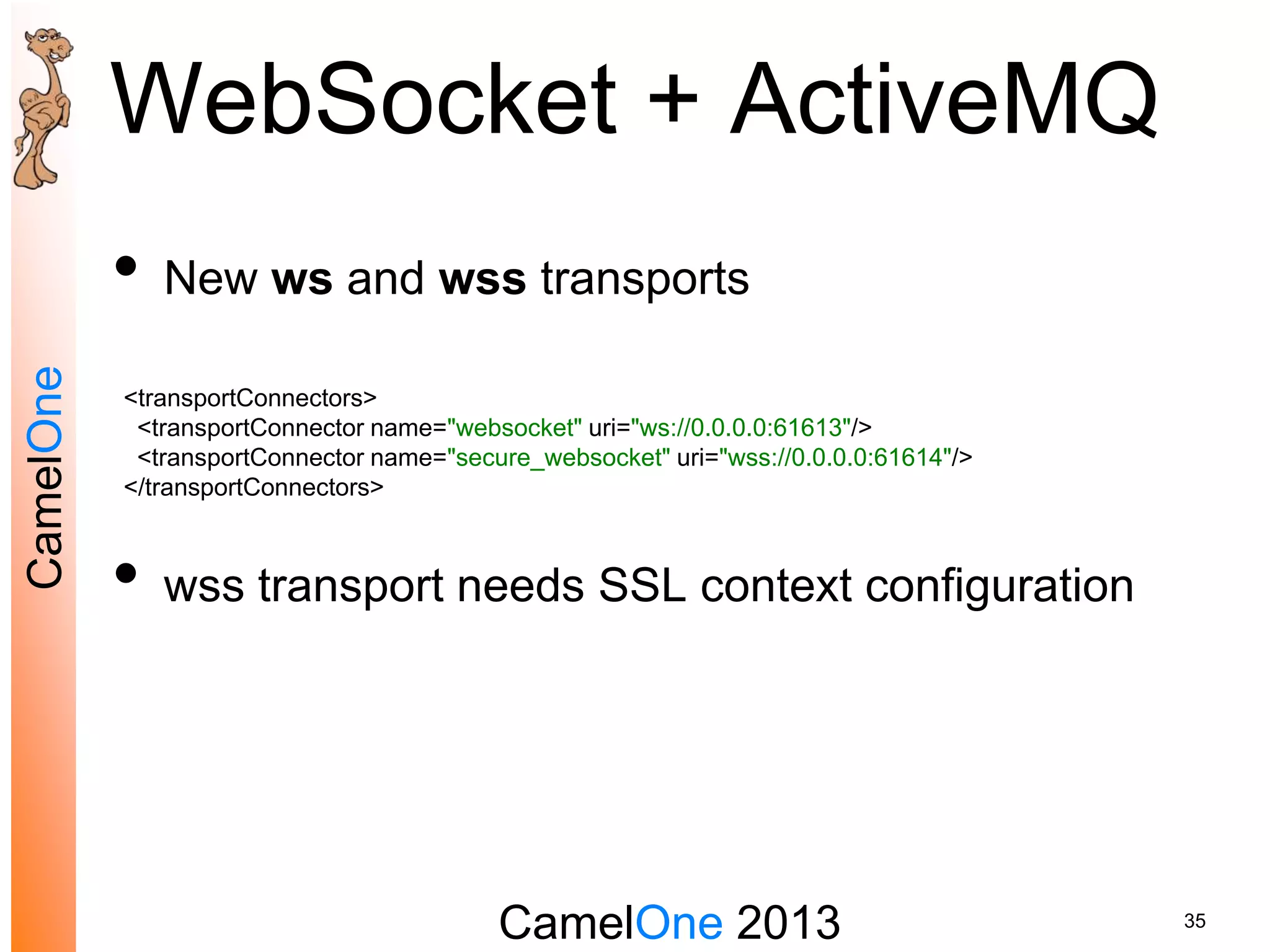

WebSocket + ActiveMQ
• New ws and wss transports
• wss transport needs SSL context configuration
35
<transportConnectors>
<transportConnector name="websocket" uri="ws://0.0.0.0:61613"/>
<transportConnector name="secure_websocket" uri="wss://0.0.0.0:61614"/>
</transportConnectors>
CamelOne 2013
CamelOne

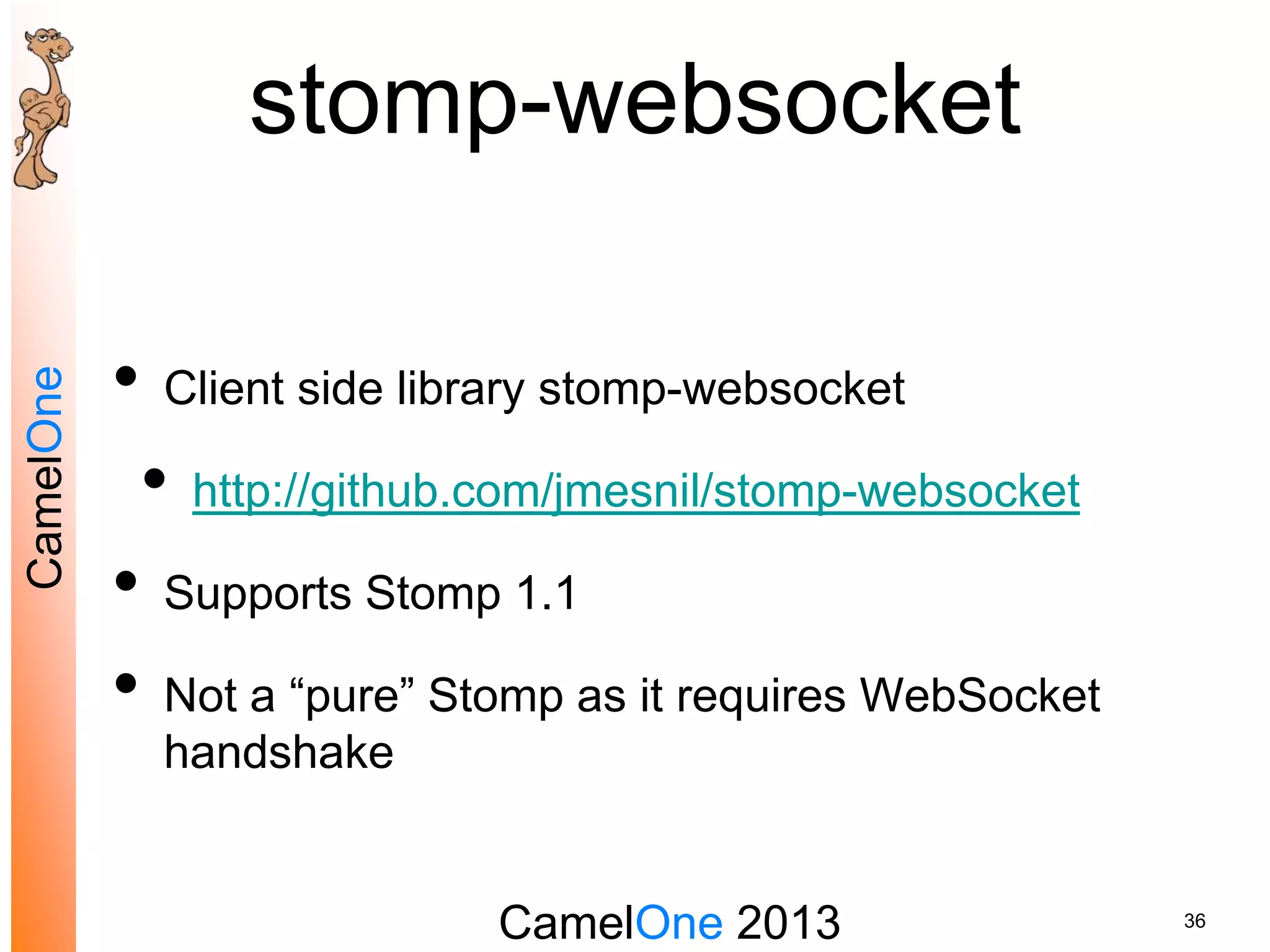

stomp-websocket
• Client side library stomp-websocket
• http://github.com/jmesnil/stomp-websocket
• Supports Stomp 1.1
• Not a “pure” Stomp as it requires WebSocket
handshake
36
CamelOne 2013

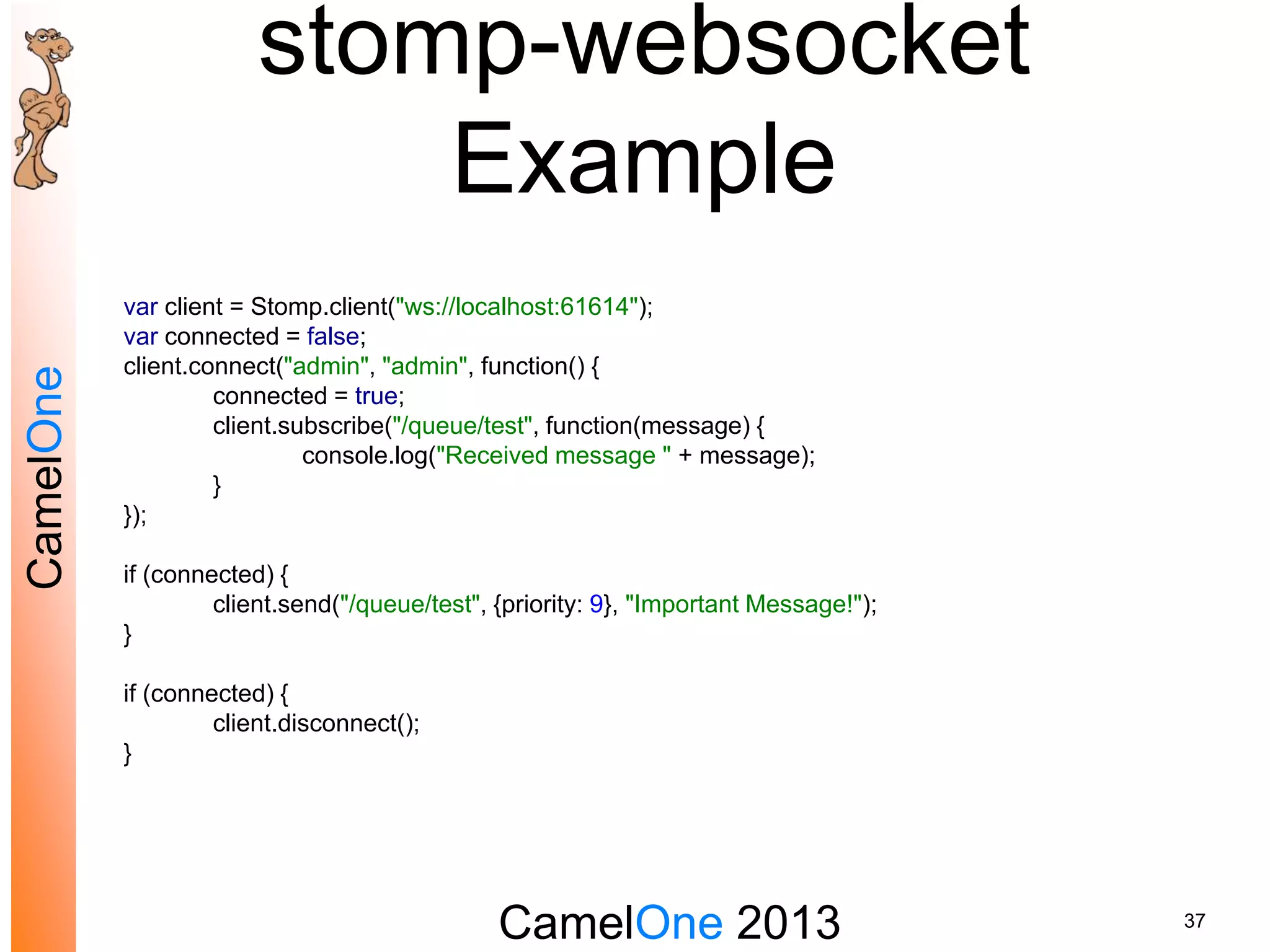

CamelOne stomp-websocket
Example
37
var client = Stomp.client("ws://localhost:61614");
var connected = false;
client.connect("admin", "admin", function() {
connected = true;
client.subscribe("/queue/test", function(message) {
console.log("Received message " + message);
}
});
if (connected) {
client.send("/queue/test", {priority: 9}, "Important Message!");
}
if (connected) {
client.disconnect();
}
CamelOne 2013
CamelOne

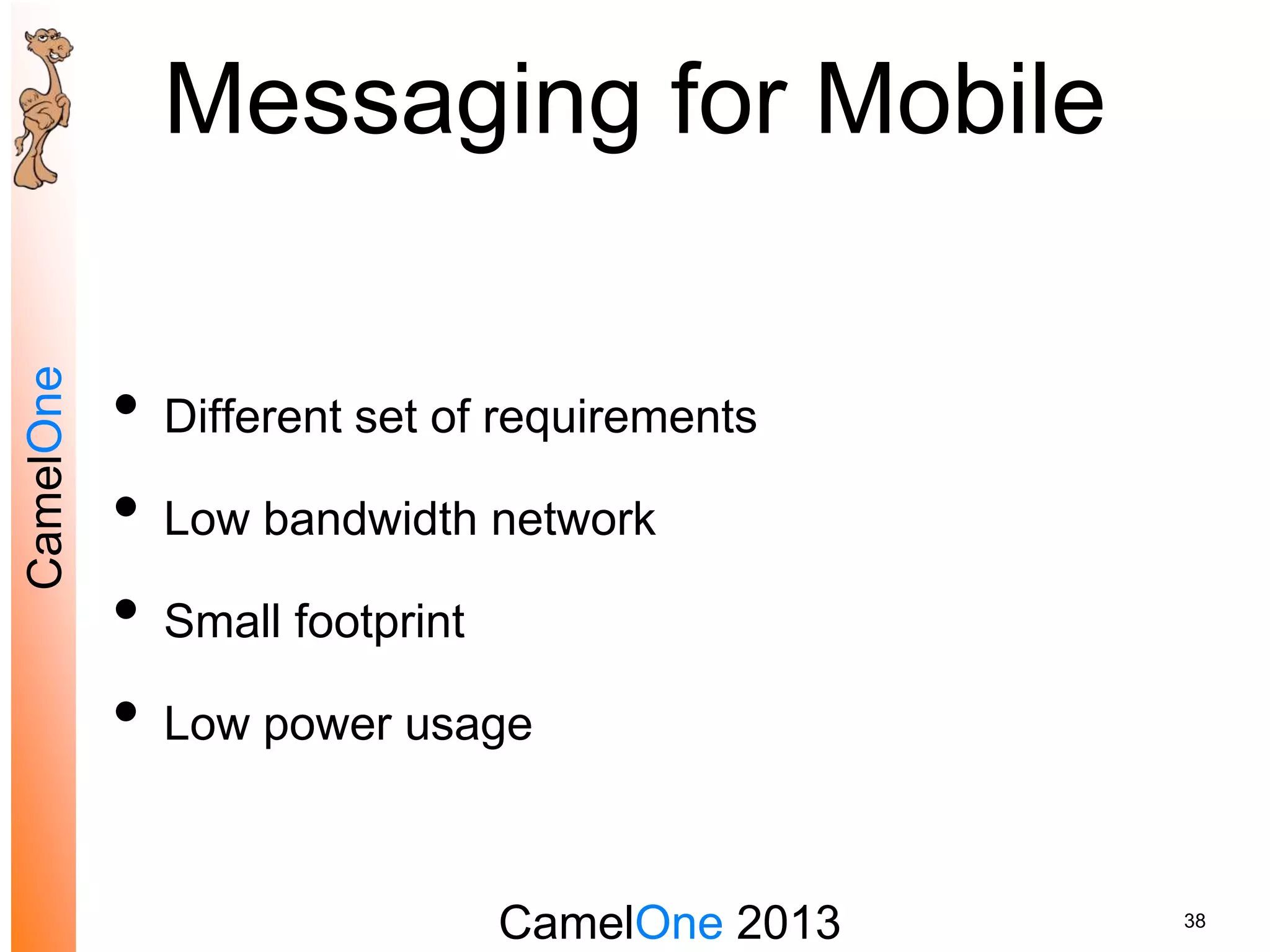

Messaging for Mobile
• Different set of requirements
• Low bandwidth network
• Small footprint
• Low power usage
38
CamelOne 2013
CamelOne

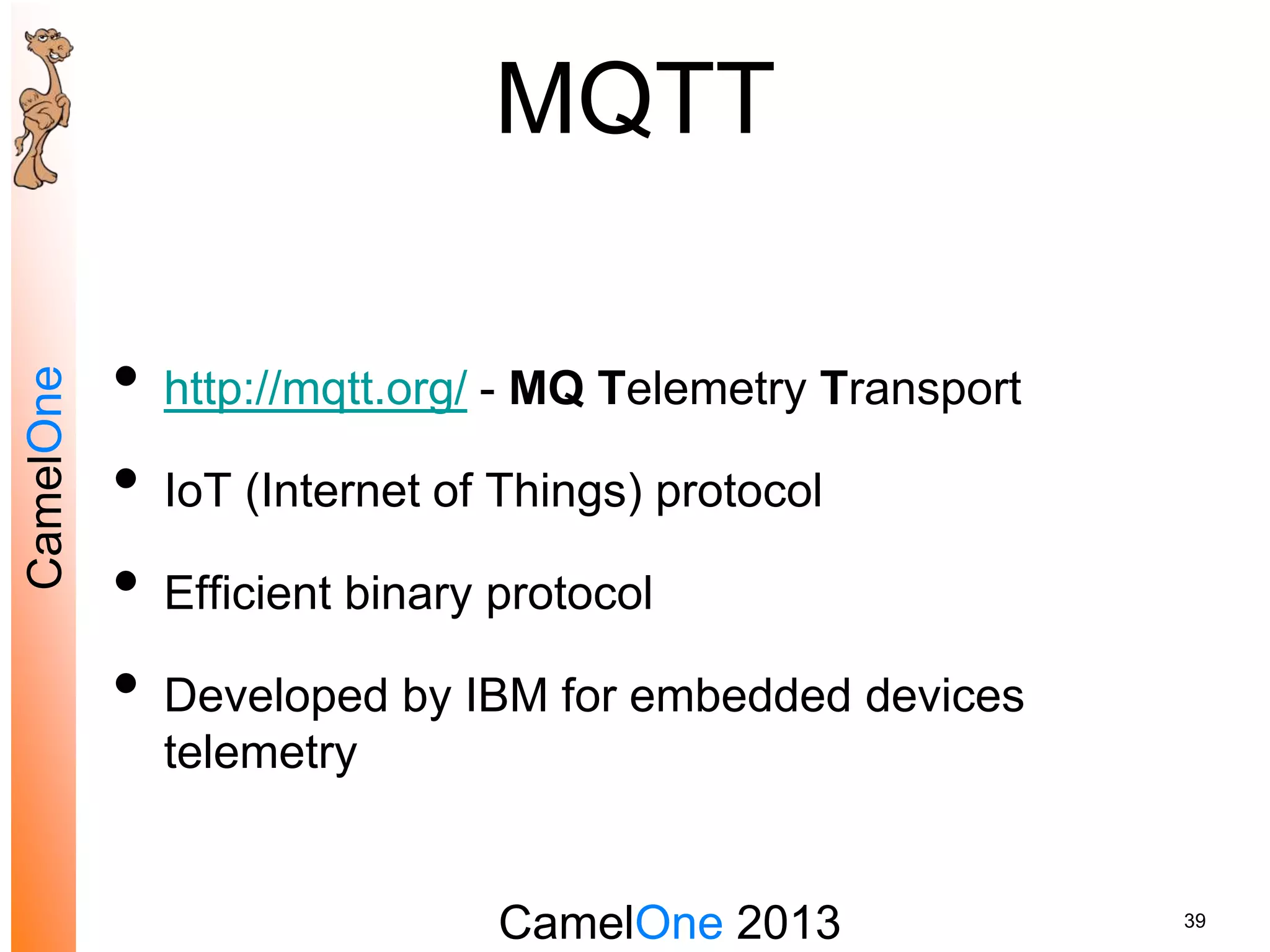

MQTT
• http://mqtt.org/ - MQ Telemetry Transport
• IoT (Internet of Things) protocol
• Efficient binary protocol
• Developed by IBM for embedded devices
telemetry
39
CamelOne 2013
CamelOne

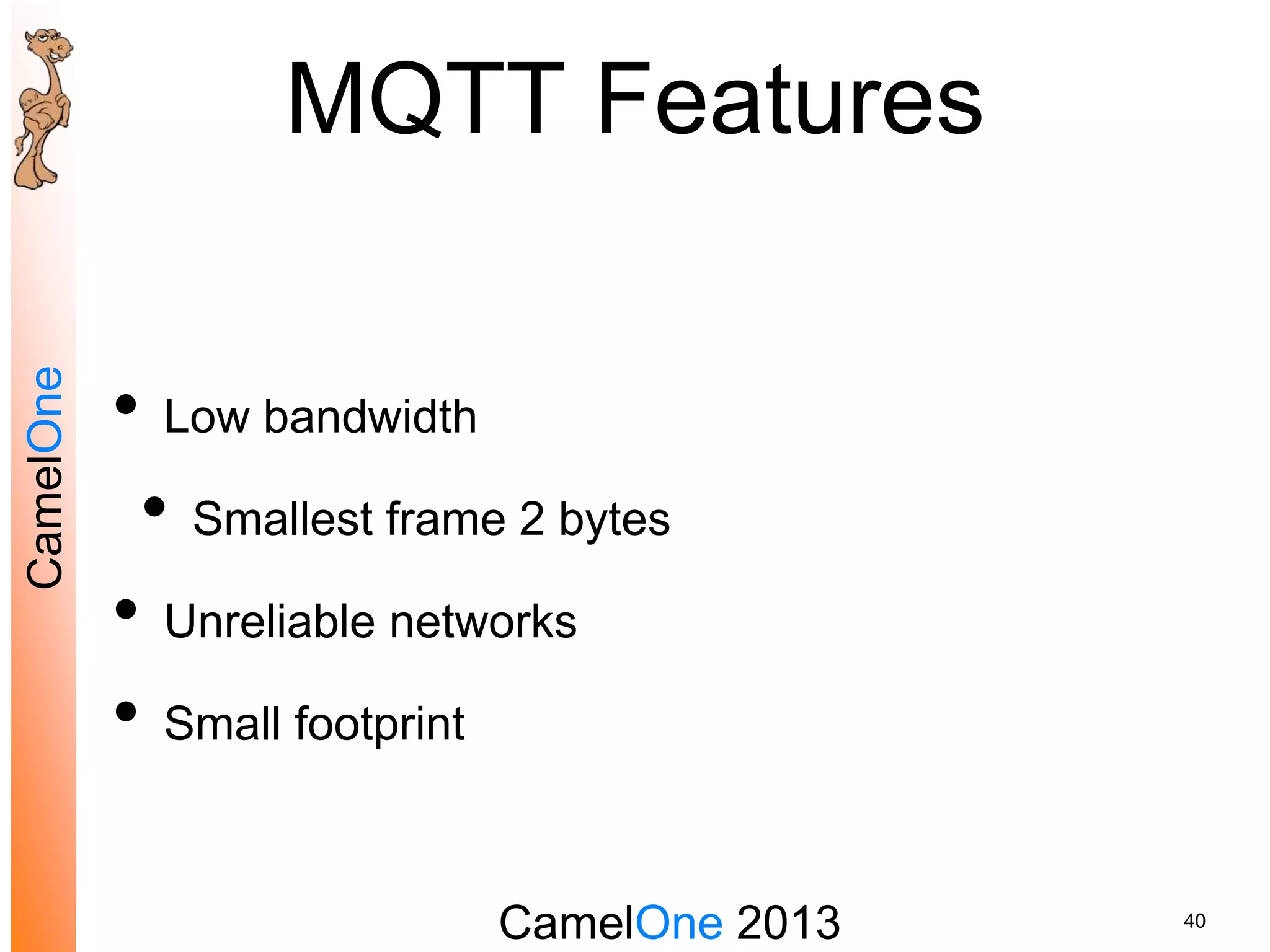

MQTT Features
• Low bandwidth
• Smallest frame 2 bytes
• Unreliable networks
• Small footprint
40
CamelOne 2013
CamelOne

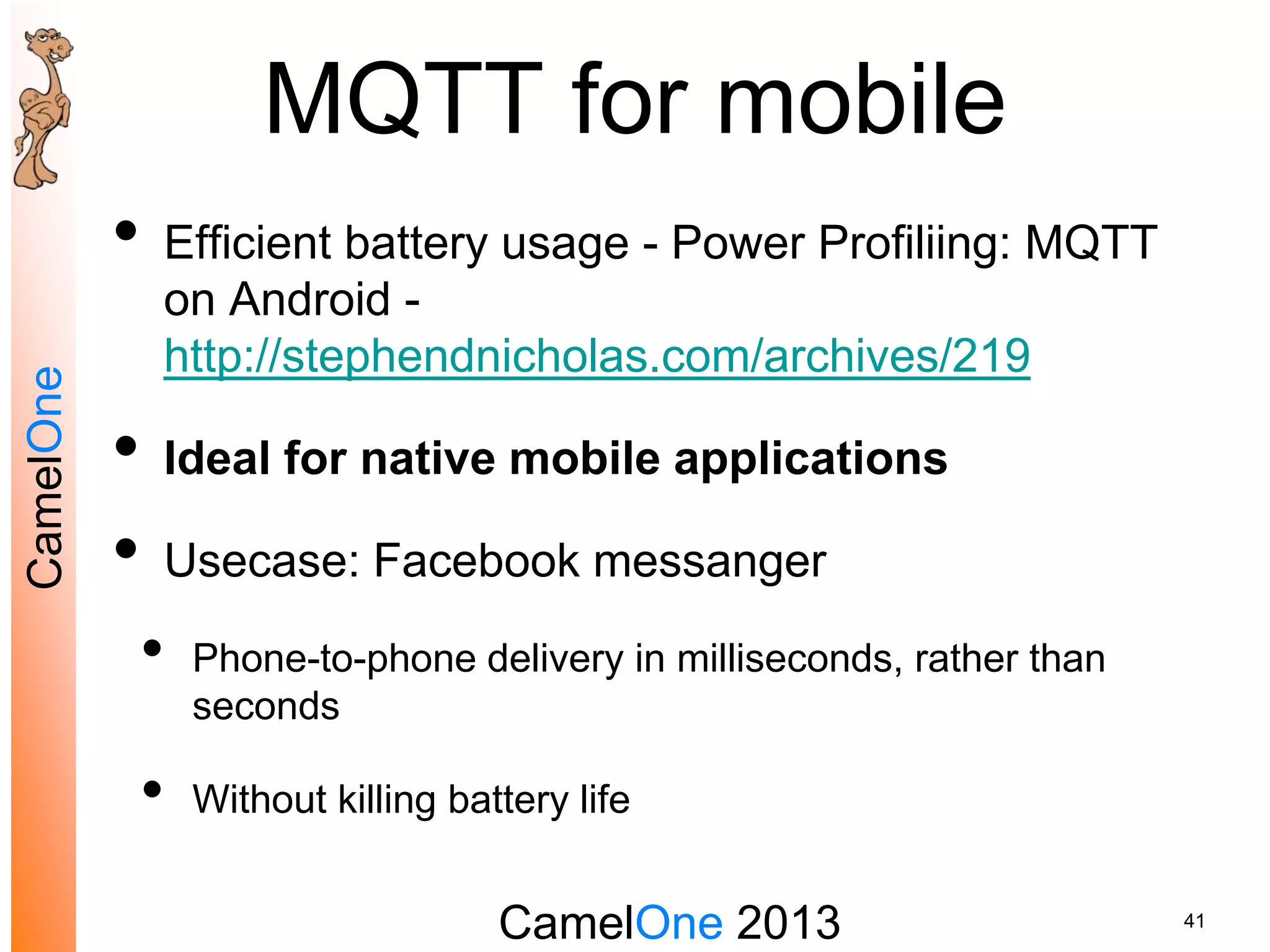

MQTT for mobile
• Efficient battery usage - Power Profiliing: MQTT
on Android -
http://stephendnicholas.com/archives/219
• Ideal for native mobile applications
• Usecase: Facebook messanger
• Phone-to-phone delivery in milliseconds, rather than
seconds
• Without killing battery life
41
CamelOne 2013
CamelOne

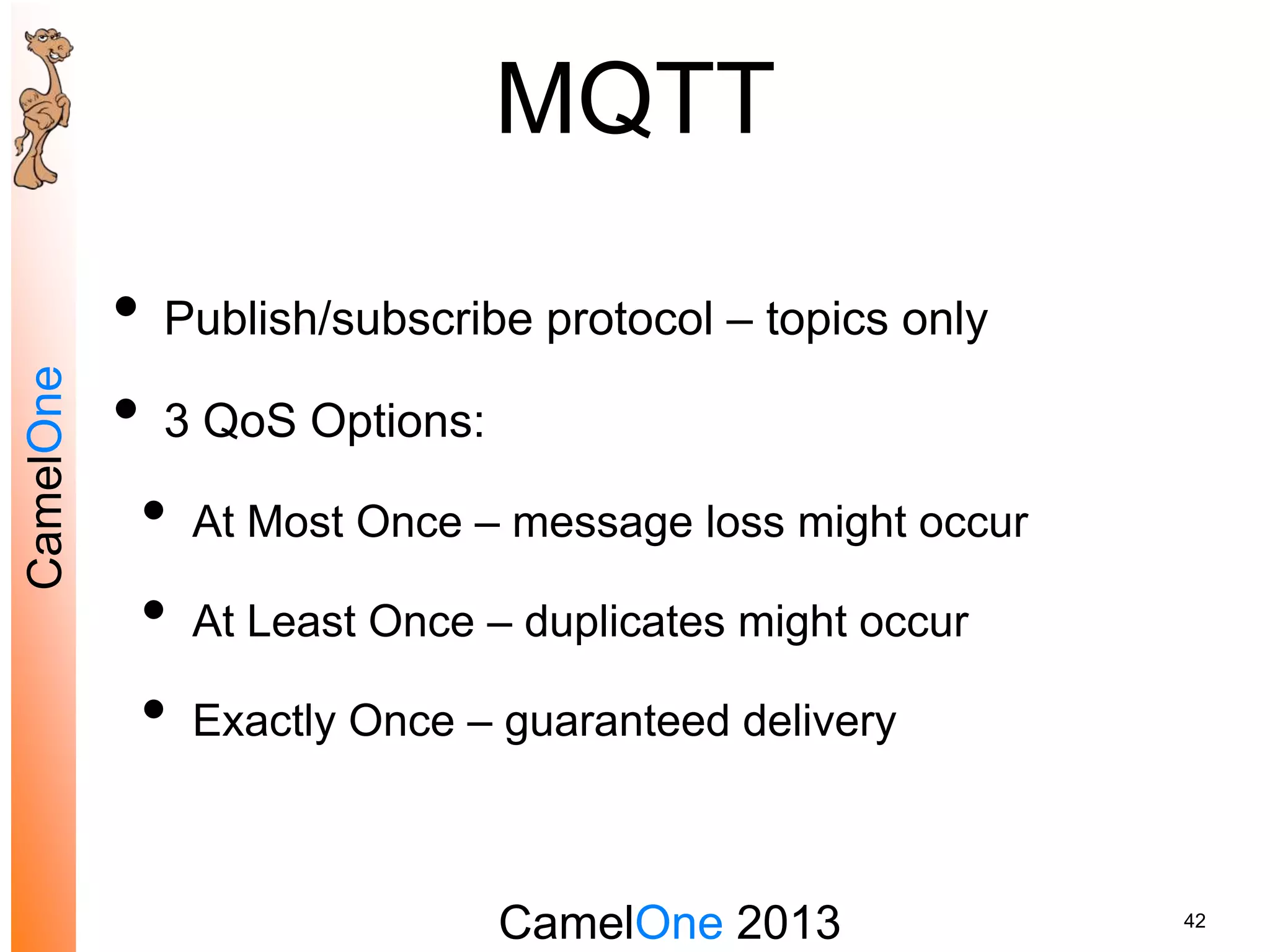

MQTT
• Publish/subscribe protocol – topics only
• 3 QoS Options:
• At Most Once – message loss might occur
• At Least Once – duplicates might occur
• Exactly Once – guaranteed delivery
42
CamelOne 2013
CamelOne

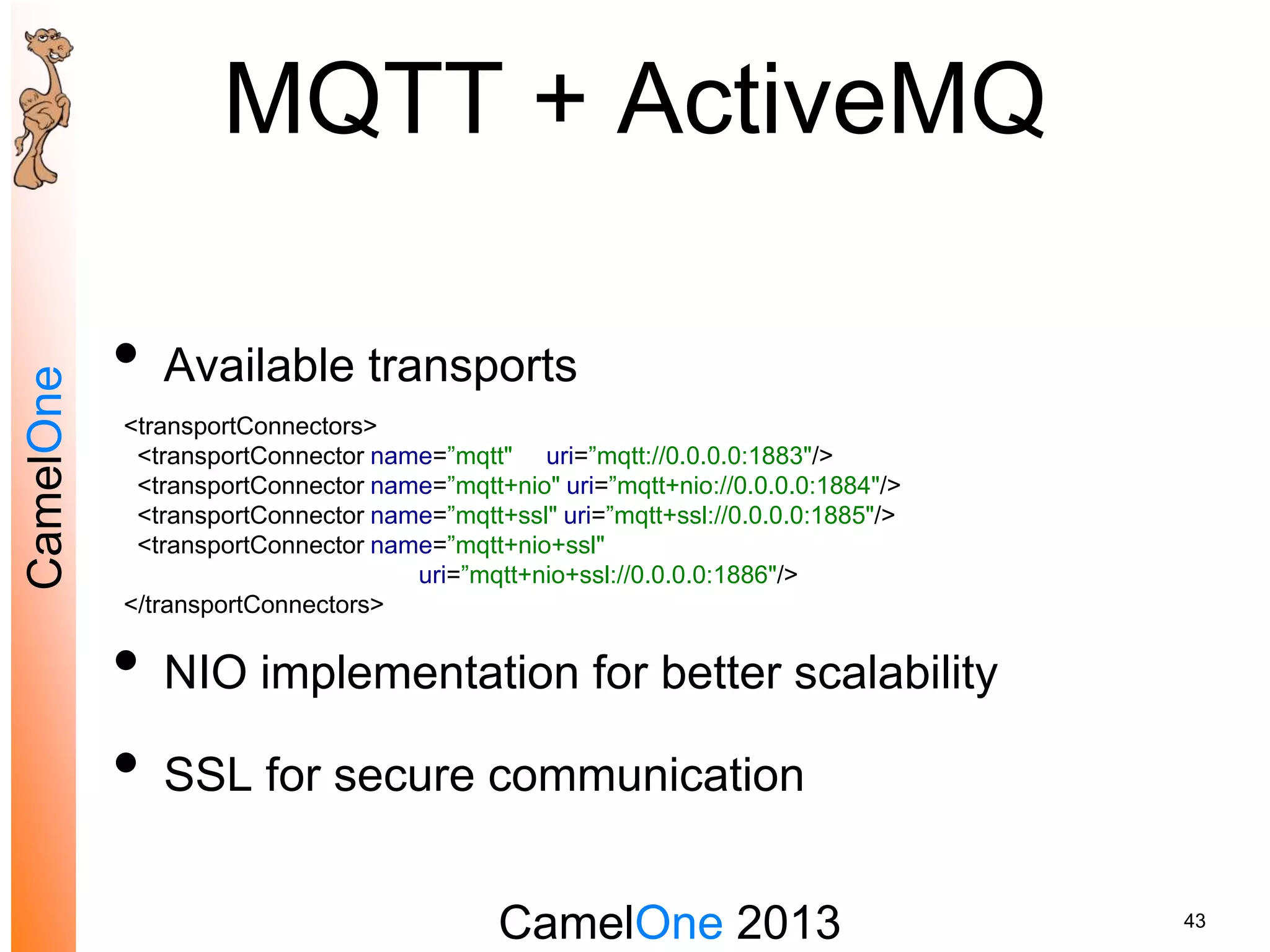

MQTT + ActiveMQ
• Available transports
• NIO implementation for better scalability
• SSL for secure communication
43
<transportConnectors>
<transportConnector name=”mqtt" uri=”mqtt://0.0.0.0:1883"/>
<transportConnector name=”mqtt+nio" uri=”mqtt+nio://0.0.0.0:1884"/>
<transportConnector name=”mqtt+ssl" uri=”mqtt+ssl://0.0.0.0:1885"/>
<transportConnector name=”mqtt+nio+ssl"
uri=”mqtt+nio+ssl://0.0.0.0:1886"/>
</transportConnectors>
CamelOne 2013
CamelOne

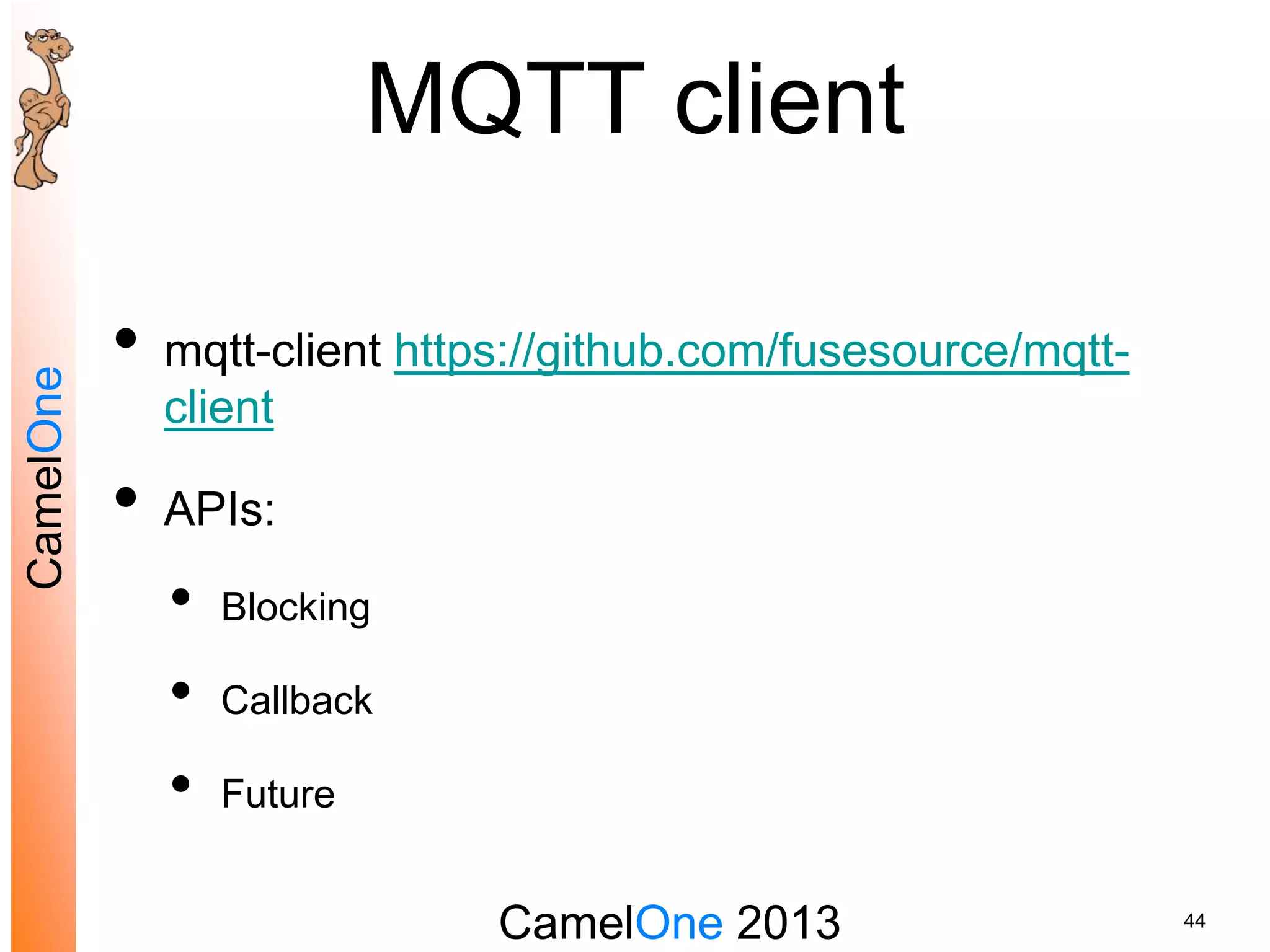

MQTT client
• mqtt-client https://github.com/fusesource/mqtt-
client
• APIs:
• Blocking
• Callback
• Future
44
CamelOne 2013
CamelOne

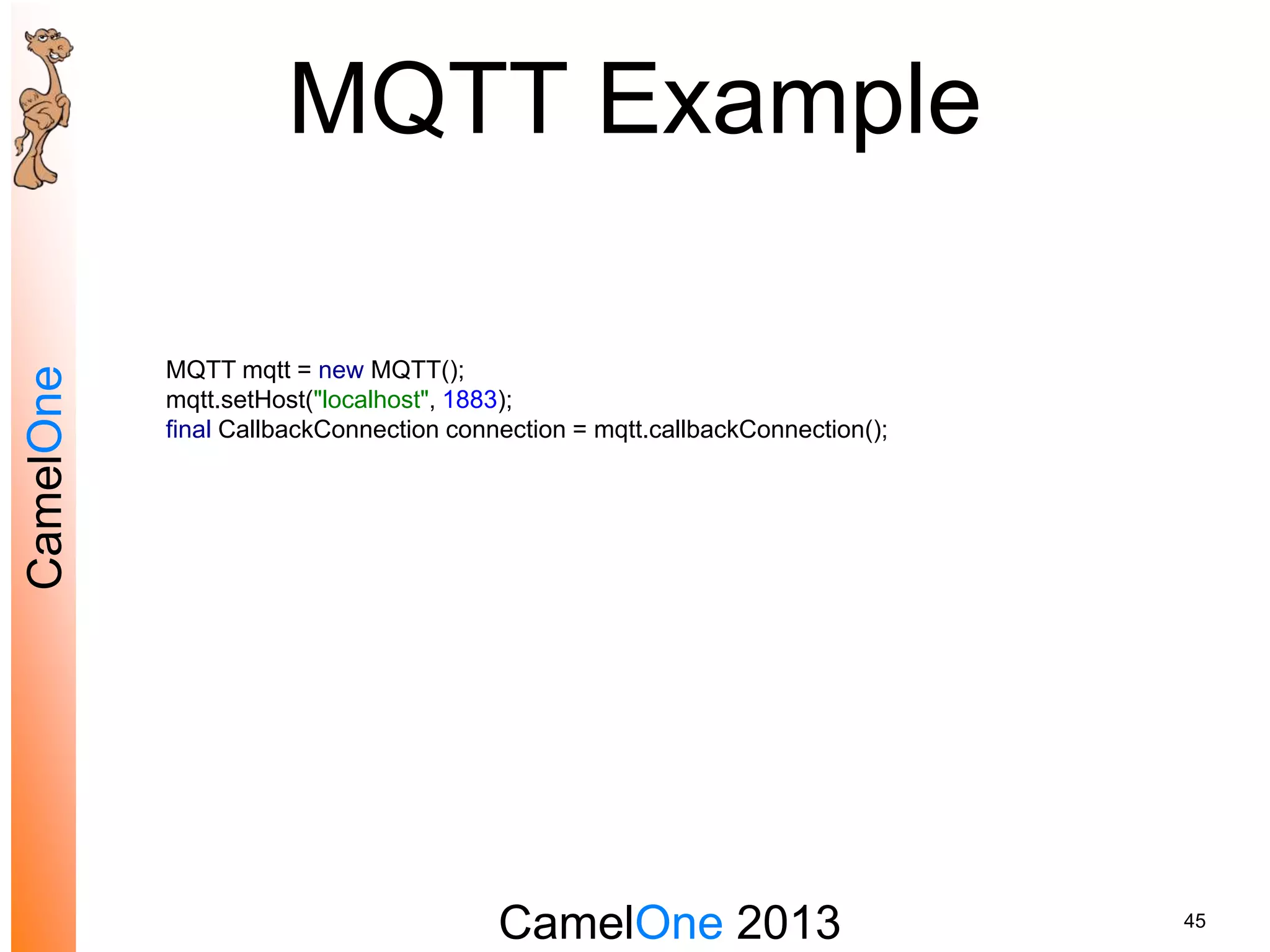

MQTT Example
45
MQTT mqtt = new MQTT();
mqtt.setHost("localhost", 1883);
final CallbackConnection connection = mqtt.callbackConnection();
CamelOne 2013
CamelOne

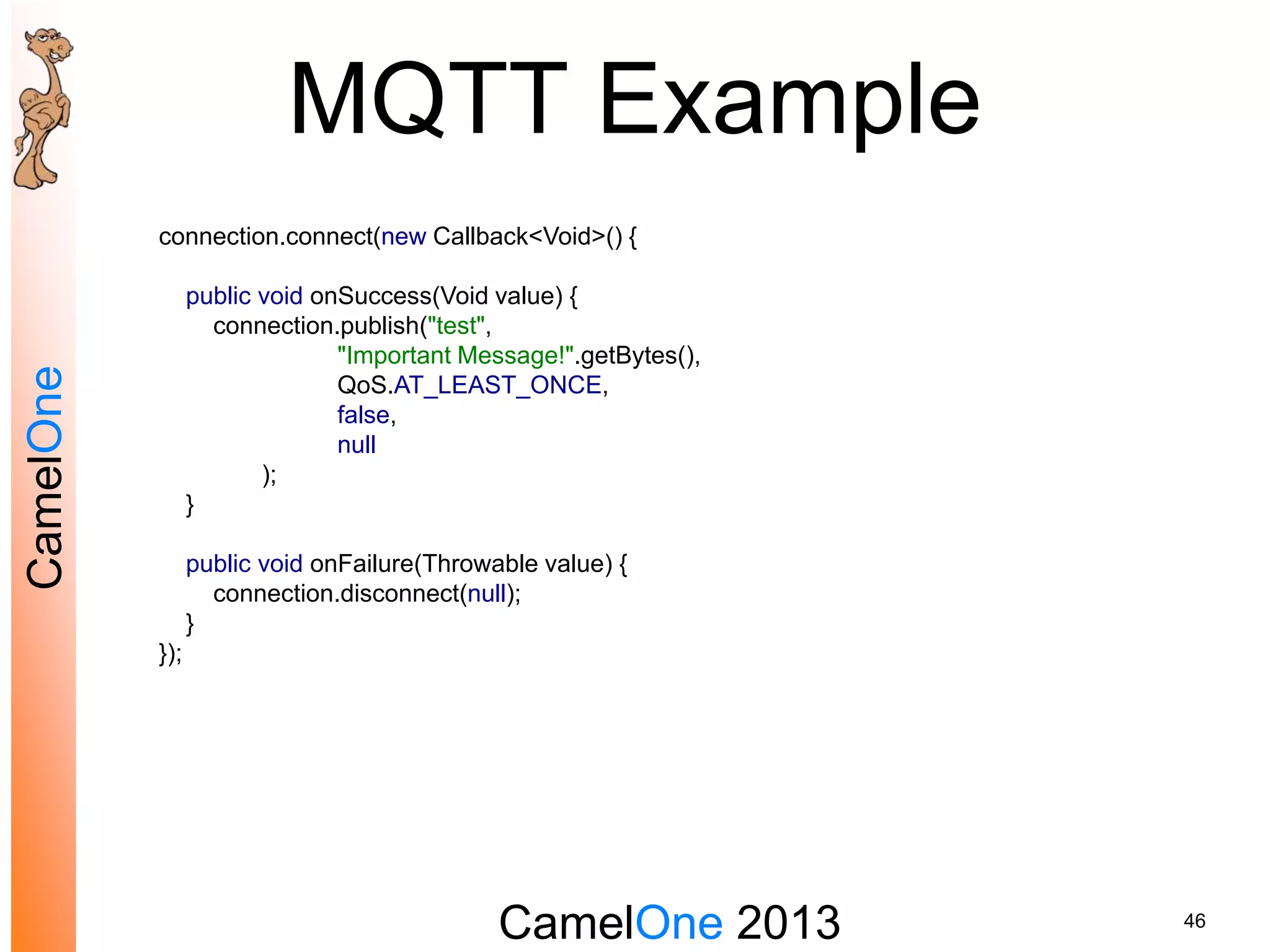

MQTT Example
46
connection.connect(new Callback<Void>() {
public void onSuccess(Void value) {
connection.publish("test",
"Important Message!".getBytes(),
QoS.AT_LEAST_ONCE,
false,
null
);
}
public void onFailure(Throwable value) {
connection.disconnect(null);
}
});
CamelOne 2013
CamelOne

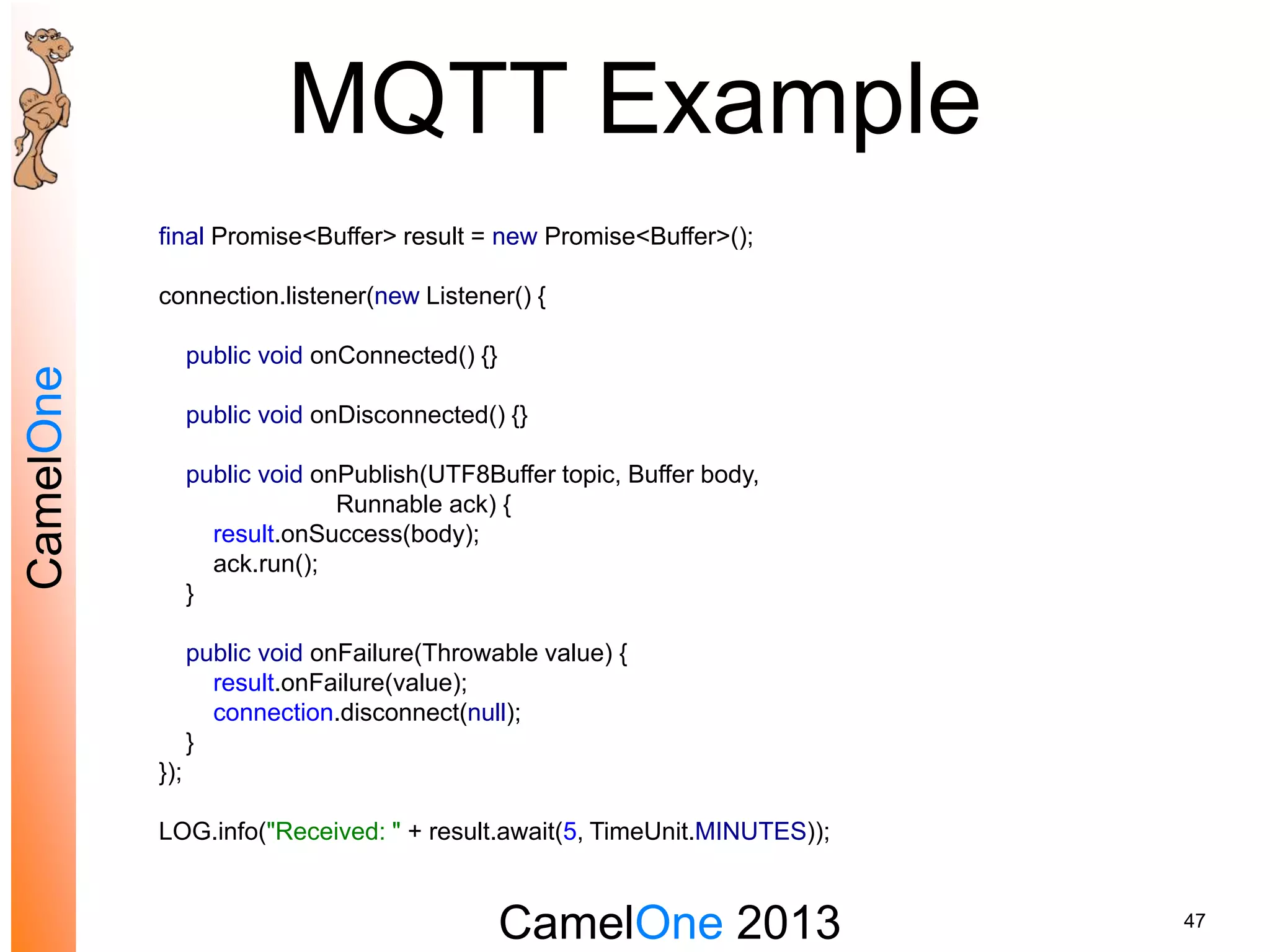

MQTT Example
47
final Promise<Buffer> result = new Promise<Buffer>();
connection.listener(new Listener() {
public void onConnected() {}
public void onDisconnected() {}
public void onPublish(UTF8Buffer topic, Buffer body,
Runnable ack) {
result.onSuccess(body);
ack.run();
}
public void onFailure(Throwable value) {
result.onFailure(value);
connection.disconnect(null);
}
});
LOG.info("Received: " + result.await(5, TimeUnit.MINUTES));
CamelOne 2013
CamelOne

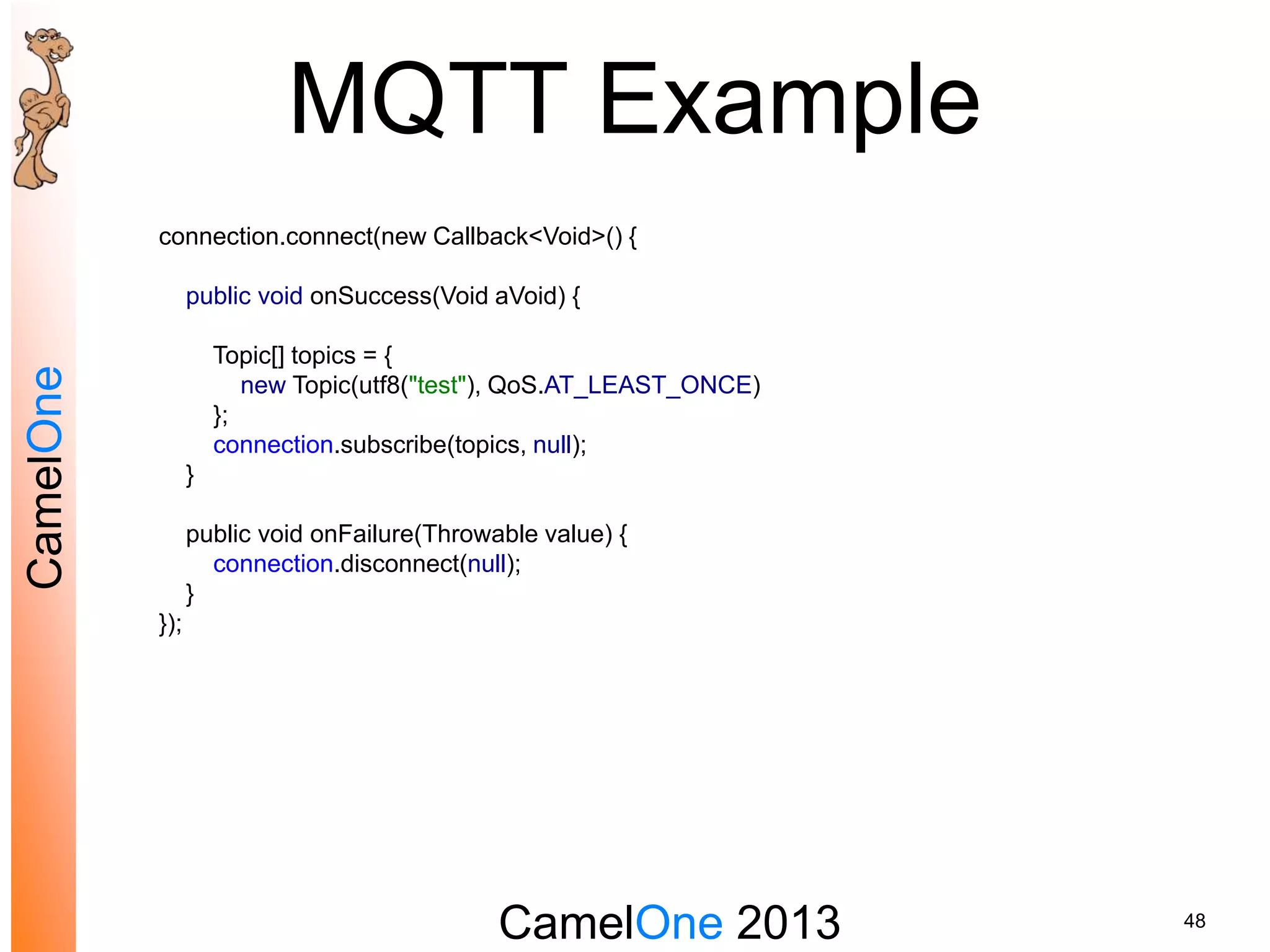

MQTT Example
48
connection.connect(new Callback<Void>() {
public void onSuccess(Void aVoid) {
Topic[] topics = {
new Topic(utf8("test"), QoS.AT_LEAST_ONCE)
};
connection.subscribe(topics, null);
}
public void onFailure(Throwable value) {
connection.disconnect(null);
}
});
CamelOne 2013
CamelOne

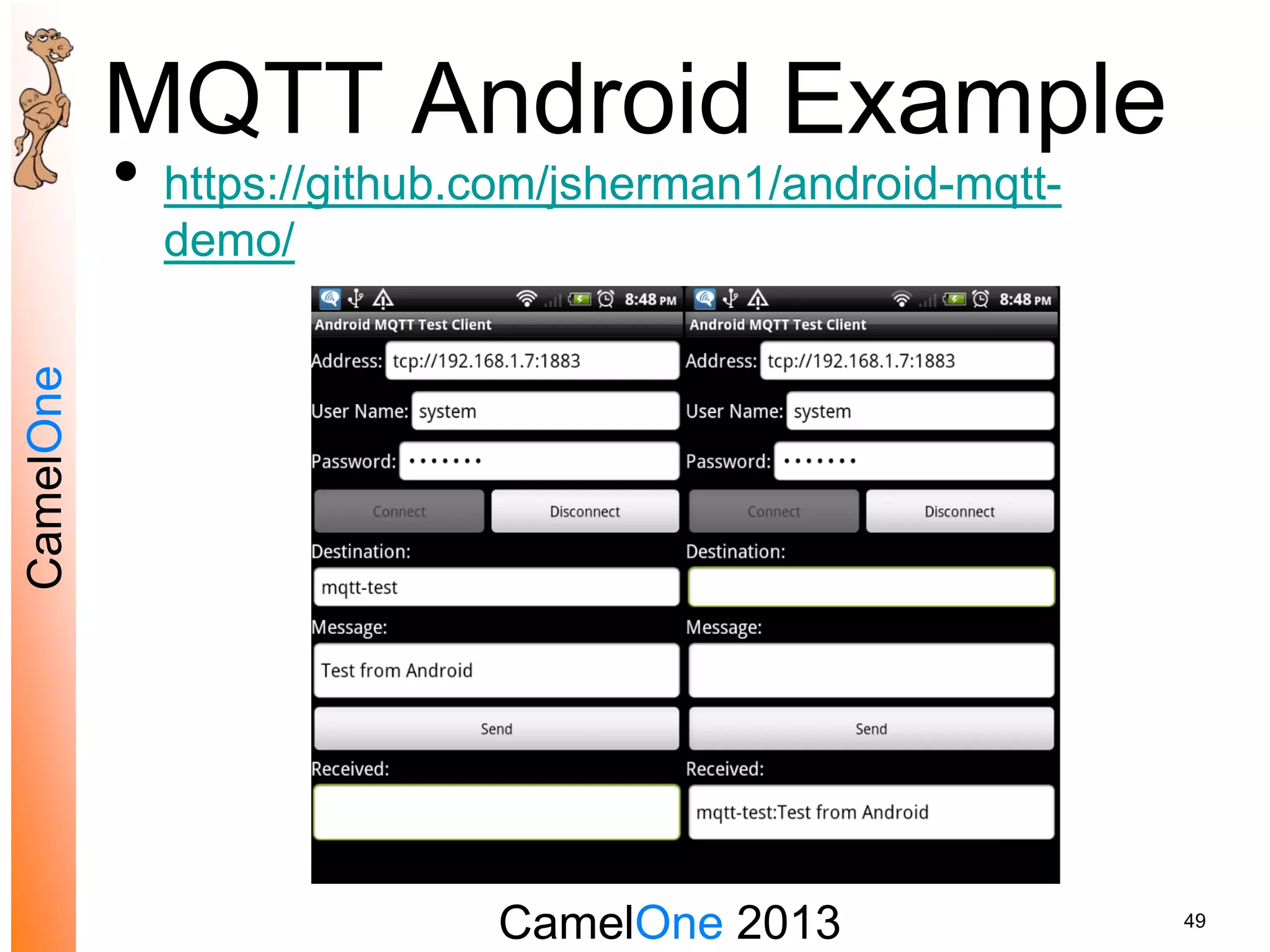

MQTT Android Example
• https://github.com/jsherman1/android-mqtt-
demo/
49
CamelOne 2013
CamelOne

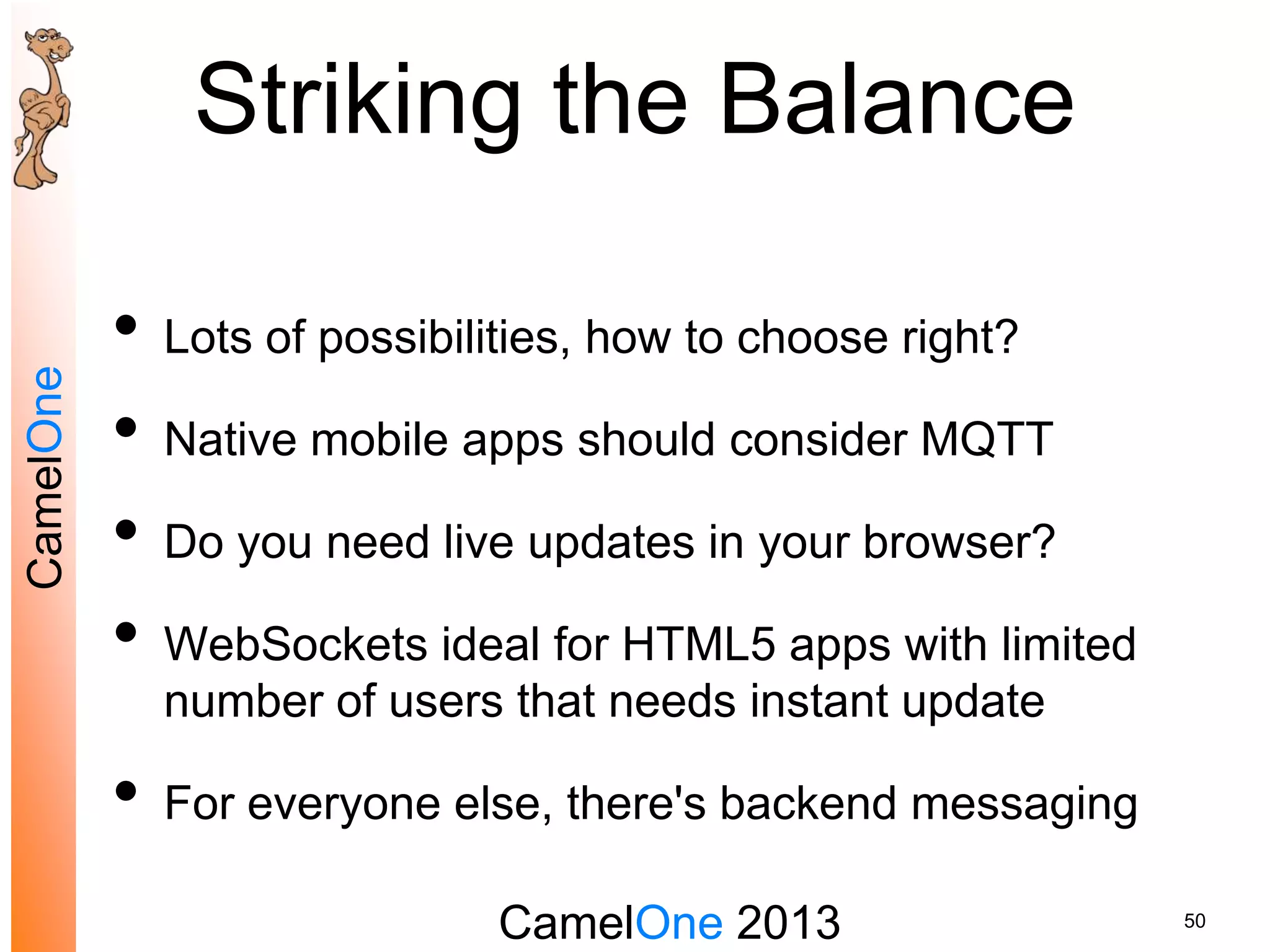

Striking the Balance
• Lots of possibilities, how to choose right?
• Native mobile apps should consider MQTT
• Do you need live updates in your browser?
• WebSockets ideal for HTML5 apps with limited
number of users that needs instant update
• For everyone else, there's backend messaging
50
CamelOne 2013
CamelOne

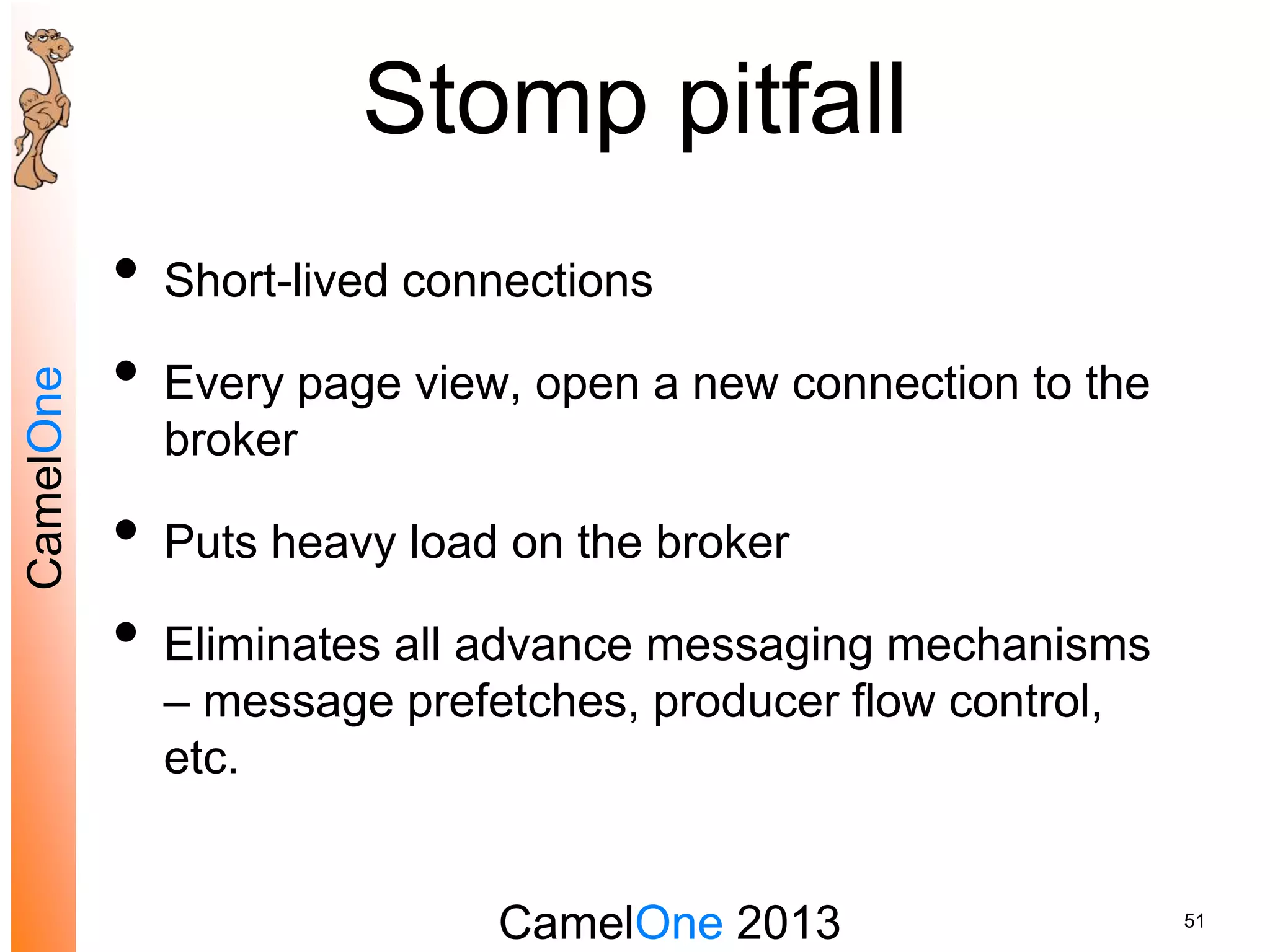

Stomp pitfall
• Short-lived connections
• Every page view, open a new connection to the
broker
• Puts heavy load on the broker
• Eliminates all advance messaging mechanisms
– message prefetches, producer flow control,
etc.
51
CamelOne 2013
CamelOne

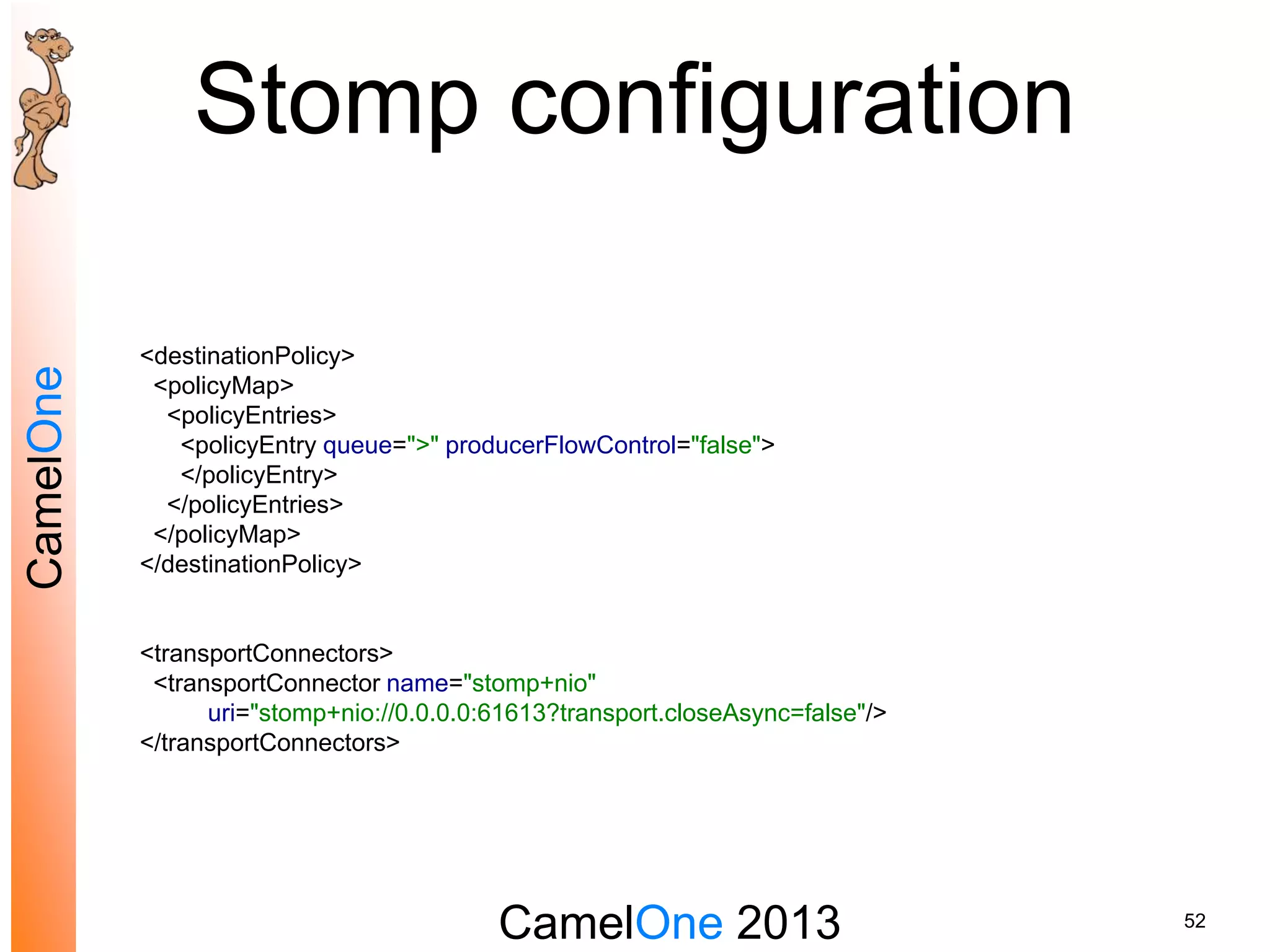

Stomp configuration
52
<destinationPolicy>
<policyMap>
<policyEntries>
<policyEntry queue=">" producerFlowControl="false">
</policyEntry>
</policyEntries>
</policyMap>
</destinationPolicy>
<transportConnectors>
<transportConnector name="stomp+nio"
uri="stomp+nio://0.0.0.0:61613?transport.closeAsync=false"/>
</transportConnectors>
CamelOne 2013
CamelOne

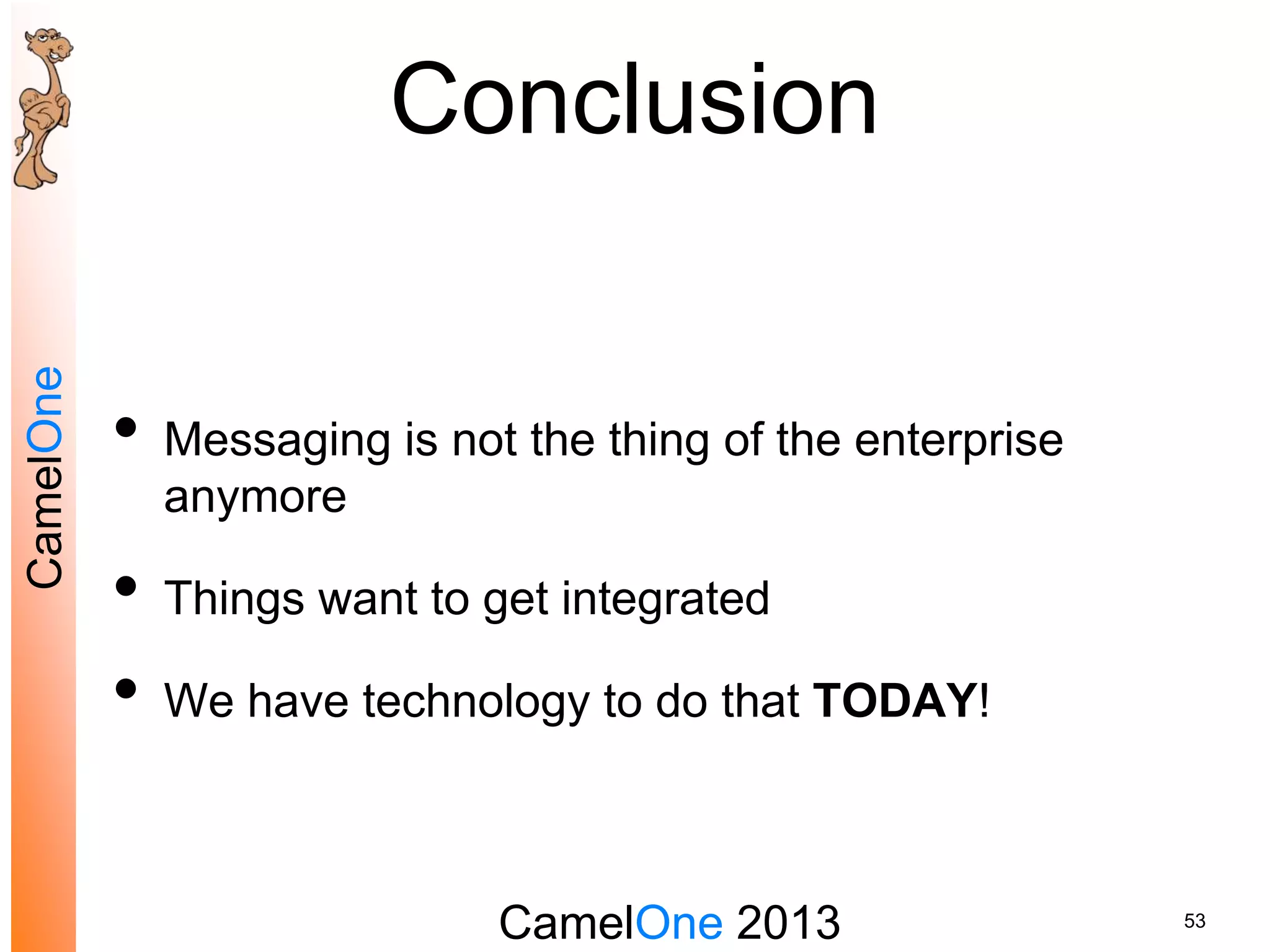

Conclusion
• Messaging is not the thing of the enterprise
anymore
• Things want to get integrated
• We have technology to do that TODAY!
53
CamelOne 2013
CamelOne

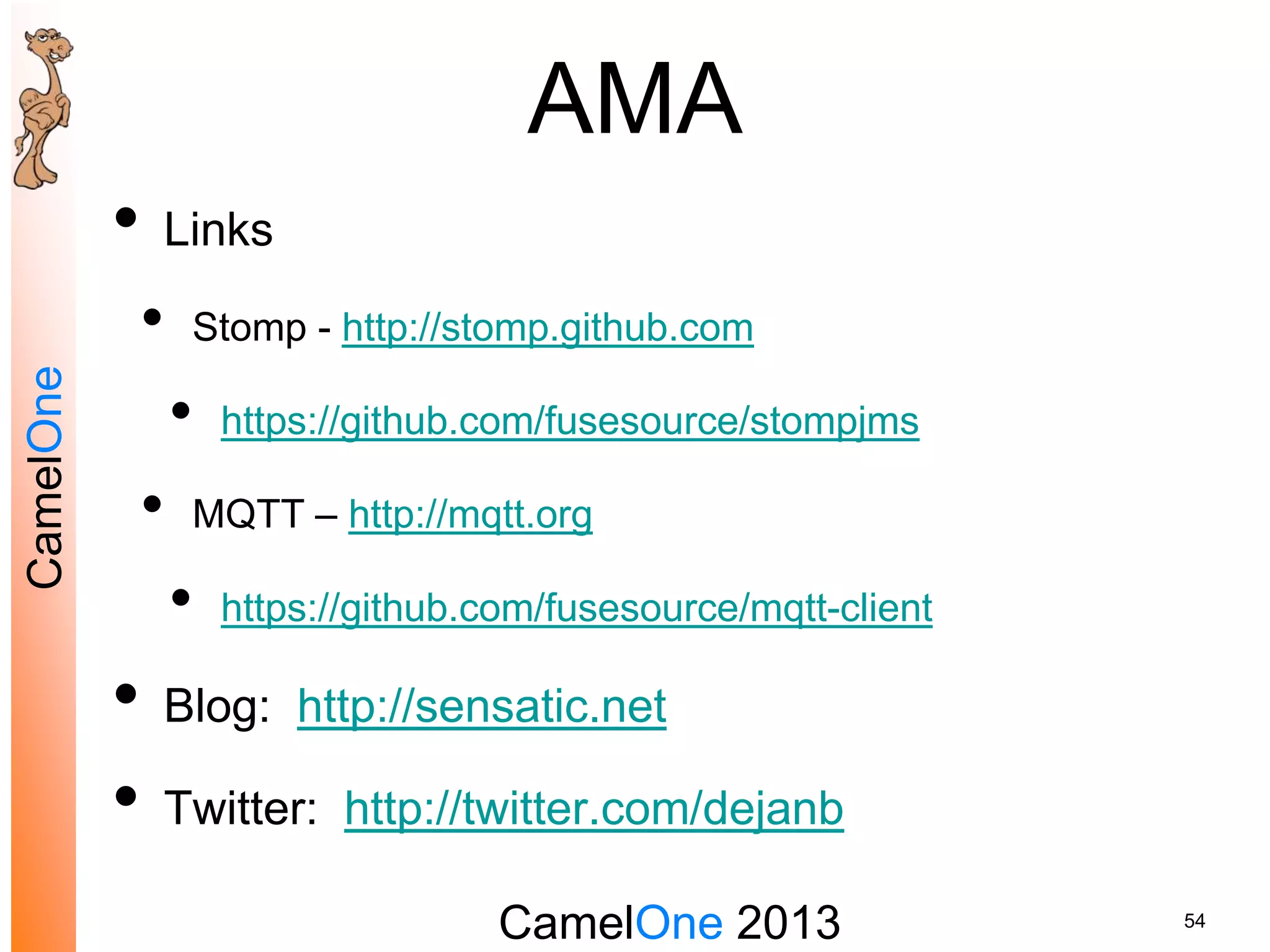

AMA
• Links
• Stomp - http://stomp.github.com
• https://github.com/fusesource/stompjms
• MQTT – http://mqtt.org
• https://github.com/fusesource/mqtt-client
• Blog: http://sensatic.net
• Twitter: http://twitter.com/dejanb
54

More Related Content

What's hot

Workshop spring session 2 - La persistance au sein des applications Java
Workshop spring   session 2 - La persistance au sein des applications JavaWorkshop spring   session 2 - La persistance au sein des applications Java
Workshop spring session 2 - La persistance au sein des applications Java
Antoine Rey


What's hot (20)

gRPC: The Story of Microservices at Square
gRPC: The Story of Microservices at SquaregRPC: The Story of Microservices at Square
gRPC: The Story of Microservices at Square

Formation jpa-hibernate-spring-data
Formation jpa-hibernate-spring-dataFormation jpa-hibernate-spring-data
Formation jpa-hibernate-spring-data

Kafka 101
Kafka 101Kafka 101
Kafka 101

Optional in Java 8
Optional in Java 8Optional in Java 8
Optional in Java 8

Kafka presentation
Kafka presentationKafka presentation
Kafka presentation

Apache Camel K - Copenhagen
Apache Camel K - CopenhagenApache Camel K - Copenhagen
Apache Camel K - Copenhagen

Spring boot Introduction
Spring boot IntroductionSpring boot Introduction
Spring boot Introduction

Introduction to Apache ActiveMQ Artemis
Introduction to Apache ActiveMQ ArtemisIntroduction to Apache ActiveMQ Artemis
Introduction to Apache ActiveMQ Artemis

Integration using Apache Camel and Groovy
Integration using Apache Camel and GroovyIntegration using Apache Camel and Groovy
Integration using Apache Camel and Groovy

Introduction to AMQP Messaging with RabbitMQ
Introduction to AMQP Messaging with RabbitMQIntroduction to AMQP Messaging with RabbitMQ
Introduction to AMQP Messaging with RabbitMQ

Spring boot jpa
Spring boot jpaSpring boot jpa
Spring boot jpa

Spring Security 5
Spring Security 5Spring Security 5
Spring Security 5

RabbitMQ.ppt
RabbitMQ.pptRabbitMQ.ppt
RabbitMQ.ppt

Microservices with Apache Camel
Microservices with Apache CamelMicroservices with Apache Camel
Microservices with Apache Camel

Express JS
Express JSExpress JS
Express JS

Spring Boot in Action
Spring Boot in Action Spring Boot in Action
Spring Boot in Action

Spring Framework - AOP
Spring Framework - AOPSpring Framework - AOP
Spring Framework - AOP

Workshop spring session 2 - La persistance au sein des applications Java
Workshop spring   session 2 - La persistance au sein des applications JavaWorkshop spring   session 2 - La persistance au sein des applications Java
Workshop spring session 2 - La persistance au sein des applications Java

Apache Camel Introduction
Apache Camel IntroductionApache Camel Introduction
Apache Camel Introduction

Concevoir, développer et sécuriser des micro-services avec Spring Boot
Concevoir, développer et sécuriser des micro-services avec Spring BootConcevoir, développer et sécuriser des micro-services avec Spring Boot
Concevoir, développer et sécuriser des micro-services avec Spring Boot


Similar to Messaging for Web and Mobile with Apache ActiveMQ

WebSockets: The Current State of the Most Valuable HTML5 API for Java Developers
WebSockets: The Current State of the Most Valuable HTML5 API for Java DevelopersWebSockets: The Current State of the Most Valuable HTML5 API for Java Developers
WebSockets: The Current State of the Most Valuable HTML5 API for Java Developers
Viktor Gamov

Tomcat New Evolution
Tomcat New EvolutionTomcat New Evolution
Tomcat New Evolution
Allan Huang

Programming WebSockets - OSCON 2010
Programming WebSockets - OSCON 2010Programming WebSockets - OSCON 2010
Programming WebSockets - OSCON 2010
sullis

Camel oneactivemq posta-final
Camel oneactivemq posta-finalCamel oneactivemq posta-final
Camel oneactivemq posta-final
Christian Posta

Pushing the web — WebSockets
Pushing the web — WebSocketsPushing the web — WebSockets
Pushing the web — WebSockets
Roland M


Similar to Messaging for Web and Mobile with Apache ActiveMQ (20)

WebSockets: The Current State of the Most Valuable HTML5 API for Java Developers
WebSockets: The Current State of the Most Valuable HTML5 API for Java DevelopersWebSockets: The Current State of the Most Valuable HTML5 API for Java Developers
WebSockets: The Current State of the Most Valuable HTML5 API for Java Developers

HTML5 WebSocket: The New Network Stack for the Web
HTML5 WebSocket: The New Network Stack for the WebHTML5 WebSocket: The New Network Stack for the Web
HTML5 WebSocket: The New Network Stack for the Web

Tomcat New Evolution
Tomcat New EvolutionTomcat New Evolution
Tomcat New Evolution

Connecting Applications Everywhere with ActiveMQ
Connecting Applications Everywhere with ActiveMQConnecting Applications Everywhere with ActiveMQ
Connecting Applications Everywhere with ActiveMQ

Websockets on the JVM: Atmosphere to the rescue!
Websockets on the JVM: Atmosphere to the rescue!Websockets on the JVM: Atmosphere to the rescue!
Websockets on the JVM: Atmosphere to the rescue!

Lecture 6 Web Sockets
Lecture 6   Web SocketsLecture 6   Web Sockets
Lecture 6 Web Sockets

WebSockets Everywhere: the Future Transport Protocol for Everything (Almost)
WebSockets Everywhere: the Future Transport Protocol for Everything (Almost)WebSockets Everywhere: the Future Transport Protocol for Everything (Almost)
WebSockets Everywhere: the Future Transport Protocol for Everything (Almost)

The HTML5 WebSocket API
The HTML5 WebSocket APIThe HTML5 WebSocket API
The HTML5 WebSocket API

WebSockets with Spring 4
WebSockets with Spring 4WebSockets with Spring 4
WebSockets with Spring 4

Enhancing Mobile User Experience with WebSocket
Enhancing Mobile User Experience with WebSocketEnhancing Mobile User Experience with WebSocket
Enhancing Mobile User Experience with WebSocket

Programming WebSockets - OSCON 2010
Programming WebSockets - OSCON 2010Programming WebSockets - OSCON 2010
Programming WebSockets - OSCON 2010

Building Next Generation Real-Time Web Applications using Websockets
Building Next Generation Real-Time Web Applications using WebsocketsBuilding Next Generation Real-Time Web Applications using Websockets
Building Next Generation Real-Time Web Applications using Websockets

Websocket
WebsocketWebsocket
Websocket

Being HAPI! Reverse Proxying on Purpose
Being HAPI! Reverse Proxying on PurposeBeing HAPI! Reverse Proxying on Purpose
Being HAPI! Reverse Proxying on Purpose

Building Websocket Applications with GlassFish and Grizzly
Building Websocket Applications with GlassFish and GrizzlyBuilding Websocket Applications with GlassFish and Grizzly
Building Websocket Applications with GlassFish and Grizzly

Websocket
WebsocketWebsocket
Websocket

Camel oneactivemq posta-final
Camel oneactivemq posta-finalCamel oneactivemq posta-final
Camel oneactivemq posta-final

Pushing the web — WebSockets
Pushing the web — WebSocketsPushing the web — WebSockets
Pushing the web — WebSockets

Real-Time with Flowdock
Real-Time with FlowdockReal-Time with Flowdock
Real-Time with Flowdock

Xke - Introduction to Apache Camel
Xke - Introduction to Apache CamelXke - Introduction to Apache Camel
Xke - Introduction to Apache Camel


More from dejanb

Scaling out eclipse hono
Scaling out eclipse honoScaling out eclipse hono
Scaling out eclipse hono
dejanb

Apache ActiveMQ - Enterprise messaging in action
Apache ActiveMQ - Enterprise messaging in actionApache ActiveMQ - Enterprise messaging in action
Apache ActiveMQ - Enterprise messaging in action
dejanb


More from dejanb (9)

How is this sausage made
How is this sausage madeHow is this sausage made
How is this sausage made

Messaging for the cloud
Messaging for the cloudMessaging for the cloud
Messaging for the cloud

Scaling out eclipse hono
Scaling out eclipse honoScaling out eclipse hono
Scaling out eclipse hono

Building Open Source IoT Cloud
Building Open Source IoT CloudBuilding Open Source IoT Cloud
Building Open Source IoT Cloud

Messaging for IoT
Messaging for IoTMessaging for IoT
Messaging for IoT

Introduction to ActiveMQ Apollo
Introduction to ActiveMQ ApolloIntroduction to ActiveMQ Apollo
Introduction to ActiveMQ Apollo

Deploying FuseMQ with Fuse Fabric
Deploying FuseMQ with Fuse FabricDeploying FuseMQ with Fuse Fabric
Deploying FuseMQ with Fuse Fabric

Advanced messaging with Apache ActiveMQ
Advanced messaging with Apache ActiveMQAdvanced messaging with Apache ActiveMQ
Advanced messaging with Apache ActiveMQ

Apache ActiveMQ - Enterprise messaging in action
Apache ActiveMQ - Enterprise messaging in actionApache ActiveMQ - Enterprise messaging in action
Apache ActiveMQ - Enterprise messaging in action


Recently uploaded

Recently uploaded (20)

UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...

UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1

Powerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaPowerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara Laskowska

Strategic AI Integration in Engineering Teams
Strategic AI Integration in Engineering TeamsStrategic AI Integration in Engineering Teams
Strategic AI Integration in Engineering Teams

Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdfLinux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf

Optimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through ObservabilityOptimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through Observability

Where to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdfWhere to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdf

Buy Epson EcoTank L3210 Colour Printer Online.pdf
Buy Epson EcoTank L3210 Colour Printer Online.pdfBuy Epson EcoTank L3210 Colour Printer Online.pdf
Buy Epson EcoTank L3210 Colour Printer Online.pdf

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf

The Metaverse: Are We There Yet?
The  Metaverse:    Are   We  There  Yet?The  Metaverse:    Are   We  There  Yet?
The Metaverse: Are We There Yet?

ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...

Connecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAKConnecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAK

Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...
Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...
Secure Zero Touch enabled Edge compute with Dell NativeEdge via FDO _ Brad at...

SOQL 201 for Admins & Developers: Slice & Dice Your Org’s Data With Aggregate...
SOQL 201 for Admins & Developers: Slice & Dice Your Org’s Data With Aggregate...SOQL 201 for Admins & Developers: Slice & Dice Your Org’s Data With Aggregate...
SOQL 201 for Admins & Developers: Slice & Dice Your Org’s Data With Aggregate...

PLAI - Acceleration Program for Generative A.I. Startups
PLAI - Acceleration Program for Generative A.I. StartupsPLAI - Acceleration Program for Generative A.I. Startups
PLAI - Acceleration Program for Generative A.I. Startups

Intro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераIntro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджера

AI revolution and Salesforce, Jiří Karpíšek
AI revolution and Salesforce, Jiří KarpíšekAI revolution and Salesforce, Jiří Karpíšek
AI revolution and Salesforce, Jiří Karpíšek

A Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyA Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System Strategy

AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101


Messaging for Web and Mobile with Apache ActiveMQ

  • 1. CamelOne 2013 June 10-11 2013 Boston, MA Messaging for web and mobile with Apache ActiveMQ By Bosanac Dejan 1
  • 2. CamelOne 2013 CamelOne 2 Bosanac Dejan? • Senior Sofware Engineer at RedHat • Apache ActiveMQ committer and PMC member • Co-author of ActiveMQ in Action • Blog – http://sensatic.net • Twitter – http://twitter.com/dejanb
  • 3. CamelOne 2013 CamelOne Agenda • Challenges of web messaging • REST vs Stomp • In-browser messaging (Ajax vs Web Sockets) • Mobile messaging using MQTT • Striking the balance 3
  • 4. CamelOne 2013 CamelOne Messaging for Web • Connect from any web application backend (Ruby, PHP, Python, …) • Connect directly from the browser (AJAX, Web Sockets) • The main requirement is simplicity 4
  • 5. CamelOne 2013 CamelOne What’s wrong with Http? • Nothing at all! • Ideal for simple request-reply communication • Lacks semantics for publish-subscribe and point-to-point communication 5
  • 6. CamelOne 2013 CamelOne Limitations • Pull based protocol • Easy simple producing • There’s no concept of consumer or subscription • There’s no concept of transactions 6
  • 7. CamelOne 2013 CamelOne Pull Consuming • HTTP techniques • Long polling • Comet • Maintain a state • Session • ClientID 7
  • 8. CamelOne 2013 CamelOne Push Consuming • Web Hooks – http://webhooks.org • Provide a callback (HTTP URL) to be called on event • Trigger callback on every message 8
  • 9. CamelOne 2013 CamelOne Camel HTTP component 9 <camelContext id="camel" xmlns="http://camel.apache.org/schema/spring”> <route> <from uri="activemq:topic:events"/> <to uri="http://mysite.com/events"/> </route> </camelContext> • HawtIO – http://hawt.io • Missing API for dynamically managing subscribers
  • 10. CamelOne 2013 CamelOne Stomp – what it is? • http://stomp.github.com • Simple Text Orientated Messaging Protocol • HTTP for the messaging realm 10
  • 11. CamelOne 2013 CamelOne Stomp – basics • Very simple, so it’s easy to write clients and servers in practically any language • A lot of client APIs in C, Java, Ruby, Pyhton, JS, PHP • Implemented by ActiveMQ, Apollo, HornetQ, RabbitMQ 11
  • 12. CamelOne 2013 CamelOne Stomp - Protocol • Text based headers, similar to HTTP • Can transport binary bodies • Frame command for every messaging concept, like CONNECT, MESSAGE, SUBSCRIBE, ACK, etc. 12 MESSAGE subscription:0 message-id:007 destination:/queue/a content-type:text/plain hello queue a^@
  • 13. CamelOne 2013 CamelOne Stomp + ActiveMQ • Available transports • NIO implementation for better scalability • SSL for secure communication 13 <transportConnectors> <transportConnector name=”stomp" uri=”stomp://0.0.0.0:61613"/> <transportConnector name=”stomp+nio" uri=”stomp+nio://0.0.0.0:61614"/> <transportConnector name=”stomp+ssl" uri=”stomp+ssl://0.0.0.0:61615"/> <transportConnector name=”stomp+nio+ssl" uri=”stomp+nio+ssl://0.0.0.0:61615"/> </transportConnectors>
  • 14. CamelOne 2013 CamelOne Stomp Java Client • StompJMS - https://github.com/fusesource/stompjms • APIs: • JMS • Blocking • Future • Callback 14
  • 15. CamelOne 2013 CamelOne 15 Stomp stomp = new Stomp("localhost", 61613); Future<FutureConnection> future = stomp.connectFuture(); FutureConnection connection = future.await(); CONNECT host:localhost accept-version:1.1 CONNECTED heart-beat:0,0 session:ID:vidra.local-56933-1369046267671-2:1 server:ActiveMQ/5.9-SNAPSHOT version:1.1
  • 16. CamelOne 2013 CamelOne 16 StompFrame frame = new StompFrame(SEND); frame.addHeader(DESTINATION, StompFrame.encodeHeader("/queue/test")); frame.addHeader(MESSAGE_ID, StompFrame.encodeHeader("test")); frame.content(new Buffer("Important Message".getBytes("UTF-8"))); Future<Void> sendFuture = connection.send(frame); sendFuture.await(); SEND message-id:test destination:/queue/test content-length:17 Important Message
  • 17. CamelOne 2013 CamelOne 17 StompFrame disconnect = new StompFrame(DISCONNECT); Future<Void> disconnectFuture = connection.send(disconnect); disconnectFuture.await(); DISCONNECT
  • 18. CamelOne 2013 CamelOne 18 Stomp stomp = new Stomp("localhost", 61613); Future<FutureConnection> future = stomp.connectFuture(); FutureConnection connection = future.await(); CONNECT host:localhost accept-version:1.1 CONNECTED heart-beat:0,0 session:ID:vidra.local-56933-1369046267671-2:1 server:ActiveMQ/5.9-SNAPSHOT version:1.1
  • 19. CamelOne 2013 CamelOne 19 Future<StompFrame> receiveFuture = connection.receive(); StompFrame frame = new StompFrame(SUBSCRIBE); frame.addHeader(DESTINATION, StompFrame.encodeHeader("/queue/test")); AsciiBuffer id = connection.nextId(); frame.addHeader(ID, id); Future<StompFrame> response = connection.request(frame); response.await(); SUBSCRIBE receipt:2 destination:/queue/test id:1 RECEIPT receipt-id:2
  • 20. CamelOne 2013 CamelOne 20 StompFrame received = receiveFuture.await(); System.out.println(received.content()); MESSAGE message-id:ID:vidra.local-56933-1369046267671-2:1:-1:1:1 destination:/queue/test timestamp:1369046474700 expires:0 subscription:1 content-length:17 priority:4 Important Message
  • 21. CamelOne 2013 CamelOne 21 StompFrame unsubscribe = new StompFrame(UNSUBSCRIBE); unsubscribe.addHeader(ID, id); Future<Void> unsubscribeFuture = connection.send(unsubscribe); unsubscribeFuture.await(); UNSUBSCRIBE id:1
  • 22. CamelOne 2013 CamelOne 22 StompFrame disconnect = new StompFrame(DISCONNECT); Future<Void> disconnectFuture = connection.send(disconnect); disconnectFuture.await(); DISCONNECT
  • 23. CamelOne 2013 CamelOne Advanced Stomp • Ack modes • Transactions • Reliable messaging • Protocol Negotiations • Heart-beating 23
  • 24. CamelOne 2013 CamelOne Stomp and ActiveMQ • Queues and Topics • Reliable Messaging • Temporary destinations • Durable topic subscribers • Destination wildcards • Message selectors 24
  • 25. CamelOne 2013 CamelOne Stomp and ActiveMQ • Message expiration • Composite destinations • Priority consumers • Exclusive consumers 25
  • 26. CamelOne 2013 CamelOne In-browser Messaging • Use JavaScript to produce and consume messages directly from the browser • We need to leverage existing web technologies like Ajax and Web Sockets • We need a web server that’s able to communicate with the broker 26
  • 27. CamelOne 2013 CamelOne Ajax • Old-school way • Comes bundled with ActiveMQ distribution 27
  • 28. CamelOne 2013 CamelOne Ajax – explained • Requires additional servlet as an intermediary between broker and clients • POST to send messages • Jetty continuations to receive messages 28
  • 29. CamelOne 2013 CamelOne Ajax – Example 29 <script type="text/javascript" src="js/jquery-1.4.2.min.js"></script> <script type="text/javascript" src="js/amq_jquery_adapter.js"></script> <script type="text/javascript" src="js/amq.js"></script> <script type="text/javascript"> var amq = org.activemq.Amq; amq.init({ uri: 'amq', logging: true, timeout: 20 }); </script>
  • 30. CamelOne 2013 CamelOne Ajax – Example 30 amq.sendMessage(”queue://TEST”, “Important Message!”); var myHandler = { rcvMessage: function(message) { console.log(“Received message: ” + message); } }; amq.addListener(“myListener”, “queue://TEST”, myHandler.rcvMessage);
  • 31. CamelOne 2013 CamelOne WebSocket • Evolution over Ajax and Comet • Defines a “socket” – permanent duplex connection – between browser and server • Server and browser can exchange messages 31
  • 32. CamelOne 2013 CamelOne WebSocket • Fully standardized and part of HTML5 spec • Protocol – standardized by IETF • API – standardized by W3C • Supported by most modern web servers and browsers 32
  • 33. CamelOne 2013 CamelOne WebSocket Example 33 var connection = new WebSocket("ws://localhost:8161"); connection.onopen = function() { console.log("Connection opened!"); }; connection.onmessage = function(msg) { console.log("Received Message: " + msg.data); }; connection.onerror = function(error) { console.log("Error occured: " + error); } connection.onclose = function(evt) { console.log("Connection closed!"); }; connection.send("Important Message!"); connection.close();
  • 34. CamelOne 2013 CamelOne WebSocket + ActiveMQ • WebSocket is a plain socket – like a raw TCP • We need a protocol on top of it to use all concepts of messaging and connect to broker • WebSocket+Stomp ideal combination! 34
  • 35. CamelOne 2013 CamelOne WebSocket + ActiveMQ • New ws and wss transports • wss transport needs SSL context configuration 35 <transportConnectors> <transportConnector name="websocket" uri="ws://0.0.0.0:61613"/> <transportConnector name="secure_websocket" uri="wss://0.0.0.0:61614"/> </transportConnectors>
  • 36. CamelOne 2013 CamelOne stomp-websocket • Client side library stomp-websocket • http://github.com/jmesnil/stomp-websocket • Supports Stomp 1.1 • Not a “pure” Stomp as it requires WebSocket handshake 36
  • 37. CamelOne 2013 CamelOne stomp-websocket Example 37 var client = Stomp.client("ws://localhost:61614"); var connected = false; client.connect("admin", "admin", function() { connected = true; client.subscribe("/queue/test", function(message) { console.log("Received message " + message); } }); if (connected) { client.send("/queue/test", {priority: 9}, "Important Message!"); } if (connected) { client.disconnect(); }
  • 38. CamelOne 2013 CamelOne Messaging for Mobile • Different set of requirements • Low bandwidth network • Small footprint • Low power usage 38
  • 39. CamelOne 2013 CamelOne MQTT • http://mqtt.org/ - MQ Telemetry Transport • IoT (Internet of Things) protocol • Efficient binary protocol • Developed by IBM for embedded devices telemetry 39
  • 40. CamelOne 2013 CamelOne MQTT Features • Low bandwidth • Smallest frame 2 bytes • Unreliable networks • Small footprint 40
  • 41. CamelOne 2013 CamelOne MQTT for mobile • Efficient battery usage - Power Profiliing: MQTT on Android - http://stephendnicholas.com/archives/219 • Ideal for native mobile applications • Usecase: Facebook messanger • Phone-to-phone delivery in milliseconds, rather than seconds • Without killing battery life 41
  • 42. CamelOne 2013 CamelOne MQTT • Publish/subscribe protocol – topics only • 3 QoS Options: • At Most Once – message loss might occur • At Least Once – duplicates might occur • Exactly Once – guaranteed delivery 42
  • 43. CamelOne 2013 CamelOne MQTT + ActiveMQ • Available transports • NIO implementation for better scalability • SSL for secure communication 43 <transportConnectors> <transportConnector name=”mqtt" uri=”mqtt://0.0.0.0:1883"/> <transportConnector name=”mqtt+nio" uri=”mqtt+nio://0.0.0.0:1884"/> <transportConnector name=”mqtt+ssl" uri=”mqtt+ssl://0.0.0.0:1885"/> <transportConnector name=”mqtt+nio+ssl" uri=”mqtt+nio+ssl://0.0.0.0:1886"/> </transportConnectors>
  • 44. CamelOne 2013 CamelOne MQTT client • mqtt-client https://github.com/fusesource/mqtt- client • APIs: • Blocking • Callback • Future 44
  • 45. CamelOne 2013 CamelOne MQTT Example 45 MQTT mqtt = new MQTT(); mqtt.setHost("localhost", 1883); final CallbackConnection connection = mqtt.callbackConnection();
  • 46. CamelOne 2013 CamelOne MQTT Example 46 connection.connect(new Callback<Void>() { public void onSuccess(Void value) { connection.publish("test", "Important Message!".getBytes(), QoS.AT_LEAST_ONCE, false, null ); } public void onFailure(Throwable value) { connection.disconnect(null); } });
  • 47. CamelOne 2013 CamelOne MQTT Example 47 final Promise<Buffer> result = new Promise<Buffer>(); connection.listener(new Listener() { public void onConnected() {} public void onDisconnected() {} public void onPublish(UTF8Buffer topic, Buffer body, Runnable ack) { result.onSuccess(body); ack.run(); } public void onFailure(Throwable value) { result.onFailure(value); connection.disconnect(null); } }); LOG.info("Received: " + result.await(5, TimeUnit.MINUTES));
  • 48. CamelOne 2013 CamelOne MQTT Example 48 connection.connect(new Callback<Void>() { public void onSuccess(Void aVoid) { Topic[] topics = { new Topic(utf8("test"), QoS.AT_LEAST_ONCE) }; connection.subscribe(topics, null); } public void onFailure(Throwable value) { connection.disconnect(null); } });
  • 49. CamelOne 2013 CamelOne MQTT Android Example • https://github.com/jsherman1/android-mqtt- demo/ 49
  • 50. CamelOne 2013 CamelOne Striking the Balance • Lots of possibilities, how to choose right? • Native mobile apps should consider MQTT • Do you need live updates in your browser? • WebSockets ideal for HTML5 apps with limited number of users that needs instant update • For everyone else, there's backend messaging 50
  • 51. CamelOne 2013 CamelOne Stomp pitfall • Short-lived connections • Every page view, open a new connection to the broker • Puts heavy load on the broker • Eliminates all advance messaging mechanisms – message prefetches, producer flow control, etc. 51
  • 52. CamelOne 2013 CamelOne Stomp configuration 52 <destinationPolicy> <policyMap> <policyEntries> <policyEntry queue=">" producerFlowControl="false"> </policyEntry> </policyEntries> </policyMap> </destinationPolicy> <transportConnectors> <transportConnector name="stomp+nio" uri="stomp+nio://0.0.0.0:61613?transport.closeAsync=false"/> </transportConnectors>
  • 53. CamelOne 2013 CamelOne Conclusion • Messaging is not the thing of the enterprise anymore • Things want to get integrated • We have technology to do that TODAY! 53
  • 54. CamelOne 2013 CamelOne AMA • Links • Stomp - http://stomp.github.com • https://github.com/fusesource/stompjms • MQTT – http://mqtt.org • https://github.com/fusesource/mqtt-client • Blog: http://sensatic.net • Twitter: http://twitter.com/dejanb 54
