- 1. Jeremy Lee Shireen Kheradpey PeterIshiguro Hsin-Chiao “Frank” Lin AUTOMATED BLOOD SAMPLE DEPLOYMENT AND RETRACTION FOR ACOUSTIC RHEOMETER Detailed Design Review ME BME & ME ME ME | | | |

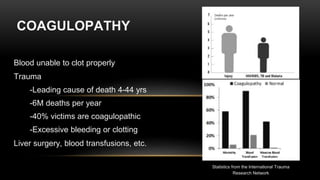

- 2. COAGULOPATHY Blood unable toclot properly Trauma -Leading cause of death 4-44 yrs -6M deaths per year -40% victims are coagulopathic -Excessive bleeding or clotting Liver surgery, blood transfusions, etc. Statistics from the International Trauma Research Network
- 3. CURRENT SOLUTIONS Mechanical Rheometers -Contactcontamination -Large sample: 0.36mL -Qualitative not quantitative -Time consuming -No characterization of healthy blood

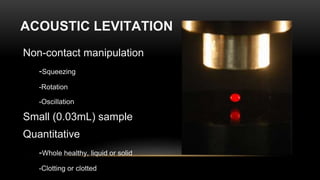

- 4. Non-contact manipulation -Squeezing -Rotation -Oscillation Small (0.03mL)sample Quantitative -Whole healthy, liquid or solid -Clotting or clotted ACOUSTIC LEVITATION
- 5. PROPOSED SOLUTION 𝐅 ∝𝐕𝐝𝐫𝐨𝐩 𝛚𝛁𝐏𝐳(𝛒𝐜) 𝐅𝐠𝐫𝐚𝐯𝐢𝐭𝐲 𝐅𝐚𝐜𝐨𝐮𝐬𝐭𝐢𝐜 = 𝟏

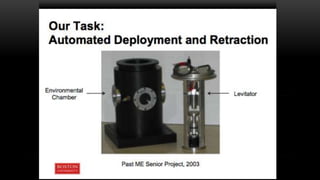

- 6. THE PROBLEM: MANUALDEPLOYMENT Design an automated device to deploy a sample if known volume into an acoustic levitation field with minimal sample contact, instrumentation contamination, or human handling.

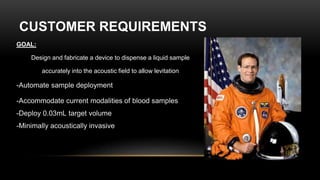

- 7. CUSTOMER REQUIREMENTS GOAL: Design andfabricate a device to dispense a liquid sample accurately into the acoustic field to allow levitation -Automate sample deployment -Accommodate current modalities of blood samples -Deploy 0.03mL target volume -Minimally acoustically invasive

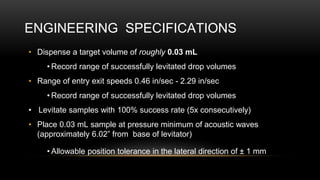

- 8. ENGINEERING SPECIFICATIONS • Dispensea target volume of roughly 0.03 mL • Record range of successfully levitated drop volumes • Range of entry exit speeds 0.46 in/sec - 2.29 in/sec • Record range of successfully levitated drop volumes • Levitate samples with 100% success rate (5x consecutively) • Place 0.03 mL sample at pressure minimum of acoustic waves (approximately 6.02” from base of levitator) • Allowable position tolerance in the lateral direction of ± 1 mm
- 9. Automated Sample Deployment Prototype Deployment System HoldsSyringe Accepts Liquid Releases Syringe Deploys Liquid Entry/Exit System Moves into Acoustic Field Wait for Liquid Deployment Exit Acoustic Field Retrieval System Removes Sample Safely Adjusts Angle

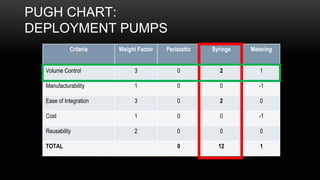

- 10. Criteria Weight FactorPeristaltic Syringe Metering Volume Control 3 0 2 1 Manufacturability 1 0 0 -1 Ease of Integration 3 0 2 0 Cost 1 0 0 -1 Reusability 2 0 0 0 TOTAL 0 12 1 PUGH CHART: DEPLOYMENT PUMPS

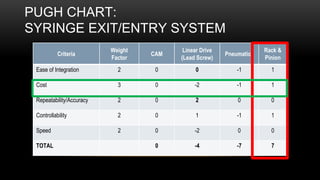

- 11. PUGH CHART: SYRINGE EXIT/ENTRYSYSTEM Criteria Weight Factor CAM Linear Drive (Lead Screw) Pneumatics Rack & Pinion Ease of Integration 2 0 0 -1 1 Cost 3 0 -2 -1 1 Repeatability/Accuracy 2 0 2 0 0 Controllability 2 0 1 -1 1 Speed 2 0 -2 0 0 TOTAL 0 -4 -7 7

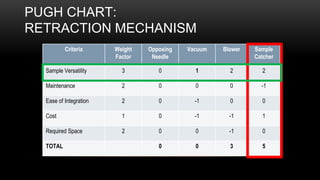

- 12. Criteria Weight Factor Opposing Needle Vacuum BlowerSample Catcher Sample Versatility 3 0 1 2 2 Maintenance 2 0 0 0 -1 Ease of Integration 2 0 -1 0 0 Cost 1 0 -1 -1 1 Required Space 2 0 0 -1 0 TOTAL 0 0 3 5 PUGH CHART: RETRACTION MECHANISM

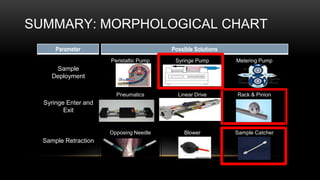

- 13. Parameter Possible Solutions Sample Deployment PeristalticPump Syringe Pump Metering Pump Syringe Enter and Exit Pneumatics Linear Drive Rack & Pinion Sample Retraction Opposing Needle Blower Sample Catcher SUMMARY: MORPHOLOGICAL CHART

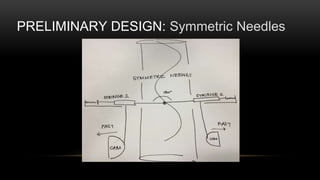

- 14.

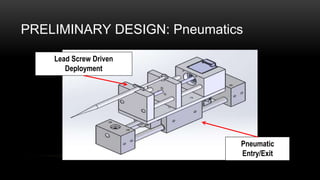

- 15. PRELIMINARY DESIGN: Pneumatics LeadScrew Driven Deployment Pneumatic Entry/Exit

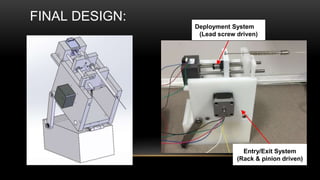

- 16. FINAL DESIGN: sAM Deployment System (Leadscrew driven) Entry/Exit System (Rack & pinion driven)

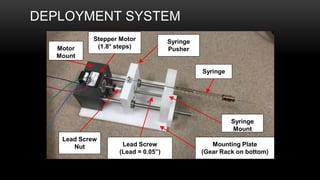

- 17. DEPLOYMENT SYSTEM Syringe Syringe Pusher Stepper Motor (1.8°steps) Syringe Mount Motor Mount Mounting Plate (Gear Rack on bottom) Lead Screw (Lead = 0.05”) Lead Screw Nut
- 18.

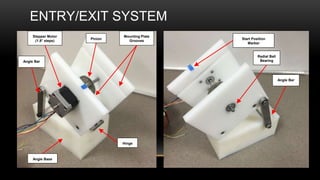

- 19. ENTRY/EXIT SYSTEM Stepper Motor (1.8°steps) Angle Base Mounting Plate Grooves Angle Bar Hinge Pinion Angle Bar Radial Ball Bearing Start Position Marker
- 20.

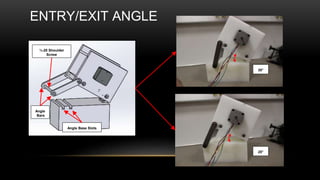

- 21. ENTRY/EXIT ANGLE ¼-20 Shoulder Screw AngleBase Slots Angle Bars 30° 25°
- 22.

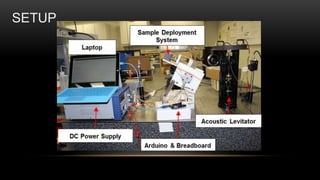

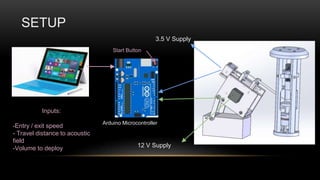

- 23. SETUP 3.5 V Supply 12V Supply Arduino Microcontroller Inputs: -Entry / exit speed - Travel distance to acoustic field -Volume to deploy Start Button
- 24.

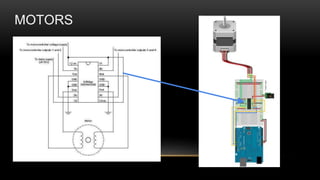

- 25.

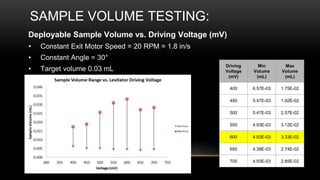

- 26. SAMPLE VOLUME TESTING: DeployableSample Volume vs. Driving Voltage (mV) • Constant Exit Motor Speed = 20 RPM = 1.8 in/s • Constant Angle = 30° • Target volume 0.03 mL Driving Voltage (mV) Min Volume (mL) Max Volume (mL) 400 6.57E-03 1.75E-02 450 5.47E-03 1.92E-02 500 5.47E-03 2.57E-02 550 4.93E-03 3.12E-02 600 4.93E-03 3.33E-02 650 4.38E-03 2.74E-02 700 4.93E-03 2.85E-02

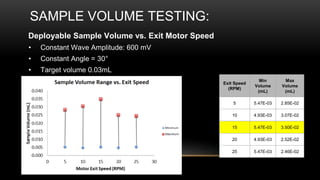

- 27. SAMPLE VOLUME TESTING: DeployableSample Volume vs. Exit Motor Speed • Constant Wave Amplitude: 600 mV • Constant Angle = 30° • Target volume 0.03mL Exit Speed (RPM) Min Volume (mL) Max Volume (mL) 5 5.47E-03 2.85E-02 10 4.93E-03 3.07E-02 15 5.47E-03 3.50E-02 20 4.93E-03 2.52E-02 25 5.47E-03 2.46E-02

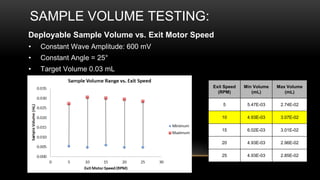

- 28. SAMPLE VOLUME TESTING: DeployableSample Volume vs. Exit Motor Speed • Constant Wave Amplitude: 600 mV • Constant Angle = 25° • Target Volume 0.03 mL Exit Speed (RPM) Min Volume (mL) Max Volume (mL) 5 5.47E-03 2.74E-02 10 4.93E-03 3.07E-02 15 6.02E-03 3.01E-02 20 4.93E-03 2.96E-02 25 4.93E-03 2.85E-02

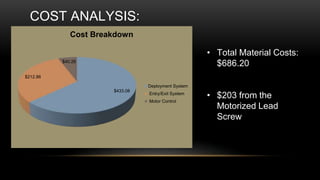

- 29. COST ANALYSIS: $433.08 $212.86 $40.26 Cost Breakdown DeploymentSystem Entry/Exit System Motor Control • Total Material Costs: $686.20 • $203 from the Motorized Lead Screw

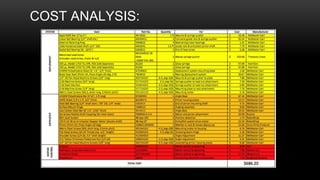

- 30. MATERIAL COST ANALYSIS: MaterialCost per Unit Based on Number Produced
- 31. Costs were calculatedusing machining time, plus an additional hour for assembly, a rate of $16/hr for a machinist. MANUFACTURING COST ANALYSIS:

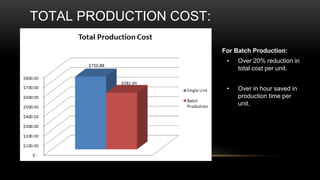

- 32. For Batch Production: •Over 20% reduction in total cost per unit. • Over in hour saved in production time per unit. TOTAL PRODUCTION COST:
- 33. GANTT CHART Last Day toMachine Prototype Assembled Finished Machining Started Machining First Successful Levitation First Successful Deployment
- 34. REDESIGN Rotation point aboutneedle tip Angle adjustment without changing tip position Height Adjustment Rather than moving base & syringe Integrate ¼-20 Holes Mounting Miniaturize Fit into environmental port Match Motors Allow single power source, decrease wire connections Retraction System Sample catcher LabView User Interface Position Calibration Homing limit switch
- 35. Sponsors ACKNOWLEDGEMENTS Project Team • Dr.Glynn Holt, Associate Professor of Mechanical Engineering (Project Lead) • Jarrod Risley • Vahideh Ansari Hosseinzadeh Senior Capstone Guidance • Biomedical: Dr. Catherine Klapperich, Dr. Michael Smith, Dr. Thomas Szabo • Mechanical: Dr. Enrique Gutierrez
- 36.

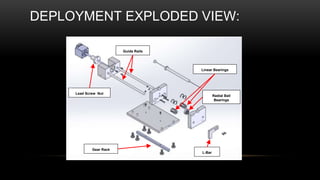

- 38. DEPLOYMENT EXPLODED VIEW: GuideRails Lead Screw Nut Linear Bearings Radial Ball Bearings Gear Rack L-Bar

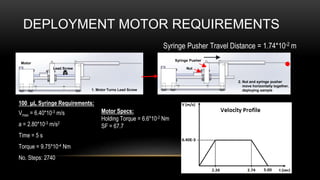

- 39. Motor Specs: Holding Torque= 6.6*10-2 Nm SF = 67.7 100 µL Syringe Requirements: Vmax = 6.40*10-3 m/s a = 2.80*10-3 m/s2 Time = 5 s Torque = 9.75*10-4 Nm No. Steps: 2740 DEPLOYMENT MOTOR REQUIREMENTS Syringe Pusher Travel Distance = 1.74*10-2 m 1. Motor Turns Lead Screw Motor Lead Screw 2. Nut and syringe pusher move horizontally together, deploying sample Nut Syringe Pusher

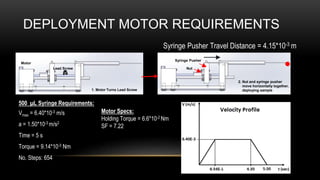

- 40. Motor Specs: Holding Torque= 6.6*10-2 Nm SF = 7.22 500 µL Syringe Requirements: Vmax = 6.40*10-3 m/s a = 1.50*10-3 m/s2 Time = 5 s Torque = 9.14*10-3 Nm No. Steps: 654 DEPLOYMENT MOTOR REQUIREMENTS Syringe Pusher Travel Distance = 4.15*10-3 m 1. Motor Turns Lead Screw Motor Lead Screw 2. Nut and syringe pusher move horizontally together, deploying sample Nut Syringe Pusher
- 41. ENTRY/EXIT EXPLODED VIEW MountingPlate Groove Stepper Motor (1.8° steps) ¼-20 Shoulder Screw Angle Bar Pinion Flexible Coupling Angle Base Hinge Housing Bearing Side Housing Motor Side Radial Ball Bearing Pinion Shaft ¼-20 Nut

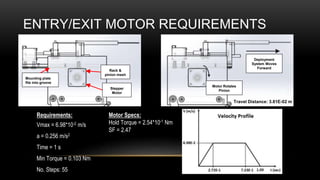

- 42. Mounting plate fits intogroove Rack & pinion mesh Motor Rotates Pinion Deployment System Moves Forward ENTRY/EXIT MOTOR REQUIREMENTS Requirements: Vmax = 6.98*10-2 m/s a = 0.256 m/s2 Time = 1 s Min Torque = 0.103 Nm No. Steps: 55 Motor Specs: Hold Torque = 2.54*10-1 Nm SF = 2.47 Stepper Motor Travel Distance: 3.81E-02 m

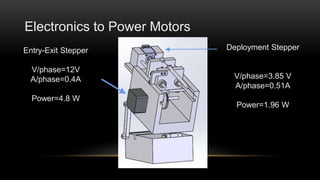

- 43. Electronics to PowerMotors Deployment Stepper V/phase=3.85 V A/phase=0.51A Power=1.96 W Entry-Exit Stepper V/phase=12V A/phase=0.4A Power=4.8 W

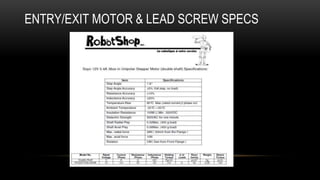

- 44. DEPLOYMENT MOTOR &LEAD SCREW SPECS
- 45. ENTRY/EXIT MOTOR &LEAD SCREW SPECS

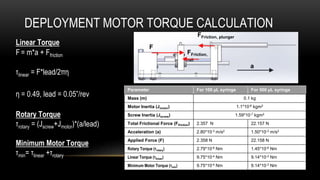

- 46. Linear Torque F =m*a + Ffriction τlinear = F*lead/2πη η = 0.49, lead = 0.05”/rev Rotary Torque τrotary = (Jscrew+Jmotor)*(a/lead) Minimum Motor Torque τmin= τlinear +τrotary DEPLOYMENT MOTOR TORQUE CALCULATION Parameter For 100 µL syringe For 500 µL syringe Mass (m) 0.1 kg Motor Inertia (Jmotor) 1.1*10-6 kgm2 Screw Inertia (Jscrew) 1.59*10-7 kgm2 Total Frictional Force (Ffriction) 2.357 N 22.157 N Acceleration (a) 2.80*10-3 m/s2 1.50*10-3 m/s2 Applied Force (F) 2.358 N 22.158 N Rotary Torque (τrotary) 2.79*10-6 Nm 1.45*10-6 Nm Linear Torque (τlinear) 9.75*10-4 Nm 9.14*10-3 Nm Minimum Motor Torque (τmin) 9.75*10-4 Nm 9.14*10-3 Nm F FFriction, rail FFriction, plunger a

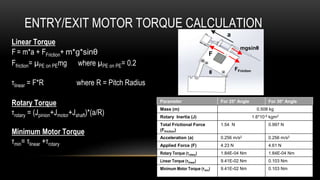

- 47. 30° Linear Torque F =m*a + FFriction+ m*g*sinθ Ffriction= µPE on PEmg where µPE on PE= 0.2 τlinear = F*R where R = Pitch Radius Rotary Torque τrotary = (Jpinion+Jmotor+Jshaft)*(a/R) Minimum Motor Torque τmin= τlinear +τrotary ENTRY/EXIT MOTOR TORQUE CALCULATION F Parameter For 25° Angle For 30° Angle Mass (m) 0.508 kg Rotary Inertia (J) 1.6*10-5 kgm2 Total Frictional Force (Ffriction) 1.54 N 0.997 N Acceleration (a) 0.256 m/s2 0.256 m/s2 Applied Force (F) 4.23 N 4.61 N Rotary Torque (τrotary) 1.84E-04 Nm 1.84E-04 Nm Linear Torque (τlinear) 9.41E-02 Nm 0.103 Nm Minimum Motor Torque (τmin) 9.41E-02 Nm 0.103 Nm a mgsinθ θ
- 48.

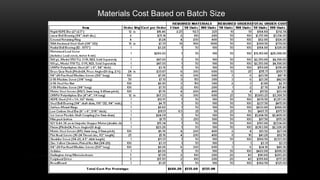

- 49. Materials Cost Basedon Batch Size

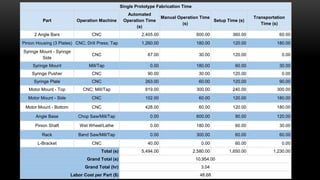

- 50. Single Prototype FabricationTime Part Operation Machine Automated Operation Time (s) Manual Operation Time (s) Setup Time (s) Transportation Time (s) 2 Angle Bars CNC 2,405.00 600.00 360.00 60.00 Pinion Housing (3 Plates) CNC; Drill Press; Tap 1,260.00 180.00 120.00 180.00 Syringe Mount - Syringe Side CNC 87.00 30.00 120.00 0.00 Syringe Mount Mill/Tap 0.00 180.00 60.00 30.00 Syringe Pusher CNC 90.00 30.00 120.00 0.00 Syringe Plate CNC 263.00 60.00 120.00 90.00 Motor Mount - Top CNC; Mill/Tap 819.00 300.00 240.00 300.00 Motor Mount - Side CNC 102.00 60.00 120.00 180.00 Motor Mount - Bottom CNC 428.00 60.00 120.00 180.00 Angle Base Chop Saw/Mill/Tap 0.00 600.00 90.00 120.00 Pinion Shaft Wet Wheel/Lathe 0.00 180.00 60.00 30.00 Rack Band Saw/Mill/Tap 0.00 300.00 60.00 60.00 L-Bracket CNC 40.00 0.00 60.00 0.00 Total (s) 5,494.00 2,580.00 1,650.00 1,230.00 Grand Total (s) 10,954.00 Grand Total (hr) 3.04 Labor Cost per Part ($) 48.68

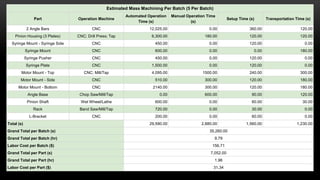

- 51. Estimated Mass MachiningPer Batch (5 Per Batch) Part Operation Machine Automated Operation Time (s) Manual Operation Time (s) Setup Time (s) Transportation Time (s) 2 Angle Bars CNC 12,025.00 0.00 360.00 120.00 Pinion Housing (3 Plates) CNC; Drill Press; Tap 6,300.00 180.00 120.00 120.00 Syringe Mount - Syringe Side CNC 450.00 0.00 120.00 0.00 Syringe Mount CNC 600.00 0.00 0.00 180.00 Syringe Pusher CNC 450.00 0.00 120.00 0.00 Syringe Plate CNC 1,500.00 0.00 120.00 0.00 Motor Mount - Top CNC; Mill/Tap 4,095.00 1500.00 240.00 300.00 Motor Mount - Side CNC 510.00 300.00 120.00 180.00 Motor Mount - Bottom CNC 2140.00 300.00 120.00 180.00 Angle Base Chop Saw/Mill/Tap 0.00 600.00 90.00 120.00 Pinion Shaft Wet Wheel/Lathe 600.00 0.00 60.00 30.00 Rack Band Saw/Mill/Tap 720.00 0.00 30.00 0.00 L-Bracket CNC 200.00 0.00 60.00 0.00 Total (s) 29,590.00 2,880.00 1,560.00 1,230.00 Grand Total per Batch (s) 35,260.00 Grand Total per Batch (hr) 9.79 Labor Cost per Batch ($) 156.71 Grand Total per Part (s) 7,052.00 Grand Total per Part (hr) 1.96 Labor Cost per Part ($) 31.34

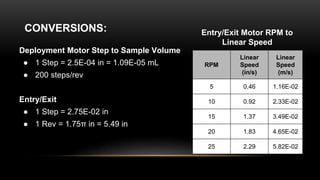

- 52. CONVERSIONS: Deployment Motor Stepto Sample Volume ● 1 Step = 2.5E-04 in = 1.09E-05 mL ● 200 steps/rev Entry/Exit ● 1 Step = 2.75E-02 in ● 1 Rev = 1.75π in = 5.49 in RPM Linear Speed (in/s) Linear Speed (m/s) 5 0.46 1.16E-02 10 0.92 2.33E-02 15 1.37 3.49E-02 20 1.83 4.65E-02 25 2.29 5.82E-02 Entry/Exit Motor RPM to Linear Speed
