1. How to Calculate the Maximum
Distance of LOS Coverage in
known Tx Height
By Justin MA
Created: 2015_0524 Updated: 2015_0525

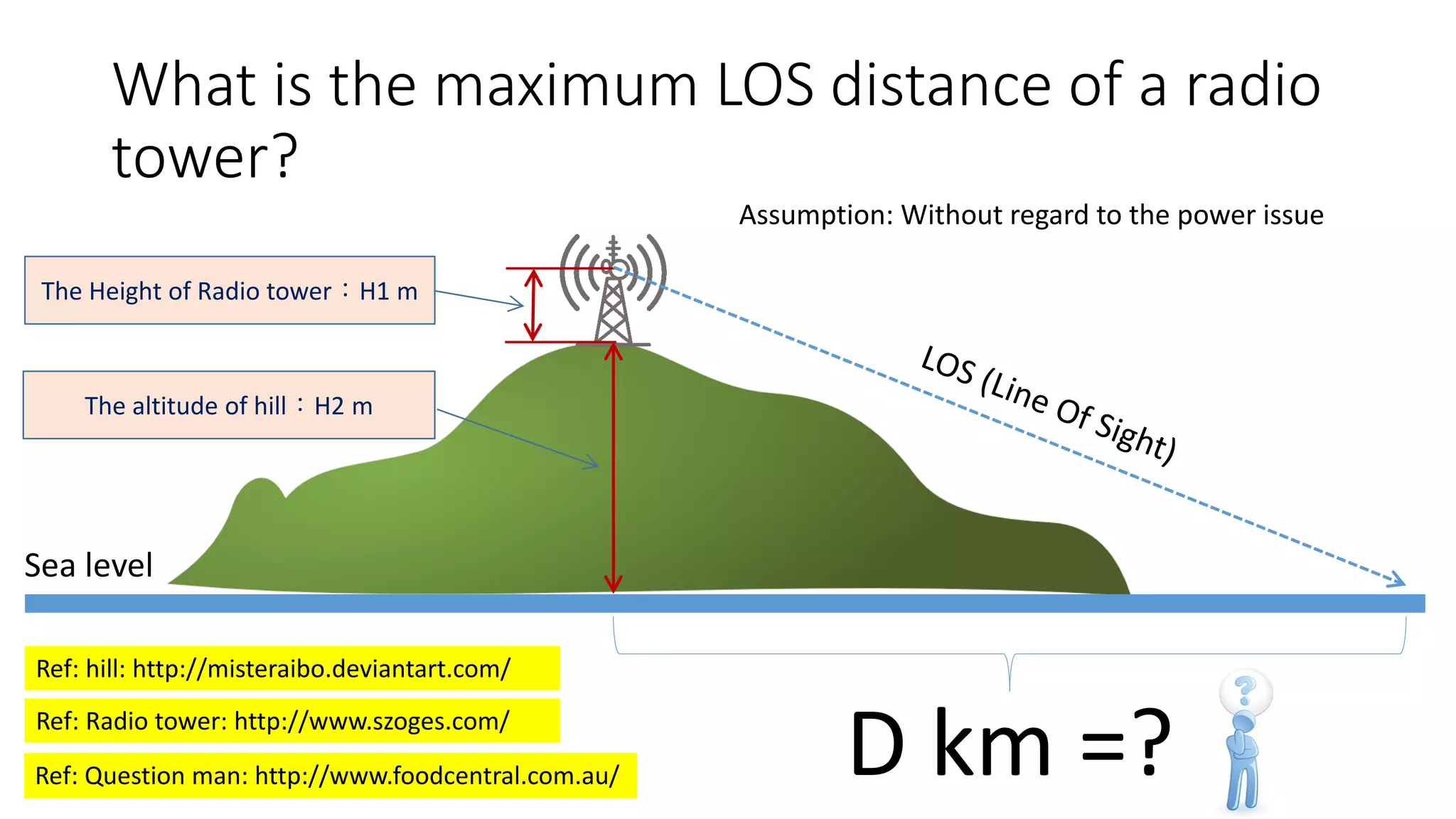

2. What is the maximum LOS distance of a radio
tower?
Ref: hill: http://misteraibo.deviantart.com/
Ref: Radio tower: http://www.szoges.com/
The Height of Radio tower：H1 m
The altitude of hill：H2 m
Sea level
D km =?Ref: Question man: http://www.foodcentral.com.au/
Assumption: Without regard to the power issue

3. Assumptions
• Transmission is isotropic.
• There is no limitation of transmission power.
• Only focusing on the LOS coverage.
So, what is the
limitation now?
Ref: Question man: http://www.foodcentral.com.au/

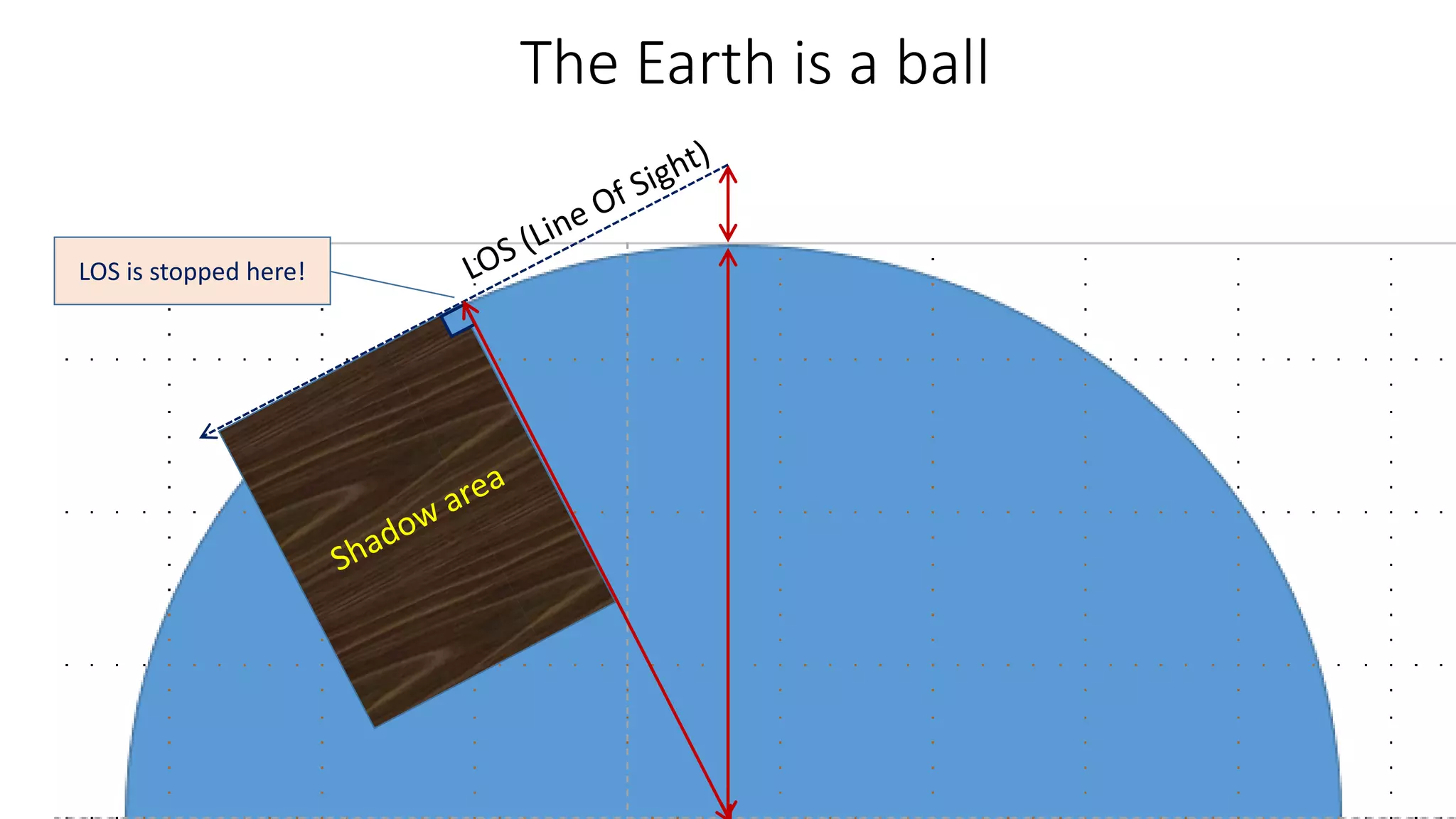

4. LOS is stopped here!
The Earth is a ball

5. Descriptions
• The earth surface is round.
• The LOS of ray will travel until it touch-down the farest point on the
earth surface.
So, let’s calculate it now!

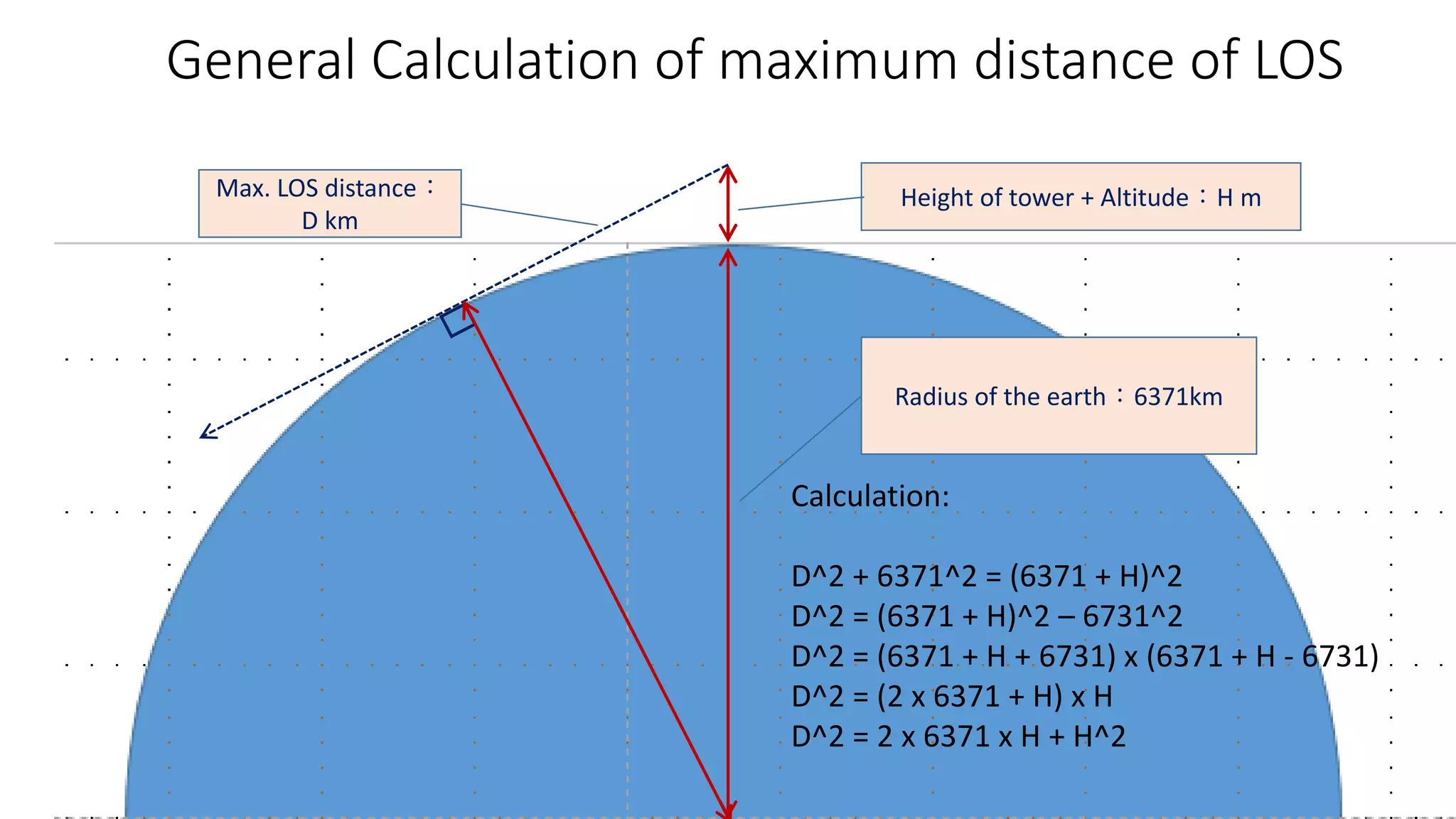

6. Radius of the earth：6371km
Height of tower + Altitude：H mMax. LOS distance：
D km
Calculation:
D^2 + 6371^2 = (6371 + H)^2
D^2 = (6371 + H)^2 – 6731^2
D^2 = (6371 + H + 6731) x (6371 + H - 6731)
D^2 = (2 x 6371 + H) x H
D^2 = 2 x 6371 x H + H^2
General Calculation of maximum distance of LOS

7. Example:
What if Tx is on top of Taipei 101

8. The Altitude of Taipei 101: 508m
Ref: http://zh.wikipedia.org/
Taipei 101

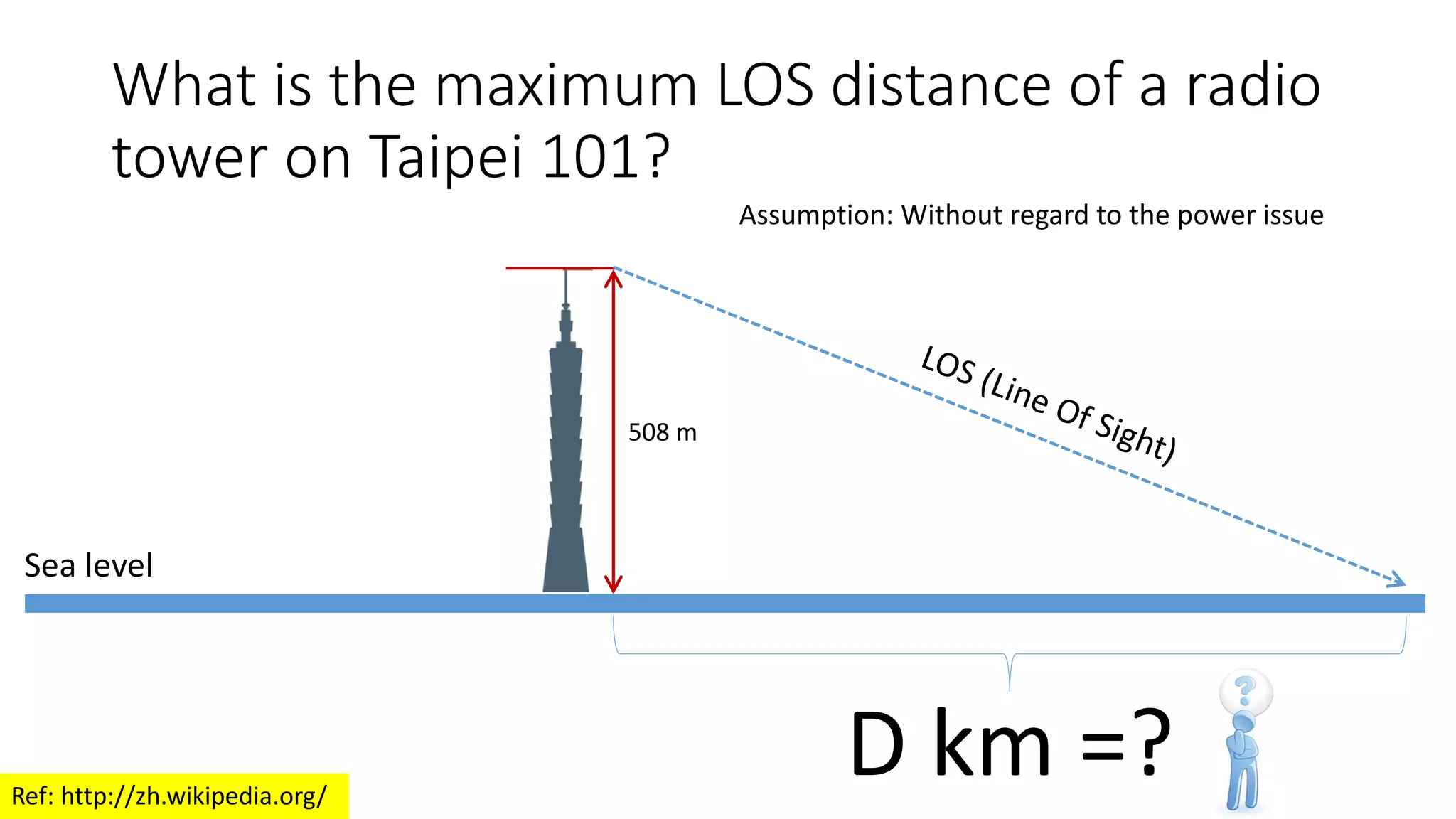

9. What is the maximum LOS distance of a radio
tower on Taipei 101?
Sea level
D km =?
Assumption: Without regard to the power issue
Ref: http://zh.wikipedia.org/
508 m

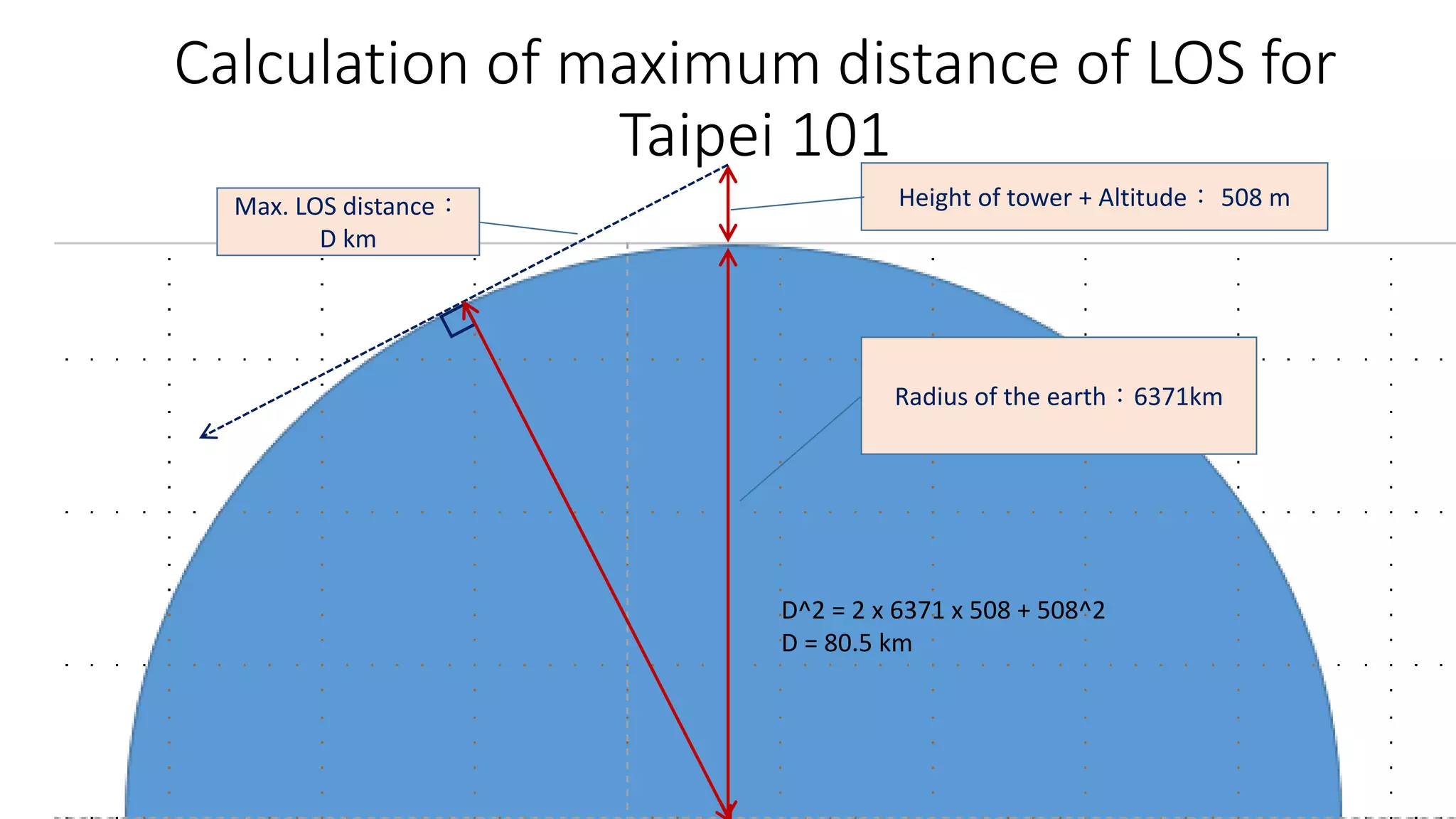

10. Height of tower + Altitude： 508 m
D^2 = 2 x 6371 x 508 + 508^2
D = 80.5 km
Calculation of maximum distance of LOS for
Taipei 101
Max. LOS distance：
D km
Radius of the earth：6371km

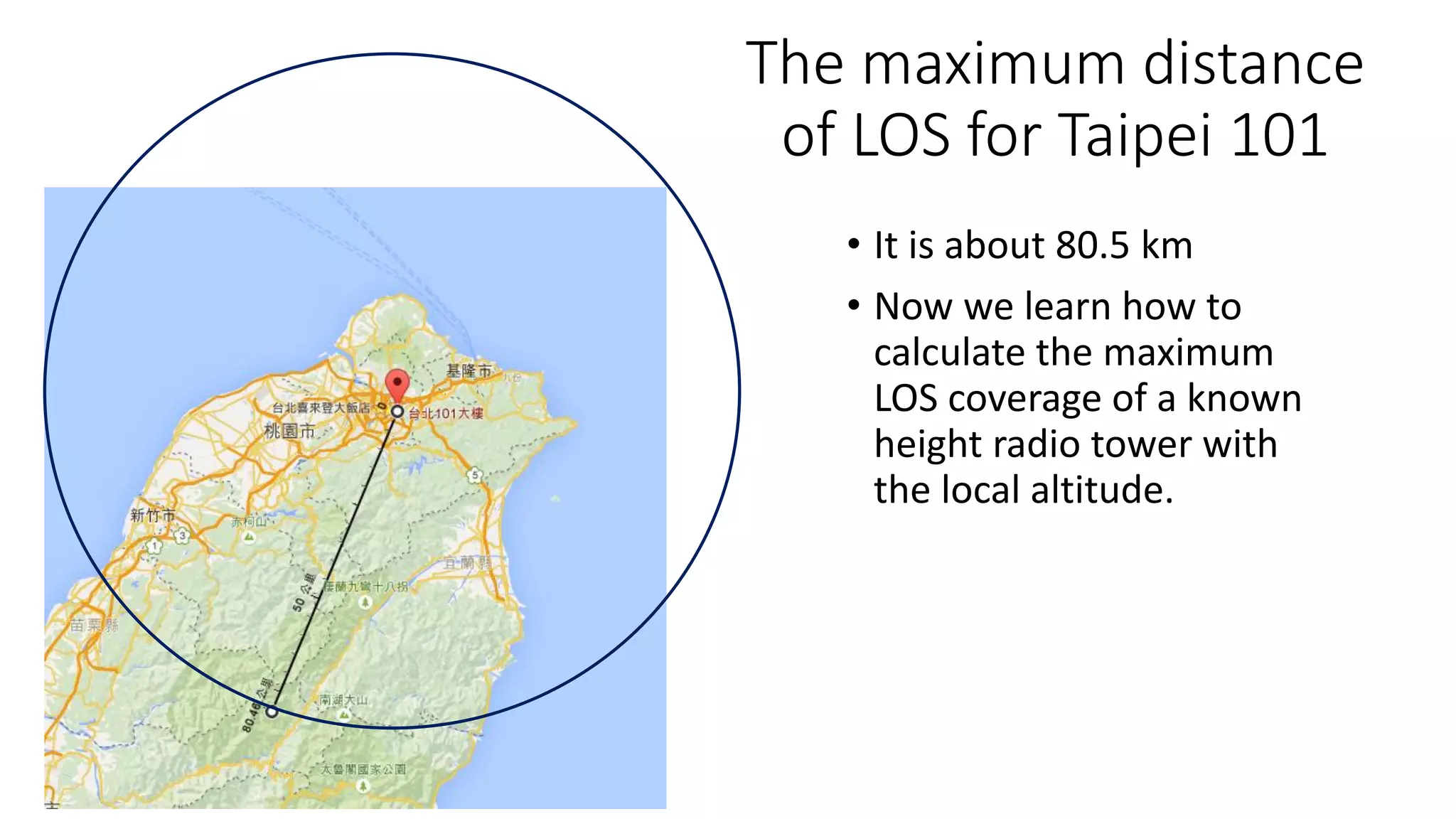

11. The maximum distance
of LOS for Taipei 101
• It is about 80.5 km
• Now we learn how to
calculate the maximum
LOS coverage of a known
height radio tower with
the local altitude.
